Build a Computationally Efﬁcient Strong Defense Against Adversarial

Example Attacks

Changwei Liu, Louis DiValentin, Aolin Ding and Malek Ben Salem

Accenture Cyber Labs, 1201 Wilson Blvd, Arlington, VA, U.S.A.

Keywords:

Adversarial Example Attack, Input Transformation Ensembles, Adversarial Example Defense.

Abstract:

Input transformation techniques have been proposed to defend against adversarial example attacks in image-

classiﬁcation systems. However, recent works have shown that, although input transformations and augmen-

tations to adversarial samples can prevent unsophisticated adversarial example attacks, adaptive attackers can

modify their optimization functions to subvert these defenses. Previous research, especially BaRT (Raff et al.,

2019), has suggested building a strong defense by stochastically combining a large number of even individually

weak defenses into a single barrage of randomized transformations, which subsequently increases the cost of

searching the input space to levels that are not easily computationally feasible for adaptive attacks. While this

research took approaches to randomly select input transformations that have different transformation effects

to form a strong defense, a thorough evaluation of using well-known state-of-the-art attacks with extensive

combinations has not been performed. Therefore, it is still unclear whether employing a large barrage of

randomly combined input transformations ensures a robust defense. To answer these questions, we evaluated

BaRT work by using a large number (33) of input transformation techniques. Contrary to BaRT’s recommen-

dation of using ﬁve randomly combined input transformations, our ﬁndings indicate that this approach does

not consistently provide robust defense against strong attacks like the PGD attack. As an improvement, we

identify different combinations that only use three strong input transformations but can still provide a resilient

defense.

1 INTRODUCTION

Machine learning (ML) models, including deep neu-

ral networks (DNN), have been successfully applied

to a wide range of computer vision tasks (Zhang et al.,

2018; Ding et al., 2021; Tang et al., 2020; Ding et al.,

2023a; Zang et al., 2022; Ma et al., 2023; Liu et al.,

2020). Given the ubiquity of machine learning appli-

cations, the security aspects of machine learning mod-

els have become increasingly important (Tang et al.,

2024). However, studies have shown that attackers

can use adversarial examples, the samples of input

data slightly modiﬁed using an optimization proce-

dure, to cause the misclassiﬁcation of machine learn-

ing models (Szegedy et al., 2013). This raises serious

concerns about the security of machine learning mod-

els in many real-world applications (Ding, 2022).

Developing strong defenses against adversarial

examples has been an important topic. While many

other techniques exist, a current focus is on model-

agnostic techniques, aiming to remove the adversarial

input perturbations from the input through different

(a) Original.

(b) One input

transformation.

transformations.

Figure 1: An sample image (a) from ImageNet that shows

the semantic value of the image will drop when more input

transformation techniques are applied to the image (b & c).

techniques of transforming the input (we call it in-

put transformation in this paper) (Guo et al., 2017).

Researchers have not only explored the robustness of

different single input transformation techniques, but

also proposed to use the ensemble of input transfor-

mations that can provide a stronger defense. Raff et

al. (Raff et al., 2019) showed that a computationally

stronger defense can be built by stochastically com-

bining a large number of individually input transfor-

mation defenses to form a series of input transfor-

mation ensembles, even defeating some adaptive at-

358

Liu, C., DiValentin, L., Ding, A. and Ben Salem, M.

Build a Computationally Efﬁcient Strong Defense Against Adversarial Example Attacks.

DOI: 10.5220/0012315500003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 358-365

ISBN: 978-989-758-683-5; ISSN: 2184-4356

tacks by increasing the computational cost of success-

ful adversarial examples to infeasible levels. How-

ever, this method has several drawbacks. First, it

trades off an increased inference run-time for clas-

siﬁcation accuracy as each additional transformation

is added to the ensemble. Second, it provides no

guarantee that the current transformation combina-

tion is effective against a strong attack such as EoT

attacks (Sitawarin et al., 2022). Third, as shown in

Figure 1, the semantic value of an image dramatically

changes when multiple input transformations are used

upon the image. We have also seen the research ef-

forts that aim to improve the model robustness us-

ing adversarial training (Tang et al., 2022). How-

ever, adversarial training is not computationally ef-

ﬁcient on large and complex datasets, and the model

robustness is not effective for larger image perturba-

tions (Shafahi et al., 2020). Using input transforma-

tion ensembles against adversarial examples remains

an effective method to enterprise users, because it can

easily be introduced into a Machine Learning as a

Service (MLaaS) pipeline without large architectural

changes (Ding et al., 2023b).

To assess the effectiveness of diverse input trans-

formation ensembles in enhancing defense capabil-

ities while minimizing computational expenses and

preserving image semantics, we collected 33 input

transformation techniques published recently. Sub-

sequently, we conducted a comprehensive evaluation

of these ensembles, following the methodology out-

lined in BaRT, pinpointing those ensembles that de-

liver robust defense at a reduced number of transfor-

mations. The attacks we used to assess input trans-

formations and their ensembles include both state-

of-the-art white-box attacks and adaptive attacks de-

signed to evade input transformation techniques.

Overall, our contributions are as follows:

• We rigorously assessed the effectiveness and ro-

bustness of 33 input transformation techniques

proposed in recent studies. This evaluation in-

volves testing their performance against various

adversarial examples generated through white-

box and adaptive attacks on CIFAR-10 and Im-

ageNet image datasets.

• We designed and implemented an automated

framework to empirically evaluate BaRT’s ap-

proach, which advocates for building a robust de-

fense strategy by using a barrage of randomly

combined input transformation techniques.

• We analyzed the effectiveness of each combina-

tion of transformations and advanced the work by

providing insights and recommendations for con-

structing a computationally efﬁcient but strong

defense against adversarial examples. Our contri-

bution is using three strong input transformation

ensembles.

The rest of the paper is organized as follows. Sec-

tion 2 provides background knowledge and related

work. Section 3 outlines the implementation of code

and the experimental setup used to evaluate input

transformations against adversarial examples. In Sec-

tion 4, we present our analysis of experimental results

and engage in a discussion on how we established a

computationally efﬁcient but strong defense by iden-

tifying ensembles comprising three robust input trans-

formations. Section 5 concludes the paper.

2 BACKGROUND KNOWLEDGE

AND RELATED WORK

This section provides the background knowledge and

related work of adversarial examples and input trans-

formations.

2.1 Adversarial Examples

Adversarial examples are inputs algorithmically gen-

erated by attackers’ applying small but intentionally

worst-case perturbations to examples from an image

dataset, so that a machine learning model can mis-

classify the perturbed images. Existing adversarial

attacks can be categorized into white-box and black-

box attacks. While, in a white-box attack, an adver-

sary has full knowledge of the target model, including

the model architecture and parameters, in a black-box

attack, the adversary can only resort to query accesses

to generate adversarial samples. In addition, a white-

box attack is considered an adaptive attack if the at-

tacker is aware of the defense methods and adapts the

attack accordingly (He et al., 2017).

Adversarial examples can be targeted and untar-

geted. While The targeted attacks are the attacks

misguiding the model to a particular class other than

the true class, the untargeted attacks are the attacks

misguiding the model to predict any of the incorrect

classes. Besides, there are four distance metrics, L

, L

, or L

∞

, denoting how close an adversarial ex-

ample needs to be to the original image so that it can

keep its semantic value to “fool” a human observer.

2.2 Existing Methods for Generating

Adversarial Examples

(Szegedy et al., 2013) discovered that machine learn-

ing models are vulnerable to adversarial examples,

Build a Computationally Efﬁcient Strong Defense Against Adversarial Example Attacks

359

other researchers have extensively studied the ap-

proaches to generating adversarial examples. Good-

fellow et al. proposed a Fast Gradient Sign Method

(FGSM), a typical one-step attack algorithm to inject

noise into a benign image to cause input misclassi-

ﬁcation. (Kurakin et al., 2018) extended FGSM to

a multi-step attack algorithm named as Basic Itera-

tive Method (BIM) by applying FGSM multiple times

with a small step size and clipping pixel values of

the intermediate results after each step. As a vari-

ant of BIM, (Madry et al., 2017) proposed to con-

strain the adversarial perturbations by projecting the

adversarial sample learned from each iteration into

the L

∞

ε-neighbood of a benign sample. All three at-

tacks, FGSM, BIM and PGD, are untargeted attacks.

To achieve a speciﬁc targeted adversarial goal, (Pa-

pernot et al., 2016) proposed using Jacobian Saliency

Map Approach (JSMA) to compute a direct mapping

from the input to the output. This approach uses L

form and is a targeted attack. Using L

, L

and L

∞

norms, Carlini and Wagner introduced three gradient

descent based targeted attacks that have more effec-

tive adversarial success rates than previously known

adversarial attacks (Carlini and Wagner, 2017b). All

the above attacks are white-box attacks, which rely

on detailed model information including the gradient

of the loss with regard to the input. To have an at-

tack that is applicable to real-world black-box mod-

els, Brendel et al. proposed a computationally expen-

sive decision-based adversarial attack (Brendel et al.,

2017), in which the algorithm starts from an adver-

sarial example x

adv

, and then performs random walks

toward the boundary between the adversarial and non-

adversarial images such that the distance L is mini-

mized.

2.3 Input Transformation Techniques

and Related Work

Defense against adversarial attacks is broadly clas-

siﬁed into proactive (e.g., adversarial training, addi-

tional regularization) and reactive (e.g., input trans-

formation, gradient masking) methods. While proac-

tive defenses enhance DNN model robustness, reac-

tive defenses identify adversarial examples in model

inputs (Wang et al., 2020). As a reactive defense

method, input transformations exploit the observa-

tion that small transformations to adversarial attack

inputs can often recover the desired classiﬁcation. Be-

cause they are relatively easy to be introduced into

machine learning pipelines without large architectural

changes, input transformations are appealing as a so-

lution to adversarial examples.

Researchers proposed different input transforma-

tion techniques against adversarial examples. Feature

squeezing, including color bit depth reduction and

spatial smoothing, was suggested by Xu et al. (Xu

et al., 2017) to detect adversarial examples. Xie

et al. (Xie et al., 2017) used random padding that

pads zeros around the input images to defend against

adversarial examples. (Prakash et al., 2018) com-

bined two novel techniques, including pixel deﬂec-

tion that randomly replaces some pixels with selected

pixels from a small neighborhood and adaptive soft-

thresholding that smooths adversarially-perturbed im-

ages, to reduce the effects of attacks. (Luo and Pﬁster,

2018) constructed a Variational Autoencoder(VAE)

that maps a high-dimensional feature vector to a

lower-dimensional latent vector and then incorporates

randomness before mapping it back to the original

feature space to defeat adversarial examples.

Many of these defenses have subsequently been

broken by adaptive attacks in the white-box threat

models. These methods include incorporating the

input transformation defense into the adversary’s

search procedure (Carlini and Wagner, 2017a) or ap-

proximating the obfuscated gradients that have been

masked to make it hard for the adversary to gen-

erate an adversarial example (Athalye et al., 2018).

Even for those defenses used in conjunction with each

other, (He et al., 2017) argued that two combined de-

fenses still have a large search space to ﬁnd an ad-

versarial example that ﬁts the adaptive constraints. To

enhance the robustness of defenses, Raff et al. showed

it is possible to construct a “computationally” strong

defense if the number of single input transformation

defenses is large and the combination is created in a

randomized fashion (RT defense) (Raff et al., 2019).

However, this method comes at a cost of an increased

runtime and dramatically changes the image’s seman-

tic value as the number of the combined input trans-

formations is suggested larger than 4. Also, Sitawarin

et al. (Sitawarin et al., 2022) argued that the adap-

tive attack, Backward Pass Differentiable Approxima-

tion (BPDA), used to test the RT defense in Raff’s

work (Raff et al., 2019) is not sufﬁciently strong.

Thus, the RT defense composed of 5 input transfor-

mations, as suggested in (Raff et al., 2019) does not

necessarily provide a good defense against a strong

start-of-the-art attack.

3 EXPERIMENTAL SETUP

In this section, we describe our experimental setup

for evaluating the BaRT’s approach of using random

input transformation ensembles to construct a strong

defense.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

360

Table 1: The 33 Input Transformations in 9 Groups.

Group Input Transformation Abbreviation in Our Experiements (Section 4)

Color precision reduction Color reduction color reduction

Noise injection

JPEG, Gaussian, Poisson, jpeg, noise gaussian, noise poisson,

Speckle, Salt, Pepper and Salt, Pepper noise speckle, noise salt, noise sp, noise pepper

Swirl Swirl swirl

Fast Fourier Transform FFT Perturbation fft

(FFT) perturbation

Zoom Random zoom, Random padding, Seam Carving expansion rescale, padding, seam

Color space HSV, XYZ, LAB, YUV hsv, xyz, lab, yuv

Contrast

Histogram equalization, equalize,

Adaptive histogram equalization, Contrast stretching adap equalize, contrast stretch

Grey scale

Grey scale mix, Grey scale partial mix, grey mix, grey partial,

2/3 grey scale mix, One channel partial grey greyscale, onechannel

Denoising

JPEG compression, Gaussian blur, Median ﬁlter, jpeg bart, gaussian blur, medianﬁlter,

Mean ﬁlter, Mean bilateral ﬁlter, Chambolle denoising, mean ﬁlter, mean bi ﬁlter, chambolle,

Wavelet denoising, No-local means denoising, Wiener ﬁlter wavelet ran, nonlocal mean ran, wiener ﬁlter

Table 2: Strong and Weak Input Transformations for FGSM and Carlini/Wagner on CIFAR-10.

Attack

Defense Effectivess

4 Selected Transformations

FGSM

Strong

wiener ﬁlter, mean ﬁlter, medianﬁlter, chambolle

Weak

color reduction, lab, mean bi ﬁlter, yuv

Carlini/Wagner

Strong

chambolle, mean ﬁlter, medianﬁlter, padding

Weak

color reduction, lab, yuv, nonlocal mean ran denoising

3.1 Adversarial Attacks

We chose a variety of adversarial example attacks to

generate adversarial examples. They are Fast Gra-

dient Sign Method (FGSM) (untargted, L

∞

), Pro-

jected Gradient Descent (PGD) (untargeted, L

∞

Carlini/Wagner Attacks (targeted, L

, L

∞

), and

BPDA, which include not only the common baseline

attacks, but also the benchmark attacks such as the

BPDA attack used in BaRT.

3.2 A Large Collection of Input

Transformation Techniques

Our objective is to assess the effectiveness of BaRT’s

approach (Raff et al., 2019), and develop efﬁcient yet

robust input transformation ensembles tailored for en-

terprise users. To achieve this, we have gathered and

implemented 33 input transformations, encompass-

ing all techniques employed in BaRT. These trans-

formations were categorized into nine groups, as de-

tailed in Table 1, using (1) reducing the bit depth

of each color pixel, (2) introducing noise, (3) rotat-

ing pixels, (4) perturbing images, (5) resizing and

padding, (6) adding random constant values, (7) en-

hancing contrast, (8) transforming RGB-colored im-

ages to grayscale, and (9) eliminating semantically ir-

relevant regions in images, to defend against adver-

sarial examples.

3.3 Program Implementation and

Experimental Environment

Dataset and Model. We chose to use CIFAR-10 and

ImageNet, and pre-train deep neural network (DNN)

model architectures, Carlini for CIFAR-10 and Incep-

tionV3 for ImageNet, to evaluate the effectiveness of

each input transformation ensemble against the ad-

versarial examples. The mean conﬁdence of the two

DNN models in predictions on legitimate examples

are 77.96% and 76.276% respectively.

Adversarial Example Generation Methods.

We leveraged the code from cleverhans, Madry

Lab (PGD-Attack, ), Carlini nn robust attacks (Ro-

bustML, ) to implement the attack approaches

described in 3.1. Speciﬁcally, we implemented white

box attacks FGSM with ε = 0.01, 0.05, 0.1, PGD

∞

, Carlini/Wagner L

∞

with target = next, and

BPDA.

Input Transformation Implementation. We imple-

mented all input transformation methods by using

Python and standard imports including numpy and

skimage from Python libraries. All transformation

functions take an array of size 32 ×32× 3 for CIFAR-

10 images and size 299 × 299 × 3 for ImageNet im-

ages as input.

Detection Method. We adopted the detection method

mentioned in (Xu et al., 2017) to evaluate the effec-

tiveness of input transformations and their ensembles

Build a Computationally Efﬁcient Strong Defense Against Adversarial Example Attacks

361

against the adversarial examples. The key idea is to

compare the pre-trained ML model’s prediction on an

original input example with its prediction on the trans-

formed input example. If the transformed input pro-

duces a substantially different output from the origi-

nal input, the system classiﬁes the input image as an

adversarial example.

Experiment Environment. We conducted our ex-

periments on a NVIDIA DGX-1 server featuring 8

P100 GPU accelerators, dual socket Intel Xeon CPUs

(512GB DDR4-2133 RAM), and four 100Gb Inﬁni-

Band network interface cards.

4 COMPUTATIONALLY

EFFICIENT BUT STRONG

DEFENSE CONSTRUCTION

In this section, we show a thorough analysis of the de-

tection rates obtained from our experiments, and dis-

cuss how we utilize the analysis results to construct a

computationally efﬁcient defense.

4.1 Initial Observation of the

Experiment Results

As the ﬁrst step of our experiment, we evaluated the

detection rates of the following input transformations

and their ensembles against both pre-trained models

as mentioned in 3.3.

1. Each of the 33 input transformation techniques.

2. The ensembles of any two of the 33 input trans-

formations.

3. The ensembles of any ﬁve of the 33 input transfor-

mations. Each of them is randomly chosen from

ﬁve different groups.

We have executed the program on numerous oc-

casions, accumulating a substantial dataset that com-

prised 48,000 detection rates. Our analysis shows:

1. The same input transformation technique provides

different detection rates against different attacks.

2. A small number of transformations, such as adap-

tive histogram equalization, are stronger than

many other transformations, which provide strong

defenses against most attacks.

3. Most ensembles of input transformations provide

stronger defenses as the number of input transfor-

mations increases. However, it is not always true

that an ensemble composed of more input trans-

formations (a longer ensemble) certainly provides

a stronger defense than ensembles composed of

fewer input transformations (a shorter ensem-

ble). Many shorter ensembles provide stronger

defenses than some longer ensembles.

4. PGD attack is a stronger attack than BPDA that

was used as a strong attack in the BaRT paper.

In our testing, where we subjected input trans-

formation ensembles to PGD L

∞

attack on a pre-

trained Inception V3 model, 9% of them exhibited

a detection rate of 0, while 32% had a detection

rate below 50%. Notably, certain ensembles with

such low detection rates were constructed using

ﬁve or more transformations (i.e. JPEG compres-

sion, FFT Perturbation, YUV, Gaussian, Color

Reduction). This underscores that employ an in-

put transformation ensemble, as outlined in BaRT,

does not inherently ensure a robust defense.

4.2 A Further Analysis of the Input

Transformation Ensembles

We further reﬁned our experiment to delve into con-

structing a defense that is both computationally efﬁ-

cient and robust.

In this phase, we employed two types of attacks–

FGSM ( ε = 0.01, 0.05, 0.1) and Carlini/Wagner (L

∞

with target = next)– on the pre-trained Carlini model

for defense analysis. Initially, each of the 33 input

transformations underwent 100 iterations against the

two attacks. The four strongest and weakest defenses

(detailed in Table 2) were selected from the results.

Subsequently, we combined these defenses in various

ways—pairing strong with strong, weak with weak,

strong with weak, three strong, and two strong with

one weak—and tested them against the two attacks.

Our key ﬁndings include: (1) Ensembles outperform

individual transformations in detection rates; (2) Two

strong ensembles surpass both two weak ensembles

and mixed strong-weak ensembles; (3) The order of

strong and weak transformations in an ensemble af-

fects the detection rate minimally; (4) Ensembles with

three strong transformations exhibit the strongest de-

fenses; (5) Once an ensemble is sufﬁciently strong,

adding another strong or weak transformation yields

marginal improvement in detection rates.

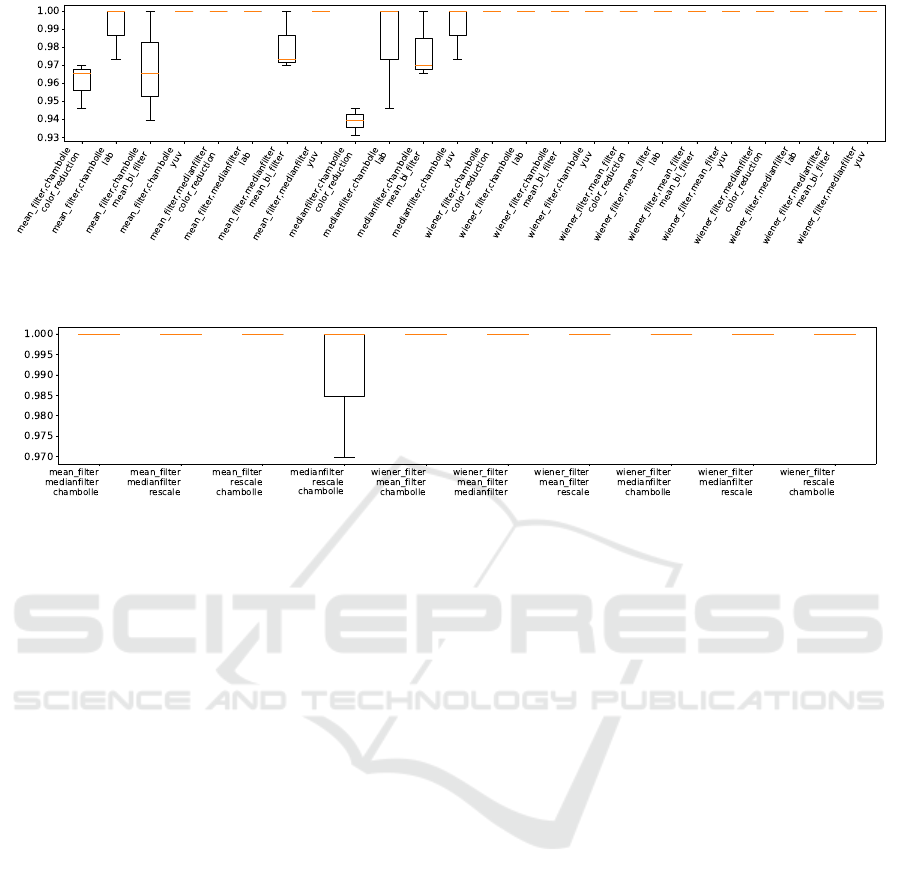

Our analysis is presented with sample results in

Table 3, 4, 5 and Figure 2 and 3. Table 3 dis-

plays detection rates for random combinations of any

two of the four strong defenses. Table 4 shows de-

tection rates for random combinations of any two of

the four weak defenses. Table 5 illustrates the de-

tection rates for combinations of one weak and one

strong defense. By comparing the ”Lowest,” ”Aver-

age,” and ”Highest” rows in these tables, it’s evident

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

362

Table 3: Detection Rates of Combining Two High Detection Rate Input Transformations against FGSM Attack on Carlini.

chambolle

mean ﬁlter

chambolle

medianﬁlter

chambolle

wiener ﬁlter

mean ﬁlter

medianﬁlter

mean ﬁlter

wiener ﬁlter

medianﬁlter

wiener ﬁlter

Lowest 0.9189 0.9189 1.0000 0.9394 1.0000 1.0000

Average 0.9531 0.9477 1.0000 0.9857 1.0000 1.0000

Highest 0.9697 0.9697 1.0000 1.0000 1.0000 1.0000

Table 4: Detection Rates of Combining Two Low Detection Rate Input Transformations against FGSM Attack on Carlini.

color reduction

lab

color reduction

mean bi ﬁlter

color reduction

yuv

lab

mean bi ﬁlter

lab

yuv

mean bi ﬁlter

yuv

Lowest 0.2703 0.2414 0.3448 0.3333 0.3448 0.3333

Average 0.3036 0.3502 0.3873 0.3899 0.3795 0.4208

Highest 0.3243 0.4324 0.4595 0.4483 0.4483 0.5135

Table 5: Detection Rates of Combining One Low and One High Detection Rate Input Transformations against FGSM Attack

on Carlini Model.

color reduction

chambolle

color reduction

mean ﬁlter

color reduction

medianﬁlter

color reduction

wiener ﬁlter

lab

chambolle

lab

mean ﬁlter

lab

medianﬁlter

lab

wiener ﬁlter

Lowest 0.8788 0.9394 0.9091 0.9394 0.6970 0.9394 0.9091 0.9310

Average 0.9195 0.9567 0.9386 0.9446 0.8399 0.9628 0.9325 0.9377

Highest 0.9394 0.9697 0.9697 0.9655 0.9394 0.9697 0.9697 0.9394

Table 6: Computational Cost for Input Transformation Samples.

Model Dataset Attack

Input Transformation

Color

Reduction

JPEG

Compression

Swirl

Ensemble of

the left three

Carlini CIFAR10 FGSM with ε= 0.1 0.00070116s 0.00161086s 0.00140541s 0.00371743s

Carlini CIFAR10 PGD 0.00073265s 0.00168865s 0.001410549s 0.00383185s

Inception V3 ImageNet PGD 0.01312977s 0.07952243s 0.045536399s 0.13818860s

that the two strong input transformation ensembles

in Table 3 offer stronger defenses than those in Ta-

ble 4 (two weak ensembles) and Table 5 (mixed weak

and strong ensembles). Figure 2 depicts sample de-

tection rates for combinations of two strong and one

weak input transformation, and Figure 3 shows sam-

ple detection rates for combinations of three strong

input transformations (to include more results, in ad-

dition to using the four strong input transformations

in Table 2, we added one more strong input trans-

formation,“rescale”, and used box plots to show the

detection rates). Notably, Figure 2 reveals that com-

binations of two strong and one weak input transfor-

mation techniques have higher detection rates than

corresponding subsets of two strong ones in Table 3.

However, they exhibit weaker defenses than the three

strong input transformation ensembles shown in Fig-

ure 3.

To construct computationally efﬁcient input trans-

formation ensembles, we assessed the computational

cost (i.e., run time) of each input transformation and

their ensembles. Table 6 highlights that the compu-

tational expense for the same input transformations,

when used against attacks in the ImageNet dataset, is

signiﬁcantly higher compared to those in the CIFAR-

10 dataset. Additionally, the computational time of

an ensemble rises with the number of input trans-

formations. Our analysis indicates the computational

time is primarily inﬂuenced by image size, the trained

model, and the number of the input transformations.

Speciﬁcally, applying an input transformation tech-

nique to an ImageNet image takes longer than ap-

plying it to a CIFAR-10 image. Furthermore, a more

extensive input transformation ensemble on the same

image incurs higher computational costs, given the

sequential execution of each transformation function.

Importantly, the computational time for each transfor-

mation among our 33 collected techniques, applied to

the same dataset and pre-trained model, exhibits min-

imal variation.

4.3 Sample Computational Efﬁcient but

Strong Defense

Based on the preceding analysis, we draw the con-

clusion that ensembles consisting of three strong im-

age input transformations effectively balance compu-

tational efﬁciency with robust defense. To verify this

Build a Computationally Efﬁcient Strong Defense Against Adversarial Example Attacks

363

Figure 2: Detection Rates of Three Combined Input Transformations with Two High and One Low Detection Rates against

FGSM Attack on Carlini Model.

Figure 3: Detection Rates of Three Combined Input Transformations with High Detection Rates against FGSM Attack on

Carlini Model.

conclusion, we conducted additional experiments,

initially testing all three input transformation ensem-

bles derived from the ﬁve selected strong transforma-

tions (including ”rescale” and the other four listed

in Table 2) against various FGSM, Carli/Wagner,

and PGD attacks on the pre-trained Carlini model.

Among the 70 results, only 5 instances involving three

ensembles demonstrated detection rates between 96%

and 98%, while all others achieved a 100% detec-

tion rate. We replicated these experiments on Im-

ageNet with pre-trained Inception V3 and ResNet-

50 models, obtaining similar results. This reafﬁrms

that ensembles comprising three strong input trans-

formations provide robust defenses (nearly 100% de-

tection rate) against state-of-the-art adversarial exam-

ples. In contrast to using ensembles of ﬁve random

input transformations as proposed in the BaRT paper,

which may not consistently achieve high detection

rates (some falling below 50%, as discussed in sec-

tion 4.1) and involves longer computational time, our

method ensures a strong defense with reduced com-

putational cost and enhanced semantic value.

5 CONCLUSION

In this work, we assess the effectiveness of using input

transformation ensembles to defend against state-of-

the-art adversarial attacks. To comprehensively eval-

uate the widely held belief that an extensive barrage

of input transformations ensures robust defense, we

collected 33 input transformation techniques covering

nearly all known methods. We systematically tested

these techniques in various ensembles against state-

of-the-art attacks—FGSM, PGD, Carlin/Wagner, and

BPDA—considered the strongest benchmark attack,

on both CIFAR-10 and ImageNet datasets. Our ﬁnd-

ings reveal two key insights: (1) PGD emerges as

the strongest attack among state-of-the-art adversar-

ial examples; (2) a large ensemble, as proposed in

BaRT (ﬁve transformations), does not guarantee ro-

bust defense. Instead, our experiments demonstrate

that three strong input transformation ensembles of-

fer a computationally efﬁcient yet strong defense.

REFERENCES

Athalye, A., Carlini, N., and Wagner, D. (2018). Obfus-

cated gradients give a false sense of security: Circum-

venting defenses to adversarial examples. In Inter-

national conference on machine learning, pages 274–

283. PMLR.

Brendel, W., Rauber, J., and Bethge, M. (2017). Decision-

based adversarial attacks: Reliable attacks against

black-box machine learning models. arXiv preprint

arXiv:1712.04248.

Carlini, N. and Wagner, D. (2017a). Adversarial examples

are not easily detected: Bypassing ten detection meth-

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

364

ods. In Proceedings of the 10th ACM workshop on

artiﬁcial intelligence and security, pages 3–14.

Carlini, N. and Wagner, D. (2017b). Towards evaluating the

robustness of neural networks. In 2017 ieee sympo-

sium on security and privacy (sp), pages 39–57. Ieee.

Ding, A. (2022). Trustworthy Cyber-Physical Systems Via

Physics-Aware and AI-Powered Security. PhD thesis,

Rutgers The State University of New Jersey, School

of Graduate Studies.

Ding, A., Chan, M., Hass, A., Tippenhauer, N. O., Ma, S.,

and Zonouz, S. (2023a). Get your cyber-physical tests

done! data-driven vulnerability assessment of robotic

aerial vehicles. In 2023 53rd Annual IEEE/IFIP In-

ternational Conference on Dependable Systems and

Networks (DSN), pages 67–80. IEEE.

Ding, A., Hass, A., Chan, M., Sehatbakhsh, N., and

Zonouz, S. (2023b). Resource-aware dnn partitioning

for privacy-sensitive edge-cloud systems. In Interna-

tional Conference on Neural Information Processing,

pages 188–201. Springer.

Ding, A., Murthy, P., Garcia, L., Sun, P., Chan, M., and

Zonouz, S. (2021). Mini-me, you complete me! data-

driven drone security via dnn-based approximate com-

puting. In Proceedings of the 24th International Sym-

posium on Research in Attacks, Intrusions and De-

fenses, pages 428–441.

Guo, C., Rana, M., Cisse, M., and Van Der Maaten, L.

(2017). Countering adversarial images using input

transformations. arXiv preprint arXiv:1711.00117.

He, W., Wei, J., Chen, X., Carlini, N., and Song, D. (2017).

Adversarial example defense: Ensembles of weak de-

fenses are not strong. In 11th USENIX workshop on

offensive technologies (WOOT 17).

Kurakin, A., Goodfellow, I. J., and Bengio, S. (2018). Ad-

versarial examples in the physical world. In Artiﬁcial

intelligence safety and security, pages 99–112.

Liu, H., Li, Z., Xie, Y., Jiang, R., Wang, Y., Guo, X., and

Chen, Y. (2020). Livescreen: Video chat liveness

detection leveraging skin reﬂection. In IEEE INFO-

COM 2020-IEEE Conference on Computer Commu-

nications, pages 1083–1092. IEEE.

Luo, Y. and Pﬁster, H. (2018). Adversarial defense of image

classiﬁcation using a variational auto-encoder. arXiv

preprint arXiv:1812.02891.

Ma, X., Karimpour, A., and Wu, Y.-J. (2023). Eliminating

the impacts of trafﬁc volume variation on before and

after studies: a causal inference approach. Journal of

Intelligent Transportation Systems, pages 1–15.

Madry, A., Makelov, A., Schmidt, L., Tsipras, D., and

Vladu, A. (2017). Towards deep learning mod-

els resistant to adversarial attacks. arXiv preprint

arXiv:1706.06083.

Papernot, N., McDaniel, P., Jha, S., Fredrikson, M., Celik,

Z. B., and Swami, A. (2016). The limitations of deep

learning in adversarial settings. In 2016 IEEE Euro-

pean symposium on security and privacy (EuroS&P),

pages 372–387. IEEE.

PGD-Attack. https://github.com/MadryLab/cifar10 chall

enge/blob/master/pgd attack.py.

Prakash, A., Moran, N., Garber, S., DiLillo, A., and Storer,

J. (2018). Deﬂecting adversarial attacks with pixel de-

ﬂection. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 8571–

8580.

Raff, E., Sylvester, J., Forsyth, S., and McLean, M. (2019).

Barrage of random transforms for adversarially robust

defense. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition.

RobustML. https://www.robust-ml.org.

Shafahi, A., Najibi, M., Xu, Z., Dickerson, J., Davis, L. S.,

and Goldstein, T. (2020). Universal adversarial train-

ing. In Proceedings of the AAAI Conference on Artiﬁ-

cial Intelligence, volume 34, pages 5636–5643.

Sitawarin, C., Golan-Strieb, Z. J., and Wagner, D. (2022).

Demystifying the adversarial robustness of random

transformation defenses. In International Conference

on Machine Learning, pages 20232–20252. PMLR.

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Er-

han, D., Goodfellow, I., and Fergus, R. (2013). In-

triguing properties of neural networks. arXiv preprint

arXiv:1312.6199.

Tang, M., Dai, A., DiValentin, L., Ding, A., Hass, A.,

Gong, N. Z., and Chen, Y. Modelguard: Information-

theoretic defense against model extraction attacks.

33rd USENIX Security Symposium (Security 2024).

Tang, M., Zhang, J., Ma, M., DiValentin, L., Ding, A.,

Hassanzadeh, A., Li, H., and Chen, Y. (2022). Fade:

Enabling large-scale federated adversarial training on

resource-constrained edge devices. arXiv preprint

arXiv:2209.03839.

Tang, Z., Feng, X., Xie, Y., Phan, H., Guo, T., Yuan, B., and

Wei, S. (2020). Vvsec: Securing volumetric video

streaming via benign use of adversarial perturbation.

In Proceedings of the 28th ACM International Confer-

ence on Multimedia, pages 3614–3623.

Wang, D., Li, C., Wen, S., Nepal, S., and Xiang, Y. (2020).

Defending against adversarial attack towards deep

neural networks via collaborative multi-task training.

IEEE Transactions on Dependable and Secure Com-

puting, 19(2):953–965.

Xie, C., Wang, J., Zhang, Z., Ren, Z., and Yuille, A. (2017).

Mitigating adversarial effects through randomization.

arXiv preprint arXiv:1711.01991.

Xu, W., Evans, D., and Qi, Y. (2017). Feature squeez-

ing: Detecting adversarial examples in deep neural

networks. arXiv preprint arXiv:1704.01155.

Zang, X., Yin, M., Huang, L., Yu, J., Zonouz, S., and Yuan,

B. (2022). Robot motion planning as video prediction:

A spatio-temporal neural network-based motion plan-

ner. In 2022 IEEE/RSJ International Conference on

Intelligent Robots and Systems (IROS), pages 12492–

12499. IEEE.

Zhang, Z., Qiao, S., Xie, C., Shen, W., Wang, B., and Yuille,

A. L. (2018). Single-shot object detection with en-

riched semantics. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 5813–5821.

Build a Computationally Efﬁcient Strong Defense Against Adversarial Example Attacks

365
