Concept of Automated Testing of Interactions with a Domain-Speciﬁc

Modeling Framework with a Combination of Class and Syntax Diagrams

Vanessa Tietz

and Bjoern Annighoefer

Institute of Aircraft Systems, University of Stuttgart, Pfaffenwaldring 27, Stuttgart, Germany

Keywords:

Domain-Speciﬁc Modeling, Safety-Critical, Avionics, Certiﬁability, Testability.

Abstract:

Domain-speciﬁc modeling (DSM) is a powerful approach for efﬁcient system and software development.

However, its use in safety-critical avionics is still limited due to the rigorous software and system safety re-

quirements. Regardless of whether DSM is used as a development tool or directly in ﬂight software, the

software developer must ensure that no unexpected misbehavior occurs. This has to be proven by deﬁned

certiﬁcation processes. For this reason, DOMAINES, a DSM framework speciﬁcally adapted to the needs

of safety-critical (avionics) systems, is currently being developed. While it is possible to create and process

domain-speciﬁc languages and models, the challenge lies in ensuring that the framework consistently performs

as intended, providing the foundation for certiﬁcation. For this purpose, a novel approach is employed: the

introduction of a meta-meta-modeling language that combines syntax diagrams with a class diagram. This

language serves as a comprehensive reference for the generation of test cases and the formal linking of gram-

mar, meta-modeling language and implementation. This allows the implementation to be tested with every

conceivable command. In addition, mechanisms ensure that this set of commands to be tested is a closed set.

1 INTRODUCTION

Domain-speciﬁc modeling (DSM) enables the efﬁ-

cient development and design of systems as well as

software and is to be considered as state-of-the-art in

many engineering domaines. Avionics is a domain

that has only relied on DSM methods to a small ex-

tent. Here, DSM is mainly used to assist development

processes. The complete development of avionics

systems often fails because DSM tools either have to

be qualiﬁed or the output generated from these tools

has to be veriﬁed and validated in an time-consuming

way. In our previous study (Tietz et al., a), the reasons

for this are analyzed and suggestions are made as to

what a DSM tool would have to look like. Within

our own DSM tool DOMAINES (presented in (Tietz

et al., b)), it is possible to create and edit domain-

speciﬁc languages and domain-speciﬁc models with

simple command line inputs. The proof that this im-

plementation can be used in the safety-critical avion-

ics domain has not yet been provided and is the sub-

ject of this paper. To be allowed to use a tool in a

safety-critical environment such as avionics, it must

https://orcid.org/0000-0002-5942-5893

https://orcid.org/0000-0002-1268-0862

be proven that this tool behaves correctly and that

its output cannot lead to unexpected misbehavior in

ﬂight operations. For this purpose, evidence must be

provided as deﬁned in standards and norms. The ex-

act manner in which this evidence is provided is left

to the discretion of the developer. One conceivable

way to provide this evidence is to confront the frame-

work with every conceivable input and verify that it

behaves as intended. At ﬁrst glance, the set of all

conceivable commands seems inﬁnite. However, by

selecting suitable algorithms, a ﬁltering effect can be

achieved that reduces the number of commands to be

considered and thus enables this approach. The most

effective way is to implement a parser that can deter-

mine, whether a command can proceed or not. This

requires a suitable grammar that contains information

about the implemented meta-modeling language. To

achieve this, a meta-meta modeling language is pro-

posed which combines syntax diagrams with a class

diagram. This new language can serve as a single-

source-of-truth for deriving test cases, and to establish

a formal connection between grammar, model and im-

plementation. One advantage of this approach is that

the grammar and the test cases can be automatically

adapted if the modeling language is changed.

108

Tietz, V. and Annighoefer, B.

Concept of Automated Testing of Interactions with a Domain-Speciﬁc Modeling Framework with a Combination of Class and Syntax Diagrams.

DOI: 10.5220/0012307400003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 108-116

ISBN: 978-989-758-682-8; ISSN: 2184-4348

2 FUNDAMENTALS

2.1 Avionics Software Development

Avionics software always operates within a larger sys-

tem. Aviation standard ARP 4754A (SAE, 2010) out-

lines suitable methods for demonstrating compliance

with airworthiness regulations during aircraft system

development. The process model in ARP 4754A is a

V-model. The software life cycle is divided into a de-

velopment process and a veriﬁcation process, which

are represented by the left and right branches of the

V-model, respectively. In the veriﬁcation process, it

must be tested that the implementation meets deﬁned

requirements. The software’s inﬂuence on aircraft

safety and criticality determines its assigned soft-

ware development assurance level (DAL). The soft-

ware level outlines the objectives and activities of

the software life cycle. At the foundational level of

the avionics software development process resides the

source code. As per DO-178C (referenced by the

ARP 4754A), the source code for DAL C software

must possess the traits of being traceable, veriﬁable,

consistent, and correctly implementing low-level re-

quirements (RTCA, 2011).

2.2 Domain-Speciﬁc Modeling Wording

Due to differing interpretations of terms and levels

within the DSM ﬁeld, a brief explanation of the ter-

minology used will be provided here:

• M0: A real world application.

• M1 - User model: Digital representation of a real

world application.

• M2: Domain-speciﬁc language: Blueprint of a

speciﬁc application enabling the modeling of a

domain-speciﬁc model.

• M3: Meta-modeling language: Language en-

abling the modeling of a domain-speciﬁc lan-

guage. Typically part of a software framework.

• M4: Meta-meta-language: Language of the

meta-language.

3 DOMAINES

With DOMAINES (Domain-Speciﬁc Modeling for

Aircraft and other Environments), we are developing

a domain-speciﬁc modeling framework that is specif-

ically designed for the use in the avionics domain. It

is intended to be used in the systems development, as

well as in ﬂying software. For the purposes of this pa-

per, only the core of DOMAINES remains of interest.

3.1 The DOMAINES Core

The basis of the DOMAINES Core is the simpli-

ﬁed meta MODeling Language (MOD) operating on

M3 level, which is implemented with the program-

ming language Ada in the RUNtime ModelDataBase

(RUNMDB), as depicted in Figure 1. The model in-

teraction, i.e., the creation as well as the editing of

domain-speciﬁc languages and user models is con-

ducted through the interface with the Basic Model

Interaction (BMI) interface. The BMI is part of

a generic interface following the Essential Object

Query (EOQ) formalism (Annighoefer et al., 2021)

which is a model query language. The purpose of

this interface is to translate complex model requests

and model operations (queries) received from other

peripheral technology into BMI suitable commands.

Peripheral technology could be for example a model

transformation engine or a graphical editor.

MODeling Language

(MOD)

EOQ3

Formalism

RUNtime

ModelDataBase

(RUNMDB)

Basic Model

Interaction

(BMI)

Peripheral Technology

Interface

Component

Language

Figure 1: DOMAINES Core.

Our initial step is to ensure that RUNMDB is certi-

ﬁable. For this, the interface between BMI and RUN-

MDB is crucial. Everything that happens from this

interface onwards must be free of unexpected misbe-

havior. This proof must be provided to authorities.

This also means that the interface as well as the RUN-

MDB itself must be designed in such a way that the

required evidence can be provided as easily as possi-

ble.

3.2 Runtime Model Database

(RUNMDB)

The RUNMDB is basically the implementation of

MOD and thus allows to create, edit, read, and delete

elements of models on M2 and M1 level. The struc-

ture of the RUNMDB is depicted in Figure 2.

The elements shown in green are external data

needed for command processing. A command sent

from BMI to RUNMDB is ﬁrst processed by a Parser,

which decides whether a command is valid or not ac-

Concept of Automated Testing of Interactions with a Domain-Speciﬁc Modeling Framework with a Combination of Class and Syntax

Diagrams

109

RUNMDB

LL(1) Parser Lexer

Semantic Checker

CRUD Model Processor

Syntax & Semantic Correct

Commands

LL(1) Grammar

Lookup Table

Modeling

Language

Command

Objects

Command

Objects

Figure 2: Overview RUNMDB.

cording to a given Grammar. The syntactically cor-

rect commands are then decomposed and processed

into command objects in the Lexer. Afterwards,

these commands are checked for semantic correct-

ness using Meta-Modeling Language information in

the Semantic Checker. Subsequently, the expected

set of commands processed in the ModelProcessor

will only comprise semantically and syntactically cor-

rect commands assuming that the Parser and Seman-

tic Checker behave correctly. The ModelProcessor

is solely responsible for processing the commands.

This is the usual functionality that is also covered by

other modeling frameworks such as EMF, GME, or

the Mathworks System Composer. The unique sell-

ing point of our approach is the certiﬁability and thus

the unconditional applicability in the area of safety-

critical (avionics) systems.

4 ON REACHING

CERTIFIABILITY OF RUNMDB

Software certiﬁcation requires demonstration of its

intended functionality and absence of unexpected er-

rors during ﬂight. Since the primary goal is to know

and correctly catch any possible misbehavior, the idea

is to test the behavior of every conceivable command

within the different parts of the RUNMDB. At ﬁrst

glance, this seems an inﬁnite number of commands,

and therefore, impossible. However, by choosing ap-

propriate mechanisms and deﬁnitions, a ﬁltering ef-

fect can be achieved, which can reduce the number of

commands to be considered. This turns an inﬁnite set

of commands to be considered into a signiﬁcantly re-

duced manageable set. In the following, requirements

are formulated for the components in terms of their

testability.

4.1 BMI-RUNMDB Interface

The BMI-RUNMDB interface is responsible for

transmitting commands from the peripherals. Fur-

thermore, the interface deﬁnes the pattern of the com-

mands to be expected. It must be designed in such a

way that the commands

• can be formally deﬁned in order to ease testability.

• have a clear and decomposeable structure.

• can be represented using a closed set.

4.1.1 CRUD Commands

Based on the requirements, the decision was made

to utilize text-based CRUD (Create, Read, Update,

and Delete) commands. They can be formalized

through the use of an (Extended) Backus-Naur Form

((E)BNF). Every CRUD command always has a Tar-

get as ﬁrst element. The Target indicates which el-

ement within a model the command refers to. The

Read and Update commands additionally have a Fea-

ture, specifying the property of an element. To be

able to set values with an Update command a Value

and its Position within a possible list is needed (by

default 1). Since the Features are deﬁned within

the Meta-Modeling Language, this is a closed set of

possibilities. For Target and Position, the closed set

is achieved by the implementation property of static

lists. Only in the case of Value can a closed set not

be assumed across the board. For this, suitable argu-

ments must be found in order to be able to justify that

every conceivable command can be tested.

4.2 Parser

The Parser’s objective is to determine the validity of

an input command. The parser must be designed in

such a way that

• every legal command can be tested.

• every incomplete command can be tested.

• every illegal command can be tested.

When testing it has to be ensured that

• a legal command, is recognized as valid.

• an incomplete command, is recognized as invalid.

• a illegal command, is recognized as invalid.

To meet the requirements, an LL(1) parser was cho-

sen. This is a top-down parser with a look-ahead of

a single-character. Meaning that the decision whether

a command is valid or not depends only on the next

character.

4.3 Lexer

The Lexer decomposes a syntactically correct com-

mand into objects suitable for further processing. For

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

110

the decomposition of the commands it is important

that this proceeds deterministically in order to be able

to generate the original commands from decomposed

objects when testing the behavior.

4.4 Semantic Checker

While the Parser is responsible for checking the syn-

tax of a command, the Semantic Checker is responsi-

ble for checking the correct semantics. The semantic

checks include but are not limit to the checking so that

1. every element addressed is available

2. addressed features are available

3. only editable features can be updated

4. every part operates on the same level

5. feature and value match

6. target and features match

7. that limitations within the implementation are cor-

rectly taken into account

For testing the correct behavior of every semantic

check it has to be ensured that

• the test cases are automatically derivable

• a correlation between the Grammar and the Meta-

Modeling Language exists to enable the possibil-

ity to either have a more complex grammar and

less semantic checks or vice versa.

The goal is to eliminate invalid commands as much as

possible so that as little effort as possible is required

in the ModelProcessor to catch invalid behavior.

4.5 ModelProcessor

The ModelProcessor processes syntactically and se-

mantically correct commands. It performs four differ-

ent model operations, based on the CRUD command

structure: creating elements, updating and reading

model information, and deleting elements. The opera-

tions within the ModelProcessor are time-dependent.

As a result, an inﬁnite number of states must be

checked. Thus, the ModelProcessor must be designed

so that

• the complete behavior can be tested.

• ﬁxed sized lists should be used.

4.6 Problem Statement

As seen in Figure 2, the Grammar and the Meta-

Modeling Language have no origin or relationship to

each other. Since the requirements for testing de-

scribed heavily rely on the Grammar and the Meta-

Modeling Language, a claim about the correct behav-

ior of the RUNMDB can only be formulated once a

formal correlation between the (implemented) Meta-

Modeling Language and the Grammar has been es-

tablished.

The Meta-Modeling Language can be considered

as a requirements document for the implementation

of RUNMDB. The Grammar serves as input to the

parser and thus forms the basis for deciding whether a

command may be processed further or not. The more

restrictive the grammar, the fewer semantic checks

are necessary, resulting in less need for testing pro-

cedures. More restrictiveness within the grammar can

be achieved by including information from the Meta-

Modeling Language. Furthermore, in the area of test-

ing, it is useful to have a single source of truth from

which tests can be automatically derived. A com-

bination of Grammar and Meta-Modeling Language

could represent such a single source of truth. At least

for testing the LL(1) Parser, the Lexer and the Seman-

tic Checker, the test cases can be derived from the

single source of truth, since there are no temporal de-

pendencies between the commands. This allows us to

formulate the following research question:

Is there a way to combine a grammar with a

modeling language to enable ...

• the creation of a strongly restrictive LL(1)

Grammar?

• the introduction of a single source of truth?

• a formal correlation between LL(1) Grammar

and Meta Modeling Language?

5 ESTABLISHING A

RELATIONSHIP BETWEEN

GRAMMAR AND MODEL

Section 4.6 identiﬁed the necessity for a formal cor-

relation of LL(1) grammar and meta-modeling lan-

guage to assist the certiﬁcation process. Since a

context-free grammar can also be represented graph-

ically with syntax diagrams, and modeling languages

are inherently graphical, the idea of combining the

graphical notation of a grammar with a typical class

diagram is a natural idea.

5.1 Syntax Diagrams

A context-free grammar can be represented by several

syntax diagrams (Braz, 1990). A syntax diagram rep-

Concept of Automated Testing of Interactions with a Domain-Speciﬁc Modeling Framework with a Combination of Class and Syntax

Diagrams

111

resents a single production rule of a grammar. An en-

try point can be connected via various paths with ter-

minal and non-terminal symbols to an end point. Ter-

minal symbols are represented by circular boxes and

non-terminal symbols by rectangular boxes. Repeti-

tions of non-terminal symbols are denoted by curved

lines. An example of the representation of a context-

free grammar for the deﬁnition of the Create com-

mand with syntax diagrams is depicted in Figure 3.

1 2 3 4 5 6 7 8 9

<M3_Identifier>

0 1 2 ...

CRT O

...

<...>

<M3_Identifier>

...

<….>

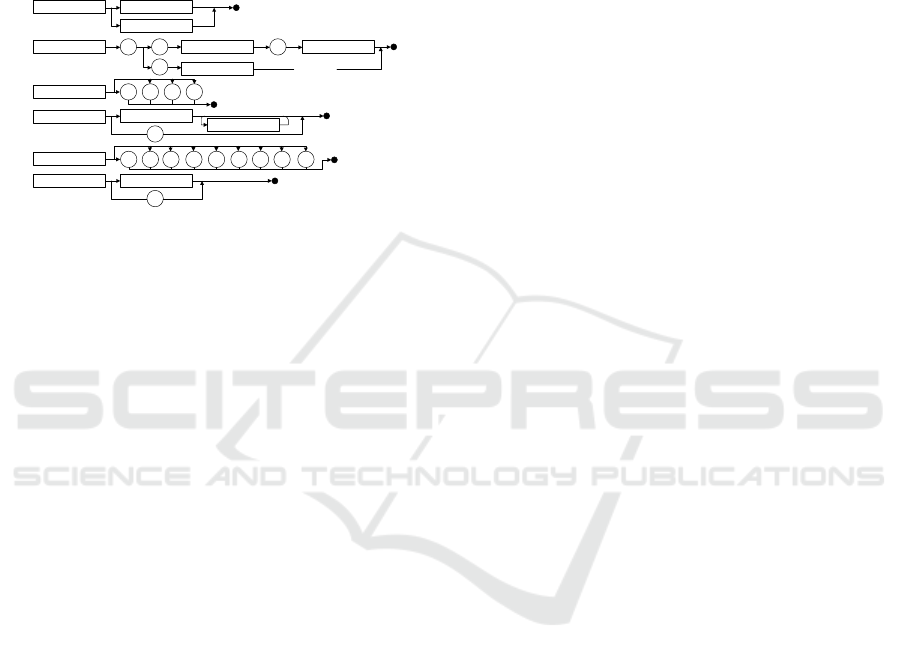

Figure 3: Example of syntax diagrams.

The non-terminal <CRUD> can be created

through the non-terminal <Create> , or other non-

terminals. The the non-terminal <Create> can con-

sist of the terminals ”CRT”, and ”O” and the non-

terminal <Number> followed by the terminal ”.”

and the non-terminal <M3Identiﬁer> . All other syn-

tax diagrams follow the same structure and meaning.

5.2 On Combining Class and Syntax

Diagrams

Within the DOMAINES framework the implemented

meta-modeling language operates on M3 level to en-

able the interaction with models on M2 and M1 level.

The concept of combining a grammar and a meta-

modeling language is essentially to create a common

template for the grammar and the meta-modeling lan-

guage. In the modeling environment, this is usually

achieved by going one meta-level deeper.

To integrate syntax diagrams with a class diagram,

non-terminals are substituted with class elements, vir-

tually as a placeholder for information that is ﬁlled by

the design of the overlying M3 language. To main-

tain their recognizability as placeholders within the

text-based grammar, these classes are denoted by a +

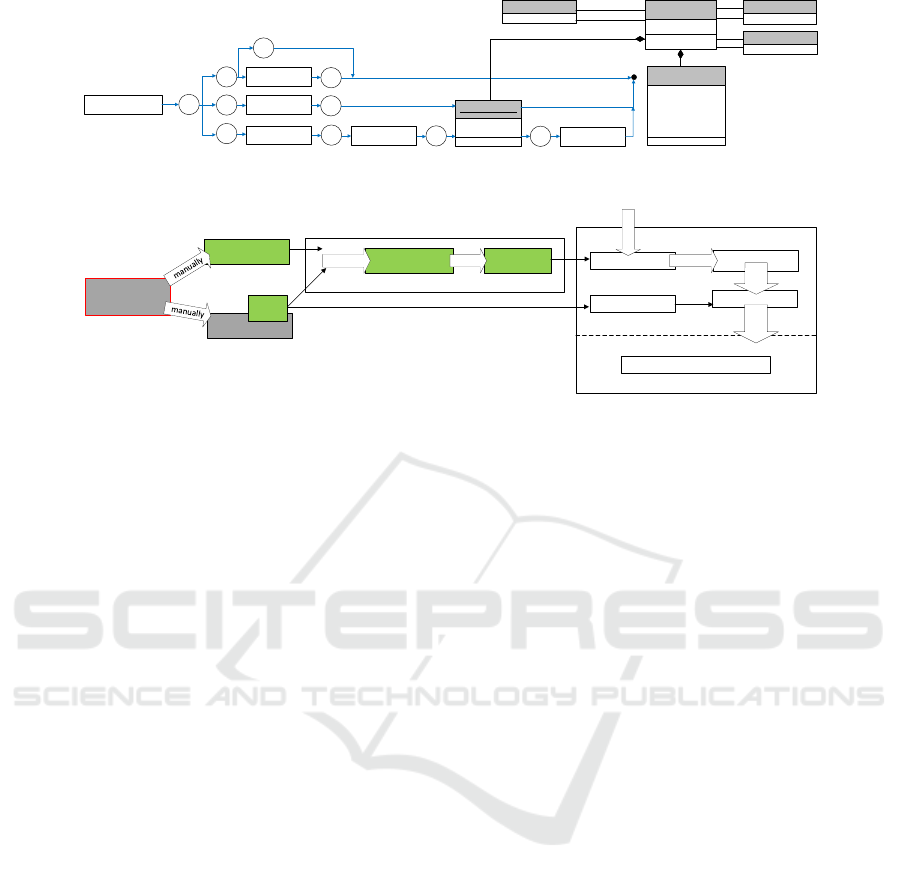

preceding their name. In Figure 4 the combination of

a syntax diagram with a class diagram is depicted for

the Create command.

This syntax diagram describes the notation needed

to create a model (M) (either on M2 or M1 level), an

element at M2 level (O) or an element at M1 level

(I). The class diagram describes the structure of the

M3 language. A class on M3 level is always of type

StructureElement and contains a <+M3Identiﬁer>,

which is needed to create respective elements on M2

level. The <+M3Identiﬁer> is present in both the

syntax diagram and the class diagram and serves as a

placeholder for the textual representation. It is ﬁlled

as soon as an M3 language is instantiated from this

M4 language. Each StructureElement has features

(attributes) whose structure can also be seen in the

class diagram.

5.3 Processing

The entire process from an M4 Language to the ﬁ-

nal LL(1) Grammar is depicted in Figure 5. The

green boxes represent textual documents, while the

gray ones depict graphical representations.

Having developed the M4 Language it is possible

to manually draw an Initial Grammar based on the

syntax diagrams. Within that Initial Grammar, there

are still non-terminals that serve as placeholders and

are marked with a + at the beginning. The grammar

is created by following the path from the ﬁrst non-

terminal to the end symbol of the syntax diagram.

When branches are reached, additional non-terminals

are created in the grammar, named < Branch > and

supplemented with an incremented number. An ex-

ample of an Initial Grammar based on the M4 Lan-

guage in Figure 4, with the placeholders in red, is

listed below:

<Branch1> ::= "M" <Branch2> | "O" <Number> "-"

<+M3Identifier> | "I" <Number> "." <Number>

"-" <+M3Identifier> "." <Number>

<Branch2> ::= <Number> <Branch3> | "x"

<Branch3> ::= "-x"

<Number> ::= <FirstNum> <FollowNum>* | "0"

<FirstNum> ::= "1" | ... | "9"

<FollowNum> ::= <FirstNum> | "0"

With the class diagram as part of the M4 Language

it is possible to draw the implemented M3 Language.

The graphical representation of the meta-modeling

language is only used for the descriptive demonstra-

tion of the functionality. To combine language with

grammar, a text-based representation is needed. As

text format for the modeling language the json ﬁle for-

mat was selected, because this format is easily read-

able by human and is efﬁciently processed by com-

puters. The text-based M3 Language includes coun-

terparts of the placeholders in the Initial Grammar. A

snippet of the text-based modeling language is listed

below.

"Class" : {

"<+M3Identifier>" : {

"name" : "1",

"id" : 1

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

112

<+M3Identifier>

name : String

id : Integer

StructureElement

name : String

CRT

Composition

Association

start

end

parent

child

Inheritance

generalization

specialization

Feature

name

: String

potency : Integer

datatype : DataTypeEnum

field : FieldEnum

editable : Boolean

target : Identifier

-x

m3_id

target

Figure 4: Example of a combination of syntax diagrams with a class diagram for the create command.

Python Script

DOMAINES RUNMDB

LL(1) Parser

Lexer

Semantic Checker

CRUD Model Processor

Syntax & Semantic Correct

Command

CMD

Struct

CMD

Struct

LL(1) Grammar

Lookup Table

M3-Language

Extended-GrammarTrafo Trafo

*.json

M4 Language (Syntax

Diagram + Class

Diagram

Single Source of

Truth

Initial-Grammar

Figure 5: From M4 Language to a Parsable LL(1) Grammar.

"<+M2M1Feature>" : {

"name" : "clabjectid",

"potency" : 2,

"field" : "Dual",

"datatype" : "Integer",

"editable" : "False",

"m3_id" : 1,

"target" : 1

},...}

This is where the placeholder <

+M3Identi f ier > is located again, the informa-

tion contained there can be taken over thereby into

the Initial Grammar. The information inside the

placeholder is always stored in the name. Ac-

cordingly, the “name” is searched for within the

feature and this information is stored in the grammar.

After having transferred the information about the

< +M3Identi f ier > to the Initial Grammar an Ex-

tended Grammar as an intermediate step is available.

This extended grammar looks as follows:

<Branch1> ::= "M" <Branch2> | "O" <Number> "-"

<+M3Identifier> | "I" <Number> "." <Number>

"-" <+M3Identifier> "." <Number>

<Branch2> ::= <Number> <Branch3> | "x"

<Branch3> ::= "-x"

<+M3Identifier> ::= "1"

<Number> ::= <FirstNum> <FollowNum>* | "0"

<FirstNum> ::= "1" | ... | "9"

<FollowNum> ::= <FirstNum> | "0"

It can be seen that another line has been added

with the information from the M3 Language. How-

ever, parsability with an LL(1) parser is not yet guar-

anteed.

5.4 Effects on Certiﬁability

Demonstrating that the intended functionality of the

framework has been implemented is a requirement of

certiﬁcation authorities. The intended functionality is

described by the M3 Language. Via the relationship

between the LL(1) Grammar and the M3 Language,

the complete intended functionality of the implemen-

tation can be systematically tested.

• LL(1) Parser:

– Valid commands: The ﬁrst step is to gener-

ate a syntax tree based on the LL(1) Grammar,

which can be used to navigate through a gram-

mar and therefore to generate all valid com-

mands. The fact that this is a closed set has

already been shown in 4.2, only for the Value of

a command an explanation is still missing. We

refer to the property of the LL(1) parser, where

only the next character is considered and based

on that it is decided if the command is valid or

not. Thus the length and the permutation possi-

bilities available with it are irrelevant, since the

parser behaves identically and thus only each

possible character within a value must be tested

once. This is based on the assumption that a

closed set of characters is used to describe a

value.

– Incomplete commands: For this purpose, all

valid commands are used and broken down into

individual characters.

– Invalid commands: For this, the property of

the LL(1) parser with the look-ahead of a sin-

gle character is utilized. No matter which posi-

tion within the grammar is currently being con-

Concept of Automated Testing of Interactions with a Domain-Speciﬁc Modeling Framework with a Combination of Class and Syntax

Diagrams

113

sidered, it is possible to ﬁnd all possible fol-

lowing characters. From the complementary set

it is possible to generate every non-valid com-

mand. Having a look at the LL(1) Grammar

from 5.3, the ﬁrst line indicates that the ﬁrst

possible character is a ”C”, all other characters

are invalid. Hence, commands with all invalid

characters have to be recognized as invalid. In

the next step starting with the valid character

”C”. Based on that the next valid characters

(”R”) are determined. Every other character is

invalid and is appended to the ”C” and send to

the LL(1) Parser. For example, this causes the

commands ”CA”, ”Ca”, ”CB”, ”Cb”, ... to be

invalid.

With that the other components of RUNMDB

need only be tested with an immensely smaller

set of commands. The M3 Language information

contained in the LL(1) Grammar eliminates the

need for some semantic checks. For instance, the

ﬁrst four semantic checks from Section 4.4 are al-

ready caught in the grammar since, e.g. only ex-

isting < +M3Identi f ier > can be created or all

possible features are already stored in the LL(1)

Grammar. By increasing the complexity of the

grammar, more semantic properties can be intro-

duced, but this leads to the fact that the checking

of a command for validity takes longer and thus

a trade-off between the runtime and the less re-

quired semantic checks must be made.

• Lexer: Only all syntactically correct commands

must be considered. The command objects cre-

ated in the lexer are put together into strings and

checked whether these strings correspond to the

original command.

• Semantic Checker: For the remaining semantic

checks, test cases need to be generated. These

can be mostly automatically derived from the M3

Language and information about list sizes from

the implementation and follows white box test-

ing approaches (IEEE, 2021). For example the

eighth semantic check in Section 4.4 examines if

the program operates correctly when list sizes are

exceeded. This may occur if the selected Posi-

tion is outside the deﬁned list size. Therefore, all

possible update commands are generated from the

grammar and the Position parameter is varied be-

yond the list limits. Having a Position which is out

of bounds, an error message has to be generated.

All further test cases for the semantic checks are

generated in a similar way. The test cases collec-

tively result in a manageable closed set of com-

mands. By basing test cases on a closed set of

valid commands or the meta-modeling language,

the testing of semantic checks can be fully traced

back to a ﬁnite set of test cases.

• CRUD ModelProcessor: The ModelProcessor

operations are time-dependent on each other, re-

sulting in an inﬁnite number of states to be

checked. The implementation is based on the

CRUDs, so there is a separate operation for

Create, Read, Update, and Delete. Within each

CRUD, the set to be tested can be reduced to the

following scenarios. It is notable that these sce-

narios rely on static lists in their implementation

and the ﬁrst-in, ﬁrst-out (ﬁfo) principle.

– Create: Elements are created and stored in

static lists depending on their type and remain

on their position until they are deleted.

1. Create an element at the end of a list

2. Create an element between existing elements

3. Try to create an element at the end of a full list

– Read: The values can be either in ﬁxed sized

lists or in single entries. Read

1. information from an empty model

2. updated information from single values

3. updated information from list values

4. information from full lists

– Update: If values are stored in lists, the posi-

tion can also be speciﬁed.

1. Update every feature with a value

2. Update with a value at every possible position

3. Try to add values to ﬁll lists

4. Change references

– Delete: All values of the deleted object are re-

set to their default values. Delete elements

1. where no information was updated

2. with updated values and full value lists

3. with updated references

Any behavior, at any time, can be traced back to

one of these scenarios. This procedure enables the

limitless set of combinations to be narrowed down

to a ﬁnite set of scenarios that can be tested. These

explanations have shown that it is feasible to test

the implementation for any possible command by

utilizing a combination of a Meta-modeling lan-

guage and a LL(1) Grammar, in order to avoid

any unexpected behavior. This provides an impor-

tant foundation for a potential certiﬁcation pro-

cess for RUNMDB. At present, at least the tests

for the LL(1) Parser, the Lexer, and the Semantic

Checker can be generated automatically from the

single source of truth available through the com-

bination of LL(1) Grammar and Meta-modeling

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

114

language. For the ModelProcessor, there is cur-

rently no automated solution for generating test

scenarios and their evaluation.

6 RELATED WORK

With our approach we strive for a certiﬁable frame-

work for DSM in order to fully exploit the advantages

of DSM in the safety-critical (avionics) environment.

We are not the ﬁrst to do so. For example, Mat-

lab Simulink claims to have a Tool Qualiﬁcation Kit

for the DO-178C standard. In the ﬁeld of certiﬁable

code generators are additional approaches such as the

most prominent example SCADE (Dormoy, 2008).

Another one is the Gene-Auto code-generator (Toom

et al., 2008) or TargetLink from dSpace (dSpace, ).

Each approach mentioned implies that certiﬁcation

or qualiﬁcation is attainable. However, the process

of achieving this remains undisclosed. There is no

method published against which we may compare our

approach.

The idea of how we want to achieve certiﬁability

is not entirely new. The basis is testing the imple-

mentation through some kind of grammar-based test-

ing which is subject to research in (Sirer and Bershad,

), (Sharma, ). This involves deriving test cases from

a formally deﬁned grammar to systematically test a

system or software with its input. One common is-

sue with that approach is the possibility of generating

an inﬁnite number of test cases which is addressed

in (Hoffman et al., 2011). An inﬁnite number of

test cases can result in test coverage reaching its lim-

its, this is addressed in (Godefroid et al., 2008) via

fuzzing. Our approach solves the problem of inﬁnite

test cases by combining our meta-meta-modeling lan-

guage with the grammar on the one hand, and using

an LL(1) parser that can guarantee a closed set of test

cases on the other hand.

Beside that, we are unaware of any other corre-

lated research.

7 CONCLUSION AND OUTLOOK

In this paper, we presented a new M4 meta-meta

modeling language, which is required in our highly

safety-critical avionics domain to be able to prove that

the implementation of the meta-modeling language

can be certiﬁed. This is based on the fact that ev-

ery conceivable command in the implementation can

be tested to show that no unwanted misbehavior oc-

curs. In order to make this possible at all, a for-

mal deﬁnition of commands within a grammar and

a corresponding parser are used. A statement about

the functionality of the implementation is only pos-

sible, if a formal correlation between grammar and

implemented meta-modeling language exists, which

is achieved by the proposed M4 meta-meta modeling

language. In addition, the M4 meta-meta modeling

language acts as a single source of truth. This ulti-

mately should make it suitable for the development of

safety-critical avionics as well as for use in airborne

software. For further work it is important to assess

whether the current test cases adequately test all state-

ments within the implementation. Ideally, statement

coverage should adhere to the common avionics stan-

dards outlined in DO-178C.

ACKNOWLEDGEMENTS

The German Federal Ministry for Economic Affairs

and Climate Action (BMWK) has funded this re-

search within the LUFO-VI program.

REFERENCES

Annighoefer, B., Brunner, M., Luettig, B., and Schoepf,

J. (2021). EOQ: An Open Source Interface for a

More DAMMMMN Domain-speciﬁc Model Utiliza-

tion. In ACM/IEEE International Conference on

Model Driven Engineering Languages and Systems.

Braz, L. M. (1990). Visual syntax diagrams for program-

ming language statements. ACM SIGDOC Asterisk

Journal of Computer Documentation, 14(4):23–27.

Dormoy, F.-X. (2008). SCADE 6 a model based solution

for safety critical software development. In Embedded

Real Time Software and Systems (ERTS2008).

dSpace. Targetlink. https://www.dspace.com/de/gmb/ho

me/products/sw/pcgs/targetlink.cfm#176\ 25806.

Accessed: 2023-09-20.

Godefroid, P., Kiezun, A., and Levin, M. Y. (2008).

Grammar-based whitebox fuzzing. In Proceedings of

the 29th ACM SIGPLAN conference on programming

language design and implementation, pages 206–215.

Hoffman, D. M., Ly-Gagnon, D., Strooper, P., and Wang,

H.-Y. (2011). Grammar-based test generation with

YouGen. Software: Practice and Experience, 41(4).

IEEE (2021). ISO/IEC/IEEE International Standard - Soft-

ware and systems engineering - Software testing – Part

2: Test processes. Standard, IEEE.

RTCA (2011). DO-178C software considerations in air-

borne systems and equipment. Standard, RTCA.

SAE (2010). Guidelines for development of civil aircraft

and systems. Standard, SAE.

Sharma, A. How does grammar-based test case generation

work? https://www.veracode.com/blog/managing-a

ppsec/how-does-grammar-based-test-case-generatio

n-work. Accessed: 2023-10-04.

Concept of Automated Testing of Interactions with a Domain-Speciﬁc Modeling Framework with a Combination of Class and Syntax

Diagrams

115

Sirer, E. G. and Bershad, B. N. Using production grammars

in software testing. ACM SIGPLAN Notices, 35(1).

Tietz, V., Frey, C., Schoepf, J., and Annighoefer, B. Why

the use of domain-speciﬁc modeling in airworthy soft-

ware requires new methods and how these might look

like? In Proceedings of the 25th International Con-

ference on Model Driven Engineering Languages and

Systems: Companion Proceedings, pages 627–632.

Tietz, V., Schoepf, J., Waldvogel, A., and Annighoefer, B.

A concept for a qualiﬁable (meta)-modeling frame-

work deployable in systems and tools of safety-critical

and cyber-physical environments. In 2021 ACM/IEEE

24th International Conference on Model Driven Engi-

neering Languages and Systems (MODELS).

Toom, A., Naks, T., Pantel, M., Gandriau, M., and Wati, I.

(2008). Gene-auto: an automatic code generator for a

safe subset of simulink/stateﬂow and scicos. In Em-

bedded Real Time Software and Systems (ERTS2008).

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

116
