Look-over-there: Real-World Co-Located Cross-Referencing Using
Augmented Reality
Yuqi Zhou
a
and Voicu Popescu
Purdue University, 610 Purdue Mall, West Lafayette, IN, U.S.A.
Keywords:
Collaborative Augmented Reality, Transparent Display, Attention Guidance.
Abstract:
This paper presents a method that allows a ”guide” to point out an element of the real world, i.e., a reference
point, to a ”tourist”. The guide and tourist stand side-by-side and each hold a tablet whose camera is aimed at
the scene. The guide annotates the reference point on their tablet, and it is sent and displayed on the tourist’s
tablet. Then the device zooms in and guides the tourist towards the target object. A user study shows that
the method has significantly shorter reference point localization times compared to a conventional augmented
reality interface. Furthermore, the study shows that the method can provide directional guidance through the
annotation alone, without any reliance on the visual appearance of the region of the reference point, as needed
for challenging scenes with repeated patterns or devoid of visual features.
1 INTRODUCTION
One of the requirements for successful collaboration
is that collaborators can point out to each other an el-
ement of the 3D scene for common reference. This
can be challenging for a variety of reasons. One rea-
son is that natural language can be ambiguous, which
makes it difficult to convey precise spatial directions.
Another reason is that the working space can be com-
plex and repetitive, which makes it hard to isolate a
reference point out of many similar candidates. Aug-
mented reality (AR) allows annotating elements of the
real world, which could be used to annotate a refer-
ence point in support of collaboration.
An optical see-through AR headset can annotate
a reference point directly into the user’s visual field,
so they are well suited for indicating the true direc-
tion to the reference point. However, AR headsets re-
main expensive, bulky, dim, and with a limited field of
view. Handheld AR displays, implemented by tablets
or phones, have the advantages of lower cost, mass
deployment, larger field of view, and better robustness
with scene lighting conditions. However, the video-
see-through AR interface implemented by handheld
displays shows the annotation of the reference point
on the 2D display, and not directly into the user’s view
of the 3D scene. Consequently, the user has to mem-
orize the scene features around the annotation seen
a
https://orcid.org/0000-0003-3357-7837
on the display, and then, once they shift focus to the
scene, find the reference point from memory. In other
words, the AR handheld display facilitates, but does
not completely eliminate the search for the reference
point. To address this issue, one has to transform the
frame acquired by the video camera to what the user
would see if the tablet were transparent. This user
perspective rendering (UPR) of the frame eliminates
the need for memorization and improves the accuracy
of the AR directional guidance.
In this paper we introduce Look-over-there, a
method for enhancing a handheld AR display’s abil-
ity to direct the user’s attention to a specific refer-
ence point in a real-world setting. Two collabora-
tors stand side-by-side (Fig. 1 b), one (i.e., the guide)
pointing out an element of interest to the other (i.e.,
the tourist). Using handheld devices, such as a tablet
or a phone, both collaborators view a live video feed
of the scene captured by their device’s camera. The
guide annotates the reference point on their display
(Fig. 1 a), which appears on the tourist’s display (c).
To further improve the accuracy of directional guid-
ance provided to the tourist, the tourist is asked to
center the annotation on their display while the vi-
sualization zooms in on the scene (e). This refine-
ment stage transforms the display into an UPR trans-
parent display with good alignment between the im-
age on the display and the scene behind it. Once the
tourist’s view is correctly aimed at the reference point,
the tourist can move the display out of the way to see
Zhou, Y. and Popescu, V.
Look-over-there: Real-World Co-Located Cross-Referencing Using Augmented Reality.
DOI: 10.5220/0012305700003660
Paper published under CC license (CC BY-NC-ND 4.0)
In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 1: GRAPP, HUCAPP
and IVAPP, pages 427-434
ISBN: 978-989-758-679-8; ISSN: 2184-4321
Proceedings Copyright © 2024 by SCITEPRESS – Science and Technology Publications, Lda.
427

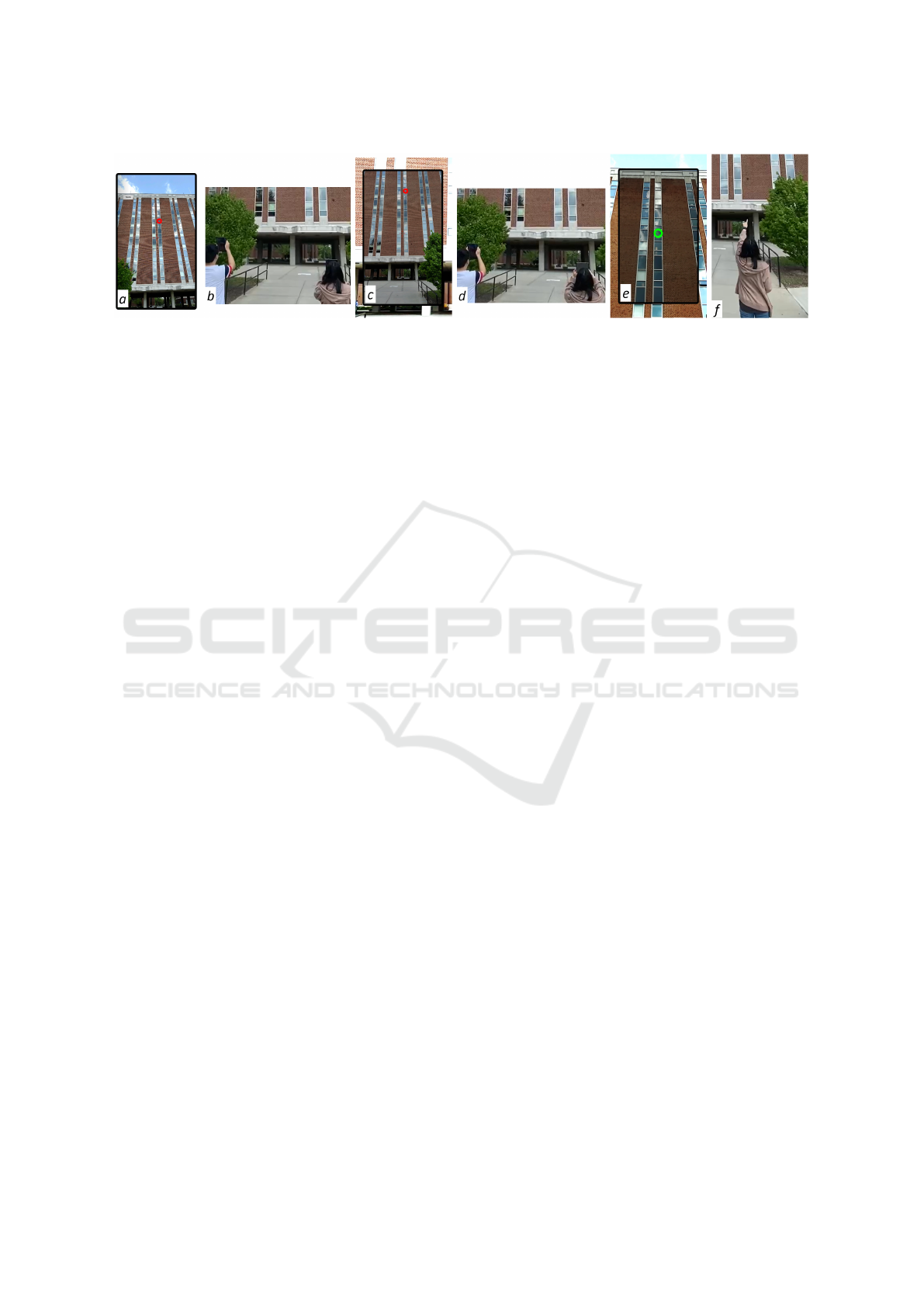

Figure 1: Look-over-there method overview. A guide and a tourist stand side by side (left and right in image b). The guide
marks a point of interest on their tablet (red circle in a). The annotation appears on the tablet of the tourist (red circle in c).
Although the annotation is at the correct location on the tablet, it is not at the correct location in the visual field of view of the
tourist, so the directional guidance provided is inaccurate. During a guidance refinement stage, the tourist tilts up the tablet (d)
to center the annotation (e), while the visualization zooms in progressively, from the large field of view of the tablet camera,
to the small angle subtended by the tablet in the tourist’s visual field. This improves the accuracy of the directional guidance
provided by the tablet, indicating to the tourist the true direction to the reference point, which the tourist then finds with their
naked eyes (f ). In c and e the background seen by the tourist around the tablet is simulated for illustration purposes.
the reference point directly (f ).
We have evaluated our method empirically. The
improvement from the refinement stage was con-
firmed by laboratory experiments: a user study ap-
proved by our Institutional Review Board shows that,
compared to a conventional AR display, the direc-
tional guidance refinement of Look-over-there signifi-
cantly reduces reference point localization times; fur-
thermore, the study shows that Look-over-there can
provide directional guidance through the annotation
alone, without any reliance on the visual appearance
of the reference point region, which affords direc-
tional guidance for difficult scenes that are devoid of
visual features or contain repetitive patterns. We have
also tested our approach on indoor and outdoor real
world scenes, as shown in the accompanying video.
In summary, our paper contributes: (1) a robust
and accurate handheld display AR interface for users
to indicate a real world scene location to their collab-
orators; (2) an empirical evaluation of our interface,
including in a controlled user study, which confirms
the advantages of our interface over conventional AR.
2 PRIOR WORK
The ability to refer to the same element of a shared
real-world workspace is essential for successful col-
laboration. AR technology has the ability to annotate
the real world, and thus it can be used to link the real
world view of two or more collaborators.
Optical see-through AR interfaces provide guid-
ance in the user’s view of the real world, facilitat-
ing the transition for the user to see the target with
their naked eyes. When the annotation is visible to
the user on the active part of the AR headset, direc-
tional guidance is a solved problem. However, optical
see-through AR headsets typically have a small field
of view, and special interfaces are needed to guide the
user’s attention to out-of-sight reference points (Bork
et al., 2018). AR headsets remain expensive, bulky,
and dim, which currently precludes their use in day-
to-day applications. Our work focuses on handheld
(video see-through) AR displays.
Handheld video see-through AR displays offer the
key benefits of easier entry, as tablets and phones are
already ubiquitously deployed.Users can manipulate
content on a projected display using a mobile device
such as a touchpad (Boring et al., 2010). However,
the user has to memorize the video frame region sur-
rounding the annotation, and then, once they shift fo-
cus to the real world, to find the reference point from
memory. These focus shifts have been shown to be
harmful in applications such as AR surgical telemen-
toring, where it can lead to surgery delays or even er-
rors (Andersen et al., 2016a).
User Perspective Rendering (UPR) attempts to
improve the directional guidance by showing what
the user should see if the display were not present.To
achieve that, one needs to know the user head posi-
tion as well as the scene geometry, such that the scene
geometry can be reprojected to the user’s viewpoint
(Babic et al., 2020).
The position of the user’s head was tracked with
front facing cameras built into the device (Mohr et al.,
2017). Researchers have also investigated not track-
ing the user head position and using instead a fixed
default position(
ˇ
Copi
ˇ
c Pucihar et al., 2013; Andersen
et al., 2016b). We take the approach of not tracking
the user head and of relying on the user to keep it at a
relatively constant position with respect to the display.
A pure UPR approach has to know the geometry
the scene to reproject the frame to the user’s view-
HUCAPP 2024 - 8th International Conference on Human Computer Interaction Theory and Applications
428

point. The baseline provided by the two collabora-
tors is insufficient for accurate triangulation of cor-
respondences (Bari
ˇ
cevi
´
c et al., 2017; Davison et al.,
2007). Prior work has also proposed to do away
with geometry acquisition and to work under the as-
sumption that the scene is planar (Borsoi and Costa,
2018). The planar scene proxy is fitted in a calibra-
tion stage (Zhang et al., 2013), or tracked in real time
from markers (Samini and Palmerius, 2014; Hill et al.,
2011), or from scene features (Tomioka et al., 2013;
S
¨
or
¨
os et al., 2011). If the scene is not close to the
user, one can achieve a quality display transparency
approximation under the ”distant scene” assumption
that ignores the distance between the device camera
and the user viewpoint (Andersen et al., 2016b).
In our work we take the approach of not acquiring
scene geometry. Instead, we rely on a homography
computed with a prior-art computer vision pipeline
that finds features, establishes correspondences be-
tween features, and minimizes correspondence repro-
jection errors (Bradski, 2000). Methods that acquire
scene geometry passively, e.g., through monocular si-
multaneous localization and mapping (SLAM), have
to ”freeze” the visualizations on the collaborators’
displays in order to wait for the acquisition process to
complete (Gauglitz et al., 2012; Bauer et al., 1999).
The issue can be avoided by moving the scene acqui-
sition to a preprocessing stage (Gauglitz et al., 2014).
Our pipeline completes the initial transfer of frame
features from the guide to the tourist in 300ms, and
then computes the homography for each new frame in
20ms, without any preprocessing, which enables un-
interrupted live visualization.
Co-located versus remote collaboration. When
users are co-located, cross-referencing elements of a
real world scene has the challenge that each of the
users has its own view of the scene (Billinghurst et al.,
2002; Kaufmann, 2003; Lin et al., 2015), and one has
to transfer annotations from one view to the other. In
remote collaboration, there is a single view of the real
world scene which is transferred to the remote collab-
orator, who authors annotations directly in this shared
view (Irlitti et al., 2016; Andersen et al., 2016a). We
focus on co-located collaboration, and the annotation
defined in the guide’s view is registered to the tourist
view in real time.
3 LOOK-OVER-THERE
We have developed an AR approach for a collaborator
(the guide), to point out an element of the real world
(the reference point), to a second, co-located collabo-
rator (the tourist), see pipeline in Fig. 2.

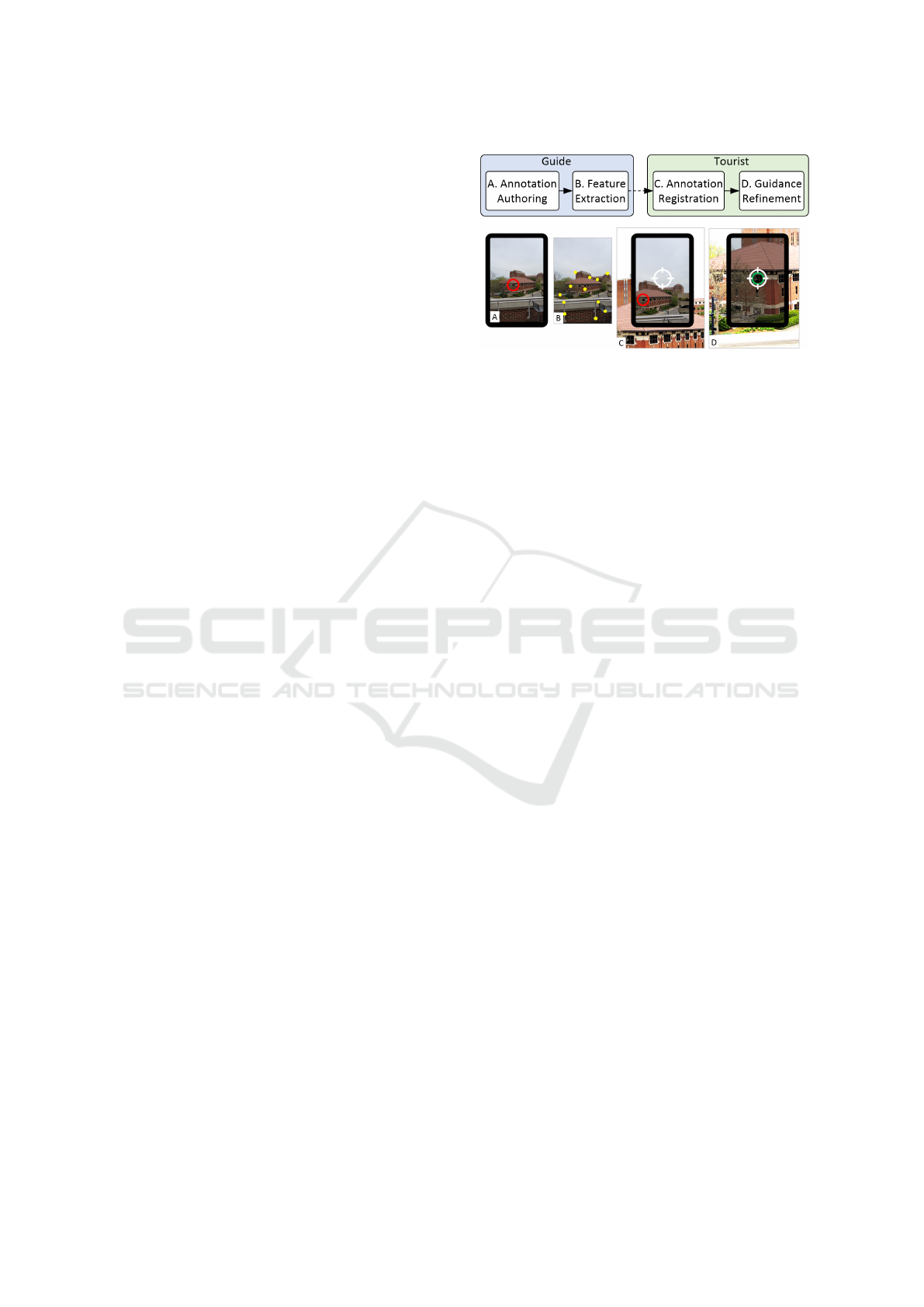

Figure 2: Look-Over-There pipeline.
Stage A. The guide annotates the reference point on
their device.
Stage B. The guide’s device extracts the salient frame
features where the annotation was defined and trans-
fers them wirelessly to the tourist device.
Stage C. The features are used by the tourist’s device
to register the annotation, which is displayed where
the reference point appears in the frame. Although the
annotation does align with the reference point in the
tourist tablet frame, the directional guidance provided
is inaccurate. Indeed, the correct direction to the ref-
erence point is much lower and to the left, where the
reference point appears in the field of view of the
tourist (bottom left corner of C in Fig 2).
Stage D. The tourist aims their device such that the
annotation is aligned with cross-hairs displayed at the
center of the tablet. At the same time, the device
zooms in to improve the simulated transparency ac-
curacy. Finally, without changing view direction, the
tourist removes the tablet to find the reference point
directly with their naked eyes.
In summary, the guide creates the annotation us-
ing the touch-screen of their device (stage A). The
guide frame where the annotation was authored is reg-
istered to the current (live) tourist frame using a ho-
mography mapping computed based on SIFT features
(Lowe, 2004) (stage B and C). The robust SIFT algo-
rithm allows us to not rely on the camera specs of the
devices.. The directional guidance refinement (stage
D) is described in Sec. 3.1.
3.1 Directional Guidance Refinement
After the annotation registration stage, the annotation
appears in the raw video frame of the tourist’s device.
However, the directional guidance provided is inaccu-
rate and a final refinement stage is needed.
Fig. 3 shows that before guidance refinement, the
camera C of the tourist device captures the reference
point T at image plane point Q. Q is shown on the
display at point T
′
which has the same pixel coordi-
Look-over-there: Real-World Co-Located Cross-Referencing Using Augmented Reality
429

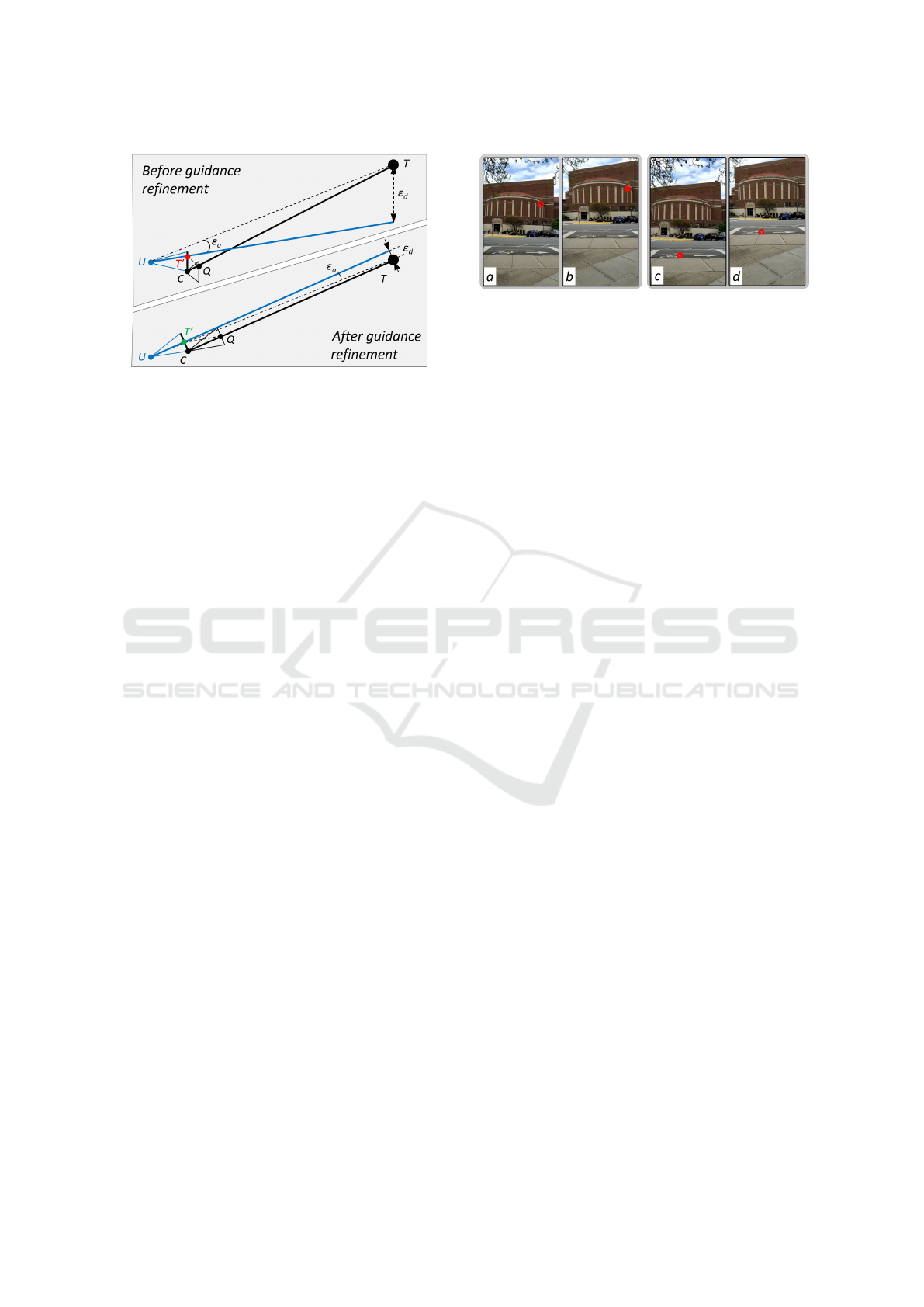

Figure 3: Directional guidance accuracy improvement. The
tourist viewpoint is U and the reference point is T . Before
guidance refinement, the tourist device points in the direc-
tion UT
′
which has a large distance error ε
d
and a large
angular error ε
a
with the true direction UT to the reference
point. Guidance refinement reduces both errors.
nates as Q. T
′
points the tourist in the direction UT
′
which is quite different from the actual direction UT
to the reference point. During guidance refinement,
the tourist rotates their device to place the projection
of the reference point T
′
at the center of the display;
at the same time, the tablet camera zooms in (in soft-
ware) for its focal length ∥CQ∥ to become equal to
the distance ∥U T
′
∥ from the tourist viewpoint to their
device. After guidance refinement, the direction UT
′
in which the tourist device points is much closer to
the true direction U T to the reference point.
4 EMPIRICAL EVALUATION
We have implemented our Look-over-there AR direc-
tional guidance method (Sec. 4.1) and tested it suc-
cessfully on multiple scenes (Sec. 4.2). We have also
evaluated our method in a user (Sec. 4.3).
4.1 Implementation Overview
We have implemented our method for Android de-
vices using Android Studio. The timing data reported
in this paper was recorded on a Samsung Galaxy Tab
S6 tablet. We use OpenCV for the feature extrac-
tion and annotation registration stages of our pipeline
(Fig. 2). When the guide creates an annotation, fea-
ture extraction finds between 20 and 100 salient SIFT
(Lowe, 2004) features in the guide frame F
G0
where
the annotation was created. A feature requires 568B,
for a total of up to 50KB.
The features are transferred to the tourist device
via Bluetooth. A homography is computed between
the current tourist frame F
Ti
and the guide reference
Figure 4: Annotation registration from guide to tourist.
frame F
G0
, and the homography is used to place the
annotation on the tourist display. Since the tourist
aims their device in the general direction of the ref-
erence point, and since the initial field of view of the
tourist visualization is large, there is enough overlap
between F
Ti
and F
G0
for the registration to succeed
and for the reference point to be included in F
Ti
.
Guidance refinement relies on the tourist to rotate
the device such that the reference point be centered.
The center of the display is marked with cross hairs
for guidance. At the same time, the device zooms in,
as described in Sec. 3. When the zoom in process is
complete the annotation turns green.
4.2 Robustness
Our method works well on a variety of outdoor and
indoor scenes, see Fig. 1, as well as the video ac-
companying this paper. Like in Fig. 1, the tourist’s
direct view of the scene around their display is simu-
lated, because it is hard to take a picture of the scene
from the tourist’s viewpoint, and because in the out-
door scenes the display is dim. Fig. 4 illustrates the
robustness of the annotation registration between the
guide and the tourist device. Registration succeeds
even when the reference point is close (c and d).
4.3 User Study
We have conducted a controlled within-subjects user
study (N = 30) with the approval of our Institutional
Review Board. The goal of the study is to evaluate the
directional guidance provided by our method.
Participants. We have recruited participants from the
graduate and undergraduate student population of our
university. The age range is 19 to 30, with an aver-
age of 25. 10 of the participants were women, 3 par-
ticipants self-reported their prior experience with AR
applications as ”Never”, 7 as ”Once”, 14 as ”Occa-
sionally”, and 6 as ”Frequently”.
Conditions. The participant took the tourist role
and the guide role was taken by a researcher. We
compared the experimental Look-over-there condition
(EC) to two control conditions. In one control con-
HUCAPP 2024 - 8th International Conference on Human Computer Interaction Theory and Applications
430

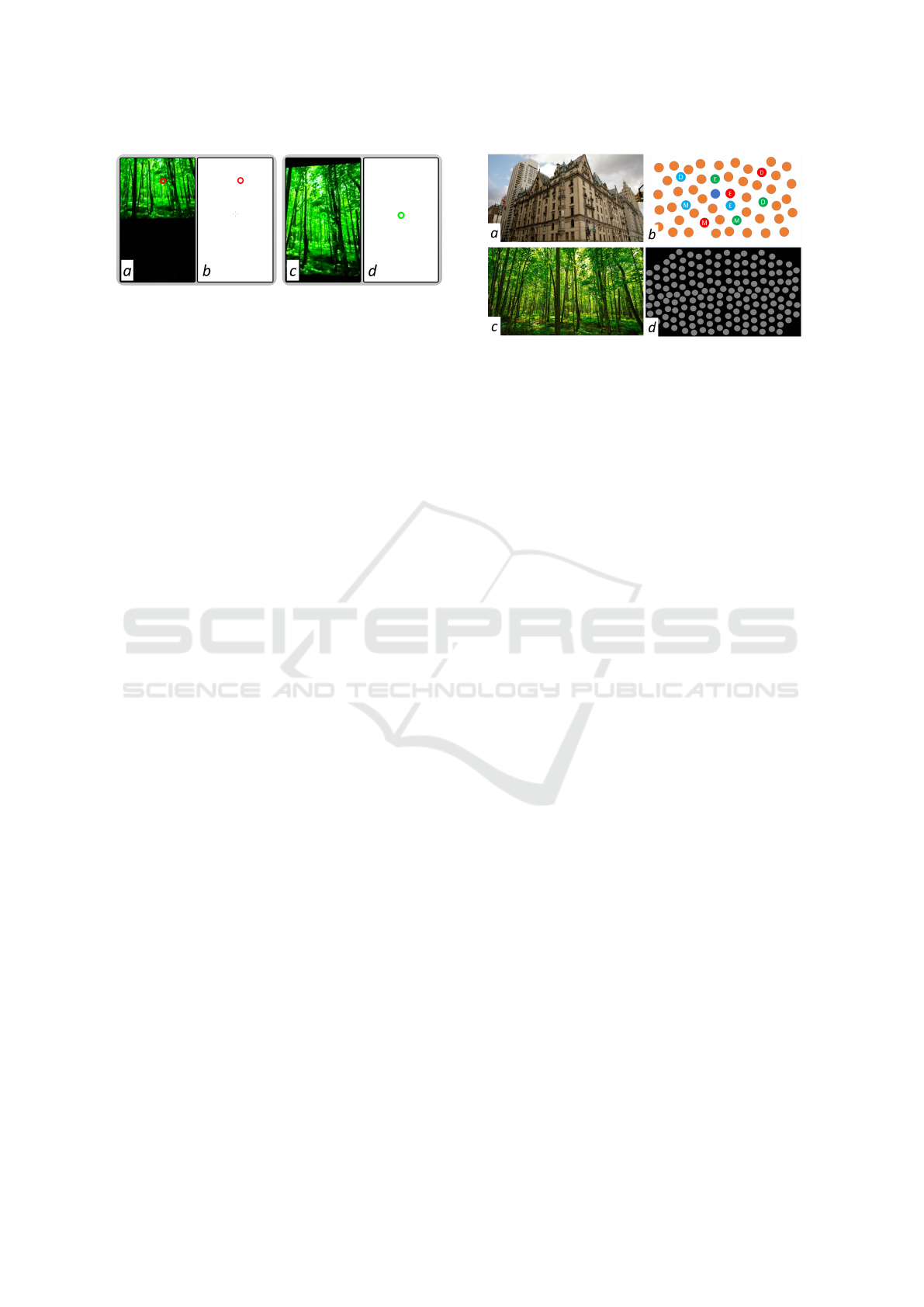

Figure 5: Pairs of frames in experimental (left) and ”blind”
experimental (right) condition. In EC, participants see the
annotation in context, so, in addition to the guidance pro-
vided by the annotation, participants also benefit from the
memory of the visual context of the annotation. In BEC,
the video frame is not shown and the participant has to rely
exclusively on the guidance provided by the annotation.
dition (CCV), the guide provided verbal directions to
the tourist to help them locate the reference point. The
verbal directions were scripted and always the same.
In a second control condition (CCA), the guide pro-
vided guidance to the tourist on a conventional AR
display. Furthermore, we have also investigated a
”blind mode” of Look-over-there, where the pipeline
runs as usual, except that the tourist display shows the
annotation over a white background, i.e., a blind ex-
perimental condition (BEC), as shown in Fig. 5. Since
the frame is not shown, the tourist cannot memorize
landmarks in the region of the annotation and has to
rely exclusively on the directional guidance provided
by the annotation. We do not advocate that BEC re-
place EC, BEC is just a condition used to measure
the guidance provided by the annotation without the
confounding factor of the visual context.
Experimental Setup. An essential requirement of
our study is to be able to record objectively and ac-
curately the location where the participant thinks the
reference point is located after receiving guidance
through one of the methods. We have considered two
alternatives. One is to ask the participant to indicate
verbally the location of the reference point. This op-
tion has the shortcomings that it depends on the par-
ticipant’s verbal expression abilities, that verbal de-
scription is ambiguous, and that it cannot be used with
CC as the participant can simply repeat the verbal in-
struction they were given. An alternative is to provide
the participant a laser pointer to indicate the location.
We have chosen this option. The challenge is that the
laser dot is hard to see outdoors, and impossible to
see when the reference point is beyond a few meters.
For laser dot visibility and for condition repeatability,
we ran the experiment in our laboratory. The scene is
projected on a large screen.
Tasks and Procedures. We use one scene (Fig. 6a)
in the training session and three scenes (b-d) in the
actual tasks. The scenes differ in the availability and
Figure 6: Practice a, BlueDot b (Easy (E), medium (M), and
difficult (D) reference points for CCV (red), CCA (green),
and EC (blue)), Woods c, and GreyDots d.
the visual salience of landmarks that can be used to
locate nearby points of reference. The BlueDot scene
(b) has a visually salient landmark, i.e., a single blue
dot among orange dots. The Woods scene (c) has
visual landmarks that are less salient, i.e., the trees
are not identical but they are similar. The GreyDots
scene lacks visually salient landmarks, i.e., all grey
dots are identical. The dots in BlueDot and GreyDots
are placed at irregular locations which prevents count-
ing along cardinal directions. No reference point is
reused (within or between conditions).
For BlueDot, the difficulty level is determined by
the distance between the reference point and the land-
mark. The farther the reference point, the more diffi-
cult to describe it with verbal instructions (CCV). We
stopped time when the participant indicated the tar-
get with the laser pointer. For a trial to be counted as
successful, participants must locate the target (circle
for BlueDot and GreyDots, and bird for Woods) on the
first attempt. We measured the accuracy, i.e., percent-
age of successful trials, for GreyDots and Woods.
In CCV, the participant does not use the tablet. Af-
ter the verbal instructions describing the location of
the point of reference, the participant uses the laser
pointer to indicate the location of the reference point.
In CCA, the participant sees the annotation on their
tablet and they shift their eyes back and forth between
the tablet and the scene to locate the reference point
in the scene. For Woods and GreyDots, the image
on the tablet is a stationary image showing a sub-
region of the scene that contains the annotation. This
testing scenario matches the real world scenario and
avoids the limitation of the experimental setup. When
the participant thinks they found the reference point,
they indicate its location in the scene with the laser
pointer while looking at the scene.In EC and BEC,
once the guidance is refined, the participant puts down
the tablet without changing view direction and indi-
cates the location of the reference point with the laser
dot.
Look-over-there: Real-World Co-Located Cross-Referencing Using Augmented Reality
431

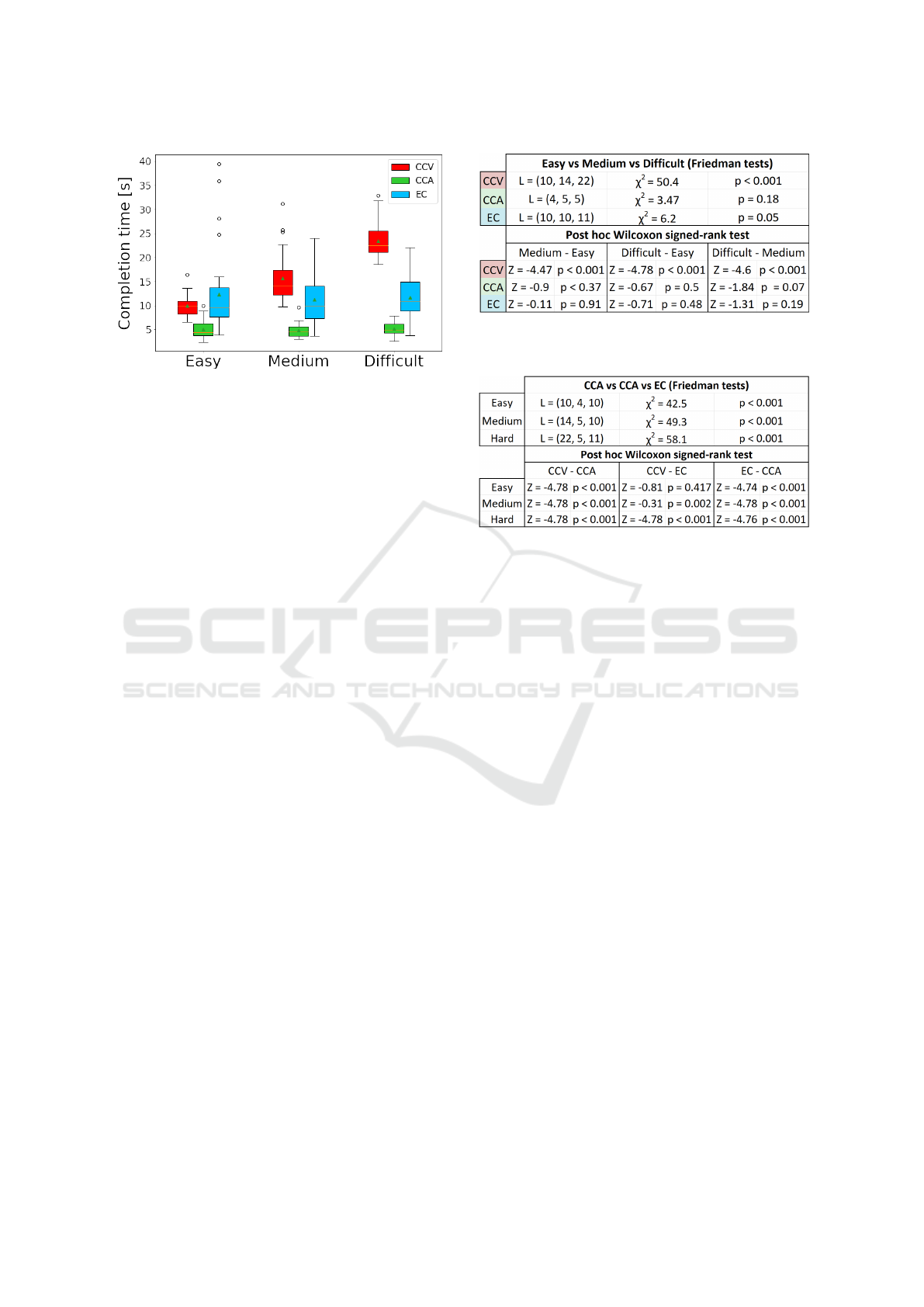

Figure 7: Localization times for the Easy, Medium, and Dif-
ficult BlueDot reference points (Fig. 6b).
There is a single session per participant of up to
60min. A participant (1) fills in the demographics
data form; (2) undergoes a 5-10min training session;
(3) performs 3x3=9 trials in the BlueDot scene for
three reference point locations and three conditions,
i.e., CCV, CCA, and EC (the three locations for a
condition had different difficulty levels, as shown in
Fig. 6b); (4) performs 2x3=6 trials in the Woods scene
for two reference point locations and three conditions,
i.e., CCA, EC, and BEC; (5) performs 2x3=6 trials in
the GreyDots scene like for the Woods scene.
Data Collection. The study collects the answers to
the questionnaires, the time in seconds to locate each
reference point, and whether the reference point was
located correctly or not. The time interval measured
starts from when the verbal instructions start for CCV
and from when the annotation appears on the tourist
tablet for the other conditions (CCA, EC, and BEC).
The interval ends when the participant aims the laser
pointer at the scene. The time is capped at 30s, after
which, if a participant did not find the reference point,
they move on to the next trial. For BEC we record the
location indicated by the participant, i.e., the location
of the laser dot instead of correctness.
Data Analysis. We performed a statistical analy-
sis of the differences in task completion times for
the three conditions and the three reference points of
each scene. We used the Shapiro-Wilk test to check
for data normality. When the normality assumption
was verified we used a one-way repeated measures
ANOVA test. When the normality assumption was
not verified we used a Friedman’s non-parametric test.
For significant three-level differences we performed a
posthoc analysis of pairwise differences, with Bon-
ferroni correction, either with a paired t-test (normal
distribution), or with a Wilcoxon signed-rank test. We
have also computed the proportions of correct refer-
ence point localizations for each condition. We inves-
tigated the statistical significance of the differences
Figure 8: Analysis of completion time for the BlueDot
scene as a function of reference point difficulty, for each
of the three conditions.
Figure 9: Completion time analysis for BlueDot.
between conditions using McNemar’s test for paired
proportions.
Results and Discussion. For the BlueDot scene, the
completion time box plots are given in Fig. 7, for
each of three conditions (CCV, CCA, and EC), and for
each of three reference points. The reference points
are shown in Fig. 6(b). Fig. 8 shows that most of
the data is not normally distributed, i.e., p < 0.05,
which calls for the nonparametric Friedman test, for
which the table reports the median (IQR) levels L,
the test statistics value χ
2
, and the significance level
p. For CCV, there is a significant difference between
the three reference points. The post-hoc Wilcoxon
signed-rank test reveals that all pairwise differences
are significant, using the Bonferroni corrected signifi-
cance level of p < 0.017. As expected, the CCV times
increase significantly from Easy to Medium, and from
Medium to Difficult, as longer and longer verbal ex-
planations are needed. For CCA, the Friedman test
does not report a significant difference, and for EC,
the significance is at threshold level. We have also
conducted the same analysis without outliers, with the
same conclusions.
Fig. 9 shows that there are significant differences
between the three conditions, for each of the three
reference point difficulties. Post hoc pairwise analy-
sis reveals that, with a Bonferroni correct significance
threshold of p < 0.017, CCV times are significantly
longer than CCA and EC times, with the exception
of CCV-EC for the simplest task. Furthermore, CCA
times are significantly shorter than EC. We conclude
HUCAPP 2024 - 8th International Conference on Human Computer Interaction Theory and Applications
432

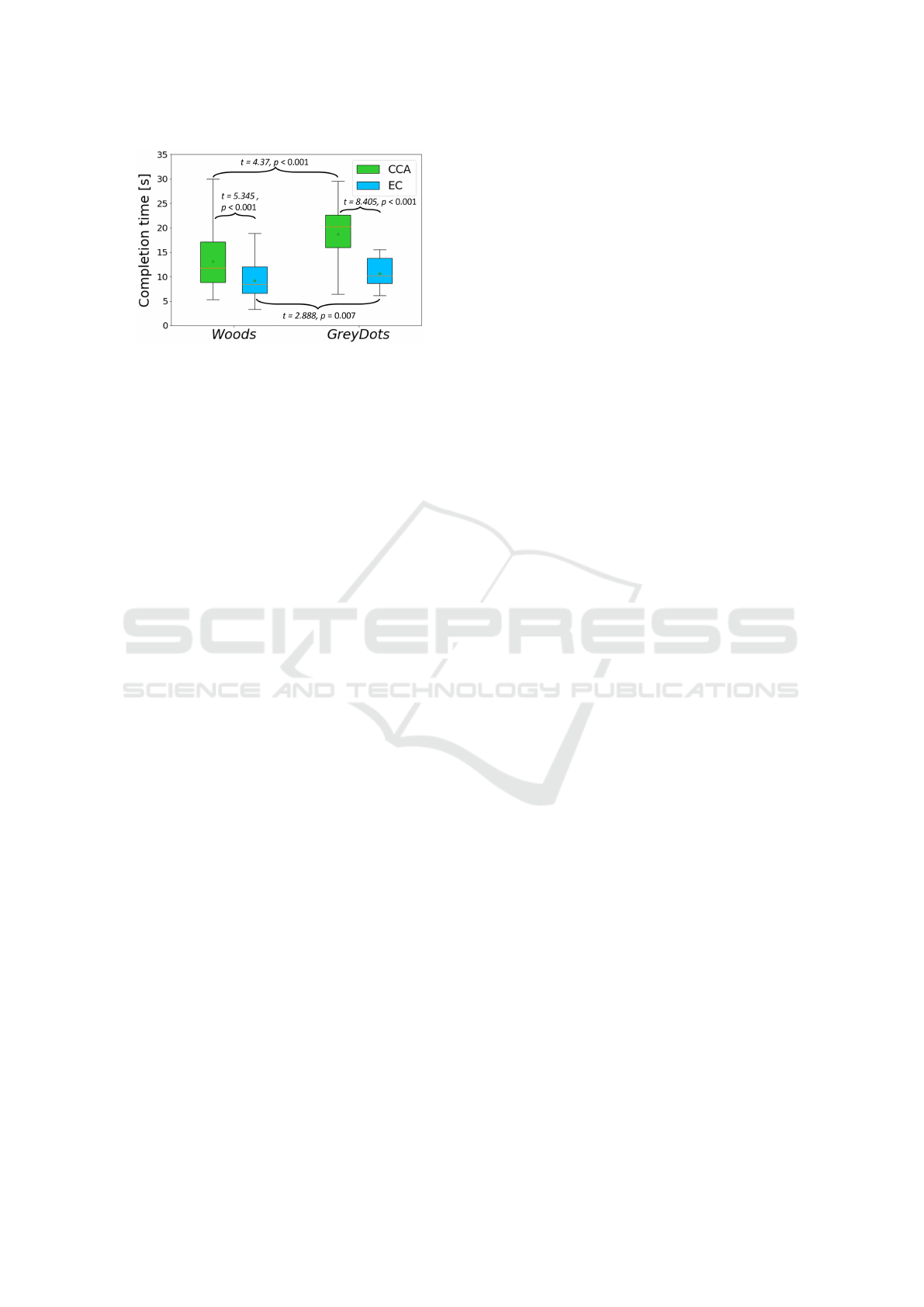

Figure 10: Reference point localization times for Wood and
GreyDots, and difference significance levels p.
that for a scene with a highly salient landmark, AR
has an advantage over verbal, and within AR, the
guidance refinement stage is not necessary. A user
can quickly see and memorize the position of the an-
notation with respect to the landmark, e.g., the sin-
gle blue dot, and then find the reference point from
memory. The reference point localization accuracy is
100% for CCA and EC and 88±16% for CCV.
For the Woods and GreyDots scenes, locating ref-
erence points based on verbal instructions takes too
long and accuracy is too low, so CCV does not need to
be run on these two scenes. The scenes were used to
differentiate between a conventional AR display and
Look-over-there. The completion time box plots are
given in Fig. 10. All data was normally distributed so
a paired t-test was used. Fig. 10 shows that all differ-
ences are significant: EC is faster than CCA for both
Woods and GreyDots, and GreyDots is more challeng-
ing than Woods for both CCA and EC. EC times are
shorter than CCA times even though EC zooms-in on
the target gradually. For Woods, localization accu-
racy was 93±17% for both CCA and EC. For Grey-
Dots, localization accuracy was 60±30% for CCA
and 87±29% for EC. We analyzed the difference with
McNemar’s test for paired proportions which con-
firmed the significance (p < 0.001) of the accuracy
advantage of EC over CCA for the challenging Grey-
Dots scene.
The shorter completion times and higher accuracy
of EC over CCA proves the effectiveness advantage
of the directional guidance provided by Look-over-
there compared to conventional AR hypothesized by
our theoretical analysis (H
1
). Furthermore, since no
user head tracking was used, our empirical results
also confirm that Look-over-there is robust with user’s
head deviating from the center of the display (H
2
).
Blind Localization. Our pipeline can guide the partic-
ipant towards the reference point using the annotation
on a white background alone without any memoriza-
tion of the visual context (Fig. 5). The localization
error is defined as the distance from the center of the
circle annotating the reference point to the location in-
dicated by the user with the laser dot. By taking into
account the viewing distance (about 4 meters), the lo-
calization error can be expressed in degrees. The av-
erage localization error is 0.30±3.31
◦
vertically and
3.3±2.94
◦
horizontally for Woods and 0.31±1.24
◦
vertically and 0.29±1.19
◦
horizontally for GreyDots.
These small errors indicate that even in the total ab-
sence of visual landmarks, Look-over-there provides
visual guidance that is accurate in an absolute sense,
and not just sufficient to isolate one of a small number
of candidate landmarks.
5 CONCLUSIONS AND FUTURE
WORK
We have presented Look-over-there, an AR approach
for a collaborator to convey a real world scene refer-
ence point to a second, co-located collaborator. For
a scene with repeated patterns, e.g., even-sized dots
arranged in a regular 2D grid, or for a scene without
features, e.g., a white wall hiding a pipe that has to be
repaired, the guidance refinement of Look-over-there
significantly reduces the localization time compared
to a conventional AR display.
Our method works for points of reference beyond
the immediate vicinity of the collaborators, i.e., be-
yond 2m. There is no upper limit on the distance to
the reference point, and that scenario is where direc-
tional guidance is most needed. Indeed, when the ref-
erence point is close, walking up to it, pointing in the
direction of, and even touching the reference point are
simple solutions that work well.
Our method was demonstrated in the context of
two collaborators, a guide and a tourist, but the future
work can extend it to a group of tourists. The only
scalability bottleneck is that the annotation frame fea-
tures have to be broadcast to all tourists, which could
be addressed by tourists communicating the features
to each other in a number of steps that is logarithmic
with the number of tourists. Once a tourist device has
the features, it registers the annotation to its live frame
independently of the other tourists, without implica-
tions on the scalability with the tourist group size.
Our work provides a practical and robust method
for improving the quality of the AR interface pro-
vided by handheld devices. Our goal is to help close
the gap in directional guidance quality between video
see-through handheld AR displays and optical see-
through AR HMDs, to leverage the handheld AR dis-
plays’ form factor, ubiquity, and social acceptance ad-
vantages, paving the road towards the wide adoption
of AR technology.
Look-over-there: Real-World Co-Located Cross-Referencing Using Augmented Reality
433

ACKNOWLEDGEMENTS
This material is based upon work supported in part
by the National Science Foundation under Grants No.
2219842 and 2318657. We thank Shuqi Liao for her
help with the experiments.
REFERENCES
Andersen, D., Popescu, V., Cabrera, M. E., Shanghavi,
A., Gomez, G., Marley, S., Mullis, B., and Wachs,
J. (2016a). Virtual annotations of the surgical field
through an augmented reality transparent display. The
Visual Computer, 32(11):1481–1498.
Andersen, D., Popescu, V., Lin, C., Cabrera, M. E., Shang-
havi, A., and Wachs, J. (2016b). A hand-held, self-
contained simulated transparent display. In 2016 IEEE
International Symposium on Mixed and Augmented
Reality (ISMAR-Adjunct), pages 96–101.
Babic, T., Perteneder, F., Reiterer, H., and Haller, M.
(2020). Simo: Interactions with distant displays by
smartphones with simultaneous face and world track-
ing. In Extended Abstracts of the 2020 CHI Confer-
ence on Human Factors in Computing Systems, pages
1–12.
Bari
ˇ
cevi
´
c, D., H
¨
ollerer, T., Sen, P., and Turk, M. (2017).
User-perspective ar magic lens from gradient-based
ibr and semi-dense stereo. IEEE Transactions on Visu-
alization and Computer Graphics, 23(7):1838–1851.
Bauer, M., Kortuem, G., and Segall, Z. (1999). ” where
are you pointing at?” a study of remote collaboration
in a wearable videoconference system. In Digest of
Papers. Third International Symposium on Wearable
Computers, pages 151–158. IEEE.
Billinghurst, M., Kato, H., Kiyokawa, K., Belcher, D., and
Poupyrev, I. (2002). Experiments with face-to-face
collaborative ar interfaces. Virtual Reality, 6(3):107–
121.
Boring, S., Baur, D., Butz, A., Gustafson, S., and Baudisch,
P. (2010). Touch projector: mobile interaction through
video. In Proceedings of the SIGCHI Conference on
Human Factors in Computing Systems, pages 2287–
2296.
Bork, F., Schnelzer, C., Eck, U., and Navab, N. (2018).
Towards efficient visual guidance in limited field-of-
view head-mounted displays. IEEE Transactions on
Visualization and Computer Graphics, 24(11):2983–
2992.
Borsoi, R. A. and Costa, G. H. (2018). On the perfor-
mance and implementation of parallax free video see-
through displays. IEEE Transactions on Visualization
and Computer Graphics, 24(6):2011–2022.
Bradski, G. (2000). The OpenCV Library. Dr. Dobb’s Jour-
nal of Software Tools.
ˇ
Copi
ˇ
c Pucihar, K., Coulton, P., and Alexander, J. (2013).
Evaluating dual-view perceptual issues in handheld
augmented reality: device vs. user perspective ren-
dering. In Proceedings of the 15th ACM on Inter-
national conference on multimodal interaction, pages
381–388.
Davison, A. J., Reid, I. D., Molton, N. D., and Stasse, O.
(2007). Monoslam: Real-time single camera slam.
IEEE transactions on pattern analysis and machine
intelligence, 29(6):1052–1067.
Gauglitz, S., Lee, C., Turk, M., and H
¨
ollerer, T. (2012).
Integrating the physical environment into mobile re-
mote collaboration. In Proceedings of the 14th inter-
national conference on Human-computer interaction
with mobile devices and services, pages 241–250.
Gauglitz, S., Nuernberger, B., Turk, M., and H
¨
ollerer, T.
(2014). World-stabilized annotations and virtual scene
navigation for remote collaboration. In Proceedings
of the 27th annual ACM symposium on User interface
software and technology, pages 449–459.
Hill, A., Schiefer, J., Wilson, J., Davidson, B., Gandy, M.,
and MacIntyre, B. (2011). Virtual transparency: In-
troducing parallax view into video see-through ar. In
2011 10th IEEE International Symposium on Mixed
and Augmented Reality, pages 239–240.
Irlitti, A., Smith, R. T., Von Itzstein, S., Billinghurst, M.,
and Thomas, B. H. (2016). Challenges for asyn-
chronous collaboration in augmented reality. In 2016
IEEE International Symposium on Mixed and Aug-
mented Reality (ISMAR-Adjunct), pages 31–35. IEEE.
Kaufmann, H. (2003). Collaborative augmented reality in
education. Institute of Software Technology and In-
teractive Systems, Vienna University of Technology,
pages 2–4.
Lin, T.-H., Liu, C.-H., Tsai, M.-H., and Kang, S.-C. (2015).
Using augmented reality in a multiscreen environment
for construction discussion. Journal of Computing in
Civil Engineering, 29(6):04014088.
Lowe, D. G. (2004). Distinctive image features from scale-
invariant keypoints. International journal of computer
vision, 60(2):91–110.
Mohr, P., Tatzgern, M., Grubert, J., Schmalstieg, D., and
Kalkofen, D. (2017). Adaptive user perspective ren-
dering for handheld augmented reality. In 2017 IEEE
Symposium on 3D User Interfaces (3DUI), pages
176–181. IEEE.
Samini, A. and Palmerius, K. (2014). A perspective geom-
etry approach to user-perspective rendering in hand-
held video see-through augmented reality.
S
¨
or
¨
os, G., Seichter, H., Rautek, P., and Gr
¨
oller, E. (2011).
Augmented visualization with natural feature track-
ing. In Proceedings of the 10th International Con-
ference on Mobile and Ubiquitous Multimedia, pages
4–12.
Tomioka, M., Ikeda, S., and Sato, K. (2013). Approximated
user-perspective rendering in tablet-based augmented
reality. In 2013 IEEE International Symposium on
Mixed and Augmented Reality (ISMAR), pages 21–28.
Zhang, E., Saito, H., and de Sorbier, F. (2013). From
smartphone to virtual window. In 2013 IEEE Inter-
national Conference on Multimedia and Expo Work-
shops (ICMEW), pages 1–6.
HUCAPP 2024 - 8th International Conference on Human Computer Interaction Theory and Applications
434
