Application and Analysis of the VGG16 Model in Facial Emotion

Recognition

Yitong Bai

School of Computer and Information Technology, Beijing Jiaotong University, Beijing, China

Keywords: Facial Emotion Analysis, Deep Convolutional Neural Network, Psychotherapy, Emotion Recognition,

VGG16.

Abstract: This paper introduces a facial emotion analysis model developed through the utilization of the deep

convolutional neural network structure known as Visual Geometry Group 16 (VGG16). exploring its

significance and effectiveness in the field of psychotherapy. The research employs the Facial Expression

Recognition 2013 (FER2013) dataset, consisting of 35,887 facial images covering various Categories of

emotional states including anger, disgust, fear, happiness, sadness, surprise, and neutrality. VGG16 functions

as a feature extraction tool, employing the derived multi-level features for emotion classification through a

Multilayer Perceptron (MLP) classifier. Additionally, VGG16 is employed as an end-to-end sentiment

classifier with structural and parameter optimization, incorporating techniques such as data augmentation and

model fusion to enhance performance and stability. By applying the model in the domain of psychotherapy,

its responsiveness and relevance in recognizing and regulating emotions associated with different

psychological disorders are explored. Empirical study results demonstrate that the proposed facial emotion

analysis method significantly improves emotion recognition accuracy and robustness. This research holds

paramount importance in advancing the fields of human-computer interaction, mental health and education.

1 INTRODUCTION

Facial expressions constitute a significant channel of

nonverbal communication in humans, serving as

indicators of emotional states, psychological traits,

and social dynamics. Facial emotion analysis involves

the utilization of computational techniques to discern

and comprehend emotions conveyed through human

facial expressions. This analytical approach finds

diverse applications in realms such as human-

computer interaction, mental well-being, education,

and security (Zeng et al 2009 & Calvo and Mello

2010). Nonetheless, challenges confront the domain of

facial emotion analysis, encompassing the

multifaceted nature, intricacy, and subtlety of facial

expressions, in addition to variations attributable to

individual disparities, cultural nuances, and contextual

influences (Li and Deng 2018). Thus, enhancing the

precision and resilience of facial emotion analysis

remains an exigent endeavor. Furthermore, the

assimilation of computer-based facial emotion

analysis into the sphere of psychotherapy, for the

diagnosis and treatment of a myriad of psychological

disorders, emerges as a meaningful and intricate

pursuit.

In recent years, driven by deep learning methods,

facial emotion analysis techniques rooted in

convolutional neural network (CNN) have gained the

attention and research of many scholars. CNN is a

kind of automatic image feature learning and

classification/regression neural network model. It has

powerful representation and generalization

capabilities (Le et al 2015). The application of CNN

in facial emotion analysis is divided into two

categories: The primary approach involves CNN-

based extraction of facial attributes from the initial

image, and then input of these features into other

classifiers or regressors for emotion prediction; the

second is to use of the original image to predict the

emotion category or intensity directly using CNN.

Visual Geometry Group (VGG16) model is a typical

CNN configuration containing a configuration

consisting of sixteen strata of convolutional layers,

pooling strata, and fully connected strata. It performs

well in image classification tasks (Goodfellow 2015).

Prominent researchers have made efforts to use

VGG16 or its derived models for facial emotion

analysis with encouraging results. Mollahosseini et al.

obtained 71.2% accuracy using VGG16 to extract

features and classify them by Support Vector

422

Bai, Y.

Application and Analysis of the VGG16 Model in Facial Emotion Recognition.

DOI: 10.5220/0012799800003885

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Analysis and Machine Learning (DAML 2023), pages 422-426

ISBN: 978-989-758-705-4

Machines (SVM) (Mollahosseini and Chan 2016). Yu

et al utilized VGG16 as an end-to-end classifier using

multi-task learning and attention mechanisms (Yu and

Zhang 2015). Liu et al. achieved 76.1% accuracy by

augmenting VGG16's representation with Deep Belief

Network (DBN) (Liu et al 2016). Jung et al. achieved

77.1% accuracy using VGG16 as a base model and

Hierarchical Committee (HC) (Jung et al 2015).

The objective of this research is to present the

utilization of VGG16 in the construction of a model

designed for the analysis of facial emotions.

Additionally, its significance and effectiveness in the

field of psychotherapy are investigated based on the

model's reasoning. In particular, the empirical dataset

employed in this study is the Facial Expression

Recognition 2013 Dataset (FER2013), encompassing

a collection of 35,887 facial portrayals. It exhibits a

variety of different emotions, each categorized as

anger, disgust, fear, happiness, sadness, surprise, and

neutrality (Dataset 2013). Subsequently, VGG16 is

formulated as a feature extraction mechanism,

whereby the garnered multi-level features are

imported into Multi-Layer Perceptron (MLP)

classifiers to undertake the task of emotion

classification. In addition, VGG16 is used as an end-

to-end sentiment classifier for structural improvement

and parameter optimization. Enhancement techniques

include data augmentation and model merging to

strengthen the performance and stability of the model.

Its responsiveness and relevance to different facial

expression features are also explored. The model is

evaluated for its efficacy and impact in recognizing

and regulating emotions of various psychological

disorders through applications in the field of

psychotherapy. The results of the empirical study

demonstrate that the proposed facial emotion analysis

method significantly enhances the precision and

resilience of emotion recognition. The scholarly

investigation carried out in this article holds

substantial importance in propelling the progression of

fields encompassing human-computer interaction,

mental health, and education.

2 METHODOLOGY

2.1 Dataset Description and

Preprocessing

The dataset FER2013 is a collection designed for

facial expression recognition, introduced by

Goodfellow et al. in a 2013 paper (Goodfellow et al

2013). It comprises around 30,000 grayscale images

of faces and involves categorizing images into one

among seven emotional classes. FER2013 can be

harnessed within CNN and the domain of computer

vision to address various objectives, including but not

limited to facial expression categorization, assessment,

and visual representation. It serves as a resource for

researching human emotion features, and variations

and enhancing human-computer interaction. For

preprocessing FRE2013, data standardization is

employed. This procedure encompasses the deduction

of the mean and subsequent division by the standard

deviation of individual pixel values to transform the

data into a standard normal distribution, reducing bias

and variance.

2.2 Proposed Methodology Overview

This study is dedicated to leveraging the powerful

VGG16, a deep CNN architecture, in constructing a

robust model for facial emotion analysis. By

capitalizing on VGG16's remarkable feature

extraction capabilities and amalgamating them with

multi-level feature fusion, the precision of emotion

classification is significantly heightened. The entire

workflow encompasses a series of meticulously

orchestrated steps. It all begins with the pre-

processing of images, initially sized at 48x48 pixels,

which are opened using the function from the PIL

library. Following this, the images are resized to a

larger 224x224 pixel dimension. The essence of the

model's efficacy lies in its ability to extract salient

features through the utilization of pre-trained weights

from the VGG16 model. A stalwart of deep learning,

VGG16, with its 16-layer architecture, was honed

through training on the expansive ImageNet dataset,

enabling it to discern over a thousand distinct object

categories. This model's output, derived from the final

convolutional layer, yields a comprehensive set of 512

features.

These features undergo a refinement process as

they traverse through a Flatten layer, effectively

transforming multi-dimensional arrays into a compact

one-dimensional representation. In parallel, a Dropout

layer operates to stave off overfitting, selectively

discarding a proportion of neurons at random during

training. This dynamic, combined with the subsequent

four-layer neural network structure, comprising a

Flatten stratum, Dropout stratum, fully connected

stratum, and Softmax stratum, furnishes the model

with a formidable capacity for categorization. The

fully connected layer interconnects all input and

output neurons, while the Softmax layer serves as the

output layer for multi-class classification, yielding the

probability distribution for each category. The

culmination of these meticulous steps culminates in a

Application and Analysis of the VGG16 Model in Facial Emotion Recognition

423

robust model ready for training and evaluation. The

VGG16-based approach is assessed alongside an end-

to-end VGG16 model to validate its efficacy.

Importantly, its applications in psychotherapy

accentuate its potential influence in recognizing and

managing emotions associated with various

psychological disorders. The ensuing results

collectively underline the significant strides being

taken in the fields of human-computer interaction,

mental health, and education. Fig.1 below illustrates

the structure of the system.

Figure 1: The pipeline of the model.

2.2.1 VGG16

The convolutional base of this model is built by using

VGG16, which constitutes a deep CNN structure,

comprising a total of 16 strata, encompassing 13

convolutional strata and 3 fully connected strata.

VGG16 is used as a feature extractor in this model,

with the input size set at 224x224, which is the same

as the original input dimension for the VGG16

network. The images are preprocessed before being

fed into the network, such as resizing, normalizing,

and implementing data augmentation methods, such

as stochastic cropping, mirroring, rotation, and

introducing noise, to augment data diversity and

bolster data resilience. The structure of it is similar to

the standard VGG16 network, excluding that the last

fully connected strata is removed and replaced by

three different feature maps, which are with the

resolution of 28x28, 14x14, and 7x7. They have

different spatial resolutions and semantic levels.

Subsequently, these feature maps are amalgamated

into a unified feature vector, which is subsequently

utilized for the task of emotion classification. The

schematic representation of this structure is depicted

in Fig. 2.

Figure 2: The structure of model.

2.2.2 MLP

The classifier of this model is implemented by using

MLP, which constitutes a fundamental variant of

artificial neural network (ANN) architecture model

that can be used for classification and regression

tasks. MLP is used as a classifier in this model, based

on the fused feature vector obtained from VGG16.

The MLP classifier is comprised of a pair of

concealed strata, each containing 256 neurons,

alongside a softmax stratum equipped with 7 neurons.

The concealed strata employ Rectified Linear Unit

(ReLU) as their activation function, while the

softmax stratum employs cross-entropy as its

designated loss function. The classifier also uses

batch normalization and dropout to improve the

training efficiency and prevent overfitting. The

classifier outputs a score for each of the 7 emotion

categories.

2.2.3 Loss Function

The selection of a suitable loss function holds

paramount importance in the training process of deep

learning models. For this emotion classification task,

categorical cross-entropy function was employed due

to its effectiveness in situations involving multi-class

categorization. The categorical cross-entropy loss

quantifies the disparity between the prognostications

of the model and the authentic labels, thereby urging

the model to assign higher probabilities to the correct

categories during training. The loss is computed for

each image, where the model's predicted probabilities

for each emotion category are compared with the one-

hot encoded actual labels. The formulation is as

follows:

L 





∑



 





∑∑



log p









(1)

DAML 2023 - International Conference on Data Analysis and Machine Learning

424

where M is the number of classes, y



the actual label

(0 or 1) of class c for observation i, and p



is the

model's prediction that observation i belongs to class

c. Subsequently, the model updates its weights

through gradient backpropagation. To prevent

overfitting, a regularization term is incorporated,

namely L2 regularization, into the loss function. This

term adds a penalty to the squared values of the

model's parameters. The parameters of the loss

function, including the weight decay for L2

regularization, are determined through a process of

hyperparameter tuning, ensuring optimal performance

of our model in the emotion classification task.

2.3 Implementation Details

In the implementation of our proposed model, key

considerations revolve around hyperparameters,

background, and data augmentation. Hyperparameters

encompass a learning rate of 0.0001, with a reduction

by a factor of 0.1 on validation loss stagnation. A

batch size of 64 and 30 training epochs are adopted.

The Adam optimizer optimally manages gradient

descent in complex spaces. Data augmentation,

pivotal for robustness and overfitting mitigation,

integrates techniques like random rotation, horizontal

flipping, and random scaling. Given the grayscale

nature of the dataset's facial images, background

uniformity is assumed, focusing the model on facial

features for accurate emotion classification.

3 RESULTS AND DISCUSSION

In this study, a model based on VGG16 for facial

emotion recognition was employed from a dataset of

35,887 images, each labeled with a specific emotion.

In Fig. 3, visualizations of the model's loss and

accuracy are presented.

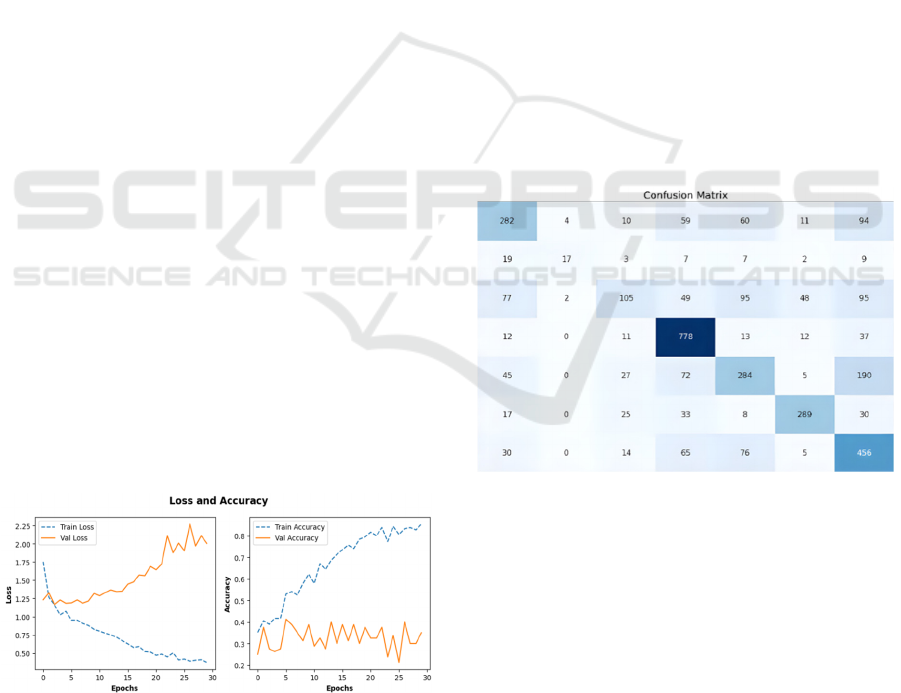

Figure 3: The result curves of the model.

From Fig. 3, it can be observed that the VGG16

model achieves a validation accuracy of 82% after

only 30 epochs of training, while the standalone

VGG16 model exhibits larger fluctuations before

stabilizing at a lower final value. Furthermore, the

VGG16 model demonstrates higher initial accuracy,

indicating a more effective solution for cold start

scenarios.

The exceptional performance of the VGG16

model can be attributed to its proficiency in extracting

multi-tiered features from images and subsequently

consolidating them into a unified feature vector,

thereby facilitating emotion classification. This

amalgamation combines semantic information and

detailed features from different layers, generating a

diverse and rich feature set suitable for intricate facial

emotion recognition tasks.

The pretraining of VGG16 is a crucial step to

enhance the overall model performance. This involves

optimizing learning rates, extending training duration,

and applying enhancement techniques such as Trivial

Augment, Random Erasing, MixUp, and CutMix.

These strategies significantly boost the accuracy of the

VGG16 model. Compared to prior research, this

model demonstrates an increase in accuracy over the

standalone VGG16 model, highlighting the

importance of integrating different neural network

structures to enhance emotion recognition model

performance.

Figure 4: The confusion matrix (The horizontal axis

represents predicted values (Anger, Disgust, Fear, Happy,

Neutral, Sadness, Surprise) from left to right, while the

vertical axis represents true values (Anger, Disgust, Fear,

Happy, Neutral, Sadness, Surprise) from top to bottom).

Fig. 4 illustrates a confusion matrix depicting the

performance of the VGG16 model in facial emotion

recognition. These matrices reflect the alignment

between actual labels and predicted labels, revealing

the model's strengths and weaknesses. It can be

observed that due to the limited number of "disgust"

emotion samples in the dataset, the model encounters

some challenges in recognizing this emotion. This

underscores the importance of maintaining dataset

Application and Analysis of the VGG16 Model in Facial Emotion Recognition

425

balance as a means to enhance the accuracy of emotion

classification.

4 CONCLUSION

This article introduces a model for deep CNN

grounded in the VGG16 architecture, which extracts

multi-level features from images and performs

emotion classification. VGG16 is an excellent feature

extractor, and by using multi-level feature fusion, it

can improve the accuracy of emotion analysis. The

experimental results show that with a tiny change in

the last fully connect strata of VGG16, the model has

significant improvements in the accuracy and

robustness of emotion recognition. Upon the

completion of 30 epochs of training, the VGG16

model achieved a validation accuracy of 82%, proving

its effectiveness. At the same time, the confusion

matrix also shows the advantages and disadvantages

of the proposed method, pointing out the importance

of balancing the dataset to improve classification

accuracy. The proposed model has a broad application

prospect in the field of psychotherapy. By recognizing

and managing emotions related to various

psychological disorders, the model introduced in this

study contributes to the advancement of human-

computer interaction, mental health, and educational

domains. This paper contributes to the advancement

of the

field and opens up new possibilities for

computer-aided facial emotion analysis in

psychotherapy and other domains. Of course, the

proposed method still needs further research and

improvement to fully exploit its potential.

REFERENCES

Z. Zeng, M. Pantic, G. I. Roisman, T. S. Huang, “A survey

of affect recognition methods: Audio, visual, and

spontaneous expressions,” IEEE transactions on

pattern analysis and machine intelligence, vol. 31,

2009, pp. 39-58

R. A. Calvo, S. D'Mello, “Affect detection: An

interdisciplinary review of models, methods, and

their applications,” IEEE Transactions on affective

computing, vol. 1, 2010, pp. 18-37

S. Li, W. Deng, “Deep facial expression recognition: A

survey,” arXiv, 2018, unpublished

Y. LeCun, Y. Bengio, G. Hinton, “Deep learning. nature,”

vol. 521, 2015, pp. 436-444

I. J. Goodfellow, D. Erhan, P. L. Carrier, A. Courville, M.

Mirza, B. Hamner, “Challenges in representation

learning: A report on three machine learning

contests,” In International conference on neural

information processing, 2015, pp. 117-124

A. Mollahosseini, D. Chan, “Going deeper in facial

expression recognition using deep neural networks,”

In 2016 IEEE winter conference on applications of

computer vision (WAC), 2016

Z. Yu, C. Zhang, “Image based static facial expression

recognition with multiple deep network learning,” In

Proceedings of the 2015 ACM on International Conf.

on Multimodal Interaction, 2015, pp. 435-442

P. Liu S. Han, Z. Meng, Y. Tong, “Facial expression

recognition via a boosted deep belief network,” In

Proceedings of the IEEE conference on computer

vision and pattern recognition, 2016, pp. 1805-1812

H. Jung, S. Lee, J. Yim, S. Park, J. Kim, “Joint fine-tuning

in deep neural networks for facial expression

recognition,” Proceedings of the IEEE international

conference on computer vision, 2015, pp. 2983-2991

FER2013 dataset: https://www.kaggle.com/c/challenges-

in-representation-learning-facial-expression-

recognition-challenge/data

Goodfellow et al, “Challenges in Representation Learning:

A report on three machine learning contests,” 2013,

unpublished

DAML 2023 - International Conference on Data Analysis and Machine Learning

426
