Automatic Mapping of Business Web Applications

Adrian Sterca

, Virginia Niculescu

, Alexandru Kiraly and Darius Bufnea

Department of Computer Science, Babes¸-Bolyai University, Cluj-Napoca, Romania

Keywords:

RPA, Web automation, Web Application Mapping, DOM, CRUD Operations.

Abstract:

We present an automated tool that can be used to construct conceptual maps of business web applications.

This conceptual map depicts in an abstract, hierarchical way the possible navigation and operational paths in

the UI (i.e. User Interface) of the web application. Our tool discovers this conceptual map by navigating auto-

matically through the UI of the target business web application and by mapping UI operations to conceptual

operations in a database. The output product of our tool is this conceptual map represented in a graphical or

serialized form. This conceptual map can be used for documenting a business web application so that new

users of the web application quickly gain the necessary knowledge to navigate through the UI screens of the

application and to operate the application. It can also be used for developing RPA (i.e. Robotic Process Au-

tomation) solutions that automate process execution on that business web application. This tool comes in the

form of a browser extension.

1 INTRODUCTION

We consider in this paper the idea of mapping a busi-

ness web application. That is to create a conceptual

map for all the paths in the UI of a business web ap-

plication. In the initial days of the world wide web,

static websites used to have a tree-like map of the

website, describing all of the website’s static Html

documents. Current business web application don’t

have such maps because most of the Html content is

generated dynamically from a database. And so, it

would be difﬁcult to create such maps due to the pos-

sible inﬁnite amount of generated Html content.

Our study targets business web applications like

CRM (i.e. Customer Relation Management), ERP

(i.e. Enterprise Resource Planning) or project man-

agement web applications like Microsoft Dynamics,

Atlassian Jira, but generally, any business web appli-

cation that uses a relational database in the backend

and exposes the data in this database through the func-

tionality of the UI (i.e. User Interface).

If we consider all the Html content generated by

a business web application, we can see that there are

two types of Html content in a business web applica-

tion:

• Html content used purely for the visual look of

https://orcid.org/0000-0002-5911-0269

https://orcid.org/0000-0002-9981-0139

https://orcid.org/0000-0003-0935-3243

the application and for navigation (e.g. menus and

menu items, tabs and panels, headers and footers,

cover images etc.); this Html content does not use,

expose or manipulate the data in the underlying

database of the application

• Html content that represents an interface to the

data in the underlying database; this Html con-

tent is used for showing various entities from the

database or for allowing the user to add new con-

tent or modify existing content from the database;

most Html content generated by a business web

application belongs to this second type.

In many ways, we can consider a business web appli-

cation to be just a user-friendly interface to the data

in a database. Most UI operations of such an appli-

cation can be abstracted/reduced to operations on the

database (i.e. most UI operations translate to read or

write operations in the database or in SQL language,

they translate to Select, Insert, Update or Delete op-

erations of various entities in the database) - these are

the business functionalities of the application.

We introduce a tool that is able to navigate through

the screens/paths of the target web application and is

able to detect the conceptual operations facilitated by

the Html content of the application. And it does all

of this automatically, without the intervention of the

human user. The tool handles all the understanding

of the UI and the mapping of UI controls to various

properties of entities from the backend database of the

Sterca, A., Niculescu, V., Kiraly, A. and Bufnea, D.

Automatic Mapping of Business Web Applications.

DOI: 10.5220/0012212700003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 437-445

ISBN: 978-989-758-672-9; ISSN: 2184-3252

437

application. In this sense, our mapping tool automati-

cally translates human user operations on the UI onto

conceptual operations in the database. So the central

idea of the tool is to map UI operations on conceptual

operations in the database.

The tool comes in the form of a browser extension.

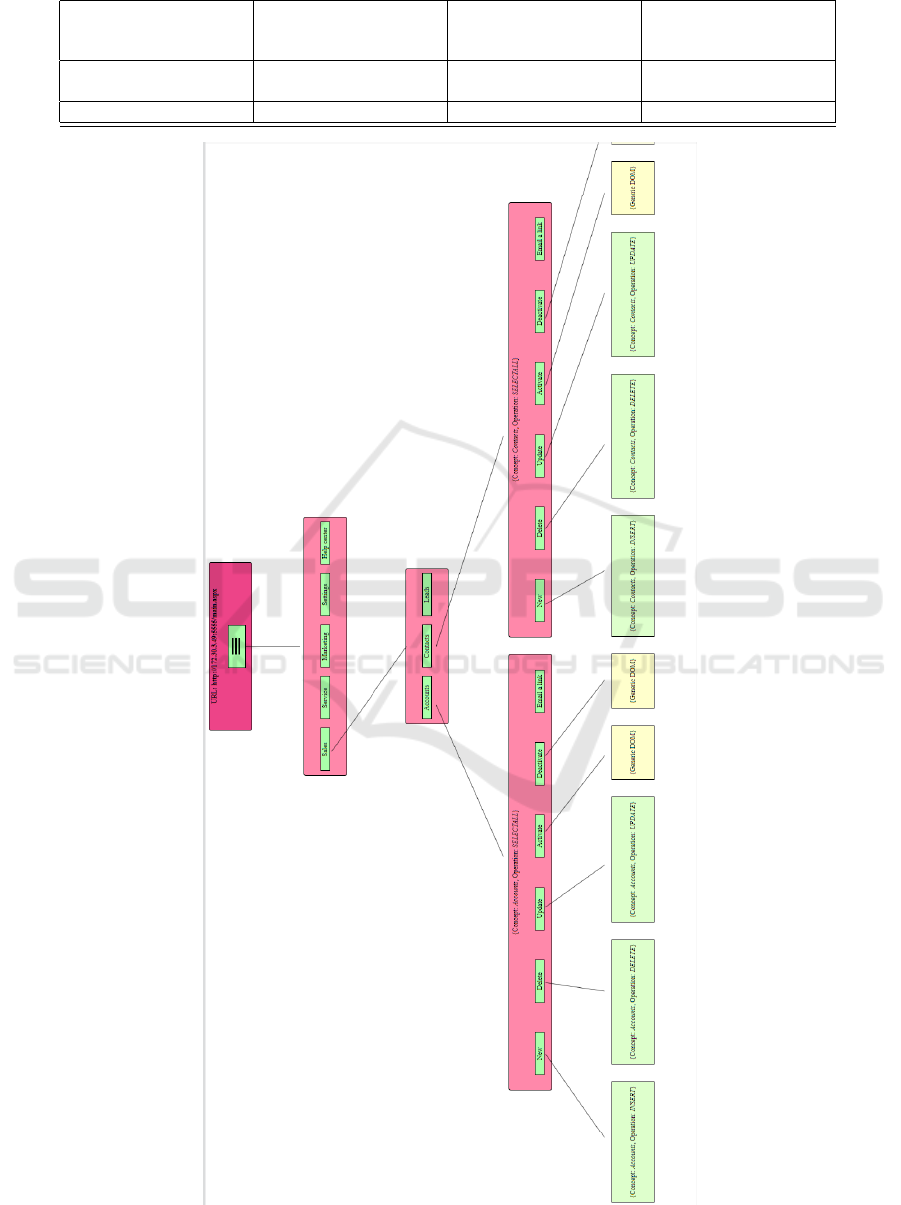

The output of running our tool on a target business

web application is a conceptual map which consists of

nodes inter-linked in a tree-like structure, these nodes

representing either generic Html content or Html con-

tent representing conceptual operations. A generic

Html content is just an Html document that contains

menus, documentation or any other generic info about

the application and does not expose any entity from

the database. While an Html content representing

conceptual operations is an Html code like text in-

puts, buttons, paragraphs, tables either for displaying

properties of an entity from the database (i.e. ‘SE-

LECT‘ the entity) or for allowing the user to add or

remove an entity from the database or to alter its prop-

erties (i.e. ‘INSERT‘ or ‘UPDATE‘ or ‘DELETE‘ the

entity). This conceptual map is produced in a serial-

ized form as JSON and depicted graphically in Html

canvas.

Such a conceptual map of a business web applica-

tion can have many usages. We mention two of them.

Such a conceptual map can be useful as documenta-

tion for new users, for allowing new users of the ap-

plication to see an abstract, birds-eye view of the web

application. This can facilitate an easy learning of

the functionality of the business application by new

users. Such a map can also be useful for advanced

RPA (i.e. Robotic Process Automation) robots. In-

stead of an RPA developer coding various operations

on UI controls, an RPA agent can be guided to exe-

cute various conceptual operations on the conceptual

map. The browser extension tool automatically maps

UI controls to properties of entities in the database,

i.e. it ‘understands‘ the UI of the application, so it

can also be programmed to manipulate those UI con-

trols (i.e. adding a value to a text input control in the

UI, clicking a submit button in the UI etc.) in order

to perform the actual conceptual operation from the

map (e.g. inserting an ‘Account‘ entity, updating a

‘Contact‘ entity, deleting a ‘Resource‘ entity etc.).

In this paper, the term concept refers to the data

type stored in a database table, while entity refers to

a row/record of a database table. A concept always

describes a set of entities; e.g. an ‘Account concept‘

is stored in an ‘Account‘ table in the database, while

each entry/record from this table represents an ‘Ac-

count entity‘. In order to avoid a node explosion prob-

lem in the generated conceptual map, for all entities of

a speciﬁc database concept and each conceptual op-

eration (i.e. Select, Insert, Update, Delete) we only

store one node in the map; i.e. we don’t have one

map node for each entity, only a single map node for

the whole concept. For example, if we have an ‘Ac-

count‘ table in the database and in this table there are

three entries, ‘Account1‘, ‘Account2‘ and ‘Account3‘,

we only store one single node in our conceptual map

for the conceptual operation of ‘Update Account‘; we

don’t have three different map nodes for ‘Update Ac-

count1‘, ‘Update Account2‘ and ‘Update Account3‘.

This is true for the other conceptual operations: Se-

lect, Insert and Delete.

The rest of the paper is structured as follows. Sec-

tion 2 presents studies related to our work. Section

3 presents the structure of the conceptual map, while

Section 4 details the algorithm used for building the

conceptual map. Following, in Section 5 we discuss

the method used for detecting conceptual operations

in the DOM. Section 6 is devoted to tests and experi-

ments and Section 7 discusses some limitations of our

mapping tool. The paper ends with conclusions and

future work.

2 RELATED WORK

A related topic is UI screen parsing(Wu et al., 2021)

where a screenshot of a UI is analyzed in order to

determine the components it’s made from: buttons,

menus, labels etc. These components are represented

in an hierarchical structure. Screen2Vec (Li et al.,

2021) uses machine learning autoencoders to repre-

sent the layout and UI components of a mobile appli-

cation screen in a vector of numbers. These studies

are performed on a single screen of an applications

and consider only mobile applications, not web ap-

plications. Our study considers all the screens of a

business web application.

(Feiz et al., 2022) uses transformer models Faster

RCNN to determine the similarity of various screens

of a mobile application. Another approach for deter-

mining the similarity between screens of web appli-

cations, not only mobile, is taken in (Wu et al., 2023).

Authors construct a dataset of web UI screenshots,

WebUI and then they use machine learning models

with transfer learning to perform screen element de-

tection, screen similarity and screen classiﬁcation on

these screenshots. Similar approaches are described

in (Nguyen and Csallner, 2015) where authors try to

detect UI elements (i.e. buttons, text inputs etc.) from

a screenshot of a mobile application in order to gen-

erate de UI code for that speciﬁc UI.

Another related topic is that of web segmentation

which refers to dividing a web page (including the

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

438

UI of a web application) into constituent segments

like: menu items, paragraphs, tables, panels, cards

etc. Web segmentation can be useful for information

retrieval, archiving, topic extraction, focused crawl-

ing, and improving the accessibility of web content in

non-visual environments. Generally, there are three

approaches for web segmentation: a) a pixel-based

one that uses computer vision techniques to deter-

mine segments from a screenshot of a web page, b) a

DOM-based approach which uses features extracted

from the DOM hierarchical structure of the web page,

and c) a hybrid approach which combines the previ-

ous two.

The VIPS (VIsion-based Page Segmentation) al-

gorithm for segmenting a web document is presented

in (Cai et al., 2003). The starting point of the VIPS

algorithm is separator tags. VIPS uses separator tags

in the web document like <br>and <hr>in order to

identify segments. Then it uses heuristics based on

the <table>, <tbody>, <tr>, <td>, <p>, <ul>and

<li>tags in order to further divide the Html content

into segments. Another paper, (Mantratzis and Cas-

sidy, 2005), introduces a method for recognizing sig-

niﬁcant structures, such as table-like or list-like struc-

tures within a web page. This approach operates at

different levels within the DOM tree. Initially, the

DOM tree undergoes a cleanup process where unim-

portant tags are removed, while empirically deter-

mined important tags, such as <table>, <tr>, <td>,

<ul>, or <div>, are retained. Then, the algorithm

proceeds to identify the table-like and list-like struc-

tures. The paper by Jeyafreeda et al. (Andrew et al.,

2019) examines web page segmentation from the per-

spective of a clustering problem involving visual ele-

ments. The objective is to cluster all visual elements

while discovering a predetermined number of clus-

ters, where the elements within each cluster should

be visually connected. The study evaluates three clus-

tering algorithms: K-means, F-K-means, and Guided

Expansion.

Our present study is connected to RPA (Robotic

Process Automation). Robotic Process Automa-

tion (RPA) is deﬁned as the application of speciﬁc

methodologies and technologies that aim to auto-

mate repetitive tasks achieved usually by human users

(IRPA, 2015), (Hofmann et al., 2020). RPA frame-

works (e.g., UiPath

, Automation Anywhere

, Blue

Prism

, Microsoft Power Automate

, etc.) are de-

signed to develop software robots that improve the

business environment in various ways. RPA refers to

https://www.uipath.com/

https://www.automationanywhere.com/

https://www.blueprism.com/

https://powerautomate.microsoft.com/en-us/

those tools that operate on the user interface (UI) aim-

ing to perform automation tasks using an ”outside-

in” approach. The information systems are kept un-

changed, compared to the traditional workﬂow tech-

nology, that allows the improvement using an ”inside-

out” approach (Van-der Aalst et al., 2018). In order to

describe business processes in a way that can later be

executed automatically by programs, RPA platforms

like UiPath, Power Automate, Automation Anywhere

etc. operate (i.e. create automated business processes)

in the following way: RPA developers identify UI (i.e.

User Interface) components of a software application

like buttons, text input controls, dropdown lists and

tables, and then customize activities by writing code

snippets in a programming language in order to act

on these UI controls (e.g. click the selected button,

write data in the text input, select all data from a ta-

ble or a dropdown list etc.); this code that references

the selected UI controls forms the automated busi-

ness process which can be executed many times later

with different input parameters. Other alternative to

the aforementioned commercial RPA platform do ex-

ist and they are usually based on PBD (i.e. Program-

By-Demonstration) methodologies (Li et al., 2017),

(Leno et al., 2020), (Agostinelli et al., 2020).

A work somewhat similar to ours is (Liu and

Yang, 2005). In this paper, authors build a topic hi-

erarchy of a website starting from the homepage of

the website and continuing in a tree-like structure in

which the vertices and edges correspond to web pages

and hyperlinks. But our work deals with a much com-

plex topic of mapping the web content generated by a

business web application and the map is a conceptual

map (it does not include actual web pages).

3 THE STRUCTURE OF THE

MAP

The map of the business web application will be a

tree-like structure and will describe in an abstract,

conceptual way, the use cases (functionalities) of the

web application. The map will be a navigational map

meaning that it will describe in a compact way all pos-

sible navigation paths in the UI of the web applica-

tion. The elements of the map are the following:

• Clickable elements

• Conceptual operation DOM parts

• Web pages

• Links

Conceptual operation DOM parts and Web pages

are the nodes of the map, clickable elements are at-

Automatic Mapping of Business Web Applications

439

tributes of the nodes and links are the edges of our

map.

3.1 Clickable Elements

These are Html elements which can be clicked by

the user in the browser, thus triggering a change in

the UI of the web application (by sending a complete

HTTP request or an XHR/Fetch API HTTP request

whose answer would replace totally or partially the

currently loaded Html content in the browser win-

dow/tab). These clickable elements create links in our

conceptual map of the application between two Web

pages of the application. From a technical point of

view, clickable elements are the following Html ele-

ments: <button>, <input type=”submit”>, <a>or

any other Html element that has an onclick attribute

or has a click event listener added on it. In or-

der to discover the Html elements that have a click

event listener from the current document, we had to

overwrite the addEventListener() method on the Ele-

ment.prototype object in the browser.

We identify each clickable element in the browser

by assigning an unique signature to it (i.e. unique

to the current Html document) - the XPATH of that

clickable element in the current DOM (i.e. Document

Object Model).

3.2 Conceptual Operation DOM Parts

A conceptual operation DOM part is just a part of the

DOM in a business web application that allows the

human user to execute a conceptual operation on the

database. A conceptual operation is just a CRUD op-

eration (i.e. Create, Read, Update, Delete) on a con-

cept or entity from the underlying database of the web

application. For example, for an Update operation on

an Account entity, usually the web application would

provide an Html form with labels and inputs for each

ﬁeld of the Account entity. Similarly, for a Create op-

eration on an Account concept, the web application

will usually construct also a form with labels and in-

puts for all the ﬁelds of the Account concept. For a

Read operation on an Account entity, a similar DOM

part is shown, but this time the text inputs are read-

only. And for a Delete operation usually just a key

of the entity (like the name of the entity) is usually

required from the user.

Conceptual operation DOM parts are always the

leaves of the tree-like, conceptual map of the web ap-

plication.

3.3 Web Pages

The web pages are the nodes of the map. A Web page

contains clickable elements. Actually, the set of all

clickable elements from a web page form a signature

of that web page; as mentioned before, each click-

able element is identiﬁed by its XPATH in the cur-

rent document. From a technical point of view, an

web page represents an Html document that is loaded

in the browser. In the map, web pages may lead to

other web pages or to conceptual operation DOM part

nodes. The web pages are linked together in the map

by links.

Web pages are actually container nodes which

contain a set of clickable elements, each clickable el-

ement connecting the current web page with another

web page or with a conceptual operation DOM part.

Even if an actual Html document may contain an

Html section corresponding to a conceptual operation

DOM part, this conceptual operation DOM part is

not considered to be part of the web page correspond-

ing to this Html document. This conceptual operation

DOM part will form a separate node in the conceptual

map (separate from the original web page).

3.4 Links

The links are just connections between web pages or

between a web page and a conceptual operation DOM

part in the conceptual map. They form the backbone

of the map of the web application. A link unites two

web pages in the map if by clicking on a clickable el-

ement of the ﬁrst web page we navigate to the second

web page. A link of the map always has directionality.

4 BUILDING THE MAP

The map is built by running a depth-ﬁrst traversal al-

gorithm on the entire web application. The various

web pages of the application are traversed through

clickable elements. The algorithm for constructing

the map of the web application is described in code

listing 1. In the ﬁrst lines of the algorithm, lines 1-5,

we perform initializations of various structures used

in the algorithm: the stack, the root of the map and the

current WebPage node. The algorithm assumes that

the starting Html document of the web application is

already loaded in the browser. The algorithm initial-

izes a new WebPage node from this Html document

in line 4, node that will also be the root of the con-

ceptual map. As mentioned before, a WebPage node

of the map is identiﬁed by a list of clickable elements

and also it has a set of links pointing towards other

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

440

WebPage nodes or Conceptual operation DOM parts

(in line 4, links are initialized with an empty set).

Following, lines 6-25 deﬁne the main cycle of the

iterative depth-ﬁrst traversal algorithm. The Stack

stores all the WebPages that need to be traversed/vis-

ited. A WebPage is considered visited and removed

from the stack when all its clickable elements were

visited by our tool. On lines 7-10 we take the ﬁrst

WebPage from the top of the stack, get it’s ﬁrst unvis-

ited (i.e. unclicked) clickable element and navigate

through that path by clicking on this unvisited click-

able element (on line 10). Following, if all clickable

elements from the WebPage node from the top of the

stack were already visited, we remove this WebPage

from the top of the stack (line 12).

Next, on line 14, we try to determine if this new

Html document that was loaded in the browser (af-

ter executing line 10) represents a generic WebPage

or a conceptual operation DOM part leaf node. If

we have found a conceptual operation in the cur-

rently loaded Html document (this is performed by

the DetectConceptualOperation() algorithm which

is detailed in a subsequent code listing), we add this

conceptual operation DOM part to the map on lines

15-17. Otherwise, in lines 19-23 we add a new,

generic WebPage, newWebPage to the map. We don’t

forget to link this newWebPage to the previous Web-

Page and to add it to the stack in order to be visited

later.

5 DETECTING CONCEPTS AND

CONCEPTUAL OPERATIONS

IN THE DOM

As we said in section 1, in order to avoid a node ex-

plosion problem in the generated conceptual map, we

only store one node in the map for all entities of a

speciﬁc database concept and each conceptual opera-

tion (i.e. Select, Insert, Update, Delete); i.e. we don’t

have one map node for each entity, only a single map

node for the whole concept. As conceptual operations

we consider the 4 basic SQL operations: Select, In-

sert, Update, Delete, but we also consider a 5-th one,

SelectAll which represents the operation of selecting

many entities, not necessary all, of the same concept.

This is because a popular UI pattern for CRM and

ERP web applications is to show a list of entities (i.e.

a SelectAll operation) from where the human user can

choose which entity to update or delete.

The detection of an operation on a concept in the

current DOM (i.e. Document Object Model) happens

according to the algorithm depicted in

The MapBuilding algorithm is:

1: Stack = []

2: MapRoot = []

3: clickableElements = GetClickableElements()

4: MapRoot = {WebPage : clickableElements, Links : []}

5: Stack.push(MapRoot)

6: while (Stack is not empty) do

7: WebPage = Stack.top()

8: ClickElem = GetFirstU nvisitedClickableElement(WebPage)

9: ClickElem.state = visited

10: Navigate(ClickElem)

11: if VisitedAllClickableElements(WebPage) == True then

12: Stack.pop()

13: end if

14: conceptualOperation = DetectConceptualOperation()

15: if conceptualOperation! = NULL then

16: WebPage.Links.add({ClickableElement :

ClickElem,WebPage : conceptualOperation})

17: { This is a leaf node of the map }

18: else

19: { This is a new WebPage node of the map }

20: clickableElements = GetClickableElements()

21: newWebPage = {WebPage : clickableElements, Links : []}

22: WebPage.Links.add({ClickableElement :

ClickElem,WebPage : newWebPage})

23: Stack.push(newWebPage)

24: end if

25: end while

Algorithm 1: The algorithm that constructs the map of the

web application.

listing 2. After each UI change generated by a

click event, the diffDOM (i.e. the difference DOM)

is computed. The diffDOM is just the part of the

DOM that changed after the click event and the

DetectConceptualOperation algorithm is run on this

difference DOM, not on the whole DOM loaded in

the browser, for efﬁciency reasons.

The algorithm begins with the function

TableO f EntitiesDetected(di f f DOM) which

tries to detect any tables in the diff DOM. Tables

are important because the may indicate a SelectAll

operation on a concept. We can not present here the

body of this function due to space constraints, but in

essence, the algorithm for detecting a table tries to

horizontally align leaf html tags containing only text

into horizontal row clusters and then tries to verti-

cally align these horizontal rows into a table. After

detecting a table, the algorithm tries to detect if the

entities of a concept are rendered in that table through

function DetectConceptInTable(di f f DOM). Again,

we omit the details here, but simply said, the concept

is determined by searching its attributes in the table

cells of the table header or, if these are not found

(e.g. the table may not have a header), the concept is

determined by inspecting (i.e. triggering click events)

the entities from the ﬁrst two rows of the table; de-

tecting an entity is done similarly to the way function

Automatic Mapping of Business Web Applications

441

FindOneConcept(di f f DOM) determines that an

entity (of that concept) is rendered in the di f f DOM

: several text attributes (labels) of a concept from the

Data Model are found in the di f f DOM - more than

75% of the labels of a concept are found.

Next, if there was no SelectAll or Delete operation

on a concept/entity detected, the algorithm tries to

ﬁnd text input elements/tags (i.e. ”<input type=text

>,<select >,<textarea >”) associated to the text la-

bels (i.e. the text attributes of the found entity). We

do this in the FindInputFieldsForTextLabels() func-

tion. The associated text input tag is searched in the

neighborhood of the label, more speciﬁcally, the asso-

ciated input tag is searched in the South-East quarter

of a circle with the center in the middle of the label

- the closest such text input tag from this South-East

quarter is associated to the label. If no such input html

tags were detected, that the operation is Select on an

entity of the detected concept. If, on the other hand,

there was text input html elements found in the diff-

DOM, but they are empty (i.e. don’t contain values),

the conceptual operation would be Insert. Otherwise,

the conceptual operation is Update on an entity of the

detected concept.

5.1 Conﬁguration Settings for the

Plugin

The initial settings of the plugin for a target web ap-

plication are the following:

• URL of the target web application together with

access credentials

• the Data Model of the database used by the target

web application

The Data Model conﬁguration does not need to match

exactly the structure of the database used by the ap-

plication, but it should match the text labels used for

each concept of the database on the UI of the applica-

tion. This is why, primary access to the database used

by the target web application is not required in order

to use the plugin.

A small snippet from a data model example used

for the Microsoft Dynamics 2016 CRM application is

given below in JSON format.

The data model describes the concept Account

with its associated attributes and the concept Contact

with its associated attributes. It also describes that

the Company attribute from Contact is a foreign key

and refers to the primary key Account Name from the

Account concept. Again, we emphasize that these at-

tributes don’t have to match exactly the attributes of

the database tables, but instead they have to match the

text labels for the respective entities on the UI of

The DetectConceptualOperation

algorithm is:

1: if TableO f EntitiesDetected(di f f DOM) == T RUE then

2: DetectedConcept = DetectConceptInTable(di f f DOM)

3: return {Concept : DetectedConcept, Operation : SELECTAll}

4: else

5: if

(DetectedConcept = FindOneConcept(di f f DOM))! = NULL)

then

6: {Several text attributes (labels) of a Concept from the Data

Model are found in the DOM}

7: if (The previous click event was triggered on a tag with the

caption ”DELETE”) then

8: return

{Concept : DetectedConcept, Operation : DELET E}

9: end if

10:

11: InputFieldsFound = FindInputFieldsForTextLabels()

12: if InputFieldsFound == FALSE then

13: return

{Concept : DetectedConcept, Operation : SELECT }

14: else

15: if (Found Text Input elements are empty (i.e. don’t contain

values)) then

16: return

{Concept : DetectedConcept, Operation : INSERT}

17: else

18: return

{Concept : DetectedConcept, Operation : UPDAT E}

19: end if

20: end if

21: end if

22: end if

Algorithm 2: The conceptual operation detection in DOM

algorithm.

the target web application. The foreign key relation is

used by the plugin to identify entities that are linked

with the currently identiﬁed entity (i.e. entities that

are values for a property of the currently identiﬁed

entity).

6 EXPERIMENTS

We have tested our tool on two commercial, business

web application, Microsoft Dynamics 2016 CRM

and Atlassian Jira

. Although we tested our web au-

tomation tool only on these two business web applica-

tion, we based our plugin implementation on common

web design principles (like the fact that an input ﬁeld

is always placed in the web UI either on the right or

below or in the south-east part of its corresponding

text label), so it should work correctly on other busi-

ness web applications. We used general templates for

https://learn.microsoft.com/en-

us/lifecycle/products/dynamics-crm-2016-dynamics-365

https://www.atlassian.com/software/jira

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

442

DataModel = {

"Account" : ["Account Name", "Phone", "Fax", "Website", "Parent Account", "Ticker Symbol",

"Address", "Primary Contact", "Description", "Industry", "SIC Code", "Ownership"],

"Contact" : ["Full Name", "Job Title", "Account Name", "Email", "Business Phone", "Mobile Phone",

"Fax", "Preferred Method of Contact", "Address", "Gender", "Marital Status", "Birthday",

"Spouse/Partner Name", "Anniversary", "Personal Notes", "Company", "Originating Lead",

"Last Campaign Date", "Marketing Materials", "Contact Method", "Email", "Bulk Email", "Phone",

"Fax", "Mail"],

"ForeignKeys" : [ { ForeignKey : "Company", ForeignTable : "Contact", PrimaryKey : "Account Name",

PrimaryTable : "Account" } ]

...

};

the conceptual operations which are not speciﬁc to

a particular web application, so our web automation

tool should, in principle, work with any typical busi-

ness web application that uses a relational database.

We evaluated the ability of our web automation

tool to automatically discover conceptual operations

on the UI by going through all use cases/functionali-

ties of the aforementioned business applications. We

considered all use cases that involve (i.e. whose out-

come is) a CRUD operation in the backend database.

So, we ignored use cases that involve only UI modiﬁ-

cations, without reading from or changing the data in

the database. We ignored use cases that do not oper-

ate on the database (they operate just on the data that

is shown in HTML documents in the browser) like

for example: print current HTML document, draw re-

ports, email a link/current document, import from Ex-

cel into the browser window, etc. On all these consid-

ered use cases, we tested whether our plugin is able to

automatically detect the main conceptual operation.

The results are summarized in Table 1.

The second column in the table presents the num-

ber of use cases (i.e. potential conceptual operations)

we considered/tested in each of the 2 web applica-

tions. The third column presents the absolute number

of conceptual operations detected and the fourth col-

umn presents the percentage of this number of auto-

matically detected conceptual operations in the total

number of potential conceptual operations considered

(i.e. the second column value). We can see in this

table that our web plugin tool was able to detect 79%

and respectively 67% of the available conceptual op-

erations in the considered business web applications.

The rest of non-discovered conceptual operations in-

volve partial CRUD operations, i.e. operations that

only change a single ﬁeld or a couple of ﬁelds from

a database entity (e.g. the operation ”Fulﬁll Order”

which only changes a ﬁeld of the ”Order” entity and

does not perform a full-ﬂedged Update operation of

all ﬁelds).

In Fig. 1 we can see a partial conceptual map gen-

erated for the business web application Microsoft Dy-

namics 2016 CRM. We could not place the complete

map here due to space constraints.

7 LIMITATIONS

Our mapping tool should work with any business web

application that uses a relational database in the back-

end because our plugin uses general templates for the

conceptual operations which are not speciﬁc to a par-

ticular web application, and we based our plugin im-

plementation on common web design principles (like

the fact that an input ﬁeld is always placed in the web

UI either on the right or below or in the south-east

part of its corresponding text label). However, there

are some limitations to our approach.

Because our mapping tool detects a conceptual oper-

ation in the DOM by mapping text labels in the DOM

(that represent properties of a concept from the un-

derlying database of the application) to text inputs,

for operations like partial CRUD operations that only

modify a single or just a few properties of a concept,

our mapping tool would not be able to detect a con-

ceptual operation in the DOM (just a ‘Generic DOM‘

would be detected). The operation will still be la-

beled by default by our tool with the text found on the

clickable element that triggered that operation on the

UI, but the effect on the UI would still be a ‘Generic

DOM‘. Our mapping tool allows the human user to

change the ‘Generic DOM‘ node in the map to some

other conceptual operation DOM part node.

8 CONCLUSIONS

We presented an automated tool that can be used to

construct conceptual maps of business web applica-

tions. This conceptual map depicts in an abstract,

hierarchical way the possible navigation and opera-

Automatic Mapping of Business Web Applications

443

Table 1: Automatic discovery of conceptual operations on the User Interface.

Target application Total number of use

cases (i.e. conceptual

operations)

Number of conceptual

operations automati-

cally discovered

Percentage of concep-

tual operations auto-

matically discovered

Microsoft Dynamics

2016 CRM

102 81 79%

Atlassian Jira 39 26 67%

Figure 1: Partial map of Microsoft Dynamics 2016 CRM.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

444

tional paths in the UI (i.e. User Interface) of the web

application. The map is produced in either serialized,

JSON format or in a graphical form in Html. We have

tested our tool on two commercial web applications

and found that our tool is able to construct a concep-

tual map for those applications.

Obtaining such a map offers important advantages

especially in the RPA tools’ development. The map

could be used as a foundation for automatizing the

operations allowed to be executed through the web UI

of an application.

As future work, we plan to improve our algorithms

of conceptual operation detection so that it works also

on partial CRUD operations and we plan to add an

RPA execution capability to our tool so that it behaves

also as RPA software.

ACKNOWLEDGEMENTS

The present work has received ﬁnancial support through

the project: Integrated system for automating business pro-

cesses using artiﬁcial intelligence, POC/163/1/3/121075 -

a Project Coﬁnanced by the European Regional Develop-

ment Fund (ERDF) through the Competitiveness Opera-

tional Programme 2014-2020.

REFERENCES

Agostinelli, S., Lupia, M., Marrella, A., and Mecella, M.

(2020). Automated Generation of Executable RPA

Scripts from User Interface Logs, pages 116–131.

Andrew, J. J., Ferrari, S., Maurel, F., Dias, G., and Giguet,

E. (2019). Web page segmentation for non visual

skimming. In The 33rd Paciﬁc Asia Conference

on Language, Japan. hal-02309625. Information and

Computation (PACLIC 33) Hakodate.

Cai, D., Yu, S., Wen, J.-R., and Ma, W.-Y. (2003). Ex-

tracting content structure for web pages based on vi-

sual representation. In Web Technologies and Applica-

tions: 5th Asia-Paciﬁc Web Conference, APWeb 2003,

Xian, China, April 23–25, 2003 Proceedings 5, pages

406–417. Springer.

Feiz, S., Wu, J., Zhang, X., Swearngin, A., Barik, T., and

Nichols, J. (2022). Understanding screen relation-

ships from screenshots of smartphone applications. In

27th International Conference on Intelligent User In-

terfaces, IUI ’22, page 447–458, New York, NY, USA.

Association for Computing Machinery.

Hofmann, P., Samp, C., and Urbach, N. (2020). Robotic

process automation. Electronic Markets, 30(1):99–

106.

IRPA (2015). Introduction to robotic process automation. a

primer.

Leno, V., Deviatykh, S., Polyvyanyy, A., Rosa, M. L., Du-

mas, M., and Maggi, F. M. (2020). Robidium: Auto-

mated synthesis of robotic process automation scripts

from UI logs. In Proceedings of the Best Disserta-

tion Award, Doctoral Consortium, and Demonstra-

tion & Resources Track at BPM 2020 co-located with

the 18th International Conference on Business Pro-

cess Management (BPM 2020), Sevilla, Spain, Sept.

13-18, 2020, volume 2673, pages 102–106. CEUR-

WS.org.

Li, T. J.-J., Azaria, A., and Myers, B. A. (2017). Sug-

ilite: Creating multimodal smartphone automation by

demonstration. In Proceedings of the 2017 CHI Con-

ference on Human Factors in Computing Systems,

CHI ’17, page 6038–6049, New York, NY, USA. As-

sociation for Computing Machinery.

Li, T. J.-J., Popowski, L., Mitchell, T., and Myers, B. A.

(2021). Screen2vec: Semantic embedding of gui

screens and gui components. In Proceedings of the

2021 CHI Conference on Human Factors in Comput-

ing Systems, CHI ’21, New York, NY, USA. Associa-

tion for Computing Machinery.

Liu, N. and Yang, C. (2005). Mining web site’s topic hierar-

chy. In Special Interest Tracks and Posters of the 14th

International Conference on World Wide Web, WWW

’05, page 980–981, New York, NY, USA. Association

for Computing Machinery.

Mantratzis, C. and Cassidy, S. (2005). Dom-based xhtml

document structure analysis separating content from

navigation elements. In International Conference

on Computational Intelligence for Modelling, pages

632–637, Web Technologies and Internet Commerce

(CIMCA-IAWTIC’06), Vienna, Austria. Control and

Automation and International Conference on Intelli-

gent Agents.

Nguyen, T. A. and Csallner, C. (2015). Reverse engineer-

ing mobile application user interfaces with remaui.

In Proceedings of the 30th IEEE/ACM International

Conference on Automated Software Engineering, ASE

’15, page 248–259. IEEE Press.

Van-der Aalst, W. M. P., Bichler, M., and Heinzl, A. (2018).

Robotic process automation. Business and Informa-

tion Systems Engineering, 60:269–272.

Wu, J., Wang, S., Shen, S., Peng, Y.-H., Nichols, J., and

Bigham, J. P. (2023). Webui: A dataset for enhanc-

ing visual ui understanding with web semantics. In

Proceedings of the 2023 CHI Conference on Human

Factors in Computing Systems, CHI ’23, New York,

NY, USA. Association for Computing Machinery.

Wu, J., Zhang, X., Nichols, J., and Bigham, J. P. (2021).

Screen parsing: Towards reverse engineering of ui

models from screenshots. In 34th Annual ACM Sym-

posium on User Interface Software and Technology

(UIST ’21), pages 470–483, New York, NY, USA.

Automatic Mapping of Business Web Applications

445
