Enhancing Diabetic Retinopathy Detection Using CNNs with

Dimensionality Reduction Techniques and K-Nearest Neighbors

Ensembles

Chaymaa Lahmar

and Ali Idri

1,2

Software Project Management Research Team, ENSIAS, Mohammed V University in Rabat, Morocco

Mohammed VI Polytechnic University Benguerir, Morocco

Keywords: Diabetic Retinopathy, Homogeneous Ensembles, Machine Learning, Deep Learning, Feature Selection,

Fundus Images.

Abstract: Diabetic Retinopathy (DR) is the most frequent cause of blindness and visual impairment among working-

age adults in the world. Machine learning (ML) and deep learning (DL) techniques are playing an important

role in the early detection of DR. This paper proposes a new homogeneous ensemble approach constructed

using a set of hybrid architectures, as base learners, and two combination rules (hard and weighted voting) for

referable DR detection using fundus images over the Kaggle DR, APTOS and Messidor-2 datasets. The hybrid

architectures are created using seven deep feature extractors (DenseNet201, InceptionResNetV2,

MobileNetV2, InceptionV3, VGG16, VGG19, and ResNet50), six dimensionality reduction techniques

(Principal component analysis, Select from model feature selection, Recursive feature elimination with cross-

validation, Factor analysis, Chi-Square test, and Low variance filter), and k-nearest neighbors algorithm

(KNN) for classification. The results showed the importance of the proposed approach considering that it

outperformed its base learners, and achieved an accuracy value of 92.47% for the Kaggle DR dataset, 89.59%

for the APTOS dataset, and 82.03% for the Messidor-2 dataset. The experimental results demonstrated that

the proposed approach is impactful for the detection of referable DR, and thus represents a promising tool to

assist ophthalmologists in the diagnosis of DR.

1 INTRODUCTION

By 2040, diabetes mellitus (DM), generally known as

diabetes, is predicted to affect 642 million individuals

worldwide, with nearly 75% living in low and

middle-income countries (Shaw, Sicree, & Zimmet,

2010). Over time, poorly controlled diabetes can

harm the kidneys, blood vessels, heart, and eyes.

Diabetic retinopathy (DR) is a serious sight-

threatening complication of diabetes; it is the most

frequent cause of blindness in working-age adults,

affecting one in every three people with diabetes

(Wong & Sabanayagam, 2020).

Machine learning (ML) and deep learning (DL)

techniques have attained excellent diagnostic

performance in identifying serious medical disorders

(Islam, Yang, Poly, Jian, & (Jack) Li, 2020; Lahmar

& Idri, 2022; Litjens et al., 2019). In particular, the

use of ML and DL techniques in diagnosing various

ophthalmic diseases, such as diabetic retinopathy, is

drawing enormous interest (Han, 2022). ML

techniques proved their potential by helping

ophthalmologists obtain accurate diagnoses by

detecting retinal anomalies when using fundus

images (Islam et al., 2020). In addition, DL methods

have recently gained popularity as one of the most

efficient techniques for enhancing performance in

medical image analysis (Islam et al., 2020; Litjens et

al., 2019). Multiple studies used hybrid architectures

that incorporated the advantages of DL techniques for

feature extraction and ML techniques for

classification (Lahmar & Idri, 2023; Zhang et al.,

2019). A common method to improve the

performance of hybrid architectures is to make use of

ensemble learning methods (Bellemo et al., 2019;

Gurcan, Beyca, & Dogan, 2021; Jinfeng, Qummar,

Junming, Ruxian, & Khan, 2020).

Ensemble learning methods have been used in

many studies in the medical field to improve the

predictions given by the base learners or the single

models which can be a DL model, a ML model, or a

Lahmar, C. and Idri, A.

Enhancing Diabetic Retinopathy Detection Using CNNs with Dimensionality Reduction Techniques and K-Nearest Neighbors Ensembles.

DOI: 10.5220/0012191900003598

In Proceedings of the 15th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2023) - Volume 1: KDIR, pages 315-322

ISBN: 978-989-758-671-2; ISSN: 2184-3228

315

hybrid architecture (Sagi & Rokach, 2018). Ensemble

methods aim to combine multiple base learners that

are accurate and diverse in order to overcome their

weaknesses and merge their advantages (Bellemo et

al., 2019; Gurcan et al., 2021; Jinfeng et al., 2020). In

general, to build an ensemble model, we start by

selecting the base learners, then we use each base

learner to predict the results, and finally, we use a

combination rule to aggregate the predictions. More

specifically, the ensemble model can be built using

the combination rules after the base learners have

been created. Hard voting, also known as majority

voting, and weighted voting, often known as soft

voting, are two of the most common combinations

utilized for creating ensemble models. In the case of

hard voting, the base learners vote for one class, and

the final output is the class label that obtain more than

half of the votes (Hosni, Abnane, Idri, Carrillo de

Gea, & Fernández Alemán, 2019). While using

weighted voting, base learners are given weights,

with the best base learner receiving the highest

weight.

In this paper, we propose a new homogeneous

ensemble approach constructed using a set of hybrid

architectures, as base learners, and two combination

rules (hard and weighted voting). We used 5-fold

cross validation, four performance criteria (recall,

precision, F1-score and accuracy), the Scott Knott

(SK) statistical test (Worsley, 2010) and the Borda

Count voting method (García-Lapresta & Martínez-

Panero, 2002) to assess the proposed ensembles. In

order to create the hybrid architectures used as base

learners, we used seven DL techniques for feature

extraction (InceptionV3, DenseNet201, ResNet50,

MobileNetV2, InceptionResNetV2, VGG16 and

VGG19), six dimensionality reduction techniques to

reduce the size of features, and the KNN classifier. As

for the dimensionality reduction techniques, we used

the principal component analysis (PCA), Select from

model (SFM) feature selection, Recursive feature

elimination with cross-validation (RFE-CV), Factor

analysis (FA), Chi-Square test (Chi2), and Low

variance filter (LVF). Note that the SFM and RFE-

CV feature selection techniques needs to be used

alongside an estimator that assigns importance

weights to features; therefore, we implemented these

two techniques based on SVM since they were widely

used with this estimator (Remeseiro & Bolon-

Canedo, 2019). To create the proposed ensembles:

(1) The hybrid architectures, were compared in order

to identify the best-performing ones (2) Using the

Borda Count voting method, the hybrid architectures

selected from the previous step, were ranked

according to the four-performance metrics, (3) The

Top ranked 2, 3, 4, 5, 6 and 7 hybrid architectures

were used to create the ensembles. Hence, we obtain

12 ensembles for each dataset (6 ensembles with

weighted voting + 6 ensembles with hard voting) and

36 ensembles across the three datasets (12 ensembles

* 3 datasets). The DL techniques used in this study as

well as the KNN classifier were selected since they

provide high classification accuracy values in DR

detection (Islam et al., 2020; Lahmar & Idri, 2021).

As for the dimensionality reduction techniques, they

were chosen since they are highly applied in medical

image analysis (Remeseiro & Bolon-Canedo, 2019).

This study addresses four research questions (RQs) to

that end:

 (RQ1): What is the overall performance of

dimensionality reduction techniques in DR

detection?

 (RQ2): Does the proposed ensembles

perform better than their singles?

 (RQ3): Does increasing the number of base

learners affect the classification

performance of the proposed ensembles?

 (RQ4): Out of the two combination rules,

which one is the best performing?

The primary contributions of this study are as

follows:

1) Proposing a new homogeneous ensemble

approach using the most recent DL

techniques for feature extraction,

dimensionality reduction techniques to

reduce the size of features and the KNN

classifier with two combination rules.

2) Assessing whether the proposed ensembles

outperform their base learners.

3) Assessing whether the proposed ensembles

created using the weighted voting

outperform the ones using hard voting.

This paper is organized as follows: Section 2

presents some related studies using ensemble learning

for DR detection. The data preparation process is

summarized in Section 3. Section 4 presents the

empirical methodology followed in this study.

Section 5 discusses the empirical findings. The

study's threats of validity are presented in Section 6.

Finally, Section 7 presents the conclusion and future

works.

2 RELATED WORKS

Motivated by the success of ensemble learning

methods, many studies in the medical field used

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

316

ensemble-based architectures to improve the

predictions given by the base learners. For instance,

the study (Bellemo et al., 2019) proposed an

ensemble model combining a ResNet architecture and

a VGGNet architecture using weighted voting for DR

classification. The ensemble model was trained on a

private dataset and the results showed the potential of

ensemble learning for diabetic retinopathy detection.

In (Jinfeng et al., 2020), the authors created an

homogeneous ensemble model based on bagging

using DenseNet121 with different configurations to

create 3 base learners for diabetic retinopathy

classification, the ensemble model was evaluated

using the Kaggle DR dataset. The proposed ensemble

reached an accuracy equal to 80%. Finally, in the

study (Zhang et al., 2019), the authors developed an

ensemble approach, for DR identification and

grading. To create the ensemble, they used three

models as base learners and they averaged the

softmax scores of all models. For the ensemble used

for the identification, they used Xception, Inception,

InceptionResNet as feature extractors and a standard

deep neural network (SDNN) for the classification

part. And for the grading, they used DenseNet169,

DenseNet201 and Resnet50 as feature extractor and

SDNNS for the classification part. Experiment results

showed the effectiveness of the proposed model since

it provides reliable detection results with high

sensitivity and specificity values.

3 DATA PREPARATION

In this study, we used three public datasets: (1) The

APTOS dataset which includes 3662 fundus

photographs. (2) The Kaggle DR dataset which

contains 35,126 fundus photographs. Note that we

used 5000 images from the Kaggle DR dataset in

order to train and evaluate our models. And (3) the

Messidor-2 dataset which includes 1748 fundus

photographs. Besides, it is noteworthy that the grades

of DR in the three datasets are on a scale of 0 to 4

representing the 5 grades of DR. And since the

referable DR is the study's target variable, we

relabeled the data from a 0 to 4 scale to a 0 to 1 scale,

where 0 is defined as "no referable DR" and 1 is

defined as "referable DR" (Lahmar & Idri, 2023).

Knowing that referable DR is represented as mild

non-proliferative DR or worse, and/or diabetic

macular edema. And as the quality of fundus images

is crucial for any automatic method, we used a variety

of preprocessing techniques to enhance the quality of

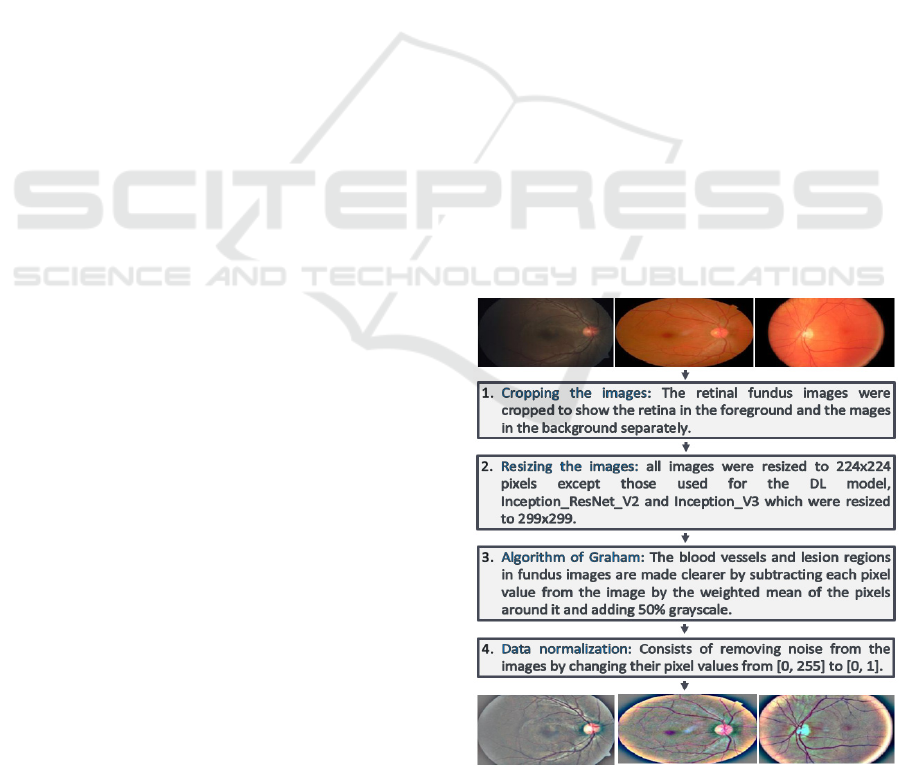

the images. Figure 1 shows the preprocessing

techniques used in this study. Finally, we used data

augmentation techniques to generate two or three new

images from each fundus image since the number of

images in the three datasets was unbalanced.

4 EMPIRICAL DESIGN

In this section, we present the experimental process.

Then, the experiment configuration is described. And

finally, we provide the abbreviations that are used to

refer to the proposed ensembles.

4.1 Experimental Process

In this subsection, we present the methodology used

to conduct the experiment's empirical evaluations. It

involves six steps that consist of:

1. Design 42 hybrid architectures using the KNN

classifier, 7 feature extractors (DenseNet201,

MobileNet_V2, Inception_V3, VGG16, VGG19,

InceptionResNet_V2, and ResNet50), and 6

dimensionality reduction techniques (PCA, FA,

LVF, Chi2, SFM, and RFECV) for each dataset.

2. For each dataset and each feature extraction

technique, select the best performing

dimensionality reduction technique using the SK

test and Borda count voting method. To identify

the dimensionality reduction techniques that will

be used alongside the architectures used as base

learners.

Figure 1: Data preparation process.

Enhancing Diabetic Retinopathy Detection Using CNNs with Dimensionality Reduction Techniques and K-Nearest Neighbors Ensembles

317

3. For each dataset, sort the hybrid architectures

that will be applied as base learners using the

Borda Count voting method. The number of base

learners is 21 hybrid architectures (7 DL for

feature extraction * 1 dimensionality reduction

technique * 3 datasets).

4. For each dataset, design the homogeneous

ensembles from Top 2 to Top 7 of the ranked

hybrid architectures of step 3, using the two

combination rules hard and weighted voting. The

number of the designed ensembles will be 12 for

each dataset (6 ensembles * 2 combination rules)

and 36 for all the experiment (6 ensembles * 2

combination rules * 3 datasets).

5. For each dataset, apply SK test based on

accuracy on the best 7 deep hybrid architectures

of step 3 and the 12 homogeneous ensembles

constructed in step 4.

6. For each dataset, apply Borda Count voting

method, in terms of four-performance measures

(accuracy, precision, recall and F1-score), on the

best SK cluster of the previous step.

4.2 Experimental Setup

To build the proposed ensembles, the following

experiment configurations were used:

 For feature extraction, we used transfer

learning to extract the features with the seven

DL models. Then, for each dataset, we created

a new dataset of feature vectors, which will be

used as input for the dimensionality reduction

techniques.

 For the dimensionality reduction techniques,

the PCA, SFM, and Chi2 are used with the

default configuration of the scikit learn library.

For the LVF, the default variance threshold is

equal to zero to remove all features with zero

variance but it did not remove any feature from

the vectors, therefore, we needed to use a

threshold value equal to 1 to remove the quasi-

constant features. As for the FA, the default

number of components is set to the number of

features, therefore, we needed to select a

number of components, and after several

experiment, we obtained the best results using

100 components. And for the RFECV, the

default number of steps or the number of

features to remove at each iteration is equal to

1, and because of the large dimensions of the

vectors of feature, we needed to select a greater

number, after several experiments, we obtained

the best results, using a number of steps equal

to 0.2 which corresponds to the percentage of

features to remove at each iteration.

 For the classification, the KNN model is used

with the default configuration of the scikit learn

library. Note that we stored the predictions of

each base learner to create the ensembles.

 For the ensembles, the two-combination

methods weighted and hard voting are used to

combine the predictions of the base learners.

For the weighted voting, we assigned weights

for each base learner based on the ranking

obtained in step 3 of the empirical design.

While no weighs are used with the hard voting.

4.3 Abbreviations

The names of the base learners are shortened as

follows: K for KNN. And for the feature extractors:

RES for ResNet50, V16 for VGG16, DEN for

DenseNet201, INR for InceptionResNetV2, IN for

InceptionV3, V19 for VGG19 and MOB for

MobileNetV2. For example, KDEN stands for to the

base learner created using KNN classifier and

DenseNet201 feature extractor.

As for the names of the proposed ensemble, they

were abbreviated as follows: E for ensemble, K for

KNN, the number of base learners, and the

combination method with HV for hard voting and

WV for weighted voting. For example, EK7WV

refers to the ensemble developed utilizing seven base

learners (hybrid architectures) and weighted voting

(WV).

5 RESULTS AND DISCUSSION

The results of the empirical evaluations conducted

over the three datasets are presented and discussed in

this section. The Keras and Tensorflow deep learning

frameworks were used to implement the empirical

assessments of the base learners and the proposed

ensembles in Python using Google's Colab Notebook

based on a TPU processor with 8 cores, 35 GB of

RAM, and a Linux-based operating system.

5.1 Ranking of the Dimensionality

Reduction Techniques

In this step of the experiment, we evaluated the six

dimensionality reduction techniques (PCA, FA, LVF,

Chi2, SFM, and RFECV), to identify the techniques

that will be used with the architectures used as base

learners to create the proposed ensembles (RQ1). We

started by applying the six dimensionality reduction

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

318

techniques to reduce the size of features of each

feature extraction technique over the three datasets.

Then, to identify the dimensionality reduction

techniques that have the same effect on the

classification performance, we used the SK test based

on accuracy. Finally, according to the four-

performance metrics, we used the Borda count to rank

the techniques belonging to best SK clusters. The

objective is to determine which dimensionality

reduction technique has significantly impacted the

classification performance of each hybrid

architecture. We found that:

 Using the DenseNet201, we obtained 2 SK

clusters when using the APTOS dataset where

the best one includes the RFECV, SFM, PCA,

LVF and FA. As for the Kaggle DR, we found

3 clusters where the best one includes the SFM,

RFECV, LVF and PCA. Finally, for the

Messidor-2, we found 3 clusters where the best

one includes SFM, PCA, RFECV and LVF.

 Using the MobileNetV2, we found 3 SK

clusters when using the APTOS dataset where

the best one includes only the SFM. As for the

Kaggle DR and Messidor-2 datasets, we found

2 clusters where the best one includes all the

dimensionality reduction techniques except the

Chi2.

 Using the VGG16, we found 2 SK clusters

when using the APTOS dataset where the best

one includes the SFM, RFECV, PCA, LVF and

FA. As for the Kaggle DR, we found 3 clusters

where the best one includes the SFM, FA, PCA,

RFECV. Finally, for the Messidor-2, we found

2 clusters where the best one includes the SFM,

PCA, RFECV and FA.

 Using the VGG19, we found 3 SK clusters

when using the APTOS dataset where the best

one includes the SFM and RFECV. As for the

Kaggle DR, we found 3 clusters where the best

one includes the SFM, PCA, RFECV and FA.

Finally, for the Messidor-2, we found 2 clusters

where the best one includes the RFECV, SFM,

LVF and PCA.

 Using the InceptionV3, we found 2 SK clusters

when using the APTOS dataset where the best

one includes the SFM, RFECV, LVF and PCA.

As for the Kaggle DR, we found 2 clusters

where the best one includes the SFM, FA, PCA,

RFECV. Finally, for the Messidor-2, we found

2 clusters where the best one includes the SFM,

PCA, RFECV and LVF.

 Using the ResNet50, we found only 1 SK

cluster when using the APTOS dataset. As for

the Kaggle DR and Messidor-2 datasets, we

found 2 clusters where the best one includes all

the dimensionality reduction techniques except

the Chi2.

 Using the InceptionResNetV2, we found 2 SK

clusters when using the APTOS and Kaggle

DR datasets where the best one includes all the

dimensionality reduction techniques except the

Chi2. Finally, for the Messidor-2, we found 3

clusters where the best one includes SFM,

RFECV, PCA, LVF.

Thereafter, depending on the four-performance

metrics, we used the Borda count to rank the

techniques belonging to best SK clusters. We found

that the best dimensionality reduction technique over

the three datasets, is the SFM regardless of the feature

extractor, except when using the DenseNet201 with

the APTOS dataset, the ResNet50 and VGG19 with

the Messidor-2 dataset, the best dimensionality

reduction technique is the RFECV.

Finally, to select the best dimensionality

reduction technique regardless of the dataset, we

denoted the number of appearances of each technique

in the best SK clusters. In the case of equality, we use

the Borda count ranking. We found that the SFM

outperformed all the other dimensionality reduction

techniques since it appeared in the best SK clusters 21

times and it was ranked first 18 times. Followed by

the RFECV, PCA, LVF and FA respectively. Finally,

the Chi2 underperformed the other dimensionality

reduction techniques.

5.2 Ranking of the Base Learners

In this step, we ranked the architectures constructed

using the first ranked dimensionality reduction

techniques selected in the previous step using the

Borda count method. Therefore, we obtain seven

ranked hybrid architectures over each dataset. Note

these architectures will be used as base learners to

create the proposed ensembles. We found that:

 Using APTOS dataset, KDEN was ranked first,

followed by KV16, KV19, KINR, KMOB,

KRES and KIN.

 Using Kaggle DR dataset, KDEN was ranked

first, followed by KV19, KV16, KMOB,

KRES, KIN and KINR.

 Using Messidor-2 dataset, KMOB was ranked

first, followed by KDEN, KV16, KV19,

KRES, KINR and KIN.

Enhancing Diabetic Retinopathy Detection Using CNNs with Dimensionality Reduction Techniques and K-Nearest Neighbors Ensembles

319

5.3 Evaluation of the Proposed

Ensembles and Their Base

Learners

In this step, we created the proposed ensembles

utilizing the top 2 to 7 architectures according to the

ranking we obtained in the previous step, and then,

we combined them using weighted and hard voting

methods. Note that when using weighted voting, the

base learners were assigned weights depending on

their rankings. Also, in the event of a tie for the pair

combinations in the hard voting, we refer to the

ranking of the base learners. As result, we obtained

12 homogeneous ensembles. The ensembles were

assessed with regard to three factors: accuracy, the

impact of increasing the number of base learners and

the combination method. First, we started by using

the SK test to compare the ensembles and their base

learners in terms of accuracy (RQ2). As illustrated in

Figure 2, the SK test detected 4 clusters for the

Messidor-2 and APTOS datasets, and 3 clusters for

the Kaggle DR dataset. We found that:

 For the three datasets, the base learners belong

to the last SK clusters.

 For the three datasets, only the proposed

ensembles belong to the best SK clusters.

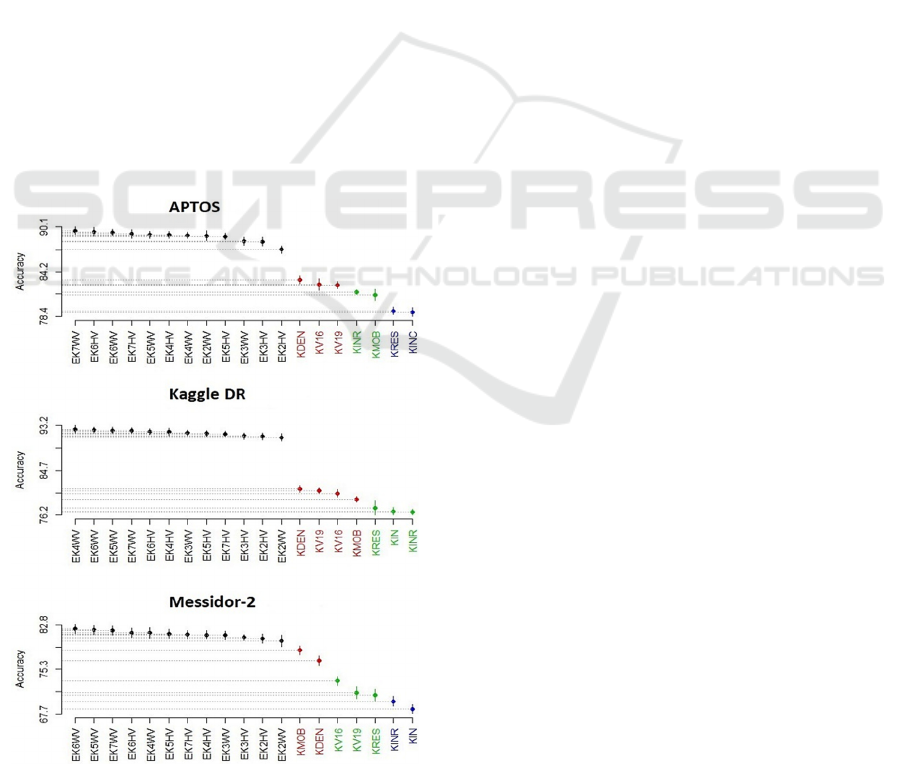

Figure 2: SK test’s results over the proposed ensembles and

their base learners.

Therefore, we conclude that the proposed

ensembles differ significantly from their base

learners. As for the number of base learners used to

design the ensembles belonging to the best SK

clusters, there is no conclusive evidence of the

optimal number of base learners.

The Borda Count voting method was then used,

based on the results of the four-performance metrics,

to choose the best number of base learners (RQ3) as

well as the best combination rule to create the

ensembles (RQ4). The Borda Count’s ranking of the

ensembles belonging to the best SK clusters is

presented in Table 1, we found that:

 The EK6WV ensemble is ranked first for the

Messidor-2 dataset, second for the Kaggle DR

dataset and third for the APTOS dataset.

 The EK7WV ensemble is ranked first for the

APTOS dataset, fourth for the Kaggle DR

dataset, and sixth for the Messidor-2 dataset.

 The EK4WV ensemble is ranked first for the

Kaggle DR dataset, sixth for the Messidor-2

dataset, and seventh for the APTOS dataset.

 The EK2WV ensemble is ranked in the last

place for the Messidor-2 and Kaggle DR

datasets when the EK3HV is ranked in the last

place for the APTOS dataset.

Regardless of the dataset, we refer to the Borda

Count ranking to identify the best-performing

ensembles. We found that the EK6WV ensemble,

which occurs one time first, once second, and once

third, is the best-performing ensemble, followed by

the ensemble EK7WV (1 time first, once fourth and

once sixth) and EK4WV (1 time first, once sixth and

once seventh). Tables 2-4 show the mean values of

the four-performance metrics of the best ensembles

over the three datasets.

As a summary, the evaluation's principal findings

indicate that the ensembles outperformed their base

learners over the three datasets, particularly the

ensemble EK6WV followed by EK7WV and

EK4WV. Also, we found that the classification

performance of the proposed ensembles can be

influenced by the number of base learners since, in

the three datasets, the ensembles with 2 and 3 base

learners are ranked in the last place. Lastly, we found

that the ensembles produced by the weighted voting

gave the best performance, as shown by the fact that

the ensembles produced by this combination rule are

ranked in the first place across the three datasets.

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

320

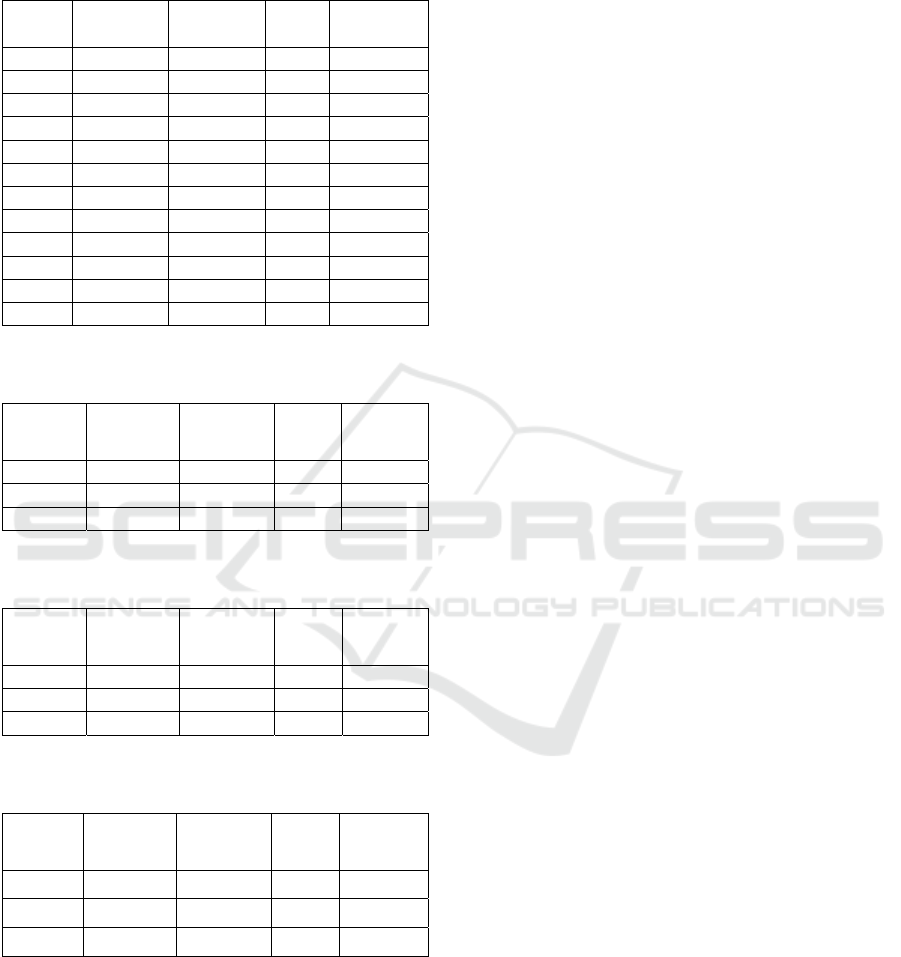

Table 1: Borda Count ranking of the ensembles of the best

SK cluster over the three datasets. The three first ranked

ensembles are identified with three colors: Green for

EK7WV, Red for EK4WV, and Orange EK6WV.

Rank APTOS Kaggle DR Rank Messidor-2

1 EK7WV EK4WV 1 EK6WV

2 EK6HV EK6WV 2 EK5WV

3 EK6WV EK5WV 3 EK4HV

4 EK7HV EK7WV 4 EK5HV

5 EK4HV EK3WV 5 EK2HV

6 EK5WV EK4HV 6 EK4WV

7 EK4WV EK6HV 6 EK7WV

8 EK2WV EK5HV 7 EK6HV

9 EK5HV EK7HV 8 EK3HV

10 EK2HV EK3HV 9 EK7HV

11 EK3WV EK2HV 10 EK3WV

12 EK3HV EK2WV 11 EK2WV

Table 2: Performance metrics values of the best performing

ensembles over the APTOS dataset.

Model

Accuracy

(%)

Precision

(%)

Recall

(%)

F1-score

(%)

EK4WV

88.98 89.00 89.14 89.06

EK6WV

89.36 89.26 89.66 89.45

EK7WV

89.59 89.95 89.31 89.62

Table 3: Performance metrics values of the best performing

ensembles over the Kaggle DR dataset.

Model

Accuracy

(%)

Precision

(%)

Recall

(%)

F1-score

(%)

EK4WV

92.47 99.32 85.52 91.88

EK6WV

92.37 99.32 85.32 91.77

EK7WV

92.25 99.49 84.93 91.61

Table 4: Performance metrics values of the best performing

ensembles over the Messidor-2 dataset.

Model

Accuracy

(%)

Precision

(%)

Recall

(%)

F1-score

(%)

EK4WV

81.36 94.30 67.21 78.49

EK6WV

82.03 95.64 67.22 78.93

EK7WV

81.79 96.32 64.96 77.56

6 THREATS OF VALIDITY

In this study, a 5-fold cross-validation was used to

evaluate the proposed ensembles as an internal threat.

The use of ensemble learning with two combination

rules (hard and weighted voting) to create the

ensembles is another internal threat to this

experiment. Further, this work trained and evaluated

the proposed ensembles using three publicly available

fundus images datasets: APTOS, Messidor-2, and

Kaggle DR, for external validity. To validate or refute

the results of this work, it will be interesting to repeat

the study using different ensemble learning methods,

different deep learning techniques for feature

extraction, different dimensionality reduction

techniques and different machine learning classifiers

with various public or private datasets. For the

reliability of the classification performance, we

evaluated the proposed ensembles using four

performance metrics (accuracy, precision, recall, and

F1-score), these metrics were chosen because they

were frequently used to assess DR classification

performance (Islam et al., 2020). Moreover, for the

conclusion, SK statistical test and Borda count voting

method were used based on the four-performance

metrics with equal weights to avoid favoring one

performance metric over the others. This strategy was

used to determine the best-performing ensembles

based on statistical tests.

7 CONCLUSION AND FUTURE

WORK

In this study, we discussed the importance of

referable DR classification using homogeneous

ensemble learning. For that, we created 12

homogeneous ensembles for each dataset using the

KNN classifier, 7 deep feature extractors,

dimensionality reduction techniques to reduce the

size of features, and 2 combination rules. The key

findings of each RQ in this investigation are:

(RQ1): What is the overall performance of the

dimensionality reduction techniques in DR

detection?

The SFM is the best performing dimensionality

reduction technique since it was used alongside 18

out of 21 base learners, followed by the RFECV since

it was used alongside 3 out of 21 base learners. Note

that none of the remaining dimensionality reduction

techniques was used with the base learners since they

were never ranked in the first place.

(RQ2): Does the proposed ensembles perform

better than their singles?

The results across the three datasets demonstrate

that the proposed ensembles significantly

outperformed their base learners.

Enhancing Diabetic Retinopathy Detection Using CNNs with Dimensionality Reduction Techniques and K-Nearest Neighbors Ensembles

321

(RQ3): Does increasing the number of base

learners affect the classification performance of

the proposed ensembles?

The results indicate that the classification

performance is significantly influenced by the

number of base learners utilized to build the

ensembles. The ensembles created using 2 or 3 base

learners were actually ranked last for the three

datasets, in contrast to the ensembles created using 7

or 6 base learners. As a result, the classification

performance is improved by increasing the number of

base learners utilized to create the ensembles.

(RQ4): Out of the two combination rules,

which one is the best performing?

The results show that the combination rule used

to create the ensembles has an impact on the

classification performance, since the ensembles

created using the weighted voting are ranked first

over the three datasets.

Ongoing works intend to develop new approaches

for detecting DR by combining deep learning with

different ensemble learning strategies.

REFERENCES

Bellemo, V., Lim, Z. W., Lim, G., Nguyen, Q. D., Xie, Y.,

Yip, M. Y. T., … Ting, D. S. W. (2019). Artificial

intelligence using deep learning to screen for referable

and vision-threatening diabetic retinopathy in Africa: a

clinical validation study. The Lancet Digital Health,

1(1), e35–e44. https://doi.org/10.1016/S2589-7500(19)

30004-4

García-Lapresta, J. L., & Martínez-Panero, M. (2002).

Borda count versus approval voting: A fuzzy approach.

Public Choice, 112(1), 167–184. https://doi.org/10.10

23/A:1015609200117

Gurcan, O. F., Beyca, O. F., & Dogan, O. (2021). A

comprehensive study of machine learning methods on

diabetic retinopathy classification. International Journal

of Computational Intelligence Systems, 14(1), 1132–

1141. https://doi.org/10.2991/IJCIS.D.210316.001

Han, J. H. (2022). Artificial Intelligence in Eye Disease:

Recent Developments, Applications, and Surveys.

Diagnostics, 12(8), 12–15. https://doi.org/10.3390/

diagnostics12081927

Hosni, M., Abnane, I., Idri, A., Carrillo de Gea, J. M., &

Fernández Alemán, J. L. (2019). Reviewing ensemble

classification methods in breast cancer. Computer

Methods and Programs in Biomedicine, 177, 89–112.

https://doi.org/10.1016/j.cmpb.2019.05.019

Islam, M. M., Yang, H. C., Poly, T. N., Jian, W. S., & (Jack)

Li, Y. C. (2020). Deep learning algorithms for detection

of diabetic retinopathy in retinal fundus photographs: A

systematic review and meta-analysis. Computer

Methods and Programs in Biomedicine, 191, 105320.

https://doi.org/10.1016/j.cmpb.2020.105320

Jinfeng, G., Qummar, S., Junming, Z., Ruxian, Y., & Khan,

F. G. (2020). Ensemble framework of deep CNNs for

diabetic retinopathy detection. Computational

Intelligence and Neuroscience, 2020. https://doi.org/

10.1155/2020/8864698

Lahmar, C., & Idri, A. (2021). On the value of deep learning

for diagnosing diabetic retinopathy. Health and

Technology 2021, 1–17. https://doi.org/10.1007/S1255

3-021-00606-X

Lahmar, C., & Idri, A. (2022). Classifying Diabetic

Retinopathy using CNN and Machine Learning.

Proceedings of the 15th International Joint Conference

on Biomedical Engineering Systems and Technologies

- BIOIMAGING, 52–62. ISBN 978-989-758-552-4;

ISSN 2184-4305. https://doi.org/10.5220/0010851500

003123

Lahmar, C., & Idri, A. (2023). Deep hybrid architectures for

diabetic retinopathy classification. Computer Methods

in Biomechanics and Biomedical Engineering: Imaging

\& Visualization, 11(2), 166–184. https://doi.org/

10.1080/21681163.2022.2060864

Litjens, G., Ciompi, F., Wolterink, J. M., de Vos, B. D.,

Leiner, T., Teuwen, J., & Išgum, I. (2019). State-of-the-

Art Deep Learning in Cardiovascular Image Analysis.

JACC: Cardiovascular Imaging, 12(8P1), 1549–1565.

https://doi.org/10.1016/j.jcmg.2019.06.009

Remeseiro, B., & Bolon-Canedo, V. (2019). A review of

feature selection methods in medical applications.

Computers in Biology and Medicine, 112(February),

103375. https://doi.org/10.1016/j.compbiomed.2019.1

03375

Sagi, O., & Rokach, L. (2018). Ensemble learning: A

survey. Wiley Interdisciplinary Reviews: Data Mining

and Knowledge Discovery, 8(4), e1249. https://doi.org/

10.1002/WIDM.1249

Shaw, J. E., Sicree, R. A., & Zimmet, P. Z. (2010). Global

estimates of the prevalence of diabetes for 2010 and

2030. Diabetes Research and Clinical Practice, 87(1),

4–14. https://doi.org/10.1016/j.diabres.2009.10.007

Wong, T. Y., & Sabanayagam, C. (2020). Strategies to

Tackle the Global Burden of Diabetic Retinopathy:

From Epidemiology to Artificial Intelligence.

Ophthalmologica, 243(1), 9–20. https://doi.org/10.11

59/000502387

Worsley, A. K. J. (2010). A Non-Parametric Extension of a

Cluster Analysis Method by Scott and Knott Published

by : International Biometric Society Stable URL :

http://www.jstor.org/stable/2529369. 33(3), 532–535.

Zhang, W., Zhong, J., Yang, S., Gao, Z., Hu, J., Chen, Y.,

& Yi, Z. (2019). Automated identification and grading

system of diabetic retinopathy using deep neural

networks. Knowledge-Based Systems, 175, 12–25.

https://doi.org/10.1016/j.knosys.2019.03.016

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

322
