Speech Detection of Real-Time MRI Vocal Tract Data

Jasmin Menges

, Johannes Walter

, Jasmin Bächle

and Klemens Schnattinger

iRIX Software Engineering AG, Dornacherstrasse 192, 4053 Basel, Switzerland

Fraunhofer-Institut fuer Kurzzeitdynamik, Ernst-Mach-Institut, Am Klingelberg 1, 79588 Efringen-Kirchen, Germany

Business Innovation Center, Baden-Wuerttemberg Cooperative State University (DHBW),

Hangstrasse 46-50, Loerrach, Germany

schnattinger@dhbw-loerrach.de

Keywords: Deep Learning, Speech Production, MRI Data.

Abstract: This paper investigates the potential of Deep Learning in the area of speech production. The purpose is to

study whether algorithms are able to classify the spoken content based only on images of the oral region. With

the real-time MRI data of Lim et al. more detailed insights into the speech production of the vocal tract could

be obtained. In this project, the data was applied to recognize spoken letters from tongue movements using a

vector-based image detection approach. In addition, to generate more data, randomization was applied. The

pixel vectors of a video clip during which a certain letter was spoken could then be passed into a Deep

Learning model. For this purpose, the neural networks LSTM and 3D-CNN were used. It has been proven

that it is possible to classify letters with an accuracy of 93% using a 3D-CNN model.

1 INTRODUCTION

Developments in real-time MRI imaging have made

it possible to gain a more detailed insight into human

speech production. RT-MRI data of the vocal tract

can answer important questions in linguistics, speech

modelling, and clinical research. These data are the

basis for research regarding the ability to recognize

letters based on tongue movement. The research

question addressed in the paper is whether it is

possible to recognise the spoken content from an MRI

video of the oral cavity using Deep Learning. With

this information, a variety of in-depth research can be

initiated. For example, in linguistics to study different

movement patterns in different languages or in speech

modelling and clinical studies to compare patients

with speech problems using the deep learning model

to identify differences from typical movement

patterns and narrow down the problem to small sub-

areas of the oral cavity.

The dataset used includes MRI videos of vowels

and sentences from a total of 75 individuals with

different native languages. In this project the vowels

“a”, “e” and “o” of 5 different subjects were

considered. During the preparation of the data, the

timestamps for each spoken letter were analysed and

noted in an excel notebook. Furthermore, the pixel

data from the H5 files were merged with the excel

files and important parts of the videoframe were

extracted with the help of vectors. Training was first

performed with an LSTM model, a 3D CNN model

and later with a combination of both models. The

models were selected to evaluate the power of Deep

Learning for the application of complex data. The

obtained results were compared to identify the variant

with the highest accuracy (Lim et al. 2021).

2 DEEP LEARNING WITH

NEURAL NETWORKS

Artificial neural networks are versatile, powerful and

scalable, this makes them ideal for large and highly

complex machine learning tasks, including three-

dimensional data such as medical images and videos

(Géron 2019).

Two popular types for the use of deep learning in

the context of medical images are convolutional

neural networks (CNN) and recurrent neural

networks (RNN). In this study the focus is on 3D-

CNNs and LSTMs. CNNs have played a special role

in image recognition since 1980, and this has

increased considerably in recent years due to the

further development of computing power (Lu et al.

182

Menges, J., Walter, J., Bächle, J. and Schnattinger, K.

Speech Detection of Real-Time MRI Vocal Tract Data.

DOI: 10.5220/0012155600003598

In Proceedings of the 15th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2023) - Volume 1: KDIR, pages 182-187

ISBN: 978-989-758-671-2; ISSN: 2184-3228

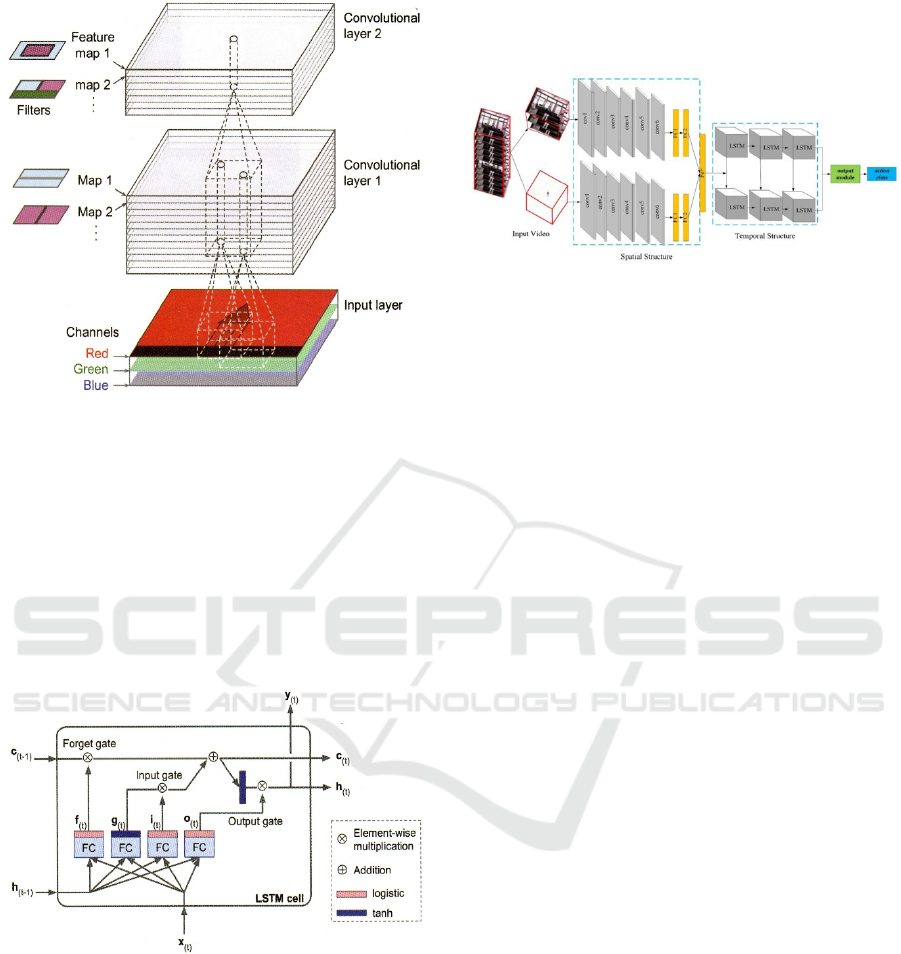

Figure 1: Convolutional layers with multiple feature maps,

and images with three colour channels (Géron 2019, p.452).

2019; Géron 2019). 3D-CNNs are a type of neural

network that have been adapted from the popular 2D-

CNNs for image analysis. In 3D-CNNs,

convolutional filters are applied to each 3D voxel of

the input volume, allowing for the detection of local

features and patterns within the volume. These

features can be combined and processed by

subsequent layers to extract more complex features

and classify the volume (cf. Figure 1).

Figure 2: LSTM cell (Géron 2019, p.516).

LSTM networks, on the other hand, are a type of

RNNs that are designed to process sequential data,

such as time series or text. LSTMs are capable of

learning long-term dependencies in the data and are

particularly effective in processing data with

temporal dynamics. In an LSTM network,

information is passed through a sequence of hidden

states, where each state has a memory cell and three

gating units: input gate, forget gate, and output gate

(cf. Figure 2). The gates control the flow of

information into and out of the memory cell, allowing

the network to selectively remember or forget

information from previous time steps (Ouyang et al.

2019).

Figure 3: Example of a basic architecture of a 3D-CNN-

LSTM (Jing et al. 2020).

In recent years, there has been growing interest in

combining 3D-CNNs and LSTM networks for

processing 3D sequential data, such as videos (cf.

Figure 3). This combination is known as 3D-CNN-

LSTM or spatiotemporal neural networks. In this

architecture, the 3D-CNN is used to extract spatial

features from each frame of the video, and the LSTM

network is used to process the temporal dynamics of

the video frames. The extracted features are then

combined and processed by subsequent layers to

classify the video. This approach has been shown to

be effective in various applications such as action

recognition, video captioning, and human pose

estimation (Jing et al. 2020).

3 FINDING AND

UNDERSTANDING DATA

The first step in realizing our Project was finding a

suitable data source. While MRI recordings are

relatively common, locating a dataset of freely

available MRI recordings was a challenge. Many

sources, such as the one from the Max Planck Society

on YouTube (MaxPlanckSociety 2018; Lim et al.

2021), only offer previews of single files.

Fortunately, Lim et al provided a large dataset

consisting of numerous MRI recordings of people

speaking. However, this presented our first hurdle:

understanding the dataset. The complete dataset is

available as a single zip archive, which is

approximately 550 gigabytes in size. It contains 3D

MRI scans, MP4 files containing multiple spoken

vowels, words or sentences, additional MP3 files with

the same audio data, as well as raw data of the MRI

scans, presented as 3-dimensional arrays in h5 files.

After obtaining the dataset, our next step was to

prepare it for use. Initially, we needed to understand

the data, including determining which files were

Speech Detection of Real-Time MRI Vocal Tract Data

183

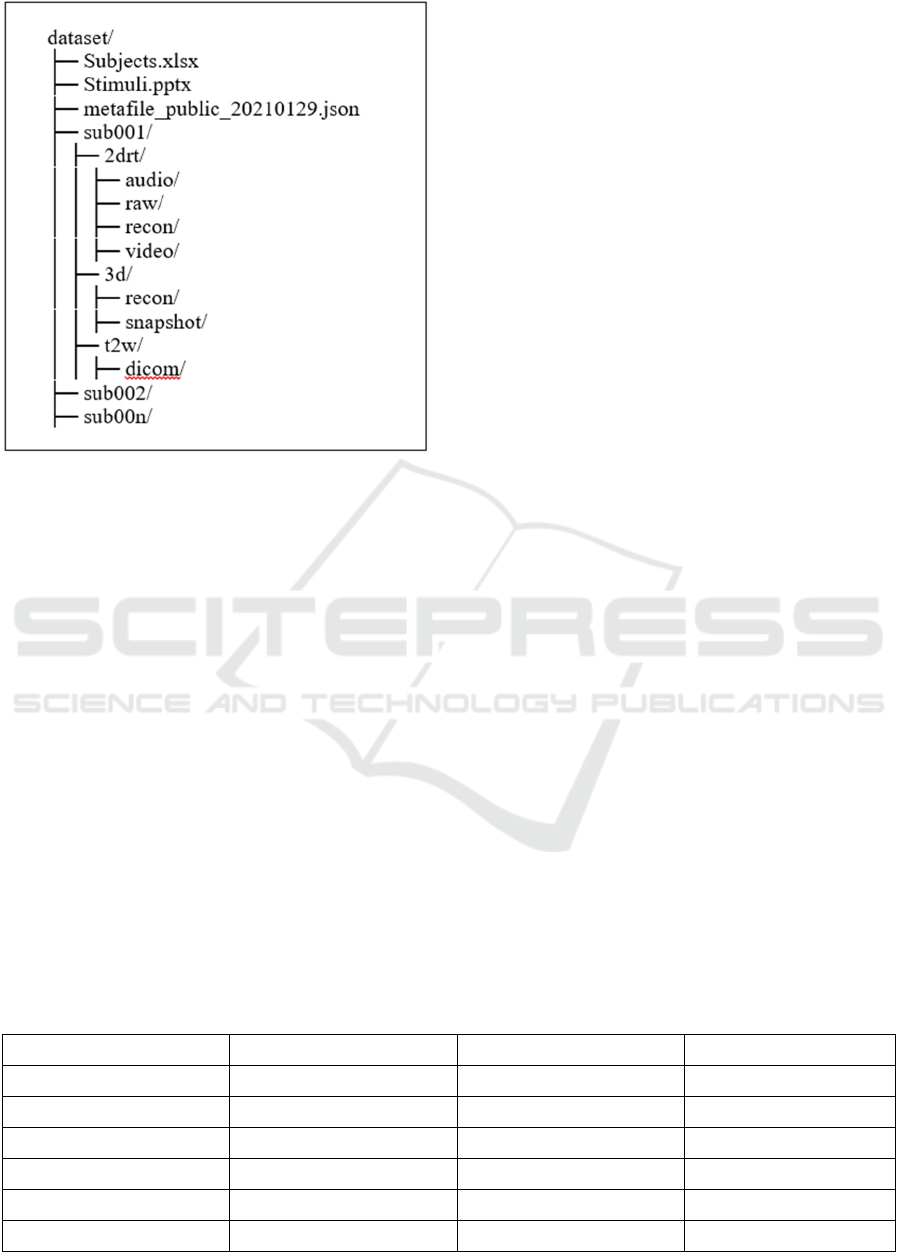

Figure 4: Tree view of the dataset.

required and how to utilize them effectively. Figure 4

presents the tree structure of the dataset, where the

root folder consists of 75 subjects and three content

description files:

 Subjects.xlsx

This file includes comprehensive demographic

information on the subjects, such as gender, age,

and spoken languages.

 Stimuli.pptx

This file is a presentation that showcases all the

spoken letters, words and sentences present in

the dataset.

 Metafile_public_202110129.json

This file not only provides demographic information

but also includes additional details about each

recording, such as audio quality.

Furthermore, as shown in Figure 4, each subject

has its folder, containing all scans and related data.

The t2w subfolders, which contain a massive dataset

of ".dicom" files, are nested within each subject's

folder. These files collectively generate a 3D scan for

each axis (x, y, and z), producing a clear view of the

head but providing no aid in recognizing spoken

letters.

The 3D subfolder includes two additional

subfolders, "recon" and "snapshot." The "snapshot"

subfolder contains numerous images, each

showcasing the subject in a particular position. On the

other hand, the files in the "recon" subfolder always

have a corresponding name, but they are in ".mat"

format, requiring MATLAB to access them. These

files contain raw pixel data in a 3D matrix, which

captures the subject's state at a single moment but

does not aid in the spoken letter recognition task.

Lastly, the 2drt folder contains audios of spoken

sequences, videos that combine the audio with a slice

of the MRI scan during speech, raw data from the

MRI scan in h5 format, and reconstructed data from

the raw data. The reconstructed data provides

information for the following machine learning

models, which aim to determine which letter is

spoken.

4 DATA PREPARATION

The "video" folder is especially useful in the data

preparation process, as each video contains multiple

spoken letters. To define when a letter is spoken, we

had to watch each video and record the exact time that

a subject began and ended speaking, as well as which

letter, they spoke. We created 13 different sequences

from five different speakers for this test. Table 1

depicts the head of one file.

One of the challenges we encountered in

identifying the exact time a subject began and ended

speaking was finding a media player capable of

handling such a high resolution. Since spoken letters

last less than a second, we required a player that could

display milliseconds and allow for frame-by-frame

stepping. We opted to use the MPC-HC-Player

Table 1: Preview of the csv data describing spoken letters in one video file.

Letter Letter Number Timestamp start Timestamp end

1 00:01.702 00:02.182

A 2 00:02.486 00:02:843

O 1 00:03.657 00:03.887

O 2 00:04.265 00:04.808

E 1 00:05.533 00:05.950

E 2 00:06.205 00:06.539

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

184

(MPC-HC Team 2020), which, although no longer

under development, could be easily configured to

meet our needs.

After obtaining the dataset, the next step was to

prepare it for use with machine learning models.

Leveraging our knowledge of Python, we used the

h5py library to read the files. Given that the MRI

scans were recorded at a frame rate of 83.28 frames

per second, the resulting files were usually over 100

MB in size. To reduce the amount of RAM required

to use the data, we read in each spoken letter

separately and discarded the sequences between

spoken parts.

In addition to reducing the amount of RAM

required to use the data, we also reduced the amount

of data transmitted to the machine learning models.

To achieve this, we followed the approach described

by Hellwig et al. in their paper and reduced the

dataset to a few vectors instead of using the entire

frame. To further increase the amount of training data

and reduce the risk of overfitting, we randomized the

placement of these vectors. This approach is similar

to using generated data to reduce bias in datasets.

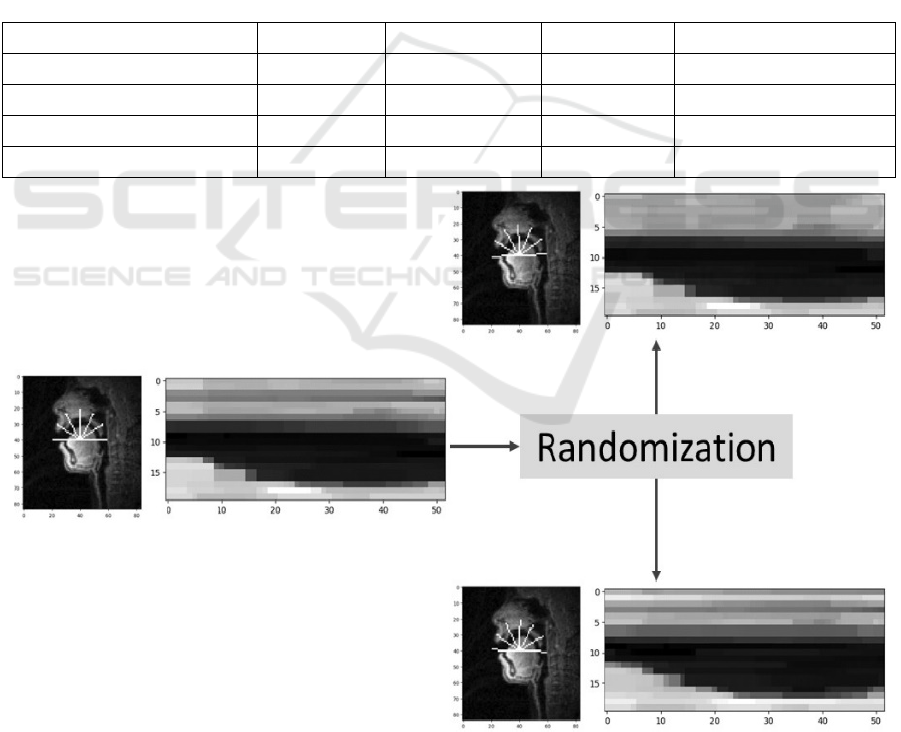

Figure 4 demonstrates the process of pulling

pixels from the scan using vectors and how the

rotation of the vector results in subtle variations in the

training data. The left image in each set displays a

single frame of the scan extracted from the

reconstructed ("recon") data files, while the image on

the right shows the pixel values over time on the third

vector from the left. We utilized 7 vectors arranged in

a half circle to cover a substantial portion of the oral

cavity, as depicted in the images.

Table 2: Overall comparison of tested models.

Model La

ers Nodes Epochs Accurac

LSTM 3 33 10 66 %

LSTM 4 113 10 71 %

3D-CNN 5 123 5 93 %

3D-CNN + LSTM 6 143 5 90 %

Figure 5: Placement and rotation of the image vectors.

Speech Detection of Real-Time MRI Vocal Tract Data

185

5 DEEP LEARNING

IMPLEMENTATION

With the image-data for each spoken letter extracted,

we began implementing the machine learning layers.

We defined several smaller networks to test our

concept and compare different setups. Table 2

provides a brief overview of the models we used,

including the number of layers and nodes, the number

of epochs, and the accuracy achieved:

We tested different combinations of layers and

nodes and trained each model for a different number

of epochs. The best performing model was the 3D-

CNN, which achieved an accuracy of 93% with just 5

epochs. However, the 3D-CNN + LSTM model also

showed promising results, achieving an accuracy of

90% with 6 layers and 143 nodes.

Each model was implemented with Keras, an

open-source deep learning library. The first LSTM

model was a simple test that achieved great results in

tests with just a single subject. It consists of a network

with three layers, the first being a 20 LSTM nodes

layer, followed by a hidden layer of 10 densely

connected nodes. Finally, in every model, there are

three output nodes that return the calculated

probability of being each letter. Next, we tested a 3D-

CNN network consisting of five layers:



60 3D-convolutional nodes



30 3D-convolutional nodes



20 3D-convolutional nodes



10 dense nodes



3 output nodes

The increased training time and fast convergence

on the final accuracy led to the reduction to just five

epochs.

After this, we tried to combine the 3D-CNN with

the LSTM network by adding another layer between

layers 3 and 4 of the 3D-CNN model. This new layer

consists of 20 nodes and worsened the calculated

result compared to the simpler network. This could

have many reasons, such as a too small LSTM layer,

too little prepared training data, a bad integration of

the new nodes.

6 DISCUSSION AND LIMITS

In this paper it was studied whether it is possible to

recognize speech based on MRI videos with the help

of Deep Learning. Despite a positive result, there are

some points that need to be critically addressed.

1. Currently, only a limited number of people in

the dataset were examined, as data preparation

is manual and very time-consuming. The model

performs better with a lot of data from a few

people than with data from many different

people, because the variances naturally increase

with the number of different subjects. With the

option of adding multiple data from different

subjects to make the model more realistic, the

number of training data increases, which brings

us to the next point.

2. The 3D-CNN-LSTM model requires high

computing power. With the increase in training

data, the execution time continues to increase,

and powerful computers are needed.

3. Finally, it should be mentioned that only one

approach to detection was used in this paper,

which deals with the use of vectors. But there

are other approaches such as contour tracking.

This method defines outlines, or contours, of the

tongue and vocal tract which requires more

complex data preparation but could be more

precise through inclusion of all movements of

the oral cavity.

7 CONCLUSION

The investigations carried out have shown that it is

possible to recognize individual letters by using a

classification method. The best results were achieved

with the 3D-CNN model, which has an accuracy

value of 93%. The combination of the 3D-CNN

model and the LSTM model achieved a value of 90%.

The lower accuracy is because too little data available

for this solution.

8 OUTLOOK

For the future, the first step is to massively increase

the dataset to achieve better results. Therefore, it is

important to include more letters in the analysis.

Should this be successful, it would be conceivable to

analyse whole words. Above all, this project should

be an inspiration for anyone interested in further

research to achieve new insights in linguistics,

language modelling or clinical research.

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

186

REFERENCES

Géron, A. (2019). Hands-on machine learning with Scikit-

Learn, Keras, and TensorFlow. Concepts, tools, and

techniques to build intelligent systems. Second edition.

Beijing, Boston, Farnham, Sebastopol, Tokyo: O'Reilly.

HDF5 for Python (2015). Available online at

https://www.h5py.org/, last updated 14.01.2015, last

checked 03.04.2023.

Jing, C., Wei, P., Sun, H. & Zheng, N. (2020).

Spatiotemporal neural networks for action recognition

based on joint loss. In: Neural Computing &

Applications 32 (9), 4293–4302. DOI: 10.1007/s00521-

019-04615-w.

Lim, Y., Toutios, A., Bliesener, Y., Tian, Y., Lingala, S. G.;

Vaz, C. & et al. (2021): A multispeaker dataset of raw

and reconstructed speech production real-time MRI

video and 3D volumetric images. In: Scientific data 8

(1), 187. DOI: 10.1038/s41597-021-00976-x.

Lu, H.; Wang, H.; Zhang, Q.; Yoon, S. W. & Won, D.

(2019): A 3D Convolutional Neural Network for

Volumetric Image Semantic Segmentation. In:

Procedia Manufacturing 39, 422–428. DOI:

10.1016/j.promfg.2020.01.386.

MaxPlanckSociety (2018): Echtzeit-MRT-Film: Sprechen -

YouTube. Available online at https://www.

youtube.com/watch?v=6dAEE7FYQfc, last updated

24.04.2018, last checked 02.04.2023.

MPC-HC Team (2020): MPC-HC Website. Available

online at https://mpc-hc.org/, last updated 15.09.2020,

last checked 03.04.2023.

Ouyang, X., Xu, S., Zhang, C., Zhou, P., Yang, Y., Liu, G.

& Li, X. (2019): A 3D-CNN and LSTM Based Multi-

Task Learning Architecture for Action Recognition. In:

IEEE Access 7, 40757–40770. DOI:

10.1109/ACCESS.2019.2906654. (HDF5 for Python

2015)

Speech Detection of Real-Time MRI Vocal Tract Data

187
