MEMES: Memory Encryption-Based Memory Safety on Commodity

Hardware

David Schrammel

, Salmin Sultana

, Karanvir (“Ken”) Grewal

, Michael LeMay

David M. Durham

, Martin Unterguggenberger

, Pascal Nasahl

and Stefan Mangard

Graz University of Technology, Austria

Intel Labs, U.S.A.

Keywords:

Fine-Granular Memory Encryption, Memory Safety, Exploit Mitigation, Intel® TME-MK.

Abstract:

Memory encryption is an effective security building block broadly available on commodity systems from

Intel® and AMD. Schemes, such as Intel® TME-MK and AMD SEV, help provide data conﬁdentiality and

integrity, enabling cryptographic isolation of workloads on shared platforms. However, due to their coarse en-

cryption granularity (i.e., pages or entire virtual machines), these hardware-enabled primitives cannot unleash

their full potential to provide protection for other security applications, such as memory safety. To this end, we

present a novel approach to achieving sub-page-granular memory encryption without hardware modiﬁcations

on off-the-shelf systems featuring Intel®’s TME-MK. We showcase how to utilize our ﬁne-grained memory

encryption approach for memory safety by introducing MEMES. MEMES is capable of mitigating both spatial

and temporal heap memory vulnerabilities by encrypting individual memory objects with different encryption

keys. Compared to other hardware-based memory safety schemes, our approach works on existing commodity

hardware, which allows easier adoption. Our extensive analysis attests to the strong security beneﬁts which

are provided at a geometric mean runtime overhead of just 16–27%.

1 INTRODUCTION

In modern CPUs, memory encryption is a ubiquitous

technology protecting either conﬁdentiality alone or

conﬁdentiality and integrity of data in the external

memory (DRAM). Major vendors, such as Intel® and

AMD, offer a wide variety of different protection so-

lutions. For example, AMD’s secure encrypted virtu-

alization (SEV) (AMD, 2020) technology and the se-

cure nested paging (SEV-SNP) extension enable the

CPU to encrypt data with different encryption keys to

protect conﬁdentiality (Kaplan et al., 2020). Intel®’s

total memory encryption (TME) engine also enables

the system to transparently encrypt data in DRAM us-

ing a single encryption key. The total memory en-

cryption - multi-key extension (TME-MK) enhances

TME with multiple keys (Intel®, 2022). Furthermore,

with the introduction of Intel® TDX (Intel®, 2023),

Intel®’s memory encryption engine also provides au-

thenticated encryption to help enforce data integrity.

However, the use cases for memory encryption

on commodity hardware are currently limited by the

coarse granularity of the underlying memory encryp-

tion engine. More speciﬁcally, both Intel®’s and

AMD’s solutions are intended to encrypt memory

with different encryption keys on the page granularity.

At this granularity, current use cases focus on provid-

ing protection against physical adversaries, e.g., per-

forming cold boot attacks (Halderman et al., 2008) or

cryptographic isolation of virtual machines on shared

platforms. Other applications, such as memory safety,

require much ﬁner granularity encryption (i.e., object

granular). Thus, we identify the following research

questions:

R1: Can off-the-shelf memory encryption be lever-

aged to enforce memory safety on commodity sys-

tems?

R2: Can we achieve sub-page encryption granularity

to protect individual memory objects within the same

page?

In this paper, we introduce an approach based on

page table aliasing, allowing us to achieve ﬁne-grain

memory encryption without hardware changes on

CPUs supporting Intel®’s TME-MK. The basic idea

of page table aliasing is to map the virtual memory to

the same physical memory multiple times with differ-

ent encryption keys. Using this technique, we show

that the encryption granularity of TME-MK is only

Schrammel, D., Sultana, S., Grewal, K., LeMay, M., Durham, D., Unterguggenberger, M., Nasahl, P. and Mangard, S.

MEMES: Memory Encryption-Based Memory Safety on Commodity Hardware.

DOI: 10.5220/0012050300003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 25-36

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

limited by the block size of the underlying encryption

primitive, i.e., 128-bit for AES.

Moreover, we introduce MEMES (Memory

Encryption-based MEmory Safety), a software

scheme leveraging ﬁne-granular memory encryption

for full memory safety on commodity hardware. At

its core, MEMES encrypts data objects on the heap

with different encryption keys to comprehensively

address memory safety vulnerabilities. On memory

safety errors, depending on the underlying capabili-

ties of the encryption engine, MEMES either triggers

an error or probabilistically prevents the exploitation.

Thus, MEMES can provide security similar to mem-

ory tagging but without the associated memory over-

head of traditional tagging schemes. We integrate

MEMES into a runtime library to automatically pro-

tect memory objects on the heap. Finally, we discuss

the security beneﬁts of our encryption-based memory

safety scheme and evaluate its runtime overhead using

the SPEC CPU® 2017 benchmarks.

Contributions. In short, our contributions are as

follows:

• We introduce a mechanism that enables off-

the-shelf CPUs featuring Intel®’s TME-MK to

achieve much more ﬁne-granular memory encryp-

tion.

• Based on this mechanism, we design MEMES to

protect individual memory objects from memory

safety vulnerabilities.

• We thoroughly analyze the security beneﬁts and

limitations of our design.

• We implement our design as a binary-compatible

heap allocator and show its performance and

memory characteristics.

Outline. The paper is structured as follows: Sec-

tion 2 describes the required background on Intel®’s

TME-MK, virtual memory, and memory safety. Sec-

tion 3 and Section 4 provide the design and imple-

mentation of MEMES. Section 5 and Section 6 an-

alyze MEMES in terms of security and performance

overhead. Section 7 discusses related work, and Sec-

tion 8 concludes this paper.

2 BACKGROUND

This section provides background on memory safety

vulnerabilities, virtual memory, and TME-MK.

2.1 Memory Safety

Memory safety errors are a persistent problem of

software written in unsafe programming languages,

such as C and C++. Among all security bug ﬁxes

in Windows and Chrome, 70% of them are due to

memory safety vulnerabilities (Microsoft, 2019; The

Chromium Projects, 2020). These vulnerabilities en-

able an adversary to hijack the control ﬂow and com-

promise the target system, e.g., return-oriented pro-

gramming (ROP) (Shacham, 2007) and jump-oriented

programming (JOP) (Bletsch et al., 2011). Further-

more, an adversary can corrupt data stored in memory

(data-oriented programming (DOP) (Hu et al., 2016))

in order to attack the system. Besides control ﬂow

and data-only attacks, an adversary can also leak sen-

sitive or secret data (Durumeric et al., 2014). For ex-

ample, the Hearbleed security bug (Durumeric et al.,

2014) enabled remote adversaries to leak data on web

servers.

Generally, we distinguish between two types

of memory safety: spatial and temporal memory

safety (Szekeres et al., 2013). Spatial memory viola-

tions exceed the intended bounds of a memory object

(e.g., buffer underﬂow or overﬂow into an adjacent

memory object). Besides adjacent memory safety vi-

olations, out-of-bounds memory accesses (i.e., arbi-

trary reads or writes) allow the adversary to tamper

with data located on an arbitrary memory location.

In contrast, temporal memory safety violations target

the object’s liveness. Use-after-free (UAF) is an er-

ror where a dangling pointer, i.e., a pointer referring

to an already freed memory object, exists. The adver-

sary can misuse this dangling pointer to manipulate

data located at the same memory location. Addition-

ally, uninitialized memory access violations allow an

adversary to leak secret data.

2.2 Virtual Memory

Modern operating systems rely on virtual memory,

which allows them to isolate multiple processes in

their own virtual address space. Applications are pre-

sented with a virtual view of the physical memory.

Such virtual (linear) addresses are translated by the

CPU to physical addresses. Speciﬁcally, the memory

management unit (MMU) translates these addresses

using page tables that are conﬁgured by the operat-

ing system (OS). In most systems, the virtual address

space is divided into ﬁxed-size, e.g., 4 kB, contigu-

ous memory blocks, i.e., pages. For each page, ad-

dress translation information is stored in the page ta-

ble entries (PTE) of a page table. This information

comprises the mapping from virtual to physical ad-

SECRYPT 2023 - 20th International Conference on Security and Cryptography

TME-MK

Engine

Memory

Physical Address

(including key ID)

Physical Address

Key ID Key Enc. Mode

0x1A4...

0x3C9...

AES-XTS-128

0x 1 04000

0x4000

CPU

Core

Figure 1: The TME-MK memory encryption engine pro-

cesses data transferred between the CPU core and the mem-

ory controller. The key identiﬁer encoded in the upper bits

of the physical address selects the key used for data encryp-

tion.

dresses as well as other metadata, such as permis-

sion bits. During a memory access, the system con-

ducts a page table walk to resolve the physical ad-

dress. As these page table walks are costly, address

translation information of frequently accessed mem-

ory objects are cached in the CPU’s translation looka-

side buffers (TLBs).

2.3 Intel® TME-MK

Intel®’s total memory encryption - multi-key (TME-

MK) (Intel®, 2022) is a hardware feature introduced

with the Ice Lake platform. TME-MK enables the

system to transparently encrypt all data that is stored

in the DRAM with multiple different encryption keys.

As illustrated in Figure 1, the encryption engine is

located between the core and the memory controller.

Internally, the engine maintains a mapping from key

identiﬁers to encryption keys and encryption modes.

Depending on the used platform, a maximum of 2

keys are available. TME-MK uses the key identiﬁer

embedded into the upper previously unused physical

address bits to encrypt or decrypt each data object

with the corresponding encryption key. The key iden-

tiﬁer and the rest of the physical address are set in

the page table entry. Hence, currently, the intended

TME-MK encryption granularity is page granular.

For the encryption, TME-MK currently uses AES

in the XTS mode with either 128-bit or 256-bit keys.

It uses the physical address as an input such that same

data in different locations is encrypted differently. In

this mode of operation, TME-MK provides data con-

ﬁdentiality for the DRAM. The memory encryption

engine used in Intel®’s TDX (Intel®, 2023) enhances

TME-MK with a SHA-3-based MAC that is stored in

the ECC memory to additionally help provide data in-

tegrity (Intel®, 2020). For simplicity, in the remain-

der of this document, we use key to denote a key iden-

tiﬁer that then maps to the actual AES key material.

3 DESIGN

In this section, we ﬁrst introduce our novel ﬁne-grain

memory encryption mechanism on unmodiﬁed hard-

ware. We then introduce MEMES, which utilizes our

ﬁne-grain memory encryption approach to mitigate

spatial and temporal memory vulnerabilities. As heap

vulnerabilities are one of the most dominant memory

safety issues (Kim et al., 2020), we focus, in our work,

on protecting heap-allocated data. The proposed so-

lution, however, can also be adapted for other types of

data.

3.1 Fine-Grain Memory Encryption

Intel® TME-MK is only designed for encrypting en-

tire pages (i.e., 4 kB) of memory (cf. Section 2.3).

For memory safety, however, where allocations are

much smaller, this is not suitable. To cryptograph-

ically protect memory objects from each other, we

would need to place them on separate pages to use

different keys for each allocation. For allocations that

can be as small as 16 B, this means that up to 256x

more (physical) memory would be needed with that

ıve approach.

In this work, we enhance TME-MK-based page-

granular memory encryption to allow for a much ﬁner

granularity (e.g., cache line granularity), which in turn

greatly improves memory usage efﬁciency. TME-MK

is an inherently page-granular mechanism since the

key is encoded in the physical page number that is

stored within a page table entry (PTE). However, we

can create multiple different PTEs (i.e., aliases) that

use the same underlying physical page but with a dif-

ferent encryption key. This provides us with two dif-

ferent virtual addresses for the same physical mem-

ory page but with a distinct view of the memory. De-

pending on the address used, the page is either en-

/decrypted with one or the other key. We can scale

this to the number of available keys on the platform,

which is up to 2

. Since we set the key identiﬁers

in the page tables, which are indexed using virtual

addresses, it effectively behaves like encoding a tag

or encryption key into the virtual address. Thus, our

approach is similar to memory tagging schemes like

ARM® MTE (ARM Limited, 2019). However, in-

stead of using dedicated tagged memory hardware,

we achieve the same functionality with memory en-

cryption, which already exists in today’s hardware.

Since we can now access the same page with differ-

ent keys, we can encrypt smaller blocks of memory

with different keys. This allows us to use existing

hardware, intended for page-granular virtual machine

isolation, to be used for ﬁne-granular use cases like

MEMES: Memory Encryption-Based Memory Safety on Commodity Hardware

4KB

Page Tables

Key 1 0x10

keyID PPN

Key 2 0x10

Key 3 0x10

a = calloc(64)

b=calloc(128)

c = calloc(64)

DRAM

Virtual

Addressspace

Memory

viewed with

Key 2

00000000

80156f8c

14912b49

00000000

b1ddae2a

Figure 2: An overview of our scheme using 3 encryption

keys. On the left side, the virtual address space of a pro-

gram is shown. A memory page (shown in white) is mapped

multiple times in the virtual address space but with differ-

ent keys. Cache lines and PTEs are colored distinctly for

each key. On the left, three consecutive allocations (a,b,c)

are placed in different mappings since each of them is en-

crypted with a different key. The PTEs show that all three

pages map to the same physical page number (0x10), how-

ever, the key identiﬁer part of the physical address is dis-

tinct. On the right side, the memory page is shown when

viewed with key 2 (i.e., with the pointer from allocation b).

Using that pointer, data adjacent to the allocation only con-

tains garbled data or, in the case of authenticated encryp-

tion, an authentication error can be triggered.

memory safety. Figure 2 gives an overview of our ap-

proach.

CPU caches are typically tagged with the physical

address, which also contain the key identiﬁer. Thus,

from a security perspective, it does not matter if phys-

ical memory that is used with different keys maps to

the same cache set/way or to different ones. At the

cost of additional cache evictions, it allows encrypting

memory even at a sub-cache line granularity, down to

the block size of the encryption engine (i.e., 128 bit).

Note that this is the same granularity as ARM® MTE

uses.

3.2 Threat Model

MEMES repurposes the TME-MK memory encryp-

tion engine to enforce ﬁne-grained memory safety.

In this context, we consider a threat model, simi-

lar to prior work (cf. AOS (Kim et al., 2020) and

(LeMay et al., 2021)), consisting of an adversary

that exploits one or several memory safety vulnera-

bilities to attack the system. We assume the adver-

sary has access to an arbitrary read-and-write prim-

itive or a stale pointer to mount a software attack.

MEMES provides exploit mitigation for user appli-

cations. Thus, we assume that the operating system

or hypervisor is trusted and free of exploitable bugs.

Moreover, as most memory safety vulnerabilities tar-

get the heap (Microsoft, 2019), we focus only on pro-

tecting objects on the heap. Nevertheless, a similar

Secret Plaintext$§X=op% $3gP%&Z

#86T$M"25E§G% 0000000 aXY82e

char* p = malloc(128);

char* q = calloc(64);

Figure 3: Lock and key access to the memory. Two mem-

ory objects p and q are allocated and the pointers map to

two different PTEs that have a different key encoded. Ac-

cessing the memory objects with the corresponding pointers

returns the correctly decrypted plaintext. Adjacent mem-

ory encrypted with different keys are inaccessible as garbled

data is retrieved or an authentication error may be triggered.

approach can be used to achieve protection for stack

and global data by adapting our design.

Furthermore, we expect common countermea-

sures, such as address space layout randomiza-

tion (ASLR) and data execution prevention (DEP),

to be enabled. This means that the attacker does

not know the exact address layout and cannot inject

and execute arbitrary code. Additionally, we con-

sider side-channel and microarchitectural attacks out

of scope for this work.

3.3 Memory Safety Through

Encryption

We design our memory safety scheme, MEMES,

based on ﬁne-grain memory encryption. At its core,

it consists of three parts. First, the TME-MK-based

ﬁne-grain encryption mechanism introduced in Sec-

tion 3.1. Second, a kernel extension that allows

TME-MK to be used from userspace applications via

syscalls. Finally, a heap allocation library called

TMEalloc, which leverages the newly added syscalls

to provide ﬁne-grained protection of individual heap

memory objects.

Heap Allocator. A heap allocator is responsible for

managing allocations at runtime (e.g., via malloc) as

well as their associated metadata. It requests pages

from the OS and hands them out in smaller chunks,

usually 16 B, to the application. In this work, we

design our scheme as part of a heap allocator which

has some advantages. E.g., it allows our library to be

retroﬁtted to existing pre-compiled binaries. Thus, we

do not only achieve mere binary compatibility, but in-

stead, we can provide transparent protection even for

unaware libraries.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

On a high-level, our allocator (TMEalloc) assigns

each allocation a different encryption key. This gives

us a lock-and-key access to the memory, as illus-

trated in Figure 3. Similar to memory tagging, here,

the number of keys is also limited by the hardware.

Hence not every allocation can have a distinct en-

cryption key. Thus, we provide probabilistic security,

similar to ARM® MTE, which can only distinguish

16 tags. However, the allocator can choose the keys

such that adjacent allocations always use different en-

cryption keys, which prevents linear buffer overﬂows

deterministically.

To facilitate multiple encryption keys per page,

each heap memory page is mapped in the virtual ad-

dress space, once for each used key on that page. We

use the available virtual address space to place these

aliases at random locations which prevents guessing a

pointer with a different encryption key.

Kernel Extension. In order for the heap allocator to

utilize TME-MK, we need to add a few syscalls for

managing aliased pages with their respective encryp-

tion keys. We design our modiﬁcation for the Linux

kernel and use its existing key retention facility for

creating and destroying TME-MK keys supported by

our system (i.e., AES-XTS-128). Furthermore, we

add one new syscall encrypt mprotect, such that

the userspace application can apply speciﬁc keys for

virtual memory ranges.

4 IMPLEMENTATION

We implemented our MEMES design on top of

the high-performance heap allocator mimalloc (Mi-

crosoft, 2022) developed at Microsoft. In the follow-

ing, we detail the most important aspects of our im-

plementation.

Aliasing. We use the standard mmap syscall with the

MAP SHARED which allows creating shared memory.

Note that this also allows mapping the same physical

memory multiple times within the same process. We

use this to create heap memory aliases with different

encryption keys. For this purpose, we use the previ-

ously introduced encrypt mprotect syscall, which

allows our allocator to set a unique key for each

aliased mapping.

Pointer Layout. Figure 4 shows the layout of a

pointer returned from the allocator, which points to

one of the aliases. Assuming a heap size of 16 GB,

we use the pointer bits 34 through 47 for placing the

aliases in the available address space. The upper bits

(48 to 63) are set to 0 to conform to the architectural

requirements of canonical addresses. The only other

requirement here is that the aliased regions do not in-

63 48

47 0h

Figure 4: The format of a heap pointer. We use bits [h:47]

for randomization of the placement for each key, where h =

log

(heap, size). E.g., h = 34 for a heap size of 16 GB.

tersect each other. This is done by placing the respec-

tive aliases, in this case, at least 16 GB apart. For

applications requiring more memory, this minimum

distance can be increased accordingly.

Granularity. Since cache lines are tagged with the

physical address, and thus with the key, it would

lead to signiﬁcant performance degradation if multi-

ple keys per cache line were used. Hence, we align

and pad all memory allocation on the heap to the

cache line granularity, i.e., 64 B on our system. This

trade-off incurs a slight memory overhead for applica-

tions relying on very small allocation sizes, which we

analyze in Section 6. This also means that any in-line

metadata (i.e., heap library metadata that is typically

located near the allocated data) must also be aligned.

Optimizations. Our ﬁne-grain encryption design in-

evitably leads to an increase in required TLB entries.

Hence, we opted to base our implementation around

2 MB-sized pages, to alleviate some of the TLB pres-

sure.

Page Zeroing. When a userspace application re-

quests new memory, the kernel wipes the pages by

overwriting them with 0 bytes. This is done to pre-

vent any sensitive data leakage across processes. Fur-

thermore, the mmap syscall speciﬁes that new mem-

ory returned to the application needs to be zero-

initialized. Many applications rely on this for per-

formance optimizations. E.g., when calling calloc,

which also ensures that the returned heap memory is

zero-initialized, a heap allocator can simply pass the

memory to the user without setting it to zero, if it was

a fresh page received from the kernel. However, when

using different encryption keys for a single page, it is

not obvious which key should be used for zeroing.

Because, when viewed with a different key, a zeroed

page is no longer zeroed. Hence, in our kernel imple-

mentation, we wipe the page as usual with the default

key. In addition, we defer zeroing to our heap library,

which then uses the correct key for zeroing (e.g., the

key used for heap metadata).

5 SECURITY DISCUSSION

In this section, we discuss the security beneﬁts pro-

vided by our design in detail. Thereby, we exam-

ine how our design facilitates both temporal and spa-

tial memory safety for heap memory during runtime.

MEMES: Memory Encryption-Based Memory Safety on Commodity Hardware

MEMES provides different security beneﬁts depend-

ing on the operation mode of the memory encryption

engine, i.e., encryption-only or authenticated encryp-

tion.

TME-MK Encryption-Only. By utilizing mem-

ory encryption, MEMES provides strong conﬁden-

tiality for the protected data. On every memory safety

violation, data would be accessed with the wrong

decryption key, which ultimately leads to reading

garbled data. Hence, an adversary cannot leak se-

cret data or inject speciﬁc data controlled by the at-

tacker. Thus, the MEMES memory encryption ap-

proach provides exploit mitigation for various types

of software-based attacks. More speciﬁcally, as the

attacker does not know the secret encryption key, de-

terministically writing data, e.g., a return address or

a function pointer, with the wrong encryption key

is not possible. This effectively mitigates powerful

exploitation techniques, such as return-oriented pro-

gramming (ROP) (Shacham, 2007) and jump-oriented

programming (JOP) (Bletsch et al., 2011).

Although by continuously reading the victim data,

an attacker could still see when the data was changed,

but they do not know the old or new plaintext value.

An attacker would only be able to roll back the value

to a previous, possibly valid, value. However, in prac-

tice, this side-channel is hard to exploit and requires

strong attacker capabilities, which we do not consider

in our threat model. Nevertheless, TME-MK can also

protect against this as shown in the following.

TME-MK Authenticated Encryption. TME-MK

also allows for an authenticated encryption mode,

which is used in TDX (Intel®, 2023). While our

system conﬁguration did not make it possible to add

such keys to the encryption engine, using it would en-

hance MEMES with additional detection capabilities.

In particular, authentication enables the detection of

all classes of memory safety violations, i.e., tempo-

ral and spatial memory safety violations, by possibly

triggering a hardware exception where we can termi-

nate the program. This means that arbitrary read or

write memory violations (e.g., out-of-bounds errors)

would result in authentication failures of the TME-

MK memory decryption instead of returning garbled

data. Similarly, dereferencing dangling pointers (e.g.,

by mounting a use-after-free (UAF) attack) is detected

as well.

Spatial Memory Safety. For the spatial safety anal-

ysis, we differentiate between adjacent, non-adjacent,

and intra-object memory access violations. The mem-

ory allocator can ensure that two consecutive alloca-

tions are encrypted using different keys. Thus, adja-

cent memory violations, i.e., linear buffer overﬂows,

deterministically lead to garbled data or authentica-

tion errors.

Non-adjacent memory violations are mitigated on

a probabilistic basis (based on the number of uti-

lized keys). Therefore, we distinguish between inter-

page and intra-page access violations. The inter-

page memory access violation can result in two cases.

First, the memory access could lead to a page fault

and immediate program abortion, which is similar to

ASLR-based approaches. Second, the attacker ac-

cesses a mapped page and decrypts the memory ob-

ject with the corresponding key identiﬁer. The prob-

ability that this key matches the correct one used for

the encryption of the memory object depends on the

number of available keys, which differs depending on

the CPU model and platform software. At maximum,

up to 2

keys are available. Similarly, the intra-page

collision probability depends on the number of uti-

lized keys. Since our allocation granularity is at least

64 B, using 64 different keys allows us to uniquely as-

sign a key for each allocation on a page. Thus, when

using at least 64 keys or larger allocations, there is no

spatial intra-page collision possible.

Intra-object memory access violations are cur-

rently not protected by our scheme. This requires

detailed knowledge of how the memory is used and

would need to be implemented in the compiler itself.

Hence, our heap allocator cannot protect against such

violations. In summary, depending on the underlying

hardware capabilities, i.e., encryption-only or authen-

ticated encryption, the spatial violation would lead to

reading/writing garbled data, or directly triggering a

hardware exception.

Temporal Memory Safety. For the temporal safety

analysis, we consider uninitialized memory and use-

after-free (UAF) attacks. UAF attacks misuse pointers

referring to already freed memory, so-called dangling

pointers. UAF is typically only security-relevant

in use-after-reallocation (UAR) cases. These occur

when a newly allocated object gets allocated on the

same chunk of memory of a previously freed ob-

ject. There, the attacker could alter the data of the

new memory object using the previous, stale, pointer.

MEMES prevents such attacks on a probabilistic ba-

sis by assigning different keys for the corresponding

memory objects. On every memory reallocation, the

allocator pseudo-randomly chooses a key and returns

the corresponding pointer. The probability that the

keys of two memory allocations coincide again de-

pends on the number of available and utilized keys (up

to 2

−15

). Similarly, uninitialized memory accesses are

mitigated since a memory read using the wrong key

would result in garbled data or detection of the mem-

ory violation. The immediate detection of such vio-

SECRYPT 2023 - 20th International Conference on Security and Cryptography

lations depends on the utilized TME-MK mode (i.e.,

encryption-only or authenticated encryption).

Multi-Threading. Software-only exploit mitigations

(e.g., verifying a pointer before dereferencing) usu-

ally suffer from time-of-use race conditions (Wei and

Pu, 2005) that can be exploited in multi-threaded ap-

plications (Farkhani et al., 2021; Conti et al., 2015).

In contrast, our approach is hardware-based and does

not suffer from the same issue. MEMES beneﬁts from

TME-MK, which is deeply embedded into the mem-

ory sub-system of the CPU. TMEalloc does not ﬂush

cache lines (e.g., after freeing memory) in our ex-

periments, however, it is noteworthy that the TME-

MK speciﬁcation recommends ﬂushing caches when

changing its associated key identiﬁer (Intel®, 2022).

6 EVALUATION

In this section, we evaluate the performance and

memory overhead of our implementation.

6.1 Performance Evaluation

For evaluating the performance of MEMES, we use

all C and C++ SPEC CPU® 2017 (Standard Per-

formance Evaluation Corporation, 2023) benchmarks

and Linux 5.15 running on an Intel® Xeon® Platinum

8480+ CPU, which has support for TME-MK. On

that system, the DRAM is always encrypted using

TME, which means that a single key, chosen at boot-

time, is used to encrypt the entire DRAM. Thus, for

our baseline, where we run SPEC CPU® 2017 with-

out protecting heap allocations, full DRAM encryp-

tion is still active. Note that authenticated encryp-

tion is currently not supported on our evaluation plat-

form. Hence, our evaluation results are based on

the encryption-only mode (AES-XTS-128). The au-

thenticated encryption variant used in TDX stores its

MAC in the ECC memory (Intel®, 2020). Thus,

while we cannot evaluate the overhead of that mode,

we do expect negligible differences because no extra

memory fetches are necessary.

We compiled all SPEC CPU® 2017 C and C++

benchmarks with our memory allocator utilizing page

table aliasing and encryption using different keys for

ﬁne-grained memory safety. Thereby, all allocations

are aligned to 64 B. We evaluated our prototype

for different conﬁgurations: Namely “Padding only”

where we only add padding and alignment to conform

to the cache line sizes, and “1 bit” to “6 bit” where we

additionally encrypt each allocation with 2

to 2

dif-

ferent keys, respectively.

Figure 5 illustrates our experimental performance

overheads of MEMES for different conﬁgurations and

benchmarks. In addition, the ﬁgure shows the corre-

lating relative number of cache misses, TLB misses,

and page faults for each benchmark. Compared to the

baseline, encrypting all allocations but not their meta-

data with the same encryption key, i.e., conﬁguration

“1 bit”, induces a geometric mean runtime overhead

of 16 %. Note that for “1 bit” there are still two dif-

ferent keys used in total. One for the heap allocations,

and one for the remaining memory like the heap meta-

data, code, and non-heap program data. Thus, even

this conﬁguration can double the number of required

TLB entries compared to no heap protection. When

adding more keys, and thus aliases, we measured a

geometric mean runtime overhead between 16 % and

27 %.

This performance overhead is introduced by (i)

the memory alignment since all memory objects need

to be aligned and padded to 64 bytes. Depending

on the allocation sizes of the dedicated benchmarks,

the alignment is responsible for a large proportion

of the incurred overhead (cf. Figure 6). For exam-

ple, mcf almost exclusively allocates very small mem-

ory objects. Note that for mcf, most of the perfor-

mance overhead is due to padding as visible from the

“Padding only” bar. This alignment overhead does

not only increase the memory consumption of the pro-

gram, it also increases the runtime overhead due to

caching effects. While it would be possible to remove

any alignment and padding requirements, this would

drastically decrease performance due to the increased

number of cache evictions if multiple keys were used

for a cache line that is accessed frequently.

On the other hand, our page table aliasing ap-

proach (ii) increases the TLB pressure leading to a

performance decrease depending on the memory ac-

cess pattern and memory access frequency. This is,

because each key that is used within a page requires

one TLB entry.

Finally, the (iii) management of the heap library

introduces some overhead. The memory allocator

needs to prepare the setup of the page table aliasing

and manage the received pages from the operating

system.

The total performance overhead is the result of a

complex interplay of the following factors: Memory

allocation sizes (Figure 6), total memory usage (Fig-

ure 7), memory usage patterns, and number of used

keys per page (Figure 5). From the given ﬁgures, it is

clear that all these factors have a performance impact

with varying degrees. In the following subsection,

we detail the added memory overhead to the memory

alignment.

MEMES: Memory Encryption-Based Memory Safety on Commodity Hardware

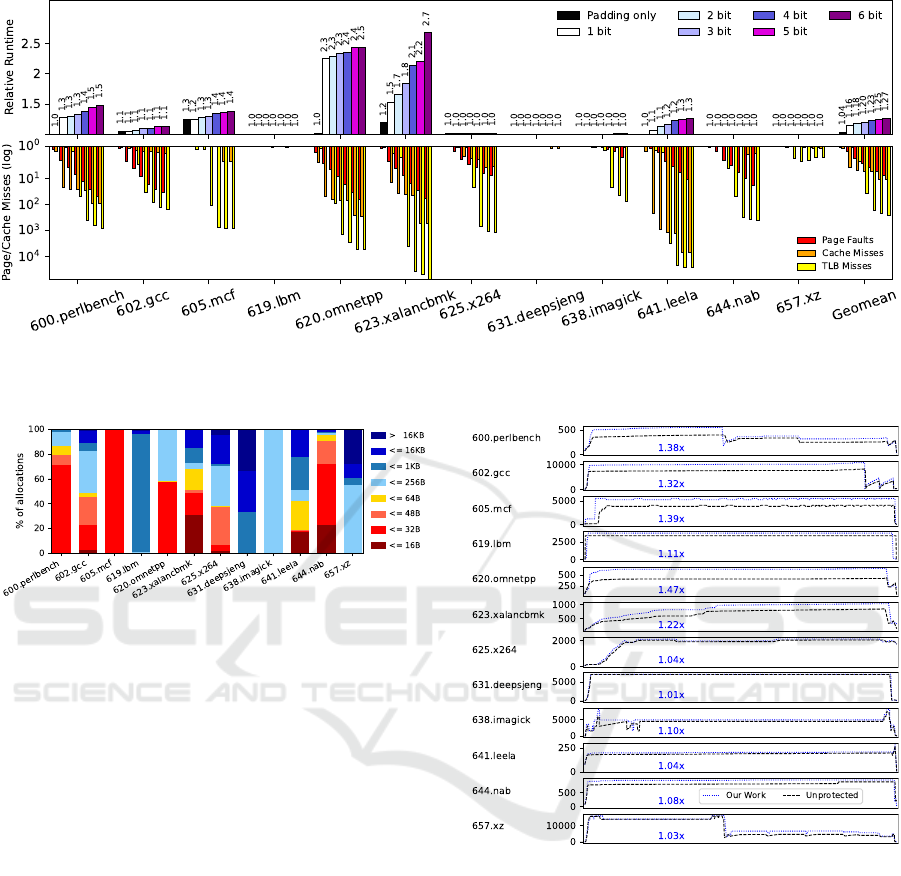

Figure 5: The performance overhead incurred by the MEMES design. We evaluate our prototype implementation using

different numbers of key ids. The number of key ids derives the amount of page table mappings leading to increased TLB

pressure responsible for the majority of the runtime overhead.

Figure 6: The distribution of the allocation sizes of the

SPEC CPU® 2017 benchmarks.

6.2 Memory Utilization

As discussed in Section 3, we optimize the perfor-

mance by aligning all memory allocations on the heap

to the cache line granularity, i.e., 64 B on our system.

The memory overhead incurred by the alignment to

64 bytes largely depends on the allocation sizes of the

speciﬁc applications.

To analyze the impact on memory utilization, we

ﬁrst analyzed the size of each allocation for the SPEC

CPU® 2017 benchmarks. Mimalloc already provides

debug information about allocation sizes. Thus, for

this analysis, we run the benchmarks using the un-

modiﬁed library in debug mode. Figure 6 shows the

occurrence of different allocation sizes. We group

them together into buckets for easier visualization.

Smaller buckets are shown in red to highlight that

these require alignment and padding. Especially large

allocations (i.e., larger than 1 kB) beneﬁt from our ap-

proach by introducing a negligible performance and

memory overhead.

Furthermore, we evaluated the additional mem-

ory required due to the above memory layout con-

straints. For this, we measured the physically used

memory of each of the SPEC CPU® 2017 bench-

Figure 7: The memory utilization of the SPEC CPU® 2017

benchmarks. This ﬁgure compares the memory usage of the

unmodiﬁed allocator with our TMEalloc that aligns every

allocation to 64 bytes. The numbers shown in blue is the

factor by which TMEalloc uses more memory.

marks during their entire execution. We place the

benchmark processes in their own cgroup and mea-

sure the memory.current ﬁeld to capture the to-

tal memory usage of the benchmark. This is illus-

trated in Figure 7. Expectedly, benchmarks like lbm,

x264, deepsjeng, imagick, and xz which predomi-

nantly use larger allocation sizes, also have a negligi-

ble memory overhead of 1 % – 11 %. These bench-

marks also incur the smallest performance overhead,

as shown in Figure 5. On the other hand, perlbench,

gcc, mcf, omnetpp, and xalancbmk use much smaller

allocations that require more padding, which in turn

SECRYPT 2023 - 20th International Conference on Security and Cryptography

Table 1: Comparison of memory safety countermeasures.

Legend: Mitigated,  Cryptographic mitigation with pos-

sible detection, Probabilistic, None.

Mechanism OOB UAF Uninit. Commodity HW

SoftBound+CETS 4

   8

CrypTag    8

ARM® MTE

‡

SPARC ADI

‡

MEMES    4

‡

MTE/ADI add instructions to zero the memory when setting the tag,

which helps mitigating uninitialized memory use/leaks.

* Note that CPUs with MTE are not yet widely available.

leads to an increased memory overhead of 22 % –

47 %.

The allocation sizes have a direct impact on the

memory usage, which in turn has an impact on the

performance. This is because the CPU caches are

used less efﬁciently if the cached data includes unused

padding bytes. That means that more cache lines need

to be used to store the same amount of data, and more

memory requests are made to fetch the data from the

DRAM.

7 RELATED WORK

In this section, we discuss the related work of mem-

ory safety and compare common approaches with

MEMES. Memory safety countermeasures proposed

by academia and industry present different trade-offs

regarding security, performance, ﬂexibility, and mem-

ory usage. Table 1 provides an overview and compar-

ison of related memory safety countermeasures.

Bounds-Checking. Several countermeasures pro-

pose the mitigation of spatial memory safety viola-

tions by introducing bounds checks (Akritidis et al.,

2009; Ziad et al., 2021; Duck et al., 2017; Duck

and Yap, 2016; Simpson and Barua, 2013) for ev-

ery memory operation. These bound-checking mech-

anisms are implemented either in software, e.g.,

CCured (Necula et al., 2002) and Cyclone (Jim et al.,

2002), or hardware, e.g., Hardbound (Devietti et al.,

2008), Watchdog (Nagarakatte et al., 2012; Na-

garakatte et al., 2014), and Intel® MPX (Oleksenko

et al., 2018). Typically, software-based approaches

tend towards high runtime overheads (cf. 116 % run-

time overhead for SoftBound (Nagarakatte et al.,

2009) and CETS (Nagarakatte et al., 2009)) while

hardware-enforced mechanisms typically require in-

trusive hardware changes, which can be hard to de-

ploy on a large scale. Additionally, hardware bounds-

checking mechanisms, like CHERI (Woodruff et al.,

2014; Watson et al., 2015), often use so-called fat

pointers, which co-locate the bounds information

with the pointer, thus, requiring application binary in-

terface (ABI) changes. In contrast, MEMES enables

a lightweight and encryption-based solution for mem-

ory safety that provides more ﬂexibility while main-

taining binary compatibility.

Use-after-Free Protection. Temporal mem-

ory safety is commonly achieved by meta-

information (Farkhani et al., 2021; Nagarakatte

et al., 2010; Burow et al., 2018; Lee et al., 2015),

which represents the liveness of memory objects.

For example, CETS (Nagarakatte et al., 2010) asso-

ciates unique identiﬁers managed in a disjoint data

structure that is checked on every memory access. In

contrast, mechanisms like MarkUs (Ainsworth and

Jones, 2020) provide temporal memory safety by

managing a quarantine list for freed objects. Memory

is only reallocated if no dangling pointers referring

to the quarantined memory exist. Furthermore,

xTag (Bernhard et al., 2022) utilizes pointer tagging

in combination with page aliasing to achieve tempo-

ral safety. Similarly, MEMES utilizes heap aliasing.

However, our approach combines page aliasing with

memory encryption, enforcing full memory safety

(i.e., temporal and spatial safety). Arbitrary read

and write violations are a serious threat to software

systems, and countermeasures that only target a

subset of memory safety (e.g., only temporal safety)

often lack widespread adoption.

Tagged Memory. Memory tagging (Serebryany,

2019; Jero et al., 2023; Joannou et al., 2017), of-

ten also referred to as memory coloring or lock-

and-key, provides additional meta-information asso-

ciated with every memory location. Tagged mem-

ory, implemented in software (Akritidis et al., 2008)

or hardware, allows the enforcement of ﬁne-grained

access policies. For example, HWASan (Serebryany

et al., 2018) uses 8-bit memory tags encoded into

the pointers (enabled by hardware address mask-

ing) and implements the required tag checks in soft-

ware. Furthermore, the ARM® memory tagging ex-

tension (MTE) (ARM Limited, 2019) and SPARC ap-

plication data integrity (ADI) (Aingaran et al., 2015)

are ISA extensions that implement tagged memory

utilizing a 4-bit tag at a granularity of 16 and 64 bytes,

respectively. The memory tags are used to enforce

probabilistic memory safety. Similarly, MEMES pro-

vides probabilistic memory safety, however, the mem-

ory encryption key is not directly encoded into the

pointer. Thus, it becomes harder for attackers to leak

and forge pointers with their corresponding key val-

ues. Additionally, the memory encryption engine on

our used system allows the usage of up to 64 different

MEMES: Memory Encryption-Based Memory Safety on Commodity Hardware

keys, increasing the probabilistic detection capabili-

ties compared to the 16 distinct tag values of ARM®

MTE and SPARC ADI. Note that TME-MK can sup-

port up to a maximum of 2

keys. Normal pages can

only hold a maximum of 64 allocations. Hence, per

page, only 64 or less keys would be used. Thus, we

assume that the performance overhead for using more

than 64 keys would remain largely unchanged as it

has no effect on the number of TLB entries needed.

In contrast, memory tagging schemes like MTE scale

much worse for each additional “key” bit. E.g., scal-

ing MTE to 15 or 16 bits would already increase the

tagged memory overhead by a factor of 4.

Encryption-Based Mechanisms. Some research

proposals utilize memory encryption for memory pro-

tection. CrypTag (Nasahl et al., 2021) introduces a

scheme that, similarly to memory tagging, encodes a

memory tag into the upper bits of the pointer. How-

ever, instead of storing the tags in memory, CrypTag

uses the pointer tags to tweak the memory encryption

procedure providing object-granular memory safety.

Moreover, C

(LeMay et al., 2021) utilizes pointer

and memory encryption for memory safety. The en-

crypted part of the pointer’s address is used to de-

crypt the corresponding data in memory. There, mem-

ory safety violations, e.g., due to corrupted or stale

pointers, are highly likely to lead to either a page

fault or garbled data. Currently, memory encryption

is primarily used for conﬁdential computing, such as

Intel® TDX (Intel®, 2023) and AMD SEV (AMD,

2020), which isolate virtual machines. Furthermore,

SERVAS (Steinegger et al., 2021) proposes an en-

clave design that tweaks the memory encryption using

the enclave metadata. In comparison, MEMES uti-

lizes the TME-MK memory encryption engine (avail-

able on commodity hardware) in combination with

heap aliasing in order to provide ﬁne-grained memory

safety. Moreover, EC-CFI (Nasahl et al., 2023) com-

bines Intel®’s virtualization technology with memory

encryption to provide cryptographic control ﬂow in-

tegrity against fault attacks.

8 FUTURE WORK &

CONCLUSION

In this section, we give a brief outlook on possible

future work to improve the performance of MEMES

further and ﬁnally give a conclusion of our work.

8.1 Future Work

Our concept implementation proves the efﬁcacy of

our design. In our implementation, we only imple-

mented optimizations that do not negatively impact

the security (e.g., cache line padding). However, there

are more possible optimizations for speciﬁc work-

loads introducing different trade-offs.

Multiple small allocations (e.g., 4x16 B) would ﬁt

on a cache line if there is no padding. There are two

possible ways to allow for this. First, we could use the

same keys for such allocations, which would improve

both the performance and memory usage signiﬁcantly

but it results in a loss in detection for intra-cache line

overﬂows. Second, we can optimize memory usage

without impacting security by using different keys for

each allocation within a cache line. However, the

downside to this is increased cache evictions which

lead to performance degradation.

Alternatively, it is possible to only protect a sub-

set of an application, while the majority of data would

be unencrypted. An example for this would be se-

cure keystorage used in cryptographic libraries like

OpenSSL (The OpenSSL Project, 2003).

8.2 Conclusion

In this paper, we presented a method for ﬁne-grain

memory encryption using Intel®’s TME-MK with-

out any hardware changes. By using multiple identi-

cal mappings from virtual to physical memory pages

with different TME-MK key identiﬁers, we are able

to encrypt memory objects with different keys at the

smallest possible encryption granularity, i.e., 128 bit.

Based on page table aliasing, we then introduced

MEMES. MEMES mitigates memory safety vulner-

abilities on the heap by encrypting memory objects

with different key identiﬁers. Using this approach,

we showcased that MEMES, depending on the un-

derlying capabilities of the encryption engine, can

either detect or prevent the exploitation of memory

corruptions. Our performance analysis showed that

MEMES induces a geometric mean runtime overhead

of just 16–27% for SPEC CPU® 2017.

ACKNOWLEDGEMENTS

This project has received funding from the Austrian

Research Promotion Agency (FFG) via the AWARE

project (FFG grant number 891092). Additional fund-

ing was provided by a generous gift from Intel.

REFERENCES

Aingaran, K., Jairath, S., Konstadinidis, G. K., Leung, S.,

Loewenstein, P., McAllister, C., Phillips, S., Radovic,

SECRYPT 2023 - 20th International Conference on Security and Cryptography

Z., Sivaramakrishnan, R., Smentek, D., and Wicki, T.

(2015). M7: Oracle’s Next-Generation Sparc Proces-

sor. IEEE Micro, 35:36–45.

Ainsworth, S. and Jones, T. M. (2020). MarkUs: Drop-in

use-after-free prevention for low-level languages. In

S&P, pages 578–591.

Akritidis, P., Cadar, C., Raiciu, C., Costa, M., and Castro,

M. (2008). Preventing Memory Error Exploits with

WIT. In S&P, pages 263–277.

Akritidis, P., Costa, M., Castro, M., and Hand, S.

(2009). Baggy Bounds Checking: An Efﬁcient

and Backwards-Compatible Defense against Out-of-

Bounds Errors. In USENIX Security Symposium,

pages 51–66.

AMD (2020). Amd sev-snp: Strengthening vm

isolation with integrity protection and more.

https://www.amd.com/system/ﬁles/TechDocs/SEV-

SNP-strengthening-vm-isolation-with-integrity-

protection-and-more.pdf. Accessed 2023-01-05.

ARM Limited (2019). Arm architecture reference

manual for a-proﬁle architecture, v8.5a. https://

developer.arm.com/documentation/ddi0487/ea. Ac-

cessed 2023-01-05.

Bernhard, L., Rodler, M., Holz, T., and Davi, L. (2022).

xTag: Mitigating Use-After-Free Vulnerabilities via

Software-Based Pointer Tagging on Intel x86-64. In

EURO S&P, pages 502–519.

Bletsch, T. K., Jiang, X., Freeh, V. W., and Liang, Z. (2011).

Jump-oriented programming: a new class of code-

reuse attack. In AsiaCCS, pages 30–40.

Burow, N., McKee, D. P., Carr, S. A., and Payer, M.

(2018). CUP: Comprehensive User-Space Protection

for C/C++. In AsiaCCS, pages 381–392.

Conti, M., Crane, S., Davi, L., Franz, M., Larsen, P., Ne-

gro, M., Liebchen, C., Qunaibit, M., and Sadeghi,

A. (2015). Losing Control: On the Effectiveness of

Control-Flow Integrity under Stack Attacks. In CCS,

pages 952–963.

Devietti, J., Blundell, C., Martin, M. M. K., and Zdancewic,

S. (2008). Hardbound: architectural support for spa-

tial safety of the C programming language. In ASP-

LOS, pages 103–114.

Duck, G. J. and Yap, R. H. C. (2016). Heap bounds protec-

tion with low fat pointers. In CC, pages 132–142.

Duck, G. J., Yap, R. H. C., and Cavallaro, L. (2017). Stack

Bounds Protection with Low Fat Pointers. In NDSS.

Durumeric, Z., Kasten, J., Adrian, D., Halderman, J. A.,

Bailey, M., Li, F., Weaver, N., Amann, J., Beekman,

J., Payer, M., and Paxson, V. (2014). The Matter

of Heartbleed. In Proceedings of the 2014 Internet

Measurement Conference, IMC 2014, Vancouver, BC,

Canada, November 5-7, 2014, pages 475–488.

Farkhani, R. M., Ahmadi, M., and Lu, L. (2021). PTAuth:

Temporal Memory Safety via Robust Points-to Au-

thentication. In USENIX Security Symposium, pages

1037–1054.

Halderman, J. A., Schoen, S. D., Heninger, N., Clarkson,

W., Paul, W., Calandrino, J. A., Feldman, A. J., Ap-

pelbaum, J., and Felten, E. W. (2008). Lest We Re-

member: Cold Boot Attacks on Encryption Keys. In

USENIX Security Symposium, pages 45–60.

Hu, H., Shinde, S., Adrian, S., Chua, Z. L., Saxena, P., and

Liang, Z. (2016). Data-Oriented Programming: On

the Expressiveness of Non-control Data Attacks. In

S&P, pages 969–986.

Intel®(2020). Architecture Speciﬁcation: Intel®

Trust Domain Extensions (Intel® TDX) Mod-

ule. https://www.intel.com/content/dam/develop/

external/us/en/documents/intel-tdx-module-1eas.pdf.

Accessed: 2023-01-30.

Intel®(2022). Intel® Architecture Memory Encryption

Technologies. https://www.intel.com/content/www/

us/en/content-details/679154/intel-architecture-

memory-encryption-technologies-speciﬁcation.html.

Revision 1.4, Accessed: 2023-01-31.

Intel®(2023). Intel® Trust Domain Extensions.

https://www.intel.com/content/dam/develop/external/

us/en/documents/tdx-whitepaper-v4.pdf. Accessed:

2023-01-30.

Jero, S., Burow, N., Ward, B. C., Skowyra, R., Khazan, R.,

Shrobe, H. E., and Okhravi, H. (2023). TAG: Tagged

Architecture Guide. ACM Comput. Surv., 55:124:1–

124:34.

Jim, T., Morrisett, J. G., Grossman, D., Hicks, M. W., Ch-

eney, J., and Wang, Y. (2002). Cyclone: A Safe Di-

alect of C. In USENIX ATC, pages 275–288.

Joannou, A., Woodruff, J., Kovacsics, R., Moore, S. W.,

Bradbury, A., Xia, H., Watson, R. N. M., Chisnall, D.,

Roe, M., Davis, B., Napierala, E., Baldwin, J., Gudka,

K., Neumann, P. G., Mazzinghi, A., Richardson, A.,

Son, S. D., and Markettos, A. T. (2017). Efﬁcient

Tagged Memory. In ICCD, pages 641–648.

Kaplan, D., Powell, J., and Woller, T. (2020). Amd sev-

snp: Strengthening vm isolationwith integrity protec-

tion and more. Technical report, Technical Report.

Advanced Micro Devices Inc.

Kim, Y., Lee, J., and Kim, H. (2020). Hardware-based

Always-On Heap Memory Safety. In MICRO, pages

1153–1166.

Lee, B., Song, C., Jang, Y., Wang, T., Kim, T., Lu, L., and

Lee, W. (2015). Preventing Use-after-free with Dan-

gling Pointers Nulliﬁcation. In NDSS.

LeMay, M., Rakshit, J., Deutsch, S., Durham, D. M.,

Ghosh, S., Nori, A., Gaur, J., Weiler, A., Sultana,

S., Grewal, K., and Subramoney, S. (2021). Cryp-

tographic Capability Computing. In MICRO, pages

253–267.

Microsoft (2019). Trends, challenges, and strategic shifts in

the software vulnerability mitigation landscape. https:

//github.com/Microsoft/MSRC-Security-Research/

blob/master/presentations/2019 02 BlueHatIL/

2019 01%20-%20BlueHatIL%20-%20Trends%

2C%20challenge%2C%20and%20shifts%20in%

20software%20vulnerability%20mitigation.pdf.

Accessed 2023-01-05.

Microsoft (2022). mimalloc. hhttps://github.com/

microsoft/mimalloc. Accessed 2023-01-05.

Nagarakatte, S., Martin, M. M. K., and Zdancewic, S.

(2012). Watchdog: Hardware for safe and secure man-

MEMES: Memory Encryption-Based Memory Safety on Commodity Hardware

ual memory management and full memory safety. In

ISCA, pages 189–200.

Nagarakatte, S., Martin, M. M. K., and Zdancewic,

S. (2014). WatchdogLite: Hardware-Accelerated

Compiler-Based Pointer Checking. In CGO, page

175.

Nagarakatte, S., Zhao, J., Martin, M. M. K., and Zdancewic,

S. (2009). SoftBound: highly compatible and com-

plete spatial memory safety for c. In PLDI, pages

245–258.

Nagarakatte, S., Zhao, J., Martin, M. M. K., and Zdancewic,

S. (2010). CETS: compiler enforced temporal safety

for C. In Proceedings of the 9th International Sympo-

sium on Memory Management, ISMM 2010, Toronto,

Ontario, Canada, June 5-6, 2010, pages 31–40.

Nasahl, P., Schilling, R., Werner, M., Hoogerbrugge, J.,

Medwed, M., and Mangard, S. (2021). CrypTag:

Thwarting Physical and Logical Memory Vulnerabil-

ities using Cryptographically Colored Memory. In

ASIA CCS ’21: ACM Asia Conference on Computer

and Communications Security, Virtual Event, Hong

Kong, June 7-11, 2021, pages 200–212.

Nasahl, P., Sultana, S., Liljestrand, H., Grewal, K., LeMay,

M., Durham, D. M., Schrammel, D., and Man-

gard, S. (2023). EC-CFI: Control-Flow Integrity via

Code Encryption Counteracting Fault Attacks. CoRR,

abs/2301.13760.

Necula, G. C., McPeak, S., and Weimer, W. (2002).

CCured: type-safe retroﬁtting of legacy code. In

POPL, pages 128–139.

Oleksenko, O., Kuvaiskii, D., Bhatotia, P., Felber, P., and

Fetzer, C. (2018). Intel MPX Explained: A Cross-

layer Analysis of the Intel MPX System Stack. Proc.

ACM Meas. Anal. Comput. Syst., 2:28:1–28:30.

Serebryany, K. (2019). ARM Memory Tagging Extension

and How It Improves C/C++ Memory Safety. login

Usenix Mag., 44.

Serebryany, K., Stepanov, E., Shlyapnikov, A., Tsyrkle-

vich, V., and Vyukov, D. (2018). Memory Tagging

and how it improves C/C++ memory safety. CoRR,

abs/1802.09517.

Shacham, H. (2007). The geometry of innocent ﬂesh on the

bone: return-into-libc without function calls (on the

x86). In CCS, pages 552–561.

Simpson, M. S. and Barua, R. (2013). MemSafe: ensuring

the spatial and temporal memory safety of C at run-

time. Softw. Pract. Exp., 43:93–128.

Standard Performance Evaluation Corporation (2023).

SPEC CPU® 2017. https://www.spec.org/cpu2017/.

Accessed: 2023-01-31.

Steinegger, S., Schrammel, D., Weiser, S., Nasahl, P., and

Mangard, S. (2021). SERVAS! Secure Enclaves via

RISC-V Authenticryption Shield. In ESORICS, vol-

ume 12973 of LNCS, pages 370–391.

Szekeres, L., Payer, M., Wei, T., and Song, D. (2013). SoK:

Eternal War in Memory. In S&P, pages 48–62.

The Chromium Projects (2020). Memory safety.

https://www.chromium.org/Home/chromium-

security/memory-safety/. Accessed 2023-01-14.

The OpenSSL Project (2003). OpenSSL: The open source

toolkit for SSL/TLS. www.openssl.org.

Watson, R. N. M., Woodruff, J., Neumann, P. G., Moore,

S. W., Anderson, J., Chisnall, D., Dave, N. H., Davis,

B., Gudka, K., Laurie, B., Murdoch, S. J., Norton,

R. M., Roe, M., Son, S. D., and Vadera, M. (2015).

CHERI: A Hybrid Capability-System Architecture for

Scalable Software Compartmentalization. In S&P,

pages 20–37.

Wei, J. and Pu, C. (2005). TOCTTOU Vulnerabilities in

UNIX-Style File Systems: An Anatomical Study. In

Proceedings of the FAST ’05 Conference on File and

Storage Technologies, December 13-16, 2005, San

Francisco, California, USA.

Woodruff, J., Watson, R. N. M., Chisnall, D., Moore, S. W.,

Anderson, J., Davis, B., Laurie, B., Neumann, P. G.,

Norton, R. M., and Roe, M. (2014). The CHERI ca-

pability model: Revisiting RISC in an age of risk. In

ISCA, pages 457–468.

Ziad, M. T. I., Arroyo, M. A., Manzhosov, E., Piersma,

R., and Sethumadhavan, S. (2021). No-FAT: Archi-

tectural Support for Low Overhead Memory Safety

Checks. In ISCA, pages 916–929.

SECRYPT 2023 - 20th International Conference on Security and Cryptography
