Software Code Smells and Defects: An Empirical Investigation

Reuben Brown and Des Greer

School of Electronics, Electrical Engineering and Computer Science, Queen’s University, Belfast, U.K.

Keywords: Code Smells, Software Defects, Software Maintenance.

Abstract: Code smells indicate weaknesses in software design that may slow down development or increase the risk of

bugs or failures in the future. This paper aims to investigate the correlation of code smells with defects within

classes. The method used uses a tool to automatically detect code smells in selected projects and then assesses

the correlation of these to the number of defects found in the code. Most existing articles determine that

software modules/classes with more smells tend to have more defects. However, while the experiments in this

paper covering a range of languages agreed with this, the correlation was found to be weak. There remains a

need for further investigation of the types of code smells that tend to indicate or predict defects occurring.

Future work will perform more detailed experiments by investigating a larger quantity and variety of software

systems as well as more granular studies into types of code smell and defects arising.

1 INTRODUCTION

‘Code smells’ can be caused by poor design decisions

taken when writing code due to, for example, tight

deadlines or developer incompetence. The term, first

proposed in 1999, describes decisions made in object-

oriented systems that are not compoatible with widely

accepted principles of good object oriented design

(Fowler, 2018). Code smells are not bugs and do not

prevent software from functioning; rather they

indicate problems in software design or code which

makes software difficult to maintain (Kaur, 2020).

There are 22 code smells defined by Fowler such as

‘Long Method’, ‘Alternative Classes with Different

Interfaces’ and ‘Message Chains’ (Fowler, 2018)

and some additional ones that were not initially

defined by Fowler, such as ‘Dead Code’. Some code

smells (such as ‘Feature Envy’) exist in individual

methods, some (such as ‘Lazy Class’) exist within

individual classes, and some (such as ‘Inappropriate

Intimacy’) exist in the relationships between classes.

Mantyla et al. (2003) categorised the 22 Fowler-

defined code smells, and one additional code smell,

into seven categories, namely: ‘bloaters’, ‘object-

orientation abusers’, ‘change preventers’,

‘dispensables’, ‘encapsulators’, ‘couplers’, and

‘others’. ‘Bloaters’ refer to methods and classes that

have increased to such proportions that they are

https://orcid.org/0000-0001-6367-9274

especially difficult to work with; usually they

accumulate over time as the program and codebase

evolves, rather than showing up immediately.

‘Object-Orientation Abusers’ refer to incomplete or

incorrect applications of object-oriented

programming principles. Descriptions of the other

categories can be found in the taxonomy by Mantyla

et al. (2003).

Many studies have already been completed

relating to code smells and their impact on various

quality attributes, including reliability,

maintainability, and testability. Code smells are

mostly studied in production code (Zazworka et al.,

2014; Kaur, 2020; Bán & Ferenc, 2014; D'Ambros et

al., 2010; Li & Shatnawi, 2007; Marinescu &

Marinescu, 2011; Fontana et al., 2013; Alkhaeir &

Walter, 2020; Kessentini, 2019; Olbrich et al. 2010;

Aman, 2012; Lanza & Marinescu, 2007; Saboury et

al., 2017), but have also been studied in test code

(Spadini et al., 2018; Garousi et al., 2018). Surveys

have also been conducted to discover the importance

of code smells to developers and the reasons for

developers placing a high or low importance on them

(Yamashita & Moonen, 2013).

The aim of this research is to empirically assess

correlation of software code smells with software

defects. The following research question will be

addressed.

570

Brown, R. and Greer, D.

Software Code Smells and Defects: An Empirical Investigation.

DOI: 10.5220/0011974500003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2023), pages 570-580

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

RQ. Do software modules/classes with more

smells tend to have more defects?

Our null hypotheses are therefore:

There is no correlation between the number of

defects and the number of code smells.

: There is no correlation between the number

of defects and the severity of code smells.

is formulated because all code smells are not

equal and thus, there is a need to determine the effect

on defects, depending on how serious the code smells.

The remainder of this paper is structured as

follows. The next section provides a review of

existing research articles. Section 3 describes the

methodology, including the chosen strategies to

detect code smells and defects and the reasoning used

in their selection. Details are given of the projects

chosen on which to conduct the empirical

investigation, the experimental setup and the tool

support used for the investigations. Section 4 presents

and discusses the results of the experiments. The final

section provides a discussion of the findings

including threats to validity and some conclusions to

the work as well as looking ahead to future work.

2 BACKGROUND

Intuitively, it might be expected that software

modules/classes with more smells tend to have more

defects and that, on average, the number of defects in

a class/module would increase as the number of code

smells in it increases. It would be expected that some

code smells would have a stronger effect on the rate

of defects than others, because there are many

different types of code smells of a range of sizes and

severities, so it is unlikely that all code smells would

be of the same undesirability. It would also be

expected that the correlation of defects with code

smells would not be impacted by the platform of the

system under investigation.

2.1 Literature Review

To gain insight into the areas studied relating code

smells with defects, a review of recent papers was

conducted. Only articles considering the correlation

of code smells with defects were reviewed, using a

mixture of reference snowballing on articles found

using IEEE Xplore, Web of Knowledge and Google

Scholar with a date filter of between 2018 and April

2022. Abstracts of these articles where searched using

the search string “code smell” AND (“defect” or

“bug” or “issue”). This returned 4,840 papers of

which 22 were included as being inside the scope of

the study. Basic information about some of the

selected articles is summarised in Table 1.

Table 1: Selected Studies.

Reference Study Type

systems

studied

smells

studied

Bán & Ferenc, 2014 Ex

eriment 34 8

D'Ambros et al., 2010 Ex

eriment 6 5

Li & Shatnawi, 2007 Experiment 3 6

Marinescu &

Marinescu, 2011

Case Study 3 4

Olbrich et al. 2010 Ex

eriment 3 2

Zazworka et al., 2014 Case Stud

1 9

Fontana et al., 2013 Experiment 68 15

Aman, 2012 Experiment 3 1

Alkhaeir & Walter,

2020

Experiment 10 10

Kessentini, 2019 Experiment 3 11

Saboury et al., 2017

Case Stud

5 12

Chouchane et al., 2021 Ex

eriment 120 15

Each article in the review focused

on various code smells, with some being studied

more frequently than others. ‘Feature Envy’ was the

most frequently investigated code smell with

eight studies. ‘God Class’ was next most common

covered by seven studies, while ‘Data Class’ was

investigated in six of the papers. These were also the

most frequently investigated in an existing systematic

literature review (Kaur, 2020). Furthermore, of the 23

code smells described in Mantyla et al.’s taxonomy of

bad smells in code (2003), a number of them of them

such as ‘Switch Statements’, ‘Primitive

Obsession’ and ‘Incomplete Library Class’, were not

studied at all in the sample papers. ‘Non-Fowler’

code smells not defined in Mantyla et al.’s taxonomy

(2003) are also rarely studied. Perhaps this is because

of a potential lack of tools or techniques to detect

them. Some articles focused on multiple different

code smells (Fontana, 2013; Kessentini, 2019;

Saboury et al. 2017; Chouchane et al., 2021),

whereas others focused on just one or two in more

detail (Olbrich et al. 2010; Aman, 2012).

A common approach in papers is to use at least

one open-source software system for analysis. There

did not seem to be any obvious correlation between

the number of code smells studied and the number of

software systems studied, as shown in Figure 1.

Popular systems included ‘Eclipse’ (D'Ambros et al.

2010; Li & Shatnawi, 2007; Marinescu & Marinescu,

2011; Aman, 2012) and ‘Lucene’ (Bán &

Ferenc,2014; D'Ambros et al;, 2010; Alkhaeir &

Walter, 2020; Olbrich et al., 2010). Java systems were

Software Code Smells and Defects: An Empirical Investigation

571

the most analysed, but notably there was not much

coverage of systems written in Python, for example.

Mobile applications were also not analysed to a great

extent, with just one study (Chouchane et al., 2021).

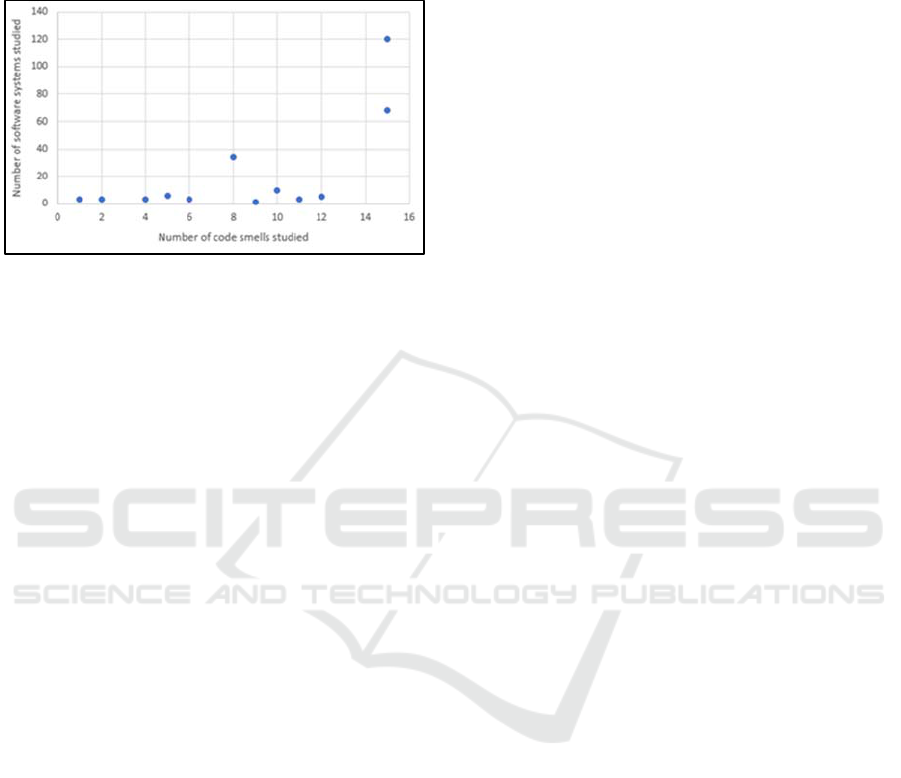

Figure 1: Number of software systems studied and number

of code smells studied in research papers.

Articles considered were restricted to

those that collected data on code smells and defects

for the system(s) they included. Regarding code

smell detection, some articles defined their own

metrics and models (Bán & Ferenc, 2014; D'Ambros

et al., 2010; Fontana et al., 2013; Alkhaeir & Walter,

2020). Others used existing models (Li & Shatnawi,

2007; Kessentini, 2019; Olbrich et al., 2010; Saboury

et al. 2017), such as the ones defined by Marinescu

& Marinescu (2011). In some cases existing tools

such as iPlasma (Fontana et al.,

2013), inCode (Alkhaeir & Walter, 2020)

or CodeVizard (Zazworka et al., 2014) have been

used and paper used a manual detection method

(Marinescu & Marinescu, 2011). Some researchers

used several of these approaches because certain

detection strategies are more suited to particular code

smells (Fontana et al., 2013).

In terms of achieving bug or defect detection,

some articles gathered bug information from Bugzilla

(D'Ambros et a.., 2010; Li & Shatnawi, 2007;

Marinescu & Marinescu, 2011; Kessentini, 2019;

Olbrich et al., 2010) and some from JIRA (D'Ambros

et al., 2010; Olbrich et al., 2010). GitHub is also

popular (Saboury et al., 2017), using tools such

as FindBugs (e.g. Zazworka et al., 2014). The

PROMISE database also features prominently

(Alkhaeir & Walter, 2020; Aman, 2012; Bán &

Ferenc, 2014). There are various options for data on

systems’ bugs, defects, or issues to be stored, so the

sources used to detect bugs, defects or issues depend

on the system under consideration. Some articles also

took the recorded severity levels of the bugs into

account to weight the issues (Li & Shatnawi, 2017;

Kessentini, 2019; Olbrich et al., 2010). On the other

hand, D’Ambros et al. (2010) decided against this

because of the subjective and potentially biased

nature of severity ratings.

To assess the correlation of code smells with

defects within classes, each article had to link each

defect to a class. The PROMISE database contains the

code of numerous open-source applications and their

corresponding bug data at a class level (Bán &

Ferenc, 2014), so little work is required to link defects

to classes. Some articles examined the versioning

history for the systems to find commits that addressed

certain bugs based on if the ID or the bug issue is

contained in the commit message (Zazworka et al.,

2014; Mantyla et al., 2003; Olbrich et al., 2010).

Defects were then linked to classes based on which

classes were modified in the commits. A drawback of

this approach has been identified in that it was unable

to detect inner classes (Zazworka et al., 2014;

D'Ambros et al., 2010). Another approach was to use

the changelog of a system to determine which files

were changed and which bugs fixed in each release

(Li & Shatnawi, 2007).

Each article was analysed for relevance to the

research question. Most of the articles found that

software modules/classes with more smells tend to

have more defects. However, some articles

determined that no code smell has more of a

correlation with defects in the class containing it than

any other code smell (D'Ambros et al., 2010; Alkhaeir

& Walter, 2020). Some researchers report that some

code smells, particularly ‘Shotgun Surgery’ and ‘God

Class’, have more of a positive correlation with

defects in the class containing them than other code

smells (Zazworka et al., 2014; Li & Shatnawi, 2007;

Kessentini, 2019). Despite this finding about ‘God

Classes’, Olbrich et al. (2010) found that ‘God

Classes’ and ‘Brain Classes’ may only correlate

positively with defects once they both exceed a

certain size and proportion to other classes in the

system. Alkhaeir and Walter (2020) determined that

the presence of code smells increases the number of

defects more than an absence of code smells

decreases the number of defects. Marinescu &

Marinescu (2011) determined that classes containing

the code smells that they studied,

including ‘God Class’, do not tend to have more

defects. In an existing literature review Gradišnik and

Heričko (2018) determined that software systems

with more code smells tend to have more defects, but

this does not hold for individual classes. Cairo et al.

(2018) concluded that those classes affected by code

smells are more disposed to failures than classes that

are unaffected by code smells. Although it appears

that software modules/classes with more smells tend

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

572

to have more defects, certain aspects of the existing

literature are contradictory.

2.2 Detecting Code Smells and Defects

The detection of code smells in a software codebase

can either be performed manually or automatically

using a tool. Manual detection is considered to be the

most reliable way of identifying code smells (Fowler,

2018), but has disadvantages such as being very time-

consuming (Marinescu, 2001; Mantyla et al., 2003)

and in that human evaluators have differing

perceptions on what is a code smell or the exact

categorization of a code smell (Mantyla et al., 2003).

One reason for this could be differing experience

levels. For example, Mäntylä et al. (2003) found that

developers with more experience tended to evaluate

software as having fewer code smells than developers

with less experience and that differences in detection

were larger for some code smells (such as ‘Switch

Statements’) than others. Lead developers tended to

identify more structural code smells, whereas regular

developers tended to identify more code smells at the

code level. Various studies have been performed

comparing different automated detection strategies of

code smells with manual detection of code smells

(Van Emden & Moonen, 2002; Mantyla et al., 2003)

and mostly conclude that automated detection is a

good alternative to manual detection due to

automated detection strategies scaling much better

and being of similar precision and recall as manual

detection (Olbrich et al., 2010).

For this study, SonarQube

was selected to detect

code smells. SonarQube supports 29 programming

languages including Python and Swift. Mobile

applications were identified as a gap in existing

research and thus an area to focus on in these

experiments, so the support of Swift by SonarQube is

attractive since Swift is commonly used to develop

iOS mobile applications. SonarQube identifies a code

smell as: “A maintainability-related issue in the code.

Leaving it as-is means that at best maintainers will

have a harder time than they should making changes

to the code. At worst, they’ll be so confused by the

state of the code that they’ll introduce additional

errors as they make changes. This, alludes to a belief

that software modules/classes with more smells do

indeed tend to have more defects. Calls can be made

to the ‘Sonarcloud’ API to conduct an analysis of a

codebase.

SonarQube identifies code smells and describes

them using statements, which can be mapped to code

https://www.sonarqube.org/)

smells described in Mantyla et al.’s (2003) taxonomy.

SonarQube identifies code smells by calculating

metrics and comparing them to set threshold values,

with a code smell being reported if the threshold is

exceeded. The statements and the corresponding code

smells in SonarQube vary depending on the language

of being analysed. Table 2 shows a sample of the

statements that can be raised by a SonarQube analysis

and which of the code smells from the taxonomy they

correspond to, and the severity level (‘Info’, ‘Minor’,

‘Major’, ‘Critical’ or ‘Blocker’) assigned to them.

Several statements can correspond to the same type

of code smell and not every code smell of the same

type is assigned the same ‘severity’ level. SonarQube

can return an assessment of different severities of the

same code smell and identify the exact cause of it.

Table 2: Example SonarQube statements and code smell

meaning.

Statement Code smell

Severity

Functions and methods

should not have identical

implementations

Duplicate

Code

Major

Two branches in a

conditional structure

should not have exactly

the same implementation

Duplicate

Code

Major

String literals should not

be duplicated

Duplicate

Code

Critical

Functions should not have

too many lines of code

Long Method Major

Files should not have too

many lines of code

Large Class Major

Functions, methods and

lambdas should not have

too many parameters

Long

Parameter List

Major

Functions and methods

should not be empty

Speculative

Generality

Critical

Sections of code should

not be commented out

Speculative

Generality

Major

Unused function

parameters should be

removed

Speculative

Generality

Major

Unused local variables

should be removed

Speculative

Generality

Minor

Comments should not be

located at the end of lines

of code

Comments Minor

Track comments matching

a regular expression

Comments Major

Software Code Smells and Defects: An Empirical Investigation

573

With regard to identifying defects in a software

module/class, this can be more difficult than detecting

code smells. SonarQube can detect “bugs” in classes,

which are described in the SonarQube documentation

as “An issue that represents something wrong in the

code. If this has not broken yet, it will, and probably

at the worst possible moment. This needs to be fixed”.

An issue is described in the SonarQube

documentation as “when a piece of code does not

comply with a rule” and that “there are 3 types of

issue: Bugs, Code Smells and Vulnerabilities”. The

SonarQube documentation describes a ‘vulnerability’

as “a security related issue which represents a

backdoor for attackers”.

The simplest approach to identify defects could

on the surface be to just use an analysis using

SonarQube and to look at the ‘Bugs’ and

‘Vulnerabilities’ data generated, in a similar manner

to detecting code smells using SonarQube. However,

this would not be accurate because the SonarQube

definitions of ‘Bug’ and ‘Vulnerability’ are merely

predictions of defects, Many of defects could be false

positives. An alternative approach is to use the

GitHub REST API to retrieve all the issues related to

the code repository for the project in question.

However, this approach raises the problem of issues

on GitHub not having any direct link to a

module/class in the codebase. Pull requests on

GitHub do have files linked to them based on the files

that are edited as part of the pull request, so one

possible approach could be to use the GitHub REST

API to retrieve pull requests rather than issues. A

problem with this approach is that not every pull

request corresponds to a defect; some pull requests

correspond to new functionality being added or to

other changes that are not defects. Simply using pull

requests as a measure of defects could therefore lead

to the research accidentally investigating the

correlation of changes with code smells rather than

the correlation of defects with code smells. Some pull

requests have issues linked to them, however, and the

impact of this problem can be reduced by only

considering pull requests that have issues linked to

them and hence are to be used to fix defects. There

are still potential problems with this approach

because some ‘issues’ on GitHub can refer to new

functionality to be added rather than defects to be

fixed.

To reduce the impact of these problems, careful

consideration must be taken when choosing the

repositories to perform the experiments on. Projects

with a large number of issues and pull requests on

GitHub as well as having been in existence for a

prolonged period of time are more likely to be ‘stable’

so that the majority of their issues and pull requests

are related to defect fixing rather than adding new

functionality, meaning that such projects would be a

good choice. Some projects might not make use of

GitHub to track issues and instead use other bug-

tracking systems, and thus wouldn’t have any issues

‘officially’ linked to pull requests – meaning that such

projects would be a bad choice in this case. There is

also the fact that some repositories might be

inconsistent with linking issues to pull requests and

might not do it for every issue or pull request. On the

other hand, some repositories might not create an

issue for every pull request. When considering these

scenarios, it can be argued that it is difficult to find an

approach for detecting defects and linking them to

classes that would work for every repository.

After careful consideration of the benefits and

drawbacks of each approach, it was decided to use the

approach of using the GitHub REST API to retrieve

pull requests and considering a defect to be present in

each edited file for each pull request, while assuming

that each file corresponds to one class. This

assumption has the drawback of not considering inner

classes, because they are exist in the same file as their

containing class. This drawback was also encountered

and considered difficult to fix by D’Ambros et al.

(2010). Another drawback of this assumption is that

files that contain more than one class on the same

level will have all classes within considered as one.

However, inspection shows that files containing more

than one class are relatively rare, so the impact of this

is expected to be negligible. The repositories to

perform the experiments on must be chosen carefully

to ensure that they are suitable to use this approach of

defect detecting with – mainly, they must be projects

that started a relatively long time ago and thus have a

‘stable’ release, and they also must have a large set

and history of pull requests and files to allow

sufficient and reliable data to be gathered.

Table 3: Software systems investigated.

System Description

Zulip A team collaboration tool.

Superset A business intelligence web

application.

ECharts A charting and visualization library.

Zulip Mobile The official Zulip mobile client,

supporting both iOS and Android.

2.3 Choice of Projects for Study

Four open-source projects from GitHub were selected

to conduct the empirical investigations. These

software systems are detailed in Table 3.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

574

The choice of projects was driven by the

conclusions for suitable projects that were arrived at

previously in this paper. These are summarised as

follows.

2.3.1 Age of Project

Software repositories that have been in development

for a considerable amount of time are more likely to

have a ‘stable’ release and thus be mainly focused on

bug fixing and have enough issues and pull requests

to provide sufficient data for the experiments. Table

4 shows how many issues (both open and closed) and

pull requests (both open and closed) are associated

with each of the chosen projects and the date when

the oldest pull request of each project was closed, all

accurate at the time of writing.

Table 4: Size and age of selected software systems.

Project Issues

Pull

uests

First pull

uest closed

Zuli

7,095 14,805 25 Se

. 2015

erset

8,021 10,791 23 Jul. 2015

ECharts

15,495 1,388 3 Jun. 2013

Zulip

Mobile

1,914 3,449 14 Aug. 2016

2.3.2 Tracking of Issues

Projects that keep track of their defects and issues

using GitHub (rather than other bug-tracking systems

such as JIRA or Bugzilla) are preferable to use to

gather data for the experiments. All of the selected

projects use the ‘Issues’ section on GitHub as the way

to track and record issues.

Figure 2: Overview of the steps carried out by

CodeCorrelator.

2.3.3 Gaps in Research

The identified gaps in research were projects written

mainly in the Python programming language, and

mobile applications. The majority (61.9%) of the

github.com/{zulip/zulip

|superset

|echarts

|zulip/zulipmobile

}

Zulip code is written in Python, and Zulip Mobile is

a mobile application and is written mainly in

JavaScript. Superset is written mainly in TypeScript

(35.1% of the code) and Python (33.2% of the code).

The identified gaps in the research are covered by

experiments on these repositories. ECharts was also

selected for the empirical investigations because it

meets the other two recommendations for a suitable

project and it was decided to also use a project in a

language that has already been thoroughly

investigated, namely JavaScript.

3 METHODOLOGY

To answer the research question and provide data

collection, a tool, ‘CodeCorrelator’ was developed,.

The tool can be used to calculate the correlation of

code smells with defects at a class level. It is a

reasonable assumption to make that classes that are

larger will have, on average, more code smells and

more defects than classes that are smaller, simply

because they contain a larger quantity of code and

hence have more opportunities for code that is smelly

or that causes defects – and this observation could

lead to an unintended impression that code smells do

correlate with defects. To deal with this,

CodeCorrelator can also calculate the correlation on

a ‘per line’ basis.

An execution of CodeCorrelator (Figure 2) on a

project first uses the Sonarcloud API to retrieve data

on the classes within the project. This requires a

Sonarcloud analysis to be performed on the GitHub

repository of the project in question beforehand.

CodeCorrelator will process the data from the API

response to determine the folders that each class is in

and how many lines of code are in each class.

CodeCorrelator will then use the Sonarcloud API to

retrieve data about the code smells within the project.

CodeCorrelator will then use the GitHub REST API

to retrieve the defects of the project; as mentioned

previously, this will be done by retrieving data about

pull requests. CodeCorrelator will then process the

class data and the code smell data retrieved from the

Sonarcloud API to link each code smell to a class. The

data on defects retrieved from the GitHub REST API

will then be processed to link each defect to a class,

by using the GitHub REST API to retrieve more

detailed information about each individual pull

request that was retrieved previously and identifying

which files were edited in each pull request. Finally,

the results showing how many code smells and

Software Code Smells and Defects: An Empirical Investigation

575

defects are in each class, with or without a

comparison to how many lines of code are in the

corresponding class, will be outputted to a comma-

separated values (CSV) file, and a graph of defects

against code smells for each class will be generated.

Manual checking was carried out on the outputted

results to ensure that no irrelevant files were detected

as classes and hence mixed in with the analysis,

reducing the integrity and reliability of the results of

the experiments. For example, the experiments are

only concerned with production code and hence

analysis of test code is not desirable. Some of this

checking was automated; CodeCorrelator contains

logic to ignore any files that have the string ‘test’

contained in their name or path so that they are not

analysed. Manual checking was performed by

opening the generated CSV results files and removing

the records for any ‘test’ files that managed to escape

detection. Equally, the records for migrations files or

image files were also removed prior to generation of

results.

One important note is that some code smells are

more serious and undesirable than others. Hence, in

addition to using raw numbers of code smells, a

weighted score was used based on the ‘severity’

variable for a code smell as returned via the

Sonarcloud API. This weighting is similar to the

weights that Olbrich et al. (2010), assigned to

weighted defects which were based on the severity

levels provided by JIRA (which uses the same terms

for severity levels as the Sonarcloud API for code

smells, except for the lowest severity being referred

to as ‘trivial’ by JIRA but ‘Info’ by Sonarcloud), as

shown in Table 5.

Table 5: Code Smell Weightings.

Severity Level - Sonarcloud Weight

Blocke

Critical 8

Minor 2

Info 1

4 RESULTS AND ANALYSIS

Table 6 shows a snippet of the number of code smells

and defects per class for the Zulip project. Due to

1,383 files being analysed, only the first five and the

last five when sorted alphabetically are displayed as a

sample. Figure 3 shows the scatter graph of defects

against code smells per class for each of Zulip, Zulip

Mobile, Superset and ECharts. All of these plots (a-

d) show large clusters of data points in the bottom-left

corners of the graphs and much more sparse spreads

of data points as they move away from the origin,

meaning that the vast majority of classes contain both

only a small number of code smells, if any, and only

a small number of defects, if any. Indeed, the snippet

of results in Table 6 shows six of the ten Zulip classes

presented containing zero code smells, with only ten

code smells combined between the ten classes shown.

Table 6: Sample Results for Zulip Project.

Clas

Code

smell

Defect

analytics/__init__.py 0 2

analytics/lib/__init__.py 0 5

analytics/lib/counts.py 4 90

analytics/lib/fixtures.py 2 21

analytics/lib/time_utils.py 0 10

… … …

zproject/prod_settings_template.py 2 137

zproject/sentry.py 0 12

zproject/settings.py 0 411

zproject/urls.py 2 327

zproject/wsgi.py 0 10

The results show a small positive correlation

between the number of code smells within a class and

the number of defects within a class for all four

analysed projects. The correlation for each project has

been calculated using the Pearson Product-Moment

Correlation Coefficient, presented in Table 7. A

correlation value close to 1 suggests a strong positive

correlation, while a correlation value close to -1

suggests a strong negative correlation. A correlation

coefficient close to 0 suggests no correlation exists.

The correlation values calculated from the experiments

conducted average at approximately 0.474, which

would indicate a weak positive correlation. This

implies that software modules/classes with more

smells do indeed tend to have more defects. However,

correlation values are not normally considered to be

important when the absolute value is less than 0.8.

From the experiments performed here, however, it is

seen that all four projects have a similar weak positive

correlation value.

Table 7: Correlation of code smells and defects.

Project

Code smells /

defects correlation

Zulip 0.494

Zulip Mobile 0.357

Superset 0.460

ECharts 0.584

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

576

a. ‘Zulip’

. ‘Zulip Mobile’

c. ‘Superset’

d. ‘ECharts’

Figure 3: Number of defects in each class in 4 systems

against the number of code smells in the class.

Several hypotheses can be formulated based on

the results. The Zulip Mobile project had the lowest

correlation between code smells and defects, with a

correlation value that was 0.103, or 22.4%, lower than

the next lowest correlation value, which was the

Superset project. This provides evidence that perhaps

code smells are not as impactful for mobile

applications as they are for non-mobile applications.

With regards to programming languages, there

did not seem to be a significant difference in the

correlation of code smells with defects within classes.

Zulip, mostly in Python and Superset, with significant

code written in Python were the analysed projects

with the second and third strongest positive

correlations between code smells and defects within

classes respectively; hence, Python was neither the

language with the most positive correlation or the

language with the least positive correlation.

With regards to the sizes of a project in terms of

the total number of lines of code that make it up, there

did not seem to be a significant difference in the

correlation of code smells with defects within classes

either. Table 8 shows the number of lines of code

within each of the four projects that were analysed.

Table 8: Project Sizes.

Project

# Lines # Files

Lines per

file

Zulip 406,597 1,383 310

Zulip

Mobile

126,491 572 221

Superset 1,687,013 3,213 525

ECharts 303,598 731 415

Larger projects with more lines of code, such as

Superset from our experiments, do not seem to have

a significant difference in the correlation of code

smells with defects within classes as smaller projects

with fewer lines of code, such as ECharts from our

experiments. Furthermore, the size of a class (shown

in Table 8 as the number of lines per file) does not

seem to have a significant impact on the correlation

of code smells with defects either. While it is true that

the project with the weakest correlation between code

smells and defects within the classes, Zulip Mobile,

was also found to be the project with the smallest

average class size in terms of the number of lines of

code, this relationship did not hold for the other

projects. For example, Superset had the largest

average class size in terms of the number of lines of

code but had the weakest correlation between code

smells and defects within each class, apart from Zulip

Mobile.

When weighting the code smells on severity level,

the results are similar to when looking at the raw

numbers of code smells, with all four projects

Software Code Smells and Defects: An Empirical Investigation

577

showing a weak positive correlation between code

smells and defects within classes. These results are

presented in Table 9 and visualized in Figure 4 for

each project.

Table 9: Correlation of code smells and defects.

Project Weighted Code smells /

defects correlation

Zulip 0.453

Zulip Mobile 0.405

Superset 0.472

ECharts 0.572

The average correlation value when weighting the

code smells was 0.476, which is similar to when the

code smells are not weighted. Zulip and ECharts have

a weaker correlation when weighting the code smells,

while Zulip Mobile and Superset have a stronger

correlation when weighting the code smells – but the

change in correlation for each of the four projects is

minimal. Ordering the projects from strongest

positive correlation to weakest positive correlation

gives a similar order when weighting the code smells

as when not weighting the code smells – with ECharts

as the strongest correlation between code smells and

defects and Zulip Mobile as the weakest, with Zulip

and Superset swapping their orders.

The similarity of the results when weighting the

code smells to the results when not weighting the

code smells indicates that the hypotheses and

observations observed earlier – such as code smells

are not as impactful for causing defects for mobile

applications as they are for non-mobile applications,

Python (and other programming languages too) not

having much impact on the correlation of code smells

with defects within classes, and the size of the

projects not having much impact on the correlation of

code smells with defects within classes, and there

always being a weak positive correlation between

code smells and defects within classes – still exist. It

can be additionally argued, based on these results,

that the severity of a code smell does not have much

impact on how many defects it causes.

If software classes with more smells tend to have

more defects.

5 DISCUSSION

Empirical investigations were conducted using a tool,

‘CodeCorrelator’, on four open-source software

systems to investigate the correlation between the

number of code smells in a module/class and the

number of defects in the module/class, to determine

the relationship and correlation between the number

of code smells in a class/module and the number of

defects in the class/module. Attempting to answer the

research question ‘Do software modules/classes with

more smells tend to have more defects?’

a. ‘Zulip’

. ‘Zulip Mobile’

c. ‘Superset’

d. ‘ECharts’

Figure 4: Number of defects in each class in each project

against the weighted code smells in the class.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

578

5.1 Threats to Validity

Construct Validity: As stated previously, because of

the file-based nature of Sonarcloud and GitHub, the

assumption was made that each file corresponds to

one class, which is not always true. This means that

the code smell and defect data gathered for one class

could be code smell and defect data for several classes

merged. This threat and its consequences also apply

to inner classes which were not considered. One way

to avoid this problem could be to analyse the

description of pull requests, issues, or commit

messages to determine which class within a file is

affected by the defect (or code smell). Another threat

is in that each pull request was assumed to correspond

to defects, when in reality some pull requests

introduce new functionality to a project rather than

fixing defects. Even among issues marked as ‘bugs’,

there still could have been many that did not actually

correspond to a defect, as shown by Antoniol et al.

(2008) that a considerable percentage of problem

reports marked as ‘bugs’ are not related to corrective

maintenance. In future it may be a good idea to make

use of the approach proposed by Antoniol et al. to

filter out the ‘non-bugs’.

External Validity: Open-source software systems

only were investigated; it is possible that differences

between closed and open-source development could

alter the results of the experiments, as the rate of code

smells and/or defects may differ. Further although

choice of systems studied was informed by

knowledge of those systems, it cannot be claimed that

they are representative of all software systems.

Internal Validity: The usage of only Sonarcloud

to detect code smells also raises potential threats to

validity, because it might output some false positives

or false negatives. Another validity threat relates to

the code that was analysed; although both automated

and manual approaches were used to remove files

from the analysis that were not production code (such

as test code, migrations, image files, etc.), it is

possible without exhaustive searching that some

obsolete or discarded code may have escaped

filtering. It is also unlikely that the defect data

gathered is complete, because it is possible that there

were some defects that were not recorded or

discovered. Another threat to validity is that, despite

carrying out some experiments in which code smells

were weighted due to their severity, the defects were

not weighted due to severity levels and instead were

just considered as a raw number of defects, with any

potential ‘minor’ defects being treated the same as

any potential ‘blocker’ defects. This is because the

defect data was gathered using GitHub issues and pull

requests, and there is no ‘severity’ attribute available.

Using data from alternative bug tracking systems,

such as Bugzilla or JIRA, could resolve this but

requires considerably more effort and is left as future

work. In mitigation of this also, Ostrand et al. (2004)

have suggested that defect severity levels may be

unreliable because they are evaluated by humans and

thus can be subjective and inaccurate, sometimes

assigned because of political reasons and not related

to the actual bug itself. A defect can also have its

severity level unreliably increased to boost the

reputation of the developer who fixes it or be reported

to be more severe than it actually is so that it receives

extra focus and a quicker fix (D'Ambros, 2010).

6 CONCLUSIONS

In this study, empirical investigations were performed

using a the CodeCorrelator tool on four open-source

software systems to determine the relationship and

correlation between the number of code smells in a

module/class and the number of defects in the

module/class. The findings of the experiments were

in line with most of the studies analysed as part of the

literature review in Section 2 of this paper, as

software classes with more code smells did tend to

have more defects, and this held true for all four of

the software systems investigated, regardless of

platform (mobile or non-mobile), programming

language (Python or JavaScript), or size (such as

number of classes or number of lines of code). Thus,

null hypothesis H1

can be rejected. The findings

remained similar when weighting the code smells

using severity, so the null hypothesis H2

can also be

rejected. However, the correlation between code

smells and defects within classes was very weak in all

of the investigations, so while the answer to the

research question was found to be ‘yes’, it could be

argued that the evidence of a relationship between

code smells and defects within classes is not

particularly strong. This is in line with the findings in

Kaur (2020) who found the relationship between code

smells and failures inconclusive.

In future work, it would be important to complete

empirical investigations on many more software

systems, both open-source and closed-source. This

would ensure a higher chance of knowing if the

results found in this study still stand when performed

on a much wider range, variety, type, and quantity of

software systems, or if they are simply valid just for

the four specific software systems focused on in this

study. Alternatives to SonarQube may also be sought

since recent work has been critical of its rules and

Software Code Smells and Defects: An Empirical Investigation

579

how they translate to severity (Lenarduzzi et al,

2020). Another possibility for future work is

assessing the correlation of different types of code

smells with defects within classes to see which code

smells are the most impactful in terms of defects.

Another interesting avenue for exploration might be

to explore non-code ‘smells’ that can be detected

earlier in the software process, even as early as

project initiation and in requirements models (Greer

& Conradi, 2008) and how these might relate to

defects.

REFERENCES

Alkhaeir, T., & Walter, B. (2020). The effect of code smells

on the relationship between design patterns and defects.

IEEE Access, 9, 3360-3373.

Aman, H. (2012). An empirical analysis on fault-proneness

of well-commented modules. In 2012 Fourth

International Workshop on Empirical Software

Engineering in Practice (pp. 3-9). IEEE.

Bán, D., & Ferenc, R. (2014). Recognizing antipatterns and

analyzing their effects on software maintainability. In

International Conference on Computational Science

and Its Applications (pp. 337-352). Springer, Cham.

Cairo, A. S., Carneiro, G. D. F., & Monteiro, M. P. (2018).

The impact of code smells on software bugs: A

systematic literature review. Information, 9(11), 273.

Chouchane, M., Soui, M., & Ghedira, K. (2021). The

impact of the code smells of the presentation layer on

the diffuseness of aesthetic defects of Android apps.

Automated Software Engineering, 28(2), 1-29.

D'Ambros, M., Bacchelli, A. & Lanza, M. (2010). On the

impact of design flaws on software defects. In 2010

10th International Conference on Quality Software (pp.

23-31). IEEE.

Fontana, F. A., Ferme, V., Marino, A., Walter, B., &

Martenka, P. (2013). Investigating the impact of code

smells on system's quality: An empirical study on

systems of different application domains. In 2013 IEEE

International Conference on Software Maintenance (pp.

260-269). IEEE.

Fowler, M. (2018) Refactoring: Improving the Design of

Existing Code, Addison-Wesley Professional.

Garousi, V., Kucuk, B., & Felderer, M. (2018). What we

know about smells in software test code. IEEE

Software, 36(3), 61-73.

Gradišnik, M. I. T. J. A., & Hericko, M. (2018). Impact of

code smells on the rate of defects in software: A

literature review. In CEUR Workshop Proceedings

(Vol. 2217, pp. 27-30).

Greer, D., & Conradi, R. (2009). Software project initiation

and planning–an empirical study. IET software, 3(5),

356-368.

Kaur, A. (2020). A systematic literature review on

empirical analysis of the relationship between code

smells and software quality attributes. Archives of

Computational Methods in Engineering, 27(4), 1267-

1296.

Kessentini, M. (2019). Understanding the correlation

between code smells and software bugs. Available at

https://deepblue.lib.umich.edu/bitstream/handle/2027.

42/147342/CodeSmellsBugs.pdf; accessed 9-Jan.2023.

Lanza, M., & Marinescu, R. (2007). Object-oriented

metrics in practice: using software metrics to

characterize, evaluate, and improve the design of

object-oriented systems. Springer Science & Business

Media.

Lenarduzzi, V., Lomio, F., Huttunen, H. & Taibi,D. (2020)

"Are SonarQube Rules Inducing Bugs?," In IEEE 27th

International Conference on Software Analysis,

Evolution and Reengineering (SANER), IEEE.

Li, W., & Shatnawi, R. (2007). An empirical study of the

bad smells and class error probability in the post-release

object-oriented system evolution. Journal of systems

and software, 80(7), 1120-1128.

Mantyla, M., Vanhanen, J., & Lassenius, C. (2003). A

taxonomy and an initial empirical study of bad smells

in code. In International Conference on Software

Maintenance, 2003. ICSM 2003. Proceedings. (pp. 381-

384). IEEE.

Marinescu, R. (2001). Detecting design flaws via metrics in

object-oriented systems. In Proceedings 39th

International Conference and Exhibition on

Technology of Object-Oriented Languages and

Systems. TOOLS 39 (pp. 173-182). IEEE.

Marinescu, R., & Marinescu, C. (2011). Are the clients of

flawed classes (also) defect prone?. In 2011 IEEE 11th

International Working Conference on Source Code

Analysis and Manipulation (pp. 65-74). IEEE.

Olbrich, S. M., Cruzes, D. S., & Sjøberg, D. I. (2010). Are

all code smells harmful? A study of God Classes and

Brain Classes in the evolution of three open source

systems. In 2010 IEEE international conference on

software maintenance (pp. 1-10). IEEE.

Saboury, A., Musavi, P., Khomh, F., & Antoniol, G. (2017).

An empirical study of code smells in javascript projects.

In 2017 IEEE 24th international conference on software

analysis, evolution and reengineering (SANER) (pp.

294-305). IEEE.

Spadini, D., Palomba, F., Zaidman, A., Bruntink, M., &

Bacchelli, A. (2018). On the relation of test smells to

software code quality. In 2018 IEEE international

conference on software maintenance and evolution

(ICSME) (pp. 1-12). IEEE.

Van Emden, E., & Moonen, L. (2002). Java quality

assurance by detecting code smells. In Ninth Working

Conference on Reverse Engineering, 2002.

Proceedings. (pp. 97-106). IEEE.

Yamashita, A., & Moonen, L. (2013). Do developers care

about code smells? An exploratory survey. In 2013 20th

working conference on reverse engineering (WCRE)

(pp. 242-251). IEEE.

Zazworka, N., Vetro, A., Izurieta, C., Wong, S., Cai, Y.,

Seaman, C., & Shull, F. (2014). Comparing four

approaches for technical debt identification. Software

Quality Journal, 22(3), 403-426.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

580
