Normalization and Denormalization for a Document-Oriented Data

Shady Hamouda

, Mohammed Anbar

and Omar Elejla

Department of Business Information Technology, Liwa College of Technology, Abu Dhabi 51133, U.A.E.

National Advanced IPv6 (NAv6) Centre, University Sains Malaysia, USM, Penang 11800, Malaysia

Department of Computer Science, Al-Aqsa University, Gaza 4051, Palestine

Keywords: Normalization, Embedded, Reference Document, NoSQL, Document-Oriented Database.

Abstract: Recently, the challenge of the increasing volume of data has led to the presentation of the “not only structured

query language (NoSQL) database”. One of the most powerful types of NoSQL databases is the document-

oriented database that supports a flexible schema. Normalization of the data model is one of the important

research issues and there are no standard principles of normalization in the document-oriented database.

Handling relationships based on normalization and denormalization has not been considered in document-

oriented databases despite its importance probably because it is not recommended in creating a collection for

each entity or using a reference document for all because of the need to execute a complex joint operation.

Recently, many researchers have migrated from relational databases to document-oriented databases.

However, their migration methods are facing issues; first is no method to normalize or de-normalize data to

implement the embedded and reference document. Second, migration from a relational database to a

document-oriented database does not consider how to handle various types of relationships based on

normalization and de-normalization. This study proposed a way to deal with migration problems by enhancing

transformation rules to map entity relational schema to document-based data schema based on normalization

and denormalization data. The results of this study show that the dataset size determines whether reference or

embedded documents should be used for migration.

1 INTRODUCTION

With the rise of big data, a relational database has

been unable to fit the dimensions of big data,

especially data velocity and variety (Abourezq &

Idrissi, 2016). According to Younas (2019), storing

and managing big data requires new data models and

technologies. These issues and challenges have led to

the development of a Not only SQL (NoSQL)

database to overcome the limitations of the relational

database, such as designing a schema without strict

constraints (Hashem & Ranc, 2016; Truică, Apostol,

Darmont, & Pedersen, 2021).

As Abdelhedi, Brahim, Atigui, and Zurfluh

(2018) mentioned, a document-oriented database has

proven to be the most adapted solution that supports

a larger volume of data and provides a flexible

schema. Moreover, Younas (2019) found that the

document-oriented database can be suitable for high

development productivity and low maintenance cost

of modern Web 2.0 applications for two main

reasons: First, these applications have a constant

evolution of data schema and benefit from the flexible

schema of the document-oriented database; second,

Web 2.0 applications support data models such as

JSON with tight integration with popular

programming languages such as Python, JavaScript,

and Ruby (Bathla, Rani, & Aggarwal, 2018).

Normalization and de-normalization data in a

document-oriented database differ from those in the

relational database. However, it should provide rules

to implement normalization and de-normalization

data in the document-oriented database. Therefore,

this is one of the most important areas addressed in

the current research, as it is critical to understanding

the process of normalization and de-normalization. At

the same time, it can also affect database performance

and storage space (Mehmood et al., 2017; González-

Aparicio et al., 2017).

Addressing relationships based on embedded and

reference documents in document-oriented databases

must be considered (Mehmood et al., 2017)—

although important, creating a collection for each

entity or using a reference document for all entities is

not recommended because doing so would require the

972

Hamouda, S., Anbar, M. and Elejla, O.

Normalization and Denormalization for a Document-Oriented Data.

DOI: 10.5220/0011868100003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 3, pages 972-979

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

performance of complex joint processes. Also,

storing all entities as embedded documents in a single

collection is not useful because it will produce a large

amount of unnecessary and inconsistent data.

Additionally, all data would be uploaded when

updated, thereby reducing performance. Therefore,

document-oriented databases should be designed

using embedded and reference document

technologies to improve synchronization when

updating redundant data (Atzeni et al., 2016). In

addition to that, the study by Imam et al. (2018)

mentioned issues that still need to be addressed to

implement a document-oriented database, such as

how to represent one-to-many relationships in

document-oriented databases, as well as how and

when to use reference documents instead of

embedding documents. However, Oliveira, Oliveira,

and Alturas (2018) found that there are no

investigations to understand the migration process or

the methodology of migrating from a relational

database to a document-oriented database.

The aim of this study is to facilitate the process of

transformation of the relational database schema to a

document-oriented data schema through two

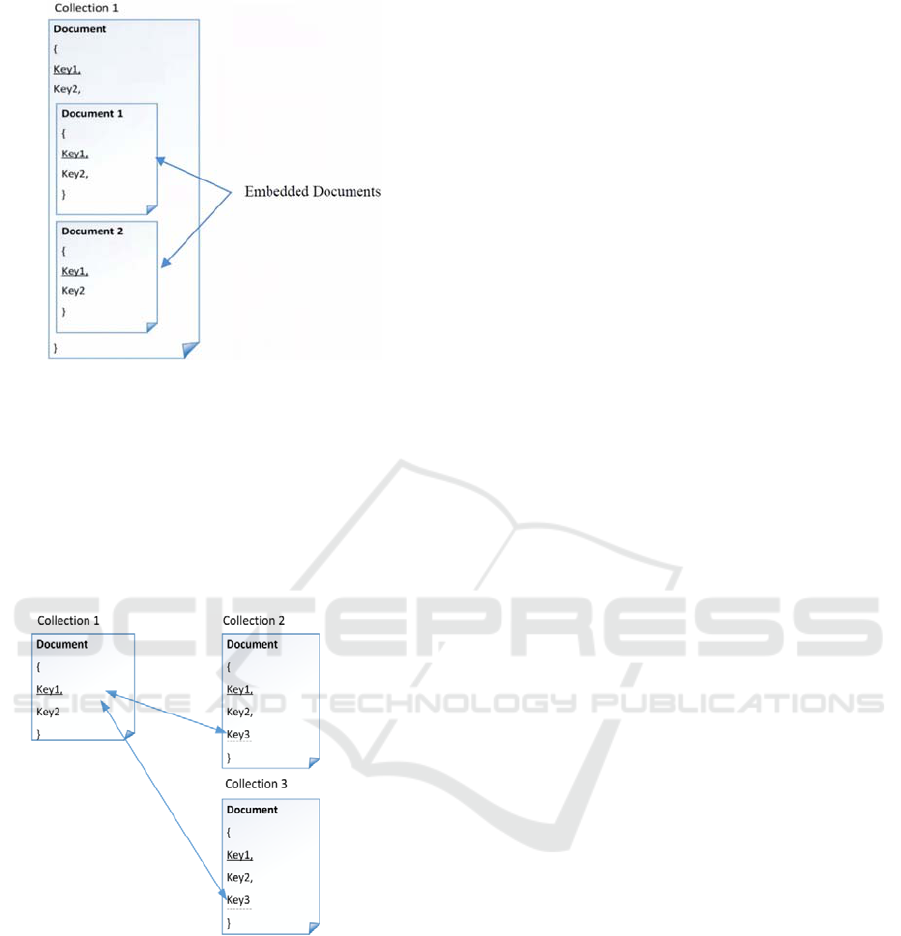

concepts: the first is clarifying the embedded

document (de-normalization) relationships by storing

the sub-document into a super-document collection;

the second is using the reference document to

normalize the relationship by linking the collections

with a foreign key.

2 BACKGROUNDS AND

RELATED WORK

The previous model addresses how to transform a

strong entity by creating a new collection and

transform the relationships of one-to-one by

embedded document without taking into

consideration the size of datasets and not addressing

how to apply the embedded and reference document

for other relationship types such as one-to-many,

many-to-many, and unary relationship. Additionally,

the weak entity has been transformed by using new

collections, while it should belong to the strong entity

as an embedded document to avoid many join

operations between many collections.

Many researchers have proposed methods to

migrate relational databases to the document-oriented

database (Corbellini, Mateos, Zunino, Godoy, &

Schiaffino, 2017; El Alami & Bahaj, 2016; Goyal,

Swaminathan, Pande, & Attar, 2016; Győrödi,

Győrödi, Pecherle, & Olah, 2015; Hanine, Bendarag,

& Boutkhoum, 2016; Imam, Basri, Ahmad, Watada,

& González-Aparicio, 2018; Karnitis & Arnicans,

2015; Mason, 2015; Stanescu, Brezovan, &

Burdescu, 2016, 2017; Yoon, Jeong, Kang, & Lee,

2016). For instance, El Alami and Bahaj (2016);

Hanine et al. (2016); Mason (2015); Stanescu et al.

(2016, 2017) have focused on migrating a relational

database to a document-oriented database based on

the concept of embedded and reference documents.

However, these migration methods are facing

various issues; the first issue is that no specification

can be recognized to define a schema for a document-

oriented database due to the various ways of storage,

management, and implementation in document-

oriented databases (Goyal et al., 2016). The lack of

presenting a schema led to present many challenges

and complex problems in migration because

designing a schema for the document-oriented

database is important for defining the principles and

overcoming the issues of relationship types for

document-oriented databases (Truică, Apostol,

Darmont, & Pedersen, 2021). Also, it may lead to

incorrect or inappropriate schema design, especially

when handling relationships based on normalizing

and de-normalizing data. For instance, the method of

Stanescu et al. (2017), did not properly migrate all the

database properties especially, the multi-values, weak

entity, and relationship types. Some migration result

is an embedded document while they should be

migrated by using an array data type as it contains one

field with many values. In addition, if there is any

table refereed by more than two other tables and has

more than one foreign key. These cases were missing

in the Stanescu et al. (2017) algorithm.

Additionally, there is no technique method to

normalize or de-normalize data to implement the

embedded and reference document for handling the

various types of relationships (Hanine et al., 2016;

Mehmood et al., 2017). According to Mehmood,

Culmone, and Mostarda (2017), normalization

(reference document) and de-normalization

(embedded document) are the two techniques that

must be considered when designing a schema. These

techniques can affect the performance and storage

effectively as the databases grow rapidly. González-

Aparicio et al. (2017) observed that the normalization

of the data model is one of the important research

issues and there are no standard principles of

normalization in the document-oriented database.

The transformation rules of previous work have

mapped the relational database schema to the

document-oriented database directly without

considering any specification (Varga et al., 2016;

Mehmood et al., 2017; Mior et al., 2017; Imam et al.,

Normalization and Denormalization for a Document-Oriented Data

973

2018; Stanescu et al., 2017). For instance, study by

Stanescu et al. (2017) migrated the relational database

to a document-oriented database (MongoDB) based

on the number of foreign keys in each table as well as

the number of tables referring to that table. However,

these studies neither normalized nor de-normalized

data for a document-oriented database and did not

propose a method to explain how to implement

embedded and reference documents to represent the

relationships, even though Mehmood et al. (2017)

mentioned that the quality of the schema can be

assessed through normalized and de-normalized data.

The second issue is the transformation rules that

are needed to normalize and de-normalize data for

handling the relationship types based on embedded

and reference documents (Jouini & Engineering,

2022). This issue has not been considered in

document-oriented databases despite its importance

probably because it is not recommended for creating

a collection for each entity or using a reference

document for all because of the need to execute a

complex joint operation. Furthermore, storing all the

entities as embedded documents in one collection is

not beneficial because it will cause many redundant

and inconsistent data (Atzeni, Bugiotti, Cabibbo, &

Torlone, 2016).

Finally, the migration from a relational database

to a document-oriented database does not consider all

the database properties, especially on how to handle

various types of relationships. Because migration

without any specification or methodology to

normalize and de-normalize the various types of

relationships will cause incorrect migration

(Colombo & Ferrari, 2019; El Alami & Bahaj, 2016;

Győrödi et al., 2015; Hanine et al., 2016; Stanescu et

al., 2017).

3 PROPOSED METHOD

To enhance migration process performance, this

study enhances the mapping of ER schema to

Document-oriented data schema by enhancing the

rules of mapping the ER specifications such as weak

entity, hierarchical entity, composite attribute, multi-

valued attribute, derived attribute, attribute

relationship, and constraint. Also, handling the

relationship types (1:1, 1:M, M: M, Unary) using

embedded and reference documents. These

enhancements points are converted to Transformation

Rules (TR.)

3.1 Enhancement of the

Transformation Rules

The rules developed by Stanescu et al. (2017) are

based on checking the number of foreign keys in each

table as well as the number of the table referring to

that table. However, these rules do not cover all

database properties and cannot be applied to a

complex schema. Additionally, the rules do not

consider how to handle the relationship types based

on embedded and reference documents. Therefore,

this study has enhanced TRs based on embedded and

reference documents.

3.2 Embedded and Reference

Documents

This study aims to facilitate the process of

transformation of the relational database schema to a

document-oriented data schema through two

concepts: the first is clarifying the embedded

document (de-normalization) relationships by storing

the sub-document into a super-document collection;

the second is using the reference document to

normalize the relationship by linking the collections

with a foreign key.

One of the challenges that migration methods face

is when the document-oriented database is not

supported in the joint operation. Consequently, most

researchers and specialists look for alternative joint

processes and utilize the embedded document as a

methodology between collections. However, the

embedded document is not suitable for most large

applications. At present, the document-oriented

database (MongoDB) is supporting a joint process.

Thus, it requires a method for choosing between the

embedded and reference documents.

3.2.1 Embedded Document

The embedded document refers to the embedding of

related data (key-value, document, collection) into

the document so it can define the de-normalization

concept by storing all data into one single document,

which leads to duplicate or inconsistent data. The

study represents the relationship between entities by

storing all the data in one collection with related

documents as an embedded document.

The embedded documents (Figure 1) cannot be

used to reduce the joint operation between

collections; at the same time, it can cause duplicated

and inconsistent data. It can also cause bad

performance in the updated document, as it needs to

load all the collections.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

974

Figure 1: Embedded documents.

3.2.2 Reference Document

The reference document refers to the application of

the normalization concept by storing the data in

multiple collections with references between those

collections using the concept of the foreign key to

support a joint operation between the database

collections.

Figure 2: Reference document.

The concept of the reference document (Figure 2)

is similar to that of the relational database, which

means storing the entity in different collections and

making the relationships by using a foreign key. This

concept can be used in the case of reducing the

embedded documents and it can support flexibility in

storing the growing amount of data. However, it is not

preferable to have many collections in the database

because doing so will require a complex joint

operation.

3.3 Proposed Transformation Rules

The ER schema comprises the following components:

entities, attributes, and relationships.

This study is representing the entity by E and a

series of entities as E

….E

(i=1 to n)

, while the number

of attributes was represented by using A

….A

n(j=1 to n)

and R is used to represent the type of relationships:

(1:1), (1:N), and (M: M). Table 1 shows the notations

used to map the ER schema to DOD_S.

The presented TRs describe how to map the ER

schema to the DOD_S. This study proposed six

transformation rules. These rules take the ER schema

as input and map the DOD_S as output.

Rule 1: For each strong entity

(i=1…n)

create a new collection Ci

(i=1….n)

where n= number of collections

Rule 2: For each weak entity E

(weak)i

(i=1…n)

Create E

(weak) (i=1…n)

as embedded

documents belonging to the strong

entity

∀

(weak)i

embedded

⊆

)

Rule 3: For each multi-value attribute

(Multivalue)i

store multi-values as array data type

belonging to the strong entity

∀

(Multivalue)i (i=1…n)

[ ]

⊆

Rule 4: For each (1:1) relationship

between two entities (Ei R Ej)

If Ei dataset’s size is less than 16 MB

and no other relationship exists with

another entity

Ei stored as an embedded document into

Ej (Ei embedded

⊆

Ej)

else

apply reference document between Ei

and Ej (Ei reference

⊆

Ej)

Rule 5: For each (1:N) relationship

between two entities (Ei R Ej)

if N dataset’s size is less than 16 MB

records then

N side entity stored as an embedded

document into 1 side entity (Ej

(N)

embedded

⊆

(1)

)

else

apply reference document between Ei and

Ej (Ei reference

⊆

Ej )

Rule 6: For each (M: M) relationship

between two entities (Ei R

Ej)

i. store the primary key and related

key-value of E1 as an embedded

document into E2 as (Ei :{[embedded]}

⊆

Ej).

ii. store the primary key and

related key-value of E2 as an

Normalization and Denormalization for a Document-Oriented Data

975

embedded document into E1 as (Ei

:{[embedded]}

⊆

Ei).

iii. apply embedded document

between Ei and Ej as Ej (Ej

:{[embedded]}

⊆

Ei)

iv. apply reference document

between Ei and Ej as ( Ei

reference

⊆

Ej )

Rule 7: For each (unary) relationship

for Ei entity

i. store the primary key of Ei

with a different name as a foreign

key into E1 as (K

⊆

Ei).

The TRs are used to map the ER schema to the

DOD_S. The input of these rules is the ER schema.

The first step is to transform the strong entity by

creating a new collection with all the data for each

strong entity. The second step is to transform

the weak entity by creating an embedded document

for the weak entity and data into the strong

collection. Each multi-value attribute will be stored

as an array data type with all the values belonging to

that entity.

The relationships are transformed as follows:

Relationship (1:1): This relationship is required to

determine the volume of each relationship side. If

the dataset of one side of the relationship includes

small data (i.e., less than tens of thousands/hundreds

of thousands/millions of records) or the data size of

one side does not exceed 16 MB (the maximum size

of the document), then this relationship will

transform into an embedded document that will be

stored in the relevant collection. If there are more

relationships or both cardinalities have large

datasets (i.e., more than tens of thousands/hundreds

of thousands/millions of records) or the data size of

one side exceeds 16 MB, then the relationship must

be represented by using the reference document,

which will be stored in a different collection.

(1: N) relationship: This relationship is required to

determine the volume of the N side. If the N dataset’s

size is more than 16 MB or the N side is large (i.e.,

more than tens of thousands/hundreds of

thousands/millions of records), then this relationship

will be represented through the reference document

by a separate collection with the primary key and

related attributes of both sides. Otherwise, if the N

side is small (the N dataset’s size does not exceed 16

MB or the N side has fewer than tens of

thousands/hundreds of thousands/millions of

records), then it will store the primary key with

related data into a set of embedded documents.

M: M relationship: This type of relationship is

transformed by using both embedded and reference

documents. In the first side of the relationship entity,

an array data type and embedded document are

created, that contains the primary key of the second

entity with other related attributes. At the same time,

on the second side of the relationship entity, an array

data type and embedded document are created, that

contains the primary key of the first entity.

Unary relationship: The attribute of the unary

relationship will be stored in the related document.

Then, all keys with a null value will be removed, as

this form contains a flexible schema, meaning it can

remove or add any key value from the document.

These transformation rules map all ER schema to

DOD_S and can thereby be used as a strategy for the

migration of a relational database to a document-

oriented database.

3.4 Case Study: W3school Schema

The third case study is the schema of the W3school

website (http://www.w3schools.com/).The W3school

schema, presented in Figure 3, can be described as the

PRODUCT has CATEGORIES and SUPPLIERS, and

ORDER has ORDERDETAILS and SHIPPERS to the

CUSTOMER through the EMPLOYEES.

Table 1: Symbols and type of notations.

Model Type Notations Descriptions

ER Schema

Strong entit

Ei Ei….n (i=1 to n)

Attribute A Ai….An

(

i=1 and n number of attributes

)

Relationship R Relationships can be one-to-one (1:1), one-to-many

(1:M), or many-to-many (M:M)

TRs

Collection C

Key-value

Embedded document embedde

The embedded model applies between two entities

Reference document reference The reference model a

lies to two entities

Array [ ] Array data type

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

976

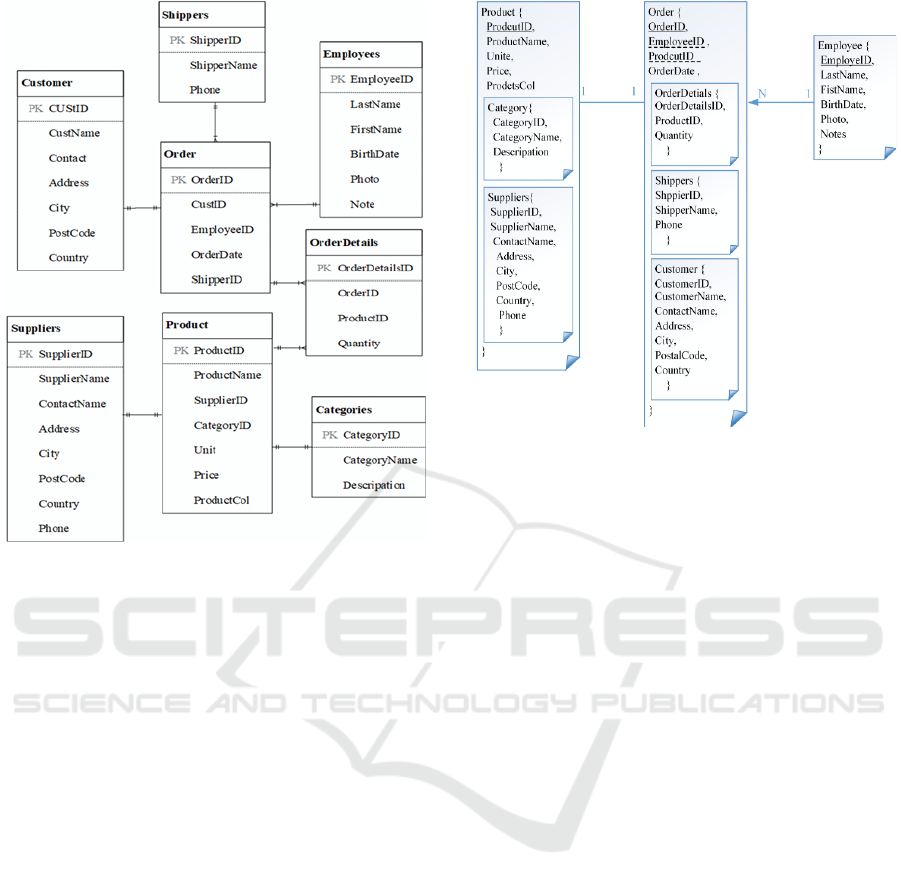

Figure 3: ER schema for W3schools (Rocha, Vale, Cirilo,

Barbosa, & Mourão, 2015).

The TRs were applied to the schema shown in

Figure 3, and the output of this schema is shown as

follows:

i) Created new collections for the main strong

entity, which are PRODUCT, ORDER, and

EMPLOYEES.

ii) Mapped the relationship between PRODUCT

and CATEGORY by storing CATEGORIES as

embedded documents in the PRODUCT

collection. Also, mapped the relationship

between PRODUCT and SUPPLIERS by

store SUPPLIERS as embedded documents

in the PRODUCT collection

iii) Mapped the relationship between ORDER and

ORDERDETAILS by creating an embedded

document for ORDERDETAILS in the

ORDER collection. Also, the relationship

between ORDER and SHIPPERS was

mapped to create embedded documents for

SHIPPERS in the ORDER collection.

iv) Mapped the relationship between ORDERS

and CUSTOMERS by creating an embedded

document for CUSTOMERS in the ORDERS

collection.

Figure 4: The DODS for W3schools.

As Figure 4 shows, the ER schema first depicted

in Figure 3 has been mapped in its entirety without

missing any specification. The DODS of Figure 4

contains three collections PRODUCT, ORDER, and

EMPLOYEE, as the PRODUCT collection contains

CATEGORY and SUPPLIERS entities as embedded

documents based on the TRs. Also, the ORDER

collection contains ORDERDETAILS, SHIPPERS,

and CUSTOMERS entities as an embedded document

based on the TRs.

Based on the case study, this study performed two

evaluations. In the first evaluation, dataset 3 has

100,000 orders assigned to the order collection using

the embedded document. The second evaluation used

the reference document by adding the primary key of

customer collection in dataset as a foreign key in

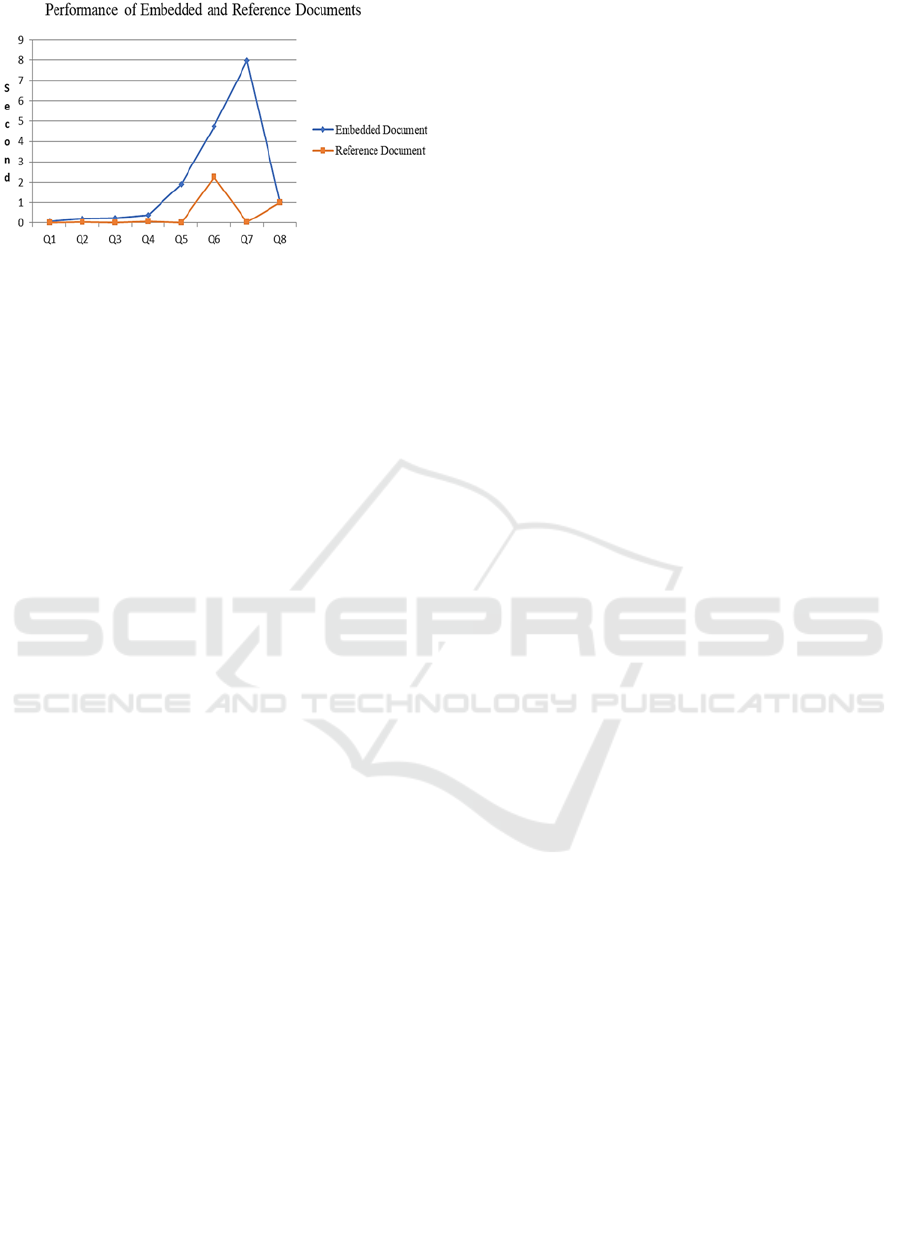

order collection. Then, study addresses the 10 queries

used to test the performance of the embedded and

reference documents through database operations.

The result and the execution time of each query are

presented in the following sections.

The evaluation performed the previous queries

(1–10) on MongoDB (document-oriented database)

using W3school datasets to determine the

performance of embedded and reference documents.

Figure 5 shows the query execution times of the

embedded and reference documents based on the

proposed method that performed queries 1 to 10. The

performance of the reference document was better

than that of the embedded document. Therefore,

applying the embedded and reference documents

Normalization and Denormalization for a Document-Oriented Data

977

Figure 5: Execution time for applied queries of embedded

and reference documents based on dataset.

when migrating the relationship types will depend on

the size of the dataset. If the dataset on the

relationship side is large (i.e., more than tens of

thousands/hundreds of thousands/millions of records,

or exceeding 16 MB), then the reference document

should be selected; otherwise, the embedded

document is preferable.

4 CONCLUSIONS

This study enhances the transformation rules

presented to enhance migration process performance

that covers all database properties. These

transformation rules can be used to map any relational

database schema to a document-oriented database.

Also, it can overcome the issues in handling the

relationships of a complex database and can be used

to implement normalization and de-normalization

data in a document-oriented database.

The results of this study show that the dataset size

determines whether reference or embedded

documents should be used for migration. The

embedded document is used in case of small dataset

(i.e., tens of thousands/hundreds of

thousands/millions of records, or the data size of one

side did not exceed 16 MB, which is the document

size used in MongoDB). By contrast, the reference

document is used when the dataset size is large (i.e.

tens of thousands/hundreds of thousands/millions of

records, or the data size of one side exceeding 16

MB). Reference (normalized) and embedded (de-

normalized) documents are important variables for

the designed schema and migrate a relational database

to a document-oriented database using these

transformation rules.

In future work, this study will extend to assessing

the performance of embedded and reference

documents for a document-oriented data schema

based on the proposed method.

REFERENCES

Abdelhedi, F., Brahim, A. A., Atigui, F., & Zurfluh, G.

(2018). Towards Automatic Generation of NoSQL

Document-Oriented Models. Paper presented at the

Proceedings of the International Conference on Parallel

and Distributed Processing Techniques and Applications

(PDPTA).

Abourezq, M., & Idrissi, A. (2016). Database-as-a-service for

big data: An overview. International Journal of

Advanced Computer Science and Applications (IJACSA),

7(1).

Atzeni, P., Bugiotti, F., Cabibbo, L., & Torlone, R. (2016).

Data modeling in the NoSQL world. Computer

Standards & Interfaces.

Bathla, G., Rani, R., & Aggarwal, H. (2018). Comparative

study of NoSQL databases for big data storage.

International Journal of Engineering & Technology,

7(26), 83.

Chouder, M. L., Rizzi, S., & Chalal, R. (2017). Enabling Self-

Service BI on Document Stores. Paper presented at the

EDBT/ICDT Workshops.

Colombo, P., & Ferrari, E. (2019). Access control

technologies for Big Data management systems:

literature review and future trends. Cybersecurity, 2(1),

Corbellini, A., Mateos, C., Zunino, A., Godoy, D., &

Schiaffino, S. (2017). Persisting big-data: The NoSQL

landscape. Information Systems, 63, 1-23.

El Alami, A., & Bahaj, M. (2016). Migration of a relational

databases to NoSQL: The way forward. Paper presented

at the Multimedia Computing and Systems (ICMCS),

2016 5th International Conference on.

Goyal, A., Swaminathan, A., Pande, R., & Attar, V. (2016).

Cross platform (RDBMS to NoSQL) database validation

tool using bloom filter. Paper presented at the Recent

Trends in Information Technology (ICRTIT), 2016

International Conference on.

Hanine, M., Bendarag, A., & Boutkhoum, O. (2016). Data

Migration Methodology from Relational to NoSQL

Databases. World Academy of Science, Engineering and

Technology, International Journal of Computer,

Electrical, Automation, Control and Information

Engineering, 9(12), 2369-2373.

Hashem, H., & Ranc, D. (2016). Evaluating NoSQL

document oriented data model. Paper presented at the

Future Internet of Things and Cloud Workshops

(FiCloudW), IEEE International Conference on.

Imam, A. A., Basri, S., Ahmad, R., Watada, J., & González-

Aparicio, M. T. (2018). Automatic schema suggestion

model for NoSQL document-stores databases. Journal of

Big Data, 5(1), 46.

Jouini, K. J. J. o. I. S., & Engineering. (2022). Aggregates

Selection in Replicated Document-Oriented Databases.

38(2).

Kanade, A., Gopal, A., & Kanade, S. (2014). A study of

normalization and embedding in MongoDB. Paper

presented at the Advance Computing Conference

(IACC), 2014 IEEE International.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

978

Karnitis, G., & Arnicans, G. (2015). Migration of Relational

Database to Document-Oriented Database: Structure

Denormalization and Data Transformation. Paper

presented at the Computational Intelligence,

Communication Systems and Networks (CICSyN), 2015

7th International Conference on.

Kim, H.-J., Ko, E.-J., Jeon, Y.-H., & Lee, K.-H. (2018).

Techniques and guidelines for effective migration from

RDBMS to NoSQL. The Journal of Supercomputing, 1-

15.

Mason, R. T. (2015). NoSQL databases and data modeling

techniques for a document-oriented NoSQL database'.

Paper presented at the Proceedings of Informing Science

& IT Education Conference (InSITE).

Mehmood, N. Q., Culmone, R., & Mostarda, L. (2017).

Modeling temporal aspects of sensor data for MongoDB

NoSQL database. Journal of Big Data, 4(1), 8.

Mior, M., Salem, K., Aboulnaga, A., & Liu, R. (2017).

NoSE: Schema design for NoSQL applications. IEEE

Transactions on Knowledge and Data Engineering,

29(10), 2275-2289.

Oliveira, F., Oliveira, A., & Alturas, B. (2018). Migration of

relational databases to NoSQL-methods of analysis.

Mediterranean Journal of Social Sciences, 9(2), 227-

235.

Rocha, L., Vale, F., Cirilo, E., Barbosa, D., & Mourão, F.

(2015). A Framework for Migrating Relational Datasets

to NoSQL1. Procedia Computer Science, 51, 2593-2602.

Stanescu, L., Brezovan, M., & Burdescu, D. D. (2016).

Automatic mapping of MySQL databases to NoSQL

MongoDB. Paper presented at the Computer Science and

Information Systems (FedCSIS), 2016 Federated

Conference on.

Stanescu, L., Brezovan, M., & Burdescu, D. D. (2017). An

Algorithm For Mapping The Relational Databases To

MongoDB--A Case Study. International Journal of

Computer Science & Applications, 14(1).

Truică, C.-O., Apostol, E.-S., Darmont, J., & Pedersen, T. B.

J. B. D. R. (2021). The Forgotten Document-Oriented

Database Management Systems: An Overview and

Benchmark of Native XML DODBMSes in Comparison

with JSON DODBMSes. 25, 100205.

Yoon, J., Jeong, D., Kang, C.-h., & Lee, S. (2016). Forensic

investigation framework for the document store NoSQL

DBMS: MongoDB as a case study. Digital Investigation,

17, 53-65.

Younas, M. (2019). Research challenges of big data. In:

Springer.

Normalization and Denormalization for a Document-Oriented Data

979
