Towards Security Attack Event Monitoring for Cyber Physical-Systems

Elias Seid, Oliver Popov and Fredrik Blix

Department of Computer and Systems Sciences, Stockholm University, Sweden

Keywords:

Cyber Physical-Systems, Industrial Internet of Things, Security Requirements, Goal Model, Attack Pattern,

Domain Assumption.

Abstract:

In today’s software systems, security is one of the a major issues that need to be considered when designing

Cyber Physical-Systems(CPS). CPS are engineered systems built from, and depend upon, the seamless inte-

gration of computational algorithms and physical components. Security breaches are on the rise, and CPS

are challenged by a catastrophic damage which resulted in billions of losses. Security solutions to the Cyber

Physical-Systems that we have are likely to become obsolete. Even though security agents issue new sets of

vulnerability indicators and patches to address the security breach, these vulnerability indicators change over

time, which is a perpetual process. We argue that any security solution for the Cyber Physical-Systems should

be adaptive, based on the type of attacks and their frequency. The security solution should monitor its envi-

ronment continuously to defend itself from a cyber-attack by modifying its defensive mechanism. We propose

a framework for modelling, analyzing and monitoring security attacks (events) in the social, cyber and physi-

cal infrastructure realms of CPS. The framework is evaluated by using security attack scenarios taken from a

recognized security knowledge repository.

1 INTRODUCTION

Industrial automation and control systems have been

studied independently than together within the ICT

framework. initially a ﬁrewall was used to mitigate

any potential threat coming towards the core compo-

nent of the system (Boyes et al., 2018). However, the

disruption of internet of things has made a huge im-

pact in changing the infrastructure of the Industrial

automation and control system, particularly changes

related to Industrial systems such the electrical man-

agement systems, manufacturing etc. The concept of

IACS has been studied in the area of cyber physical

systems. Since they were integrated into industries

such as in manufacturing, energy management system

and the like, they were named cyber-physical systems

while doing only the operational activities of the in-

dustries. After the disruption by internet of things in

1999, it becomes familiar to be used within the con-

nected devices in various business and industrial set-

tings (Boyes et al., 2018).

A number of deﬁnitions of cyber physical-systems

(CPS) have been studied in the literature (Griffor

et al., 2017), (Henzinger et al., 2008), (Baheti and

Gill, 2011), (Poovendran, 2010) and (Shaﬁ, 2012).

However, (Boyes et al., 2018) has summarized all

and integrated all concepts addressed in literature that

talk about CPS, and has set a common ground. And

CPS is deﬁned as system comprising a set of interact-

ing physical and digital components that can be cen-

tralised or decentralised”. Such deﬁnition has three

major components; sensing, computation and net-

working that is essential to address the real world

by employing physical process. Industrial Internet

of Things(IIoT) extend the concepts and deﬁnitions

used in CPS, and are deﬁned as ”smart connected as-

sets or things as part of a larger system or system of

systems that make up the smart manufacturing enter-

prise”(Conway, 2016).

Moreover, IIoT seek to connect industrial assets

such as engines, power grids, and sensors to the cloud

by using the network. (Helmi

o et al., 2017), (Con-

way, 2016), (Helmi

o et al., 2017) made an effort

that industrial assets are considered core components

of IIoT that are connected in the industrial setting.

Furthermore, the industrial assets are connected to a

cloud over a network, and thus industrial assets are

able to generate, transfer, and analyse information at

real time and monitor their surrounding environment

based on the information exchanged (Jeschke et al.,

2017).

The authors claim that this all exchange of infor-

mation is done with out human intervene however,

we argue that the industrial setting needs human in

722

Seid, E., Popov, O. and Blix, F.

Towards Security Attack Event Monitoring for Cyber Physical-Systems.

DOI: 10.5220/0011803400003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 722-732

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

the loop to manage and monitor industrial assets as

their physical world of cyber physical-systems run in

an insecured environment. The assertion that CPS

devices can generate, analyse, exchange and mon-

itor information with out human in the loop does

not make the deﬁnition complete. However, CPS

are socio-technical ecosystems involving people, pro-

cesses, technology, and infrastructure and are usually

designed in a ”piecemeal” rather than a holistic fash-

ion, leaving parts of the system vulnerable (M

uller

et al., 2016).

There have been challenges in addressing multi-

stage attacks on CPS as their components have be-

come vulnerable for a cyber-attack. Tackling such

attacks remains a taunting unsolved problem, since

components come with its own complexities and vul-

nerabilities, and they need coordinated security solu-

tion (Wang et al., 2010).

Moreover, Cyber Physical-Systems(CPS) have the

potential to transform the way we live, work, and

interact with engineered systems as the Internet has

transformed the way people interact with informa-

tion. Smart cities, smart power grids, intelligent

homes with network of appliances, robot assisted liv-

ing, environmental monitoring and transportation sys-

tems are examples of such complex systems and ap-

plications. These complexities will drive innovation

and competition in sectors such as agriculture, en-

ergy, transportation, building design and automation,

health-care, and manufacturing.

In CPS, the physical world is integrated with sens-

ing, communication, and computing components, and

these components have complex interactions (Baner-

jee et al., 2012).

Motivation. Internet of things (IoT) are a particular

type of CPS. As IoT scales to billions of connected

devices with the capacity to sense, control, and other-

wise interact with the human and physical world the

requirements for dependability, security, safety, and

privacy grow immensely.

Devices in the Internet of Things (IoT) generate,

process, and exchange large amounts of security and

safety-critical data and privacy-sensitive information,

and that led to be potential targets of different security

attacks (Poulsen, 2003), (Turk, 2005), (Buchs et al.,

2013). For instance, a sensor that measures the tem-

perature of a physical environment and transmits data

accordingly is a smart item.

The domain of smart items encompasses hetero-

geneous, dynamic and ﬂexible networks commonly

referred to as sensor networks. Such networks consist

of a large number of spatially distributed smart items

that can be easily attached to physical entities and are

able to monitor a number of parameters (e. g, tem-

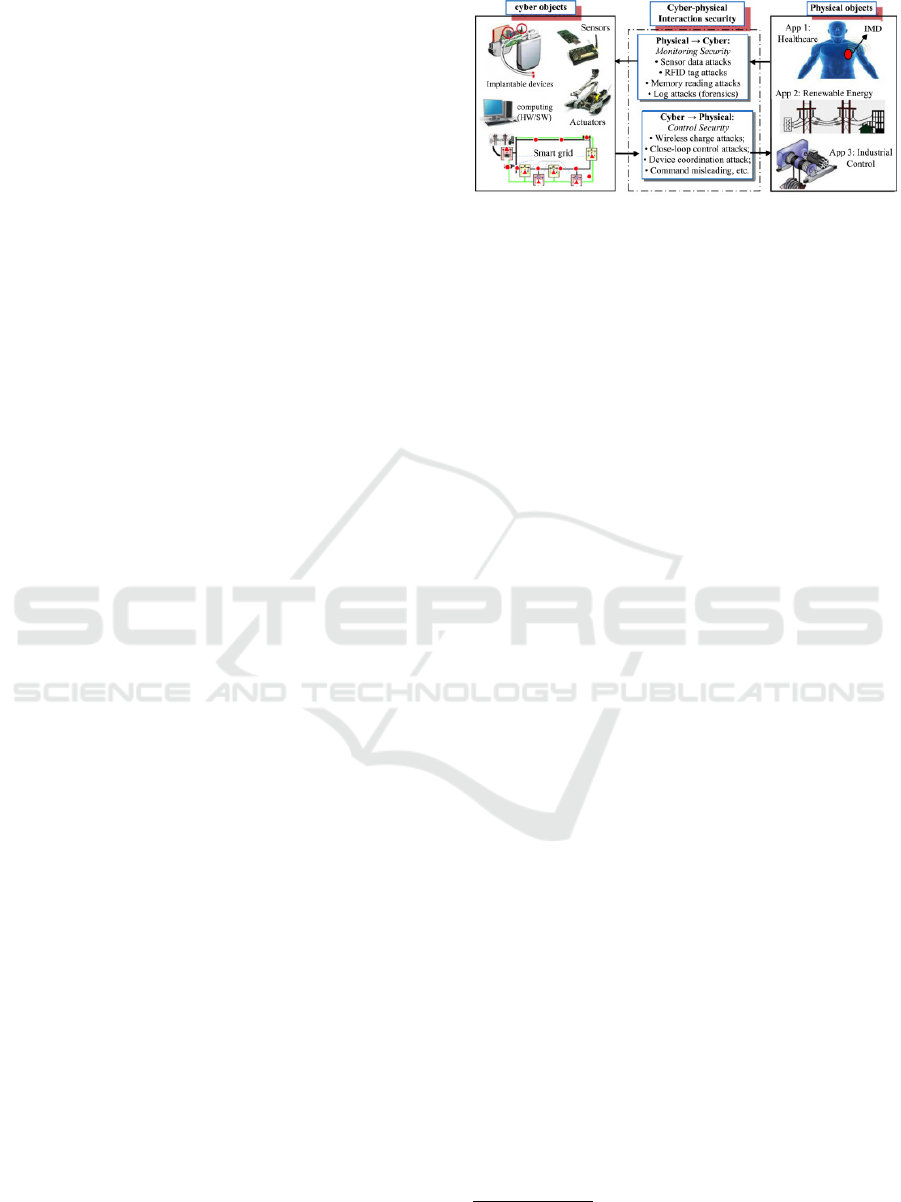

Figure 1: Cyber Physical-Systems (CPS)(Hu et al., 2016).

perature, sound, vibration, pressure and motion), and

transmit data to remote software systems.

Ensuring a security solution for cyber physical-

systems is much harder than security solution for

software systems because designing security solu-

tion for CPS not only considers properties of compo-

nent (sensing, communication, and computing com-

ponents) but also their interaction with the physical

environment (Banerjee et al., 2012). Attackers can

exploit CPS components that are subject to increased

risk and probability of attack, since these compo-

nents (e. g., the sensors) communicate and interact in

an open and thus insecure environment where secu-

rity threats, such as illegal disclosure of information,

transmission of falsiﬁed data, authentication and/or

authorization violations, must be taken into consid-

eration. For example, CPS items may be exposed to

the public, for instance, by being attached to vehi-

cles or containers, and their data may be easily ma-

nipulated, removed or destroyed. Particularly, sen-

sors may provide, at runtime, critical security infor-

mation to the application itself raising new security

requirements that must be then considered and satis-

ﬁed (M

uller et al., 2016).

Objective of the Paper. We are interested in devel-

oping a framework named Asfalia

, for modelling,

analysing and monitoring of security attack-events for

Cyber Physical-Systems. Speciﬁcally, we build secu-

rity attack models, generate run time behaviors and

events from behavioral models. We employed Com-

mon Attack Pattern Enumeration and Classiﬁcation

(CAPEC), a well-known attack pattern repository as

an input for our model, taken from security knowl-

edge sources

To meet our objective, models have to be in-

tegrated representing 1) security attack patterns (Li

et al., 2014), for modeling security attacks, 2) con-

textual goal models, to build attack models in terms

of contextual goals (Ali et al., 2010) and 3) runtime

goal models (Dalpiaz et al., 2013), to generate be-

havioral models. We also adopt some concepts from

Asfalia (in Greek) means security

https://capec.mitre.org/

Towards Security Attack Event Monitoring for Cyber Physical-Systems

723

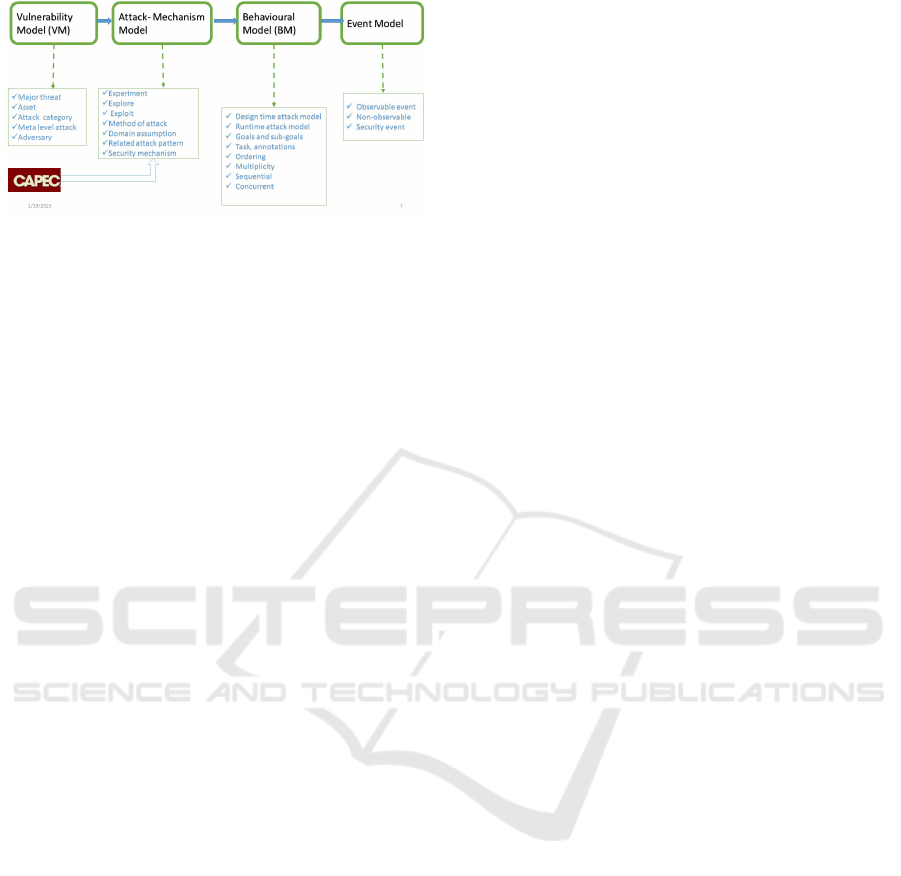

Figure 2: Components of the Attack Model.

the Event Model in (Cailliau and van Lamsweerde,

2017), to generate events using systematic approach

from leaf-level tasks and their corresponding analy-

sis.

The model consists of the following four major

components: 1) Vulnerability Model (VM): This

model represents type of attack patterns, potential

threats and type of assets. An asset is anything that

has value to an organization (data or service) which

is central as a target of the attack (Li et al., 2018).

Vulnerability determines relevance of security goals,

and a security goal is a desire to protect an asset

(resource) or organizational policy, rules and regu-

lations. An obstacle to an asset compromises secu-

rity concerns such as integrity, conﬁdentiality, avail-

ability and accountability (T

urpe, 2017). 2) Attack-

Mechanism Model (AM): This model captures goal

models, domain assumptions, attack mechanisms and

task operationalization. In this model, we capture,

understand and represent adversary behaviors of at-

tack both at design-time and runtime that facilitates to

derive security events. 3) Behavioral Model (BM):

This model captures fundamental system behaviors

such as sequential, interleaving, multiplicity, alterna-

tive instances of attack goal models, sub-goals, do-

main assumptions, tasks (mechanisms) and events of

attack patterns. System behavior annotations will

be discussed in detail in section four. 4) Event

Model (EM): This model captures events that are de-

rived from the attack models. These events could be

grouped into observable and non- observable events.

However, in this work we only focus on observable

events that includes information about type, value and

context.

The rest of the paper is structured as follows. Sec-

tion 2 presents research baseline for our work, while

section 3 presents Asfalia framework. We provide in

sections 4 further details and examples concerning the

models of the framework. In section 5 we present ex-

periment and results, while section 6 deals with the

discussions. Section 7 present related work, and sec-

tion 8 concludes and discusses future work.

2 RESEARCH BASELINE

2.1 Goal-Based Contextual

Requirements Modeling

A goal-oriented RE modelling and reasoning frame-

work has been proposed for systems that run in nu-

merous contexts, and establishes goal models to re-

late goals and contexts (Ali et al., 2010). The frame-

work extended Tropos (Bresciani et al., 2004) goal

model to capture the relationship between each vari-

ant to goal satisfaction. In particular, contexts are con-

sidered as labels that can be mapped to speciﬁc goal

model artifact. Moreover, they deﬁne semantics for

contexts that are modelled within goal models (Ali

et al., 2010). We used and integrated some of their

elements into Asfalia framework.

2.2 Runtime Goal Model

In the last decade, research in adaptive software sys-

tems have shown a rapid growth. Adaptive means that

software systems should monitor its environment con-

tinuously to defend itself from external obstacles by

changing its alternative mechanism (Souza and My-

lopoulos, 2012). Recent approaches have shown that

self-adaptive system softwares depends on variants

of goal models to coordinate monitoring and adapta-

tion mechanism. Dalpiaz (Dalpiaz et al., 2013) stud-

ied conceptual distinction between design-time goal

models and runtime goal models. The authors have

made the following contributions: 1) The relation-

ship between design-time goal models, the derived

runtime goal models and runtime instance in terms

of Goal-Oriented Requirement Models. 2) Reasoning

approach using runtime goal instance. In Asfalia, we

extended (Dalpiaz et al., 2013) to generate behavioral

models for the security attack strategies thus derived

runtime attack pattern models.

2.3 Three-Layer Security Requirements

Analysis Framework

The framework supports the analysis of security re-

quirements for socio-technical systems(STSs) from

a holistic perspective, meaning that the framework

spans the three layers of STSs. Moreover, the frame-

work supports ”cross layer analysis that spins off

security requirements across realms”: Security so-

lutions offered for security requirements in the so-

cial layer spin off security requirements in the cyber-

layer, and solutions adopted for these requirements

further spin off security requirements in the physical

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

724

layer(Li and Horkoff, 2014). The three-layer frame-

work has the following procedures:

Our approach shares similarities with this frame-

work in terms of layer speciﬁc-concepts as our mod-

els (VM, AM, BM and EM) analyze vulnerabilities,

design attack mechanism, and build behavioral mod-

els in a realm-speciﬁc approach meaning they span

the three realms of CPS (cyber, physical infrastruc-

ture including the social one).

2.4 Security Patterns

A pattern is deﬁned in terms of context, problem

and solution. Patterns might be speciﬁed to solve a

problem in a certain context (Fern

andez et al., 2008).

Moreover, Security pattern use well-established secu-

rity knowledge to support analysts to solve security

problems. These patterns combine security require-

ment and security mechanism, and have been used

to solve a particular security problem. Many secu-

rity patterns have been proposed in the literature. (Li

and Horkoff, 2014) have used security patterns to op-

erationalise security goals based on security mecha-

nisms, and they leveraged organizational security pat-

tern, physical security pattern physical security pat-

tern and software security patterns for security re-

quirement analysis process.

Modeling Security Patterns as Contextual Goal

Model. An attack is the use of an exploit by an adver-

sary to take advantage of a weakness with the intent

of achieving a negative social and technical impact.

Therefore, attacker’s behavior is expressed in terms

of the task and how to perform the task with respect

to a target such as software application (asset). (Li

et al., 2014) has integrated security patterns to support

security requirements analysis technique by modeling

security patterns as contextual goal model.

Attack Pattern Modeling. In the literature, (Li et al.,

2015) have leveraged anti-goal approach (Van Lam-

sweerde, 2004) to analyse system adversaries to pro-

vide a security solution. This approach analyses anti-

goal reﬁnement from attacker’s perspective by using

different real attack scenarios at design-time. We ex-

tended (Li et al., 2014) to build behavioral models for

security attack patterns and integrated in (VM, AM,

BM, EM) models of our framework.

3 Asfalia FRAMEWORK

We describe here an overview of the framework

named (Asfalia), and we provide in detail each model

of the framework with illustrative example in sec-

tion 4. The framework consists of the follow-

ing elements: Vulnerability Model (VM), Attack-

Mechanism Model (AM), Behavioral Model (BM)

and Event Model (EM). Figure 3 shows an extracted

example models of the framework. Each components

of the framework are described as follows:

Vulnerability Model (VM). Captures type of attack

patterns, In

, patterns are grouped into two categories:

The ﬁrst category of attack is Domain-based attack

and the other is Mechanizm-based attack. For ex-

ample, Social Engineering is a type of attack cat-

egorised under domain-based attack category while

Collect and Analyze Information is type of attack un-

der mechanizm-based attack

.These category of at-

tacks will be discussed in section ﬁve, in the exper-

iment section.

Potential threats and type of asset are also cap-

tured in this model. An asset is anything that has value

to an organization, and could be tangible (physical)

and intangible (non-physical) assets in which the tar-

get of the attack is concerned. Security concerns such

as conﬁdentiality, integrity, availability and account-

ability to an asset can be associated to the business,

application or infrastructure context. For example,

(Haley et al., 2008) has analyzed asset and the cor-

responding security goal from business context of a

system. In the next section, we show models (VM,

AM, BM and EM) where vulnerabilities imposed to

an asset are reﬁned with respect to the business, cyber

and physical Infrastructure context of the system, us-

ing different type of attack scenarios taken from well-

known security knowledge sources

Attack-Mechanism Model (AM). Captures goal

models, domain assumptions, attack mechanisms

and task operationalizations that are used to operate

cyber-attack by taking advantage of a weaknesses of

CPS with the intent of achieving a negative social

and technical impact. Absent of adversaries (lack of

actor) when designing a secured system have been

realized as a major challenge for security require-

ment engineering researchers. Adversaries are anti-

stakeholders who have a goal to compromise a sys-

tem. For example, threats are indirectly discovered

because adversaries whose goal, potential, and behav-

iors deﬁne threats of a system.

Behavioral Model (BM). Represents and captures

runtime behaviors of an attack strategies. It anno-

tates runtime attack behaviors of security attack. In

this model, Attack-Mechanism Model (AM) is em-

ployed to generate attack behaviors. Moreover, (VM

and AM) models use and extend concepts from the

three-layer requirement analysis framework (Li and

Horkoff, 2014) while (BM and EM) models use and

extend (Dalpiaz et al., 2013). To fully understand

threats and vulnerabilities in VM and EM, linear, top-

Towards Security Attack Event Monitoring for Cyber Physical-Systems

725

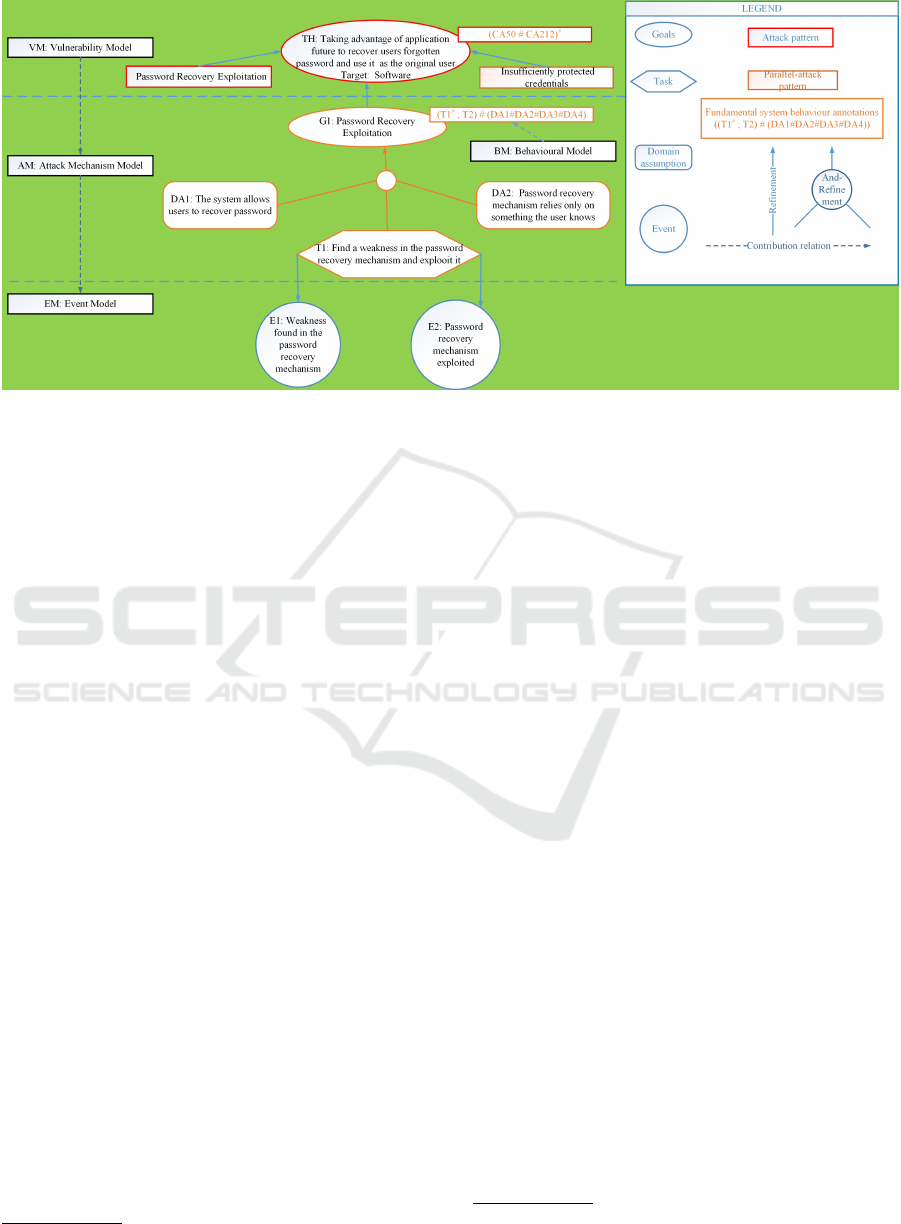

Figure 3: Extracted Asfalia Model.

down analysis approach may not be sufﬁcient (T

urpe,

2017). We integrated an iterative approach to an-

alyze realm-speciﬁc vulnerabilities. We reuse and

adopt syntax and denotation of goal expressions from

(Dalpiaz et al., 2013), as shown in Figures 5 and 6

Event Model (EM). This model captures events that

are derived from attack mechanism and behavioral

models (BM and AM). We describe EM model in the

next section using various attack scenarios.

4 THE MODELS

We enriched the models (VM, AM, EM and BM) by

using and revisiting the existing contextual guide-

line from attack pattern repositories

. These en-

riched guidelines are described as follows: 1) Ex-

plore: Searching for vulnerability (a weakness) that

can be directly used by an adversary. 2) Experiment:

Find a speciﬁc weakness with the intention of achiev-

ing a negative consequence. 3) Exploit: Is an input

or action designed to take advantage of a weakness

(or multiple weaknesses) and achieve a negative so-

cial and technical impact. 4) Attack prerequisites:

Assumptions about properties of people, processes,

technology and infrastructure that are assumed to hold

from the attackers point of view for an adversary to

succeed.

Speciﬁcally, we enriched the guidelines by fol-

lowing the contextual goal model approach (Ali et al.,

2010). We applied them in our models, in order to

analyze potential vulnerabilities, and captures knowl-

edge about how speciﬁc parts of an attack are de-

https://capec.mitre.org/news/index.html

signed and executed. For instance, as shown in the

model

an attacker is able to cause a victim to load

content into their web-browser that bypasses security

zone controls and gain access to increased privileges

to execute scripting code (malicious content).

We illustrate this attack scenario using the above-

mentioned enriched contextual guidelines (proce-

dures) as follows:

Explore. Find systems susceptible to the attack, ﬁnd

systems that contain functionality that is accessed

from both the internet zone and the local zone.

Experiment. Find the insertion point for the pay-

load, the code to be executed. The attacker ﬁrst needs

to ﬁnd some system functionality or possibly another

weakness in the system.

Exploit. Craft and inject the payload, the code to be

executed, and develop the payload to be executed in

the higher privileged zone in the user’s browser.

Attack Prerequisites. Insufﬁcient Input Validation

by the system. In this section we provide the mod-

els of the framework using illustrative attack pattern

scenarios.

4.1 Vulnerability Model(VM)

This model captures type of attack patterns, potential

threats, and type of asset in which an asset is a po-

tential target for cyber attacks. VM consists of the

following sub-elements:

Threat. Is the potential for abuse of an asset that will

cause harm in the context of the problem.

Vulnerability. Is a weakness in the system that an

attack exploits.

https://www.dropbox.com/s/xls46k033ug2o7h/Full20

Model.pdf?dl=0

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

726

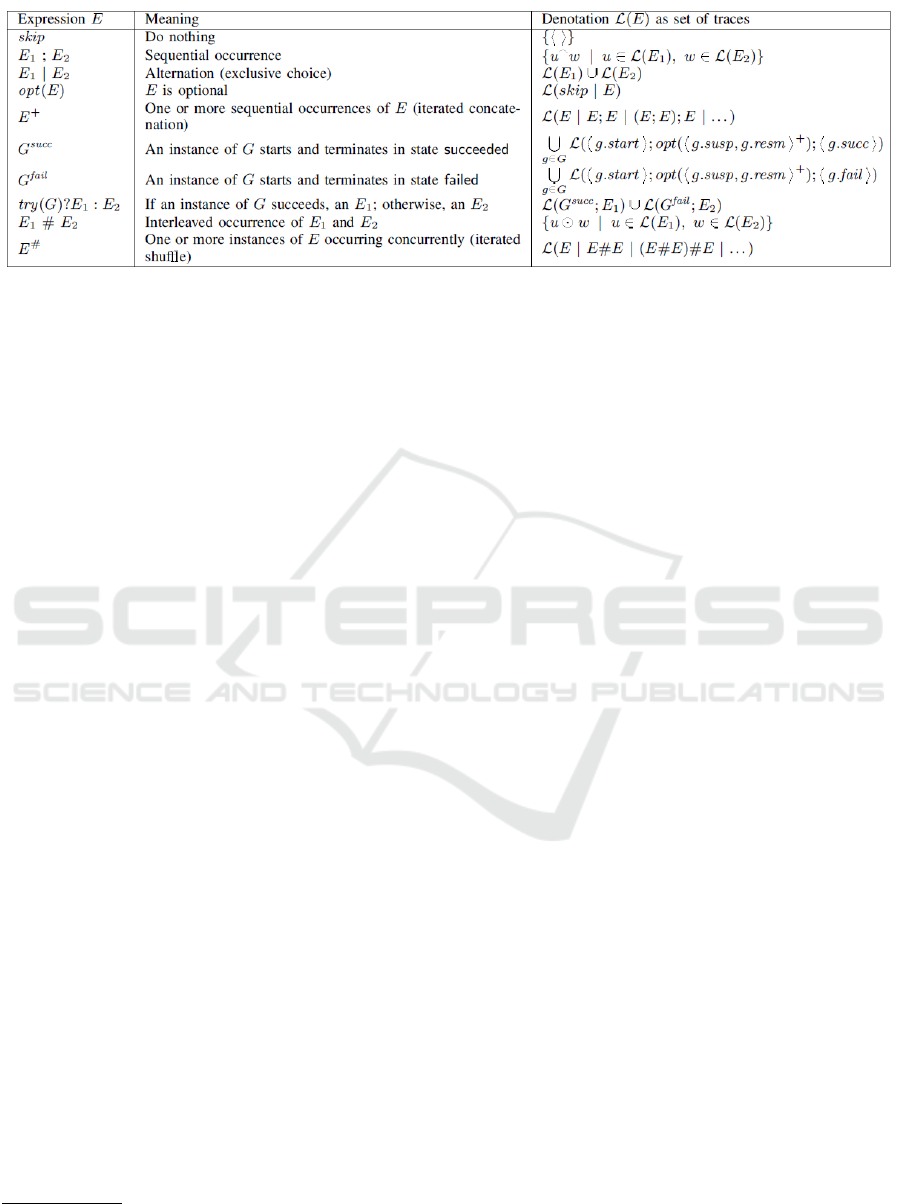

Figure 4: Syntax and denotation of goal expressions (Dalpiaz et al., 2013).

Asset. Is anything that has value to an organization,

and could be tangible (physical) and intangible (non-

physical) in which the target of the attack is con-

cerned.

Attack Pattern. Is deﬁned as generic description of a

deliberate, malicious adversary that frequently occurs

in a speciﬁc context (Moore et al., 2001). It describes

the common elements and techniques used in attacks

against vulnerable CPS components. These patterns

generalize reusable attack knowledge from frequent

adversaries in facilitating security requirements anal-

ysis for the system-to-be. An attack pattern consists

of: General goal of the attack, Antecedent, Steps to

carry out the attack and Consequent.

Antecedent. Are assumptions about properties of

people, processes, technology and infrastructure that

are assumed to hold from the attacker’s point of view

or prerequisite for an adversary to succeed. An-

tecedents can include the skills, resources, access, or

knowledge that the attacker must have, and the level

of risk that need to be tolerated (Haley and Laney, ).

Consequent. Are consequences such as knowledge

exploited by the the attacker and changes to the tar-

geted system that occur as a result of attack step ex-

ecution, and when the antecedent is fulﬁlled. Several

studies such as (Ali et al., 2010; Li et al., 2015; Li

et al., 2014) have been increasingly recognizing the

leading role of Goal-oriented Requirements Engineer-

ing in modeling and analysis of security, safety and

privacy concerns.

For instance, graphical representation of extracted

security attack

shows that an adversary captured by VM Model.

Speciﬁcally, Taking advantage of application future

to recover users forgotten password and use it as the

original user (Threat) and software application (As-

set) is target of the attack. This adversary occurred

as a result of an attack, shown on the top-left side of

https://www.dropbox.com/s/i3qdtsc6vergnro/Runtim

e\%20Attack\%20Pattern.pdf?dl=0

the model: 1) Password Recovery Exploitation and

a vulnerability, shown on the top-right side of the

model: 2) Insufﬁciently Protected Credentials. More-

over, the asset (software application) reﬁned in the

cyber realm could encounter an attack sequentially

that the ﬁrst attack occurred (Password Recovery Ex-

ploitation) and followed by the second vulnerability

Insufﬁciently Protected Credentials or can happen in

parallel (concurrent) attack.

4.2 Attack-Mechanism Model (AM)

This model captures design strategies, different at-

tack pattern mechanisms. More importantly, it builds

attack mechanisms by employing goal models, do-

main assumptions, attack mechanisms and task oper-

ationalization artifacts. Each attack pattern captures

knowledge about how speciﬁc parts of an attack are

designed and executed, providing the adversary’s per-

spective on the problem and the solution, and gives

guidance on ways to mitigate the attack’s effective-

ness. AM model depends on VM model since it pre-

pares its attacking mechanism based on the threat ex-

plored in VM model. However, threats can be reﬁned

not only in linear but also iteratively.

For example, consider a security solution to use

TLS protocol. TLS protocol offers conﬁdentiality,

integrity and authentication. However, TLS further

extends its support from other component (CA) to

manage certiﬁcates and keys (T

urpe, 2017). The

threat might not directly compromise TLS protocol

but can impose adversaries to the certiﬁcates author-

ities (CA) such as exploiting private keys since TLS

depends on certiﬁcate authorities. Due to this inter-

dependencies, threats that are recognized in one realm

can affect further another realm. Attack-Mechanism

Model, consists of sub-elements to perform attack

strategies, and the elements adopt Goal-oriented prin-

ciples (Van Lamsweerde, 2001).

Towards Security Attack Event Monitoring for Cyber Physical-Systems

727

Goals. A goal is a prescriptive statement of intent

to be satisﬁed by cooperation of the agents forming

the system goal. The word system refers to both

the software and its environment, including people,

legacy software, devices like sensors and actuators

(Van Lamsweerde, 2009). Throughout the model, we

use goals instead of anti-goals as anti-goals are con-

sidered to be goals from attacker’s point of view.

Goal Model. Is an AND/OR-graph showing how

goals contribute positively or negatively to each other,

and AND-reﬁnement captures a combination of sub-

goals entailing the parent goal; and OR-reﬁnement

captures an alternative way of satisfying the parent

goal. A goal may be reﬁned into sub-goals by asking

How questions whereas it may be abstracted into par-

ent goals by asking Why questions. Tasks: Describe

behaviors of the system-to-domain assumption.

Domain Assumptions. Are properties of the domain

that are assumed to hold. Normally, assumptions

considered as an assertions to check the correctness

of goal reﬁnement or operationalization. In general,

like goals, assumptions cannot be enforced to be

reﬁned (Feather et al., 1998). However, in our model,

domain assumptions are reﬁned together with tasks

in order to satisfy the root goal as shown in Figure 3,

because they are used as antecedents that supports to

perform cyber attack, and facilitates to choose type

of attack mechanism.

Design-Time Attack Model. As shown in

,a Goal

Password Recovery Exploitation (attack method) re-

ﬁned into two tasks that satisﬁes the attack mech-

anism: Understand password recovery mechanism

(T1) Find a weakness in the password recovery mech-

anism and exploit it (T2). Four domain assump-

tions reﬁned together with tasks: (The system allows

users to recover password (DA1) Password mecha-

nism has been designed or implemented insecurely

(DA2), Password recovery mechanism relies only on

something the user knows (DA3) and No third-party

intervention is required to use the password recovery

mechanism) to attack the root level goal (DA4).

4.3 Behavioral Model (BM)

Building a complete behavioral model for a very com-

plicated systems like CPS, with many complex and

heterogeneous states is often quite challenging prob-

lem (Cailliau and van Lamsweerde, 2017). To un-

derstand how attacker’s fulﬁll their target by com-

promising security concerns such as Conﬁdentiality,

Integrity, Availability and Accountability, one has to

analyze how the threat environment is behaving with

in the system, how the adversaries can compromise,

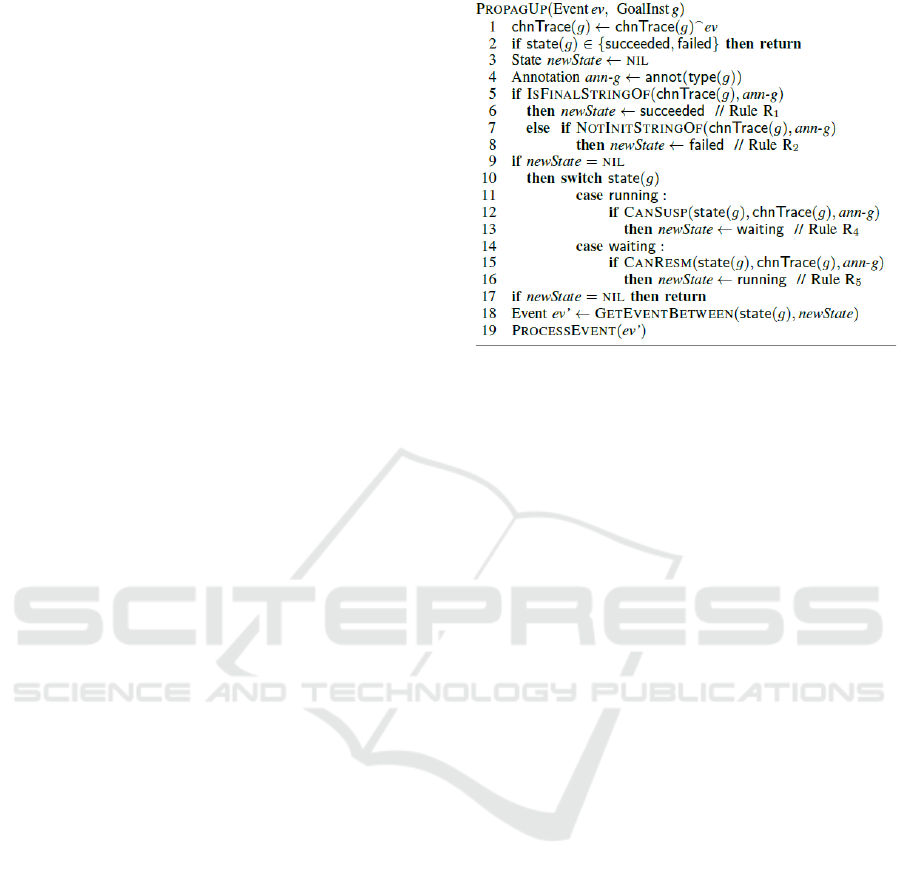

Figure 5: Bottom-up Propagation of an Event.

and how the system behaves under multi-stage at-

tacks, and recognize system behaviors to facilitate

such analysis. This model captures fundamental sys-

tem behaviors such as Sequential, Interleaving, Mul-

tiplicity, Alternative instances of attack goal mod-

els, sub-goals, domain assumptions and tasks (mech-

anisms). BM model extends and integrates (Dalpiaz

et al., 2013), and annotate runtime behaviors of VM

and AM, thus transforms design-time attack models to

runt time attack models.

Runtime Attack Model. BM model provides anno-

tations of fundamental system behavior, derives run-

time attack models from design-time attack models

in order to support attack event monitoring. We il-

lustrate these system behaviors using attack scenarios

extracted from the full model

Alternative System Behavior expresses that the

system need to satisfy a goal, and depending on the

type of obstacle facing, a change in behavior is ex-

pected to happen and Multiple Instance annotates run-

ning system behaviors that could have more than once

instance, and the instances can be ordered in sequence

(Sequential) or they can occur concurrently (Inter-

leaved). The behavioral annotations can be shown in

the model

The following example illustrates BM using attack

scenario example, and the model can be found in

Sequential and Interleaving. As shown in

two fun-

damental system behaviors are annotated. For exam-

ple, Goals, G1 (Phishing) is reﬁned to G2 (Obtain

domain name and certiﬁcate to spoof legitimate site),

G3 (Explore legitimate website), G4 (Convince user

to inter sensitive information), and G5 (Use stolen

credentials to log into legitimate site). Possible be-

havioral annotation of G1 is an Instance of G2 should

be achieved ﬁrst followed by Interleaved fulﬁllment

of G3 and G4 and followed by G5. Formally, Anno-

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

728

Table 1: Security attack category used in our experiment.

Attack pattern category Meta-level attack patterns

Privilege Escalation Cross Zone Scripting

Overﬂow Buffers Buffer Overﬂow via Parameter Expansion

Cross-Site Scripting XSS through HTTP query String

Buffer Manipulation Overﬂow Buffers

Input Data Manipulation Relative Path Traversal

Communication Interception

Software Authentication abuse

Physical security Bypass electronic card/ access control

Inject unexpected items Argument Injection

Engage in Deceptive interactions Phishing

Employee Probabilistic techniques Brute Force

Subvert access control Exploitation of Trusted Credentials

Functionality Misuse Password Recovery Exploitation

tation of G1: (G2; (G3 # G4); G5)

Alternative System Behavior. G3 is reﬁned to three

tasks T3 (Use spidering software to get copy of web

pages), T4 ( manually save copies of required web-

pages from legitimate site), T5 (Create webpages

which look legitimate site but different in content).

Possible annotations of G3 can be speciﬁed that the

system should either T3 (Use spidering software to

get copy of webpages) or T4 (Manually save copies of

required webpages from legitimate site). If T3 didn’t

work out due some obstacles then T5 (Create web-

pages which look legitimate site but different in con-

tent) is executed. Formally, Annotation of G3: (Try

(T3) ? Skip : T5) / T4).

Multiplicity Behavior. For example as it can be seen

,T1 (Obtain domain name that visually looks simi-

lar to the legitimate site), T2 (Obtain a legitimate SSL

certiﬁcate for the new domain) can be repeated mul-

tiple times without waiting for each other. Formally,

Annoations of G2: (T1; T2)

+).

4.4 Event Model (EM)

This model captures events derived from behavioral

models (BM). These events could be grouped into

observable and non- observable events from event-

log perspective. Particularly, we focus on observ-

able events. [BMEM] shows security related events,

E1 (Buffer region identiﬁed), E2 (Injection vector

identiﬁed), E3 (Excessive data sent to the targeted

buffer), E4 (Content injected into the targeted soft-

ware). Events (E1, E2, E3, E4) are derived from (T1,

T2, T3 and T4), thus when the root goal is satisﬁed.

5 EXPERIMENT AND RESULT

The overall model of the experiment contains 831

elements which consists of 20 attack patterns, 20

parallel-attack patterns, 88 Goals and Sub-goals, 91

Tasks, 41 Domain assumptions, 99 Events and 74 Be-

havioral annotations as shown in Table 2.

The experiment has been performed on two types

of attack pattern categories (Domain-Based Attack

and Mechanizm-Based Attack) as shown in

Table 2: Statistics of elements of the full model.

Elements of the Model No

Attack patterns 20

Parallel attack patterns 20

Goals and sub-goals 88

Tasks 91

Domain assumptions 42

Behavioral annotations 74

Events 99

Relationships 398

Total 831

Domain-Based Attack. Organizes attack patterns hi-

erarchically based on the attack domain. Attacks such

as Social Engineering, Supply Chain, Communica-

tion, Physical Security and others are grouped under

this category.

Mechanizm-Based Attack. Organizes attack pat-

terns hierarchically based on mechanisms that are

frequently employed when exploiting a vulnerabil-

ity. The attack patterns that are members of this cate-

gory represent the different techniques used to attack

a system. They do not, however, represent the conse-

quences or goals of the attacks. For example, (Collect

https://www.dropbox.com/s/a22gjrttkrk29mo/Statisti

cs20Runtime20Attack20Pattern.pdf?dl=0

Towards Security Attack Event Monitoring for Cyber Physical-Systems

729

and Analyse Information), (Inject Unexpected Items),

(Engage in Deceptive Interactions) and others are

grouped in this category. Moreover, at the highest

level, categories exist to group patterns that share a

common characteristics.

Realm-Speciﬁc Adversaries. Our models focus on

realm-speciﬁc adversaries meaning that it spans the

three realms of CPS (Cyber, Physical infrastructure,

and including the Social one). We also analysed the

inter-dependence relationship among realm-speciﬁc

attack models. AM model depends on VM model for

achieving realm-speciﬁc vulnerabilities, and vulnera-

bilities captured in (VM model) spin off and provide

an input to the the next realm (AM model) thus select

a suitable attack mechanizm by taking an advantage

of weaknesses explored in VM model.

6 DISCUSSION

We developed a framework for building behavioral

models of security attacks and derive security-events

for CPS. Our approach enriched and transformed

design-time security attack models into runtime attack

model. In our model, events are derived from runtime

attack models. In AM model, we found that similar

attack patterns use the same way of attacking mech-

anism to achieve a root goal. However, they differ

when they use speciﬁc type of task and domain as-

sumptions to achieve the same root level-goal. For ex-

ample, let’s consider two types of attack pattern from

the full model

,one Password Recovery Exploitation

and the other Functionality Misuse. Both types of at-

tacks have the same method of attacking mechanism,

using Brute force (trial-and-error method), and with

the same ﬁnal goal, to take advantage of the applica-

tion feature in order to gain access into the system.

Particularly, the former one uses a mechanizm: (Find

a weakness in the password recovery) and exploit it,

and assumes (Password recovery mechanism relies

only on something the user knows while the later one

uses a mechanism: cryptanalysis, and assumes that

attack requires basic scripting ability to automate the

exploration of the search space. We also recognized

that Behavioral Models (BM) can be used to facilitate

and support security goal reﬁnement and security goal

simpliﬁcation proposed in (Li and Horkoff, 2014).

Novelty of the Framework. Building runtime be-

havioural models, and derive security events to sup-

port security attack event monitoring.

Threats to Validity. In the experiment section, the

objective was to evaluate our approach by building

behavioral models for security attacks using attack

scenarios taken from

.The results of our approach are

encouraging but we consider them as preliminary, so

they need to be further conﬁrmed by performing ex-

periments including a larger set of participants.

Internal Validity. Factors affecting subject perfor-

mance was very important in the experiment section.

We believe that the skill of the subject involved in

building design time and runtime attack models, and

the corresponding analysis was appropriate for the ob-

jective of our preliminary experiment.

External Validity. Although our security attacks sce-

narios are complicated, it was only performed by one

subject. However, we need to do further experiments

using Asfalia framework with more attack scenarios,

and by including more participants.

7 RELATED WORK

Goal-Based Adaptive Systems. The complexity of

software systems is increasing, software engineering

researchers and practitioners have made several ef-

forts, and have shown a huge interest in self-adaptive

systems. (Silva Souza et al., 2011) has proposed a

new class of requirements, called Awareness Require-

ments, which talk about the runtime status of other

requirements. (DeLoach and Miller, 2010) have an-

alyzed the difference between goal classes and in-

stances for adaptive systems. (Dalpiaz et al., 2013)

proposed runtime goal model in which they have

provided conceptual distinction between design-time

goal models and runtime goal model, and a struc-

tured pattern for runtime goal model have been de-

rived. (Cailliau and van Lamsweerde, 2017) has pro-

posed an approach of obstacle-driven runtime adap-

tation techniques to achieve increased satisfaction of

probabilistic system goals under the current condi-

tions. We share similarities in these approaches in

terms runtime goal model but our approach applies

to attack scenarios and aimed on building behavioral

models for attack strategies.

Security Attack Pattern. Research in security pat-

tern has made tremendous progress in collecting and

organizing security patterns however, their applicabil-

ity is very less. (Moore et al., 2001) have introduced

attack patterns to encapsulate utilizable attack knowl-

edge from multiple attack occurrences in order to sup-

port security requirement analysis. Other approach

that model security patterns as goal models such as

(Mouratidis et al., 2006) extended Secure Tropos us-

ing security patterns.

Attack Scenarios. Several proposals have made ef-

forts to analyse and model attack scenario, whereby

steps have been described to explore how attackers

perform an attack. In the literature there are differ-

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

730

ent proposal that have focused in providing ways of

representing attack scenarios, for example attack trees

(Morais et al., 2013) and graphs (Phillips and Swiler,

1998) have been used as an approach to capture at-

tack scenarios by different researchers. In contrast

with our approach, these efforts are somehow limited

in terms of specifying how attack strategies are con-

ducted.

Further works have also been studied to analyse

and model threats such as STRIDE (Shostack, 2014),

however it fails to model attacker’s intentions and are

somehow limited in addressing multi-stage attacks.

In contrast to this work, several proposals have been

explicitly addressed to capture the rationale behind

attacker actions using anti-goals such as (Van Lam-

sweerde, 2004). Similar approaches that goes beyond

(Van Lamsweerde, 2004), (Li et al., 2015) have pro-

posed to analyse security analysis from an attacker’s

perspective and detailed adversary’s malicious inten-

tions. Our approach shares similarities with these

approaches in terms of attack models, anti-goal re-

ﬁnement and the way how attack scenarios are con-

structed. However, our method goes beyond this by

studying behavioural models of security attack sce-

narios and applied for constructing runtime attack

models.

8 CONCLUSION

Security solution for Cyber Physical-Systems should

be adaptive, and needs a systematic approach to sup-

port monitoring of security attack events. We pro-

posed Asfalia, a framework for modeling, analysing

and monitoring of security attacks (events) where at-

tack strategies are analysed in a realm-speciﬁc. The

model captures security attack events and their corre-

sponding behaviors. The framework has been eval-

uated using extensive security attack scenarios. Ex-

periments have been conducted on two categories of

attack pattern, namely domain-based and mechanizm-

based attacks. In summary, VM model captures the

adversaries, vulnerabilities, and analyse the target of

the attack in terms of realm-speciﬁc approach. AM

model constructs attack model based on the adver-

saries speciﬁed in VM model. BM model annotates

system behaviors for VM and AM models and ﬁnally

in EM models, events are derived from behavioral

models.

We are in the process of developing a prototype

tool that reﬂects Asfalia framework along with exten-

sions and improvements necessary for thorough eval-

uation. The results of the preliminary experiments in-

dicate that one of the limitations of the current frame-

work is the requirement for almost an expert level

understanding of modeling and security by the users.

Further experiments will also include different com-

binations of users, those that know modeling, but very

little security and vice versa.

REFERENCES

Ali, R., Dalpiaz, F., and Giorgini, P. (2010). A goal-based

framework for contextual requirements modeling and

analysis. Requir. Eng., 15(4):439–458.

Baheti, R. and Gill, H. (2011). Cyber-physical systems. The

impact of control technology, 12(1):161–166.

Banerjee, A., Venkatasubramanian, K. K., Mukherjee, T.,

and Gupta, S. K. S. (2012). Ensuring safety, security,

and sustainability of mission-critical cyber–physical

systems. Proceedings of the IEEE, 100(1):283–299.

Boyes, H., Hallaq, B., Cunningham, J., and Watson, T.

(2018). The industrial internet of things (iiot): An

analysis framework.

Bresciani, P., Perini, A., Giorgini, P., Giunchiglia, F., and

Mylopoulos, J. (2004). Tropos: An agent-oriented

software development methodology. Autonomous

Agents and Multi-Agent Systems, 8(3):203–236.

Buchs, A. et al. (2013). Compte rendu de lecture: Rifkin

jeremy, 2011. the third industrial revolution: How lat-

eral power is transforming energy, the economy, and

the world. palgrave macmillan, 2011, 304 p. Technical

report.

Cailliau, A. and van Lamsweerde, A. (2017). Runtime mon-

itoring and resolution of probabilistic obstacles to sys-

tem goals. In Software Engineering for Adaptive and

Self-Managing Systems (SEAMS), 2017 IEEE/ACM

12th International Symposium on, pages 1–11. IEEE.

Conway, J. (2016). The industrial internet of things: an evo-

lution to a smart manufacturing enterprise. Schneider

Electric.

Dalpiaz, F., Borgida, A., Horkoff, J., and Mylopoulos, J.

(2013). Runtime goal models: Keynote. In Research

Challenges in Information Science (RCIS), 2013 IEEE

Seventh International Conference on, pages 1–11.

IEEE.

DeLoach, S. A. and Miller, M. (2010). A goal model

for adaptive complex systems. International Journal

of Computational Intelligence: Theory and Practice,

5(2):83–92.

Feather, M. S., Fickas, S., Van Lamsweerde, A., and Pon-

sard, C. (1998). Reconciling system requirements and

runtime behavior. In Proceedings of the 9th interna-

tional workshop on Software speciﬁcation and design,

page 50. IEEE Computer Society.

Fern

andez, E. B., Fonoage, M., VanHilst, M., and Marta,

M. (2008). The secure three-tier architecture pattern.

2008 International Conference on Complex, Intelli-

gent and Software Intensive Systems, pages 555–560.

Griffor, E. R., Greer, C., Wollman, D. A., Burns, M. J.,

et al. (2017). Framework for cyber-physical systems:

Volume 1, overview.

Towards Security Attack Event Monitoring for Cyber Physical-Systems

731

Haley, C., Laney, R., Moffett, J., and Nuseibeh, B. (2008).

Security requirements engineering: A framework for

representation and analysis. IEEE Transactions on

Software Engineering, 34(1):133–153.

Haley, C. B. and Laney, R. C. Using trust assumptions in

security requirements engineering. Citeseer.

Helmi

o, P. et al. (2017). Open source in industrial internet

of things: A systematic literature review.

Henzinger, T., Lee, E. A., Sangiovanni-Vincentelli, A., Sas-

try, S., Aiken, A., Auslander, D., Bajcsy, R., Hedrick,

K., Keutzer, K., Necula, G., et al. (2008). Center for

hybrid and embedded software systems.

Hu, F., Lu, Y., Vasilakos, A. V., Hao, Q., Ma, R., Patil, Y.,

Zhang, T., Lu, J., Li, X., and Xiong, N. N. (2016). Ro-

bust cyber–physical systems: Concept, models, and

implementation. Future generation computer systems,

56:449–475.

Jeschke, S., Brecher, C., Meisen, T.,

Ozdemir, D., and Es-

chert, T. (2017). Industrial internet of things and cy-

ber manufacturing systems. In Industrial internet of

things, pages 3–19. Springer.

Li, T. and Horkoff, J. (2014). Dealing with security require-

ments for socio-technical systems: Holistic approach.

In Advanced Information Systems Engineering - 26th

International Conference, CAiSE 2014, Thessaloniki,

Greece, June 16-20, 2014. Proceedings, pages 285–

300.

Li, T., Horkoff, J., and Mylopoulos, J. (2014). Integrating

security patterns with security requirements analysis

using contextual goal models. In The Practice of En-

terprise Modeling - 7th IFIP WG 8.1 Working Confer-

ence, PoEM 2014, Manchester, UK, November 12-13,

2014. Proceedings, pages 208–223.

Li, T., Horkoff, J., and Mylopoulos, J. (2018). Software &

Systems Modeling, 17(4):1253–1285.

Li, T., Horkoff, J., Paja, E., Beckers, K., and Mylopoulos, J.

(2015). Analyzing attack strategies through anti-goal

reﬁnement. In IFIP Working Conference on The Prac-

tice of Enterprise Modeling, pages 75–90. Springer.

Moore, A. P., Ellison, R. J., and Linger, R. C. (2001).

Attack modeling for information security and sur-

vivability. Technical report, CARNEGIE-MELLON

UNIV PITTSBURGH PA SOFTWARE ENGINEER-

ING INST.

Morais, A., Hwang, I., Cavalli, A., and Martins, E. (2013).

Generating attack scenarios for the system security

validation. Networking science, 2(3-4):69–80.

Mouratidis, H., Weiss, M., and Giorgini, P. (2006). Mod-

eling secure systems using an agent-oriented ap-

proach and security patterns. International Journal

of Software Engineering and Knowledge Engineering,

16(03):471–498.

uller, H., Litoiu, M., and Mylopoulos, J. (2016). Engi-

neering cybersecurity in cyber physical systems. In

Proceedings of the 26th Annual International Confer-

ence on Computer Science and Software Engineering,

pages 316–320. IBM Corp.

Phillips, C. and Swiler, L. P. (1998). A graph-based system

for network-vulnerability analysis. In Proceedings of

the 1998 workshop on New security paradigms, pages

71–79. ACM.

Poovendran, R. (2010). Cyber–physical systems: Close en-

counters between two parallel worlds [point of view].

Proceedings of the IEEE, 98(8):1363–1366.

Poulsen, K. (2003). Slammer worm crashed ohio nuke plant

network. http://www. securityfocus. com/news/6767.

Shaﬁ, Q. (2012). Cyber physical systems security: A brief

survey. In 2012 12th International Conference on

Computational Science and Its Applications, pages

146–150. IEEE.

Shostack, A. (2014). Threat modeling: Designing for secu-

rity. John Wiley & Sons.

Silva Souza, V. E., Lapouchnian, A., Robinson, W. N., and

Mylopoulos, J. (2011). Awareness requirements for

adaptive systems. In Proceedings of the 6th interna-

tional symposium on Software engineering for adap-

tive and self-managing systems, pages 60–69. ACM.

Souza, S. and Mylopoulos, J. (2012). Requirements-based

software system adaptation.

Turk, R. J. (2005). Cyber incidents involving control sys-

tems. Technical report, Idaho National Lab.(INL),

Idaho Falls, ID (United States).

urpe, S. (2017). The trouble with security requirements.

In Requirements Engineering Conference (RE), 2017

IEEE 25th International, pages 122–133. IEEE.

Van Lamsweerde, A. (2001). Goal-oriented requirements

engineering: A guided tour. In Requirements Engi-

neering, 2001. Proceedings. Fifth IEEE International

Symposium on, pages 249–262. IEEE.

Van Lamsweerde, A. (2004). Elaborating security require-

ments by construction of intentional anti-models. In

Proceedings of the 26th International Conference on

Software Engineering, pages 148–157. IEEE Com-

puter Society.

Van Lamsweerde, A. (2009). Requirements engineering:

From system goals to UML models to software, vol-

ume 10.

Wang, E. K., Ye, Y., Xu, X., Yiu, S.-M., Hui, L. C. K.,

and Chow, K.-P. (2010). Security issues and chal-

lenges for cyber physical system. In Proceedings of

the 2010 IEEE/ACM Int’l Conference on Green Com-

puting and Communications & Int’l Conference on

Cyber, Physical and Social Computing, pages 733–

738. IEEE Computer Society.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

732
