Examining the Potential for Conversational Exploratory Search Using a

Smart Speaker Digital Assistant

Abhishek Kaushik

and Gareth J. F. Jones

ADAPT Centre, School of Computing, Dublin City University, Dublin 9, Ireland

Keywords:

Conversational Search, Exploratory Search, Dialogue System, Alexa.

Abstract:

Online Digital Assistants, such as Amazon Alexa, Google Assistant, Apple Siri are very popular and provide

a range or services to their users, a key function is their ability to satisfy user information needs from the

sources available to them. Users may often regard these applications as providing search services similar to

Google type search engines. However, while it is clear that they are in general able to answer factoid questions

effectively, it is much less obvious how well they support less speciﬁc or exploratory type search tasks. We

describe an investigation examining the behaviour of the standard Amazon Alexa for exploratory search tasks.

The results of our study show that it not effective in addressing these types of information needs. We propose

extensions to Alexa designed to overcome these shortcomings. Our Custom Alexa application extends Alexa’s

conversational functionality for exploratory search. A user study shows that our extended Alexa application

both enables users to more successfully complete exploratory search tasks and is well accepted by our test

users.

1 INTRODUCTION

There is currently much interest in conversational dig-

ital assistants embedded in smart speaker and mobile

platforms, e.g. Amazon Alexa, Google Assistant, Ap-

ple Siri. These applications offer users a range of

services including simple command and control of

networked smart home appliances, accessed through

conversational engagement. A widely promoted func-

tion is their ability to satisfy user information needs

from the sources available to them. Digital assistants

are often demonstrated using requests such as fetch-

ing recipes or latest weather forecasts. While it is

clear that these application are often able to address

such requests, which are generally satisﬁed by single

items or factoids, it is much less clear how well cur-

rent applications support more exploratory informa-

tion needs, and what additional functionality might

be required to address any identiﬁed shortcomings.

While conventional information retrieval (IR) sys-

tems, such as web search engines, rely on the

searcher’s ability to browse retrieved content in an

efﬁcient manner, smart speaker systems are largely

driven by spoken interaction, sometimes involving

multi-modal output. User access to returned informa-

https://orcid.org/0000-0002-3329-1807

https://orcid.org/0000-0003-2923-8365

tion in spoken form has a much lower bandwidth than

visual review of textual. This suggests that digital as-

sistants must select information to be returned in spo-

ken form in search applications with higher precision

than is the case for conventional IR systems. One way

to limit delivery of extraneous information is to parti-

tion the search process into smaller incremental tasks

where the searcher engages with the digital assistant

using a conversational search process (Radlinski and

Craswell, 2017).

Interest in conversational search has developed

rapidly the IR research community in recent years,

and while it has been the focus of multiple workshops

exploring its principles and challenges, there is very

limited work exploring user interaction with working

systems. Good examples of existing work such as

(Trippas et al., 2017a; Trippas et al., 2018; Trippas

et al., 2017b) are limited to the use of Wizard type

conversational agents in limited search tasks.

While in some contexts spoken only engagement

is possible, the operational platforms of many digital

assistants enable some form of multi-modal interac-

tion. For example, smartphones, tablets and dedicated

platforms such as the Amazon Echo Show

In this paper we report an experimental study

https://www.amazon.co.uk/amazon-echo-show-5-

compact-smart-display-with-alexa/dp/B07KD7TJD6

Kaushik, A. and Jones, G.

Examining the Potential for Conversational Exploratory Search Using a Smart Speaker Digital Assistant.

DOI: 10.5220/0011798700003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 2: HUCAPP, pages

305-317

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

305

of search using a state-of-the-art digital assistant

to examine the ability of current assistants to sat-

isfy exploratory information needs. For our study

we adopt the Amazon Alexa operating on an Echo

Show platform embedded with a display screen. The

Echo Show enables conversational interaction with

the Alexa assistant and incorporates a tablet sized

screen to enable multi-modal engagement. The re-

sults of our study demonstrate that the existing Alexa

system is very limited in terms of its support for

search tasks of this type, leading to frustration and

user dissatisfaction. We then describe experiments us-

ing a prototype new Alexa customed skill which seeks

to overcome these shortcomings. Before describing

these studies, the next section reviews relevant exist-

ing work in conversational search.

2 BACKGROUND

In this section, we review literature relevant to the de-

velopment of conversational search applications. We

begin with a brief review of conversational systems,

then consider existing work on conversational search,

and look at dialogue strategies

2.1 Conversational Systems

Conversational engagement between human and com-

puter applications is currently a very active area of in-

vestigation (Radlinski and Craswell, 2017). Here we

focus on the area of digital conversational assistants.

A study on conversational agents (Alexa vs. Siri vs.

Cortona vs. Google Assistant) to investigate these us-

ability for different services such as access to music

services, agenda, news, weather, To-Do lists and maps

or directions and others is reported in (L

opez et al.,

2018). This showed that even though there are many

services already available, there is much scope to im-

prove the usability of these systems.

A review of multiple studies related to conversa-

tional agents examining their usability and the capa-

bilities of conversational agents is described in (Hoy,

2018). A study investigating user interactions with

Amazon Alexa focusing on the types of tasks re-

quested and the variables that affect user behaviours

can be found in (Lopatovska et al., 2018). The re-

sults indicate that across all age groups, Alexa was

primarily used for checking weather, playing music,

and controlling other devices. Users reported being

satisﬁed with Alexa even when it did not produce the

information sought, suggesting that the interaction ex-

perience is more important to the users than the inter-

action output.

2.2 Conversational Search

While users of search tools have become accustomed

to standard “single shot” interfaces, of the form seen

in current web search engines, and have learned to

use them to good effect, research Interest in conver-

sational interactions in search has expanded consider-

ably (Radlinski and Craswell, 2017).

Multiple studies have investigated the potential of

conversational search. However, these have gener-

ally involved the use of a human serving on the agent

manages to the search dialogue wizard (Avula et al.,

2018; Avula et al., 2019; Avula and Arguello, 2020).

While the results of these studies have been interest-

ing and insightful, they have an important limitation

in that the agent has full human intelligence. Thus,

they do not reveal the potential for artiﬁcial agents

to support search in terms of effectiveness and user

acceptance. Studies have also been conducted to in-

vestigate the user search behaviour in speech settings

where the searcher interacts with the agent (the hu-

man “wizard”) via speech. These have the limitation

of assuming both human intelligence and error free

speech recognition, which will generally not be the

case in a real system (Trippas et al., 2017a; Trippas

et al., 2017b; Trippas et al., 2018).

2.3 Dialogue Strategy

A number of frameworks have been proposed for

human-machine dialogue systems. There are two im-

portant points to be considered in developing dialogue

strategies. The primary one is to understand the cur-

rent intention of the dialogue, and the second is to

maintain the ongoing interactions between the user

and the system. The use of dialogue models is cur-

rently very limited in IR. In the study(Sitter and Stein,

1992), authors model information seeking dialogue as

a directive, commissive and assertive type of dialogue

act (e.g. asking, rejecting, offering and answering).

This research was extended by Belkin et. al. (Belkin

et al., 1995) to design an interactive IR system based

on scripts and cases, called MERIT (Multi-Media In-

formation System). This considers different infor-

mation seeking strategies scripts and cases at once

to make the system interactive. In the study (Leech

and Weisser, 2003), the authors conducted a study

in which they annotated the task-oriented dialogues

in speech and introduced a dialogue taxonomy. The

investigation was extended by (Loisel et al., 2009)

which proposed a model on the basis of the taxonomy

and analyzing a medical text corpus.

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

306

3 SEARCH USING AMAZON

ALEXA

In this section we begin by outlining the features of

the Amazon Alexa application, and then introduce the

search tasks used for our investigation of its use for

exploratory search.

3.1 Amazon Alexa

The Amazon Alexa digital assistant provides a wide

range of information seeking services and control of

applications to users. Alexa can operate on a range

of dedicated hardware platforms including Amazon

Echo, Amazon Echo Show, Amazon Dot, and related

hardware, as well as an application running on more

general platforms. Alexa performs voice-operated

functions while communicating through a local WiFi

Internet connection or other wireless connection with

Amazon’s AWS cloud servers, or other networked

devices, to carry out these functions (Janarthanam,

2017; Website, 2020).

The workﬂow of a standard user engagement with

Alexa is divided into four steps: receiving a spoken

instruction or request, interaction mode (responsible

for speech recognition and intent identiﬁcation), skill

application logic (action after triggering the intent),

and response. Where an intent is deﬁned by Amazon

as actions that fulﬁll spoken requests from the user,

and a skill is an application which enables Alexa to

perform an operation. A key feature of Alexa as a re-

search tool is that new skills can be created to enable

Alexa to perform new or extended operations (Biehl,

2019); it is for this reason that we choose to use Alexa

for our investigations. Speciﬁcally, we base our study

on the use of an Amazon Echo Show which com-

bines spoken interaction with the availability of a high

quality 7-inch touchscreen display which can be used

within the applications to enable mulit-modal interac-

tion. Technical details of the Echo Show can be found

in (Akon, 2018).

3.2 Exploratory Search with Alexa

In this study we ﬁrst examine the ability of the stan-

dard Alexa assistant to support exploratory informa-

tion seeking using its default conversational inter-

action features. As a source of information needs

for our study, we provide participants with backsto-

ries requiring information about an individual which

we anticipate users to able to address using a single

Wikipedia autobiography page. An example of back-

story expressing an information need of this sort is

shown in Figure 1). We developed twelve backstories

Martin Luther King Jr. was an American

Baptist minister and activist who became

the most visible spokesperson and leader

in the civil rights movement. You have

to find Information about the personality

using Alexa skills (as per the search

setting) and based on your information

gain, you have to write a short summary

(in the questionnaire) about the person

mentioned above and fill the

questionnaire accordingly.

Figure 1: Example backstory selected for Alexa task.

for which full review of the corresponding Wikipedia

autobiography page is a cognitively complex task,

such a task would be classiﬁed as class ”Analyze”

within the Taxonomy of Learning (Krathwohl, 2002).

3.3 Experimental Procedure

Participants in our study had to complete a structured

search session, as shown in Figure 2. They were given

printed details of the instructions for their search ses-

sion, and were provided with an opportunity to famil-

iarize themselves with using Alexa for 5-10 minutes

before starting the main study. Each participant had to

complete one search task using an assigned backstory.

They were given the printed backstory to study before

they began from the search, this was then withdrawn

to prevent them simply copying the details of the

backstory as the basis of their query. The search ses-

sion included completing questionnaires before and

after carrying out the search task. The questionnaire

included asking about the participant’s expectations

and experience of the search process, and required

them to write a short summary of their knowledge of

the topic of backstory before and after carrying out

the search process. After completing the search, they

were also required to attend a semi-structured inter-

view to gather details of their experience.

While participants carried the search tasks using

the Echo Show, they completed the questionnaires

online using a standard computer. All search activi-

ties were video recorded for post-collection review of

the user activities. Approval was obtained from our

university research ethics committee prior to begin-

ning the study. Search tasks were evaluated by ana-

lyzing the self-reported questionnaire interviews and

the recorded videos. All details from the interviews

and video recordings were assigned to response cate-

gories by independent analysts. This was done using

an annotation schema relevant to our research aims

designed after investigating the data; the complete

response dataset was then coded using these data-

Examining the Potential for Conversational Exploratory Search Using a Smart Speaker Digital Assistant

307

Figure 2: Procedure of the Alexa information seeking study.

Table 1: Details of age distribution throughout this investi-

gation.

Age No. Male No. Female Ratio

(M) (F) (M/F)

18-25 14 3 14:3

26-35 8 6 4:3

36-45 0 0 NA

Total 22 9 22:9

derived codes (Braun and Clarke, 2013) . The inter-

rater reliability between the annotators was very high

(K = 0.85 and 0.82). Search and interaction behaviour

was analyzed in terms of queries used and time spent

on the search task.

3.3.1 Pilot Studies

Prior to the main study, a pilot study was carried out

by two undergraduate students in Computer Science

using two additional backstory search tasks. Feed-

back from the pilot study was used to reﬁne the spec-

iﬁcation of the questionnaire, and to design the clas-

siﬁcation categories for the user responses. Results

from the pilot study are not included in our analysis

in this project. Each of the pilot search tasks took

around 25 minutes to complete.

3.3.2 Main Study Participants

Each participant in the main study was assigned one

of the selected backstories from 12 with the expecta-

tion that their session would last around 30-40 min-

utes. The sequence of the tasks was arranged using a

Latin square method to avoid sequence and learning

effects.

In total 33 subjects participated in the experiments

of which results for 2 subjects were not included for

analysis due discrepancies in their data. The complete

demographic details found in the Table 1.

4 BEHAVIOUR OF ALEXA FOR

NON-FACTOID AND

EXPLORATORY SEARCH

This study examined user expectations of the Alexa

assistant to support exploratory search tasks and their

experiences when using Alexa to address this type of

information need.

The following research questions were investi-

gated in the study:

1. What are the challenges and opportunities of ex-

ploratory conversational search using Alexa?

2. What characteristics of Alexa prevent it from

functioning as an effective tool for complex in-

formation seeking?

3. What are the main expectations of users for con-

versational search systems?

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

308

4.1 RQ1: What Are the Challenges and

Opportunities of Exploratory

Conversational Search Using Alexa?

4.1.1 Challenges

Attempting to use the default Alexa assistant to ad-

dress the exploratory information needs expressed in

our backstories led to considerable user frustration

with poor success in addressing the information need.

From analysis of user feedback, we identiﬁed the fol-

lowing challenges.

1. Task Success: In 62% of cases, either Alexa did

not provide a response or gave irrelevant answers

for the user query.

2. User frustrations and feedback: On average par-

ticipants took approximately 5.5 minutes with an

average 14.1 interactions (turns). Survey feed-

back from the users clearly indicates high levels

of user frustration.

3. Major limitations of Alexa in exploratory search:

A number of limitations were identiﬁed from ob-

servation of user interactions and their feedback.

We divided these limitations into four broad cate-

gories as follows:

(a) Poor knowledge representation: From the re-

sponses to queries given by Alexa, it became

clear that Alexa only represents either fact-

based answers or simply starts reading from the

beginning of a long Wikipedia document. This

was noted by around 18% of participants who

claimed that Alexa had poor knowledge repre-

sentation.

(b) Poor speech recognition and high error rate:

While not directly related to its search capa-

bilities, around 52% of participants noted that

they experienced frustration arising from poor

speech recognition and high word error rates

while interacting with Alexa. For example, one

participant noted that “Alexa was not able to

understand my voice and its frustrating and tir-

ing to ask same thing again and again”. Such

errors can result in problems of participants be-

ing able to frame their desired query and recog-

nition errors leading to Alexa making mistakes

in interpreting the query correctly, leading to

incorrect responses.

most important reason identiﬁed by partici-

pants, 75% of whom indicated that they had dif-

ﬁculty in creating queries. They were unable to

search effectively since they had no background

knowledge about the subject. Alexa offered

no formal support to them in forming queries,

and its answers were too precise to enable the

searcher to build their known of the subject, as

they might with a standard web search engine.

(d) Others: A number of other factors were iden-

tiﬁed, the key ones were ”Interruptions” (2%)

and ”Cognitive Load” (4%). Participants ob-

served that they were unable to complete

queries due to interruptions by Alexa. In these

cases, Alexa took a partially completed query

as ﬁnished, and interrupted in the middle of the

process of entering the query, providing results

which may confuse the searcher or force them

to repeat or reformulate the query. This put

cognitive load and strain on the participants.

4.1.2 Opportunities

Our investigations using the standard Alexa applica-

tion highlight some critical areas which provide op-

portunities to improve exploratory search.

1. Background knowledge support and effective

knowledge representations: The Alexa applica-

tion provides fact-based answers, but does not

support the user in learning and reﬁning the

search. After conducting this study, we propose

that the user should be provided with information

related to their search query based on facts which

could help them to create more effective queries.

2. Priming, dialogue-driven approach and interactive

search process: We observed that Alexa did not

actively engage user in the search process, with

high levels of user frustration. To reduce the frus-

tration and enhance search effectiveness, we pro-

pose to introduce a dialogue driven approach to

the search process.

4.2 RQ2: What Characteristics of Alexa

Prevent It from Functioning as an

Effective Tool for Complex

Information Seeking?

Our investigation found that Alexa did not support in-

formation seeking more complex than simple lookup

activities. This was reported by more than 45% of

participants. Its conversational agent has not been de-

signed to support typical information seeking strate-

gies to help the user. Two important factors in infor-

mation seeking strategies are: exploration and learn-

ing, which can be further subdivided into acquiring

knowledge, interaction with information sources, and

engagement with information sources, comparing,

Examining the Potential for Conversational Exploratory Search Using a Smart Speaker Digital Assistant

309

reasoning, analysing evaluation, discovery, planning

and forecasting. The three major reasons for poor in-

formation seeking in standard Alexa are reported to

be: lack of background knowledge due, to which the

user was unable to create the right query, Alexa not

being able to correctly recognise the user’s query, and

poor representation of knowledge by Alexa.

4.3 RQ3: What Are the Main

Expectations of Conversational

Search Systems?

From our study we found ﬁve major expectations of

our participants for search in conversational systems.

4.3.1 Exploratory

A conversational search system should provide a

broad information space to the user give them the op-

portunity to explore a space of relevant information

and to narrow the exploration to focus on addressing

their information need.

4.3.2 Content Selection

Our investigation showed that the important variables

with respect to the user experience in search are as fol-

lows: the average number of interactions, the number

of successful interactions, the number of unsuccess-

ful interactions, the average time to complete a search

task, and the quality of the presented text. Based on

our results, we can conclude that the average interac-

tion failure rate is around 62%, which is very high.

For the total of 438 interactions the average total time

of interactions by a user is 5.6 minutes for the default

Alexa system. We can see from the above ﬁgures that

this engagement is very inefﬁcient leading to demoti-

vation and frustration for the user.

4.3.3 Content Interactions

Searcher interactions include use of multiple Alexa

skills including navigation skills, presentation skills

and speech skills of conversational agents.

1. Navigation skills: A conversational search agent

should support the user in navigation through the

information space or the documents.

2. Presentation skills: The user expects presentation

in different modes. More than 85% of users con-

sidered the combination of all three dimensions

(Text, Speech and Images) are required to present

the information in the most appropriate model

during the search.

3. Speech skills: The speech skills can be classiﬁed

based on multiple parameters, including speech

speed, speech recognition, interruptions, speech

content and its length. Searchers expected speech

recognition to support standard speaking speeds,

normal day-to-day length of spoken input, low

levels of interruption and high accuracy speech

recognition.

4.3.4 Information Representations

In our study, we found that 18% of the searchers

reported that the information represented during the

search process (in default setting) was poor. They also

found difﬁculty in maintaining the contextual infor-

mation ﬂow during the task.

We observed that the various factors can reﬁne the

information representations. These factors are: length

of the text shown on the screen (optimal), query rel-

evant information, the structure of the presentation

(right combination of text, images and speech) and

the ﬂow of conversation and information.

4.3.5 Conversational Properties

Our study also indicates properties that every con-

versational search system should have (Vyas, 2017)

(Staven, 2017).

1. On boarding: This is the initial interaction in

which the user is introduced to the system in

which it explains its competencies.

2. System as teacher: The user expects a system

should ease their interactions by revealing its ca-

pabilities and essentially teach the user how to use

the system. In our study we observed that users

who have previous experience with the conversa-

tional application interacted with it for longer (7.2

minutes) than users who using it for the ﬁrst or

second time (5.8 minutes).

3. Incite: We observed that most of the interactions

were one-way, with the system unable to engage

in useful dialogue with the user. However, ide-

ally a conversational application should engage

with back-and-forth dialogue with the user to as-

sist them in reaching goal.

4. Diverge ﬂow and course corrections: A conver-

sational application should be robust. As such, it

should be able to handle any unexpected entries

from the users and use this to guide the user to-

wards their goal.

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

310

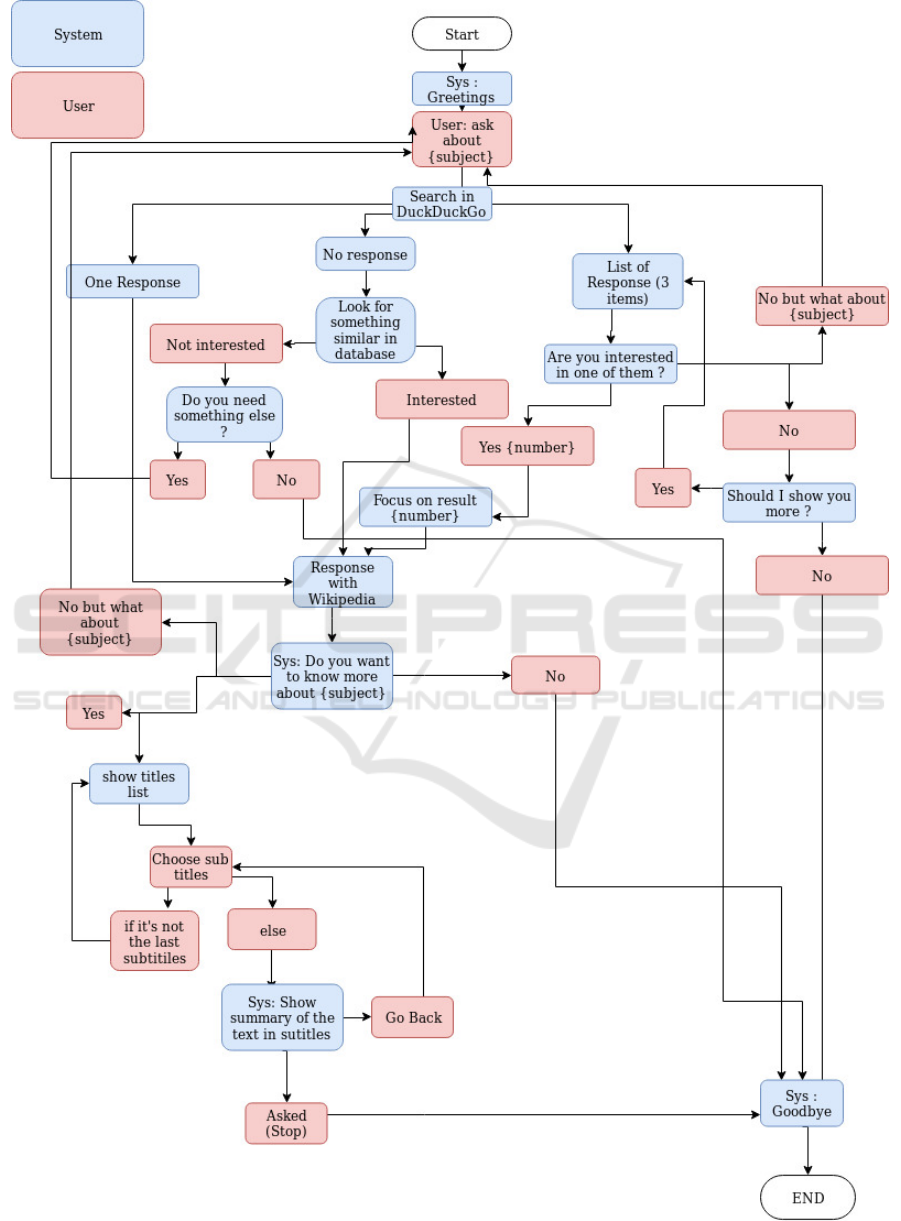

Figure 3: Flow Chart for Custom Alexa Dialogues strategy.

Examining the Potential for Conversational Exploratory Search Using a Smart Speaker Digital Assistant

311

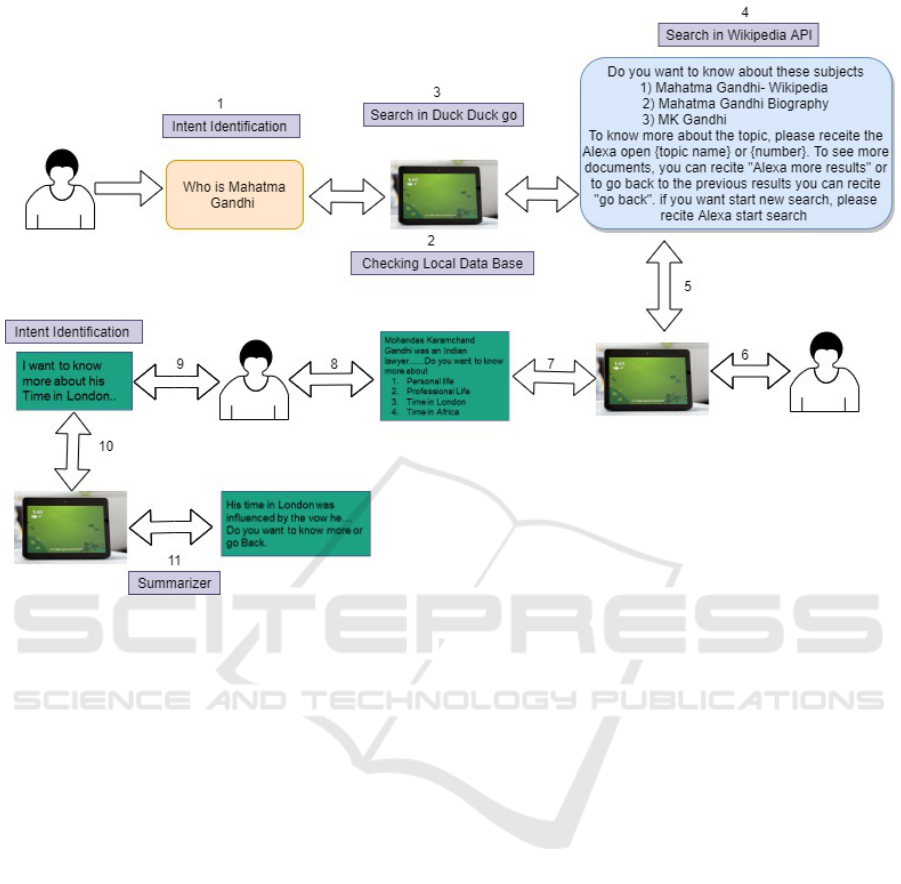

Figure 4: Alexa Custom Search.

5 DIALOGUE STRATEGIES TO

SUPPORT CONTENT

ENGAGEMENT

As a result of investigations with the standard Alexa

application, we sought to develop a new dialogue

strategy for the Alexa assistant with the goal of im-

proving its ability to support exploratory search. We

refer to this revised Alexa application as Alexa Cus-

tom search. We implemented this as an Alexa skill

designed to enable a user to carry out exploratory in-

teractive search with Alexa.We deployed this as a pro-

totype using the Amazon Echo show and investigated

its effectiveness using a study following the same ex-

perimental setup as used in our exploration of stan-

dard Alexa application for exploratory search.

A total 31 search sessions were conducted us-

ing same participants as the standard Alexa study,

but with a different backstory assigned to each user

following a Latin square backstory assignment pro-

cess to avoid biasing effects between participants and

assigned backstories. The participants were again

given the opportunity to familiarize themselves with

the application for 5-10 minutes prior to beginning

the search task, had to complete pre-search and post-

search questionnaires during the search session, and

also to participate in a semi-structured interview at

the conclusion of the search task. The Custom Alexa

skills were developed iteratively using a series of pi-

lot studies with informal feedback from participants

prior to the formal evaluation described below.

5.1 Dialogue Strategy

The dialogue strategy was designed to enable users

to search and explore long retrieved documents, and

to facilitate two-way interaction between Alexa and

the searcher via a dialogue. The dialogue strategy has

two major components: developing the skill (train-

ing Alexa based on the new skills, e.g., search and

greetings) using an Amazon Developer account, and

the second part to embed the search process into the

dialogues by using python and AMAZON Alexa de-

veloper interface.

Developing Alexa Skills: We designed two intents

for the Alexa custom skill. These actions were

developed to fulﬁll spoken requests entered by the

searcher. Each intent has at least one trigger utterance,

a predeﬁned word or phrase which the user might

say to invoke the intent. The intents are Greeting

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

312

(trained to answer greetings, unexpected questions

and non-relevant questions with respect to a search)

and Search (trained to identify a search query pass

it to the search system and to present the response

from the search system to the users). Each intent was

trained using likely user utterances with a correspond-

ing response which would be expected by the users.

We trained 80 alternative utterances for both intents.

The utterances were collected using a small survey

among a group of undergraduate students.

Embedding the Search Process with Dialogue: Alexa

skills supported us to identify and classify different

intents input by the user. Once Alexa identiﬁes the

input as the search intent and passes the user input

to the search process which extracts the search query

from the user input. The extracted query is searched

based on similarity matching in the query archive and

which asks for conﬁrmation from the user regard-

ing the search query. Each successful user-conﬁrmed

query is saved in our query archive, which we can

subsequently utilise for similarity matching with fresh

queries. This is to conﬁrm that the correct query has

been identiﬁed with the goal of reducing the error rate

and improving the reliability of relevant search re-

sults. This acknowledgement from the user regarding

conﬁrmation of the query triggers the search process.

All the responses from the search process were em-

bedded within dialogue based on our dialogue strat-

egy.

5.2 Search Process

Figures 4 and 3 illustrates the complete search process

workﬂow. The search process triggered by the users

contains the following sub-modules:

1. Calling Duck Duck API: The query is passed to

the Duck Duck go search Application Program-

ming Interface (API). The titles of the top 3 doc-

uments returned are displayed on the Alexa Echo

Show screen. The searcher can then select one

of these by saying ’Open 1’ or ’Open <document

name>’, or they may request more results by re-

jecting the displayed items by saying ’No, show

me more results’. Alternatively, the searcher may

change their query and restart the search process

by saying ’Alexa start search’. Once the user has

selected an item from the displayed results, the

dialogue strategy triggers the Wikipedia API. The

role of the Duck Duck Go API here is essentially

to identify a focused short form query which can

be used for entry to the Wikipedia API to ex-

tract wikipedia documents to provide options to

the users.

2. Calling Wikipedia API: The title of the document

selected by the user is passed to the Wikipedia

search API. The section and subsection head-

ings of the highest-ranking retrieved item are then

shown to the user. The searcher can then se-

lect sections and subsections of the returned doc-

uments. These selected parts of the document are

then summarised using the summarisation com-

ponent outlined below. The document navigation

options enable the searcher to explore the individ-

ual summarised parts of the document.

3. Calling the Summarizer: A summarizer is used to

display the important content of a document sec-

tion. The Echo Show displays the summary along

with further sub-options, as shown in Figure 4

The summarizer splits a whole paragraph into sen-

tences. Each sentence is considered an individual

document. The ”frequency” (TF) of each word in

the document is calculated along with the inverse

document frequency (IDF) of each word in the

document. A normalised TF-IDF score of each

sentence is then by summing the TF-IDF scores of

each sentence and dividing by the word length of

the sentence.The top 50% of scoring sentences are

extracted. The Density-Based Spatial Clustering

of Applications with Noise (DBSCAN) clustering

algorithm divides the sentences into “clusters.” A

cosine similarity score is calculated between the

number of clusters and the section name. Based

on the cosine similarity score, the top 70% of clus-

ters are selected

and are presented as the summary arranged in the

same order as they appear in the actual paragraph.

The searcher can explore further subsections or go

back to the previous view. As soon as the user

choses any section or sub-section to explore, the

summarizer extracts its summary.

5.3 Additional Functionality

Our Custom Alexa skill also displayed images asso-

ciated with the displayed subsections provided by the

Wikipedia API. Images are scored using cosine sim-

ilarity between the labels of the images and the title

of the selected Wikipedia subsection. The image with

the highest similarity is shown with the contents of

the selected subsection.

Examining the Potential for Conversational Exploratory Search Using a Smart Speaker Digital Assistant

313

6 INVESTIGATING THE

EFFECTIVENESS OF ALEXA

CUSTOM SEARCH

6.1 RQ4: How Well Does the Custom

Alexa Dialogue System Support

Exploratory Search?

The research question is divided into three sub-

questions.

6.1.1 RQ4(1): How Effectively Does It

Communicate Information to the User?

1. Dialogue Strategy: In the semi-structured inter-

view, carried out in this second study, searchers

reacted positively to Custom Alexa. Around 45%

of them found it helpful, 18% found noted that

it was interactive. 12% of searchers claimed that

in the custom Alexa setting, Alexa provided them

suggestions. Users also found setting 2 interest-

ing, easy to understand with comfortable speed

and structure unlike what they experienced in the

default setting.

2. Structure of representation of information: Rep-

resentation of the information was one of the key

criteria. We broke down the information structure

into two major components: content of the docu-

ment and the representation of the information.

(a) Content of document: Around 87% of partic-

ipants were satisﬁed with the document infor-

mation provided by custom Alexa. The custom

setting was able to satisfy around 85% of the

user’s information needs.

(b) Structure of text: Around 77% of searchers

were satisﬁed with the text structured provided

by custom alexa, while 9.7% users were more

content with the standard Alexa text structure.

We can say that, the custom setting was able to

satisfy 75% of the searchers. The reason be-

hind choosing the Alexa custom settings were:

ease of use (7.5%), ease of information seeking

(37.5%), its interactive nature (30%) and that

the information is more relevant and informa-

tive (25%).

6.1.2 RQ4(2): How to Verify the User

Understanding, Satisfaction and Search

Success in the Dialogue-Based Exploratory

Search Process?

The statistically signiﬁcant indicates where P<0.05.

This signiﬁes the experience of the users in custom

Table 2: Comparison between Default Setting and Custom

Setting with statistical Testing: Two tailed T.

Variables

Default Custom P Value

Text Quality 3.1 3.9 0.00012

Navigation Skills 2.7 4.1 0.00001

Speech Skills 3 4.2 0.00013

Presentation Skills 3.3 3.9 0.00070

Better Understanding 3.3 3.7 0.85020

Knowledge Expansion 3.2 3.9 0.00146

Cognitive Engagement 3.4 3.9 0.16490

Search Session Success 3.1 3.7 0.01354

Suggesting skills 2.5 3.7 0.00140

Alexa stop 1.8 1.3 0.28242

Ease of Multimodal 3.7 4 0.16067

search is statistically signiﬁcant.

1. Knowledge gain and search success: Searchers

rated (out of ﬁve) a range of variables comparing

the Default setting and Custom setting of Alexa as

shown in Table 2. Searchers rated Custom Alexa

skills higher for most of the variables (as shown

in Table 2) in comparison to the Default search

setting.

2. Summary comparison: To verify the expansion in

knowledge, we conducted a comparison of pre-

task summary and post-task summary in Default

and Custom Alexa settings using a standard com-

parison methodology. The summary comparison

is based on three standard parameters named as D-

Qual, D-Intrp and D-Crit as deﬁned explained in

Table 3 and Table 4 (Wilson and Wilson, 2013).

The difference between all factors in pre-search

task with post-search task is greater in custom (C)

setting than the default (D) setting. This indi-

cates where searcher wrote a better summary with

more facts and analysis when using Custom Alexa

search.

6.1.3 RQ4(3): Can Priming Help in Information

Seeking and Reducing Error in

Conversation?

During our interview sessions, users were asked about

their experiences using the Alexa Custom setting.

They answered questions relating to two dimensions:

i) reasons to prefer Alexa Custom setting and ii) what

are the challenges of using the Alexa Custom setting.

1. Reasons to prefer Alexa Custom setting: The

top three reasons to choose Alexa custom set-

ting were: Navigation and Directed Search (13%),

Relevant and More Informative (21%), and Op-

tions and Suggestions (19%). Overall, the users

found it informative, well directed search, and that

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

314

Table 3: Summary Comparison Metric (Wilson and Wilson, 2013).

Parameter Deﬁnition

Dqual Comparison of the quality of facts in the range 0-3 where

0 is irrelevant facts and 3 speciﬁc relevant facts.

Dintrp Measures the association of facts in a summary in the range 0-2

where 0 represents no association of the

facts and 2 that all facts in a summary are associated with each other in a meaning.

Dcrit Examines the quality of critiques of topic written by the author in range

the 0-1 where 0 represents facts are listed with a thought or

analysis of their value and 1 where both advantages and disadvantages of the facts are given.

Table 4: Summary comparison.

Parameters Default Custom P <0.05

Alexa Alexa

Dqual 14 35 0.0090

Dintrp 17 37 0.0157

Dcrit 15 21 0.0001

it provided options which gave them the opportu-

nity for exploration throughout the search process.

2. Challenges of using Alexa Custom setting:

Around 40% of searchers were happy and did

not ﬁnd any challenges in using Alexa Cus-

tom setting, in contrast to the Default setting

where around 95% people found it challenging.

The three top challenges were too many options

(10%), slow speed (10%) and less freedom to ask

(10%). We considered these results to be pos-

itive outcomes for Alexa Custom setting since

searchers found the response of Default Alexa set-

ting too fast (i.e. spoken responses were delivered

too fast to be fully comprehended) and that it was

unable to provide suggestions and options during

the search process.

6.2 RQ5: What Is the User Search

Behaviour and Experience with the

Conversational System in an

Exploratory Search Setting?

Our ﬁnal research question focuses on comparing user

behaviour patterns during an exploratory search us-

ing Default Alexa and Custom Alexa based on user

interaction and self-reported answers in the question-

naires.

1. Custom Alexa: Based on our analysis of user in-

teractions (Table 2), we observe that participants

found Alexa custom Search more cognitively en-

gaging than the default application. This obser-

vation implies two conclusions, that the custom

application can hold the participant’s interest in

the search process, and also that participants were

able to learn and understand more using the cus-

tom application. Some users reported a lower

level of knowledge of the topic before commenc-

ing the search task. However, they were interested

in the topic, which led them to engage with rele-

vant content with a very high of interaction during

which they explored in great depth. Other users

who also began with less knowledge had notably

less interest in the topic, showed strong engage-

ment with a limited amount of content but did

not explore the retrieved content so widely. Other

users with little initial knowledge of the topic but

a very high interest it, engaged more with diverse

sources of content, but with less interaction and

less detailed examination of speciﬁc areas of con-

tent. The majority of users were comfortable with

the multi-modality of their engagement and were

satisﬁed with the exploratory custom search inter-

face.

2. Default Alexa: In this setting, some users with

less background knowledge of the topic and en-

gaged repeatedly with the limited content by re-

peating the same queries to enhance their under-

standing and search experience with topic. Other

users restricted themselves to only few queries

since the poor speech recognition that they expe-

rienced led to frustration. Other users expected

more options and suggestions to be given by the

system as per convention of their previous expe-

riences with information retrieval systems. Gen-

erally, cognitive engagement with the system was

less in comparison to the Alexa custom applica-

tion. Most of the users were not very comfort-

able with the multi-modality available in the de-

fault setting. In general, we found that the indi-

vidual pieces of information provided in default

responses were not sufﬁcient to develop a broad

knowledge of the topic, resulting in poor post-

search summaries.

Examining the Potential for Conversational Exploratory Search Using a Smart Speaker Digital Assistant

315

7 CONCLUSIONS AND FURTHER

WORK

We have described a study examing the use the stan-

dard Alexa assistant for exploratory search tasks. This

demonstrated that while it is generally able to an-

swer factoid type questions quite successfully, it is not

able to support the requirements of more exploratory

search tasks. Our study highlighted these shortcom-

ings in terms of the need to examine multiple retrieved

items and speciﬁcally engaging with larger items in

order to locate relevant information. In response to

the identiﬁed shortcoming, we proposed and imple-

mented a customised Alexa application speciﬁcally

designed to address these. A second study examining

our Custom Alexa application showed that it is able

to successfully address the identiﬁed problems and is

well received in terms of usability by the participants

in our experimental study.

While our study shows how existing commercial

conversational digital assistant applications such as

Alexa can be successfully extended to support ex-

ploratory search. this is only an initial prototype. In

order to reﬁne the features of our prototype appli-

cation we need to study the different components in

more detail to better understand the speciﬁc require-

ments of searchers and how these can be supported by

conversational features. Further, it would be interest-

ing to explore the possibility of the assistant capturing

knowledge to which the user is exposed while carry-

ing out an exploratory search task and using this to

directly help the user in a conversational manner as

they progress through the search process.

ACKNOWLEDGEMENT

This work was supported by Science Founda-

tion Ireland as part of the ADAPT Centre (Grant

13/RC/2106) at Dublin City University.

REFERENCES

Akon, H. (2018). Echo show simpliﬁed user manual: A

simpliﬁed step by step amazon echo show user guide

that will help you explore the full capabilities. of ama-

zon echo show. 100% simpliﬁed!

Avula, S. and Arguello, J. (2020). Wizard of oz interface

to study system initiative for conversational search. In

Proceedings of CHIIR 2020, pages 447–451.

Avula, S., Arguello, J., Capra, R., Dodson, J., Huang,

Y., and Radlinski, F. (2019). Embedding search

into a conversational platform to support collaborative

search. In Proceedings of CHIIR 2019, pages 15–23.

Avula, S., Chadwick, G., Arguello, J., and Capra, R. (2018).

Searchbots: User engagement with chatbots during

collaborative search. In Proceedings of CHIIR 2018,

pages 52–61. ACM.

Belkin, N. J., Cool, C., Stein, A., and Thiel, U. (1995).

Cases, scripts, and information-seeking strategies: On

the design of interactive information retrieval systems.

Expert systems with applications, 9(3):379–395.

Biehl, M. (2019). Making money with alexa skills.

Braun, V. and Clarke, V. (2013). Successful qualitative re-

search: A practical guide for beginners. sage.

Hoy, M. B. (2018). Alexa, siri, cortana, and more: An in-

troduction to voice assistants. Medical Reference Ser-

vices Quarterly, 37(1):81–88. PMID: 29327988.

Janarthanam, S. (2017). Hands-on chatbots and conver-

sational UI development: build chatbots and voice

user interfaces with Chatfuel, Dialogﬂow, Microsoft

Bot Framework, Twilio, and Alexa Skills. Packt Pub-

lishing Ltd.

Krathwohl, D. R. (2002). A revision of bloom’s taxonomy:

An overview. Theory into practice, 41(4):212–218.

Leech, G. and Weisser, M. (2003). Generic speech act an-

notation for task-oriented dialogues. In Proceedings

of the corpus linguistics 2003 conference, volume 16,

pages 441–446. Lancaster: Lancaster University.

Loisel, A., Chaignaud, N., and Kotowicz, J.-P.

(2009). Modeling human interaction to design a

human-computer dialog system. arXiv preprint

arXiv:0911.5652.

Lopatovska, I., Rink, K., Knight, I., Raines, K., Cosenza,

K., Williams, H., Sorsche, P., Hirsch, D., Li, Q.,

and Martinez, A. (2018). Talk to me: Explor-

ing user interactions with the amazon alexa. Jour-

nal of Librarianship and Information Science, page

0961000618759414.

opez, G., Quesada, L., and Guerrero, L. A. (2018). Alexa

vs. siri vs. cortana vs. google assistant: A compari-

son of speech-based natural user interfaces. In Nunes,

I. L., editor, Advances in Human Factors and Systems

Interaction, pages 241–250, Cham. Springer Interna-

tional Publishing.

Radlinski, F. and Craswell, N. (2017). A theoretical frame-

work for conversational search. In Proceedings of the

2017 Conference on Conference Human Information

Interaction and Retrieval, pages 117–126. ACM.

Sitter, S. and Stein, A. (1992). Modeling the illocutionary

aspects of information-seeking dialogues. Informa-

tion Processing & Management, 28(2):165–180.

Staven, T. (2017). What makes a good bot or not?

Trippas, J. R., Spina, D., Cavedon, L., Joho, H., and Sander-

son, M. (2018). Informing the design of spoken con-

versational search: Perspective paper. In Proceedings

of CHIIR 2018, CHIIR ’18, pages 32–41, New York,

NY, USA. ACM.

Trippas, J. R., Spina, D., Cavedon, L., and Sanderson, M.

(2017a). Crowdsourcing user preferences and query

judgments for speech-only search. In 1st SIGIR Work-

shop on Conversational Approaches to Information

Retrieval (CAIR’17).

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

316

Trippas, J. R., Spina, D., Cavedon, L., and Sanderson, M.

(2017b). How do people interact in conversational

speech-only search tasks: A preliminary analysis. In

Proceedings of CHIIR 2017, pages 325–328.

Vyas, B. (2017). 6 key metrics to measure the performance

of your chatbot.

Website, A. O. (2020). Get started with the alexa skills kit.

Wilson, M. J. and Wilson, M. L. (2013). A comparison

of techniques for measuring sensemaking and learn-

ing within participant-generated summaries. Journal

of the Association for Information Science and Tech-

nology, 64(2):291–306.

Examining the Potential for Conversational Exploratory Search Using a Smart Speaker Digital Assistant

317
