t.ex-Graph: Automated Web Tracker Detection Using Centrality Metrics

and Data Flow Characteristics

Philip Raschke

and Patrick Herbke Henry Schwerdtner

Service-centric Networking, Technische Universität Berlin, Germany

Keywords:

Data Privacy, Web Tracking, Automated Web Tracker Detection, Graph Analysis, Machine Learning.

Abstract:

The practice of Web tracking raised concerns of privacy activists and data protection authorities over the past

two decades. Simultaneously, researchers propose multiple solutions based on machine learning to automati-

cally detect Web trackers. These solutions, while proving to be promising, often remained proofs-of-concept.

This paper proposes t.ex-Graph, a representation that models data ﬂows between websites to detect Web track-

ers in a graph. We use a publicly available dataset containing HTTP/S requests from a crawl of the Tranco

top 10K websites to extract our graph. In the second step, we feed our graph into multiple machine-learning

models to predict nodes that carry out tracking activities. Our results show high accuracy of 88% and even

detect yet unknown Web trackers. We publish our artifacts for fellow researchers to replicate, reproduce, and

advance our results.

1 INTRODUCTION

To some extent, the Web’s commercial success re-

lies on providing content and services free of charge.

These free offers are paid by users by disclosing their

activities, habits, and preferences, often without their

knowledge or awareness. Advertising networks and

analytics providers carry out web tracking to offer

content and service providers an alternative source of

revenue and insights to optimize their websites. For

this, these websites embed resources of those adver-

tising networks or analytics providers, which implies

that every website visitor also sends data to these par-

ties. While well-established on the Web, this practice

raises concerns of privacy activists and data protec-

tion authorities.

A vast body of research addresses the various as-

pects of Web tracking and its impact on an individ-

ual’s privacy. Multiple algorithms based on machine

learning models to detect and block Web trackers have

been proposed over the past two decades. However,

these proof-of-concept implementations were often

not applicable in the ﬁeld, besides not being made

publicly available for fellow researchers or users to

replicate, reproduce, or use the results.

This paper proposes t.ex-Graph a network repre-

sentation of data ﬂows between websites (or hosts),

https://orcid.org/0000-0002-6738-7137

which addresses the centrality of Web trackers. We

extract our network from a publicly available la-

beled dataset containing HTTP/S requests and re-

sponses recorded while crawling the Tranco top 10K

websites. We feed our data into multiple machine-

learning models to predict whether a host is a tracker.

Our classiﬁer achieves 88% accuracy and identiﬁes

yet unknown Web trackers. All our components are

publicly available to replicate, reproduce, and ad-

vance our results.

The remainder of this paper is structured as fol-

lows: Section 2 presents related work in the ﬁeld of

automated Web tracker detection, Section 3 discusses

the concept of t.ex-Graph, Section 4 explains the data

collection and generation processes and performs data

analysis to motivate the design of our classiﬁer, Sec-

tion 5 presents and discusses the results. Finally, we

conclude our work in Section 6.

2 RELATED WORK

This section presents related work in the ﬁeld of Web

tracking detection with machine learning. As stated

before, the body of literature is massive, and a com-

Available on GitHub: see https://github.com/

t-ex-tools/t.ex-graph-converter and https://github.com/

t-ex-tools/t.ex-graph-classiﬁer.

Raschke, P., Herbke, P. and Schwerdtner, H.

t.ex-Graph: Automated Web Tracker Detection Using Centrality Metrics and Data Flow Characteristics.

DOI: 10.5220/0011787300003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 199-209

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

199

plete review is beyond the scope of this paper. We

present machine-learning-based Web tracker detec-

tion approaches for (i) stateful and (ii) stateless Web

tracking. For stateless Web tracking, the state of the

client’s machine is altered, for example, with cook-

ies. Stateless Web tracking techniques like browser

or device ﬁngerprinting compute identiﬁers based on

data with high entropy that the client sends along with

every request.

Machine-learning-based approaches to detect un-

wanted resource loading were already proposed in

1999. Kushmerick presents a supervised classiﬁer

to detect online advertisements (Kushmerick, 1999).

In 2005, Esfandiari and Nock presented a similar ap-

proach to automatically detect online advertisements

as well (Esfandiari and Nock, 2005). The detection

of advertisements and Web trackers are closely re-

lated. It is observable that the focus of researchers

shifted from online advertisements to Web trackers in

the last decade, while data collection and labeling ap-

proaches remained the same. We classify machine-

learning-based research into two categories: classi-

ﬁers for (i) stateful Web tracking for which network

trafﬁc is collected and (ii) stateless Web tracking for

which JavaScript API access events and JavaScript

code are collected.

2.1 Stateful Web Tracking: Network

Trafﬁc, HTTP/S, URLs

In 2010, Yamada et al. (Yamada et al., 2010) pre-

sented a classiﬁer fed with network trafﬁc data from a

corporate network and data generated by crawling the

Alexa.com top 100 websites. They further extract the

estimated “visiting time” of a user at a speciﬁc web-

site, assuming that users spend less time at websites of

Web trackers. Yamada et al. label their feature vec-

tors as Web trackers by using a composition of four

publicly available blocklists. Only one of these four

blocklists (a host ﬁle for Windows) is available and

actively maintained today. Their supervised classiﬁer

achieves a fair accuracy of 62% to 73%.

Gugelmann et al. (Gugelmann et al., 2015)

present a supervised classiﬁer in 2015, fed with la-

beled HTTP/S trafﬁc data captured and “recorded at

the upstream router of a university campus” gener-

ated by 15K clients in one month. The authors only

include services that communicated with at least ﬁve

clients to address severe implied privacy-related con-

cerns. IP addresses were anonymized for their anal-

ysis. It remains unanswered whether users gave con-

sent to the recording or if an opt-out mechanism was

offered. Besides the privacy-related issues, the au-

thors’ data set has further limitations, as HTTP/S traf-

ﬁc could not be considered. For their feature vec-

tor, Gugelmann et al. compute the number and size

of HTTP/S requests, the average number of requests

to services, requests per client, and so-called “com-

pound features” (like the number of third-party re-

quests or amount of requests containing a cookie)

(Gugelmann et al., 2015). For the labeling, they used

EasyList and a manual labeling process. Their super-

vised machine learning algorithm achieved a preci-

sion of 80%.

Another publication in 2015 was published by Li

et al. (Li et al., 2015). They feed a supervised classi-

ﬁer with data collected by crawling the Alexa.com top

10K global websites. They explicitly state that their

crawler only visited the homepages of the selected

websites. They solely considered the cookie informa-

tion transmitted in the HTTP/S request and response

headers. To train their classiﬁer, Li et al. extract the

minimum lifetime of a cookie, the number of third-

party cookies in a set of cookies, and “augmented

lifetime”, which considers the length of cookie val-

ues (Li et al., 2015). They manually label third-party

hosts in their training and test data set, each consist-

ing of 500 requests. For this, they look up the website

of the third party, use “[...] [block] lists speciﬁcally

created for third-party tracker” (Li et al., 2015), and

review the cookie properties. With this approach, they

achieve remarkable 99.4% precision and 100% recall.

In the same year, Metwalley et al. (Metwalley

et al., 2015a) used a “custom” browser extension and

Selenium to crawl the Alexa.com top 200 websites

multiple times to generate training data for their auto-

mated Web tracker detection algorithm. Their unsu-

pervised machine learning approach aims to identify

user identiﬁers among key-value pairs transmitted in

the query string of an HTTP/S GET request. The au-

thors state that their approach can be easily adapted

to detect user identiﬁers embedded in HTTP/S POST

requests or cookies. As ground truth, the authors use

a compiled list of 443 different Web trackers from one

of their previous studies (Metwalley et al., 2015b).

Their algorithm detected 106 Web trackers present in

their data set, of which 34 were not included in their

list but were identiﬁed as Web trackers after a manual

review.

Dudykevych et al. crawled the Alexa.com top 250

websites with a Firefox extension to log the HTTP/S

trafﬁc. They manually created accounts when neces-

sary and signed in so that they could consider Web

trafﬁc occurring behind login forms. Their crawler

then opened all links on a website and repeated this

action three times on each opened link. They used

website categories from Ghostery and IBM X-Force

Exchange to label their data. Their supervised classi-

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

200

ﬁer uses statistical characteristics of third-party cook-

ies as features and achieves an accuracy of 95%.

Yu et al. are researchers from the developers of the

Cliqz browser, a privacy-focused browser. They ana-

lyzed Web trafﬁc generated by 200K users for seven

days. A similar approach to the one of Metwalley et

al. (Metwalley et al., 2015a) is used for their Web

tracker detection algorithm. They investigate query

parameters of third-party HTTP/S requests for cookie

and browser information. HTTP/S requests that dis-

close information to third parties are marked “unsafe”

and will not be executed. Yu et al. introduce two met-

rics to evaluate their approach: protection coverage

and site breakage. The authors claim a higher pro-

tection coverage than Disconnect, (Disconnect Inc.,

2021), which is publicly available. The reload rate

of websites is used to quantify the site breakage, i.e.,

dysfunctions of websites caused by interfering with

the intended execution of their algorithm. For this,

the authors assume that a broken website is reloaded

more often than a functional one.

2.2 Stateless Web Tracking: JavaScript

API Access Events and Code

In 2013, Bau et al. (Bau et al., 2013) developed a

supervised machine learning algorithm crawling the

Quantcast (an online marketing company) top 32K

websites of the United States with FourthParty, which

is an auditing tool developed by Mayer et al. (Mayer

and Mitchell, 2012) in 2012. The domain list is not

publicly available. Their crawler followed ﬁve links

on each website to emulate a browsing experience.

The paper misses a formal deﬁnition of their feature

vector, but a graph reﬂects connections between web-

sites based on referenced JavaScript ﬁles. For the la-

beling, the authors used “a popular block list”, adding

the note that this list was “manually edited” (Bau

et al., 2013). Their algorithm achieves an unweighted

precision of 43% to 54%. They found that the major-

ity of trackers only appeared six times or fewer. This

is in line with the “long but thin tail of Web track-

ers” found by Englehardt and Narayanan (Englehardt

and Narayanan, 2016). The authors use this circum-

stance to motivate a weighting function leading to a

weighted precision of 96.7% to 98%.

In 2016, Kaizer et al. (Kaizer and Gupta, 2016)

developed a supervised machine learning algorithm

that classiﬁes URLs as tracker or non-tracker based on

JavaScript property access (the navigator and screen

interface). Using a Firefox add-on, they crawled

several children-targeted websites taken from three

different sources: the former open directory project

dmoz (Schild, 2021) (now curlie.org), “[a] combina-

tion of the websites from the top children focused

mobile applications on the Google Play store and the

Apple iTunes store” (Kaizer and Gupta, 2016), and a

random selection of 500 out of the Alexa.com top 5K

websites. The domain list had not been made avail-

able. As ground truth, the authors used a combina-

tion of community-curated blocklists: EasyList and

EasyPrivacy, “MalwareByte’s ATS ad/tracking server

lists”, which are not available anymore, and “YoYo

Ad-network list”, which is still available online. Their

machine learning algorithm classiﬁes 97.7% of Web

trackers accurately.

The classiﬁer of Wu et al. (Wu et al., 2016), which

they presented in the same year, investigates the im-

pact of JavaScript, which is suspected of tracking the

user, on the implied third-party HTTP/S communi-

cation. Their classiﬁer considers a 505-dimensional

vector for each JavaScript ﬁle, which holds counts of

JavaScript API calls the script initiated. Labeling of

tracking JavaScript code was realized with EasyList,

EasyPrivacy, and Ghostery (Ghostery GmbH, 2021).

Their crawler repeatedly visits the website with spe-

ciﬁc JavaScript ﬁles disabled to extract and block

HTTP/S requests triggered by trackers. The authors

assume that the then missing requests can be safely

blocked. Wu et al. crawled the Alexa.com top 10K

websites using a browser with a modiﬁed WebKit to

log JavaScript API calls. This approach achieved ac-

curacy greater than 95% for various classifying algo-

rithms they tested.

In 2017, Ikram et al. (Ikram et al., 2017) stud-

ied the similarity of JavaScript code that implements

Web tracking techniques. They crawled 95 web-

sites of the Alexa.com top 50 and a selection of 45

random websites within the range of the top 5K to

45K. Ikram et al. used Selenium to extract all em-

bedded and referenced JavaScript code from a web-

site’s DOM tree. They collected 2,612 JavaScript pro-

grams, which they manually labeled according to a

self-deﬁned process consisting of 12 rules. As they

were only interested in the JavaScript code, focus-

ing on static references is reasonable, yet additional

JavaScript could be loaded dynamically. Their clas-

siﬁer determines the similarity between script ﬁles

based on natural language processing models. They

can classify 99% of JavaScript code accurately as

tracking code.

In 2019, Iqbal et al. (Iqbal et al., 2019) de-

veloped a graph-based machine learning approach,

which they call AdGraph. Their algorithm aims to

detect advertisements and Web tracking. They crawl

the Alexa.com top 10K websites to generate a train-

ing and test data set. They modify Chromium to

log DOM-changing events and the JavaScript ﬁle that

t.ex-Graph: Automated Web Tracker Detection Using Centrality Metrics and Data Flow Characteristics

201

caused them. Due to the graph representation, a set

of structural features (like graph size, degree, num-

ber of siblings) is considered besides multiple char-

acteristics addressing the contents of a request (like

request type, length of the URL, or ad keywords in re-

quest). As ground truth, Iqbal et al. use a combination

of eight different lists: EasyList, EasyPrivacy, Anti-

Adblock Killer, Warning Removal List, Blockzilla (not

available anymore), Fanboy Annoyances List, Peter

Lowe’s List (called YoYo Ad-network list in (Kaizer

and Gupta, 2016)), and Squid Blacklist (not available

anymore). Their machine learning algorithm achieves

an accuracy of 95.33%. Iqbal et al. also measured the

site breakage of their approach for which manual in-

spection was used.

In 2021, Rizzo et al. (Rizzo et al., 2021) de-

veloped a classiﬁer to detect JavaScript code that

generates ﬁngerprints. To generate training and test

data sets, they acquired users who had to install the

software (Ermes Proxy (Department of Electronics

and Telecommunications and Politecnico di Torino,

2021)) that intercepted and recorded HTTP/S traf-

ﬁc for one month. Impressively, 982 users volun-

teered for this study. The authors state that data pri-

vacy regulations and means of data protection were

considered and applied. The authors claim that ac-

tual user data offers them access to JavaScript code,

which they would not be able to crawl when using

crawled-based data. Rizzo et al. also use OpenWPM

to crawl the Alexa.com top 1 million websites to log

JavaScript API calls. The retrieved JavaScript ﬁles

are transformed into Abstract Syntax Trees (ASTs) to

detect ﬁngerprinting patterns in the code (similar to

(Iqbal et al., 2021)). The authors also used simple

string matching to support this process. The counts

of detected patterns in a ﬁle are used as a feature

vector for the classiﬁcation. As ground truth, the

authors follow a manual inspection process but in-

clude blocklists (Disconnect, EasyList, and EasyPri-

vacy). The authors miss 40% of code ﬁles in a sub-

sequent process step to load it from the server due to

the content not being available anymore. Despite this

data loss, their classiﬁer accurately identiﬁes 94% of

ﬁngerprint-generating JavaScript code.

3 CONCEPT: T.EX-GRAPH

This section discusses the concept of t.ex-Graph. We,

therefore, explain how a directed graph can be derived

from a series of HTTP/S requests, how data ﬂows

can be modeled, and which features our model uses.

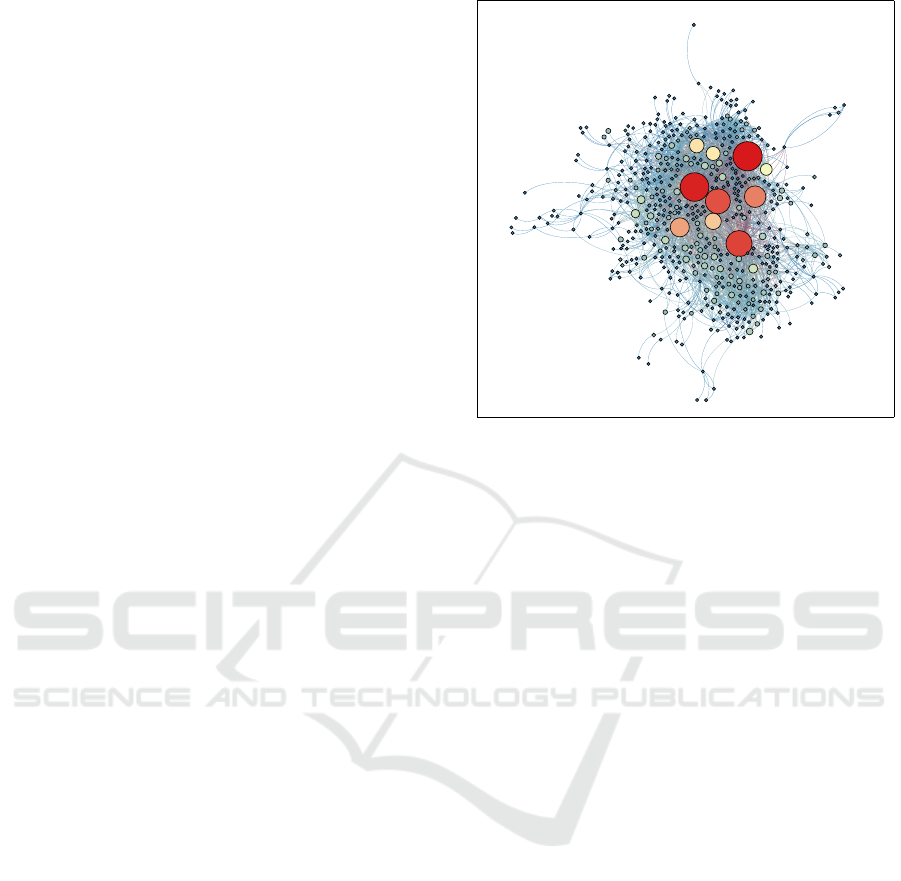

See Figure 1 for a visualization of a subgraph we ex-

tracted.

cloudflar...

evidon.com

bing.com

clarity.ms

googletag...

cookielaw...

scorecard...

facebook....

associate...

amazon-ad...

moatads.com

segment.com

facebook....

qualaroo....

doublecli...

googlesyn...

demdex.net

fonts.goo...

quantcast...

aticdn.net

quantserv...

consensu....

website-f...

youtube.com

google-an...

mathtag.com

google.com

rubiconpr...

smartadse...

unrulymed...

aniview.com

1rx.io

hotjar.com

partnerst...

adnxs.com

gstatic.com

googleopt...

storage.g...

sentry.io

cloudflar...

driftt.com

pinimg.com

fbcdn.net

quantcoun...

segment.io

sc-static...

ads-twitt...

chartbeat...

xiti.com

cookieles...

yandex.com

siteimpro...

tiktok.com

d3e54v103...

bidr.io

licdn.com

pubmatic....

dotomi.com

casalemed...

emxdgt.com

teads.tv

kargo.com

omtrdc.net

imrworldw...

media-ama...

amazon.com

onetrust....

pinterest...

narrativ....

google.de

typekit.net

jsdelivr....

yahoo.com

criteo.com

bugsnag.com

linkedin....

unpkg.com

googletag...

grsm.io

lijit.com

3lift.com

zoominfo....

optimizel...

chartbeat...

criteo.net

adscale.de

smartclip...

siteimpro...

ytimg.com

socdm.com

im-apps.net

4dex.io

googleads...

gumgum.com

taboola.com

360yield....

impact-ad...

ampprojec...

yahoo.co.jp

treasured...

adsrvr.org

bidswitch...

tremorhub...

go.com

vidoomy.com

newrelic....

hotjar.io

yimg.jp

rkdms.com

bkrtx.com

nr-data.net

tribalfus...

espn.com

rfihub.com

openx.net

stickyads...

adform.net

aaxads.com

snapchat....

ipredicti...

steelhous...

akstat.io

quora.com

pingdom.net

amplitude...

2mdn.net

microsoft...

springser...

polyfill.io

azureedge...

fontaweso...

fullstory...

marketo.net

addthised...

acsbapp.com

adlightni...

adobedtm....

simpli.fi

bluekai.com

doublever...

imasdk.go...

outbrain....

addthis.com

cookiepro...

adgrx.com

tiqcdn.com

mktoresp....

bizible.com

maps.goog...

go-mpulse...

indexww.com

rlcdn.com

ajax.goog...

yastatic....

yandex.ru

liadm.com

brightcov...

crisp.chat

jquery.com

dynatrace...

bizibly.com

tapfiliat...

demandbas...

trustpilo...

livechati...

forter.com

twimg.com

serving-s...

creativec...

mail.ru

focas.jp

akamaihd....

zencdn.net

yieldlab....

firebasei...

omnitagjs...

id5-sync....

speedcurv...

boltdns.net

onetrust.io

twiago.com

yieldmo.com

media.net

mediavine...

sharethro...

krxd.net

cookiebot...

digitalgo...

thebright...

skimresou...

alexametr...

px-cloud....

a2z.com

spotxchan...

adentifi....

ensighten...

company-t...

intentiq....

exelator....

crwdcntrl...

weborama.fr

vidyard.com

appdynami...

medallia....

twitter.com

stripe.com

deepinten...

salesloft...

6sc.co

terminus....

recaptcha...

kampyle.com

g2crowd.com

clickagy....

dynamicyi...

crazyegg....

force.com

mookie1.com

trustarc....

stackadap...

edgecompu...

compute-p...

cedexis-t...

akamaized...

ptcfc.com

tynt.com

rollbar.com

ssl-image...

freshchat...

turn.com

moengage....

ctfassets...

hsforms.net

microad.jp

r.appspot...

mutinycdn...

qualtrics...

quantumme...

getsiteco...

imgix.net

iubenda.com

yektanet....

mutinyhq.io

mountain....

redditsta...

reddit.com

dotmetric...

jivosite....

evgnet.com

hsforms.com

jivox.com

marketo.com

salesforc...

jwplatfor...

matomo.cl...

hs-analyt...

vimeo.com

techtarge...

vimeocdn....

yimg.com

d41.co

pdst.fm

profitwel...

hs-script...

paypal.com

visualweb...

pixel.ad

us-centra...

clearbits...

playwire....

hubspot.net

chaturbat...

gravatar....

wp.com

sitescout...

riskified...

ml314.com

vk.com

hubspot.com

tapad.com

betweendi...

aspnetcdn...

datadoghq...

hs-banner...

zeustechn...

zemanta.com

clearbitj...

netdna-ss...

permutive...

jwpcdn.com

hcaptcha....

exosrv.com

buysellad...

tealiumiq...

clearbit....

klaviyo.com

clean.gg

wistia.com

jwpltx.com

onetag-sy...

hsleadflo...

alicdn.com

wordpress...

hubspotus...

execute-a...

cloudinar...

servenobi...

amazonaws...

adsafepro...

linksyner...

usemessag...

clickceas...

msecnd.net

paypalobj...

hubapi.com

perfdrive...

onesignal...

ubembed.com

bttrack.com

d1eoo1tco...

mouseflow...

adingo.jp

hscollect...

line.me

airpr.com

yandex.net

sonobi.com

zdassets....

omappapi....

w55c.net

technorat...

jwplayer....

auth0.com

shopify.com

adition.com

zendesk.com

jwpsrv.com

adhigh.net

mgid.com

adroll.com

truste.com

tns-count...

visualstu...

adtellige...

ad-stir.com

smilewant...

decibelin...

bazaarvoi...

ml-api.io

mixpanel....

connectad...

sascdn.com

retargetl...

ispot.tv

googleuse...

imgur.com

privacyma...

gemius.pl

adriver.ru

heapanaly...

eyeota.net

coveo.com

datadoghq...

tinypass....

adxcel-ec...

agkn.com

trackjs.com

rutarget.ru

tvsquared...

trkn.us

flashtalk...

squarespa...

sentry-cd...

civiccomp...

postrelea...

intercomc...

contentsq...

btttag.com

squarespa...

mediaiqdi...

adnxs-sim...

33across....

connatix....

piano.io

hsadspixe...

intercom.io

top100.ru

rambler.ru

soundclou...

sumo.com

litix.io

cxense.com

yadro.ru

bootstrap...

mmstat.com

braze.com

sp-prod.net

fonts.net

tvpixel.com

sojern.com

liveperso...

lpsnmedia...

dable.io

useinside...

browser-i...

xg4ken.com

adthrive....

qualified...

osano.com

cdn-apple...

prismic.io

analytics...

intercoma...

perfectma...

swiftypec...

swiftype....

audioeye....

mxpnl.com

ada.support

ipify.org

brandmetr...

wistia.net

b0e8.com

createjs....

digitaloc...

privacy-m...

disqus.com

6sense.com

geoedge.be

owneriq.net

adfox.ru

tagcomman...

seznam.cz

en25.com

adtdp.com

ladsp.com

sift.com

nielsen.com

statcount...

e-plannin...

dmcdn.net

shopifysv...

rakuten.com

azure.com

branch.io

ezodn.com

bc0a.com

d10lpsik1...

luckyoran...

datadome.co

undertone...

resonate....

hybrid.ai

hexagon-a...

otm-r.com

taobao.com

ezoic.com

salesforc...

t.co

wpengine....

aliapp.org

contentfu...

pardot.com

revconten...

pmc.com

d33wubrfk...

siftscien...

pushnami....

helpscout...

d3hb14vkz...

exoclick....

everestjs...

rfihub.net

instagram...

contextwe...

everestte...

usa.gov

cdninstag...

appsflyer...

onelink.me

chtbl.com

vercel-in...

jads.co

usabilla....

d6tizftlr...

1e100cdn....

edgekey.net

webconten...

youtube-n...

sharethis...

proper.io

espncdn.com

townnews....

clarium.io

pix-cdn.org

xlivrdr.com

ktkjmp.com

strpst.com

serverbid...

mparticle...

lfeeder.com

mailchimp...

advertisi...

najva.com

moatpixel...

carbonads...

userway.org

carbonads...

dna8twue3...

alibaba.com

launchdar...

eloqua.com

ipinfo.io

videoamp....

relap.io

digitalta...

richaudie...

trustcomm...

pendo.io

kinja-img...

navdmp.com

buzzoola....

theplatfo...

piwik.pro

apple.com

Figure 1: Visualized subgraph of t.ex-Graph using the SLD

data set. Nodes with high centrality tend to carry out Web

tracking activities.

3.1 Relationships Between Hosts

An HTTP/S request is always addressed to a speciﬁc

target host. Users do not initiate most requests, e.g.,

when they enter a URL into the address bar. They

are triggered by the browser, which assembles the re-

quested website (in the following ﬁrst party) by fetch-

ing multiple resources, often from entirely different

hosts (in the following third party or third parties).

For these browser-initiated HTTP/S requests, we

can model the ﬁrst party as source of a request. To-

gether with the target address, we derive a directed

graph G := (V,E) with hosts as vertices and requests

as edges. Assuming a website a.com, which embeds

an image of website b.com, then a.com, b.com ∈ V

and ((source, a.com),(target, b.com)) ∈ E.

Hosts are addressed by fully qualiﬁed domain

names (FQDN), including a host’s second-level do-

main (SLD). All reachable subdomains (or FQDNs)

share one SLD. The structure of the graph G and

its properties vary, depending on how we model

hosts, either as FQDNs or SLDs; thus, we derive

two variants of the graph: G

FQDN

:= (V

FQDN

)

and G

SLD

:= (V

SLD

). Consider a website

c.com, which embeds an image from image.d.com,

then ((source, c.com), (target, image.d.com)) ∈

FQDN

, but ((source, c.com),(target, d.com)) /∈

FQDN

. However, for G

SLD

((source, c.com),(target,

d.com)) ∈ E

FQDN

applies. More abstractly, G

SLD

an aggregation of G

FQDN

We only consider edges where source ̸= target;

consequently, nodes do not have self-loops, and nodes

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

202

a.com

b.com

d.com

c.com

b.com

a.com d.com

c.com

(4, 1, 7)

(0, 0, 0)

(2.5, 0, 4)

(5, 1, 7)

(3, 0, 4)

(2, 0, 3)

(3, 1, 4)

Figure 2: Concept of t.ex-Graph: depicting the computation

of node attributes and the accumulation of edge attributes at

the node level.

with no edge to another target are neglected (i.e.,

/∈ V ). Generally speaking, we deem ﬁrst-party re-

quests benign and only third-party requests as po-

tential tracking requests. The motivation for this is

that Web trackers like advertising networks or analyt-

ics providers have websites themselves, which a user

might intend to visit. First-party communication in

this context is benign. However, in a different con-

text (i.e., while visiting a different website) might not.

The edge attributes of self-loops would add noise to

the node attributes, which could affect the results of

our classiﬁer. Nodes with no connection to another

node but themselves can be considered harmless be-

cause the website visit causes no data ﬂow to third

parties. However, the website might still be malicious

beyond Web tracking capabilities (e.g., malware or

crypto mining scripts).

3.2 Modeling Data Flows

The goal of our graph is to represent the data ﬂows be-

tween hosts. Hence, we compute attributes of edges,

which, in the second step, are accumulated at the

graph nodes. We extend our vertices v ∈ V and edges

e ∈ E by a tuple attrs. The attributes at the edge

level are derived from the HTTP/S requests and can

be counts, sums (e.g., of URL lengths), or maxima of

features of a request. The edge attributes are aggre-

gated at the node level. We, therefore, accumulate for

each node the attributes of all incoming edges. For

this, we either derive the sum, a maxima, or a boolean

value encoded in 0 (for false) or 1 (for true). The

sum of features can be further divided by the number

of requests or in-neighbors.

See Figure 2 for an example: the graph has

four nodes (a.com, b.com, c.com, and d.com)

and four edges. We deﬁne e

a→b

as the edge

((source,a.com),(target,b.com),(attrs, (2,0,3))) ∈

E and the remaining edges analogously. The ﬁrst en-

try of the tuple attrs is a count, the second a boolean

value, and the third a sum. The node attributes for

a.com and c.com are (0,0, 0) since these nodes

have no incoming edges. The ﬁrst entry of the node

attributes is the average of all ﬁrst entries of edge

attributes, the second uses the OR operator, and the

third is choosing the maximum, analogously. Thus,

the node attributes of b.com and d.com are (4,1,7)

and (2.5,1,4), respectively.

3.3 Edge and Node Attributes

Generally, in an HTTP/S request, there are ﬁve ele-

ments of an HTTP message in which arbitrary data

can be transmitted: (i) the HTTP body as most obvi-

ous, (ii) the URL itself (as part of a dynamic path),

(iii) the query parameters (or search string), and (iv)

the request headers including (v) the cookie ﬁelds.

We further consider the HTTP/S response since it can

hold valuable information about the target host. Al-

though technically, this constitutes a data ﬂow from

target to source, we see the response as a determin-

istic part of a request. See below a detailed list of

attributes we compute for each node:

count - The total number of HTTP/S requests a host

retrieves from all its in-neighbors.

tracking - The total number of tracking requests a

host retrieves divided by count.

requestType - The interface webRequest of

the WebExtensions standard classiﬁes each

HTTP/S request into one of the following

categories: xmlhttprequest, image, font,

script, stylesheet, ping, sub_frame, other,

main_frame, csp_report, object, media

(Chrome Developers, 2022). For each request

type, we compute the total number of requests

with that speciﬁc type and divide it by count.

Consequently, we compute for each type a

different node attribute.

requestMethod - For each HTTP/S method, we

compute the total number of requests (issued with

the respective request method) and divide it by

count. HTTP/S request methods are: GET, HEAD,

POST, PUT, DELETE, CONNECT, OPTIONS, TRACE,

and PATH (MDN Web Docs, 2022a). Analogously

t.ex-Graph: Automated Web Tracker Detection Using Centrality Metrics and Data Flow Characteristics

203

to requestType, we compute a distinct node at-

tribute for each type.

ﬁrstPartyDisclosed - We count the number of

HTTP/S requests in which the ﬁrst party is dis-

closed to the third party via the Referer or

Origin header. This number is divided by count

to compute the ratio of requests in which the target

knows the source to the total number of requests.

cookiesSet - We count the number of cookies set by

a node and divide this number by the indegree of

the node.

thirdPartyCookie - We count the number of third-

party cookies (i.e., source ̸= target) set by a node.

This count is divided by the corresponding node’s

total number of cookies. To be more precise,

we compute the ratio of third-party cookies to all

cookies set by a node.

avgUrlLength - The average URL length of all in-

coming requests. For this, we sum up the lengths

of all URLs targeted to a speciﬁc host (node) and

divide it by count.

avgReqPerNeighbor - The average number of in-

coming HTTP/S requests per in-neighbor. For

this, a node’s count is divided by its indegree.

avgQpPer - The number of query parameters of all

incoming HTTP/S requests are summed up and

dived by count and the indegree.

avgRhPer{Req | Neighbor} - The average number

of request headers per HTTP/S request. We sum

up the number of header ﬁelds transmitted to the

target and divide it by count and the indegree.

avgRespHPer{Req | Neighbor} - The average num-

ber of response headers per HTTP/S request

analogously computed to avgRhPerRq & avgRh-

PerNeighbor.

avgCookieFieldsPer{Req | Neighbor} - The av-

erage number of cookie ﬁelds per HTTP/S

requests analogously computed to avgRhPerRq &

avgRhPerNeighbor.

maxSubdomainDepth - The maximum subdomain

depth of a node. For G

FQDN

, this depth equals

the subdomain depth of the node itself, while for

SLD

, the deepest subdomain is computed from

all incoming requests. For example, consider

a.b.c.d.com whose subdomain depth is 3. In

FQDN

a.b.c.d.com ∈ V

FQDN

and /∈ V

SLD

ap-

plies, however, in G

SLD

the subdomain depth of

d.com ∈ V

SLD

is 3.

avgSubdomainLength - The average subdomain

length per HTTP/S request or, more precisely, the

ratio of subdomain lengths to count.

avgPathLength - The average path length of an

HTTP/S request. The pathname of a URL is the

URL without the FQDN, and the search string

(MDN Web Docs, 2022b).

3.4 Centrality Metrics

We extend the node attributes by common graph cen-

trality metrics, which we compute for each node. See

below a list of the attributes:

in-, out-, degree - For each node the in-, out-, and

degree centrality is computed.

eccentricity - The eccentricity of a node ε(v) is

deﬁned by the greatest distance of a node

to any other node. More precise, ε(v) :=

max d(v,u), ∀u ∈ V , where d(v,u) is the distance

between two nodes.

closnessCentrality - For each node v there is a short-

est path between v and all other nodes in the net-

work. The average of shortest path lengths be-

tween node v and ∀u ∈ V is called the closeness

centrality of node v.

harmonicClosnessCentrality - The harmonic

closeness centrality is a closeness centrality

variant, which performs better on disconnected

graphs. Usually, both metrics strongly correlate.

However, our t.ex-Graph contain subgraphs,

which are not connected; thus, both metrics are

considered.

betweenessCentrality - The betweeness centrality

identiﬁes nodes, which connect two clusters. It

is determined for each node v by generating the

shortest paths between all node pairs (s,t) ∈ V

and counting how often a node v is included in the

shortest path. This count is divided by the total

number of shortest paths between s and t.

eigenCentrality - The eigenvector centrality aims to

rank nodes in the graph according to their impor-

tance. For this, the importances of the neighbors

are also considered.

hubs & authorities - The metrics hub and authory

had been proposed by Kleinberg (Kleinberg,

1999) in 1999 to, back then, rank websites. It is

reasonable to apply this metric, designed for the

Web, to our graph.

pageRanks - Similar to Kleinberg’s intention, Page

et al. (Page et al., 1999) implemented the famous

PageRank algorithm in 1999 to rank websites ac-

cording to their relevance. As an additional cen-

trality metric speciﬁcally designed for the Web,

we expect it to be well-suited for our goal.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

204

HTTP/S

Traffic

t.ex-Graph

Centrality

Metrics

Nodes (rows)

Features (cols)

Machine

Learning

i ii iii iv v

Figure 3: Overview of the processing pipeline depicting the

transformation from HTTP/S trafﬁc to a graph, whose nodes

feed a machine learning classiﬁer.

componentNumber & strongCompNum - Each

node is assigned an ID of the graph component it

is part of. Furthermore, each strongly connected

component of the graph is identiﬁed, and an ID

is assigned to its member nodes. A component

of a graph is an isolated subgraph, which has

no connections to other subgraphs. A strongly

connected component is a subgraph in which all

member nodes are directly connected. However,

this subgraph might have connections to other

strongly connected components.

modularityClass - By computing the modularity of

the graph, we identify communities (or clusters)

within the graph. Each is deﬁned by a class: the

modularity class, which is assigned to all its mem-

ber nodes.

statInfClass - Another approach to detect communi-

ties in a graph is through statistical inference. We

deﬁne statistical inference classes, which we as-

sign to the corresponding nodes, analogously to

the modulartiy class.

clustering - We compute the clustering coefﬁcient

for each node v, which is deﬁned by the ratio of

the actual number of edges between all neighbors

of v to the total number of possible edges between

all neighbors of v.

4 DATASET & ANALYSIS

In this section, we discuss the data collection and la-

beling process, present the pipeline to replicate and

reproduce our data generation process, and ﬁnally

provide an analysis of our two datasets to motivate

the design of our classiﬁer.

4.1 Dataset

To generate our graph, we use a dataset containing

many HTTP/S requests and responses, which is pub-

licly available (Raschke, 2022b). See Figure 3 for

an overview of the different processing steps. We

generated this dataset in a previous study (Raschke

and Cory, 2022) using our Web privacy measurement

framework called T.EX (Raschke, 2022a) to crawl the

Tranco (Le Pochat et al., 2019) top 10K websites with

three different browsers (Chrome, Firefox, Brave) si-

multaneously. The ﬁrst version of T.EX visualized the

collected HTTP/S requests in a graph (Raschke et al.,

2019), while in its most recent version (v3.2.0), the

data visualization capabilities are absent. We extend

our initial approach, hence, the name t.ex-Graph.

The dataset contains six separate crawls for each

of the three browsers (except Firefox, which only

has four). To generate our dataset, we only use one

crawl conducted with Chrome (Chrome-run-1). In

this crawl, 891,276 HTTP/S requests and responses

(i) were recorded (including erroneous requests). We

use the latest version of T.EX to export the dataset into

JSON ﬁles. During this export process, the requests

are labeled by T.EX using EasyList and EasyPrivacy.

From this exported data, we generate our two t.ex-

Graph variants G

FQDN

and G

SLD

with a Node.js ap-

plication (ii) we developed for this purpose. This ap-

plication encodes our graph in a format that can be

processed by Gephi (a graph visualization and anal-

ysis tool). We extract 25,273 and 13,737 nodes for

FQDN

and G

SLD

respectively. We use Gephi (iii) to

compute the centrality metrics. Finally, we export two

CSV (iv) ﬁles (for each variant) with nodes as rows

and features as columns.

4.2 Data Analysis

We use the two variants of t.ex-Graph: the one

in which nodes represent FQDNs, and the one, in

which nodes represent SLDs. We derive a label

binary_tracker from the column tracking, represent-

ing the ratio of incoming tracking requests to the to-

tal number of incoming requests (in the following:

tracking_ratio). We label a node as tracker (1) if

the ratio is greater than threshold t. The label non −

tracker (0) is assigned to nodes with tracking_ratio ≤

t. We choose t = 0.5 to label a node as a tracker if it

receives more tracking than non-tracking requests.

4.3 Imbalanced Tracker Distribution

We investigate the distribution of tracker and non −

tracker. As shown in Figure 4, most nodes are la-

beled as non−tracker, i.e., these nodes do not retrieve

more tracking than non-tracking requests. The distri-

bution varies between the two variants of t.ex-Graph.

For the FQDN dataset, we observe roughly a 70% to

30% split, while for the SLD dataset, we see an 80%

to 20% split into non-tracker and tracker, respectively.

Possible explanations for the decreased share of track-

ers in the SLD dataset are that (i) trackers use more

subdomains than non-trackers and that (ii) the aggre-

t.ex-Graph: Automated Web Tracker Detection Using Centrality Metrics and Data Flow Characteristics

205

Table 1: Distributions of the tracking_ratio in the two datasets. The table shows that nodes either retrieve only or no

tracking requests at all. This circumstance supports the design of a binary classiﬁcation task.

tracking_ratio = 0 1 > tracking_ratio > 0 tracking_ratio = 1 binary_tracker = 0 binary_tracker = 1

t.ex-Graph (FQDN) 65.00 3.33 31.67 67.63 32.37

t.ex-Graph (SLD) 76.52 7.45 16.04 82.13 17.87

gation at SLD-level (i.e., the overall tracking_ratio of

all fully qualiﬁed domain names) fosters lower track-

ing ratios.

An example for (i) is online-metrix.net,

which appears in the FQDN dataset multiple

times with fully qualiﬁed domain names like

o7f[...]295am1.e.aa.online-metrix.net. This

tracker uses random but unique subdomains for each

website that connects to online-metrix.net. We

found that this URL belongs to a service called

ThreatMetrix offered by the company LexisNexis,

which promises "fraud prevention solutions" (Lexis-

Nexis, 2022). However, it is listed by EasyPrivacy

(easylist, 2022) and thus interpreted as a tracker by

us.

An example for (ii) is azure.com, whose subdo-

main applicationinsights. is listed by EasyPri-

vacy (easylist, 2022). However, the SLD dataset

azure.com has a tracking_ratio of 0.37. This cir-

cumstance highlights the weakness of Web tracker de-

tection at the SLD level: Generally speaking, tracking

activity can be justiﬁed by providing enough benign

functionality.

4.4 Bimodal Distribution

For both datasets, we observe a strongly bimodal dis-

tribution, i.e., nodes either retrieve no or only tracking

requests. The table below shows that for the FQDN

dataset, the share of nodes with 1 > tracking_ratio >

0 is 3.33%, and for the SLD dataset, 7.45%. The

structure of EasyList and EasyPrivacy can explain this

circumstance: both lists heavily rely on ﬁlter rules

based on the domain name (eyeo GmbH, 2022; Sny-

Figure 4: Distribution of binary_tracker (0 = blue and 1

= orange), which is derived from the tracking_ratio of a

node.

Table 2: Classiﬁcation results of the selected machine learn-

ing models for the FQDN dataset.

t.ex-Graph (FQDN) accuracy precision recall f1_score

XGBClassiﬁer 0.883 0.867 0.867 0.867

RandomForestClassiﬁer 0.881 0.862 0.871 0.866

GradientBoostingClassiﬁer 0.858 0.836 0.856 0.844

SVC 0.840 0.819 0.852 0.828

AdaBoostClassiﬁer 0.840 0.816 0.836 0.824

DecisionTreeClassiﬁer 0.834 0.810 0.819 0.814

KNeighborsClassiﬁer 0.833 0.809 0.820 0.814

LogisticRegression 0.809 0.789 0.822 0.796

Table 3: Classiﬁcation results of the selected machine learn-

ing models for the SLD dataset.

t.ex-Graph (SLD) accuracy precision recall f1_score

XGBClassiﬁer 0.880 0.790 0.810 0.799

RandomForestClassiﬁer 0.875 0.781 0.826 0.800

GradientBoostingClassiﬁer 0.861 0.763 0.827 0.787

AdaBoostClassiﬁer 0.856 0.754 0.805 0.774

DecisionTreeClassiﬁer 0.851 0.745 0.782 0.761

KNeighborsClassiﬁer 0.831 0.730 0.813 0.755

LogisticRegression 0.820 0.731 0.842 0.756

SVC 0.819 0.719 0.806 0.744

der et al., 2020). We also observe evidence for (ii)

of the previous section: the majority of the 7.45%

of nodes (in the SLD dataset) has a tracking_ratio

greater than 0 but lower or equal to t, thus, is la-

beled with 0, while only 1.83% of these nodes have

a tracking_ratio greater than t and are labeled with 1

consequently.

Based on this bimodal distribution, it is reason-

able to model Web tracking detection as a binary clas-

siﬁcation task. Only for a small fraction of nodes

1 > tracking_ratio > 0 applies. Alternatively, the

threshold t, used to derive the labels, can be cho-

sen differently to distribute these nodes equally (with

1 > tracking_ratio > 0) among the two classes.

5 EVALUATION

Since all features are numeric values, we perform no

feature encoding. We eliminate columns that only

have 0 as a value for each row. Generally, we do not

interpret 0 values as an absence of information. Thus,

we do not address missing data in our datasets with

imputation, for example. However, we acknowledge

that our datasets are relatively sparse with a density

of 0.39 and 0.36 for the FQDN and SLD datasets, re-

spectively. Despite this sparsity, we decided against

eliminating sparse features since the density leans to-

wards 0.5. We expect the performance of some ma-

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

206

chine learning models to be affected by this circum-

stance. Therefore, we chose additional models which

are more robust to sparse data.

As already discussed, in contrast to our features,

which are entirely numerical values, we design our

target variable, which shall be predicted by the clas-

siﬁer, as a binary variable (0 for non-, and 1 for

tracker). Initially, we intended to model the Web

tracking problem as a regression problem, in which

the model should predict the tracking_ratio. How-

ever, the bimodal distribution discussed in Section

4 shows clearly that a binary classiﬁcation problem

is better suited than a regression problem. To ad-

dress the imbalanced distribution of non- and tracker,

we use Synthetic Minority Over-sampling TEchnique

(SMOTE) (Chawla et al., 2002), which balances the

two classes by adding synthetic values to the minor-

ity class while under-sampling the majority class. We

use a variant of SMOTE, which is called Borderline-

SMOTE (Han et al., 2005), which over-samples the

minority class with instances near the borderline of

the two classes. SMOTE is only applied to the train-

ing data.

We use 80% of the data for training and 20%

for testing. We use the following machine learning

models for the prediction: logistic regression (LR),

k-nearest neighbors (k-NN), support vector machines

(SVC), decision tree (DC), random forest (RF), adap-

tive boosting (AdaBoost), and gradient boosting (Gra-

dientBoost) including its optimized variant eXtreme

gradient boosting (XGBoost).

5.1 Results

As we can see in Table 2 and Table 3, our classiﬁer

achieves high accuracy between 80% and 88%, with

XGBoost achieving 88% accuracy on both datasets.

The RF model achieves 88.1% and 87.5% accuracy

on the FQDN and SLD datasets, respectively. The

third model with high accuracy on both datasets is

GradientBoost, with 86.1% and 85.8% accuracy. On

the lower end of the performance scale, we ﬁnd LR

and k-NN with accuracy scores below 85% for both

datasets. Surprisingly, SVC performs much better on

the FQDN dataset (84%) while achieving the low-

est accuracy (81.9%) on the SLD dataset. The mod-

els AdaBoost and DC achieve moderate performances

and are both outperformed by their more advanced re-

lated models, GradientBoosting and RF, respectively.

Furthermore, we observe a signiﬁcantly lower preci-

sion achieved by all models on the SLD dataset. A

much higher false positive rate can explain this cir-

cumstance. The lower precision affects the F1 scores,

which are also signiﬁcantly lower.

5.2 Discussion

Our model can predict tracking nodes with high ac-

curacy. We observe that XGBoost and RF are well-

suited models for the classiﬁcation task. Furthermore,

the performance results clearly show that fully qual-

iﬁed domain names are more suitable for detecting

Web trackers. All models had signiﬁcantly lower pre-

cision and, therefore, lower F1 scores on the SLD

dataset, which leads to more false positives. The

tracking_ratio, as a metric to quantify “how much”

a node tracks, has proven insigniﬁcant for the classi-

ﬁcation task.

An investigation of the false positives and nega-

tives reveals that our classiﬁer can identify yet un-

known trackers. However, it classiﬁes many content

delivery networks (CDNs) as Web trackers. CDNs

have a high centrality since websites embed resources

from CDNs, which promise low latency delivery to

end users. However, we want to point out that CDNs

(i) might deliver resources like ﬁngerprinting scripts

and (ii) aggregate user statistics to ﬁnance their ser-

vices. Filter lists avoid blocking CDNs to avoid site

breakage. Thus, our classiﬁer is partially correct, as

these nodes hold the potential for carrying out Web

tracking activities. In future works, a thorough analy-

sis of the misclassiﬁcations is needed to evaluate the

quality of the ground truth.

6 CONCLUSION

This paper presents t.ex-Graph, a network graph that

models data ﬂows among hosts to detect nodes that

carry out Web tracking activities. We thoroughly dis-

cussed features of nodes extended by standard cen-

trality metrics of graphs to automatically detect with

machine learning whether a node is a Web tracker.

Our results show that t.ex-Graph achieves high ac-

curacy on large datasets extracted from crawling the

Tranco top 10K websites. Our components are pub-

licly available to replicate and reproduce our results.

We encourage fellow researchers to extend, modify,

and optimize our approach to achieve better results.

In future work, we plan to enrich nodes with external

information to add more semantics to the graph, like

website categories, the company name, which regis-

tered the domain, or whether a host is a CDN. We are

conﬁdent that our approach can detect new trackers

and constitutes an alternative to the tedious manual

inspection of network trafﬁc.

t.ex-Graph: Automated Web Tracker Detection Using Centrality Metrics and Data Flow Characteristics

207

ACKNOWLEDGMENTS

This work has been carried out within the project

TRAPEZE. The TRAPEZE project receives funding

from the European Union’s Horizon 2020 research

and innovation programme under grant agreement

No. 883464

REFERENCES

Bau, J., Mayer, J., Paskov, H., and Mitchell, J. C. (2013). A

Promising Direction for Web Tracking Countermea-

sures. page 5, San Francisco, US. IEEE.

Chawla, N. V., Bowyer, K. W., Hall, L. O., and Kegelmeyer,

W. P. (2002). SMOTE: Synthetic Minority Over-

sampling Technique. Journal of Artiﬁcial Intelligence

Research, 16:321–357.

Chrome Developers (2022). chrome.webRequest.

Department of Electronics and Telecommunications and

Politecnico di Torino (2021). Ermes Project.

Disconnect Inc. (2021). Disconnect.me.

easylist (2022). EasyPrivacy.

Englehardt, S. and Narayanan, A. (2016). Online Track-

ing: A 1-million-site Measurement and Analysis. In

Proceedings of the 2016 ACM SIGSAC Conference

on Computer and Communications Security - CCS’16,

pages 1388–1401, Vienna, Austria. ACM Press.

Esfandiari, B. and Nock, R. (2005). Adaptive Filtering of

Advertisements on Web Pages. In Special Interest

Tracks and Posters of the 14th International Confer-

ence on World Wide Web, WWW ’05, pages 916–917,

New York, NY, USA. Association for Computing Ma-

chinery. event-place: Chiba, Japan.

eyeo GmbH (2022). How to write ﬁlters | Adblock Plus

Help Center.

Ghostery GmbH (2021). Ghostery.

Gugelmann, D., Happe, M., Ager, B., and Lenders, V.

(2015). An Automated Approach for Complementing

Ad Blockers’ Blacklists. In Proceedings on Privacy

Enhancing Technologies, volume 2015, pages 282–

298, Philadelphia, PA, USA. Sciendo. Section: Pro-

ceedings on Privacy Enhancing Technologies.

Han, H., Wang, W.-Y., and Mao, B.-H. (2005). Borderline-

SMOTE: A New Over-Sampling Method in Imbal-

anced Data Sets Learning. In Huang, D.-S., Zhang,

X.-P., and Huang, G.-B., editors, Advances in Intelli-

gent Computing, Lecture Notes in Computer Science,

pages 878–887, Berlin, Heidelberg. Springer.

Ikram, M., Asghar, H. J., Kaafar, M. A., Mahanti, A.,

and Krishnamurthy, B. (2017). Towards Seamless

Tracking-Free Web: Improved Detection of Trackers

via One-class Learning. In Proceedings on Privacy

Enhancing Technologies, volume 2017, pages 79–99,

Minneapolis, USA. Sciendo. Section: Proceedings on

Privacy Enhancing Technologies.

Iqbal, U., Englehardt, S., and Shaﬁq, Z. (2021). Fingerprint-

ing the Fingerprinters: Learning to Detect Browser

Fingerprinting Behaviors. In 2021 IEEE Sympo-

sium on Security and Privacy (SP), pages 1143–1161.

ISSN: 2375-1207.

Iqbal, U., Snyder, P., Zhu, S., Livshits, B., Qian, Z., and

Shaﬁq, Z. (2019). AdGraph: A Graph-Based Ap-

proach to Ad and Tracker Blocking. In 2020 IEEE

Symposium on Security and Privacy, pages 763–776,

Online. IEEE.

Kaizer, A. J. and Gupta, M. (2016). Towards Automatic

Identiﬁcation of JavaScript-oriented Machine-Based

Tracking. In Proceedings of the 2016 ACM on Inter-

national Workshop on Security And Privacy Analytics,

IWSPA ’16, pages 33–40, New York, NY, USA. As-

sociation for Computing Machinery.

Kleinberg, J. M. (1999). Authoritative sources in a hyper-

linked environment. Journal of the ACM, 46(5):604–

632.

Kushmerick, N. (1999). Learning to Remove Internet Ad-

vertisements. In Proceedings of the Third Annual

Conference on Autonomous Agents, AGENTS ’99,

pages 175–181, New York, NY, USA. Association for

Computing Machinery. event-place: Seattle, Wash-

ington, USA.

Le Pochat, V., Van Goethem, T., Tajalizadehkhoob, S.,

Korczynski, M., and Joosen, W. (2019). Tranco:

A Research-Oriented Top Sites Ranking Hardened

Against Manipulation. In Proceedings 2019 Net-

work and Distributed System Security Symposium,

San Diego, CA. Internet Society.

LexisNexis (2022). ThreatMetrix - Cybersecurity Risk

Management.

Li, T.-C., Hang, H., Faloutsos, M., Efstathopoulos, P.,

Faloutsos, M., and Efstathopoulos, P. (2015). Track-

Advisor: Taking Back Browsing Privacy from Third-

Party Trackers. In International Conference on Pas-

sive and Active Network Measurement, volume 8995,

pages 277–289, Cham. Springer International Pub-

lishing. Series Title: Lecture Notes in Computer Sci-

ence.

Mayer, J. R. and Mitchell, J. C. (2012). Third-Party Web

Tracking: Policy and Technology. In 2012 IEEE

Symposium on Security and Privacy, pages 413–427.

ISSN: 2375-1207.

MDN Web Docs (2022a). HTTP request methods - HTTP |

MDN.

MDN Web Docs (2022b). URL.pathname - Web APIs |

MDN.

Metwalley, H., Traverso, S., and Mellia, M. (2015a). Un-

supervised Detection of Web Trackers. In 2015 IEEE

Global Communications Conference (GLOBECOM),

pages 1–6, San Diego, CA, USA. IEEE.

Metwalley, H., Traverso, S., Mellia, M., Miskovic, S.,

Baldi, M., Mellia, M., Miskovic, S., and Baldi, M.

(2015b). The Online Tracking Horde: A View from

Passive Measurements. In TMA 2015: Trafﬁc Mon-

itoring and Analysis, volume 9053, pages 111–125,

Barcelona, Spain. Springer International Publishing.

Page, L., Brin, S., Motwani, R., and Winograd, T. (1999).

The PageRank Citation Ranking: Bringing Order to

the Web. Techreport. Publisher: Stanford InfoLab.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

208

Raschke, P. (2022a). T.EX - The Transparency Extension.

Raschke, P. (2022b). Tranco 16-5-22 top 10K crawled with

T.EX. Version Number: 1.0 Type: dataset.

Raschke, P. and Cory, T. (2022). Presenting a Client-based

Cross-browser Web Privacy Measurement Framework

for Automated Web Tracker Detection Research. In

2022 3rd International Conference on Electrical En-

gineering and Informatics (ICon EEI), pages 98–103.

Raschke, P., Zickau, S., Kröger, J. L., and Küpper, A.

(2019). Towards Real-Time Web Tracking Detection

with T.EX - The Transparency EXtension. In Naldi,

M., Italiano, G. F., Rannenberg, K., Medina, M., and

Bourka, A., editors, Privacy Technologies and Pol-

icy, Lecture Notes in Computer Science, pages 3–17,

Cham. Springer International Publishing.

Rizzo, V., Traverso, S., and Mellia, M. (2021). Unveil-

ing Web Fingerprinting in the Wild Via Code Mining

and Machine Learning. In Proceedings on Privacy

Enhancing Technologies, volume 2021, pages 43–63,

Online. Sciendo. Section: Proceedings on Privacy En-

hancing Technologies.

Schild, T. (2021). dmoz.de.

Snyder, P., Vastel, A., and Livshits, B. (2020). Who Fil-

ters the Filters: Understanding the Growth, Useful-

ness and Efﬁciency of Crowdsourced Ad Blocking. In

Proceedings of the ACM on Measurement and Anal-

ysis of Computing Systems, volume 4, pages 26:1–

26:24.

Wu, Q., Liu, Q., Zhang, Y., Liu, P., Wen, G., Liu, Q., Zhang,

Y., Liu, P., and Wen, G. (2016). A Machine Learning

Approach for Detecting Third-Party Trackers on the

Web. In Computer Security – ESORICS 2016, volume

9878, pages 238–258, Heraklion, Greece. Springer In-

ternational Publishing.

Yamada, A., Masanori, H., and Miyake, Y. (2010). Web

Tracking Site Detection Based on Temporal Link

Analysis. In 2010 IEEE 24th International Confer-

ence on Advanced Information Networking and Appli-

cations Workshops, pages 626–631, Perth, Australia.

IEEE.

t.ex-Graph: Automated Web Tracker Detection Using Centrality Metrics and Data Flow Characteristics

209
