Correlating Intrusion Detection with Attack Graph on Virtual

Computer Networkings

Hanwen Zhang

, Wenyong Wang

, Lisheng Huang

, Junrui Wu

, Fengjun Zhang

and Kai Shi

School of Computer Science and Engineering, University of Electronic Science and Technology of China, Chengdu, China

The 30

Institute of CETC, China Electronics Technology Cyber Security Co., Ltd, Chengdu, China

Keywords: Cybersecurity, Attack Graph, Intrusion Detection, Virtual Networks.

Abstract: Securing a computer networking system requires the ability to gather and organise information about potential

vulnerabilities existing in the system. One way of utilising the information above is to generate an attack

graph of all possible attack paths. Current attack graph generation methods reach scalability issue with the

growth of network devices and links, and one solution is to correlate attack graph with intrusion detection

systems. However, correlation techniques are rarely studied especially on generating attack graphs on virtual

computer networks, as correlations are inflexible to be integrated to existing attack graph generators.

Previously we proposed mAGG, an attack graph generation framework on virtual networkings; and LSAFID,

an intrusion detection system based on doc-word. In this paper, we propose a new method for correlating

intrusion detection algorithm for attack graph generation on virtual networkings. Our new proposed method

is flexible in network architectures and functionalities, and shortens the scale of generated attack graph.

1 INTRODUCTION

Attack graph generations are an effective way of

demonstrating the possible paths that an intruder

might take in action in the form of graph. Specifically,

the intruder may exploit exposed vulnerabilities on

the attack surface (Theisen et al., 2018) of the

computer network, then lead to a chain of intrusion

attacks. Each attack causes a post-condition of

privilege escalation, firewall bypassing, etc. These

post-conditions are also considered as the pre-

conditions of the next attacks. Step by step, the chains

of intrusion attack actions form an attack graph of the

target computer network (Phillips & Swiler, 1998).

On securing a computer network, attack graph

provides a visualised perspective of in which routes,

or formally attack paths, that the intruder might take

in action, and classified by vertex, there are four types

of attack graph models, state-based, vulnerability-

based, host-based and attack scenario-based models

respectively (Kaynar, 2016).

https://orcid.org/0000-0001-7224-8230

https://orcid.org/0000-0003-4095-547X

https://orcid.org/0000-0003-3652-3279

https://orcid.org/0000-0003-3658-9243

1.1 Scalability Problems of Generating

Attack Graphs

Despite that different model consider different

attributes of the network entities, attack graph

generation is tougher with the growth of network

scale and functionalities, and generation algorithms

may easily reach scalability problems over large

computer network systems (Hong & Kim, 2013).

Most commonly used attack graph generators have

the polynomial time complexity of from O(N



) to

O(N



), with N respect to the number of vertices and

edges. (Yi et al., 2013). Moreover, as illustrated in

Figure 1, physical topologies of the computer

networking are various, from the original bus, star or

ring architecture to today’s tree hierarchy architecture

(Liu & Liu, 2014) or even a “flat” virtualised

architecture, causing attack graph generator

implementations need a targeted consideration on

each independent architecture on deployment.

Zhang, H., Wang, W., Huang, L., Wu, J., Zhang, F. and Shi, K.

Correlating Intrusion Detection with Attack Graph on Virtual Computer Networ kings.

DOI: 10.5220/0011784100003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 651-658

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

651

Scalability problems may also caused by

redanduncy. From January to November of 2022

alone, records of vulnerability items reaches a total

22265 (Browse Cve Vulnerabilities by Date, n.d.),

while most of the items are scored low-severity and

irrelevant to the target network. Keeping the system

refreshing on all vulnerabilities will cause a huge time

waste, and thus, instant warnings of the intruder’s

possible attack paths are impratical. Besides, a

computer node in a target network may contain

multiple vulnerabilities, generating a full attack graph

would traverse through all possible exploitable

vulnerabilities, causing complex loop problems.

Hence, a better way of utilising the attack graph is to

devide a full graph into partial (Sawilla & Skillicorn,

2012), (Ingols et al., 2006).

Correlating intrusion detection systems (IDS)

(Soni et al., 2015) with attack graphs will limit the

attack paths for generation, and therefore, a partial but

accurate attack graph reflecting the current

undergoing intrusion threats is considered more

useful. While correlating IDS with attack graph has

been studied by multiple researchers before, none of

the researches are available for a virtual networking

architecture.

1.2 Virtual Networking: An Emerging

Trend

Networking virtualisation was developed by in the

2000s. Virtualising a network and resources takes

great advantage in multiplexing the physical

infrastructures, providing less waste of computing

resources. Besides, virtualisation over physical

infrastructures hides the hardware differences from

advanced software developments. By hiding

hardware differences and physical infrastructures, a

virtual machine is not aware of which actual server it

is on, and is provided with virtual resources on

demand, and idle resources are optimised (Qian et al.,

2009).

In fact, virtual environments and networkings,

e.g. cloud, IaaS (Infrastructure as a Service) are

becoming an emerging trend, and global market of

IaaS reaches 90,894 million dollars with a 41.4%

growth in 2021 (Meghan Rimol, 2022). The emerging

trend of “cloud network integration” has brought

benefits in costs, but the less-studied emerging

security issues leaves a hidden danger.

A container-based virtualisation technology , e.g.

Docker, adopts type-II hypervisor, and it is more

light-weight. Container virtualisation builds on top of

OS-level instead of hardware level, and the guest

containers are isolated by name spaces, so they can

directly use system calls. Each container also has its

own volumes and virtual network interfaces. Due to

the lightweight features of the containers, network

services are evolved from a server-based style to

service-based style. A single host can run thousands

of composed services in parallel.

However, a virtual networking is different from a

physical networking in nature, the nodes of the

network are “flattened” and network interfaces and

connections are virtualized. Straight to the point, we

summarise a virtual network of highly polymorphic,

i.e., with high “structure definability” to all layers of

network (Y. Hu et al., 2020). And thus, a virtual

network is much more dynamic than a physical

network. Thus, managing and generating topologies

and attack graphs on virtual networks are different

from the “fixed” physical architectures, especially

where:

 A group of service nodes may run the same

service as a cluster, and the scale of the cluster

are expanded or reduced elastically according

to current traffic. Hardware resources are

virtualised and can be allocated by every

service node.

 Each virtualised node does not have its own

physical network interface card, and their

virtual networkings adopt dynamic

technologies like container orchestration

(Orchestration, 2022). Virtual management

systems create edges between nodes

dynamically.

1.3 Our Contributions

As generating attack graphs on virtual networks is

rarely studied, correlation of IDS and attack graph

generation on virtual networks has never been studied

before. As security problems of virtual networks

worsening every day, it is critical to propose a method

of correlating IDS and attack graph.

In this paper, we propose an IDS and attack graph

generation correlation method for virtual networks.

Compared with existing methods, our proposed

method is built on our flexible and extendable attack

graph generation framework, taking the advantage of

network virtualisation and abstraction. Our proposed

method can instant respond to network changes,

especially on virtual networkings. Compared to a full

attack graph, our proposed method is a partial graph,

corresponding to the current intrusion situations and

network connections. To summarise, our proposed

method is concluded as follows:

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

652

 We formalised the problem of decomposing a

full attack graph into partial, with respect to

correlation IDS and attack path choices.

 Based on the formalisation of the problem, we

proposed an algorithm of generating partial

attack graphs based on IDS.

 Based on the generation algorithm, we

proposed a method of integrating IDS

correlations in our attack graph generation

framework.

In this paper, chapters are organised as follows:

Chapter 2 the backgrounds of networking

virtualisation, the related works on attack graph

generation, and IDS correlations. Chapter 3 specifies

our proposed method. The experiments and results

are listed in Chapter 4. Finally, this paper is

concluded in Chapter 5.

2 BACKGROUND AND

PREVIOUS WORKS

2.1 Previous Works on Attack Graph

Generation and mAGG

Early in 2001, Swiler et al. proposed the attack graph

generation tool for computer networks, in order to

create a system-level design and assessment tool for

vulnerabilities (Swiler et al., 2001). It is aimed to

replace network-level and application-level defence

system driven by checklists and compliance

standards. MulVAL framework (Ou et al., 2005) uses

an attack model definition system, (OVAL-

Community, 2018/2022) that solved problems of

automatically integrating vulnerability from the bug-

reporting system. Besides MulVAL, TVA (Jajodia et

al., 2005) focused on the topology relationships of

exploited vulnerabilities, and estimated actual exploit

combinations of vulnerabilities among multiple hosts

to advance an attack on a network.

In revolution of attack graphs, Bayesian attack

graphs (Cozman, 2000) enables the estimation of the

risk of compromise to the system’s components given

their vulnerabilities and interconnections. Later on,

more researches of Bayesian probabilities are

introduced into attack graph generation problems

(Frigault & Wang, 2008). Bayesian attack graph

provides dynamicity risk assessments of decisions

(Poolsappasit et al., 2012). Calculating Bayesian

probabilities for MulVAL attack graphs also

employing dependency of vulnerabilities (School of

Electrical Engineering and Informatics, Institut

Teknologi Bandung et al., 2015). Recent researches

are based on virtualised infrastructures, and provide

an effective risk assessment (Asvija et al., 2020), but

they face the problem of coping with huge amount or

relations.

Formerly, based on polymorphism, we proposed

mAGG, a managed multi-layer attack graph generator

available for virtual networks with flexibility (Zhang,

2022/2022). Compared with existing attack graph

generators, mAGG framework can rapidly respond to

virtual network changes in real time, providing an

instant view of attack graphs. Besides generating

attack graphs, mAGG contains a light-weight

management system of vulnerabilities, topologies and

attack paths, and has the ability to calculate Bayesian

probabilities and to deploy honeypots.

Our framework mAGG uses additional abstract

layers over a real topology, and thus reaches instant

responds with respect to dynamic changes. The

framework decomposes a full topology into

autonomous subnets, with each subnet independent to

each other. mAGG has solved many problems

regarding generating attack graphs on virtual

networks, but it is still a full attack graph generator.

To the best of our knowledge, mAGG is flexible

enough to correlate with IDS, and therefore we

propose a correlation algorithm based on mAGG.

2.2 Previous Works on IDS

Correlations with Attack Graph

and LSAFID

Correlating attack graph with IDS (Rajput & Thakkar,

2019) was first researched to handle missed

detections through the analysis of network

vulnerability dependencies, with a simple scalable

attack graph representation (Noel et al., 2004). Later

on, researches focus on high-speed networks using a

queue to correlate new and in-memory alerts (Wang

et al., 2006). Recently researchers have correlate

MulVAL with IDS (H. Hu et al., 2020)，and have

been working on automations with severe alerts

(Nadeem et al., 2022).

Previous researches, however, is not practical on

emerging trends of network virtualisation, as is stated

before. They all lack the flexibility and extendibility

that cannot be applied with instant changes.

Previously, we proposed LSAFID, a topic model-

based IDS framework, which construct a doc-word

matrix from statistical features and then analyses

latent semantic information to determine whether an

aggregated flow is malicious (Wu et al., 2022). The

results indicates that LSAFID achieves higher

performance and better ROC curves than other

competing methods.

Correlating Intrusion Detection with Attack Graph on Virtual Computer Networkings

653

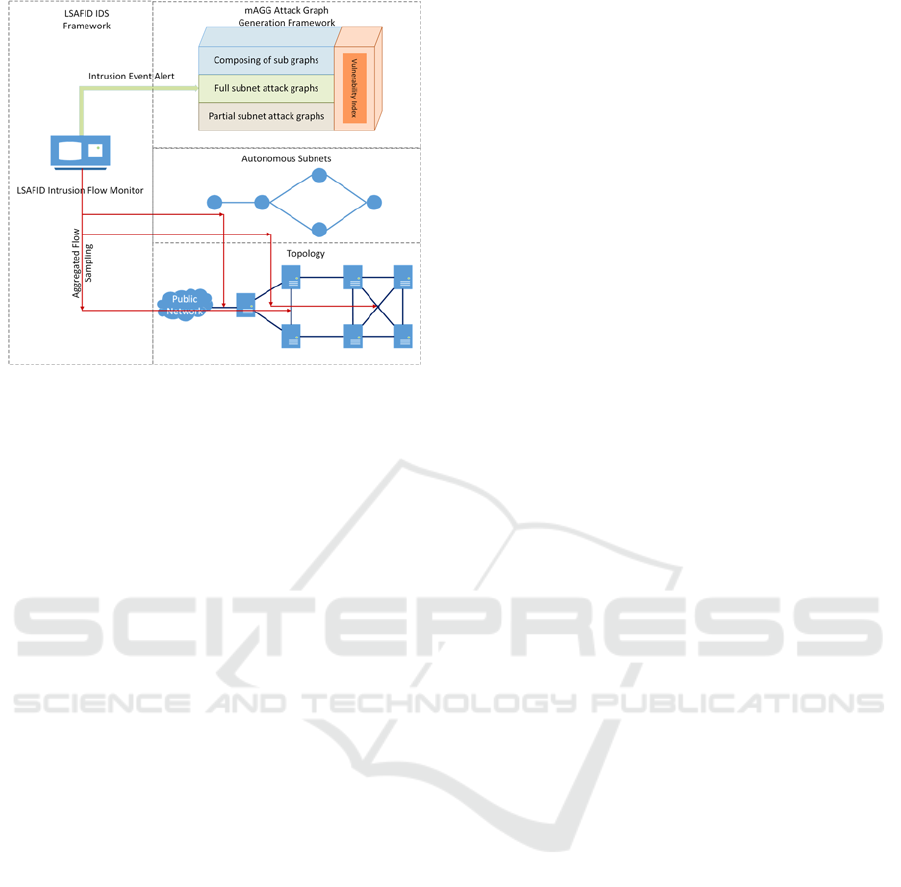

Figure 2: Overall of the proposed method.

3 THE PROPOSED METHOD

As is stated before, while mAGG provides attack

graph generations on a virtual network with

extendibility, the framework itself cannot aware of

the current cyber situations. LSAFID provides

accurate and efficient classification of aggregated

flow, as the classification results are flow-based

instead host-based. Hence, correlation attack graph

generations with IDS need a method of deciding on

which link should the IDS be deployed and how the

flow-based results are integrated into host-based or

state-based attack graphs. And therefore, the problem

is decomposed as follows:

(1) Traffic Flow Sampling: On a virtual

network, links between virtual machine nodes are

also virtualised. The proposed method should decide

on which point the traffic flow are sampled for IDS.

(2) Attack Graph Decomposing: Based on the

flow-based results of IDS classifications, the

proposed method should be able to utilise the results

and make partial attack graphs accordingly.

(3) Dynamic Update: For persistent intrusion

detections, the proposed method should be able to

provide instant update of above partial attack graph.

In the following sections, we will demonstrate our

proposed method step by step. The overall

architecture of our proposed method is illustrated in

Figure 2.

3.1 Threat Modelling

Threat model put constraint on the ability of intruders,

as well as define the boundary of cybersecurity

problems.

 Attack Targets: In this work, attack targets are

defined as virtual service entities with its own

virtual network interfaces, where the intruder

could exploit potential vulnerabilities.

 Attack Goals: An attack goal is an attack

target, of which the intruder is intended on, e.g.,

a database, or a core server.

 Intruder: An intruder is a malicious individual

from public network that tries to intrude the

attack targets. The intruder only has the access

to the attack surfaces at the beginning. The

information of open recorded vulnerabilities is

symmetric to both intruder and the network

manager, but the intruder cannot obtain a

global view of topologies as priori. Assume

that the intruders are rational individuals.

 Attack Processes: In each step, the intruder

has a certain pre-condition, and the intruder

will try to penetrate attack targets that are

adjacent to already intruded attack targets, in

the form of exploiting vulnerabilities,

according to the pre-conditions. Intruder will

then acquire post-condition as the result of

success exploiting. The intruder will stop

intruding if and only if the attack goals are

intruded, or no further nodes can be

compromised.

3.2 Bottom-to-Top Construction

Layering System

In previous sections, we discussed attack graphs in

coverage of partial and full, and in form of state-based

or host-based, etc., respectively. Also, current IDS are

flow-based, and all of above indicates that if each

algorithm works individually, the composed

framework will be too complex to make conversions

between different interfaces. The problem states that

the proposed method should be built from bottom to

top, with different abstract layers overlapping each

other. In this way, each framework works in its own

abstract layer space, and a latter-processed

framework won’t affect a former-processed

framework, since it is on “top” of the former one.

Specifically, we consider a topology layer that

matches with actual network topology, an

autonomous subnet layer that is correspond to subnets

on the topology, an mAGG attack graph generation

layer, and LSAFID feedback layer that is respond to

monitor intrusion events, respectively.

In a private network, a subnet is often referred to

a LAN (local-area network), where all network

devices share the same local IP address prefix. The

reason why we treat subnetting as an independent

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

654

layer is that by its definition (J. Postel, 1988), all

nodes are adjacent to each other in a LAN, in

perspective of network layer, so we can say that a

LAN in a full-connected complete graph with respect

to network layer. As nodes of different LANs are not

adjacent, and the connection links must come across

the gateway nodes between LANs. Therefore, a

subnet is a small enough autonomous group of nodes

that changes within the subnet won’t affect the other

subnets. For a formal definition, we have:

A subnet 𝑠𝑢𝑏 = {𝑛



,𝑛



,…,𝑛



} is a set of nodes

that are adjacent to each other, and a topology 𝑇=

{𝑠𝑢𝑏



,𝑠𝑢𝑏



,…,𝑠𝑢𝑏



} is a set of subnets, which

satisfies:

∀ 𝑚 ∈ 𝑠𝑢𝑏, ∄𝑛 ∈ 𝑇 and 𝑛 ∉ 𝑠𝑢𝑏,

s. t. 𝑚, 𝑛 adjacent

(1)

Also, subnets may overlap each other, i.e., a node

may belong to multiple subnets at the same time. We

call this kind of special node as gateways. Gateway

nodes works as cut set of the overall topology, that

the autonomous subnets are divided via the cut set of

gateways. Based on subnet definitions, we de-

composed an overall topology into autonomous

subnets, such that the attack graphs can be generated

for each subnet, and the influence of topology

changes will be limited within one subnet.

Based on a layer of subnets, full attack graph for

each subnet can be built by mAGG framework as an

overlay layer.

3.3 Partial Attack Graph Generation of

Subnet

The original results of mAGG framework leads to a

full attack graph considering every possible

vulnerability presenting in the system. However, as

network scale grows large, the even attack graph

within a single subnet will be too complex. And so,

even low-scored vulnerabilities are taking part in

attack graph generations. In short, a full attack graph

is too redundant to practical usage, and is too complex

in generation process.

Instead, a partial attack graph only considers a

countable number of vulnerabilities that are truly

threatening the system. Besides, the vulnerability

databases and indices can be considerably smaller

than a full record. In mechanism, each node on a

network is needed to be scanned, and then the attack

graph generator will try to lookup the database for

vulnerability records. In performance, a partial

vulnerability database will outcome a full database.

Based on the assumption of partial attack graph

as above, we propose a method of generating partial

attack graph for a full-connected subnet as

Algorithm 1.

Algorithm 1: Generate Attack Graph for Subnet.

Inpu

𝑠𝑢𝑏: a subnet

𝑔[]: gateways of 𝑠𝑢𝑏

𝑉:=

{

𝑛:𝑣

}

: partial vulnerability index

𝑠𝑡𝑎𝑐𝑘: a last-in first-out stack of nodes

Output:

𝑠𝐴𝐺: attack graph for a subnet

function generate

sub

graph:

for 𝑔𝑎𝑡𝑒𝑤𝑎𝑦 in 𝑔[]:

for 𝑐𝑜𝑛𝑑



in 𝑉. get(𝑔𝑎𝑡𝑒𝑤𝑎𝑦):

𝑠𝐴𝐺. add_vertex𝑔𝑎𝑡𝑒𝑤𝑎𝑦, 𝑐𝑜𝑛𝑑



;

𝑠𝑡𝑎𝑐𝑘. push(𝑔𝑎𝑡𝑒𝑤𝑎𝑦, 𝑐𝑜𝑛𝑑



);

end for

depth_first_search();

return 𝑠𝐴𝐺;

end function

function depth_first_search:

while 𝑠𝑡𝑎𝑐𝑘 ≠ ∅:

𝑛, 𝑛. 𝑐𝑜𝑛𝑑



← 𝑠𝑡𝑎𝑐𝑘. pop();

for 𝑛𝑒𝑖𝑔ℎ𝑏𝑜𝑢𝑟 in 𝑠𝑢𝑏:

for each 𝑣𝑎𝑙𝑢𝑒 in 𝑛. 𝑐𝑜𝑛𝑑



𝑣𝑛 ← 𝑉. get(𝑣𝑎𝑙𝑢𝑒):

if 𝑒𝑎: = 𝑛,𝑛𝑒𝑖𝑔ℎ𝑏𝑜𝑢𝑟, 𝑣𝑛. 𝑐𝑜𝑛𝑑



∉

𝑠𝐴𝐺:

𝑠𝐴𝐺. add_vertex(𝑛𝑒𝑖𝑔ℎ𝑏𝑜𝑢𝑟, 𝑣𝑛. 𝑐𝑜𝑛𝑑



);

𝑠𝐴𝐺. add_edge(𝑒𝑎);

𝑠𝑡𝑎𝑐𝑘. push𝑛𝑒𝑖𝑔ℎ𝑏𝑜𝑢𝑟, 𝑣𝑛. 𝑐𝑜𝑛𝑑



;

end if

end for

end while

end function

Algorithm 2: IDS Sampling and Feedback.

Input:

𝑔[]: gateways nodes



: sampling period

𝑉:=

{

𝑛:𝑣

}

: partial vulnerability index

function correlate:

while true do:

sleep(T



);

𝑉←∅;

for 𝑔𝑎𝑡𝑒𝑤𝑎𝑦 in 𝑔[]:

𝑓𝑙𝑜𝑤 ← sample_flow(𝑔𝑎𝑡𝑒𝑤𝑎𝑦);

𝑖𝑠_𝑚𝑎𝑙𝑖𝑐𝑖𝑜𝑢𝑠 ← call_LSAFID(flow);

if 𝑖𝑠_𝑚𝑎𝑙𝑖𝑐𝑖𝑜𝑢𝑠 = true do:

𝑉. put(𝑔𝑎𝑡𝑒𝑤𝑎𝑦);

send_alert(𝑔𝑎𝑡𝑒𝑤𝑎𝑦. 𝑠𝑢𝑏𝑛𝑒𝑡);

end if

end for

end while

end function

Correlating Intrusion Detection with Attack Graph on Virtual Computer Networkings

655

3.4 Flow Sampling and Intrusion Event

Alert Feedback

In the previous section, we proposed a method of

generating partial attack graph for a certain subnet.

Notice that for input, a partial vulnerability index is

required. The way of generating partial vulnerability

index will definitely result in lowering the recall rate,

but with proper method, this result will rise the

precision rate, as redundant information of

vulnerabilities is reduced.

The key of properly reducing vulnerability

indices is apply traffic flow monitoring on the target

network. By detecting intrusion events based on

sampled flow of traffic, which set of vulnerabilities

can be loaded for attack graph generation properly.

Figure 3: The experimental network.

Figure 4: Full Attack graph.

Figure 5: Partial attack graph 1.

The LSAFID process is applicable on aggregation

traffic flows, and we deploy monitors on gateway

nodes of subnets, that traffic is aggregated at most,

such that the system burden is the least. Algorithm 2

explains sampling process and IDS feedback.

Once in every sampling period, the framework

would call LSAFID once for aggregated flow

intrusion detection. Based on LSAFID classifier’s

output, if the flow of a node is malicious, its

corresponding vulnerability records will be loaded

locally, and all the affected subnets will update the

attack graph as partial. Since subnets are autonomous

systems, this process can be done in parallel.

4 EXPERIMENTS AND RESULTS

In this paper, we conduct our experiments with a

designed virtual network built on Docker Compose

environment, and the program runs with Python 3.10

on a laptop with Intel i7-9750H CPU and 16GB of

RAM. The experimental network is illustrated in

Figure 3. Each node except “outside” is an attack

target, instead, it is marked as the point connecting to

public networks, and node “payment-db” is the attack

goal.

Figure 6: Partial attack graph 2.

Figure 7: Partial attack graph 3.

Figure 4 illustrates the attack graph without

correlations with IDS, and Figure 5, Figure 6 and

Figure 7 shows the partial attack graph according to

correlated with different intrusion events,

respectively.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

656

5 CONCLUSIONS

Attack graph generation systems have been

researched over years, and they give good results of

illustrating the computer network security problem as

a whole, while current methods also face scalability

problems. In this work, we proposed a method for

correlating IDS with attack graph generation systems

on virtual networkings, especially where the network

is built on a cloud. By integrating LSAFID system

with mAGG system, we achieve high time efficiency

for intrusion detection correlation with vulnerability

indexing, and high dynamicity for partial attack graph

generations. The proposed method could be applied

to a virtual network with a large scale of deployments.

We will keep working on cyber security problems,

including the fields of IDS, attack graph generations,

etc. And this work will be a part of our final model of

cyber security intelligence framework.

REFERENCES

Asvija, B., Eswari, R., & Bijoy, M. B. (2020). Bayesian

attack graphs for platform virtualized infrastructures in

clouds. Journal of Information Security and

Applications, 51, 102455. https://doi.org/10.1016/

j.jisa.2020.102455

Browse cve vulnerabilities by date. (n.d.). Retrieved

November 22, 2022, from https://www.cvedetails.

com/browse-by-date.php

Cozman, F. G. (2000). Generalizing variable elimination in

bayesian networks. 27–32.

Frigault, M., & Wang, L. (2008). Measuring network

security using bayesian network-based attack graphs.

2008 32nd Annual IEEE International Computer

Software and Applications Conference, 698–703.

https://doi.org/10.1109/COMPSAC.2008.88

Hanwen Zhang. (2022). mAGG: A managed multi-layer

attack graph generator [Python 3]. https://

github.com/Cforcharming/mAGG (Original work

published 2022)

Hong, J. B., & Kim, D. S. (2013). Performance Analysis of

Scalable Attack Representation Models. In L. J.

Janczewski, H. B. Wolfe, & S. Shenoi (Eds.), Security

and Privacy Protection in Information Processing

Systems (pp. 330–343). Springer. https://doi.org/

10.1007/978-3-642-39218-4_25

Hu, H., Liu, J., Zhang, Y., Liu, Y., Xu, X., & Tan, J. (2020).

Attack scenario reconstruction approach using attack

graph and alert data mining. Journal of Information

Security and Applications, 54, 102522. https://doi.org/

10.1016/j.jisa.2020.102522

Hu, Y., Li, D., Sun, P., Yi, P., & Wu, J. (2020).

Polymorphic smart network: An open, flexible and

universal architecture for future heterogeneous

networks. IEEE Transactions on Network Science and

Engineering, 7(4), 2515–2525. https://doi.org/

10.1109/TNSE.2020.3006249

Ingols, K., Lippmann, R., & Piwowarski, K. (2006).

Practical Attack Graph Generation for Network

Defense. 2006 22nd Annual Computer Security

Applications Conference (ACSAC’06), 121–130.

https://doi.org/10.1109/ACSAC.2006.39

J. Postel. (1988). Standard for the transmission of IP

datagrams over IEEE 802 networks (Request for

Comments RFC 1042). Internet Engineering Task

Force. https://doi.org/10.17487/RFC1042

Jajodia, S., Noel, S., & O’Berry, B. (2005). Topological

Analysis of Network Attack Vulnerability. In V.

Kumar, J. Srivastava, & A. Lazarevic (Eds.), Managing

Cyber Threats: Issues, Approaches, and Challenges

(pp. 247–266). Springer US. https://doi.org/10.1007/0-

387-24230-9_9

Kaynar, K. (2016). A taxonomy for attack graph generation

and usage in network security. Journal of Information

Security and Applications, 29, 27–56. https://doi.org

/10.1016/j.jisa.2016.02.001

Liu, Q., & Liu, Q. (2014). A study on topology in computer

network. 2014 7th International Conference on

Intelligent Computation Technology and Automation,

45–48. https://doi.org/10.1109/ICICTA.2014.18

Meghan Rimol. (2022, June 2). Gartner says worldwide

IaaS public cloud services market grew 41.4% in

2021. Gartner. https://www.gartner.com/en/newsroom/

press-releases/2022-06-02-gartner-says-worldwide-iaas-

public-cloud-services-market-grew-41-percent-in-2021

Nadeem, A., Verwer, S., Moskal, S., & Yang, S. J. (2022).

Alert-driven attack graph generation using S-PDFA.

IEEE Transactions on Dependable and Secure

Computing, 19(2), 731–746. https://doi.org/10.1109/

TDSC.2021.3117348

Noel, S., Robertson, E., & Jajodia, S. (2004). Correlating

intrusion events and building attack scenarios through

attack graph distances. 20th Annual Computer Security

Applications Conference, 350–359. https://doi.org/

10.1109/CSAC.2004.11

Orchestration. (2022, November 17). Docker

Documentation. https://docs.docker.com/get-started/

orchestration/

Ou, X., Govindavajhala, S., & Appel, A. W. (2005).

MulVAL: A logic-based network security analyzer.

14th USENIX Security Symposium (USENIX Security

05). 14th USENIX Security Symposium (USENIX

Security 05). https://www.usenix.org/conference/

14th-usenix-security-symposium/mulval-logic-based-

network-security-analyzer

OVAL-Community. (2022). The OVAL community

repository [XSLT]. OVAL-Community. https://github.

com/OVAL-Community/OVAL (Original work

published 2018)

Phillips, C., & Swiler, L. P. (1998). A graph-based system

for network-vulnerability analysis. Proceedings of the

1998 Workshop on New Security Paradigms - NSPW

’98, 71–79. https://doi.org/10.1145/310889.310919

Poolsappasit, N., Dewri, R., & Ray, I. (2012). Dynamic

security risk management using bayesian attack graphs.

Correlating Intrusion Detection with Attack Graph on Virtual Computer Networkings

657

IEEE Transactions on Dependable and Secure

Computing, 9(1), 61–74. https://doi.org/10.1109/

TDSC.2011.34

Qian, L., Luo, Z., Du, Y., & Guo, L. (2009). Cloud

computing: An overview. In M. G. Jaatun, G. Zhao, &

C. Rong (Eds.), Cloud Computing (pp. 626–631).

Springer. https://doi.org/10.1007/978-3-642-10665-

1_63

Rajput, D., & Thakkar, A. (2019). A survey on different

network intrusion detection systems and

CounterMeasure. In N. R. Shetty, L. M. Patnaik, H. C.

Nagaraj, P. N. Hamsavath, & N. Nalini (Eds.),

Emerging Research in Computing, Information,

Communication and Applications (pp. 497–506).

Springer. https://doi.org/10.1007/978-981-13-6001-

5_41

Sawilla, R., & Skillicorn, D. (2012). Partial cuts in attack

graphs for cost effective network defence. 2012 IEEE

Conference on Technologies for Homeland Security

(HST), 291–297. https://doi.org/10.1109/THS.2012.

6459864

School of Electrical Engineering and Informatics, Institut

Teknologi Bandung, Sembiring, J., Ramadhan, M.,

School of Electrical Engineering and Informatics,

Institut Teknologi Bandung, S Gondokaryono, Y.,

School of Electrical Engineering and Informatics,

Institut Teknologi Bandung, A Arman, A., & School of

Electrical Engineering and Informatics, Institut

Teknologi Bandung. (2015). Network security risk

analysis using improved MulVAL bayesian attack

graphs. International Journal on Electrical

Engineering and Informatics, 7(4), 735–753.

https://doi.org/10.15676/ijeei.2015.7.4.15

Soni, M., Ahirwa, M., & Agrawal, S. (2015). A survey on

intrusion detection techniques in MANET. 2015

International Conference on Computational

Intelligence and Communication Networks (CICN),

1027–1032. https://doi.org/10.1109/CICN.2015.204

Swiler, L. P., Phillips, C., Ellis, D., & Chakerian, S. (2001).

Computer-attack graph generation tool. Proceedings

DARPA Information Survivability Conference and

Exposition II. DISCEX’01, 2, 307–321 vol.2.

https://doi.org/10.1109/DISCEX.2001.932182

Theisen, C., Munaiah, N., Al-Zyoud, M., Carver, J. C.,

Meneely, A., & Williams, L. (2018). Attack surface

definitions: A systematic literature review. Information

and Software Technology, 104, 94–103.

https://doi.org/10.1016/j.infsof.2018.07.008

Wang, L., Liu, A., & Jajodia, S. (2006). Using attack graphs

for correlating, hypothesizing, and predicting intrusion

alerts. Computer Communications, 29(15), 2917–2933.

https://doi.org/10.1016/j.comcom.2006.04.001

What is a container? - Docker. (2021, November 11).

https://www.docker.com/resources/what-container/

Wu, J., Wang, W., Huang, L., & Zhang, F. (2022). Intrusion

detection technique based on flow aggregation and

latent semantic analysis. Applied Soft Computing, 127,

109375. https://doi.org/10.1016/j.asoc.2022.109375

Yi, S., Peng, Y., Qi Xiong, Wang, T., Dai, Z., Gao, H., Xu,

J., Wang, J., & Xu, L. (2013). Overview on attack graph

generation and visualization technology. 2013

International Conference on Anti-Counterfeiting,

Security and Identification (ASID), 1–6.

https://doi.org/10.1109/ICASID.2013.6825274.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

658
