Systematic Literature Review of Threat Modeling Concepts

Pedro Alfradique Lohmann

, Carlos Albuquerque

and Raphael Machado

Computer Science Institute, Fluminense Federal University (UFF), Niterói, Brazil

Keywords: Threat Modeling, Risk Management, Cyber Security, Information Security, Software Design, Secure

Development Life-Cycle (SDLC), Secure Software Development Lifecycle (S-SDLC), Privacy Engineering,

Privacy by Design, Data Protection, Systematic Literature Review.

Abstract: Threat Modeling (TM) has increased its relevance in cybersecurity risk management applied to software

development, allowing developers to proactively identify and mitigate threats from various sources. In the

present work, we execute a systematic literature research (SLR) on TM applied to cybersecurity. Population,

Intervention, Comparison, Outcomes, Context (PICOC) criteria were used to define a research formula that

was executed in three relevant digital libraries and was submitted to inclusion and exclusion criteria and a

rigorous quality assessment, resulting in 16 papers that answered four research questions, which deeply

defined key elements of TM, process steps, TM relation with risk management process existing in ISO 27005

and future perspectives for TM. This contribution supports the understanding of TM and its practical

application when considering different existing models into real application development.

1 INTRODUCTION

Nowadays, as technology maturity increases, threats

follow this evolution, not considering just phishing

and massive storage attacks, but also companies’

infrastructure, applications, databases, and servers.

Also, considering cloud computing expansion, the

attack surface has expanded, challenging information

security professionals to protect asset information.

Threat Modeling (TM) allows security professionals

to identify security vulnerabilities, determine risk,

and identify mitigations

, and have been supporting

companies’ security journey in the evolved

contemporary tech world.

The relevance of TM has been increasing. A

systematic literature review (SLR) was performed

(Xiong and Lagerström, 2019), assessing 54 papers

and dividing them in three separated clusters: (1)

articles making a contribution to TM, (2) articles

using an existing TM approach, (3) introductory

articles presenting work related to TM process. As

results, TM was defined, different TM methods were

https://orcid.org/0000-0002-2256-0450

https://orcid.org/0000-0002-5644-4167

https://orcid.org/0000-0003-3339-9735

https://www.microsoft.com/en-us/securityengineering/

sdl/practices#practice4

listed, kinds of systems applicable for TM, types of

threats and attacks and future research directions,

considering their SLR results.

The previous SLR study considered four

databases of high relevance, three of which the

present work also considered: IEEE, Scopus, and

Web of Science. Exclusion criteria were similar,

aiming to found article papers related to TM, in

English language. However, the results of previous

study were divided into three clusters: Application of

TM, TM methods and TM process. The paper

concluded that TM: Lacks common ground; Have

numerous definitions; Is used in different ways; Its

commonly applied manually, but with flexible form

(graphical, formal, qualitative, quantitative); It can

have a general or specific application domain; Have

multiple validation methods.

Considering the abovementioned diversity of the

TM subject, this study conducted a fully segregated

SLR research. The contribution of the present paper

aims to understand definitions regarding the key

elements of TM, presenting the detailed steps of each

procedural TM paper contributions, providing the TM

Lohmann, P., Albuquerque, C. and Machado, R.

Systematic Literature Review of Threat Modeling Concepts.

DOI: 10.5220/0011783000003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 163-173

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

163

relationship with risk management, and driving future

research directions for TM. Also, it is relevant to

mention that, according to our mapping, 72% of the

result papers analysed in this work were not present

in the first SLR due to the growth of research interest

in TM in the last years.

2 METHODOLOGY

DESCRIPTION

A systematic literature review (SLR) is a research

methodology that intends to identify, evaluate, and

interpret available research that are relevant to a

particular research question, topic area or

phenomenon of interest. The scope of the analysis is

based on primary studies, which are empirical studies

that investigates specific research question

(Kitchenham and Charters, 2007). The goal of this

study is to provide a SLR about the proposed subject,

using the guidelines presented by (Kitchenham and

Charters, 2007), which includes performing the three

phases and its specific steps.

As the first step, the PICOC criteria (Population,

Intervention, Comparison Outcomes, Context) was

considered for defining the research questions.

PICOC stands for Population, specifying population

subject group of interest for the research,

Intervention, defining the scope of interest in

reviewing, Comparison, for comparison between

different methodologies, procedures or studies,

Outcomes, related to factors of importance for the

research, Context, defining the context of the research

(Kitchenham and Charters, 2007). PICOC elements

were defined according to the following:

• Population: Threat Modeling

• Intervention: Risk Management

• Comparison: This paper intends to analyse the

paper results, not to compare them

• Outcomes: Process

• Context: Cyber Security

A. Research Questions

Considering the abovementioned PICOC criteria, this

research will consider the following questions:

• RQ01: What are the key elements of threat

modeling?

• RQ02: Which steps are considered for threat

modeling?

• RQ03: Which phases of the risk ISO27005 Risk

Management process are addressed?

• RQ04: What are the future perspectives for

threat modeling?

B. Search Method

The objective of this study is to search for primary

studies related to the research questions. Therefore, to

carry out a rigorous and auditable process, it is

essential to systematically expose the steps of the

search method, presenting the definitions for search

terms, search string, search strategy and data sources.

1) Search Terms: Based on the research

questions and the PICOC criteria, the next

step was to define the search terms, as well

as to identify its related synonyms.

Table 1: Search terms and Synonyms.

Criteria Terms S

non

Population

Threat

Modeling

Threat Model - Threat

Intelligence - Threat

Trees - Threat Analysis

- Attack Simulations

Intervention

Risk

Management

Security Risk

Assessment - Secure

Configuration –

Requirements -

Requirements

Engineering - Security

Requirements

Elicitation - Anti-

Requirements - Secure

Software Engineering -

Secure Software -

Security Testing -

Security Risk –

Measurement - Security

and Privac

Controls

Com

arison - -

Outcomes Process Framework - Metho

Context

Cyber

Security

Security - Computer

Security - Information

Security – Vulnerability

– Data Security –

Cloud-Security –

Security Architecture –

Cyber-Attacks – Attack

– Adversary – Data

Protection by Design –

Privacy by Design –

Privacy Engineering –

System Analysis –

Design – Software

Design – Solution

Design – System Model

– Software

Development – Secure

Development Life-

cle

(

SDLC

)

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

164

2) Search String: The search terms were used

to generate generic search string (presented

in Table 2), which was applied to the Title,

Abstract and Keywords in each data source

to gather primary studies.

Table 2: Generic Search String.

(("Threat Modeling" OR "Threat Model" OR

"Threat Intelligence" OR "Threat Trees" OR

"Threat Analysis" OR "Attack Simulations")

AND ("Risk Management" OR "Security Risk

Assessment" OR "Secure Configuration" OR

"Requirements" OR "Requirements

Engineering" OR "Security Requirements

Elicitation" OR "Anti-Requirements" OR

"Secure Software Engineering" OR "Secure

Software" OR "Security Testing" OR

"Security Risk" OR "Measurement" OR

"Security And Privacy Controls") AND

("Process" OR "Framework" OR "Method")

AND ("Cyber Security" OR "Security" OR

"Computer Security" OR "Information

Security" OR "Vulnerability" OR "Data

Security" OR "Cloud-Security" OR "Security

Architecture" OR "Cyber-Attacks" OR

"Attack" OR "Adversary" OR "Data

Protection By Design" OR "Privacy By

Design" OR "Privacy Engineering" OR

"System Analysis" And "Design" OR

"Software Design" OR "Solution Design" OR

"System Model" OR "Software Development"

OR "Secure Development Life-Cycle

(SDLC)"))

3) Search Strategy: The search strategy is the

way that the studies are retrieved, aiming to

cover as much as possible the current

literature. For this work, the adopted search

strategy was database search in digital

libraries and search engines, pointed out in

the next section.

4) Data Sources: The chosen data sources were

Web of Science

, Scopus

and IEEE

considering certain quality-related criteria

such as relevance in the computer ﬁeld,

publishing regularity, ease of use, ﬁlter

variety and full text of papers available for

members of the academia.

https://clarivate.com/webofsciencegroup/solutions/web-

of-science/

C. Selection Criteria

Regarding identified result studies into the digital

databases deriving from the search string, it was

defined that a criteria should be considered, to find

the most relevant papers. The results from the three

databases were consolidated and filtered, removing

duplicates and them, being classified as “Accepted”

or “Rejected”, meaning that the studies are relevant to

respond the research questions and the opposite,

respectively. The acronyms in Table 3 stands for

Inclusive Criteria (IC) and Exclusion Criteria (EC).

Table 3: Inclusion/Exclusion criteria.

IC01 The study is about TM applied to cyber

security

IC02 The study was published in a Journal

IC03 The study is in the field of computer science

IC04 The type of the document is article

IC05 The abstract of the paper contains the term

“Threat Modeling”

IC06 The study was published in English

IC07 The journal has at least 2 articles published

regarding this paper scope

EC01 The study is secondary or tertiary

EC02 The study is of the grey literature

EC03 The study is an index, preface, tutorial or

editorial, lecture or summary of a

conference workshop

EC04 The study is not related to computer science

EC05 The study is not related to TM applied to

cyber security

After analysing the results, the paper “Assessing IoT

enabled cyber-physical attack paths against critical

systems” was removed due to EC05 criteria.

D. Quality Assessment

Having selection criteria defined and sufficient

PICOC keywords groups covering all relevant

studies, the quality of the result has to be assessed

(Kitchenham and Charters, 2007). To achieve this,

our study considered journals with good impact rate,

having an average of 3.38, according to Table 4:

https://www.scopus.com/

https://www.ieee.org/

Systematic Literature Review of Threat Modeling Concepts

165

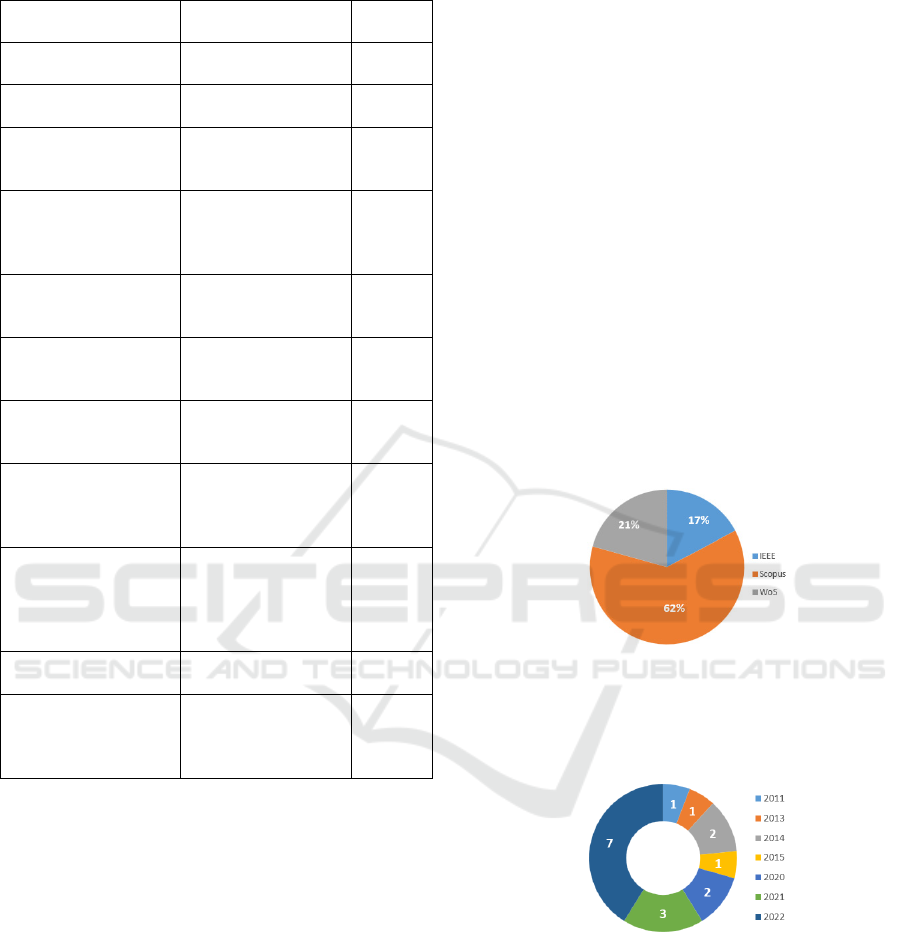

Table 4: Quality Assessment.

Paper Journal

Imp.

Facto

(Bedi and others,

2013

)

Software: Practice

erience

3.34

(Pereira-Vale and

others, 2021)

Computers and

Securit

5.1

(Sabbagh and

Kowalski, 2015; Shi

and others, 2022

)

IEEE Security and

Privacy

3.5

(Nyambo, et. al,

2014)

International

Journal of

Computing and

Digital Systems

1.01

(Alwaheidi and

Islam, 2022; Mauri

and Damiani, 2022

)

Sensors 3.84

(Elahi and others,

2021; Uzunov and

Fernandez, 2014

)

Computer Standards

and Interfaces

4.94

(Hacks and others,

2022; Xiong and

others, 2022

)

Software and

Systems Modeling

2.82

(AlFedaghi and

Alkandari, 2011)

International

Journal of Digital

Content Technology

and its A

lications

Discon-

tinued

(Wijesiriwardana and

others, 2020; Yeng

and others, 2020)

International

Journal of

Advanced

Computer Science

and A

lications

1.09

(Girdhar and others,

2022

)

IEEE Access 3.47

(Zeng and others,

2022)

IEEE Transactions

on Network and

Service

Management

4.75

E. Data Extraction

Some data were defined to be extracted from the

studies, which were (1) Title, (2) Author, (3)

Publication Year, (4) Publication Type, (5) Publisher,

(6) Source.

F. Pilot

After defining the elements for the planning phase, a

pilot was performed, executing the search string in

each digital library. The results were consolidated,

and all appeared keywords were analysed, being

included in the search string for results improvement.

3 RESULTS AND DISCUSSIONS

A. Selection of Studies

Initially, the search string conducted in the data

sources returned 29 results which, after removing

duplicates, left 17 unique papers for analysis. Then,

the including and exclusion criteria were applied in

two reading stages: (1) Title, abstract and keywords;

and (2) Introduction and conclusion. In this step, the

number of the papers was the same, as the search

string had already specified deeply directed the

results into the most relevant ones.

B. Data Extraction

This section presents the extracted data in a

summarized way, through graphs and descriptive

texts. Data Extraction has shown that the digital

library with most results was Scopus, which returned

62% of the studies, while IEEE returned 17% and

Web of Science 20%.

Figure 1: Overview of the results based on digital libraries.

Also, analysing the years of the results, it is

possible to check that the threat modelling subject

increased its research in the last two years.

Figure 2: Overview of the publications per year.

C. Addressing the Research Questions

RQ01 - What are the key elements of threat modeling?

(Bedi and others, 2013) brings honeytokens to

identify real unidentified threats during TM exercise,

in a three-phased process. It is defined that TM

provides a structured way to secure software design

by allowing security designers to accurately estimate

the attacker’s capabilities in respect of known threats

(Swiderski and Synder, 2005).

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

166

(Shi and others, 2022) defines TM as a structured

process for identifying and understanding potential

threats as well as developing and prioritizing

mitigations, so that valuable assets in the system can

be protected, also guiding the investment on system

security.

(Nyambo, et. al, 2014) uses the Microsoft Threat

Model STRIDE to identify security threats on

Livestock Data Center (LDC), as a case study

application of the methodology for security threat

analysis and requirements specification in

web/mobile applications development. STRIDE

stands for Spoofing, Tampering, Repudiation,

Information disclosure, Denial of Service and

Elevation of Privilege, which are considered the

attacker goals and the ones that guide the TM exercise

(Abi-Antoun, 2010).

(Sabbagh and Kowalski, 2015) analyses TM

applied to software supply chain (SSC). The paper

defines TM as an ontological analysis of threats that

aims to study the existence and nature of the threats,

expressing and capturing as many threats as necessary

to manage exiting risks and take appropriate

countermeasures. Moreover, the paper brings ISO

27005 definition of threat, which is defined as a

potential cause of an incident that might result in

harm to systems and organizations. Also, they

classify the threats in SSC as Social Threats, related

to human errors or behaviours such a supplier

denying having sent a software product, and

Technical Threats, related to hardware, operating

systems and application, for instance, individuals

being able to insert malicious code over the network

due to suppliers’ security flaws, resulting in defects in

the delivered software product. The countermeasures

proposed for each threat are also classified as Social

and Technical.

(Mauri and Damiani, 2022) defines TM as a

process for reviewing the security of a system,

identifying critical areas, and assessing the risk

associated with them, allowing for profiling and

prioritizing problems as well as potential mitigation.

The paper proposes a methodology for assessing

security in Artificial intelligence (AI) and Machine

Learning (ML) based systems. Microsoft STRIDE

threat model is adapted to support this specific field.

The paper shares an overview of other relevant TM

methods, such as PASTA (Morana and Uceda Vélez,

2015) and OCTAVE (Oladimeji and others, 2006),

but affirms that STRIDE is the most mature one.

https://learn.microsoft.com/en-us/archive/msdn-maga

zine/2006/november/uncover-security-design-flaws-

using-the-stride-approach

(Uzunov and Fernandez, 2014) presents a

combination of values of threat libraries and

taxonomies and propose a two-level pattern-based

taxonomy for development of distributed systems,

encompassing both threats to a system and the ones

corresponding to countermeasures realizations, called

meta-security threats. The article says that TM is a

systematic approach to introduce several security

measures resulted of analysing the potential attacks or

threats to a system in each context, during the

requirements analysis stage, design stage, or both,

determining the risks and likelihoods and how they

could be potentially mitigated. Also, conducting TM

requires sound knowledge of system technical

domain and sufficient security expertise to consider

both generic and specific attacks. Finally, threat

libraries, if used, enhances the efficacy of TM

process, as the common threats are considered.

(Hacks and others, 2022) considers (Shostack,

2014) definition of TM, which is a process that

supports the secure design of systems by easing the

understanding of the system complexity, as well as

identifying and modelling potential threats,

weaknesses and vulnerabilities to the system or

individual components. As TM exercise generally

results in many threats modelled, keep tracking which

parts of each one was tested became complex.

Considering this, the paper presents an automated

way of developers to check the quality of the results

of the TM exercise, improving them. It is augmented

that combining threat models can help defining the

countermeasures for identified threats, but also

reinforces that each existing threat model addresses

specific threats. Moreover, it is shared that several

threat models do not provide the necessary coverage

of potential attacks but focus on attacker’s

capabilities through different metrics.

(AlFedaghi and Alkandari, 2011) analyses key

aspects of Microsoft Software Development

Lifecycle (SDL)

. It is presented that TM examines a

system from the attacker’s perspective and based in

the assumption that an attack comes during

interaction with the system (Abi-Antoun and others,

2007) e (Abi-Antoun, 2010). Also, it shares the

Microsoft definition of TM, consisting in a systematic

process used to identify threats and vulnerabilities in

software, being considered a form of risk analysis,

having 5 components, existence, capability, history,

intentions and targeting. It is highlighted that TM is

different from attack modelling, which concentrates

on nature of an attack, not threats conducting them.

https://www.microsoft.com/en-us/securityengineering/

sdl/practices

Systematic Literature Review of Threat Modeling Concepts

167

An example presented of it is the attack tree, that is

done separate from TM, meaning that the threat could

execute the mapped attack tree. Finally, it says that

DFDs are used for performing TM, and that they are

composed by potential threat targets, such as data

sources, data flows and interactions, and symbols,

such as External entity (rectangles), process (circle),

multiple process (double circumference circle), Data

store (upper and lower edge box), Data flow (arrows)

and Privilege Boundary (dotted line).

(Xiong and others, 2022) proposes a TM language

named enterpriseLang, for enterprise security based

on MITRE Enterprise ATT&CK Matrix, which

describes adversary behaviours to measure the

resilience of an enterprise against various cyber-

attacks. The paper defines TM as an approach for

identifying main assets within a system and threats to

these assets (Xiong and Lagerström, 2019), being

coupled with attack simulations to evaluate its

security and discovery of strengths and weakness in

software applications. Also, TM methods can be

categorized into manual modelling, automatic

modelling, formal modelling (mathematical models)

and graphical modelling (attack trees, attack and

defence graphs, or tables) (Xiong and Lagerström,

2019). From the system evaluation perspective, the

system architecture is represented and analysed,

potential security threats are identified and

appropriate mitigation techniques are selected

(Dhillon, 2011; Frydman and others, 2014).

Regarding application development, TM is used to

assist engineers to identify potential security threats

associated with a software product (Kiesling and

others, 2016).

(Alwaheidi and Islam, 2022) delivers a data-

driven threat-analysis (d-TM), specifically for cloud-

based systems, across all cloud service provider threat

layers. STRIDE threat model was considered an

effective technique for effective measure for

safeguarding cloud systems (Morana and Uceda

Vélez, 2015), helping identifying attack vectors

impact, before its occurrence, and its vulnerabilities.

PASTA was also mentioned as relevant, with its

seven stages covering a complete cyber security

posture in the cloud (Sequeiros and others, 2020).

Attack trees are mentioned as relevant, providing

schematic representation of how assets in a cloud

system might be attacked in the form of a tree

(Sequeiros and others, 2020). DFDs were used to

represent the relationships between systems and

endpoint assets. As knowledge bases for cloud TM,

https://cwe.mitre.org/

https://capec.mitre.org/

MITRE CWE

, MITRE CAPEC

and NIST SP-800-

are considered.

(Wijesiriwardana and others, 2020) proposes a

knowledge-modelling based approach to

semantically infer the associations between

architectural level of security flaws and code-level

bugs, combining TM, static code analysis and

exploiting knowledge bases to infer relationships

between flaws and bugs. In the TM related work,

some approaches that considers architectural risk

analysis are mentioned, with identification and

mitigation trees forming a knowledge base called

attack patterns (Frydman and others, 2014); Other

tool was developed a CAPEC attack patterns,

allowing developers to think like attackers, mapping

threats in all SDLC phases and checking it against

each STRIDE category (Yuan and others, 2014); A

practical approach was used STRIDE to detect

vulnerabilities and mitigations in software. Those tree

approaches work only in the design phase, not linking

threats with source code level bugs (Berger and

others, 2016).

(Yeng and others, 2020) compared TM methods

to determine their suitability for identifying cloud

related threats, in the healthcare context. The paper

defines TM as the use of methods to help in thinking,

identifying and enumerating possible risks and

threats, helping in the identification of the lack of

security controls for mitigating risks (Alhebaishi and

others, 2019; Amini and others, 2015; Cheng and

others, 2012, p. 202; Hong and others, 2019; Yahya

and others, 2015; Zimba and others, 2016). Also,

threat models mentioned, such as Attack Tree

(structured way of describing threats and

vulnerabilities of a system, presenting possible attack

paths from attackers) (Shostack, 2014; Zimba and

others, 2016), Attack Graph (graphical view of attack

paths, considering attack point to attack target and

network information dependency interactions)

(Cheng and others, 2012), Attack Surface (software

features that may have vulnerabilities) (Amini and

others, 2015), Practical Threat Analysis

(identification of assets and their related values,

mapping the potential damage to be caused by

adversaries, identifying vulnerabilities, assessing the

risks of threats and defining risk mitigations strategies

to the system), Threat Model Framework for Personal

Network (description of all devices in network from

user perspective; gathering of network requirements

from use case diagram, network architecture,

environments and technologies; definition of data

https://csrc.nist.gov/publications/detail/sp/800-53/rev-5/

final

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

168

flows using UML sequence diagrams, actors and

devices; identification of assets and its related threats;

identifying vulnerabilities and related risks; rating of

the vulnerabilities and threats), STRIDE (threats

related to STRIDE acronym), TM in pervasive

computing (identification of cloud computer user

roles; identification of security domains and

interaction dynamic; mapping of trust levels;

vulnerability identification and risk evaluation),

LINDDUN (identification of privacy threats)

(Gholami and Laure, 2016).

(Pereira-Vale and others, 2021) says that TM

means defining a threat model and being able to

enumerate threats for a given system.

(Girdhar and others, 2022) presents existing TM

techniques for the automotive sector, specifically in

cyber-physical system (CPS) of a connected and

automated vehicle (CAV) ecosystem, with an

extensive application of STRIDE threat model, which

have been widely applied in IT industry. The paper

defines DFD as a graphical representation of the data

flow, composed of various entities.

(Zeng and others, 2022) proposes a vulnerability

risk prioritization system named LICALITY, aiming

to capture attacker preference on exploiting

vulnerabilities through a TM method, which

identifies threat attributes of the given historical

threat and exploits record of the network and neuro-

symbolic model that learns such threat attributes. It

also says that TM aims to provide a systematic

analysis of potential threats and vulnerabilities in a

system, being a process for capturing, organizing, and

analysing all the information that affects the security

of a system, identifying vulnerabilities and

suggesting defences against them (Drake, 2022).

Also, it defines threat model as a structure

representation of an attack graph enumerating known

vulnerability that attackers may exploit in a system

(Drake, 2022).

When applied for risk assessment context, risk

metrics are created based on attackers’ motivation,

capability, and corresponding vulnerabilities

(Bromander and others, 2016). Also, TM is a step of

the LICALITY system, which considers 3 arguments

for TM: (1) attackers experiences of software services

have attributes on assessing the likelihood of

exploitation; (2) Vulnerabilities access complexity

and impact features have attributes on assessing the

criticality of exploitation; (3) exploit records in the

wild have attributes on assessing the likelihood of

exploitation (Zeng and others, 2022).

(Elahi and others, 2021) proposes a semi-

quantitative approach for TM and risk analysis of

intelligent mobile cloud computing applications

(IMCCAs), which defines quantitative risk scores for

each threat. The paper says that TM is a

recommended method for modeling attack/defense

scenarios in software applications to assess their risks

(Souppaya and Scarfone, 2016).

RQ02 - Which steps are considered for threat

modeling?

Table 5 shows all papers that presented a

methodology that contributes to TM application were

classified as “Procedural”, and others as

“Conceptual”. The conceptual ones contain papers

that presented methodologies, but for different

purposes other than TM. For RQ02, only procedural

papers were analysed.

Table 5: Paper contributions classification.

Paper Contribution

(Alwaheidi and Islam, 2022; Bedi and

others, 2013; Elahi and others, 2021;

Girdhar and others, 2022; Mauri and

Damiani, 2022; Nyambo, et. al, 2014;

Shi and others, 2022; Wijesiriwardana

and others, 2020; Xiong and

Lagerström, 2019; Yeng and others,

2020)

Procedural

(AlFedaghi and Alkandari, 2011; Hacks

and others, 2022; Pereira-Vale and

others, 2021; Sabbagh and Kowalski,

2015; Uzunov and Fernandez, 2014;

Zeng and others, 2022)

Conceptual

(Bedi and others, 2013) defines a threat-oriented

security model which consists of 3 phases: (1)

Identification of known and unknown threats, (2)

analyse the identified threats attack paths, trough

threat trees, (3) use meta-agents combined with fuzzy

inference systems to monitor identified threats using

security baseline and applying actions according to

risk level, saving the system from being

compromised.

(Shi and others, 2022) presents six steps for TM,

mentioning that they are defined to be iteratively

applied during the SDLC: (1) Define security

requirements, including relevant standards and

functionalities; (2) Model the system, consisting in the

creation of a graph representing the artifacts as nodes,

grouped in trust zones, and data flows between the

nodes. The model can be written using specific syntax

or can be a diagram form, such as data flow diagram

(DFD), which should contain system entities, events,

and system boundaries, having 4 types of elements,

Systematic Literature Review of Threat Modeling Concepts

169

processes, data flows, data stores and external

entities; (3) Identify threats based on the system

model, using threat knowledge data bases, such as

STRIDE

, Common Vulnerabilities and Exposures

(CVE), Common Weakness Enumeration (CWE) and

Common Attack Pattern Enumeration and

Classification (CAPEC); (4) Evaluate the identified

threats based on multiple aspects, such as

accessibility to attackers, attack complexity,

privileges required and so on, quantifying the

severity of the threats trough scoring systems, such as

Common Vulnerability Scoring System (CVSS) and

Common Weakness Scoring System (SWSS); (5)

Mitigate potential threats according to the security

requirements, considering in which specific system

the threat resides and considering general suggestions

provided by knowledge bases, such as CWE and

CAPEC; (6) Validate that the threats are mitigated

after applying mitigation techniques, testing the

applied security controls. OWASP Application

Security Validation Standard is recommended.

(Nyambo, et. al, 2014) defines that the

identification of security threats paused by an

application consists in three steps: (1) Application

decomposition, defined by a presentation of how

application works, interacts with users and which

assets attackers might be interested in. Approaches

like Unified Modelling Language class, Entity

relationship and Data Flow Diagrams (DFD) can be

used in the decomposition; (2) Determination and

ranking of threats, defining a specific that model,

describing identified threats e associated threat

categories and calculating their impact over the

application; (3) Determination of countermeasure and

mitigation, step which were not explored by the

paper.

(Mauri and Damiani, 2022) uses (Myagmar and

others, 2005) definition, which considers that a

typical TM process consists in five steps: (1)

Objectives Identification – Status the security

properties the system should have; (2) Survey –

Determines the system’s assets, their

interconnections and connections to outside systems;

(3) Decomposition – Selects the assets that are

relevant to the security analysis; (4) Threat

Identification – Enumerates threats to the system’s

components and assets; (5) Vulnerabilities

Identifications – Examines identified threats and

determines if known attacks show that overall system

is vulnerable to them.

https://learn.microsoft.com/en-us/azure/security/deve

lop/threat-modeling-tool-threats

(Xiong and others, 2022) defines some steps for

the implementation of the proposed meta-model: (1)

Load enterpriseLang in a simulation tool called

securiCAD; (2) Create system model by specifying its

assets, associations, and adversaries’ entry point; (3)

Execute attack simulations over the system model,

automatically receiving the vulnerabilities and

possible mitigation strategies, due to ATT&CK

knowledge base incorporated into enterpriseLang, on

its original implementation.

(Alwaheidi and Islam, 2022) considers four

phases for TM exercise, in cloud context: (1) Data

collection, aiming to understand business processes,

services and infrastructure assets; (2) Data analysis,

identifying and extracting data levels and

constructing data-flow diagrams; (3) Threat analysis,

identifying weaknesses and related threats,

composing the threat profile and threat priority list;

(4) Threat mitigation, defining controls and

identifying security assurance level for each control.

(Wijesiriwardana and others, 2020) defines three

steps for TM: (1) Decomposition, consisting in

understanding the application and how it interacts

with external entities, producing DFDs; (2)

Determine and Rank Threats, stablishing a threat

categorization methodology, covering both attackers

and defensive perspectives; (3) Countermeasures and

mitigation, for ranked threats.

(Yeng and others, 2020) defines that TM for cloud

computing in healthcare should have the following

characteristics (Amini and others, 2015; Malik and

others, 2008; Shostack, 2014): (1) Identifying and

classifying assets; (2) Identifying users and Threat

agents; (3) Establishing Trust level and Users role; (4)

Identifying Security Domain; (5) Identifying

vulnerabilities; (6) Identifying Threats, (7) Ranking

and Measuring vulnerabilities; (8) Ranking and

measuring threats; (9) Identifying countermeasures,

(10) defining new assets threats or vulnerabilities.

Also, it is reinforced that this whole process should

ongoing. The paper also identifies each step over the

presented TM methods, in a consolidated table view.

(Girdhar and others, 2022) defines a framework

for investigation of cyberattacks-related accidents, in

connected and automated vehicles (CAV), containing

3 phases, (1) analysis of cyberattack-induced CAV

accident; (2) STRIDE threat modeling; (3) Potential

cybersecurity measures.

(Elahi and others, 2021) defines 8 steps for semi

quantitative TM and risk analysis: (1) Characterize

the system; (2) Identify the attack vectors/threat

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

170

conditions; (3) Classify attack vectors/threat

conditions; (4) Assess the impact of the threats; (5)

Determine the likelihood of threats; (6) Compute

gross risks; (7) Identify security controls and their

effectiveness; (8) calculate net risk.

RQ03 - Which phases of the ISO27005 Risk

Management process are addressed?

ISO27005:2022 defines 7 phases, which were

originated from ISO31000 and adapted into

information security context: (1) Internal and

External context establishment, criteria and scope; (2)

Risk Identification, covering assets, threats,

vulnerabilities, consequences; (3) Risk Analysis,

delimiting the consequences and likelihood of each

risk, having its risk level; (4) Risk Evaluation,

comparing with defined context criteria; (5) Risk

Treatment, with the options of modify, retain, avoid

or share the risks, defining a risk treatment plan; (6)

Communication and Consultation, involving

stakeholders for decision making (7); Monitoring and

Review, in ongoing basis over related assets, impacts,

threats, vulnerabilities, likelihoods of occurrence.

According to the above definitions, TM steps of

the papers classified as “Procedural” in RQ02 were

compared against each phase of the risk management

process. As a result, it was understood that all

procedural papers covers ISO27005 phases 1,2,4,5,

but phase 3 were considered only in (Elahi and others,

2021). It is interesting to highlight that severity and

threat ranking is addressed in the papers, but

likelihood of the threat is present in just one paper,

despite others mentions about creation of attack trees

and DFD during context validation.

RQ04 - What are the future perspectives for threat

modeling?

Future perspectives presented by selected papers

were classified and seven groups: (1) Integration with

cybersecurity standards or knowledge bases, to

amplify the scope of analysed threats and

vulnerabilities, (2) Integration with other threat

models, (3) Incorporation of legal and regulatory

requirements into the threat model methodology, (4)

Application of the presented methodology, tool or

framework, for validation, improvement and

extension, (5) Automation of the presented method or

some phases of the assessment, (6) Creation of

benchmarks for quantitative evaluation of threat

model tools and (7) Definition of relevant research

areas on development of secure application, as

presented by Table 6:

Table 6: Future Perspectives.

ID Pa

ers

(Girdhar and others, 2022; Hacks and others,

2022; Mauri and Damiani, 2022; Shi and others,

2022; Uzunov and Fernandez, 2014; Xiong and

others, 2022; Yeng and others, 2020)

(Uzunov and Fernandez, 2014; Yeng and others,

2020

)

3 (Yeng and othe

s, 2020)

(AlFedaghi and Alkandari, 2011; Alwaheidi and

Islam, 2022; Bedi and others, 2013; Elahi and

others, 2021; Girdhar and others, 2022; Hacks and

others, 2022; Nyambo, et. al, 2014; Sabbagh and

Kowalski, 2015; Wijesiriwardana and others,

2020; Zen

and others, 2022

)

5 (Alwaheidi and Islam, 2022)

6 (Shi and others, 2022)

7 (Pereira-Vale and others, 2021)

4 CONCLUSIONS

Regarding key elements of TM, it is understood that

TM is a systematic approach for securing software

and applications, performed during designing phase.

Also, environment scope (on-premises or cloud)

doesn’t drive the analysis, being adapted for each

scenario, provided that the data flow diagrams (DFD),

as a tool for architecture description, represents the

flows of information, entities, processes, data stores

and privileged boundaries adequately. Threat models

can be used to construct the DFDs, such as Attack

Tree, Attack Graph, Attack Surface, Practical Threat

Analysis, Threat Model Framework for Personal

Network, STRIDE, Pervasive Computing and

LINDDUN. To do so, sound knowledge of system

technical domain and security expertise are

mandatory.

In DFDs, attacker’s capabilities can be analysed

and mapped, along with their possible interactions

within the system and existing elements. These

interactions will be considered as potential threats,

and they can enhance the TM process if

complemented by threat libraries, which maps known

threats for different scenarios that can affect the

analysed system. After identifying threats and

documenting, TM considers the definition of

adequate safeguards and security controls for

mitigation of the identified threats. This controls and

action plans can be prioritized according to threat

severity, which can be ranked based on their

criticality.

This paper identified the key elements listed

above in TM steps, as RQ02 was intended to

consolidate. Generally, TM methodologies follows

Systematic Literature Review of Threat Modeling Concepts

171

(1) Understanding of the applications or asset’s

structure and how elements interact with each other,

(2) Threat identification in this context, (3) Threat

analysis, regarding its severity and impact in the

established context, (4) Definition of

countermeasures. Some authors consider risk

calculation based on likelihood, others include

technological elements to support threat

identification, such as honeytokens, for unknown

threats mapping based in real attack situations.

RQ03 allowed the study to confirm that TM is

directly relate to risk management, as the integration

between TM steps and ISO 27005 phases, although

few of the papers includes likelihood factor in TM

exercise. As R04 pointed for future research should

consider having full integration between TM and risk

management, enabling appropriate risk mapping and

mitigation control of the identified threats and their

related risks.

REFERENCES

Abi-Antoun, M., 2010, STRIDE-based security model in

Acme: p. 16.

Abi-Antoun, M., Wang, D., and Torr, P., 2007, Checking

threat modeling data flow diagrams for implementation

conformance and security, in the twenty-second

IEEE/ACM international conference – Proceedings of

the twenty-second IEEE/ACM international conference

on Automated software engineering - ASE ’07: ACM

Press, Atlanta, Georgia, USA, p. 393.

AlFedaghi, S., and Alkandari, A., 2011, On Security

Development Lifecycle: Conceptual Description of

Vulnerabilities, Risks, and Threats: International

Journal of Digital Content Technology and its

Applications, v. 5, p. 296–306.

Alhebaishi, N., Wang, L., and Singhal, A., 2019, Threat

Modeling for Cloud Infrastructures: ICST Transactions

on Security and Safety, v. 5, p. 156246.

Alwaheidi, M. K. S., and Islam, S., 2022, Data-Driven

Threat Analysis for Ensuring Security in Cloud Enabled

Systems: Sensors, v. 22, p. 5726.

Amini, A., Jamil, N., Ahmad, A. R., and Z`aba, M. R.,

2015, Threat Modeling Approaches for Securing Cloud

Computin: Journal of Applied Sciences, v. 15, p. 953–

967.

Bedi, P., Gandotra, V., Singhal, A., Narang, H., and

Sharma, S., 2013, Threat-oriented security framework

in risk management using multiagent system:

PROACTIVE RISK MANAGEMENT: Software:

Practice and Experience, v. 43, p. 1013–1038.

Berger, B. J., Sohr, K., and Koschke, R., 2016,

Automatically Extracting Threats from Extended Data

Flow Diagrams, in Caballero, J., Bodden, E., and

Athanasopoulos, E. eds., Engineering Secure Software

and Systems: Springer International Publishing, Cham,

p. 56–71.

Bromander, Jøsang, A., and Eian, M., 2016, Semantic

Cyberthreat Modelling: Proc. STIDS, p. 74–78.

Cheng, Y., Du, Y., Xu, J., Yuan, C., and Xue, Z., 2012,

Research on security evaluation of cloud computing

based on attack graph, in 2012 IEEE 2nd International

Conference on Cloud Computing and Intelligence

Systems:, p. 459–465.

Dhillon, D., 2011, Developer-Driven Threat Modeling:

Lessons Learned in the Trenches: IEEE Security and

Privacy, v. 9, p. 41–47.

Drake, V., 2022, Threat Modeling: OWASP.

Elahi, H., Wang, G., Xu, Y., Castiglione, A., Yan, Q., and

Shehzad, M. N., 2021, On the Characterization and

Risk Assessment of AI-Powered Mobile Cloud

Applications: Computer Standards & Interfaces, v. 78,

p. 103538.

Frydman, M., Ruiz, G., Heymann, E., César, E., and Miller,

B. P., 2014, Automating Risk Analysis of Software

Design Models (M. Ivanovic, Ed.): The Scientific

World Journal, v. 2014, p. 805856.

Gholami, A., and Laure, E., 2016, Advanced Cloud Privacy

Threat Modeling:

Girdhar, M., You, Y., Song, T.-J., Ghosh, S., and Hong, J.,

2022, Post-Accident Cyberattack Event Analysis for

Connected and Automated Vehicles: IEEE Access, v.

10, p. 83176–83194.

Hacks, S., Persson, L., and Hersén, N., 2022, Measuring

and achieving test coverage of attack simulations

extended version: Software and Systems Modeling.

Hong, J. B., Nhlabatsi, A., Kim, D. S., Hussein, A., Fetais,

N., and Khan, K. M., 2019, Systematic identification of

threats in the cloud: A survey: Computer Networks, v.

150, p. 46–69.

Kiesling, T., Krempel, M., Niederl, J., and Ziegler, J., 2016,

A Model-Based Approach for Aviation Cyber Security

Risk Assessment, in 2016 11th International

Conference on Availability, Reliability and Security

(ARES):, p. 517–525.

Kitchenham, B., and Charters, S. M., 2007, Guidelines for

performing systematic literature reviews in software

engineering:

Malik, N. A., Javed, M. Y., and Mahmud, U., 2008, Threat

Modeling in Pervasive Computing Paradigm, in 2008

New Technologies, Mobility and Security:, p. 1–5.

Mauri, L., and Damiani, E., 2022, Modeling Threats to AI-

ML Systems Using STRIDE: Sensors, v. 22, p. 6662.

Morana, M. M., and Uceda Vélez, T., 2015, Risk centric

threat modeling: process for attack simulation and

threat analysis: Wiley, Hoboken, New Jersey, 1 p.

Myagmar, S., Lee, A. J., and Yurcik, W., 2005, Threat

Modeling as a Basis for Security Requirements:

Proceedings of the IEEE Symposium on Requirements

Engineering for Information Security, p. 9.

Nyambo, et. al, D., 2014, An Approach for Systematically

Analyzing and Specifying Security Requirements for

the Converged Web-Mobile Applications: International

Journal of Computing and Digital Systems, v. 3, p. 207–

217.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

172

Oladimeji, E. A., Supakkul, S., and Chung, L., 2006,

Security threat modeling and analysis: A goal-oriented

approach, in ICSE 2006.:

Pereira-Vale, A., Fernandez, E. B., Monge, R., Astudillo,

H., and Márquez, G., 2021, Security in microservice-

based systems: A Multivocal literature review:

Computers & Security, v. 103, p. 102200.

Sabbagh, B. A., and Kowalski, S., 2015, A Socio-technical

Framework for Threat Modeling a Software Supply

Chain: IEEE Security & Privacy, v. 13, p. 30–39.

Sequeiros, J. B. F., Chimuco, F. T., Samaila, M. G., Freire,

M. M., and Inácio, P. R. M., 2020, Attack and System

Modeling Applied to IoT, Cloud, and Mobile

Ecosystems: Embedding Security by Design: ACM

Comput. Surv., v. 53.

Shi, Z., Graffi, K., Starobinski, D., and Matyunin, N., 2022,

Threat Modeling Tools: A Taxonomy: IEEE Security &

Privacy, v. 20, p. 29–39.

Shostack, A., 2014, Threat Modeling: Designing for

Security: Wiley, Indianapolis.

Souppaya, M., and Scarfone, K., 2016, Guide to data-

centric system threat modeling: National Institute of

Standards and Technology.

Swiderski, F., and Synder, W., 2005, Threat Modeling:

Microsoft Press, Redmond , Washington, 288 p.

Uzunov, A. V., and Fernandez, E. B., 2014, An extensible

pattern-based library and taxonomy of security threats

for distributed systems: Computer Standards &

Interfaces, v. 36, p. 734–747.

Wijesiriwardana, C., Abeyratne, A., Samarage, C.,

Dahanayake, B., and Wimalaratne, P., 2020, Secure

Software Engineering: A Knowledge Modeling based

Approach for Inferring Association between Source

Code and Design Artifacts: International Journal of

Advanced Computer Science and Applications, v. 11.

Xiong, W., and Lagerström, R., 2019, Threat modeling – A

systematic literature review: Computers & Security, v.

84, p. 53–69.

Xiong, W., Legrand, E., Åberg, O., and Lagerström, R.,

2022, Cyber security threat modeling based on the

MITRE Enterprise ATT&CK Matrix: Software and

Systems Modeling, v. 21, p. 157–177.

Yahya, F., Walters, R. J., and Wills, G. B., 2015, Analysing

threats in cloud storage, in 2015 World Congress on

Internet Security (WorldCIS):, p. 44–48.

Yeng, P. K., D., S., and Yang, B., 2020, Comparative

Analysis of Threat Modeling Methods for Cloud

Computing towards Healthcare Security Practice:

International Journal of Advanced Computer Science

and Applications, v. 11.

Yuan, X., Nuakoh, E. B., Beal, J. S., and Yu, H., 2014,

Retrieving Relevant CAPEC Attack Patterns for Secure

Software Development, in Proceedings of the 9th

Annual Cyber and Information Security Research

Conference: Association for Computing Machinery,

New York, NY, USA, p. 33–36.

Zeng, Z., Yang, Z., Huang, D., and Chung, C.-J., 2022,

LICALITY—Likelihood and Criticality: Vulnerability

Risk Prioritization Through Logical Reasoning and

Deep Learning: IEEE Transactions on Network and

Service Management, v. 19, p. 1746–1760.

Zimba, A., Hongsong, C., and Zhaoshun, W., 2016, Attack

tree analysis of Man in the Cloud attacks on client

device synchronization in cloud computing, in 2016

2nd IEEE International Conference on Computer and

Communications (ICCC):, p. 2702–2706.

Systematic Literature Review of Threat Modeling Concepts

173
