Towards a Neuro-Symbolic Framework for Multimodal Human-AI

Interaction

Anthony James Scotte and Varuna De Silva

Institute for Digital Technologies, Loughborough University, London, U.K.

Keywords: Conversation, Emotion, Sarcasm, Neural Network, Decision Theory, Probabilistic Logic.

Abstract: Humans are not defined by a single means of communication: language, style, expression, body posture,

emotion and attitude all contribute to the mix that makes communicating challenging to understand. As

humans seek to strengthen partnerships with computers, these communication complexities need to be both

understood and overcome. This paper seeks to explore a framework that combines neural networks with

decision theory and probabilistic logic to tackle the complexities inherent within conversational

communication. In combining the strength of each of these capabilities through a proof of concept, this paper

demonstrates a potential framework of how different AI models may deepen its understanding of human

conversation.

1 INTRODUCTION

Following decades of research, programming has

evolved to a level where machines can behave in a

manner that is arguably clever, for example, playing

and beating human Grand Masters at the boardgame

of Go (Silver et al., 2016). Further, the field of AI has

sought to transcend single functions and build

capabilities that partner with human beings by

learning and interacting in ways familiar to their

creators (Johnson, 2021). At a fundamental level, this

raises questions as to how should or could computers

interact with humans?

When considering how humans communicate

through conversation, the words alone only convey a

portion of the message (Devito, 2016). Feelings,

emotions, thoughts, and beliefs, underpinned by the

individual’s prevailing attitude (Marchant, 2017), are

inherent within both verbal (i.e., what was said, the

dictum); non-verbal messages (i.e., how it was said);

and what is actually meant (i.e., the implicatum)

(Tabacaru, 2019). Decisions in what and how to

respond in conversations require real-time inference

and decision making.

Consider further the additional complexities when

different languages, words and meanings, accents,

cultural & behavioural norms, and colloquialisms that

exist across the globe are introduced. Each additional

communication aspect introduces an additional lens

we as humans place across how we interpret what is

being said and how we respond. The challenges for

effective human to human communication are

obvious and can take years to master.

This raises the not inconsiderable question of how

could AI offer a solution that is able to undertake a

conversation with a human that is replete with both

the dictum and the implicatum and infer conclusions

in near real time?

The hypothesis of this paper contended that

models that identify emotion and attitude

independently (in this case sarcasm as it offered an

implicatum) from conversational data, could be

inputs to further inference yielding a greater

understanding of a conversation and thereby facilitate

a decision for a better response in a possible dialogue-

based solution.

The technical challenge lay in recognising that

although models could perform tasks specific to

particular challenges, for example emotion

recognition (Chudasama et al., 2022), they were

unable to extend beyond their original purpose. This

required holistic end-to-end thinking that by necessity

sought to integrate the capabilities of independent

neural networks for low-level inference (Ghosal et al.,

2020), with decision theory (Rosen, 1995) and

probabilistic logic (dtai.cs.kuleuven.be, 2020) for

high-level inference.

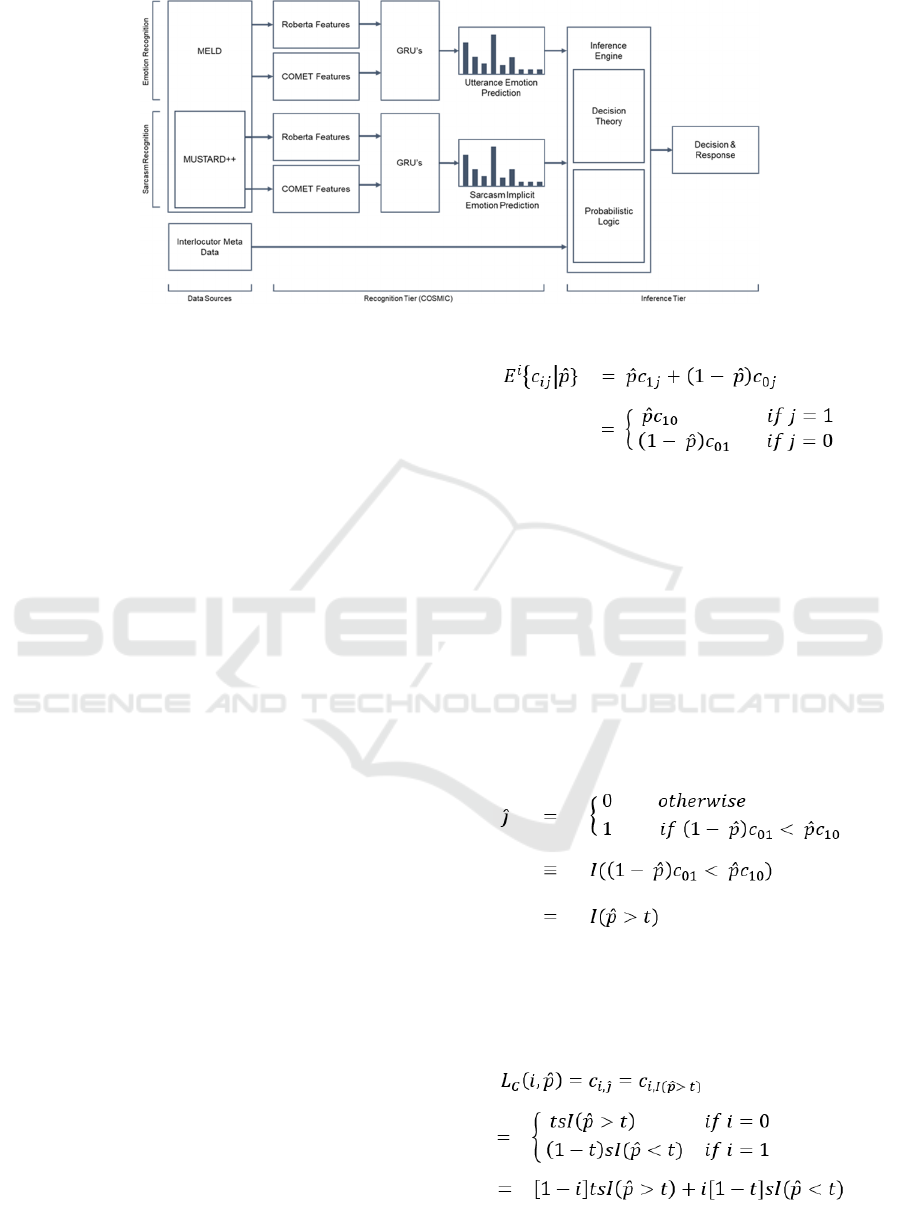

In providing a cascading framework that

harnesses the strengths of low and high-level

inference models, the contribution of this paper has

sought to provide one possible framework that could

932

Scotte, A. and De Silva, V.

Towards a Neuro-Symbolic Framework for Multimodal Human-AI Interaction.

DOI: 10.5220/0011776300003411

In Proceedings of the 12th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2023), pages 932-939

ISBN: 978-989-758-626-2; ISSN: 2184-4313

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

address the nuances of language inherent within

conversation and improve the chances of human to

machine conversations in the future.

2 BACKGROUND

2.1 Human Considerations

Referencing the initial ‘code model’ by (Saussure,

1916), communication is seen as an exchange of

information. For this to occur successfully, two

conditions are thought to be required.

According to (Sperber and Wilson, 1990), the

sharing of information between two human beings

relies upon a shared cognitive environment which

facilitates their interpretation of what they hear.

Within this shared cognitive environment, all the

information needed for a successful communication

is available. It is therefore arguably true, that without

this shared environment, the chances for a successful

communication are diminished.

In a study by (Grice, 1989) and later assessed by

(Davies, 2007), distinction between saying and

meaning was key. According to (Grice, 1989),

speakers within a conversation both express and infer

ideas where speakers adhere to standard behaviours.

When hearing or producing an utterance, it is

assumed that the message contained all the accurate,

necessary, and relevant information required.

Conversely, where an utterance did not adhere to the

standard behaviour, the message was not dismissed,

but rather it was assumed that an appropriate meaning

had to be inferred by actively seeking meaning from

the context (Davies, 2007).

To complicate matters further, different

attitudes, such as sarcasm and irony, can

fundamentally alter what is actually said, the

dictum, and what is actually meant, the implicatum

(Tabacaru, 2019). Findings in one linguistic study

demonstrated that 8% of utterances within

conversations amongst friends contained an attitude

of sarcasm (Gibbs, 2000).

To humans, understanding is not seen as

sequential. The recipient “…does not first decode the

logical form, then construct an explicature and select

an appropriate context, and then derive a range of

implicated conclusions. Comprehension is an on-line

process, and hypotheses about explicatures,

implicated premises, and implicated conclusions are

developed in parallel against a background of

expectations which may be revised or elaborated as

the utterance unfolds.” (Wilson & Sperber, 2004)

2.2 AI and Conversation

Natural Language Processing (NLP), a combination

of Artificial Intelligence and Linguistics, has

continued to mature technologically over the last two

decades and is dedicated to achieving computer

comprehension of statements made by humans

(Khurana et al., 2022).

As emotion is embedded within conversation,

dialogue analysis has seen increasing attention from

researchers (Firdaus et al., 2020) giving rise to the

NLP subfield of emotion recognition in conversation

(ERC).

Given the significance of the interaction between

human and machine (Tu et al., 2021), interest in

dialogue systems has steadily grown (Tu et al., 2022)

with an increasing numbers of conversation datasets

being established (Zahiri et al., 2018).

In an exploration of state-of-the-art methods used

within ERC, (Chudasama et al., 2022), acknowledged

that many methods still employ text-based processing

and achieved robust results. However, in creating

their SOTA Multi-modal Fusion Network (M2FNet)

for ERC, the richness offered by multi-modal fusion

exceeded associated data fusion challenges.

However, AI research has not been monopolised

by emotion studies. Given the findings by (Gibbs,

2000), research has broadened into fields more

focused on attitude as well (Sangwan et al. 2020)

including (as examples) sarcasm detection (Ray et al.,

2022) and irony detection (Reyes et al., 2012).

As imagined, sarcasm detection increases the

complexity of language processing in that

expressions may invert the literal meanings and

therefore undermines the accuracy and robustness of

NLP models (Ren et al., 2020).

Sarcasm detection therefore involves correctly

identifying contextual or linguistic incongruity,

which in turn requires further information, either

from multiple modalities or from contextual history

(Sangwan et al., 2020).

2.3 Inference from Conversation

Regardless of their increasing capabilities, one

constraint on any deep learning approach is that they

have been engineered to perform a single prediction

task and look at the data provided through a single

lens. They can predict either emotion or an attitude

(for example sarcasm), but not both.

This highlights a limitation that current deep

learning models can only examine one facet of a

conversation but are unable to extend across all

inferences and meanings. How could individual

Towards a Neuro-Symbolic Framework for Multimodal Human-AI Interaction

933

models draw inference when multiple competing

explicatures are available from the same data?

Although there have been efforts to demonstrate

the logical and reasoning capabilities of AI, notably

using deep learning models, their results have been

mixed. As examples: Deep Mind in resolving simple

math questions realised 50% accuracy (only slightly

better than guessing) when operations required step-

by-step solving abilities (Saxton et al., 2019); and

OpenAI’s GPT-2 language model (Radford et al.,

2019) purported to successfully generate human-like

essays. However, closer inspection revealed outputs

were not logically generated, but simply regurgitated

examples based on the training data.

Deep learning (as a neural network) forms with

other types of models a collective known as Sub-

symbolic or neural AI (Yalçın, 2021). Such

capabilities excel at low-level perception (Manhaeve

et al., 2021a).

Symbolic AI is a sub-field of artificial

intelligence, which concentrates on high-level

symbolic (human-readable) representations of

classical logic and assumes that logic makes

machines intelligent (Yalçın, 2021). Such

capabilities excel at high level reasoning (Manhaeve

et al., 2021a).

The combination of deep learning and symbolic

reasoning has been coined as Neuro-Symbolic AI

(NeSy) (Garcez et al., 2020). NeSy’s objective

according to (Hamilton et al., 2022), is to combine the

strengths of both symbolic and sub-symbolic

approaches and address their respective weaknesses.

This has seen increasing research into NeSy solutions

over the last decade (Hamilton et al., 2022) where a

combination of the neural and symbolic approaches is

hoped to provide an opportunity to generate more

robust AI solutions (Sarker et al., 2021).

One such avenue of exploration addresses

implementing symbolic AI in one of the oldest (yet

still extremely popular) logic programming

languages, Prolog, which has its roots in first-order

logic (Yalçın, 2021).

It has been further argued that high-level

reasoning may be better addressed using probabilistic

logic (Manhaeve et al., 2021a) and so Problog (an

extension of Prolog) may offer an introduction to

exploiting the possibilities of NeSy.

3 METHODOLOGY

The hypothesis of this paper contended that models

that identify emotion and attitude independently (in

this case sarcasm as it offered an implicatum) from

conversational data could be inputs to further

inference yielding greater understanding of the

conversation allowing and for a better response in a

possible dialogue-based solution.

In accepting that neural networks (NN’s) are

continuing to excel at providing low-level perception

derived from data but are (at this time) less mature in

providing high level inference (Manhaeve et al.,

2021b), it is reasonable to propose that NN’s might

be coupled together with some form of inferencing

capability as per the cascading model offered by

(Mao et al., 2019).

In following the above reasoning, this paper

sought to explore within a time-boxed, high-level

proof of concept (PoC) the ability to combine the

outputs from an emotion recognition neural network;

a sarcasm recognition neural network; and

interlocutor meta data; with decision theory and

probabilistic logic from which to generate inference

for decision making purposes.

A logical architecture of the PoC can be seen in

Figure 1. Beyond the data sources, two individual

tiers were coupled together and perform specific

tasks.

3.1 Recognition Tier

The purpose of the NN’s contained within the

recognition tier was relatively simple in that they had

to generate a probability distribution (prediction) of

both an emotion, and sarcasm independently.

For the emotion recognition tier, the MELD

conversation dataset and the COSMIC prediction

model were used to generate a probability distribution

from one of the explicit emotion categories as

specified within (Ghosal et al., 2020).

For the sarcasm recognition tier the

MUSTARD++ sarcastic utterance dataset and the

COSMIC prediction model were used to generate a

probability distribution from one of the explicit

sarcasm categories as specified within (Ray et al.,

2022). The MUSTARD++ dataset was chosen as it

partially overlapped the MELD dataset and therefore

different models could make predictions against the

same data.

Both models were trained, evaluated, and

employed independently of one another.

3.2 Inference Tier

The purpose of the inference tier was more

complicated, twofold and remains a work in progress.

The first task was to evaluate the emotion and

sarcasm predictions against one another to identify a

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

934

Figure 1: Proof of Concept Logical Architecture.

preferred prediction. This was attempted using

Decision Theory.

The second task was to use additional interlocutor

metadata with the preferred prediction as inputs and

attempt to infer a deeper understanding so that a

decision could be made on how to respond. This was

accomplished using Probabilistic Logic.

Although NN models focus upon F1 scores to

demonstrate their predictive prowess, it should be

understood that a prediction by itself does not have

consequences in reality until it is relied upon.

Therefore, the measure of a prediction is the actual (or

expected) gains (or losses) realised by those who have

relied upon a prediction to decide (Rosen, 1995).

In understanding a decision problem, defined by

(Rosen, 1995) as the “…choice of a course of action

having real-world consequences (costs) that depend

on both the action (decision) and an outcome event

(true class)”, it is characterised by the decision loss

𝑐



for each observed outcome 𝑖 and decision 𝑗. These

𝑐



can be said to form the elements of a cost matrix

𝐶 (also referred to as a decision loss matrix).

For the sake of simplicity, two outcomes and two

alternatives were considered for both emotion and

sarcasm although in general the number of each

would arguably be higher.

Decision 𝑗=0 is the most favourable when

outcome 𝑖=0. Nonzero 𝑐



or 𝑐



have been ignored

as they lead to overall offsets as explained by (Rosen,

1995).

According to (Rosen, 1995), decision loss is

implicit in the prediction. When considering the

approach of minimising the impact of any decision, if

the decision loss is known, the simplest approach

would be to apply this and a prediction 𝑝̂ into

elementary decision theory and recommend the

course of action 𝑗= 𝚥̂ that minimizes the expected

decision loss.

(1)

Where: 𝑖 is an observed outcome; 𝑝̂ is the

prediction of probability of outcome 𝑖 = 1; 𝐿(𝑖,𝑝̂) is

the probability loss function (prediction scoring rule);

𝑗 is the decision index (in some decision problem

where 𝑖 is relevant); 𝐶 = {𝑐



 is the decision loss

(regret or cost matrix) characterising a decision

problem; 𝑡 is the decision threshold = 𝑐



/(𝑐





𝑐



) and lies between 1 and 0; 𝑠 are the stakes = 𝑐





𝑐



; 𝚥̂ is the decision recommendation = 𝐼(𝑝̂ 𝑡);

𝐼(𝑖𝑛𝑒𝑞𝑢𝑎𝑙) is 1 if inequality is true, 0 otherwise; and

𝐸



{𝑔(𝑧)│𝐴 is expectation over 𝑧 of 𝑔(𝑧) given 𝐴.

The decision recommendation is thus given as

follows:

(2)

It should be recognised that the decision loss is not

a measure of the value of the prediction but is

however given by the recommendation loss when

following the recommendation implicit in 𝑝̂ where

the actual outcome is 𝑖 (Rosen, 1995).

(3)

Towards a Neuro-Symbolic Framework for Multimodal Human-AI Interaction

935

This type of probability loss function is referred

as single-decision or single-threshold since it depends

only on whether 𝑝̂ is above or below a particular 𝑡.

3.2.1 Probabilistic Logic

This part of the PoC model sought assess an

individual’s propensity to make jokes and the impact

on the probability that the sarcastic utterance should

be considered joking rather than scornful.

According to (Weitkämper, 2021), probabilistic

logic programming represents a significant part of

statistical relational artificial intelligence, where

approaches from probability and logic are interleaved

to reason from relational domains where uncertainty

exists.

One such probabilistic logic program (ProbLog),

which is based on First Order Logic, permits the

building of programs addressing complex

interactions between “…large sets of heterogenous

components but also the inherent uncertainties

that are present in real-life situations.”

(dtai.cs.kuleuven.be, 2020).

ProbLog programs themselves are comprised of a

set of probabilistic facts 𝐹 of the form 𝑝∷𝑓 where:

𝑝 is a probability; 𝑓 is an atom; and ℛ is a set of rules

(Manhaeve et al., 2021a).

Each ground instance 𝑓𝜃 of a probabilistic fact 𝑓,

corresponds to an independent Boolean random

variable with probability 𝑝 when true, and probability

1− 𝑝 when false (Manhaeve et al., 2021a).

If all ground instances of probabilistic facts are

denoted as ℱ in ℱ𝛩, then every subset 𝐹⊆ℱ𝛩

defines a possible world 𝑤



=𝐹∪{ℎ𝜃|ℛ∪𝐹⊨ℎ𝜃

and ℎ𝜃 is ground}. This means that the world 𝑤



the canonical model of the logic program obtained by

adding 𝐹 to the set of rules ℛ (Manhaeve et al.,

2021a).

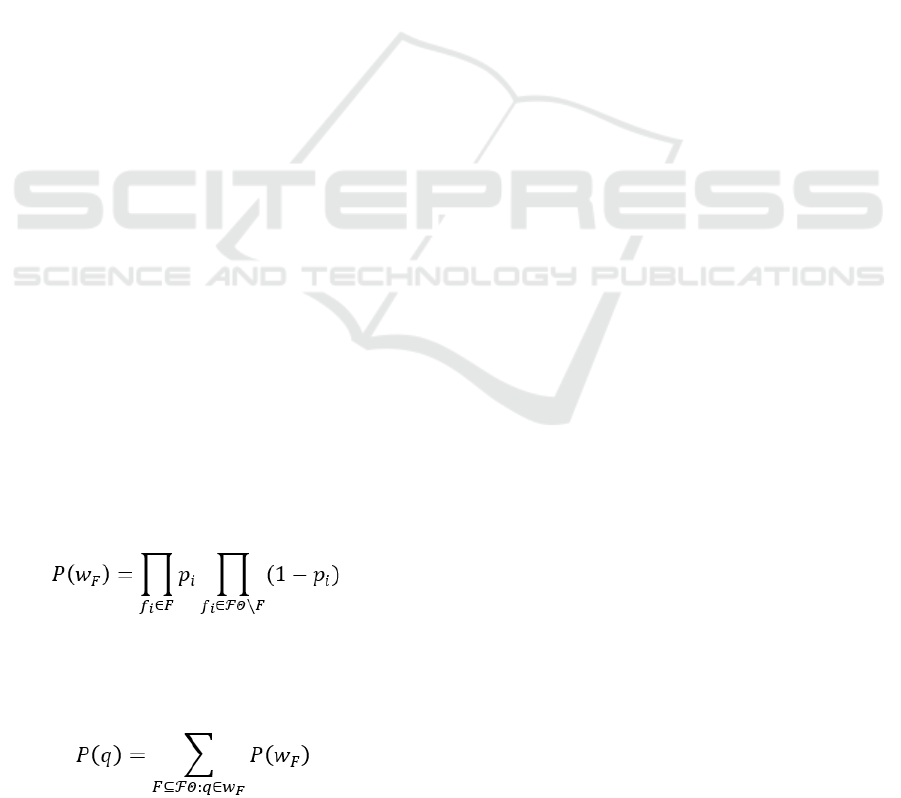

Given a possible world 𝑤



, its probability 𝑃(𝑤



is given by the product of the probabilities of the truth

values of the probabilistic facts (Manhaeve et al.,

2021a).

(4)

The success probability of 𝑞 (also known as the

probability of a ground atom 𝑞), can then be defined

as the sum of the probabilities of all worlds containing

𝑞 (Manhaeve et al., 2021a).

(5)

4 RESULTS & DISCUSSION

4.1 Data

Although the MELD dataset proved a sound choice

(as it continues to be used in as emotion recognition

benchmark in SOTA studies), the choice of the

MUSTARD++ dataset was less effective as labelled

data for sarcasm modelling was limited to 601

utterances only (not conversations) across a range of

American only situational comedies.

As conceded by (Ray et al., 2022), sarcasm is not

easily found and required significant effort to identify

and include additional conversational corpora from

which to identify further data points. Despite the

expansion of their search, (Ray et al., 2022), the focus

remained on similar sources and were constrained by

the same types of sarcasm and emotional categories.

Despite this apparent narrowness of focus, recent

research by (Tabacaru ,2019) has: yielded greater

insight into what sarcasm is and is not; identified the

linguistic mechanisms employed in generating

sarcastic utterances that are much broader than those

used by (Ray et al., 2022); and broadened emotion

categories which may provide greater depth to the

underlying emotions inherent within sarcastic

utterances.

4.2 Recognition Tier

In realising the PoC, the data needs of the two

prediction models were different. Although sourced

from the same parent dataset, their preparation was

subject to their specific needs in that the emotion

predictor required conversational data whereas the

sarcasm predictor required utterance data only.

In building the end-to-end capability that took

conversational text and elicited predictions, the

choice of COSMIC proved reasonable for the

emotion recognition and results were in line with

those published by (Ghosal et al., 2020).

However, the MUSTARD++ dataset, though

maintaining several lines of the conversation leading

up to the sarcastic utterance, did not provide emotion

labels for non-sarcastic utterances. This necessitated

the COSMIC model to train and validate only on those

utterances that contained implicit sarcasm labels.

Further, the shortfall of available data constrained

the model resulting in overfitting and poor results

with reference to both validation and test data.

Overall, although sarcasm predictions could be

generated from the model, prediction using the

COSMIC model met with limited success and proxies

were used within the inference tier.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

936

Figure 2: Sample of Decision Theory Calculations.

Figure 3: Probability of Chandler joking when sarcasm identified as Ridicule.

Figure 4: Probability of Chandler joking when sarcasm identified as Anger.

The limited success of the COSMIC model to

successfully train on the single-modal input as

opposed training on multi-modal data as realised by

(Ray et al., 2022), suggests that approaches that use

single modal only for sarcasm identification, or

indeed any attitudinal identification, remain less

effective. This is borne out by (Tabacaru, 2019) who

suggests that facial features and vocal prosody are

key considerations in being able to identify sarcasm.

4.3 Inference Tier

The two main findings from the application of

Decision Theory (Rosen, 1995) were that: the

relationship between the prediction and the threshold

directly impacted the choice of the recommendation

loss; and having established the decision

recommendation loss, the choice of prediction was

down to avoiding the biggest loss. Sample results can

be seen in Figure 2. Overall, the theory proffered by

(Rosen, 1995) does provide a framework for

differentiating and choosing between competing

predictions, so long as the costs of all decisions can

be sufficiently quantified.

As this study was an exercise seeking to explore

and prove a concept, certain assumptions were made

in the number of possible alternative decisions that

could occur for each outcome; and determining the

values to be attributed to the decision costs applied

within the cost matrix.

In reality, the alternatives and costs arguably may

be able to be provided by experts within the field.

However, where this is not possible and these remain

unknown, (Rosen, 1995) proffers that the

recommendation loss can be plotted as a function of

the unknown threshold for a given prediction and

outcome. In summing or averaging such curves over

a data set consisting of many prediction/outcome

pairs, the performance on the data can be

characterised. This (Rosen, 1995) refers to as the

recommendation loss characteristic (RLC) curve and

will provide a basis over time from which a threshold

can be derived and updated.

In applying ProbLog to possible treatments of

additional interlocutor metadata such as propensity to

banter when the sarcasm prediction was ridicule,

ProbLog does provide a successful coding

framework. Examples can be seen in Figures 3 & 4.

However, in extracting and making separate the

logic that determined if the sarcastic utterance of the

individual was banter based on the individual’s

predilection for making jokes, the question was raised

as to where the logic should reside.

Trial Type Prediction C

Threshold Stakes Rec. Loss Overall

Sarcasm 0.8 5.00 10.00 0.667 15.00 10.00

Emotion 0.9 3.00 6.00 0.667 9.00 6.00

Sarcasm 0.8 5.00 10.00 0.667 15.00 10.00

Emotion 0.9 0.50 6.00 0.923 6.50 0.50

Sarcasm 0.8 0.40 5.00 0.926 5.40 0.40

Emotion 0.9 0.50 6.00 0.923 6.50 0.50

Sarcasm 0.9 0.90 10.00 0.917 10.90 0.90

Emotion 0.8 0.80 6.00 0.882 6.80 0.80

Predict Sarcasm

Predict Emotion

Predict Sarcasm

Towards a Neuro-Symbolic Framework for Multimodal Human-AI Interaction

937

According to (Manhaeve et al., 2021b) there is a

prevailing idea that employs logic as a constraint

within a deep model. This is achieved by extending

a deep model with a regularisation term, drawn from

desired logical properties that encourages the model

to imitate logical reasoning or suffer a penalty if not

obeyed.

In using a regulariser encouraging a model to

satisfy constraints, the logic is encoded into the

parameters (either weights or embeddings).

Arguably, the constraints are soft, and there is no

guarantee that they all will be satisfied or make

predictions coherent with the logic they were trained

on (Xu et al., 2018).

Regardless, (Manhaeve et al., 2021b) contends

that the underlying importance of being able to fully

recover the logic is the primary objective despite the

location of the logic.

In the case of the PoC and this study, additional

lenses across the conversational data may require

additional and deeper logics to be added over time.

Implementing logical constraint via a regulariser

across all models may arguably not prove effective

considering there is no guarantee they will all work as

intended and thereby result in inconsistent results

when compared.

5 CONCLUSIONS

The contribution of this paper has been to

demonstrate the nuances of language and associated

modelling challenges, and identify one possible

framework that, if explored further, might improve

human to machine conversations in the future.

Although the solution and evaluation remained

high-level due to the time-boxed nature of the study,

conclusions were able to be drawn and provide

insights for future versions.

What data exists at present for emotion and

attitude is not yet of sufficient quality or quantity. For

such a solution to become more robust, a cross-

disciplinary, multi-modal research exercise with

linguists should be undertaken to fully understand the

latest research, and elicitation strategies to gather an

appropriately qualified and robust dataset that serves

a diverse set of requirements.

It can be further argued that in bringing multiple

models together to contribute to one holistic purpose,

the issue of aligning models across multiple

modalities to evaluate the same data or use similar

algorithm techniques to ensure consistent training and

prediction, does require careful consideration, and an

end-to-end holistic design mindset.

The decision-making process illustrated choosing

between competing predictions can be made with an

understanding of the associated costs incurred when

relying upon a given prediction. Although this

framework did rely upon a simplistic case and cost

assumptions, decision recommendation loss theory

does offer a working solution and provides an avenue

forward for further exploration under more stringent

and realistic conditions.

The application of first order logic (through

ProbLog) to add further inference to a decision made

earlier in the process, demonstrates that the cascading

approach adopted in this study is worthy of further

consideration. Appreciating that the inference

undertaken in this case was simplistic in nature does

not erode the underlying proposition but proved its

validity and provides an avenue to increase the

maturity of this capability further.

Despite the solution being a time boxed PoC, the

study has explored the stated hypothesis; has

identified challenges to be overcome; and laid

foundations for one possible solution. However, it

remains a work in progress.

Next steps for this avenue of research are to

deepen the exploration and realisation of the

preliminary recommendations highlighted above,

create a more substantive version of the solution that

incorporates findings and more fully demonstrates an

end-to-end capability, and implement a framework

that more comprehensively evaluates and provides

deeper results for consideration.

REFERENCES

Chudasama, V., Kar, P., Gudmalwar, A., Shah, N., Wasnik,

P. and Onoe, N. (2022). M2FNet: Multi-modal fusion

network for emotion recognition in conversation.

[online] doi:10.48550/ARXIV.2206.02187.

Davies, Bethan L. (2007). Grice’s Cooperative Principle:

Meaning and rationality. Journal of Pragmatics 39.

2308—2331.

Devito, J.A. (2016). The interpersonal communication

book. 14th ed. Boston: Pearson.

dtai.cs.kuleuven.be. (2020). Introduction. — ProbLog:

Probabilistic Programming. [online] Available at:

https://dtai.cs.kuleuven.be/problog/.

Firdaus, M., Chauhan, H., Ekbal, A. and Bhattacharyya, P.

(2020). EmoSen: Generating Sentiment and Emotion

Controlled Responses in a Multimodal Dialogue

System. IEEE Transactions on Affective Computing,

pp.1–1. doi:10.1109/taffc.2020.3015491.

Garcez, A. d’Avila and Lamb, L.C. (2020). Neurosymbolic

AI: The 3rd wave. [online] doi:10.48550/ARXIV.

2012.05876.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

938

Ghosal, D., Majumder, N., Gelbukh, A., Mihalcea, R. and

Poria, S. (2020). COSMIC: COmmonSense knowledge

for eMotion identification in conversations. [online]

doi:10.48550/ARXIV.2010.02795.

Gibbs, R. (2000). Irony in Talk Among Friends. Metaphor

and Symbol, 15(1), pp.5–27.

doi:10.1207/s15327868ms151&2_2.

Grice, H.P. (1989). Studies in the way of words.

Cambridge, Mass.: Harvard Univ. Press, Ca.

Hamilton, K., Nayak, A., Bozic, B. and Longo, L. (2022).

Is neuro-symbolic AI meeting its promise in natural

language processing? A structured review.

Johnson, J. (2021). AI/Human Augmentation: How AI &

Humans Can Work Together. [online] BMC Blogs.

Khurana, D., Koli, A., Khatter, K. and Singh, S. (2022).

Natural language processing: state of the art, current

trends and challenges. Multimedia Tools and

Applications. doi:10.1007/s11042-022-13428-4.

Manhaeve, R., Dumančić, S., Kimmig, A., Demeester, T.

and De Raedt, L. (2021a). Neural probabilistic logic

programming in DeepProbLog. Artificial Intelligence,

298, p.103504. doi:10.1016/j.artint.2021.103504.

Manhaeve, R., Marra, G., Demeester, T., Dumancic, S.,

Kimmig, A. and De Raedt, Luc (2021b). Chapter 7.

Neuro-symbolic AI = neural + logical + probabilistic

AI. doi:10.3233/FAIA210354.

Mao, J., Gan, C., Kohli, P., Tenenbaum, J.B. and Wu, J.

(2019). The neuro-symbolic concept learner:

Interpreting scenes, words, and sentences from natural

supervision. [online] doi:10.48550/ARXIV.1904.

12584.

Marchant, J. (2017). » Attitude. [online] www.

emotionalintelligenceatwork.com. Link.

Mehrabian A., Communicating without words, Psychol.

Today. (1968) 53–55.

Radford, A., Wu, J., Child, R., Luan, D., Amodei, D. and

Sutskever, I. (2019). Language models are

unsupervised multitask learners. OpenAI blog, 1, p.9.

Ray, A., Mishra, S., Nunna, A. and Bhattacharyya, P.

(2022). A multimodal corpus for emotion recognition

in sarcasm. [online] doi:10.48550/ARXIV.2206.02119.

Ren, L., Xu, B., Lin, H., Liu, X. and Yang, L. (2020).

Sarcasm Detection with Sentiment Semantics

Enhanced Multi-level Memory Network.

Neurocomputing, 401, pp.320–326. doi:10.1016/j.

neucom.2020.03.081.

Reyes, A., Rosso, P. and Veale, T. (2012). A

multidimensional approach for detecting irony in

Twitter. Language Resources and Evaluation, 47(1),

pp.239–268. doi:10.1007/s10579-012-9196-x.

Rosen, D. (1995). How good were those probability

predictions? The expected recommendation loss (erl)

scoring rule. Maximum Entropy and Bayesian

Methods.

Sarker, M.K., Zhou, L., Eberhart, A. and Hitzler, P. (2021).

Neuro-symbolic artificial intelligence: Current trends.

[online] doi:10.48550/ARXIV.2105.05330.

Sangwan S., Akhtar M. S., Behera P. and Ekbal A., (2020),

I didn’t mean what I wrote! Exploring Multimodality

for Sarcasm Detection, International Joint Conference

on Neural Networks (IJCNN), pp. 1-8, doi:

10.1109/IJCNN48605.2020.9206905.

Saussure, Ferdinand de. (1916). Cours de linguistique

générale. Paris: Payot

Saxton, D., Grefenstette, E., Hill, F. and Kohli, P. (2019).

Analysing mathematical reasoning abilities of neural

models. [online] doi:10.48550/ARXIV.1904.01557.

Silver, D., Huang, A., Maddison, C.J., Guez, A., Sifre, L.,

van den Driessche, G., Schrittwieser, J., Antonoglou, I.,

Panneershelvam, V., Lanctot, M., Dieleman, S., Grewe,

D., Nham, J., Kalchbrenner, N., Sutskever, I., Lillicrap,

T., Leach, M., Kavukcuoglu, K., Graepel, T. and

Hassabis, D. (2016). Mastering the game of Go with

deep neural networks and tree search. Nature,

529(7587), pp.484–489. doi:10.1038/nature16961.

Sperber, D. and Wilson, D. (1990). Relevance

communication and cognition. Oxford Blackwell.

Tabacaru, S. (2019). A Multimodal Study of Sarcasm in

Interactional Humor. Berlin: De Gruyter Mouton.

Tu, G., Wen, J., Liu, H., Chen, S., Zheng, L. and Jiang, D.

(2021). Exploration meets exploitation: Multitask

learning for emotion recognition based on discrete and

dimensional models. Knowledge-Based Systems,

p.107598. doi:10.1016/j.knosys.2021.107598.

Tu, G., Wen, J., Liu, C., Jiang, D. and Cambria, E. (2022).

Context- and Sentiment-Aware Networks for Emotion

Recognition in Conversation. IEEE Transactions on

Artificial Intelligence, pp.1–1. doi:10.1109/tai.

2022.3149234.

Weitkämper, F. (2021). An asymptotic analysis of

probabilistic logic programming, with implications for

expressing projective families of distributions. [online]

doi:10.48550/ARXIV.2102.08777.

Xu, J., Zhang, Z., Friedman, T., Liang, Y. and Broeck, G.,

2018, July. A semantic loss function for deep learning

with symbolic knowledge. In International conference

on machine learning (pp. 5502-5511). PMLR.

Yalçın, O.G. (2021). Symbolic vs. Subsymbolic AI

Paradigms for AI Explainability. [online] Medium.

Link.

Zahiri S. M., Choi J.D., (2018), Emotion Detection on TV

Show Transcripts with Sequence-based Convolutional

Neural Networks https://doi.org/10.48550/arXiv.

1708.04299.

Towards a Neuro-Symbolic Framework for Multimodal Human-AI Interaction

939
