Instance Segmentation Based Graph Extraction for Handwritten Circuit

Diagram Images

Johannes Bayer

, Amit Kumar Roy

and Andreas Dengel

Deutsches Forschungszentrum f

ur k

unstliche Intelligenz,

Trippstadter Str. 122, Kaiserslautern, Germany

Keywords:

Mask RCNN, Graph Extraction, Schematic, Engineering Drawing.

Abstract:

Handwritten circuit diagrams from educational scenarios or historic sources usually exist on analogue me-

dia. For deriving their functional principles or ﬂaws automatically, they need to be digitized, extracting their

electrical graph. Recently, the base technologies for automated pipelines facilitating this process shifted from

computer vision to machine learning. This paper describes an approach for extracting both the electrical com-

ponents (including their terminals and describing texts) as well their interconnections (including junctions and

wire hops) by the means of instance segmentation and keypoint extraction. Consequently, the resulting graph

extraction process consists of a simple two-step process of model inference and trivial geometric keypoint

matching. The dataset itself, its preparation, model training and post-processing are described and publicly

available.

1 INTRODUCTION

Handwritten circuit diagrams still occur nowadays,

for example in educational contexts, when commu-

nicating swiftly sketched ideas or viewing historic

schematics. In most scenarios, automatic means for

digitization are desired, i.e. the extraction of electri-

cal graphs from scanned or photographed images for

further analysis in computer-aided engineering soft-

ware.

While the pipelines for graph extraction from en-

gineering diagrams adopted more machine learning

over time, they still tend to involve computationally

expensive computer vision. At the same time, the pro-

vision of datasets for training these models is costly.

The approach described in this paper aims to move

more functionality to the machine learning model, al-

lowing for a simpliﬁed graph extraction during test

time. For both electrical symbols and their intercon-

nections being detected as objects along with their

connector points, detailed knowledge on their layout

is required during training. The costs for providing

the complex training data necessary are mitigated by

a modular method.

https://orcid.org/0000-0002-0728-8735

https://orcid.org/0000-0003-4405-752X

https://orcid.org/0000-0002-6100-8255

2 RELATED WORK

2.1 Existing Approaches

While early approaches to digitize electric circuit di-

agrams were based on computer vision (Bailey et al.,

1995) and limited to printed diagrams, later works in-

corporate machine learning like support vector ma-

chines (Lakshman Naika et al., 2019), allowing to

also process handwritten diagrams. Recently, the

trend shifted to deep artiﬁcial neural networks (Reddy

and Panicker, 2021) (Dai and Braytont, 2017). How-

ever, all these approaches rely on rather complex and

computationally expensive pipelines in which sym-

bols and their connections are processed in individ-

ual steps. For example, a dedicated neural network

is used for electrical symbol classiﬁcation (Rabbani

et al., 2016).

Similar trends can also be observed in the closely

related domain of piping and instrumentation dia-

grams for the chemical industry (Mani et al., 2020)

(Nurminen et al., 2019) (Rahul et al., 2019) (Sierla

et al., 2020).

Unfortunately, most literature rely on small

datasets, simple circuits, is restricted to special cases

like digital logic circuits (MAJEED et al., 2020) or

does not use publicly available datasets at all, prevent-

ing reproducibility and comparability.

926

Bayer, J., Roy, A. and Dengel, A.

Instance Segmentation Based Graph Extraction for Handwritten Circuit Diagram Images.

DOI: 10.5220/0011752600003411

In Proceedings of the 12th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2023), pages 926-931

ISBN: 978-989-758-626-2; ISSN: 2184-4313

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

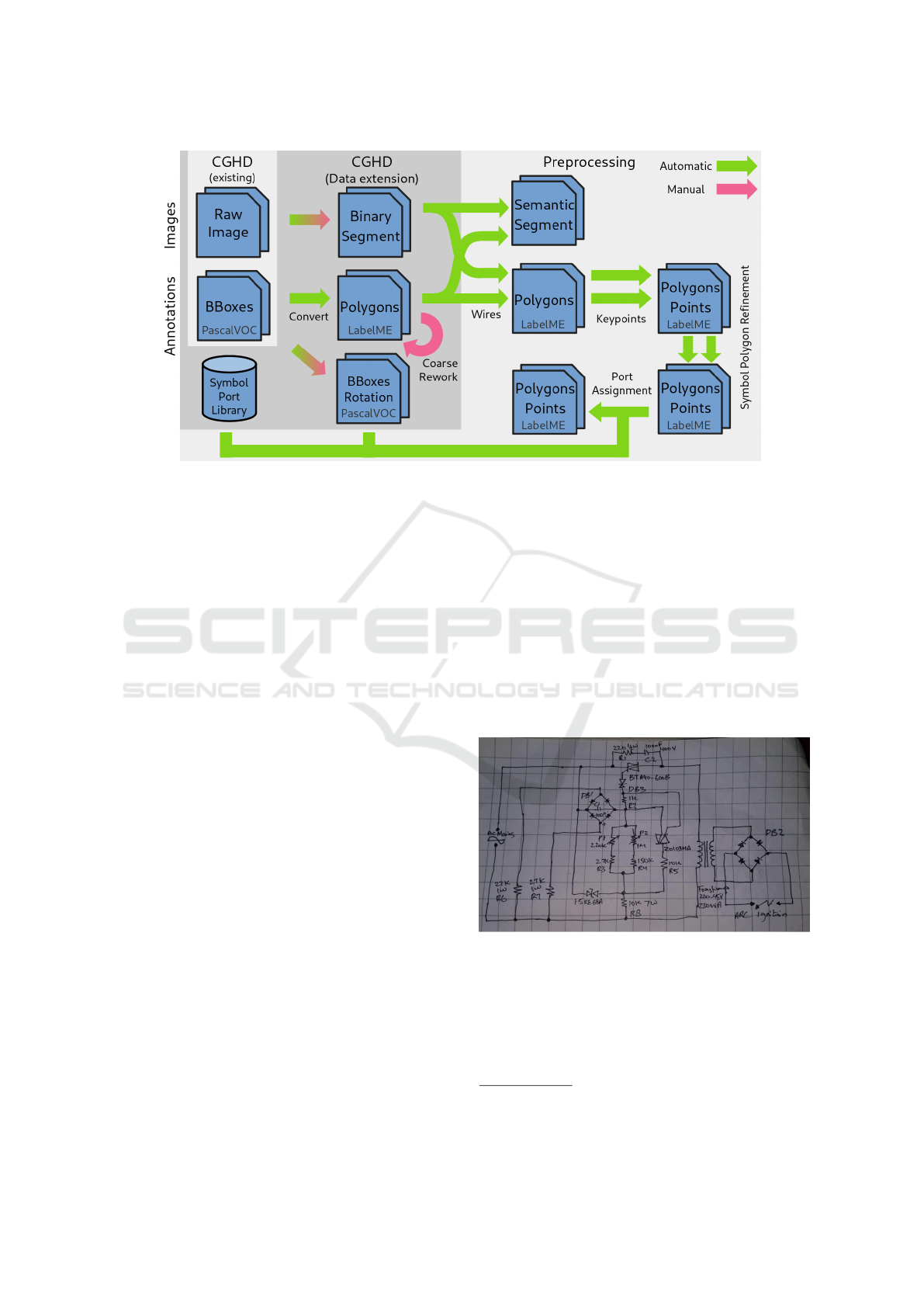

Figure 1: Dataset Preparation Workﬂow.

2.2 Mask RCNN

Mask R-CNN (Doll

ar and Girshick, 2017) is an artiﬁ-

cial neural network architecture, allowing for the pre-

diction of bounding boxes, instances masks and key-

points. For the paper at hand, the Detectron 2 (Wu

et al., 2019) implementation is used.

2.3 CGHD

CGHD (Thoma et al., 2021) is a publicly available

dataset of handwritten circuit diagrams with bound-

ing box annotations for the contained electrical sym-

bol, texts (for e.g. component names, electrical prop-

erties and circuit headings) and structural elements

like junctions and crossovers (wire hops). Since its

ﬁrst description, it has been extended in sample count,

the set of classes has also been extended and hier-

archically structured. Every circuit is drawn twice,

photographed four times and hence occurs as eight

samples of pairs of images and annotations in the

dataset. This allows for automatically verifying inter-

annotator agreement. The individual images are taken

under varying conditions of lighting and physical

degradation to maximize sample variation. In its cur-

rent form, it contains 2.208 raw images with 185.641

bounding box annotations of 58 object classes.

3 METHODOLOGY

The CGHD dataset is extended by instance segmen-

tation ground truth in a set of separated and semi-

automated processing steps, which signiﬁcantly low-

ers the manual annotation overhead, allows for future

reuse and adaptation and avoids annotation ambigui-

ties (see ﬁg. 1). The extended dataset along with the

processing scripts are publicly available

1 2

A Mask-RCNN model is trained on these exten-

sions to demonstrate the viability of the proposed ap-

proach.

The tool set developed in conjunction with this pa-

per allows for graph import and hence links instance

segmentation and graph processing.

3.1 Dataset Preparation

Figure 2: Raw Image Sample from CGHD.

Since the original CGHD dataset (see ﬁg. 2) provides

bounding box annotations only for object detection

of electrical symbols (and basic structural elements),

a graph extraction pipeline built on a respective ob-

ject detection model requires additional processing

for connection extraction. This is computa- tionally

https://zenodo.org/record/7355865

https://gitlab.com/circuitgraph

Instance Segmentation Based Graph Extraction for Handwritten Circuit Diagram Images

927

expensive and challenged by structured background

paper as well as overlaps between bounding box An-

notations (see ﬁg. 3).

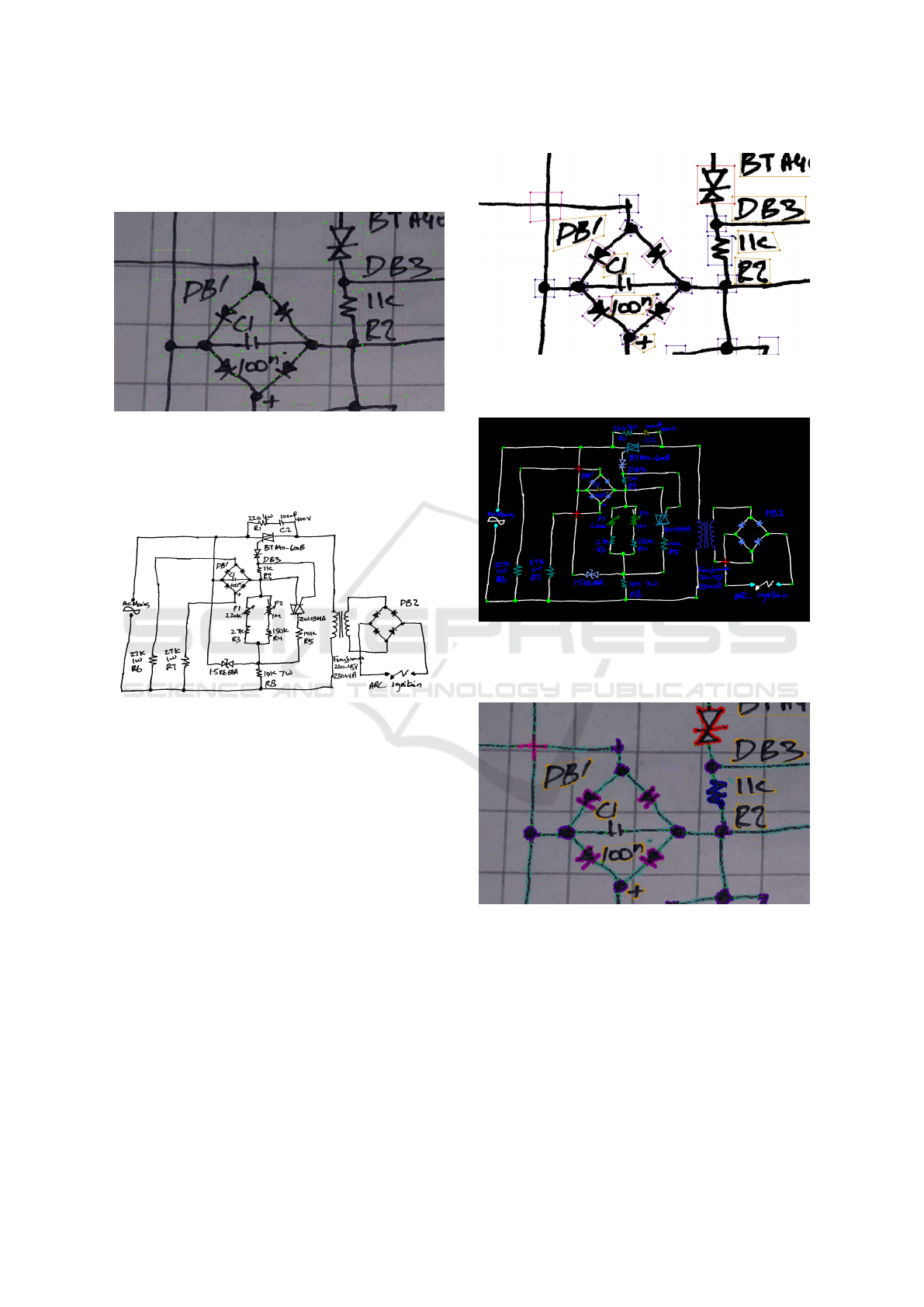

Figure 3: Sample Excerpt showing Overlapping Bounding

Box Annotation and Challenging Background.

3.1.1 Binary Segmentation Maps

Figure 4: Binary Segmentation Map.

Through semi-automatic means (Peter Mattis, 2022)

like noise ﬁlters, color enhancement, thresholding and

manual correction, binary segmentation maps are cre-

ated from the raw images in which intended drafter’s

pencil strokes related to the circuit are separated from

the (e.g. lined or ruled) paper background and sur-

rounding objects. As these maps are stored indepen-

dently, they can be used for additional segmentation

purposes in future.

3.1.2 Coarse Polygon Masks

After the bounding box annotations have been con-

verted into polygons, they are manually reworked

with respect to avoiding overlaps between individual

polygons in stoke areas as well as excluding longer

parts of connecting wires (see ﬁg. 5). LabelME (Rus-

sell et al., 2008) is used for this purpose.

As a mean for simpliﬁed visual inspection and to

prepare for future semantic segmentation scenarios, a

function overlaying coarse polygons with binary seg-

mentation maps is used (see ﬁg. 6).

Figure 5: Coarsely Reworked Polygons Avoid Overlaps

while Requiring Little Manual Effort.

Figure 6: Semantic Segmentation Map.

3.1.3 Mask Reﬁnement

Figure 7: Automatically Reﬁned Polygons.

Reﬁned polygons are created automatically by apply-

ing contour detection to maps obtained by bit-wise

and operation between a binary segmentation map

and individual coarse polygons. For discontinuous

binary map content inside the polygon area, convex

hulls are used instead (see ﬁg. 7). As the reﬁned

polygons are created algorithmically, they can conve-

niently be adapted by e.g. altering the polygon sam-

ple width. Apart from that, annotation ambiguities are

avoided by this step.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

928

3.1.4 Addition Mask Generation

All stroke areas not covered by any existing polygon

annotation so far is considered an electrical intercon-

nection between components. Hence, wire polygons

annotations are created automatically by blacking the

polygon annotation areas before applying contour de-

tection, labeling the resulting polygons as wire.

3.1.5 Keypoint Generation

Based on the assumption that drafter’s strokes touch-

ing an electrical symbol’s shape are representing the

symbol’s electrical connections, the keypoints for de-

scribing the ports of electrical symbols are derived by

calculating intersections between stroke areas in the

binary segmentation maps with borders of the sym-

bol’s shape polygons. In order to avoid false posi-

tives, the morphological operation erosion is used be-

fore. Additionally, as there many direct stroke con-

nections between electrical symbols and texts (due to

inaccurate drawing styles) and texts are assumend not

to have electrical connections, areas of text strokes are

also removed before the actual keypoint generation.

3.1.6 Keypoint Port Assignment

In order to form a viable electrical graph, the extracted

keypoints need to be assigned respective electrical ter-

minals. For this purpose, rotation annotations are uti-

lized which represent the angle between a symbol in-

stance and its corresponding prototype in the symbol

port library. More precisely, a prototype’s ports are

geometrically transformed to the bounding box of the

polygon and before being matched. Since number of

ports and their position within the (idealized) proto-

type is known for the majority of symbol types, an

automated veriﬁcation is performed in this processing

step.

3.2 Post-Processing

Constructing electrical graphs from target values or

predictions is done by treating all polygons but the

wire polygons as nodes, the wire polygons them-

selves as edges and geometrically matching the key-

points of the wire polygons against all other polygons

(see ﬁg. 8).

4 EXPERIMENT

245 Binary segmentation maps with 18.276 polygon

annotations have been created as addition to the exist-

ing CGHD dataset.

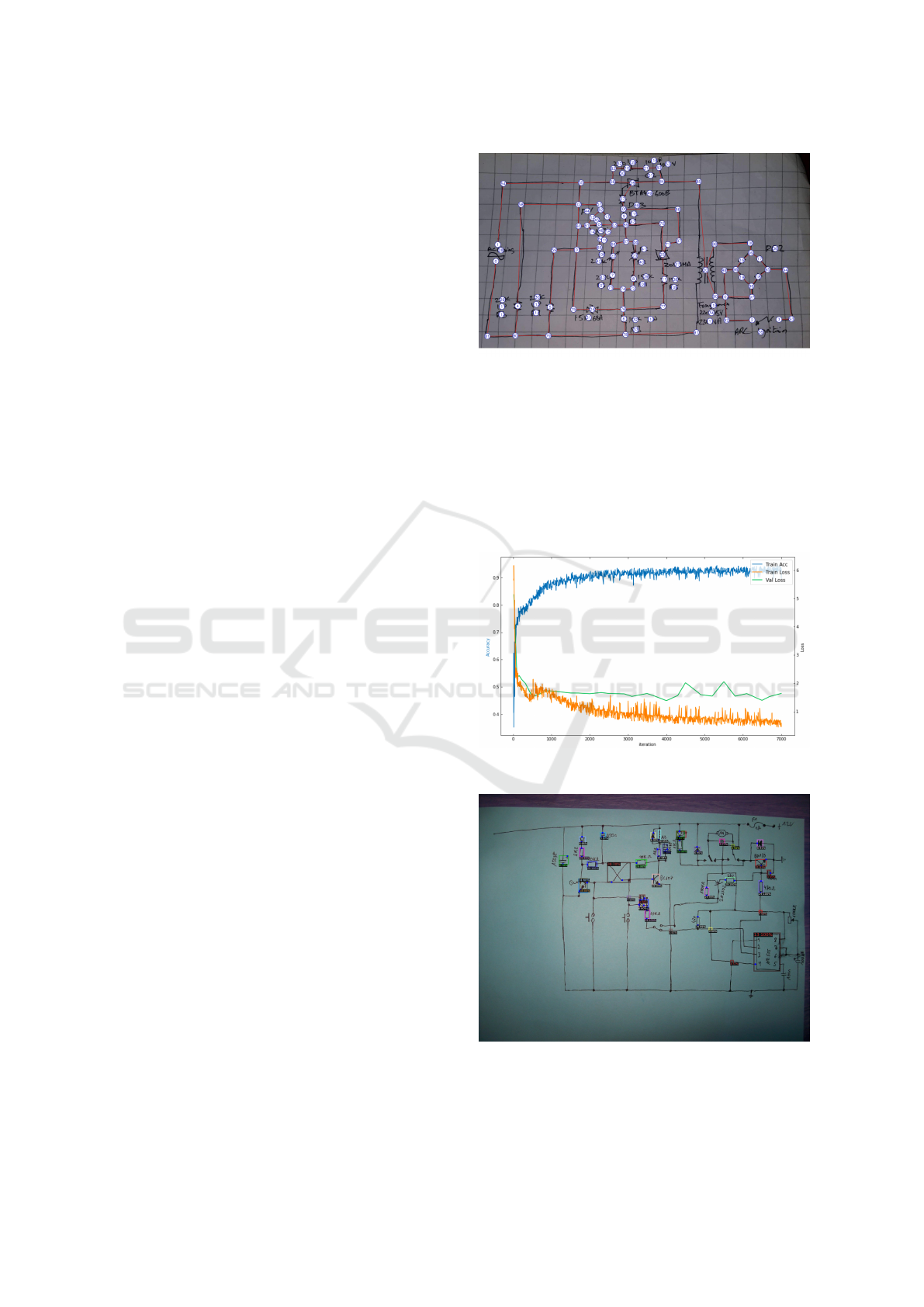

Figure 8: Graph Structure Extracted From Polygon and

Keypoint Annotations.

A Mask RCNN trained with learning rate of

0.0005 and a batch size of 4 for 7000 iterations re-

sulted in a minimum training loss of 0.44, a maximum

training mask accuracy of 0.94 and a minimum vali-

dation loss of 1.39 (see ﬁg. 9). A visual inspection

on validation set mask (see ﬁg.11) and keypoint (see

ﬁg. 10) predictions shows reasonable, yet incomplete

recognition.

Figure 9: Instance Segmentation Learning Curve.

Figure 10: Keypoint Predictions for Electrical Symbols on

the Validation Set.

Instance Segmentation Based Graph Extraction for Handwritten Circuit Diagram Images

929

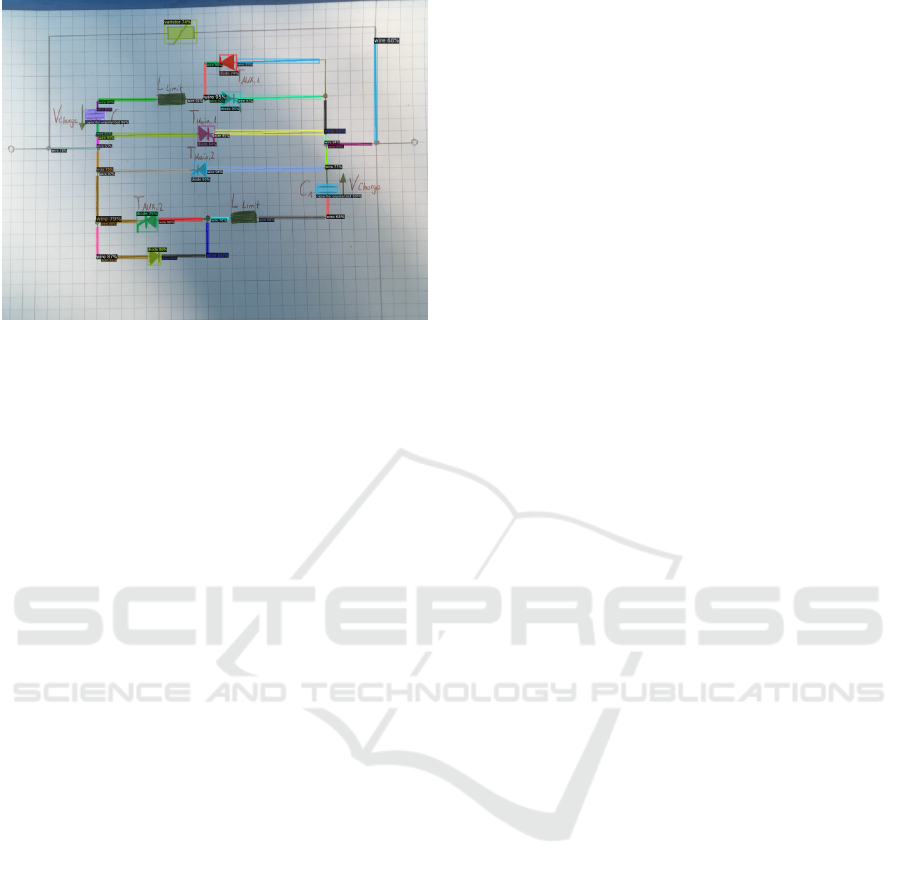

Figure 11: Mask Predictions on Validation Set (junctions

and texts omitted).

5 CONCLUSIONS

The semantic and instance segmentation additons to

the CGHD dataset establish a new, ﬂexible standard

for further research on graph extraction from hand-

drawn schematics, allowing for arbitrary new meth-

ods to be evaluated.

While the experiment demonstrated the general

viability of the approach, further model optimizations

are required to achieve error-free graph reconstruc-

tion.

6 FUTURE WORK

So far, the described approach is limited in various

ways: Most importantly, the types of individual com-

ponent connectors are not differentiated, which is crit-

ical for an accurate simulation of non-linear electri-

cal circuits. Adding a rotation prediction head to the

Mask RCNN as well as providing these information in

the dataset (which can in turn be semi-automated by a

classic template matching) can be used in conjunction

with a component library to identify these connector

types. Furthermore, drawing errors like discontinu-

ous wires need to be mitigated, which could be done

by post-processing with graph neural networks. Apart

from that, OCR information need to be incorporated

to predict not only the position but also the content of

the text labels. Additionally, edge types different from

electrical connections need to be identiﬁed like me-

chanical coupling of switches or inductive coil cou-

pling in complex transformers. Finally, as mask in-

formation could only be provided for a subset of the

original dataset, a join training with full dataset on

both masks and bounding boxes only need to be con-

sidered.

ACKNOWLEDGEMENTS

The authors cordially tank all drafters and annotators

for contributing to the dataset. The reseach for this

paper was partly funded by the BMWE (Bundesmin-

isterium f

ur Wirtschaft und Klimaschutz), project

ecoKI, funding number: 03EN2047B.

REFERENCES

Bailey, D., Norman, A., Moretti, G., and North, P. (1995).

Electronic schematic recognition. Massey University,

Wellington, New Zealand.

Dai, Y.-Y. and Braytont, R. K. (2017). Circuit recogni-

tion with deep learning. In 2017 IEEE International

Symposium on Hardware Oriented Security and Trust

(HOST), pages 162–162. IEEE.

Doll

ar, K. H. G. G. P. and Girshick, R. (2017). Mask r-cnn.

In Proceedings of the IEEE international conference

on computer vision, pages 2961–2969.

Lakshman Naika, R., Dinesh, R., and Prabhanjan, S.

(2019). Handwritten electric circuit diagram recog-

nition: an approach based on ﬁnite state machine. Int

J Mach Learn Comput, 9:374–380.

MAJEED, M. A., Almousa, T., Alsalman, M., and YOSEF,

A. (2020). Sketic: a machine learning-based dig-

ital circuit recognition platform. Turkish Journal

of Electrical Engineering and Computer Sciences,

28(4):2030–2045.

Mani, S., Haddad, M. A., Constantini, D., Douhard, W., Li,

Q., and Poirier, L. (2020). Automatic digitization of

engineering diagrams using deep learning and graph

search. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition Work-

shops, pages 176–177.

Nurminen, J. K., Rainio, K., Numminen, J.-P., Syrj

anen, T.,

Paganus, N., and Honkoila, K. (2019). Object detec-

tion in design diagrams with machine learning. In In-

ternational Conference on Computer Recognition Sys-

tems, pages 27–36. Springer.

Peter Mattis, S. K. (1998-2022). GNU IMAGE MANIPU-

LATION PROGRAM. https://www.gimp.org/. [On-

line; accessed 16-November-2022].

Rabbani, M., Khoshkangini, R., Nagendraswamy, H., and

Conti, M. (2016). Hand drawn optical circuit recogni-

tion. Procedia Computer Science, 84:41–48.

Rahul, R., Paliwal, S., Sharma, M., and Vig, L.

(2019). Automatic information extraction from pip-

ing and instrumentation diagrams. arXiv preprint

arXiv:1901.11383.

Reddy, R. R. and Panicker, M. R. (2021). Hand-drawn elec-

trical circuit recognition using object detection and

node recognition. arXiv preprint arXiv:2106.11559.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

930

Russell, B. C., Torralba, A., Murphy, K. P., and Freeman,

W. T. (2008). Labelme: a database and web-based

tool for image annotation. International journal of

computer vision, 77(1):157–173.

Sierla, S., Sorsam

aki, L., Azangoo, M., Villberg, A.,

Hyt

onen, E., and Vyatkin, V. (2020). Towards semi-

automatic generation of a steady state digital twin

of a brownﬁeld process plant. Applied Sciences,

10(19):6959.

Thoma, F., Bayer, J., Li, Y., and Dengel, A. (2021). A public

ground-truth dataset for handwritten circuit diagram

images. In International Conference on Document

Analysis and Recognition, pages 20–27. Springer.

Wu, Y., Kirillov, A., Massa, F., Lo, W.-Y., and Gir-

shick, R. (2019). Detectron2. https://github.com/

facebookresearch/detectron2.

Instance Segmentation Based Graph Extraction for Handwritten Circuit Diagram Images

931
