NICE: A Flexible Expression Language

Oliver Hacker

and Thomas Buchmann

Chair for Applied Computer Science I, University of Bayreuth, Universit

atsstrasse 30, 95440 Bayreuth, Germany

Faculty for Computer Science, Deggendorf Institute of Technology, Dieter-G

orlitz-Platz 1, 94469 Deggendorf, Germany

Keywords:

Model-Driven Development, Domain-Speciﬁc Languages, Expressions, Reuse, Code Generation.

Abstract:

Model-driven development relies on model-transformation languages to describe mappings between different

metamodels and as such facilitate a model-ﬁrst workﬂow. These languages and accompanying tools have

matured a lot over the past years. However, the more recent developments BXtend and BXtendDSL lack some

features like an integrated expression language which would greatly improve the usability. In this paper, we

present the ﬂexible expression language NICE, which aims to solve the aforementioned problem in a modular,

reusable, and adaptable way, while being fast and easy to use.

1 INTRODUCTION

Model-driven software engineering (MDSE)

(Frankel, 2003; V

olter et al., 2006) puts strong

emphasis on the development of high-level models

rather than on source code. Models are not consid-

ered documentation or informal guidelines on how

to program the actual system. In contrast, models

have a well-deﬁned syntax and semantics. Moreover,

model-driven software engineering aims at raising the

level of abstraction by the development of executable

models. Code generators are used in model-driven

software engineering to transform the speciﬁcation of

higher-level models into source code.

Among others, domain-speciﬁc languages (DSLs)

and accompanying code generators are used to

achieve the goal of MDSE. A domain-speciﬁc lan-

guage (DSL) is a programming or speciﬁcation lan-

guage which is dedicated to a particular problem do-

main. The vocabulary of the language is based on

abstractions which are closely aligned with the do-

main for which the language is built (Voelter et al.,

2013). Typically, DSLs come with a syntax which al-

lows to express these abstractions in a concise way,

either by text, symbols, graphics, tables or any com-

bination thereof.

In terms of MDSE, the central aspect of a DSL

is the underlying metamodel. Metamodels are used to

deﬁne the core concepts (abstract syntax) of modeling

languages. For object oriented modeling, the Object

Management Group (OMG) provides the Meta Object

Facility (MOF) standard (OMG, 2015). The MOF

standard has been adopted widely for deﬁning meta-

models. A subset of MOF has been implemented in

the Eclipse Modeling Framework (EMF) (Steinberg

et al., 2009) and its meta-metamodel Ecore.

Over the years a complete ecosystem of model-

driven languages and accompanying tools has

emerged on top of EMF, including frameworks for

the speciﬁcation of domain-speciﬁc languages. Xtext

(Bettini, 2016) is dedicated to the development of pro-

gramming languages and domain-speciﬁc languages.

As a language workbench, it provides support for

all aspects of a language infrastructure, ranging from

parsing, over linking to code generation or interpre-

tation. The framework is fully integrated into the

Eclipse IDE and its internal data structures are based

on Ecore.

In this paper, we present NICE (New Ideas for

Collection Expressions) – a ﬂexible expression lan-

guage including a code generator for Java which may

be integrated into Xtext-based domain-speciﬁc lan-

guages. As a proof of concept, we demonstrate the in-

tegration of NICE into our model transformation lan-

guage BXtendDSL (Buchmann et al., 2022).

The paper is structured as follows: In section 2, re-

lated work is discussed and a background to our work

is provided. Our chosen approach is detailed in sec-

tion 3. An evaluation of our language is given in sec-

tion 4, while section 5 concludes the paper.

Hacker, O. and Buchmann, T.

NICE: A Flexible Expression Language.

DOI: 10.5220/0011712700003402

In Proceedings of the 11th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2023), pages 63-74

ISBN: 978-989-758-633-0; ISSN: 2184-4348

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

2 BACKGROUND AND RELATED

WORK

Over the years, many approaches and accompanying

tools for model transformations have been proposed,

which all allow for declarative speciﬁcations of the

respective model transformation problem. However,

our own observations and case studies (Anjorin et al.,

2020; Bank et al., 2020; Westfechtel and Buchmann,

2018; Buchmann and Westfechtel, 2016; Greiner and

Buchmann, 2016; Buchmann and Greiner, 2016b;

Buchmann and Greiner, 2016a) have revealed that all

of the approaches have limitations when conditional

creation of target elements is required. In this case,

imperative approaches like BXtend or BXtendDSL

are more powerful.

If we take a closer look at existing domain-speciﬁc

(model transformation) languages in the EMF ecosys-

tem, e.g. QVT-R (OMG, 2016), ATL (Jouault et al.,

2008), Acceleo

, or EVL+Strace (Samimi-Dehkordi

et al., 2018) it is obvious, that each of those languages

uses expressions to navigate along model elements

and to express constraints on model elements, like

e.g., guards (ATL and Acceleo) or pre- and postcon-

ditions of transformations (when and where clauses in

QVT-R). While the ﬁrst three languages rely on OCL

(OMG, 2014), EVL+Strace makes use of the Epsilon

Object Language (EOL) (Kolovos et al., 2006), which

is also based on OCL expressions.

Since there is evidence (Hebig et al., 2018) that

functional-style languages like OCL and its deriva-

tives are harder to comprehend than their imperative

counterparts, a different approach to embedded ex-

pression languages is beneﬁcial in that regard. This

is further supported by the fact that OCL was never

intended to describe behavior (only state and consis-

tency) which requires extensions and modiﬁcations

not compatible with the OCL standard (Cuadrado

et al., 2008; Brucker et al., 2014; Jouault and Beau-

doux, 2015; Jouault et al., 2015).

Furthermore, all of the above approaches that in-

corporate OCL or adapted variants, rely on an inter-

preter to execute the model transformations. How-

ever, since we intend to use our expression language

in BXtendDSL, code generation is required for inter-

operability. Due to the problems laid out in the previ-

ous paragraph, a code generator for OCL would also

not solve these issues.

Therefore, we set out to develop our own expres-

sion language, NICE, using the common DSL frame-

work Xtext

. While Xtext already includes an em-

beddable language fragment, called Xbase (Efftinge

https://www.eclipse.org/acceleo/

http://www.eclipse.org/Xtext

et al., 2012), that can in principle be added to any

Xtext-based language, we decided not to built upon

it in our use case for several reasons: First, Xbase is

heavily inspired by Java’s syntax and behavior, mak-

ing it more like a general purpose language. While it

is not impossible to add custom language constructs,

the preexisting infrastructure (provided for fast proto-

typing) has to be heavily modiﬁed, which is difﬁcult

without knowing the intricacies of Xbase’s implemen-

tation due to a lack of documentation of many internal

components. Second, our goal is to simplify common

tasks necessary when developing model transforma-

tions using our expression language. Using Xbase as

a basis however would not be much different from the

existing approach of specifying transformation logic

in Xtend ﬁles (since Xbase is a part of Xtend). Since a

new language always requires a familiarization phase,

we can leverage this time to teach a user how to ex-

press their transformation concisely and efﬁciently

using the specialized features provided by the lan-

guage.

3 APPROACH

The following chapter discusses in detail the design

decisions behind our language, its implementation us-

ing the Xtext framework and the code generation en-

gine. We designed the ﬁrst version of our language

with the intent to use it in our model transformation

language BXtendDSL.

3.1 Design Decisions

When taking a closer look at the usage of BXtendDSL

in several different transformation scenarios provided

with the BenchmarX (Anjorin et al., 2017b) testcases,

some common traits can be observed:

Acyclic Control Flow. The control ﬂow leads from

the input parameters to the return value just by us-

ing conditions and function calls. Recursion and

while loops are only used in rare cases.

Imperative Nature. The transformation of input ob-

jects into output objects is speciﬁed in a purely

imperative way. Object-oriented concepts are not

employed. This is due to the fact that BXtendDSL

uses the generation gap pattern (Fowler and Par-

sons, 2010; Fowler, 2010) and hook methods,

which simply do not allow using many of the

object-oriented concepts.

Collections. Processing collections is a central as-

pect in many transformation languages, e.g., when

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

dealing with multivalued features or groups of ob-

jects. In this case, the Xtend language proves use-

ful due to the support for collection literals and

foreach loops. Furthermore, the developer is

provided with a ﬂuent interface (Fowler and Par-

sons, 2010; Fowler, 2005) following the method-

chaining pattern utilizing the extension method

mechanism and a sophisticated standard library

(Mikosik, 2021).

No Side Effects. Most transformations may be real-

ized just with information obtained from the input

parameters and their respective correspondence

relations. But there are some exceptions, like

the Families2Persons-Benchmark (Anjorin et al.,

2017a), which requires additional relations be-

tween model elements to avoid information loss.

Null Safety. Especially in the case of incremental

transformations, null values may occur an thus

have to be handled easily. To this end, Xtend pro-

vides the Elvis-operator “?:”, which evaluates the

second argument if the ﬁrst one is null, and also

the safe-navigation-operator “?.”, which evalu-

ates the whole expression to null if the object to

the left of the ? is null. In case a feature of an in-

put object has a null value or the input object itself

is null, this state shall be propagated to the output

object. Still, a way to check nullity is required

for assigning standard values to output objects in-

stead.

Based on these observations, similarities to exist-

ing applications are obvious. The ﬁrst three items are

core properties of pipeline-based architectures, which

are designed to process a sequence of objects in many

smaller steps. The last two items may be identiﬁed

as typical properties of functional programming lan-

guages. A strictly functional language however is not

the best choice, since side effects are required in some

model transformations.

As a consequence, our expression language bor-

rows some constructs from the ﬁelds above. For in-

stance, the basic structure of our textual language is

based on a generalized pipeline model, which also al-

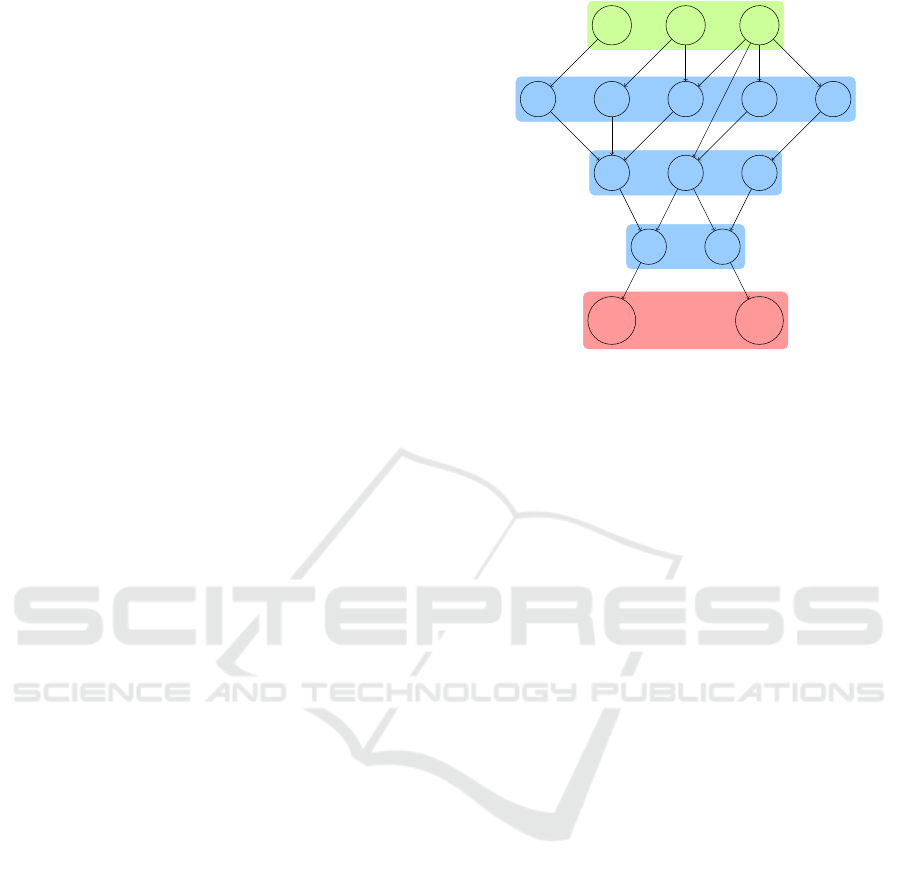

lows for branching in the object ﬂow. Figure 1 depicts

a simpliﬁed diagram of this idea. The input nodes are

shown in green color at the very top, followed by three

processing layers which ﬁnally end up in the output

layer depicted in red color. Please note that nodes in

a processing layer may depend only on results of the

previous layers, leading to an acyclic graph.

While the straight-forward approach would be to

convert this diagram into graphical syntax, we opted

for a textual syntax instead. For one, because this

makes it easier to integrate the expression language

with existing textual languages. Additionally, tools

in i

1,1

1,2

1,3

1,4

1,5

2,1

2,2

2,3

3,1

3,2

out o

Figure 1: Possible object ﬂow in our expression language.

for textual DSLs are much more mature and well

maintained.

Listing 1 shows the object ﬂow depicted in ﬁg-

ure 1 in the textual syntax of our expression language.

Input nodes are denoted using the keyword in. Links

between nodes are created by referencing them using

their names.

1 in -> i1, in -> i2, in -> i3

2 | fun n11: use(i1), fun n12: use(i2), fun n13: use(i2

, i3), fun n14: use(i3), fun n15: use(i3)

3 | fun n21: use(n11, n12, n13), fun n22: use(i3, n14),

fun n23: use(n15)

4 | fun n31: use(n21, n22), fun n32: use(n22, n23)

5 | out(n31) -> o1, out(n32) -> o2

Listing 1: Textual representation of ﬁgure 1.

The left hand side of the arrow -> contains an (op-

tional) argument which is bound to the input node. It

may contain all elements on which the navigation op-

erator . may be used, like e.g., variables, method calls

or classes. Since the expression language will be used

in BXtendDSL, arguments of input nodes may be fea-

tures of source or target elements (cf. listing 2, l. 5).

Output nodes are denoted using the keyword out.

Objects, which are the results of nodes listed in the

brackets are assigned to an output element. Note, that

listing multiple nodes in a single output node results

in aggregating the incoming objects into a single col-

lection. The output element itself is optional and is

valid within the surrounding scope. If there is no out-

put element, a return value will be created (cf. list-

ing 2, l. 6).

Transformation nodes are composed of a single

expression or the keyword pass. This type of node

is used to transform an incoming stream of objects

into an outgoing stream of objects. Since functions,

introduced by the keyword fun, are treated as a single

NICE: A Flexible Expression Language

expression, transformation nodes may become arbi-

trarily complex (cf. listing 2, l. 7).

Nodes are aggregated into pipelines which model

the object ﬂow. Pipelines may be nested inside blocks

of statements and thus act similarly to foreach loops

known from imperative programming languages (cf.

listing 2, ll. 1 and 9).

The inner structure of the expression language is

strongly inﬂuenced by procedural and functional as-

pects. Furthermore its syntax is inspired by the pro-

gramming language Python (as it is also white-space

aware).

Statements as the most general language construct

are divided into pipelines (as mentioned above), vari-

able declarations, control ﬂow manipulation, and ex-

pressions. Since variables are meant to always be ﬁnal

to avoid problems with captures, the right hand side

of variable declarations may contain arbitrary expres-

sions and pipelines, allowing for control structures

directly in the initialization. The keywords yield

and break manipulate the control ﬂow, which may

also return optional values for the surrounding block.

In our language, yield is a mixture between Java’s

return statement and Python’s yield statement and

thus it resembles the yield expression used in switch

statements, introduced in Java 14. The keyword pass,

also known from Python, is used to ﬁll empty se-

quences of statements to allow for white-space aware-

ness of the language (cf. listing 2, l. 9).

Finally, arbitrary expressions are grouped into

typical control structures, binary and unary operators,

as well as navigable elements (cf. listing 2, ll. 10-22).

3.2 Implementation

In this section we give an overview of the implemen-

tation of the expression language.

3.2.1 Grammar

We use the Xtext framework to implement our ex-

pression language. Xtext allows to specify a context

free grammar enriched with information on how to

populate the AST, which is based on an Ecore model

(Steinberg et al., 2009). An ANTLR3 grammar is au-

tomatically derived from the Xtext grammar and used

for parser generation. A few modiﬁcations in Xtext’s

parser handling have been made to facilitate more

ﬂexible white-space awareness and less rigid opera-

tor deﬁnitions.

3.2.2 Java and EMF Interoperability

A very important feature for our expression language

is interoperability with one (or more) high level pro-

1 Pipeline: Level (’|’ Level)+

2 Level: Node (’,’ Node)*

4 Node: InputNode | OuputNode | TransformationNode

5 InputNode: ’in’ Accessible? (’->’ ID)?

6 OuputNode: ’out’ (’(’ ID (’+’ ID)* ’)’)? (’->’

(Accessible | ’void’))?

7 TransformationNode: Expression | ’pass’

9 Statement: Pipeline | VariableDeclaration |

Expression | ’yield’ Expression? | ’break’

Expression? | ’pass’

10 Expression: Function | If | Switch | While |

BinaryOperatorCall

11 Function: ’fun’ ID? (’(’ Variable (’,’ Variable)*

’)’)? ’:’ (Expression | Statements+)

12 BinaryOperatorCall: PrefixOperatorCall BinaryOperator

PrefixOperatorCall

13 PrefixOperatorCall: PrefixOperator?

PostfixOperatorCall

14 PostfixOperatorCall: Accessible PostfixOperator?

15 Accessible: (Literal | ’(’ Expression ’)’) Access*

16 Access: CallOperator | ’.’ ID | ’::type’ | ’::meta’ |

’::raw’

17 CallOperator: ’(’ (Expression (’,’ Expression)*)? ’)’

19 Literal: Primitive | Collection | IdReference

20 Primitive: IntLiteral | FloatLiteral | StringLiteral

| BoolLiteral

21 Collection: List | Set | Map

Listing 2: Excerpts from NICE’s grammar in an Xtext-like

EBNF notation. Rules not shown are deﬁned similarly to

Python’s syntax.

gramming languages. Since Eclipse and Xtext consti-

tute our environment, Java is the natural choice. Fur-

thermore, Xtend/Xbase are languages created with the

Xtext framework which already provide such an in-

teroperability allowing us to built upon existing sys-

tems. In particular we can reuse the provided Java

metamodel and accompanying tools like type refer-

ences.

The main goal is to support Java types and Ecore

types in our expression language by using a scope

provider which creates a model for Java packages us-

ing the classpath of the respective Eclipse project.

In the current version of our expression language,

we do not support an import mechanism for classes,

since we intend to use the expression language as a

sub-language for our model transformation language,

which already supports import mechanisms. Based on

classes, static methods and constructors may be called

resulting in complete interoperability.

Another beneﬁt is our standard library. We

follow a modular approach by providing the an-

notations @NICEDefaultImportProvider and

@NICEDefaultImport. While the expression lan-

guage itself does not support imports on a ﬁle

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

level, these annotations allow for specifying project-

speciﬁc standard imports. Both annotations inﬂuence

the behavior of our scope provider.

An application of this default import mechanism

can be found in the realization of the language’s op-

erators. For this purpose, static methods with corre-

sponding names are annotated with the respective im-

port annotations and imported into the global scope.

This mechanism allows for the redeclaration of oper-

ators similar to C++ or Python, since local deﬁnitions

overwrite existing deﬁnitions in the classpath.

Furthermore, operators may be decorated with the

Xbase annotation @Inline which uses the String con-

tained in the annotation instead of a method call.

Our language does not only allow for the adap-

tion of existing operators using imports, but also for

declaring additional operators. To this end, the class

NICEDEfaultOperatorDeclarations has to be ex-

tended. An operator in the expression language con-

sists of a character sequence, a name for the imple-

menting method(s), an arity for the operator and a

precedence. In case of operator overloading, the op-

erator with matching parameter types is called.

Since operator precedences may be assigned ar-

bitrarily, they are not hard-coded into the grammar

as usual, but must be corrected explicitly by post-

processing the AST.

3.2.3 Type System and Type Inference

Xbase’s Java metamodel and its accompanying

helpers mentioned above are also used for typing our

expression language. NICE does not support explicit

typing by design, instead types of composite expres-

sions are inferred. This further helps the Python-

esque appearance and usage of our language.

Since some of the tools for Xbase’s type inference

work just within the bounds of its Java metamodel

(and are thus independent of Xbase itself), we can

build upon them. Unfortunately the type inference

mechanism per se is not implemented in a language-

independent way and thus we had to reimplement it

for NICE.

NICE’s type inference is realized by an exter-

nal visitor, which traverses language model ele-

ments. In case a method or operator which is

not yet linked is found, the possible scope for this

context is used to perform overload resolution and

preemptive linking (which is queried by the scope

provider at a later time). When visiting EMF ele-

ments, like EOperation or EStructuralFeature,

the respective type is mapped to the Java meta-

model in order to allow usage of the helper

class LightweightTypeReference, which is part of

Xbase’s type computation system and contains many

useful functionalities. The standard behavior for re-

solving EMF elements is to check the respective gen-

erator model and ﬁnd the generated Java classes. If

that is not possible, e. g. because we can’t ﬁnd the

generator model, a workable substitute is built on de-

mand.

3.3 Semantics and Code Generation

In order to execute NICE programs, we provide a

code generator producing readable Java code. In con-

trast to using an interpreter, native Java code provides

performance beneﬁts and an easier integration into

existing Java projects. In the following subsections,

we will brieﬂy describe the respective parts of the

code generator and in the process the semantics of the

expression language.

3.3.1 Mapping of Pipelines

Each NICE program starts with a top level element

consisting of exactly one pipeline which contains the

remaining elements. As described in section 3.1, the

ﬁrst layer only contains input nodes whereas the last

layer only contains output nodes. Input and output

nodes, which are declared on intermediate layers are

treated for code generation purposes as if they were

part of the input or output layer respectively.

The outermost pipeline is transformed into a Java

class which contains Java code generated from its in-

ner elements. Depending on the number and type of

output nodes, the generated Java class implements the

respective functional interfaces in Java’s (java.util

.function) and Xbase’s (org.eclipse.xtext.

xbase.lib.(Functions|Procedures)) standard li-

braries.

Nested pipelines, which are declared within a par-

ent pipeline are also mapped to Java classes. Since

Java allows nesting classes, the pipeline structure may

be directly reﬂected.

Figure 2 depicts a root pipeline with the properties

described above and the generated components from

the respective input and output nodes, as described in

the following subsections.

Pipelines, which reﬂect a linear object ﬂow with

only one input and output node, and on each interme-

diate layer only one transformation node respectively,

are mapped directly to a corresponding chain of Java

Stream methods, following the method-chaining pat-

tern.

3.3.2 Mapping of Input Nodes

Input nodes contribute three artefacts for the gener-

ated pipeline class: (1) parameters of the constructor

NICE: A Flexible Expression Language

1 in [42, 43, 44] -> x,

2 in [45] -> y,

3 in 46 -> z

4 | x + y + z

5 | out

1 public class PipelineClass implements Function0<List<Integer>>, Supplier<

List<Integer>> {

2 private final List<Integer> x;

3 private final List<Integer> y;

4 private final int z;

6 public PipelineClass() {

7 List<Integer> _list0 = new ArrayList<>();

8 _list0.add(42);

9 _list0.add(43);

10 _list0.add(44);

11 this.x = _list0;

12 List<Integer> _list1 = new ArrayList<>();

13 _list1.add(45);

14 this.y = _list1;

15 this.z = 46;

16 }

18 private Stream<Integer> node_1_0(Stream<Integer> x, Stream<Integer> y,

Optional<Integer> z) {

46 // ...

47 }

49 public List<Integer> apply() {

50 Optional<Integer> _z = Optional.ofNullable(z);

51 List<Integer> _node_1_0 = node_1_0(x.stream(), y.stream(), _z).

collect(Collectors.toList());

52 return _node_1_0;

53 }

55 public List<Integer> get() {

56 return apply();

57 }

58 }

Codegen.

Figure 2: Pipeline generation. The method node_1_0 is omitted due to its complexity and length.

are derived from external dependencies of the node (if

present). (2) The argument expression on the left hand

side of the -> is transformed into statements which

are placed into the body of the constructor of the gen-

erated class. (3) A ﬁeld with the corresponding as-

signment in the constructor is generated, which has

the type of the argument expression. This allows for

arbitrary preprocessing steps in the argument of the

input node, or assertion of preconditions as long as

they consist of a single expression.

3.3.3 Mapping of Output Nodes

Processing the output nodes is done in the context of

the last layer, which from the code generator’s per-

spective just contains all output nodes. The code gen-

erator for this last layer creates execution methods,

which implement the interfaces of the pipeline class.

Java elements generated from output nodes are placed

within those methods. In addition, the remaining sin-

gle nodes are linked here according to the following

steps: ﬁelds of classes generated from input nodes are

transformed into null-safe objects (Stream/Optional)

and methods generated from transformation nodes are

called with respect to their dependencies. Finally,

statements generated from output nodes are inserted,

returning objects processed by the pipeline.

We have to distinguish between several cases

when generating code for output nodes: In case there

is only a single output node, which does not contain

an output element, a pipeline with return value, whose

type depends on the single output node is generated.

If the output element void is speciﬁed explicitly this

results in a pipeline without return value. For multi-

ple output nodes without explicit output elements, a

helper class for the return value is created containing

the respective ﬁelds. Output nodes with output ele-

ments, result in generated parameters for the method

to be executed, requiring their value to be settable via

side-effects.

In case the output element is a variable, an assign-

ment is generated. Since Java does not support point-

ers to variables, this case always has to be treated from

the surrounding context of the pipeline, i.e. during the

compilation of the output node this case is treated as

if no output element was speciﬁed, which results in

the creation of a return value as described above.

A feature access as an output element allows for

a local decision, since the context – the object which

is accessed – is present as a method parameter. In

case of a multi-valued feature, we check for a getter

which allows for calling the methods clear followed

by add or addAll. If this is not the case, we search

for a setter – like in case of a single-valued feature.

If a setter is also not present, the respective ﬁelds are

checked for visibility and a possible ﬁnal keyword in

order to generate an assignment.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

3.3.4 Mapping of Transformation Nodes

As stated above, transformation nodes are mapped

onto methods. Dependencies to nodes on preceeding

layers are passed as parameters. All nodes in NICE

are either of type Optional or when multiple ele-

ments are involved of type Stream to use the capabil-

ities of both APIs and to provide null-safety as far as

possible. The methods generated from transformation

nodes are also just containers for statements which re-

sult from the contained NICE expression. We also can

distinguish three cases here:

Mapping Nodes. A mapping node is a simple trans-

formation node which only contains a single,

multi-valued dependency, i.e. it requires only one

parameter of type Stream and does not access it

in the context of the special raw-access. Conse-

quently, references to that node act in NICE just

as references to single element of the underlying

stream. Thus, the method Stream::map may be

called on the single parameter, while the remain-

ing logic is contained in the passed lambda ex-

pression.

Filtering-If Nodes. A so called ﬁltering-if node is

present if a node fulﬁlls all properties of a map-

ping node and in addition contains a single if-

statement or a function with an if-statement as

last statement, which has the following properties:

• the last statement is either an if or yield state-

ment.

• statements prior to the last statement can not

terminate the control ﬂow preemptively (i.e.,

they don’t contain yield statements).

• the conditions above hold recursively for the

last statements in the body of the if statement.

The advantage when using ﬁltering-if is that this

construct can be compiled directly to a call of the

method Stream::filter.

Aggregating Nodes. Nodes with multiple dependen-

cies of type Stream result in the generation of

an aggregating node. Since referenced nodes in

the expression language contain their component

type, the generated code must allow access to sin-

gle elements of the incoming Streams. This is

achieved by a generated implementation of the

Spliterator interface.

3.3.5 Mapping of Statements

A characteristic of NICE statements is the option to

be grouped into blocks with further statements. State-

ments subsume all language constructs in the expres-

sion language, like pipelines, variable declarations,

expressions, as well as yield, pass and break state-

ments. Pipelines used as statements have already been

discussed in section 3.3.1. Variable declarations re-

sult in the generation of a local variable declaration

in Java with the respective type. break statements

may also be mapped directly to the corresponding

Java statement, as they may only occur in while loops

and switch statements. Treating yield statements is

very similar: If they occur in a pure statement con-

text, i.e. expressions in the containment hierarchy of

the surrounding function or node are used as state-

ments, return statements are generated. Otherwise

they function like an assignment to an expression’s

result variable. Finally, the pass statement also has

a different semantics depending on the context where

it is used. If it is used in a list of statements, pass

acts like an empty statement ; in Java. The pass state-

ment may also be used instead of the implementation

of a transformation node. In this case, the result of

the node with the same index of the previous layer is

passed through.

3.3.6 Mapping of Expressions

When mapping expressions, we have to consider two

different categories: NICE expressions that may be

directly transformed into Java expressions and those

that require multiple Java statements. A compiled

NICE expression always consists of an arbitrary num-

ber of statements and a single expression which can

be consumed by further statements. This allows for an

easy recursive mapping of nested NICE expressions

which result in multiple Java statements with the abil-

ity to return a resulting expression for the outermost

element.

Operators are directly compiled into the respective

method calls of the linked operator methods.

Transforming primitive literals is also straight-

forward, since NICE only supports int, double,

String and boolean. They are mapped onto the re-

spective Java literals.

Functions may also be generated in an easy way,

since the most complex part comprises the implemen-

tation of the type inference, as stated above. If func-

tions are used as arguments of method calls, they are

compiled into the respective lambda expressions. In

case functions are used as the content of a transfor-

mation node, this is not possible. Instead, they are di-

rectly generated into the method body of the method

generated for the transformation node. This allows

nodes to consist of multiple statements.

Since Java does not support collection literals,

they must be split into multiple statements. To not

restrain users in using them, no helper methods like

List.of(...) or Map.of(...) are used, as they

NICE: A Flexible Expression Language

result in unmodiﬁable collections. We follow a very

pragmatic approach instead: Lists result in instances

of ArrayList, Sets in LinkedHashSet and dictionar-

ies in LinkedHashMap. This allows for preserving the

ordering of the declared elements. After an instance

of a collection has been created, elements are added

one after another using the respective methods.

An access expression always results in the cre-

ation of a respective access in Java, which may differ

signiﬁcantly from the NICE expression depending on

the type of navigation operation and linked feature.

Generation of named references depends on the

referenced object. For elements of the expression lan-

guage and external parameters required for interoper-

ability with BXtendDSL, the surrounding scope con-

tains a Java variable which will be linked. If named

references are used to access members, we distinguish

between EMF and Java elements, the ﬁrst of which

is mapped to usable Java expressions using the EMF

generator model, while the latter ones can simply be

inserted.

The control structures while, if, and switch

are mapped to their corresponding Java counterpart.

Since they may occur as right hand sides of expres-

sions, a corresponding variable holding the result of

the expression is created when necessary.

4 EVALUATION

As a proof of concept, we integrated the expression

language NICE into our model transformation lan-

guage BXtendDSL (Buchmann et al., 2022; Bank

et al., 2021) in order to express a larger part of a model

transformation on the declarative layer.

Since Xtext provides built-in mechanisms for

reuse and composition of existing grammars, using

NICE from within the BXtendDSL grammar is easy.

Please note that slight changes in the syntax of BX-

tendDSL were introduced when we integrated NICE.

Especially, the ﬁlter modiﬁers of BXtendDSL are no

longer referred to using the pipe (|) symbol to avoid

conﬂicts with NICE. Instead, BXtendDSL ﬁlters are

now speciﬁed using the ”greater” (>) symbol. Fur-

thermore, the mapping operators (<-->, -->, and

<--) have been replaced with named blocks (oneway

mapping and mapping).

4.1 Transformation Problem

In order to allow for a detailed comparison, we

discuss the beneﬁts of NICE using the Families-

to-Persons transformation example (Anjorin et al.,

2017a). A detailed description of the transformation

problem and the solution using BXtendDSL (with-

out the expression language) is given in (Bank et al.,

2021). Due to space restrictions, the reader is kindly

referred to (Bank et al., 2021) for more details.

4.2 Solution

For solving the Families-to-Persons transformation

problem using BXtendDSL and NICE, we imple-

mented feature mappings and modiﬁers directly on

the DSL layer. Since NICE expressions are com-

piled into source code, this results in less speci-

ﬁcation effort required on the imperative layer of

BXtendDSL. In contrast to the BXtendDSL spec-

iﬁcation without NICE discussed in (Bank et al.,

2021), the classes Member2FemaleUserImpl and

Member2MaleUserImpl are no longer necessary,

since the corresponding filter modiﬁers are now di-

rectly expressed using NICE, as shown in lines 67-72

and 79-84 of listing 3.

Furthermore, the hook methods in the forward

direction in class Member2PersonUserImpl is no

longer required, since the respective behavior is now

speciﬁed with NICE, as shown in lines 27-40 and 47-

60 of listing 3.

This helps to dramatically reduce the user sup-

plied code which was required on the imperative layer

in the solution discussed in (Bank et al., 2021). How-

ever, the current solution using NICE still requires a

small portion of user supplied code on the imperative

layer: the backward mapping requires access to the

transformation options speciﬁed in lines 7 and 8 of

listing 3, which NICE doesn’t yet support. Further-

more, the create modiﬁer can’t be compiled, since it

sets a newly created person’s birthday using a cache

in the class Member2PersonUserImpl, which is not

available in the pipeline (since a rule’s instance is not

easily accessible).

4.3 Empirical Results

In the following, we provide a quantitative analysis, a

qualitative analysis as well as a performance analysis.

4.3.1 Quantitative Analysis

In our quantitative analysis, we compare the speciﬁca-

tion effort required to realize both solutions. Since in

both cases, a textual concrete syntax is used, a quanti-

tative impression of the size of the transformation def-

initions may be obtained by counting the number of

lines of code (excluding empty lines and comments,

as well as automatically generated lines), the number

of words (character strings separated by whitespace)

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

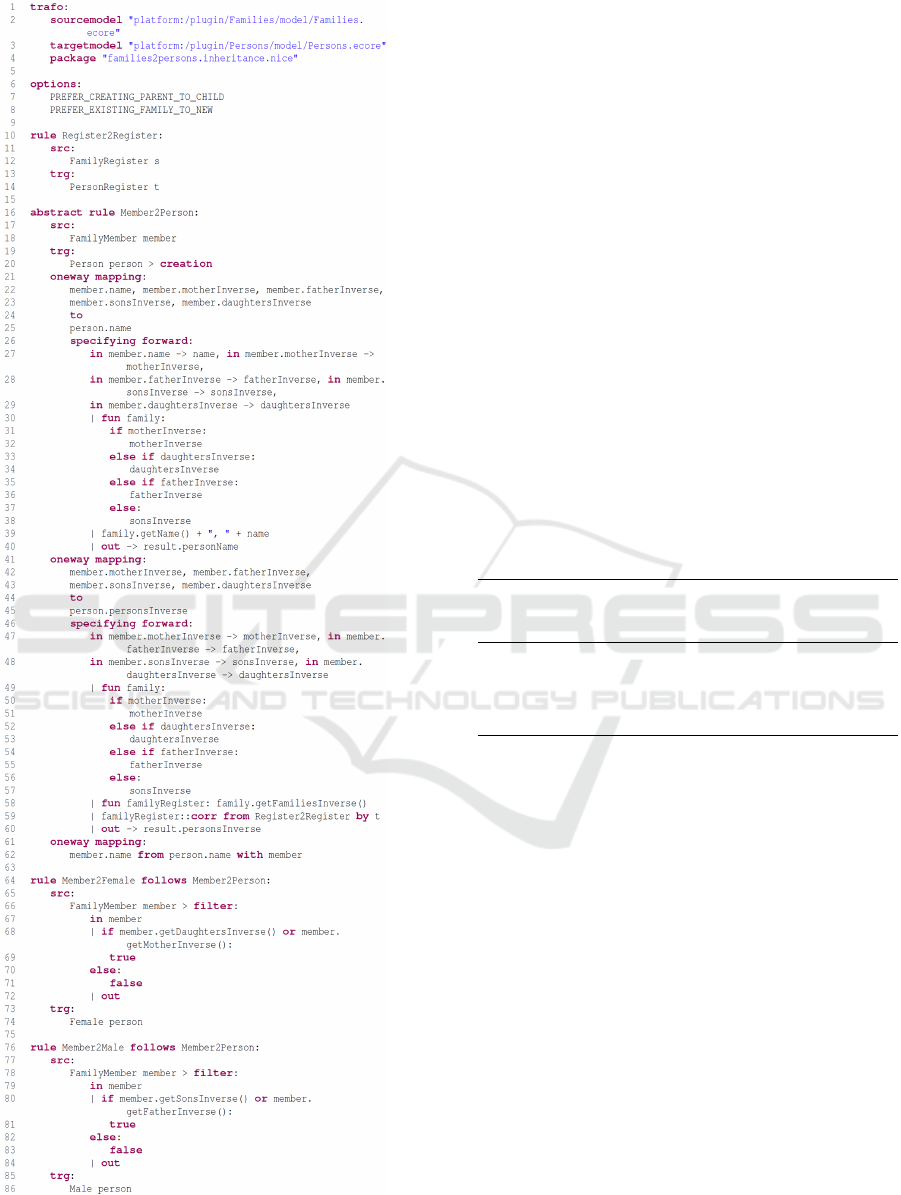

Listing 3: Solution to the Families-to-Persons transforma-

tion problem using BXtendDSL and NICE.

in these lines, and the number of characters in these

words. Table 1 depicts the values obtained for those

metrics for BXtendDSL and BXtendDSL+NICE. For

both solutions, only those lines were counted which

had to be written manually. In both cases, we counted

the code speciﬁed directly on the DSL (declarative)

layer, as well as the code required on the impera-

tive layer. The same layout conventions and program-

ming practices have been applied. As expected, mov-

ing logic from the imperative layer to the declarative

one using NICE increases the size of the latter while

shrinking the former by a similar amount. In total

however, the size of the transformation deﬁnition in-

creases slightly due to the introduction of new key-

words and restructuring of BXtendDSL’s grammar af-

ter integrating NICE, as explained above. The biggest

beneﬁt is the signiﬁcant reduction of code required

on the imperative layer, and thus, avoiding context

switches for the transformation developer, since the

transformation may now be described (almost) com-

pletely on the declarative layer.

Table 1: Amount of handwritten code of the transforma-

tion deﬁnitions of both solutions to the Families-to-Persons

case, split by declarative and imperative layers.

Metric BXtendDSL BXtendDSL+NICE

Decl. Imp. Decl. Imp.

Lines of code 24 65 83 37

#words 65 226 191 115

#characters 738 2512 1986 1728

4.3.2 Qualitative Analysis

In order to perform a qualitative analysis, test cases

for the different transformation directions have been

speciﬁed and executed for both batch and incremen-

tal mode of operation. We assume a test case to be

passed, if the resulting model matches a predeﬁned

expected model state. The BXtendDSL solution is

able to pass all tests speciﬁed in (Anjorin et al., 2020).

The same holds for the BXtendDSL+NICE solution.

Table 2 gives an overview of the tests and the obtained

results following the criteria used in (Anjorin et al.,

2020). Please note that two unexpected passes are due

to cases that test for order-dependent update behavior

(which state-based tools cannot provide).

The qualitative analysis shows that the correctness

of the transformation is not affected by introducing

the expression language NICE into BXtendDSL rules.

Moreover, with respect to functional requirements

both BXtendDSL and BXtendDSL+NICE achieve a

perfect result: Both solutions pass all test cases. None

NICE: A Flexible Expression Language

Table 2: Aggregate test results, grouped into categories and

classiﬁed as expected/unexpected passes/fails.

Category Result BXtendDSL BXtendDSL

+NICE

expected pass 7 7

Batch expected fail 0 0

FWD unexpected pass 0 0

unexpected fail 0 0

expected pass 11 11

Batch expected fail 0 0

BWD unexpected pass 0 0

unexpected fail 0 0

expected pass 8 8

Incr. expected fail 0 0

FWD unexpected pass 0 0

unexpected fail 0 0

expected pass 7 7

Incr. expected fail 0 0

BWD unexpected pass 1 1

unexpected fail 0 0

Total

expected pass 33 33

expected fail 0 0

unexpected pass 1 1

unexpected fail 0 0

of the other solutions compared in (Anjorin et al.,

2020) exhibit a pass rate of 100%.

4.3.3 Performance Analysis

In order to evaluate the efﬁciency and scalability of

the resulting transformation with respect to increasing

model size, two experiments were conducted in both

forward and backward directions for each of the trans-

formation problems resulting in four sets of measure-

ments: (1) batch transformations in forward and back-

ward directions, and (2) incremental transformations

in forward and backward directions. The batch trans-

formations test how the solutions scale when creat-

ing corresponding opposite models of increasing size

(model size up to 1 000 000 elements). For incre-

mental transformations, the time required to locate

and propagate corresponding changes to the depen-

dent model is measured.

The tests were performed on the same machine

and in isolation for each solution and each transfor-

mation problem. A desktop PC with an AMD Ryzen 7

3700X CPU was used, running at a standard clock of

3.60 GHz, with 32 GB of DDR4 RAM and Microsoft

Windows 10 64-bit as the operating system. We used

Java 13.0.2, Eclipse 4.11.0, and EMF version 2.17.0

to compile and execute the Java code for the scalabil-

ity test suite. Each test was repeated 5 times and the

median measured time was computed.

Our experiments show, that introducing an addi-

tional language on the declarative layer and a corre-

sponding code generator introduces a slight overhead

in runtime. But the overall transformation still resides

in the same complexity class. While the times for for-

ward and backward batch transformations are nearly

the same for BXtendDSL and BXtendDSL+NICE,

the pure BXtendDSL solution is slightly faster in both

incremental cases.

The corresponding plots rendered from our exper-

iments are shown in ﬁgure 3 and ﬁgure 4, respectively.

4.4 Summary

As expected, the use of BXtendDSL+NICE reduces

the speciﬁcation effort on the imperative layer sig-

niﬁcantly, by allowing to express large parts of the

transformation now directly on the declarative layer.

Functional correctness is not affected negatively; the

full expressiveness of BXtendDSL is retained in

the combination of BXtendDSL+NICE. Finally, the

BXtendDSL+NICE solution proves scalable since it

roughly exhibits linear performance. Compared to

plain BXtendDSL, there are only small differences in

computation time.

5 CONCLUSION

In this paper, we presented NICE – a ﬂexible ex-

pression language including a Java code generator,

which may be easily integrated into any Xtext-based

domain-speciﬁc language. As a proof of concept, we

integrated NICE into our model transformation lan-

guage BXtendDSL. In the evaluation chapter in sec-

tion 4 we show, that the language can be used to

specify expressions in a declarative way and using

the built in code generator, context switches in BX-

tendDSL between the declarative and the imperative

layer are signiﬁcantly reduced.

Future work deals with further improving the in-

tegration of NICE and BXtendDSL to also allow easy

usage of BXtendDSL options, and to allow NICE

pipelines to access elements declared on the impera-

tive layer. Additionally, unnecessary repetitions in in-

put layers of pipelines can be eliminated by inferring

the available variables from the BXtendDSL context.

To further reduce redundancy, stand-alone pipelines

could be introduced to encapsulate common behav-

ior. Another avenue to investigate is the addition of a

graphical editor for NICE pipelines.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

# model elements

time in s

0,00

0,25

0,50

0,75

1,00

1,25

200000 400000 600000 800000

BXtendDSL BXtendDSL+NICE

Batch Forward

# model elements

time in s

0,0

0,5

1,0

1,5

200000 400000 600000 800000

BXtendDSL BXtendDSL+NICE

Incremental Forward

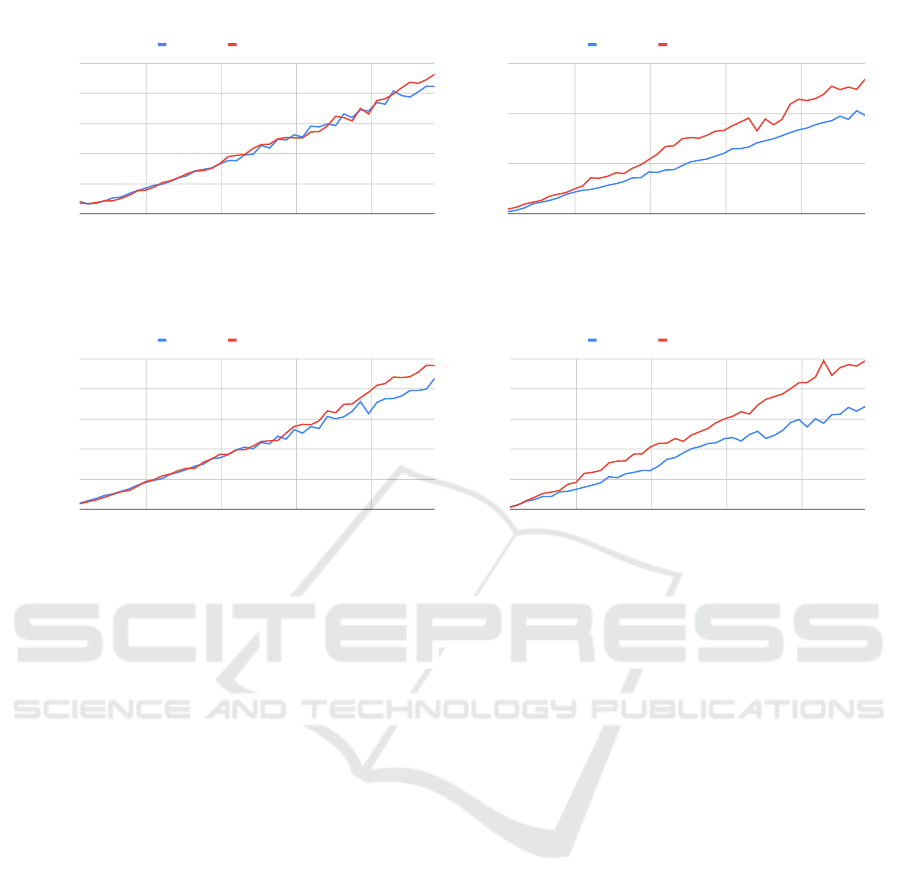

Figure 3: Forward batch (left) and incremental (right) transformation.

# model elements

time in s

0,00

0,25

0,50

0,75

1,00

1,25

200000 400000 600000 800000

BXtendDSL BXtendDSL+NICE

Batch Backward

# model elements

time in s

0,00

0,25

0,50

0,75

1,00

1,25

200000 400000 600000 800000

BXtendDSL BXtendDSL+NICE

Incremental Backward

Figure 4: Backward batch (left) and incremental (right) transformation.

REFERENCES

Anjorin, A., Buchmann, T., and Westfechtel, B. (2017a).

The families to persons case. In Garc

ıa-Dom

ınguez,

A., Hinkel, G., and Krikava, F., editors, Proceedings

of the 10th Transformation Tool Contest (TTC 2017),

co-located with the 2017 Software Technologies: Ap-

plications and Foundations (STAF 2017), Marburg,

Germany, July 21, 2017, volume 2026 of CEUR Work-

shop Proceedings, pages 27–34. CEUR-WS.org.

Anjorin, A., Buchmann, T., Westfechtel, B., Diskin, Z.,

Ko, H., Eramo, R., Hinkel, G., Samimi-Dehkordi, L.,

and Z

undorf, A. (2020). Benchmarking bidirectional

transformations: theory, implementation, application,

and assessment. Softw. Syst. Model., 19(3):647–691.

Anjorin, A., Diskin, Z., Jouault, F., Ko, H., Leblebici, E.,

and Westfechtel, B. (2017b). Benchmarx reloaded:

A practical benchmark framework for bidirectional

transformations. In Eramo, R. and Johnson, M., ed-

itors, Proceedings of the 6th International Workshop

on Bidirectional Transformations co-located with The

European Joint Conferences on Theory and Prac-

tice of Software, BX@ETAPS 2017, Uppsala, Sweden,

April 29, 2017, volume 1827 of CEUR Workshop Pro-

ceedings, pages 15–30. CEUR-WS.org.

Bank, M., Buchmann, T., and Westfechtel, B. (2021). Com-

bining a declarative language and an imperative lan-

guage for bidirectional incremental model transforma-

tions. In Hammoudi, S., Pires, L. F., Seidewitz, E.,

and Soley, R., editors, Proceedings of the 9th Interna-

tional Conference on Model-Driven Engineering and

Software Development, MODELSWARD 2021, On-

line Streaming, February 8-10, 2021, pages 15–27.

SCITEPRESS.

Bank, M., Kaske, S., Buchmann, T., and Westfechtel, B.

(2020). Incremental bidirectional transformations:

Evaluating declarative and imperative approaches us-

ing the ast2dag benchmark. In Ali, R., Kaindl, H.,

and Maciaszek, L. A., editors, Proceedings of the

15th International Conference on Evaluation of Novel

Approaches to Software Engineering, ENASE 2020,

Prague, Czech Republic, May 5-6, 2020, pages 249–

260. SCITEPRESS.

Bettini, L. (2016). Implementing Domain-Speciﬁc Lan-

guages with Xtext and Xtend. Packt Publishing, Birm-

ingham, UK.

Brucker, A. D., Clark, T., Dania, C., Georg, G., Gogolla,

M., Jouault, F., Teniente, E., and Wolff, B. (2014).

Panel discussion: Proposals for improving OCL. In

Brucker, A. D., Dania, C., Georg, G., and Gogolla, M.,

editors, Proceedings of the 14th International Work-

shop on OCL and Textual Modelling co-located with

17th International Conference on Model Driven En-

gineering Languages and Systems (MODELS 2014),

Valencia, Spain, September 30, 2014, volume 1285 of

CEUR Workshop Proceedings, pages 83–99. CEUR-

WS.org.

Buchmann, T., Bank, M., and Westfechtel, B. (2022). Bx-

tenddsl: A layered framework for bidirectional model

transformations combining a declarative and an im-

perative language. J. Syst. Softw., 189:111288.

NICE: A Flexible Expression Language

Buchmann, T. and Greiner, S. (2016a). Bidirectional model

transformations using a handcrafted triple graph trans-

formation system. In Cabello, E., Cardoso, J., Lud-

wig, A., Maciaszek, L. A., and van Sinderen, M., ed-

itors, Software Technologies, 11th International Joint

Conference, ICSOFT 2016, Lisbon, Portugal, July 24-

26, 2016, Revised Selected Papers, volume 743 of

Communications in Computer and Information Sci-

ence, pages 201–220. Springer.

Buchmann, T. and Greiner, S. (2016b). Handcrafting a

triple graph transformation system to realize round-

trip engineering between UML class models and java

source code. In Maciaszek, L. A., Cardoso, J., Lud-

wig, A., van Sinderen, M., and Cabello, E., editors,

Proceedings of the 11th International Joint Confer-

ence on Software Technologies (ICSOFT 2016) - Vol-

ume 2: ICSOFT-PT, Lisbon, Portugal, July 24 - 26,

2016, pages 27–38. SciTePress.

Buchmann, T. and Westfechtel, B. (2016). Using triple

graph grammars to realise incremental round-trip en-

gineering. IET Softw., 10(6):173–181.

Cuadrado, J. S., Jouault, F., Molina, J. G., and B

ezivin,

J. (2008). Optimization patterns for ocl-based model

transformations. In Chaudron, M. R. V., editor, Mod-

els in Software Engineering, Workshops and Symposia

at MODELS 2008, Toulouse, France, September 28 -

October 3, 2008. Reports and Revised Selected Pa-

pers, volume 5421 of Lecture Notes in Computer Sci-

ence, pages 273–284. Springer.

Efftinge, S., Eysholdt, M., K

ohnlein, J., Zarnekow, S., von

Massow, R., Hasselbring, W., and Hanus, M. (2012).

Xbase: implementing domain-speciﬁc languages for

java. In Ostermann, K. and Binder, W., editors,

Generative Programming and Component Engineer-

ing, GPCE’12, Dresden, Germany, September 26-28,

2012, pages 112–121. ACM.

Fowler, M. (2005). FluentInterface. https://www.

martinfowler.com/bliki/FluentInterface.html.

Fowler, M. (2010). Generation gap. https://martinfowler.

com/dslCatalog/generationGap.html.

Fowler, M. and Parsons, R. J. (2010). Domain-Speciﬁc Lan-

guages. Addison-Wesley Professional.

Frankel, D. S. (2003). Model Driven Architecture: Apply-

ing MDA to Enterprise Computing. Wiley Publishing,

Indianapolis, IN.

Greiner, S. and Buchmann, T. (2016). Round-trip engineer-

ing UML class models and java models: A real-world

use case for bidirectional transformations with QVT-

R. Int. J. Inf. Syst. Model. Des., 7(3):72–92.

Hebig, R., Seidl, C., Berger, T., Pedersen, J. K., and Wa-

sowski, A. (2018). Model transformation languages

under a magnifying glass: a controlled experiment

with xtend, ATL, and QVT. In Proceedings of the

2018 26th ACM Joint Meeting on European Software

Engineering Conference and Symposium on the Foun-

dations of Software Engineering. ACM.

Jouault, F., Allilaire, F., B

ezivin, J., and Kurtev, I. (2008).

ATL: A model transformation tool. Science of Com-

puter Programming, 72:31–39. Special Issue on Ex-

perimental Software and Toolkits (EST).

Jouault, F. and Beaudoux, O. (2015). On the use of active

operations for incremental bidirectional evaluation of

OCL. In Brucker, A. D., Egea, M., Gogolla, M., and

Tuong, F., editors, Proceedings of the 15th Interna-

tional Workshop on OCL and Textual Modeling co-

located with 18th International Conference on Model

Driven Engineering Languages and Systems (MoD-

ELS 2015), Ottawa, Canada, September 28, 2015,

volume 1512 of CEUR Workshop Proceedings, pages

35–45. CEUR-WS.org.

Jouault, F., Beaudoux, O., Brun, M., Clavreul, M., and Sa-

vaton, G. (2015). Towards functional model transfor-

mations with OCL. In Kolovos, D. S. and Wimmer,

M., editors, Theory and Practice of Model Transfor-

mations - 8th International Conference, ICMT@STAF

2015, L’Aquila, Italy, July 20-21, 2015. Proceedings,

volume 9152 of Lecture Notes in Computer Science,

pages 111–120. Springer.

Kolovos, D. S., Paige, R. F., and Polack, F. (2006). The

epsilon object language (EOL). In Rensink, A. and

Warmer, J., editors, Model Driven Architecture -

Foundations and Applications, 2nd European Confer-

ence, ECMDA-FA 2006, Bilbao, Spain, July 10-13,

2006, Proceedings, volume 4066 of Lecture Notes in

Computer Science, pages 128–142. Springer.

Mikosik, M. (2021). FluentIterable. https:

//guava.dev/releases/21.0/api/docs/com/google/

common/collect/FluentIterable.html.

OMG (2014). Object Constraint Language. OMG, Need-

ham, MA, formal/2014-02-03 edition.

OMG (2015). Meta Object Facility (MOF) Version 2.5.

OMG, Needham, MA, formal/2015-06-05 edition.

OMG (2016). Meta Object Facility (MOF) 2.0

Query/View/Transformation Speciﬁcation Version 1.3.

Needham, MA, formal/2016-06-03 edition.

Samimi-Dehkordi, L., Zamani, B., and Kolahdouz-Rahimi,

S. (2018). EVL+strace: a novel bidirectional model

transformation approach. Information and Software

Technology, 100:47–72.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Addison-Wesley, Boston, MA, 2nd

edition.

Voelter, M., Benz, S., Dietrich, C., Engelmann, B., He-

lander, M., Kats, L. C. L., Visser, E., and Wachsmuth,

G. (2013). DSL Engineering - Designing, Imple-

menting and Using Domain-Speciﬁc Languages. dsl-

book.org.

olter, M., Stahl, T., Bettin, J., Haase, A., and Helsen, S.

(2006). Model-Driven Software Development: Tech-

nology, Engineering, Management. John Wiley &

Sons.

Westfechtel, B. and Buchmann, T. (2018). Incremental bidi-

rectional transformations: Comparing declarative and

procedural approaches using the families to persons

benchmark. In Damiani, E., Spanoudakis, G., and

Maciaszek, L. A., editors, Evaluation of Novel Ap-

proaches to Software Engineering - 13th International

Conference, ENASE 2018, Funchal, Madeira, Portu-

gal, March 23-24, 2018, Revised Selected Papers, vol-

ume 1023 of Communications in Computer and Infor-

mation Science, pages 98–118. Springer.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering
