A Systematic Review of Secure IoT Data Sharing

Thanh Thao Thi Tran

, Phu H. Nguyen

2 a

and Gencer Erdogan

2 b

University of Oslo, Oslo, Norway

SINTEF, Oslo, Norway

Keywords:

IoT, Data Sharing, Security, Privacy, Systematic Review.

Abstract:

The Internet of Things (IoT) is more and more omnipresent. The greater values of the IoT can be realized

by enabling data sharing between different stakeholders. However, one of the biggest challenges is ensuring

security and enabling trust for IoT data sharing. In this paper, we identify state-of-the-art (SotA) approaches

and techniques for secure IoT data sharing. We present high-level results emphasizing the SotA trend and re-

vealing the most addressed domains, as well as more in-depth details such as procedures and methods used to

preserve security in the data sharing environment. The blockchain technology, smart contracts, and InterPlan-

etary File System (IPFS) are among the most widely used approaches. As today’s solutions explore a more

decentralized approach to data sharing, there are several aspects to consider. Based on the ﬁndings, we have

identiﬁed potential research directions for future work, including the differences between public and private

blockchains, the combination of sharing and analytic, the value of data quality, and the importance of data

management and governance.

1 INTRODUCTION

In recent years, the Internet of Things (IoT) has be-

come omnipresent. The reasons are due to the possi-

bilities of connecting everyday objects, such as cars,

kitchen appliances, and baby monitors, to the Inter-

net, allowing for seamless communication between

processes, people, and things. With billions of IoT

devices currently connected to the Internet, Cisco

expects that 30 billion connected IoT devices will

be available in the IoT market by 2023 (Grossetete,

2018). The IoT enables intelligent and inter-operable

digital and physical things, individuals, and services,

generating a variety of ecosystems capable of en-

abling secure cross-domain interactions.

Recent global important factors suggest further in-

crease and expansion of the use of IoT. These fac-

tors are, amongst others, related to the environmen-

tal aspects and global pandemic diseases, such as the

global sustainability goals and the COVID-19 pan-

demic. Amazon has taken the lead in initiating an ask

of net-zero carbon emissions by 2040, whereas com-

panies like Mercedes Benz and Microsoft have com-

mitted to the Climate Pledge

. To achieve such an am-

https://orcid.org/0000-0003-1773-8581

https://orcid.org/0000-0001-9407-5748

https://www.aboutamazon.com/news/sustainability/

bitious goal, companies will need to measure carbon

emissions in coming years. The IoT can, e.g., provide

data-driven analytic, while revolutionizing heavy in-

dustries, and life sustainable industrial activities (Fan-

tana et al., 2013). The advantages of the IoT were,

for example, also demonstrated during the COVID-19

global pandemic (Peerzade, 2021). Besides empow-

ering the control and statistics of the high case rate,

IoT has played a role in monitoring virus-infected

patients. With numerous countries have experienced

lock-downs, the fear of new lock-downs will only in-

crease and further fuel the importance and expansion

of the IoT and its use cases.

Indeed, the IoT is more than just a collection of in-

terconnected devices that provide signiﬁcant beneﬁts.

Connecting enterprises, consumers, suppliers, or any

other stakeholders in the IoT ecosystems can bring

much higher value. Such greater values come from

sharing data (Jernigan et al., 2016; Nguyen et al.,

2022a) between stakeholders in the IoT ecosystems.

One of the biggest challenges is ensuring security

(Rajmohan et al., 2022; Rajmohan et al., 2020) and

enabling trust for IoT data sharing (Atluri et al., 2020;

Ullah et al., 2021; Siegel et al., 2018) as well as data

quality (Nguyen et al., 2022b; Sen et al., 2022). While

the topic of secure IoT data sharing is becoming more

mercedes-benz-joins-the-climate-pledge

Tran, T., Nguyen, P. and Erdogan, G.

A Systematic Review of Secure IoT Data Sharing.

DOI: 10.5220/0011674200003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 95-105

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

important, it may still be only the end of the begin-

ning. Few existing studies like (Lo et al., 2019; Al-

Ruithe et al., 2019; De Prie

elle et al., 2020) have ex-

amined related topics of secure IoT data sharing such

as data governance and blockchain solutions, but none

has done a systematic literature review (SLR) of se-

cure IoT data sharing.

Because the IoT is a continuously evolving topic,

it is important to assess the current state-of-the-art ad-

dressing the advantages of IoT data sharing as well

as the security considerations that must be taken into

account. Following the most commonly used guide-

lines (Kitchenham and Charters, 2007), we have con-

ducted an SLR on the state-of-the-art of secure IoT

data sharing, and identiﬁed open issues and gaps that

need to be addressed in the future. The contributions

of our SLR are our answers to the following research

questions: RQ1: What are the solutions for secure

IoT data sharing? RQ2: What are the security and

trust aspects of these IoT data sharing approaches?

RQ3: What are the current limitations of the IoT data

sharing, and what are the open issues to be further

investigated? In addition to revealing the most ad-

dressed domains, our high-level results and statisti-

cal numbers emphasize the publication increase and

trends. We did, however, obtain more in-depth infor-

mation on the procedures and methods used to pre-

serve security in the data sharing environment. Using

blockchain technology and smart contracts, as well as

the InterPlanetary File System (IPFS), a decentralized

peer-to-peer storage system, are among them. These

and other important discoveries do all contribute to an

increase in secure IoT data sharing.

The remainder of this paper is structured as fol-

lows. Section 2 gives the details of our SLR approach.

Then, we present the results of our SLR in Section 3,

and compare our study with related work in Section

4. In Section 5, we discuss some possible threats to

validity and give our conclusions in Section 6.

2 REVIEW PROCESS

Using online inquiry features of popular publication

databases is the most notable approach to scan for

primary studies when directing supplemental studies

(Kitchenham and Charters, 2007). We used ﬁve pop-

ular publication databases, i.e., IEEE Xplore

, ACM

Digital Library

, ScienceDirect

, Scopus

, and Web

https://ieeexplore.ieee.org

https://dlnext.acm.org

https://sciencedirect.com/

https://scopus.com

of Knowledge

to search for potential primary stud-

ies. These databases contain peer-reviewed articles

and provide advanced search capacities.

Based on our research questions, we identiﬁed an

initial set of keywords to construct our search strings.

This initial set of keywords were then used to iden-

tify the top relevant papers in the search engines. Fi-

nally, by reviewing the top relevant papers, we iden-

tiﬁed a more ﬁne-grained set of keywords that are re-

lated to the broad topics of data sharing, application

domain, security, and governance. This was an iter-

ative process where we also tested the keywords on

the search engines to see if the top relevant papers ap-

peared using our ﬁne-grained set of keywords. The

ﬁnal set of search keywords are listed below, and we

structured the keywords by following the guidelines

from (Kitchenham and Charters, 2007), e.g., having

groups of keywords to construct our search string us-

ing Boolean ANDs and ORs. The search query was

adapted to ﬁt the search engine of each publication

database.

(”data sharing” OR ”sharing” OR ”data ex-

change” OR ”context sharing” OR ”context aware

data sharing” OR ”context-sensitive information

sharing” OR ”sharing of data” OR ”sharing data”

OR ”ecosystem” OR ”marketplace” OR ”data mar-

ketplace”)

AND (”Internet of Things” OR ”IoT” OR ”In-

dustry 4.0” OR ”smart cities” OR ”smart city”

OR ”smart contract” OR ”manufacturing” OR ”en-

ergy” OR ”supply chain”)

AND (”access control” OR ”secure” OR ”se-

curity” OR ”trust” OR ”trustworthy” OR ”encryp-

tion” OR ”data security” OR ”secure communica-

tion” OR ”secure data sharing” OR ”context-aware

security” OR ”management” OR ”governance” OR

”protocols” OR ”standards”)

Our selection process is based on the predeﬁned

selection criteria (Section 2.2). We ﬁrst ﬁltered the

candidate papers based on their titles and abstracts.

When the titles and abstracts were not enough to de-

cide whether to discard or keep the papers, we contin-

ued to skim and scan through the contents of these pa-

pers. When a candidate paper appeared in more than

one database, we kept it, at ﬁrst, in multiple search

results. Then, we consolidated the outcomes in group

discussions among the authors to cross-check the se-

lection decisions and acquire the ﬁrst set of primary

studies with no duplicates. The review process is il-

lustrated in Figure 1.

https://www.webofscience.com/

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

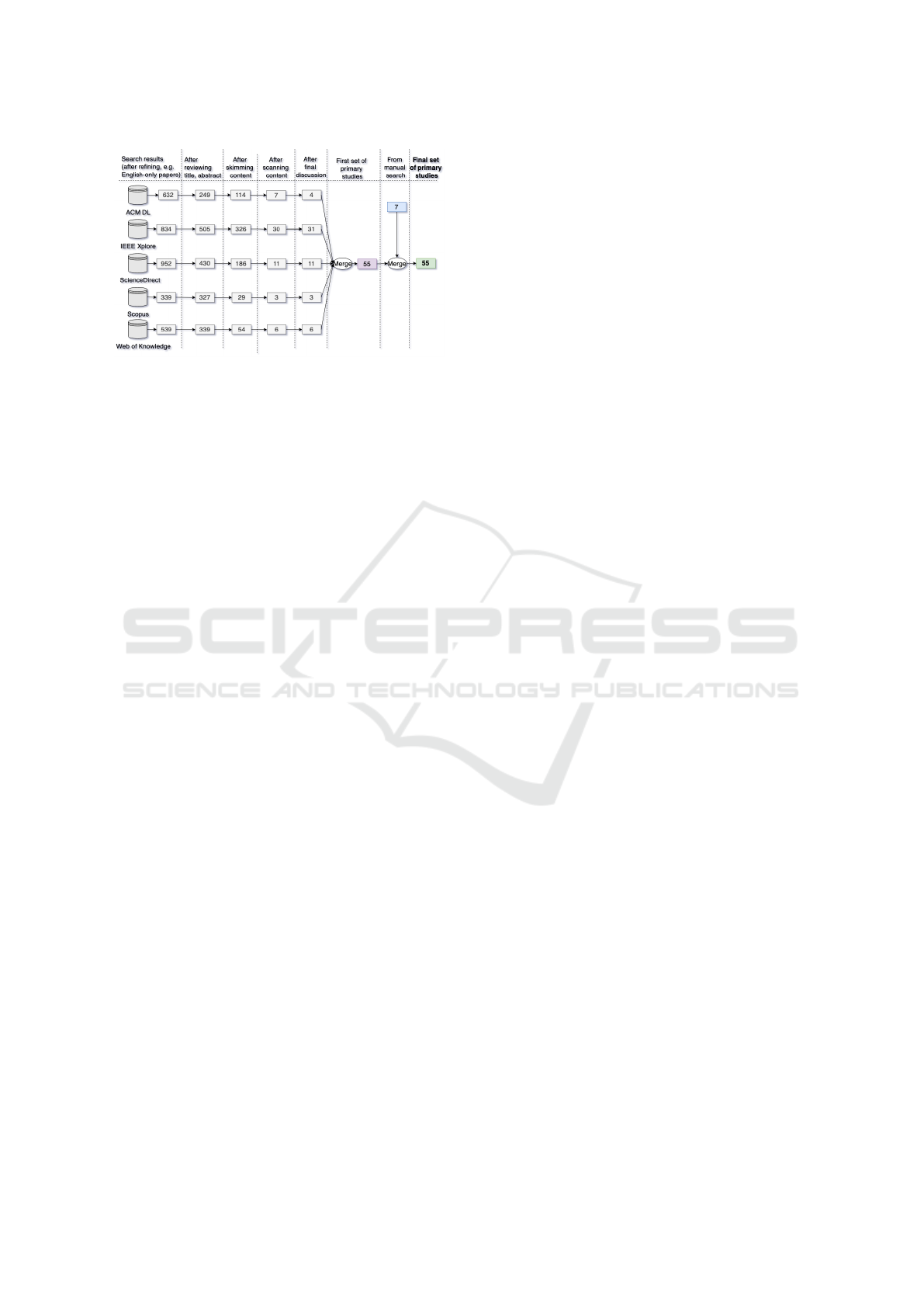

Figure 1: Overview of the search and selection steps.

2.1 Research Questions

This SLR aims to answer three RQs as explained in

Section 1. RQ1 includes four sub-RQs. RQ1.1 - What

is the current trend of publications on secure IoT data

sharing? Answering this question allows us to see

when the importance of secure data sharing became

a topic of interest. RQ1.2 - What are the reported

application domains of IoT data sharing? Answer-

ing this question allows us to identify the domains of

interest in the IoT data sharing ecosystem. RQ1.3 -

What are the purpose and beneﬁts of data sharing

considered in the primary studies? As we are inter-

ested in identifying the domains, we are also inter-

ested in the purpose of why different domains would

like to share data and the advantages that could come

from it. RQ1.4 - What are the architectures for IoT

data sharing in the primary studies? Answering this

question will give a high-level understanding of the

architectures for IoT data sharing before we introduce

in RQ2 the more in-depth ﬁndings on how different

mechanisms and approaches have been utilized.

RQ2 has three sub-questions. RQ2.1 - What are

the most common threats and vulnerabilities to IoT

data sharing today? Answering this question would

give an overview of current threats and vulnerabili-

ties that come with IoT data sharing, which need to

be considered. RQ2.2 - What and how are the tech-

niques and approaches used to preserve secure IoT

data sharing? After identifying the most common

threats and vulnerabilities related to our scope, we

extract how different contributions address these con-

cerns. RQ2.3 - What is the role of data management

and governance, and how do their standards, poli-

cies, and guidelines support trusted and secure data

sharing? As data management and governance could

contribute to secure IoT data sharing, the extraction of

what policies that have been supported and how they

preserve the security and privacy aspects is analyzed.

RQ3 does not consist of any sub-RQs. However,

this RQ helps to express the current issues and suggest

possible directions for future research.

2.2 Inclusion and Exclusion Criteria

Because the search strategy produced a wide range of

primary studies with diverse content and outcomes, it

was necessary to establish a set of inclusion and ex-

clusion criteria that all primary papers had to meet.

Our selection procedure was conducted in the most

transparent and unbiased way possible, with all the

primary studies having to meet all the following In-

clusion Criteria (IC):

• (IC1) Must address IoT data sharing.

• (IC2) Must address IoT data sharing architecture

models.

• (IC3) Must consider the security (& trust) aspects

of IoT data sharing.

We excluded papers matching any of the Exclusion

Criteria (EC):

• (EC1) Non-peer review publications are excluded.

• (EC2) Papers written in any other language than

English will be ﬁltered out and excluded in the

search process.

• (EC3) Papers published before year 2010 will be

excluded. According to (Wikipedia, nown), it

is claimed that the IoT was ”born” around year

2008-2009, but did not gain popularity before

year 2010, which is a good starting point to re-

view.

• (EC4) Papers less than or equal to six pages (sin-

gle column) and four pages (double column) are

excluded. In general, short papers have shown to

not include all necessary details. We therefore ex-

cluded these papers.

2.3 Search and Selection Strategy

The database search discovered 55 primary studies re-

lated to our topic (see Figure 1). Seven of these stud-

ies were discovered through the manual search and

used as the test set for the database search. With the

combination of both the database and manual search,

we were left with a ﬁnal set of 55 primary studies.

3 RESULTS

Table 1 presents the ﬁfty-ﬁve (55) selected primary

studies. We conducted in-depth evaluations and anal-

yses of these studies in order to answer the research

questions as follows.

A Systematic Review of Secure IoT Data Sharing

Table 1: The primary studies*.

# Year PV Title (click to open the corresponding publication)

#1 2017 C Towards Blockchain-based Auditable Storage and sharing of IoT data

#2 2017 J Secure and Efﬁcient Data Sharing with Atribute-based Proxy Re-encryption Scheme

#3 2017 J IoT data privacy via blockchains and IPFS

#4 2017 C Big Data Model of Security Sharing Based on Blockchain

#5 2018 J A Peer-to-Peer Architecture for Distributed Data Monetization in Fog Computing Scenarios

#6 2018 J Continuous Patient Monitoring with a Patient Centric Agent: A Blockchain Architecture

#7 2018 C Towards a Decentralized Data Marketplace for Smart Cities

#8 2018 C Providing Context Aware Security for IoT Environments Through Context Sharing Feature

#9 2018 C A Blockchain-Based Framework for Data Sharing With Fine-Grained Access Control in Decentralized Storage Systems

#10 2018 J Smart-toy-edge-computing-oriented data exchange based on blockchain

#11 2019 C Security and Privacy of Electronic Health Records: Decentralized and Hierarchical Data Sharing using Smart Contracts

#12 2019 J Accelerating Health Data Sharing: A Solution Based on the Internet of Things and Distributed Ledger Technologies

#13 2019 J MedChain: Efﬁcient Healthcare Data Sharing via Blockchain

#14 2019 C Toward a Decentralized, Trust-Less Marketplace for Brokered IoT Data Trading Using Blockchain

#15 2019 C Blockchain for Secure and Efﬁcient Data Sharing in Vehicular Edge Computing and Networks

#16 2019 C Towards Multi-party Policy-based Access Control in Federations of Cloud and Edge Microservices

#17 2019 C BlendMAS: A Blockchain-Enabled Decentralized Microservices Architecture for Smart Public Safety

#18 2019 C BPIIoT: A Light-Weighted Blockchain-Based Platform for Industrial IoT

#19 2019 C Enabling Industrial Data Space Architecture for Seaport Scenario

#20 2019 C Blockchain based Proxy Re-Encryption Scheme for secure IoT Data Sharing

#21 2019 J IoT Passport: A Blockchain-Based Trust Framework for Collaborative Internet-of-Things

#22 2020 C BEAF: A Blockchain and Edge Assistant Framework with Data Sharing for IoT Networks

#23 2020 C A Blockchain-based Medical Data Marketplace with Trustless Fair Exchange and Access Control

#24 2020 C Blockchain Smart Contract for Scalable Data Sharing in IoT: A Case Study of Smart Agriculture

#25 2020 J Fully Decentralized Multi-Party Consent Management for Secure Sharing of Patient Health Records

#26 2020 J Secure data exchange between IoT endpoints for energy balancing using distributed ledger

#27 2020 J BDSS-FA: A Blockchain-Based Data Security Sharing Platform With Fine-Grained Access Control

#28 2020 J EdgeMediChain: A Hybrid Edge Blockchain-Based Framework for Health Data Exchange

#29 2020 C Decentralized patient-centric data management for sharing IoT data streams

#30 2020 C Blockchain-Based Multi-Role Healthcare Data Sharing System

#31 2020 J Data Sharing System Integrating Access Control Mechanism using Blockchain-Based Smart Contracts for IoT Devices

#32 2020 J Subscription-Based Data-Sharing Model Using Blockchain and Data as a Service

#33 2020 J Towards a remote monitoring of patient vital signs based on iot-based blockchain integrity management platforms in smart

hospitals

#34 2020 C TrustedChain: A Blockchain-based Data Sharing Scheme for Supply Chain

#35 2020 J A multi-layered blockchain framework for smart mobility data-markets

#36 2021 J Blockchain-Driven Trusted Data Sharing With Privacy Protection in IoT Sensor Network

#37 2021 J MedShare: A Privacy-Preserving Medical Data Sharing System by Using Blockchain

#38 2021 J Fortiﬁed-Chain: A Blockchain-Based Framework for Security and Privacy-Assured Internet of Medical Things With Ef-

fective Access Control

#39 2021 C A Cooperative Architecture of Data Ofﬂoading and Sharing for Smart Healthcare with Blockchain

#40 2021 C ITrade: A Blockchain-based, Self-Sovereign, and Scalable Marketplace for IoT Data Streams

#41 2021 J Proxy re-encryption enabled secure and anonymous IoT data sharing platform based on blockchain

#42 2021 J Medi-Block record: Secure data sharing using block chain technology

#43 2021 J PrivySharing: A blockchain-based framework for privacy-preserving and secure data sharing in smart cities

#44 2021 J AgriOnBlock: Secured data harvesting for agriculture sector using blockchain technology

#45 2021 J BlockHealth: Blockchain-based secure and peer-to-peer health information sharing with data protection and right to be

forgotten

#46 2021 J BCHealth: A Novel Blockchain-based Privacy-Preserving Architecture for IoT Healthcare Applications

#47 2021 J A conceptual IoT-based early-warning architecture for remote monitoring of COVID-19 patients in wards and at home

#48 2021 J A blockchain-based trading system for big data

#49 2021 J MedHypChain: A patient-centered interoperability hyperledger-based medical healthcare system: Regulation in COVID-

19 pandemic

#50 2021 J SmartMedChain: A Blockchain-Based Privacy-Preserving Smart Healthcare Framework

#51 2021 J eHealthChain—a blockchain-based personal health information management system

#52 2021 J A Threshold Proxy Re-Encryption Scheme for Secure IoT Data Sharing Based on Blockchain

#53 2021 J A Blockchain-Based Medical Data Sharing Mechanism with Attribute-Based Access Control and Privacy Protection

#54 2021 J FAST DATA: A Fair, Secure and Trusted Decentralized IIoT Data Marketplace enabled by Blockchain

#55 2021 J Blockchain Assisted Secure Data Sharing Model for Internet of Things Based Smart Industries

PV: Publication venue; J: Journal; C: Conference; * Because of space restriction for this paper, we can not cite the primary studies in the references.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

3.1 High-Level Details (RQ1)

Answering RQ1.1: Figure 2 illustrates the 55 primary

studies that have been published since 2017, which

according to the histogram, have been the most rele-

vant to our speciﬁc topic of secure IoT data sharing

(2020: 14; and 2021: 20 papers).

Figure 2: The publication years of the primary studies.

Answering RQ1.2: As an adaptable technol-

ogy, IoT is utilized across multiple areas. We have

divided the application domain according to IDS

Data Space Radar

as follows: smart cities, man-

ufacturing, energy, supply chain, automotive, and

cross-domain/other. The application domain labeled

”Cross-domain/other” is the most dominant, repre-

sented by 44 out of 55 primary studies. The papers ad-

dressing cross-domain/other are divided into four sub-

categories: healthcare, surveillance, smart toys, and

generic domains. Healthcare and the generic topic

have a shared ﬁrst place, being represented by 21 out

of 55 primary studies. Unlike the topics of smart toys

and surveillance, which are each addressed in a single

study. For the other domains, energy is represented

by one paper, while as for supply chain, manufactur-

ing, and automotive, they are presented in two papers

each, and smart city in four.

Answering RQ1.3: All the primary papers share a

common purpose and goal in their studies and work:

to develop a reliable and efﬁcient data sharing solu-

tion that allows data owners and users to securely ex-

change their data while making data sources more ac-

cessible to authorized actors. There are some studies

that only offer a broad overview of the purpose and

beneﬁts, while others delve further into the purpose

and beneﬁts of data sharing applicable speciﬁcally to

the domain they address, such as papers #18 and #28

(see Table 1).

Our ﬁndings show that the majority of primary pa-

pers with publications addressing the healthcare do-

main deal with data sharing within the same sys-

tem. The work by paper #28, on the other hand, may

be categorized as addressing data exchange in cross-

https://internationaldataspaces.org/adopt/data-space-r

adar/

healthcare systems. Doctors are one of the stakehold-

ers, as they give healthcare to patients, which implies

data sharing within the same system. However, there

is another stakeholder referred to as the ”requestor”

of data. As the division of stakeholders is represented

by doctor, patient, and requestor, it indicates that the

”requestor” may be from a different system.

Data sharing also has a signiﬁcant impact in the

manufacturing industry, which involves many dif-

ferent stakeholders, e.g., customers, employees, and

supply-chain organizations. Paper #18 explains how

the traditional manufacturing environment is com-

plex, with various manufacturing data, e.g., equip-

ment data, which is often stored in separate systems.

Because these systems may belong to multiple ser-

vice providers, and manufacturing organizations may

not have direct control over this type of data and may

be unable to comprehend the true and full value of the

massive amount of data generated. As a result, the

aim and beneﬁts of sharing equipment data are ex-

plored in depth in this paper. The data on the equip-

ment comprises not just their capacity, but also their

status data. Data sharing can empower R&D, making

manufacturing and distribution audits more effective,

which assists production companies in reducing oper-

ating and manufacturing costs.

Answering RQ1.4: The extractions were catego-

rized and ﬁltered based on the data sharing models

that were utilized. To emphasize, the differences be-

tween these three data sharing models are in terms

of data management and governance perspectives. In

domain-speciﬁc sharing, only stakeholders and inter-

ests from inside the domain are allowed to participate

in the process. Peer-to-peer refers to the lack of a

middleman; in other words, the absence of a central

system in the solution. A marketplace, in contrast to

peer-to-peer, implies the presence of a central system,

at least to initiate the sharing process. Our ﬁndings

reveal that peer-to-peer is the most common model

utilized. To provide a more exact overview, the peer-

to-peer model is addressed in 23 out of 55 primary

studies, domain-speciﬁc sharing in 21 out of 55 pri-

mary studies, and the marketplace is represented in

11 out of the 55 primary studies we have analyzed.

In summary, it has been challenging to fully an-

swer RQ1 in terms of today’s solution in the aspects

of analytics. This is due to a lack of information as

many studies do not cover or address the topic of data

sharing in combination with analytic aspects, at least

not in-depth. However, it is important to note that

data analysis comes with great beneﬁts, such as re-

ducing the amount of analysis that other stakehold-

ers must perform. With this in mind, one can debate

whether data analysis before sharing data to a stake-

A Systematic Review of Secure IoT Data Sharing

holder is restricting, in the sense that the stakeholder

could have an interest in raw data for their own anal-

ysis tools and goals.

3.2 Low-Level Details (RQ2)

Answering RQ2.1 We evaluated the contributions

against the OWASP top ten for the IoT domain

The results show that the issues of insecure network

services, insufﬁcient privacy protection, and insecure

data storage and transfer were the most addressed

OWASP issues in regard to our scope of secure IoT

data sharing. Our ﬁndings, however, reveal that the

ten OWASP security concerns are not equally ad-

dressed. The majority of studies are focused on the

three security threats outlined, whereas two studies

deal with insecure ecosystem interfaces, one with lack

of secure update mechanism, and six with use of in-

secure or outdated components. Furthermore, weak,

guessable, or hard-coded passwords, lack of device

management, insecure default settings, and lack of

physical hardening have not been considered in any

way. We may conclude that the issues of insecure

network services, insufﬁcient privacy protection, and

insecure data storage and transfer have been the cur-

rent most important factors to consider while using

IoT data sharing. Nevertheless, the evidence gives us

an overview that several OWASP threats and vulnera-

bilities have been neglected and overlooked.

We evaluated each study against security and pri-

vacy terms as well, to underline what security and

privacy aspects are handled in the solution (see Fig-

ure 3). There are 20 studies addressing conﬁdential-

ity; 20 studies addressing integrity; and 13 studies

addressing availability. Authentication, on the other

hand, is addressed in 22 studies, whereas authoriza-

tion is represented in 23 studies. Privacy is the most

frequently mentioned quality, appearing in 42 of the

55 primary studies. According to the extraction, only

six papers explicitly address the CIA triad (Conﬁden-

tiality, Integrity, and Availability). Because the CIA

triad (Gollmann, 2010; Nguyen et al., 2015) forms

the core foundation for developing secure information

systems, a lack of awareness could lead to threats and

vulnerabilities when applying the various IoT (data

sharing) solutions to everyday life.

Answering RQ2.2: The main contributions of the

studies show that many of the recent solutions for

trusted IoT data sharing leverage the possibilities of

blockchain technology. The ﬁndings show that 51 out

of 55 primary studies utilize blockchain technology;

32 studies out of 55 primary studies utilize smart con-

https://owasp.org/www-pdf-archive/OWASP-IoT-To

p-10-2018-ﬁnal.pdf

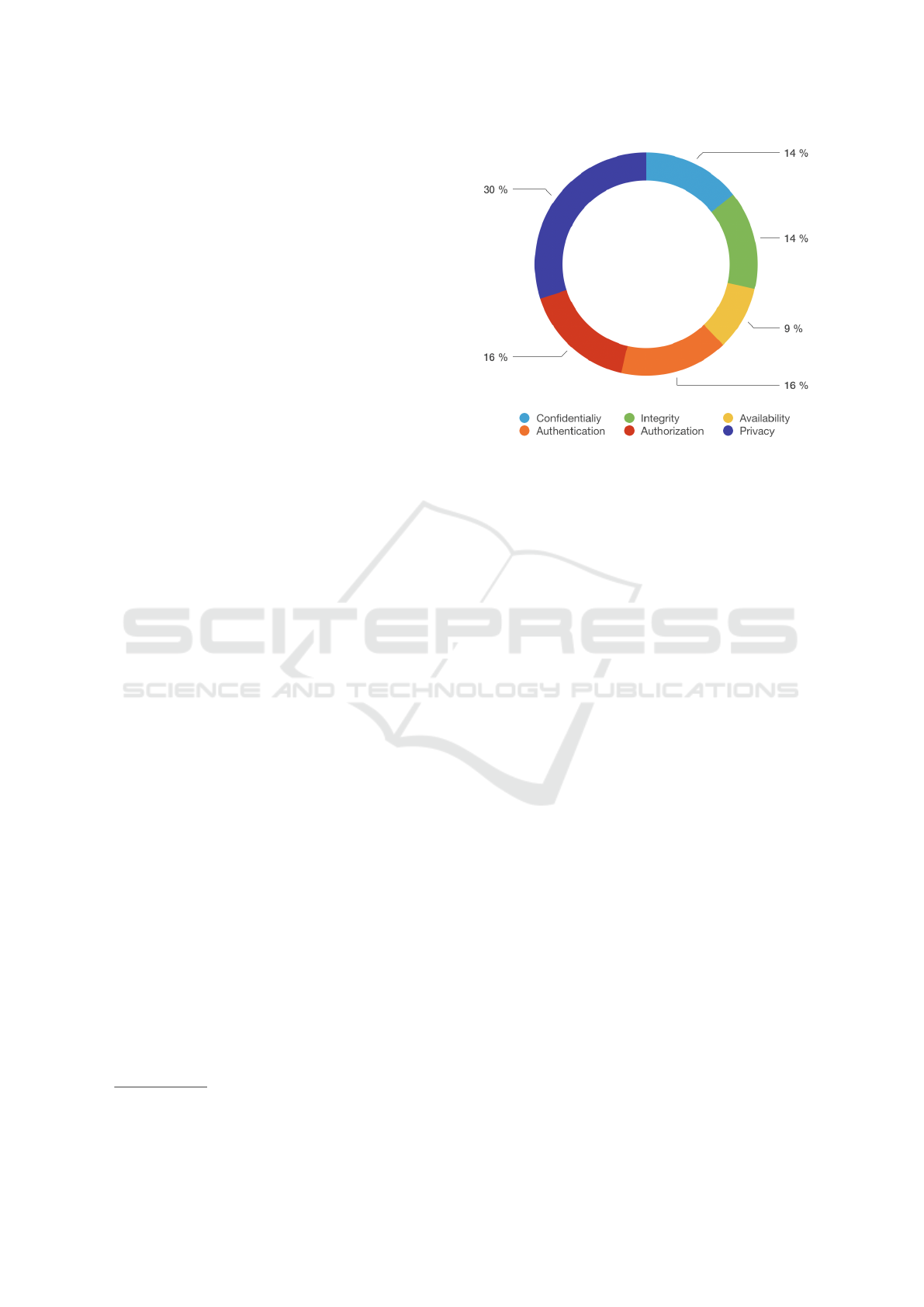

Figure 3: Security and its subgroups of speciﬁcation.

tracts; 10 papers address access control; and one pa-

per, namely #19, utilizes the IDSA architecture. Al-

though some articles use blockchain alone, the ma-

jority of the papers use it in combination with smart

contracts, access control, identity management, or a

mix among these.

The utilization of smart contracts varied from the

studies. For example, paper #28 elaborates on how

they use smart contracts to ensure automated regu-

lation of rules and policies that govern access to the

shared health data in a non-deniable way, whereas pa-

per #27 uses the smart contract in two ways, the ﬁrst

one being for validation, while the other contract is

for decryption purposes. Just like how smart contract

solutions and use cases differ from study to study, so

does access control management. Paper #18 utilizes

a veriﬁcation node, which is responsible for access

management, with the access control policies written

on the blockchain. In paper #28, they allow sellers

of data to enforce their own access control policy on

their encrypted records.

While 51 primary studies utilize blockchain tech-

nology, 17 of these papers address what kind of

blockchain type they deploy. From the selection of

primary studies, there are 9 studies that are taking

advantage of the Hyperledger Fabric, while 8 stud-

ies are addressing Ethereum. Hyperledger Fabric is

mentioned in papers #22 and #54, and Ethereum in

papers #14, #20, #40, and #48 of the studies with so-

lutions addressing the generic domain. In the health-

care domain, papers #33, #45, #49, #50, #51, and #53

leverage Hyperledger Fabric while papers #25, #28,

and #37 use Ethereum. Paper #43 within the smart

city domain use Hyperledger Fabric, whereas paper

#26 in the domain of the smart grid use Ethereum.

There are many possibilities with each one of the dif-

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

100

ferent blockchain types. However, without any per-

mission and the total transparency of Ethereum, the

cost may affect the performance of scalability and pri-

vacy. Whereas for the Hyperledger, the consensus and

access control have to be well-deﬁned. The health-

care sector is a frequently mentioned domain in our

primary studies, which tends to be associated with

sensitivity and personal information. It is therefore

worth looking into why some studies, speciﬁcally pa-

pers #25, #28, and #37 have been utilizing the public

Ethereum platform in this domain, as the Ethereum

platform consists of total transparency.

Paper #28 has implemented a prototype on the

Ethereum blockchain to validate and evaluate the fea-

sibility as well as the performance. They point out

that the Ethereum blockchain consists of a large,

global development community in addition to be-

ing completely open source and supporting a vari-

ety of use cases such as smart contracts and de-

centralized applications. In their solution, all func-

tions executed in the contract are logged in the

ledger. Therefore, they exude an energetic and pos-

itive view of Ethereum’s transparency. As all trans-

actions are recorded, the blockchain is considered

hacker-resistant, which leads to it being more difﬁ-

cult to commit fraud within the system. Since every-

one can join the Ethereum network, the solution as-

sumes that the health data being shared is encrypted

and anonymized to protect the privacy and real iden-

tity of patients.

As for the contributions by papers #25 and #37,

they do combine the public Ethereum blockchain in

combination with smart contracts as well. For the ﬁrst

one, a lot of the focus is related to the implementation

of the prototype and, thereafter, the performance eval-

uation. As for the latter one, they do address that even

though their contribution keeps all patient data secure

using public-key infrastructure (PKI) cryptography,

certain sensitive ﬁles cannot be shared on the public

Ethereum network due to privacy issues. However,

they do address one possible solution to this problem,

which is to use forks of Ethereum that are permis-

sioned and private, such as Quorum and Hyperledger

Besu.

Not only do the trust aspects and mechanisms such

as blockchain types have an effect on data sharing. It

is also the layer that the data sharing is being done.

We have been following the IoT World Forum Refer-

ence Model

, which consists of seven layers. How-

ever, we will divide the seven layers into three layers,

namely perception (physical devices and controllers),

network (connectivity and edge computing), and ap-

https://www.cisco.com/c/dam/global/en ph/assets/cis

coconnect/pdf/bigdata/jim green cisco connect.pdf

plication (data accumulation, data abstraction, appli-

cation, collaboration and processes). There is a no-

ticeable layer that stands out from the crowd, namely

the network layer, which is the most leveraged layer

to share data on from our ﬁndings across the selection

of our primary studies. The network layer is presented

35 times, followed by the application layer being rep-

resented 17 times, and ﬁnally the perception layer be-

ing represented three times. The lack of coverage

in the perception layer, especially the physical layer,

raises the concern over the cross-domain physical-to-

cyber attacks (Lanotte et al., 2020; Yampolskiy et al.,

2012) that could make secure IoT data sharing mean-

ingless.

To leverage the great beneﬁts of data sharing, the

technical aspects of how the data is stored need to be

considered as well. The primary studies show that

the current trend is to remove themselves from a tra-

ditional centralized solution and move to a more de-

centralized solution. With this in mind, the primary

studies we have collected are introducing a distributed

protocol for sharing and storing called the Interplane-

tary File System (IPFS) (IPFS, nown; Steichen et al.,

2018). Compared with cloud storage, IPFS, as the

peer-to-peer storage network it is (IPFS, nown), can

contribute to preventing the problem of a single-point-

of-failure.

More speciﬁcally, #3, #5, #7, #9, #24, #25, #27,

#28, #30, #34, #39, #50 and #52 utilize the peer-to-

peer IPFS data storage protocol, while #2, #20, #32,

#38, #41 and #53 still utilize the traditional central-

ized cloud storage. The use of a third-party cloud ser-

vice has been incorporated in some way or another,

either as a primary storage of data, or just a back-up

storage.

When storing the data, studies have pointed out

the huge difference between storing raw data and en-

crypted data directly in their storage system. The ﬁnd-

ings show that a great number of selected primary

studies have addressed this difference. There are 17

papers that utilize encryption. There are, however,

only 11 papers addressing what type of encryption

they utilize. From this number, study #2, #20, #25,

#48, #52, and #54 utilize proxy re-encryption, while

studies #9, #11, #27, #28, and #37 practice attribute-

based encryption (ABE) in their solutions.

Answering RQ2.3: The data governance establish

the policies and procedures, which the data manage-

ment implements. A few studies look at the neces-

sity for access control from the standpoint of the data

owner, while none of them mention usage control (La-

zouski et al., 2010). A few ideas, in particular, would

allow data owners control over their own data. Papers

#7 and #43 address GDPR, while paper #7 also ad-

A Systematic Review of Secure IoT Data Sharing

101

dresses the California Consumer Privacy Act. How-

ever, most of the primary studies do not go into as

much detail or emphasis on the importance of data

management and governance as we would like to see.

In general, primary studies have revealed relatively

little information about the role and impact of data

management and governance.

Because the value of data sharing is derived from

the data itself, it is important to assess the data’s qual-

ity for the purposes of reuse and valid analysis. DNV

are experts in assurance and risk management. They

are using their expertise to improve safety and perfor-

mance while also setting industry benchmarks, e.g.,

a framework for data quality assessment

, which ex-

plains how to assess data quality. The framework em-

phasizes the importance of data quality assessment

and the need for continual monitoring of the qual-

ity. ISO 8000

is a standard that provides approaches

for managing, measuring, and improving the quality

of data and information. However, none of the se-

lected primary studies included inputs from DNV or

ISO 8000, or other relevant data quality frameworks,

demonstrating a lack of data quality management in

the context of IoT data sharing.

To wrap up RQ2, there are many mechanisms and

approaches utilized in the scope of secure IoT data

sharing. However, when relating to the security as-

pects, there are only six contributions that cover the

CIA principles. Even if other studies might cover the

aspects of the CIA triad, contributions that lack elab-

oration and explanation have not been included. We

can conclude that we have some shortcomings in the

ﬁndings that contribute to our inability to fully answer

RQ2. In particular, RQ2.3, in terms of the impact and

role of data management and governance. This is be-

cause the majority of the primary studies we looked

at did not include any speciﬁc standards, policies, or

procedures that might have contributed to their solu-

tion for secure IoT data sharing. Even though GDPR

was mentioned a few times, there was no in-depth ex-

planation of how it was used as a contributing factor

to secure the data sharing process.

3.3 Gaps and Limitations (RQ3)

This section discusses our ﬁndings to answer RQ3.

Limitations. A limitation that has been identiﬁed

through a number of studies and ﬁndings is the lack

of stress testing (limitation1). However, there are only

https://rules.dnv.com/docs/pdf/DNV/RP/2017-01/DN

VGL-RP-0497.pdf

https://www.iso.org/obp/ui/#iso:std:iso:8000:-61:

ed-1:v1:en

four studies that explicitly address this limitation with

their contribution, namely the contributing paper #3,

#11, #19 and #33. Stress testing means testing against

different use cases and seeing the results of utilizing a

larger scale network. In addition, a variety of the stud-

ies operate on one blockchain platform, but do men-

tion the wish to test their solution on other blockchain

platforms to see if the results could have signiﬁcant

meaning. As the IoT technology is widely used and

connects a variety of devices within different domains

and areas, it would be useful to see results on the per-

formance when putting the solution under stress.

Furthermore, another limitation of IoT data shar-

ing is the concern about the heterogeneity nature of

IoT (limitation2). As IoT technology makes human

life more connected than ever over the Internet, it also

implies the existence of a wide range of links from

devices to multiple points such as endpoint devices,

applications, and cloud platforms. More speciﬁcally,

the studies show that the limitation occurs when com-

bining and adding different technologies could lead to

the growth of complexity.

Another limitation that is addressed is scalability

(limitation3). The deﬁnition of scalability, when re-

lated to the domain of computer science, is the mea-

sure of a system’s ability to increase or decrease in

performance and cost in response to changes in ap-

plication and system processing demands (Gartner,

nown). When mentioning scalability as a limitation, it

refers to the growth in the number of participants and

transactions. As a side note, as the complexity of a

system increases, it will have an effect on the scalabil-

ity of the same system. A hand-full of solutions ﬁnd

it difﬁcult to handle moving parts and components, in

addition to the foundational scalability of a decentral-

ized marketplace. To summarize, because the primary

studies are concerned about the complexity of their

solution, there will also be an indirect concern about

scalability as well.

Last, we have the limitation related to the through-

put and performance of the solutions (limitation4).

One of the papers elaborates on their blockchain

architecture, which is hardly supported by high

throughput performance. More speciﬁcally, paper

#10 revealed that the maximum throughput was es-

timated to be a maximum of 50,000 requests per

second. Moreover, for (near) real-time secure IoT

data sharing, especially involving dynamic contexts,

heavy-weight blockchain-based solutions are less ap-

plicable. The advanced context-aware (de Matos

et al., 2018) access control/usage control-based ap-

proaches should be more favorable. Such approaches

can still employ blockchain technology for ensuring

the trust-ability of IoT data sharing by logging only

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

102

the metadata of importance for the data sharing trans-

actions like data quality metrics, the necessary head-

ers of shared data. In general, as the IoT is of-

ten connected to critical infrastructure domains such

as healthcare (Solanas et al., 2014), its performance

would have signiﬁcant meaning, where the outcome

of the effects could be critical.

Open Issues. Throughout our extraction, paper #2,

#7, #9, #29, and #38 mention more or less the open is-

sues regarding their contributions in their papers. The

other papers did not explicitly mention open issues,

but we still identiﬁed and extracted some open issues.

The main ﬁndings related to the open issues have been

divided into four topics, namely GDPR, access policy,

cost, and storage.

Paper #29 discusses permission-less data manage-

ment that empowers patients to securely and selec-

tively share their own personal data. This paper dis-

cusses data management but mentions their lack of fo-

cus on how to address the compliance of GDPR; for

instance, the erasing of personal data (issue1). The

open issues were stated by the authors and are speciﬁc

to their paper. On the other hand, this is an overall is-

sue that applies to IoT data sharing or IoT security in

general, as elaborated on in our results.

Paper #9 discuss the data storage and sharing

scheme in their contribution. They elaborate that their

solution is safe only if the Ethereum blockchain net-

work and the attribute-based encryption scheme are

safe. They do mention that their contribution does not

include an access policy update (issue2).

Paper #7 on decentralized data marketplace for

smart cities do address the concern of cost (issue3).

The concern about cost is associated with the trans-

actions and the contracts used, which must be mini-

mized to reduce the cost involved in using a decen-

tralized data marketplace. They do, however, propose

a solution that is worth investigating: a special short

data format for storing metadata in the blockchain.

A common topic that turns out to be a recurring

point in many, if not all the studies, is the security is-

sues regarding data storage (issue4). Some of today’s

solutions utilize the cloud server, including paper #2,

#20, #32, #38, #41 and #53. Even though the storage

phase is done in combination with encryption, the so-

lution utilizing a third-party solution still suffers from

a single-point-of-failure.

To summarize, there should be further research on

the security and privacy aspects of today’s data shar-

ing solutions, including the methods and strategies

used to ensure secure IoT data sharing. By looking

into the relationship between various trust and secu-

rity mechanisms and methodologies as well as the se-

curity and privacy evaluation of studies, one may be

able to uncover underlying reasons why, for instance,

the CIA triad is not being addressed as much as de-

sired. Additional future research should also be the

elaboration of the signiﬁcance and inﬂuence of data

management and governance. For example, full anal-

yses of current standards, policies, and guidelines, as

well as explanations of how each standard or policy

helps to data sharing security, should be supplied.

4 RELATED WORK

While the topic of secure IoT data sharing is becom-

ing more important, it may still be only the end of the

beginning. Few existing studies like (Lo et al., 2019;

Al-Ruithe et al., 2019; De Prie

elle et al., 2020) are

relevant to secure IoT data sharing, but none having

the scope of our study, nor answering our questions.

Kuang Lo et al. (Lo et al., 2019) elaborate on the

issues that data management solutions face, as well as

the key issue of single-point-of-failure caused by the

use of centralized management servers. Our study and

(Lo et al., 2019) complement each other by pointing

out technologies as a solution to the single-point-of-

failure, such as blockchain as smart contracts. How-

ever, our work further extracted on the architectural

layers (Rajmohan et al., 2022) used for the execution

of data sharing, who the stakeholders in different do-

mains are, and why data sharing is of interest to adapt

for these stakeholders and domains.

Al-Ruithe et al. (Al-Ruithe et al., 2019) presents

an SLR of data governance and cloud governance in

their use of data. They highlight the need for more

advanced research in data governance, in addition to

suggesting areas for further research within data gov-

ernance, which can be taken into account when con-

ducting our research. However, they do not go into

detail on the implications for IoT data sharing because

their main focus is on data and cloud governance.

The necessity of ecosystem data governance

for data platforms is discussed by Prie

elle et al.

(De Prie

elle et al., 2020). Future research directions

are elaborated, such as the importance of data plat-

form governance in access and usage as a primary

concern. They also emphasize that there is a lack of

research on the many types of beneﬁts that data shar-

ing generates, which is an important future research

direction as well. However, we focus on data sharing

as the primary topic, with data governance and its im-

pact on data sharing as a subtopic. Furthermore, they

do not address various standards, policies, and guide-

lines that have been considered.

A Systematic Review of Secure IoT Data Sharing

103

5 THREATS TO VALIDITY

In this section, we address the various concerns and

risks to the validity of our SLR. The validity analy-

sis is carried out by combining our work experience

with the knowledge gathered from Kitchenham et al.

(Kitchenham and Charters, 2007)’s principles.

One of the pitfalls when performing an SLR can

be related to how the search process has been con-

ducted. More speciﬁcally, in regard to the keywords

and queries. The query can be used as proof of the va-

lidity and limitations of the study, as there are an inﬁ-

nite number of other keywords that could be included

in the search query. However, to defend the selec-

tion of our search query, we performed a test case to

have a handful of quality test papers that we believe

are relevant and should be included in our research.

These test papers were used to evaluate the quality of

our search query results. If the search results in the

electronic database X include all the test set papers

published by X, we know that the other papers in the

results are relevant in some way. Otherwise, we may

conclude that there is a lot of noise in our search.

In addition, there was a need for ﬁltering the re-

sults from IEEE Xplore as the result gave a number

greater than 2000. We ﬁltered the results to only pa-

pers related to the ”Internet of Things”. This can be

considered a limitation, as there may be papers in the

original IEEE Xplore result that could be of interest.

Another threat to our study is with regard to the se-

lection of primary studies. The studies that have been

included in our selection of primary studies from our

SLR, by passing our inclusion and exclusion criteria,

in addition to being relevant based on our predeﬁned

taxonomy, can still be doubtful. There might be rel-

evant studies we have overlooked or publications we

have missed out on during our search phase.

Last, the snowballing procedure could be em-

ployed as part of the search process, after the auto-

matic and manual searches have been completed. Of-

ten, this method is used to enrich the set of primary

studies. For possible additional primary studies, the

technique comprises examining the list of references

of the existing primary studies, and new publications

citing them. Even though we did not go through

this process, our database search was extensive and

backed up by the test set from the manual search.

6 CONCLUSIONS

After systematically reviewing 55 primary studies rel-

evant to the scope of secure IoT data sharing, we have

discovered that the topic is getting hotter in recent

years. In the IoT data sharing domain, centralized

cloud-based solutions have traditionally dominated.

This means that the solutions are relying on a sin-

gle trusted third-party. However, there is a growing

interest in utilizing blockchain’s decentralized quali-

ties. From our ﬁndings, the objectives behind the use

of blockchain are: the removal of the centralized third

party, immutability, improved data sharing, enhanced

security, and reduced overhead costs in distributed ap-

plications.

Based on the synthesized data from analyzing the

primary studies, we have been able to make the fol-

lowing remarks. (1) To make IoT data sharing more

secure and valuable, based on our ﬁndings, we sug-

gest looking into the gap between public versus pri-

vate blockchain, and which is the most preferable

blockchain technology type that should be utilized. It

may also be worth analyzing the utilization of spe-

ciﬁc blockchain types in speciﬁc domains and the rip-

ple effects that may occur. (2) As our ﬁndings show,

there is a lack of research on the combination of shar-

ing and analytics. However, there are numerous pa-

pers addressing the issue, which can occur when the

data owner analyses the raw data and shares this ana-

lyzed data instead of the raw data. More speciﬁcally,

there is further need for research to discover whether

receiving already analyzed and processed data or un-

processed data makes a difference to stakeholders in

the IoT ecosystem. (3) A clear standout is the topic

of data management and governance and its lack of

research. Future research should therefore highlight

both the need and importance of data management

and governance, in addition to addressing speciﬁc

standards, policies, and guidelines that should be or

are considered as well, and how they increase the se-

curity aspect in data sharing.

The great value of data sharing often derives from

the data itself. Therefore, it is important that the data

being sent and received is of high quality to ensure

that analyses and the use of data are valid. Future re-

search should emphasize data quality in the context of

IoT data sharing, where consideration of ISO 8000 for

data quality could be of interest. We further suggest

collaboration across domains, as the combination of

different data resources with data sharing across do-

mains can enable IoT technology to reach even further

and discover even more possibilities in the future.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

104

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the European Commission’s H2020

Programme under the grant agreement numbers

958357 (InterQ), and 958363 (DAT4.Zero).

REFERENCES

Al-Ruithe, M., Benkhelifa, E., and Hameed, K. (2019). A

systematic literature review of data governance and

cloud data governance. Personal and Ubiquitous

Computing.

Atluri, V., Hong, Y., and Chun, S. A. (2020). Security, pri-

vacy and trust for responsible innovations and gov-

ernance. In The 21st Annual International Confer-

ence on Digital Government Research, dg.o ’20, page

365–366, New York, NY, USA. Association for Com-

puting Machinery.

de Matos, E., Tiburski, R. T., Amaral, L. A., and Hessel, F.

(2018). Providing context-aware security for iot en-

vironments through context sharing feature. In 2018

17th IEEE International Conference On Trust, Secu-

rity And Privacy In Computing And Communications/

12th IEEE International Conference On Big Data Sci-

ence And Engineering (TrustCom/BigDataSE), pages

1711–1715.

De Prie

elle, F., De Reuver, M., and Rezaei, J. (2020). The

role of ecosystem data governance in adoption of data

platforms by internet-of-things data providers: Case

of dutch horticulture industry. IEEE Transactions on

Engineering Management, pages 1–11.

Fantana, N. L., Riedel, T., Schlick, J., Ferber, S., Hupp, J.,

Miles, S., Michahelles, F., and Svensson, S. (2013).

Iot applications—value creation for industry. Internet

of Things: Converging technologies for smart envi-

ronments and integrated ecosystems, page 153.

Gartner (Unknown). Scalability.

Gollmann, D. (2010). Computer security. Wiley Interdisci-

plinary Reviews: Computational Statistics, 2(5):544–

554.

Grossetete, P. (2018). IoT and the Network: What is the

future?

IPFS (Unknown). What is IoT?

Jernigan, S., Kiron, D., and Ransbotham, S. (2016). Data

sharing and analytics are driving success with iot. MIT

Sloan Management Review, 58(1).

Kitchenham, B. A. and Charters, S. (2007). Guidelines for

performing systematic literature reviews in software

engineering. Technical Report EBSE 2007-001, Soft-

ware Engineering Group.

Lanotte, R., Merro, M., Munteanu, A., and Vigan

o, L.

(2020). A formal approach to physics-based attacks

in cyber-physical systems. ACM Trans. Priv. Secur.,

23(1).

Lazouski, A., Martinelli, F., and Mori, P. (2010). Usage

control in computer security: A survey. Computer Sci-

ence Review, 4(2):81–99.

Lo, S. K., Liu, Y., Chia, S. Y., Xu, X., Lu, Q., Zhu, L.,

and Ning, H. (2019). Analysis of blockchain solutions

for iot: A systematic literature review. IEEE Access,

pages 58822–58835.

Nguyen, H.-H., Phung, P. H., Nguyen, P. H., and Truong,

H.-L. (2022a). Context-driven policies enforcement

for edge-based iot data sharing-as-a-service. In 2022

IEEE International Conference on Services Comput-

ing (SCC), pages 221–230.

Nguyen, P. H., Kramer, M., Klein, J., and Traon, Y. L.

(2015). An extensive systematic review on the model-

driven development of secure systems. Information

and Software Technology, 68:62–81.

Nguyen, P. H., Sen, S., Jourdan, N., Cassoli, B., Myrseth, P.,

Armendia, M., and Myklebust, O. (2022b). Software

engineering and ai for data quality in cyber- physi-

cal systems - sea4dq’21 workshop report. SIGSOFT

Softw. Eng. Notes, 47(1):26–29.

Peerzade, E. (2021). The role of IoT sensors in the COVID-

19 ﬁght.

Rajmohan, T., Nguyen, P. H., and Ferry, N. (2020). Re-

search landscape of patterns and architectures for iot

security: A systematic review. In 2020 46th Eu-

romicro Conference on Software Engineering and Ad-

vanced Applications (SEAA), pages 463–470.

Rajmohan, T., Nguyen, P. H., and Ferry, N. (2022). A

decade of research on patterns and architectures for

iot security. Cybersecurity, 5(1):1–29.

Sen, S., Husom, E. J., Goknil, A., Tverdal, S., Nguyen, P.,

and Mancisidor, I. (2022). Taming data quality in ai-

enabled industrial internet of things. IEEE Software,

39(6):35–42.

Siegel, J. E., Kumar, S., and Sarma, S. E. (2018). The future

internet of things: Secure, efﬁcient, and model-based.

IEEE Internet of Things Journal, 5(4):2386–2398.

Solanas, A., Patsakis, C., Conti, M., Vlachos, I. S., Ramos,

V., Falcone, F., Postolache, O., Perez-martinez, P. A.,

Pietro, R. D., Perrea, D. N., and Martinez-Balleste,

A. (2014). Smart health: A context-aware health

paradigm within smart cities. IEEE Communications

Magazine, 52(8):74–81.

Steichen, M., Fiz, B., Norvill, R., Shbair, W., and State, R.

(2018). Blockchain-based, decentralized access con-

trol for ipfs. In 2018 IEEE International Conference

on Internet of Things (iThings) and IEEE Green Com-

puting and Communications (GreenCom) and IEEE

Cyber, Physical and Social Computing (CPSCom) and

IEEE Smart Data (SmartData), pages 1499–1506.

Ullah, I., De Roode, G., Meratnia, N., and Havinga, P.

(2021). Threat modeling—how to visualize attacks

on iota? Sensors, 21(5):1834.

Wikipedia (Unknown). Internet of things.

Yampolskiy, M., Horvath, P., Koutsoukos, X. D., Xue, Y.,

and Sztipanovits, J. (2012). Systematic analysis of

cyber-attacks on cps-evaluating applicability of dfd-

based approach. In 2012 5th International Symposium

on Resilient Control Systems, pages 55–62.

A Systematic Review of Secure IoT Data Sharing

105
