Use-Case Denial of Service Attack on Actual Quantum Key Distribution

Nodes

Patrik Burdiak

1 a

, Emir Dervisevic

2 b

, Amina Tankovic

2 c

, Filip Lauterbach

1 d

, Jan Rozhon

1 e

Lukas Kapicak

1 f

, Libor Michalek

1 g

, Dzana Pivac

2 h

, Merima Fehric

2 i

, Enio Kaljic

2 j

Mirza Hamza

2 k

, Miralem Mehic

2 l

and Miroslav Voznak

1 m

Department of Telecommunications, Faculty of Electrical Engineering and Computer Science,

VSB – Technical University of Ostrava, 17. listopadu 2172/15, 708 33 Ostrava, Czech Republic

Department of Telecommunications, Faculty of Electrical Engineering, University of Sarajevo,

Zmaja od Bosne bb, 71000, Sarajevo, Bosnia and Herzegovina

Keywords:

QKD, KMS, Suricata IPS/IDS, DoS, DDoS.

Abstract:

QKD integration into traditional telecommunication networks is anticipated in the upcoming decades in order

to maintain adequate levels of communication security. QKD establishes ITS (Information-Theoretic secure)

symmetric keys between the two parties, which they may use to sustain secure ﬂow of data even in the post-

quantum era. Since QKD-keys are a valuable and scarce resource, they must be carefully maintained. This

paper investigates DoS attacks on actual QKD equipment, in which an adversary with access to QKD services

depletes the reserves of QKD-keys maintained at the KMS system. As a result, safety precautions are proposed

in order to prevent this scenario and maintain operational QKD service.

1 INTRODUCTION

Quantum key distribution (QKD) is an emerging

technology that has matured sufﬁciently to be con-

sidered for integration in traditional telecommunica-

tion networks. QKD, unlike any other technology,

provides a long-term solution to secret key agree-

ments that is not compromised by new advances in

(quantum) computing (Bennett and Brassard, 1984).

When used correctly with quantum-resistant symmet-

ric cryptosystems, it ensures secure data transmission

even in quantum computing environments. A recent

https://orcid.org/0000-0002-9739-9278

https://orcid.org/0000-0002-7981-7739

https://orcid.org/0000-0001-8570-8339

https://orcid.org/0000-0002-0176-1288

https://orcid.org/0000-0003-4768-6073

https://orcid.org/0000-0002-4310-5123

https://orcid.org/0000-0002-1117-5477

https://orcid.org/0000-0001-5368-5582

https://orcid.org/0000-0001-7813-535X

https://orcid.org/0000-0003-1902-2608

https://orcid.org/0000-0002-1084-232X

https://orcid.org/0000-0003-2697-1756

https://orcid.org/0000-0001-5135-7980

area of research regarding the integration and appli-

cation of QKD within telecommunication networks

is concerned with its security against traditional net-

work attacks, such as DoS (Denial of Service) at-

tacks, which would render the technology inoperable

(Dervisevic et al., 2022). This study provides a so-

lution to a speciﬁc DoS attack on the Key Manager

System (KMS) component, which is critical to the op-

eration of QKD technology. The solution is evaluated

in real-world environment using commercially avail-

able QKD equipment and Suricata IPS/IDS (Intrusion

Prevention and Detection System) services.

This paper is organized as follows: Section 2 is

describing current state of the art, in Section 3 is de-

scribed essential parts of QKD system, Sections 4 and

5 are focusing on test bed environment and attacking

scenario. In Section 6 reader can ﬁnd proposed secu-

rity measurements that could be implemented by vari-

ous technologies and Section 7 is representing results

of our experiment. (Mehic et al., 2022b).

2 STATE OF THE ART

Currently most attacks on QKD systems were per-

formed on quantum channel (Hugues-Salas et al.,

Burdiak, P., Dervisevic, E., Tankovic, A., Lauterbach, F., Rozhon, J., Kapicak, L., Michalek, L., Pivac, D., Fehric, M., Kaljic, E., Hamza, M., Mehic, M. and Voznak, M.

Use-Case Denial of Service Attack on Actual Quantum Key Distribution Nodes.

DOI: 10.5220/0011672000003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 89-94

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

2018; Li et al., 2018; Dai et al., 2022). These stud-

ies are mainly focused on ﬁber based QKD systems

and vulnerabilities of transmission of qubits within

optical ﬁbers. In (Hugues-Salas et al., 2018), a Soft-

ware Deﬁned Networking (SDN) application is de-

veloped to perform real-time monitoring of quantum

channel performance, i.e., Secret Key Rates (SKR)

and Quantum Bit Error Rates (QBER), which can be

used to detect DDoS attacks. If the DDoS attack

is detected, the SDN application relocates the quan-

tum channel to one of the spare ﬁber links. Article

(Li et al., 2018), authors are proposing DoS attack

based on manipulation of quantum channel. As re-

sult even slight manipulation of the channel parame-

ters is leading to underestimation of the secure com-

munication and to intentional termination of commu-

nication. In (Dai et al., 2022), authors are focusing on

detection of LDoS (low-rate denial-of-service) in the

CV-QKD (continuous-variable QKD) communication

progress. This detection is performed on quantum

channel and focused on parameters of this channel.

Articles (Dervisevic et al., 2022; Mehic et al., 2022a),

are pioneering research on DoS attacks on KMS. Arti-

cle (Dervisevic et al., 2022) will be more described in

Chapter 5. This article focuses on the same problem

but with real-time devices.

3 ESSENTIAL PARTS OF QKD

SYSTEM

QKD technology establishes symmetric key material

in ITS (Information-Theoretic Security) secure man-

ner between the two distant sites. This key material

is established via QKD link. QKD link is divided

into two separate channels, public channel and quan-

tum channel. Purpose of quantum channel is propa-

gation of photons where keys are encoded into quan-

tum states of this photons. Laws of quantum physics

guarantees, that this channel is secure from eaves-

dropper by non-cloning theorem and Heisenberg prin-

cipal (Vagenas et al., 2019). Public channel is used

for post-processing applications, connection between

QKD nodes via public channel can be performed by

public internet. Access from public internet means

that QKD node on his public channel interface is ex-

posed to attacks that are well known like Dos attack,

DDos attack and so on. Every QKD protocol like

BB84 (Bennett and Brassard, 1984), BB92 (Bennett,

1992), COW (Gisin et al., 2004) are using both of

these channels for establishing key material. Essen-

tial part of QKD system is Key Management system.

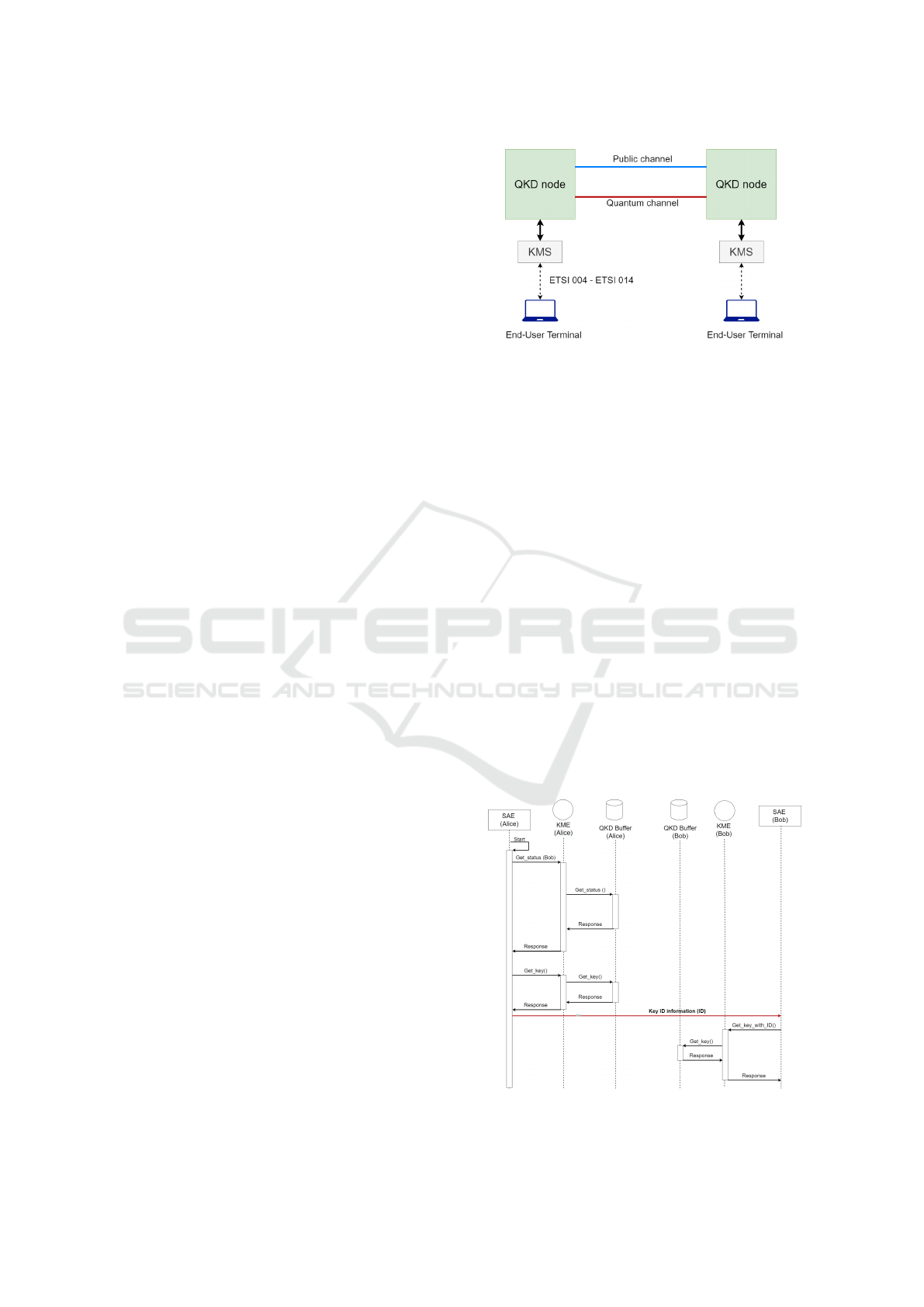

Figure 1: QKD system.

KMS is purposing for storage, management of

keys and distribution of keys through QKD network.

Secure Application Entity (SAE) is communicating

with KMS via REST-API which is described in stan-

dards ETSI 004 and ETSI 014 (Mehic et al., 2022c).

In Figure 2 we can notice that the communication

between encoders/decryptors and QKD nodes takes

place using the ETSI 014 standard. The ETSI 014

(ETSI, 2019) standard deﬁnes REST-API (Represen-

tational State Transfer-Application Programming In-

terface) for communication between QKD node that

contains KMS (Key Management System) and SAE

(Secure Application Entity). We can imagine SAE

as a service that contains an encoder/decryptor and

is used for communication with the QKD node. The

REST-API uses the HTTPS protocol, the keys are

transferred in JSON format together with the key

identiﬁer (ID). The key identiﬁer serves as a pointer to

the key store in the QKD node. Encryptors/decryptors

exchange such an identiﬁer. This step ensures that a

key with the same ID will be used for encryption and

decryption. We have SAE Alice and SAE Bob as in

Figure 2.

Figure 2: ETSI-014.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

SAE Alice ﬁrst asks her KMS using the

Get Status(Bob) function for status of QKD buffer

where the keys are stored. The function returns in-

formation about the assigned KMS entity, the size of

the key that can be delivered to the SAE, the number

of keys stored in the buffer and the maximum number

of keys that can be delivered in one response. Subse-

quently, Alice requests a block of keys (or just one

key) using the function Get Key(), as arguments of

this function are the number, size of keys and SAE

ID. The SAE ID serves as the SAE identiﬁer. As soon

as Alice receives the block of keys with the corre-

sponding ID, she forwards this ID to Bob. Bob then

requests his KMS for a block of keys with the corre-

sponding ID from Alice using the Get Key with ID()

function. From the QKD theory, we know that for a

given QKD connection, both communicating parties

have the same QKD buffer, i.e. they contain the same

keys. Thus, as a result, Alice and Bob have the same

keys for encryption and decryption.

4 TEST BED

Our experiments were performed with IDQ Cerberis

3 hardware located at VSB-Technical University of

Ostrava. Two QKD nodes IDQ Cerberis 3 are in-

terconnected by quantum channel and service chan-

nel(public channel). Attenuation of quantum chan-

nel which is provided by single mode optical ﬁber

is 10 dB. Both of this device alongside with encryp-

tors IDQ Centauris are included within OpenQKD

project and NATO Quantum5

project.

5 ATTACKING SCENARIO

In article (Dervisevic et al., 2022), authors investi-

gated attacking scenario where attacker is sending in-

valid requests to KMS and KMS must process them.

With high number of requests KMS must proceed

these requests in queue, queue have ﬁnite size, so at-

tacker can full ﬁll this queue with invalid requests and

valid requests could be dropped. Authors of these ar-

ticle are describing next situation where attacker can

deplete all key material from key storage of QKD

nodes by using end-user terminal with valid certiﬁ-

cates. Authors performed this experiment in QKD-

NetSim (Mehic et al., 2017) simulator, by generating

Get key https requests on KMS in speciﬁc period of

time. From this observations we can see that KMS

https://openqkd.eu

https://www.quantum5.eu

has no defensive mechanism against this type of at-

tack. With higher number of requests key storage is

depleted faster a this means a big security problem

for stability of QKD system. When key storage’s are

empty, other end-users can not get their own keys for

encryption. This article deals with situation where at-

tacker has valid certiﬁcates and wants do deplete key

storage in KMS, performed with real-time QKD de-

vices.

6 SECURITY PRECAUTIONS

In this section we are proposing method or ap-

proaches which could be implemented into KMS or

ﬁrewall for protecting key storage from depleting key

material. We are proposing Formula 1, for threshold

value. This threshold value representing maximum

number of observed key in speciﬁc period of time for

one user.

threshold =

total amount o f keys[−]

number o f valid end users[−]

total amount o f key material[bits]

secret key rate[bit/s]

[keys/s] (1)

In this formula we have to consider that all SAE

served by QKD system will ask for the same length

of the key. In our experiment end-users SAE are

consuming 256 bit keys. In the next chapter is de-

scribed use-case how can be this formula interpreted

into IPS/IDS service.

6.1 Implementation in Software Based

IDS/IPS

Software based IDS/IPS is representing service run-

ning on typical PC or virtual machine running on

server hardware. Advantage of software IPS/IDS is

that most of them are for free and you can easily in-

stall this system on already running network infras-

tructure. Typical represent of IDS/IPS software is

Suricata (Waleed et al., 2022). In Figure 3, is shown

position of Suricata IPS/IDS within network topol-

ogy.

We used this IDS/IPS system for implementing

our Formula 1. Our IDQ system has this parameters:

• Total amount of keys: 1000

• Total amount of key material: 256 · 1000 =

256000bit

• Secret key rate = 2000bit/sec

In our experiment we consider that QKD system is

operating with forty active end-user terminals. With

Use-Case Denial of Service Attack on Actual Quantum Key Distribution Nodes

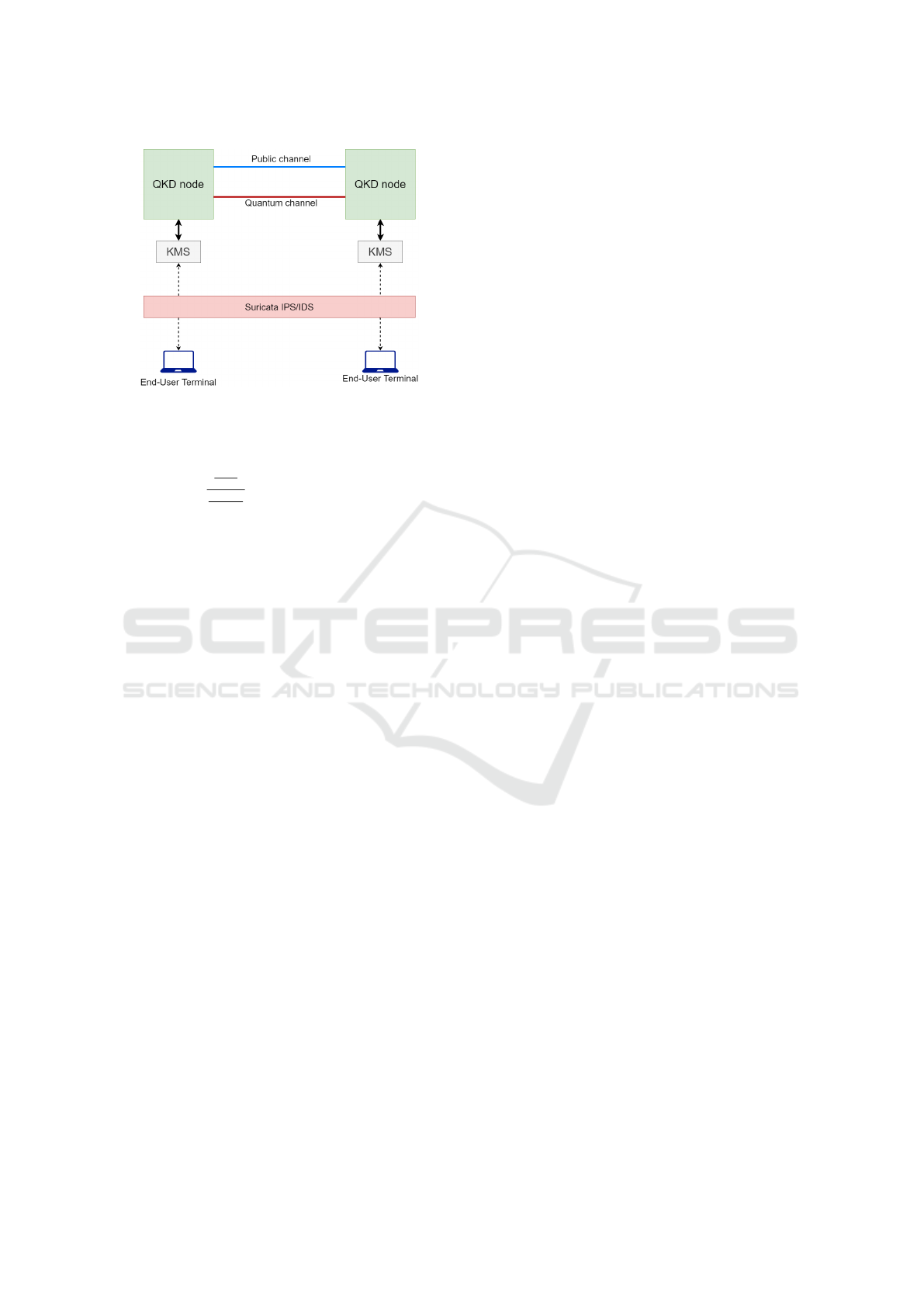

Figure 3: Implementation of Suricatata IPS/IDS.

these parameters we can easily compute threshold

value for our KMS.

threshold =

1000

256000

2000

[keys/s]

∼

11[keys/minute] (2)

As result from Formula 2, we can observe that in

our experiment our SAE can obtain eleven keys by

minute. This keys coud be used for encryption of data

for any time period. That means that secure tunnel

between two end-users terminals can use speciﬁc key

for one minute, and the other secured tunnel can us-

ing one speciﬁc key for one hour. This time validity

of key is set by end-user terminals. In this implemen-

tation, Suricata has internal rules which will not al-

low to get more than eleven keys by size 256 bit per

minute by end-user terminal. After obtaining eleven

keys per minute, this end-user terminal will not obtain

new keys for speciﬁc period of time. For our experi-

ment this time was 1024 seconds. This period repre-

sent, time for full ﬁlling key storages with key mate-

rial. This period is derived from knowledge that secret

key rate is 2k bit/s and total amount of key material

is 256k bits.

6.2 Implementation in Hardware

Devices

Security implementation with hardware-based ﬁre-

wall is similar to software deﬁned ﬁrewall and IPS

system. The main differences are in TCP/IP model

layer-based security. Hardware ﬁrewalls are fully

designed for a trafﬁc packet real-time analysis. It

reaches higher throughput compare to software de-

ﬁned ﬁrewall (Konikiewicz and Markowski, 2017)

and better efﬁciency if we analyze trafﬁc for second,

third and fourth TCP/IP (Alani, 2014) model trafﬁc.

The First TCP/IP model layer security could be per-

formed by MAC address security a port security to

ports where device is connected. We can avoid some

ARP attacks etc.

The Second layer of TCP/IP model (Alani, 2014)

is IP based. The basic rule for KMS security could be

IP white and black listening. These rules could be pre-

deﬁned by system administrators. If we know trusted

IP address list for KMS clients, it is simple to prepare

rule for access to KMS keys. Otherwise, we can pre-

pare list for non-trusted clients, which can be blocked

by default. In case the KMS device is available for

access through the internet, we must implement other

security mechanisms to protect this device. Hardware

ﬁrewall device must have protection against DOS and

DDOS attacks. When this device detects multiple re-

quests from one or multiple IP addresses and reaches

preconﬁgured threshold, this address must be black-

listed permanently, or system administrator must be

notiﬁed about security incident.

The Second layer security is TCP or UDP trafﬁc

based. KMS key exchange use HTTPS trafﬁc over

TCP connection. Hardware ﬁrewall device can limit

trafﬁc on this type of trafﬁc. Other trafﬁc is blocked

by the default. The worst scenario for hardware ﬁre-

wall (Krishna and Karthik, 2022) is attack performed

by the trusted device which is white-listed, and it has

certiﬁcates for requesting keys. KMS device provides

keys for a multiple KMS clients and in case of one

client deplete key buffer, other devices will not have

keys for their purposes. Security for this attack sce-

nario is not simple because it is not possible to an-

alyze encrypted trafﬁc directly. Direct trafﬁc analy-

sis is possible on non-encrypted trafﬁc and it could

be done using proxy server. Administrator must ob-

serve normal trafﬁc load between the KMS device and

KMS clients and prepare rules for TCP connections.

If limit for normal load is reached, according rule the

trafﬁc for this KMS client is blocked.

In every scenario, hardware ﬁrewall must be

equipped with some notiﬁcation technology. Admin-

istrator must be notiﬁed about security incident mini-

mally via e-mail, or there has to be implemented sup-

port for SNMP or RSYSLOG (Bresnahan and Blum,

2019) which allow system administrator or fully au-

tomatized system make some approaches to prevent

attack. System could be distributed into two systems.

For trafﬁc analyzing and for security rules applica-

tion can be used hardware ﬁrewall device, which pro-

vide better network performance and fully automatic

system for determination attackers could be software

based, like is depicted in Section 6.1.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

7 RESULTS

In this chapter we are representing output data from

experiment based solution described in Section 6.1.

In this experiment we are performing attack on KMS

where end-user terminal with running SAE is trying

to consume all keys from KMS key buffer. Key re-

quests were generated from software-based encryp-

tor, this keys could be used for application which is

performing encryption SAE for creating secure tun-

nel between two end-user terminals. Both ends of se-

cured tunnel have to use at the same time symmet-

ric key with same ID. Signalization about used ID is

transmitting between SAE on both ends.

0 500 1000 1500 2000

Time [s]

Number of allowed key requests [−]

Allowed key requests

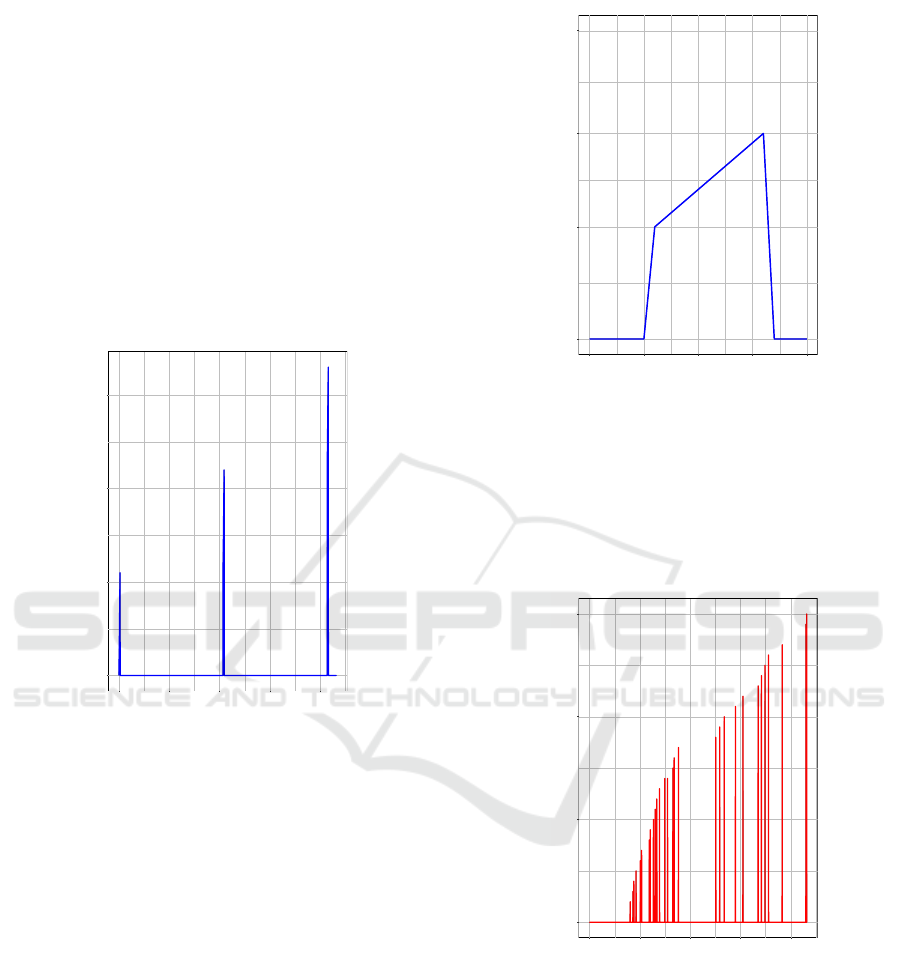

Figure 4: Allowed key requests.

In Figure 4 are shown allowed key requests from

SAE captured on Suricata system in time slot of 2160

seconds. Experiment was running for 2 hours but we

are choosing this speciﬁc time slot for better represen-

tation of output data. In Figure 4 reader can see three

peaks. During the time of all of three peaks SAE ob-

tains 33 keys from KMS with time difference of 1024

seconds between peaks. Period of one peak was ex-

actly 11 seconds, every second SAE was asking KMS

for new key. Formula 1 was implemented into Suri-

cata system which allows SAE to obtain 11 keys per

minute. After this threshold value was reached SAE

which represented speciﬁc IP address of end-user ter-

minal, would not obtain next keys for time period of

1024 seconds. In Figure 5 is shown detailed peak,

where on y axis can be seen increasing number of

observed keys for time period of 11 seconds. Very

important part of this experiment is examining the be-

havior of implemented solution for blocking key re-

quests.

1030 1035 1040 1045 1050

Time [s]

Number of allowed key requests [−]

Allowed key requests

Figure 5: Detailed peak.

In Figure 6, is shown number of blocked requests

during the whole experiment, from this graph is obvi-

ous that all key requests between peaks when thresh-

old value was activated were blocked. The density of

blocked requests is different due to the simulation of

different amounts key requests.

0 500 1000 1500 2000

Time [s]

Number of blocked key requests [−]

Blocked key requests

Figure 6: Blocked key requests.

8 CONCLUSION

QKD is promising area for advanced security in post-

quatum era. In incoming decades we can expect

that threat by quantum computers against today used

asymmetric cryptography will be growing. This paper

represents real-time QKD nodes and very sophisti-

cated attack on them when attacker has a valid certiﬁ-

cates and can very easily deplete keys from this nodes.

Use-Case Denial of Service Attack on Actual Quantum Key Distribution Nodes

With the growing need for implementation QKD tech-

nology into conventional networks, arises question

which security measurements should be taken. We

investigate previous research about security of KMS

systems. This article is describing real-time QKD

nodes and DoS attack on KMS. In previous chapters

we represented security measurements against DoS

attack on QKD nodes. This security measurements

are described within various technologies, with usage

of our proposed threshold formula. From this thresh-

old formula network administrators can easy calculate

how many keys can be consumed by end-users or this

formula can be implemented to protocol, service and

so on. This security approach could be used when

KMS is using for communication with SAE standard

ETSI 014. With usage of standard like ETSI 004

which is using reservation of keys for speciﬁc period

of time security measurements should be different.

Subsequently we have implemented this solution to

Suricata IPS/IDS service and performed experiment

with actual QKD nodes. The Experiment showed,

that SAE obtain only maximum amount of keys for

speciﬁc time period other key requests were blocked.

ACKNOWLEDGEMENTS

The research leading to the published results was sup-

ported under the NATO SPS G894 project “Quantum

Cybersecurity in 5G Networks (QUANTUM5)” and

partly under the H2020 project OPENQKD and grant

agreement No. 857156. The work was also supported

by the Ministry of Science, Higher Education and

Youth of Canton Sarajevo, Bosnia and Herzegovina

under Grants No. 27-02-35-35137-29/22 and 27-02-

35-35143-6/22.

REFERENCES

Alani, M. (2014). TCP/IP model, pages 19–50.

Bennett, C. H. (1992). Quantum cryptography using any

two nonorthogonal states. Physical review letters,

68(21):3121.

Bennett, C. H. and Brassard, G. (1984). Proceedings of the

ieee international conference on computers, systems

and signal processing.

Bresnahan, C. and Blum, R. (2019). Implementing Logging

Services, pages 473–486.

Dai, E., Huang, D., and Zhang, L. (2022). Low-rate denial-

of-service attack detection: Defense strategy based

on spectral estimation for cv-qkd. In Photonics, vol-

ume 9, page 365. MDPI.

Dervisevic, E., Lauterbach, F., Burdiak, P., Rozhon, J.,

ıvov

a, M., Plakalovic, M., Hamza, M., Fazio, P.,

Voznak, M., and Mehic, M. (2022). Simulations of de-

nial of service attacks in quantum key distribution net-

works. In 2022 XXVIII International Conference on

Information, Communication and Automation Tech-

nologies (ICAT), pages 1–5. IEEE.

ETSI (2019). Quantum key distribution (qkd); protocol and

data format of rest-based key delivery api (etsi gs qkd

014).

Gisin, N., Ribordy, G., Zbinden, H., Stucki, D., Brunner,

N., and Scarani, V. (2004). Towards practical and

fast quantum cryptography. arXiv preprint quant-

ph/0411022.

Hugues-Salas, E., Ntavou, F., Ou, Y., Kennard, J. E., White,

C., Gkounis, D., Nikolovgenis, K., Kanellos, G., Er-

ven, C., Lord, A., et al. (2018). Experimental demon-

stration of ddos mitigation over a quantum key distri-

bution (qkd) network using software deﬁned network-

ing (sdn). In Optical ﬁber communication conference,

pages M2A–6. Optica Publishing Group.

Konikiewicz, W. and Markowski, M. (2017). Analysis of

performance and efﬁciency of hardware and software

ﬁrewalls. Journal of Applied Computer Science Meth-

ods, 9.

Krishna, T. V. and Karthik, P. (2022). Dominance of

hardware ﬁrewalls and denial of ﬁrewall attacks (case

study blacknurse attack). International Journal of Sci-

ence and Research (IJSR), 11:28–33.

Li, Y., Huang, P., Wang, S., Wang, T., Li, D., and

Zeng, G. (2018). A denial-of-service attack on ﬁber-

based continuous-variable quantum key distribution.

Physics Letters A, 382(45):3253–3261.

Mehic, M., Maurhart, O., Rass, S., and Voznak, M. (2017).

Implementation of quantum key distribution network

simulation module in the network simulator ns-3.

Quantum Information Processing, 16(10):1–23.

Mehic, M., Rass, S., Dervisevic, E., and Voznak, M.

(2022a). Tackling denial of service attacks on key

management in software-deﬁned quantum key distri-

bution networks. IEEE Access, 10:110512–110520.

Mehic, M., Rass, S., Fazio, P., and Voznak, M. (2022b).

Modern trends in quantum key distribution networks.

Quantum Key Distribution Networks, pages 209–223.

Mehic, M., Rass, S., Fazio, P., and Voznak, M. (2022c).

Quality of service architectures of quantum key distri-

bution networks. In Quantum Key Distribution Net-

works, pages 73–107. Springer.

Vagenas, E. C., Farag Ali, A., and Alshal, H. (2019). Gup

and the no-cloning theorem. The European Physical

Journal C, 79(3):1–5.

Waleed, A., Jamali, A. F., and Masood, A. (2022). Which

open-source ids? snort, suricata or zeek. Computer

Networks, 213:109116.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy
