Using NLP to Enrich Scientiﬁc Knowledge Graphs: A Case Study to

Find Similar Papers

Xavier Quevedo and Janneth Chicaiza

Departamento de Ciencias de la Computaci

on, Universidad T

ecnica Particular de Loja, Loja, Ecuador

Keywords:

DBPedia, NLP, Metadata, Scientiﬁc Knowledge Graphs, RDF, Semantic Similarity.

Abstract:

In recent years, Knowledge Graphs have become increasingly popular thanks to the potential of Semantic

Web technologies and the development of NoSQL graph-based. A knowledge graph that describes scholarly

production makes the literature metadata legible for machines. Making the paper’s text legible for machines

enables them to discover and leverage relevant information for the scientiﬁc community beyond searching

based on metadata ﬁelds. Thus, scientiﬁc knowledge graphs can become catalysts to drive research. In this

research, we reuse an existing scientiﬁc knowledge graph and enrich it with new facts to demonstrate how

this information can be used to improve tasks like ﬁnding similar documents. To identify new entities and

relationships we combine two different approaches: (1) an RDF scheme-based approach to recognize named

entities, and (2) a sequence labeler based on spaCy to recognize entities and relationships on papers’ abstracts.

Then, we compute the semantic similarity among papers considering the original graph and the enriched one

to state what is the graph that returns the closest similarity. Finally, we conduct an experiment to verify the

value or contribution of the additional information, i.e. new triples, obtained by analyzing the content of the

abstracts of the papers.

1 INTRODUCTION

In recent years, Knowledge Graphs (KG) have be-

come increasingly popular thanks to the potential of

Semantic Web technologies such as RDF, ontologies

and query languages, and the development of NoSQL

technologies based on graphs to structure and con-

nect large amounts of data and improve tasks such

as search, recommendation, question-answering sys-

tems, among others. Indeed, according to the Gart-

ner Report 2021 (Sallam and Feinberg, 2021), graphs

are in trend eight because they can facilitate rapid

decision-making, thus more organizations identify

use cases that graph-based techniques can solve (Ti-

wari et al., 2021).

Currently, in most of the academic institutions, a

lot of valuable information is available in text such

as teaching/learning resources and research objects.

However, the main problem of unstructured data is

that machines do not understand natural language and

the structure or grammatical syntax of human lan-

guage. To make data readable for both machines

and humans (Kejriwal, 2019), several projects have

https://orcid.org/0000-0003-3439-3618

emerged that have focused on the creation of KG by

extracting entities and relationships from textual re-

sources (Buscaldi et al., 2019). There are KG for

speciﬁc domains such as GeoNames for geographic

names, and KG cross-domain such as DBPedia. In

the context of scholarly production, projects such as

scholarlydata, among others have emerged.

From structured data sources, we can use some

tools which read data from CSV ﬁles or relational

databases and then convert them to RDF data (Ke-

jriwal, 2019). Also, there are techniques to generate

data in triple patterns from unstructured text, but it is

a more challenging task. In this paper, the main prob-

lem that is addressed is how to leverage textual infor-

mation of papers, as their abstracts, to discover new

statements and to improve tasks based on computing

similarities such as search and recommendation.

Scholarly production describes research advances

in several ﬁelds; making a paper’s text legible for ma-

chines enables them to discover and leverage rele-

vant information for the scientiﬁc community beyond

searching based on metadata ﬁelds. Also, data orga-

nized as graphs can help researchers to more quickly

identify and compare methods, protocols, datasets

and ﬁndings.

190

Quevedo, X. and Chicaiza, J.

Using NLP to Enrich Scientiﬁc Knowledge Graphs: A Case Study to Find Similar Papers.

DOI: 10.5220/0011671100003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 2, pages 190-198

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

Next, we describe the research background (see

section 2), and explain a case of application based on

information extraction tasks applied to enrich a sci-

entiﬁc knowledge graph; then we demonstrate that to

ﬁnd similar papers is more accuracy (see section 3)

when we use the enriched graph. Finally, we present

the research conclusion.

2 BACKGROUND

2.1 Scientiﬁc Knowledge Graphs

A knowledge graph is like a network of heteroge-

neous entities related between them. In the context

of the Semantic Web, domain-speciﬁc facts are ex-

pressed as RDF triples. This type of representation

provides a ﬂexible, context-sensitive, ﬁne-grained,

and machine-actionable way to leverage and process

knowledge (Jaradeh et al., 2019).

In the academic context, Scientiﬁc Knowledge

Graphs (SKG) are the framework to describe the

underlying entities, such as research or educational

institutions, professors, students, scholarly produc-

tion, projects, etc. Here, some interesting graphs in-

clude Open Academic Graph

, Microsoft Academic

Knowledge Graph (MAKG)

, Scholarly Linked

Data

, OpenCitations

and Artiﬁcial Intelligence-

Knowledge Graph (Dess

ı et al., 2020b). The main

advantage of these SKG is the ease of retrieving and

integrating their content through the SPARQL stan-

dard and other access methods.

Different services could be created from SKG

based on the papers’ metadata. However, this type

of graph is limited since metadata such as the title,

abstract and body of the publications are based on

text which contains valuable information for users,

but that cannot be processed directly by the machines.

Therefore, we need to build knowledge graphs based

on free text processing. The textual content of the

papers can be analyzed with Information Extraction

(IE), Natural Language Processing (NLP) and Ma-

chine Learning (ML) techniques to identify entities

and predict links between them.

Below, we introduce some techniques used to

parse and transform textual content into knowledge

units of KG.

https://www.openacademic.ai/oag/

http://ma-graph.org

http://www.scholarlydata.org

https://opencitations.net

2.2 Extraction of RDF Statements from

Text

Information extraction is a process of retrieving struc-

tured information from semi-structured or unstruc-

tured data. The three main tasks of IE are entity

extraction, relation extraction, and co-reference res-

olution. Entity extraction (EE) aims to ﬁnd entities

such as people, organizations, topics or locations im-

plicit in scientiﬁc publications (Dess

ı et al., 2020a).

Relation extraction (RE) refers to ﬁnding semantic

links between these entities (Helesic, 2014). Finally,

co-reference resolution (CR) is the process of ﬁnd-

ing mentions in a text such as names, pronouns, syn-

onyms or acronyms referring to the same entity (Mos-

chitti et al., 2017). By connecting entities through

relationships, we can create knowledge units into a

graph, i.e. RDF triples.

Although there are different approaches and meth-

ods to extract entities and relationships from text, it is

also true that there are several challenges to take on

when processing natural language. The most common

problems of natural language are understanding and

ambiguity. In general, extracting information from

text is complex because there are many ways of ex-

pressing the same fact (Kejriwal et al., 2021).

Addressing these issues is beyond the scope of this

research, our goal is to describe the main methods to

identify the fundamental components of RDF triples,

i.e. entities and relationships.

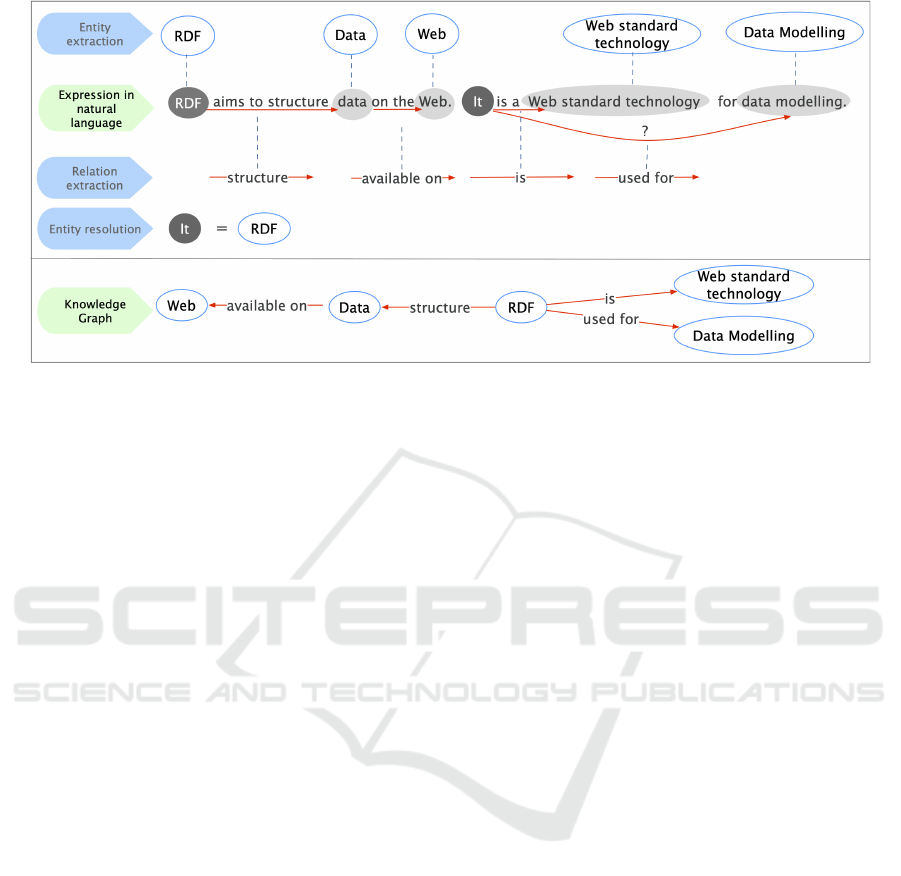

Figure 1 illustrates an example of how a sentence

in natural language could be analyzed through the

three tasks to create RDF triples. First EE aims to

identify key entities of interest (e.g., organizations,

people, places or topics) from the text. Second, RE

aims to extract the relations between two entities (e.g.,

structure, is, used for). And third, CR tries to identify

whether multiple mentions in a text refer to the same

entity.

Below, we describe some well-known methods to

perform EE and RE tasks, CR falls outside the scope

of this paper.

2.2.1 Entity Extraction (EE)

Entity extraction task is useful in many different ap-

plications such as question-answering systems, trans-

lation services, and search engines, among others. EE

is also known by other terms like entity identiﬁca-

tion, and named entity recognition (NER). Addition-

ally, when the objective is linking the mention of an

entity to the correct reference entity in a knowledge

base, we can refer to this task as named entity linking

(NEL) (Vasilyev et al., 2022).

Using NLP to Enrich Scientiﬁc Knowledge Graphs: A Case Study to Find Similar Papers

191

Figure 1: Entities found during EE are the nodes in the knowledge graph. Relations are used to connect entities and traverse

the graph. Using CR methods we can infer that ”It”, refers to the term RDF.

Therefore, EE aims to identify real-world objects

from a text and classify them into predeﬁned types

like person, location, organization, topic, language

and so forth (Moschitti et al., 2017). This task can

include the extraction of two entity types: entities

deﬁned in ontologies or dictionaries, and entities not

seen or described previously (Kalyanpur and Krishna,

2021). Simply, EE can be seen as a labelling prob-

lem, i.e., predicting the label right for a term men-

tioned in the text; this implies that this task is depen-

dent on the domain, i.e. every domain has its entity

types. Therefore, the problem of NER cannot be ac-

complished by a single string matching against some

sort of dictionary because the entity types usually are

context-dependent (Moschitti et al., 2017).

Early solutions for entity extraction were using

manually crafted patterns, later systems were trying

to learn patterns from labeled data, and the newest

applications are using statistical machine learning for

pattern discovery (Helesic, 2014). Below, we de-

scribe three broad approaches to solve this problem:

sequence-labeling, learning machine-based and rule-

based approaches.

• Sequence-labeling. Sequence labelers try to clas-

sify the sequence of words in a sentence as a

whole instead of classifying each word indepen-

dently. In the general case, the problem of tak-

ing all elements in a sequence and classifying

them jointly is intractable for reasonable sequence

sizes, but with some model assumptions, we can

try to take some dependencies into account when

classifying each token (Kalyanpur and Krishna,

2021). To recognize entities, we can use (1) NLP

libraries, (2) systems based on dictionaries, or (3)

machine learning methods.

Regarding the ﬁrst approach, there are some pack-

ages for NER like NLTK and spaCy. Natural

language Toolkit or NLTK is a set of Python li-

braries used for educational purposes. spaCy is a

Python library too but is more accessible. Using

these packages implies following a 3-step process.

The ﬁrst step is word tokenization, the second one

is POS (parts-of-speech) tagging or grammatical

tagging, and the last step is chunking to extract

the named entities (Philna Aruja, 2022).

The second approach, dictionary-based systems,

is the simplest. It provides suitable terminology

from catalogues, such as lexical databases, on-

tologies or RDF schemes, and basic string match-

ing algorithms are used to check whether the en-

tity is occurring in the given text to the entities in

vocabulary. The main limitation of this approach

is it is required to update the dictionary used for

the system (Dathan, 2021).

The third approach, ML-based systems for se-

quence tagging and other approaches is presented

below.

• Machine learning methods have the main advan-

tage of solving EE by recognizing an existing

entity name even with little spelling variations

(Dathan, 2021). It includes supervised methods

like statistical-based models as maximum entropy

models, hidden Markov models (HMMs), and

conditional random ﬁelds (CRFs). These methods

assign output states to input terms without mak-

ing a strong independence assumption (Kalyan-

pur and Krishna, 2021). Modern supervised ap-

proaches include deep learning approaches for

solving NER can require a large amount of la-

beled training data in order to learn a system that

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

192

achieves good performance. According to (Kejri-

wal et al., 2021), the advantage of deep Learning

models for NER is they do not normally require

domain-speciﬁc resources like lexicons or ontolo-

gies and can scale more easily without signiﬁcant

manual tuning.

For detecting the entity names, in addition to

supervised methods, there are semi-supervised

and unsupervised methods. Regarding semi-

supervised methods, in (Kejriwal et al., 2021) au-

thors stand out that recently weak supervision has

gained interest because it requires some amount

of human supervision, usually in the very begin-

ning when the system designer provides a starting

set of seeds, which are then used to bootstrap the

model.

The last group of ML-based methods are based

on unsupervised learning, therefore they do not

require labeled texts during training to recognize

entities. Thus, the goal of unsupervised learning

is to build representations from data. Typically,

clustering algorithms are used to ﬁnd similarities

in data during training (Eltyeb and Salim, 2014).

Due to their simplicity, these algorithms are suit-

able for simple tasks (Bose et al., 2021) and are

not popular in the NER task.

Another ML-based approaches use language

models based on deep neural networks. Neu-

ral language models have made interesting ad-

vances in several NLP tasks by improving their

performance and scalability. Pre-trained language

models like BERT are created with large amounts

of training data and are effective in automati-

cally learning useful representations and underly-

ing factors from raw data. In (Li et al., 2022), the

authors present the most representative methods

of deep learning for NER.

By combining supervised and unsupervised mod-

els in NER we can leverage the advantages of each

approach (Uronen et al., 2022).

• Rule-based systems. We can use a formal rule

language to deﬁne the extraction rules of enti-

ties. The rules can be based on regular expres-

sions or references to a dictionary, or we can reuse

custom extractors. Mainly two types of rules

are used, Pattern-based rules, which depend upon

the morphological pattern of the words used, and

context-based rules, which depend upon the con-

text of the word used in the given text document

(Dathan, 2021). This approach may be appro-

priate when the entities’ names of a certain type

share a spelling pattern; for example, in general

any university has in its name the term university.

2.2.2 Relation Extraction (RE)

When constructing KGs, EE is used to get the nodes

of a knowledge graph, and relation extraction can be

used to get the edges or relationships, which connect

pairs of nodes or entities in the graph. Therefore, RE

is the problem of detecting and classifying relation-

ships between entities extracted from the text, being

a signiﬁcantly more challenge than NER (Kejriwal

et al., 2021).

ML-based approaches include some supervised

and semi-supervised techniques:

1. Supervised RE methods require labeled data

where each pair of entity mentions is tagged with

one of the predeﬁned relation types. According

to (Kejriwal et al., 2021), there are two kinds of

supervised methods: feature-based supervised RE

and kernel-based supervised RE. On one hand,

feature-based methods deﬁne the RE problem as

a classiﬁcation problem. Namely, for each pair

of entity mentions, a set of features is generated,

and a classiﬁer is used to predict the relation, of-

ten probabilistically. On the other hand kernel-

based supervised methods, generally are heavily

dependent on the features extracted from the men-

tioned pairs and the sentence. Word embeddings

could be used to add more global context. Ker-

nel methods are based on the idea of kernel func-

tions; some common functions include the se-

quence kernel, the syntactic kernel, the depen-

dency tree kernel, the dependency graph path ker-

nel, and composite kernels.

2. Semi-supervised Relation Extraction. There are

two motivations for using this type of methods:

(1) acquiring labeled data at scale is a challenge

task, and (2) leveraging the large amounts of un-

labeled data currently available on the web, with-

out necessarily requiring labeling effort. A semi-

supervised or weakly supervised method is boot-

strapping, which starts from a small set of seed

relation instances and it is able to learns more re-

lation instances and extraction patterns. Another

paradigm is distant supervision which uses a large

number of known relationships instances in exist-

ing large knowledge bases to create a proxy for ac-

tual training data. Besides bootstrapping and dis-

tant supervision, other LM methods include active

learning, label propagation and multitask transfer

learning (Kejriwal et al., 2021).

Besides supervised and semi-supervised methods,

there are other approaches to extract relationships be-

tween two named entities.

• Syntactic patterns or rule-based. It tries to dis-

cover a pattern for a new relation by collecting

Using NLP to Enrich Scientiﬁc Knowledge Graphs: A Case Study to Find Similar Papers

193

several examples of that relation.

• Unsupervised ML-based RE. When we need to

discover relation types in a given corpus, we can

use unsupervised ML methods. Among these

methods highlight Open Information Extraction

(Open IE) which attempts to discover relations

(and entities) without any kind of ontological in-

put or relations previously designed. As we noted

before, RE is a more challenging task than EE and

there is a need for general-purpose solutions that

can achieve roughly the same kind of performance

as NERs (Kejriwal et al., 2021).

2.3 Related Work

The research related to SKG has attempted to address

two fundamental problems: (1) the analysis of sci-

entiﬁc domains doesn’t take into account the seman-

tics of concepts or topics (Tosi and Dos Reis, 2021),

and (2) the continuous growth of scientiﬁc literature

difﬁcults the analysis of it and increases the effort to

prepare data (Dess

ı et al., 2020a). To alleviate these

problems and contribute to the creation of structured

pieces of knowledge that ease the analysis of schol-

arly production, some frameworks and architectures

have been proposed.

The authors in (Tosi and Dos Reis, 2021) propose

an analysis framework to construct knowledge graphs

by structuring scientiﬁc ﬁelds from natural language

texts. Then, the knowledge graphs are clustered in

relevant concepts. The proposed model is evaluated

in two datasets from distinct areas and achieved up to

84% of accuracy in the task of document classiﬁcation

without using annotated data. Another framework for

performing three information extraction tasks: named

entity recognition, relation extraction, and event ex-

traction is proposed in (Wadden et al., 2020). The

framework is called DYGIE++ which tries to capture

local (within-sentence) and global (cross-sentence)

contexts. The proposal achieved state-of-the-art re-

sults across all tasks, on four datasets from a variety

of domains.

Dess

ı et. al. also propose a new architecture that

mixes machine learning, text mining and NLP to ex-

tract entities and relationships from research publi-

cations and integrate them into a knowledge graph.

Likewise, ref. (Buscaldi et al., 2019) proposes a pre-

liminary approach based on NLP and Deep Learn-

ing to extract entities and relationships from scientiﬁc

publications. The extracted information is used to cre-

ate a knowledge graph which includes about 10K en-

tities, and 25K relationships focused on the Semantic

Web (Dess

ı et al., 2020a).

Similar to the previous proposals, (Luan et al.,

2018) presents a model for identifying and classi-

fying entities, relations, and coreference clusters in

scientiﬁc articles. The difference is that the authors

propose a uniﬁed model, or multi-task setup, which

outperforms previous models in scientiﬁc informa-

tion extraction without using any domain-speciﬁc fea-

tures. As a result, the authors create the dataset SCI-

ERC, which includes annotations for all three tasks

and develop a uniﬁed framework called Scientiﬁc In-

formation Extractor (SCIIE) with shared span repre-

sentations.

Finally, (Martinez-Rodriguez et al., 2018) explore

the use of OpenIE for the construction of KG. The au-

thors created RDF triples using binary relations pro-

vided by an OpenIE approach. They ”demonstrate

that the integration of information extraction units

with grammatical structures provides a better un-

derstanding of proposition-based representations pro-

vided by OpenIE for supporting the construction of

KGs”.

Continuing work along the lines of SKG, here we

reuse an existing graph and enrich it with new facts

to demonstrate how this information can be used to

improve certain base tasks like ﬁnding similar doc-

uments. To identify new entities and relationships

we combine two different approaches: (1) an RDF

scheme-based approach to recognize named entities

from an existing KG, then connect them to semantic

representation of papers, (2) a sequence labeler based

on spaCy to recognize entities and relationships on

papers’ abstracts. Next, we describe the work carried

out through an application case.

3 CASE STUDY: ENRICHMENT

OF A SCHOLARLY

KNOWLEDGE GRAPH

In this section, we describe how we collect metadata

from the SKG named scholarlyData, and then how we

process their textual metadata to obtain new triples for

the SKG, carrying out entity and relation extraction

tasks. Finally, we compute the semantic similarity

among papers considering the original SKG and the

enriched graph to state what is the graph that returns

the closest similarity.

3.1 Data Sources and Data Schema

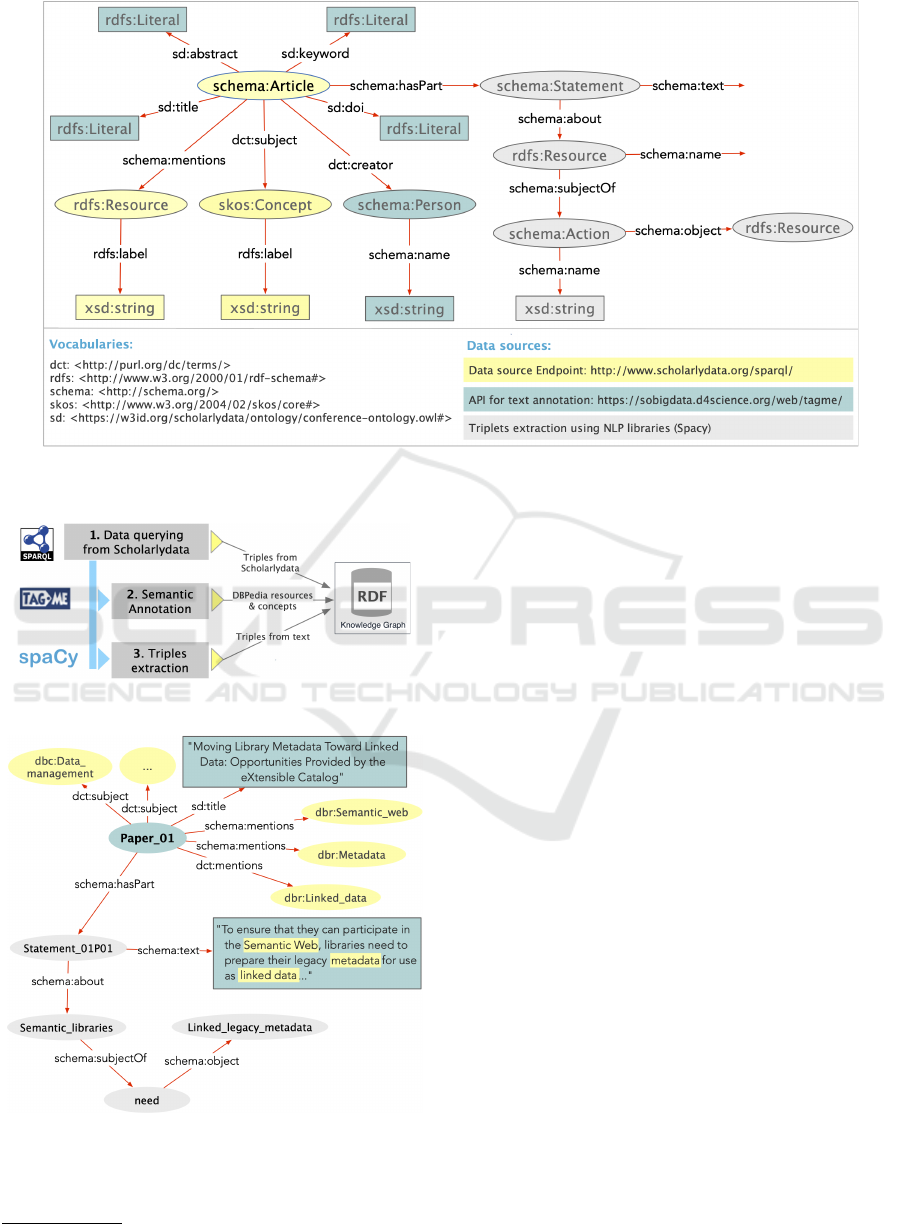

Figure 2 shows the three data sources used and

the resulting data schema which was populated with

new triples (1) scholarlydata is a scientiﬁc knowl-

edge graph that contains RDF triples that describe

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

194

about 5.8K papers of proceedings, (2) DBPedia is a

knowledge graph built on information of pages’ in-

foboxes of Wikipedia, and (3) the spaCy library is

an open library designed for several large-scale IE

tasks(Kejriwal et al., 2021). Follow, the usage of each

data source is described:

1. scholarlydata

is accessible on the Web and of-

fers RDF data that describe the scholarly produc-

tion related to academic conferences about Linked

Data. This graph is suitable for our purpose which

is to compute semantic similarity of resources re-

lated to a given domain.

2. DBPedia was used to identify semantic entities

and SKOS concepts contained in the papers’ ab-

stracts. We used DBPedia for recognition of

named entities.

3. spaCy

library was used to parse the paper’s ab-

stracts and to identify new underlying triples.

3.2 Information Extraction Pipeline

To populate the data schema shown in Figure 2, we

implemented a pipeline made up of three main task

(see in Figure 4).

First, we collected RDF data from the scholarly-

data data set. Using SPARQL queries, we accessed

and collected metadata from a subset of conference

papers related to the artiﬁcial intelligence ﬁeld. For

each paper, we collect metadata such as title, abstract,

DOI, authors, and keywords. The extracted data was

saved in a relational database to clean them using SQL

operations. During the extraction, some inconsistent

values were detected, such as the presence of key-

words in the abstract metadata.

Second, we analyze the text of the papers ab-

stracts to identify semantic annotations mentioned

into them. The TagMe APIs

were used to parse the

text and carry out the annotation task. TagMe return

Wikipedia pages where entities or resources are found

in text. From this links, we reached the DBPedia

URIs of the equivalent entities. From the new enti-

ties, we connect each one to each paper to create new

triples and enrich the original SKG.

Finally, spaCy was used to extract entities (nodes)

and relationships between them. Steps such as syntac-

tic analysis or linguistic tagging (e.g., part-of-speech

tagging) help us to compute dependency structures

(parse tree) over sentences of the papers abstracts.

http://www.scholarlydata.org/

https://spacy.io/

https://sobigdata.d4science.org/web/tagme/

tagme-help

Table 1: Summary of entities collected and extracted.

Data Source Type of Entity Count

Scholarlydata

Paper 5,604

Author 13,216

Keyword 9,697

DBPedia

DBPedia resources 16,856

Concepts 64,245

NLP

processing

with spaCy

Statements 10,995

Subjects 21,924

Predicates 8,989

Objects 10,794

Another task carried out was the phrase recognition

(i.e. recognition of verb groups and noun phrases)

and morphological analysis, thus to identify the rela-

tionships.

Before processing the abstract of the papers, we

divided the text into short sentences using the symbols

”;” and ”.” as statement separators. Then we execute

two functions; the ﬁrst is to extract entities (nouns)

from the sentences, the entities are used to assemble

the subjects and objects of the triples; and the second

function was used to obtain the relationships (verbs)

that connect entities. It is worth mentioning that we

reused and adapted the code from Prateek Joshi

build this component.

Considering the pair of entities and the relation-

ship found in each sentence with spaCy, the next step

was to convert them to triples, ¡ subject, predicate,

object ¿ following the data schema shown in Figure

2. However, the generation of KG units, i.e. triples,

is not an easy task due to the complexity of under-

standing the natural language for machines, for this

reason, we randomly explore a subset of triples and

note that the quality was poor. Analyzing results, we

could identify a preliminary pattern that helped us to

discover best results: the sentence should not be too

long or too short. For this reason, we only select the

triples built from the original sentences between 15

and 30 words in length.

In summary, we executed the IE pipeline and the

original scientiﬁc knowledge graph was enriched with

new facts inferred from text of paper’ abstracts. Fig-

ure 4 shows a subset of new nodes added, in yellow

and gray color, and new relations connected to a given

paper, directly and indirectly way.

Table 1 shows the total number of nodes and

triples that make up the resulting graph.

In conclusion, completing the enrichment of the

SKG by using NLP tasks, like entity and relation ex-

traction, we discovered 133K new entities which were

connected to the original KG (i.e. scholarlydata) com-

https://tinyurl.com/Joshi2019

Using NLP to Enrich Scientiﬁc Knowledge Graphs: A Case Study to Find Similar Papers

195

Figure 2: Data schema that identiﬁes the metadata collected from scholarlydata and the new metadata added using DBPedia

and spaCy.

Figure 3: General pipeline used for information extration.

Figure 4: Extract of a semantic description of a given paper.

posed of about 5.6K papers. Finally, the resulting

graph was stored in a GraphDB Free

repository.

https://graphdb.ontotext.com/

3.3 Computing Semantic Similarity

Between Papers

To validate the quality of the data extracted from the

abstract of the publications, in this research we do not

use speciﬁc metrics used in IE, rather we carry out

an application case using the enriched graph to cal-

culate the similarity between papers. If the automatic

similarity score is coherent with manual evaluation of

results, we could suspect that the quality of the triples

has been important to build applications based on the

extracted information, such as a semantic search en-

gine or a recommender system of papers.

GraphDB, the RDF repository used to store the

enriched SKG, provides functionalities to create sim-

ilarity indexes based on values of a subset of the en-

tity’s properties. The similarity score was calculated

by creating three indexes based on metadata of the

next sub-graphs: (SG1) the original SKG, i.e. the

triples obtained from scholarlydata; (SG2) the en-

riched SKG with entities and SKOS concepts identi-

ﬁed by the TagMe API from DBPedia, and (SG3) the

enriched SKG with additional facts obtained through

text analysis using spaCy. Then, we use a rubric

as a basis to determine the quality of the results re-

turned by the three prediction indices: (1) P1 applied

on metadata of SG1, (2) P2 = applied on metadata of

SG1 + SG2, and (3) P3 = applied on metadata of SG1

+ SG2 + SG3.

Since the validation was performed manually,

from the total set of papers (n= 5,604), we randomly

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

196

Table 2: Performance by each index. Table enlists the num-

ber of evaluated base papers evaluated and the number of

relevant papers returned by each index according to the

comparison made.

Index Rate of relevant papers

P1 64.3%

P2 83.3%

P3 50.0%

selected 20 base papers to analyze the effectiveness

of the similarity indexes created to return the top-3

similar papers. To determine how good the results re-

turned by the indexes are, we apply a rubric based on

three criteria that evaluate the title, abstract and key-

words of the recommended papers. The score of each

criterion is made by a human and depends on the per-

centage of similarity between the metadata of the base

paper vs. the recommended similar paper.

The purpose of computing the similarity is to de-

termine if the automatic ranking returned by the in-

dices is close to the assessment that a human would

make when evaluating the similarity of two papers.

The comparison of the three indices has the purpose

of verifying the value or contribution of the additional

information, i.e. new triples, obtained by analyzing

the content of the abstracts of the papers.

The authors of this research performed the prelim-

inary validation by comparing the automatic score of

indexes and the manual exploration of results. Table 2

shows the results for each indexed evaluated.

As a conclusion of the results obtained, we can

afﬁrm that the prediction index 2 (P2) returns the

highest proportion of relevant resources, that is, that

the SKG enriched from DBpedia entities recognized

in the abstract of the papers was the best option for

ﬁnding similar papers. On the contrary, the P3 in-

dex, which is based on the complete graph, including

the triples found with spaCy, is the most imprecise.

Therefore, for future work we must change the strate-

gies for entity and relationship extraction, so that gen-

erate valuable triples before delivering this informa-

tion for any application.

4 CONCLUSIONS

Scientiﬁc knowledge graphs can become catalysts to

drive research. When units of knowledge are struc-

tured and codiﬁed through formal languages, we can

build machines to process, connect, analyze, or com-

pare research related to a particular topic, thus sup-

porting the work of researchers.

In this research, we reuse data available on SKG

and open KG, but we also generate new structured

data from textual information of papers by using NLP

methods, APIs and Python libraries. Reusing data,

models and available services enables the fast imple-

mentation of apps without the need to make major

changes, therefore the importance of research being

reproducible. As a contribution, all the code and data

used in this project is available in a GitHub repos-

itory

, so that it can be used and improved by the

academic community who is interested in this ﬁeld of

research. After enrich a SKG with new triples, the

graph was leveraged to demonstrate that the graph

structure is useful when the user needs to ﬁnd and

understand the similarity relationships between re-

sources, such as papers in our case.

In light of the results obtained, and as future work,

we are going to improve the automatic generation

of triples from text; this implies adding modules for

merging similar entities or triples by using ML and

NLP models and similarity metrics. Also, for im-

proving the results, we will try to combine several

extraction approaches, specially weak supervision-

based ones. Thus, the best set of ”reliable” triples

will be selected to enrich the knowledge graph.

ACKNOWLEDGEMENTS

The authors thank the Computer Science Department

of Universidad T

ecnica Particular de Loja for spon-

soring this academic project.

REFERENCES

Bose, P., Srinivasan, S., Sleeman, W. C., Palta, J., Kapoor,

R., and Ghosh, P. (2021). A Survey on Recent

Named Entity Recognition and Relationship Extrac-

tion Techniques on Clinical Texts. Applied Sciences,

11(18):8319.

Buscaldi, D., Dess

ı, D., Motta, E., Osborne, F., and Refor-

giato Recupero, D. (2019). Mining Scholarly Publi-

cations for Scientiﬁc Knowledge Graph Construction.

In Lecture Notes in Computer Science, volume 11762

LNCS, pages 8–12. Springer.

Dathan, A. (2021). A Beginner’s Introduction to NER

(Named Entity Recognition).

Dess

ı, D., Osborne, F., Recupero, D. R., Buscaldi, D., and

Motta, E. (2020a). Generating Knowledge Graphs

by Employing Natural Language Processing and Ma-

chine Learning Techniques within the Scholarly Do-

main.

Dess

ı, D., Osborne, F., Recupero, D. R., Davide, Buscaldi,

Motta, E., and Sack, H. (2020b). AI-KG: An Au-

https://github.com/xaviQuevedo/SKGTT

Using NLP to Enrich Scientiﬁc Knowledge Graphs: A Case Study to Find Similar Papers

197

tomatically Generated Knowledge Graph of Artiﬁcial

Intelligence.

Eltyeb, S. and Salim, N. (2014). Chemical named entities

recognition: A review on approaches and applications.

Journal of Cheminformatics, 6(1):17.

Helesic, T. (2014). Knowledge Graph Extraction from

Project Documentation.

Jaradeh, M. Y., Oelen, A., Prinz, M., Stocker, M., and Auer,

S. (2019). Open research knowledge graph: A system

walkthrough. In Digital Libraries for Open Knowl-

edge, pages 348–351. Springer International Publish-

ing.

Kalyanpur, A. and Krishna, R. (2021). How to Create a

Knowledge Graph from Text? In CS520: KNOWL-

EDGE GRAPHS. Data Models, Knowledge Acquisi-

tion, Inference, Applications.

Kejriwal, M. (2019). Domain-Speciﬁc Knowledge Graph

Construction. SpringerBriefs in Computer Science.

Springer.

Kejriwal, M., Knoblock, C. A., and Szekely, P. (2021).

Knowledge Graphs: Fundamentals, Techniques, and

Applications. The MIT Press.

Li, J., Sun, A., Han, J., and Li, C. (2022). A survey on deep

learning for named entity recognition. IEEE Transac-

tions on Knowledge and Data Engineering, 34(1):50–

70.

Luan, Y., He, L., Ostendorf, M., and Hajishirzi, H. (2018).

Multi-task identiﬁcation of entities, relations, and

coreference for scientiﬁc knowledge graph construc-

tion. arXiv, pages 3219–3232.

Martinez-Rodriguez, J. L., Lopez-Arevalo, I., and Rios-

Alvarado, A. B. (2018). OpenIE-based approach for

Knowledge Graph construction from text. Expert Sys-

tems with Applications, 113:339–355.

Moschitti, A., Tymoshenko, K., Alexopoulos, P., Walker,

A., Nicosia, M., Vetere, G., Faraotti, A., Monti, M.,

Pan, J. Z., Wu, H., and Zhao, Y. (2017). Question

Answering and Knowledge Graphs. In Pan, J. Z., Vet-

ere, G., Gomez-Perez, J. M., and Wu, H., editors, Ex-

ploiting Linked Data and Knowledge Graphs in Large

Organisations, pages 181–212. Springer.

Philna Aruja, M. (2022). Top 3 Packages for Named Entity

Recognition.

Sallam, R. and Feinberg, D. (2021). Top Trends in Data and

Analytics for 2021. Technical report, Gartner.

Tiwari, S., Al-Aswadi, F., , and Gaurav, D. (2021). Recent

trends in knowledge graphs: theory and practice. Soft

Computing, 25.

Tosi, M. D. L. and Dos Reis, J. C. (2021). SciKGraph:

A knowledge graph approach to structure a scientiﬁc

ﬁeld. Journal of Informetrics, 15(1):101109.

Uronen, L., Salanter

a, S., Hakala, K., Hartiala, J., and

Moen, H. (2022). Combining supervised and unsuper-

vised named entity recognition to detect psychosocial

risk factors in occupational health checks. Interna-

tional Journal of Medical Informatics, 160:104695.

Vasilyev, O., Dauenhauer, A., Dharnidharka, V., and Bo-

hannon, J. (2022). Named Entity Linking on Name-

sakes.

Wadden, D., Wennberg, U., Luan, Y., and Hajishirzi, H.

(2020). Entity, relation, and event extraction with

contextualized span representations. EMNLP-IJCNLP

2019 - 2019 Conference on Empirical Methods in Nat-

ural Language Processing and 9th International Joint

Conference on Natural Language Processing, pages

5784–5789.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

198
