Go Meta of Learned Cost Models: On the Power of Abstraction

Abdelkader Ouared

, Moussa Amrani

and Pierre-Yves Schobbens

Faculty of Computer Science / NaDI, University of Namur, Rue Grandgagnage, Namur 5000, Belgium

Keywords:

Learned Database Cost Model, Database Management System, Meta-Learning, Generic Interface.

Abstract:

Cost-based optimization is a promising paradigm that relies on execution queries to enable fast and efﬁcient ex-

ecution reached by the database cost model (CM) during query processing/optimization. While a few database

management systems (DBMS) already have support for mathematical CMs, developing such a CMs embedded

or hard-coded for any DBMS remains a challenging and error-prone task. A generic interface must support a

wide range of DBMS independently of the internal structure used for extending and modifying their signature;

be efﬁcient for good responsiveness. We propose a solution that provides a common set of parameters and cost

primitives allowing intercepting the signature of the internal cost function and changing its internal parameters

and conﬁguration options. Therefore, the power of abstraction allows one to capture the designers/develop-

ers intent at a higher level of abstraction and encode expert knowledge of domain-speciﬁc transformation in

order to construct complex CMs, receiving quick feedback as they calibrate and alter the speciﬁcations. Our

contribution relies on a generic CM interface supported by Model-Driven Engineering paradigm to create cost

functions for database operations as intermediate speciﬁcations in which more optimization concerning the

performance are delegated by our framework and that can be compiled and executed by the target DBMS. A

proof-of-concept prototype is implemented by considering the CM that exists in PostgreSQL optimizer.

1 INTRODUCTION

A large amount of DBMS have been proposed and

used to store and manage the problem of data deluge

in storing and accessing. The DB-Engines

Ranking

of DBMS shows 395 systems (August 2022). In this

context, simulation and optimization of query pro-

cessing are necessary to ensure QoS attributes (e.g.

response time, energy) without having to access the

full database and hardware of end-users. These tech-

niques require mathematical Cost Models (CMs), in

order to be precise and exact. This can be achieved

by deﬁning the cost functions based on the parame-

ters of a database system (Ouared et al., 2018). The

developers of these DBMS are one of the consumers

of the CMs. Consequently, the proposed methods and

tools assisting these developers are becoming an im-

portant issue for industry, science, and open source

communities. To that effect, several studies have been

conducted to design and provide database CMs in

physical design to resolve many important database

https://orcid.org/0000-0003-1837-832X

https://orcid.org/0000-0002-6987-1037

https://orcid.org/0000-0001-8677-4485

https://db-engines.com/en/ranking

management tasks, including selection algorithms for

physical structures (e.g. materialized views, horizon-

tal partitioning and indexes), buffer management (e.g.

(Bellatreche et al., 2013)); query scheduling (e.g.

(Kerkad et al., 2014)) and system sizing (e.g. (Zhang

and Others, 2011)). The CM is a performance-critical

software that is almost always developed in low-level

code. While implementations at this level have come

a long way, programmers do not trust them to de-

liver the same reliable performance. Note that many

contributions in the open source DBMS community,

like PostgreSQL and MySQL, develop plugins to al-

low database administrators (DBA) to simulate vari-

ous physical design features and receive quick feed-

back on their correctness (e.g. (Pantilimonov et al.,

2019; Perron et al., 2019; Han et al., 2021; Wu et al.,

2013)).

A database CM allows one to statically estimate

the cost of a query execution, i.e. without having to

execute this query on a real database and its under-

lying hardware. By collecting interesting costs es-

timations (on performance, etc.), it enables one to

explore possible settings and select the best execu-

tion plan. However, we have identiﬁed some limits

regarding computation of performance using learned

Ouared, A., Amrani, M. and Schobbens, P.

Go Meta of Learned Cost Models: On the Power of Abstraction.

DOI: 10.5220/0011665800003402

In Proceedings of the 11th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2023), pages 43-54

ISBN: 978-989-758-633-0; ISSN: 2184-4348

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

CMs. First, with the evolution of hardware and soft-

ware technologies, learned CMs need to be trained

on various hardware and data conﬁgurations, result-

ing in a time-consuming and expensive process that

has to be repeated when any part of the environment

changes. Second, this task requires a deep knowledge

related to many aspects: databases, hardware, calibra-

tion of hyperparameters for Machine Learning (ML),

statistical data to estimate parameters such as selec-

tivity factors of join predicates, etc. (Ouared et al.,

2018). Third, for a database CMs to be extended

and modiﬁed, developers must be parsing a code in-

side a query engine of DBMS and hand coding inside

the source code distribution of the cost model. Cur-

rently, database engines are manually optimizing the

database CM for each processor technology, which

is a costly and error-prone process. To the best of

our knowledge, there are no generic interface man-

agement facilities to build database CMs. To address

this issue, API (Application Programming Interface)

CMs are a promising technique that relies on param-

eterised signature cost functions that enable ﬂexible

extensions and modiﬁcation of CMs, thereby fully un-

locking the potential of cost model engineering.

In this paper we address two main challenges: (i)

The Cost Functions should be agnostic of the un-

derlying programming language used for DBMS im-

plementation, in order to allow their generic applica-

tion to DBMS. (ii) Learned Cost Functions should be

trained on diverse hardware platforms to capture spe-

ciﬁc weights of the unknown parameters. To provide

generic interface management facilities for building

database CMs, we make the following proposals.

First, we propose the use of a common set of building

CMs facilities (e.g. algebraic operation, basic opera-

tion, primitive cost, parameters, etc.) that are compat-

ible with a wide range of CMs. Secondly, a CM con-

structor to describe the shape of cost functions for op-

erators conforming to our metamodel; and learn a set

of coefﬁcients of these Cost Functions based on mod-

els selected from an ML catalog to support a given

workload and hardware. Finally, a database gener-

ator so that the generated CMs are able to meet the

performance requirements by applying different code

transformations.

We implemented our framework as part of the

PostgreSQL, providing a tool that allows to browse,

edit, and select the existing CMs’ parameters. In addi-

tion, our proof-of-concept prototype provides an au-

tomatic calibration solution to estimate the cost of a

query plan. We successfully observed and controlled

their cost function signatures with the internal param-

eters and the unit cost functions related to the data

primitives of the used data layout, data indexing, and

the chosen algorithm of database operations.

After providing the necessary background

database operations and CMs in Section 2, we

build our framework in Section 3, and describe its

implementation in Section 4. We provide concluding

remarks in Section 5.

2 BACKGROUND AND RELATED

WORKS

In this section, we brieﬂy review the background and

the related work.

2.1 Database Operations

A query Q may be deﬁned as a sequence of relation

algebra operations (i.e. selection in relational algebra)

(Manegold et al., 2002) Q = ⟨O

, . . . , O

⟩. Each op-

erator O

corresponds to the classical DB operators

such as restriction, projection, join, scan, sort, etc.

(Manegold et al., 2002), and is deﬁned as a quadru-

plet O

= (Imp

, T

, C

, ProP

), where

• Imp

is the implementation algorithm used for the

operator, e.g. a Nested-Loops-Join algorithm may

implement a Join operation;

• T

is the set of associated input database objects,

such as tables, indexes, materialized views etc.;

• C

is the set of options used to execute the opera-

tion, such as adding the buffer option; and

• ProP

is the operator’s programming paradigm,

e.g. Sequential, MapReduce, etc. (cf. Figure 1).

The execution of an operation O

is performed in

one, or many phases, during which it manipulates re-

sources like relation, buffer allocations, hash table etc.

The variability of database operations and their al-

gorithms appears in how to execute this algorithms

depending on the speciﬁcation required by hardware

properties (e.g. disk, CPU, GPU technology). For ex-

ample, the hash join operation on two relations (R ⋊⋉

S) has two phases. In the ﬁrst phase, it reads each re-

lation, applies a hash function to the input tuples, and

hashes tuples into buckets that are written to disk. In

the second phase, the ﬁrst bucket of the relation R is

loaded into the buffer pool, and a hash table is built

on it. Then, the corresponding bucket of the relation

S is read and used to probe the hash table.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

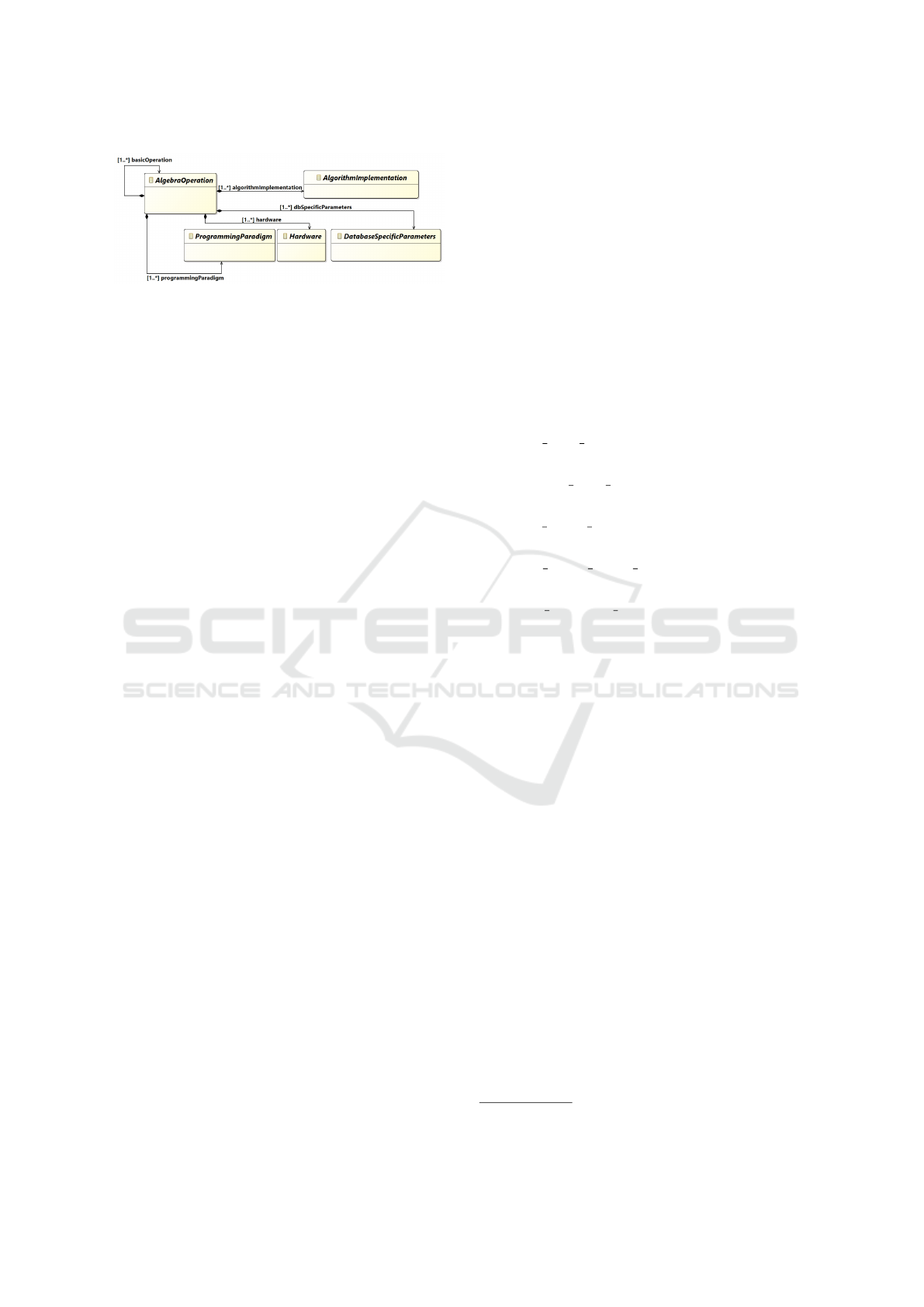

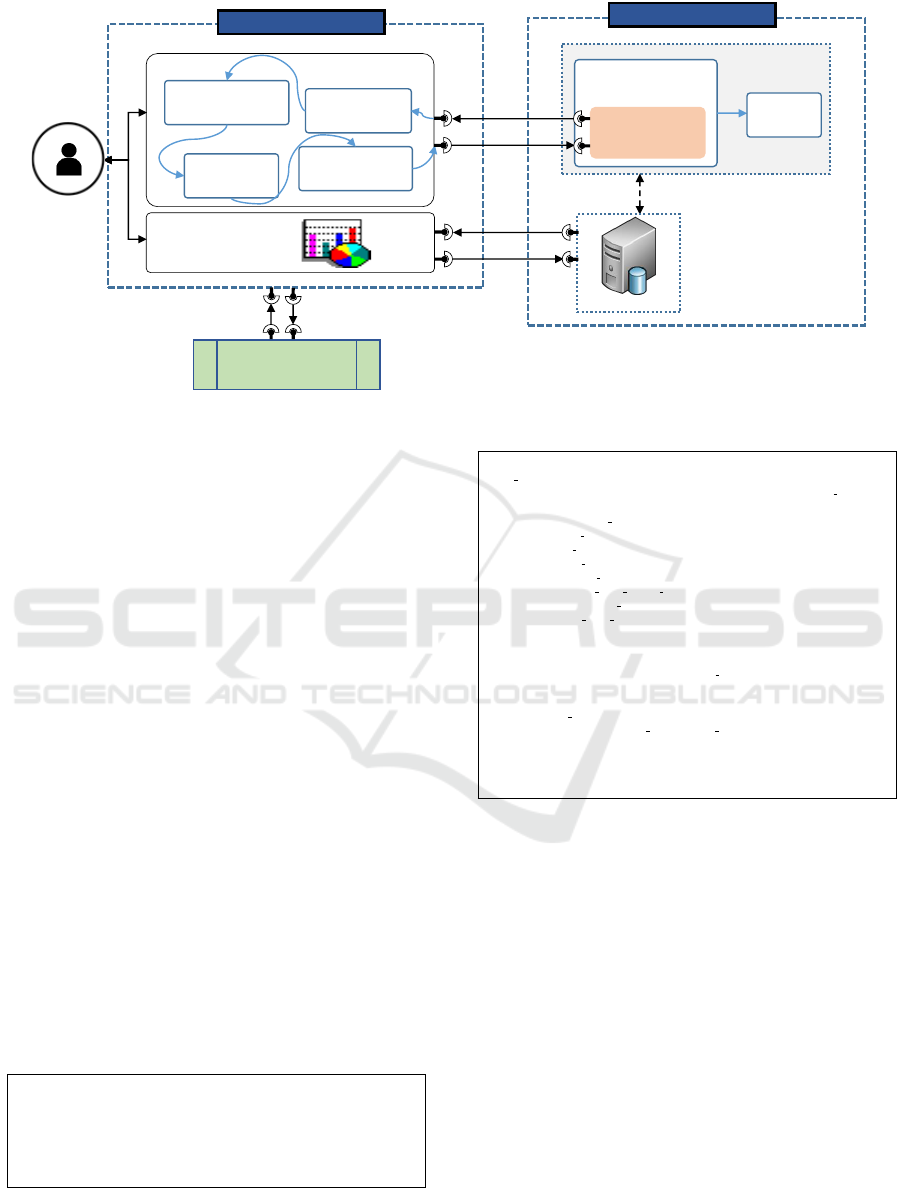

Figure 1: Implementation of Database algebra operation.

2.2 Mathematical Database Cost

Models

A QoS attribute is a requirement that speciﬁes criteria

that can be used to judge the operation of a system

(e.g. databases, operating systems, software). The

plan for implementing QoS attributes is detailed in the

system architecture and must be captured before the

real deployment. Generally, the aspects of QoS con-

sidered in the query engines are: (i) performance; (ii)

system size, or required size, to the implementation;

and (iii) energy consumption (Ouared et al., 2018).

A CM is a set of formulas used to estimate the

cost of an execution plan. Cost-based query optimiz-

ers select the most efﬁcient execution plan based on

cost estimations. A CM uses two parts:

Logical Cost. uses selectivity and cardinality as

measures to optimise. The selectivity is the per-

centage of rows selected by the query, with re-

gards to the total number of rows. The cardinality

is the number of rows returned by each operation

in an execution plan, which can be derived from

the table statistics.

Physical Cost. represents units of work or resource

used. Usually, the query optimizer uses disk I/O,

CPU usage, and memory usage as units of work.

The CM assigns an estimated cost to any partial or

complete plan based on the composition of the phys-

ical cost and logical cost. It also determines the esti-

mated size of the data stream for output of every op-

erator in the plan. It relies on the following elements

(Chaudhuri, 1998):

1. A set of statistics maintained on relations and in-

dexes, e.g. number of data pages in a relation,

number of pages in an index, number of distinct

values in a column.

2. Formulas to estimate selectivity of predicates and

to project the size of the output data stream for

every operator node. For example, the size of the

output of a join is estimated by taking the product

of the sizes of the two relations and then applying

the joint selectivity of all applicable predicates.

3. Formulas to estimate the CPU and I/O costs of

query execution for every operator.

EXAMPLE 1 (CM for PostGreSQL.) PostGreSQL

uses a simple CM that merges the I/O and CPU for

different operators O such that its execution cost (i.e.,

time) can be expressed as:

= n

+ n

where n

⋆

represent number of pages, and c

⋆

are co-

efﬁcients obtained by ML to build regression models

for the optimizer CM:

• n

, n

and n

are respectively the num-

ber of pages sequentially scanned, randomly ac-

cessed, cpu tuple cost, cpu index tuple cost and

cpu operator cost.

• c

seq page cost, the I/O cost to sequentially ac-

cess a page.

• c

random page cost, the I/O cost to randomly

access a page.

• c

cpu tuple cost, the CPU cost to process a tu-

ple.

• c

cpu index tuple cost, the CPU cost to pro-

cess a tuple via index access.

• c

cpu operator cost, the CPU cost to perform

an operation such as hash or aggregation.

For instance Figure 2 shows the CM of Post-

greSQL is available in source ﬁle costsize.c

(Pan-

tilimonov et al., 2019). This ﬁle contains procedures

to build costs of algebraic operations of any type. It

uses a simple CM that merges I/O and CPU for differ-

ent operators using a ﬁtted model in the form of a lin-

ear model. The query optimizer can create an estimate

of the overall cost of running queries from its knowl-

edge of individual operator costs, and system parame-

ters. So, if we need to modify the function responsible

for creating the CM to extend the cost model. Figure 2

shows a fragment of PostgreSQL CM, the code con-

tains a set of parameters (storage device parameters

(cf.

⃝), processing device parameters (cf.

⃝)) and

a set of primitive cost related to the different steps to

execute the scan operation (disk cost (cf.

⃝), CPU

cost (cf.

⃝) and calculating predicate selectivity (cf.

⃝)).

From the example illustrated in Figure 2, the im-

plementation of a database algebra operation depend

on three main impact factors:

• Database-Speciﬁc Parameters. As database-

speciﬁc factors, we deﬁne impacts that are caused

by the DBMS that impact the access and the stor-

age of blocks and tuples: the storage model (e.g.

src/backend/optimizer/path/costsize.c

Go Meta of Learned Cost Models: On the Power of Abstraction

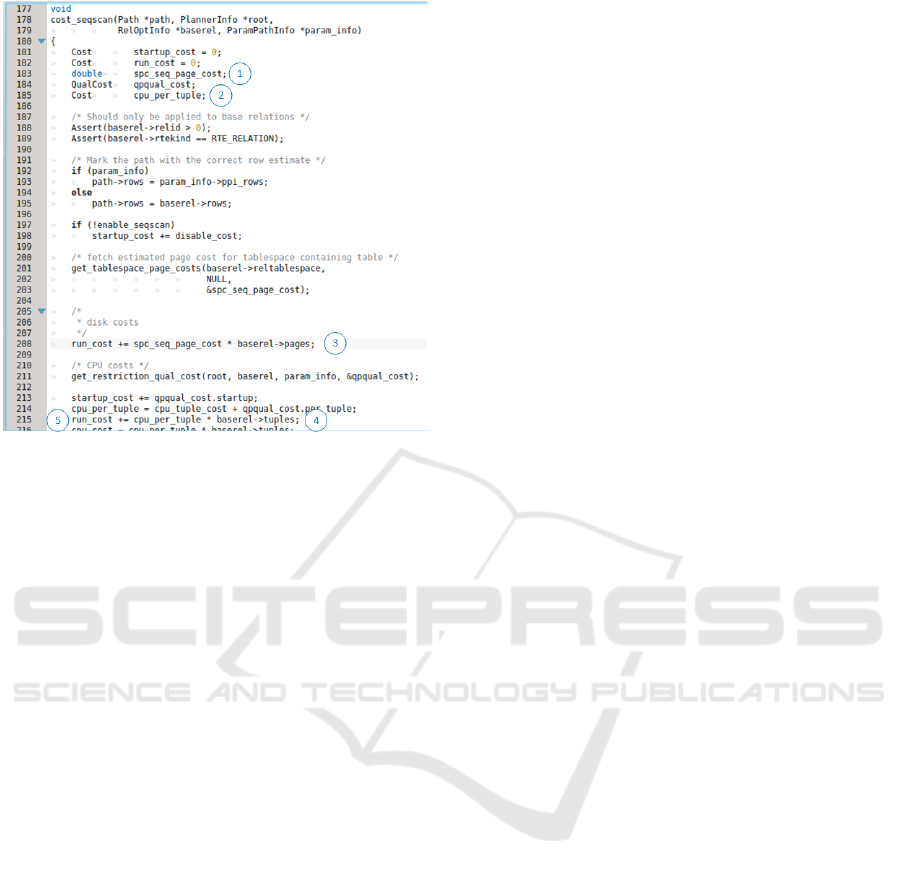

Figure 2: Example of C program fragment of PostgreSQL

CM.

store data in a row or column oriented way) and

the processing model (e.g. tuple-at-a-time, and

operator-at-a-time), Page Size and Buffer Man-

agement (i.e. page replacement strategies used).

• Database Operations Algorithms. the chosen

algorithm of a speciﬁc database operation inﬂu-

ences the performance of database operations. For

instance, for join operations, we consider differ-

ent implementations variants, which are: nested-

loops, block-nested-loops, hash, and sort-merge

join.

• Hardware Parameters. changing the process-

ing devices as well as storage devices may inﬂu-

ence processing capabilities as well as algorithm

design. For instance, using graphics processing

units (GPU) as co-processing devices requires to

change the join algorithms by considering the par-

allel execution capabilities of single instruction

multiple data (SIMD) processors.

2.3 Related Work

Recently, several studies have developed Deep Learn-

ing (DL) and Machine Learning (ML) models as op-

portunities to develop CMs (e.g. (Hilprecht and Bin-

nig, 2022; Ouared et al., 2022; Kipf et al., 2018; Sun

and Li, 2019; Ryu and Sung, 2021). In the section

of related work, we reviewed the existing languages

that aim to leverage Domain-Speciﬁc Language Pro-

cessing for designing database CMs. Similarly, with

our work, the ﬁrst initiatives serve as a starting point

for more comprehensive efforts covering aspects of

database physical design, optimization, and tuning

(e.g. (Bellatreche et al., 2013; Ouared et al., 2016b;

Brahimi et al., 2016; Ouared and Kharroubi, 2020)).

The work of (Breß et al., 2018) propose a generating

custom code for efﬁcient query execution on hetero-

geneous processors. The same direction is followed in

the approach presented in (Wrede and Kuchen, 2020).

Similar efforts have been conducted to make the

database CM more generic. These works avoid up-

grading and maintaining to rethinking query process-

ing and optimization by adopting the metaphor ’one

size ﬁts all’. Based on this vision, they called zero-

shot learning for unseen databases using Deep Neural

Networks (DNNs) to avoid repeated CM calibration

for every new database (e.g. (Kraska et al., 2021; Hil-

precht and Binnig, 2022; Hilprecht et al., 2020; Hil-

precht and Binnig, 2021)). By exploring the literature,

the authors in (Ouared et al., 2016b) propose the ﬁrst

language dedicated to describing database CMs and

generate a machinable format. In addition, they pro-

pose a repository called MetricStore that allows users

to upload and download CMs in a structured way, and

eases their search and reuse (Ouared et al., 2017).

In DBMS open source, several studies are related

to the integration of database CMs inside open source

relational DBMS in a way to resolve a speciﬁc prob-

lem. However, the CM they are hard-coded in the

DBMS is not uniform. To avoid such a gap, we must

implement a generative and automatic interface to in-

teract with a relational DBMS API using the model-

to-text transformation language available within the

Eclipse environment. This regular transformation lan-

guage that may allow the cost function signature to be

tailored to a speciﬁc application.

3 OUR FRAMEWORK

We propose an MDE-based framework called Co-

MoRe (Cost Model Reﬁnement) that allows the cre-

ation of CM cost functions that can be interpreted, and

automatically generated for a target DBMS. Figure 6

depicts an overview of CoMoRe, demonstrating a set

of generic CM management facilities:

CM Metamodel. Language expresses and controls

the CM independently of any DBMS platform,

and validating well formedness rules on the cost

CMs.

Technical Requirements. consist of a set of design

questions relative to aspects of the ML models

(e.g. data distribution, variables linearity, models

type), and from this information, answering the

questions guides users to the kinds of ML models

that can address their needs.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

Cost Model

Users

Cost Model

Designer

Cost Model

Metamodel

Cost Model

instance

Conforms to

Code

generator

Deployment

DBMS

…

Cost model

code

deploy

reads

C/C++

JAVA

…

JAVA

read

Machine

Learning

Libraries

Model

analyser

technical

requirements

read

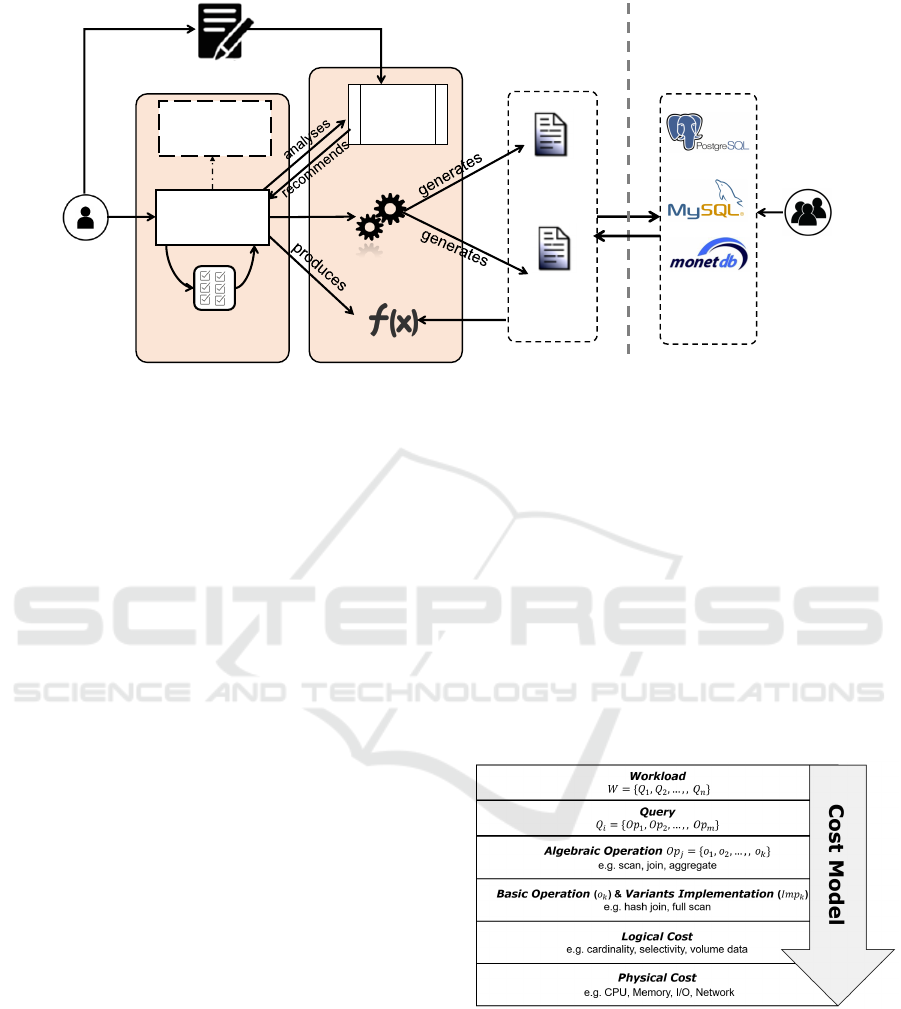

Figure 3: Overview of our framework CoMoRe.

An ML Catalog. that can be used by designers dur-

ing the designing task of CMs. The selected ML

models are used to calibrate the CMs’ parameters

without developing them from scratch.

Code Generator. In addition, the DSL is comple-

mented with code generators that synthesize CM

implementations from CMs for speciﬁc require-

ments. The CM so generated can be deployed in

different DBMS platforms (e.g. PostgreSQL or

MySQL DBMS) to make them available to users.

The generated code via the API that contains pa-

rameters with formulas be compiled and executed

by the target DBMS (see Fig. 6).

CM designers use our DSL to provide a successful

CM product, which can later be exploited by database

CM consumers, who are usually database administra-

tors, database analysts, and database architects, to re-

ceive quick feedback and solve their problems (e.g.,

query optimization and physical design, database ap-

plication deployment over platforms, self-driving the

database systems, etc.)

We now present CoMoRe’s architecture and avail-

able services.

3.1 Layered Design

Modeling the costs in abstraction layers is an impor-

tant step in achieving our objective. Our work mod-

eling cost queries in multiple layers. It is a useful

guideline for our CM building, where different layers

of abstraction increase the level of CMs. We begin

with a basic CM and then incrementally build this ba-

sic model to obtain the global cost.

Database workloads consist of set of queries, and

each query is expressed by a set of algebraic opera-

tions. We start with an query operation (as shown in

Figure 4). At the next layer, these operations provide

basic operation with their variants implementation.

Finally, we introduce the cost function as composi-

tion of the physical cost and logical cost. In this outer

layer, operator costs are derived from the character-

istics of the system, i.e. physical cost) or the cost of

various components (CPU, storage disks, and mem-

ory) and volume data, i.e. logical cost (c.f. Section

2.2).

For example, the cost calculation can be ex-

pressed using SUM function as follows: (Cost (Op

) =

∑

i=1,K

;(o

), Cost(Query) =

∑

h=1,m

(Op

), and

Cost(Workload) =

∑

l=1,n

)).

Figure 4: Layer abstraction Model.

3.2 Framework Architecture

CoMoRe is an extension of CostDSL (Ouared et al.,

2016a), and enables the design of CMs conformant

to the metamodel presented in Figure 5. CoMoRe is

technically composed of four Ecore packages:

GenericCostModel. This package captures the ele-

ments allowing designers to express their CMs.

Go Meta of Learned Cost Models: On the Power of Abstraction

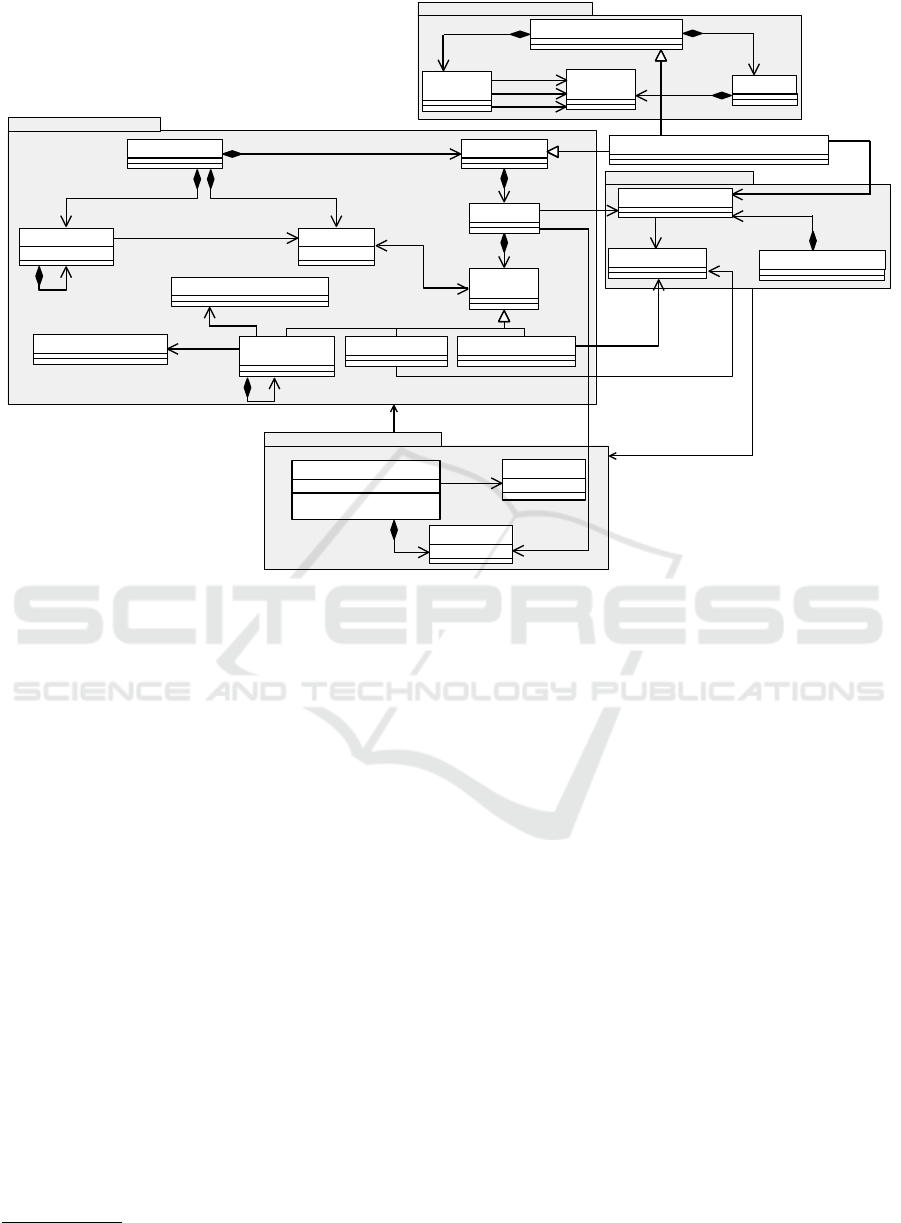

GenericCostModel Metamodel

0..*

values

variables

1..*

costFunction

1..*

nestedCostType

costType

1..*

has

CostModel

CostType

+Name: String

Context

LearningModel

Parameter

<<abstract>>

Value

Physical Cost

dimension

tracedObject

dimensions

Derived from

0..1

Derived from

0..1

LearningMetaModel MetaModel

CostFunction

importes

DataSet MetaModel

D a ta se t

test: string

1..*

M et a d a t a

metadata

Implementation

ProgrammingParadigm

<<abstract>>

Opera tor

1..*

basicOperation

uses

+Name: String

Fe a t u r e s

name: string

+get (): Object

+getMetaData (): MetaData

1..*

LearningMetaModel

build

MachineLearning

1..*

context

feed

refers to

0..*

Question

TechnicalRequirements

1..*

TechnicalRequirements MetaModel

<<abstract>>

Options

<<abstract>>

Analysis

1..*

true

false

undefine

options

2..*

question

analysis

MachineLearningMappingRelation

LogicalCost

Figure 5: General framework architecture.

Every Context of a given CM is described by

a set of database system Parameters. Those

Parameters are related to different categories

(i.e. Database, Hardware, Query, and Architec-

ture parameters), and help identify data features

in a dataset. Thanks to the CostFunction pack-

age, the formula of a CM can be expressed using

the CM context that allows deﬁning variables of

equations.

DataSet. This package provides the test data corre-

sponding to a speciﬁc experimental environment

including the database, workload, DBMS, de-

vices, platforms, queries, and the quality criteria

(e.g. response-time, energy consumption) used

to generate these results. Dataset represents the

root class that regroups the data features related to

a database benchmark. In this case, the value can

be generated by a dataset (for example the TPC

benchmarks

), workload and DBMS. This kind of

DataSet of an execution environment is also of-

fered by CoMoRe and is grouped in a category

which is dedicated to build CMs.

TechnicalRequirements. CM designers may have

difﬁculties choosing the most suitable ML model

that matches the characteristics of the CM un-

http://www.tpc.org/tpch

der design. TechnicalRequirements helps

deﬁne different design decisions by giving a

precise answer to each question (true, false,

undeﬁned) to recommend an appropriate ML

model. This concept is connected to CM con-

text and Technical Requirements through the

MachineLearningMappingRelation class. This

latter is based on constraints that are implemented

by using OCL (Object Constraint Language) to

provide guidance about what is the ML models

can be used.

LearningMetaModel. CoMoRe uses several learning

models available in (Hartmann et al., 2019). This

package comes with a set of catalogs that repre-

sent an organized body of ML models, and is con-

ceived as generalized notions of different learn-

ing algorithms available in TensorFlow, Keras, or

WEKA. Meta-learning frameworks have been im-

ported to automatically derive these models from

certain speciﬁcations.

In order to estimate the parameters’ values, the

metalearning package offers some models (e.g.

linear and non-linear multivariate models) to

train a CM. They allow selecting ML models to

deﬁne the cost function of each CM. The val-

ues of the cost function are calibrated by using

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

ML algorithms, with the necessary features com-

ing from the parameters of the CM under de-

sign. Furthermore, through the relationship ”de-

rived from” among LogicalCost, PhysicalCost

and LearningModel, one can estimate the cost

parameters in the cost function.

3.3 CoMoRe Services

After having presented the architecture of our frame-

work, we can now deﬁne the CM services provided

by our framework. As before, we consider that the

DBMS always has access to its internal CM. In addi-

tion, the model DBMS manager is available through

its API manager; also, the source code ﬁles of the CM

are available through the open source DBMS distri-

bution. Figure 6 depicts an excerpt of the interactions

between the cost model services and the DBMS opti-

mizer, and the external control panel. We deﬁne this

generic interface as the set of following services: In-

tercepting CM Service, Exploratory CM Service, Up-

dating CM Service, Calibrating CM Service and Inte-

grating CM Service.

3.3.1 Intercepting Cost Model Service

This service is invoked when the designer needs

to return the list of parameters (i.e. a SELECT

statement) and unit cost functions with information

such as the parameter deﬁnitions. However, the code

for the parser can easily be adapted to a CM of other

DBMS. For instance, in the case of PostgreSQL,

the database CM is stored in two main ﬁles: the ﬁle

src/backend/optimizer/path/cost.c and the

ﬁle src/backend/optimizer/path/costsize.c.

The ﬁle cost.c contains function signatures and

related deﬁnitions for the functions implemented in

costsize.c. The ﬁle costsize.c has a function

to estimate its cost in terms of the primitive cost

variables (page reads, operator evaluation, etc.),

given estimates about the numbers of rows, total

data size, etc. We believe that displaying the internal

parameters with its cost primitives in structured way

helps designers to understand more the signature of

CMs to be extended or calibrated.

3.3.2 Exploring Cost Model Service

The presence of a service allowing browsing the ex-

isting CM parameters, editing, selecting, predicting,

calibrating them, etc. represents a valuable asset for

developers/designers. While this service provides an

hierarchical taxonomy of concepts indicates hints, in-

forming the designer of any hidden parameters that

are not be considered in several CMs. We propose the

Exploring Service as a solution to provide a common

set of parameters and cost primitives allowing inter-

cepting the signature of the internal cost function, and

changing its internal parameters and conﬁguration op-

tions. For instance, by using this service, designers

can display various internal performance parameters

like Shared SQL Pool, Redo Log Buffer and other in-

formation concerning the performance.

3.3.3 Updating Cost Model Service

The logic ﬂow in this service follows a set of primitive

costs related to the different steps to execute an alge-

braic operation: (1) estimate the input/output cardi-

nality; (2) compute the CPU cost based on cardinality

estimates; (3) estimate the number of accessed pages

according to the cardinality estimates; (4) compute

the I/O cost based on estimates of accessed pages; (5)

compute the total cost as the sum of CPU and I/O cost.

Hence, our main task in calibrating is to reﬁne the

input/output cardinality for each operator. All these

steps need to perform a write during an update opera-

tion on a specialized cost formula for each relational

algebra operator.

3.3.4 Calibrating Cost Model Service

This service is invoked when the designer needs to

calibrate the parameters related to the hardware de-

vice. Using technical requirements at the early phase

of the design will help perform the right ML model

for a speciﬁc CM context. This service generates cal-

ibrating code to automate the code within program-

ming, the service edits the parameters with its values

and lets users do the same thing based on our inter-

face without hand-coding programs. For instance in

PostgreSQL DBMS, different types of parameters and

conﬁguration options need to be calibrated to update

and maintain a CM with each change in hardware de-

vices.

3.3.5 Integrating Cost Model Service

This service is invoked when the developer commits

a change to the CM source-code. It handles the tar-

get list entries to update or replace existing CM. The

list entries are provided with an UPDATE or INSERT

statement before or after parsing to modify the server

behavior after parsing. Target lists of the element that

can be committed are a list of parameters and expres-

sions used in the cost formulas that make the calcula-

tion logic of the cost change.

In order to transform any CM conforming to Co-

MoRe to a target DBMS (PostgreSQL DBMS in

our case), we have analyzed 20 well-known DBMS

Go Meta of Learned Cost Models: On the Power of Abstraction

Our Framework

Source Code

DBMS Environment

Executor

Programs

Cost Model

Compile

and Run

Query

Optimizer

Result

Set

Database server

ML model

Query

Designer

EXPLORING

Services

UPDATING

Services

INTERCEPTING

Services

INTEGRATING

Services

Get

Machine Learning

Libraries

Query performance

prediction

Figure 6: CoMoRe Services.

API and selected the most common structure to en-

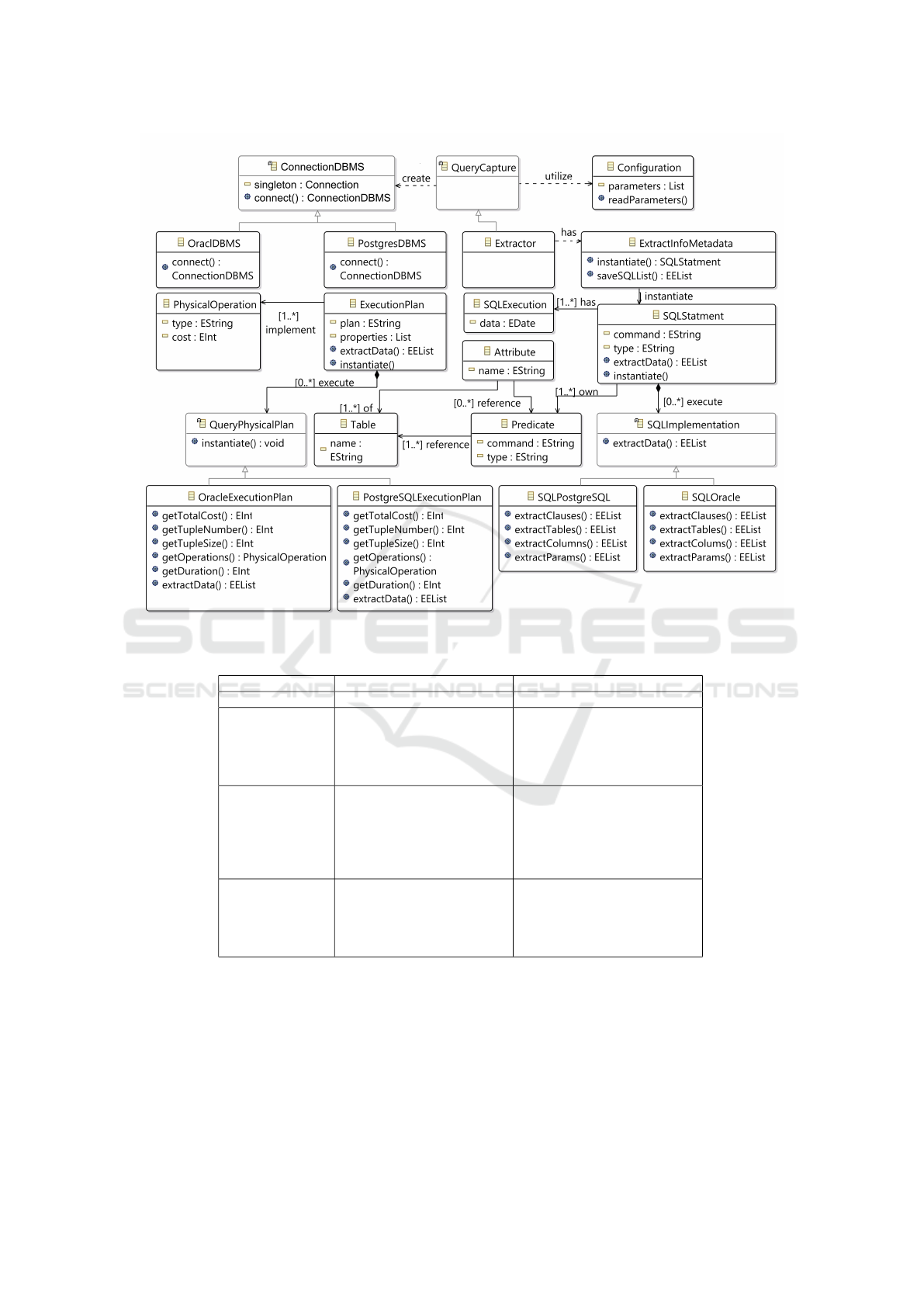

able the management of their internal CMs (Figure

7). CoMoRe can generate code corresponding to

the target DBMS thanks to the model-to-text capa-

bility provided by the MDE settings. CoMoRe in-

vokes the DBMS via our API to integrate the CM of

the database operation under design. Our API pro-

vides: (i) Connection (e.g. PostgreSQL and Ora-

cle), (ii) SQLImplementation (Native SQL functions

and clauses) and (iii) QueryPhysicalPlan (Spe-

ciﬁc interpretation of execution plans). For a new

RDBMS, we can extended the set of methods (ex-

tractClauses, extractTables, extractColumns and ex-

tractParams) and Execution query Plan (getTotal-

Cost, getTupleNumber, getTupleSize, getOperations,

getDuration, and extractData).

Thanks to the MDE interoperability facilities, this

service transforms an SQL query instance according

to our DSL in the corresponding CM cost function.

Note that every CM instance is generated according

to the CoMoRe design language. For that, a set of

structural rules have been injected in the metamodel.

These rules are expressed as OCL invariants. Listing

1 shows an example of OCL structural rule. This rule

means that all physical costs and logical costs, which

are inputs of a given cost function, have to be refer-

enced as values instances in the cost function.

Class C o s t F un c ti o n

self . g l o ba l m a th e m a ti c a l fo r m u la . val u e s - >

in c l ud e sA l l ( self . log i c al c os t )

an d s e l f . gl o b a lm a t h em a t i ca l f o rm u l a . va l u e s ->

in c l ud e sA l l ( self . phy s i c a l Co s t )

Listing 1: An OCL structural rule

v o i d

c o s t s e q s c a n ( P a t h

pa t h , P l a n n e r I n f o

r o o t ,

R e l O p t I n f o

b a s e r e l , P a r a m P a t h I n f o

p a r a m i n f o )

{

Co s t s t a r t u p c o s t = 0 ;

Co s t r u n c o s t = 0 ;

Co s t i o c o s t = 0 ;

Co s t c p u c o s t = 0 ;

Co s t p o w e r c o s t = 0 ;

d o u b l e s p c s e q p a g e c o s t ;

Q u a l C o s t q p q u a l c o s t ;

Co s t c p u p e r t u p l e ;

Sh o u l d o n l y be a p p l i e d t o b a s e r e l a t i o n s

A s s e r t ( b a s e r e l −> r e l i d > 0 ) ;

A s s e r t ( b a s e r e l −> r t e k i n d == RTE RELATION ) ;

Mark t h e p a t h w i t h t h e c o r r e c t row e s t i m a t e

i f ( p a r a m i n f o )

pa t h −>rows = p a r a m i n f o −>p p i r o w s ;

e l s e

pa t h −>rows = b a s e r e l −>rows ;

. . . .

}

Listing 2: Example of Displaying CM of scan database

operation

Table 1 presents some mapping rules between the

CoMoRe concepts and the optimizer CMs concepts.

Using this mapping, the designer does not have to

worry about implementation details. The implemen-

tation of the code generator is based on MDE settings

using the model-to-text transformation, since our ob-

jective is to obtain the cost function of the CM. The

implementation relies on the utilization of Acceleo.

Listing 2 shows the generated CM of scan database

operation.

4 PROOF-OF-CONCEPT

CoMoRe is developed as a plugin for Eclipse, based

on Java Eclipse Modeling Framework (EMF).

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

Figure 7: API relationships between our DSL and RDBMS Optimizer.

Table 1: CoMoRe to RDBMS Optimizer.

CoMoRe Concept RDBMS API Comment

Algebra Operation Op relational algebra operations one-to-one correspondence

Database

SQLImplementation

- extractClauses():List

- extractTable():List

- extractColumn():List

- extractParams():List

Extract statistical values of database

(e.g. tuples width, number of rows)

CostModel

PostgreSQLExecutionPlan

-getTotalCost():int

-getTupleNumber():int,

-getTupleSize():int

-getOperations ():PhysicalOperation

-getPlaningTime():double

Cost values of physical query operators

(e.g. I/O cost of the join operation)

QueryPlanner

Execution Plan Implmentation

-instantiate(plan: String):void

-extractData():EElist

assign

(Imp

, C

, ProP

): Assign

an implementation algorithm ,

a set of option used as buffer pool

and execution mode

to physical operation O

In order to integrate our framework into Post-

greSQL to change CM inside the planning query. We

implemented CoMoRe as a plugin for PostgreSQL,

which extends PostgreSQL (into the ﬂight planning

process) allows to designers browse, edit, select, pre-

dict, and calibrate the existing CMs’ parameters. Co-

MoRe is composed of two parts, the graphical user

interface and the backend contains the DBMS. We

based our study on PostgreSQL as it is both open

source and based on the C programming language.

However, our techniques can be integrated into any

other DBMS. Due to the CoMoRe language, the CM

of each iteration was modelled and then the code

was generated automatically. This process helps to

shorten the CM development time. If we would like

to do the same stuff with MySQL, it is totally possi-

Go Meta of Learned Cost Models: On the Power of Abstraction

ble we will need to develop a code generator enabling

one to transform CoMoRe instances into MySQL pro-

grams.

CM Code Inspector

This service shows a visual representation of our

metamodel and presents the user guide as a hier-

archical taxonomy of CoMoRe vocabulary (Figure

8). In the hierarchy each level describes the compo-

nents, and the elements of the subordinate-level are

instances of elements contained in the superordinate

tier. CoMoRe inspects the cost function needed as

function block to make the CM code more readily us-

able. Thus, users can display the the cost function

as code, signature and components. Since the code

structure reﬂecting the CM domain knowledge. Note

that, a cost function may appear in one or more source

code fragments (see Figure 9).

PostgreSQL Cost Model Signature

This service shows for each cost function, its shape,

its signature and. its components. In addition,

users can display and customize various internal per-

formance parameters like the PostgreSQL’s standard

parameters that can be setting in postgreSQL.conf.

The conﬁguration ﬁle of PostgreSQL

has the de-

fault value of the ﬁve-cost unit (cpu index tuple cost,

seq page cost, random page cost, cpu tuple cost,

and cpu operator cost).

CM Calibration

This service provides a model reﬁnement (ML) to pre-

dict the output with input parameters to generalize

linear/non-linear models. The input parameters are

used to learn a CM under design. These parameters

relate to the conﬁguration of the initial dataset (e.g.

TPC-CH) and conﬁguration of test queries. The best

solution is to automatically provide the optimal ML

model, by choosing from all possible ML candidates.

However, this is a very long and complex task. For

the ﬁrst version of our proof-of-concept prototype, we

leave the choice to the user of CoMoRe to decide what

ﬁts his/here requirements. As we said before, the cat-

alog systematically organizes ML models. Our imple-

mentation uses several different learning algorithms

available in WEKA with an alternative library imple-

mentation. (Zeileis et al., 2004). The ML model is a

pluggable component of our framework, so any other

appropriate statistical model can be used.

1 /bin/data folder/posgresql.conf

Server Connection and Testing

The server connection responsible for the connec-

tion establishment with the DBMS server. When

connected, the user has ﬁrst to select the TPC-H

schema database, and evaluate the quality of the

database CMs. We relied on mathematical CMs and

real DBMS Server across diverse datasets, queries

and hardware parameters. After quantitative evalua-

tion, we calculate in terms of the mean relative er-

ror (MRE = Avg(

|real−estimate|

real

× 100)) between esti-

mation (i.e. using the mathematical cost model) and

real cost (i.e. query execution cost after having access

to the full databases and hardware of end-users). The

obtained results show the quality of the CM. The de-

sired CM should possess the following features: accu-

racy, robustness, fast response and portability. If the

CM accuracy is acceptable, i.e. have no improvement,

the original CM. Otherwise, this process is repeated

until requirements are acceptable.

Finally, we can say, with the diversity of database

technology, testing in early stages ensures that the de-

signed CM conforms to its requirements and will en-

able one to explore the performance behavior in terms

QoS attributes (e.g. response time, energy consump-

tion) without having to deploy it on a real system, and

to compare different alternatives. This solution is in

the opposite direction of Hardware Experimentation

that spends a lot of time/money in testing to compare

different alternatives.

5 CONCLUSION

Mathematical database CM is a promising estimation

approach for DBMS that enables efﬁciently execution

of the execution of a query. While most open source

DBMS already have database CMs, bringing ﬂexible

adaptation for a cost model to any relational DBMS

is a tedious and error-prone task. A generic solution

must support a wide range of relational DBMS inde-

pendently of the CMs for their implementation, and

must be generic to ensure the responsiveness of the

CM. We presented a framework based on a generic

API, deﬁned independently of any DBMS, and sup-

ported by efﬁcient generic interface management fa-

cilities. This API is supported by Model-Driven Engi-

neering paradigm to create cost functions for database

operations as intermediate speciﬁcations that can be

interpreted and generated to a target DBMS. Our con-

tributions include an implementation of a prototype

tool for the PostgreSQL DBMS. For the ﬁrst version,

we have provided a semi-automated solution to iden-

tify the right ML model. However, to fully unlock

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

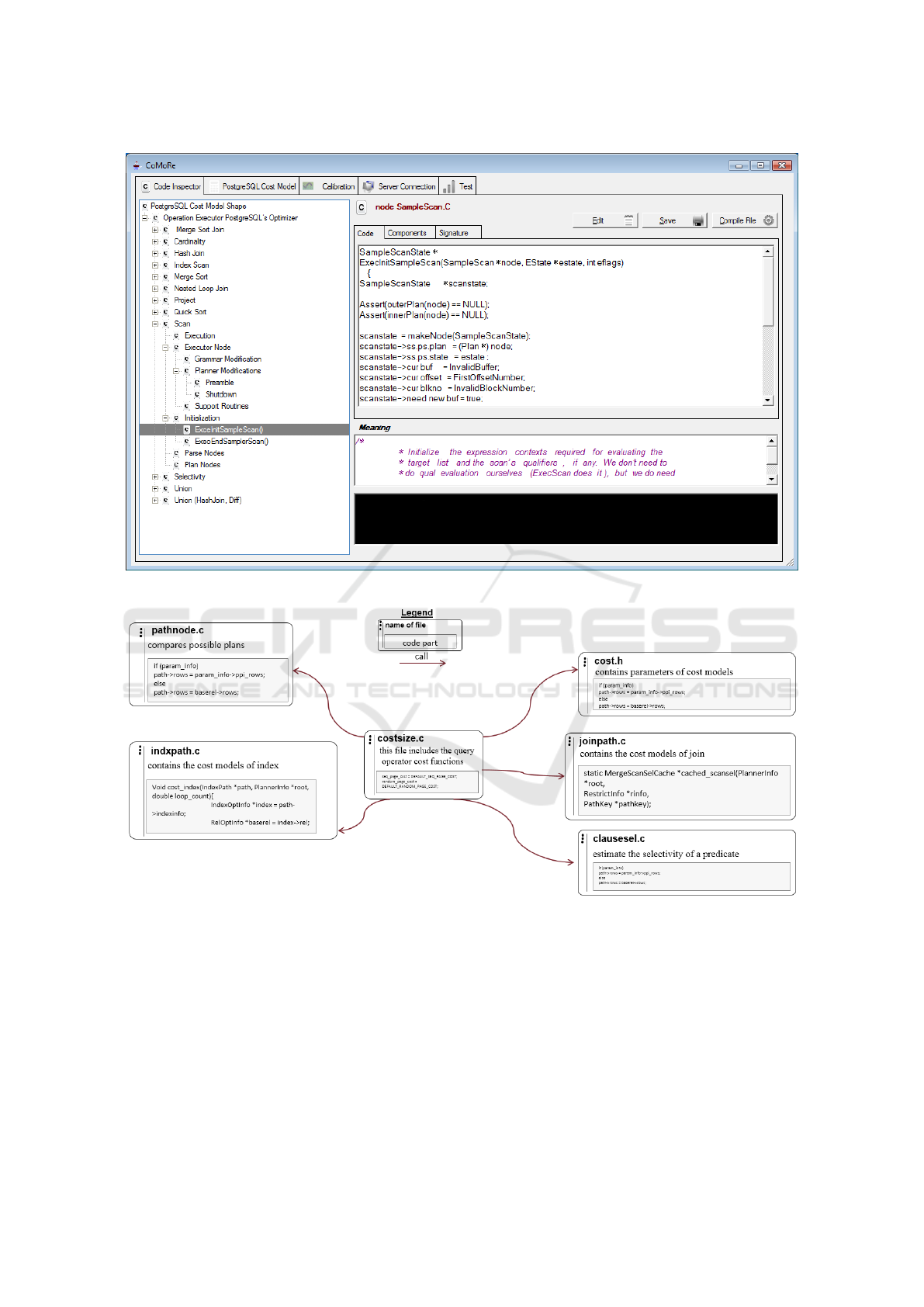

Figure 8: Proof-of-concept prototype (Screenshots).

Figure 9: Excerpt of relevant ﬁles forming default PostgreSQL cost model: The ﬁle costsize.c contains the source code

distribution of the cost model, to calibrate the cost of each relational algebra operator in an execution plan (e.g. Nested-

loops-join algorithm to implement a Join Operation), developer needs to modify this ﬁles and its dependent ﬁles (cost.h,

pathnode.c, indxpath.c, clausesel.c, and joinpath.c).

the potential of CM engineering, the ML models must

be extracted automatically according to designers’ re-

quirements. Future work includes an in-depth study

of relationships about a technical requirements and

ML models. This will be achieved using a dedicated

language to explicitly deﬁne the ML model for a spe-

ciﬁc CM context. We envisage providing an external

API to explore the possible internal parameters and

conﬁguration options of database CM. Other future

work includes addressing some of the limitations of

CM services; a usability study would also help to im-

prove the user experience.

Go Meta of Learned Cost Models: On the Power of Abstraction

REFERENCES

Bellatreche, L., Cheikh, S., Breß, S., Kerkad, A.,

Boukhorca, A., and Boukhobza, J. (2013). How to ex-

ploit the device diversity and database interaction to

propose a generic cost model? In Proceedings of the

17th International Database Engineering & Applica-

tions Symposium, pages 142–147. ACM.

Brahimi, L., Ouhammou, Y., Bellatreche, L., and Ouared,

A. (2016). More transparency in testing results: To-

wards an open collective knowledge base. In 2016

IEEE Tenth International Conference on Research

Challenges in Information Science (RCIS), pages 1–

6. IEEE.

Breß, S., K

ocher, B., Funke, H., Zeuch, S., Rabl, T., and

Markl, V. (2018). Generating custom code for ef-

ﬁcient query execution on heterogeneous processors.

The VLDB Journal, 27(6):797–822.

Chaudhuri, S. (1998). An overview of query optimiza-

tion in relational systems. In Proceedings of the

seventeenth ACM SIGACT-SIGMOD-SIGART sympo-

sium on Principles of database systems, pages 34–43.

ACM.

Han, Y., Wu, Z., Wu, P., Zhu, R., Yang, J., Tan, L. W., Zeng,

K., Cong, G., Qin, Y., Pfadler, A., et al. (2021). Car-

dinality estimation in dbms: A comprehensive bench-

mark evaluation. arXiv preprint arXiv:2109.05877.

Hartmann, T., Moawad, A., Schockaert, C., Fouquet, F., and

Le Traon, Y. (2019). Meta-modelling meta-learning.

In 2019 ACM/IEEE 22nd International Conference on

Model Driven Engineering Languages and Systems

(MODELS), pages 300–305. IEEE.

Hilprecht, B. and Binnig, C. (2021). One model to rule them

all: towards zero-shot learning for databases. arXiv

preprint arXiv:2105.00642.

Hilprecht, B. and Binnig, C. (2022). Zero-shot cost mod-

els for out-of-the-box learned cost prediction. arXiv

preprint arXiv:2201.00561.

Hilprecht, B., Binnig, C., Bang, T., El-Hindi, M., H

attasch,

B., Khanna, A., Rehrmann, R., R

ohm, U., Schmidt,

A., Thostrup, L., et al. (2020). Dbms ﬁtting: Why

should we learn what we already know? In CIDR.

Kerkad, A., Bellatreche, L., Richard, P., Ordonez, C., and

Geniet, D. (2014). A query beehive algorithm for data

warehouse buffer management and query scheduling.

International Journal of Data Warehousing and Min-

ing (IJDWM), 10(3):34–58.

Kipf, A., Kipf, T., Radke, B., Leis, V., Boncz, P., and

Kemper, A. (2018). Learned cardinalities: Estimat-

ing correlated joins with deep learning. arXiv preprint

arXiv:1809.00677.

Kraska, T., Alizadeh, M., Beutel, A., Chi, E. H., Ding, J.,

Kristo, A., Leclerc, G., Madden, S., Mao, H., and

Nathan, V. (2021). Sagedb: A learned database sys-

tem.

Manegold, S., Boncz, P., and Kersten, M. L. (2002).

Generic database cost models for hierarchical mem-

ory systems. In Proceedings of the 28th international

conference on Very Large Data Bases, pages 191–202.

VLDB Endowment.

Ouared, A., Chadli, A., and Daoud, M. A. (2022). Deepcm:

Deep neural networks to improve accuracy prediction

of database cost models. Concurrency and Computa-

tion: Practice and Experience, 34(10):e6724.

Ouared, A. and Kharroubi, F. Z. (2020). Moving database

cost models from darkness to light. In International

Conference on Smart Applications and Data Analysis,

pages 17–32. Springer.

Ouared, A., Ouhammou, Y., and Bellatreche, L. (2016a).

Costdl: a cost models description language for per-

formance metrics in database. In 2016 21st Interna-

tional Conference on Engineering of Complex Com-

puter Systems (ICECCS), pages 187–190. IEEE.

Ouared, A., Ouhammou, Y., and Bellatreche, L. (2017).

Metricstore repository: on the leveraging of perfor-

mance metrics in databases. In Proceedings of the

Symposium on Applied Computing, pages 1820–1825.

Ouared, A., Ouhammou, Y., and Bellatreche, L. (2018).

Qosmos: Qos metrics management tool suite. Com-

puter Languages, Systems & Structures, 54:236–251.

Ouared, A., Ouhammou, Y., and Roukh, A. (2016b). A

meta-advisor repository for database physical design.

In International Conference on Model and Data Engi-

neering, pages 72–87. Springer.

Pantilimonov, M., Buchatskiy, R., Zhuykov, R., Sharygin,

E., and Melnik, D. (2019). Machine code caching

in postgresql query jit-compiler. In 2019 Ivannikov

Memorial Workshop (IVMEM), pages 18–25. IEEE.

Perron, M., Shang, Z., Kraska, T., and Stonebraker, M.

(2019). How i learned to stop worrying and love re-

optimization. In 2019 IEEE 35th International Con-

ference on Data Engineering (ICDE), pages 1758–

1761. IEEE.

Ryu, J. and Sung, H. (2021). Metatune: Meta-learning

based cost model for fast and efﬁcient auto-tuning

frameworks. arXiv preprint arXiv:2102.04199.

Sun, J. and Li, G. (2019). An end-to-end learning-based

cost estimator. arXiv preprint arXiv:1906.02560.

Wrede, F. and Kuchen, H. (2020). Towards high-

performance code generation for multi-gpu clusters

based on a domain-speciﬁc language for algorithmic

skeletons. International Journal of Parallel Program-

ming, 48(4):713–728.

Wu, W., Chi, Y., Hac

ıg

us¸, H., and Naughton, J. F.

(2013). Towards predicting query execution time for

concurrent and dynamic database workloads. Pro-

ceedings of the VLDB Endowment, 6(10):925–936.

Zeileis, A., Hornik, K., Smola, A., and Karatzoglou, A.

(2004). kernlab-an s4 package for kernel methods in

r. Journal of statistical software, 11(9):1–20.

Zhang, N. and Others (2011). Towards cost-effective stor-

age provisioning for dbmss. Proceedings of the VLDB

Endowment, 5(4):274–285.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering
