A General Context Learning and Reasoning Framework for Object

Detection in Urban Scenes

Xuan Wang

1 a

, Hao Tang

1,2 b

and Zhigang Zhu

1,3 c

The Graduate Center - CUNY, New York, NY 10016, U.S.A.

Borough of Manhattan Community College - CUNY, New York, NY 10007, U.S.A.

The City College of New York - CUNY, New York, NY 10031, U.S.A.

Keywords:

Deep Learning, Context Understanding, Convolutional Neural Networks, Graph Convolutional Network.

Abstract:

Contextual information has been widely used in many computer vision tasks. However, existing approaches

design speciﬁc contextual information mechanisms for different tasks. In this work, we propose a general

context learning and reasoning framework for object detection tasks with three components: local contextual

labeling, contextual graph generation and spatial contextual reasoning. With simple user deﬁned parameters,

local contextual labeling automatically enlarge the small object labels to include more local contextual in-

formation. A Graph Convolutional Network learns over the generated contextual graph to build a semantic

space. A general spatial relation is used in spatial contextual reasoning to optimize the detection results. All

three components can be easily added and removed from a standard object detector. In addition, our approach

also automates the training process to ﬁnd the optimal combinations of user deﬁned parameters. The general

framework can be easily adapted to different tasks. In this paper we compare our framework with a previous

multistage context learning framework speciﬁcally designed for storefront accessibility detection and a state

of the art detector for pedestrian detection. Experimental results on two urban scene datasets demonstrate

that our proposed general framework can achieve same performance as the speciﬁcally designed multistage

framework on storefront accessibility detection, and with improved performance on pedestrian detection over

the state of art detector.

1 INTRODUCTION

Contextual information has been widely used in many

computer vision tasks. Context refers to any informa-

tion that is related to the visual appearance of a target

(an object or an event). Context can be in the form

of visual or non-visual information. In object recog-

nition task, recognizing a single object may be chal-

lenging sometimes when the object is out of context.

But contextual information can provide crucial cues

for the target. An example is shown in Fig 1, show-

ing a mouse on a desk. In video based tasks, such as

video action recognition and video event recognition,

temporal context can help predict what will happen

in the future. A walking person is visible in previous

frame in a video, but he or she may become partially

occluded in current frame because of a car or a tele-

https://orcid.org/0000-0003-4265-9375

https://orcid.org/0000-0002-6197-0874

https://orcid.org/0000-0002-9990-1137

graph pole is in front of the target person. When this

happens, contextual information from nearby frames

(previous or next) can help locate and detect the oc-

cluded target person in current frame. In object de-

tection tasks, other objects can inﬂuence the presence

of a target object in the same scene. These contextual

information can indicate the co-occurrence of the ob-

jects and the location of the objects. For example, a

painting should be on the wall, not on the ground. If

we know there is a desktop on a table, there is higher

probability that there are a keyboard and a mouse next

to the desktop. Other contextual information, such as

locations, dates and environments, etc. could poten-

tially increase the likelihood of the presence of an ob-

ject or an event. In this work, we propose a general

framework that employs different contextual informa-

tion such as local context, semantic context and spa-

tial context among different objects in an urban scene

for object detection tasks.

In object detection, a bounding box is the stan-

dard way to describe the spatial location of an ob-

Wang, X., Tang, H. and Zhu, Z.

A General Context Learning and Reasoning Framework for Object Detection in Urban Scenes.

DOI: 10.5220/0011637600003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 5: VISAPP, pages

91-102

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

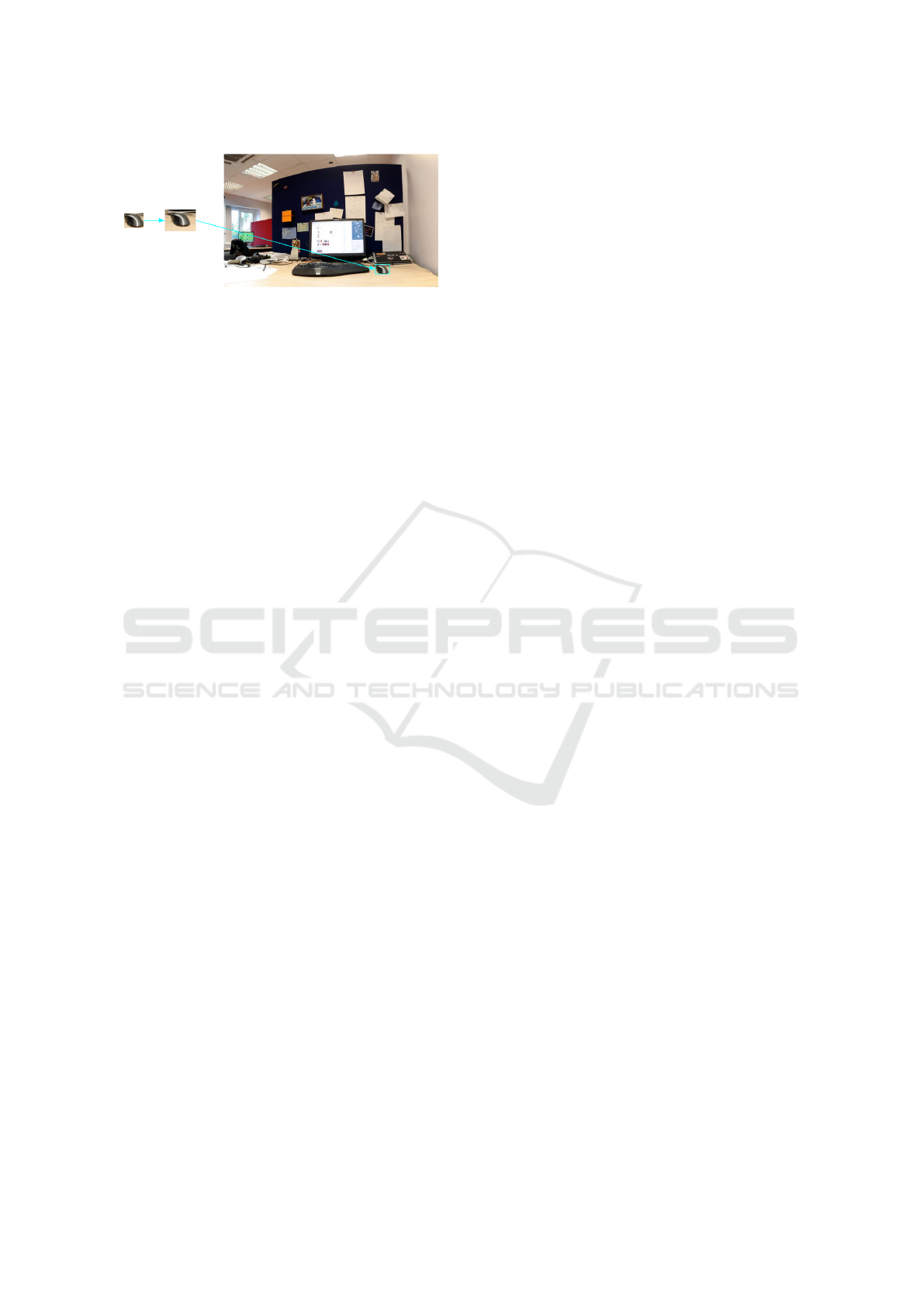

Figure 1: An example on the importance of contextual in-

formation for small object - A mouse next to a keyboard.

From left to right: an isolated object, the object with a local

context, and the object with a more global context.

ject. Large datasets, like MSCOCO (Lin et al., 2014)

and ImageNet (Deng et al., 2009), use workers on

Amazon’s Mechanical Turk (AMT) for crowdsourc-

ing tasks. The quality of the labels is heavily relied

on humans. Human labelers need to label the bound-

ing box for an object by hand. Usually tight bounding

boxes are ﬁt to the target objects in order to main-

tain the label consistency. However, when an object

is small, the tight bounding box may not provide suf-

ﬁcient local contextual information for recognition,

sometimes even human observers cannot recognize

the object because of the small size of the object. An

example is shown in Fig. 1, we can barely recog-

nize the object (a mouse), which is isolated from its

context. When the local context (the area surround-

ing the mouse) is included, we can recognize the ob-

ject as a mouse with less uncertainty. Furthermore,

when we see the whole scene, we can easily recog-

nize it is a mouse with a more global context even

it is a small object in the image. A few pieces of

work (Lim et al., 2021; Leng et al., 2021) show the

contextual information from the surrounding areas of

small objects provides critical clues for successful de-

tection results. However, these researches utilize deep

learning model training to extract and reﬁne features

from these small objects (Lim et al., 2021; Leng et al.,

2021), which could increase computational cost po-

tentially. In fact, one of the simplest ways to em-

ploy local context for small objects is to directly in-

clude their surrounding areas in the images that ap-

pear in, which directly provides contextual informa-

tion for small objects. In this work, we apply an auto-

matic local contextual labeling approach to enhance

the original bounding boxes for small objects in or-

der to employ local context before the model training

step, by using the two most used deﬁnitions of small

object in computer vision tasks.

Semantic context can also provide important in-

formation for detecting objects successfully. Without

any visual cues, if we know the scene is at an ur-

ban street environment, we can easily guess there are

higher chance we shall detect pedestrians, bicycles,

riders and cars, etc. The labels in the scene could pro-

vide prior knowledge of the co-occurrence relation-

ship between labels. Several papers (Li et al., 2014;

Li et al., 2016; Lee et al., 2018) show that a graph

was proven to be very effective in modeling label cor-

relation. Chen et al. (Chen et al., 2019) propose a

framework to model the label dependencies for multi-

label image recognition. Inspired by (Chen et al.,

2019), we introduce a mechanism to allow an easy

user conﬁguration to automate the process for gener-

ating a contextual graph and searching the word em-

beddings from pretrained language model, for adapt-

ing the context learning model to various object detec-

tion/recognition tasks. A Graph Convolutional Net-

work (GCN) (Kipf and Welling, 2016) learns over the

contextual graph in our framework, to build a seman-

tic space by using the word embeddings, and project

the visual features extracted from the object detector

into the semantic space for ﬁnal classiﬁcation.

Objects appear together, and they usually have

spatial relations between each other in a real-world

scene. For example, a keyboard and a mouse usually

appear together and a mouse is probably appeared on

the right side of the keyboard. Yang et al. (Yang et al.,

2015) propose a Faceness-Net for face detection us-

ing spatial relation between face parts, such as the hair

should appear above the eyes, and the nose should ap-

pear below the eyes, etc. Another work (Yang et al.,

2019) proposes a spatial-aware network to model the

relative location among different objects in a scene to

boost the object detection performance. A few recent

papers (Wang et al., 2022; Chacra and Zelek, 2022)

uses speciﬁc spatial relations for storefront accessi-

bility detection and scene graph generation. However,

all these methods use speciﬁc, hard-coded spatial re-

lations for their speciﬁc tasks, and these approaches

cannot be easily generalized to other tasks without

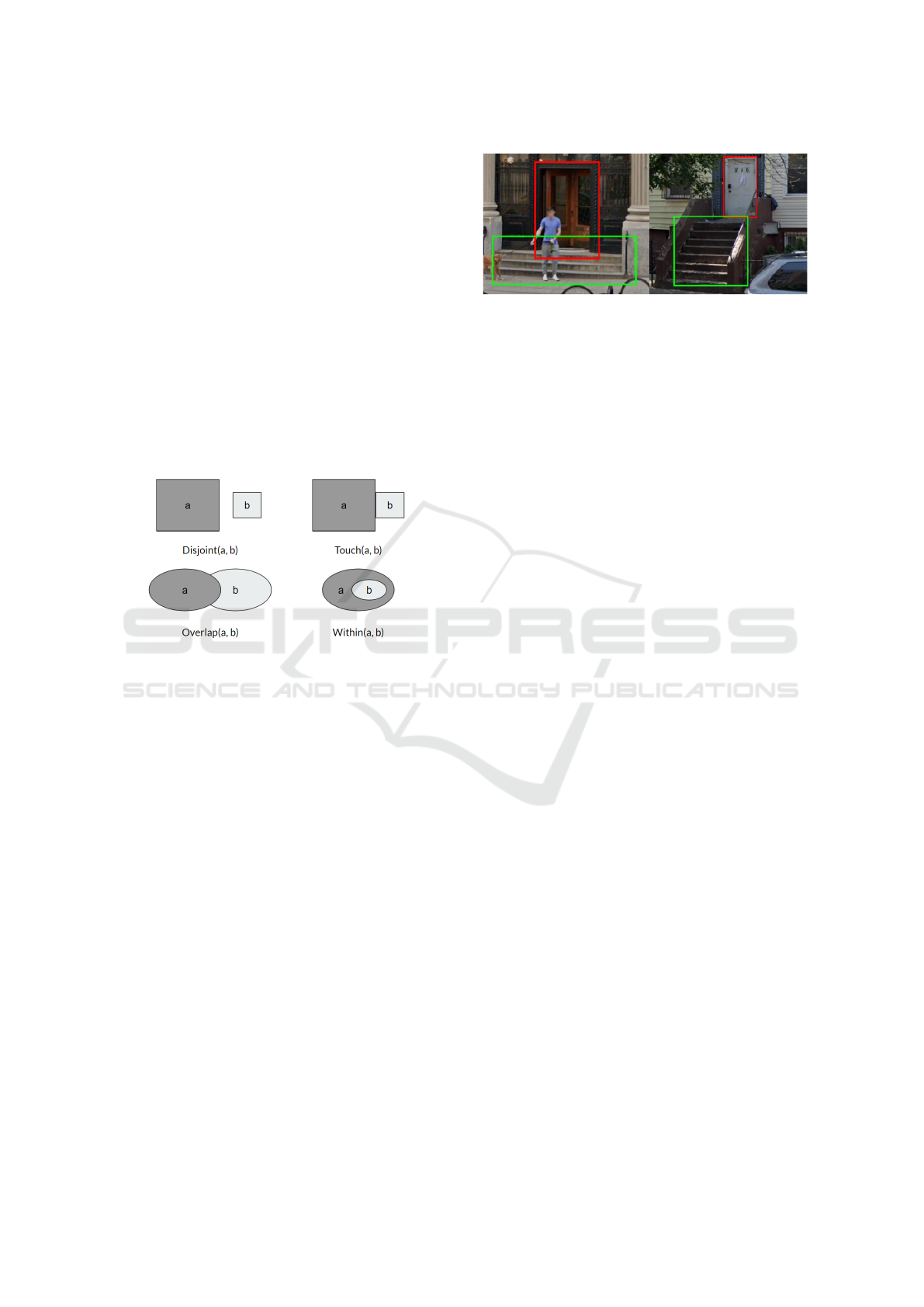

signiﬁcant re-coding. In order to provide the gen-

erality of the spatial reasoning, topological relation-

ships could be beneﬁcial for modeling relations be-

tween different objects. In this work, we propose a

more general approach to model the spatial relation

between objects for object detection that can be used

for different tasks. We utilize the user conﬁguration

mechanism to maximize the ﬂexibility for object rela-

tion deﬁnition, without the modiﬁcation of the code.

Different contextual information has been used

in speciﬁc computer tasks, such as data augmenta-

tion (Dvornik et al., 2018), semantic reasoning during

training (Zhu et al., 2021; Chen et al., 2019; Wang

et al., 2022) and post processing (Fang et al., 2017;

Wang et al., 2022), but there are lack of research on

a general framework that can guide the context learn-

ing from data labeling, model training and post pro-

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

cessing. In our previous work (Wang et al., 2022),

we proposed a context learning framework for store-

front accessibility detection through all these stages.

However, the framework was designed with speciﬁc

context learning mechanisms for storefront accessi-

bility detection, and if we want to use it for a different

task, we have to make signiﬁcant changes in the code.

In this work, we propose a general context learning

and reasoning framework for various object detection

tasks.

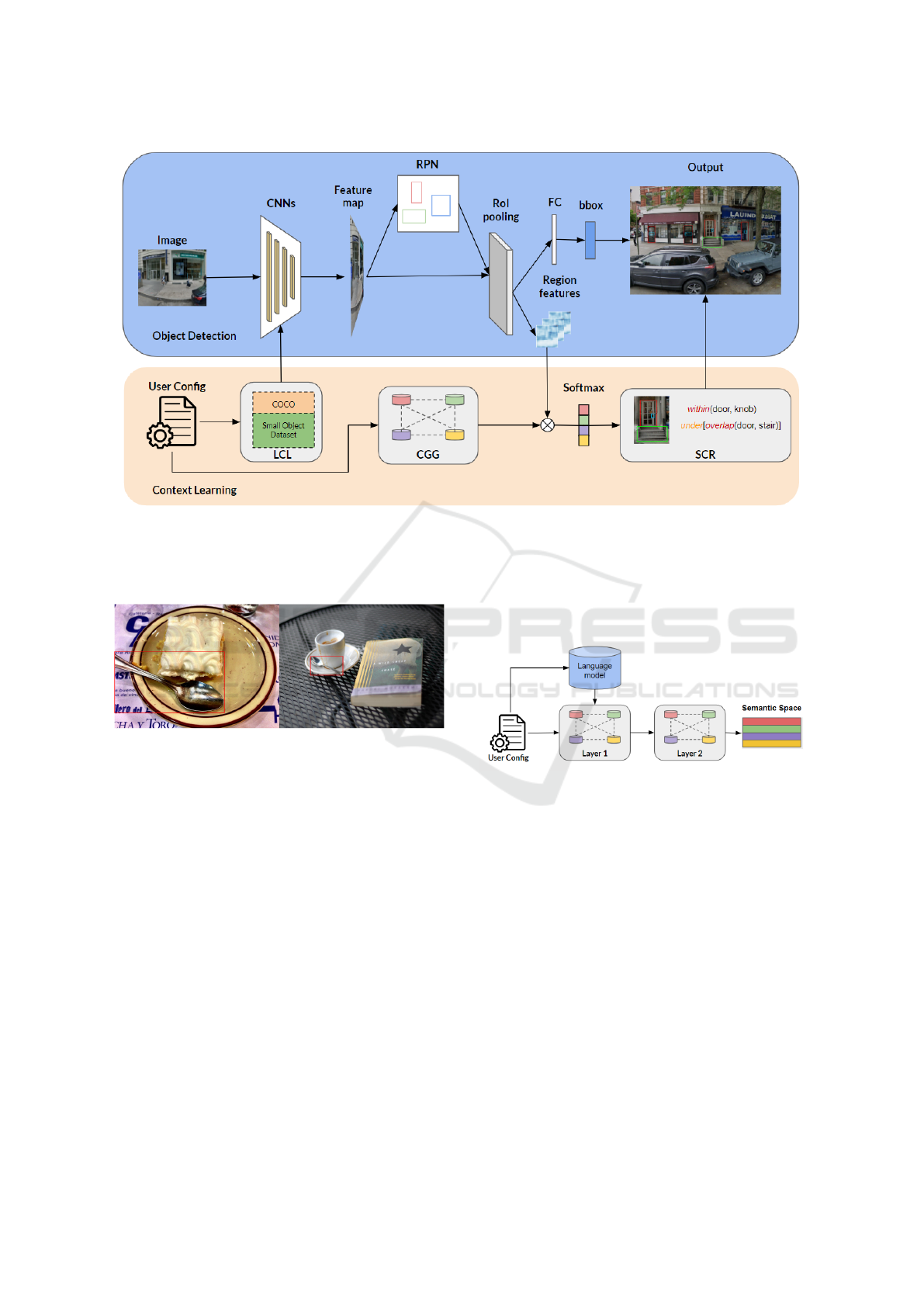

In summary, we propose a general context learn-

ing and reasoning framework for object detection of

various tasks, which has three components: local con-

textual labeling (LCL), contextual graph generation

(CGG) and spatial contextual reasoning (SCR). Local

contextual labeling is applied to the objects that sat-

isfy the deﬁnition of small objects. Contextual graph

generation is applied to model the semantic relations

of objects during training. Spatial contextual reason-

ing provides general spatial relations that could be

used in different object detection tasks. The main con-

tributions of this paper are:

• A general context learning and reasoning frame-

work is proposed from data labeling, model train-

ing and spatial reasoning.

• An automated process is implemented for each

component with simple user deﬁned parameters.

• Each component can be applied individually and

in combination, and it is easy to add and remove

from a standard object detector.

• Our approach enables training automation to ﬁnd

the optimal user deﬁned parameter combination.

The paper is organized as follows. Section 2 dis-

cusses related work. Section 3 proposes our general

context learning and reasoning framework and de-

scribes each component in detail. Section 4 presents

our experiments, including experimental setting (Sec-

tion 4.1), dataset description (Section 4.2), experi-

mental results (Section 4.3) and the ablation studies

of our framework (Section 4.4). Section 5 provides a

few concluding remarks.

2 RELATED WORK

2.1 Context Learning in Computer

Vision

Context information has been widely used in many

computer vision tasks. Many tasks, such as image

classiﬁcation (Mac Aodha et al., 2019), object de-

tection (Du et al., 2012; Fang et al., 2017; Sun and

Jacobs, 2017; Zhu et al., 2016; Zhu et al., 2021;

Wang et al., 2022), data augmentation (Dvornik et al.,

2018), video event recognition (Wang and Ji, 2015;

Wang and Ji, 2017) and video action detection (Yang

et al., 2019), have employed different forms of con-

textual information. These context information in-

cludes local context (Dvornik et al., 2018; Du et al.,

2012), global context (Zhu et al., 2016), semantic

context (Wang and Ji, 2015; Wang and Ji, 2017), spa-

tial context (Sun and Jacobs, 2017; Yang et al., 2019)

and temporal context (Wang and Ji, 2015; Wang and

Ji, 2017; Yang et al., 2019). Dvornik et al. (Dvornik

et al., 2018) show that the environment surrounding

the object provides crucial information about the cor-

rect location in order to augment useful dataset for

minor object category. A serial work (Wang and Ji,

2015; Wang and Ji, 2017) use both semantic context

and temporal context to build a hierarchical model to

recognize events in videos. Fang et al. (Fang et al.,

2017) use a knowledge graph to improve object de-

tection performance. Sun et al.(Sun and Jacobs, 2017)

use the spatial co-occurrence of curb ramps at inter-

section to detect missing curb ramps in urban envi-

ronments. Although different context has been used

widely in various computer vision tasks, to our best

knowledge, there is no general framework available to

guide context learning and reasoning over the whole

deep learning process (data labeling, model training

and post processing), and across different tasks. Our

proposed framework employs different forms of con-

text information through the entire deep learning pro-

cess, and each component is easy to add and remove

from an object detector.

2.2 Object Detection in Urban Scene

Many methods have been proposed for object detec-

tion in urban scene. These includes text detection and

recognition (Du et al., 2012; Zhu et al., 2016), zebra

crossing detection (Ahmetovic et al., 2015), curb de-

tection (Cheng et al., 2018; Sun and Jacobs, 2017) and

storefront accessibility detection (Wang et al., 2022).

Du et al. (Du et al., 2012) and Zhu et al. (Zhu et al.,

2016) focus on detecting text in a street environment.

Cheng et al. (Cheng et al., 2018) propose a frame-

work to detect road and sidewalk using stereo vision

in the urban regions. Another work (Sun and Jacobs,

2017) aims to ﬁnd missing curb ramps at street in-

tersection in the city by using the pair-wise existence

of the curb ramps. Our recent work (Wang et al.,

2022) proposes a multi-stage context learning frame-

work for storefront accessibility detection, by using

the speciﬁc relations between categories. All these

researches are either lack of employing context infor-

A General Context Learning and Reasoning Framework for Object Detection in Urban Scenes

mation or using speciﬁcally designed context learning

mechanisms. In this paper we propose a general con-

text learning and reasoning framework which could

be adapted to various object detection tasks.

Pedestrian detection is a special form of object de-

tection task. Several papers (Cai et al., 2016; Zhang

et al., 2017; Zhou and Yuan, 2018; Wu et al., 2020)

are focused on pedestrian detection in urban scene.

Convolutional Neural Networks(CNNs) have become

the dominant approaches not only in object detec-

tion, but also in pedestrian detection. Although CNNs

based pedestrian detectors have shown considerable

progress, it is still challenging for detecting small-

scale pedestrians and occluded pedestrians. A recent

work (Wu et al., 2020) aims to improve the detec-

tion of small-scale pedestrians by enhancing the rep-

resentations of small-scale pedestrians using the rep-

resentation from large-scale pedestrians. To our best

knowledge, none of these methods are employing lo-

cal context for small-scale pedestrian detection and

occluded pedestrian detection. Among these meth-

ods, Faster R-CNN (Ren et al., 2015) became the

most popular framework that is deployed for pedes-

trian detection (Cai et al., 2016; Zhang et al., 2017;

Zhou and Yuan, 2018; Wu et al., 2020). In this pa-

per, we compare our proposed general context learn-

ing and reasoning framework with a baseline Faster

R-CNN, which shows that our framework not only

beneﬁts the detection of small-scale pedestrians and

occluded pedestrians by using contextual labeling,

our proposed contextual components can also beneﬁt

each other and further improve the detection results.

3 PROPOSED FRAMEWORK

Our proposed general context learning framework is

shown in Fig.2. The overall framework includes three

main components: local contextual labeling (LCL),

contextual graph generation (CGG) and spatial con-

textual reasoning (SCR). Each component can be ap-

plied individually and in combinations to an object

detector. We ﬁrst utilize the local context for small

objects in the local contextual labeling component

(Section 3.1). In contextual graph generation compo-

nent (Section 3.2), we automatically build the contex-

tual co-occurrence graph using the prior label pres-

ence knowledge from training data, to describe ob-

ject relations between different categories. Object cat-

egories are represented using word embeddings ex-

tracted from a pretrained language model (Penning-

ton et al., 2014). Then the word embeddings are fed

into a Graph Convolutional Network (GCN) (Kipf

and Welling, 2016) by learning the relations using

contextual co-occurrence graph. Then we project the

extracted region features from object detector into the

semantic space built by the GCN. We further pro-

pose a spatial contextual reasoning component (Sec-

tion 3.3) to optimize the detected candidates by using

the general spatial relations between detected objects.

Finally, we introduce a training automation mecha-

nism (Section 3.4) for ﬁnding the optimal user deﬁned

parameter combinations. In the following, we will de-

tail each component of our proposed general context

learning and reasoning framework.

3.1 Local Contextual Labeling

First, we utilize surroundings of small objects as their

local context in the Local Contextual Labeling com-

ponent. In computer vision tasks, ”small” objects are

not very clearly deﬁned. An small object, such as a

spoon, can be a large object in the image because of

the shooting angle, shooting environment, etc. (Fig.

3). In COCO dataset (Lin et al., 2014), small objects

are deﬁned as less than or equal to 32 ×32 pixels with

a ﬁxed image size of 640 ×480. Another deﬁnition

(Chen et al., 2017) of a small object is that objects

are small when the overlap area between ground truth

bounding box and the image is less than 0.58%. Be-

cause of the reliability and acceptance by other re-

searchers, we use these two deﬁnitions of small ob-

jects as the standard for labeling automation. We ex-

tend the bounding box B of an object O in image I

if the object satisﬁes with the COCO standard for a

small object:

′

(

(1 + α)B

, if B

< 32 ×32

, otherwise

(1)

If the small object satisﬁes with the second standard

- the Small Object Dataset (SOD) Standard (Chen

et al., 2017), we extend the bounding box B of the

object O in image I by:

′

(

(1 + β)B

, if

< 0.58%

, otherwise

(2)

In the two equations above, B

and B

′

denote the

original and the updated bounding boxes, respec-

tively, of the ground truth label for the small object.

The parameters α and β are the extending factors (in

percentage) from the original bounding boxes for the

COCO standard and SOD standard, respectively. R

the resolution of the input image I. We provide ﬂex-

ibility for users to select a contextual labeling stan-

dard if the small objects satisfy with both deﬁnitions.

We keep both the original bounding boxes and the en-

larged bounding boxes for all the small objects that

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

Figure 2: The overview of our general context learning and reasoning framework. Three contextual components: local

contextual labeling (LCL), contextual graph generation (CGG) and spatial contextual reasoning (SCR). We design a user

conﬁguration mechanism for automating the process for various recognition tasks. Our contextual components can be applied

individually and in combination. ”⊗”: dot product. ”FC”: Fully-connected layer.

Figure 3: An example of a spoon in a image. The spoon is

relatively large in left image but it is small in right image.

satisfy with the user selected standard, in order to in-

clude local contextual information and improve the

robustness of the detection. We will provide experi-

mental settings in detail in Section 4.1.

3.2 Contextual Graph Generation

Graph Convolutional Network (GCN) (Kipf and

Welling, 2016) has been used to model the semantic

relationship between objects to solve different com-

puter vision tasks, such as scene graph generation

(Yang et al., 2018; Johnson et al., 2018) and image

classiﬁcation (Chen et al., 2019). A GCN takes fea-

ture description H of all nodes n and a contextual

graph A to describe the relation between all nodes n.

When a convolutional operation is applied, the func-

tion can be written as:

f (H, A) = σ(AHW ) (3)

where W and σ denote the weight and the non-linear

activation function, respectively.

Figure 4: The visualization of CGG component.

Our Context Graph Generation component is

shown in Fig 4. When our framework reads the cat-

egory information from the user conﬁguration, it ﬁrst

searches the word embeddings H

labels

∈ R

n×d

from a

pretrained language model (Pennington et al., 2014)

as the input of the GCN network, where n is the num-

ber of label categories and d is the dimension of the

word embeddings. Then the contextual graph is au-

tomatically generated. The GCN learns a semantic

relation over the contextual graph to build the seman-

tic space. The generated semantic space from label

feature representation is H

′

labels

∈ R

n×D

, where D is

the dimension of the extracted region features from

the object detector. As shown in Fig 2, we project

the region features f

regions

∈ R

D×N

into the semantic

spaces H

′

labels

. The ﬁnal output is:

regions

= so f tmax(H

′

labels

regions

) (4)

A General Context Learning and Reasoning Framework for Object Detection in Urban Scenes

where P

regions

represents the classiﬁcation probability

distribution for each proposed region, and P

regions

∈

n×N

In order to describe object relations between dif-

ferent categories, we use the label occurrence de-

pendency in the form of conditional probability in-

spired by (Chen et al., 2019). P(L

) denotes the

probability of occurrence of label L

when label L

appears. We automatically generate the contextual

graph A ∈R

nxn

between different categories by using

the prior label occurrence knowledge from the train-

ing data, where n is the number of label categories.

Note that a background label is also included to rep-

resent regions that do not belong to any of the cate-

gories.

3.3 Spatial Contextual Reasoning

Figure 5: The visualization of common used topological

relationships from (Clementini et al., 1993) and (Egenhofer

and Franzosa, 1991).

Spatial relations between different objects, such as the

object position and co-occurrence of the objects, have

been encapsulated in spatial context. In order to pro-

vide the generality of the spatial reasoning, we use

topological relationships to model relations between

different objects. The topological relations can reveal

the general relationship between a subject and object

pair by using certain predicate, such as above, under

and within, etc. The visualization of topological rela-

tionship is shown in Fig 5.

We use a predicate pred to describe the directional

relation between a subject and object pair [S, O] along

with the topological relationship t. The general rela-

tion R can be described as:

R[S, O] = pred[t(S, O)] (5)

For example, in urban settings, a stair usually is lo-

cated under a door. There might be overlaps or have

spatial misalignment between the door and the stair.

Examples are shown in Fig. 6. The general relation-

ship for a door and a stair can be described using Eq.

5 as:

R[door, stair] = under[overlap(door, stair)] (6)

Figure 6: Visualization for stair-door relations in urban set-

tings. Left: The label of stair is overlapped with the label of

the door. Right: The stair has a spatial misalignment with

the door.

Note that the general spatial relation is inversable

between a subject-and-object pair, such as a door is

above the stair and a stair is under a door. We fur-

ther deﬁne a search area to search the detected object

centroid with it if the object satisﬁes the condition in

Eq. 5 with the detected subject. Then if the object

is detected within the search area, we propose the de-

tected object as a detection and send for evaluation.

If multiple objects are detected in the search area, we

propose the max score prediction to the evaluation.

We provide the ﬂexibility for users to conﬁgure the

general spatial relation for the categories in their own

dataset. The user-deﬁned parameters are summarized

in Table 1.

3.4 Training Automation

As mentioned in Section 3.1 and Section 3.3, we pro-

vide the capability for users to deﬁne contextual label-

ing thresholds and contextual spatial reasoning search

areas. Although the deep learning network cannot au-

tomatically train these parameters, we enable an it-

erative training process in order to ﬁnd the optimal

user deﬁned parameter combinations. The training

pipeline is shown in Fig 7. Users can provide a thresh-

old range for each parameter (i.e., labeling extension

and search area), and set the number of training itera-

tions for ﬁnding the optimal parameter combinations.

4 EXPERIMENTS

In this section, we present our experiment results. We

ﬁrst describe the experimental settings (Section 4.1)

in detail. We apply our framework on two datesets in

urban scenes (Section 4.2), the Storefront Accessibil-

ity Image (SAI) Dataset, and the CityPersons Dataset,

without any changes of the code. We compare the

performance with a baseline object detector Faster R-

CNN (Ren et al., 2015) and our previous multiCLU

(Wang et al., 2022) framework for storefront accessi-

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

Table 1: Summary of the provided user-deﬁned parameters for the spatial contextual reasoning component.

Parameters Deﬁnition

b j

, O

b j

t] Subject and object pair

d(optional) Directional relationships between subject and object

t Topological relationship between subject and object

p t

d(optional) The threshold of overlap percentage between subject and object

(optional) The height of search area for object

(optional) The width of search area for object

g s

d The standard for small object label enlargement

e p

e The enlarging percentage for small object labels

n d

r The contextual graph generation method

Figure 7: The training automation pipeline. We randomized the user deﬁned parameter combinations and retrain the models.

bility detection. In experimental results (Section 4.3),

we ﬁrst compare the mean average precision (mAP)

overall categories. We then compare the precision (%)

and recall (%) for each category in the dataset. Fur-

thermore, we provide results of our training automa-

tion for ﬁnding the optimal user deﬁned parameters.

Finally, we provide ablation analysis (Section 4.4)

of each component based on the results of our con-

textual components individually and in combination

for storefront accessibility detection. And we also

demonstrate the generality of our framework by com-

paring the performance with baseline detector Faster

R-CNN(Ren et al., 2015) for pedestrian detection, by

using a urban scene pedestrian dataset (Zhang et al.,

2017).

4.1 Experimental Settings

We use Faster R-CNN (Ren et al., 2015) as the un-

derling detector for both storefront accessibility de-

tection and pedestrian detection. We adopt ResNet-50

(He et al., 2016) and Feature Pyramid Network (FPN)

(Lin et al., 2017) as the backbone feature extractor,

which is pretrained on the COCO dataset. Our GCN

model for contextual graph generation consists of two

layers with the output dimension of 1024. LeakyReLu

(Maas et al., 2013) is used as the activation function

for GCN. We use 300-dim word embeddings from

GloVe (Pennington et al., 2014) as the input label fea-

ture vector for GCN model. Stochastic Gradient De-

scent (SGD) is used as the optimizer during training.

The momentum is set to 0.95 and the weight decay is

set to 1e-4, respectively. The initial learning rate is set

to 0.005, and it drops by 0.25 for every 8 epochs. The

total training epochs is 40 in total for storefront acces-

sibility detection and 60 for pedestrian detection. In

order to compare the performance between our pro-

posed framework with our previously designed Mul-

tiCLU (Wang et al., 2022), we initially use the same

settings as described in (Wang et al., 2022). We use

the Small Object Dataset(SOD) standard to enlarge

the labels for small objects in the SAI dataset. The

enlarge percentage is set to 15 percent (i.e., β=0.15).

we use the same small object standard for CityPer-

sons dataset and the enlarge percentage is set to 10

percent (i.e., β=0.10). The conﬁgurations of general

spatial contextual reasoning for both tasks are shown

in Table 2.

4.2 Dataset Description

Storefront Accessibility Image Dataset. We use the

SAI dataset described in (Wang et al., 2022), which

consists of 3 main categories (doors, knobs, stairs)

for storefront accessibility in an urban environment.

The dataset is collected from Google Street View

of New York city using Google Street View API.

The ﬁnal dataset is central cropped images from the

panorama images in which the storefronts are clearly

seen. Overview of the SAI dataset is shown in Table

4. There are 1102 images in total, with 992 images in

the training set and 110 images in the testing set. An

example of labeled storefront objects is shown in Fig

A General Context Learning and Reasoning Framework for Object Detection in Urban Scenes

Table 2: Default user parameter settings for our experiments on the SAI Dataset(Wang et al., 2022) and the CityPersons

Dataset (Zhang et al., 2017). O T: Overlap threshold.

Task [Subject, Object] Predicate Topology O T Search area height Search area width

SAI

[door, knob] - within - - -

[door, stair] under overlap 0.2 0.2height

door

+ height

stair

width

door

+ width

stair

CityPersons [person, bicycle] under overlap 0.4 0.5height

person

width

bicycle

Table 3: Results on recall(%), precision(%) and F1 score (%) per category for various combinations of the three general

contextual components, compared with a baseline and a previous methods on the SAI dataset. The best results are in bold and

the second best underlined.

Model

Precision ↑ Recall ↑

mAP ↑ Recall ↑ F1 Score ↑

Door Knob Stair Door Knob Stair

Faster R-CNN(Ren et al., 2015) 75.6 17.7 66.0 87.5 47.6 73.1 53.1 69.4 60.2

MultiCLU (Wang et al., 2022) 75.6 51.2 70.0 92.3 80.4 83.0 66.4 85.2 74.6

+LCL 78.1 41.3 66.8 88.9 77.7 74.5 62.1 80.4 70.1

+CGG 78.0 19.0 68.5 90.1 53.0 79.4 55.2 74.2 63.3

+SCR 77.8 18.6 67.2 88.8 52.4 74.5 54.5 71.9 62.0

+LCL+CGG 78.4 50.0 69.2 90.8 75.0 79.4 65.9 81.7 73.0

+CGG+SCR 78.2 21.2 69.6 90.3 55.8 80.8 56.3 75.6 64.5

+LCL+SCR 79.2 41.2 67.8 89.2 77.8 74.5 62.7 80.5 70.5

Proposed Framework (C3) 78.2 52.3 69.6 92.0 79.9 82.3 66.7 84.7 74.6

Figure 8: The label example from SAI dataset(Wang et al.,

2022). Red: Ground truth label of the door. Cyan: Ground

truth label of the knob. Green: Ground truth label of the

stair.

Table 4: Overview of two urban scene datasets: SAI Dataset

and CityPersons Dataset. #C: Number of Categories; #T:

Number of Samples in the Training Set; #V: Number of

Samples in the Validation Set.

Datasets #C #T #V

SAI (Wang et al., 2022) 3 992 110

CityPersons (Zhang et al., 2017) 4 2975 500

CityPersons Dataset. The CityPersons dataset is a

subset of Cityscapes (Cordts et al., 2016), which only

consists of person annotations. The dataset has four

categories: pedestrian, rider, sitting person and per-

son(other). Overview of the dataset is shown in Table

4 as well. An example of labeled pedestrians is shown

in Fig 9.

Figure 9: The label example from CityPersons Dataset

(Zhang et al., 2017). Red: Pedestrian. Blue: Rider. Yel-

low: Sitting person.

4.3 Experimental Results

Comparison with Baseline Faster R-CNN(Ren

et al., 2015) and MultiCLU(Wang et al., 2022). We

ﬁrst compare our proposed general context learning

framework with the baseline detector Faster R-CNN

(Ren et al., 2015) and the previous proposed Mul-

tiCLU (Wang et al., 2022) on the SAI dataset. We

measure the mean average precision (mAP) and re-

call over standard 0.5 IoU threshold. The results

(Table 3) show that our proposed framework gain

great improvement over Faster R-CNN on both mAP

(+13.6%) and recall (+15.3%). Our general context

framework also achieves slight better performance on

mAP (+0.3%) but a slightly lower performance on

recall (-0.5%) comparing with the MultiCLU frame-

work with specially designed context mechanisms.

Overall, our general context framework achieves the

same performance as the speciﬁcally designed Multi-

CLU on F1 score, which is a 14.4% increase from the

baseline model Faster R-CNN.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

Comparison Between Various Contextual Compo-

nents. We further compare the performance between

the different combination of three contextual com-

ponents. We measure the small objects in the SAI

dataset using the same approach in (Wang et al.,

2022). If local contextual labeling is enabled, we use

both original labels and enlarged labels for small ob-

jects that satisfy the standard. If both labels are de-

tected for same small object, we only count one to

avoid duplicated detection. The results are shown in

Table 3. When only apply a single contextual compo-

nent, The recall is improved over baseline from 2.8%

to 11%, and mAP is improved from 1.4% to 9%. We

can also observe that when applying a single contex-

tual component, local contextual labeling has greater

impact than the other two components.

When combinations of two contextual compo-

nents are applied, all combinations surpass the per-

formance over the baseline detector, from +3.2% to

12.8% on mAP and 6.2% to 12.3% on recall. When

the combinations have the Local Context Labeling

(LCL) component, they outperform the other combi-

nations with large margins on both mAP (+6.4% to

9.6%) and recall (+4.9% to 6.1%). The results in-

dicates that including the contextual information sur-

round the small objects can aid the successful detec-

tion of the small objects, the important doorknobs in

this example. Furthermore, when comparing with the

single LCL component, both Context Graph Gener-

ation (CGG) and Spatial Context Reasoning (SCR)

have positive impact, and they further improve the re-

sults over a single LCL component on both mAP and

recall. When comparing between applying both CGG

and SCR and applying them individually, the com-

bination slightly improves both mAP and recall over

the single CGG and single SCR component. When

all three components (C3) are applied, our proposed

framework achieves the best result, with 13.6% im-

provement on mAP and 15.3% improvement on re-

call. We can also observe that our general frame-

work improves mAP on all categories over Multi-

CLU(Wang et al., 2022), but with only very slightly

decreased recall. This indicate that the speciﬁc de-

signed MultiCLU could introduce more false posi-

tives than correct predictions, hence our framework

achieves better precision and slightly worse recall.

Results on Finding Optimal Combination of User

Deﬁned Parameters. We further use iterative train-

ing to ﬁnd the optimal combinations of user deﬁned

parameters. As described in MultiCLU(Wang et al.,

2022), the default enlarge percentage for the small ob-

ject label is 15%, the overlap between door and stair

is 20% and the search area height is 20% height of

detected door plus the height of detected stair. We

Table 5: Result comparison on training automation to ﬁnd

the optimal user deﬁned parameters combination on SAI

dataset.

(Enlarge/Overlap/height

) mAP ↑ Recall ↑

Default(0.15, 0.2, 0.2) 66.7 84.7

(0.16, 0.17, 0.16) 68.4 85.7

(0.08, 0.12, 0.18) 66.3 83.4

(0.09, 0.06, 0.17) 65.9 83.9

(0.14, 0.11, 0.13) 66.5 83.1

(0.19, 0.13, 0.11) 66.1 83.6

further random select the combinations by setting a

threshold range for each parameter. We set [0.05, 0.2]

as the threshold for both enlarge percentage and over-

lap percentage. [0.1, 0.2] is set as the threshold for

the height of subject (door). We keep 2 decimals

for the random selection and iterate the training for

6 times. The results (Table 5) show that when enlarge

percentage is below 15 percent, both mAP and recall

decrease comparing with default settings. The results

also show that it is possible to ﬁnd a better combina-

tion of user deﬁned parameters comparing with de-

fault parameter settings.

Comparison on Pedestrian Detection with Various

Combinations Of Contextual Components. We fur-

ther evaluate our general context learning and reason-

ing framework on pedestrian detection, by comparing

with the baseline detector Faster R-CNN(Ren et al.,

2015), without any change in coding. We ﬁrst com-

pare the evaluation results on reasonable and heavy

subsets of the data with the baseline using the stan-

dard evaluation metric in pedestrian detection MR

−2

(the lower, the better). These subsets are deﬁned

as: Reasonable: h ∈ [50, ∞], v ∈ [0.65, 1]; Heavy:

h ∈ [50, ∞], v ∈ [0, 0.65], where h and v denote the

height and visible ratio of pedestrians, respectively.

When only apply the single LCL component, the per-

formance improve 1.1% on the reasonable subset and

1.7% on the heavy subset (Table 6). We further add

in the ﬁne-grained category (rider) in CityPersons

dataset during training in order to enable the CGG

and SCR components. Similar to the SAI detection

results, when the combinations have the LCL compo-

nent, the result is better than the other combinations.

Both CGG and SCR have minor impact on pedestrian

detection,. It might because the low correlation be-

tween pedestrians and other objects in urban scene.

Overall, our proposed framework with all the three

components achieves the best performance on both

the reasonable subset (-1.4%) and the heavy subset (-

1.7%), comparing with the baseline detector and other

combinations.

A General Context Learning and Reasoning Framework for Object Detection in Urban Scenes

Table 6: Comparisons with the baseline detector on the CityPersons validation set.

Model LCL CGG SCR Reasonable ↓ Heavy ↓

Faster R-CNN (Ren et al., 2015) - - - 13.4 36.9

Single Component

√

- - 12.3 35.6

√

- 13.3 37.1

- -

√

13.0 36.5

Two Components

√ √

- 12.2 35.2

√ √

13.2 36.5

√

12.0 36.0

Proposed framework (C3)

√ √ √

12.0 35.2

4.4 Ablation Studies

We further studied the contribution of each general

contextual component. As we applied various com-

binations of three contextual components, We can

clearly see the impact of each component from Table

3 and Table 6, for both storefront accessibility detec-

tion and pedestrian detection.

Before sending an image into the detector, local

contextual labeling uses selected standard deﬁnitions

of small objects to automatically expand the ground

truth label, in order to include local contextual infor-

mation for small objects for the network to learn. Our

evaluation results show that enough local contextual

information has great impact on small objects. We

can observe that when LCL is applied, the framework

gain great improvement on both mAP (12.8%) and re-

call (12.3%) for the SAI dataset. Although there is no

great improvement for pedestrian detection, LCL also

shows greater impact than the other two components.

We apply contextual graph generation during the

network training. We use word embeddings from pre-

trained language model and the contextual graph gen-

erated from prior knowledge from the training set as

the input of Graph Convolutional Network. The GCN

learned over the word embeddings and the contextual

graph to build a semantic space. We then project the

region features extracted from object detector into the

semantic space for ﬁnal prediction of each region. As

the result shown in Table 3 and Table 6. The CGG

component does not have the same impact as the LCL

component for the SAI dataset, and even smaller for

pedestrian detection. This might because the contex-

tual graph is using the prior co-occurrence knowledge

from the training set between categories, where SAI

dataset has higher correlated categories compare to

CityPersons dataset.

We further propose a spatial contextual reasoning

(SCR) component, using general topological relation-

ships to model the relations between subject and ob-

ject pairs. As shown in Table 3, although the per-

formance has slight improvement when applying to

the baseline detector, the SCR component can beneﬁt

the other two components when apply in combina-

tions. The SCR also has a minor impact on pedes-

trian detection task. It might because the general spa-

tial reasoning have minor impact on the pedestrians

even when the ﬁne-grained category is added for spa-

tial reasoning. It could also because the lack of data

on ﬁne-grained categories for CityPersons dataset.

Our proposed framework exhibited improvement over

any other combinations, The result also shows that

contextual components can beneﬁt from each other,

hence maximize the performance over the baseline.

5 CONCLUSION

In this work, we proposed a general context learn-

ing and reasoning framework. We compared our

framework for the storefront accessibility detection

task and the pedestrian detection task, with a base-

line detector Faster R-CNN (Ren et al., 2015) and

our previously proposed context learning framework

particularly designed for storefront accessibility de-

tection(Wang et al., 2022). Our new general frame-

work can apply to various visual tasks without any

changes, and in a general manner, guide context learn-

ing from data labeling, contextual graph during train-

ing and general spatial reasoning during post process-

ing. Our results show that our proposed framework

applied to the same storefront data can achieve same

performance as the previous context learning frame-

work speciﬁcally designed for storefront accessibility

detection. The results also show that the framework,

when applying to a different dataset CityPersons, can

achieve better performance over the baseline detec-

tor for pedestrian detection. We demonstrate that

our contextual components can be applied individu-

ally and in combinations, and easily add and remove

from the object detector. In future works, the effec-

tiveness of the contextual components in various vi-

sual detection tasks will be investigated, which could

be more generalized and adaptive for other different

visual detection tasks. We will also investigate how

to better model relations between visual context and

non-visual context. We hope our work could provide

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

100

a generalized approach on guiding context learning in

real world applications so adapting to different tasks

would be more efﬁcient.

ACKNOWLEDGEMENTS

The work is supported by NSF via the Partnerships for

Innovation Program (Award #1827505) and the CISE-

MSI Program (Award #1737533), AFOSR Dynamic

Data Driven Applications Systems (Award #FA9550-

21-1-0082), and ODNI via the Intelligence Com-

munity Center for Academic Excellence (IC CAE)

at Rutgers University (Awards #HHM402-19-1-0003

and #HHM402-18-1-0007).

REFERENCES

Ahmetovic, D., Manduchi, R., Coughlan, J. M., and Ma-

scetti, S. (2015). Zebra crossing spotter: Automatic

population of spatial databases for increased safety of

blind travelers. In Proceedings of the International

ACM SIGACCESS Conference on Computers and Ac-

cessibility, pages 251–258.

Cai, Z., Fan, Q., Feris, R. S., and Vasconcelos, N. (2016). A

uniﬁed multi-scale deep convolutional neural network

for fast object detection. In Proceedings of the Euro-

pean Conference on Computer Vision, pages 354–370.

Springer.

Chacra, D. A. and Zelek, J. (2022). The topology and lan-

guage of relationships in the visual genome dataset.

In Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition, pages 4860–

4868.

Chen, C., Liu, M.-Y., Tuzel, O., and Xiao, J. (2017). R-cnn

for small object detection. In Lai, S.-H., Lepetit, V.,

Nishino, K., and Sato, Y., editors, Computer Vision –

ACCV 2016, pages 214–230, Cham. Springer Interna-

tional Publishing.

Chen, Z.-M., Wei, X.-S., Wang, P., and Guo, Y. (2019).

Multi-label image recognition with graph convolu-

tional networks. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recog-

nition, pages 5177–5186.

Cheng, M., Zhang, Y., Su, Y.,

Alvarez, J. M., and Kong,

H. (2018). Curb detection for road and sidewalk de-

tection. IEEE Transactions on Vehicular Technology,

67:10330–10342.

Clementini, E., Felice, P. D., and Oosterom, P. v. (1993). A

small set of formal topological relationships suitable

for end-user interaction. In International Symposium

on Spatial Databases, pages 277–295. Springer.

Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler,

M., Benenson, R., Franke, U., Roth, S., and Schiele,

B. (2016). The cityscapes dataset for semantic urban

scene understanding. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In 2009 IEEE conference on com-

puter vision and pattern recognition, pages 248–255.

Ieee.

Du, Y., Duan, G., and Ai, H. (2012). Context-based text de-

tection in natural scenes. In Proceedings of the IEEE

International Conference on Image Processing, pages

1857–1860. IEEE.

Dvornik, N., Mairal, J., and Schmid, C. (2018). Modeling

visual context is key to augmenting object detection

datasets. In Proceedings of the European Conference

on Computer Vision, pages 364–380.

Egenhofer, M. J. and Franzosa, R. D. (1991). Point-set topo-

logical spatial relations. International Journal of Ge-

ographical Information System, 5(2):161–174.

Fang, Y., Kuan, K., Lin, J., Tan, C., and Chandrasekhar, V.

(2017). Object detection meets knowledge graphs. In

Proceedings of the International Joint Conferences on

Artiﬁcial Intelligence.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 770–778.

Johnson, J., Gupta, A., and Fei-Fei, L. (2018). Image

generation from scene graphs. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 1219–1228.

Kipf, T. N. and Welling, M. (2016). Semi-supervised clas-

siﬁcation with graph convolutional networks. arXiv

preprint arXiv:1609.02907.

Lee, C.-W., Fang, W., Yeh, C.-K., and Wang, Y.-C. F.

(2018). Multi-label zero-shot learning with structured

knowledge graphs. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 1576–1585.

Leng, J., Ren, Y., Jiang, W., Sun, X., and Wang, Y. (2021).

Realize your surroundings: Exploiting context infor-

mation for small object detection. Neurocomputing,

433:287–299.

Li, Q., Qiao, M., Bian, W., and Tao, D. (2016). Condi-

tional graphical lasso for multi-label image classiﬁ-

cation. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

2977–2986.

Li, X., Zhao, F., and Guo, Y. (2014). Multi-label image

classiﬁcation with a probabilistic label enhancement

model. In Proceedings of the Conference on Uncer-

tainty in Artiﬁcial Intelligence, volume 1, pages 1–10.

Lim, J.-S., Astrid, M., Yoon, H.-J., and Lee, S.-I. (2021).

Small object detection using context and attention. In

Proceedings of the International Conference on Arti-

ﬁcial Intelligence in Information and Communication,

pages 181–186.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017). Feature pyramid networks

for object detection. In Proceedings of the IEEE/CVF

A General Context Learning and Reasoning Framework for Object Detection in Urban Scenes

101

Conference on Computer Vision and Pattern Recogni-

tion, pages 2117–2125.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P., Ra-

manan, D., Doll

ar, P., and Zitnick, C. L. (2014). Mi-

crosoft coco: Common objects in context. In Proceed-

ings of the European Conference on Computer Vision,

pages 740–755.

Maas, A. L., Hannun, A. Y., and Ng, A. Y. (2013). Rectiﬁer

nonlinearities improve neural network acoustic mod-

els. In Proceedings of the ICML Workshop on Deep

Learning for Audio, Speech and Language Process-

ing.

Mac Aodha, O., Cole, E., and Perona, P. (2019). Presence-

only geographical priors for ﬁne-grained image clas-

siﬁcation. In Proceedings of the IEEE/CVF Interna-

tional Conference on Computer Vision, pages 9596–

9606.

Pennington, J., Socher, R., and Manning, C. D. (2014).

Glove: Global vectors for word representation. In

Proceedings of the Conference on Empirical Methods

in Natural Language Processing, pages 1532–1543.

Ren, S., He, K., Girshick, R. B., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 39:1137–1149.

Sun, J. and Jacobs, D. W. (2017). Seeing what is not there:

Learning context to determine where objects are miss-

ing. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

5716–5724.

Wang, X., Chen, J., Tang, H., and Zhu, Z. (2022). Multiclu:

Multi-stage context learning and utilization for store-

front accessibility detection and evaluation. In Pro-

ceedings of the International Conference on Multime-

dia Retrieval, ICMR ’22, page 304–312, New York,

NY, USA. Association for Computing Machinery.

Wang, X. and Ji, Q. (2015). Video event recognition with

deep hierarchical context model. In Proceedings of

the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 4418–4427.

Wang, X. and Ji, Q. (2017). Hierarchical context mod-

eling for video event recognition. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

39 9:1770–1782.

Wu, J., Zhou, C., Zhang, Q., Yang, M., and Yuan, J.

(2020). Self-mimic learning for small-scale pedes-

trian detection. In Proceedings of the 28th ACM In-

ternational Conference on Multimedia, MM ’20, page

2012–2020, New York, NY, USA. Association for

Computing Machinery.

Yang, J., Lu, J., Lee, S., Batra, D., and Parikh, D. (2018).

Graph r-cnn for scene graph generation. In Proceed-

ings of the European Conference on Computer Vision,

pages 670–685.

Yang, S., Luo, P., Loy, C.-C., and Tang, X. (2015). From fa-

cial parts responses to face detection: A deep learning

approach. In Proceedings of the IEEE international

conference on computer vision, pages 3676–3684.

Yang, X., Yang, X., Liu, M.-Y., Xiao, F., Davis, L. S., and

Kautz, J. (2019). Step: Spatio-temporal progressive

learning for video action detection. In Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 264–272.

Zhang, S., Benenson, R., and Schiele, B. (2017). Cityper-

sons: A diverse dataset for pedestrian detection. In

Proceedings of the IEEE/CVF conference on com-

puter vision and pattern recognition, pages 3213–

3221.

Zhou, C. and Yuan, J. (2018). Bi-box regression for pedes-

trian detection and occlusion estimation. In Proceed-

ings of the European Conference on Computer Vision.

Zhu, A., Gao, R., and Uchida, S. (2016). Could scene con-

text be beneﬁcial for scene text detection? Pattern

Recognition, 58:204–215.

Zhu, C., Chen, F., Ahmed, U., Shen, Z., and Savvides,

M. (2021). Semantic relation reasoning for shot-

stable dew-shot object detection. In Proceedings of

the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 8782–8791.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

102
