Teleo-Reactive Agents in a Simulation Platform

Vasileios Apostolidis-Afentoulis

and Ilias Sakellariou

Department of Applied Informatics, School of Information Sciences, University of Macedonia,

156 Egnatia Str., GR-54636 Thessaloniki, Greece

Keywords:

Agent Based Modeling and Simulation, Simulation Languages and Platforms, Teleo-Reactive Agents,

NetLogo.

Abstract:

Agent based modeling and simulation (ABMS) has been applied to a number of research areas including

economics, social sciences, urban planning, epidemiology etc. with signiﬁcant success. Agent simulation

platforms have long been the principal tool, contributing to the wide adoption of ABMS, offering rapid model

development for researchers in various ﬁelds. However, in most of the cases, agent behaviour in simulations

is encoded employing standard or domain speciﬁc programming languages, with limited support for agent

programming at a higher level. The present work contributes towards this direction, presenting an imple-

mentation of the Teleo-Reactive approach proposed by Nilsson for robotic control, to a well known ABMS

platform, NetLogo. The aim is to allow modelers to encode complex agent models easily and thus to enhance

the impact of ABMS to the respective ﬁelds.

1 INTRODUCTION

Agent-based Modeling & Simulation (ABMS) is a

powerful technique with a wide range of applications

in recent years, that advocates the idea of system mod-

eling as a collection of autonomous decision-making

entities. Each entity (agent), makes decisions based

on its perception of the world, possibly an internal

state and an executable speciﬁcation of its behavior.

Acting in a shared with other agents environment,

leads to agent interaction resulting to the emergence

of complex patterns, providing valuable insights into

the dynamics of the actual system under considera-

tion.

Although a large number of simulation platforms

have been proposed, for instance 85 are reported by

Abar et al. in (Abar et al., 2017), quite a few offering

modeling of more complex (intelligent) agents, bal-

ancing between ease of use and modeling power of

simulated entities is still an open research issue. For

instance, Belief-Desire-Intention (BDI) agents (Rao

et al., 1995), one of the most studied approaches in

programming multi-agent systems, has been shown

to provide signiﬁcant beneﬁts to social simulations

(Adam and Gaudou, 2016), however, has not received

a wider acceptance, possibly due to the fact that pro-

https://orcid.org/0000-0002-4147-7011

https://orcid.org/0000-0003-3522-6045

gramming agents in such high level declarative ab-

stractions is not a common skill among researchers

of ﬁelds outside computer science (and in many cases

not even withing the latter). This can be attributed to

an extent to the lack of logic programming skills, that

presents a major obstacle in the adoption of BDI and

particular AgentSpeak as its one of the most common

implementations.

An approach that provides such a balance in

programming goal directed agents operating in dy-

namic environments, goal monitoring and replanning

in a single elegant package, yet maintaining concep-

tual simplicity, is Teleo-Reactive (TR) programming

(Nilsson, 1993; Nilsson, 2001). TR programs address

issues such as gradually achieving the agent’s goal,

while gracefully responding to failures and environ-

ment changes, characteristics derived from their de-

sign target that was originally real world robotic sys-

tems. This makes TR an interesting agent behaviour

modeling choice for agents in simulation platforms,

that the current work introduces. Indeed, we support

that robotic agents and agents in a simulation envi-

ronment with a spatial dimension, share quite a few

characteristics.

Thus, the main contribution of the current work

is to present TR-TURTLES, an initial attempt of sup-

porting Teleo-Reactive programming in a general pur-

pose agent based simulation platform, i.e. NetLogo,

Apostolidis-Afentoulis, V. and Sakellariou, I.

Teleo-Reactive Agents in a Simulation Platform.

DOI: 10.5220/0011635300003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 1, pages 26-36

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

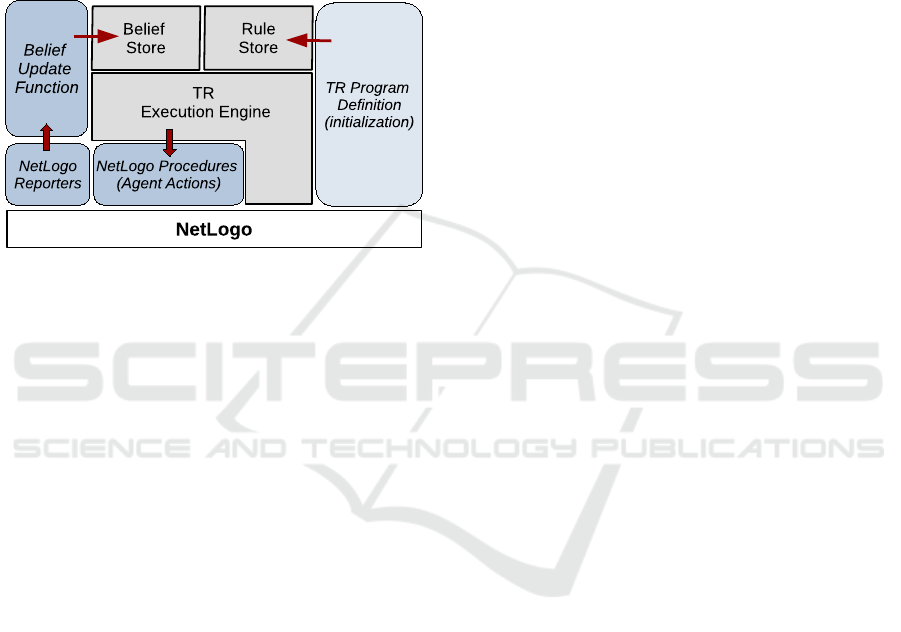

through a meta-interpreter. We address issues such as

syntactic support, belief store updates, rule action se-

mantics, and provide a preliminary evaluation of the

implementation.

To this end, the rest of the paper is organised as

follows. Section 2 provides an overview of a subset

of available ABMS platforms, focusing on their sup-

port for complex agent modeling. The Teleo-Reactive

approach is brieﬂy presented in Section 3. The intro-

duction of the TR approach in NetLogo is presented

in Section 4, and Section 5 presents an example of an

agent simulation developed in TR-TURTLES. The ex-

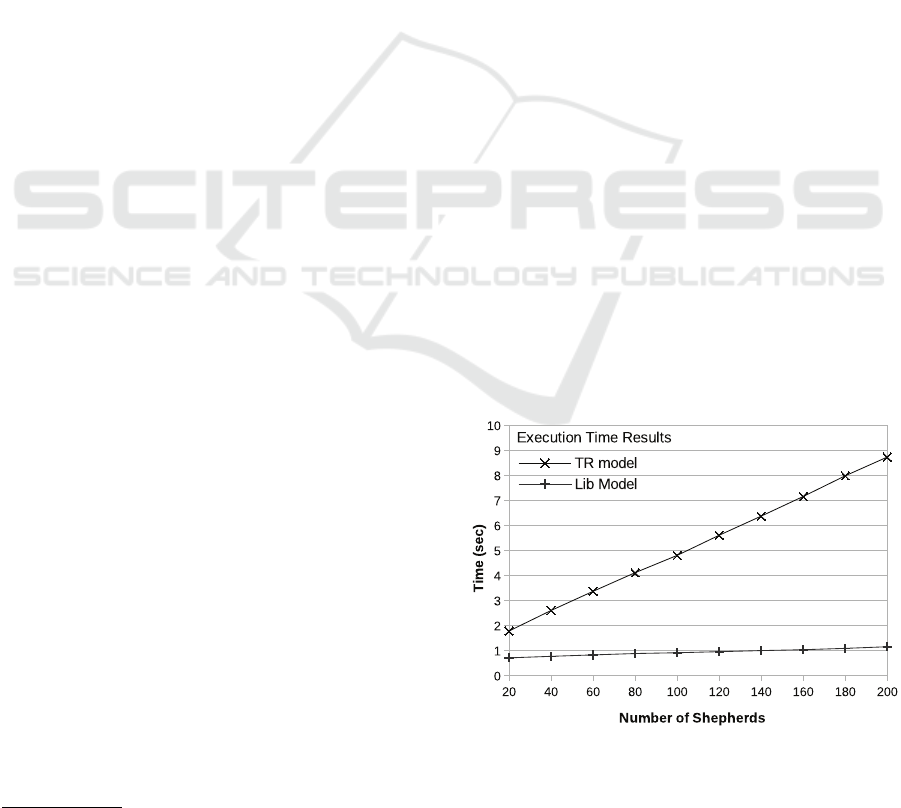

ecution overhead introduced by the meta-interpreter

along with some preliminary results is discussed in

Section 6. Finally, Section 7 concludes the paper and

discusses future directions.

2 COMPLEX AGENTS IN ABMS

PLATFORMS

A review of the all the available agent-based simula-

tion platforms exceeds the scope of this paper. There

are numerous review papers that address the subject

and provide classiﬁcations of active and not so active

platforms, as for instance (Abar et al., 2017; Kravari

and Bassiliades, 2015; Railsback et al., 2006). Thus,

the current section mainly reports on three, widely

used, open source, actively maintained platforms, that

are “general-purpose”, i.e. do not target a speciﬁc ap-

plication area. For instance, MATSim (Horni et al.,

2016), has been extended to provide support for BDI

(Padgham et al., 2014), however, given that it targets

transportation simulations, it is not included. Thus,

Repast, GAMA and NetLogo are brieﬂy described fo-

cusing on their support in modeling complex agents.

The Repast Suite, (Repast Simphony (North et al.,

2013), Repast HPC (Collier and North, 2013) and re-

cently Repast for Python, are a set of agent-based

modeling and simulation platforms, sharing some

common concepts, but targeting different computa-

tional environments, i.e. workstations vs high perfor-

mance computing (HPC). Agent models can be devel-

oped in mainstream general programming languages

Java and Groovy, and ReLogo which can be consid-

ered as domain speciﬁc language following the syntax

and semantics of NetLogo. To ease the development

of complex agents, Repast Simphony supports en-

coding agent behaviour using statecharts (Ozik et al.,

2015), with an automatic compilation of the latter to

Java and integration to the simulation environment.

Adding programming constructs and agent con-

cepts such as ACL and interaction protocols to Repast

has also been considered in a number of projects like

MISIA (Garc

ıa et al., 2011), Jrep (Gormer et al.,

2011) and SAJaS (Cardoso, 2015). The approach

in SAJaS, targets mainly a software engineering ap-

proach to assist JADE based systems to be tested be-

fore deployment, or modelers interested in FIPA com-

pliant simulations latter turned to full MAS systems,

bridging “the gap between MAS simulation and de-

velopment”.

Although there is no ofﬁcial BDI agent support in

Repast, work in (Padgham et al., 2011) reports on a

BDI model in JACK implemented in a modiﬁed ver-

sion of Repast City ABM model, where authors ex-

plored synchronization issues between the BDI sys-

tem and Repast, to allow a reliable simulation and

modeling. The simulation framework consists of the

ABM model (sensor-actuator agents) and the BDI

model (reasoning agents) to provide high-level de-

cision making. It supports interaction between the

two models via actions, percepts, sensing actions and

time-stepping, using a message passing protocol.

GAMA (Taillandier et al., 2019) is a platform that

supports development of spatially explicit simulations

with a wide variety of agents. It offers a complete de-

velopment environment, 2D/3D visualizations, sup-

port for integrating Geographical Information System

(GIS) data, and multi-level modeling. Modelers de-

velop simulations in GAML, that supports agent con-

trol using ﬁnite state machines, task-based architec-

tures, i.e. choosing a task on a number of strate-

gies, reactive style rule-based architectures (i.e. re-

ﬂex rules), and other control architectures that are

available as additional plugins. Gamma supports BDI

through BEN (Bourgais et al., 2020), explicitly han-

dling beliefs, desires and intentions, however intro-

ducing also more advanced aspects of agency such as

emotions and norms, integrating theories such as the

OCEAN model for representing personality features,

OCC model for emotions, explicitly representing so-

cial relations, thus leading to a rich representation of

agent characteristics and interactions.

NetLogo (Tisue and Wilensky, 2004) is a versa-

tile programming environment that enables the cre-

ation of complex system models, in an easy to use

manner. An extensive library of models from various

ﬁelds (economics, biology, physics, chemistry, psy-

chology, etc.), combined with user friendliness, con-

tributed to its wide adoption. Although NetLogo tar-

gets mainly simple agents, a number of approaches

have been proposed towards supporting more com-

plex behavioural models. Work reported in (Sakellar-

iou, 2012) provides a domain speciﬁc language and an

execution engine that allows the encoding of agents

controlled by state machines. Other state based mod-

els, such as Stream X-Machines (Harwood, 1998),

Teleo-Reactive Agents in a Simulation Platform

i.e. state-based machines extended with a memory

structure and functions that guard transitions between

states, have been introduced in NetLogo (Sakellar-

iou et al., 2015), along with an approach to agent

testing. A limited support for BDI agents and FIPA

ACL message passing has been reported in (Sakellar-

iou et al., 2008), that provides the necessary primi-

tives through a set of procedures and functions. In

all previous approaches, authors provided implemen-

tations in the NetLogo language. In contrast, (Luna-

Ramirez and Fasli, 2018) integrates Jason (Bordini

et al., 2007) (one of the most complete implementa-

tions of AgentSpeak in Java), with NetLogo to pro-

vide a disaster rescue scenario, by having the latter

acting as the environment in the Jason platform and

providing a link between the two.

Finally, it should be noted that the question of

bridging the gap between simulation platforms and

agent programming, by providing a framework to in-

tegrate “off-the-self” BDI systems and agent simula-

tion platforms, has been addressed in (Singh et al.,

2016). The latter describes a layered architecture to

that allows any BDI programming language to “act as

the brains” of simulated entities. In the same vein, an

approach to multi-level simulation, integrating a cog-

nitive BDI layer, a social layer based on diffusion the-

ory in social networks and an agent based simulation

platform, each corresponding to the cognitive, social

and physical layers necessary, is described in (Bulu-

mulla et al., 2022), that employees MATSim (Horni

et al., 2016) as the simulation platform, as an exam-

ple.

To our knowledge, an attempt to integrate the

Teleo-Reactive paradigm in a “general purpose” sim-

ulation platform has not been reported before.

3 THE TELEO-REACTIVE

APPROACH

The Teleo-Reactive approach was originally intro-

duced by Nilsson (Nilsson, 1993), aiming to merge

control theory and computer science notions, in order

to offer an elegant way to encode agent behaviour in

dynamic environments. Thus, a Teleo-Reactive se-

quence (TR) is an ordered list of production rules,

guarded by environment conditions (K

) that initiate

actions (a

→ a

. . . K

→ a

Rule ordering dictates a top-down ﬁring prior-

ity, i.e. rules appearing early in the sequence have

a higher priority. Thus, the condition K

implicitly

contains the negation of all previous rule conditions

| j < m}.

Goal directed behaviour (teleo) is achieved by

appropriately designing TR sequences to satisfy the

regression property (Nilsson, 1993; Nilsson, 2001):

each lower priority rule action is expected to achieve

the condition of a higher priority rule, gradually lead-

ing to the achievement of the top-level goal, appearing

as a condition of the ﬁrst rule. Constantly monitoring

the environment and evaluating rule conditions guar-

antees reactivity and ensures that the highest priority

rule is always ﬁred. Nilsson further deﬁnes complete-

ness, as the property of TR sequences, in which the

disjunction of all their rule conditions is a tautology.

Sequences that satisfy both regression and complete-

ness are universal, i.e. in the absence of sensing or

action errors will eventually achieve their goal.

In TR programs, primitive actions are either dis-

crete, i.e. are applied once the corresponding rule

ﬁres, or durative, i.e. actions applied while the cor-

responding rule condition is true. This distinction,

that originates from the need to provide smooth ac-

tion execution in continuous real world robotic envi-

ronments, has some interesting implications in simu-

lation environments, discussed in Section 4.2. Apart

from primitive actions, the right hand side (RHS) of

a rule can invoke a TR program. However, the lat-

ter does not follow the classical procedure invoca-

tion in programming languages, i.e. there is no “re-

turn” primitive: conditions are continuously assessed

for the discovery of the next rule to be ﬁred (Nils-

son, 1993). Finally, TR programs can contain vari-

ables, bound at the execution time to offer generality

in programming agent behaviour. The TR approach

presents quite a few similarities with other reactive

approaches, most notably that of Brooks (Brooks,

1986). An extensive comparison can be found in

(Nilsson, 1993).

Although with a very appealing simplicity, TR

has to overcome issues common in purely reactive

architectures that arise due to complexity. Nilsson

proposed the “Triple Tower” architecture (Nilsson,

2001), enhancing the simple TR approach, with a

deductive rules component (“Percepts Tower”) em-

ployed to populate the “Model Tower” with beliefs,

used by the TR programs in “Actions Tower”. To-

wards the same goal, Coffey and Clark (Coffey and

Clark, 2006) proposed a hybrid architecture that com-

bines BDI with TR, having the latter as plans in the

former, yielding signiﬁcant advantages, such as efﬁ-

cient intention suspension due to the stateless nature

of TR programs.

TeleoR (Clark and Robinson, 2015) is an exten-

sion of the Nilsson’s Teleo-Reactive paradigm, imple-

mented in an extended logic programming language

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

Qu-Prolog (Quantifer Prolog) (Staples et al., 1989).

TeleoR provides types and higher-order functions that

create a safeguard for the correct instantiating of agent

(robotic) actions to prevent run-time errors. Beliefs

are handled via the QuLog (Robinson et al., 2003)

(which runs on top of Qu-Prolog), offering a rich rule

based language, to encode belief maintenance. Rules

have been extended with while and until conditions,

that allow rule commitment while a condition is true

or until a condition becomes true (i.e. inferable from

the belief base) respectively, within a TR procedure.

The action part of TR rules has been extended to sup-

port parallel actions, time sequenced durative actions,

i.e. an action sequence with predetermined time du-

ration for actions, and wait-repeat annotations to al-

low repeating the application of an action in prede-

termined time intervals (or yield an error if the latter

fails). Finally, message exchange between agents is

supported via Pedro, a logic programming oriented

message passing infrastructure.

There are numerous extensions to the TR

paradigm, and also work that combines TR with other

approaches. For instance, embedding statecharts in

TR programs in order to overcome complexity issues

is discussed in (S

anchez et al., 2017).

Formalising TR semantics has been also inves-

tigated in numerous approaches: in (Kowalski and

Sadri, 2012) authors provide model theoretic seman-

tics by representing TR programs in Abductive Logic

Programming and (Dongol et al., 2010) employs tem-

poral logic over continuous intervals to formalize TR

semantics. A systematic literature review of 53 Teleo-

Reactive-based studies until 2014 can be found in

(Morales et al., 2014).

4 TELEO-REACTIVE AGENTS IN

NetLogo

The requirements that underline the TR-TURTLES

approach are as follows:

• offering modelers the ability to encode complex

agent behaviour by embedding Teleo-Reactive

rules in NetLogo syntax,

• low installation cost and an implementation ap-

proach that will survive the frequent evolutions

of the NetLogo platform, with minimal to none

changes,

• ease of use, small learning curve and compliance

with the interactive style of model development in

NetLogo and well as to its modeling approach.

Regarding the ﬁrst requirement, the original

TeleoR syntax has been modiﬁed slightly, while keep-

ing the basic form of TR programs, as described the

following sections. It has to be noted however, that

the current implementation does not support a num-

ber of features that a full system like QuLog/TeleoR

supports; some important features, such as supporting

variables in rules, have still to be considered as their

introduction involves some considerations and design

choices.

The second requirement was addressed by devel-

oping the meta-interpreter in the modeling language

of NetLogo. The latter has a functional ﬂavour,

supporting for instance anonymous functions, how-

ever provides a rather limited number of primitives

for some common operations, such as strings. Al-

though such an implementation choice appears to be

an unconventional approach to that of extending the

simulation platform’s functionality via the provided

JAVA/SCALA language API, we found it possible to

develop the meta-interpreter using the facilities pro-

vided by the language. This decision might demand a

higher programming effort, however, it presents two

important beneﬁts. The ﬁrst is that the implemen-

tation is more likely to survive changes in the Net-

Logo platform as the latter evolves, since it is ex-

pected that newer versions will preserve backward

compatibility in the NetLogo language or at least in-

troduce minimal changes. Thus, it minimizes the

number of dependencies. The second concerns the

fact that it allows to encode agent sensors and actu-

ators as NetLogo commands and reporters, the eval-

uation/execution of which is controlled by the meta-

interpreter. Thus, solves the problem of interfacing

TR-TURTLES to the underlying simulation platform.

Similar approaches have been used in the past for en-

coding complex agent behaviour as reported for in-

stance in (Sakellariou et al., 2008).

The third requirement is also addressed by hav-

ing the meta-interpreter as a NetLogo command that

each “intelligent” turtle invokes to determine its next

action, simulations involving TR programs control-

ling NetLogo agents can be developed incremen-

tally, following the interactive style programming

that the NetLogo platform offers. Additionally, TR-

TURTLES follows the basic simulation approach com-

monly found in all NetLogo models, that is to proceed

the simulation in cycles, each typically corresponding

to one time unit (tick in NetLogo terms), meaning that

the agent can perform (again typically) a limited num-

ber of actions in each simulation cycle.

The overall architecture of TR-TURTLES is pre-

sented in Fig. 1. Brieﬂy, the modeler has to provide

the simulation environment, the agent sensors and ef-

fectors as NetLogo reporters and procedures. In or-

der to specify the behaviour of a set of agents (breed

Teleo-Reactive Agents in a Simulation Platform

in NetLogo terms) using TR-TURTLES, the modeler

(a) deﬁnes the former in a NetLogo procedure using

the syntax described in Fig. 2 (populating the Rule

Store with the TR rules), and (b) provides the belief

update “callback” function translating sensory input

to beliefs to update the Belief Store. The execution of

the agent is then controlled by TR-TURTLES: in each

simulation cycle the meta-interpreter (TR Execution

Engine) invokes the “callback” function and executes

the respective agent actions.

Figure 1: The overall TR-TURTLES architecture.

As mentioned in Section 3 a TeleoR program con-

sists of a set of guarded action rules, organised in pro-

cedures. In TR-TURTLES we follow a syntax that is

close to the one described in QuLog/TeleoR (Clark

and Robinson, 2003; Clark and Robinson, 2015), and

support many features introduced in the latter. The

sections that follow present TR-TURTLES in more de-

tail, starting with the guarded action rules description.

4.1 Guarded Action Rules

Probably the most important component of TR-

TURTLES is the guarded action rule that has the fol-

lowing form:

# Condition --> Actions ++ [Side Effects] .

A Condition is a possible conjunction (&) of strings,

each representing a potential match to a belief that ex-

ists in the Belief Store. Actions are string representa-

tions of NetLogo commands, i.e. the effectors of the

agent, possibly arranged for parallel or sequential ex-

ecution. Informally, an action can be either:

• A single action, e.g. "move-forward".

• A list of actions enclosed in "[" and

"]", executed in parallel, e.g ["blink"

"move-forward"]. Placing actions in such

a list implies that the modeler considers that such

actions can indeed be executed in parallel by the

agent: this is a modeling choice.

• Time sequenced actions (Clark and Robinson,

2015), in which the sequential operator is ":",

where each action is executed for N simulation

steps (ticks), before proceeding to the next

action in the list, e.g "blink" : ["blink"

"move-forward"] for 10 : "rotate" for

18 : "blink" : "move-forward" for 10.

• wait repeat actions, that in the case that an ac-

tion has not led to a change in the environment

that leads to a different rule ﬁring, are control-

lably repeated, e.g. "ungrasp" wait-repeat 2

10, imposes that the action "ungrasp" will be

executed 10 times, with a 2 time units interval

between tries. After that time has elapsed, TR-

TURTLES will signal an error.

• a single procedure call.

For further clariﬁcation on how the above can be

combined, the grammar of TR-TURTLES is provided

in Fig. 2.

Side Effects are actions to be called at the end of

the execution rule, and in the case of TR-TURTLES,

can be any anonymous NetLogo command, even

adding a belief in the store (see Section 4.3), that

the agent would like to assert when an action is com-

pleted.

Procedures are collections of guarded action rules

under a name, that can be called as the single action

of a ﬁring rule. Since, the latter do not terminate as in

ordinary languages, i.e. by returning a value, a change

in the belief base leads to a re-evaluation of the com-

plete procedure stack. The modeler has to state the

initial procedure to be activated, when the agent starts

its execution via the set-goal keyword.

4.2 Discrete and Durative Actions

Given that the NetLogo simulation environment sup-

ports the notion of a time unit (tick), typically advanc-

ing in each simulation cycle, we assume that a dis-

crete (or ballistic) action lasts for a single time tick,

i.e. a single simulation circle. On the other hand a

durative action can span its execution over multiple

cycles, i.e. creating a sequence of “discrete instances”

of the action that are executed until the rule is dese-

lected: we follow the approach stated by Lee & Dur-

fee (Lee and Durfee, 1994), where we consider as the

“characteristic frequency” of the execution cycle and

the environment to be equal, i.e. the simulation cycle

frequency.

This can have a number of interesting implica-

tions. A list of parallel actions, can contain both dis-

crete and durative actions. In the ﬁrst execution of the

corresponding rule, all actions get executed in a singe

time step (thus in parallel), however, in subsequent

executions only durative actions in the list are exe-

cuted. Thus, an action list [a

, a

. . . a

] where

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

hTRProgrami ::= "tr-init" hBeliefsDi hActionDi hProceduresi

hBeliefsDi ::= "belief-update-function" hNetLogoProci

"beliefs" "[" hBeliefi

∗

"]"

hBeliefi ::= "string"

hActionDi ::= "durative-actions" "["hActionDescri

∗

"]"

"discrete-actions" "["hActionDescri

∗

"]"

hProceduresi ::= hProcedurei

"set-goal" hPNamei

hProcedurei ::= "procedure" hPNamei hGuardedRulei

∗

"end-procedure"

hPNamei ::= "string"

hGuardedRulei ::= hGuardi "--->" hActionsi ("++" hNetLogoProci)? "."

hGuardi ::= hBeliefi ("&" hBeliefi)

∗

| "true"

hActionsi ::= hAnotActioni | hPNamei

hAnotActioni ::= hActioni

| hActioni "wait-repeat" W R

| hActioni "for" N ( ":"hActioni( "for" N)?)

∗

hActioni ::= hActionDescri | "[" hActionDescri

"]"

hActionDescri ::= "string"

hNetLogoProci ::= Anonymous NetLogo Procedure Call

Figure 2: TR-TURTLES grammar. Note that W, R and N are integers.

, are durative actions, whereas a

are discrete, is in-

terpreted as a sequence of parallel actions of the form:

, a

. . . a

]

: [a

, a

, . . . a

]

: ··· :

, a

, . . . a

]

where t

. . . t

are the consecutive time points the cor-

responding rule is active, i.e. no changes happened in

the belief base.

However, there is a crucial point that needs to be

addressed in the above. If a change in the belief store

did occur, and the same rule was selected once more,

there are two options in order to handle action execu-

tion: either (a) continue with the current set of actions,

as if no change occurred in the belief base, or (b) con-

sider the rule as a new instance, and start the execu-

tion of the sequence, once more, including discrete

actions. TR-TURTLES has adopted the ﬁrst option (a)

as discussed in (Clark and Robinson, 2020).

Thus, it is important that the modeler clearly de-

ﬁnes the type of the corresponding action. This is

achieved by having action mode declarations in the

TR agent speciﬁcation, listing each set of durative and

discrete actions (Fig. 2). For instance:

durative-actions ["move-forward" "rotate"]

discrete-actions ["ungrasp" "grasp" "blink"]

4.3 Agent Perception, Beliefs and

Updates

The handling of agent percepts must easily interface

the agent with the NetLogo environment, while sup-

porting the semantics of the TR approach. Thus, the

modeler has to provide a belief update command, and

include in the latter the detection of all the necessary

environment “events” that the agent should observe

(Fig. 1). Both the belief update function and the

set of beliefs (for type checking) have to be declared

in the TR-TURTLES program (Fig. 2). It should

be noted that the meta-interpreter expects a NetLogo

anonymous procedure in the declaration, in order to

be stored in the appropriate structure and called in

each cycle, automatically.

Upon the detection of such an environment event,

the modeler has to update the store with the corre-

sponding belief or inform the store that the speciﬁc

belief should be removed. This is achieved by two

commands that handle the belief addition/removal

(add-belief, no-belief respectively) in the store

and record whether a change occurred. For instance:

[add-belief "can-move-ahead"]

[no-belief "see-can"]

Currently, beliefs are represented as simple

strings. Not supporting the versatility variables can

offer, is indeed a major limitation of the current im-

plementation, and is one of the main future exten-

sions. However, adding variables poses a design

choice: although introducing logical variables “ala

Prolog”, i.e. single assignment variables taking val-

ues via uniﬁcation is the current most widely applied

choice in agent languages (i.e. in Jason (Bordini et al.,

2007) for instance), this certainly lies outside the pro-

gramming vein that a NetLogo modeler is accustomed

to and might present a challenge to the latter. We

Teleo-Reactive Agents in a Simulation Platform

are currently investigating alternative design choices

to support more general belief representations.

Beliefs form the guard part of each rule and can

appear in conjunctions (Fig. 2). Currently, due to

the lack of variables and the ﬁnite number of be-

liefs to be handled (due to the declaration) the meta-

interpreter maintains in the store explicitly the truth

value of each belief. However, with the introduction

of variables, the approach adopted will most likely

follow the closed world assumption, although the ex-

plicit negated beliefs such as those in Jason could be

adopted.

4.4 Implementation

The TR-TURTLES meta-interpreter comes as a set of

ﬁles (*.nls) to be included in any NetLogo model.

This approach, allows users to deploy TR-TURTLES

agents in parallel with agents following any other ap-

proach in the same simulation environment, as long

as the model respects the semantics of the simulation

cycle. In order to support the syntax described in Fig.

2, each punctuation symbol corresponds to a NetLogo

reporter that builds the internal representation of the

guarded rules, to be executed by the meta-interpreter.

Currently, minimum type checking is performed in

the belief update functions. The TR program that the

modeler speciﬁes is loaded once at the initialization

of the agent: all guarded rules are translated to anony-

mous NetLogo procedures and stored for later execu-

tion in a turtle variable. In each simulation cycle, the

meta-interpreter is invoked by “asking” the agent to

execute the top-level command execute-tr-rules,

provided by TR-TURTLES. The current implementa-

tion is publicly available in the GitHub repository

5 COLLECTING CANS: AN

ILLUSTRATIVE EXAMPLE

This section presents a simple simulation of an agent

collecting cans in a room that originally appeared in

(Dongol et al., 2010), slightly extended in order to

demonstrate the application of more complex rules. In

this simple setting, the agent collects cans in a room

to deposit them to a number of bins (depots). In or-

der to demonstrate the reactive features of the TR ap-

proach, depots move randomly inside the room and

switch with a speciﬁed frequency between two states,

those of accepting and not-accepting cans. However,

this state is invisible to the robotic agent, i.e. the agent

has no sensor to detect the state of the can, resulting

https://github.com/isakellariou/teleoTurtles

in some cases to a failed action, i.e. one that does

not change the environment. Robotic sensors for de-

tecting the location of cans and depots have a limited

range, implying that the robot has to engage in a wan-

dering behaviour in order to ﬁnd the respective posi-

tions. Thus, a robotic agent has to locate a can, pick it

up, reach a depot, possibly follow it in case the depot

moves away and try (multiple times) to drop the can.

The TR code specifying the behaviour of the agent

is depicted in Fig. 3. All the TR-TURTLES code re-

garding single agent is inside a NetLogo procedure

(named in this case tr-code-of-robots), that is to

be called once during initialization of the respective

turtle in NetLogo.

The belief update function, that is called by

the TR-TURTLES meta-interpreter automatically in

each simulation cycle, is speciﬁed using the keyword

belief-update-function, followed by the belief

declarations in the next line. The meta-interpreter as-

sumes that the modeler will provide a NetLogo pro-

cedure under the name update-robot-beliefs, responsi-

ble for updating beliefs. For instance, in the example,

the agent detects within its ﬁeld of view a depot and

populates the store with the corresponding belief, as

shown below:

to update-robot-beliefs

ifelse any? depots in-cone

view-distance view-angle

[add-belief "see-depot"]

[no-belief "see-depot"]

...

end

Given that the above procedure can contain any

NetLogo code, the modeler can encode any agent sen-

sors, thus providing full integration of TR-TURTLES

with the simulation environment. There are two

durative actions in the model, move-forward and

rotate that model motion. Discrete actions grasp

and ungrasp, control the robotic arm, while blink is

a dummy discrete action that changes the color of the

agent to indicate that it is in the process of delivering

a can. Each action is expected to appear as a NetLogo

procedure in the model.

Finally, TR rules in this simple example are

included in two procedures, the top-level one

(clean-cans) and wander, the latter implementing

the wandering behaviour of the agent in the cases that

it is holding a can or looking for a can. It is interesting

to note two rules in the above TR program. The ﬁrst is

a wait-repeat rule that attempts to deliver the can by

trying the action ungrasp in 2 ticks intervals for ten

times, and the ﬁrst rule of procedure wander, that is

a timed sequence of two actions (move-forward and

rotate) that generates a wandering behaviour. The

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

to tr-code-of-robots

tr-init

belief-update-function [[] -> update-robot-beliefs]

beliefs ["holding" "at-depot" "see-depot" "see-can" "touching" "can-move-ahead"]

durative-actions ["move-forward" "rotate"]

discrete-actions ["ungrasp" "grasp" "blink"]

procedure "clean-cans"

# "holding" & "at-depot" --> "ungrasp" wait-repeat 2 10

++ [[]-> show "At-deport - Delivered"] .

# "holding" & "see-depot" & "can-move-ahead" --> ["blink" "move-forward"] .

# "holding" --> "wander" .

# "touching" --> "grasp" .

# "see-can" & "can-move-ahead" --> "move-forward" .

# "true" --> "wander" .

end-procedure

procedure "wander"

# "can-move-ahead" --> "move-forward" for 2 : "rotate" for 1 .

# "true" --> "rotate".

end-procedure

set-goal "clean-cans"

end

Figure 3: The TR-TURTLES code for the robotic agent.

model’s code is publicly available

6 TR-Turtles EXECUTION

OVERHEAD

Naturally, introducing an execution layer above the

programming layer of NetLogo yields some perfor-

mance penalties. In order to evaluate these penalties

and assess the scalability of TR-TURTLES, the “Shep-

herds” NetLogo library model in TR-TURTLES was

implemented and compared with the implementation

provided in the distribution.

There were two sets of experiments carried on the

same models. One set is concerned with evaluating

the “core” library in terms of execution speed. In

this set all GUI elements (plots, environment updates)

were turned off, measuring the time (wall time) it

takes to execute 4000 time units (ticks) in the two ap-

proaches. Additionally, the ﬁrst set evaluates through

a measure existing in the original “Shepherds” model,

whether the two models produce the same behaviour.

The second set of experiments measures execution

time under active GUI elements. The experiments

were conducted on a desktop machine with 8GB of

RAM, Intel i7-8700 CPU (4.60GHz) processor and

NetLogo 6.3.0.

For the ﬁrst set, a varying number of “shepherds”

(TR agents) were introduced in the simulation and

for each such population one hundred different initial

environments were initialised, by setting the random

generator seed to speciﬁc values (ranging from 10 to

https://github.com/isakellariou/teleoTurtles

100, with step 10) and a varying number of sheep

(ranging from 50 to 500, with step 50). Each combi-

nation of environment/number of agents was executed

three times, creating a total, of 3000 experiments.

Results are presented in Table 1, where column

“Mean” depicts the average execution time, along

with its standard deviation (STD), whereas column

“Median” depicts the median value for experiments,

each for a different number of shepherds.

As expected, the TR-TURTLES meta-interpreter

introduces an overhead. However, the execution time

grows linearly with respect to the number of TR

agents, as shown in Fig. 4. The current implemen-

tation is not optimised in a number of ways: for in-

stance, type checking beliefs is done at runtime, in-

troducing a time penalty in every addition of a belief.

Figure 4: Execution time w.r.t. the number of agents in the

Shepherds model and diverse seed.

In order to access how close the two models are in

Teleo-Reactive Agents in a Simulation Platform

Table 1: Execution time (wall time in sec) results (no GUI elements,4000 ticks, diverse seed values and number of sheep).

Lib Model TR Model

Shepherds Mean STD Median Mean STD Median

20 0.71 0.13 0.71 1.78 0.23 1.79

40 0.77 0.13 0.77 2.60 0.27 2.61

60 0.83 0.12 0.83 3.37 0.29 3.37

80 0.88 0.13 0.88 4.11 0.32 4.13

100 0.91 0.12 0.91 4.80 0.36 4.81

120 0.95 0.12 0.95 5.61 0.37 5.62

140 1.00 0.12 1.00 6.37 0.40 6.40

160 1.03 0.12 1.03 7.15 0.46 7.19

180 1.09 0.12 1.08 7.98 0.50 8.01

200 1.15 0.13 1.14 8.73 0.58 8.76

terms of agent behaviour, we are using a measure that

exists in the original simulation, herding efﬁciency,

that is computed by counting the number of patches

that have no sheep in their neighborhood. As shown

in Table 2, herding efﬁciency results are very close,

an indication that the two models produce the same

behaviour. The large standard deviation reported in

experiments with a small number of agents, is at-

tributed to the fact that a small number of shepherds

in the model cannot efﬁciently handle a large number

of sheep. It is interesting to note that the standard de-

viation is very close in both versions of the model as

shown in the table.

Table 2: Efﬁciency (%) results in simulations with no GUI

elements (4000 ticks), diverse seed values and number of

sheep.

Lib Model TR Model

Sheph Mean STD Mean STD

20 84.19 6.97 84.17 7.06

40 90.46 3.80 90.14 3.88

60 92.83 2.48 92.98 2.55

80 94.06 1.81 94.18 1.81

100 94.53 1.56 94.30 1.48

120 94.55 1.30 94.51 1.28

140 94.69 1.23 94.55 1.21

160 94.68 1.34 94.76 1.31

180 94.42 1.34 94.51 1.14

200 94.38 1.33 94.37 1.51

However, in an interactive simulation environment

such as NetLogo, far more operations occur regard-

ing visualization and experiment monitoring. To pro-

vide an estimate of how, in such cases, a modeler

would perceive in terms of time penalty the use TR-

TURTLES, we conducted experiments in the same

simulation, however measuring time for a smaller

number of ticks. Results are summarized in Table 3

and show that in such interactive simulations, the ex-

ecution time difference is negligible, leading to the

conclusion that in these cases the time spend in other

operations taxes more the overall execution than the

introduction of the meta-interpreter.

This second set, also evaluates how close the two

models are, and as shown in Table 3, herding efﬁ-

ciency results are very close, an indication that the

two models produce the same behaviour. The obser-

vant reader might notice that standard deviation is not

listed for the herding efﬁciency results, in this case:

all experiments were conducted with the same ran-

dom seed, yielding exactly the same value, attributed

to the “reproduciblity of experiments” property of

NetLogo.

7 CONCLUSIONS AND FUTURE

WORK

The introduction of new agent programming lan-

guages in ABMS simulation environments can be of

great importance, since it enables modelers to enrich

simulations with more complex agent behaviours.

Such richer models can indeed prove to be valu-

able in certain ﬁelds, since they alleviate the need

for model simpliﬁcations or increased programming

effort of complex models. To the above end, the

current work presents a ﬁrst attempt to introduce

the Teleo-Reactive paradigm in NetLogo, offering a

meta-interpreter and extending the syntax of the un-

derlying platform to encode TR rules.

We consider that robotic agents have a number of

common characteristics with agents in a simulation

environment that has a spatial dimension. They both

share movement in a dynamic environment, possibly

non deterministic actions, require replanning and goal

monitoring, which is easily offered by the TR ap-

proach (and not so easily in a BDI approach to our

opinion). As a ﬁrst example of its wider applicabil-

ity for general purpose case studies, we chose to re-

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

Table 3: Execution time (wall time in sec) results in simulations with GUI elements (1000 ticks).

Shepherds Lib Av. Time STD Lib Efﬁciency TR Av. Time STD TR Efﬁciency

50 34.26 0.034 71.35 34.32 0.026 71.06

100 34.29 0.026 82.43 34.27 0.036 81.4

150 34.39 0.037 85.57 34.33 0.055 87.07

200 34.29 0.015 88.44 34.24 0.009 86.37

implement the Shepherds model of the NetLogo li-

brary, however we plan to investigate on more models

in the future.

The current implementation can be extended in a

number of ways. The most important extension con-

cerns the introduction of rule variables that will al-

low encoding more complex agent behaviour. Such

an introduction demands extensive parsing machin-

ery, variable operations such as uniﬁcation with pred-

icates in the belief base, in order to impose the nec-

essary semantics regarding variable scope and per-

form type checking as the QuLog/TeleoR language.

Another issue, concerns support for while/until rules

which TR-TURTLES lacks. Reducing the execution

overhead of the current TR approach, by identifying

and introducing optimizations is also an important re-

search direction, that can be signiﬁcant when dealing

with large scale simulations. Finally, exploring in-

tegration of the TR paradigm with other approaches,

such as BDI, as in (Coffey and Clark, 2006), can lead

to a number of interesting research results.

As a ﬁnal note, ABMS platforms can provide an

excellent testbed for investigating issues with respect

to agent programming languages, since they offer

rapid creation complex environments to test ideas on

the latter.

REFERENCES

Abar, S., Theodoropoulos, G. K., Lemarinier, P., and

O’Hare, G. M. (2017). Agent based modelling and

simulation tools: A review of the state-of-art software.

Computer Science Review, 24:13–33.

Adam, C. and Gaudou, B. (2016). Bdi agents in social sim-

ulations: a survey. The Knowledge Engineering Re-

view, 31(3):207–238.

Bordini, R. H., H

ubner, J. F., and Wooldridge, M. (2007).

Programming multi-agent systems in AgentSpeak us-

ing Jason. John Wiley & Sons.

Bourgais, M., Taillandier, P., and Vercouter, L. (2020).

Ben: An architecture for the behavior of social agents.

Journal of Artiﬁcial Societies and Social Simulation,

23(4):12.

Brooks, R. (1986). A robust layered control system for a

mobile robot. IEEE Journal on Robotics and Automa-

tion, 2(1):14–23.

Bulumulla, C., Singh, D., Padgham, L., and Chan, J. (2022).

Multi-level simulation of the physical, cognitive and

social. Computers, Environment and Urban Systems,

93:101756.

Cardoso, H. L. (2015). Sajas: Enabling jade-based sim-

ulations. In Nguyen, N. T., Kowalczyk, R., Duval,

B., van den Herik, J., Loiseau, S., and Filipe, J., ed-

itors, Transactions on Computational Collective In-

telligence XX, pages 158–178. Springer International

Publishing, Cham.

Clark, K. L. and Robinson, P. J. (2003). Qulog: A ﬂexibly

typed logic based language with function and action

rules. Technical report, Imperial College London.

Clark, K. L. and Robinson, P. J. (2015). Robotic agent pro-

gramming in teleor. In 2015 IEEE International Con-

ference on Robotics and Automation (ICRA), pages

5040–5047.

Clark, K. L. and Robinson, P. J. (2020). Chapter 3: in-

troduction to qulog. Programming Communicating

Robotic Agents: A Multi-tasking Teleo-Reactive Ap-

proach.

Coffey, S. and Clark, K. (2006). A hybrid, teleo-reactive

architecture for robot control. In Proceedings of the

2nd International Workshop on Multi-Agent Robotic

Systems - Volume 1: MARS, (ICINCO 2006), pages

54–65. INSTICC, SciTePress.

Collier, N. and North, M. (2013). Parallel agent-based sim-

ulation with repast for high performance computing.

SIMULATION, 89(10):1215–1235.

Dongol, B., Hayes, I. J., and Robinson, P. J. (2010). Reason-

ing about real-time teleo-reactive programs. Techni-

cal report, The University of Queensland, QLD, 4072,

Australia.

Garc

ıa, E., Rodr

ıguez, S., Mart

ın, B., Zato, C., and P

erez,

B. (2011). Misia: Middleware infrastructure to sim-

ulate intelligent agents. In Abraham, A., Corchado,

J. M., Gonz

alez, S. R., and De Paz Santana, J. F., ed-

itors, International Symposium on Distributed Com-

puting and Artiﬁcial Intelligence, pages 107–116,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Gormer, J., Homoceanu, G., Mumme, C., Huhn, M., and

Muller, J. P. (2011). Jrep: Extending repast sim-

phony for jade agent behavior components. In 2011

IEEE/WIC/ACM International Conferences on Web

Intelligence and Intelligent Agent Technology, vol-

ume 2, pages 149–154.

Harwood, C. (1998). Correct Systems: Building a Business

Process Solution, page 206. Springer London.

Horni, A., Nagel, K., and Axhausen, K. W. (2016). The

Multi-Agent Transport Simulation MATSim. Ubiquity

Press, London, GBR.

Teleo-Reactive Agents in a Simulation Platform

Kowalski, R. A. and Sadri, F. (2012). Teleo-reactive abduc-

tive logic programs. In Logic Programs, Norms and

Action: Essays in Honor of Marek J. Sergot on the

Occasion of His 60th Birthday, pages 12–32. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Kravari, K. and Bassiliades, N. (2015). A survey of agent

platforms. Journal of Artiﬁcial Societies and Social

Simulation, 18(1):11.

Lee, J. and Durfee, E. H. (1994). Structured circuit seman-

tics for reactive plan execution systems. In Proceed-

ings of the Twelfth AAAI National Conference on Arti-

ﬁcial Intelligence, AAAI’94, page 1232–1237. AAAI

Press.

Luna-Ramirez, W. A. and Fasli, M. (2018). Bridging the

gap between abm and mas: A disaster-rescue simula-

tion using jason and netlogo. Computers, 7(2).

Morales, J. L., S

anchez, P., and Alonso, D. (2014).

A systematic literature review of the teleo-reactive

paradigm. Artiﬁcial Intelligence Review, 42(4):945–

964.

Nilsson, N. (1993). Teleo-reactive programs for agent con-

trol. Journal of artiﬁcial intelligence research, 1:139–

158.

Nilsson, N. J. (2001). Teleo-reactive programs and the

triple-tower architecture. Electron. Trans. Artif. In-

tell., 5(B):99–110.

North, M. J., Collier, N. T., Ozik, J., Tatara, E. R., Macal,

C. M., Bragen, M., and Sydelko, P. (2013). Com-

plex adaptive systems modeling with repast simphony.

Complex Adaptive Systems Modeling, 1(1):3.

Ozik, J., Collier, N., Combs, T., Macal, C. M., and North,

M. (2015). Repast simphony statecharts. Journal of

Artiﬁcial Societies and Social Simulation, 18(3):11.

Padgham, L., Nagel, K., Singh, D., and Chen, Q. (2014). In-

tegrating bdi agents into a matsim simulation. In Pro-

ceedings of the Twenty-First European Conference on

Artiﬁcial Intelligence, ECAI’14, page 681–686, NLD.

IOS Press.

Padgham, L., Scerri, D., Jayatilleke, G., and Hickmott, S.

(2011). Integrating bdi reasoning into agent based

modeling and simulation. In Proceedings of the 2011

Winter Simulation Conference (WSC), pages 345–356.

Railsback, S. F., Lytinen, S. L., and Jackson, S. K. (2006).

Agent-based simulation platforms: Review and devel-

opment recommendations. SIMULATION, 82(9):609–

623.

Rao, A. S., Georgeff, M. P., et al. (1995). Bdi agents: from

theory to practice. In Proceedings of the First In-

ternational Conference on Multi-Agent Systems (IC-

MAS95), volume 95, pages 312–319. Association for

the Advancement of Artiﬁcial Intelligence.

Robinson, P. J., Hinchey, M., and Clark, K. (2003). Qu-

prolog: An implementation language for agents with

advanced reasoning capabilities. In Formal Ap-

proaches to Agent-Based Systems, pages 162–172,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Sakellariou, I. (2012). TURTLES AS STATE MACHINES

- Agent Programming in NetLogo using State Ma-

chines:. In Proceedings of the 4th International Con-

ference on Agents and Artiﬁcial Intelligence, pages

375–378, Vilamoura, Algarve, Portugal. SciTePress -

Science and and Technology Publications.

Sakellariou, I., Dranidis, D., Ntika, M., and Kefalas, P.

(2015). From formal modelling to agent simulation

execution and testing. In Proceedings of the Inter-

national Conference on Agents and Artiﬁcial Intelli-

gence - Volume 1, ICAART 2015, page 87–98, Se-

tubal, PRT. SCITEPRESS - Science and Technology

Publications, Lda.

Sakellariou, I., Kefalas, P., and Stamatopoulou, I. (2008).

Enhancing netlogo to simulate bdi communicating

agents. In Artiﬁcial Intelligence: Theories, Models

and Applications, pages 263–275, Berlin, Heidelberg.

Springer Berlin Heidelberg.

Singh, D., Padgham, L., and Logan, B. (2016). Integrat-

ing BDI Agents with Agent-Based Simulation Plat-

forms. Autonomous Agents and Multi-Agent Systems,

30(6):1050–1071.

anchez, P.,

Alvarez, B., Mart

ınez, R., and Iborra, A.

(2017). Embedding statecharts into teleo-reactive pro-

grams to model interactions between agents. Journal

of Systems and Software, 131:78–97.

Staples, J., Robinson, P. J., Paterson, R. A., Hagen, R. A.,

Craddock, A. J., and Wallis, P. C. (1989). Qu-

prolog: An extended prolog for meta level program-

ming. In Meta-Programming in Logic Programming,

page 435–452. MIT Press, Cambridge, MA, USA.

Taillandier, P., Gaudou, B., Grignard, A., Huynh, Q.-N.,

Marilleau, N., Caillou, P., Philippon, D., and Dro-

goul, A. (2019). Building, composing and experi-

menting complex spatial models with the gama plat-

form. GeoInformatica, 23(2):299–322.

Tisue, S. and Wilensky, U. (2004). Netlogo: Design and

implementation of a multi-agent modeling environ-

ment. In Proceedings of the Agent 2004 Confer-

ence on Social Dynamics: Interaction, Reﬂexivity and

Emergence, volume 2004. Argonne National Labora-

tory and University of Chicago.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence
