Automatic Detection of Implicit and Typical Implementation of Singleton

Pattern Based on Supervised Machine Learning

Abir Nacef

, Sahbi Bahroun

, Adel Khalfallah

and Samir Ben Ahmed

Faculty of Mathematical, Physical and Natural Sciences of Tunis (FST), Computer Laboratory for Industrial Systems,

Tunis El Manar University, Tunisia

Higher Institute of Computer Science (ISI), Limtic Laboratory, Tunis El Manar University, Tunisia

Keywords:

Supervised ML, Reverse engineering, Refactoring, Singleton Design Pattern.

Abstract:

Reverse engineering, based on design pattern recognition and software architecture refactoring, allows prac-

titioners to focus on the overall architecture of the system without worrying about the programming details

used to implement it. In this paper, we focus on the automatization of these tasks working on Singleton design

Pattern (SP). The ﬁrst task is the detection of the SP in its standard form, we named the detected structure

as Singleton Typical implementation (ST). The second task consists of detecting structures which need the

injection of the SP (Refactoring), these structures are named Singleton Implicit implementations (SI). All SP

detection methods can only recover the typical form, even if they support different variants. However, in this

work, we propose an approach based on supervised Machine Learning (ML) to extract different variants of SP

in both ST and SI implementations and ﬁlter out structures which are incoherent with the SP intent. Our work

consists of three phases; the ﬁrst phase includes SP analysis, identifying implementation variants (ST and SI),

and deﬁning features for identifying them. In the second phase, we will extract feature values from the Java

program using the LSTM classiﬁer based on structural and semantic analysis. LSTM is trained on speciﬁc

created data named SFD for a classiﬁcation task. The third phase is SP detection, we create an ML classiﬁer

based on different algorithms, the classiﬁer is named SPD. For training the SPD we create a new structured

data named SDD constructed from features combination values that identify each variant. The SPD reaches

97% in terms of standard measures and outperforms the state-of-the-art approaches on the DPB corpus.

1 INTRODUCTION

Design Patterns (DPs) (Gamma et al., 1994) are of-

ten reusable solutions to common software design

problems. The information about intent, applicabil-

ity, and motivation extracted from the pattern seman-

tic is the key to the development and redevelopment

of a system to solve a speciﬁc problem. However,

several factors can lead to the absence of documenta-

tion. More than that, developers may not have much

experience to understand patterns well, and this can

lead to the possibility of introducing coding errors

that break the DP intent or bad solution to resolve the

problem. Hence, needed information about a deci-

sion, intent, and pattern implementation used is lost.

Extracting this information can improve the quality

of source code and help to develop, and maintain,

the system. So, automatically identifying the adopted

pattern (DPD) is the solution to solve these limits.

Our work is the ﬁrst to identify not only different

variants of the ST, but also SP in incorrect structures

and different variants of SI. However, the identiﬁca-

tion process is still considered a difﬁcult task due to

the informal structure of the source code and a large

number of implementations. Only the structural anal-

ysis of the source code cannot capture the pattern in-

tent, and semantic analysis is required. Furthermore,

directly processing the source code or even one of its

representations (such as AST, graph, or another form)

shows poor performance compared to methods using

well-deﬁned features. The use of features reduces the

search space, and false positive rate, and improves ac-

curacy.

For better results and to simplify the SP detection,

we propose a based-feature approach using structural

and semantic analysis of the Java program with ML

techniques. First, we analyze the program with LSTM

classiﬁers, to extract features value. LSTM classi-

ﬁers are trained by a speciﬁc created dataset named

SFD. Second, by analyzing the SP variant’s struc-

202

Nacef, A., Bahroun, S., Khalfallah, A. and Ben Ahmed, S.

Automatic Detection of Implicit and Typical Implementation of Singleton Pattern Based on Supervised Machine Learning.

DOI: 10.5220/0011634000003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 3, pages 202-210

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

ture and based on extracted feature’s values, we con-

struct a new dataset named SDD to train an SPD. The

SDD is rule-based data guided by speciﬁc code prop-

erties of various implementations that can exist for

ST and SI. For building the SPD we have used dif-

ferent ML algorithms the most used for DPD, evalu-

ated and compared them based on collected data from

public Java corpus SED. Finally, we compare our pro-

posed approach with state-of-the-art approaches on

DPB (Fontana et al., 2012) repository. Empirical re-

sults have proven that our proposed method performs

others methods in SP detection. The main contribu-

tions of this paper consist on:

• Analyzing the SP intent, identifying variants, and

proposing a set of features deﬁning each one.

• Analyzing Java program with LSTM Classiﬁer to

extract feature values.

• Creating three datasets; SFD with 5000 snippets

of code used to train the LSTM. SDD with 12000

samples to train the SPD. SED containing 312

Java ﬁles to evaluate the SPD.

• Demonstrating that our SPD outperforms a state-

of-the-art approaches with a substantial margin in

terms of standard measures.

The rest of the paper is organized as follows; In sec-

tion 2 we present the related work and the contribu-

tion made to them. In section 3, we deﬁne the dif-

ferent declarations of the SP, we indicate variants re-

ported by the SPD and the proposed features. In sec-

tion 4, we present the method process and the related

used technologies. In section 5, details about the cre-

ated data are presented, and the obtained results in

both phases are illustrated and discussed. In the end,

a comparison with the state of the art is made. Fi-

nally, in Section 6 a conclusion and future work is

presented.

2 RELATED WORKS

Working on source code, several approaches are pro-

posed. In this section, we will discuss relevant stud-

ies, giving special attention to those using features

based on ML.

Many techniques are based on similarity scoring

by using graphs to represent structural information.

The method proposed by (Yu et al., 2015) search a set

of substructures to identifying DP implementations.

Then, to optimize the result, the method signature is

compared against a set of predeﬁned templates corre-

sponding to the DP. As an improving work, authors

in (Mayvan et al., 2017) ameliorate the performance

of substructures search process by conveniently parti-

tioning the project graph.

Visual language is also used (Lucia et al., 2009)

as a method to represent relations between structural

properties of DPs and source code.

Features have been used in previous work to ex-

press DPs. Different work like (Rasool and M

ader,

2011) recorded it with annotations for building au-

tomated analyzers. Working with features depends

enormously on the authors’ acknowledgment and pat-

tern analysis.

Given its power to automatically detect DP, ML

has been used in different works. In (Chihada et al.,

2015), a DP classiﬁer is created based on a Support

Vector Machine (SVM). The input data is a labeled

set of manually identiﬁed implementations and a set

of associated metrics. However, the method used in

MARPLE (Zanoni et al., 2015) doesn’t take software

metrics as input, but a set of structural and behavioral

properties (e.g., abstract class, abstract method invo-

cation, and extended inheritance). These structures

is used to ﬁnd correlations among code elements and

roles or relations within DP.

More recent work proposed by (Thaller et al.,

2019) applies convolutional neural networks and ran-

dom forest to learn from feature maps. The deﬁnition

of these elements is based on the occurrences of cer-

tain microstructures in the code. (Nazar et al., 2022)

use code features represented as code2vec purports to

achieve a semantic understanding of source code. The

code2vec uses paths along a method’s AST to make

DPs predictions.

Many approaches detect SP variants. However,

we are the ﬁrst to recognize not only the different vari-

ants, but also their possible combinations with their

respective names and incoherent structures that de-

stroy the pattern intent. Our approach is the ﬁrst to

create dataset speciﬁc to the SP (taking in consid-

eration different forms (Typical/ Implicit), different

variants, different combinations, incoherent structure,

variant’s name).

3 SINGLETON VARIANTS AND

FEATURES

In this section, we will deﬁne SP and specify the dif-

ference between its type of implementation (typical

and implicit). Next, we’re going to represent the re-

ported variants and highlight features that better de-

scribe each variant.

Automatic Detection of Implicit and Typical Implementation of Singleton Pattern Based on Supervised Machine Learning

203

3.1 ST and SI Implementation

Using the SP or other structure that avoids it, is ulti-

mately a design decision that needs to be made, and

the consequences of that need to be understood and

documented. We named all used structures to create

an application with only one instance, as the SP. The

formal structure is named Singleton’s typical imple-

mentation, and the other structure is named Single-

ton’s implicit implementation.

3.1.1 Deﬁnition of ST

The ST consists of creating a class that has only

one instance and provides a global point to access it.

There are two forms of implementing that. The ea-

ger instantiation allows the creation of an instance at

loading time, and the lazy instantiation enables the

creation when an instance is required. Using a global

access point allows access to the instance of the class

from anywhere in the application. More than that, to

be a self-owner, the client application does not need

to perform additional steps in the object creation, con-

ﬁguration, or destruction. To prevent other classes

from instantiating it, the constructor is meant to be

private, and the instance will be accessed with static

properties or methods to get the preconﬁgured object.

Listings 1 and 2 show examples of eager and lazy in-

stantiation.

Listing 1: Example of Singleton Eager instantiation.

public class C1 {

private static C1 instance = new C1();

private C1(){}

public static C1 getInstance(){

return instance;}}

Listing 2: Example of Singleton Lazy instantiation.

class C2{

private static C2 obj;

private C2() {}

public static C2 getInstance()

{ if (obj==null)

obj = new C2();

return obj; } }

3.1.2 Deﬁnition of SI

The SI is all used structure to create one instance of

a class without using the formal and complete ST so-

lution. Simply, it’s a speciﬁcation of a set of classes

and methods that work together to ensure that only

a single instance of a class should be created, and a

single object can be used by all other classes. To en-

sure that, different structures can exist. At ﬁrst, the

class can be stateless, no global object is needed, just

provide helper functions that don’t require more in-

formation than parameters. Second, the use of static

aspects ( Mono state, static class) can be a way to en-

sure the creation of only one instance of a class. Also,

the control of instantiation by using a Boolean vari-

able, or a counter variable can be considered as SI as

well as the use of class Enum. For sub-classing, it’s

possible to use a base class that represents an abstract

sandbox method. Finally, developers can provide all

needed services inside an interface. This interface has

the goal to provide global access to the object. The

implemented structure is called Service Locator.

3.2 ST and SI Reported Variants

Different variant of SP are deﬁned and presented in

(Stencel and Wegrzynowicz, 2008), (Gamma et al.,

1994) and (Nacef et al., 2022). In this work, reported

variants are shown in table 1.

The use of the SP is very useful to allow only one

instance of a class, but a common mistake can lead to

the accidental creation of multiple instances, the case

of listing 3. So, we should verify that the structure

preserves the SP purpose. If any error exists, the im-

plemented structure must be analyzed and detected to

eliminate inconsistency between design structure and

intent.

Listing 3: Example of Singleton incorrect implementation.

class C3{

private static C3 obj;

private C3() {}

public static C3 getInstance() {

if (obj==null)

obj = new C3();

return obj; }

public static C3 getInstance2()

{ return(new C3());}}

There are different ways to implement the SI, but we

try to report the most often used by Java program-

mers. Table 1 represent ST and SI-reported variants

with ST that have incoherent structure.

3.3 Used Features

Relevant features can strongly affect the ability of the

model to recognize each variant in its different repre-

sentations. These features also have an impact on the

prediction rate and can reduce the number of false-

positive candidates. We are based on the detailed

analysis of the SP realized by (Nacef et al., 2022),

in which they propose 33 features for identifying ST

variants with correct and incorrect structures. We pro-

pose 9 other features which seem relevant to the SI

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

204

Table 1: Reported SP variants.

Singleton Variants

-Eager -Eager Incorrect structure

-Lazy -Lazy Incorrect structure

-Subclassed -Subclassed Incorrect structure

-Replaceable In-

stance

-Replaceable Instance Incorrect

structure

-Base Class -Different Access Point

-Service Locator

-Different Access Point Incor-

rect structure

-Limiton -Delegated Construction

-Enum Class

-Delegated Construction Incor-

rect structure

-Social Singleton -Different Placeholder

-Generic Single-

ton

-Different Placeholder Incorrect

structure

-Static data -Object parameter in Function

-Control Instanti-

ation

deﬁnition. Furthermore, we try to describe SI with

features that have an elementary structure to facilitate

as much as possible their extraction from the source

code.

Adopting the SP has the purpose to control the

creation of objects and limiting the number to one. To

verify the consistency between structure and intent,

we must be sure that only one instance of a class is

declared and created. These two features are the key

to a true candidate for SP listing 3.

Table 2 represents all used features for the SP identi-

ﬁcation.

4 SUPERVISED ML FOR THE SP

DETECTION

In this section, we describe our proposed method

and related techniques used in SP detection. The

SP recognition problem is solved in three phases, as

shown in ﬁg. 1. The ﬁrst phase (P1) is dedicated to

analyzing the SP intent, structure, and conﬁguration,

this analysis has the goal to highlight the pattern char-

acteristic. The second phase (P2), consists of extract

values of the proposed features from the source code

by structural and semantic analysis. These features’

values lead to the third phase (P3) where SP recogni-

tion is taking place. The three phases are discussed

below.

Table 2: Proposed Features.

Abb. Features

IRE Extend inheritance

IRI Implements inheritance

CA Class accessibility

GOD Global class attribute declaration

AA Class attribute accessibility

SR Static class attribute

ON Have only one class attribute

COA Constructor accessibility

HC Hidden Constructor

ILC Instantiate when loading class

GAM Global accessor method

PSI Public Static accessor method

GSM Global setter method

PST Public static setter method

INC Use of Inner class

EC Use External Class

RINIC Returning instance in inner class

RINEC Returning instance in External class

CS Control instantiation

HGM One method to generate instance

DC Double check locking

RR Return reference of the SP

CNI Variable to count instance number

CII Internal static read-only instance

DM Use delegated method

GMS Global synchronized method

IGO Initialize global class attributes

LNI Limit the number of instances

SCI Use string to create instance

SB Static Block

AFL Allowed Friend List

CAFB Control access to friend behavior

UR Type for generic instantiation

EC Enum Class

CSA Class with Static attributes

CFA Class with Final attributes

CSM Class with Static Methods

COP Constructor with Object Parameter

MOP Method with Object Parameter

BV Boolean Variable to Instantiate

MSR Create Map for serves references

AMDP Abstract method with data parameter

4.1 P1: SP Analysing and ST, SI

Variants Identiﬁcation

The goal of SP analysis is to deﬁne SP variants in

both typical and implicit implementation. The pur-

pose in this context is to identify features that hold

information about each variant. In our case, we are

based on the work of (Nacef et al., 2022), in which

Automatic Detection of Implicit and Typical Implementation of Singleton Pattern Based on Supervised Machine Learning

205

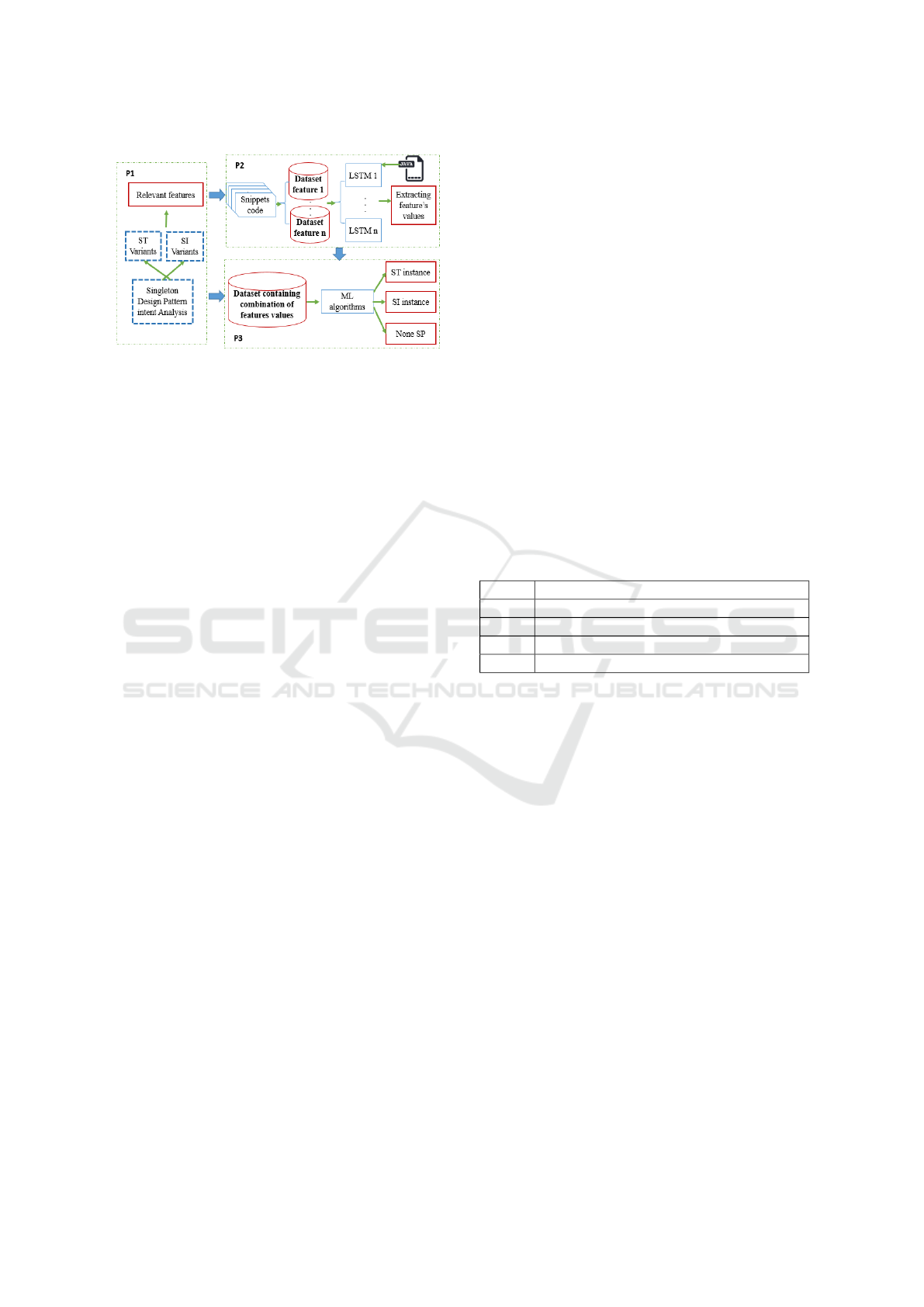

Figure 1: The SP detection process.

they analyze different variants of ST for identifying

features. Based on their analysis and different public

Java project analysis, we deﬁne variants for SI, and

we propose additional features for their extraction.

4.2 P2: Feature’s Value Extraction

To extract feature values from source code, we use

the same method proposed by (Nacef et al., 2022). In

their work, they create a set of data containing snip-

pets of code. Speciﬁc data corresponding to each fea-

ture is created and used to train an LSTM classiﬁer.

For newly proposed features, we also create speciﬁc

data for their extraction from the Java program. Re-

sulting feature values extracted from the P2 are used

for creating data containing the feature’s combination

identifying each variant.

4.3 P3: SP Detection

With the detailed analysis of different implementa-

tions realized by (Nacef et al., 2022), we construct a

data named SDD based on SP properties rules. Rules

in general serve as an established mechanism for en-

coding human knowledge, and we used them to char-

acterize SP instances. It represents a simple and un-

derstandable way to deﬁne implementation variants.

Thereafter, we built an SPD with the use of dif-

ferent ML classiﬁers. We have selected four ML al-

gorithms the most used on DPD (KNN, SVM, Ran-

dom Forest, and Naive Bayes). The SPD is trained

by the SDD data to identify candidates for ST and

SI instances. The ML algorithms are created sepa-

rately by training and testing each one exclusively on

speciﬁc data. By learning from labeled samples, the

SPD learns new rules and discovers more information

deﬁning each class.

5 EXPERIMENTAL SETUP

In this section, we will represent at ﬁrst the user

data to train and evaluate LSTM and SPD Classiﬁers.

Next, we show, compare, and discuss the obtained re-

sults.

5.1 Dataset Details and Preparation

The data is the essence of ML, the better the data is

constructed, the better the learning process will be.

So that, to have a good model, we should carefully

construct the training data. The ideal way to prepare

a training dataset is to manually analyze open-source

applications to discover a wide range of SP imple-

mentations. Whereas this method is time-consuming

as it requires careful study and in-depth understand-

ing, we have realized it as the ﬁrst step in our method

process. We have constructed three datasets for train-

ing and evaluating the used classiﬁers: the SFD, the

SDD, and the SED, which the details are below and

listed in table 3.

Table 3: Data details.

Data Size

SFD 5000

SDD 12000

DPB 58 Correct ST, 58 Incorrect ST, 96 No SP

SEDC 100 Correct SI

5.1.1 SFD Data

The SFD is a set of data used for training the

LSTM classiﬁer to extract values for the newly

added features. The SFD has a global size of 5000

samples, and it’s composed of 9 data. Each data

is created according to the speciﬁc properties of

one of the features. We have collected a variety of

implementations that can satisfy the feature property

on a true/false basis. Each implementation represents

snippets of code that are labeled according to the

checked information. Listings 4 and 5 show examples

of snippets of code that are labeled as true/false in

Boolean variable for instantiating feature’s data.

Listing 4: Example of correct implementation of the BV

feature.

private static C1 instance1;

private Boolean noInstance = true;

public static C1 getInstance(){

if(noInstance)

{instance1 = new C1();

return instance1;}

else{System.out.println("Instance exist");}}

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

206

Listing 5: Example of incorrect implementation of the BV

feature.

private static C1 instance1;

private Boolean noInstance = true;

public static C1 getInstance(){

if (noInstance)

{System.out.println("Nonexistent instance");}

instance1 = new C1();

return instance1;}

5.1.2 SDD Data

The SDD is structured labeled data with 12000 sam-

ples. Each sample contains a combination of feature

values to satisfy an SP variant. The data has 42 cate-

gorical features and 4 classes (ST / SI / ST incorrect

structure/ No SP). Table 4, 5 and 6 present an extract

from the SDD dataset.

Eager implementation is characterized by a bloc that

instantiates the instance when loading a class (ILC),

with global static reference (GOD, AA) and private

constructor (CA). However, if there are different ref-

erences (ON) to the instance or their exit more than a

block or method for generating this instance (HGM)

the structure will be incoherent with the pattern in-

tent. For Lazy implementation (table 5), we must

Table 4: Eager variant (correct /incorrect structure).

Features Eager Eager Incorrect

CA public / ﬁnal Public / ﬁnal

GOD True True

AA Private / Final Private / Final

SR True True

COA private private

ILC True True

GAM True True

PSI True True

RR True True

ON True False

HGM True False

verify that exists only one method to generate an in-

stance (HGM) that is static (GAM, PSI, RR) and con-

tains a block for controlling instantiation (CS). Other-

wise, the implementation will be incorrect. For static

classes (table 6), attributes and methods (COP, CSA)

must be static and can use any type of access modiﬁer

(private, protected, public, or default). A static class

is implemented is through an inner class or a nested

class (SIC) otherwise it is considered an incorrect im-

plementation.

Table 5: Lazy variant (correct /incorrect structure).

Features Lazy Thread safe Lazy Incorrect

CA public / ﬁnal Public / ﬁnal

GOD True True

AA Private / Final Private / Final

SR True True

COA private private

ILC False False

GAM True True

PSI True True

RR True True

CS True False

DC True False

GMS True True

ON True False

HGM True False

Table 6: Static class (correct /incorrect structure).

Class Features

COP CSA SIC CSM

True SII True True True True

False SII True True False True

5.1.3 SED Data

The SED is a combination of two public collected

data with a global size of 312. More speciﬁcally,

we conduct our experiments with implementations

from two repositories, namely DPB and SEDC. DPB

(Fontana et al., 2012) is a peer-validated repository

frequently used in DPD studies because it includes

both positive and negative samples of a variety of

DPs. We focus in this work on SP detection, so we

have used only samples corresponding to this pattern

as listed in table 3 Since the DPB repository is not

claimed to be complete and doesn’t contain all con-

sidered variants, we have created another data named

SEDC containing ﬁles collected from GitHub public

Java projects

. Furthermore, to test the effectiveness

of our method in detecting ST instances whose struc-

ture does not match the pattern intent, we modify the

correct instance at the DPB level.

https://github.com/topics/service-locator?l=java /

https://github.com/topics/service-locator?o=asc&s=forks /

https://github.com/topics/singleton?o=desc&s=updated

/ https://github.com/topics/enum?l=java /

https://github.com/topics/singleton?l=java /

https://github.com/topics/static-class?l=java /

https://github.com/topics/static-variables

Automatic Detection of Implicit and Typical Implementation of Singleton Pattern Based on Supervised Machine Learning

207

5.2 Results and Evaluations

5.2.1 Validation of the Detection

The ﬁrst phase of our method is to analyze the source

code to extract feature values. We have built 9 LSTM

classiﬁers and trained them by the feature’s corre-

sponding data. After the training phase using the

SFD, we pass the evaluation process. We evaluate the

newly created LSTM classiﬁers and those previously

created by (Nacef et al., 2022) with the SED data. The

obtained result is illustrated in table 7.

All results for the LSTM classiﬁers and the SPD clas-

siﬁer are then reported according to the following

standard classiﬁcation measures: Precision it’s the

exact measure of how many Singleton instances were

positively identiﬁed as positive, Recall corresponds

to the amount of SP classes retrieved over the total

number of samples within the data; and the F1 score,

which is considered as the harmonic mean between

precision and recall.

All LSTM classiﬁers performed good results

(more than 80% on F1 Score). Many features are eas-

ily extracted (+ 99%) by the model because they have

a simple structure. Elementary features like IRE,

IRI, CA, and many others, have a non-complex struc-

ture, which facilitates the creation of the correspond-

ing training dataset, and makes the LSTM classiﬁer

more able to correctly extract them from the source

code. In contrarily, features like AFL, CAFB, HGM,

etc... with more complex structure are more difﬁcult

to extract and need extra effort in constructing train-

ing data. In the second phase, the SPD classiﬁer is

trained to identify candidates for all SP roles. Fea-

tures values reported from the LSTM classiﬁer are

fed to the SPD for the evaluation process. The re-

ported results of different algorithms are illustrated in

table 8. Training the SPD classiﬁer by speciﬁcally

creating data with relevant features makes it perfectly

able to recognize candidate classes that are potentially

playing a particular role in SP implementation. The

obtained results presented in table 8 prove that the

SPD is correctly trained to detect any implementa-

tion of the SP pattern. All ML algorithms perform

good results (+ 90% of F1 Score), and the best result

is reached by the SVM (+ 99% of precision, recall,

and F1 Score).

5.2.2 Performance Comparison and Discussion

The DPB corpus is a repository created by the oth-

ers of MARPLE (Fontana et al., 2012) to evaluate

their approach. The MARPLE method is frequently

used for comparative studies in DPD, also GEML is

a recent work on DPD that achieves excellent results,

Table 7: Precision, Recall and F1 Score results of the

LSTM.

Abb. Precision% Recall% F1%

IRE 100 100 100

IRI 100 100 100

CA 99.5 98.3 98.89

GOD 98.2 98.6 98.39

AA 97.5 98.73 98.11

SR 97.23 99.12 98.16

ON 82.6 85.96 84.24

COA 92.56 96.45 94.46

HC 96.86 94.36 95.59

ILC 98.56 97.85 98.2

GAM 92.33 94.15 93.24

PSI 96.28 91.85 94

GSM 93.79 89.24 91.45

PST 92.6 90.45 91.51

INC 87.36 94.26 90.67

EC 95.69 90.25 92.89

RINIC 89.69 86.26 87.94

RINEC 92.32 87.69 89.95

CS 96.2 98.78 97.47

HGM 82.6 88.65 85.51

DC 96.32 91.63 93.91

RR 97.56 94.59 96.05

CNI 93.5 89.56 91.48

CII 90.23 95.36 92.72

DM 92.56 88.56 90.51

GMS 96.23 93.56 94.87

IGO 99.23 98.36 98.79

LNI 98.36 93.26 95.74

SCI 91.23 89.26 90.23

SB 98.69 95.26 96.94

AFL 82.36 80.63 81.48

CAFB 88.63 82.56 85.48

UR 95.36 92.63 93.97

EC 100 98.36 99.44

CSA 88.36 95.36 91.72

CFA 89.23 92.56 90.86

CSM 93.26 87.67 90.37

COP 96.29 98.24 97.25

MOP 92.65 89.19 90.88

BV 98.36 94.76 96.52

MSR 89.39 94.58 91.91

AMDP 93.2 84.26 88.5

Table 8: SPD Classiﬁers results.

SPD Classiﬁers

Measures

Pre.(%) Re.(%) F1(%)

Random Forest 99.24 96.7 97.95

Naive Bayes 95.85 88.5 92.02

KNN 92.3 87.95 90.7

SVM 99 99.62 99.30

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

208

so we decide to compare our proposed method with

these two studies. We use the original results reported

by authors (Zanoni et al., 2015) and (Barbudo et al.,

2021) to compare it with the SPD results. Given that

the results in their works are obtained based on the

total DPB repository size, we also use all samples in

this corpus (we label all existing patterns other than

SP as none). As the general purpose conﬁguration for

MARPLE corresponds to Random Forest, we use the

same algorithm for the test. Comparative results can

be found in Table 9.

Table 9: Comparing SPD with MARPLE and GEML re-

sults.

Classiﬁers

SP Corpus: Labelled DPB

Accuracy(%) F1-score (%)

MARPLE 93 90

GEML 95.61 94.11

SPD 99.86 99.63

As can be observed, and even if it is just a test

for recovering only ST implementation, the SPD out-

performs GEML with a percentage of improvements

equal to 4.35%, 5.52% and MARPLE with 6.86%,

9.63 in terms of accuracy and F1 Score. The use

of speciﬁc and more complete data for training the

model makes the SPD better performed in recovering

any instance. MARPLE and GEML use limited data

to train their classiﬁers, and their ability to recover

SP instances depends heavily on those present in the

training dataset. Furthermore, the detailed analysis of

the SP and the use of relevant features make the classi-

ﬁer more able to identify any implementation variants

even if it is in a combination form.

6 CONCLUSION

In this work, we propose a novel approach to SP de-

tection based on features and ML techniques. This

work is the ﬁrst to recover non solely the typical im-

plementation but also the incorrect structure that in-

hibits the SP intent, and the implicit structure of this

pattern. The goal of this detection is to improve the

quality of source code, correct incoherent structure,

and give the possibility to automatically inject the SP

by discovering the corresponding context.

Based on a detailed analysis of the SP, we iden-

tify implementation variants of SI. Thereafter, we pro-

pose 9 features for their deﬁnition, and then we cre-

ate speciﬁc data for each one, containing snippets

of code. We added the newly proposed features to

those proposed by (Nacef et al., 2022), and we use

the same method to extract their values from the Java

program. In the next step, and based on a differ-

ent combination of feature values, we try to create

data that contains the greatest number of implemen-

tations. The data is named SDD and used to train the

SPD. The SPD is built based on different ML tech-

niques. Evaluating the SPD on collected and labeled

data from GitHub Java corpus named SED and DPB

corpus, prove the performance of all used techniques

and achieved +99% in terms of precision, recall, and

F1 Score with SVM. The proposed approach outper-

forms MARPLE and GEML by + 4% in terms of ac-

curacy and F1 Score..

In this work, we have focused on the SP with a de-

tailed analysis, and we have taken the ﬁrst step toward

refactoring. In future work, we try to apply the same

method to recover other DPs, and as the next step, we

are going to attempt the injection of them.

REFERENCES

Barbudo, R., Ram

ırez, A., Servant, F., and Romero, J. R.

(2021). GEML: A grammar-based evolutionary ma-

chine learning approach for design-pattern detection.

J. Syst. Softw., 175:110919.

Chihada, A., Jalili, S., Hasheminejad, S. M. H., and Zan-

gooei, M. H. (2015). Source code and design confor-

mance, design pattern detection from source code by

classiﬁcation approach. Appl. Soft Comput., 26:357–

367.

Fontana, F. A., Caracciolo, A., and Zanoni, M. (2012).

DPB: A benchmark for design pattern detection tools.

In 16th European Conference on Software Mainte-

nance and Reengineering, CSMR 2012, Szeged, Hun-

gary, March 27-30, 2012, pages 235–244. IEEE Com-

puter Society.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. M.

(1994). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley Profes-

sional, 1 edition.

Lucia, A. D., Deufemia, V., Gravino, C., and Risi, M.

(2009). Design pattern recovery through visual lan-

guage parsing and source code analysis. J. Syst. Softw.,

82(7):1177–1193.

Mayvan, B. B., Rasoolzadegan, A., and Yazdi, Z. G. (2017).

The state of the art on design patterns: A systematic

mapping of the literature. J. Syst. Softw., 125:93–118.

Nacef, A., Khalfallah, A., Bahroun, S., and Ben Ahmed, S.

(2022). Deﬁning and extracting singleton design pat-

tern information from object-oriented software pro-

gram. In Advances in Computational Collective Intel-

ligence, pages 713–726, Cham. Springer International

Publishing.

Nazar, N., Aleti, A., and Zheng, Y. (2022). Feature-based

software design pattern detection. J. Syst. Softw.,

185:111179.

Rasool, G. and M

ader, P. (2011). Flexible design pattern

detection based on feature types. In 26th IEEE/ACM

Automatic Detection of Implicit and Typical Implementation of Singleton Pattern Based on Supervised Machine Learning

209

International Conference on Automated Software En-

gineering, pages 243–252. IEEE Computer Society.

Stencel, K. and Wegrzynowicz, P. (2008). Implementation

variants of the singleton design pattern. In On the

Move to Meaningful Internet Systems, volume 5333 of

Lecture Notes in Computer Science, pages 396–406.

Springer.

Thaller, H., Linsbauer, L., and Egyed, A. (2019). Feature

maps: A comprehensible software representation for

design pattern detection. In 26th International Con-

ference on Software Analysis, Evolution and Reengi-

neering, pages 207–217. IEEE.

Yu, D., Zhang, Y., and Chen, Z. (2015). A comprehensive

approach to the recovery of design pattern instances

based on sub-patterns and method signatures. J. Syst.

Softw., 103:1–16.

Zanoni, M., Fontana, F. A., and Stella, F. (2015). On ap-

plying machine learning techniques for design pattern

detection. J. Syst. Softw., 103:102–117.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

210
