On the Interest of Combining Several Variability Tactics to Design the

Implementation of Product Lines

Maouaheb Belarbi and Vincent Englebert

NADI Research Institute, University of Namur, Faculty of Computer Science, Belgium

Keywords:

Product Line, Variability, Mechanism, Implementing Variability.

Abstract:

In Software Product Line (SPL) ﬁeld, several variability mechanisms have been proposed to realize system

requirements. Despite that each mechanism is relevant to satisfy only speciﬁc engineering criteria, it is unable

to face several challenges. We believe that using several variability realization techniques allows to get trade-

off for all the beneﬁts and strength of the considered realization techniques. In this paper, we provide an

answer for the fact that if combining several programming techniques is worth investment which, at the best

of our knowledge, was not tackled before in the literature. The current study implements, at ﬁrst, an open

source product line entirely with different variability realization techniques, and secondly, combines these

mechanisms in the same product line. An assessment of the obtained product lines is performed according to

quality attributes,code quality metrics, and product line concepts. Together, the present ﬁndings conﬁrm that

combining several variability mechanisms hits the best rates in most quality evaluation metrics and provides a

median to achieve most relevant software quality criteria.

1 INTRODUCTION

The growth of the enterprise application system in

the last few decades has justiﬁed the need to indus-

trialize the software development industry (Jalil and

Bakar, 2017b). Software Factory (SF) approach pro-

vides a solution that can transform software develop-

ment project into a more systematic approach imitat-

ing factory manufacturing concept (Jalil and Bakar,

2017a). SF was deﬁned as a conﬁguration of lan-

guages, patterns, frameworks, and tools that can be

used to produce an open-ended set of variants belong-

ing to a family products(

Ozg

ur, 2007). This last pro-

vides a context wherein many problems and require-

ments common to family members can be solved col-

lectively. Building on System Product Line (SPL)

concepts, SF exploits this context to provide family

wide solutions, while managing variation among the

family members (White et al., 2008). Instead of wait-

ing for serendipitous opportunities for ad-hoc reuse

to arise under arbitrary circumstances, an SF captures

knowledge of how to produce the members of an SPL

family.

In the design of complex and variable software

systems, one of the key steps is to select the vari-

https://orcid.org/0000-0001-8201-4294

ability mechanisms that deﬁnes how features are re-

alized in code level. Herein, several research seek

to discuss the practical beneﬁts and drawbacks of

the mechanisms and present the cases of their suc-

cessful use. SF emphasizes the use of the variabil-

ity implementation mechanisms and tools to stream-

line software products development. We consider

the categorization mentioned in (K

astner and Apel,

2008) which discusses the following mechanisms:

Cloning, Conditional Compilation, Conditional Exe-

cution, Polymorphism, Module Replacement, Aspect

Orientation, Frame Technology, and Design Patterns.

Indeed, these variability mechanisms vary in binding-

time, granularity, quality criteria, etc. For example,

mechanisms with early binding-time as compile-time

allow a well deﬁnition of features, however, mech-

anisms with late binding-time such as run-time en-

hance the system ﬂexibility and adaptability but with

a restricted behavior (T

ernava and Collet, 2017). Be-

sides, the classiﬁcation of mechanisms considers the

separation of concerns to meet the increasing stake-

holders and customers requirements. Here, indus-

trial case studies showed that each mechanism hit ad-

vantages but brought challenges during each software

development process (Zhang et al., 2016). In other

words, each mechanism is relevant to satisfy only spe-

ciﬁc engineering criteria set but not all of them.

Belarbi, M. and Englebert, V.

On the Interest of Combining Several Variability Tactics to Design the Implementation of Product Lines.

DOI: 10.5220/0011630700003402

In Proceedings of the 11th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2023), pages 105-116

ISBN: 978-989-758-633-0; ISSN: 2184-4348

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

105

We propose a SF which aims to bear programming

challenges by combining a set of variability mecha-

nisms to build software product systematically. We

argue that using several variability realization tech-

niques allows to get trade-off for all the beneﬁts and

strength of the considered realization techniques. In

this paper, we provide an answer for the fact that if

combining several programming techniques is worth

investment which, at the best of our knowledge, was

not tackled before in the literature. We propose to

implement an open source Product Line (PL) en-

tirely with different variability realization techniques.

Thereafter,we implement the PL with a combination

of mechanisms. An assessment of the obtained prod-

uct lines is performed according to quality attributes,

literature measures, and product line concepts.

The rest of the paper is organized as follows: sec-

tion 2 explains the methodology and the real use case

study. Section 3 clariﬁes the misunderstandings that

may be confused with our proposal. Thereafter, sec-

tion 4 is carried out to present quality metrics consid-

ered throughout the evaluation performed in section 5.

Some potential weakness threatening our proposal are

identiﬁed in the section 8 with some attempts to miti-

gate them. Finally, some of the relevant related work

are presented in section 7 followed by a conclusion

and some of our perspectives in section 9.

2 METHODOLOGY AND USE

CASE STUDY

This section introduces the considered use case study

to give insight the application of the presented ap-

proach as well as we the methodology adopted in this

research.

2.1 The Elevator System

In trafﬁc control of elevator systems, each one is or-

dered to move up or down, to stop or start, and to

open or close the door. The following features were

integrated into the base elevator system as shown in

the feature model in Fig 1:

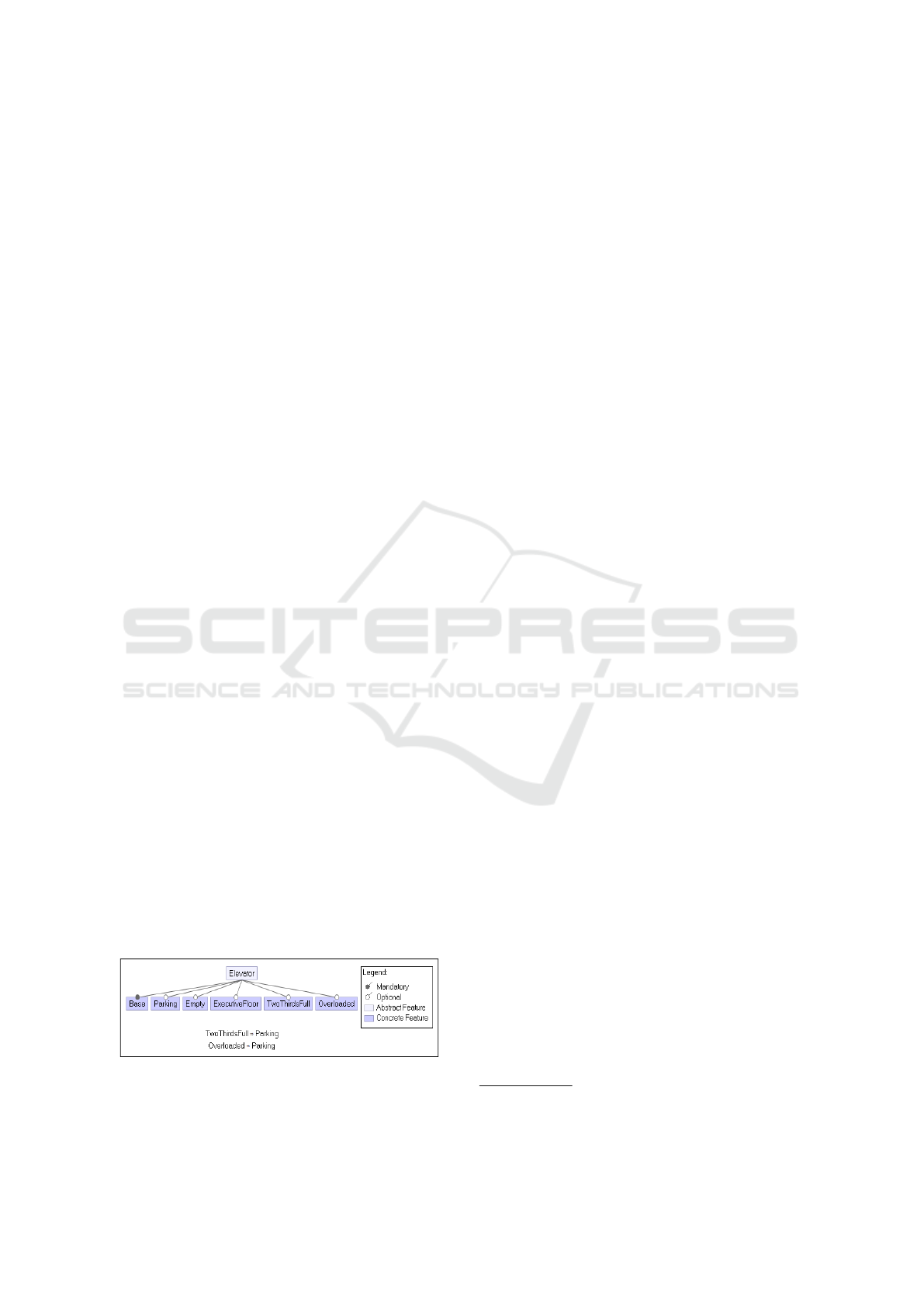

Figure 1: Feature Model of elevator system.

• Parking. When a lift is idle, it goes to a

speciﬁed ﬂoor (typically the ground ﬂoor) and

opens its doors. The parking ﬂoor may be dif-

ferent at different times of the day, anticipating

upwards-travelling passengers in the morning and

downwards-travelling passengers in the evening.

• Lift 2/3 Full. When the lift detects that it is more

than two-thirds full, it does not stop in response to

landing calls, since it is unlikely to be able to ac-

cept more passengers. Instead, it gives priority to

passengers already inside the lift, as serving them

will help reduce its load.

• Overloaded. When the lift is overloaded, the

doors will not close and some passengers must get

out to fulﬁll the movement requests.

• Empty. When the lift is empty, it cancels any calls

which have been made inside the lift. Such calls

were made by passengers who changed their mind

and exited the lift early, or by practical jokers who

pressed lots of buttons and then got out.

• Executive Floor. The lift gives priority to calls

from the executive ﬂoor.

For comprehensive investigation we considered the

Elevator PL case to meet different criteria: The

elevator system describes a real world case study,

which was developed in the context of an indus-

trial project (Plath and Ryan, 2001) and published

in (Meinicke et al., 2017) to provide an open Java

source code

. In fact, real industry case applications

raise the domain real relevant challenges. Hence, they

present a way to check the usability and credibility

of our approach when it crashes into reality. Eleva-

tor case provides support for SPL context since (i)

several variability points are related to heterogeneous

concepts of elevator systems and (ii) many alternative

and optional functionality exist.

2.2 The Methodology of Study

The elevator system was adapted to SPL context and

is available in FeatureIDE plugin with Java language.

The elevator PL will be adapted again and to fetch

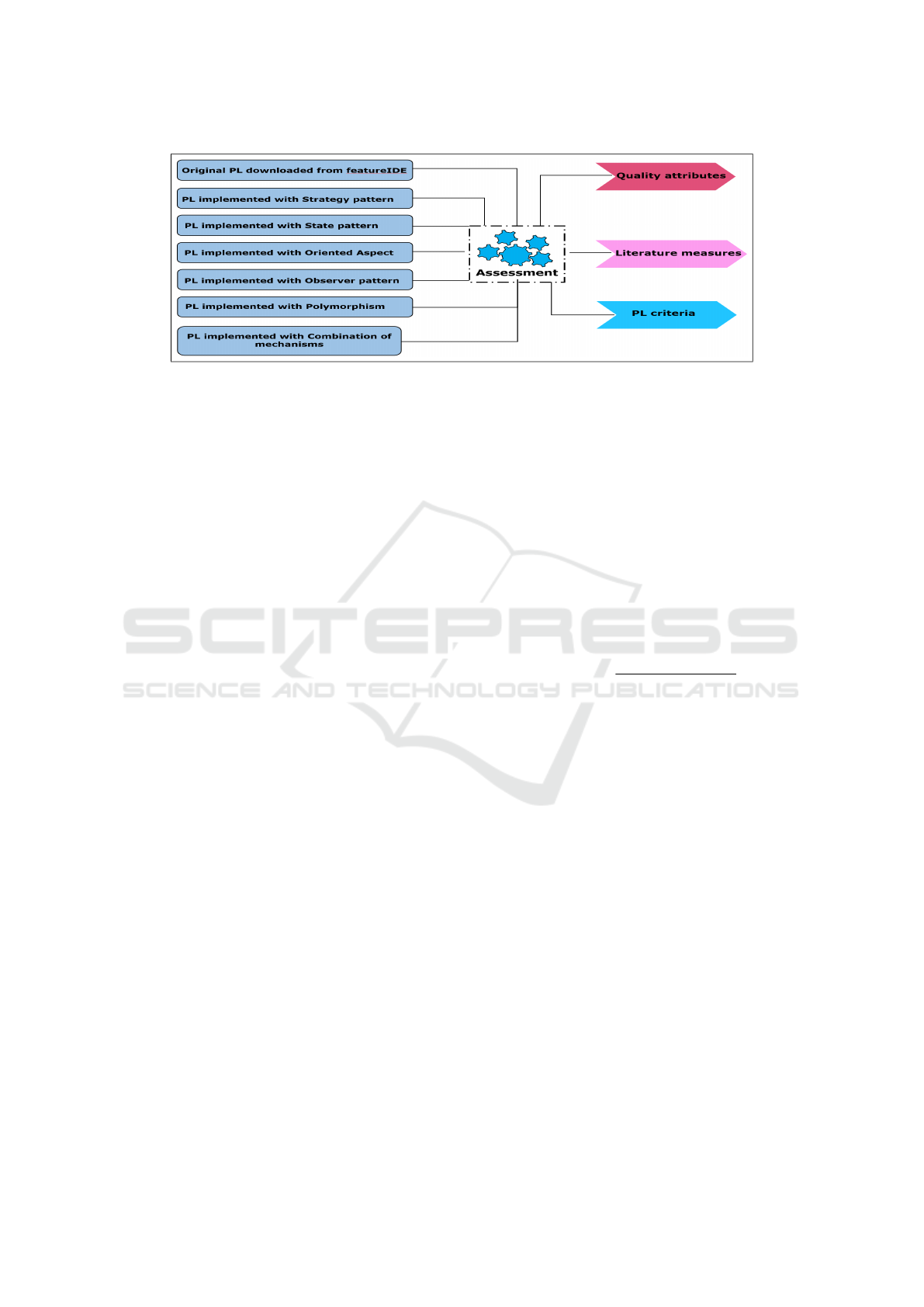

the variability mechanisms illustrated in the right side

of Fig 2. In other words, we provide several ver-

sions of the original elevator PL according to spe-

ciﬁc variability mechanism. All these versions

ex-

cept the original PL are implemented by a middle-

level developer. The resulting product lines will all

be evaluated against literature quality attributes, in-

dustrial measures, and PL criteria. The assessment

See http://spl2go.cs.ovgu.de/projects/16

See https://github.com/Maouaheb/ElevatorsSystem.git

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

106

process confronts the statistics of both PL developed

with only one realization technique and the PL built

with several programming techniques. The choice of

the involved techniques is justiﬁed as follows:

• Strategy: pattern is useful here because many re-

lated classes differ only in behavior. In this con-

text, Strategy is applied to handle: elevator direc-

tion variation (up or down), the status (in service

or blocked, stopped or in movement), a shift re-

quest called by an normal or executive ﬂoor, etc.

• State: pattern is not applied here to resolve a con-

cept variability in the considered PL. However,

a state machine is set up in the current use case

to handle the following variability states: the el-

evator direction state (up or down), the elevator

state (in service or blocked), the transition state

(stopped or in movement), the shift request called

by a normal or an executive ﬂoor, etc. Thus, we

call the State pattern to hold the presented states

and let them evolve over time. PL implemented

with both State and Strategy patterns are similar

since they converge to the same structure.

• Aspect Oriented Programming (AOP): is a pro-

gramming paradigm that aims to increase modu-

larity by allowing the separation of cross-cutting

concerns. It does so by adding additional behav-

ior to existing code (an advice) without modify-

ing the code itself, instead separately specifying

which code is modiﬁed via a ”pointcut” speciﬁca-

tion. This allows behaviors that are not central

to the business logic to be added to a program

without cluttering the code core to the function-

ality. Considering the original version of elevator

PL, we apply AOP here to add the executive ﬂoor

speciﬁcation, overloaded feature, and two thirds

full elevator function.

• Observer: pattern deﬁnes an object called the

subject which maintains a list of its dependents,

called observers, and notiﬁes them automati-

cally of any state changes (Hunt, 2013). In case

the elevator is overloaded or two-thirds full, the

corresponding overloaded and two-thirds ob-

servers will be notiﬁed and executed.

• Polymorphism: is the ability of an object to take

on many forms. The most common use of poly-

morphism in OOP occurs when a parent class ref-

erence is used to refer to a child class object.

Building elevator PL with polymorphism deﬁnes

elevator super-type and sub-type classes, calling

actions super-type class (i.e, to request call from

executive ﬂoor), etc.

• Combination: The objective is to implement PL

elevator with combination of the aforementioned

mechanisms as follows: We consider Strategy

pattern to resolve the elevator call actions when

the executive ﬂoor is calling then the shift strat-

egy gives priority to that request than the others.

Since two shift elevator directions exist, hence,

moving up or down is performed with Strategy

pattern. Besides, State pattern is applied to realize

the elevator state movements whereas the elevator

is continuing towards the target direction or if it

is stopping. Whenever, the maximum weight of

persons inside the elevator exceeds the maximum

weight threshold, then, an Observer is notiﬁed to

stop the elevator movement and warn users. Poly-

morphism is used to resolve the call speciﬁcation

variability: if the user is of type Handicap, if the

current ﬂoor is executive or normal, etc. Finally,

when the elevator receives a shift call from a dis-

abled passenger, then, an adapted behavior is set

up to serve him. AOP is applied to inject speciﬁc

shift aspect for disabled people.

The aforementioned elevator PL versions will be

compared according to attributes quality, PL criteria,

and industrial measures to conﬁrm or refute the priv-

ileges of combining several variability mechanisms.

3 DISCLAIMER

In this section, we present the following delimitation

that exceeds the objective of our study: First, we pro-

pose here an intuitive analysis to motivate combining

different tactics together, however, this does not note a

valid scientiﬁc conclusion to be admitted for all prod-

uct lines. As well, the present paper does not present

a guideline about how to combine and apply the se-

lected variability implementation techniques. This

task will be postponed over later.

Second, this study does not evaluate the perfor-

mance of variability realization techniques individu-

ally or give a comparison between them. For example,

comparing the PL versions implemented by State and

Observer patterns does not assess the two aforemen-

tioned patterns but the performance and code quality

of both product lines. It is an evaluation of how acts

these mechanisms in the context of the elevator PL.

Finally, the mechanisms chosen were the most ap-

propriate for the context of the elevator use case and

for its original Java implementation. Thus, several

tactics were dropped out such that conditional com-

pilation which is unsuitable for the Java language.

On the Interest of Combining Several Variability Tactics to Design the Implementation of Product Lines

107

Figure 2: Overview of the methodology research study.

4 ASSESSMENT CRITERIA

In this section, we present the assessment criteria re-

vealed in the literature and considered during this

study. The evaluation and comparison are performed

against: the software quality attributes, the industrial

code metrics, and the PL criteria.

4.1 Quality Attributes

Within systems engineering, quality attributes deals

with non-functional requirements to evaluate the per-

formance and the software system quality (Bachmann

et al., 2005). We believe that we cannot satisfy all of

them, thus, we prioritize the followings:

Modiﬁability: is the degree of ease to carry out a

change to a system and the ﬂexibility experienced by

this latter to adapt to these changes (Barbacci, 2004).

We have planned the following three scenarios to ex-

plore the modiﬁability of the different PL versions

source code:

• Add a function: Handicap call is a new function

added to the system to ensure carrying disabled

persons.

• Update existing function: Shift elevator function

will be adapted to make the system suitable for

disabled people.

• Delete function: checking if the elevator is two

thirds full new requests will be ignored in order

to avoid to reach the maximum weight. Deleting

this feature implies that elevator continues treat-

ing calls till getting the maximum weight thresh-

old. The reliability of the system is not threatened

by the exclusion of this functionality which opti-

mizes the operation but does not affect it.

Reusability: means that a segment of source code can

be used again when adding new functionalities, with

only slight or no modiﬁcations. Code reusability can

also be achieved by inheritance as a derived class in-

herits its properties from parent class. Several exist-

ing metrics have been proposed to estimate reusabil-

ity factor of software code. We consider the following

metrics mentioned in (Padhy et al., 2018):

• Reusability estimation Rank metric (RR) is deter-

mined using the ratio of elements that are reused

to the sum of all components available in the sys-

tem. A proposal that reuse should be measured as

the number of lines of code incorporated in a sys-

tem without modiﬁcation. RR is given as follows:

RR =

reused elements

sum of all elements

(1)

• Reusability of class: The reusability is addressed

and calculated for each class according to three

parameters: At ﬁrst, Depth Inheritance Tree (DIT)

signiﬁes the highest length from the root class to

the node across the tree. Secondly, Number Of

Children (NOC) metric calculates the total num-

ber of adjacent sub-classes subsidiary to the con-

sidered class in the associated class hierarchy.

Thirdly, Coupling Between Objects (CBO) mea-

sures, for each class, number of classes connected

together. At this level, the reusability of class is

calculated as follows:

Reusability = X × (DIT ) +Y × (NOC) + Z × (CBO)

(2)

Where X, Y, Z are experimental constants. For

expediency, we take X = Y = 1 and Z = 0.5. By

convention in (Padhy et al., 2018), the class hav-

ing the most reusability :

Class diagram Reusability = Max(reusability(class

))

(3)

Where i = 1,...,n and n deﬁnes the total number of

classes.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

108

Integrability: is about the degree to which an archi-

tect has anticipated and designed for integration tasks

that the system may undergo to predict the costs and

risks of integrating some units at some future point

in time (Kazman et al., 2019). To evaluate this, we

need to measure the potential dependencies between

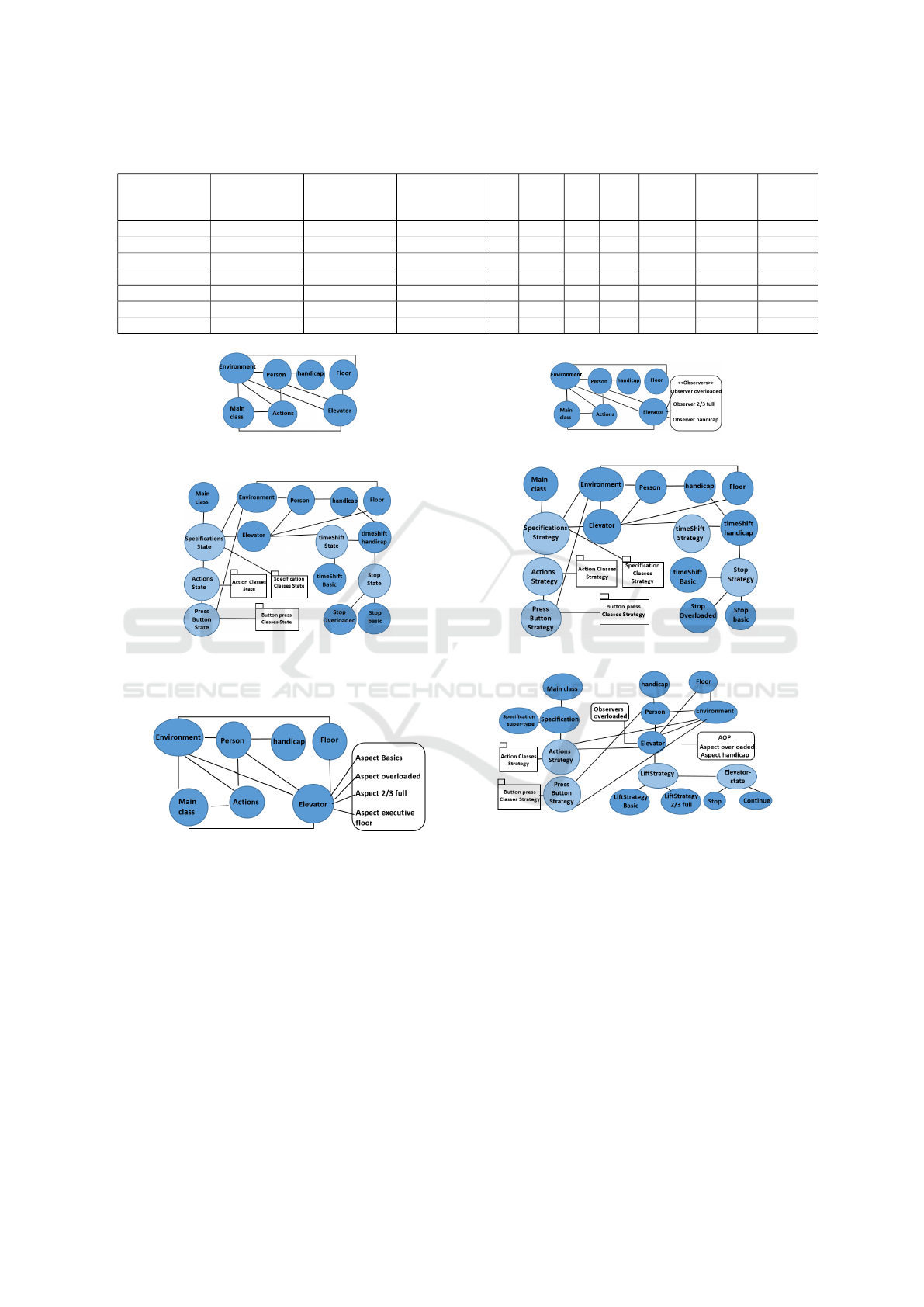

the system components. Code program graphs will be

performed to model the code assets dependency in a

graph.

Testability: is the degree to which a system or com-

ponent facilitates the establishment of test criteria and

the performance of tests (Tsai et al., 2006). Unit tests

are applied to separate variants, whereas integration,

system and acceptance tests are applied to a combina-

tion of bound variants. During this study, we check

for each PL version which the test types that can be

performed.

4.2 Code Quality Metrics

Based on different standards considered in the domain

of evaluating code source quality, we have chosen a

set of the most used metrics in source code evalua-

tion (Boja et al., 2017). Table 1 describes the soft-

ware metrics that are used for a static analysis. For

each metric, we provide the description, the calcula-

tion formula, and the range of values. As showing

in table below, Stability Index (SI) metric is calcu-

lated to assess system change and modiﬁcation be-

tween different versions of same software (Koziolek

et al., 2012). The higher the SI is, the maintainability

of source code is considered better. Besides, McCabe

complexity (M) metric is used to assess complexity

and maintenance of software systems. This metric

measures the maximum number of linearly indepen-

dent circuits in a program control graph. Lower the

cyclomatic complexity is , lower the risk to modify

and easier to understand (Mccabe, 1996). Finally, we

check considered engineering skills required to apply

a mechanism which can be low, medium, or intense.

4.3 PL Criteria

Many research argue that SPL is an efﬁcient approach

to build software similar systems in lower effort (Mo-

hammed et al., 2019). Therefore, if a PL version

checks the following requirements, then, it shows

proof for good quality:

• Variability: designates parts of software that re-

main ﬂexible so that variations of the system will

be supported by a single source with multiple in-

stances (Metzger and Pohl, 2007). Hence, it is

important to verify for each PL elevator version

if the variability is explicit in source code or all

common and variant parts are mixed together.

• Reiﬁcation: designates that each feature pre-

sented in model level, such that the feature model,

is retrieved directly in code level. Features can

be reiﬁed to classes, attributes, methods, aspects,

etc. The reiﬁcation is crucial for the traceability

and the ability to describe and follow the life of

a requirement, and by the way, it is essential for

product derivation and SPL evolution (Shen et al.,

2009).

• Extend Variability: Since customer require-

ments and domain speciﬁcations evolve through

the time, it is compulsory to be able to extend

the behavior of a product by adding additional

instructions or assets independently (Schmid and

Eichelberger, 2017). Extending variability allows

systems to evolve, keep up and satisfy customer

requirements.

• Size of Variability: A variation point or variant in

the core-code assets can have different sizes: an

expression, statement, methods, classes, aspects,

interfaces , packages, etc (T

ernava and Collet,

2017). Hence, variability size indicates to what

extend the engineers can be involved.

• Expressivity: is the ability that a PL version can

progress in the future.

5 THE EVALUATION OF

ELEVATOR PL VERSIONS

The evaluation procedure is performed according to

the three groups of quality characteristics. Code met-

rics will be considered to justify some quality at-

tributes.

5.1 The Evaluation of Quality

Attributes

Modiﬁability: The scenarios deﬁned in section 4.1

were applied on the elevator PL systems to exper-

iment the modiﬁability criterion when adding, up-

dating, and deleting program parts in the PL code

source. Table 3 sums up the observations noticed

when performing this practical exercise. As shown,

we needed to locate where are the instructions in

which it was prone to add, update or delete the re-

quirement. Hence, for each PL it was necessary to

answer if locating the program part that ensures the

concerned feature was direct to identify or if it was

unavoidable to iterate through all the classes in the

On the Interest of Combining Several Variability Tactics to Design the Implementation of Product Lines

109

Table 1: Code quality metrics description.

Metric Acronym Description Range

Lines Of Code LOC Source code length as physical lines of code >0

Comment Lines CL Number of commented lines >0

Comment Density CD The percent of comment lines in a source code

CD=CL/LOC

<=0.2

Cyclomatic complexity M McCabe cyclomatic complexity 1-10

Number of deﬁned functions FNUM Total number of functions >0

Number of calling functions FCALL Number of sub-functions called by function 0-5

Number of code lines per func-

tion

FSTM Empty functions fall through 1-50

Number of modiﬁed statements STMMOD Number of statements in a function which have changed >=0

Number of deleted statements STMDEL Number of statements in a function which have been

deleted between the previous and the current version.

>=0

Number of new statements STMNEW Number of statements in function which have been added

between the previous and the current version.

>=0

Stability Index SI Measures the number of changes between two versions of a

software.

SI =(FSTM-(STMMOD+STMDEL+STMNEW))/FSTM

0-1

Table 2: Index Stability Evaluation.

PL imple-

mented

with:

STMMOD STMNEW STMDEL FSTM SI

Original 0 30 0 71 0,57

Strategy 1 9 0 45 0,77

Polymor

phism

1 30 0 65 0,52

State 1 6 0 25 0,76

AOP 0 6 0 36 0,83

Observer 0 9 0 31 0,70

Combi

nation

0 6 0 36 0,83

program looking for it. Secondly, components des-

ignates which assets in the code level (i.e, class, in-

struction , aspects, interfaces,etc) are involved during

the modiﬁcation scenario. Finally, at what point it

was necessary to propagate the modiﬁcation applied

on the existing parts to rectify them and ensure that

the program keeps its consistency. In case of adding a

new feature in the system according to the logic with

which it was built, the criterion behavior was dedi-

cated to determine in which PL version this function

can be extended or not. Our ﬁndings hint that:

• The Original PL Version : in this PL all the re-

quirements implementation were mixed together

and IF-ELSE statements are used to specify which

code will be executed. Hence, adding and delet-

ing functions implies to iterate overall the com-

ponents program to locate where to perform the

update. Adding handicap call was spread over

three other components, which is the highest num-

ber over the PL versions. Besides, the function is

added by the same reasoning as the original im-

plementation. Hence, it is tangled with other re-

quirements which implies that the new feature is

also hardly extensible in the future.

• The AOP PL Version: This PL gives better results

when modifying its implementation. The com-

ponents are directly located and easily extensible

with low spreading effects.

• The Polymorphism PL version: Modiﬁcation ap-

peals to look for the super-type class responsible

for adding and updating the elevator shift opera-

tion. However, deleting a feature from the parent

class implies its automatic suppression from all

the children classes.

• The State and Strategy PL Versions: Since these

two design patterns are similar, they present same

ﬁndings in terms of modiﬁability. Components

are directly located via the Strategy (resp. the

State) classes which implies that contributions are

easy to carry. The deletion removes the class con-

ceived for the two thirds full feature.

• The Observer PL Version: Here, the handicap call

function is injected directly when encountering a

call of type Handicap. The behavior is extensible

and separated with other program assets. Finally,

the deletion consists in suppressing the responsi-

ble observer and the instructions to attach it to the

subject class (the elevator class).

• The Combination of Mechanisms PL Version:

Here, the feature call handicap was ensured by

AOP and the two thirds full was performed with

strategy pattern to select shift operation algorithm.

Hence, the ﬁndings here ties well with previous

results presented by the AOP PL version to add

and update a feature and Strategy PL version to

delete function. From these results it is clear that

the PL version performed with combination of

mechanisms is easily modiﬁable: Adding Hand-

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

110

icap call function and update the elevator shift op-

eration are performed directly and without sup-

plying the broadcasting of change over several

components. Finally, to eliminate the two thirds

full feature, we delete directly its implementation

class, and the instructions to instantiate it as a

strategy variant.

Testability: Overall, all the elevator PL versions sup-

port the unitary tests performed with JUnit plugin.

Besides, integration tests were carried out on the PL

versions to test modules integration. Original PL ver-

sion has been delimited for this kind of tests since

both separation of concerns and modularization are

missing off.

Reusability: Calculating the reusability metrics

given by the equations 1 and 2 have led to the results

given in the table 4. We also calculate the reusabil-

ity average rate of code source by the quotient of the

sum of reusability of each class by the total number

of classes in the project. The higher the reusability

rank and reusability average are, the more PL is qual-

iﬁed to be reusable. From these results, it is clear

that the original version presents the lowest rate of

reusability which is not surprising since the features

are mixed in same classes and it is difﬁcult to make

an object apart from its context. Besides, the imple-

mentation of a same concern is scattered and tangled

over the code source. Hence, reusing existing assets

is hardly performed. Contrarily to the original ver-

sion system, the elevator PL implemented with Poly-

morphism presents the better reusability rank and the

second best reusability average. A popular explana-

tion of that is that Polymorphism paradigm was cre-

ated to this purpose. Combining several mechanisms

in the same code source presents also best results for

reusability rank and reusability average. It is impor-

tant to highlight the fact that separating and modu-

larizing components with patterns, AOP, Design Pat-

terns, and Polymorphism principles ensures the pro-

gram parts to be more reusable and mature in order to

enhance software evolution despite the order of mag-

nitude.

Integrability: To be able to integrate modules of

a system in another one, we evaluate each PL inte-

grability according to criterion mentioned in table 5.

First of all, Separation of concerns (SoC) is to de-

compose and organize software into more compre-

hensive parts in order to improve software quality.

Secondly, if a system is well modularized it is eas-

ier to change it and also to evaluate the side effects of

a change (Li et al., 2021). Modularization evaluation

is built on the assessment of coupling and cohesion

in code source, where, coupling is the degree of de-

pendency between the modules, whereas, cohesion is

the inter-dependency within a single module. Finally,

each PL will be qualiﬁed if it reduces or enhances the

dependency comparing it to the original implementa-

tion source code dependency level. From the short

review above, key ﬁndings emerge followings:

The PL elevator implemented with respectively

AOP technique, Strategy, State, and Observer patterns

present a solution to resolve SoC, provide high level

of modularization and a ensure low dependency be-

tween system components. Developing elevator PL

with a combination of mechanism yielded to simi-

lar last integrability qualiﬁcation. In this PL version

AOP and design patterns are required to verify claims

concerning separating concerns into independent ele-

ments. In addition, gross decomposition of a system

by patterns and AOP into interacting components us-

ing proper abstractions for component interaction de-

ﬁnes the modularity of the system which can be un-

derstood, reused, and modiﬁed independently, with-

out regard for where the code is used.

Finally, another promising ﬁnding shows that el-

evator PL realized with Polymorphism resolves SoC

by separating concepts in super-types and sub-types

which reduces interring concepts inside the same java

construct and enhances the modularizaion level.

5.2 The Evaluation of Code Quality

Metrics

We start by evaluating the SI of the PL versions. In

table 2 we show that the combination of mechanisms

provides the highest value of SI and hence a better

quality of code. This conﬁrms that the correspond-

ing PL is the easiest version to maintain and under-

stand which conﬁrms our previous observations for

the Modiﬁability quality attribute. The evaluation

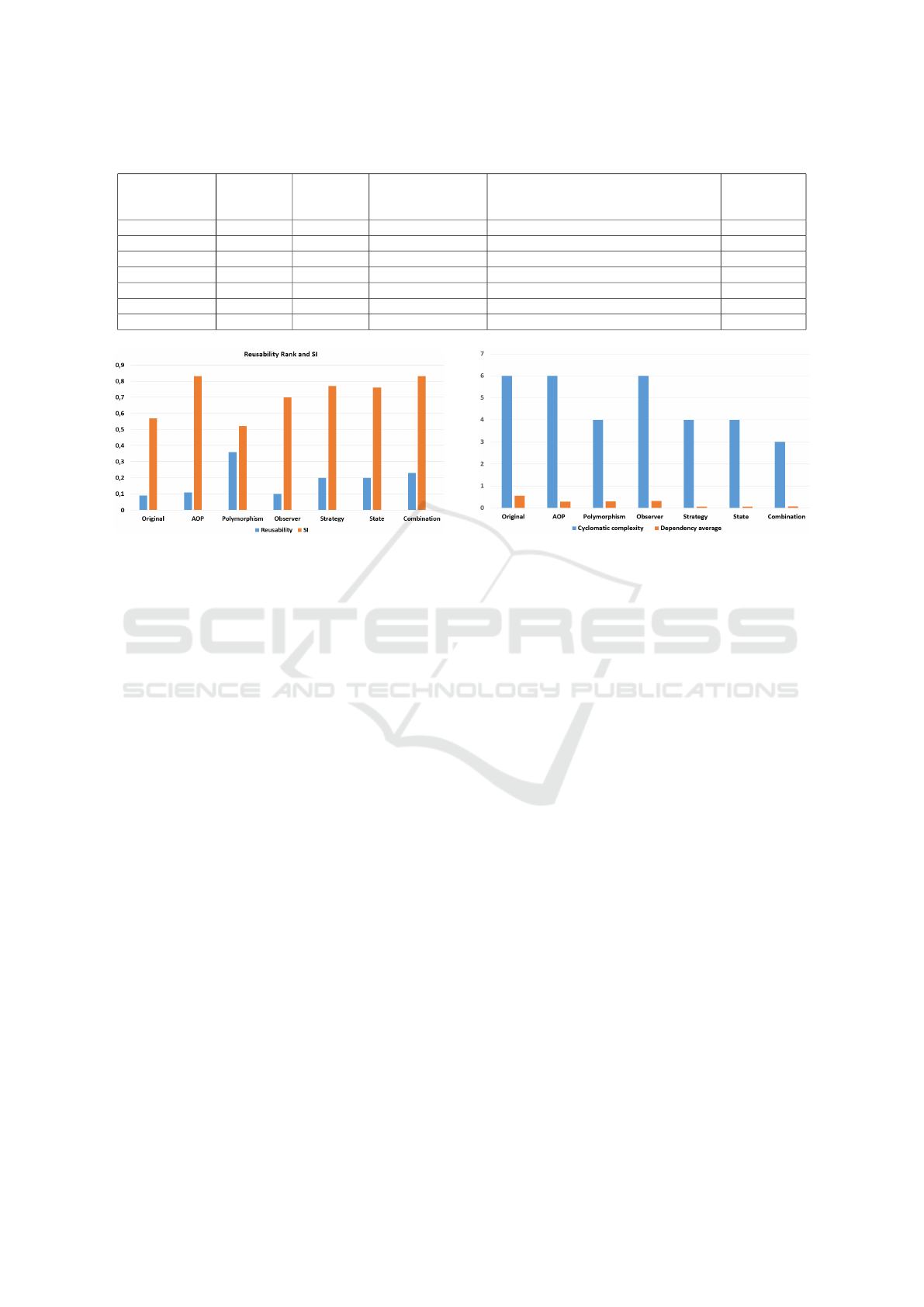

of the rest of code metrics leads to results shown

in table 6. We explore the applicability of undi-

rected graphs in understanding source code nuances:

In Fig 3, we modeled the program units (classes, in-

terfaces,etc) by nodes and the dependencies between

program parts with edges. Based on these graphs we

calculate the average dependecy, the component num-

ber, and the McCabe cyclomatic complexity.

Results provide a good ﬁt to the observations no-

ticed when evaluating quality attributes: elevator PL

versions implemented with State and Strategy pat-

terns and the combination of mechanisms present

the lowest rate of dependency. In addition, in the

line of combining variability we notice that despite

the corresponding PL shows almost same results as

Strategy and State PL versions, it ensures the low-

est number of code components. The idea here, is to

demonstrate that using several realization techniques

On the Interest of Combining Several Variability Tactics to Design the Implementation of Product Lines

111

Table 3: Evaluation of Modiﬁability PL versions.

PL implemen-

tation tactic

Add and update handicap call function Delete two thirds full feature

Where New components To rectify Behavior Where Components To rectify

Original iterate class handicap 3 hardly exten-

sible

iterate delete instruc-

tions

nothing

AOP direct class handicap and as-

pect

1 easily extensi-

ble

direct aspect nothing

Polymorphism iterate class handicap 2 extensible iterate delete from

super-type

sub-type rectiﬁed

automatically

Strategy direct class handicap,

handicap-shift strat-

egy class, call-handicap

strategy class

1 easily extensi-

ble

direct class of the

feature

instructions to call

the strategy class

State direct class handicap,

handicap-shift state

class, call-handicap state

class

1 easily extensi-

ble

direct class of the

feature

instructions to call

the state class

Observer direct class handicap, Observer

shift-handicap

1 easily extensi-

ble

direct class of the

feature

instructions to at-

tach the observer

class

Combination direct class handicap, aspect

shift-handicap

1 easily extensi-

ble

direct class of the

feature

instructions to call

the strategy class

Table 4: Reusability evaluation for the implemented PL versions.

PL version implemented

with:

NOC DIT CBO Reusability Max Reusability average RR

Original 1 2 2 4 2.4 0.09

AOP 5 6 3 12.5 3.25 0.11

Polymorphism 1 2 4 5 3.11 0.36

Observer 1 2 2 4 2.71 0.10

Strategy 6 7 2 14 3.45 0.20

State 6 7 1 13.5 3.10 0.22

Combination 6 7 2 14 3.20 0.23

Table 5: Integrability evaluation for the implemented eleva-

tor PL versions.

PL version

implemented

with

SoC Modularity Dependency

Original low low high

AOP valid high reduced

Polymorphism valid high reduced

Strategy valid high reduced

State valid high reduced

Observer valid high reduced

Combination valid high reduced

together achieves the median trade off between most

important software quality criteria. Besides, analyz-

ing code-graphs allows to determine the number of

complete sub-graphs inside each model. Since in a

complete graph vertices are all adjacent, meaning that

each node is linked to all others. We inferred by this

metric how many there are program parts that de-

pendent all to each other. This metric witnesses the

reusability and integrability of programs. We found

that the Polymorphism PL has the lowest number of

complete sub-graphs followed by the PL implemented

with combination of mechanisms. This conﬁrms our

interpretations for the reusabibility attribute through

the practice exercise to emphasize that combining

mechanisms ensures reusability.

Another promising ﬁnding was that McCabe cy-

clomatic complexity (M) manifests itself in the lowest

rate for PL version implemented with combination of

variability mechanisms. As we mentioned before, this

metric used for identifying heuristically subprograms

which might be regarded as <<overly complex>>.

Therefore, the lower M metric is, the better quality

the corresponding PL will be. These results lead to

similar conclusion when evaluating integrability qual-

ity attributes. We conﬁrm here that combining sev-

eral mechanisms together to implement the elevator

PL have led to the best integrability rate assessment

by practice exercise and with calculation method.

On another ﬂap, the calculation of the code qual-

ity measures that are still used in the literature have

shown the followings: PL version implemented with

AOP presents the highest number of LOC which can

be explained by the fact that AOP adds supplement

modules to the original implementation. Another im-

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

112

Table 6: Evaluation of code quality metrics.

PL version

implemented

with

Average

dependency

Number

components

Number of

complete

sub-graph

M LOC CL CD FNUM FCALL Ability

Original 0.55 6 6 6 670 22 0.03 105 55 low

Strategy 0.061 34 3 4 650 32 0.04 93 76 low

Polymorphism 0.3 9 1 4 510 23 0.04 87 61 low

State 0.061 34 3 4 675 41 0.06 97 81 low

AOP 0.28 10 6 6 909 82 0.09 102 53 high

Observer 0.32 9 6 6 610 31 0.05 98 77 medium

Combination 0.07 29 3 3 608 37 0.06 97 77 medium

(a) Graph code of the original elevator PL. (b) Graph code of the PL implemented with Observer.

(e) Graph code of the PL implemented with AOP.

(f) Graph code of the PL implemented with combination of

mechanisms.

Figure 3: Graph code for PL code sources.

portant witness is that when using a mixture of vari-

ability mechanisms have not led to a huge program

size since its corresponding LOC metric is still up in

standard with the other PL versions.

5.3 The Evaluation of PL Criteria

In this part, we illustrate some experimental results

for the PL criteria shown in Table 7. The evaluations

reveals the following ﬁnding:

The original PL version presents several gaps to

explicitly identify variability, and recognize the corre-

sponding program parts for each feature in the feature

model. PL versions implemented with Strategy and

State patterns explicitly deﬁne variability inside code

where Variants are identiﬁed by sub-classes inheriting

from the variation point class. The modularization of

the code allows variability to be extended and hence

the PL to evolve. Using Polymorphism to realize el-

evator PL deﬁnes explicitly variability by consider-

ing mother classes as variation points and children by

variants. However, features can be amalgamated in-

side the same class, hence, the reiﬁcation criterion is

not always respected. In addition, manipulating super

On the Interest of Combining Several Variability Tactics to Design the Implementation of Product Lines

113

types classes and having deep inheritance trees make

the PL difﬁcult to progress in the future. Moreover,

our ﬁndings hint that implementing PL elevator with

AOP and Observer pattern does not specify explicitly

variation points and variants except if we consider an

abstract aspect (resp. observer class)and children as-

pects (resp. observer classes) extending it.

Finally, combining variability mechanisms in a PL

allows to deﬁne variability explicitly, recognize each

feature in the feature model and its program assets

in code level since it enhances both modularization

and SoC. In addition, as we have illustrated in the

superior evaluations, this PL version is easily modi-

ﬁable which ensures that extending variability is easy

to perform and can evolve to be suitable with the fu-

ture challenges.

6 SUMMARY OF RESULTS

Overall, the elevator PL version realized with a set

of variability mechanisms techniques presents the ro-

bustest results and hits the best rates in most of

evaluation experiments: Assessing modiﬁability by

the practice exercise showed that the combination of

mechanisms achieves the lowest cost of change. Be-

sides, by calculating the SI, we found evidence that

combining several realization techniques records the

highest SI and reusability values as shown in Fig 4

which conﬁrms that this PL version presents the eas-

iest way to accommodate changes. In addition, this

PL version is considered to have less cohesion and

dependency between modules with best of SoC crite-

ria which was hardened by calculating the cyclomatic

complexity and dependency average since we get the

lowest rate as shown in Fig 5.

Moreover, despite that getting best evaluation re-

sults was not always achieved, we obtain always val-

ues among the best rates and we provide the median

of the most important quality criteria. For exam-

ple, using strategy pattern presents the lowest depen-

dency average followed by the PL with combination

of mechanisms which provides lowest number of pro-

gram components. Hence, we assume that our pro-

posal yields to satisfy as much as possible of quality

criterion even if there is a negligible decline on a level.

Finally, we ﬁnd that combining mechanisms pro-

vides a better quality while remaining within the stan-

dard size of the software since we had acceptable val-

ues for LOC, CL, FCALL, FNUM metrics.

7 RELATED WORK

Actually, we argue that in the literature, combin-

ing several variability techniques to implement PL

is still in infancy. Hence, in this section we sum

up most notable relevant research to implement vari-

ability in SPL ﬁeld. Most of implementation mech-

anisms found in the literature were usually classiﬁed

as compositional or annotative approaches (K

astner

and Apel, 2008). Compositional approaches imple-

ment features as distinct code units and compose them

usually at compile-time or deploy-time. Whereas, an-

notative approaches implement features by planting

implicit or explicit annotations in the source code.

Clone-and-own: is a the easiest way of producing

a variant of a certain software product by copying a

code or non-code artifact and evolving it further with-

out keeping connection with original version (Dubin-

sky et al., 2013). This leads to different problems,

especially for software maintenance due to a merg-

ing process that is high cost and unscalable for a large

number of products.

Conditional Compilation: is one of the most widely

annotative techniques using preprocessors to condi-

tionally include or exclude variability with #ifdef

annotations which is easy-to-use (Couto et al., 2011).

However, variability is not separated from the whole

code and is explicit to identify. Besides they received

severe criticism because the code is usually complex

and hard to understand since #ifdef statements are

nested with a complex structure.

Conditional Execution: is an another annotative

approach that aims to realize variability by cod-

ing it explicitly using conditional if-else code

parts (Meinicke et al., 2017) to enable or disable fea-

tures at runtime. Therefore, it provides high ﬂexibility

to adapt the system to unforeseen requirements. How-

ever, it presents several challenges: Variants must be

ﬁne-grained to be implemented and it is hard to distin-

guish between variation logic and code functionality

because they are nested together. Finally, the com-

pilation speed and variation at run-time are degraded

because of the inclusion of all variant elements from

code compilation until running.

Polymorphism: is used when an overridden method is

called through a reference of parent class, then type

of the object determines which method is to be exe-

cuted (G

eraud et al., 2001). Thus, this determination

is made at run time. As a compositional approach,

variability is separated in different ﬁles from common

features. However, the adoption of Polymorphism in

practice increases the risk of software defects at run-

time errors such as illegal pointers.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

114

Table 7: PL criteria evaluation for the implemented PL versions.

PL version

implemented

with:

Variability Reiﬁcation Extend variability Variability size Expressivity

Original No explicit No No Instructions, Methods No

Strategy Explicit Yes Yes Instructions, Methods, Classes Yes

Polymorphism Explicit No Yes Instruction, Methods, Classes Not easy

State Explicit Yes Yes Instruction, Methods, Classes Yes

AOP No explicit Yes Yes Instruction Methods, Classes, Aspects Yes

Observer No explicit Yes Yes Instruction, Methods, Classes Depends

Combination Explicit Yes Yes Instruction, Methods, Classes, Aspects Yes

Figure 4: Graphic of SI and Reusability.

Aspect-Oriented-Programming (AOP): relies on code

weaving techniques that require external tool support

such as AspectJ (Zhang et al., 2016). As a composi-

tional mechanism, it separates common and variable

features into separate ﬁles. Depending on the aspect

weaver, variability can be resolved at both compile-

time and run-time. Despite the beneﬁts above, AOP

is not supported natively by programming languages

and therefore it is difﬁcult to apply it rapidly in de-

velopment process without learning efforts and it in-

creases code size which affects code comprehensibil-

ity (Fazal-e Amin and Oxley, 2010).

Software design pattern (Guizzo et al., 2019) is a

general, reusable solution to a commonly occurring

problem within a given context in software design. It

is not a ﬁnished design that can be transformed di-

rectly into source or machine code. Rather, it is a de-

scription or template for how to solve a problem that

can be used in many different situations.

8 POTENTIAL WEAKNESS

Since any study has ﬂaws, we identify the follow-

ing weakness points: The literature presents infancy

in providing PL implemented with different program-

ming techniques, hence, we considered a use case pre-

sented by the FeatureIDE plugin and we adjusted it to

ﬁt the different tactics. Intuitively, the engineer must

choose the most suitable programming tactics for the

Figure 5: Graphic of Cyclomatic complexity and depen-

dency average.

features. Choosing the right choice of mechanism is

necessary to obtain a software with highest quality.

This cannot be avoided as this is an immediate conse-

quence of the engineer competence.

Finally, using some quality attributes plugins can

afford more precise values and different quality met-

rics besides to some mathematics analysis diagrams

of program dependency.

9 CONCLUSION AND FUTURE

WORK

This paper provides a practice exercise to illus-

trate that combining several variability mechanisms is

worth the investment. The obtained PL ﬁts well most

of the quality attributes, the code metric, and the SPL

criteria. Besides, it achieves the median trade off be-

tween most important software quality criteria which

is a challenging task.

As a future work, we plan for extending this ap-

proach and identifying the dependencies between dif-

ferent programming tactics to be able to employ all

of them automatically by the software factory frame-

work and generate software products.

On the Interest of Combining Several Variability Tactics to Design the Implementation of Product Lines

115

REFERENCES

Bachmann, F., Bass, L., Klein, M., and Shelton, C. (2005).

Designing software architectures to achieve quality

attribute requirements. IEE Proceedings-Software,

152(4):153–165.

Barbacci, M. (2004). Software quality attributes: modiﬁ-

ability and usability. Software Engineering Institute,

Carnegie Mellon University, Pittsburgh PA, 15213.

Boja, C., Madalina, Z.-D., Marius, P., and Cristian, T.

(2017). Code quality metrics evaluation platform in

software engineering education. In Proceedings of the

16th International Conference on INFORMATICS in

ECONOMY (IE 2017), Education, Research & Busi-

ness Technologies, ISSN, pages 2284–7472.

Couto, M. V., Valente, M. T., and Figueiredo, E. (2011).

Extracting software product lines: A case study using

conditional compilation. In 2011 15th European Con-

ference on Software Maintenance and Reengineering,

pages 191–200. IEEE.

Dubinsky, Y., Rubin, J., Berger, T., Duszynski, S., Becker,

M., and Czarnecki, K. (2013). An exploratory study

of cloning in industrial software product lines. In 2013

17th European Conference on Software Maintenance

and Reengineering, pages 25–34. IEEE.

Fazal-e Amin, A. K. M. and Oxley, A. (2010). A review

on aspect oriented implementation of software prod-

uct lines components. Information Technology Jour-

nal, 9(6):1262–1269.

eraud, T., Demaille, A., and Duret-lutz, R. (2001). Design

patterns for generic programming in c+. In In In the

Proceedings of the 6th USENIX Conference on Ob-

jectOriented Technologies and Systems COOTS. Cite-

seer.

Guizzo, G., Colanzi, T. E., and Vergilio, S. R. (2019). Ap-

plying design patterns in the search-based optimiza-

tion of software product line architectures. Software

& Systems Modeling, 18(2):1487–1512.

Hunt, J. (2013). Gang of four design patterns. In Scala

design patterns, pages 135–136. Springer.

Jalil, D. and Bakar, M. S. A. (2017a). Adapting software

factory approach into cloud erp production model. In-

ternational Journal of Computer Science and Infor-

mation Security, 15(1):221.

Jalil, D. and Bakar, M. S. A. (2017b). Enabling software

factory with job workﬂow automation. IJCSIS, 15(4).

astner, C. and Apel, S. (2008). Integrating compositional

and annotative approaches for product line engineer-

ing. In Proc. GPCE Workshop on Modularization,

Composition and Generative Techniques for Product

Line Engineering, pages 35–40.

Kazman, R., Bianco, P., Ivers, J., and Klein, J. (2019).

Integrability. Technical report, Carnegie-Mellon

University, Software Engineering Institute Pittsburgh

United . . . .

Koziolek, H., Domis, D., Goldschmidt, T., Vorst, P., and

Weiss, R. J. (2012). Morphosis: A lightweight method

facilitating sustainable software architectures. In 2012

Joint Working IEEE/IFIP Conference on Software Ar-

chitecture and European Conference on Software Ar-

chitecture, pages 253–257. IEEE.

Li, Y., Ni, Y., Zhang, N., and Liu, Z. (2021). Modulariza-

tion for the complex product considering the design

change requirements. Research in Engineering De-

sign, pages 1–16.

Mccabe, T. (1996). Cyclomatic complexity and the year

2000. IEEE Software, 13(3):115–117.

Meinicke, J., Th

um, T., Schr

oter, R., Benduhn, F., Leich, T.,

and Saake, G. (2017). Mastering software variability

with FeatureIDE. Springer.

Metzger, A. and Pohl, K. (2007). Variability management

in software product line engineering. In 29th Interna-

tional Conference on Software Engineering (ICSE’07

Companion), pages 186–187. IEEE.

Mohammed, L. A. A. et al. (2019). A Customized Quality

Model To Evaluate Domain Engineering In Software

Product Line. PhD thesis, Sudan University of Sci-

ence & Technology.

Ozg

ur, T. (2007). Comparison of microsoft dsl tools

and eclipse modeling frameworks for domain-speciﬁc

modeling in the context of model-driven development.

Padhy, N., Singh, R., and Satapathy, S. C. (2018). Soft-

ware reusability metrics estimation: algorithms, mod-

els and optimization techniques. Computers & Elec-

trical Engineering, 69:653–668.

Plath, M. and Ryan, M. (2001). Feature integration using a

feature construct. Science of Computer Programming,

41(1):53–84.

Schmid, K. and Eichelberger, H. (2017). Variability mod-

eling with easy-producer. In Proceedings of the

21st International Systems and Software Product Line

Conference-Volume A, pages 251–251.

Shen, L., Peng, X., and Zhao, W. (2009). A comprehen-

sive feature-oriented traceability model for software

product line development. In 2009 Australian Soft-

ware Engineering Conference, pages 210–219. IEEE.

ernava, X. and Collet, P. (2017). On the diversity of cap-

turing variability at the implementation level. In Pro-

ceedings of the 21st International Systems and Soft-

ware Product Line Conference-Volume B, pages 81–

88.

Tsai, W.-T., Gao, J., Wei, X., and Chen, Y. (2006). Testa-

bility of software in service-oriented architecture. In

30th Annual International Computer Software and

Applications Conference (COMPSAC’06), volume 2,

pages 163–170. IEEE.

White, J., Schmidt, D. C., Benavides, D., Trinidad, P.,

and Ruiz-Cort

es, A. (2008). Automated diagnosis of

product-line conﬁguration errors in feature models. In

2008 12th International Software Product Line Con-

ference, pages 225–234. IEEE.

Zhang, B., Duszynski, S., and Becker, M. (2016). Vari-

ability mechanisms and lessons learned in practice.

In Proceedings of the 1st International Workshop on

Variability and Complexity in Software Design, pages

14–20.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

116
