Let’s Get the FACS Straight: Reconstructing Obstructed Facial Features

Tim B

uchner

1 a

, Sven Sickert

1 b

, Gerd Fabian Volk

3 c

, Christoph Anders

2 d

Orlando Guntinas-Lichius

2 e

and Joachim Denzler

3 f

Computer Vision Group, Friedrich Schiller University Jena, Jena, Germany

Division of Motor Research, Pathophysiology and Biomechanics, Clinic for Trauma, Hand and Reconstructive Surgery,

University Hospital Jena, Jena, Germany

Department of Otolaryngology, University Hospital Jena, Jena, Germany

Keywords:

Faces, Reconstruction, sEMG, Cycle-GAN, Facial Action Coding System, Emotions.

Abstract:

The human face is one of the most crucial parts in interhuman communication. Even when parts of the face are

hidden or obstructed the underlying facial movements can be understood. Machine learning approaches often

fail in that regard due to the complexity of the facial structures. To alleviate this problem a common approach

is to ﬁne-tune a model for such a speciﬁc application. However, this is computational intensive and might have

to be repeated for each desired analysis task. In this paper, we propose to reconstruct obstructed facial parts

to avoid the task of repeated ﬁne-tuning. As a result, existing facial analysis methods can be used without

further changes with respect to the data. In our approach, the restoration of facial features is interpreted as a

style transfer task between different recording setups. By using the CycleGAN architecture the requirement

of matched pairs, which is often hard to fullﬁll, can be eliminated. To proof the viability of our approach, we

compare our reconstructions with real unobstructed recordings. We created a novel data set in which 36 test

subjects were recorded both with and without 62 surface electromyography sensors attached to their faces. In

our evaluation, we feature typical facial analysis tasks, like the computation of Facial Action Units and the

detection of emotions. To further assess the quality of the restoration, we also compare perceptional distances.

We can show, that scores similar to the videos without obstructing sensors can be achieved.

1 INTRODUCTION

Assessing a human’s emotional state by means of fa-

cial expressions is an ability which required human-

ity over millions of years to learn. Researchers are

interested in the automatic classiﬁcation of these ex-

pressions based on input signals (images, videos, lo-

cally attached sensors, etc.) to infer the connected un-

derlying emotional states. The continuos progress in

machine learning, especially with respect to computer

vision tasks, signiﬁcantly improved the classiﬁcation

accuracy (Luan et al., 2020). Often such models are

used in medical and psychological studies, or in-the-

wild applications whereas their emotional assessment

is debateable (Barrett, 2011; Heaven, 2020). Further-

https://orcid.org/0000-0002-6879-552X

https://orcid.org/0000-0002-7795-3905

https://orcid.org/0000-0003-1245-6331

https://orcid.org/0000-0002-5580-5338

https://orcid.org/0000-0001-9671-0784

https://orcid.org/0000-0002-3193-3300

more, the connection between facial expressions and

the actual underlying mimetic muscles is still an open

research question. The Facial Action Coding System

(FACS) (Hjortsj

o, 1969; Ekman and Friesen, 1978)

was a ﬁrst approach to build a connection between

those two and is still used, today. However, as FACS

is based on the facial landmarks the connections to the

muscles are abstracted via proxies.

A dominant problem for machine learning based

methods applied in these scenarios is the acquisition

and content of the training data set. The intended

and actual usage of these might differ signiﬁcantly

and thus could lead to unreliable or even undesirable

results. For instance, in regards to the classiﬁcation

of facial expressions in FER2013 (Goodfellow et al.,

2013), obstructions in the face have not been consid-

ered. We show in our work that, instead of ﬁne-tuning

models to a custom data set the obstructed features

can also be correctly reconstructed. To demonstrate

this, we recorded a custom data set measuring the

face and the muscle activity simultaneously. A sin-

Büchner, T., Sickert, S., Volk, G., Anders, C., Guntinas-Lichius, O. and Denzler, J.

Let’s Get the FACS Straight: Reconstructing Obstructed Facial Features.

DOI: 10.5220/0011619900003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 4: VISAPP, pages

727-736

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

727

gle recording contains the following tasks: eleven fa-

cial movements (Schaede et al., 2017), ﬁve spoken

sentences, and ten mimics of emotions. To restore

the facial features, we created a recording setup in

which each test subject was recorded with and with-

out sEMG sensors attached to their face. In our ex-

perimental setup, we show that state-of-the-art algo-

rithms fail to correctly solve their intended task. A

brief overview is depicted in Fig. 1. We evaluate

the extraction of the Facial Actions Units (AUs) and

emotion detection. For each analysis the video with-

out sEMG sensors represents the baseline, which we

aim to achieve in our restoration approach. Addition-

ally, we assess the visual quality with two perceptual

scores.

In order to recover the obstructed facial features,

several complex tasks need to be solved simultane-

ously. There are 36 individual test subjects in the data

set with a large visual variance. Although an instruc-

tion video is given, the timing and intensity of carry-

ing out a task varies a lot, even within the recordings

of the same test subject. Hence, a pair-wise matching

between corresponding frames of the videos would be

extremely difﬁcult. Furthermore, the correct facial

expression has to be recreated in their correct inten-

sity. Otherwise the estimation of the AUs is likely to

fail.

Due to the complexity of this task, traditional

methods like segmentation and image inpainting are

not an option. However, in our setup we are using

sEMG sensors to measure muscle activity. To ensure

correct measurement those sensors have to placed at

the same anatomical locations each time. Thus, we

propose to represent this strict placement of the sen-

sors as a consistent style change between two images

of the same person independent from the facial ex-

pression. In combination with the unmatched-pair

setting, we can deploy the CycleGAN architecture by

Zhu et al. (Zhu et al., 2017) to learn this style transfer.

This proposed approach retains the visual appear-

ances of the test subjects. In fact, we show that

completely covered facial features can be restored

correctly. With respect to quality, our clean videos

resemble the normal videos more than the sen-

sor videos. More importantly, downstream facial

analysis algorithms can be applied directly without

the need of ﬁne-tuning them ﬁrst for images with

sEMG sensors. We eliminate the problem of ob-

structed facial features that otherwise would render

an in-depth analysis of expressions and muscle activ-

ity impossible.

2 RELATED WORK

To restore obstructed facial features, we mention in

the following related approaches in the area of gener-

ative models. There are approaches that similarly aim

to either transfer styles or restore missing features.

However, non of them focus on correctly restoring fa-

cial features for further down-stream applications.

The ﬁrst method for unmatched-pair style transfer

was established by Zhu et al. (Zhu et al., 2017) with

the introduction of CycleGAN. Their work mostly fo-

cuses on the visual stability and quality during the

translation task. The introduced consistent cycle loss

for reducing the underlying mapping distributions

helped with stabilizing training. In general, Cycle-

GAN can be deployed for different style transfer tasks

and is applicable to in-the-wild images. We propose

to use this method to impaint structured obstructions

in images including frontal face recordings to restore

underlying properties of hidden facial features. The

model must learn an internal representation of the fa-

cial movements in order to restore them.

Another speciﬁc task with removing and adding

facial obstructions can be seen in the transfer

of makeup styles between people. Nguyen et

al. (Nguyen et al., 2021) proposed a holistic makeup

transfer framework. In their work, they were able

to retain facial features, but artiﬁcially add light and

extreme makeup styles on in-the-wild images. It

shows that even complicated obstruction patterns can

be learned by neural networks. For our data set the

problem deﬁnition is easier as the sEMG sensors are

always at the same location. However, they cover

around 50% of the crucial facial areas and the color

of the connected cables varies.

Li et al. (Li et al., 2017) use generative adversar-

ial networks to restore randomly altered human faces.

They artiﬁcially crop random areas inside the facial

bounding box and replace them with noise values.

Their model creates high qualitative visual results. At

the same time, it might create different visual expres-

sions depending on the noise patch. We have to retain

the correct underlying facial structure and expression.

Thus, although not fully suited in our scenario, their

approach of using GANs for inpainting missing infor-

mation serves as a good starting point.

To restore facial features, Mathai et al. (Mathai

et al., 2019) proposed an encoder-decoder architec-

ture with matched pairs. In their work, they artiﬁ-

cially place obstructions like sunglasses, hats, hands,

and microphones onto faces to improve the robustness

of facial recognition software. The model learns to re-

place the underlying facial features using the learned

auto-generative capabilities. However, the work does

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

728

Video with

sEMG Sensors

Video without

sEMG Sensors

Perceptual Similarity

Facial Action Units

RDF

JAANET

Emotion Detection

Combination #1

Combination #2

Evaluation

Video with

removed

sEMG Sensors

Style Transfer

CycleGAN

Training Data

ResMaskNet

LPIPS

FID

AU15

Lip Corner

Depressor

neutral

Figure 1: Our experimental setup to evaluate the correct restoration of facial features: A video without sEMG sensors repre-

sents our baseline (normal). For comparison we have videos with those sensors visible (sensor) and videos where they have

been removed by our proposed approach (clean). Our evaluation includes the tasks of extracting Facial Actions Units and

emotion detection. Furthermore, we analyze their perceptual similarity in comparison to the baseline. Green check marks,

red crosses and yellow question marks indicate similarity or the possibility to solve a task given the underlying data.

not account for similarity of facial expressions and

movements. Only the facial similarity for biometric

purposes was relevant.

In summary, we can assess that generative mod-

els can retain important facial features while en-

abling correct person recognition. In our research,

we make use of the unmatched-pair property of Cy-

cleGANs (Zhu et al., 2017) to both attach and de-

tach sEMG sensors. It is worth noting that we are not

only interested in the visual quality of the generated

videos. We also want to ensure that existing state-of-

the-art facial analysis methods for down-stream tasks

produce correct results. In our scenario, it would al-

low us to make use of the simultaneous recordings of

sEMG and video signals.

3 DATA SET

In our work we are interested in learning about the

connection between mimics and muscles. Thus, we

created a new data set measuring both domains si-

multaneously. We recorded the facial movement and

muscle activity of 36 test subjects

, with 19 identi-

fying as female and 17 identifying as male. Facial

movements were captured using a frontal facing cam-

All shown individuals agreed to have their images pub-

lished in terms with the GDPR.

Figure 2: Overview of three selected test subjects with their

three measurements on each of the two recording dates. For

each subject one recording without attached sensors and

two with attached sensors is displayed. The 62 sEMG sen-

sors are attached to the same anatomical locations for all

test subjects. The sensors block relevant facial areas, such

as the forehead, completely.

era with a resolution of 1280 ×720 and 30 frames per

second. Muscle activity was recorded using surface

electromyography (sEMG). For a full measurement

we attached 62 sEMG sensors to the face, including

connector cables. Fig. 2 shows the sensor placement

of three selected test subjects. A single sensor con-

sists of a white connection patch on the skin and ei-

ther a red or white cable. Furthermore, white cotton

swabs were used to ﬁx the cables at their position.

During the attachment of the sensors it is possible that

the color order of the cables change among different

test subjects.

Let’s Get the FACS Straight: Reconstructing Obstructed Facial Features

729

To be able to learn the restoration of facial fea-

tures, we recorded subjects once without attached

sEMG sensors and twice with attached sEMG sen-

sors. These recording sessions were repeated again

after two weeks under the same conditions. There was

no order, whether subjects were recorded ﬁrst with at-

tached sensors or without them. It is also not relevant

for the correction of the facial features. However, for

each measurement an instruction video was shown to

ensure the same order of tasks to enable a later com-

parable analysis.

The given instruction tasks can be divided into

three subgroups. In the ﬁrst task subjects need to

mimic eleven distinct facial expressions three times.

We follow the protocol of Schaede et al. (Schaede

et al., 2017) and refer to this as the Schaede task in

the remainder of this paper. In the second tasks, sub-

jects need to repeat ﬁve spoken sentences, which we

will refer to as Sentence. The last task is the imitation

of 24 shown basic emotional expressions and will be

called Emotion task. This split of tasks is intended

to cover different areas of activity for the facial mus-

cles. In total 174 videos were recorded with a ratio

of 1:2 normal and sensor videos, respectively. To re-

duce the inﬂuence of background noise in the videos,

we run our experiments only on the facial areas of the

test subjects. Details about the face extraction can be

found in the next section.

Medical experts observed the experiments and

manually started and stopped the capturing devices

for the video and sEMG recordings. Hence, a one-to-

one frame-wise matching between the normal and the

sensor videos is not possible. Time delays among the

recordings of an individual test subject cannot be es-

timated. Even though the test subjects follow a given

instruction video, the intensity of the facial expres-

sions can vary signiﬁcantly. Further, subjects do not

always start the task at the same time. This might be

due to fatigue and the repeated nature of these tasks

as a recording session takes around 1.5 hours.

Additionally, the test subjects change their head

posture, gazing angle, and distance to the cam-

era throughout all recordings. Among the different

recording sessions the illumination inside the room

changes, which in turn results in different appear-

ances of the cables. Faces might also be obstructed

by hands as sometimes detached sEMG sensors had to

be reattached during the recording. These constraints

require a method which can work without matched

pairs. Additionally, the method should be adaptive

to avoid overﬁtting to illumination settings and cable

colors in the training data.

S→N

N→S

Figure 3: Double generative structure of the CycleGAN

for the proposed sEMG sensor removal. Generator G

N7→S

learns the attaching of the sensors. Generator G

S7→N

learns

the detaching of the sensors. Different facial expressions

can be combined without being changed during the transla-

tion process.

4 METHODS

A lot of machine learning methods learn facial fea-

tures to solve their respective tasks, like emotion de-

tection, person identiﬁcation or visual diagnostics.

However, many of these only work on non-obstructed

faces and would require ﬁne-tuning. We aim to re-

store their capabilities without the need of adapting

the models. For our given problem, we can deﬁne

the facial obstructions in a structured manner. The

anatomical correction sensor placement ensures that

it can be described in such a way, as shown in Fig. 2.

Thus, we can reinterpret the changes between a nor-

mal and sensor video frame as a style transfer for

which we have to learn a translation. In the following,

we will refer to the frames and videos in which the

sEMG have been removed as clean. We ﬁrst deﬁne

the CycleGAN (Zhu et al., 2017) architecture with the

adaption to our task. As we are not only interested in

the visual appearance of the generated images but also

in the restored facial features, we describe methods

for perceptual metrics and facial feature comparison.

4.1 Removal of sEMG Sensor Using

Unpaired Style Transfer

As described in Sec. 3 several challenges arose during

the video acquisition. Among these challenges are the

unmatched-pairs of video frames, the subtle changes

in the recording environment, and the test subjects

head posture, angle, gaze and location changes. How-

ever, the obstruction of the facial features by sEMG

sensors occurs in a structured manner. Thus, a trans-

lation model between the normal and sensor video

frames could be learned to correctly restore the fa-

cial features independent from the underlying facial

expression.

The issue of unmatched-pairs style translation was

solved by Zhu et al. (Zhu et al., 2017) with the intro-

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

730

duction of CycleGANs. Instead of relying on a sin-

gle generator-discriminator-architecture (Goodfellow

et al., 2014) they jointly trained two opposing transla-

tion generation tasks. The double generator structure

is shown in Fig. 3 and we tuned it towards the removal

of the sEMG sensors.

The generator G

N7→S

learns the mapping from

the normal domain to the sensor domain, whereas

generator G

S7→N

learns the inverse direction. For

a given unmatched training input pair (N

, S

) this

architecture computes the corresponding output pair

out

, N

out

). To ensure stable training Zhu et al. in-

troduced the consistent cycle loss (Zhu et al., 2017),

the adversarial loss (Goodfellow et al., 2014), and the

identity loss (Taigman et al., 2016). The discrimina-

tor D

uses the sensor image to estimate the generated

image by G

N7→S

to check whether they come from the

same source distribution. The discriminator D

han-

dles the inverse direction similarly. To ensure the cor-

rect restoration of the obstructed facial features in our

analysis, we only use the generator G

S7→N

by translat-

ing the sensor video to the clean video version.

4.2 Feature Restoration Evaluation of

Cleaned Videos

We evaluate the success of the restoration of the ob-

structed facial features by two means. In the ﬁrst

evaluation, we assess the visual quality of the gen-

erated images by the generator G

S7→N

by compar-

ing their perceptual similarity to frames of the nor-

mal video. Hereby, we compute two perceptual sim-

ilarity scores. We calculate the image-to-image simi-

larity through all frame pairs between the normal and

the clean video. Furthermore, we estimate the un-

derlying image distributions between these videos and

compute their similarity.

In the second evaluation, we check the cor-

rect restoration of the facial features by applying

well-known machine learning algorithms for facial

analysis. Speciﬁcally, we evaluate the ﬁtting of

Facial Action Units (AUs) and emotion detection

restoration. For AUs, we use random decision for-

est (Breiman, 2001) and the attention-based JAA-

Net model by Shao et al. (Shao et al., 2021). Both

models have already been implemented in the li-

brary PyFeat (Cheong et al., 2022), which we use for

our evaluation. For emotion detection we use Res-

MaskNet by Luan et al. (Luan et al., 2020), which still

yields the current state-of-the-art performance. To

further show that our restoration approach produces

convincing results, we run the same evaluations also

as comparison between the normal and sensor videos.

The whole experimental setup is depicted in Fig. 1

summarizing all comparisons. We compare the result-

ing time series with each others using dynamic time

warping (DTW) (Lhermitte et al., 2011) and mean ab-

solute percentage error (MAPE). With DTW we can

avoid the unknown delay between each recording, and

for MAPE we compute all possible shifts in a time

frame of ± 20 seconds.

Learned Perceptual Image Patch Similarity

Zhang et al. (Zhang et al., 2018) introduced the LPIPS

score for image-to-image similarity measurements.

They compute the L

distance between the feature

vectors of the last convolutional layer of classiﬁcation

models, either AlexNet (Krizhevsky et al., 2012) or

VGG (Simonyan and Zisserman, 2015)., to estimate

perceptual similarity. Under the premise of similar

looking images, which would lead to same classiﬁca-

tion results, the features vectors should be similar, as

well. The metric ranges from 0 for image identity, to

1, indicating no perceptual similarity.

As the sEMG sensors cover a substantial area of

the test subjects’ faces, we assume that there is a high

distance between the frames of the normal and sen-

sor videos. Furthermore, we assume that the fea-

ture vectors of the deep learning models stay similar

for a test subject regardless of their facial expression,

head movement, or glance. The pre-training on Ima-

geNet (Deng et al., 2009) does not include these ﬁne-

grained classiﬁcation tasks and thus should yield the

same feature vectors. If the clean video generated by

S7→N

produces a low LPIPS score, the restoration of

the facial features might have been already successful.

echet Inception Distance

The image-to-image comparison alone might be in-

sufﬁcient, since correct matching between the frames

is not possible. However, comparing the unknown un-

derlying generative distribution of the video frames

could lead to a more reliable understanding. We use

the Fr

echet Inception Distance (FID) introduced by

Heusel et al. (Heusel et al., 2017) to compare these

generative distributions. The FID assumes that both

source and target are multivariate normal distribu-

tions. Thus, the parameters have to be estimated. We

use Inception v3 (Szegedy et al., 2015) feature vectors

to estimate the mean vector and the covariance matrix.

For the actual implementation, we use the FastFID ap-

proximation by Mathiasen and Hvilshøj (Mathiasen

and Hvilshøj, 2021), which has a deviation of 0.1 to

the original distance but is signiﬁcantly faster. How-

ever, a drawback of the FID is the dependence on the

batch size. To ensure comparable results all evalua-

tions are run with the same batch size of N = 128.

Let’s Get the FACS Straight: Reconstructing Obstructed Facial Features

731

Figure 4: We display the trainings progress of the sEMG

sensor removal. During the ﬁrst 5 epochs the model focuses

on the general removal of the sensors. After that, the more

ﬁne-grained details in the faces are restored.

The problems raised by Liu et al. (Liu et al., 2018) do

not affect our evaluation as our task is class indepen-

dent.

4.3 Implementation Details

To learn the translation from faces with and without

attached sEMG sensors, we use the CycleGAN (Zhu

et al., 2017) architecture which ﬁts our problem task

the best. In a ﬁrst ablation study we discovered that a

test subject unique model creates better results. This

way we can mitigate the impact of other possible la-

tent translation tasks the model could pick up like

gender or age. For each subject we acquired six

videos, four with and two without sEMG sensors. To

create the training data, we randomly choose frames

from the videos. Further, we limit number of training

data to 2% of the available frames to learn the sEMG

style-translation model.

We recording setup was deﬁned in such a manner

that the test subjects do not move their heads. Thus,

a ﬁxed bounding box location for the videos was de-

ﬁned to ensure same head sizes and margins to the

background. We rescale all extracted faces to a size

of 286 × 286 to match the backbone generator net-

work. Then we split the extracted frames into 90%

training and 10% validation data. During the training

the images are augmented using horizontal ﬂipping,

random cropping, and normalization into the range

[−1, 1]. The model evaluation is then done on the re-

maining full test subject videos.

We train a ResNet (He et al., 2016) model

with nine blocks from scratch as the generator net-

works. Before the ResNet blocks two additional

down-sampling blocks are added, which are then re-

versed at the end. The PatchDiscriminator by Isola et

al. (Isola et al., 2017) builds the foundation for both

discriminators. All models are trained for 30 epochs

with an initial learning rate of 3e

−4

and a continuos

linear learning rate decay update after 15 epochs. In

Fig. 4 we show the training progress of the G

S7→N

gen-

erator. It can be seen that the model learns the general

removal of the sEMG sensors immediately and then

focuses on restoring ﬁne-grained facial details.

Figure 5: Overview of two test subjects with their respective

sEMG sensor removal. The covered facial features were

restored in all examples.

5 RESULTS

To validate the correct restoration of the facial fea-

tures we use the described experimental setup in

Fig. 1. For each test subject we translate the four sen-

sor videos with the specialized G

S7→N

generator. In-

side the video 98% of the frames have not been seen

by the generator and thus serve as test set. The per-

ceptual qualitative comparison was done using the

LPIPS and FID scores. Then we also extract the AUs

and eight basic emotions. However, due to the high

amount of possible video testing combinations we

chose a suitable subset of all these combinations. We

compare only videos from the same recording session

with each other. This reduces possible interference

due to background changes or clothing changes of the

test subjects. For all results, we investigate the three

given tasks: Schaede, Sentence, and Emotion. As a

baseline for comparison we compute all evaluations

between the two normal videos (N

, N

) recorded at

each of the two sessions. In all tables and ﬁgures the

sessions will be indicated by a subscript. We assume

that the similarities between these session are limited

to ensure comparability.

We display a selection of the resulting pairs for the

sensor removal in Fig. 5. Additionally, in the supple-

mentary material we also provide the entire videos of

the sensor (S) and clean (C) videos side-by-side for

better inspection. The visual results already indicate

a correct restoration of the underlying facial features.

We assume that the model learned a generalized ver-

sion of each test subject’s face as in some of the shown

examples the view was zoomed out. Thus, missing in-

formation must have been encoded inside the model.

The examples show that the model retains head pos-

ture, orientation, and most signiﬁcantly the correct fa-

cial expressions. However, to ensure that no underly-

ing artifacts are introduced by the generation process,

we evaluate the images with existing state-of-the-art

models on their correct results. For this quantitative

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

732

evaluation, we compute four scores per session, total-

ing to nine measurements per individual test subject

including the baseline.

5.1 Perceptual Similarity Comparison

To ensure that the qualitative results are not only vi-

sually correct, we analyze the frames of the videos

and compute a perceptual score. The comparison

between the two normal videos (N

, N

) represents

a perfect match. This will be the baseline for all

our evaluations. The score of a certain combination

is the average over all respective videos. Further-

more, we investigate the results of each task sepa-

rately. Table 1 displays the results for the LPIPS and

FID scores. We show the mean scores over all test

subjects with their respective standard deviation. The

generated clean videos C

and C

have a consider-

ably higher resemblance to the baseline than the sen-

sor videos S

and S

. This is a strong indicator that

our reconstruction method works correctly. Further-

more, the LPIPS scores indicate that there is only lit-

tle difference between the three given tasks. However,

the results of the FID score yield different results in

that regard. As for the FID 128 images are consid-

ered to estimate the underlying image generative dis-

tribution, the different facial movements could be the

reason for the differences among the tasks. Another

interesting observation is that the scores of all the

reconstructed video comparisons yield better results

than our baseline. We assume that the differences in

the background, due to changes of the recording setup

between the sessions, could be the major contributing

factor. Together with the images, as seen in Fig. 1 and

Fig. 5, the perceptual scores indicate that our gener-

ator network correctly recreates the faces of the test

subjects. We provide the side-by-side emotional task

of the sensor and clean videos in the supplementary

material. These will show that the underlying facial

features are reconstructed correctly. One can see that

even small facial movements, including eyelid closing

and gazes, are correctly restored.

5.2 Action Unit Reconstruction

We compare the reconstruction of AUs using two fea-

ture extraction methods. The ﬁrst method is a ran-

dom decision forest (RDF) (Breiman, 2001) trained

on the 68 facial landmarks extracted with MobileNet

by Howard et al. (Howard et al., 2017). The second

model JAA-NET by Shao et al. (Shao et al., 2021) in-

cludes a custom landmark detector and AUs estima-

tor. The results in Table 2 show the results for both

methods including the similarity between time series

compared with dynamic time warping (DTW) (Lher-

mitte et al., 2011) and mean absolute percentage error

(MAPE). For the comparison we average the results

of test subjects and AUs and show their respective

mean scores and deviation. We separate the results

into the three tasks to investigate differences among

different facial movements. Please note that the RDF

model computes 20 and the JAA-NET model only 12

AUs. Thus a comparison between these models is not

fully possible. Furthermore, we exclude AU43 (eye

blinking (Ekman and Friesen, 1978)) from our analy-

sis as it differs in all videos.

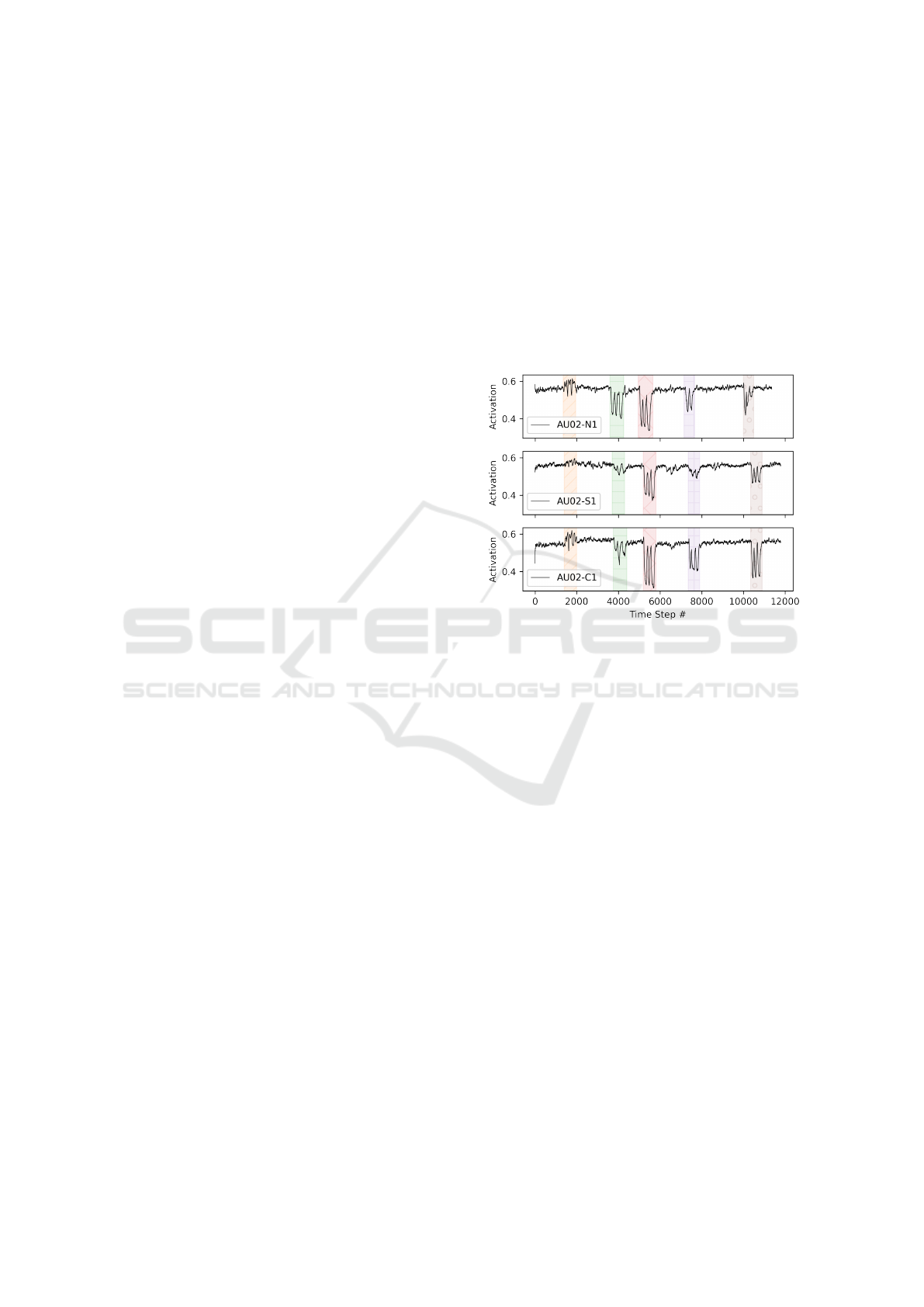

Figure 6: Qualitative comparison between the AU02 and the

restoration of the interesting intervals during the Schaede

task using the RDF model. We highlight ﬁve intervals of

activation, which should be detected. Our approach can re-

store missing intervals and correct the amplitude of existing

ones.

We can see that for most clean videos we reach a

similar score as the baseline. The qualitative recon-

struction of the correct feature extraction can be seen

in Fig. 6. We highlight the time series for AU02 (outer

brow raiser (Ekman and Friesen, 1978)) during the

Schaede (Schaede et al., 2017) video estimated by the

RDF model. During the video ﬁve distinct areas can

be detected inside the normal videos. However, in

the sensor these ﬁve areas are either not distinguish-

able from noise or detected with a wrong intensity.

The time series for clean video however shows that

all ﬁve area could be restored including a more similar

intensity to the normal videos. In the supplementary

material we provide further qualitative comparisons

to indicate the robustness of the restoration. How-

ever, it can also be seen in Table 3 that the restora-

tion scores for the Emotion and Sentence task do not

reach the baseline scores. As these videos are at the

end of each recording session, we assume that the test

subjects differ signiﬁcantly in their behavior and the

MAPE metric cannot handle this differences in the

Let’s Get the FACS Straight: Reconstructing Obstructed Facial Features

733

Table 1: The perceptual scores computed over all test subjects indicate that the clean videos resemble the normal videos more

than the sensor videos. One can even see that some reconstruction yield even better results than our baseline.

LPIPS FID

Schaede Emotion Sentence Schaede Emotion Sentence

− N

0.27±0.09 0.26±0.07 0.27±0.09 68.6±30.7 72.6±33.2 65.5±34.5

− S

0.55±0.04 0.56±0.05 0.56±0.06 278.3±28.1 280.0±26.9 279.0±32.3

−C

0.25±0.09 0.26±0.11 0.27±0.12 48.4±17.2 50.8±20.5 54.4±44.2

− S

0.55±0.03 0.55±0.04 0.55±0.03 279.8±29.3 278.6±27.3 277.0±32.9

−C

0.26±0.01 0.25±0.09 0.27±0.01 59.3±34.6 61.5±34.2 57.9±37.5

Table 2: The similarity between the Action Unit time series is computed. The results indicate the AUs can be computed

correctly in clean videos, whereas the sensor videos yield wrong results. This is even more evident for the results of the

JAA-NET model.

DTW MAPE

Schaede Emotion Sentence Schaede Emotion Sentence

RDF

− N

2.1±1.1 2.0±1.0 1.4±0.8 0.09±0.05 0.11±0.05 0.09±0.05

− S

2.8±1.4 2.4±1.2 1.7±0.9 0.11±0.05 0.12±0.05 0.10±0.05

−C

2.3±1.2 1.9±1.0 1.4±0.8 0.09±0.05 0.10±0.05 0.09±0.04

− S

2.8±1.4 2.4±1.3 1.7±0.9 0.11±0.05 0.12±0.05 0.10±0.05

−C

2.4±1.2 2.2±1.1 1.3±0.6 0.10±0.05 0.11±0.05 0.08±0.04

JAA-NET

− N

5.1± 3.3 3.8± 2.1 3.0± 2.0 2.56± 3.73 1.43± 0.79 1.20± 0.70

− S

25.6±24.9 16.6±16.1 17.0±16.5 13.15±16.03 10.12±11.57 23.09± 28.71

−C

4.6± 2.9 3.6± 2.1 3.0± 2.1 1.75± 1.98 1.57± 1.37 36.13±109.88

− S

24.0±23.5 15.8±15.6 16.4±16.2 10.54±11.20 10.46±10.53 17.39± 19.45

−C

4.5± 2.8 3.7± 2.0 2.8± 1.8 2.38± 4.43 29.80±98.40 2.90± 4.40

time series. Therefore, we can also conclude that the

DTW comparison is a more stable metric to compare

the restoration of the obstructed facial features.

5.3 Emotion Detection Comparison

We evaluate the emotion detection restoration on all

three tasks, whereas the Emotion task should weight

most in the quantitative analysis. To create the time

series for each of the seven basic emotions, we use

the ResMaskNet by Luan et al. (Luan et al., 2020)

on each single video frame. Then we compare the

given video pairs using DTW and MAPE. In Table 3

we show the results over all 36 test subjects averaged

over all emotions. The table contains the mean dis-

tance and deviation for all three tasks. It can can

be seen that our restoration method achieves similar

scores to our baseline evaluation. In Fig. 7 we display

the reconstruction of the time series for the neutral

emotional state. In the sensor video the ResMaskNet

cannot detect any correct neutral state of the test

subject. As the test subjects constantly switch be-

tween emotions back to the neutral an oscillating

pattern should be visible. This is the case for the nor-

mal videos and our clean video time series. However,

in the sensor video this pattern does not appear.

Figure 7: The qualitative results show that the time series

for the neutral emotional state can be correctly restored.

The oscillating pattern between the neutral and other emo-

tional states does not appear inside the sensor video. After

removing the sEMG sensors in the test subject’s face the

ResMaskNet can correctly estimate the facial appearance.

6 LIMITATIONS

The correctness of our proposed method for restor-

ing facial features is depending on the quality of the

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

734

Table 3: The reconstruction of the obstructed facial features in regards to the emotional states achieves similar scores to the

baseline. There are no real differences evident between the three different tasks.

DTW MAPE

Schaede Emotion Sentence Schaede Emotion Sentence

− N

5.0± 2.4 4.6± 0.9 2.4± 1.7 4.5± 3.0 5.5± 3.2 1.9± 0.8

− S

19.3± 16.7 13.8± 8.1 12.3± 14.4 57.5±106.9 30.8± 50.7 36.9± 69.5

−C

6.3± 3.5 5.9± 1.7 3.5± 2.9 8.5± 7.9 6.5± 3.7 6.3± 4.9

− S

18.5± 14.8 12.9± 6.8 11.2± 13.7 45.3± 67.4 20.8± 29.3 34.9± 58.2

−C

6.6± 3.5 6.0± 1.6 3.3± 2.7 8.8± 10.1 4.8± 2.7 6.1± 6.5

Figure 8: There are some limitations to our approach for

obstructed facial feature reconstruction. For instance, dur-

ing the sEMG sensor removal the model closed the left eye

of a test subject.

selected frames during training. In our ablation stud-

ies we observed the following limitations. When se-

lecting frames equidistantly, there was a chance that

eye movement and eyelid closing was not represented

in the data. Thus, the model was not able to restore

these movements in the resulting full video. We found

that a random selection of frames mitigated this unde-

sirable behavior. Additionally, we observed that dy-

namically computing the bounding box of the face re-

quired more training time. Face size and visible areas

vary a lot during a sequence and the face detector does

not always yield a perfect ﬁt. Furthermore, sometimes

artifacts are introduced in the generation process as

seen in Fig. 8, which can be attributed to the selection

of training frames. We also observed that the recog-

nition of the anger emotion using ResMaskNet was

less affected by sEMG sensors in comparison to other

emotions, as can be seen in Fig. 7 and 9. Relevant

facial parts of the anger emotion like the mouth area

are not obstructed. It is worth noting, that our sen-

sor removal method could still slightly improve such

scenarios.

7 CONCLUSION

In this paper, we demonstrated that instead of ﬁne-

tuning models to ﬁt obstructed unlabeled data, we can

correctly restore previously hidden facial features us-

ing a CycleGAN (Zhu et al., 2017) approach. We

Figure 9: The sEMG sensors do not obstruct the detection

of the anger emotion with ResMaskNet.

evaluated our method with respect to the visual qual-

ity of the generated faces using perceptual scores.

Evaluation has been carried out by looking into pair-

wise frame similarity and by estimating the under-

lying image distributions. Both methods clearly in-

dicated a high visual similarity of the clean videos

(reconstruction) and the normal videos (no obstruc-

tions). Further, we investigated the correctness of

state-of-the-art facial analysis methods based on these

reconstructed facial features. Here, the results showed

that restoration quality is good enough to success-

fully apply methods for Facial Actions Units (Ek-

man and Friesen, 1978) and emotions detection af-

terwards. In our work speciﬁcally, this allowed us

to further progress in the area of connecting mim-

ics and underlying facial muscles, as existing vision-

based methods can now be applied directly. Further-

more, the data driven approach based on individual

test subjects makes this approach applicable to any

person disregarding age, gender, and ethnicity.

ACKNOWLEDGEMENTS

This work has been funded by the Deutsche

Forschungsgemeinschaft (DFG - German Research

Foundation) project 427899908 BRIDGING THE

GAP: MIMICS AND MUSCLES.

Let’s Get the FACS Straight: Reconstructing Obstructed Facial Features

735

REFERENCES

Barrett, L. F. (2011). Was Darwin Wrong About Emotional

Expressions? Current Directions in Psychological

Science, 20(6):400–406.

Breiman, L. (2001). Random Forests. Machine Learning,

45(1):5–32.

Cheong, J. H., Chang, L., Jolly, E., Xie, T., skbyrne,

Kenney, M., Haines, N., and B

uchner, T. (2022).

Cosanlab/py-feat: 0.4.0. Zenodo.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-Fei,

L. (2009). ImageNet: A large-scale hierarchical im-

age database. In 2009 IEEE Conference on Computer

Vision and Pattern Recognition, pages 248–255.

Ekman, P. and Friesen, W. V. (1978). Facial Action Coding

System. Consulting Psychologists Press.

Goodfellow, I. J., Erhan, D., Carrier, P. L., Courville, A.,

Mirza, M., Hamner, B., Cukierski, W., Tang, Y.,

Thaler, D., Lee, D.-H., Zhou, Y., Ramaiah, C., Feng,

F., Li, R., Wang, X., Athanasakis, D., Shawe-Taylor,

J., Milakov, M., Park, J., Ionescu, R., Popescu, M.,

Grozea, C., Bergstra, J., Xie, J., Romaszko, L., Xu,

B., Chuang, Z., and Bengio, Y. (2013). Challenges in

Representation Learning: A report on three machine

learning contests.

Goodfellow, I. J., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative Adversarial Networks. Ad-

vances in neural information processing systems, 27.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep Resid-

ual Learning for Image Recognition. Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 770–778.

Heaven, D. (2020). Why faces don’t always tell the truth

about feelings. Nature, 578(7796):502–504.

Heusel, M., Ramsauer, H., Unterthiner, T., Nessler, B., and

Hochreiter, S. (2017). GANs Trained by a Two Time-

Scale Update Rule Converge to a Local Nash Equi-

librium. Advances in neural information processing

systems, 30.

Hjortsj

o, C.-H. (1969). Man’s Face and Mimic Language.

Studentlitteratur.

Howard, A. G., Zhu, M., Chen, B., Kalenichenko, D.,

Wang, W., Weyand, T., Andreetto, M., and Adam,

H. (2017). MobileNets: Efﬁcient Convolutional Neu-

ral Networks for Mobile Vision Applications. CoRR,

abs/1704.04861.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2017).

Image-to-Image Translation with Conditional Adver-

sarial Networks. Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

1125–1134.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

ageNet Classiﬁcation with Deep Convolutional Neu-

ral Networks. In Advances in Neural Information Pro-

cessing Systems, volume 25. Curran Associates, Inc.

Lhermitte, S., Verbesselt, J., Verstraeten, W., and Coppin,

P. (2011). A comparison of time series similarity

measures for classiﬁcation and change detection of

ecosystem dynamics. Remote Sensing of Environment,

115(12):3129–3152.

Li, Y., Liu, S., Yang, J., and Yang, M.-H. (2017). Gener-

ative Face Completion. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 3911–3919.

Liu, S., Wei, Y., Lu, J., and Zhou, J. (2018). An Im-

proved Evaluation Framework for Generative Adver-

sarial Networks. CoRR, abs/1803.07474.

Luan, P., Huynh, V., and Tuan Anh, T. (2020). Facial ex-

pression recognition using residual masking network.

In IEEE 25th International Conference on Pattern

Recognition, pages 4513–4519.

Mathai, J., Masi, I., and AbdAlmageed, W. (2019). Does

Generative Face Completion Help Face Recognition?

2019 International Conference on Biometrics (ICB).

Mathiasen, A. and Hvilshøj, F. (2021). Backpropagat-

ing through Fr

echet Inception Distance. CoRR,

abs/2009.14075.

Nguyen, T., Tran, A. T., and Hoai, M. (2021). Lip-

stick Ain’t Enough: Beyond Color Matching for In-

the-Wild Makeup Transfer. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 13305–13314.

Schaede, R. A., Volk, G. F., Modersohn, L., Barth,

J. M., Denzler, J., and Guntinas-Lichius, O. (2017).

Video Instruction for Synchronous Video Recording

of Mimic Movement of Patients with Facial Palsy.

Laryngo- rhino- otologie, 96(12):844–849.

Shao, Z., Liu, Z., Cai, J., and Ma, L. (2021). JAA-Net:

Joint Facial Action Unit Detection and Face Align-

ment via Adaptive Attention. International Journal

of Computer Vision, 129(2):321–340.

Simonyan, K. and Zisserman, A. (2015). Very Deep Con-

volutional Networks for Large-Scale Image Recogni-

tion. CoRR, abs/1409.1556(arXiv:1409.1556).

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wojna,

Z. (2015). Rethinking the Inception Architecture for

Computer Vision.

Taigman, Y., Polyak, A., and Wolf, L. (2016). Unsu-

pervised Cross-Domain Image Generation. CoRR,

abs/1611.02200.

Zhang, R., Isola, P., Efros, A. A., Shechtman, E., and Wang,

O. (2018). The Unreasonable Effectiveness of Deep

Features as a Perceptual Metric. Proceedings of the

IEEE Conference on Computer Vision and Pattern

Recognition, pages 586–595.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017).

Unpaired Image-to-Image Translation using Cycle-

Consistent Adversarial Networks. Proceedings of the

IEEE Conference on Computer Vision and Pattern

Recognition, pages 2223–2232.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

736
