Exploring Deep Learning Capabilities for Coastal Image Segmentation

on Edge Devices

Jonay Su

arez-Ram

ırez

1 a

, Alejandro Betancor-Del-Rosario

2 b

, Daniel Santana-Cedr

2 c

and Nelson Monz

1,2 d

Qualitas Artiﬁcial Intelligence and Science, Spain

CTIM, Instituto Universitario de Cibern

etica, Empresas y Sociedad, University of Las Palmas de Gran Canaria, Spain

www.qaisc.com

Keywords:

Computer Vision, Deep Learning, Semantic Segmentation, Seaside Scenes, Edge Devices.

Abstract:

Artiﬁcial Intelligence (AI) has become a revolutionary tool in multiple ﬁelds in the last decade. The appearance

of hardware with improved capabilities has paved the way to apply image processing based on Deep Neural

Networks to more complex tasks with lower costs. Nevertheless, some environments, such as remote areas, re-

quire the use of edge devices. Consequently, the algorithms must be suited to platforms with more constrained

resources. This is crucial in the development of AI systems in seaside zones. In our work, we compare a wide

range of recent state-of-the-art Deep Learning models for Semantic Segmentation over edge devices. Such

segmentation techniques provide a better scene understanding, in particular in complex areas, providing pixel-

level detection and classiﬁcation. In this regard, coastal environments represent a clear example, where more

speciﬁc tasks can be performed from these approaches, such as littering detection, surveillance, and shoreline

changes, among many others.

1 INTRODUCTION

The “Blue Economy” focuses on the role of the

marine environment and the coastal zones of our

planet as an economic source. Moreover, highlights

the importance of managing its resources efﬁciently

by restoring damaged ecosystems, and introducing

technology and innovation that allow sustainable

use in the future (Addamo et al., 2022). Technolog-

ically speaking, the marine ecosystem offers many

opportunities for the development and application of

Artiﬁcial Intelligence tools in interesting topics, such

as maritime surveillance (Wiersma and Mastenbroek,

1997; Frost and Tapamo, 2013; Yang et al., 2018),

smart tourism (Ulrike Gretzel and Koo, 2015; Tsaih

and Hsu, 2018), forecasting algal blooms (Anderson,

2009; Samantaray et al., 2018), forecasts of regional

sea-level rise (Yang et al., 2020) and storm surges

(Wang et al., 2020), prevention of coastal erosion

https://orcid.org/0000-0002-6914-8308

https://orcid.org/0000-0003-0591-9553

https://orcid.org/0000-0003-2032-5649

https://orcid.org/0000-0003-0571-9068

(Peponi et al., 2019), among a wide spread of appli-

cations.

In recent years, Artiﬁcial Intelligence strategies,

specially approaches based on Neural Networks, have

revolutionized many ﬁelds. Examples are medical di-

agnosis (Guo et al., 2017; Amato et al., 2013), Natural

Language Processing (NLP) (Collobert et al., 2011;

Vaswani et al., 2017) or computer vision (Krizhevsky

et al., 2012; Redmon et al., 2015; Guo et al., 2016),

opening new uses that did not exist or improving sub-

stantially the pre-existing ones. Some of the keys to

its recent success are the growing amount of accessi-

ble data today and the extraordinary advances in hard-

ware devoted to parallel computing (Shi et al., 2016a;

Wang et al., 2019).

Plenty of these advances are guiding us to a

“Smarter World”. Thus, many proposals (Ullah et al.,

2020) have been presented to improve the efﬁciency

of city services in traditional smart city applications.

For instance, smart homes, smart healthcare, smart

transportation, smart security, etc. Smart seaside

cities can also improve their capacities due to Deep

Learning approaches and remote sensors. We must

also notice that, in order to work in coastal areas

where may suffer from poor connectivity, remote sys-

Suárez-Ramírez, J., Betancor-Del-Rosario, A., Santana-Cedrés, D. and Monzón, N.

Exploring Deep Learning Capabilities for Coastal Image Segmentation on Edge Devices.

DOI: 10.5220/0011615400003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 5: VISAPP, pages

409-418

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

409

tems are normally mandatory. In fact, nowadays it is a

common assumption that the AI methods must be em-

bedded in edge computing systems (Shi et al., 2016b;

Satyanarayanan, 2017).

In this context, we focus on deeply analyzing AI

strategies running on edge devices. In particular,

we center the study on seaside scenarios captured by

cameras. The aim is to provide a fully understanding

of the scene, by applying semantic segmentation tech-

niques. Such methods give pixel-level information,

assigning a class label to each one of them (person,

animal, sea, sand, car, etc.). Hence, it can be obtained

low-level information, which is priceless for a wide

variety of high-level applications.

Therefore, we analyze the behavior of image seg-

mentation through Deep Learning pre-trained models

using two datasets of seasides scenes. With the ap-

plication of semantic segmentation in these environ-

ments, we pursue a better understanding of the im-

ages. That allows further applications to guide more

speciﬁc tasks, such as garbage detection or surveil-

lance, that could have a great impact on user experi-

ence in the area. All these artiﬁcial intelligence appli-

cations in vision should be the key to industrial prod-

ucts for maritime safety, and smart tourism, among

others.

Traditionally, urban environments have been

deeply explored using semantic segmentation tech-

niques, due to the interest in areas such as au-

tonomous driving. Nevertheless, to the best of our

knowledge, there has been no review study of this

type on coastal imagery. Moreover, this scenario

with particular computing conditions can provide

researchers with systematic reference information,

which is the motivation of our comparative analysis.

Besides, the deployment of Deep Learning models on

low compute devices is an increasingly important area

of research. In this sense, our comparison is focused

on models that work in edge devices.

The paper is organized as follows: in section 2,

we include recent state-of-the-art works regarding se-

mantic segmentation, based on Convolutional Neu-

ral Networks, as well as Transformers. On the other

hand, section 3 describes the experimental setup, en-

compassing the hardware description, the datasets

employed, and the results that we have obtained. Fi-

nally, we include the conclusions in section 4.

2 RELATED WORKS

There are two main approaches to tackle image seg-

mentation tasks, namely those based on Convolu-

tional Neural Networks (CNNs) (Lindsay, 2021), and

the ones derived from Transformers (Khan et al.,

2022). In this work, we have evaluated models be-

longing to each one of them (about 24, combining

8 different backbones with multiple methods - see

Tables 5 and 6 for more details), aiming to provide

a clear and objective analysis of such different ap-

proaches.

More classical methods are based on Convolu-

tional Neural Networks, although new proposals keep

arising. A clear example is the Deeplab method, and

its successive iterations (Deeplabv3 and Deeplabv3+)

(Chen et al., 2017). Its main characteristic is the

use of atrous or dilated convolutions and the Atrous

Spatial Pyramid Pooling module to take advantage

of information from a larger neighborhood with the

same computational cost. A similar inspiration is fol-

lowed by PSPNet (Pyramid Scene Parsing Network)

(Zhao et al., 2017), which is a semantic segmenta-

tion method that utilizes a pyramid parsing module

that exploits global context information by different-

region-based context aggregation. A more reliable

prediction is obtained by joining the local and global

clues together.

Using a global image representation, APCNet (He

et al., 2019) adaptively constructs multi-scale contex-

tual representations with multiple designed Adaptive

Context Modules (ACMs). Such modules leverage

these global representations, guiding the estimation

of local afﬁnity coefﬁcients for each sub-region, and

then calculate a context vector with these afﬁnities.

The non-local block is a popular module for

strengthening the context modeling ability of a reg-

ular CNN. This block attention computation can be

split into two terms, a whitened pairwise term ac-

counting for the relationship between two pixels and a

unary term representing the saliency or prominence of

every pixel. However, the two terms are tightly cou-

pled in the non-local block, which hinders the learn-

ing of each. Disentangled Non-Local Neural Net-

works (DNL) (Yin et al., 2020) decouples these two

terms to facilitate learning for both.

As a ResNet variation, ResNeSt (Zhang et al.,

2022) proposes the channel-wise attention on dif-

ferent network branches to leverage their success in

capturing cross-feature interactions and learning di-

verse representations, through a single uniﬁed Split-

Attention block. In this way, feature representation is

improved, which is useful in multiple applications.

Another viewpoint is found in SegNeXt (Guo

et al., 2022), where a combination of a CNN with

an attention module based on MSCA (multibranch

spatial-channel attention) is proposed. The authors

rely on a better efﬁciency of the convolutional ap-

proach to extract contextual information, by using

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

410

good characteristics present in previous segmentation

models.

Aiming to embed Transformer features into a

CNN architecture, in HorNet (Rao et al., 2022), a new

operation to perform high-order spatial interactions

(Recursive Gated Convolution) is proposed. Thus,

a new family of vision backbones (HorNet) is pro-

vided, by replacing the spacial mixing layer in var-

ious Transformers. This can be done by using the

new operation, which is more efﬁcient, extensible,

and translation-equivariant.

On the other hand, Transformers were originally

applied to Natural Language Processing (NLP), by

using their self-attention mechanism to recognize dif-

ferent parts of input data. Their application to Com-

puter Vision (CV) tasks relied on adapting the archi-

tecture to the structure of visual data, by modifying

network designs and training techniques.

Initially, Vision Transformer (ViT) proposal

(Dosovitskiy et al., 2021) was the ﬁrst step towards

the uniﬁcation and cross-area research sharing be-

tween CV and NLP. ViT is the application of a well-

known NLP architecture, the Transformer (Vaswani

et al., 2017), to CV. For this aim, ViT divides the im-

ages into a grid of S × S patches and considers ev-

ery patch as a token, working similarly to the origi-

nal NLP architecture. Swin Transformer (Liu et al.,

2021) is an evolution of ViT, but applies a hierarchi-

cal structure using windows. In this way, it divides the

images into a non-constant size grid of windows and

split each window into a constant size grid of patches.

This approach allows availing ﬁner details in the im-

age without the need for a large and computationally

costly grid with ViT.

Segmenter (Transformer for Semantic Segmenta-

tion) (Strudel et al., 2021), is also a ViT approach. It

aims to model global context from the very beginning

of the architecture and through the whole network

without using convolutions. The authors propose a

family of models with different levels of resolution,

with the intention of a trade-off between time and per-

formance. As a result, it is estimated that this model

can provide a uniﬁed approach for different sorts of

segmentation (semantic, instance, and panoptic).

Following with ViT strategies, in (Chen et al.,

2022), an adapter for ViT is proposed. The aim is

to avoid the lower performance on dense prediction

of ViT, by introducing biases with additional archi-

tecture. This architecture consists of a spatial prior

module and two feature interaction operators. Such an

adapter is connected to a general backbone, in order

to introduce prior information of input data, making

the network suitable for downstream tasks.

In order to avoid a ﬁnetuning of transformer back-

bone networks, in SeMask model (Jain et al., 2021)

is proposed to include a semantic prior to guiding the

encoder’s feature modeling. In this way, the proposed

model can be plugged into any hierarchical ViT, with

the objective to acquire semantic context and improve

its representation by using semantic attention opera-

tion.

Finally, the proposal of SegFormer (Xie et al.,

2021), is to unify Transformers with multilayer per-

ceptron decoders. By redesigning the encoder an de-

coder, the authors consider jointly the efﬁciency, ac-

curacy, and robustness. The main idea is to avoid the

complex designs of previous approaches.

3 EXPERIMENTS

In this section, we describe the experimental setup.

Firstly, the hardware system is described, including

capture and edge computing devices. Afterward, we

include the details regarding the datasets employed in

the experiments, to ﬁnally explain the experimental

results obtained.

3.1 Hardware

Concerning the hardware system, we appraise two

main elements. On the one hand, we have the cam-

era, from which the images will be captured. On the

other hand, we consider the edge device, devoted to

performing the computations on the input data by us-

ing different Deep Learning models. Notice that such

a description relies on the scenario that we manage,

and the conﬁguration of the capture systems for other

datasets (such as in the case of ArgusNL) may vary,

as well as the edge device features.

Regarding the capture system, a PTZ camera

(Hikvision DS-2DF8836I5X) has been used to obtain

images of coastal scenes. It has three degrees of free-

dom, provided by its inherent pan, tilt, and zoom ca-

pabilities. It is mounted on a bracket, and at a height

enough to provide a wide view of the coast. This cam-

era is able to capture images up to 4K resolution but

we use 1920x1080 resolution to achieve faster results.

A more detailed description of camera features can be

found in Table 1.

The current technological trends like Internet of

Things (IoT) or autonomous vehicles are boosting

the use of neural networks in remote devices and so

that require appropriate hardware , such as embed-

ded computing boards. NVIDIA Jetson is the family

of NVIDIA products speciﬁcally designed for Edge

Computing, characterized by having a good relation

between performance versus energy consumption and

Exploring Deep Learning Capabilities for Coastal Image Segmentation on Edge Devices

411

Table 1: Main Hikvision DS-2DF8836I5X camera speciﬁ-

cations.

Feature Description

Image sensor 2/3” CMOS

Shutter time 1/1 s - 1/30000 s

Focal length 7.5 mm - 270 mm

Optical zoom x36

Pan range 360º

Tilt range -20º a 90º

Maximum resolution 4K

Dimensions Θ 266.6 mm × 410 mm

size. In this work, the edge device we used to test

memory consumption restriction and inference time

measuring is an NVIDIA Xavier NX 8GB with Jet-

Pack 4.5 installed. Main Xavier NX model speciﬁca-

tions are presented in table 2 (ﬁnd more details at this

link).

Table 2: Nvidia Jetson Xavier NX speciﬁcations.

Feature Description

AI Performance 21 TOPS

GPU 384-core NVIDIA Volta GPU

with 48 Tensor Cores

CPU 6-core NVIDIA Carmel 64-bit

CPU

Memory 8 GB 128-bit LPDDR4x

Power 3 modes of 10 / 15 / 20 W

Dimension 69.6 mm x 45 mm

Therefore, considering the constraints presented

in table 2, it is clear that a detailed analysis of dif-

ferent models and their performance would be useful

to identify a trade-off between throughput and results

obtained.

3.2 Datasets

In order to test the models described in the above sec-

tion 2, two different datasets have been used. On the

one hand, we experiment with the ArgusNL dataset,

which includes a set of images captured on the Dutch

coast and manually annotated. On the other hand, a

second dataset is proposed, obtained from a location

on the South-West coast of the Gran Canaria island.

In this section, we include a more detailed description

of both datasets.

The ArgusNL dataset (Hoonhout et al., 2015),

consists of 192 images (snapshots) taken during the

summer of 2013 and manually annotated. To obtain

them, 4 different coastal camera stations have been

used, placed on the Dutch coast (Egmond, Jan van

Speijk, Kijkduin, and Sand Motor). These stations

count with multicamera systems, with setups rang-

ing from 5 to 8 cameras. This dataset was originally

published in (Hoonhout and Radermacher, 2014), and

contains snapshots captured at different moments of

the day, providing a variety of light conditions. These

images have been captured in RGB color code, JPG

format, and with resolutions of 2448 × 2048 and

1392×1040 (probably depending on the station setup

used to perform the capture). Associated with each

one of them, a pickle (.pkl) ﬁle with the manual anno-

tations is included.

In addition, we also use a second dataset denom-

inated Smart Coast Segmentation Dataset (SCSD),

which is provided by the R&D company Qualitas Ar-

tiﬁcial Intelligence and Science S.A. (QAISC). In the

context of the project ”Smart Coast AI solutions for

tourism 4.0” led by QAISC, several cameras have

been deployed in harbors, marinas, beaches, and ho-

tels on Gran Canaria island. SCSD includes about 36

images, with different scenes and light/shadow condi-

tions. Such images were captured from two cameras

installed in the South-West of Gran Canaria island

The images have been obtained in RGB color code,

JPG format, with a resolution of 1920 × 1080. Con-

versely to ArgusNL dataset, SCSD provides homoge-

nous resolutions. Therefore, is easier to perform reso-

lution dependant experiments with the whole dataset.

Along with the images, PNG grayscale ﬁles are in-

cluded with the annotations following ADE20K an-

notations style and indexes (Barriuso and Torralba,

2012).

To illustrate the classiﬁcation performed by se-

mantic segmentation techniques, in Table 3, we in-

clude the details of the correspondences between the

different classes and their associated colors. Please,

note that in the case of the SCSD dataset, the color

codes are based on the ADE20K dataset, whereas Ar-

gunsNL uses its own colors (with light differences

among both datasets). Furthermore, in ArgusNL clas-

siﬁcation, each pixel that has not been classiﬁed as

any of the considered classes is assigned to the ob-

ject class. The classes without an associated color are

marked with a dash.

3.3 Experimental Results

In this section, we show the experimental results ob-

tained. To this aim, we apply the models described in

section 2 to both datasets. About 24 different mod-

els have been used, by combining 8 backbones with

multiple methods. Regarding the model implementa-

tions and weight ﬁles, Upernet-Swin, ConvNext, Seg-

menter, Segformer, Resnet and ResneSt come from

https://www.smartcoast.info/

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

412

Table 3: Correspondences between classes and colors for

SCSD and ArgusNL datasets. In the SCSD dataset, the veg-

etation class is a virtual class we created to join tree, grass,

plant, and palm classes.

Class

Colors

SCSD ArgusNL

background —

wall —

building —

sky

ﬂoor —

tree —

grass —

earth —

plant —

sea

rock —

sand

bridge —

palm —

boat —

swim pool —

pier —

vegetation

object —

MMSegmentation and the rest from their original im-

plementations. In this way, qualitative and quantita-

tive results are included to show the robustness of the

different approaches. Our ﬁnal objective is to obtain

a trade-off between precision and computational cost.

Aiming to illustrate the results obtained, in Table 4

the outcomes for some of the best performing Seman-

tic Segmentation models are depicted. Additionally,

we consider a variety of illumination conditions: op-

timum, medium, and bad. In the ﬁrst two rows, we

include the inputs and their associated ground-truths,

whereas in the rest of the rows the results for different

models are represented. Note that, although the color

correspondences seem not to agree with the ground-

truth, this is due to the fact that the image segmenta-

tion result is superimposed on the input image with

transparency, which produces slight differences.

As observed, with optimum illumination all of

them correctly segmentate the biggest regions in the

image, sea, sky, building, and vegetation. Under

worse illumination conditions (third column) some

models start to struggle to detect a diffuse horizon line

like Swin-B384 and ViT-Adapter with lower resolu-

tion. Segmenting an image with a very bad illumina-

tion (fourth column) is a challenging task. All of the

depicted models struggle to accurately classify both

dikes areas. Only Hornet-L-GF is able to correctly

keep the sea shape around the dike in the back. With

bad illumination, the difference between resolutions

is hardly noticeable.

On the other hand, in Figure 1 we show different

results when the input image is affected by shadows.

Thus, we include the input image with the shadow

(Figure 1(a)) and its corresponding ground-truth (Fig-

ure 1(b)). In particular, here we can see that there are

two regions that are tougher to classify: the building

shadow and the wet sand. Most models perform simi-

larly segmenting the sea and most of the sand but also

fail to segment the building and shadowed sand area

next to the promenade. Like in the illumination exper-

iment, Hornet-L-GF (Figure 1(c)) is the best segment-

ing in these difﬁcult regions and Swin-B384 (Figure

1(e)) with 1080 pixels width works acceptably on this

area but miss-classiﬁes half of the building.

For the purpose of quantitatively characterizing

the results obtained with the different models, we in-

clude ﬁgures in Tables 5 and 6. In each one, the three

models with the overall best performance are high-

lighted in bold. In Table 5 we show the numerical

results for the ArgusNL dataset. In this way, num-

bers related to the mean intersection over union (

IoU),

mean accuracy (Acc.), and absolute accuracy (|Acc.|)

are presented. On the ArgusNL dataset, three back-

bones outstand, HorNet, ViT, and Swin. In the same

way, ViT-Adapter, HorNet-L-GF, and HorNet-S-7x7

rank top-3 in all metrics, but not in the same order,

and achieve more than 70 % in IoU. Segmenter B

and Swim B224-22k perform very close to the 70 %

IoU barrier as well. Averaging the three metrics ViT-

Adapter works best in this dataset closely followed by

HorNet-L-GF.

Table 6 includes ﬁgures regarding the SCSD

dataset. As described in section 3.2, this dataset pro-

vides a homogeneous set of images with the same

resolution, which allows us to perform resolution-

dependent experiments. In addition to the metrics

presented in the previous table, we also include the

inference time for the ﬁrst inference and the mean for

the rest of them. All these experiments have been

performed for two image widths: 1080 and 1920,

when feasible. For an image width of 1080 pix-

els, top-3 IoU are HorNet-L-GF, ConvNext B640,

and Semask-FPN-Swin-L but their average inference

time is bottom-4 and over 7.5 s which is almost pro-

hibitive. Performance and inference time objectives

are opposed so we must keep in mind this trade-off.

When we use the original image width, 1920 pixels,

we are boosting the performance of modern models

to the detriment of their resources consumption and

execution time. Some models consume more RAM

memory than available so must be discarded with this

Exploring Deep Learning Capabilities for Coastal Image Segmentation on Edge Devices

413

Table 4: Semantic Segmentation results under optimum, medium, and bad illumination conditions, respectively.

Models

Illumination

Optimum Medium Bad

Input

ground-truth

Hornet-L-GF

Hornet-S-7x7

Swin-B384 (1080)

Swin-B384 (1920)

SeMask

ViT-Adapter (1080)

ViT-Adapter (1920)

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

414

(a) Input (b) Ground-truth

(e) Swin-B384-1080 (f) Swin-B384-1920

(g) SeMask (h) ViT-Adapter-1080

(i) ViT-Adapter-1920

Figure 1: Results for different models when the input image

is affected by shadows.

resolution. Those which can work with this resolu-

tion achieve some improvements over lower resolu-

tions, like HorNet-S-7x7, Swin-B384-22k, and ViT-

Adapter which perform top-3 on IoU with images of

1920x1080 pixels.

With the aim of comparing models in terms of

quality and speed, we plotted the mean IoU against

average inference time in Figure 2. The more left-up

corner the model is placed in, the better overall, in

terms of higher IoU and faster In f . As usually hap-

pens in multi-objective optimization problems, there

is no model which is best, rather we have a Pareto

set composed of 7 models, which means that no other

model is better than they in both objectives. There-

fore, we can consider different models depending on

the scenario and desired results concerning time and

Table 5: Results for ArgusNL dataset. From left to right:

backbone, model, mean IoU, mean accuracy, and absolute

accuracy. All HorNet and Swin backbones models were

combined with Upernet unless other method is speciﬁed.

Backbone Model

Metrics (%)

IoU Acc. |Acc.|

ConvNext ConvNext B640 57.47 74.55 65.17

Hornet

HorNet-L-GF 71.71 84.59 82.87

HorNet-L-7x7 67.17 80.61 76.21

HorNet-B-GF 59.54 78.04 73.69

HorNet-B-7x7 63.59 80.27 74.48

HorNet-S-GF 62.82 78.64 77.27

HorNet-S-7x7 70.60 84.60 83.22

MiT Segformer B5 66.55 81.48 79.75

MSCAN

SegNext-L 58.50 77.50 71.86

SegNext-B 62.85 79.15 75.55

Resnet101

DNL 65.88 80.26 80.04

PSPNet 49.73 69.12 62.94

APCNet 51.89 71.34 65.53

ResneSt101

PSPNet 55.58 74.79 67.65

DeepLabv3 53.79 73.07 67.19

DeepLabv3+ 60.15 76.72 71.78

Swin

Upernet Swin-B384-22k 67.45 81.07 80.51

Upernet Swin-B384-1k 61.19 79.33 75.40

Upernet Swin-B224-22k 69.85 83.72 82.53

Upernet Swin-B224-1k 58.82 78.64 70.65

Upernet Swin-S 63.04 80.28 75.56

SeMask-FPN-Swin-L 68.26 81.59 82.57

ViT

Segmenter B 69.79 81.29 82.67

ViT-Adapter AugReg-B 71.87 84.24 84.80

accuracy. According to the problem to solve, num-

ber of inferences per cycle, and quality requirements,

one of those models should be chosen. With a longer

working cycle and/or lower number of inferences

Swin-B384-22k can be used to obtain higher qual-

ity segmentation results. In case the number of in-

ferences required is high, a SegNext variant could be

deployed, either SegNext-B with a higher image res-

olution or SegNext-L with a lower one. In other cases

where there has to be a compromise between speed

and quality, Segmenter B with lower or medium reso-

lution input images seems a balanced option between

both.

4 CONCLUSIONS

Performance analysis of different Deep Learning

models on an edge device to perform semantic seg-

mentation tasks has been presented in this work.

To this aim, two different datasets have been used,

namely ArgusNL and SCSD. Combining 8 back-

bones with multiple methods, we have applied a total

amount of 24 different models to such datasets, in-

cluding qualitative and quantitative results.

Exploring Deep Learning Capabilities for Coastal Image Segmentation on Edge Devices

415

Table 6: Results for the SCSD dataset. From left to right: backbone, model, mean IoU, mean accuracy, absolute accuracy, the

computational time for the ﬁrst inference, and mean value for the rest of the inferences (for image widths of 1080 and 1920

respectively). All HorNet and Swin backbones models were combined with Upernet unless other method is speciﬁed.

Backbone Model

Image width

1080 1920

Metrics (%) Time (sec.) Metrics (%) Time (sec.)

IoU Acc. |Acc.| 1

Inf. Inf. IoU Acc. |Acc.| 1

Inf. Inf.

ConvNext Upernet ConvNext B640 44.82 57.34 82.04 12.49 7.76 — — — — —

Hornet

HorNet-L-GF 44.91 58.53 82.41 30.42 10.03 — — — — —

HorNet-L-7x7 43.42 56.72 82.08 23.97 10.50 — — — — —

HorNet-B-GF 42.72 58.55 80.36 17.79 5.46 — — — — —

HorNet-B-7x7 40.37 54.77 80.05 12.48 5.60 40.66 55.68 80.66 32.62 5.48

HorNet-S-GF 41.86 53.39 80.90 13.01 4.82 41.89 55.80 81.27 41.55 4.78

HorNet-S-7x7 42.43 56.94 81.44 10.62 4.54 44.03 58.74 82.16 40.84 4.87

MiT Segformer B5 40.07 51.15 79.50 7.41 2.32 — — — — —

MSCAN

SegNext-L 41.24 51.08 79.88 6.21 1.16 42.18 52.68 80.66 13.80 1.44

SegNext-B 37.76 48.33 78.26 4.97 0.68 39.52 50.56 79.08 11.15 1.00

Resnet101

DNL 36.48 46.45 78.62 7.68 2.35 36.36 46.48 78.01 17.84 3.48

PSPNet 36.10 46.94 78.35 4.57 2.08 35.55 46.29 77.64 10.88 2.40

APCNet 36.54 47.33 76.27 6.42 2.30 36.90 48.63 76.18 13.94 3.05

ResneSt101

PSPNet 37.86 49.71 77.08 4.84 2.30 37.63 49.26 76.65 9.62 2.71

DeepLabv3 38.78 50.26 77.29 5.36 2.95 38.57 49.96 77.24 10.10 3.42

DeepLabv3+ 36.66 47.25 76.49 5.02 2.39 37.06 47.70 76.53 11.09 2.90

Swin

Upernet Swin-B384-22k 43.63 56.94 81.06 8.33 3.51 44.90 58.68 81.65 18.41 4.10

Upernet Swin-B384-1k 39.40 50.99 78.22 7.01 3.02 39.82 52.21 78.35 20.21 4.08

Upernet Swin-B224-22k 40.47 51.32 80.62 6.97 2.85 41.70 53.24 81.46 23.12 3.97

Upernet Swin-B224-1k 39.75 49.63 79.48 7.03 2.84 40.65 50.62 79.25 21.37 3.90

Upernet Swin-S 40.23 52.41 78.82 7.55 2.55 41.28 52.91 79.01 16.75 3.29

SeMask-FPN-Swin-L 44.40 56.49 82.05 10.24 7.91 — — — — —

ViT

Segmenter B 42.82 54.76 81.78 7.81 1.82 — — — — —

ViT-Adapter AugReg-B 43.54 57.59 81.14 11.77 6.01 44.37 59.11 81.08 39.76 10.75

As observed, the visual results show the strengths

and weaknesses of the evaluated models, related to

different illumination and shadow conditions. Poor

illumination, strongly affects all approaches, whereas

with shadows some of them perform better.

Quantitatively, both datasets have been used to

study the performance of the models, including ﬁg-

ures regarding mean IoU, average, and absolute ac-

curacy. In addition, with the proposed SCSD dataset,

inference time has been also compared, as well as dif-

ferent input image resolutions. The selection of the

best model relies on a trade-off between precision and

computational time. As presented, the scenario deter-

mines the best choice, in particular in terms of mean

inference time.

To the best of our knowledge, this is the ﬁrst work

that presents a detailed review of the capabilities of

Deep Learning models in semantic segmentation run-

ning on edge devices environment, in particular, for

applications on coastal imagery. Although this is a

growing area and further research is needed, we hope

to contribute to solutions in remote coastal regions.

ACKNOWLEDGEMENTS

This work is the result of a collaboration between

QAISC and CTIM, within the framework of the con-

tract C2021/193 signed between the company and

The Canarian Science and Technology Park Founda-

tion of the University of Las Palmas de Gran Canaria.

It has also been supported supported by The Ca-

narian Science and Technology Park Foundation of

the University of Las Palmas de Gran Canaria through

the research project F2021/05 FEI Innovaci

on y

Transferencia empresarial and by Vicepresidencia

Primera, Consejer

ıa de Vicepresidencia Primera y de

Obras P

ublicas, Infraestructuras, Transporte y Movil-

idad from Cabildo de Gran Canaria, through the

project of reference Resolution No. 45/2021.

We also thank the tourism groups Anﬁ del Mar

and Radisson Blu for their support within the frame-

work of the ”Smart Coast AI Lab for tourism” initia-

tive led by QAISC in collaboration with the CTIM.

Finally, we thanks Prof. Luis

Alvarez Le

on for his

guidance on a previous work precedent to this paper.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

416

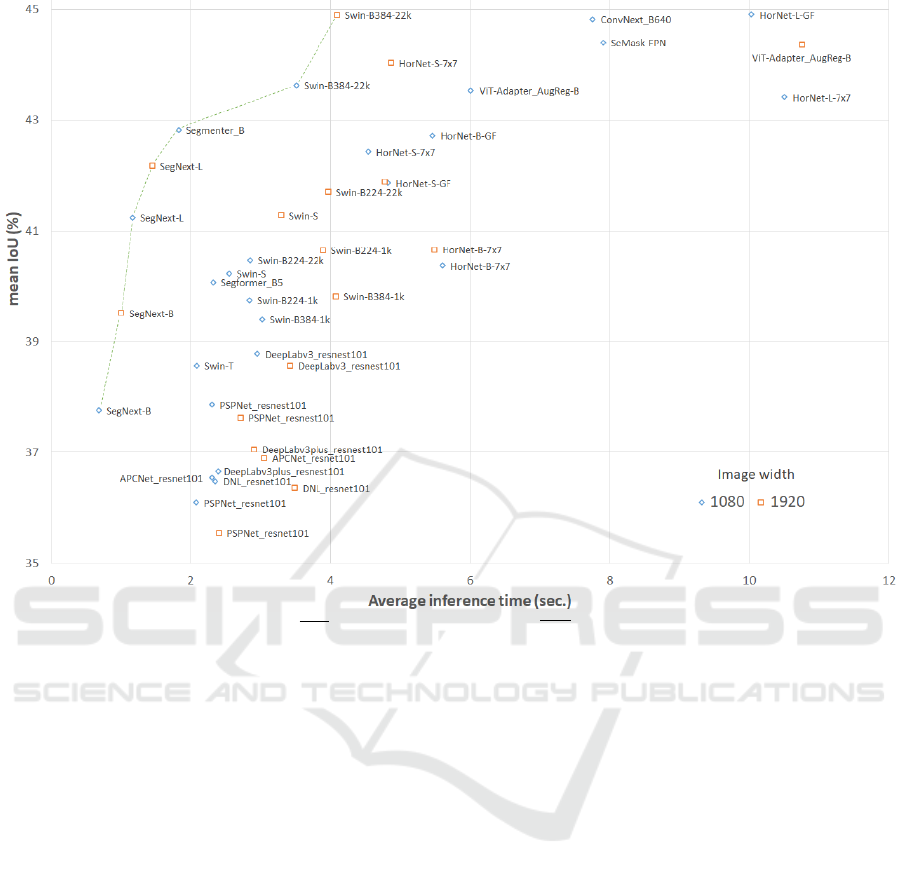

Figure 2: Mean Intersection over Union (IoU) vs. average inference time (In f .) for the models in Table 6. The green dashed

line represent the Pareto frontier.

REFERENCES

Addamo, A., Calvo Santos, A., Guill

en, J., Neehus, S.,

Peralta Baptista, A., Quatrini, S., Telsnig, T., and

Petrucco, G. (2022). The EU Blue Economy Report

2022. European Commission Directorate General for

Maritime Affairs and Fisheries, and the Joint research

Center. Publications Ofﬁce of the European Union,

Luxemburg.

Amato, F., L

opez, A., Pe

na-M

endez, E. M., Va

nhara, P.,

Hampl, A., and Havel, J. (2013). Artiﬁcial neural

networks in medical diagnosis. Journal of Applied

Biomedicine, 11(2):47–58.

Anderson, D. M. (2009). Approaches to monitoring, control

and management of harmful algal blooms (HABs).

Ocean & coastal management, 52(7):342–347.

Barriuso, A. and Torralba, A. (2012). Notes on image an-

notation. Technical report, Massachusetts Institute of

Technology (MIT).

Chen, L.-C., Papandreou, G., Schroff, F., and Adam,

H. (2017). Rethinking Atrous Convolution for

Semantic Image Segmentation. arXiv preprint

arXiv:1706.05587, abs/1706.05587:1–14.

Chen, Z., Duan, Y., Wang, W., He, J., Lu, T., Dai, J.,

and Qiao, Y. (2022). Vision Transformer Adapter for

Dense Predictions. ArXiv, abs/2205.08534:1–25.

Collobert, R., Weston, J., Bottou, L., Karlen, M.,

Kavukcuoglu, K., and Kuksa, P. P. (2011). Natural

Language Processing (almost) from Scratch. CoRR,

abs/1103.0398.

Dosovitskiy, A., Beyer, L., Kolesnikov, A., Weissenborn,

D., Zhai, X., Unterthiner, T., Dehghani, M., Minderer,

M., Heigold, G., Gelly, S., Uszkoreit, J., and Houlsby,

N. (2021). An Image is Worth 16x16 Words: Trans-

formers for Image Recognition at Scale. In Interna-

tional Conference on Learning Representations.

Frost, D. P. and Tapamo, J.-R. (2013). Detection and track-

ing of moving objects in a maritime environment us-

ing level set with shape priors. EURASIP Journal on

Image and Video Processing, 2013:1–16.

Guo, M.-H., Lu, C.-Z., Hou, Q., Liu, Z., Cheng, M.-M.,

and Hu, S.-M. (2022). SegNeXt: Rethinking Convo-

lutional Attention Design for Semantic Segmentation.

ArXiv, pages 1–15.

Guo, Y., Liu, Y., Georgiou, T., and Lew, M. S. (2017). A re-

view of semantic segmentation using deep neural net-

works. International Journal of Multimedia Informa-

tion Retrieval, 7:87–93.

Guo, Y., Liu, Y., Oerlemans, A., Lao, S., Wu, S., and Lew,

M. S. (2016). Deep learning for visual understand-

ing: A review. Neurocomputing, 187:27–48. Recent

Developments on Deep Big Vision.

Exploring Deep Learning Capabilities for Coastal Image Segmentation on Edge Devices

417

He, J., Deng, Z., Zhou, L., Wang, Y., and Qiao, Y.

(2019). Adaptive Pyramid Context Network for Se-

mantic Segmentation. In 2019 IEEE/CVF Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 7511–7520.

Hoonhout, B. and Radermacher, M. (2014). Annotated im-

ages of the Dutch coast. https://doi.org/10.4121/uuid:

08400507-4731-4cb2-a7ec-9ed2937db119. [Online;

accessed 29-September-2022].

Hoonhout, B., Radermacher, M., Baart, F., and van der

Maaten, L. (2015). An automated method for seman-

tic classiﬁcation of regions in coastal images. Coastal

Engineering, 105:1–12.

Jain, J., Singh, A., Orlov, N., Huang, Z., Li, J., Wal-

ton, S., and Shi, H. (2021). SeMask: Semanti-

cally Masked Transformers for Semantic Segmenta-

tion. arXiv, abs/2112.12782:1–14.

Khan, S., Naseer, M., Hayat, M., Zamir, S. W., Khan, F. S.,

and Shah, M. (2022). Transformers in Vision: A Sur-

vey. ACM Comput. Surv., 54(10s):1–41.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

ageNet Classiﬁcation with Deep Convolutional Neu-

ral Networks. In Pereira, F., Burges, C., Bottou, L.,

and Weinberger, K., editors, Advances in Neural In-

formation Processing Systems, volume 25. Curran As-

sociates, Inc.

Lindsay, G. W. (2021). Convolutional neural networks as a

model of the visual system: Past, present, and future.

Journal of cognitive neuroscience, 33(10):2017–2031.

Liu, Z., Lin, Y., Cao, Y., Hu, H., Wei, Y., Zhang, Z., Lin, S.,

and Guo, B. (2021). Swin Transformer: Hierarchical

Vision Transformer using Shifted Windows. In 2021

IEEE/CVF International Conference on Computer Vi-

sion (ICCV), pages 9992–10002.

Peponi, A., Morgado, P., and Trindade, J. (2019). Combin-

ing Artiﬁcial Neural Networks and GIS Fundamentals

for Coastal Erosion Prediction Modeling. Sustainabil-

ity, 11(4):1–14.

Rao, Y., Zhao, W., Tang, Y., Zhou, J., Lim, S.-N., and Lu,

J. (2022). HorNet: Efﬁcient High-Order Spatial In-

teractions with Recursive Gated Convolutions. ArXiv,

abs/2207.14284:1–15.

Redmon, J., Divvala, S. K., Girshick, R. B., and Farhadi,

A. (2015). You Only Look Once: Uniﬁed, Real-Time

Object Detection. CoRR, abs/1506.02640.

Samantaray, A., Yang, B., Dietz, J. E., and Min, B.-C.

(2018). Algae Detection Using Computer Vision and

Deep Learning.

Satyanarayanan, M. (2017). The Emergence of Edge Com-

puting. Computer, 50(1):30–39.

Shi, S., Wang, Q., Xu, P., and Chu, X. (2016a). Benchmark-

ing State-of-the-Art Deep Learning Software Tools. In

2016 7th International Conference on Cloud Comput-

ing and Big Data (CCBD), pages 99–104.

Shi, W., Cao, J., Zhang, Q., Li, Y., and Xu, L. (2016b). Edge

Computing: Vision and Challenges. IEEE Internet of

Things Journal, 3(5):637–646.

Strudel, R., Pinel, R. G., Laptev, I., and Schmid, C. (2021).

Segmenter: Transformer for Semantic Segmentation.

2021 IEEE/CVF International Conference on Com-

puter Vision (ICCV), pages 7242–7252.

Tsaih, R.-H. and Hsu, C. C. (2018). Artiﬁcial Intelligence

in Smart Tourism: A Conceptual Framework. In

Proceedings of The 18th International Conference on

Electronic Business, pages 124–133, Guilin, China.

Association for Information Systems.

Ullah, Z., Al-Turjman, F., Mostarda, L., and Gagliardi, R.

(2020). Applications of Artiﬁcial Intelligence and Ma-

chine learning in smart cities. Computer Communica-

tions, 154:313–323.

Ulrike Gretzel, Marianna Sigala, Z. X. and Koo, C. (2015).

Smart tourism: foundations and developments. In

Electron Markets, pages 179—-188.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L. u., and Polosukhin,

I. (2017). Attention is All you Need. In Guyon,

I., Luxburg, U. V., Bengio, S., Wallach, H., Fer-

gus, R., Vishwanathan, S., and Garnett, R., editors,

Advances in Neural Information Processing Systems,

volume 30, pages 5998–6008. Curran Associates, Inc.

Wang, Y., Chen, X., Wang, L., and Min, G. (2020). Ef-

fective IoT-Facilitated Storm Surge Flood Modeling

Based on Deep Reinforcement Learning. IEEE Inter-

net of Things Journal, 7(7):6338–6347.

Wang, Y. E., Wei, G.-Y., and Brooks, D. (2019). Bench-

marking TPU, GPU, and CPU Platforms for Deep

Learning. CoRR.

Wiersma, E. and Mastenbroek, N. (1997). Measurement of

Vessel Trafﬁc Service Operator Performance. IFAC

Proceedings Volumes, 30(24):61–64. 6th IFAC Sym-

posium on Automated Systems Based on Human Skill

1997 (Joint Design of Technology and Organisation),

Kranjska gora, Slovenia, 17-19 September.

Xie, E., Wang, W., Yu, Z., Anandkumar, A., Alvarez, J. M.,

and Luo, P. (2021). SegFormer: Simple and efﬁcient

design for semantic segmentation with transformers.

Advances in Neural Information Processing Systems,

34:12077–12090.

Yang, C.-H., Wu, C.-H., and Hsieh, C.-M. (2020). Long

short-term memory recurrent neural network for tidal

level forecasting. IEEE Access, 8:159389–159401.

Yang, X., Sun, H., Fu, K., Yang, J., Sun, X., Yan, M.,

and Guo, Z. (2018). Automatic Ship Detection in Re-

mote Sensing Images from Google Earth of Complex

Scenes Based on Multiscale Rotation Dense Feature

Pyramid Networks. Remote Sensing, 10(1):1–14.

Yin, M., Yao, Z., Cao, Y., Li, X., Zhang, Z., Lin, S., and Hu,

H. (2020). Disentangled Non-Local Neural Networks.

CoRR, abs/2006.06668:191–207.

Zhang, H., Wu, C., Zhang, Z., Zhu, Y., Lin, H., Zhang, Z.,

Sun, Y., He, T., Mueller, J., Manmatha, R., Li, M.,

and Smola, A. (2022). ResNeSt: Split-Attention Net-

works. In 2022 IEEE/CVF Conference on Computer

Vision and Pattern Recognition Workshops (CVPRW),

pages 2735–2745.

Zhao, H., Shi, J., Qi, X., Wang, X., and Jia, J. (2017).

Pyramid Scene Parsing Network. In 2017 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 6230–6239.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

418
