Evaluation of DoS/DDoS Attack Detection with ML Techniques on

CIC-IDS2017 Dataset

Saida Farhat

, Manel Abdelkader

, Amel Meddeb-Makhlouf

and Faouzi Zarai

ENET’COM, NTS’COM Research Unit, University of Sfax, Tunisia

Tunis Business School, University of Tunis, Tunisia

Keywords: Cloud Environment, Denial-of-Service (DoS/DDoS), Intrusion Detection, Machine Learning (ML), eXtreme

Gradient Boosting (XGBoost).

Abstract: Cloud computing is one of today’s most promising technologies. It provides its users with simplified IT

infrastructure and management, remote access from effectively anywhere in the world with a stable internet

connection, and cost efficiencies. Despite all these benefits, the cloud comes with some limitations and

disadvantages regarding security. Denial-of-service attacks (DoS/DDoS) are one of the major security

challenges in emerging cloud computing environments. In this paper, the main objective is to propose a

DoS/DDoS attack detection system for Cloud environments using the most popular CICIDS2017 benchmark

dataset and applying multiple Machine Learning (ML) techniques by considering both the Wednesday and

Friday afternoon traffic log files. The implementation results of our model based on the eXtreme Gradient

Boosting (XGBoost) algorithm demonstrate its ability to detect intrusions with a detection accuracy of 99.11%

and a false alarm rate of about 0.011%.

1 INTRODUCTION

Cloud computing is the subject of the era and is the

current keen domain of interest to organizations. It is

defined by the NIST (National Institute of Standards

and Technology) as “A model for enabling

ubiquitous, convenient, on-demand network access to

a shared pool of configurable computing resources

(e.g., networks, servers, storage, applications, and

services) that can be rapidly provisioned and released

with minimal management effort or service provider

interaction” (Mell and Grance, 2011).

Apart from the characteristics and services

provided by cloud computing, there are several

security issues that act as a hindrance to its adoption

and may lead to catastrophic impacts on availability,

confidentiality, and integrity.

In this paper, we are interested in the detection of

one of the most important security problems facing

cloud computing which is the Denial-of-Service

attack (DoS/DDoS) that proved extremely damaging

to the availability of the services.

https://orcid.org/0000-0002-0934-3224

https://orcid.org/0000-0003-0551-4927

https://orcid.org/0000-0001-9250-7885

Fundamentally, the DDoS attacks are

accomplished through a network of remotely

controlled computers or zombies via command and

control (C&C) channels by sending overwhelming

amounts of data that exceed the bandwidth

capabilities of the targeted victim. Figure 1 shows the

DDoS attack in the cloud environment.

There are three different types of DoS/DDoS

attacks, such as volume-based which utilize many

computers and internet connections to flood a website

with traffic so that an overwhelming amount clogs up

the website’s available bandwidth. E.g., a UDP flood

attack in which an attacker overwhelms random ports

on the targeted host so that as more UDP packets are

received and answered, the system is unable to handle

the huge volume of requests and thus becomes

unresponsive. Unlike volume-based attacks, protocol

attacks aim to exhaust server resources rather than

bandwidth. Attackers overwhelm websites and these

server resources by making phony protocol requests

to consume the available resources. E.g., Smurf

DDoS. Attackers exploit Internet Control Message

Farhat, S., Abdelkader, M., Meddeb-Makhlouf, A. and Zarai, F.

Evaluation of DoS/DDoS Attack Detection with ML Techniques on CIC-IDS2017 Dataset.

DOI: 10.5220/0011605700003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 287-295

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

287

Protocol (ICMP) packets that contain the victim’s

spoofed IP and then broadcast the IP to a computer

network using an IP broadcast address. If the number

of devices on the network is large enough, the

victim’s computer will be flooded with traffic since

most devices on the network respond by default to the

source IP address. Generally, application-layer

attacks require fewer resources than volume-based

attacks and protocol attacks. This type of attack looks

to disrupt specific functions or features of a website.

E.g., Slowloris, software created by Robert “Rsnake”

Hansen (Shorey et al., 2018), that enables a single

computer to take down a web server. It works by

opening multiple connections to the targeted web

server and keeping them open as long as possible. It

constantly sends partial HTTP requests which are

never completed. Immediately, the target server’s

maximum connection pool is filled and further

connection attempts are rejected.

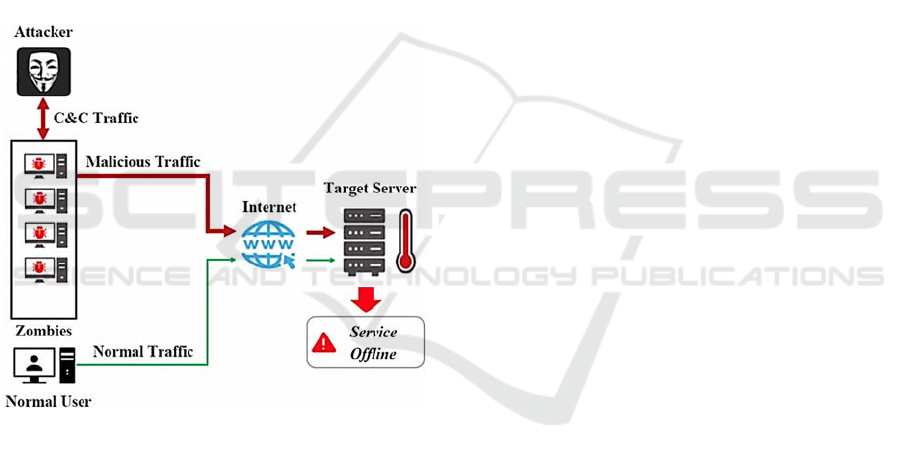

Figure 1: DDoS Attack Architecture.

These attacks have been around for several years.

In early 2015, a heavy DDoS attack targeted

Greatfire.org and cost it a high bill of $30,000 a day

on Amazon’s Elastic Computing Cloud (EC2)

(Attaran et al., 2018). In 2016, a two-hour DDoS

attack was carried out on Amazon, Twitter, and

Spotify resulting in huge financial losses due to

service interruptions (Gaurav et al., 2017). In recent

years, the scale of these attacks has increased

drastically. On 28 February 2018, Akamai reported a

1.3 TBps attack on GitHub. A few days later, Arbor

Networks reported a 1.7 TBps attack (Shaar and Efe,

2018). According to Nexusguard’s Q1 2020 Threat

Report (DDoS Threat Report Q1, 2020), the DDoS

attacks jumped more than 542% compared with the

last quarter of 2019 and more than 278% year-over-

year and according to NETSCOUT’s ATLAS

Security Engineering & Response Team (ASERT), in

the first quarter of 2021, approximately 2.9 million

DDoS attacks were launched by the threat actors, and

it is a 31% increase from the same time in 2020.

Through the above statistics, we understand the

necessity of an effective and early detection,

mitigation, and prevention of DDoS attacks.

It is obvious that a Cloud IDS should analyze

large volumes of network traffic data, detect

efficiently the new attack behaviors, and reach high

accuracy with low error rates. However,

preprocessing, analyzing, and detecting intrusions in

Cloud environments using traditional techniques

have become very costly in terms of computation,

time, and budget. Therefore, efficient DoS/DDoS

attack detection in Cloud environments requires the

adoption of new intelligent techniques such as

Machine Learning (ML) and Deep Learning (DL).

Our objective in this paper is to implement

Machine Learning (ML) classifiers to detect

DoS/DDoS attacks with the aim to achieve fast

detection rates, low error rates, and high accuracy

with an affordable computational cost.

The main contributions of this paper can be

summarized as follows:

(i) Reviewing the significant related works to

investigate all aspects of ML models' contribution

in the classification of network traffic traces in

cloud environments as normal and DoS/DDoS.

(ii) Proposing a powerful DoS/DDoS attack

detection system based on ML techniques

reaching high detection accuracy and low error

rates.

(iii) Adapting a procedure to select appropriate

features for DoS/DDoS attack detection.

(iv) Applying performance improvement

strategies to reduce computation time and save

processing power.

(v) Our practical way of classifying the incoming

traffic in this paper is advantageous in contrast to

other comparable works as we provide a summary

of the execution results of each detection model.

The remainder of this paper is structured as

follows. A comprehensive review of some related

works is provided by discussing the main

contributions of the proposed solutions in section 2.

Section 3 presents our experimentation with a

discussion of the obtained results. Finally, section 4

states the conclusion with some future directions.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

288

2 RELATED WORK

Several researchers have oriented their research axes

to detect DoS/DDoS attacks using multiple methods

and techniques. In this section, we summarize some

of the recent works in the detection of DoS/DDoS

attacks using different ML/DL approaches.

The focus of (Virupakshar et al., 2020) is on

bandwidth and connection flooding types of DDoS

attacks. The Decision Tree (DT), K-Nearest

Neighbors (KNN), Naïve Bayes (NB), and Deep

Neural Network (DNN) algorithms were used for the

detection of DDoS attacks in the cloud environment.

The DNN model has been chosen as it has the highest

accuracy and precision values of about 96% using the

dynamically generated dataset from the OpenStack-

based private cloud platform. The main limitation of

this paper is that it validates the proposed approach

with an obsolete dataset namely KDDCUP99.

(Bhardwaj et al., 2020) propose a novel architecture

that combines a stacked sparse Autoencoder (AE) for

feature learning with a Deep Neural Network (DNN)

for the classification of network traffic into DDoS and

normal network traffic. A comparative analysis of the

proposed approach has been conducted with ten state-

of-the-art approaches and validated based on the

CICIDS2017 and the NSL-KDD standard datasets.

The proposed approach yields competitive results as

compared to other state-of-the-art methods giving an

accuracy of 98.43% over the NSL-KDD and 98.92%

using the CICIDS2017. However, certain limitations

in this work are evident and the most obvious one is

the lack of information regarding the detection time

of the proposed model.

(Wei et al., 2021) proposed a hybrid method

namely AE-MLP to separate the DDoS attacks from

the normal network traffic. The AE identifies the

most significant features automatically and the MLP

takes the selected features as input and classifies the

DDoS attacks based on the attack types. The

suggested technique was evaluated based on the

CICDDoS2019 dataset. According to the obtained

results, the precision, recall, and accuracy are

measured as 97.91%, 98.48%, and 98.34%,

respectively. One of the advantages of this work is its

ability to detect different types of attacks. However,

it requires high computational resources during the

training phase of the proposed model.

(Azizan et al., 2021) present an analysis of IDS

using three popular classification algorithms, which

are random forest (RF), decision jungle (DJ), and

support vector machine (SVM). The ML-based

NIDSs are implemented and tested using the CIC-

IDS2017. The obtained results show that the SVM

has the best overall results in detecting the DDoS

attacks with an average accuracy of 98.18%, a

precision of 98.74%, and an average recall of 95.63%

and thus can be used as an IDS. This paper limited the

classification process to only three ML algorithms

which may be extended to explore more classifier

systems.

The research proposed by (Kumar et al., 2022)

identifies modern DDoS attacks based on the light

gradient boosting method (LGBM) and the extreme

gradient boosting (XGBoost) using the openly

available dataset CICDDoS 2019. These two ML

methods have been selected because of their superior

prediction ability in high volumes of data in less

computation time. According to the experimental

results, the highest accuracy is obtained by the

XGBoost-based model with an average of 94.80% in

229 seconds. A limitation of this work is that all the

instances present in the dataset cannot be processed,

even with the use of high-end machines.

3 EXPERIMENTATION AND

DISCUSSION

In this section, we first give the performance metrics

used to evaluate our model. Then, we examine the

details of the CICIDS2017 dataset used for

deployment and validation of our detection method,

along with the data pre-processing procedure. Finally,

we discuss the experimental results that we attained.

3.1 Performance Metrics

The ability of IDS to make the correct predictions

considers the measure of its effectiveness. Depending

on the comparisons between the results that are

predicted via IDS and the true nature of the event,

there are four prospect outputs that are illustrated in

Table 1 well known as the confusion matrix. These

four outcomes are:

 True Positives (TP): The cases in which the

IDS predicted «Malicious» and the actual

output was also « Malicious ».

 True Negatives (TN): The cases in which the

IDS predicted «Benign» and the actual output

was «Benign».

 False Positives (FP): The cases in which the

IDS predicted «Malicious» and the actual

output was « Benign ».

 False Negatives (FN): The cases in which the

IDS predicted «Benign» and the actual output

was « Malicious ».

Evaluation of DoS/DDoS Attack Detection with ML Techniques on CIC-IDS2017 Dataset

289

For an IDS to be effective, the FP and FN rates

should be minimized, and TP and TN rates should be

maximized.

Table 1: Confusion matrix.

Actual

class

Predicted class

Malicious Benign

Malicious True Positive (TP) False Negative (FN)

Benign False Positive (FP) True Negative (TN)

These performance metrics are not dependent on

the size of the training and testing samples and can be

helpful in assessing the performance of the model:

Accurac



TP  TN

TP  TN  FP  FN

(1)

Precision 

TP  FP

(2)

Recall 

TP  FN

(3)

F1  Score 

2 x Recall x Precision

Recall  Precision

(4)

False Alarm Rate 

FP  TN

(5)

3.1.1 Experimentation Based on the

CICIDS2017 Dataset

To successfully build an efficient ML-based

DoS/DDoS attack detection system, a reliable up-to-

date labeled dataset is required.

There exist a number of such datasets that have

been used by researchers to evaluate the performance

of their proposed intrusion detection and prevention

approaches. Examples of these datasets are:

KDDCUP99, NSL-KDD, CICIDS2017, and

CICDDoS2019, etc.

Based on our study of the well known available

datasets since 1998, many such datasets are obsolete

and unreliable while others lack feature sets, traffic

diversity or do not cover a wide range of attacks

which cannot reflect the current trends.

In this paper, we used the CICIDS2017 dataset

generated by the Canadian Institute of Cybersecurity

as it satisfies all the criterias of a reliable benchmark

dataset (Sharafaldin et al., 2018).

The CICIDS2017 dataset contains an abstract

normal behavior of twenty-five users based on the

HTTP, HTTPS, FTP, SSH, and email protocols with

several different attack traces, including Brute Force

FTP, Brute Force SSH, DoS, Heartbleed, Web

Attack, Infiltration, Botnet, and DDoS. this dataset is

spanned over eight different files available in a

comma-separated values (CSV) format. The total

rows contained in those eight files are 2,830,743

rows; each row has seventy-eight features and is

labeled as Benign or one of fourteen types of attacks.

The details of all those files are shown in Table II.

Later, Table 2 lists the features within the

CICIDS2017 dataset.

Table 2: The Details of files containing the CICIDS2017

dataset.

File’s Name

Normal

Flows

Attack

Flows

Class Labels

Monday-

WorkingHours.pc

ap_ISCX.csv

529,918 0 Benign

Tuesday-

WorkingHours.pc

ap_ISCX.csv

432,074 13,835

Benign,

FTP-Patator,

SSH-Patator

Wednesday-

WorkingHours.pc

ap_ISCX.csv

432,074 252,672

Benign,

DoS GoldenEye,

DoS Hulk,

DoS Slowhttptest,

DoS slowloris,

Heartbleed

Thursday-

WorkingHours-

Morning-

WebAttacks.pcap

_ISCX.csv

168,186 290,782

Benign,

Web attack-Brute

Force,

Web Attack-Sql

Injection,

Web Attack-XSS

Thursday-

WorkingHours-

Afternoon-

Infiltration.pcap_I

SCX.csv

288,566 36

Benign,

Infiltration

Friday-

WorkingHours-

Morning.pcap_IS

CX.csv

189,067 1966

Benign,

Bot

Friday-

WorkingHours-

Afternoon-

PortScan.pcap_IS

CX.csv

183,910 41,835

Benign,

PortScan

Friday-

WorkingHours-

Afternoon-

DDos.pcap_ISCX

.csv

127,537 158,930

Benign,

DDoS

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

290

Table 3: Features of the CICIDS 2017 dataset.

N. Feature N. Feature

1 Destination Por

40 Max Packet Length

2 Flow Duration 41 Packet Length Mean

3 Total Fwd Packets 42 Packet Length Std

4 Total Backward

Packets

43 Packet Length Variance

5 Total Length of Fwd

Packets

44 FIN Flag Count

6 Total Length of Bwd

Packets

45 SYN Flag Count

7 Fwd Packet Length

Max

46 RST Flag Count

8 Fwd Packet Length

Min

47 PSH Flag Count

9 Fwd Packet Length

Mean

48 ACK Flag Count

10 Fwd Packet Length

Std

49 URG Flag Count

11 Bwd Packet Length

Max

50 CWE Flag Count

12 Bwd Packet Length

Min

51 ECE Flag Count

13 Bwd Packet Length

Mean

52 Down/Up Ratio

14 Bwd Packet Length

Std

53 Average Packet Size

15 Flow Bytes/s 54 Avg Fwd Segment Size

16 Flow Packets/s 55 Avg Bwd Segment Size

17 Flow IAT Mean 56 Fwd Header Length

18 Flow IAT Std 57 Fwd Avg Bytes/Bul

19 Flow IAT Max 58 Fwd Avg Packets/Bul

20 Flow IAT Min 59 Fwd Avg Bulk Rate

21 Fwd IAT Total 60 Bwd Avg Bytes/Bul

22 Fwd IAT Mean 61 Bwd Avg Packets/Bul

23 Fwd IAT Std 62 Bwd Avg Bulk Rate

24 Fwd IAT Max 63 Subflow Fwd Packets

25 Fwd IAT Min 64 Subflow Fwd Bytes

26 Bwd IAT Total 65 Subflow Bwd Packets

27 Bwd IAT Mean 66 Subflow Bwd Bytes

28 Bwd IAT Std 67 Init_Win_bytes_forward

29 Bwd IAT Max 68 Init_Win_bytes_backward

30 Bwd IAT Min 69 act_data_pkt_fw

31 Fwd PSH Flags 70 min_seg_size_forward

32 Bwd PSH Flags 71 Active Mean

33 Fwd URG Flags 72 Active Std

34 Bwd URG Flags 73 Active Max

35 Fwd Header Length 74 Active Min

36 Bwd Header Length 75 Idle MeanIdle Std

37 Fwd Packets/s 76 Idle Max

38 Bwd Packets/s 77 Idle Min

39 Min Packet Length 78 Label

The methodology that has been carried out in this

work is depicted in Figure 2.

Specifically, the proposed method consists of four

stages: a) Data Preprocessing, b) Feature Selection

and Extraction, c) Classification, d) Classification

Results. We detail in the following sub-sections the

functionalities of each used bloc/phase in our

approach.

Figure 2: Our research methodology for DoS/DDoS attacks

detection.

We should note that our experiments have been

conducted using a Windows 10 – 64 bits PC with 16

GB RAM and CPU Intel(R) Core-i7 11370H.

a) Data Preprocessing

In this study, we used both the "Wednesday-

WorkingHours.pcap_ISCX.csv" and the "Friday-

WorkingHours-Afternoon-DDos.pcap_ISCX.csv"

combined in the same CSV file. Figure 3 depicts the

frequency distribution of each class label within the

obtained dataset.

Figure 3: Frequency distribution of class labels within the

obtained dataset.

Evaluation of DoS/DDoS Attack Detection with ML Techniques on CIC-IDS2017 Dataset

291

As the class labels are not balanced, we have

mixed the different attack traces together in one class

label named ''DoS/DDoS" and we obtained the result

shown in Figure 4.

Figure 4: Frequency distribution of class labels.

To make the records in both training and testing

subsets extracted from this dataset ready for

processing by our proposed IDS, we handle the data

preprocessing using the two following operations:

 Categorical Encoding: Our dataset contains

only one non-numeric feature namely ''Label''

corresponding to ''BENIGN'' and

''DoS/DDoS". As this study does not

distinguish between different categories of

attacks, the attributes "BENIGN" are converted

to ''0''. Whereas, the attributes corresponding to

the ''DoS/DDoS'' are converted to ''1''.

 Normalization: We used the process of

normalization known as the statistical Z-score

method as it helps reduce classiﬁcation errors

signiﬁcantly and allows the model to converge

faster. The Statistical normalization (Z-score)

formula is as follows:

X

𝑥 – 𝜇

𝛼

(6)

The value x of a feature A is transformed in X

according to formula (6). μ is the mean and α is the

standard deviation of a given attribute.

b) Feature Selection and Extraction

In this phase, we removed the features having the

same values for all the rows, namely "Bwd PSH

Flags", "Bwd URG Flags", "Fwd Avg Bytes/Bulk",

"Fwd Avg Packets/Bulk", "Fwd Avg Bulk Rate",

"Bwd Avg Bytes/Bulk", "Bwd Avg Packets/Bulk",

and "Bwd Avg Bulk Rate" because their presence will

consume more overhead for loading and processing.

We also eliminated all the rows whose features have

values equal to "Infinity" or "nan" because ML

classifiers cannot utilize them either in training or in

testing phases.

After removing the irrelevant attributes, we

perform feature selection with feature importance

based on the Extra Tree classifier to highlight the

most important or relevant features to the output

variable. The top eight features ranked and selected

for the prediction of our target variable are depicted

in Figure 5 and described in Table 4.

Figure 5: Feature Importance scores.

Table 4: Description of Features used in our IDS.

Feature Description

Fwd Packet Length

Max

Maximum size of the packet in the

forward direction of the data flow.

Flow IAT Mean Mean time between two packets sent in

the forward direction of the data flow.

Fwd Packet Length

Mean

Mean size of the packet in the forward

direction of the data flow

Flow IAT Std Standard deviation time between two

packets sent in the data flow

Fwd IAT Total Total time between two packets sent in

the forward direction of the data flow.

Flow IAT Max Maximum time between two packets sent

in the forward direction of the data flow.

Bwd Packet Length

Std

Standard deviation size of the packet in

the backward direction of the data flow.

Bwd Packet Length

Mean

Mean size of the packet in the backward

direction of the data flow.

c) Classification

In this phase, we randomly divided our dataset into

70% for training and 30% for testing with the Naïve

Bayes (NB), Logistic Regression (LR), Random

Forest (RF), and eXtreme Gradient Boosting

(XGBoost) algorithms that we chose based on

multiple factors:

- Knowledge of data's structure and complexity;

- Processing speed of the classification task;

- Features taken into account when training the

model for the best possible outcome and

accuracy;

- Parameters such as the number of

iterations directly relate to the training time

needed when generating the output.

A short description of these ML classification

algorithms is presented in Table 5.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

292

Table 5: Description of the four classification algorithms.

Classifie

Description

NB A probabilistic ML algorithm based on the Bayes

Theorem which is a way of finding a probability

when certain other probabilities are known by

considering the following formula:

(7)

Where P (H | E) indicates the posterior Probability

of the hypothesis given that the evidence is true, P

(E | H) indicates the likelihood of the evidence

given that the hypothesis is true, P (H) is the prior

probability of the hypothesis, and P (E) is the prior

probability that the evidence is true.

LR The logistic regression algorithm is used to solve

classification problems. The model is defined as

follows:

(8)

(9)

Where 𝑤 indicates the weight, 𝑏 indicates the bias,

and 𝑤𝑥+𝑏 is regarded as the linear function of 𝑥.

Compare the preceding two probability values.

The class with a higher probability value is the

class of 𝑥.

RF An ensemble ML paradigm that independently

builds several decision trees and merges them

together to make predictions more accurate and

stable.

Decision Tree is a binary or non-binary tree

structure, where each non-leaf node denotes a test

on a feature attribute, each branch represents the

output of a feature attribute in a certain value

range, and each leaf node holds a class label.

XGBoost A Decision Tree-based ensemble learning

algorithm that uses Gradient Descent as the

underlying objective function and comes with a lot

of flexibility while predicting the desired results

by consuming the computational power in an

optimal way.

d) Classification Results

In this section, we report all the obtained results. The

different diagrams corresponding to the confusion

matrix of the proposed ML models are shown in

Figure 6.

(a) NB (b) LR

Figure 6: Diagrams of confusion matrix of the proposed ML

Models.

The 'x-axis' of each confusion matrix presents the

predicted class label and the 'y-axis' presents the true

label. By comparing the number of records in each

class label, we can observe that the records in each

class are not uniformly distributed. Hence, we

analyze the performance of the selected ML models

using different classification parameters as detailed in

Table 6.

According to Table 6, we remark that all the

proposed models provide promising classification

results. Thus, all are valid and acceptable models.

From the perspective of the calculation time, NB

is the best classification model as it spends only 0.03

minutes. However, it provides the lowest detection

accuracy of 80.84% and the highest false error rate of

0.095%.

For this dataset, the XGBoost is likely to be the

best classification model as it marginally outperforms

the other models with its highest Accuracy of

99.11%, Precision of 99.12%, Recall of 99.11%, F1-

Score of 99.12%, and False Alarm Rate of

approximately 0.011%.

Table 6: Overall prediction performance of the ML models.

Model Name Accuracy Precision Recall F1-Score False Alarm Rate Training Time

80.84%

81.12%

80.84%

80.43%

0.095%

0.03 min

84.13%

86.04%

84.13%

83.45%

0.025%

0.43 min

98.96%

98.97%

98.96%

0.012%

8.48 min

XGBoost

99.11%

99.12%

99.11%

99.12%

0.011%

4.43 min

P (Y = 1|x) =

⸺⸺⸺⸺⸺⸺

P (Y = 0|x) =

⸺⸺⸺⸺⸺⸺

wx + b

1 + e

wx + b

1 + e

wx + b

P (H | E) =

⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺

P (E)

P (E | H) * P (H)

Evaluation of DoS/DDoS Attack Detection with ML Techniques on CIC-IDS2017 Dataset

293

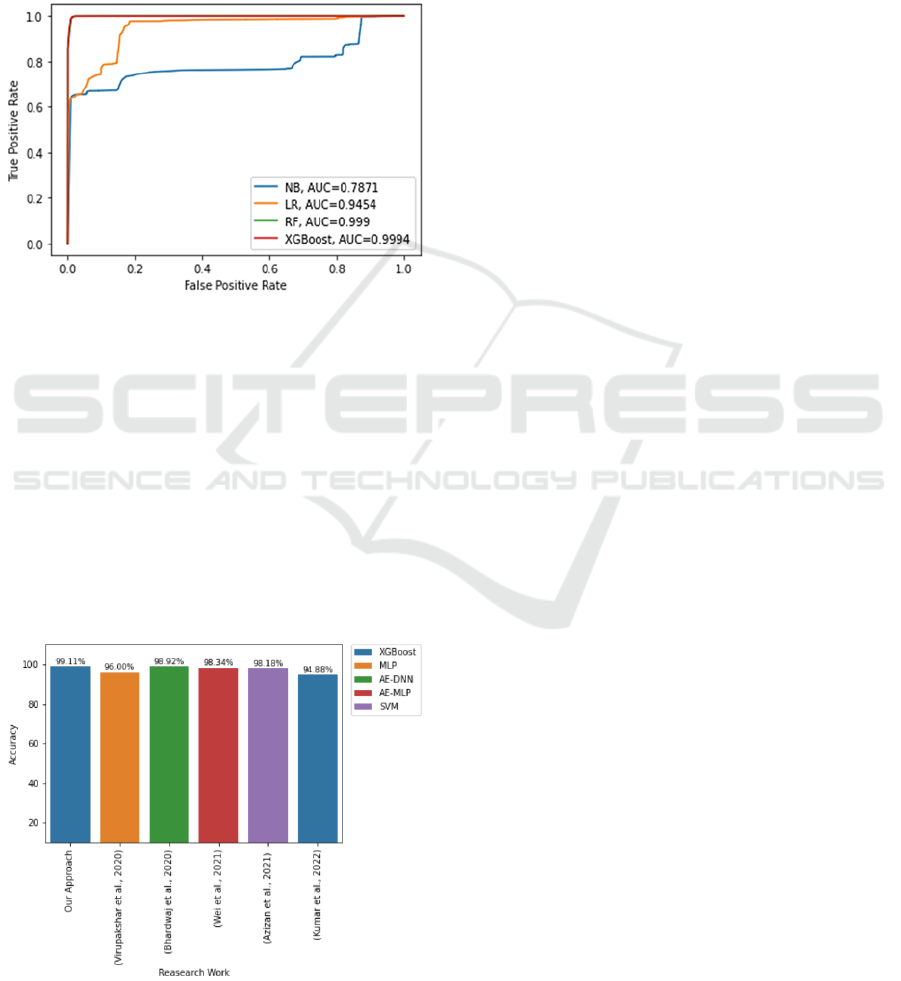

To illustrate the diagnostic ability of our binary

classifier systems, we create the receiver operating

characteristic curves (ROC) by plotting the true-

positive rates against the false-positive rates at

various threshold settings. Higher the Area Under the

Curve (AUC) measure, the better the model is at

predicting 0s as 0s and 1s as 1s. Figure 7 presents the

ROC curves with their corresponding AUC scores for

our proposed classification models.

Figure 7: ROC Curves of the proposed ML models.

It is clearly observable from the obtained results

that the highest AUC score is obtained with the

XGBoost classifier with an AUC value of 99.94%.

Therefore, it is the most appropriate model to

distinguish between Dos/DDoS and benign network

traffic features.

To validate the obtained results, we compare our

proposed approach with some state-of-the-art

DoS/DDoS detection methods based on the used

ML/DL techniques and the highest detection

accuracy. The comparison results are summarized in

Figure 8.

Figure 8: Comparison of the proposed approach with

research approaches of related works.

We remark from Figure 8 that our proposed

approach achieves the best accuracy reaching an

average of 99.11% with the XGBoost classification

algorithm.

Compared to the literature, the results obtained by

the proposed approach are very satisfactory.

4 CONCLUSION

Detection of DoS/DDoS attacks in a cloud

environment is a challenging task because they are

more dangerous than other possible attacks as they

are difficult to detect, easy to carry out, and rather

difficult to predict the target of the attack. In this

paper we propose a ML-based DoS/DDoS attacks

detection system for cloud environments by

considering the CICIDS2017 dataset.

Our experimental results demonstrate that our

proposed IDS outperforms several recent works in

terms of detection accuracy and error classification

rates.

The results obtained in this paper are very

interesting. However, there are still several

contributions that could be furthered. In the future, we

intend to extend this work to include newer ML

techniques, with the aim of improving the

performance against a wider range of cloud attacks.

REFERENCES

Mell, P. & Grance, T. (2011), The NIST Definition of

Cloud Computing, Special Publication (NIST SP),

National Institute of Standards and Technology,

Gaithersburg, MD, [online], https://doi.org/10.6028/

NIST.SP.800-145. Last checked on March 22, 2022.

Shorey, T., Subbaiah, D., Goyal, A., Sakxena, A., &

Mishra, A.K. (2018). Performance Comparison and

Analysis of Slowloris, GoldenEye and Xerxes DDoS

Attack Tools. 2018 International Conference on

Advances in Computing, Communications, and

Informatics (ICACCI), 318-322.

Attaran, Mohsen & Woods, Jeremy. (2018). Cloud

computing technology: improving small business

performance using the Internet. Journal of Small

Business & Entrepreneurship. 13. 94-106.

10.1080/08276331.2018.1466850.

Gaurav Somani, Manoj Singh Gaur, Dheeraj Sanghi, Mauro

Conti, Rajkumar Buyya, DDoS attacks in cloud

computing: Issues, taxonomy, and future directions,

Computer Communications, Volume 107, 2017, Pages

30-48, ISSN 0140-3664, https://doi.org/10.1016/

j.comcom.2017.03.010.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

294

F, International & Shaar, Fadi & Efe, Ahmet. (2018). DDoS

Attacks and Impacts on Various Cloud Computing

Components.

DDoS Threat Report 2020 Q1. 2020. Nexusguard.

https://blog.nexusguard.com/threat-report/ddos-threat-

report-2020-q1, August 23, 2021.

Virupakshar KB, Asundi M, Channal K, Shettar P, Patil S,

Narayan DG (2020) Distributed Denial of Service

(DDoS) attacks detection system for OpenStack-based

Private Cloud. Procedia Computer Science 167:2297–

2307.

Bhardwaj, Aanshi & Mangat, Veenu & Vig, Renu. (2020).

Hyperband Tuned Deep Neural Network With Well

Posed Stacked Sparse AutoEncoder for Detection of

DDoS Attacks in Cloud. IEEE Access. 8. 181916-

181929. 10.1109/ACCESS.2020.3028690.

Yuanyuan Wei, Julian Jang-Jaccard, Fariza Sabrina,

Amardeep Singh, Wen Xu, Seyit Camtepe, "AE-MLP:

A Hybrid Deep Learning Approach for DDoS

Detection and Classification", IEEE Access, vol.9,

pp.146810-146821, 2021.

Azizan, Adnan & Mostafa, Salama & Mustapha, Aida &

Mohd Foozy, Cik Feresa & Abd Wahab, Mohd Helmy

& Mohammed, Mazin & Khalaf, Bashar. (2021). A

Machine Learning Approach for Improving the

Performance of Network Intrusion Detection Systems.

Annals of Emerging Technologies in Computing. 5.

201-208. 10.33166/AETiC.2021.05.025.

Kumar, V & Kumar, A & Garg, S & Payyavula, S. (2022).

Boosting Algorithms to Identify Distributed Denial-of-

Service Attacks. Journal of Physics: Conference Series.

2312. 012082. 10.1088/1742-6596/2312/1/012082.

Iman Sharafaldin, Arash Habibi Lashkari, and Ali A.

Ghorbani, “Toward Generating a New Intrusion

Detection Dataset and Intrusion Traffic

Characterization”, 4th International Conference on

Information Systems Security and Privacy (ICISSP),

Portugal, January 2018.

Evaluation of DoS/DDoS Attack Detection with ML Techniques on CIC-IDS2017 Dataset

295
