Simulation Model Validation based on Ontological Engineering

Methods

Elena Zamyatina

, Denis Churin

, Viacheslav Lanin

, Lyudmila Lyadova

and Nada Matta

Department of Information Technologies in Business, HSE University, Perm, Russian Federation

University of Technology of Troyes, Troyes, France

Keywords: Simulation Model, Verification, Validation, Ontology Matching.

Abstract: A task of the simulation models examination (verification and validation, V&V) is considered. At the V&V

process the correspondence degree of the simulation model created by developers to the simulated object, that

description is presented in the form of a conceptual model built by customers, is determined. An ontological

approach is proposed to determine the semantic proximity of the simulation model and the conceptual model,

whose descriptions are presented in the form of ontologies. Matching rules can also be defined with ontology

based on the metrics chosen by the customer. The approach has been tested using the simulation system Triads.

The results of the matching algorithm execution are illustrated by an example. The article provides description

of the simulation model ontology created in TriadNS and conceptual model ontology, developed with MASK

method. The metrics used for proximity assessment are described.

1 INTRODUCTION

It is well-known that there are a great number of

publications devoted to the examination of the

simulation models built by researchers to solve tasks

of designing or forecasting, etc. (Sargent, 2017;

Sargent, 2007; Balchi, 2004). Examination involves

the implementation of such stages as verification and

validation (V&V) of a simulation model. It is

necessary to prove that this model can be trusted that

the quality of information obtained because of a

simulation experiment corresponds to the level that

allows making the right decision.

Before performing simulation experiments,

customers can build a conceptual model, representing

the object (system, process) being simulated, as “a

reference model”. To develop a conceptual model, a

suitable environment can be used by customers that

does not require programming skills, the use of

simulation tools. So, verification comes down to

control of the correctness of the transfer of the

https://orcid.org/0000-0001-8123-5984

https://orcid.org/0000-0002-0650-2314

https://orcid.org/0000-0001-5643-747X

https://orcid.org/0000-0001-8729-3624

conceptual model, developed by the researcher, into

the simulation environment (Sargent, 2017).

Validation can be defined as examination of the

conceptual model presentation correctness and

checking behavior correctness. Verification is a part

of validation. Verification is carried out during the

construction of the model, while validation is carried

out immediately after the completion of the creation,

the description of the model in a specific specialized

programming language. However, in practice, as a

rule, the processes of verification, validation, as well

as testing and implementation of the model overlap in

time. Along with the concepts of validation and

verification, the literature provides such a concept as

accreditation (VV&A – Validation, Verification and

Accreditation). Accreditation may be defined as the

formal certification that a model, simulation, or

combination of models and simulations is acceptable

for use for a specific purpose (Sargent, 2007).

Accreditation is the official certificate of the

customer, which states that the simulation model is

applicable for solving a concrete problem.

Zamyatina, E., Churin, D., Lanin, V., Lyadova, L. and Matta, N.

Simulation Model Validation based on Ontological Engineer ing Methods.

DOI: 10.5220/0011589000003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 2: KEOD, pages 237-244

ISBN: 978-989-758-614-9; ISSN: 2184-3228

237

Verification and validation should answer the

question of whether the model is sufficiently

accurate. In this case, the purpose of the developed

simulation model should be taken into account. For

example, most of the demonstration models are not

highly accurate, but it is worth remembering that their

purpose is to demonstrate the operation of the

process, object or system under study only in general

terms. If the model copes with the goal set for it, then

we can talk about its compliance with the prototype,

even though the model's accuracy is low. Therefore,

the purpose of the model must be known before

validating it. The customer must develop validation

rules that are appropriate for the purpose.

Thus, the task is to develop a flexible validation

tool that allows not only to create models, but also to

adjust requirements for specific purposes of model

examination.

This paper presents approach for developing

software tools implementing an ontological approach

to verification and validation of simulation model.

This software tools includes portal for the customers

and modelers interaction. Customers must submit a

conceptual model ontology (O1) and simulation

model developers also submit their version of the

conceptual model ontology (O2). Using an algorithm

for determining the proximity of ontologies, a

comparison of two ontologies is performed and

inconsistencies in them are revealed.

System TriadNS is chosen as the simulation tools

for performing experiments. This system uses

ontology to customize simulation models to specifics

of domains. It is proposed to extend the purpose of

the ontology for solving model validation tasks.

2 RELATED WORKS

It should be noted that there are different forms of

validation:

 validation of the conceptual model (checking

the degree of detail of the model);

 data validation (checking the accuracy of the

data);

 white-box validation (detailed (micro)

validation of the model, determining the

accuracy of the model components);

 black box validation (general (macro)

verification of model performance, in which it is

determined whether the general model provides

a sufficiently accurate representation of the real

world).

It is well-known that nowadays many simulation

systems use ontologies for simulation model design

(Jain, 2016). It allows to integrate simulation models

(Benjamin, 2006), to adjust the system to a specific

subject area quickly and flexibly, to determine one or

another mathematical abstraction of simulation

model (Queue theory, Petri Nets and so on).

Using the capabilities of the TriadNS system to

use ontologies, it is proposed to implement validation

tools based on the scheme (Balchi, 2004) shown in

Figure 1.

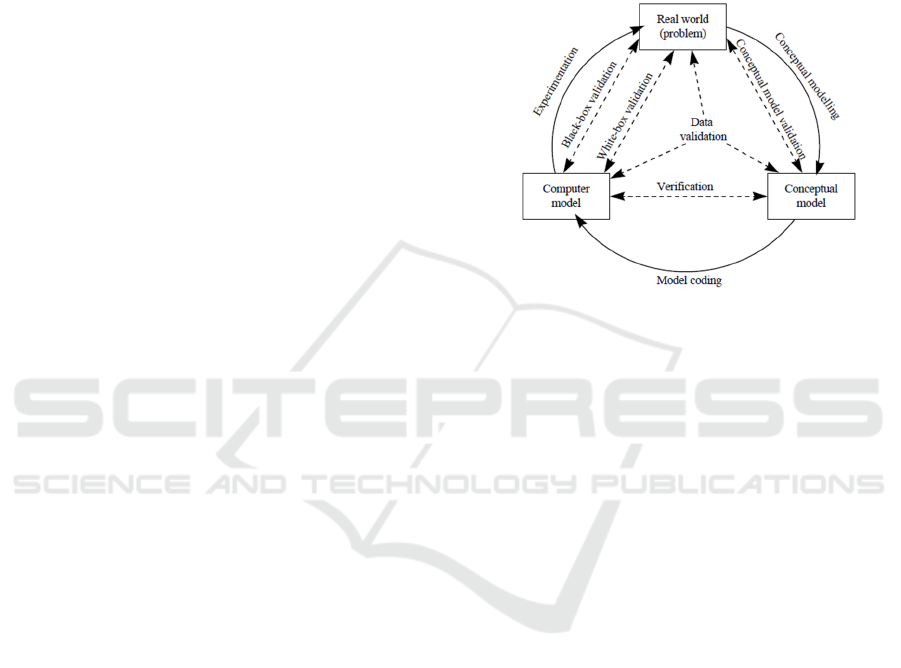

Figure 1: The scheme of verification and validation of

simulation model.

Any process can be viewed from different angles

and points of view. For example, the process of

customer service from the manager's point of view

looks like a sequence: call the customer, find out the

need, meet the need, complete the service. While the

same process for the customer will look like a

sequence: choose the right ticket, take a ticket, stand

in line, come to the service, voice the need, get

service, complete the service. Accordingly, different

viewpoints influence what will be considered model

validity and how goals are achieved. Different

perspectives do not make a model invalid; they only

reflect different interpretations of the process.

Situations of developing a model from different

viewpoints, as in the situation of setting multiple

goals, will require a lot of resources because of the

high level of detail. Therefore, one model may be

valid for one viewpoint and completely invalid for

another viewpoint.

The model validation process may involve many

tests using data. For example, it may examine what

results the model will produce when real data arrive.

A model run on the same data as the object of its

representation is expected to behave similarly to the

real-world object (process or system). In a fairly

simple experiment, a number of problems may arise:

1. Lack of real data. The experimenter may not

have real data to start the simulation process. For

example, when simulating queues to ATMs,

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

238

information on the average customer flow to bank

branches may not be collected. Expert knowledge can

be used as a solution to this problem.

2. Inaccuracy of real-world data. Due to

inaccurate data, model results are not reliable and not

suitable for research. That is why data validation is

considered as one of the key elements of simulation

model building life cycle.

3. Unrepresentative data sampling. If the

experimenter obtains real world data, such as data

from an electronic queuing system, it does not mean

that it is representative. For example, the analyst has

data on customer flows to ATMs during the holiday

season. However, this sample is not representative,

and the conclusions are statistically insignificant

because the weekday clients flow is very different

from the holiday data. Therefore, for current data the

model will show results comparable only to the days

for which these data are collected. To prevent the

problem in question, you should use static tests when

validating the data, but the result of the model will

have to be seen as the probability of the event

occurring. Critical values can be passed to the model

to test it and assess the adequacy of the conclusions.

As mentioned before, the process of validation

and verification should take place at each stage of

model building and should be repeated if the model

undergoes changes. Given the complexity of models

and the increasing cycle of its construction, validation

and verification may require a long period of time,

during which the process in the real world may also

change. For example, during the validation of the

final computer model of the customer service process,

in the real-world service standards have changed and

the model under study is no longer relevant. To

minimize the impact of this problem, the analyst

should calculate the time and ensure that the

validation and verification as often as possible while

evaluating the model as a whole and its elements.

Verification and validation methods are described

in more detail in the work of the American researcher

Osman Balchi (Balchi, 2004). One is to test the

construction of a conceptual simulation model.

The developed conceptual model describes those

components of the real-world system that should be

included in the model (and those that should be

excluded from the final model), and is expressed

either formally (for example, using activity cycle

diagrams) or informally (for example, in the form list

of items).

To create a conceptual model, developers must

analyze all the information received and come to an

optimal solution. A project specification or terms of

reference can be used to validate the conceptual

model. In addition, it is necessary to get estimates

from experts who are versed in the subject area and

similar systems on the compliance of the conceptual

model with the requirements described in the

documentation.

So, then the stage of verification and validation

should be carried out jointly, both by the developers

of the model and by the customers who need to solve

a specific problem.

As described earlier, the model verification and

validation processes affect all stages of the

development of a simulation model. The process of

checking the adequacy and accuracy of the simulation

model includes:

 structural testing (structural validity –

determining the correspondence of the structure

of the simulation model, the list of objects and

their interrelationships to the researcher's

intentions);

 testing the functions of the model;

 testing the behavior of the model (operational

validity – checking the correspondence of the

functionality of the simulation model to the

concepts of the researcher).

In addition, simulation model validation should be

performed at every stage of simulation model design.

If an error is found in the simulation model, it is

necessary to return to the previous stage of model

verification to identify the discrepancy between the

constructed model and the customer's intentions.

A comparison of two ontologies is performed and

inconsistencies in them are revealed.

This article focuses on the structural validity only.

Verification is performed by comparing the

ontologies representing the conceptual models

received from customers and from modelers

designing simulation models.

3 SIMULATION MODELING IN

TriadNS SYSTEM

TriadNS is a simulation system which was developed

based on the simulation system Triad. Triad is

intended for the design and simulation of computer

systems. Simulation models are described using

special language named “Triad”.

It has a three-layer representation of the

simulation model: M = (STR, ROUT, MES), where

STR is the structure layer, ROUT is the routine layer,

MES is the message layer.

A layer of structures is a collection of objects

interacting with each other by sending messages.

Simulation Model Validation based on Ontological Engineering Methods

239

Each object has poles (input and output poles), which

serve, respectively, for receiving and transmitting

messages. The basis of the representation of the layer

of structures is a graph. Separate objects should be

considered as the nodes of a graph. The arcs of the

graph define the relationships between objects. The

structure layer is described as a parameterized

procedure and allows to flexibly change the number

of nodes in the graph, etc. One may change the input

parameters both before the start and during the

simulation experiment. In the second case, the

override is performed in the special unit of simulation

model description: “the conditions of simulation”.

Model objects act according to a specific

scenario, which is described by “routine”. The state

of the object is determined by the values of the

variables of the routine. The simulation system

TriadNS is event-driven. Events are described in

routines. A routine, like an object, has input and

output poles. The input poles are used for receiving

messages, and the output poles serve for transferring

messages. Message receiving is an event.

The message layer is intended to describe

messages of complex structure (it may be a program,

for example).

The collecting information on the simulation

experiment is carried out with information

procedures. Information procedures work like

sensors and monitor the changes in the values of

variables, the arrival and sending of messages, and

the execution of events. The list of information

procedures is specified in a special program unit – the

conditions of simulation. The conditions of

simulation determine the initial conditions during the

simulation experiment, the moment of completion of

the simulation and determine the algorithm for the

study of the simulation model. These tools can be

used to validate model checking in simulation

experiments, in dynamics. But in this paper, the focus

is only on static structural characteristics.

4 TriadNS SIMULATION SYSTEM

ARCHITECTURE

Modelers can use different tools to develop models in

the TriadNS system. They can create models with text

editor using Triad language to describe structure,

routines, and other elements of the model. Modelers

can use a graphical editor to create visual models of

the simulated systems (the developed models are

transformed into a textual representation in the Triad

language and translated into executable code to

perform simulation experiments). Created models

and components of models (structures, routines,

information procedures, modeling conditions) can be

stored in a model repository and reused for new

experiments. The generalized structure of the

TriadNS system repository is shown in Figure 2.

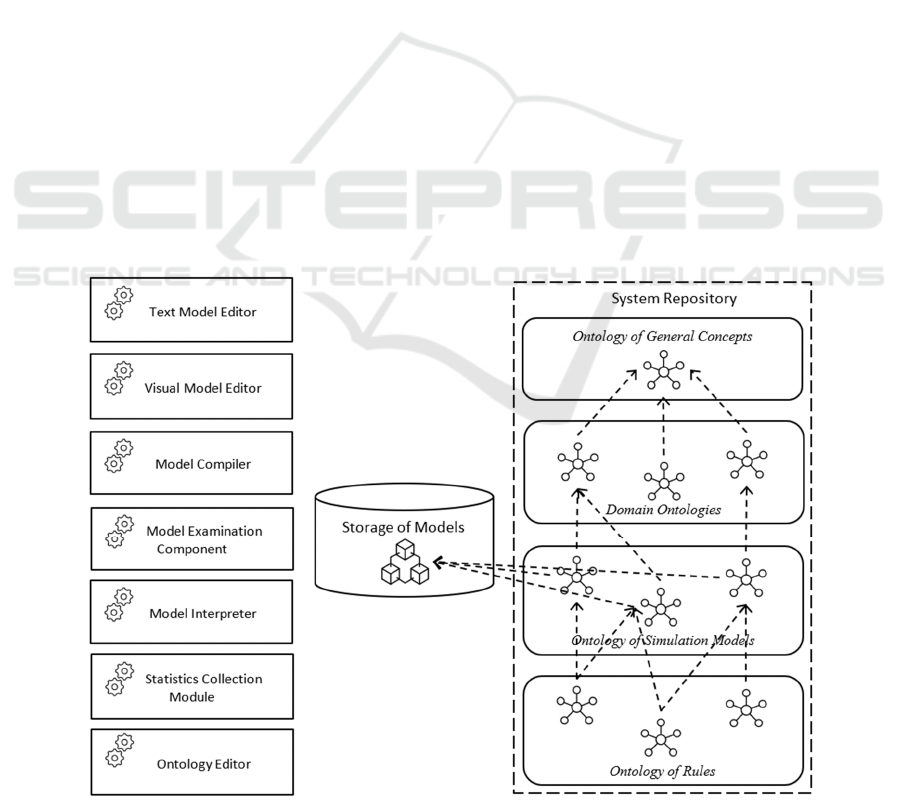

Figure 2: The generalized structure of the TriadNS system.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

240

The ontology is the core of the system repository

(Zamyatina, 2018). The ontological representation of

the simulation model has a multilevel structure. The

upper level (the level of general concepts) is an

ontology that describes general concepts for various

mechanisms of the simulation system. The second

level of the ontology is the level of concepts

represented in domain ontologies. Ontologies of this

level include concepts specific for systems and

processes related to different domains. This level

allows to set the semantics of the models, facilitate

their understanding by experts in the relevant research

areas, and the interpretation of the results of

simulation experiments. The third level is the level of

simulation models. Models and their components are

described at this level. Model representations can be

associated with specific areas described by domain

ontologies. Model components are associated with

domain concepts. The lower level of the system

ontology (rule level) contains descriptions of specific

rules that supplement the descriptions available at the

previous level. This layer specifies the design rules,

the basic requirements that the simulation model must

meet.

Ontologies of conceptual models created by

customers are used to solve simulation models

examination tasks. The rules that are used for model

comparison are also be represented in the ontology as

descriptions that can be defined for specific modeling

projects. The ontology of a conceptual model can be

built automatically based on the model created by

developers with using a visual model editor or with a

text model editor (Figure 3). The customer's

conceptual model ontology (Figure 4) can be created

with an ontology editor.

5 ONTOLOGY CREATION

METHOD

The main problem of applying the proposed model

examination method is the development of an

ontology by customers who do not have the skills of

knowledge engineers.

To translate the requirements and logic of the

conceptual model into a machine-readable form of

ontology, it is necessary to resort to knowledge

extraction tools (Matta, 2002). At the moment, two

approaches to knowledge extraction are widely

known:

 REX is a method of direct knowledge extraction

using Data Mining and Text Mining tools from

regulations and documents.

 MASK is a knowledge gathering method based

on interviewing experts.

One of the significant advantages of the MASK

method over a similar one is a significant saving of

time when interviewing an expert, analyzing, and

modeling, due to joint work with an expert and using

his experience in a specific subject area.

Within the framework of this work, to build the

ontology of the conceptual model, the MASK method

is mainly used to accurately determine the

requirements and vision of the network model by an

expert. MASK knowledge gathering helps the expert

to focus on his subject area to describe it by

emphasizing its main characteristics.

The list of questions is determined by the

specifics of the modeling domain. In this case when

interviewing an expert to create a conceptual model

ontology, he was asked the following questions:

1. What network elements are used to build the

model?

2. How many network elements of each type are

used in the model?

3. What are the characteristics of the components

of a model?

4. What are the relationships between the

components of the model?

5. What is the routing algorithm for the model

nodes?

6. What are the parameters of the routing

algorithm in this model?

7. What are the conditions of simulation

experiment?

8. What is the limit time of simulation?

Depending on the answers of experts, the list of

questions is detailed, the answers are specified. For

example, for the of the routing algorithm the

following parameters were obtained:

 two parameters (ST11 and ST12) affect the

message processing time (T1+Random(T2));

 two parameters (ST21 and ST22) affect the

frequency of sending messages to nodes;

 parameter SQueueLen defines the buffer size;

 parameter SBBCon defines whether there is a

broadband connection;

 parameter STFlops specifies the performance or

computing power of the node, measured in flops

(the number of floating-point operations per

second);

 and so on.

One may see these parameters at Figure 4 where

the conceptual model ontology of a customer is

shown (the basic ontology enriched by subclasses for

SBARC algorithm).

Simulation Model Validation based on Ontological Engineering Methods

241

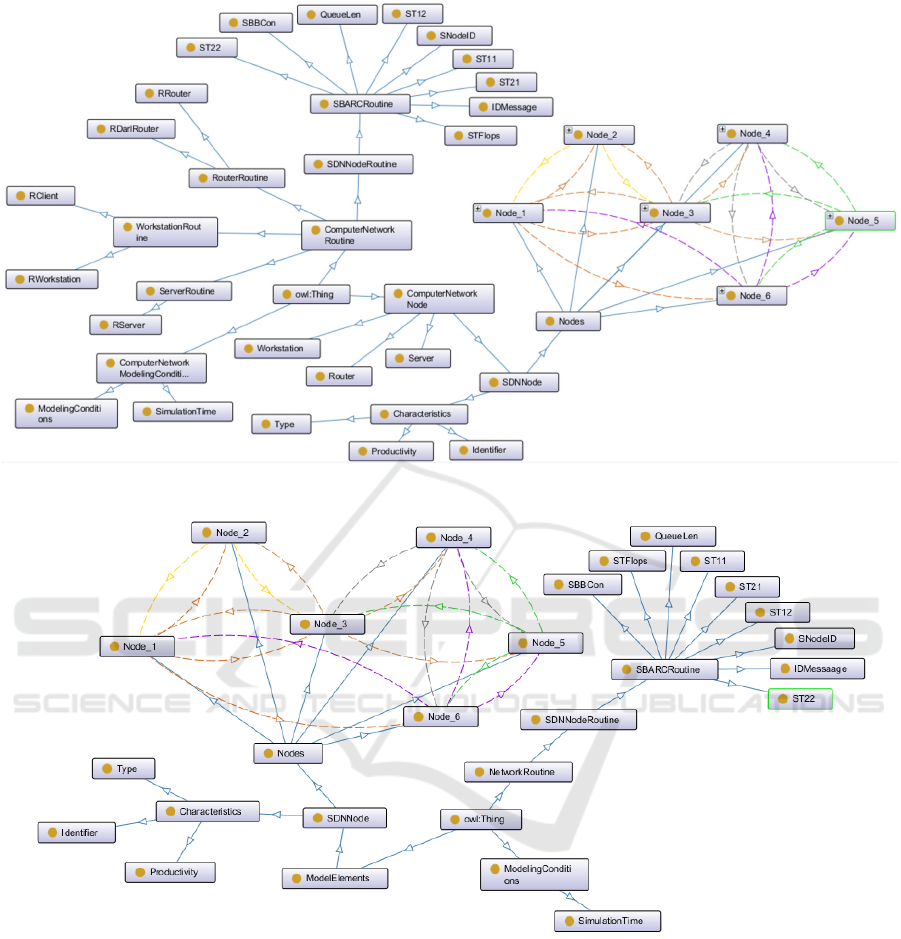

Figure 3: The basic ontology enriched by subclasses for SBARC algorithm (the conceptual model ontology of a developer).

Figure 4: The basic ontology enriched by subclasses for SBARC algorithm (the conceptual model ontology of a customer).

6 STRUCTURAL VALIDATION IN

TRIADNS SYSTEM

The ontological approach is actively used in the

TriadNS simulation system (Zamyatina, 2018).

Ontologies are used to customize model to the

domain specifics. TriadNS system has a basic

ontology consisting of basic classes TriadEntity (any

named logic entities), Model (simulation model),

ModelElement (a part of simulation model and all the

specific characteristics of a node of structure layer),

Routine (node behavior), Message and so on.

Let us consider, as an example, illustrating the

possibilities of the ontological approach to model

checking, the SDN network (Software-Defined

Network). A data transferring control level is

separated from the data transferring devices, and it is

implemented in software (Zamyatina, 2017).

The basic ontology of the TriadNS simulation

system was extended to model SDN. The modelers

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

242

got the opportunity to operate with such objects as a

router, workstation, super-node, node, router etc.

For the experiment, the SBARC algorithm is

simulated (Zhiyong, 2008). Using the graphical editor

of the TriadNS system, a network structure was

created, including six nodes and connections between

them. To implement the SBARC algorithm in model,

it is necessary to add new elements into the base

ontology. A subclass SDNNode is to be added to class

“Nodes”. All elements of the network simulation

model (nodes and connections) are described in the

ontology O

(Figure 3). New class is created for each

node of the network simulation model (Node_1,

Node_2, Node_3, Node_4, Node_5, Node_6). This

was done due to the fact that each node in the network

has its own unique set of attributes and links to other

nodes. These relationships are described as properties

of objects. The onto-graph for the conceptual model

created by customer (O

) is shown in Figure 4.

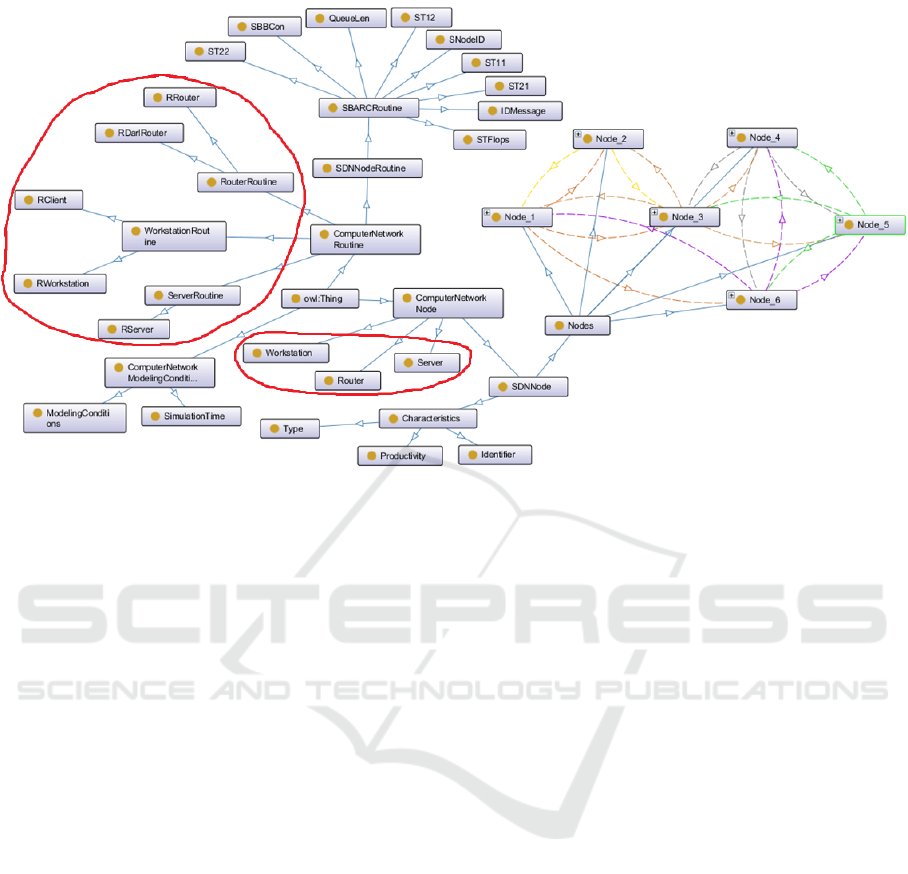

The final stage of the research is the comparison

(determination of the proximity measure) of the

ontologies built by the developer and the customer

(checking the conformity of the logic of the conceptual

model). The model built by the developer is valid if it

meets the expectations and requirements of the expert

set out in the conceptual model. The differences in the

structure of ontologies would point specifically to the

part of the model in which the error was made.

Ontology comparison rules are based on the

approach described in the paper (Ngom, 2018).

As an example, a comparison method is

implemented that includes the following steps:

1. Defining sets of classes: O

\ O

– a set of

classes represented in the O

ontology and not

represented in the O

ontology; O

\ O

– a set

of classes represented in the O

ontology and

not represented in the O

ontology; O

∩ O

–

a set of classes, presented in both ontologies.

2. Evaluating the semantic proximity measure

between the concepts of each set.

3. Increasing the O

and O

ontologies using the

set O

∩ O

. At this step, for each class X from

∩ O

(X ∈ O

and X ∈ O

) a search is made

for their descendants in O

(or in O

respectively), which are added as descendants

of the class X into O'

(or into O'

, respectively),

if they don’t exist in this ontology.

4. Defining set of classes O'

∩ O'

, which are a

set of common concepts of the ontologies O'

and O'

5. Assessment of similarity between ontologies.

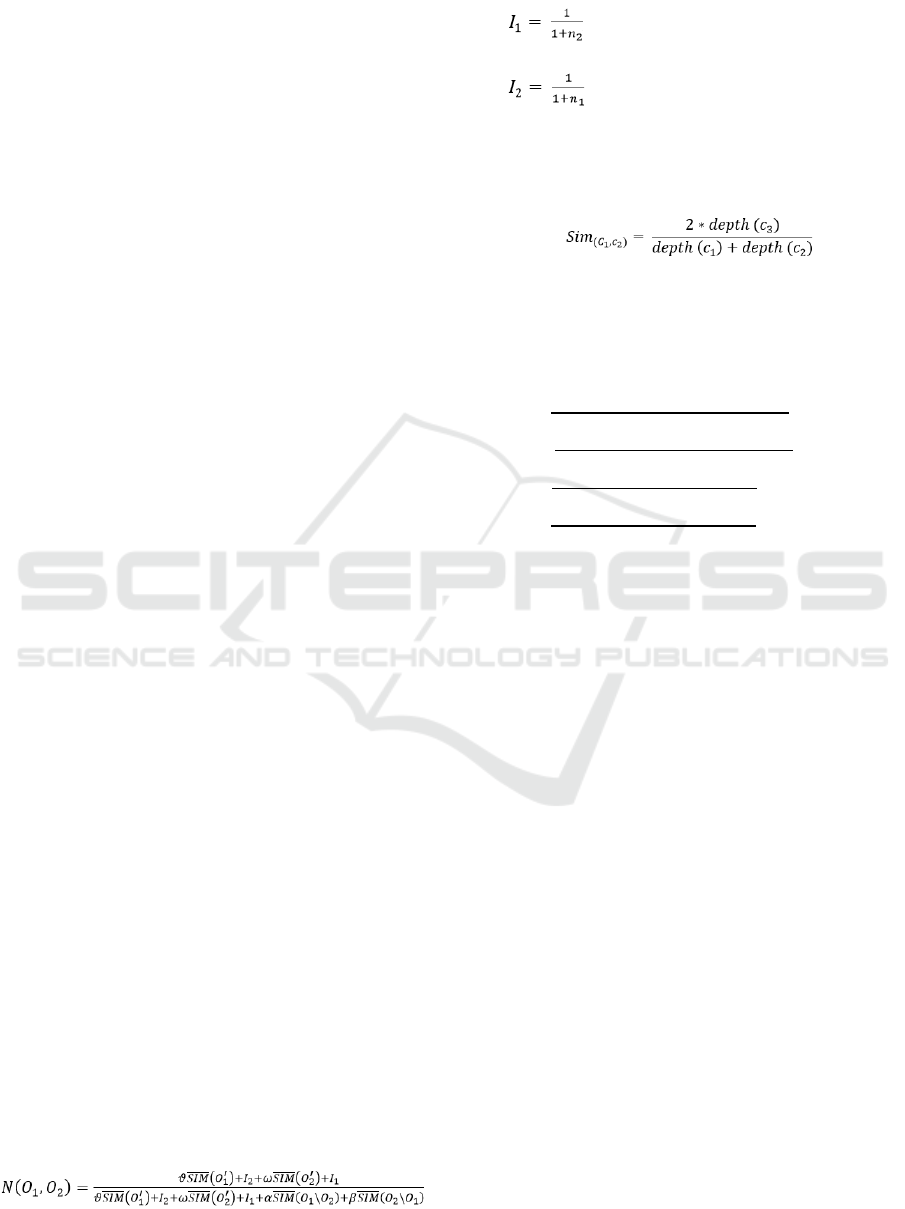

The formula

is used to evaluate the ontologies proximity measure.

The following designations are used in the formula:

is the ontology O

integrity factor (n

the number of O

concepts added to extend O

);

is the ontology O

integrity factor (n

the number of O

concepts added to extend O

);

𝑆𝐼𝑀



is a function of the average value of the

ontology concepts similarity degrees determined with

the formula:

where c

is the closest common parent of c

and c

;

ϑ, ω, α and β are parameters that allow to consider

the value of proximity in relation to the number of

concepts of sets O'

and O'

and the number of

concepts of ontologies O

and O

ϑ =

__(



 



)

__(



) 







ω =

__(



 



)

__(



) 







α =

__(



\ 



)

__(



)

β =

__(



\ 



)

__(



)

Inconsistencies identified when determining the

semantic proximity of two ontologies are shown in

Figure 5. The proximity measure of the network

model ontology and the conceptual model ontology

according to the described method is 81%.

In an ideal situation, they should be identical, but,

in practice, this is practically unattainable due to the

possible features of special modelling environments.

The conformity equal to 100% is the ideal and desired

result when validating the simulation model.

To increase the flexibility of the system, the rules

for matching ontologies and determining the integral

proximity estimate can be specified by users in the

ontology of the system.

7 CONCLUSIONS

The developed method of the simulation model

structural validation based on ontologies comparison

was tested. The customer view and created simulation

model are described with ontologies. The fixed rules

for calculating the integral proximity score are used.

Experiments showed the practical significance of the

proposed approach.

Suggested approach and developed software tools

can be useful when developing complex simulation

models.

Simulation Model Validation based on Ontological Engineering Methods

243

Figure 5: Inconsistencies identified when determining the semantic proximity of two ontologies.

The next step is to increase the flexibility of the

approach via providing users with the ability to

develop their own metrics, to create rules for

comparing models, customizable to specific

modeling tasks and domains, with using ontology.

ACKNOWLEDGEMENTS

The reported study was funded by RFBR and the

Krasnodar region Administration, project number

19-47-230003.

REFERENCES

Sargent, R.G. (2015). An Introductory Tutorial On

Verification And Validation Of Simulation Models. In

Proceedings of the 2015 Winter Simulation Conference.

Pp.1729–1740

Sargent, R.G. (2007). Verification and Validation of

Simulation Models. In Proceedings of the 2007 Winter

Simulation Conference. Pp. 124–137.

Balchi, O. (2004). Quality Assessment, Verification, And

Validation Of Modeling And Simulation Applications.

In Proceedings of the 2004 Winter Simulation

Conference. Pp. 246–249.

Jain, A., Robinson, D., Dilkina, B., Fujimoto, R. (2016). An

Approach to Integrate Inter-Dependent Simulations

Using HLA With Applications To Sustainable Urban

Development. In Proceedings of the 2016 Winter

Simulation Conference. Pp. 1218–1229.

Benjamin, P., Patki, M., Mayer, R. (2006). Using

Ontologies for Simulation Modeling. In Proceedings of

the 2006 Winter Simulation Conference. Pp. 1161–

1167.

Robinson, S. (1997). Simulation Model Verification and

Validation: Increasing the Users’ Confidence. In

Proceedings of the 1997 Winter Simulation Conference.

Pp. 53–59.

Zamyatina, E., Mikov, A., Lanin, V. (2018) Automation of

Simulation Steps Using Ontological Approach. In

Proceedings of the 10th International Joint Conference

on Knowledge Discovery, Knowledge Engineering and

Knowledge Management (IC3K 2018). Pp. 223–230.

Zamyatina, E., Maltcev, G., Mikov, A. (2017) Simulation

of Routing Algorithm for SDN and SON Networks. In:

2017 IEEE 11th International Conference on

Application of Information and Communication

Technologies. Vol. 2. IEEE. Pp. 79–84.

Zhiyong, X., Yiming, H. (2008). SBARC: A Supernode

Based Peer-to-Peer File Sharing System. Department of

Electrical & Computer Engineering and Computer

Science University of Cincinnati. Cincinnati. Pp. 1–12.

Ngom, A., Kamara-Sangare, F. (2018). Assessing

Similarity Value between Two Ontologies». In IC3K

2018. Proceedings of the 10th International Joint

Conference on Knowledge Discovery. Pp. 343–350.

Matta, N., Ermine, J.L., Aubertin, G., Trivin J.Y. (2002).

Knowledge Capitalization with a Knowledge

Engineering Approach: The Mask Method. In

Knowledge Management and Organizational

Memories. Springer, Boston, MA. Pp. 17–28.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

244
