ADmed: An Adaptive Technical Process for the Agile Development of

Medical Devices

Maren Martens, Anna Schidek

, Markus Schmidtner

and Holger Timinger

Institute for Data and Process Science, Am Lurzenhof 1, Landshut, Germany

Keywords:

Medical Devices, Adaptive, Process Model, ADmed, Flexible Development.

Abstract:

Agile project management is an established approach in software development and over time has also been

adapted to different ﬁelds of work. While there are proven advantages for an agile development process, not

all branches have incorporated agile methods in their project and development practices yet. One of these

branches is the medical device industry. They often fall back on traditional, plan-based process models due

to regulatory and normative requirements because of perceived conformity. ADmed is a process model that

combines agile and plan-based processes while still adhering to the necessary regulatory requirements. In

order to make it more accessible and approachable for a wide range of users it also incorporates adaptive

elements, which are adjusted based on the user context.

1 INTRODUCTION

In everyday life, medical devices support and improve

the quality of life in different ways (Austromed, 2018)

– ranging from daily products for ﬁtness diagnos-

tics to high end devices for medical operations. The

medical device industry covers a wide ﬁeld of differ-

ent products. This leads to diverse industry, which

in Germany alone generates sales of over 34 billion

Euro in 2021 (BVMed e.V., 2021). Sales have been

steadily rising over the last few years and with an ag-

ing society the demand is expected to rise even fur-

ther. It is clear, that the medical is an important eco-

nomic factor not only in Germany but worldwide. De-

spite this the industry is also facing new challenges

(BVMed e.V., 2021). Like in most other branches,

digitalization is currently one of the main topics in

developing new medical devices. While it may re-

quire new ideas and expertise on the developer side,

it is also an opportunity to create new and innova-

tive products (Dispan, 2020). Companies have re-

alized this challenge and currently about 9% of the

generated turnover is reinvested into research and de-

velopment. The industry is splitting their efforts be-

tween developing new products and further improv-

ing existing medical devices (BVMed e.V., 2021). As

https://orcid.org/0000-0003-3724-4626

https://orcid.org/0000-0002-1209-7968

https://orcid.org/0000-0001-7992-0392

medical devices are usually very close to patients or

users, there is always a strict focus on the safety of

every person involved, which includes the product

safety and also the product usability (Donaldson et al.,

2021). Both of these aspects can be achieved by tra-

ditional, plan-based project management, but they are

also perfectly achievable with an agile development

approach. Especially the iterative, incremental ap-

proach and the involvement of different stakeholders

ensure not only the usability but also that the critical

functionality is often tested multiple times due to the

iterations. While agile methods can provide valuable

advantages during product development, there is still

hesitation from developers to employ them. This is

mainly caused by caution as they want to guarantee

compliance with the strict regulations, speciﬁcations

and guidelines to which they must adhere. So they

trust their established methods instead of incorporat-

ing new and possibly beneﬁcial methods. However,

many manufacturers desire more agility in manage-

ment and execution of medical device projects (Jon-

nalagadda et al., 2019). The innovative, ﬂexible pro-

cess model ADmed (Agile Development of Medical

Devices) was developed in response to this desire for

more agility and demonstrates how the compatibility

of plan-based and agile development with the spec-

iﬁcations of regulations and standards can be real-

ized (Schidek and Timinger, 2022). The model of-

fers insight in how agile methods in the development

of medical devices can be achieved. However, it re-

Martens, M., Schidek, A., Schmidtner, M. and Timinger, H.

ADmed: An Adaptive Technical Process for the Agile Development of Medical Devices.

DOI: 10.5220/0011543100003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 3: KMIS, pages 177-184

ISBN: 978-989-758-614-9; ISSN: 2184-3228

177

quires developers and project managers to understand

agile methods in order to be able to use it. As agile

methods are rather new in the ﬁeld of medical device

development, the knowledge about them on the prac-

titioners side is on an early level. To alleviate this

drawback, the ADmed model could be reconstructed

as an adaptive process model that supports and guides

its user throughout the tailoring of the process model.

2 ADmed MODEL

This section describes the structure of the ADmed

Model with respect to its functionality and the roles

that take part in the process model.

2.1 Structure and Functionality of

ADmed

2.1.1 Top Level

Figure 1 provides an overview of the basic structure

of the process model ADmed. It consists in parts of

traditional, plan-based project phases, which makes

the model rather easy to understand. The main phases

are initialization, project design, realization and extra

phases especially for a ﬁnal veriﬁcation and valida-

tion, and the design transfer of the medical device. In

the realization phase, the model offers a potentially

iterative way of working. The top level of the pro-

cess model ADmed is in line with the medical device

regulation of the European Union, detailed in the har-

monized standard EN ISO 13485, chapter 7. As more

details on each phase are required, beneath the more

detailed level of each phase is presented.

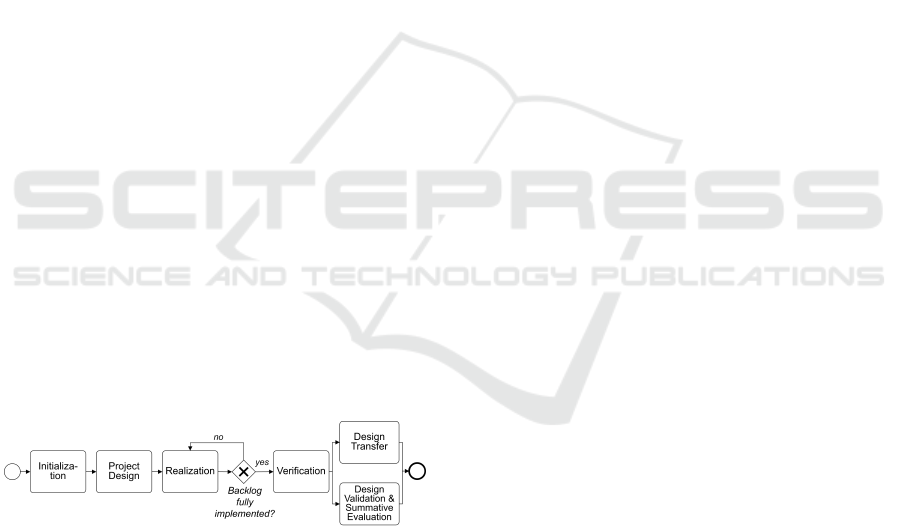

Figure 1: Main structure of the ﬂexible process model

(Schidek and Timinger, 2022).

2.1.2 Detailed Level

In order to show the relevant activities for the process

as well as the agile building blocks that were speciﬁ-

cally set, the process model was expanded by a more

detailed level, shown in Figure 2, in addition to the

top level and is explained in the following.

Even before the actual project start, the process

model begins with the initialization. According to the

traditional understanding of project management, this

phase is regarded as an orientation to obtain a rough

overview of the project and its scope. Checking the

necessary resources in the company is also part of

this step. After the ofﬁcial project release, the project

design begins. In this phase, the framework condi-

tions for the implementation of the project are de-

ﬁned. Starting with the deﬁnition of the user needs (as

well as the superior intended use of the medical de-

vice), the ﬁrst agile building blocks are used here. Re-

quirements are deﬁned together by the entire project

team – and in particular by the relevant stakeholders –

on the basis of user needs, in the form of user stories,

use cases or similar. By involving relevant stakehold-

ers, requirements can be gathered qualitatively with-

out expecting quantitative details from them, which

often cannot be formulated directly at the beginning

of the project. In order to ﬁnd concrete user needs

as early as possible, this process can take place in an

iterative form and in collaboration with the stakehold-

ers. Various creative methods and techniques can be

used for this purpose. The formulated user needs are

recorded in the backlog in a way that is comprehensi-

ble and accessible to the entire project team. Parallel

to this step, the risk management process according

to EN ISO 14971 can already be started here and the

ﬁrst cycle can be run through. For the sake of clarity,

the risk management activities are not shown in the

rest of the process model. These are considered to be

a prerequisite with the start of the risk management

process and should be carried out in parallel with the

development. In the next step of the project design,

further framework conditions for the implementation

of the project are set by the project manager. These

include prioritizing the backlog and deﬁning the as-

sociated deﬁnition of ”done”, assembling the project

team on the basis of the required competencies and

deﬁning the time box for the iteration and the activ-

ities deﬁned therein. Only when these factors have

been set, the next phase can begin. The realization is

executed iteratively and incrementally. For this pur-

pose, user needs prioritized in the backlog are ﬁrst

transferred into quantitative requirements during iter-

ation planning and an iteration target is deﬁned jointly

by the project team and recorded in the iteration back-

log. The requirements deﬁnition is taken over directly

by the developers – similar to scrum – in order to

strengthen the necessary understanding and commit-

ment. Planned activities for veriﬁcation and valida-

tion of the set requirements are also already deﬁned.

To focus on implementation and to improve com-

munication within the project team, short daily stand-

up meetings are conducted. They also help to com-

municate the upcoming work of the day of each team

member and to address potential impediments. As

KMIS 2022 - 14th International Conference on Knowledge Management and Information Systems

178

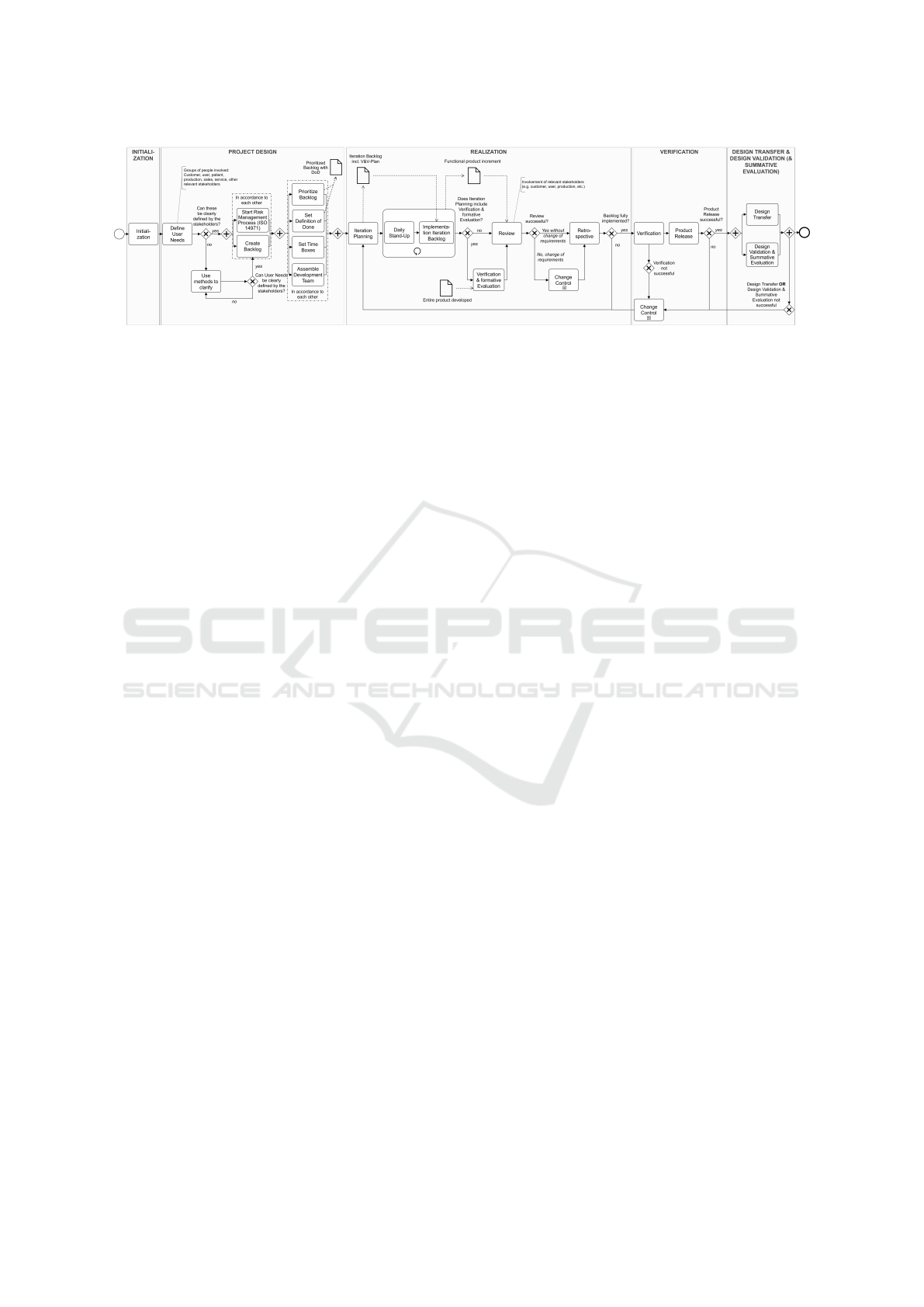

Figure 2: Detailed view of the deﬁned activities within the individual phases (Schidek and Timinger, 2022).

a result of the implementation of the iteration back-

log, a functional product increment is created, which

is then evaluated by the entire project team and com-

pared with the speciﬁed deﬁnition of ”done” in the

subsequent review. At this point, relevant stakehold-

ers can make possible change requests. However, the

EU regulations require that changes must not acci-

dentally introduce additional risks or changes of the

intended use of the medical device.

For this reason, potential changes follow a well-

deﬁned change management process. Approved

changes are documented in the backlog in a traceable

manner, as required by EN ISO 13485. Another qual-

ity assurance activity in the realization is the usability

check during development in the form of a formative

evaluation. This can be deﬁned at certain intervals

in the iteration planning and carried out after the im-

plementation of the iteration backlog. Typically, ag-

ile development processes end with a retrospective, to

reﬂect one’s own work and processes. Through open

communication, processes can be reﬂected and opti-

mized, and problems can be directly addressed and

solved.

After the retrospective, it is possible to start the

planning for the following iteration. The activities of

the realization phase are executed iteratively as often

as open user needs are listed in the backlog.

Once all user needs of the backlog have been

implemented, the ﬁnal veriﬁcation of the developed

medical device can start. According to EU regula-

tions, the veriﬁcation has to be performed in a sepa-

rate development phase. Test cases for the veriﬁcation

have already been collected in the iteration backlogs

and can now be executed and documented.

As the ﬁnal phase, the medical device can now be

transferred to production in the design transfer. In the

validation phase, the fully developed medical device

is tested by comparing it to the intended use and the

user needs. Similarly, the usability of the medical de-

vice is also ﬁnally tested by means of the summative

evaluation in accordance with IEC 62366.

2.2 Roles

In order to fulﬁll the regulatory requirement for de-

ﬁned responsibilities according to EN ISO 13485,

the project team consists of three persons (groups)

who perform deﬁned tasks: project manager, devel-

oper, and customer (representatives). The roles de-

scribed below act on an equal level to enable the most

open and direct communication and action possible.

Traditional project management tasks, such as deﬁn-

ing the framework parameters in the project design,

are performed by the project manager. Maintain-

ing the backlog of requirements is also one of the

project manager’s tasks. As a link between stakehold-

ers and developers, the project manager ensures that

the project runs efﬁciently and effectively.

The project is implemented by the developers.

They act and work according to the agile values in

an interdisciplinary and (mostly) self-organized way.

The active involvement of the developers through-

out the process promotes identiﬁcation and motiva-

tion with regard to the development of the project ob-

ject. Various activities, such as the daily stand-up

or the retrospective, also require direct communica-

tion channels. This open communication and regu-

lar reﬂection on one’s own actions and processes ulti-

mately beneﬁts not only the project itself, but the en-

tire company. The last relevant group of people is the

group of project-relevant stakeholders. In addition to

the customer, these include, for example, users, sup-

pliers, production or sales. All relevant stakehold-

ers are involved throughout the entire development

process. Beginning with the collaborative deﬁnition

of user needs through to validation and design trans-

fer, the stakeholders are actively involved and can in-

troduce change requests according to a well deﬁned

change process at any time in order to create a med-

ical device of highest possible quality and customer-

speciﬁcation.

One of the most demanding tasks in working with

a reference model is to adapt it for a speciﬁc environ-

ment, especially for such a heterogeneous ﬁeld like

ADmed: An Adaptive Technical Process for the Agile Development of Medical Devices

179

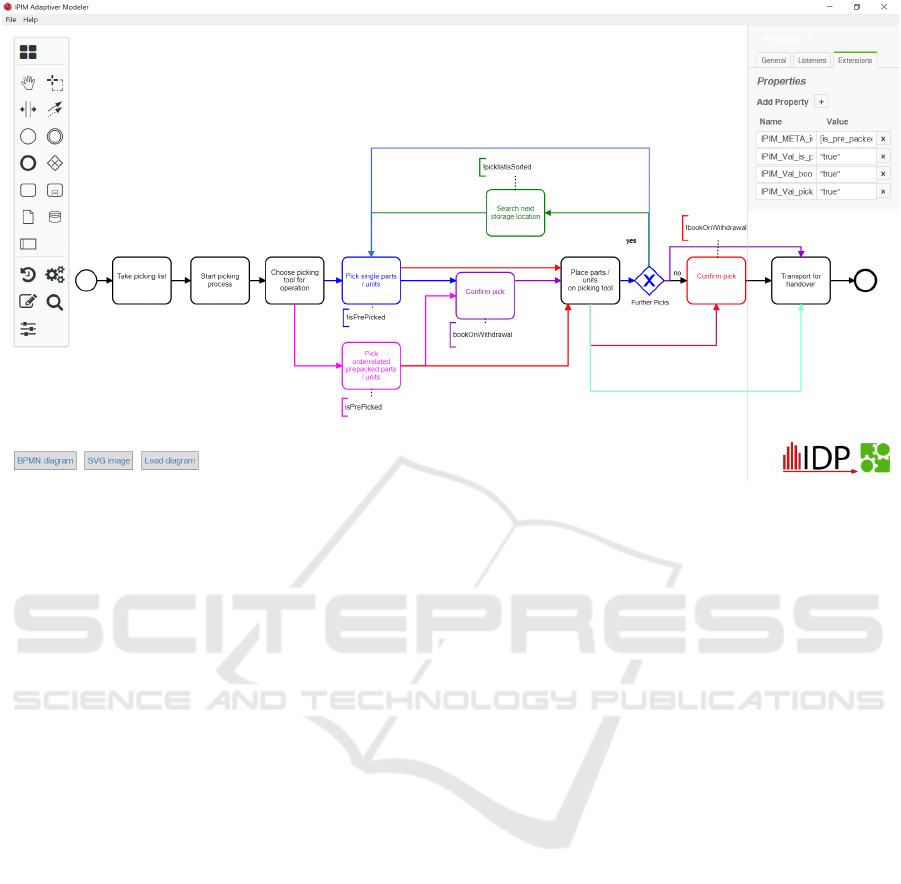

Figure 3: Screenshot of the ADAMO Modeler: The different colors of the model represent different adaptation options, which

are later selected during process execution, dependent on the values of the speciﬁed parameters for adaptation.

medical devices are. To make it easier for users to

apply the reference model for their speciﬁc case, it

is beneﬁcial to use an adaptive modeling technique.

In this way the model also transfers knowledge about

best practices on how to adapt it. First the ADAMO

Modeler, a tool that enables adaptive modeling, will

be discussed, followed by an example on how it could

be used in the ADmed model.

3 ADAMO MODELER

Information modeling is a standard instrument of

business informatics that is frequently used to model

processes and company data (Seel, 2010). Currently,

there are hardly any tools that provide sufﬁcient func-

tionality to both create and evaluate adaptive refer-

ence models (Seel et al., 2016). It is therefore nec-

essary to extend an existing and established mod-

eling language by the necessary elements (Hilpolt-

steiner et al., 2019). For this reason, the ADAMO

Modeler is being developed at the Institute for Data

and Process Science at Landshut University of Ap-

plied Sciences (Institute for Data and Process Sci-

ence Landshut, 2020). This not only enables pro-

cesses to be modeled in conformity with BPMN 2.0,

but also extends its meta-model to include parameters

and variables. While parameters are available glob-

ally throughout the process and can thus be evaluated

in all terms, a term is always linked to a BPMN ele-

ment in the process (Hilpoltsteiner et al., 2018).

Once the process model has been created, the

ADAMO Modeler also offers the possibility of eval-

uation. First, the user is asked to enter values for all

parameters required in the model. These values, then,

automatically replace all parameters in the terms of

the process model. Subsequently, all terms are eval-

uated using the values. On the basis of these terms,

the model can later decide to remove unneeded parts

of the model (according to the logic), thus suggesting

the user an implementation of the process based on

his parameters. An example what the tool looks like

can be seen is Figure 3.

3.1 Boolean Decision Making

A previous release of the ADAMO modeler was

solely based on Boolean logic as described by Becker

(Becker, 2002) and Delfmann (Delfmann, 2006).

Each element, like tasks, ﬂows, events, or others

could be assigned with a Boolean term. The most

central piece, as with any term, were the variables

that can be used. As the possible use cases should

be as broad as possible, we opted for an open ap-

proach with the following data types: numeric values,

texts, and truth values. As the software is based on

an open source project in JavaScript, this corresponds

to the data types of Number, String, and Boolean. A

term, however, can not only contain string variables,

the whole term itself is also saved as a string (e.g.,

KMIS 2022 - 14th International Conference on Knowledge Management and Information Systems

180

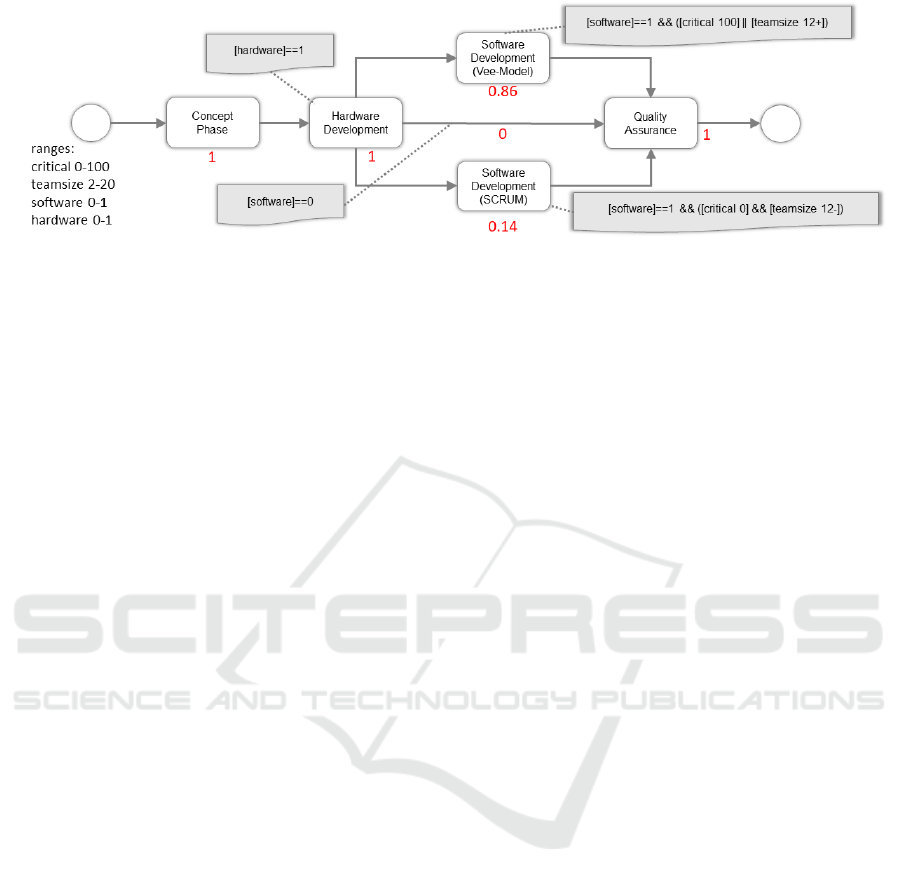

Figure 4: Example of the fractional 0-1 Decision Making approach.

variable names are strings). Hence, it is important

to make variables clearly distinguishable. For this

reason a delimiter is deﬁned that allows to mark a

variable as such. This delimiter may not use oper-

ators or limit the possible content of text variables.

While staying within these technical limitations, the

goal was also to keep the term as readable as possi-

ble for humans. In order to fulﬁll this criteria, square

brackets are used as delimiter. As the evaluation logic

of JavaScript does not consider them as commands

this works out well. A possible term looks like the

example below.

[participants] <= 12

In this case [participants] represents the variable

name, which can be substituted with the variable

value by implementing a simple search and replace

algorithm before the evaluation takes place. In or-

der to separate between text strings and decimal vari-

ables, it is important to introduce various identiﬁers.

Within an ADAMO term, character strings must be

introduced and terminated by quotation marks to en-

able a safe evaluation.

3.2 Fractional 0-1 Decision Making

While the approach with Boolean variables is enough

to satisfy basic use cases there are also some types

of decisions that are less clear-cut and require a more

gradual decision-making process. The Boolean ap-

proach will by deﬁnition always result in a clear true

or false for an element to stay in the reference model

or not. While this may work for some decisions, other

problems require a more gradual approach in the out-

put (Schmidtner et al., 2021). For example, in project

management, Scrum is generally attributed to be us-

able by small teams. If small teams are deﬁned as

less than 12 people, in the Boolean approach Scrum

immediately becomes useless for teams with 13 or

more people, as it is a clear decision between ”more

than 12” or not. However, this does not reﬂect re-

ality, because Scrum is not unusable with 13 people

albeit it becomes less attractive the more people join

the team or it requires additional structures for large

scaled Scrum.

Also users of reference models often would like to

prioritize certain aspects in regard to their individual

project. For example, a project may value the person-

nel or culture parameter as far more important than

the actual team size. Both of the aforementioned rea-

sons make simple Boolean terms unsuitable for an ap-

proach where the user wants a less clear cut for vari-

ables or wants to weigh the parameters differently.

Today, thus, ADAMO offers another solution

which is based on the Boolean logic but enables an

even more user speciﬁc evaluation. To reﬂect this, the

fractional 0-1 approach allows for the full spectrum in

between. A solution becomes gradually less attractive

the more the values differ from their optimum. So we

do not have one point that suddenly reverses the de-

cision whether the element is deleted from the model

but instead we have a numerical evaluation how good

the element ﬁts the variables based on the attached

term. To explain this new interpretation of parame-

ters, at ﬁrst the variable [participants] is reconsidered,

which settles in the range between a minimum of 2

and a maximum of 20. Now we need to deﬁne the

optimum for a speciﬁc approach. In case of the afore-

mentioned Scrum example, a participant number of

12 or below would be best suited for this approach.

In this case, the following term can be deﬁned to the

relevant elements in the model.

[participants 12-]

This will lead to a score of 1 if the parameter for

[participants] is equal to 12 or below and gradually

decreases towards 0 the further the parameter exceeds

12. At 20 participants, the score is 0. As we now have

a numerical value on how good an element ﬁts into the

model, we must make a decision on which elements to

keep and which to remove. Therefore each path along

the process model is analyzed and the values of all el-

ements along the path are multiplied. The path that

has the closest value to 1 after all calculations is the

ADmed: An Adaptive Technical Process for the Agile Development of Medical Devices

181

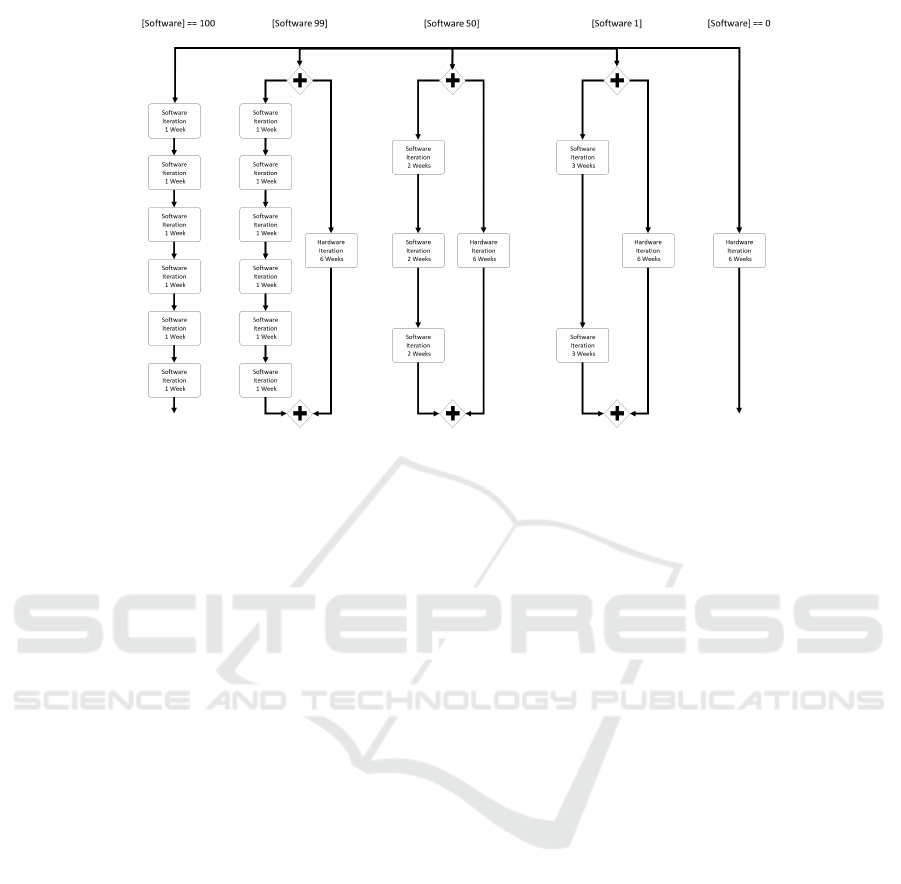

Figure 5: Adaptive ADmed Example.

one most suitable for the given parameters. This is,

therefore, recommended to the user as the ﬁnal pro-

cess.

An example for this can be seen in Figure 4. In

that simple example we have three possible paths

throughout the model. The model is deﬁned with 4

parameters ([software] and [hardware] ranging from

0 to 1, [teamsize] ranging from 2 to 20 and [critical]

with a range from 1 to 100). The user selects the pa-

rameters as follows: [critical] = 0.86, [software]=1,

[hardware]=1 and [teamsize]=12. The ﬁrst path us-

ing the Vee-Model is calculated with a score of 0.86,

the second path is to have no software development

calculated with a 0 and the third is with Scrum and

a calculated score of 0.14. According to the values

given, the Vee-Model path is suggested to the user.

4 ADAPTIVE ADmed EXAMPLE

If we now apply the possibilities ADAMO offers to

the ADmed model it enables recommendations to be

given to users on how to best tailor the model to their

speciﬁc needs. An example is the tailoring of the du-

ration of iterations, depending on how much software

in relation to hardware is part of the speciﬁc project.

The idea here is that the more software-oriented the

project is, the shorter should be the iteration to collect

feedback. If the project leans more toward hardware

orientation, the software iterations can take more time

to match up with the hardware development speed,

which typically is slower than that of software. To

model this, we deﬁne a parameter [software] that can

range between the values of 0 and 100 (see Figure 5

for an illustration). The user can then choose to in-

put a value depending on how much software devel-

opment is needed in the project under consideration.

100 denotes a pure software development project. 0

denotes a pure hardware development project. If the

user chooses a value in between, the reference model

calculates the approach of closest distance to its opti-

mum and suggests this as the ﬁnal process.

Initially ﬁve alternative paths are present in the

ADmed process model. In case the user speciﬁes

a pure software development project (value equal to

100), the leftmost part with six one week intervals re-

ceives a score of 1, while the path to its right ([Soft-

ware 99]) has a score slightly below 1, because the

given value 100 is (only) very close to 99, where that

path would be optimal. All other paths are even fur-

ther from 1, ending at the rightmost path with a score

of 0. Hence, the leftmost path is recommend to the

user as the most suitable process for the project. If,

on the other hand, the user speciﬁes a value of 0 to

the variable [software], it is a pure hardware project

and with the reverse argumentation the rightmost path

without any software development is recommended.

If the given value is in between, meaning in the range

of 1 to 99, the process model recommends the path

[Software 99] (”Hardware Project with Software”), if

the given value is closer to 99 than to 50 or 1, [Soft-

ware 1] (”Software Project with Hardware”), if the

given value is closer to 1 than to 50 or 99, or [Soft-

ware 50] (”Hard- and Software Project”), if the given

value is closest to 50. Please note, that this simple ex-

ample focuses only on one part of the ADmed Process

KMIS 2022 - 14th International Conference on Knowledge Management and Information Systems

182

Model with only one variable. The logic can be for-

mulated much more in depth with additional variables

and if the best path along the whole model is calcu-

lated it may come to a different result, depending on

the other parameters involved.

5 CONCLUSION AND OUTLOOK

If the ADmed Process Model is reconstructed as an

adaptive model, it will provide beneﬁts for users tai-

loring it to their needs. This is especially true for

the targeted audience group of medical device project

managers. The adaptive model supports the individ-

ual conﬁguration of the development process while

ensuring compatibility to the regulatory requirements

which are unavoidable for the development of medi-

cal devices. The combination of plan-based and agile

process models in ADmed facilitates a great degree

of ﬂexibility. ADmed is also suited to guide inexperi-

enced managers through the development process of

medical devices. However, there remain open tasks to

be solved in the future: In order to further implement

the adaptive model, the relation between inﬂuencing

parameters and required processes must be examined

and modeled in more detail. This also includes the

acquisition of knowledge about suitable ranges of the

values of the parameters. For this, expert interviews

and observations are planned in order to complete the

model. Additional case studies will, then, help to

evaluate and further reﬁne the model.

ACKNOWLEDGEMENTS

The project is ﬁnanced with funding provided by the

Federal Ministry of Education and Research and the

European Social Fund under the ”Future of work”

programme.

REFERENCES

Austromed (2018). Lebensqualitt braucht medizin-

produkte; quality of life needs medical de-

vices (in german). Das Medizinprodukt, avail-

able online at https://www.medmedia.at/das-

medizinprodukt/lebensqualitaet-braucht-

medizinprodukte/, last checked 29.03.2022, 2/18:14.

Becker, J. (2002). Wissensmanagement mit Referenzmod-

ellen: Konzepte fr die Anwendungssystem- und Or-

ganisationsgestaltung; Knowledge management with

reference models: Concepts for application system

and organization design (in german). Physica-Verl.,

Heidelberg.

BVMed e.V. (2021). Der Markt fr Medizin-

technologien; The market for medical tech-

nologies (in german), available online at

https://www.bvmed.de/download/charts-medtech-

markt.pdf, last checked 29.03.2022.

Delfmann, P. (2006). Adaptive Referenzmodellierung:

Methodische Konzepte zur Konstruktion und Anwen-

dung wiederverwendungsorientierter Informations-

modelle; Adaptive Reference Modeling: Methodolog-

ical Concepts for the Construction and Application of

Reuse-Oriented Information Models (in german), vol-

ume 25 of Advances in information systems and man-

agement science. Logos-Verl., Berlin.

Dispan, J. (2020). Der Markt fr Medizintechnolo-

gien: Arbeits-, Markt- und Innovationstrends;Industry

analysis medical technology: employment, market

and innovation trends (in german), available online

at https://www.bvmed.de/download/branchenanalyse-

medizintechnik-boeckler-stiftung-mai-2020.pdf, last

checked 17.01.2022.

Donaldson, L., Ricciardi, W., Sheridan, S., and Tartaglia,

R., editors (2021). Textbook of Patient Safety and

Clinical Risk Management. Springer Nature, DOI:

10.1007/978-3-030-59403-9.

Hilpoltsteiner, D., Schmidtner, M., and Seel, C. (2019).

Prototypische konzeption und implementierung eines

softwarewerkzeugs zur konstruktion adaptiver bpmn-

prozessmodelle; prototypical design and implementa-

tion of a software tool for the construction of adaptive

bpmn process models (in german). Landshuter Ar-

beitsberichte zur Wirtschaftsinformatik, pages 1–49.

Hilpoltsteiner, D., Seel, C., and D

orndorfer, J. (2018).

Konzeption und implementierung eines soft-

warewerkzeuges zum management von bpmn-

prozessvarianten; conception and implementation of

a software tool for the management of bpmn process

variants (in german). In Hofmann, R. and Alm, W.,

editors, Wissenstransfer in der Wirtschaftsinformatik,

pages 15–24. Hochschule Aschaffenburg, Information

Management Institut, Aschaffenburg.

Institute for Data and Process Science Landshut

(2020). Github repository, available online at

https://github.com/hawmobilesystems/adamo, last

checked 28.06.2022.

Jonnalagadda, K., Fleisch, D., Hultman, P., and Berez,

S. (2019). How Agile Is Powering Health-

care Innovation: Life sciences and healthcare

companies need new solutions to meet rapidly

changing customer needs, available online at

https://www.bain.com/insights/how-agile-is-

powering-healthcare-innovation/, last checked

29.01.2022.

Schidek, A. and Timinger, H. (2022). Agilization of tech-

nical development processes for medical devices. In

IEEE ICE - IAMOT Conference 2022 (accepted and

currently waiting for publication). IEEE.

Schmidtner, M., Doering, C., Hilpoltsteiner, D., Martens,

M., and Timinger, H. (2021). A fractional 0–1 de-

cision making approach for process variant manage-

ment. In Co-creating our future: scaling-up innova-

tion capacities through the design and engineering of

ADmed: An Adaptive Technical Process for the Agile Development of Medical Devices

183

immersive, collaborative, empathic and cognitive sys-

tems, pages 1–8, Piscataway, NJ. IEEE.

Seel, C. (2010). Reverse Method Engineering: Meth-

ode und Softwareuntersttzung zur Konstruktion und

Adaption semiformaler Informationsmodellierung-

stechniken; Reverse Method Engineering: Method

and software support for the construction and adap-

tation of semiformal information modeling techniques

(in german), volume 20 of Wirtschaftsinformatik -

Theorie und Anwendung. Logos, Berlin.

Seel, C., D

orndorfer, J., Schmidtner, M., and Schubel,

A. (2016). Vergleichende analyse von open-source-

modellierungswerkzeugen als basis fr forschungspro-

totypen; comparative analysis of open source model-

ing tools as basis for research prototypes (in german).

In Prozesse, Technologie, Anwendungen, Systeme und

Management 2016, pages 35–44. Barton, Thomas and

Herrmann, Frank and Meister, Vera and M

uller, Chris-

tian and Seel, Christian.

KMIS 2022 - 14th International Conference on Knowledge Management and Information Systems

184
