Improving Digital Circuit Synthesis of Complex Functions using Binary

Weighted Fitness and Variable Mutation Rate in Cartesian Genetic

Programming

Prashanth H. C.

and Madhav Rao

International Institute of Information Technology Bangalore, India

Keywords:

CGP, Evolutionary Algorithms, Non-linear Functions, Digital Circuit Synthesis.

Abstract:

Cartesian Genetic Programming (CGP) is regularly applied to synthesize and realize digital circuits for small

arithmetic and digital-logic functions. CGP beneﬁts in obtaining hardware-efﬁcient circuits through its heuris-

tic search-space exploration, which is hard to reach in a rule-based synthesis process. However, the traditional

CGP conﬁguration has limitations in evolving large and complex circuits, requiring a large number of gen-

erations. High computation time and energy requirements hinder its usage from evolving complex digital

circuits. This paper investigates and demonstrates the desired modiﬁcations to existing CGP in the form of

Binary Weighted Fitness (BwF) and exponentially varying mutation rate (eVar) to evolve functionally correct

solutions extremely fast. The beneﬁts are demonstrated for the basic non-linear power functions and are vali-

dated for usage in activation functions which are otherwise difﬁcult to realize. Additionally, 12 different CGP

conﬁgurations with changes in mutation scheme and evolutionary strategy were also investigated for the power

functions. A comparison with the beneﬁts of BwF and eVar adopted CGP over the traditional CGP methods

is presented and discussed.

1 INTRODUCTION

The ultimate goal of logic synthesis process is to build

optimized version of gate-level designs with mini-

mum number of cells and logic depth, which directly

beneﬁts the circuit’s performance on silicon (Berndt

et al., 2021; Kocnova and Vasicek, 2020). The cur-

rent ABC synthesis tool (Brayton and Mishchenko,

2010) employs directed acyclic graphs to represent

circuits. The graph is structured around two-input

AND nodes and their associated edges, which are

referred to as AND-Inverter Graph (AIG). The opti-

mization involves minimizing AIG size by iteratively

replacing the subgraphs with pre-computed ones, but

retaining the node functionality (Mishchenko et al.,

2006). Although simple and scalable, this synthe-

sis method fails to represent XOR and XNOR gates

with less than 3 AIG nodes each. Hence the current

synthesis method is not considered robust enough to

represent real-world designs which are generally non-

linear in nature (Fi

ser et al., 2010; Sekanina et al.,

2014).

https://orcid.org/0000-0002-9650-3731

https://orcid.org/0000-0003-2278-9148

Evolutionary algorithms involving cartesian ge-

netic programming (CGP) are adopted to synthesize

circuits, especially for the ones that are hard to real-

ize (Sekanina et al., 2014; Prashanth and Rao, 2022;

Miller and Harding, 2008). However, with the grow-

ing complexity of the co-processor design require-

ments, the evolutionary approach tends to either fail

for gate count above 10K or concedes exorbitant time

to realize the gate level circuits (Vasicek, 2015). An

advanced method in the form of a cut-based method

for evolutionary synthesis was proposed in (Vasicek,

2015), offering less number of gate designs but at

the cost of slower convergence. A boolean network

scoping driven re-synthesis approach was attempted

where the CGP was applied on the extracted sub-

circuits, and placed back to the original circuit with

an intention of global level optimization. The sub-

circuits picked for CGP driven re-synthesis either

concedes time if the size is large, or does not of-

fer much beneﬁts at global level if the size of the

sub-circuit is small. To overcome this problem a

cut-based method for evolutionary synthesis was pro-

posed in (Vasicek, 2015) offering less number of

gates design, but at the cost of slower convergence.

A search-based strategy to optimize and approximate

112

H. C., P. and Rao, M.

Improving Digital Circuit Synthesis of Complex Functions using Binary Weighted Fitness and Variable Mutation Rate in Cartesian Genetic Programming.

DOI: 10.5220/0011539000003332

In Proceedings of the 14th International Joint Conference on Computational Intelligence (IJCCI 2022), pages 112-120

ISBN: 978-989-758-611-8; ISSN: 2184-3236

a sub-circuit towards FPGA system design was pre-

sented in (Vasicek and Sekanina, 2016) that adopted

CGP to re-synthesize the circuit. Overall, CGP of-

fered better trade-off metrics between hardware de-

sign parameters and error metrics when compared

with other traditional practices (Miller and Harding,

2008). However, the runtime incurred to synthe-

size circuits is extremely high, especially for a higher

number of inputs and for complex non-linear func-

tionalities (Hodan et al., 2020). Moreover, due to the

surge in the applied machine-learning, and artiﬁcial

intelligence techniques, higher-order computations in

the order of 32-bits or 64-bits data-format are man-

dated (Miyasaka et al., 2021). Evolving hardware

designs for designs with large number of input re-

quire faster genetic programming algorithms, without

compromising on the ﬁtness achieved. On the con-

trary, higher-order functional design is likely to im-

pose tight constraints on the ﬁtness, since a minute

deviation is expected to induce large errors in the pro-

cessed data. Hence, there is a timely need for running

CGP and arriving at the solution much faster without

compromising on the ﬁtness.

Sections 2 and 3 describe related work and CGP

conﬁgurations. In section 4 we introduce the pro-

posed modiﬁcations to CGP, and section 5 analyse the

impact on basic non-linear functions. Section 6 show-

cases the advantage of modiﬁcations when used in the

synthesis of activation functions in Neural Networks.

2 RELATED WORK

CGP and its variants were explored and thoroughly

investigated in the past (Miller, 2020; Manazir and

Raza, 2019). To brieﬂy summarize, the CGP vari-

ants in the form of graph-based crossover and applied

mutation operators were discussed in (Miller, 2020).

However, multiple mutations invariably run on mul-

tiple threads or processes till functional crossover is

attained, which indirectly consumes more computa-

tional resources to allow for context switching be-

tween the multiple processes. The only possible ad-

vantage is attaining a quick graphical crossover, de-

pendent on the initial seeding and highly correlated

mutation operators. Modular CGP is another ex-

tended version of the original, where additional mu-

tation operators allow CGP-encoded sub-functions to

be re-evaluated and re-synthesized. However, evolv-

ing to a sub-functional genotype ﬁrst-up is a com-

putationally heavy task. Furthermore, evolved sub-

functions may not necessarily converge to an opti-

mized solution and a slight deviation in the generated

sub-functions may lead to functionally incorrect de-

signs. A different method of taking CGP phenotype

to machine code for faster execution was attempted.

A whole set of implementations with a speedup in

the CGP run was achieved by executing the runs on

the hardware units such as FPGAs, and application-

speciﬁc virtual reconﬁgurable circuit (VRC) (Va

cek

and Sekanina, 2012; Hrb

cek and Drahosova, 2013),

which are categorically, a different set of approaches.

Overall, most modiﬁcations aim to add more opera-

tive dimensions or shift the execution to a completely

different platform to improve the operational speed.

The current CGP methods exploited in the literature

do not address any speedup mechanism to arrive at

ﬁtter solutions. This paper proposes two new modi-

ﬁcations to the existing CGP methodology to achieve

the desired synthesized gate-level circuits with lesser

generations and, at the same time, extract a group of

ﬁtter solutions. The two mechanism includes:

1. Applying a different mutation rate, siilar to

(Thierens, 2002). Especially for realizing non-

linear functions instead of a constant mutation rate

adopted in the traditional methods, and

2. Incorporating a binary-weighted ﬁtness function

instead of the same weight across the data-format

of the functions under synthesis.

The proposed modiﬁcations to the CGP run are highly

useful for realizing hardware designs for non-linear

functions, which are essential components of the

modern-day neural network and its family of compu-

tational networks. Hardware realization of two types

of non-linear functions is demonstrated to showcase

the impact of the proposed CGP method - i) Power

functions and ii) Activation functions. The paper con-

tributes to introducing an exponential mutation rate

(eVar) and binary-weighted ﬁtness function (BwF)

for synthesizing non-linear functions. As per the au-

thors’ knowledge, this is the ﬁrst time a varying muta-

tion rate and binary-weighted ﬁtness across the data-

format is adopted and analysed for circuit synthesis.

3 CARTESIAN GENETIC

PROGRAMMING

In CGP, a directed acrylic graph (DAG) consisting

of an array of gates is evolved iteratively for the de-

sired function (Miller and Harding, 2008). Nodes of

the DAG are gates picked from the predeﬁned list

employed to build the combinational circuit. The

DAG, which is deﬁned using encoded genotype, is

mutated repeatedly in an attempt to obtain the cor-

responding phenotype (digital circuits) that performs

better in the desired objective functions. Objective

Improving Digital Circuit Synthesis of Complex Functions using Binary Weighted Fitness and Variable Mutation Rate in Cartesian Genetic

Programming

113

r-1

n-1

n+1

m.n-1

2n-1

n.(m-1)

n.(m-1)+1

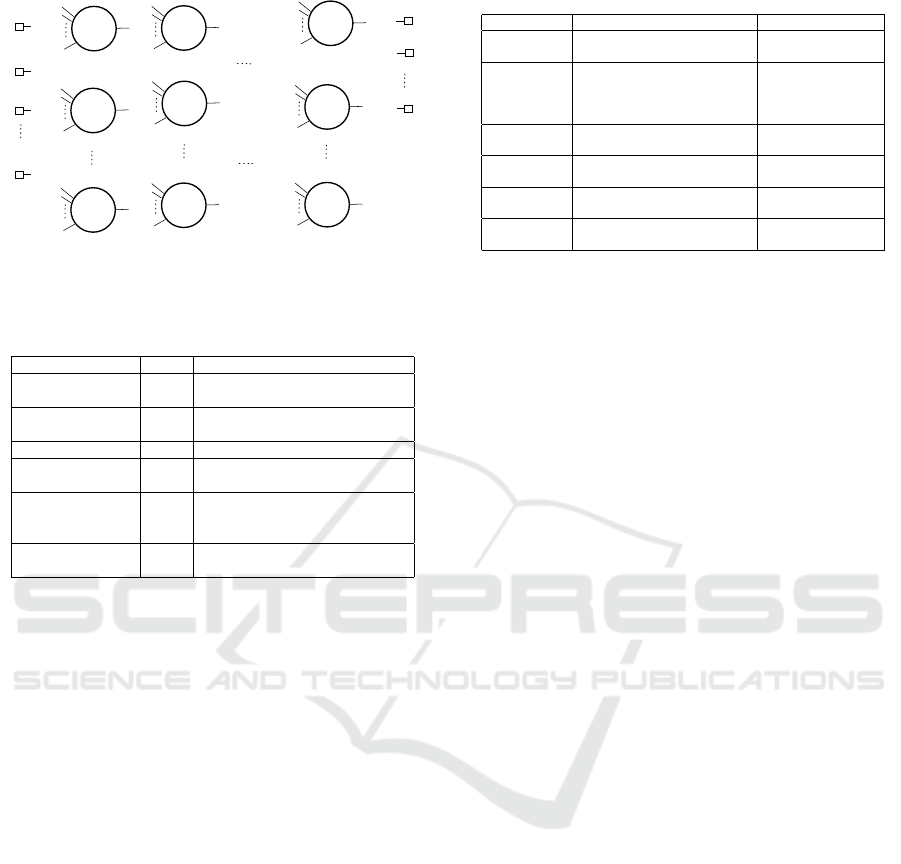

Figure 1: A schematic representation of Cartesian Genetic

Programming (CGP) showing 2D DAG for inputs I, gener-

ating outputs O.

Table 1: CGP Parameters.

Parameter Value Description

No. of Generations G > 0

The maximum no. of generations

in a evolutionary run

Nodes (n) n > 0

Number of usable nodes

for the algorithm

Arity A > 0 Arity of each node

Function Set

Available functions to be used

as nodes

Mu µ > 0

No. of Parents passed to the

next generation, also used to create

children

Lambda λ > 0

No. of children created using µ

parents

functions can be functional correctness of the circuit,

hardware performance metrics (area, delay or power

of the circuit) or a multi-objective function combin-

ing both functional correctness and hardware metrics.

Figure 1 shows a general node-level representation

of CGP DAG, where each node represents a func-

tional block. For n rows and m columns, each node

is a functional gate selected from a predeﬁned set of

f ∈ F. The arity r deﬁnes the number of inputs for

each node. In this work, the function set F is a com-

bination of basic standard two-input gates consisting

of 2-NAND, 2-OR, 2-NOR, 2-OR, 2-XOR, 2-XNOR.

The parameters listed in Table 1 are utilized to con-

ﬁgure the CGP algorithm for synthesis. Algorithm 1

presents the (µ+λ) evolutionary strategy steps, which

returns the ﬁttest genotype in an algorithm run with

randomly generated seed candidate solutions. The µ

value indicates the number of solutions promoted to

the next generation as parents. The λ value indicates

the number of off-springs generated from the µ par-

ents from the previous generation. In this work, dif-

ferent evolutionary strategies were also analyzed to

identify the ideal µ, λ values for achieving faster evo-

lution of non-linear digital circuits. To showcase the

impact of a novel mutation rate and modiﬁed ﬁtness

function, non-linear activation functions and power

functions were realized using the modiﬁed features of

the CGP technique. The original CGP with constant

Table 2: CGP Conﬁgurations.

Conﬁguration Possible choices Typical Choice

Evolutionary

Strategy

(µ + λ) (1 + 4)

Mutation

Scheme

Probabilistic,

Probabilistic Only Active,

Point,

Single

Point

Selection

Scheme

Select Fittest,

Tournament

Select Fittest

Reproduction

scheme

Mutate every parent,

Mutate random parent

Mutate Every Parent

Fitness

Supervised Learning (SL),

Binary weighted Fitness (BwF)

Supervised Learning

Mutation

Rate

Constant,

Variable

Constant

mutation rate and traditional ﬁtness function for all

the non-linear functions were also evaluated and com-

pared against the proposed modiﬁed CGP techniques.

All possible options and typically selected conﬁgura-

tions are listed in Table 2. The four mutation schemes

vary in terms of the mutations performed on node and

chromosome level. The mutation schemes are elabo-

rated below.

Probabilistic : Conducts probabilistic mutation on

the given chromosome. Each chromosome gene is

changed to a random valid allele with a speciﬁed

probability.

Probabilistic Only Active : Conducts probabilistic

mutation on the active nodes in the given chro-

mosome. Each chromosome gene is changed to a

random valid allele with a speciﬁed probability.

Point : Conducts point mutation on the given chro-

mosome. A predetermined number of chromo-

some genes are randomly selected and changed to

a random valid allele. The number of mutations is

the number of chromosome genes multiplied by

the mutation rate. Each gene has equal probabil-

ity of being selected.

Single : Conducts a single active mutation on the

given chromosome.

Although the paper emphasizes novel ﬁtness func-

tion (BwF) and varying mutation rate (eVar), the other

conﬁgurations, including evolutionary strategy, mu-

tation scheme, selection scheme, and reproduction

schemes were also investigated for the synthesis runs.

Select Fittest selection scheme and Mutate Every Par-

ent reproduction scheme was incorporated for all the

evolutionary runs. As indicated in Table 2, typical

CGP in the form of Supervised learning (SL), Con-

stant mutation rates were compared against BwF, and

variable mutation rate CGP technique towards synthe-

sizing digital circuits of non-linear functions.

ECTA 2022 - 14th International Conference on Evolutionary Computation Theory and Applications

114

Algorithm 1: (µ + λ) evolutionary strategy.

forall i such that 0 ≤ i < (λ + 1) do

Randomly generate individual i

end

Select µ individuals, that are promoted as the

parents.

while the generation limit is not reached do

forall i such that 0 ≤ i < λ do

Mutate the µ parents based on the

mutation scheme to generate λ

offsprings

end

Generate the ﬁttest individual using the

following rules:

if an offspring genotype ranks better in a

selection scheme then

Offspring genotype is chosen as ﬁttest

else

The parent chromosome remains the

ﬁttest

end

4 PROPOSED DESIGN

4.1 eVar

In traditional CGP, the mutation rate is conﬁgured

to be a constant value in a view to have the same

mutation rate across the generations and continue to

evolve until a desired ﬁtness or termination crite-

ria is achieved (Miller and Harding, 2008). In this

work, we intend to formulate a mechanism that intu-

itively selects between rough topologies in the initial

generations and then mutates sub-parts of the best-

performing circuit topologies—followed by minimal

and single gate level selection in the ﬁnal generations.

This mechanism is inspired by varying learning rate in

various ML optimization algorithms during the train-

ing phase. The ﬁtness function used can achieve the

selection between the rough topologies in the initial

generations and subsequently among the ﬁner sub-

parts of the designs in the later runs. We tried sev-

eral types of mutation rate variations, including linear

and various non-linear decays. It is observed that an

exponential variation of the mutation rate converges

fastest to functionally correct circuits.

mutation rate(g) = R × e

−g

0.1×G

(1)

where,

G = Total number of generations,

g = current generation, and

R = initial rate of mutation.

Exponential variation of mutation rate used is

stated in Equation 1. It is observed that a decay

rate of 10 is apt based on our heuristic studies on

evolving non-linear functions. If the mutation rate re-

duces lower than one gene, the mutation scheme was

changed to mutate at least one gene for further gen-

erations to continue the evolution process. The se-

quence of a ﬁrst-up rough design requires high muta-

tions to evolve to a relatively adequate design topol-

ogy. Further ﬁne-tuning the design topology with

fewer mutations requires lower mutation rates. The

process of following exponentially varying mutation

rates was found to inherently reduce the evolution

time to achieve similar ﬁtness as other variations. The

selection between multiple mutated designs at all gen-

erations is driven by the conﬁgured ﬁtness function.

4.2 BwF

Binary weighted ﬁtness (BwF) was introduced to

evolve designs which are closer to the data-formatted

functional output. The traditional SL (Supervised

Learning) ﬁtness can either be devised to formulate a

minimizing or maximizing objective function for the

evolutionary algorithm. For the minimizing case, SL

uses Hamming distance between the evolved circuit

output data-bits and expected output data-bits over all

input combinations, indicating the total number of in-

correct circuit output data-bits. In the maximizing

case, the number of correct output data-bits of the

evolved circuit is used as the ﬁtness score. In this

work, we use the minimizing case as stated in Equa-

tion 2, where z is the number of inactive nodes in the

solution circuits.

SL f itness =

(

b when b > 0

b − z otherwise

(2)

This method continues to evolve designs till the num-

ber of generations is exhausted, even if a functionally

correct circuit is found while trying to minimize z. We

minimize the circuit size by minimizing the number

of active gates. However, running the SL conﬁgured

CGP method to evolve the best-ﬁt design mandates

millions of generations, especially for realizing non-

linear functions under investigation. Besides, the SL

method adopts a similar hamming distance rule across

all bits, leading to smaller reﬁnements along all the

design paths associated with the output bits. The SL

process ceases to drive major topological changes for

most signiﬁcant bits (MSBs) associated design paths

and thereby lags in evolving best-ﬁt design solutions

in consolidation with all the output bits of the investi-

gated non-linear functions. BwF attempts to improve

the selection among the available solutions by con-

sidering the weighted ﬁtness across the output bits of

Improving Digital Circuit Synthesis of Complex Functions using Binary Weighted Fitness and Variable Mutation Rate in Cartesian Genetic

Programming

115

5bit x

0.5

259.2

259.4

259.6

259.8

260

0.1

0.2

0.3

0.5

5bit x

0.5

4000

6000

8000

10000

0.92

0.94

0.96

0.98

0.5 0.5 0.5 0.5

min_Absolute_error

Mean_Absolute_error

max_Absolute_error

Error_Probability

Standard_deviation

Mean_Relative_error

Median_Absolute_error

Mode_Absolute_error

5bit x

0.5

100000

150000

200000

250000

300000

500000

600000

700000

800000

0.92

0.94

0.96

0.98

0.5 0.5 0.5 0.5

BwF

Fitness

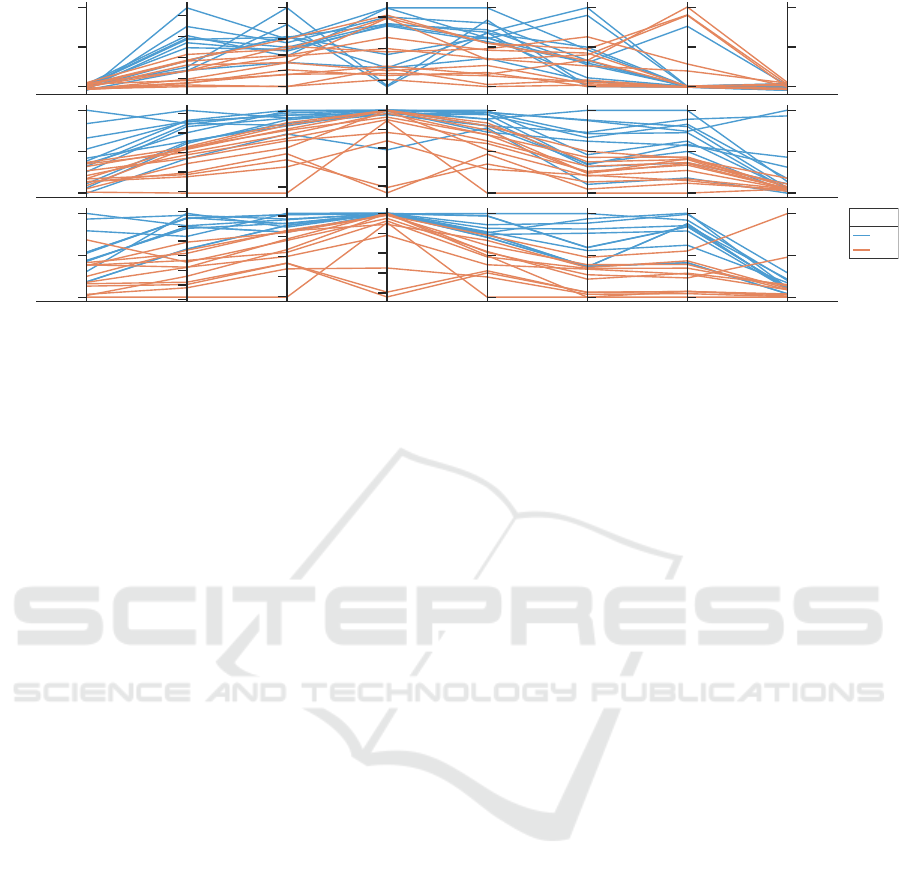

Figure 2: Error metrics comparisons for BwF versus SL methods, when employed with all possible CGP conﬁgurations, for

generating 5-bit power functions : x

, x

the design evolved instead of considering hamming

distance across all the established output bits. The

BwF ﬁtness function is stated in Equations 3-4. The

binary-weighted sum (BWS) is a weighted score, giv-

ing positional weightage to error in individual output

bits derived from the evolved circuit design (C(O

))

when compared with the expected (E(O

) functional

output, where i

output bit is scaled by the error con-

tributed. BWS is used over all input combinations to

calculate the BwF of a solution. We also include the

term z to minimize the circuit size post a functionally

correct circuit is evolved.

BW S =

−1

∑

i=0

× δ

(3)

where δ

(

1 i f O

Exp

(i) 6= O

Cir

(i)

0 i f O

Exp

(i) = O

Cir

(i)

BwF f itness =

(

BW S when BW S > 0

BW S − z otherwise

(4)

5 EXPERIMENTAL RESULTS

In the initial generations, BwF is expected to aid

in selecting the best functionally equivalent topol-

ogy among the solutions, as discussed in section 4.1.

Based on the evaluated ﬁtness score, BwF allows se-

lecting topologies with the least deviation in the out-

put function from the expected function, which oth-

erwise was not possible in the SL method due to its

equal weightage rule associated with the output bits.

The evolution process is slowed with reduced muta-

tions in the later generations, only modifying small

sub-parts of the circuits. Towards the ﬁnal gener-

ations, BwF continues to evolve the designs at the

gate-level. The BwF adopted CGP along with eVar

mutation rate is observed to not only obtain circuits

with the least deviation from the expected non-linear

function but also to evolve the circuit with fewer gen-

erations, as discussed in the following sections. The

impact of BwF and eVar adoption in CGP is presented

by synthesizing circuits of power functions and acti-

vation functions, which are hard to synthesize other-

wise. Each conﬁguration discussed in section 3 is run

20 times with the same generations limit for different

conﬁgurations being compared. For example, 5bit x

has 12 conﬁgurations of mutation scheme and evolu-

tionary strategy. Both BwF and SL with these 12 con-

ﬁgurations are run 20 independent times in an attempt

to obtain the average behaviour of circuits evolved

with the speciﬁc conﬁguration. The results discussed

in the following sections are only an illustrative sub-

set of all the experiments, the full comprehensive set

of results is made available in (Prashanth, 2022).

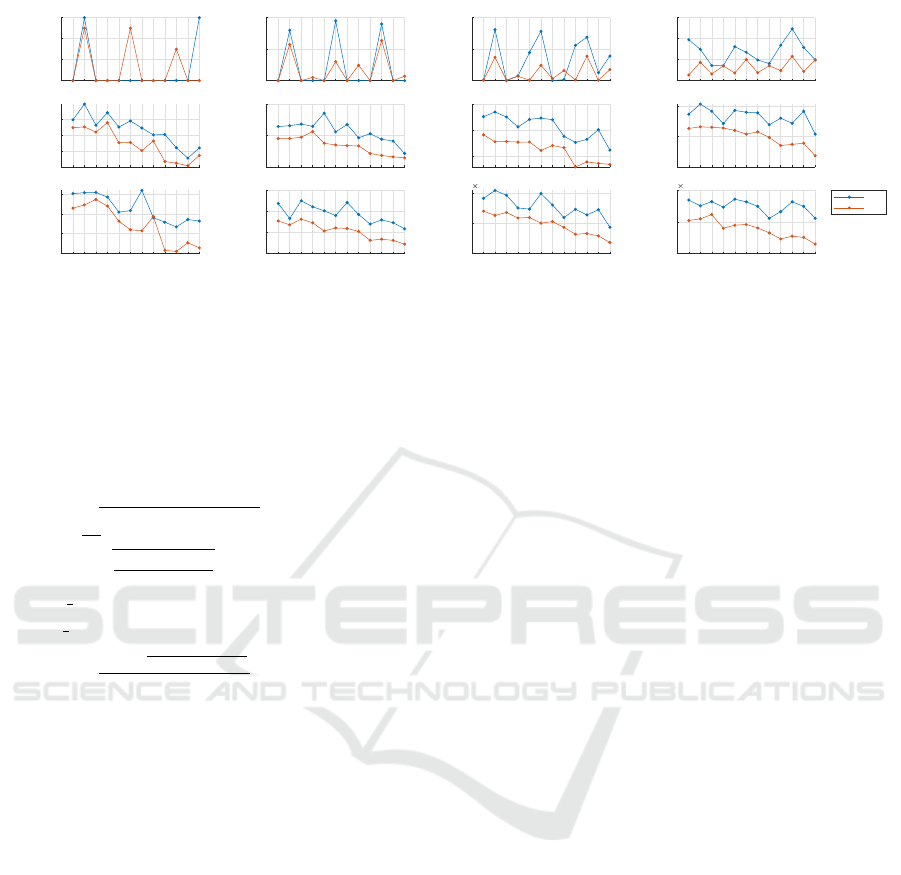

5.1 Error Analysis

Eight different error metrics, including Mean Abso-

lute Error (MAE), Error Probability (EP), Standard

deviation (STD), Mean relative error (MRE), Me-

dian of absolute error (MeAE), Mode of absolute er-

ror (MoAE), Maximum absolute error (Max-AE), and

Minimum absolute error (Min-AE) were investigated

for eVar, and BwF modiﬁed CGP and traditional CGP

conﬁgurations for the power and activation functions.

ECTA 2022 - 14th International Conference on Evolutionary Computation Theory and Applications

116

0.05

0.1

0.15

Function : x

2bit

3bit

4bit

5bit

Function : x

100

200

500

1000

1500

5000

10000

(10,point)

(10,probabilisticOnlyActive)

(10,probabilistic)

(10,single)

(28,point)

(28,probabilisticOnlyActive)

(28,probabilistic)

(28,single)

(55,point)

(55,probabilisticOnlyActive)

(55,probabilistic)

(55,single)

Function : x

(10,point)

(10,probabilisticOnlyActive)

(10,probabilistic)

(10,single)

(28,point)

(28,probabilisticOnlyActive)

(28,probabilistic)

(28,single)

(55,point)

(55,probabilisticOnlyActive)

(55,probabilistic)

(55,single)

500

1000

1500

(10,point)

(10,probabilisticOnlyActive)

(10,probabilistic)

(10,single)

(28,point)

(28,probabilisticOnlyActive)

(28,probabilistic)

(28,single)

(55,point)

(55,probabilisticOnlyActive)

(55,probabilistic)

(55,single)

(10,point)

(10,probabilisticOnlyActive)

(10,probabilistic)

(10,single)

(28,point)

(28,probabilisticOnlyActive)

(28,probabilistic)

(28,single)

(55,point)

(55,probabilisticOnlyActive)

(55,probabilistic)

(55,single)

BwF

Figure 3: Comparison of CGP conﬁgurations w.r.t Mean Absolute Error (in y-axis). Conﬁgurations are pairs of evolution-

ary strategy(10 → (1+10), 28 → (2+8), 55 → (5+5) ) and mutation scheme. BwF performs better than SL for all CGP

conﬁgurations.

The error metrics are deﬁned in the Equations 5.











EC =

∑

∀x in R

Exp

(x) 6= O

Cir

(x))

MAE =

∑

∀x in R

Exp

(x)−O

Cir

(x)|

EP =

ST D =

(AE(x)−MAE)

Max AE = max(| O

Exp

(x) − O

Cir

(x) |) ∀x in R

Min AE = min(| O

Exp

(x) − O

Cir

(x) |) ∀x in R

MRE =

∑

∀x in R

Exp

(x)−O

Cir

(x)|

max(1,O

Exp

)

(5)

The 5-bit data-format for power-two (x

), power-three

), and power-four (x

) functions are shown in Fig-

ure 2 with the proposed eVar and BwF modiﬁed CGP.

All three mutation schemes - (1+10), (2+8), and (5+5)

with four different evolutionary strategies - Proba-

bilistic, Probabilistic Only Active, Point and Single

were conﬁgured independently to evolve the power

function for 5-bits. Each colored line connecting dif-

ferent error metrics represents the average error met-

rics of 20 runs for a given conﬁguration among the

12 investigated. The SL driven CGP method, which

employs a constant mutation rate, and equal-weighted

ﬁtness showcased higher error metrics for different

evolved circuits when compared to most of the cir-

cuits generated by the proposed eVar and BwF modi-

ﬁed CGP method. The reduced error metrics conﬁrm

that the eVar and BwF conﬁgured CGP approach de-

rives ﬁtter circuits than SL based CGP approach.

5.2 CGP Conﬁguration Analysis

Figure 3 shows the comparison between BwF and

SL generated circuits for all the conﬁgurations. The

(5+5) evolutionary strategy consistently performs bet-

ter than the (1+10) and (2+8) strategies. The (2+8)

strategy is also found to perform better than (1+10)

strategy. This result hints that creating fewer child

solutions per parent in every generation is preferred.

Fewer children per parent imply a higher number of

circuit topologies are being carried forward to further

generations. The mutation scheme has a large im-

pact on the generated circuits MAE when using SL

ﬁtness function. Furthermore, there is no clear corre-

lation between the mutation type and MAE over the

functions (x

, x

) and bit width. BwF as ﬁtness

function is found to minimise the variation in MAE

with mutation type selected. Single and Point muta-

tion types perform better than Probabilistic and Prob-

abilistic Only Active when BwF is used. BwF across

12 mutation scheme emerges with a clear accuracy

advantage ranging from 5% to 50% of less MAE for

, and x

power functions when compared with SL

method. The same is not established for x

power

function, which are smaller designs. Hence BwF is

preferred to realise functions with higher bit-width

and complexity.

6 APPLICATION : ACTIVATION

FUNCTIONS

Activation functions are chosen to showcase the abil-

ity to evolve complex non-linear circuits using the

proposed modiﬁcations to CGP. Digital circuits are

usually clocked-sequential designs, requiring Flip-

Flops to maintain intermediate results. Activation

functions are difﬁcult functions to realize in hard-

ware, and tedious design effort is needed to approx-

Improving Digital Circuit Synthesis of Complex Functions using Binary Weighted Fitness and Variable Mutation Rate in Cartesian Genetic

Programming

117

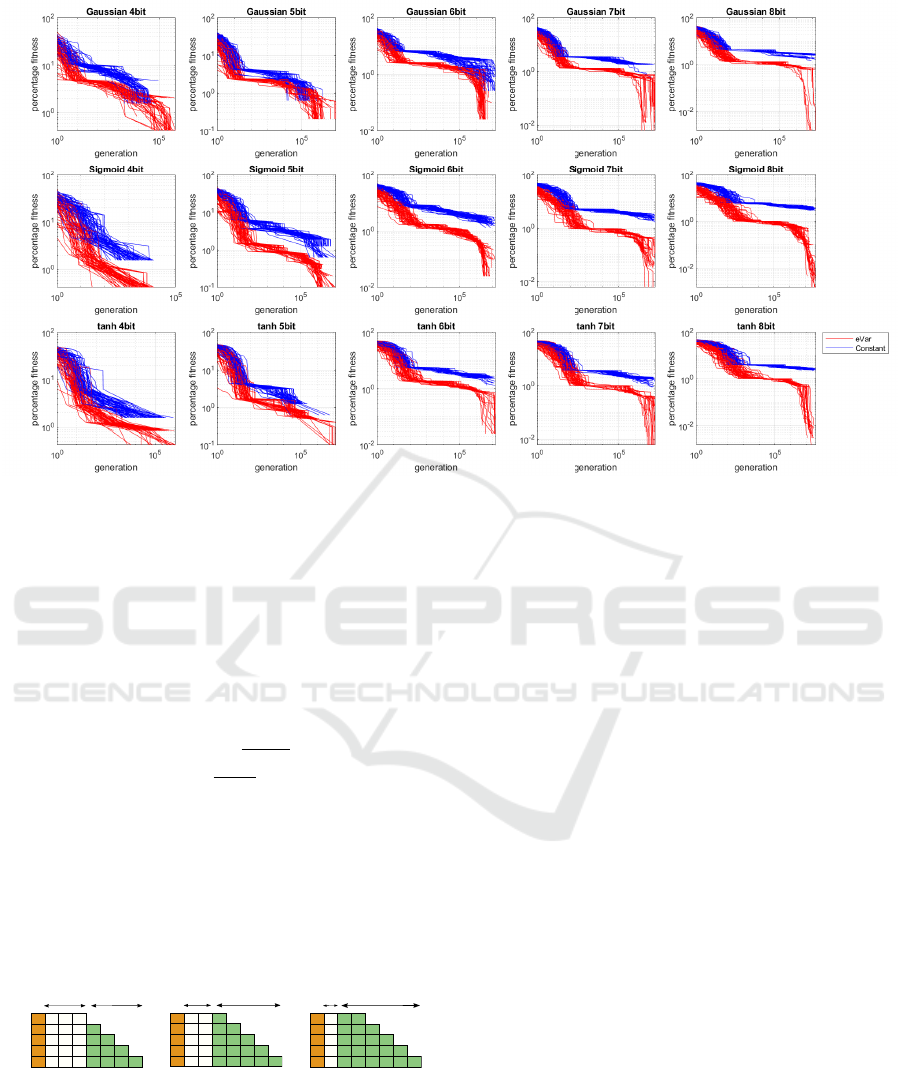

Figure 4: Comparison of convergence to full-ﬁtness of constant mutation rate and exponentially varying mutation rate. Most

eVar-BwF runs converge to functionally-perfect solutions within the generation plotted, while SL-constant mutation rate runs

require more generations.

imate them to sequential designs. Our CGP evolved

circuits are purely combinatorial circuits, which en-

able a large span of hardware-resource (silicon space,

power) to speed of execution trade-off during the syn-

thesis stage of a typical VLSI physical implementa-

tion ﬂow.











Sigmoid(x) =

(1+e

−x

)

tanh(x) =

−e

−x

Gaussian(x) = e

−x

(6)

Sigmoid, Gaussian and Hyperbolic-tangent are de-

scribed in Equation 6. Fixed-point representation of

the data is used to represent the input and outputs of

the activation function. Round-to-ﬂoor quantization

scheme is used to obtain the ﬁxed-point representa-

tion of the continuous activation functions. Figure 5

Integer

4bit

5bit

6bit

7bit

8bit

fractional

(a)

Integer

4bit

5bit

6bit

7bit

8bit

fractional

(b)

Integer

4bit

5bit

6bit

7bit

8bit

fractional

(c)

Figure 5: Input data format for (a) Sigmoid, (b) Hyperbolic

tangent, and (c) Gaussian activation functions.

shows the input ﬁxed-point data format used. The out-

put data format for Sigmoid, Hyperbolic-Tangent, and

Gaussian activation function was conﬁgured similar

to the input data format of Gaussian function since it

offers adequate integer bits to represent the full range

of output values between -1 to 1. Typical evolutionary

strategy of (1+4) along with Point mutation scheme

was adopted for this analysis.

6.1 Fitness Convergence

Figure 4 is the plot of percentage-of-ﬁtness versus

generations in logarithm scale for Gaussian, Sigmoid,

and hyperbolic-tangent functions of 4-bit to 8-bit

data-formats, when conﬁgured with (blue runs) con-

stant mutation rate with SL, and (red runs) eVar mu-

tation rate with BwF. We report the percentage of ﬁt-

ness since the order of magnitude of SL and BwF val-

ues are different. The graph also allows to recognize

potential termination when a functionally perfect so-

lution is found. The eVar mutation rate evolves to

a similar percentage of ﬁtness attained by constant

mutation rate by at least a decade generation less for

lower order bit-widths, and at least 10

generations

less for 7, and 8-bit activation functions. Additionally,

the best evolved design for eVar based CGP consis-

tently achieved maximum ﬁtness for a similar number

of generations throughout the three activation func-

tions investigated. Considering the evolved design at

the last generation, the percentage of ﬁtness achieved

by the eVar applied CGP is better by at least a decade

for lower order bit-width functions and at least 100

ECTA 2022 - 14th International Conference on Evolutionary Computation Theory and Applications

118

times better for the 7 and 8-bit activation functions.

6.2 Correlation of Circuit Output

Figure 6 (a) shows the output proﬁle of the circuit

generated from the proposed scheme, which closely

resembles the expected output non-linear proﬁle. The

absolute error remains zero for most of the input data,

with dominant error values close to 0. Figure 6 (b)

depicts the output proﬁle of the circuit generated from

the traditional SL method. It demonstrates erroneous

output for different input data. The absolute error is

not only spread across the input data range but also

higher in magnitude. The error rate is also higher

compared to the proposed BwF-and-eVar modiﬁed

CGP approach. The error rate for both methods are

indicated next to the absolute error graphs.

7 CONCLUSIONS

The circuits evolved from the proposed BwF and eVar

method were synthesised faster and provided gate-

level designs that furnished close to the exact out-

put. The eVar mutation rate explores the design space

much faster to evolve to a functionally correct solu-

tion. The BwF feature supports selecting and driv-

ing the evolutionary designs toward weighted ﬁtness

along the output bits, leading to reduced error met-

rics when compared with SL technique. Among the

evolutionary strategies (5+5) is preferred, consider-

ing the lowest gate count and securing the best ﬁt-

ness among the three strategies conﬁgured for realis-

ing power functions. BwF achieves ﬁtness improve-

ment in terms of lower MAE ranging from 5% to 50%

for x

andx

functions when compared with the SL

method. The proposed eVar and BwF modiﬁed CGP

was applied on activation functions such as Gaussian,

Sigmoid, and hyperbolic-tangent to validate the effec-

tiveness of the modiﬁcations. For 7-bit and 8-bit acti-

vation functions, eVar aids in evolving the circuit de-

sign faster by atleast 10

times lesser generations, and

BwF generates output proﬁle close to required proﬁle

when compared to SL. BwF and eVar enabled CGP

evolved circuits adhere closely to the non-linear pro-

ﬁle of the activation functions studied in this work.

Overall, BwF and eVar are two major tools in setting

up CGP to evolve complex non-linear functions with

signiﬁcantly less computation effort. All the designs

are made freely available in (Prashanth, 2022) for fur-

ther usage by the research and designers community.

(a)

(b)

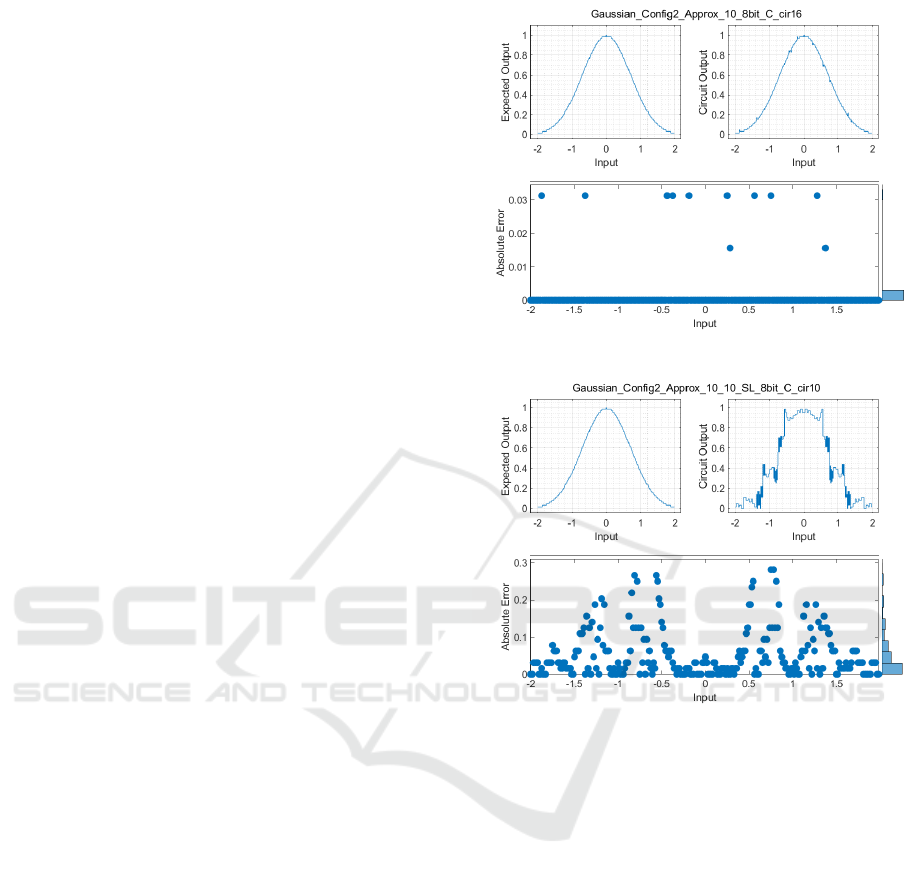

Figure 6: Circuit and expected output 8bit Gaussian CGP

run example. (a) BwF helps to obtain circuits which closely

resemble non-linear functions. (b) SL only considers ham-

ming distance without assigning weightage to large errors.

REFERENCES

Berndt, A., Campos, I. S., Lima, B., Grellert, M., Carvalho,

J. T., Meinhardt, C., and De Abreu, B. A. (2021). Ac-

curacy and size trade-off of a cartesian genetic pro-

gramming ﬂow for logic optimization. In 2021 34th

SBC/SBMicro/IEEE/ACM Symposium on Integrated

Circuits and Systems Design (SBCCI), pages 1–6.

Brayton, R. and Mishchenko, A. (2010). Abc: An aca-

demic industrial-strength veriﬁcation tool. In Touili,

T., Cook, B., and Jackson, P., editors, Computer

Aided Veriﬁcation, pages 24–40, Berlin, Heidelberg.

Springer Berlin Heidelberg.

ser, P., Schmidt, J., Va

cek, Z., and Sekanina, L. (2010).

On logic synthesis of conventionally hard to synthe-

size circuits using genetic programming. In 13th IEEE

Symposium on Design and Diagnostics of Electronic

Improving Digital Circuit Synthesis of Complex Functions using Binary Weighted Fitness and Variable Mutation Rate in Cartesian Genetic

Programming

119

Circuits and Systems, pages 346–351.

Hodan, D., Mrazek, V., and Vasicek, Z. (2020).

Semantically-oriented mutation operator in cartesian

genetic programming for evolutionary circuit design.

In Proceedings of the 2020 Genetic and Evolution-

ary Computation Conference, GECCO ’20, page

940–948, New York, NY, USA. Association for Com-

puting Machinery.

Hrb

cek, R. and Drahosova, M. (2013). Coevolutionary

cartesian genetic programming in fpga.

Kocnova, J. and Vasicek, Z. (2020). Ea-based resynthe-

sis: An efﬁcient tool for optimization of digital cir-

cuits. Genetic Programming and Evolvable Machines,

21(3):287–319.

Manazir, A. and Raza, K. (2019). Recent developments in

cartesian genetic programming and its variants. ACM

Comput. Surv., 51(6).

Miller, J. (2020). Cartesian genetic programming: its sta-

tus and future. Genetic Programming and Evolvable

Machines, 21.

Miller, J. F. and Harding, S. L. (2008). Cartesian ge-

netic programming. In Proceedings of the 10th An-

nual Conference Companion on Genetic and Evolu-

tionary Computation, GECCO ’08, page 2701–2726,

New York, NY, USA. Association for Computing Ma-

chinery.

Mishchenko, A., Chatterjee, S., and Brayton, R. (2006).

Dag-aware aig rewriting a fresh look at combina-

tional logic synthesis. In Proceedings of the 43rd An-

nual Design Automation Conference, DAC ’06, page

532–535, New York, NY, USA. Association for Com-

puting Machinery.

Miyasaka, Y., Zhang, X., Yu, M., Yi, Q., and Fujita, M.

(2021). Logic synthesis for generalization and learn-

ing addition. In 2021 Design, Automation & Test

in Europe Conference & Exhibition (DATE), pages

1032–1037.

Prashanth, H. C. (2022). Results website. https://sites.

google.com/view/bwf-evar/home.

Prashanth, H. C. and Rao, M. (2022). Evolutionary stan-

dard cell synthesis of unconventional designs. In Pro-

ceedings of the Great Lakes Symposium on VLSI 2022,

GLSVLSI ’22, page 189–192, New York, NY, USA.

Association for Computing Machinery.

Sekanina, L., Ptak, O., and Vasicek, Z. (2014). Cartesian

genetic programming as local optimizer of logic net-

works. In 2014 IEEE Congress on Evolutionary Com-

putation (CEC), pages 2901–2908.

Thierens, D. (2002). Adaptive mutation rate control

schemes in genetic algorithms. In Proceedings of

the 2002 Congress on Evolutionary Computation.

CEC’02 (Cat. No.02TH8600), volume 1, pages 980–

985 vol.1.

cek, Z. and Sekanina, L. (2012). Hardware acceler-

ator of cartesian genetic programming with multiple

ﬁtness units. COMPUTING AND INFORMATICS,

29(6+):1359–1371.

Vasicek, Z. (2015). Cartesian gp in optimization of com-

binational circuits with hundreds of inputs and thou-

sands of gates. In Machado, P., Heywood, M. I., Mc-

Dermott, J., Castelli, M., Garc

ıa-S

anchez, P., Burelli,

P., Risi, S., and Sim, K., editors, Genetic Program-

ming, pages 139–150, Cham. Springer International

Publishing.

Vasicek, Z. and Sekanina, L. (2016). Search-based syn-

thesis of approximate circuits implemented into fpgas.

In 2016 26th International Conference on Field Pro-

grammable Logic and Applications (FPL), pages 1–4.

ECTA 2022 - 14th International Conference on Evolutionary Computation Theory and Applications

120
