Towards Reducing Segmentation Labeling Costs for CMR Imaging using

Explainable AI

Alessa Stria

and Asan Agibetov*

Medical University of Vienna, Center for Medical Statistics, Informatics and Intelligent Systems (CeMSIIS),

Institute of Artiﬁcial Intelligence, Vienna, Austria

∗

corresponding author

Keywords:

Deep Learning, Segmentation, Classiﬁcation, Explainable AI, Class Activation Map, Labeling Costs, Scarce

Data, Sample Size Dependence, MRI, Cardiology

Abstract:

Provided with a sufﬁcient amount of annotated data, deep learning models have been successfully applied

to automatically segment cardiac multi-structures from MR images. However, manual delineation of car-

diac anatomical structures is expensive to acquire and requires expert knowledge. Recently, weakly- and

self-supervised feature learning techniques have been pro-posed to avoid or substantially reduce the effort of

manual annotation. Due to their end-to-end design, many of these techniques are hard to train. In this paper,

we propose a simple modular segmentation framework based on U-net architecture that injects class activation

maps of separately trained classiﬁcation models to guide the segmentation process. In a small data setting (20-

35% of training data), our framework signiﬁcantly improved the segmentation accuracy of a baseline U-net

model (5%-150%).

1 INTRODUCTION

Segmented cardiac magnetic resonance (CMR) im-

ages can computationally quantify signiﬁcant mor-

phological and pathological changes, such as stroke

volume or ejection fraction. These features are essen-

tial in cardiac disease quantiﬁcation and non-invasive

pre-clinical diagnosis (Peng et al., 2016). To facili-

tate the computation of such features, deep-learning-

based cardiac segmentation algorithms have been re-

cently proposed in the literature (Bernard et al., 2018;

Chen et al., 2020; Oktay et al., 2018). While

these algorithms promise the creation of (semi-) au-

tomatic segmentation tools, their successful applica-

tion is heavily conditioned on the availability of large

amounts of labeled segmented data. Unfortunately,

obtaining segmented MR images is a tedious and

time-consuming delineation task that represents a vast

challenge in the cardiac imaging domain. While re-

searchers focused on improving the performance, a

major challenge in cardiac image segmentation con-

tinues to be the scarcity of annotated data (Chen et al.,

2020).

Methods focusing on segmentation label depen-

https://orcid.org/0000-0003-0178-8867

https://orcid.org/0000-0003-0096-0143

dence reduction include data augmentation (Madani

et al., 2018), transfer learning (Tran, 2016), and

weakly or self-supervized methods (Oktay et al.,

2018; Bai et al., 2019; Ciga and Martel, 2021; Zim-

mer et al., 2020). These approaches focus on end-to-

end framework design, where easily-obtainable clas-

siﬁcation labels are encoded as an auxiliary prediction

task, which, however, can be extremely sensitive to

hyperparameter optimization. Instead, we propose a

modular design of a segmentation framework decou-

pled from a classiﬁcation model in this work.

A classiﬁcation model can be trained and opti-

mized separately, and its information can be injected

into a segmentation model as a separate input channel.

Our main hypothesis is that a (pre-trained) AI classi-

ﬁcation model could be used as a template for seg-

mentation labels. The segmentation framework uses

the anatomical priors extracted from a classiﬁcation

model with explainable artiﬁcial intelligence (XAI)

techniques. Compared to segmentation labels, clas-

siﬁcation labels, e.g., patient’s diagnosis, are much

easier to obtain. Indeed, a cardiologist may need to

look at a few MR slices and establish the diagnosis,

whereas manual segmentation may take hours.

The proposed methodology re-purposes a pre-

trained classiﬁcation model by obtaining the class ac-

Stria, A. and Agibetov, A.

Towards Reducing Segmentation Labeling Costs for CMR Imaging using Explainable AI.

DOI: 10.5220/0011531200003523

In Proceedings of the 1st Workshop on Scarce Data in Artiﬁcial Intelligence for Healthcare (SDAIH 2022), pages 11-16

ISBN: 978-989-758-629-3

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

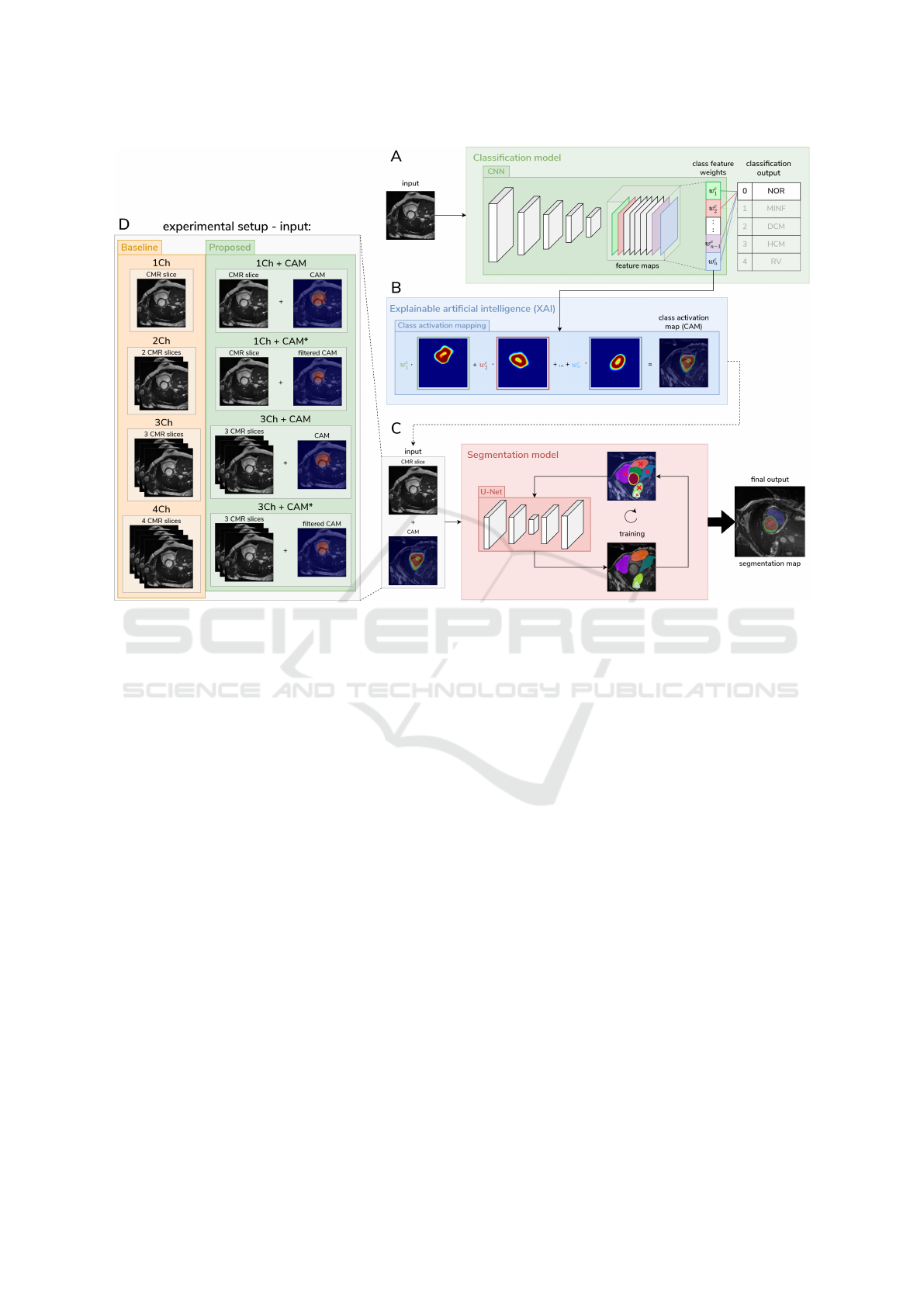

Figure 1: A high-level view of our methodology. Panel A: Training of the classiﬁcation model. Panel B: Explainable AI

technique extract the approximate positions (priors) of the desired anatomical region of interest in the MR image from the

classiﬁcation model. Panel C: These priors are then used as additional input for the segmentation model and reduce the

overall search space of possible anatomical regions. Panel D: detailed illustration of the different used input channels for the

experiment.

tivation maps (CAMs (Selvaraju et al., 2020)) as seg-

mentation priors. CAM is an explainable AI tech-

nique that generates a localization map, which high-

lights the relevant regions of the image with respect

to the prediction of the deep learning model. In this

project, Gradient CAMs were used (Selvaraju et al.,

2020). These proxy labels are added as an additional

input channel to the segmentation model. Therefore,

increasing the model complexity and injecting spatial

information should constrain the search space. An

overview of the methodology is presented in Figure 1.

2 METHODS

2.1 Image Data and Preprocessing

The Automatic Cardiac Diagnosis Challenge (ACDC)

dataset from the University Hospital of Dijon, pub-

lished in 2018, was used for development and eval-

uation (Bernard et al., 2018). We took cine-MRIs

of 100 patients, uniformly distributed over ﬁve di-

agnostic groups (healthy, previous myocardial infarc-

tion, dilated cardiomyopathy, hypertrophic cardiomy-

opathy, abnormal right). Segmentation ground truth

masks for all CMRs consists of four classes: back-

ground, left ventricle, myocardium, and right ventri-

cle. To prevent information leak-age between training

and evaluation, the image data was split into training,

validation, and test set (1150, 382, 370 images, re-

spectively).

2.2 Model Speciﬁcations

Different convolutional neural network (CNN) ar-

chitectures were used for the multiclass classiﬁca-

tion task, including the most common architectures,

VGG16 (Simonyan and Zisserman, 2015), Dense-Net

(Huang et al., 2017), and ResNet (He et al., 2016).

For segmentation models, we used the baseline U-Net

architecture (Ronneberger et al., 2015).

Classiﬁcation models were trained by minimizing

categorical cross-entropy loss, where RELU was the

used activation function for the convolutional layers.

On the ﬁnal fully-connected layer, the softmax activa-

tion function was used. U-net was trained to minimize

SDAIH 2022 - Scarce Data in Artiﬁcial Intelligence for Healthcare

intersection over union (IoU) metric. VGG16 was

optimized with Stochastic gradient descent (SGD),

all other classiﬁcation models with ADAM. For op-

timization we used learning rate scheduler. On all the

models, early stopping was triggered after ten epochs

without improvement in the validation loss. To fur-

ther reduce the risk of overﬁtting, improve general-

ization and performance of the classiﬁcation models,

different hyperparameter optimization methods were

tested. They include the usage of augmentation on the

training set, class weights for the slightly imbalanced

classes, different image sizes for more efﬁcient train-

ing. We performed a grid search over dropout rates of

0.1, 0.2, and 0.25, number and size of ﬁlters in the 11

layered architecture. Different base learning rates in-

cluded 0.1, 0.01, and 0.001. To reduce the number of

ﬁlters and the search space, the CMRs were zoomed

in to exclude the background.

2.3 Evaluation of Model Performances

Since our interpatient splits were slightly imbalanced,

we used the area under the receiver-operating charac-

teristic curve (ROC AUC) as our classiﬁcation met-

ric. Additionally, we used accuracy and F1 scores.

CAMs from our classiﬁcation network were extracted

and primarily compared to the ground truth using the

IoU score. In addition, we used Dice similarity coef-

ﬁcient, and Speciﬁcity and Sensitivity metrics.

2.4 Sample Size Dependence

The sample size dependency was analyzed by reduc-

ing the number of patients in the training and valida-

tion set by 5% increments, starting from 100% until

15% sample sizes. The U-Net performance was eval-

uated by using the mean IoU score. There were differ-

ent experiments performed to test the impact of input

channels and the quality of injected in-formation of

our extracted priors: 3 Channel CMR (3Ch), 3 Chan-

nel CMR + 1 Channel CAM (3Ch + CAM), 3 Chan-

nel CMR + 1 Channel post-processed CAM (3Ch

+ CAM*), 4 Channel CMR (4Ch), 1 Channel CMR

(1Ch), 1 Channel CMR + 1 Channel CAM (1Ch +

CAM), 1 Channel CMR + 1 Channel post-processed

CAM (1Ch + CAM*), 2 Channel CMR (2Ch).

1Ch/2Ch/3Ch/4Ch are baseline models, each rep-

resenting a single/double/triple/quadruple grayscale

image(s). The 3Ch + CAM and the 1Ch + CAM

represent our proposed methodology. The post-

processed CAMs refer to CAMs where a mode ﬁlter

was applied to smooth the edges of the areas, which

is the case for 1Ch + CAM* and 3Ch + CAM*. The

mode pixel ﬁlter selects the most common pixel value

from a box with a speciﬁed size — in this case, 12

pixels. Pixel values that occur only once or twice are

disregarded. The original pixel value is maintained if

there are no pixel values that appear more than twice.

2.5 Experimental Setting

This approach (including data preprocessing, model

training, and model evaluation) is developed in

Python (version 3.8.12). For deep learning, Ten-

sorFlow (version 2.5) was used. All models were

trained on the Vienna Scientiﬁc Cluster (VSC) with a

NVIDIA GTX1080 GPU (8 GB GDDR5) and locally

with a NVIDIA GTX 1660 TI (6 GB GDDR5). The

medical image segmentation library MISeval (version

1.2) was used for generating CAM tf-keras-vis (ver-

sion 0.8.1).

3 RESULTS

3.1 The focus of CAM on Important

Regions

We trained classiﬁcation models that look at the

whole CMR image as input and predict one of the

multiple diagnostic groups. The best performing

classiﬁcation model chosen for the generation of the

CAM was a VGG16 architecture that achieved a

weighted F1 score of 0.23 and a mean ROC AUC of

0.57. The average IoU score for the CAM of the test

set was 0.18, i.e., 18% overlap on all cine MR image

slices. When using the post-processed CAM, the IoU

was 23%. While the classiﬁcation performance was

low, the IoU in some slices was up to 80%. By visu-

ally examining the CAMs of this model, we noticed

that it was attending closer to the heart region. The

produced segmentation maps from the model were of

satisfactory quality, focusing on essential structures

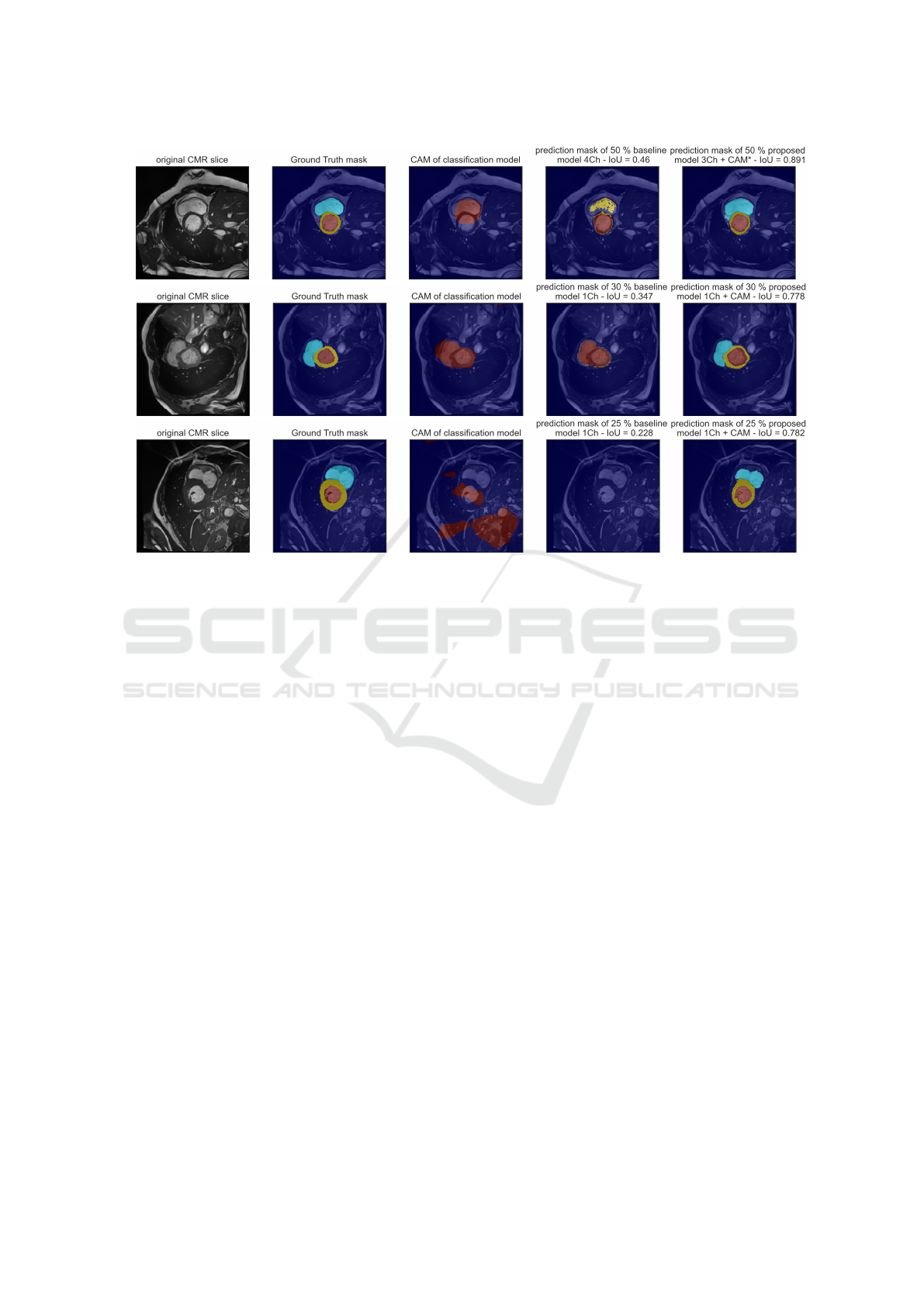

(Figure 3). Using different techniques described in

the methods section, as well as pre-trained classiﬁca-

tion models (on ImageNet) yielded no performance

gain.

3.2 Extracted Priors from Classiﬁcation

Model Inﬂuence Segmentation

Performance

Various scenarios of input channels were tested to an-

alyze the inﬂuence of injected information on the seg-

mentation performance and what type of content is

injected. The best segmentation performance over all

different channel combinations Table 1 was obtained

Towards Reducing Segmentation Labeling Costs for CMR Imaging using Explainable AI

Table 1: Mean IoU segmentation results of all different experiments with varying sample sizes. The values in green represent

the best performance for each sample size increment.

percentage 1Ch 1Ch + CAM 1Ch + CAM* 2Ch 3Ch 3Ch + CAM 3Ch + CAM* 4Ch

15 0.250 0.244 0.242 0.241 0.252 0.241 0.342 0.245

20 0.242 0.241 0.246 0.241 0.242 0.246 0.305 0.320

25 0.241 0.560 0.601 0.309 0.299 0.385 0.637 0.316

30 0.343 0.575 0.387 0.254 0.330 0.649 0.604 0.298

35 0.616 0.442 0.635 0.613 0.648 0.695 0.590 0.661

40 0.483 0.553 0.398 0.679 0.604 0.626 0.655 0.665

45 0.434 0.660 0.624 0.648 0.689 0.418 0.641 0.369

50 0.475 0.666 0.689 0.654 0.626 0.697 0.613 0.397

55 0.675 0.681 0.663 0.505 0.678 0.678 0.676 0.468

60 0.617 0.712 0.662 0.639 0.694 0.682 0.685 0.713

65 0.364 0.676 0.326 0.242 0.639 0.663 0.684 0.687

70 0.692 0.700 0.741 0.724 0.703 0.727 0.736 0.661

75 0.663 0.655 0.701 0.715 0.720 0.704 0.719 0.715

80 0.684 0.693 0.708 0.686 0.709 0.701 0.698 0.707

85 0.572 0.718 0.708 0.730 0.723 0.735 0.713 0.679

90 0.684 0.711 0.727 0.754 0.737 0.730 0.678 0.730

95 0.730 0.719 0.747 0.689 0.730 0.676 0.748 0.727

100 0.721 0.723 0.707 0.732 0.724 0.707 0.741 0.681

Average 0.527 0.607 0.584 0.559 0.597 0.609 0.637 0.558

(a)

(b)

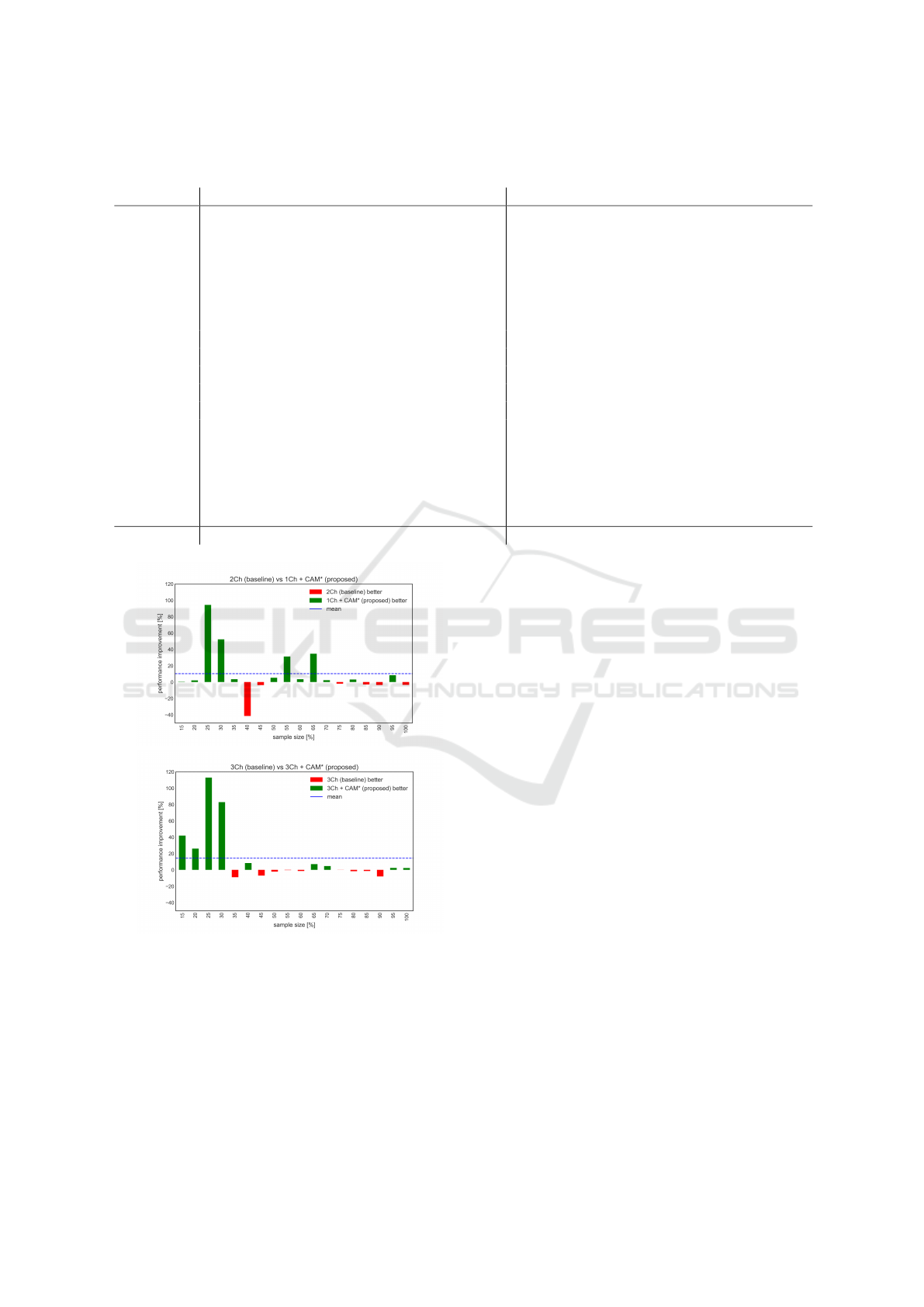

Figure 2: Relative performance difference of proposed

against the baseline. The x-axes are the percentages, and

the y-axis is the relative difference between the models. (a)

In the ﬁrst panel, the 2Ch is the baseline, and the 1Ch +

CAM* is the proposed model. (b) The baseline model 3Ch

is compared against the proposed model 3Ch + CAM*.

with the model using 3Ch + CAM*, with a mean IoU

score of 0.637. All Models using the CAM as an addi-

tional input channel performs better than the baseline.

The highest difference of 0.49 was between the 3Ch +

CAM* and the 4Ch. The lowest performance increase

was with 3Ch + CAM over the 3Ch with an increase

of 0.012 IoU score. Overall, the models with fewer

channels (one or two) show a decreased performance

compared to those using three or four channels.

Analyzing the relative performance differences

(Figure 2), it is apparent that the proposed models

signiﬁcantly outperform the baseline models in the

small sample sizes (15-35%). The performance gain

is up to 150% improvement in the 1Ch + CAM* case

compared to 1Ch at 25% sample size. In the case of

the 3Ch + CAM* against the 3Ch the improvement at

25% sample size is over 110%.

4 DISCUSSION

In a small data setting (20-35% of training data),

our framework signiﬁcantly improved the segmenta-

tion accuracy of a baseline U-net model (5%-150%).

These results open a promising research direction that

shows that even a far from perfect pre-trained classi-

ﬁcation model could be used to produce sensible seg-

mentation masks. Our generic methodology might

well support the creation of automatic segmentation

tools in cardiac MRI that drastically reduce the de-

pendence and thereby the cost of time-consuming de-

lineation labels. The advantage of our approach is

its simplicity and robustness to hyperparameter opti-

mization. However, such a decoupled design may pre-

vent a segmentation model of learning features from

SDAIH 2022 - Scarce Data in Artiﬁcial Intelligence for Healthcare

(a)

(b)

(c)

Figure 3: Example outputs of predictions masks from a baseline model and a proposed model with the CMR slice in the

background for different scenarios. Panel (a), prediction from models with 50% sample size, baseline model is 4ch, prediction

model is 3Ch + CAM*. Panel (b), prediction from models with 30% sample size, baseline model is 1ch, prediction model is

1Ch + CAM. The CAM represents the heart region and is comparable to the baseline prediction. The baseline predicts only

two classes, the IoU score is low, the prediction model outperforms the baseline model. Panel (c), prediction from models

with 25% sample size, baseline model is 1ch, prediction model is 1Ch + CAM. The CAM is dispersed without focusing on

the heart region. The proposed model outperforms the baseline model, it only predicts the background class and thereby only

achieves an IoU of 0.228. However, with the additional injected information of the CAM, the proposed model achieves an

IoU of 0.782.

auxiliary classiﬁcation tasks. A thorough comparison

of our approach to end-to-end multi-task methods is

part of our future work.

The segmentation performance increases in most

cases if the model complexity is increased. Therefore,

using additional channels and increasing the number

of variables in the model improves the performance.

However, it matters which performance is used in the

additional channels. The baseline models - with the

same amount of channels as the models where CAMs

are used as an additional input are 2Ch and 4Ch – have

a decreased performance as our proposed models. In-

jecting CAMs improve the segmentation performance

since they constrain the search space with the spacial

information given from the priors.

As this is a work in progress we are fully aware

of the current limitations of our approach. Using

the proposed methodology on a dataset with higher

classiﬁcation performance could improve segmenta-

tion performance. Due to the computational complex-

ity, we have not properly quantiﬁed the uncertainty

of all models, and we only performed a shallow hy-

perparameter optimization. Finally, the CMRs were

used as single 2D images, which do not represent the

3D structure of the heart, and spatial information is

lost. Additionally, the heart regions in the end and be-

ginning slices of each cardiac phase are almost non-

existing, and thereby a segmentation model trained

only with the 2D input will perform poorly at these

slices. Future work should address these limitations

and analyze the per-class performance gain.

FUNDING

This research was funded by

OKG

Forschungsstipendium ”Reducing costs of seg-

mentation labeling in cardiac MRI using explainable

AI”.

Towards Reducing Segmentation Labeling Costs for CMR Imaging using Explainable AI

ACKNOWLEDGEMENTS

The computational results were partly achieved by us-

ing the Vienna Scientiﬁc Cluster (VSC)

CONFLICTS OF INTEREST

The authors declare no conﬂict of interest.

REFERENCES

Bai, W., Chen, C., Tarroni, G., Duan, J., Guitton, F., Pe-

tersen, S. E., Guo, Y., Matthews, P. M., and Rueckert,

D. (2019). Self-Supervised Learning for Cardiac MR

Image Segmentation by Anatomical Position Predic-

tion. In Shen, D., Liu, T., Peters, T. M., Staib, L. H.,

Essert, C., Zhou, S., Yap, P.-T., and Khan, A., editors,

Medical Image Computing and Computer Assisted

Intervention – MICCAI 2019, volume 11765, pages

541–549. Springer International Publishing, Cham.

Bernard, O., Lalande, A., Zotti, C., Cervenansky, F., Yang,

X., Heng, P.-A., Cetin, I., Lekadir, K., Camara, O.,

Gonzalez Ballester, M. A., Sanroma, G., Napel, S.,

Petersen, S., Tziritas, G., Grinias, E., Khened, M.,

Kollerathu, V. A., Krishnamurthi, G., Rohe, M.-M.,

Pennec, X., Sermesant, M., Isensee, F., Jager, P.,

Maier-Hein, K. H., Full, P. M., Wolf, I., Engelhardt,

S., Baumgartner, C. F., Koch, L. M., Wolterink, J. M.,

Isgum, I., Jang, Y., Hong, Y., Patravali, J., Jain, S.,

Humbert, O., and Jodoin, P.-M. (2018). Deep Learn-

ing Techniques for Automatic MRI Cardiac Multi-

Structures Segmentation and Diagnosis: Is the Prob-

lem Solved? IEEE Transactions on Medical Imaging,

37(11):2514–2525.

Chen, C., Qin, C., Qiu, H., Tarroni, G., Duan, J., Bai, W.,

and Rueckert, D. (2020). Deep Learning for Cardiac

Image Segmentation: A Review. Frontiers in Cardio-

vascular Medicine, 7:25.

Ciga, O. and Martel, A. L. (2021). Learning to segment im-

ages with classiﬁcation labels. Medical Image Analy-

sis, 68:101912.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Identity

mappings in deep residual networks. In Leibe, B.,

Matas, J., Sebe, N., and Welling, M., editors, Com-

puter Vision – ECCV 2016, pages 630–645, Cham.

Springer International Publishing.

Huang, G., Liu, Z., Van Der Maaten, L., and Weinberger,

K. Q. (2017). Densely connected convolutional net-

works. In 2017 IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 2261–2269.

Madani, A., Ong, J. R., Tibrewal, A., and Mofrad, M. R. K.

(2018). Deep echocardiography: Data-efﬁcient su-

pervised and semi-supervised deep learning towards

automated diagnosis of cardiac disease. npj Digital

Medicine, 1(1):1–11.

Oktay, O., Ferrante, E., Kamnitsas, K., Heinrich, M., Bai,

W., Caballero, J., Cook, S. A., de Marvao, A., Dawes,

T., O’Regan, D. P., Kainz, B., Glocker, B., and Rueck-

ert, D. (2018). Anatomically Constrained Neural Net-

works (ACNNs): Application to Cardiac Image En-

hancement and Segmentation. IEEE Transactions on

Medical Imaging, 37(2):384–395.

Peng, P., Lekadir, K., Gooya, A., Shao, L., Petersen, S. E.,

and Frangi, A. F. (2016). A review of heart cham-

ber segmentation for structural and functional analy-

sis using cardiac magnetic resonance imaging. Mag-

netic Resonance Materials in Physics, Biology and

Medicine, 29(2):155–195.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-

net: Convolutional networks for biomedical image

segmentation. In Navab, N., Hornegger, J., Wells,

W. M., and Frangi, A. F., editors, Medical Image Com-

puting and Computer-Assisted Intervention – MICCAI

2015, pages 234–241, Cham. Springer International

Publishing.

Selvaraju, R. R., Cogswell, M., Das, A., Vedantam, R.,

Parikh, D., and Batra, D. (2020). Grad-CAM: Vi-

sual Explanations from Deep Networks via Gradient-

Based Localization. International Journal of Com-

puter Vision, 128(2):336–359.

Simonyan, K. and Zisserman, A. (2015). Very deep con-

volutional networks for large-scale image recognition.

In International Conference on Learning Representa-

tions.

Tran, P. V. (2016). A fully convolutional neural network

for cardiac segmentation in short-axis mri. ArXiv,

abs/1604.00494.

Zimmer, V. A., Gomez, A., Skelton, E., Ghavami, N.,

Wright, R., Li, L., Matthew, J., Hajnal, J. V., and

Schnabel, J. A. (2020). A Multi-task Approach Using

Positional Information for Ultrasound Placenta Seg-

mentation. In Hu, Y., Licandro, R., Noble, J. A., Hut-

ter, J., Aylward, S., Melbourne, A., Abaci Turk, E.,

and Torrents Barrena, J., editors, Medical Ultrasound,

and Preterm, Perinatal and Paediatric Image Analy-

sis, volume 12437, pages 264–273. Springer Interna-

tional Publishing, Cham.

SDAIH 2022 - Scarce Data in Artiﬁcial Intelligence for Healthcare
