Ontology-driven Self-supervision for Adverse Childhood Experiences

Identification using Social Media Datasets

Jinge Wu

1,2

, Rowena Smith

and Honghan Wu

Institute of Health Informatics, University College London, London, U.K.

Usher Institute, University of Edinburgh, Edinburgh, U.K.

Keywords: Ontology, Self-supervision, Natural Language Processing, Information Extraction, Name Entity Recognition,

Adverse Events, Mental Health, Adverse Events, Mental Health.

Abstract: Adverse Childhood Experiences (ACEs) are defined as a collection of highly stressful, and potentially

traumatic, events or circumstances that occur throughout childhood and/or adolescence. They have been

shown to be associated with increased risks of mental health diseases or other abnormal behaviours in later

lives. However, the identification of ACEs from textual data with Natural Language Processing (NLP) is

challenging because (a) there are no NLP ready ACE ontologies; (b) there are few resources available for

machine learning, necessitating the data annotation from clinical experts; (c) costly annotations by domain

experts and large number of documents for supporting large machine learning models. In this paper, we

present an ontology-driven self-supervised approach (derive concept embeddings using an auto-encoder from

baseline NLP results) for producing a publicly available resource that would support large-scale machine

learning (e.g., training transformer based large language models) on social media corpus. This resource as

well as the proposed approach are aimed to facilitate the community in training transferable NLP models for

effectively surfacing ACEs in low-resource scenarios like NLP on clinical notes within Electronic Health

Records. The resource including a list of ACE ontology terms, ACE concept embeddings and the NLP

annotated corpus is available at https://github.com/knowlab/ACE-NLP.

1 INTRODUCTION

Adverse childhood experiences (ACEs) encompass a

broad variety of early traumas that occur in

childhood, including both direct (e.g., abuse and

neglect) and indirect (e.g., family mental illness and

domestic violence) types (Hughes et al., 2017; Felitti

et al., 1998). Numerous studies have found that ACEs

are consistently and positively associated with high

rates of severe adverse events, such as serious mental

disorders (suicide attempts, major depression,

substance abuse, adult victimization, etc.) (Liu et al.,

2021). Moreover, the lifetime frequency of ACEs is

significantly greater in homeless individuals than in

the general population, indicating ACE exposure may

be related to an increased risk of mental illness, drug

addiction, and victimization (Liu et al., 2021). Policy

actions and evidence-based interventions are urgently

required to prevent ACE and to address the

unfavourable consequences linked with this group of

people.

In order to promote the surveillance and study of

adverse childhood experiences (ACEs), Brenas et al.

standardized the ACE ontology and has been made

publicly available as a formal reusable resource that

can be utilised by the mental health research

(Nagowah et al., 2021; Brenas et al., 2019). The state-

of-the-art ACEs Ontology (ACESO) has been

available to the mental health community as well as

the general public through BioPortal. Further in 2021,

Ammar et al. unveiled Semantic Platform for Adverse

Childhood Experiences Surveillance (SPACES), a

novel and explainable multimodal AI platform to

assist ACEs surveillance, diagnosis of associated

health issues, and subsequent therapies (Ammar et al.,

2021). Through the product, they generate

suggestions and insights for better resource allocation

and care management.

However, existing ontologies are not directly

Natural Language Processing (NLP) applicable.

There are at least two issues. First, ACE ontologies

cover both high-level concepts (e.g., Disease or

Findings) for grouping concepts and more specific

Wu, J., Smith, R. and Wu, H.

Ontology-driven Self-supervision for Adverse Childhood Experiences Identiﬁcation using Social Media Datasets.

DOI: 10.5220/0011531100003523

In Proceedings of the 1st Workshop on Scarce Data in Artiﬁcial Intelligence for Healthcare (SDAIH 2022), pages 5-10

ISBN: 978-989-758-629-3

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

ACE concepts like child abuse. Unfortunately,

existing ontologies do not provide information on

which concepts are ACEs specifically, making it

impossible to use the ontologies directly for NLP.

Second, only a subset of ACE ontology concepts are

mapped to NLP-friendly terminologies like

SNOMED-CT. For those concepts introduced in

these ontologies specifically there are no definitions

of synonyms. This makes them less useful for NLP

tasks like named entity recognition. Aiming to close

these gaps, this study aims to make an improvement

on the previous ACE ontologies by refining ACE

concepts and their corresponding mappings to

Unified Medical Language System (UMLS), which is

much more NLP friendly and has been widely used in

clinical NLP community.

Another challenge for ACE identification with

NLP is the lack of annotated data. Annotating a

variety of clinical notes from scratch requires specific

domain expertise and also research access to a large

corpus (to have enough cases). Both of these are

costly, in many cases not feasible, when dealing with

sensible electronic health records (EHRs), impeding

the development of effective automated approaches

for ACE identification from EHRs. This study

proposes a practical and effective approach

leveraging ontologies and self-supervision to

alleviate the burden of annotation.

To address the above-mentioned two challenges,

this paper proposes a refined ACE terminology with

an off-the-shelf NLP tool to conduct a preliminary

study on one open accessible corpus (Reddit) for

identifying ACEs. Specifically, we choose SemEHR,

an open-source toolkit for identifying mentions of

UMLS concepts from textual data. Then, we propose

a self-supervision approach on document-concept

matrix to derive concept embeddings for facilitating

document classification (i.e., identify types of ACE

documents). Our experiments show that without any

supervision, our approach can achieve reasonable

performances both on named entity recognition and

document classification. This preliminary study will

provide valuable experiences, providing reusable

resources for the community and identifying future

research directions for our follow-up studies, aiming

for developing efficient tools and resources for

supporting the automated extraction of ACEs from

clinical notes within EHRs.

2 METHODOLOGY

2.1 Data Collection from Reddit

Instead of clinical notes, this paper considers publicly

available social media corpus since it is easier to

access and potentially large scale for training large

models. We obtain dataset from Reddit (Low et al.,

2020), containing 32439 posts and text features

between 2018 and 2020 on the topic of mental health.

2.2 ACE-defined Terms

The public ACE ontology, which is ACESO, covers

a wide range of ACEs containing 297 classes, 93

object properties, and 3 data properties with external

links to SNOMED-CT and other ontology sources.

However, there remain problems with ontology

mappings, which lack consistent external links to

standard clinical terminology systems. To solve this

problem, we propose an approach by linking the ACE

concepts to the widely used Unified Medical

Language System (UMLS). Finding the leaf nodes

from the ontology is an efficient way to obtain

narrower ACE concepts. Therefore, we extract the

leaf nodes from the ACESO and further construct

one-to-one mapping to UMLS concepts. Moreover,

given that the dataset utilised in this paper is from

social media, it is less likely to identify sufficient

childhood adverse events. As a result, we extend our

concepts to broader adverse events in mental health.

To be more specific, all concepts of mental disorders

(including all descendants) and their adverse events

are included.

2.3 Identifying ACEs on Reddit using

NLP Tools

This paper applied SemEHR to find ACE mentions in

text files with the terms/concepts mentioned above

(Wu et al., 2018). It first conducted Named entity

recognition (NER) of all UMLS concepts (with their

UMLS CUIs) from the texts and filtered ACE

mentions based on the concept lists mentioned above.

After that, some Information extraction (IE) rules are

applied to filter unwanted mentions. It also associated

semantic types of annotations and their clinical

contexts with dedicated extraction rules, allowing for

improved IE capabilities like generating structured

vital sign data from observation notes.

SDAIH 2022 - Scarce Data in Artiﬁcial Intelligence for Healthcare

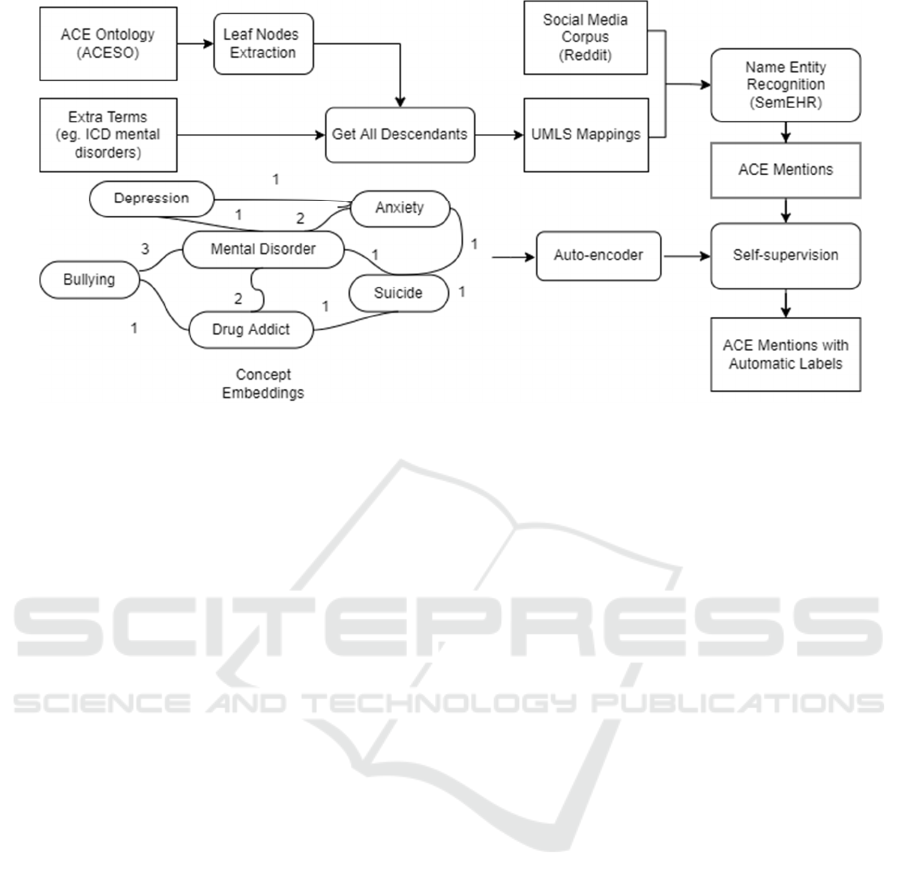

Figure 1: This is the flowchart of our work. To specify, we will combine ACESO and extra terms/concepts by finding the leaf

nodes from ACESO and getting all the descendants of both term lists. SemEHR will look for relative mentions from Reddit

based on these mapped concepts from UMLS. Self-supervision with graph links will be designed based on the outputs from

SemEHR. This will automatically provide labels for the dataset.

2.4 Self-supervision by Concept

Embeddings

This paper then considers a self-supervision-based

approach to help improve the performance of ACE

identification. We developed a so-called "concept

embeddings", which is a concept graph with the co-

occurrence of all individual terms and their co-

occurrence appear in each sample (document). To be

more specific, the concept graph is constructed by

two matrices: concept-level matrix and document-

level matrix. The concept-level matrix is an 𝑚𝑚

square matrix (𝑚 is the number of unique terms found

in all documents), describing the co-occurrence of

each concept. The document-level matrix is in the

size of 𝑛𝑚, where 𝑛 indicates the number of

documents. This matrix measures how terms are co-

related in each document. The aim for concept

embeddings is to take the contextual information into

consideration. Then cosine similarity is calculated for

the two matrices at concept level and document level.

We selected various thresholds to automatically label

the mentions and calculated the precision and recall.

2.5 Auto-encoder for Dimensionality

Reduction

One issue remaining is that the concept embeddings

we obtained are sparse matrices (i.e., matrices that are

comprised of mostly zero values). This will lead to

low efficiency when running large-scale models. To

solve this, this paper considers the auto-encoder as a

tool for dimensionality reduction. Auto-encoder is an

unsupervised Artificial Neural Network that attempts

to encode the data by compressing it into the lower

dimensions and then decoding the data to reconstruct

the original input. In this case, it is feasible to train an

auto-encoder and compress the concept/document

vector to a lower dimension for computing the cosine

similarity.

3 EXPERIMENTS AND RESULTS

To begin with, we designed a list of 1715 concepts in

total, including leaf nodes from ACESO and mental

disorders with all descendant concepts. After that, the

NLP tool, SemEHR is applied with Named entity

recognition (NER) task on these 1715 concepts. As a

result, 322 out of 1715 unique concepts are found

from datasets. Due to the limitations of manual

annotation, a random choice of 50 samples is selected

for annotation by domain experts. We considered

SemEHR as the baseline model of this classification

task. It achieved 85.3 of precision, 70.7 of recall and

77.3 of F1-score. The score of precision is slightly

higher than recall, indicating that it operates well on

positive samples.

We then developed self-supervision with concept

embeddings using the 322 terms and trained auto-

encoder on concept embeddings to reduce the

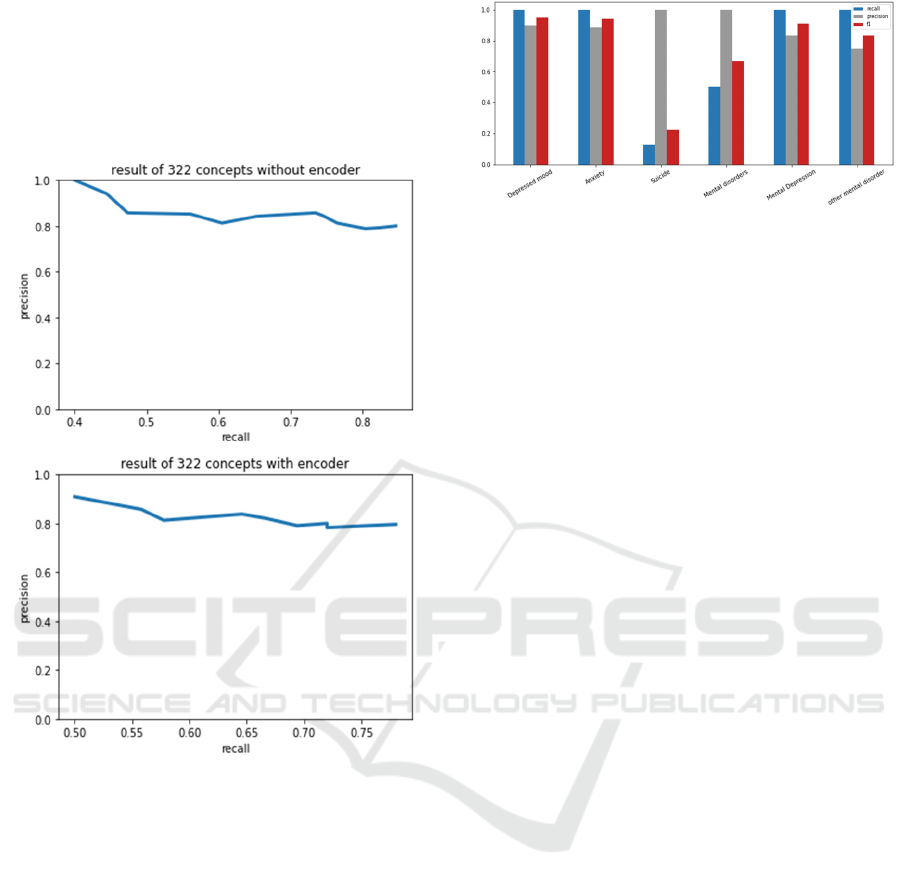

dimension size from 322 to 50. Figure 2 shows the

Ontology-driven Self-supervision for Adverse Childhood Experiences Identiﬁcation using Social Media Datasets

precision-recall area under curve (AUC) for different

thresholds with and without using auto-encoder. In

general, the precision-recall AUC illustrates the

trade-off between precision and recall, where high

recall relates to a low false negative rate, and high

precision relates to a low false positive rate.

Figure 2: Precision-recall area under curve (AUC) for

different thresholds with and without auto-encoder. For the

auto-encoder, we compressed the 322 concepts vector into

a 50-dimension vector.

As can be seen from Figure 2, the precision-recall

AUC seems to be in the same pattern for those with

auto-encoder and without auto-encoder. This

indicates our pretrained auto-encoder retains almost

all useful information from the original vectors.

We also consider the performance for each

concept. There are 26 concepts identified from the 50

Reddit annotated datasets and the recall, precision

and F1-score are calculated for each concept. Figure

3 shows the most frequent 5 concepts and an average

performance of all other mentioned mental disorders.

In general, the model gives high score on both

precision and recall.

Figure 3: Performance of individual concepts. It is

noticeable that the term "suicide" gives a high score in

precision but low in recall. The reason for this could be that

the true positives for this term is low compared with the

ground truth. In other words, there are many terms to

express suicidal thoughts, for example, "end my life",

however, the model failed to identify this.

4 DISCUSSIONS

To start with, this paper contributed to an enhanced

ACE ontology for natural language processing, with

more comprehensive concepts and consistent

mappings to UMLS. Our results have shown that the

advanced ACE concepts make significant

improvements in identifying ACE mentions from the

social media corpus. However, we noticed that the

dataset used in this paper is from social media, which

might have different language, structure and even

biased samples compared to EHR datasets. For

example, when people express suicidal thoughts, they

are more likely to use "kill myself" instead of the

exact word from UMLS. To solve this, we try to

include as many similar terms as possible to fix it.

And the extra terms are mapped to their top concepts

so that they can be learned with relations. Moreover,

we consider the concept embeddings trained from

EHR data as the next step for a further

implementation.

In addition, this paper proposed self-supervision

with the technology of concept embeddings by

representing the co-occurrence of concepts. This

approach has its strength in finding contextual

information for classification and automatic labelling.

Another point is that, based on the annotation results,

it is noticeable that one word can be treated

differently in different scenarios. For instance, there

might be situations where 1 of the 5 "anxiety"

mentions is a false positive based on its contextual

environment. In this case, it is not likely to be

identified by self-supervision using the current

graphs. To improve its performance, future work

could be done by distributing weighted frequency on

the same concepts in each document.

SDAIH 2022 - Scarce Data in Artiﬁcial Intelligence for Healthcare

Furthermore, this paper introduced auto-encoder

as a tool for dimensionality reduction. The pre-trained

auto-encoder can compress a large scale matrix into a

two-dimensional matrix. This is of vital importance

when training large sparse matrix with machine

learning algorithms. Our results show good fit on the

training embeddings by retaining as much

information retention of the original data as possible.

5 CONCLUSIONS

In summary, this paper described an effort to use

knowledge representation, natural language

processing and machine learning for compiling a suite

of resources for facilitating automated ACE

identification from free-text data particularly in low-

resource environments (i.e., labelled data is scarce).

In particular, based on the previous ACE terms, this

paper identified extra ontological terms from UMLS

and developed comprehensive mappings to its

narrower concepts. We also proposed practical

approaches to self-supervision by utilising the

concept co-occurrence embeddings. This will enable

us to automatically label the textual data, leading to

minimal manual annotations for training supervised

learning models such as deep learning NLP models.

Furthermore, to create a compact representation of

reusable concept embeddings, we trained an auto-

encoder model to reduce the dimension of the sparse

concept-document matrix. The model can compress

useful information into matrix with much fewer

dimensions, leading to efficient computation for

utilising semantics of concept embeddings. In

addition, this paper identified ACEs from Reddit,

leading to publicly available resources for

benchmarking.

This work is very much working in progress.

There are many areas that need further developments

and improvements. Specifically, future steps would

involve 1) further exploration with EHR datasets and

combine the concept embedding from social media

and EHR together; 2) enhancement on the current

concept representation with more attention on the

same concept; and 3) create a public accessible

benchmark on Reddit datasets and other publicly

available datasets (such as tweets) for ACE

identification with gold-standard annotations by

domain experts.

ACKNOWLEDGEMENTS

This research is supported by the UK's National

Institute for Health Research (grant number:

NIHR202639) and the UK's Medical Research

Council (grant number: MR/S004149/2).

REFERENCES

Ammar, N., Zareie, P., Hare, M. E., Rogers, L.,

Madubuonwu, S., Yaun, J., & Shaban-Nejad, A. (2021,

December). SPACES: Explainable Multimodal AI for

Active Surveillance, Diagnosis, and Management of

Adverse Childhood Experiences (ACEs). In 2021 IEEE

International Conference on Big Data (Big Data) (pp.

5843-5847). IEEE.

Brenas, J. H., Shin, E. K., & Shaban-Nejad, A. (2019).

Adverse childhood experiences ontology for mental

health surveillance, research, and evaluation: Advanced

knowledge representation and semantic web

techniques. JMIR mental health, 6(5), e13498.

Felitti, V. J., Anda, R. F., Nordenberg, D., Williamson, D.

F., Spitz, A. M., Edwards, V., & Marks, J. S. (1998).

Relationship of childhood abuse and household

dysfunction to many of the leading causes of death in

adults: The Adverse Childhood Experiences (ACE)

Study. American journal of preventive medicine, 14(4),

245-258.

Hughes, K., Bellis, M. A., Hardcastle, K. A., Sethi, D.,

Butchart, A., Mikton, C., ... & Dunne, M. P. (2017). The

effect of multiple adverse childhood experiences on

health: a systematic review and meta-analysis. The

Lancet Public Health, 2(8), e356-e366.

Liu, M., Luong, L., Lachaud, J., Edalati, H., Reeves, A., &

Hwang, S. W. (2021). Adverse childhood experiences

and related outcomes among adults experiencing

homelessness: a systematic review and meta-

analysis. The Lancet Public Health, 6(11), e836-e847.

Low, D. M., Rumker, L., Talkar, T., Torous, J., Cecchi, G.,

& Ghosh, S. S. (2020). Natural language processing

reveals vulnerable mental health support groups and

heightened health anxiety on reddit during covid-19:

Observational study. Journal of medical Internet

research, 22(10), e22635.

Nagowah, S. D., Ben Sta, H., & Gobin-Rahimbux, B.

(2021). A systematic literature review on semantic

models for IoT-enabled smart campus. Applied

Ontology, 16(1), 27-53.

Wu, H., Toti, G., Morley, K. I., Ibrahim, Z. M., Folarin, A.,

Jackson, R., ... & Dobson, R. J. (2018). SemEHR: A

general-purpose semantic search system to surface

semantic data from clinical notes for tailored care, trial

recruitment, and clinical research. Journal of the

American Medical Informatics Association, 25(5), 530-

537.

Ontology-driven Self-supervision for Adverse Childhood Experiences Identiﬁcation using Social Media Datasets

APPENDIX

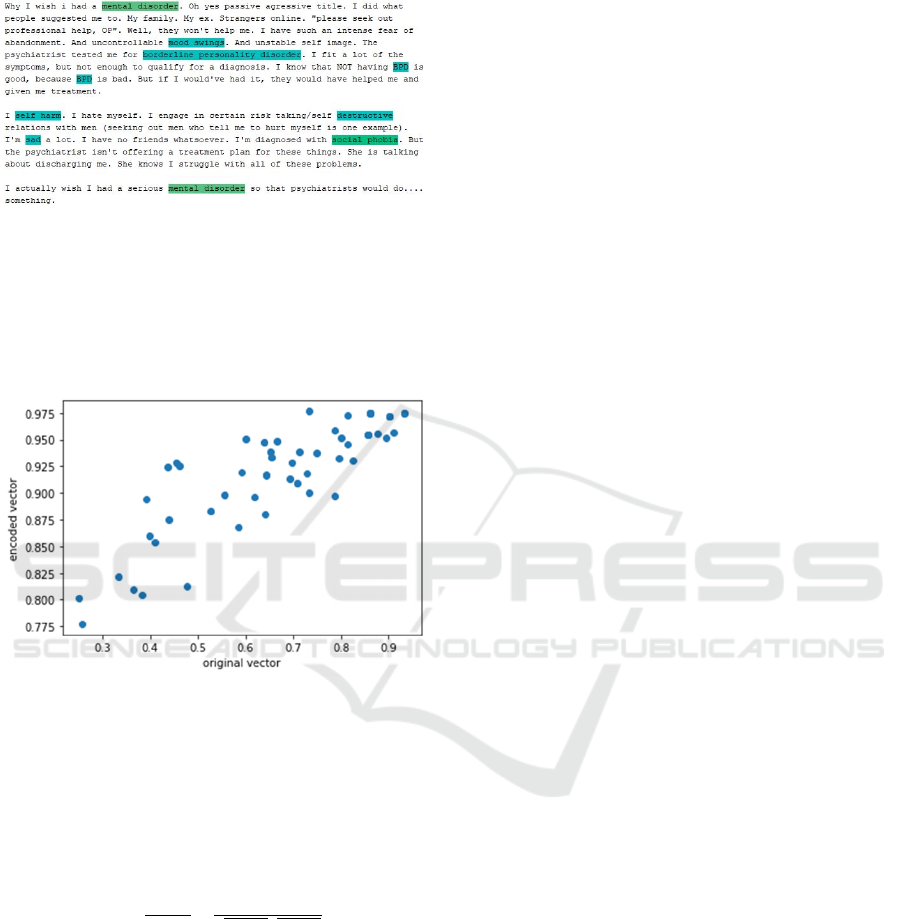

Figure 4: This is an example of annotations. The words

highlighted in blue are those truly identified by NLP (i.e.

true positive). The words in green are manually annotated

as either "Not_ACEs" or "Manual_ACEs". "Not_ACEs"

refers to those false terms identified by NLP (i.e. false

positive). "Manual_ACEs" refers to those true terms not

identified by NLP (i.e. false negative).

Figure 5: This is the scatter plot of original vector vs

encoded vector. As can be seen, it shows patterns of linear

relations among them, indicating the encoded vector has

retained the majority information of the original vector.

Equation 1 shows cosine similarity mathematically. If

we consider A and B as two vectors, the cosine

similarity is defined as the cosine of the angle

between them.

cos



𝜃





∙

‖



‖‖



‖



∑















∑











∑









(1)

The cosine similarity is scaled within the interval

[-1,1]. The value is close to 1 means the cosine of the

angle is small, which means that two vectors are

similar. The value is 0 indicating orthogonality. The

value is close to -1 meaning approximate the

opposite.

SDAIH 2022 - Scarce Data in Artiﬁcial Intelligence for Healthcare
