Named Entity Recognition for the Extraction of

Emerging Technological Knowledge from Medical Literature

Sabrina Lamberth-Cocca

, Bernhard Maier

, Christian Nawroth

Paul Mc Kevitt

and Matthias Hemmje

Faculty of Mathematics and Computer Science, University of Hagen, Germany

Academy for International Science & Research (AISR), Derry/Londonderry, Northern Ireland

p.mckevitt@aisr.org.uk

Keywords: Named Entity Recognition, Natural Language Processing, Information Retrieval, Knowledge Extraction,

Machine Learning, Emerging Medical Technology, Clinical Argumentation Support.

Abstract: In this paper, we show the results of an experimental Information Retrieval System (IRS) prototype to support

the detection of emerging medical technology using the method of Named-Entity Recognition (NER). The

overall goal is to automatically identify and classify entities and structures in scientific medical articles, which

represent the concept of Medical Technologies (MedTech) with high topicality. As a first approach, we

combine learning-based NER with rule-based emerging Named-Entity Recognition (eNER). We train a

machine-learning model on manually annotated NER candidates representing medical devices. We then

match the results with entries from vocabularies containing medical devices according to our definition, using

a handcrafted rule-based approach and fuzzy functions. The main outcome is an experimental prototype which

we call, MedTech-eNER-IRS, which shows that such an approach works in general, including pointers for

further research and prototype improvements.

1 INTRODUCTION

The work presented in this paper is part of the

RecomRatio (Recommendation Rationalization)

project (cf. University of Bielefeld, 2017). The main

objective here is to support decision making in

various medical areas by developing Information

Retrieval (IR) systems for clinical Virtual Research

Environments (VREs). RecomRatio is a VRE to

support argumentation processes of medical staff in

determining clinical decisions.

Medical experts need to conduct research based

on knowledge sources such as scientific publications

for various reasons. One purpose is to gather

information about the state of the art, and in particular

new technologies in relevant biomedical fields.

Databases such as PubMed (NCBI, 2022) support

document research in relevant domains, for instance

specific diagnostic areas like gene expression

analysis. The general problem of information

https://orcid.org/0000-0002-8092-5219

https://orcid.org/0000-0001-9715-1590

https://orcid.org/0000-0001-8293-2802

explosion does not end at the medical domain and

leads to a growing volume of literature.

In the case of this study and our experimental

prototype, called MedTech-eNER-IRS, we observe a

problem that is unsolved to the best of our knowledge:

detecting Named Entities (NEs) that represent the

concept of emerging Medical Technology

(MedTech). Whilst the automatic recognition of

emerging NEs (eNEs) has already been addressed by

Nawroth et al. (2018), current IR systems are not

capable of recognizing and classifying MedTech

entities. Additionally, existing vocabularies such as

MeSH (Medical Subject Headings) (NLM, 2021) and

SNOMED CT (Systematized Nomenclature of

Medicine – Clinical Terms) (SNOMED International,

2021) can be generally used for medical NER, but do

not contain explicit classes for distinguishing

MedTech entities, which adds another degree of

complexity to the recognition task.

Lamberth-Cocca, S., Maier, B., Nawroth, C., Kevitt, P. and Hemmje, M.

Named Entity Recognition for the Extraction of Emerging Technological Knowledge from Medical Literature.

DOI: 10.5220/0011369300003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineer ing and Knowledge Management (IC3K 2022) - Volume 2: KEOD, pages 101-108

ISBN: 978-989-758-614-9; ISSN: 2184-3228

101

In the following Section 2, we give an overview

of the state of the art and related work, followed by a

description of how we prepared the experimental data

and conducted the preparatory study in Section 3. In

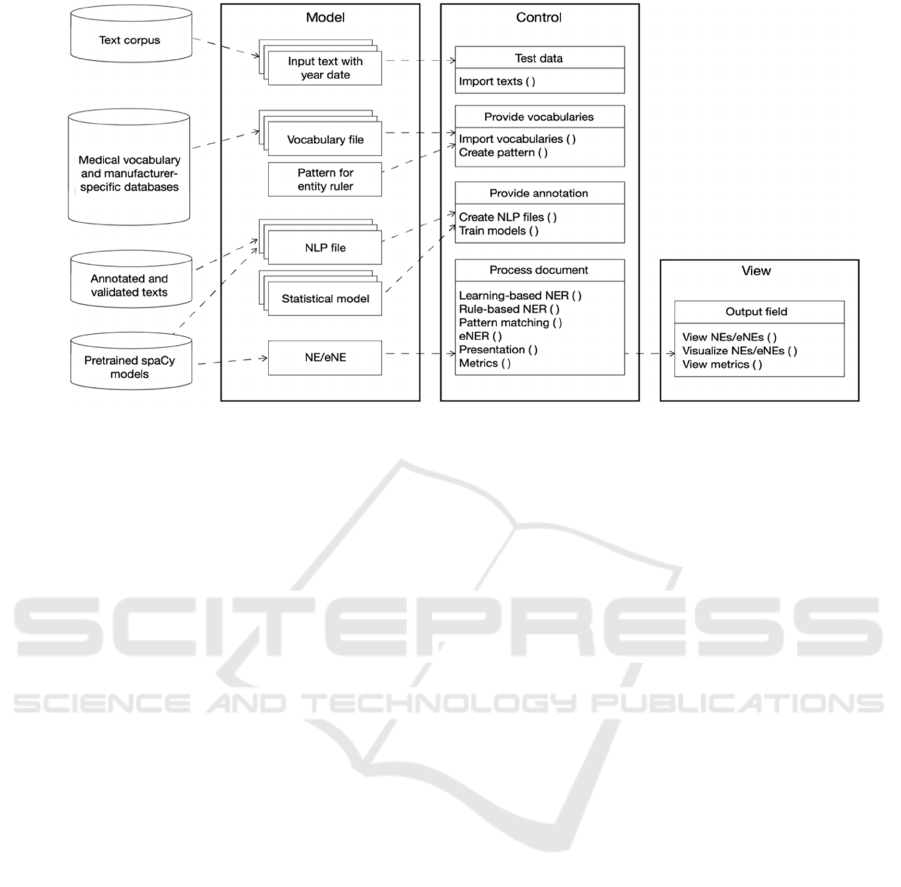

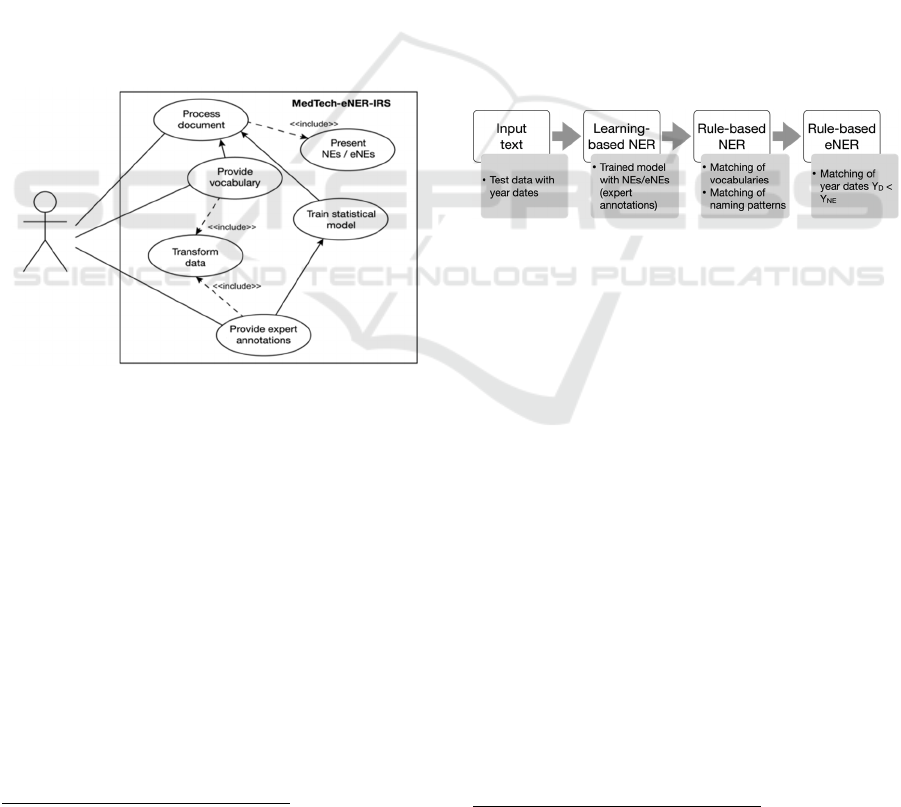

Section 4, we present the design and implementation

of our experimental prototype, MedTech-eNER-IRS,

including use cases, architecture and experimental

functions. Section 5 summarizes the evaluation

results of the MedTech-eNER-IRS’s components.

We close this article with a discussion (Section 6),

and conclusion and future research (Section 7).

2 STATE OF THE ART AND

RELATED WORK

Detecting medical terms from collections of textual

documents that are relevant to a specific information

need is a problem of Information Retrieval (IR) and

Natural Language Processing (NLP). More precisely,

the problem can be subsumed under the NLP task of

Named Entity Recognition (NER). NER denotes the

method of automatically detecting and classifying

Named Entities, i.e. named objects from the real

world such as persons, organizations, locations, in

unstructured text data. In the medical domain, NER

focuses on the detection of specific medical terms.

For instance, biomedical information extraction

applies biomedical NER (BioNER) to detect relevant

entities representing genes and diseases, in order to

infer relations from text-based publications, e.g.,

Perera et al. (2020).

2.1 Definition of Medical Technology

In order to define entities for recognition in a NER

model, we first need to define the underlying concept.

Thus, we first answer the question, what exactly

MedTech-eNER-IRS is meant to recognize and

classify. In general, medical technology (MedTech)

means the, “application of science to develop

solutions to health problems or issues such as the

prevention or delay of onset of diseases or the

promotion and monitoring of good health” (National

Center for Health Statistics, 2010, p. 4). The World

Health Organization (WHO) defines health

technology as the “application of organized

knowledge and skills in the form of devices,

medicines, vaccines, procedures, and systems

developed to solve a health problem and improve

quality of lives” (WHO, 2022, para. 2). A similar

definition of health technology can be found in the

Health Technology Assessment (HTA) glossary: “An

intervention developed to prevent, diagnose or treat

medical conditions; promote health; provide

rehabilitation; or organize healthcare delivery. The

intervention can be a test, device, medicine, vaccine,

procedure, program or system” (International

Network of Agencies for Health Technology

Assessment, 2022).

The European medical devices directive,

Regulation (EU) 2017/745 of the European

Parliament and of the Council of 5 April 2017 on

medical devices, applies the following definition for

medical devices: “any instrument, apparatus,

appliance, software, implant, reagent, material or

other article intended by the manufacturer to be used,

alone or in combination, for human beings for one or

more of the following specific medical purposes:

 diagnosis, prevention, monitoring, prediction,

prognosis, treatment or alleviation of disease,

 diagnosis, monitoring, treatment, alleviation of, or

compensation for, an injury or disability,

 investigation, replacement or modification of the

anatomy or of a physiological or pathological

process or state,

 providing information by means of in-

vitro examination of specimens derived from the

human body, including organ, blood and tissue

donations,

and which does not achieve its principal intended

action by pharmacological, immunological or

metabolic means, in or on the human body, but which

may be assisted in its function by such means.

The following products shall also be deemed to be

medical devices:

 devices for the control or support of conception;

 products specifically intended for the cleaning,

disinfection or sterilisation of devices […]”

(EU, 2020, p. 15).

In-vitro diagnostic devices (IVD) are not part of

this directive, but the IVD directive also defines them

as medical devices: “in vitro diagnostic medical

device means any medical device which is a reagent,

reagent product, calibrator, control material, kit,

instrument, apparatus, equipment, or system, whether

used alone or in combination, intended by the

manufacturer to be used in vitro for the examination

of specimens, including blood and tissue donations,

derived from the human body, solely or principally

for the purpose of providing information:

 concerning a physiological or pathological state, or

 concerning a congenital abnormality, or

 to determine the safety and compatibility with

potential recipients, or

 to monitor therapeutic measures”

(EU, 2012, p. 5).

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

102

The United States of America (U.S.) Food and

Drug Administration (FDA) uses a similar definition

for medical devices:

 “an instrument, apparatus, implement, machine,

contrivance, implant, in vitro reagent, or other

similar or related article, including any component,

part, or accessory, which is

(1) recognized in the official National Formulary,

or the United States Pharmacopeia, or any

supplement to them,

(2) intended for use in the diagnosis of disease or

other conditions, or in the cure, mitigation,

treatment, or prevention of disease, in man or

other animals, or

(3) intended to affect the structure or any function

of the body of man or other animals, and

 which does not achieve its primary intended

purposes through chemical action within or on the

body of man or other animals and which is not

dependent upon being metabolized for the

achievement of its primary intended purposes”

(FDA, 2017, p. 5).

Based on the regulatory definitions of the

European Union (EU) and the U.S., we use the

following shortened and summarized definition of

medical technology for all following analyses and

MedTech-eNER-IRS.

 Instrument, apparatus, device, software, machine,

appliance, implant, in-vitro reagent for the

 Diagnosis, prevention, monitoring, prognosis or

treatment of diseases with its

 Main effect not through in-vivo biochemical action

(no drugs).

2.2 Characteristics of Emerging

Technological Knowledge

The concept of technology has both instrumental and

processual components and is strongly tied to the

concept of knowledge. A systemic approach

explaining the emergence of new technology

distinguishes between knowledge (technological

know-how), activities (problem solving by applying

technology), and artifacts (problem solution;

machines, devices, products; technical systems) as

constituents (Bullinger, 1994, p. 32 ff.).

Technological knowledge “derives from, and finds

meaning, in activity”, is strongly tied to practical

applications; tacit knowledge as a form of

technological knowledge is embedded in

technological activity, and “isolated from activity and

removed from the implementing context, much of

technological knowledge loses its meaning and

identity“ (Herschbach, 1995, p. 38).

The difficulty with emerging knowledge and its

systematic detection is that it, “arises suddenly and

unexpectedly and it cannot be planned and predicted”

(Patel and Ghonheim, 2011, p. 425). Thus, the

challenging task is to detect entities representing

emerging (technological) knowledge that are yet

unknown, which we define as non-existent in a

relevant vocabulary or knowledge base.

We limited our definition of MedTech in the

previous section to its instrumental dimension, and

thus are focusing on MedTech artifacts for MedTech-

eNER-IRS discussed here. However, for further

refinement, procedural information and application

context will be included.

2.3 Emerging Named Entity

Recognition (eNER)

Emerging Named Entity Recognition (eNER) is a

relatively new research area that deals with the

automatic detection of NEs that are useful to

automatically extract emerging knowledge according

to the definition in the previous section. Nawroth et

al. (2018) introduced the concept of emerging Named

Entities (eNE) and eNER in order to recognize and

classify characteristic NEs in the context of

arguments in clinical decisions. According to their

definition, eNEs are terms in use that are not

acknowledged yet, i.e., not listed in controlled

vocabularies or databases. We apply the following

formal definition (1) to determine if an NE is an eNE:

If Y

< Y

=> eNE (1)

: publication year of documents from text

corpus

: entry year of each entity in a controlled

vocabulary or database.

3 EXPERIMENTAL DATA AND

PREPARATORY STUDY

In order to discover the patterns of NEs that represent

medical technology as well as their appearance in

relevant text documents, we conducted a manual

corpus analysis and annotation of such NEs.

We analyzed eleven research papers in the field

of medical diagnostics from different journals, which

had been selected by a medical expert from the field

of laboratory diagnostics (see Table 1). Medical

devices in the text corpus are referenced to mostly not

by using general descriptive terms, but brand names.

Additionally, product- or manufacturer names are

often incomplete or imprecise. We observed some

Named Entity Recognition for the Extraction of Emerging Technological Knowledge from Medical Literature

103

patterns, such as <product name> followed by

<manufacturer name> helpful for rule-based NER.

Table 1: Text corpus of papers in the field of diagnostics.

Text

No.

Paper Title Reference

1 The clinical significance of EBV

DNA in the plasma and peripheral

blood mononuclear cells of patients

with or without EBV diseases

Kanakry et

al. (2016)

2 Cell-Free DNA in blood reveals

significant 1 cell, tissue and organ

specific injury and predicts

COVID-19 severity

Cheng et

al. (2020)

3 Assessment of cell free

mitochondrial DNA as a biomarker

of disease severity in different viral

infections

Ali et al.

(2020)

4 Absolute measurement of the tissue

origins of cell-free DNA in the

healthy state and following

aracetamol overdose

Laurent et

al. (2020)

5 Clinical utility of circulating cell-

free Epstein–Barr virus DNA in

atients with gastric cance

Katsutoshi

et al.

(2017)

6 Analytical and clinical validation of

a microbial cell-free DNA

sequencing test for infectious

disease

Blauwkam

p et al.

(2018)

7 Detection of cell-free Epstein-Barr

virus DNA in serum during acute

infectious mononucleosis

Gan et al.

(1993)

8 Circulating cell-free nucleic acids:

main characteristics and clinical

application

Szilágyi et

al. (2020)

9 Detection and quantification of

virus DNA in plasma of patients

with Epstein-Barr virus-associated

diseases

Yamamoto

et al.

(1994)

10 Monitoring of cell-free viral DNA

in primary Epstein-Barr virus

infection

Kimura et

al. (1999)

11 A powerful, non-invasive test to

rule out infection

O’Grady

(2019)

However, the patterns occur in an inconsistent

manner. Table 2 shows a list of different patterns and

corresponding examples observed in the analyzed

text corpus. The results were discussed and validated

with the medical expert based on a questionnaire

which contained the manually annotated NE

candidates that we assumed to represent medical

technologies according to the definition above.

Table 2: Different patterns of medical-device naming.

Pattern Example from text corpus

Device (product name;

manufacturer, city, US

federal state)

Automated counts (Sysmex

KX-21N; Sysmex,

Lincolnshire, IL)

Product name (manufacturer,

city, US federal state)

QIAmp DNA blood mini

reagents (Qiagen,

Gaithersburg, MD)

Product name (manufacturer)

Qiagen/Artus EBV analyte

specific reagents (Qiagen)

Product name (manufacturer,

reference #[Nr])

DNA cryostorage vials

(Eppendorf, reference

#0030079400)

Product name (manufacturer

reference #[Nr])

DNA cryostorage vials

(Thermo Scientific #363401)

Device (manufacturer,

country of origin)

kit (Machery-Nagel, Germany)

Product name (manufacturer,

country of origin)

Eva green qPCR Master mix

(Solis Biodyne, Estonia)

Product name contains

manufacturer name

Qiagen Circulating Nucleic

Acid Ki

4 DESIGN AND

IMPLEMENTATION

Our model extends the eNER-IRS (emerging Named

Entity Recognition System) by Nawroth et al. (2018)

for the recognition of medical technology terms,

which we abbreviate as MedTech-NEs and MedTech-

eNEs for emerging terms respectively. We first

discuss the use cases of the MedTech-eNER-IRS.

Then we discuss preparation of the test and evaluation

data, the algorithmic constituents of MedTech-eNER-

IRS as well as its overall architecture.

4.1 MedTech-eNER-IRS Use Cases

Based on the principles of User-Centered System

Design (UCD) (Norman and Draper, 1986), we define

first the user context and requirements of the

MedTech-eNER-IRS. Overall context is given by the

RecomRatio project which aims to support medical

experts in decision making by providing them with

relevant content from large volumes of text

documents such as scientific articles. In particular, the

pipeline of MedTech-eNER-IRS is intended to accept

unknown texts and present the identified NEs/eNEs

as output. In brief, MedTech-eNER-IRS is to fulfill

the following two key requirements: (1) Perform

NER/eNER in unknown texts; (2) Presentation of the

annotated text, i.e. the MedTech-NERs/eNERs.

Derived from this, the use cases supported by

MedTech-eNER-IRS are as follows (see Figure 1):

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

104

 Transform data: Transforms manually prepared

data, as well as raw data from medical vocabularies

in a data schema suitable for machines-based

processing.

 Provide expert annotations: Provides MedTech-

eNER-IRS with the data from the preparatory study,

i.e. the manually annotated, validated MedTech-

NEs (expert annotations).

 Train statistical model: Trains the learning-based

NER/eNER model with the expert annotations

using spaCy models.

 Provide vocabulary: Provides MedTech-eNER-IRS

with the data for rule-based NER/eNER, including

year dates from medical vocabularies for the

identification of eNEs.

 Process document: Processes a document of choice

by the user from its original raw format through the

whole NER/eNER system’s pipeline, including

learning-based NER, rule-based NER, and rule-

based eNER (see Figure 2).

 Present NEs/eNEs: Presents the results of the

MedTech-NER/eNER task to the user.

Figure 1: MedTech-eNER-IRS use cases.

Learning-Based NER: MedTech-eNER-IRS

consists of a combination of learning-based and rule-

based NER in order to detect emerging MedTech

terms. The training and evaluation data were obtained

as follows:

 Training data: We used the manually annotated NE

candidates representing MedTech.

 Evaluation data: We chose a 5-fold cross-

validation, since the training corpus was limited (11

documents).

Rule-Based NER and eNER: Medical

vocabularies such as MeSH and SNOMED CT

contain terms that can be used for medical NER.

However, they are limited to rather general terms

related to medical technology, whilst relevant text

corpora often contain medical devices and reagents

Archive files for historical and research purposes

with specific brand names or manufacturer-specific

product names. Thus, we additionally used

manufacturer-specific databases for training the

detection of MedTech-NEs classified as product

names and manufacturers: Premarket Approval

(PMA) (FDA, 2021a), 510(k) (FDA, 2021b) as well

as Device Registration and Listing (FDA, 2021c) of

the U.S. Food and Drug Administration (FDA).

We identified and extracted the relevant entries of

MedTech terms from MeSH and SNOMED CT

together with the year date. We used the following

versions: MeSH XML Descriptors 2021; SNOMED

CT International 20210131

; Premarket Approval

PMA 202109; 501(k): PMN since 1996 (as per 13

September 2021), PMN 1991-1995, PMN 1986-1990,

PMN 1981-1985, PMN 1976-1980; Device

Registration & Listing (as per 06 November 2021).

The year dates are required for the automatic

matching of the identified NEs with the vocabulary or

database entries, in order to determine, if an NE is an

eNE or not. In order to deal with the inconsistent use

of naming patterns, we applied fuzzy functions using

the RapidFuzz library (Bachmann, 2021).

Figure 2: MedTech-eNER-IRS pipeline.

4.2 Architecture and Experimental

NER/eNER Functions

The overall architecture of MedTech-eNER-IRS

consists of three components according to the Model-

View-Control (MVC) design pattern (see Figure 3).

We used the Python programming language in

Jupyter Notebook (Kluyver et al., 2016) as framework

for the realization of the experimental MedTech-

eNER-IRS, as well as pretrained models from the

NLP library spaCy (Honnibal and Montani, 2017):

en_core-sci_lg, en_core_web_lg. From the corpus of

11 documents (323,118 words), 202 annotations

(NEs/eNEs) were extracted and used for training. We

used the open-source tool Doccano

for annotation.

The following code lines illustrate the function to

match the year dates for eNE classification.

# eNER function to match year dates

def ener(entities, year):

for entity in entities:

if int(year)<int(entity._.year):

entity._.emerging=True

return entities

https://github.com/doccano/doccano

Named Entity Recognition for the Extraction of Emerging Technological Knowledge from Medical Literature

105

Figure 3: Overall architecture of MedTech-eNER-IRS according to the MVC paradigm.

5 EVALUATION

We evaluated the results of MedTech-eNER-IRS in

respect of its three key components: (1) preparatory

study, (2) learning-based NER, and (3) rule-based

NER/eNER. In this section, we also describe possible

improvements to further develop MedTech-eNER-

IRS.

Preparatory study: We conducted a qualitative

study, in order to generate a training data set as well

as a gold standard for testing the results of MedTech-

eNER-IRS. This preparatory step was based on a

questionnaire with the manually annotated MedTech-

NE/eNE candidates that were presented to a medical

expert (professor in the field of laboratory

diagnostics), who had to choose between “Named

Entity”, “emerging Named Entity”, and “No Medical

Technology”. The expert had difficulties in

classifying many of the cases presented because the

context was missing. The unclear cases and the

reasons for the difficulties were clarified in a second

in-depth interview with the same expert. One key

result was that even if a term represents a medical

technology, it might be irrelevant in the context of an

expert’s specific information need, and thus would

not be a relevant NE/eNE to be presented to the user

of MedTech-eNER-IRS. Additionally, some terms

were borrowed from a domain not known to the

expert, e.g., molecular biology, and it was not clear if

they were relevant for a specific MedTech

application. To improve these deficiencies, methods

to automatically determine the descriptivity of

identified NE/eNE candidates such as TF-IDF and

Word2Vec can be applied.

Learning-based NER: For evaluation of the

learning-based model we used the Scorer method of

spaCy to calculate the metrics Precision, Recall and

. Test data were created from the corpus by

performing standard text cleaning such as removal of

empty lines, irrelevant head- or footnotes or line

numbers. Since the training corpus was limited, the

spaCy output during training showed an error and the

quality of the statistical model was low (F

: 0.39,

Precision: 0.42, Recall: 0.35), which was accepted for

the experimental setup, but would be solved in future

setups by increasing the corpus size.

Rule-based NER/eNER: Both on the basis of our

vocabulary file of MedTech terms, including the

naming patterns we found in the manufacturer-

specific databases, MedTech-eNER-IRS returned

relevant hits. False-positive results occurred several

times, mostly due to homonyms or the naming pattern

<product name> contains <manufacturer name>.

Evaluation was not metrics-based due to the low

number of validated MedTech-NEs/eNEs.

6 DISCUSSION

We have discussed the modeling and implementation

of MedTech-eNER-IRS for the automatic recognition

of MedTech-NEs/eNEs. This constitutes the first

foundation for an IR system that is capable of

identifying entities that represent medical

technologies in unknown text documents. Since we

identified emerging technology to be a specific key

information need of medical experts, we designed

MedTech-eNER-IRS to distinguish between

MedTech-NEs and MedTech-eNEs, in order to

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

106

support the retrieval of the most recent MedTech

entities, before they are included in controlled

vocabularies. Within the restricted definition of

medical technology, we set in advance, the chosen

solution path – i.e., the combination of a learning-

based and a rule-based NER approach – and the

limited corpus size, we conclude the following: The

task is basically solvable using the approach of our

MedTech-eNER-IRS, but this needs to be improved

in terms of: (1) The size of the text corpus and the

number of MedTech-NE candidates for training

(learning-based NER): these restrictions led to an

impasse in terms of the use of metrics for MedTech-

eNER-IRS performance evaluation; (2) The

sophistication of the entity ruler (rule-based NER):

these restrictions led to the limitation of MedTech-

eNER-IRS in its recognition of simple MedTech

terms such as tubes, gloves, pipette tips, as well as in

its inability to recognize terms that are non-exact

wording and to avoid false-positives through

homonyms like e.g., chain (chain reaction); (3) The

consideration of naming patterns (rule-based NER):

the chosen approach led to meaningful hits, e.g.

Sysmex KX-21N, QIAmp DNA blood mini reagents,

Karius diagnostic test; restrictions led to false-

positives, mostly in cases where the name of a

MedTech product contains the manufacturer’s name.

7 CONCLUSION AND FUTURE

WORK

MedTech-eNER-IRS is being further developed

against the background of limitations discussed in

Section 6, as well as in terms of further observations

that go beyond the definition of medical technology

assumed here. We name three strategies for

improving the performance of MedTech-eNER-IRS:

(1) refining the machine-learning model, (2)

supporting annotation of training data by

automatically determining the descriptivity of NE

candidates, and (3) using procedural representations

of technological descriptions.

To improve our limited NER/eNER machine-

learning model, we propose to use fine-tuned, pre-

trained language models such as BioBERT (Lee et al.,

2019), and for this purpose also increase the volume

of training data. To alleviate work in manual labelling

in extensive training corpora and increase the

efficiency of an expert-based generation of gold

standards, the approach needs to be automated. To

prevent MedTech-NE candidates to be non-

descriptive and irrelevant to medical experts in

specific contexts, techniques such as TF-IDF (Term

Frequency - Inverse Document Frequency) (cf.

Sammut and Webb, 2011) and Word2Vec (Mikolov

et al., 2013) can be used.

For the sake of a first proof of concept and

simplicity of MedTech-eNER-IRS, we narrowed the

definition of medical technology down to technical

artifacts. The concept of medical technology – as is

the case with the concept of technology in general –

is actually more complex than representing tangibles

only. The more general definitions of health

technology show that intangible aspects are also

relevant, referring to the concepts of knowledge and

science. During corpus analysis and research of

scientific definitions of technology we found

evidence that: (1) Technological terms are embedded

in procedural descriptions within medical articles, in

particular in the common section “materials and

methods”, and (2) the systemic perspective on the

concept of technology supports this observation by

defining it based on the constituents, knowledge,

activities, artifacts (Bullinger 1994). Processing and

mining procedural knowledge from natural-language

data is an additional NLP task that can be used to

extract emerging medical technology. Procedural

knowledge can be described using a semantic

representation, “by specifying semantic elements of a

procedure and their interrelated information” (Zhang

et al., 2012, p. 522). This has been demonstrated by

task-based extraction of procedural knowledge from

text in case of cooking recipes (Schumacher et al.,

2012), with tasks being smaller units of activities, and

activities being indicated by verbs.

REFERENCES

Ali, Z., Waseem, S., Anis, R.A., Anees, M. (2020).

Assessment of cell free mitochondrial DNA as a

biomarker of disease severity in different viral

infections. In Pak J Med Sci, Vol. 36 No. 5, 860-866.

Bachmann, M. (2021). RapidFuzz 2.3.0 documentation.

https://maxbachmann.github.io/RapidFuzz/index.html.

Blauwkamp, T.A., Thair, S., Rosen, … Yang, S. (2018).

Analytical and clinical validation of a microbial cell-

free DNA sequencing test for infectious disease. In Nat

Microbiol, 4, 663-674.

Bullinger, H.-J. (1994). Einführung in das

Technologiemanagement. B.G. Teubner. Stuttgart.

Cheng et al., 2020: Cell-Free DNA in Blood Reveals

Significant Cell, Tissue and Organ Specific injury and

Predicts COVID-19 Severity. In medRxiv preprint.

EU (2012). Directive 98/79/EC of the European Parliament

and of the Council of 27 October 1998 on in vitro

diagnostic medical devices.

EU (2020). Regulation (EU) 2017/745 of the European

Parliament and of the Council of 5 April 2017 on

medical devices, amending Directive 2001/83/EC,

Regulation (EC) No 178/2002 and Regulation (EC) No

Named Entity Recognition for the Extraction of Emerging Technological Knowledge from Medical Literature

107

1223/2009 and repealing Council Directives

90/385/EEC and 93/42/EEC.

Explosion (2022). displaCy Named Entity Visualizer.

FDA (2017). Classification of Products as Drugs and

Devices and Additional Product Classification Issues:

Guidance for Industry and FDA Staff. U.S. Food and

Drug Administration.

FDA (2021a). Premarket Approval (PMA).

https://www.accessdata.fda.gov/scripts/cdrh/cfdocs/cf

PMA/pma.cfm.

FDA (2021b). Downloadable 510(k) Files.

https://www.fda.gov/medical-devices/510k-

clearances/downloadable-510k-files.

FDA (2021c). Device Registration and Listing.

https://www.fda.gov/medical-devices/how-study-and-

market-your-device/device-registration-and-listing.

Gan, Y.-J., Sullivan, J.L., Sixbey, J.W. (1993). Detection of

Cell-Free Epstein-Barr Virus DNA in Serum during

Acute Infectious Mononucleosis. In JID 170, 436-439.

Herschbach, D.R. (1995). Technology as Knowledge. In

Journal of Technology Education, Vol. 7 No. 1.

Honnibal, M., Montani, I. (2017). spaCy 2: Natural

language understanding with Bloom embeddings,

convolutional neural networks & incremental parsing.

International Network of Agencies for Health Technology

Assessment (INAHTA) (2022). Health technology.

http://htaglossary.net/health-technology.

Kanakry, A., Hegde, A.M., Durand, C.M., Massie, A.B.,

Greer, A.E., Ambinder, R.F., Valsamakis, A. (2016):

The clinical significance of EBV DNA in the plasma

and peripheral blood mononuclear cells of patients with

or without EBV diseases. In BLOOD, 21 APRIL 2016

x VOLUME 127, NUMBER 16.

Katsutoshi Shoda, K., Ichikawa, D, Fujita, Y., Masuda, K.;

Hiramoto, H., Hamada, J., Arita, T., Konishi, H.,

Kosuga, T., Komatsu, S., Shiozaki, A., Okamoto, K.,

Imoto, I., Otsuji, E. (2017). Clinical utility of

circulating cell-free Epstein–Barr virus DNA in

patients with gastric cancer. In Oncotarget, 2017, Vol.

8, (No. 17), 28796-28804.

Kimura, H., Nishikawa, K., Hoshino, Y., Sofue, A.,

Nishiyama, Y., Morishina, T. (1999). Monitoring of

cell-free viral DNA in primary Epstein-Barr virus

infection. In Med Microbiol Immunol 188, 197-202.

Kluyver, T., Ragan-Kelley, B., Fernando Perez, Granger,

B., Bussonnier, M., Frederic, J., … Willing, C. (2016).

Jupyter Notebooks. In F. Loizides. B. Schmidt (Eds.),

Positioning and Power in Academic Publishing:

Players, Agents and Agendas (87–90).

Laurent, D., Semple, F., Philip J., Lewis, S., Rose, E.,

Black, H.A., Coe, J., Forbes, S.J., Arends, M.J., Dear,

J.W., Aitman, T.J. (2020). Absolute measurement of

the tissue origins of cell-free DNA in the healthy state

and following paracetamol overdose. In BMC Medical

Genomics (2020), 13-60.

Lee, J., Yoon, W., Kim, S., Kim, D., Kim, S., So, C.H.,

Kang, J. (2019). BioBERT: a pre-trained biomedical

language representation model for biomedical text

mining. In Bioinformatics, 2019, 1–7.

Mikolov, T., Chen, K., Corrado, G., Dean, F. (2013).

Efficient Estimation of Word Representations in Vector

Space. arXiv:1301.3781.

National Center for Health Statistics (2010). Health, United

States, 2009. Hyattsville, MD.

Nawroth, C., Engel, F., Eljasik-Swoboda, T., Hemmje, M.

(2018). Towards Enabling Emerging Named Entity

Recognition as a Clinical Information and

Argumentation Support. In DATA 2018, 47-55.

NCBI (2021). PubMed. https://pubmed.ncbi.nlm.nih.gov.

NLM (2021). Medical Subject Headings.

https://meshb.nlm.nih.gov.

Norman, D.A., Draper, S.W. (1986). User Centered System

Design, CRC Press. London.

Nunamaker, J., Chen, M., Purdin, T. (1991). Systems

development in information systems research. In J

Management Information Systems, 7, 89-106.

O’Grady, J. (2019). A powerful, non-invasive test to rule

out infection. In NATURE Microbiology, VOL 4,

APRIL 2019, 554-555.

Patel, N.V, Ghonheim, A. (2011). Managing emergent

knowledge through deferred action design principles:

The case of ecommerce virtual teams. In Journal of Ent

Info Management, 24(5), 424-439.

Perera, N., Dehmer, M., Emmert-Streib, F. (2020). Named

Entity Recognition and Relation Detection for

Biomedical Information Extraction. In Front. Cell Dev.

Biol., 28 August 2020.

Sammut, C., Webb, G.I. (eds.) (2011). Encyclopedia of

Machine Learning. Springer, Boston, MA.

Schumacher, P., Minor, M., Walter, K., Bergmann, R.

(2012). Extraction of Procedural Knowledge from the

Web. A comparison of two workflow extraction

approaches. In WWW 2012 Companion, April 16–20,

2012, Lyon, France. ACM 978-1-4503-1230-1/12/04.

SNOMED International (2021). SNOMED CT Release File

Specifications. https://www.snomed.org/rfs.

Szilágyi M, Pös O, Márton É, Buglyó G, Soltész B, Keserű

J, Penyige A, Szemes T, Nagy B (2020). Circulating

Cell-Free Nucleic Acids: Main Characteristics and

Clinical Application. In Int J Mol Sci. 2020 Sep

17;21(18):6827.

University of Bielefeld (2017). Rationalizing

Recommendations (RecomRatio). http://ratio.sc.cit-

ec.uni-bielefeld.de/projects/recomratio/.

WHO (2022). What is a health technology?

https://www.euro.who.int/en/health-topics/Health-

systems/health-technologies-and-medicines/policy-

areas/health-technology-assessment.

Yamamoto, M., Kimura, H., Hironaka, T., Hirai, K.,

Hasegawa, S., Kuzushima, K., Shibata, M., Morishima,

T. (1994). Detection and Quantification of Virus DNA

in Plasma of Patients with Epstein-Barr Virus-

Associated Diseases. In J Clin Microbiol, Vol. 33, No.

7, July 1994, 1765-1768.

Zhang, Z., Webster, P., Uren, V., Varga, A., Ciravegna, F.

(2012). Automatically Extracting Procedural

Knowledge from Instructional Texts using Natural

Language Processing. In LREC’12.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

108
