A Process Model for Test Driven Development in the Big Data

Domain

Daniel Staegemann

, Matthias Volk

, Naoum Jamous and Klaus Turowski

Magdeburg Research and Competence Cluster VLBA, Otto-von-Guericke University Magdeburg, Magdeburg, Germany

Keywords: Big Data, Test Driven Development, TDD, Process Model, Design Science Research, DSR, Microservice.

Abstract: Big data has emerged to be one of the driving factors of today’s society. However, the quality assurance of

the corresponding applications is still far from being mature. Therefore, further work in this field is needed.

This includes the improvement of existing approaches and strategies as well as the exploration of new ones.

One rather recent proposition was the application of test driven development to the implementation of big

data systems. Since their quality is of critical importance to achieve good results and the application of test

driven development has been found to increase the developed product’s quality, this suggestion appears

promising. However, there is a need for a structured approach to outline how the corresponding endeavors

should be realized. Therefore, the publication at hand applies the design science research methodology to

bridge this gap by proposing a process model for test driven development in the big data domain.

1 INTRODUCTION

Today’s society has developed to be heavily driven by

knowledge, information and technology (Levin and

Mamlok 2021). Consequently, big data (BD),

respectively big data analytics (BDA) have gained

huge popularity among organizations that want to

profit from this rather new resource. Furthermore,

those who do incorporate BDA into their processes

experience (on average) a significant increase in

productivity (Müller et al. 2018), further justifying the

positive sentiment. Yet, this only does apply to proper

use, which is, however, not always a given, since it is

a highly challenging endeavor (Volk et al. 2019). The

arguably most common issues in this regard are a low

input data quality (Abdallah et al. 2022; Staegemann

et al. 2021b), human error or bias in the use of the

applications, and erroneous implementations of the

respective systems (Staegemann et al. 2019).

For the publication at hand, the focus is on the

latter. While there have been numerous works to

facilitate the testing of BD applications, it is still a

rather immature topic (Staegemann et al. 2021c).

Therefore, further work in this field is needed. This

includes the refinement of existing approaches and

strategies as well as the exploration of new ones. One

https://orcid.org/0000-0001-9957-1003

https://orcid.org/0000-0002-4835-919X

rather recent proposition was the application of test

driven development (TDD) to the implementation of

BD systems (Staegemann et al. 2020).

When done correctly, this could solve several

issues at once. Not only would the quality and

flexibility of the developed applications be increased,

but possibly also the trust of the users, which is crucial

to assure the frequent and genuine incorporation into

the decision processes (Günther et al. 2017). However,

so far, there has been no structured approach

formulated how the corresponding endeavors should

be realized. To bridge this gap, the following research

question (RQ) shall be answered:

RQ: How can the process of applying test driven

development in the big data domain be structured?

To answer the RQ, the publication at hand is

structured as follows. After the introduction, the

background is briefly delineated. This is followed by

an overview of the applied methodology. Afterwards,

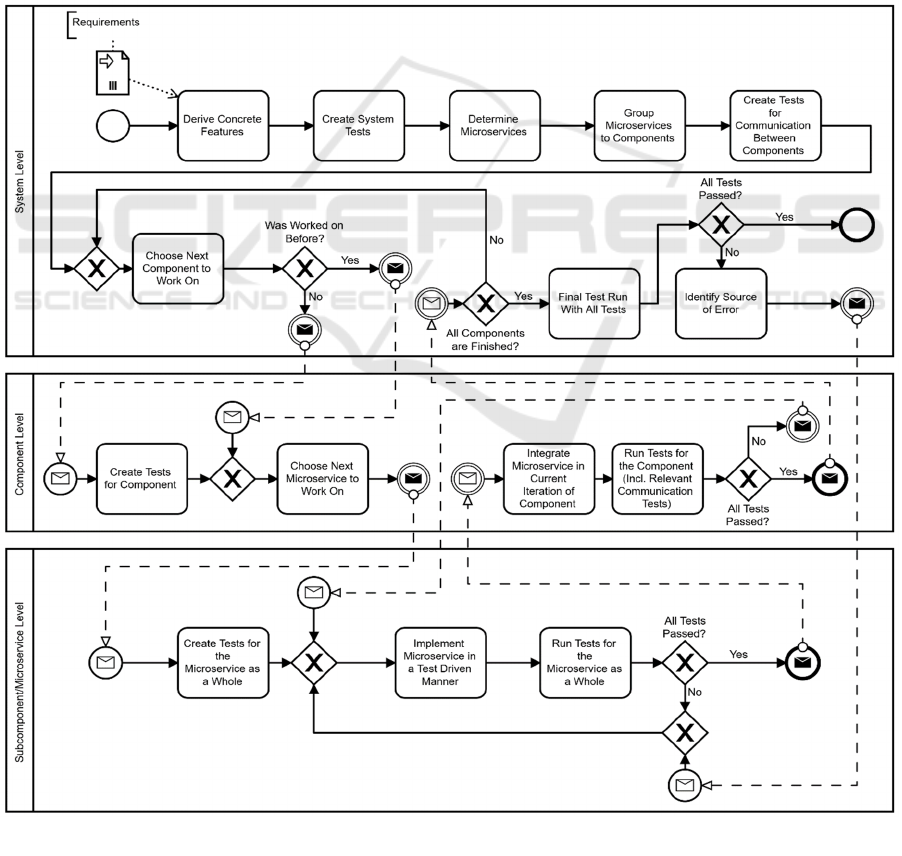

in the main part, a process model for TDD in the BD

domain is developed, which is also this work’s main

contribution. Subsequently, the model is further

discussed and avenues for future research are outlined.

Finally, a conclusion is given.

Staegemann, D., Volk, M., Jamous, N. and Turowski, K.

A Process Model for Test Driven Development in the Big Data Domain.

DOI: 10.5220/0011337200003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 3: KMIS, pages 109-118

ISBN: 978-989-758-614-9; ISSN: 2184-3228

109

2 BACKGROUND

To establish a solid foundation and a common

understanding for the further explanations, in the

following, the most important terms and concepts are

briefly introduced.

2.1 Big Data

The amount of data that is being produced, captured,

and analyzed as a result of today’s society’s

digitization has been and is still rapidly growing

(Dobre and Xhafa 2014; Statista 2021; Yin and

Kaynak 2015). Concurrently, its complexity and the

demands for its processing also increased.

Consequently, the systems that were previously used

for this purpose are oftentimes no longer sufficient

(Chang and Grady 2019). Therefore, new tools and

techniques are needed to deal with the new

requirements and simultaneously the term big data

emerged to describe this phenomenon. Even though

the origins of a term are not conclusively clarified

(Diebold 2012) and there is also no unified definition

for it (Al-Mekhlal and Khwaja 2019; Volk et al.

2020b), most of the relevant literature follows a

similar understanding. The arguably most influential

description (Chang and Grady 2019) is based on four

characteristics, which are sometimes also termed the

4 Vs of big data. Those are volume (number and/or

size of data entries), velocity (speed of data ingestion

and/or required processing speed), variety (diversity

of data and content), and variability (changes in the

other characteristics over time). Due to the

widespread need for high quality decision making,

BDA is used in numerous domains, such as

manufacturing (Nagorny et al. 2017), management

support (Staegemann et al. 2022a), fashion (Silva et

al. 2019), education (Häusler et al. 2020), sports

(Goes et al. 2020), agriculture (Bronson and Knezevic

2016), or healthcare (Bahri et al. 2019).

2.2 Microservices

The general idea of the microservice concept is to

decompose an envisioned application into several

smaller services that then interact with each other to

accomplish the given task (Nadareishvili et al. 2016).

Usually, the services are based on business

functionality. This, in turn, allows it to benefit from a

high degree of specialization. The microservices all

run in their own processes and for the communication

among each other, only lightweight mechanisms are

utilized. Due to their independent nature, the

particular services implementation can be

heterogeneous (Freymann et al. 2020). This, inter

alia, refers to the utilized programming languages and

technology stacks. Moreover, their properties allow

an independent deployment and usage. For this

purpose, usually continuous deployment tools and

pipelines are used, allowing for the automation of the

procedure.

Even though in software engineering

componentization is generally considered a good

practice, achieving a high degree of modularity is

often seen as challenging task (Faitelson et al. 2018).

However, when using microservices, this is achieved

by design. This also reduces the effort for maintenance

and the implementation of modifications, since it is

often sufficient to only redeploy the affected service

when incorporating changes. As a result, through the

use of microservices, an evolutionary design, which is

driven by frequent and controlled changes, is

promoted (Krylovskiy et al. 2015).

2.3 Test Driven Development

TDD is generally seen as a development approach

that (for the cost of a reduced speed) is feasible to

improve an implementation’s quality (Staegemann et

al. 2021a). The corresponding advantages are

twofold. On the one hand, the test coverage is

increased. This helps to detect errors (early) and

prevents that they affect the productive users. On the

other hand, the system’s design is also influenced,

since a major part of TDD is its decomposition into

the smallest reasonable pieces. This reduced

complexity also helps to avoid errors and increases

maintainability (Crispin 2006; Shull et al. 2010).

Even though the primary application area of TDD,

and also the one that is relevant for the remainder of

this paper, is in software development, it is also used

in other contexts, such as process modelling (Slaats et

al. 2018) or ontology development (Davies et al.

2019; Keet and Ławrynowicz 2016).

In the traditional software development approach,

new features are at first envisioned, then implemented

and finally tested. However, in TDD, this order is

changed. While the first step remains the same, the

identified functionality is broken down into small

parts (Fucci et al. 2017). In the following, tests for

those parts are written. To assure that they indeed test

new aspects, they are run and should, for a lack of the

actual implementation, fail (Beck 2015). If they

don’t, they need to be reworked due to the premise.

After the tests failed, the productive coding takes

place, resulting in the desired functionality. The main

focus here is just to make it work. In turn, other

aspects, like the elegance of the code, are not

KMIS 2022 - 14th International Conference on Knowledge Management and Information Systems

110

important, as long as the previously written tests are

passed (Crispin 2006). If this is the case, the code is

then refactored to improve the readability, its

adherence to standards, best practices, and

conventions and to improve its overall quality (Beck

2015). While doing so, the previously written tests are

utilized as a safety net to make sure that no errors are

introduced during this procedure. As mentioned

earlier, this focus on incremental modifications and

small tasks (Williams et al. 2003) does not only affect

the coverage, but also the design of the developed

solution. Moreover, developers are provided with

more immediate feedback, due to the shorter test

cycles (Janzen and Saiedian 2005). While unit tests

are usually the backbone of TDD, they can (and

should) also be amended by other types of tests, such

as system, tests, or integration tests (Sangwan and

Laplante 2006). Hereby, especially the latter can be

seen as essential (Kum and Law 2006). Furthermore,

to make sure the necessary test frequency can be

achieved without the developers having to

cumbersomely deal with it manually, TDD is often

combined with a continuous integration (CI) pipeline

to enable test automation (Karlesky et al. 2007;

Shahin et al. 2017). Consequently, whenever a

change is committed, a CI server runs the existing

tests, checking if the last change has introduced any

new errors that need to be fixed.

2.4 Test Driven Development in Big

Data

As it was already described earlier, applying TDD is

a promising new approach for the engineering of

high-quality BD applications. For this purpose, the

use of microservices as a technical foundation has

been proposed (Staegemann et al. 2020). Since a

major component of TDD is to break down the

desired application into small parts and microservices

facilitate exactly this architectural concept, there is a

huge synergy that can be exploited (Shakir et al.

2021). Their use allows to realize each business

functionality as a separate service, which also gives

the option for independent scaling, depending on the

respective workloads. Further, this also impacts the

implementation process, since the development of the

respective services can be distributed across different

teams. Additionally, those don’t have to use a

homogenous toolset, but can instead rely on the

technology set they deem the most suitable for the

given task, due to the independence of the services

from each other. In another context, TDD also

increases the flexibility. The created tests allow for

easier and safer changes to the developed application

because they can be immediately validated through

the existing tests, leading to faster feedback, the

avoidance of newly introduced errors and

consequently more trust by the users. However, even

though the general idea of applying TDD in the BD

domain seems promising and there are already some

works in the domain (Staegemann et al. 2022b), to

facilitate its diffusion and make its application more

accessible, it is still necessary to develop further

corresponding patterns, frameworks, process models,

best practices, and approaches to provide developers

with a solid foundation they can lean on for their

projects, instead of having to determine all steps (and

their order) on their own.

3 METHODOLOGY

In order to assure scientific rigor while answering the

RQ, the design science research (DSR) approach

(Hevner et al. 2004) is applied. This constructive

methodology is geared towards the development and

evaluation of artifacts in the information systems

research domain. The purpose of those is to solve

organizational problems. They can be “constructs

(vocabulary and symbols), models (abstractions and

representations), methods (algorithms and practices),

and instantiations (implemented and prototype

systems)” (Hevner et al. 2004). To further enhance

the comprehensibility, the workflow of the design

science research methodology (DSRM) presented in

(Peffers et al. 2007) is followed. The DSRM

decomposes the DSR into a sequence of six steps,

which are depicted in Figure 1.

The DSRM begins with the problem

identification and motivation, which are outlined in

the beginning of the next section. In the second

activity, the researcher shall define the objectives for

a solution. This will also be part of the same

subsection. The third step, design and development,

will be discussed in the succeeding subsection,

resulting in the construction of the DSR artifact as the

Figure 1: Process Sequence of the DSRM According to (Peffers et al. 2007).

A Process Model for Test Driven Development in the Big Data Domain

111

main contribution of the publication at hand.

Furthermore, the underlying explanations will serve

as an implicit, preliminary evaluation, which

corresponds to activity five. The final activity,

communication, is performed through the publication

at hand. However, due to the artifact being a process

model, whose phases need to be filled with concrete

activities (which is out of this work’s scope) for its

actual implementation, the demonstration will be

deferred to the future.

4 THE PROCESS MODEL

In the following, using the DSRM by Peffers et al.

(2007), a process model is proposed, facilitating the

application of TDD in the BD domain through the

provisioning of a structured approach that supports

developers in implementing their respective BD

endeavors in a test driven manner.

4.1 Motivation

When applying the DSRM, the first activity is to

identify the problem that shall be solved, and to

motivate, why this should be done. In the case at hand,

it was already outlined why big data is of great

significance for today’s society. Further, the

importance of proper quality assurance was outlined,

and it was discussed how the application of TDD

might help in the implementation of the corresponding

systems. However, to our knowledge, an actual

procedure for this has not yet been formalized. While

it is necessary to maintain a certain degree of freedom

to reflect the individual nature of such projects, this

also constitutes both, a barrier for entry, as well as a

potential source for errors and inefficiencies. Since the

proposed concept for the application of microservice-

based TDD in the big data domain (MBTDD-BD)

contains several levels and types of tests, there is a big

number of activities required for its implementation.

Developers that don’t have extensive experience with

TDD in the BD domain might be deterred by the huge

number of different possible orders of those (with

wrong decisions leading to extra work or worse

results), as well as the threat of overlooking important

activities, which would reduce the effectiveness of the

approach. Since TDD is usually more time consuming

than the traditional approach (Staegemann et al.

2021a), this additional effort can only be justified if

the corresponding benefits can actually be reaped.

Therefore, it is necessary to provide developers with a

structured procedure to reduce this uncertainty,

eliminate potential sources of error and, hereby,

facilitate the use of TDD in the BD domain to increase

the overall quality of the developed solutions.

Furthermore, this process should be easy and

unambiguous to follow, which on the one hand refers

to the outlined sequence of steps, but on the other hand

also on the utilized notation.

4.2 Development of the Artifact

Since this work builds upon the MBTDD-BD

proposition (Staegemann et al. 2020), it will also

follow the general structure, which results in the

existence of several levels (system, component,

subcomponent/ microservice, method). Furthermore,

the wording is adopted, increasing the

comprehensibility. Moreover, even though in the

following only tests are explicitly mentioned, as

suggested in the MBTDD-BD, benchmarks can also

be added alongside them to introduce another

dimension of quality assurance. However, the main

focus is on the functional testing.

To start the process, it is at first necessary to know

the requirements for the system that shall be

developed (ISO 2018; Sommerville 2007). However,

in the context of this work, outlining their gathering

would be out of scope. Therefore, the list of

requirements is considered as an available input.

Based on those, concrete features of the system can be

derived. While it is not yet determined how they will

be implemented, this step turns the identified needs

into high level tasks and is therefore a prerequisite for

the actual realization. In the TDD methodology, after

determining what is to be implemented, the

corresponding tests shall be written. Accordingly, the

next step is to define the tests for the system as a

whole. Those might be automated, manual, or a hybrid

approach and are supposed to show if it provides the

desired functionality. Implementing the system tests at

such an early stage on the one hand corresponds with

the TDD philosophy, and on the other hand potentially

also brings practical advantages. This step, as the

previous one, immensely benefits from having domain

knowledge and a comprehensive overview of the

product’s business side, respectively the purpose it is

developed for. Therefore, the process should heavily

involve experts or potential users from that domain.

Meanwhile the further steps are of rather technical

nature and do not need that much comprehensive

knowledge of all usage related aspects of the product.

By creating the system tests early, it is possible to

focus the involvement of the needed knowledge

carriers on the starting phase, which allows them to

focus on their day to day tasks afterwards, while the

technical experts take over from then. (Even though

KMIS 2022 - 14th International Conference on Knowledge Management and Information Systems

112

some involvement of distinct business experts/users

might still be needed for some decisions that might

arise later.) Once the system tests have been created,

the implementation can be progressed. For this

purpose, the previously identified features are

translated into distinct microservices, which

inherently also determines the system’s architecture.

Further, not only the services and their functionality

are defined, but also their interfaces. The result of this

step is an overview of the required microservices as

well as their interconnections. However, the concrete

implementation of the services is not yet designed. In

the following, those microservices, which are also

called subcomponents in the MBTDD-BD, are

grouped to components. A component constitutes a

contentual unit that is deemed belonging together by

the developers, respectively architect. Those could for

example be the loading of data that consists of several

services that are each specialized to provide data from

one specific (type of) source or the preprocessing that

comprises multiple steps that are each realized as a

separate microservice. However, there are no fixed

rules, instead the definition of components is subject

to the individual assessment of the decision makers.

Moreover, depending on the context, components can

also overlap (e.g. a microservice can belong to several

components), or just comprise a single subcomponent,

in case it is rather standalone. Yet, for the sake of

coherence, each microservice has to belong to at least

one component.

Subsequently, to later on assure that not only the

components itself but also the communication

between them works as intended, corresponding tests

have to be created. While all those steps, that happen

on the system level, are only conducted once, the

succeeding activities are performed repeatedly until

the implementation of all components is finished. At

first, is has to be chosen, which component shall be

worked on next. The criteria for this decision can be

individually determined. Possible reasoning could, for

example, be based on factors such as the availability

of certain experts, the perceived importance or

complexity, or contentual relations and

interdependencies. It is also possible that a specific

microservice shall be implemented at this stage (for

example based on above mentioned criteria) and

therefore the corresponding component is chosen at

this stage. After the decision is made, the system level

is left and the work on the component level begins.

If the component has not yet been worked on

before, the next step is to create the tests for the

component, otherwise this can be skipped, since it has

already been done in the past. Then it has to be

determined which microservice will be implemented

next. Further, in succession, there is also a change

from the component level to the subcomponent level.

There, analogous to the previous levels, at first, tests

for the unit (in this case the microservice) as a whole

are written, allowing to later on confirm that the

envisioned capabilities have actually been

successfully realized. When the creation of those tests

is assigned to a team that is different from the one that

is responsible for the implementation, this can also act

as an additional safety net by adding another

perspective on potential issues and edge cases. This

also constitutes a deviation from the proposition

expressed in the original MBTDD-BD paper

(Staegemann et al. 2020), since there, the assurance of

the functionality of the microservice as a whole was

described as only being implemented indirectly,

through the tests within the developed service.

Explicit tests were not intended. However, since the

inclusion of such tests for the entire service allows to

incorporate a view on the slightly bigger picture,

which is not necessarily given on the method level,

their integration reduces the risk of overlooking issues

that are not as apparent when only operating on the

method level.

The creation of the tests for the microservice as a

whole is followed by the test driven implementation

of that service, as it is described in the related

background section. Therefore, at first, the tests for a

function are written, then the functionality is

implemented and finally the code is refactored to

increase its quality and readability. This procedure is

repeated until the entire service is completed. While

the described process as a whole takes place on the

subcomponent level, the implementation of the

particular functions corresponds to the method level.

Once the implementation is finished, the

aforementioned tests for the entirety of the

subcomponent are run. In case that they do not pass

completely, the service goes back to the previous

implementation stage, where it is worked on until the

issue is deemed resolved. Once the subcomponent

tests pass, the subcomponent level is left, the process

again enters the component level and the microservice

can be integrated into the current iteration of the

component.

However, this is not the final step concerning the

regarded service. It is possible that a microservice in

itself is not erroneous and, therefore, the testing is

positive, but there are issues with the interplay with

other services. An example (even though it is not big

data related) that made the news was the NASA

climate orbiter crash from 1999, where one involved

partner used English units and the other metric ones,

leading to a failed mission, despite both parts in itself

A Process Model for Test Driven Development in the Big Data Domain

113

being functional (NASA 2019). To avoid a similar

situation, the integration of the subcomponent needs

to be followed by a run of the component tests as well

as the relevant tests for the communication. Only if

those also pass, the microservice can be deemed

finished. Otherwise, the developers have to go back to

the development stage. However, in case of success,

the component level is left and the system level is

entered again. Now, the further procedure depends on

the current status of the system’s implementation. If

there are still components that are not entirely

finished, it has to again be decided, which component

should be worked on next. From there, the process

continues as already outlined above.

In case every component, and therefore every part

of the envisioned system, has been implemented and

individually tested with success, a final test run that

comprises all tests (including those for the system as a

whole) allows to check for a last time, if everything is

working as intended. Should there be any problems,

those have to be thoroughly analyzed. Once the source

of error is identified, the developers shall fix the

underlying issues, using the comprehensive test

collection to assure that no new errors are introduced.

However, if this last instance of quality assurance is

also passed without the occurrence of any problems,

the development process is finished and the system

can be used productively.

The complete process model is displayed in

Figure 2. To give an easy to follow overview of the

proposed process model, its graphical depiction is

heavily leaning onto the BPMN notation. However,

this also introduces some constraints. The levels of

the process are depicted as separate BPMN pools.

Figure 2: Process Model for Test Driven Development in the Big Data Domain.

KMIS 2022 - 14th International Conference on Knowledge Management and Information Systems

114

While this slightly deviates from the idea behind the

concept of pools in BPMN, it increases visual clarity

and was therefore implemented. Since the test driven

implementation of the microservice is depicted as one

step and not further broken down, there are only three

levels shown, with the method level being omitted.

Furthermore, especially in larger projects, it is

likely that several teams work in parallel, whereas the

depicted process presents a linear sequence. This is

also for the sake of visual clarity. However, in reality,

there might be several microservices (also from

different components) be worked on at the same time.

Yet, this does not crucially affect the actual flow,

wherefore it is only mentioned but not graphically

represented. Additionally, the outlined process refers

to projects that are created from scratch. If an

application that was built according to the proposed

procedure shall be modified, the already existing tests

can be utilized. Changes on any other pre-existing

systems are out of scope of the proposed process

model and individual approaches have to be found.

5 DISCUSSION AND FUTURE

WORK

With the steady increase of the number of BD

applications that are being used and their quality

assurance being one of the major challenges

(Staegemann et al. 2019), finding ways to tackle that

issue is highly important. While the MBTDD-BD

approach seems generally promising to increase the

quality as well as the modifiability of the developed

systems, up to now, there was no structured procedure

for its application. The proposed process model is

directed towards bridging this gap. By following the

comprehensive sequence of steps, the necessary

activities can be covered, while also assuring that the

order is actually sensible and corresponds to the spirit

of the TDD methodology.

However, several factors have to be taken into

account. The first aspect is that the requirements for

the system are taken for granted. While this makes

sense for the aspired scope, they are extremely

important for the success of an implementation

project. Therefore, it is mandatory to find a suitable

approach for their collection. This also means that the

proposed process model cannot be seen as a panacea

but has to be used in conjunction with other suitable

methods. To a lesser degree this also applies to the

test driven implementation of the distinct

microservices not being described in detail. However,

on this level, the development does not crucially

differ from other development contexts, so that a

specific description is not necessary.

Another aspect that is highly important but not

directly covered by the process model is the selection

of tools and technologies. While the modular nature

of the MBTDD-BD allows for a high degree of

flexibility and gives the developers the choice, which

programming languages, frameworks or existing

solutions they want to use, respectively incorporate,

there is no support provided for those decisions. Since

there is a plethora of available options, this task can,

however, also be highly challenging. While there are

already existing works that focus on a general

decision support for the technology selection in BD

projects (Volk et al. 2020a), additional material that

is geared towards this specific situation might be

helpful for prospective developers and, hence, also

help to facilitate the dissemination of TDD in the BD

domain in general.

Additionally, as previously mentioned, the

proposed model slightly simplifies the development

process by presenting it as a sequential flow. While is

reality, several teams might work in parallel on

several services, the increased comprehensibility was

deemed worth it to accept that slight simplification as

a trade-off. When applying the model in a parallel

scenario, it is therefore necessary to account for this

decision and adjust the actual workflow accordingly.

Further, the model only outlines which actions

should be taken in which order, but not by whom.

Even though the specifics of this decision obviously

heavily depend on the structures of the organizations

and teams that are involved, the identification of best

practices and recommendations could still prove to be

valuable support. Therefore, this might be a

worthwhile task for future researchers that has strong

practical implications.

Since the quality of big data applications heavily

depends on the correct architectural choices (Ataei

and Litchfield 2020) and there are numerous patterns

proposed for the implementation of microservices, it

also appears reasonable to regard those two aspects in

context of each other to determine, which

microservice patterns are best suited to deal with

certain challenges of big data development and the

underlying big data characteristics.

6 CONCLUSION

Big data and the corresponding tools, technologies,

and applications have emerged to be one of the

driving

factors of today’s society. Countless

A Process Model for Test Driven Development in the Big Data Domain

115

organizations from numerous domains rely on the

ability to utilize information to an unprecedented

extent to improve their inherent processes and

decision making, and, thereby, inter alia, reduce their

costs, increase their productivity, strengthen their

marketing, support their maintenance, improve their

logistics, or identify new opportunities. However, the

implementation of those systems is a highly

challenging and error-prone task, while at the same

time their quality is crucial for the successful use.

Therefore, their quality assurance is very important.

Yet, this domain is still far from being mature.

Therefore, further work in this field is needed. This

includes the improvement of existing approaches and

strategies as well as the exploration of new ones. One

rather recent proposition was the application of test

driven development to the implementation of big data

systems. However, it was not outlined how the

corresponding process should be designed.

The publication at hand bridges this gap and

provides developers that are interested in the

application of TDD in the BD domain with a process

model that outlines, which activities should be

performed in which order and, therefore, helps in

structuring the implementation process. Thereby, it

helps in disseminating the general approach,

facilitates its effective utilization, promotes a stronger

focus on the topic of quality assurance, and can be

used as a foundation to advance the scientific

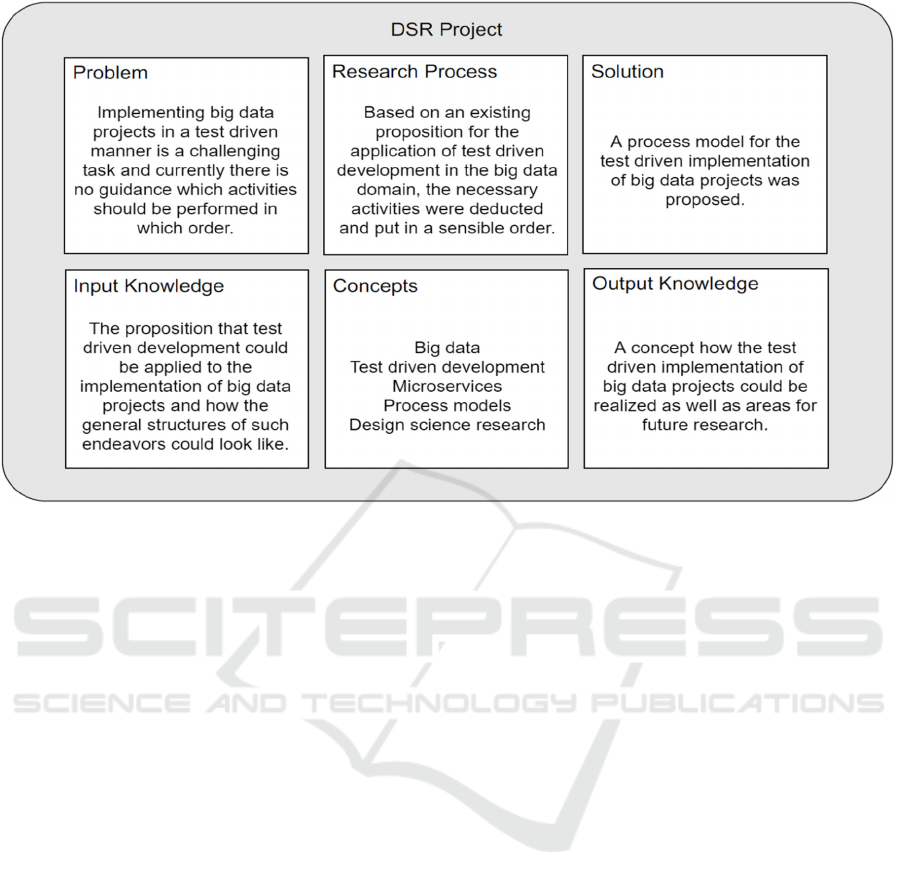

discourse in the domain. An overview of the research

endeavor in its entirety is given in Figure 3, in the form

of the DSR Grid (Vom Brocke and Maedche 2019).

REFERENCES

Abdallah, M., Hammad, A., and Al-Zyadat, W. (2022).

“Towards a Data Collection Quality Model for Big Data

Applications,” in Business Information Systems

Workshops, W. Abramowicz, S. Auer and M. Stróżyna

(eds.), Cham: Springer International Publishing, pp.

103-108 (doi: 10.1007/978-3-031-04216-4_11).

Al-Mekhlal, M., and Khwaja, A. A. (2019). “A Synthesis

of Big Data Definition and Characteristics,” in

Proceedings of the 2019 IEEE International

Conference on Computational Science and Engineering

(CSE) and IEEE International Conference on

Embedded and Ubiquitous Computing (EUC), New

York, NY, USA. 01.08.2019 - 03.08.2019, IEEE, pp.

314-322 (doi: 10.1109/CSE/EUC.2019.00067).

Ataei, P., and Litchfield, A. (2020). “Big Data Reference

Architectures, a systematic literature review,” in

Australasian Conference on Information Systems

(ACIS) 2020, Wellington, New Zealand, AIS.

Bahri, S., Zoghlami, N., Abed, M., and Tavares, J. M. R. S.

(2019). “BIG DATA for Healthcare: A Survey,” IEEE

Access (7), pp. 7397-7408 (doi:

10.1109/ACCESS.2018.2889180).

Beck, K. (2015). Test-Driven Development: By Example,

Boston: Addison-Wesley.

Bronson, K., and Knezevic, I. (2016). “Big Data in food and

agriculture,” Big Data & Society (3:1) (doi:

10.1177/2053951716648174).

Figure 3: The DSR Grid for the Presented Work.

KMIS 2022 - 14th International Conference on Knowledge Management and Information Systems

116

Chang, W. L., and Grady, N. (2019). “NIST Big Data

Interoperability Framework: Volume 1, Definitions,”

Special Publication (NIST SP), Gaithersburg, MD:

National Institute of Standards and Technology.

Crispin, L. (2006). “Driving Software Quality: How Test-

Driven Development Impacts Software Quality,” IEEE

Software (23:6), pp. 70-71 (doi: 10.1109/MS.2006.157).

Davies, K., Keet, C. M., and Lawrynowicz, A. (2019).

“More Effective Ontology Authoring with Test-Driven

Development and the TDDonto2 Tool,” International

Journal on Artificial Intelligence Tools (28:7) (doi:

10.1142/S0218213019500234).

Diebold, F. X. (2012). “On the Origin(s) and Development

of the Term 'Big Data',” SSRN Electronic Journal (doi:

10.2139/ssrn.2152421).

Dobre, C., and Xhafa, F. (2014). “Intelligent services for

Big Data science,” Future Generation Computer

Systems (37), pp. 267-281 (doi:

10.1016/j.future.2013.07.014).

Faitelson, D., Heinrich, R., and Tyszberowicz, S. (2018).

“Functional Decomposition for Software Architecture

Evolution,” in Model-Driven Engineering and Software

Development, L. F. Pires, S. Hammoudi and B. Selic

(eds.), Cham: Springer International Publishing, pp.

377-400 (doi: 10.1007/978-3-319-94764-8_16).

Freymann, A., Maier, F., Schaefer, K., and Böhnel, T.

(2020). “Tackling the Six Fundamental Challenges of

Big Data in Research Projects by Utilizing a Scalable

and Modular Architecture,” in Proceedings of the 5th

International Conference on Internet of Things, Big

Data and Security, Prague, Czech Republic. 07.05.2020

- 09.05.2020, SCITEPRESS - Science and Technology

Publications, pp. 249-256 (doi:

10.5220/0009388602490256).

Fucci, D., Erdogmus, H., Turhan, B., Oivo, M., and Juristo,

N. (2017). “A Dissection of the Test-Driven

Development Process: Does It Really Matter to Test-

First or to Test-Last?” IEEE Transactions on Software

Engineering (43:7), pp. 597-614 (doi:

10.1109/tse.2016.2616877).

Goes, F. R., Meerhoff, L. A., Bueno, M. J. O., Rodrigues,

D. M., Moura, F. A., Brink, M. S., Elferink-Gemser, M.

T., Knobbe, A. J., Cunha, S. A., Torres, R. S., and

Lemmink, K. A. P. M. (2020). “Unlocking the potential

of big data to support tactical performance analysis in

professional soccer: A systematic review,” European

journal of sport science, pp. 1-16 (doi:

10.1080/17461391.2020.1747552).

Günther, W. A., Rezazade Mehrizi, M. H., Huysman, M.,

and Feldberg, F. (2017). “Debating big data: A

literature review on realizing value from big data,” The

Journal of Strategic Information Systems (26:3), pp.

191-209 (doi: 10.1016/j.jsis.2017.07.003).

Häusler, R., Staegemann, D., Volk, M., Bosse, S., Bekel, C.,

and Turowski, K. (2020). “Generating Content-

Compliant Training Data in Big Data Education,” in

Proceedings of the 12th CSEdu, Prague, Czech

Republic. 02.05.2020 - 04.05.2020, SCITEPRESS -

Science and Technology Publications, pp. 104-110

(doi: 10.5220/0009513801040110).

Hevner, A. R., March, S. T., Park, J., and Ram, S. (2004).

“Design science in information systems research,” MIS

quarterly, pp. 75-105.

ISO. (2018). “International Standard ISO / IEC / IEEE

29148 Systems and Software Engineering — Life

Cycle process - Requirements Engineering,”

ISO/IEC/IEEE 29148:2018.

Janzen, D., and Saiedian, H. (2005). “Test-driven

development concepts, taxonomy, and future direction,”

Computer (38:9), pp. 43-50 (doi:

10.1109/MC.2005.314).

Karlesky, M., Williams, G., Bereza, W., and Fletcher, M.

(2007). “Mocking the Embedded World: Test-Driven

Development, Continuous Integration, and Design

Patterns,” in Embedded Systems Conference, San Jose,

California, USA. 01.04.2007 - 05.04.2007, UBM

Electronics.

Keet, C. M., and Ławrynowicz, A. (2016). “Test-Driven

Development of Ontologies,” in The Semantic Web.

Latest Advances and New Domains, H. Sack, E.

Blomqvist, M. d'Aquin, C. Ghidini, S. P. Ponzetto and

C. Lange (eds.), Cham: Springer International

Publishing, pp. 642-657 (doi: 10.1007/978-3-319-

34129-3_39).

Krylovskiy, A., Jahn, M., and Patti, E. (2015). “Designing

a Smart City Internet of Things Platform with

Microservice Architecture,” in Proceedings of the 2015

3rd International Conference on Future Internet of

Things and Cloud (FiCloud 2015), I. Awan (ed.), Rome,

Italy. 24.08.2015 - 26.08.2015, Piscataway, NJ: IEEE,

pp. 25-30 (doi: 10.1109/FiCloud.2015.55).

Kum, W., and Law, A. (2006). “Learning Effective Test

Driven Development - Software Development Projects

in an Energy Company,” in Proceedings of the First

International Conference on Software and Data

Technologies, Setúbal, Portugal. 11.09.2006 -

14.09.2006, SciTePress - Science and and Technology

Publications, pp. 159-164 (doi:

10.5220/0001316101590164).

Levin, I., and Mamlok, D. (2021). “Culture and Society in

the Digital Age,” Information (12:2), p. 68 (doi:

10.3390/info12020068).

Müller, O., Fay, M., and Vom Brocke, J. (2018). “The

Effect of Big Data and Analytics on Firm Performance:

An Econometric Analysis Considering Industry

Characteristics,” Journal of Management Information

Systems (35:2), pp. 488-509 (doi:

10.1080/07421222.2018.1451955).

Nadareishvili, I., Mitra, R., McLarty, M., and Amundsen,

M. (2016). Microservice architecture: Aligning

principles, practices, and culture, Beijing, Boston,

Farnham, Sebastopol, Tokyo: O´Reilly.

Nagorny, K., Lima-Monteiro, P., Barata, J., and Colombo,

A. W. (2017). “Big Data Analysis in Smart

Manufacturing: A Review,” International Journal of

Communications, Network and System Sciences (10:03),

pp. 31-58 (doi: 10.4236/ijcns.2017.103003).

NASA. (2019). “Mars Climate Orbiter,” available at

https://solarsystem.nasa.gov/missions/mars-climate-

orbiter/in-depth/, accessed on Feb 27 2022.

A Process Model for Test Driven Development in the Big Data Domain

117

Peffers, K., Tuunanen, T., Rothenberger, M. A., and

Chatterjee, S. (2007). “A Design Science Research

Methodology for Information Systems Research,”

Journal of Management Information Systems (24:3), pp.

45-77 (doi: 10.2753/MIS0742-1222240302).

Sangwan, R. S., and Laplante, P. A. (2006). “Test-Driven

Development in Large Projects,” IT Professional (8:5),

pp. 25-29 (doi: 10.1109/MITP.2006.122).

Shahin, M., Ali Babar, M., and Zhu, L. (2017). “Continuous

Integration, Delivery and Deployment: A Systematic

Review on Approaches, Tools, Challenges and

Practices,” IEEE Access (5), pp. 3909-3943 (doi:

10.1109/ACCESS.2017.2685629).

Shakir, A., Staegemann, D., Volk, M., Jamous, N., and

Turowski, K. (2021). “Towards a Concept for Building

a Big Data Architecture with Microservices,” in

Proceedings of the 24th International Conference on

Business Information Systems, Hannover,

Germany/virtual. 14.06.2021 - 17.06.2021, pp. 83-94

(doi: 10.52825/bis.v1i.67).

Shull, F., Melnik, G., Turhan, B., Layman, L., Diep, M.,

and Erdogmus, H. (2010). “What Do We Know about

Test-Driven Development?” IEEE Software (27:6), pp.

16-19 (doi: 10.1109/MS.2010.152).

Silva, E. S., Hassani, H., and Madsen, D. Ø. (2019). “Big

Data in fashion: transforming the retail sector,” Journal

of Business Strategy (41:4), pp. 21-27 (doi:

10.1108/JBS-04-2019-0062).

Slaats, T., Debois, S., and Hildebrandt, T. (2018). “Open to

Change: A Theory for Iterative Test-Driven Modelling,”

in Business Process Management, M. Weske, M.

Montali, I. Weber and J. Vom Brocke (eds.), Cham:

Springer International Publishing, pp. 31-47 (doi:

10.1007/978-3-319-98648-7_3).

Sommerville, I. (2007). Software Engineering, eighth

edition, Addison-Wesley.

Staegemann, D., Feuersenger, H., Volk, M., Liedtke, P.,

Arndt, H.-K., and Turowski, K. (2022a). “Investigating

the Incorporation of Big Data in Management

Information Systems,” in Business Information Systems

Workshops, W. Abramowicz, S. Auer and M. Stróżyna

(eds.), Cham: Springer International Publishing, pp.

109-120 (doi: 10.1007/978-3-031-04216-4_12).

Staegemann, D., Volk, M., Jamous, N., and Turowski, K.

(2019). “Understanding Issues in Big Data Applications

- A Multidimensional Endeavor,” in Proceedings of the

Twenty-fifth Americas Conference on Information

Systems, Cancun, Mexico. 15.08.2019 - 17.08.2019.

Staegemann, D., Volk, M., Jamous, N., and Turowski, K.

(2020). “Exploring the Applicability of Test Driven

Development in the Big Data Domain,” in Proceedings

of the ACIS 2020, Wellington, New Zealand.

01.12.2020 - 04.12.2020.

Staegemann, D., Volk, M., Lautenschlager, E., Pohl, M.,

Abdallah, M., and Turowski, K. (2021a). “Applying

Test Driven Development in the Big Data Domain –

Lessons From the Literature,” in 2021 International

Conference on Information Technology (ICIT), Amman,

Jordan. 14.07.2021 - 15.07.2021, IEEE, pp. 511-516

(doi: 10.1109/ICIT52682.2021.9491728).

Staegemann, D., Volk, M., Saxena, A., Pohl, M., Nahhas,

A., Häusler, R., Abdallah, M., Bosse, S., Jamous, N.,

and Turowski, K. (2021b). “Challenges in Data

Acquisition and Management in Big Data

Environments,” in Proceedings of the 6th International

Conference on Internet of Things, Big Data and

Security, Prague,Czech/Online Streaming. 23.04.2021 -

25.04.2021, SCITEPRESS - Science and Technology

Publications, pp. 193-204 (doi:

10.5220/0010429001930204).

Staegemann, D., Volk, M., and Turowski, K. (2021c).

“Quality Assurance in Big Data Engineering - A

Metareview,” Complex Systems Informatics and

Modeling Quarterly (28), pp. 1-14 (doi:

10.7250/csimq.2021-28.01).

Staegemann, D., Volk, M., and Turowski, K. (2022b).

“Adapting the (Big) Data Science Engineering Process

to the Application of Test Driven Development,” in

Proceedings of the 19th International Conference on

Smart Business Technologies, Lisbon, Portugal.

14.07.2022 - 16.07.2022, SCITEPRESS - Science and

Technology Publications, pp. 120-129 (doi:

10.5220/0011289200003280).

Statista. (2021). “Volume of data/information created,

captured, copied, and consumed worldwide from 2010

to 2025,” available at

https://www.statista.com/statistics/ 871513/worldwide-

data-created/, accessed on Feb 13 2022.

Volk, M., Staegemann, D., Bosse, S., Nahhas, A., and

Turowski, K. (2020a). “Towards a Decision Support

System for Big Data Projects,” in WI2020 Zentrale

Tracks, N. Gronau, M. Heine, K. Poustcchi and H.

Krasnova (eds.), GITO Verlag, pp. 357-368 (doi:

10.30844/wi_2020_c11-volk).

Volk, M., Staegemann, D., Pohl, M., and Turowski, K.

(2019). “Challenging Big Data Engineering:

Positioning of Current and Future Development,” in

Proceedings of the 4th International Conference on

Internet of Things, Big Data and Security, Heraklion,

Crete, Greece. 02.05.2019 - 04.05.2019, SCITEPRESS

- Science and Technology Publications, pp. 351-358

(doi: 10.5220/0007748803510358).

Volk, M., Staegemann, D., and Turowski, K. (2020b). “Big

Data,” in Handbuch Digitale Wirtschaft, T. Kollmann

(ed.), Wiesbaden: Springer Fachmedien Wiesbaden, pp.

1-18 (doi: 10.1007/978-3-658-17345-6_71-1).

Vom Brocke, J., and Maedche, A. (2019). “The DSR Grid:

Six Core Dimensions for Effective Capturing of DSR

Projects,” Electronic Markets (July), pp. 1-17.

Williams, L., Maximilien, E. M., and Vouk, M. (2003).

“Test-driven development as a defect-reduction

practice,” in Proceedings of the 14th ISSRE, Denver,

Colorado, USA. 17.11.2003 - 20.11.2003, IEEE, pp.

34-45 (doi: 10.1109/ISSRE.2003.1251029).

Yin, S., and Kaynak, O. (2015). “Big Data for Modern

Industry: Challenges and Trends [Point of View],”

Proceedings of the IEEE (103:2), pp. 143-146 (doi:

10.1109/JPROC.2015.2388958).

KMIS 2022 - 14th International Conference on Knowledge Management and Information Systems

118
