SparseDet: Towards End-to-End 3D Object Detection
Jianhong Han
, Zhaoyi Wan
, Zhe Liu
, Jie Feng
and Bingfeng Zhou
Wangxuan Institute of Computer Technology, Peking University, Beijing, China
University of Rochester, Rochester, U.S.A.
Huazhong University of Science and Technology, Wuhan, China
3D Deep Learning, Object Detection, Point Clouds, Scene and Object Understanding.
In this paper, we propose SparseDet for end-to-end 3D object detection from point cloud. Existing works on
3D object detection rely on dense object candidates over all locations in a 3D or 2D grid following the main-
stream methods for object detection in 2D images. However, this dense paradigm requires expertise in data to
fulfill the gap between label and detection. As a new detection paradigm, SparseDet maintains a fixed set of
learnable proposals to represent latent candidates and directly perform classification and localization for 3D
objects through stacked transformers. It demonstrates that effective 3D object detection can be achieved with
none of post-processing such as redundant removal and non-maximum suppression. With a properly designed
network, SparseDet achieves highly competitive detection accuracy while running with a more efficient speed
of 34.5 FPS. We believe this end-to-end paradigm of SparseDet will inspire new thinking on the sparsity of
3D object detection.
3D Object detection is a technology used to identify
the category and location of an object of interest in a
scene. As one of the fundamental topics in the field of
computer vision, it plays a pivotal role in applications
for a wide range of scenarios, e.g., autonomous driv-
ing and augmented reality. With the advancement of
3D sensors, considerable research attention has been
paid to 3D object detection from point cloud in re-
cent years. Due to its representation power from a
low-resolution resampling of the real 3D world geom-
etry, point cloud scanned from LiDAR depth sensors
achieves remarkable success in this field. Meanwhile,
the sparsity and irregularity of point cloud data pose
great challenges to accurate and robust 3D object de-
For the task of 3D object detection from point
cloud, we aim at representing an object with an ori-
ented 3D bounding box around it given the point
cloud of a scene as input. To this end, researchers
in 3D object detection have proposed various effec-
tive methods. Mainstream 3D object detectors per-
form dense regression from a large set of coarse pro-
posals or anchors in a rigid spatial grid. Despite the
success that this paradigm has achieved, it is limited
in several aspects. (1) The dense prediction requires
Table 1: Directly applying sparse prediction in a 3D
object detection algorithm VoxelNet (Zhou and Tuzel,
2018) suffers from significant degradation of performance.
SparseDet makes the first sparse 3D object detector and
demonstrates effectiveness and efficiency.
Method Easy Mod. Hard mAP
VoxelNet 81.98 65.46 62.85 70.10
sparse VoxelNet 61.17 56.73 56.61 58.17
SparseDet 88.36 78.45 77.03 81.28
and is sensitive to post-processing procedures, e.g.,
non-maximum suppression (NMS), to form the final
detection. (2) Hyper-parameters such as sizes and
aspect ratios of anchors must be carefully tuned for
effective detection. (3) The gap between intermediate
representation and final detection makes empirical la-
bel assignment strategies critical to detectors.
Drawing inspiration from object detection in 2D
images, we explore end-to-end 3D object detection in
a sparse manner in this paper. To fit into the nature
of sparsity in point cloud, we propose to apply sparse
prediction for detection, thus making an end-to-end
paradigm for 3D object detection. Although end-to-
end detection is proven feasible in 2D images (Carion
et al., 2020), an effective design of sparse detector for
3D object in point cloud is non-trivial due to the chal-
Han, J., Wan, Z., Liu, Z., Feng, J. and Zhou, B.
SparseDet: Towards End-to-End 3D Object Detection.
DOI: 10.5220/0010918000003124
In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages
ISBN: 978-989-758-555-5; ISSN: 2184-4321
2022 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
Feature Alignment Sparse HeadVoxelization Map to BEV3D Feature Extraction
Post ProcessingFeature Alignment Dense HeadMap to BEV3D Feature Extraction
Additional Information
Sparse RoI Head
Feature Alignment
Dense Head
Map to BEV
3D Feature Extraction
Post Processing
Post Processing
Figure 1: Comparison with mainstream 3D object detection paradigms. Distinguishable from conventional dense and dense-
to-sparse approaches, SparseDet performs end-to-end detection without post-processing.
lenges and differences in tasks. As shown in Tab. 1,
intuitively applying sparse prediction in 3D object de-
tection thus suffers from significant degradation of
detection accuracy. For the purpose of an effective
end-to-end 3D object detector, we closely investigate
the characteristics of detection in point cloud and ac-
cordingly design an algorithm that detects 3D objects
through sparse prediction, namely SparseDet.
SparseDet bears several major differences from
previous practices in 3D object detection. Firstly,
it discards the enumeration through the voxel grid
to generate dense proposals. Instead, it keeps the
sparsity by maintaining a set of learnable proposals
that are concentrated on the most possible regions
in the point cloud. Secondly, it produces object de-
tection without intermediate representation based on
label assignment. Thus, requirements of any post-
processing such as NMS are eliminated. Thirdly, it
relies on none of pre-defined anchors but adaptively
learns proposal initialization from a statistics perspec-
tive. We conduct extensive experiments to demon-
strate the effectiveness of the proposed SparseDet.
Specifically, state-of-the-art detection accuracy per-
formance of 81.3% 3D mAP and efficiency perfor-
mance of 34.5 FPS is achieved in KITTI. Moreover,
exhaustive ablation studies are provided to reveal the
insights of our model design. What we prefer more
about the proposed sparse paradigm is it demonstrates
promising robustness, which is crucial to the applica-
ble value for a 3D object detector (see Sec. 4.2 for
Our contribution in this paper can be summarized
as follows:
We are the first to conduct an end-to-end 3D ob-
ject detector in point cloud by applying a sparse
prediction paradigm.
In the context of sparse prediction, we closely in-
vestigate the concepts for model design, including
a proper feature extractor and targeted loss func-
tions, which provide guidance for effective prac-
tice of end-to-end 3D object detection.
Extensive experiments validate the effectiveness
of the proposed method: it is a trade-off between
accuracy and efficiency, and demonstrates superi-
ority in robustness.
According to the manner of generating boxes, the ex-
isting methods for 3D object detection are mainly di-
vided into two categories, including the dense and
dense-to-sparse methods. As shown in Fig. 1.
Dense 3D Object Detection. The early dense 3D
detectors mainly adopted the anchor-based design,
which requires manually setting anchors for each cat-
egory object. A typical representative method is Vox-
elNet (Zhou and Tuzel, 2018), which first extracts
the voxel features by a Voxel Feature Encoding layer.
Then, a region proposal network (RPN) takes the
voxel feature as input and generates the dense 3D
boxes on the detection head. SECOND (Yan et al.,
2018) utilizes a more efficient sparse convolution op-
eration to learn voxel feature representation for im-
proving VoxelNet. Based on SECOND, Pointpil-
lars (Lang et al., 2019) divides the point cloud as
a special voxel called pillars to further improve the
running speed. However, the pillar-based manner
inevitably loses some important context and spatial
information. Towards this goal, TANet (Liu et al.,
2020) proposes a TA module to obtain more robust
and distinguishable features. Recently, anchor-free
3D detector CenterPoint (Yin et al., 2021) regards ob-
jects as points and discards the hand-crafted anchor
boxes. Moreover, all these methods need NMS post-
processing operation through setting a suitable score
threshold to filter out the redundant boxes in infer-
ence. Which is a common disadvantage of the dense
3D detection paradigm.
Dense-to-Sparse 3D Object Detection. F-
PointNet (Qi et al., 2018), Frustum-ConvNet (Wang
and Jia, 2019) and SIFRNet (Zhao et al., 2019) first
generate a set of 2D region proposals on a front
view image with the help of offline strong 2D detec-
tors (Liu et al., 2016; Redmon and Farhadi, 2018).
VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications
Then, each 2D proposal is converted into a 3D view-
ing frustum in point cloud. Finally, PointNets (Qi
et al., 2017a; Qi et al., 2017b) is applied to estimate
the final 3D boxes for each 3D viewing frustum.
However, the manner is limited by the performance
of 2D detectors. Instead of F-PointNet (Qi et al.,
2018), (Shi et al., 2019; Yang et al., 2019b; Shi
et al., 2020; Chen et al., 2019; Huang et al., 2020;
Chen et al., 2017; Ku et al., 2018; Deng et al., 2020)
directly achieve the online dense-to-sparse paradigm.
Specifically, these methods first produce a large
number of boxes via a RPN. Then, to provide the
high-quality boxes for the RCNN stage, the NMS
is also a necessary operation during the process
from the first stage to the second stage. Finally,
the RCNN further estimates the final 3D boxes via
refining the sparse boxes from the RPN stage. These
approaches can usually obtain high performance but
a slower running speed compared with the dense
3D object detectors. In contrast, our SparseDet not
only abandons some tedious manual operation (e.g.
anchors and NMS ), but also can achieve comparable
results with a high running speed.
Sparse 2D Object Detection. Recently, with the
widespread application of transformers in computer
vision, sparse object detection methods have attracted
more and more attention. DETR (Carion et al.,
2020) builds the first fully end-to-end 2D object de-
tector, which not only eliminates the anchor design
and NMS operation but also achieves comparable re-
sults with the existing detectors. Based on DETR, D-
DETR (Zhu et al., 2020) mitigates the slow conver-
gence and high complexity issues of DETR through
the proposed deformable attention module. Sparse
R-CNN (Sun et al., 2020) completely remove to ob-
ject candidates design and achieve better performance
and faster convergence through the learnable proposal
boxes and their corresponding features than DETR
and D-DETR. Motivated by these sparse methods, we
propose SparseDet in this paper, which aims to pro-
vide a strong and simple baseline serving for the 3D
object detection community.
3 SparseDet FOR 3D OBJECT
In this section, we describe the novel SparseDet to
explore the feasibility of a sparse detector from 3D
point cloud. The overall architecture is illustrated in
Fig. 1. The paradigm of SparseDet can be roughly di-
vided into three main components: a voxel-based fea-
ture extractor, a feature alignment module that refines
the extracted features, and a detection head perform-
ing detection in a sparse manner. In the following, we
introduce each of the components of SparseDet and
the loss functions for the objective of training in de-
3.1 Voxel Feature Extraction
Compared with two-stage point-based methods (Shi
et al., 2019; Huang et al., 2020), voxel-based ap-
proaches (Lang et al., 2019; Yan et al., 2018) occupy
a higher efficiency. Therefore, our method focus on
voxel-based methods. Specifically, We first encode
the point cloud into a regular volume grid, namely
voxels, thus effectively compressing the representa-
tion with aggregated features. However, point cloud is
of uneven distribution since it is collected by LiDAR
sensors distant from targets. Therefore, the number of
points to be represented in each voxel varies dramat-
ically. To avoid being overwhelmed by voxels with
overly dense points, we limit the maximum number
of points as T in each voxel. The neutralization is im-
plemented by random sampling inside these voxels.
More formally, given a point cloud in the range of
L × W × H meters and voxel size of D
, D
, D
, the
discrete voxel feature grid with the shape of S
is obtained, where
= d
= d
= d
After voxelization, non-empty voxels are main-
tained and encoded as the mean of point-wise features
of all inside points.Then the voxel features are fed
into a stack of 3D sparse convolution layers (Graham,
2014; Graham, 2015; Graham and van der Maaten,
2017; Graham et al., 2018; Yan et al., 2018) to extract
rich features from the voxel representation.
3.2 Feature Alignment
We avoid directly exploiting the 3D voxel features for
prediction, which bring high computational cost. In-
stead, the features in 3D are collapsed into a fixed
view, e.g., Birds’ Eye View (BEV), to align fea-
tures along the Z-axis. The conventional BEV fea-
ture alignment involves a downsample-and-upsample
schema: a sub-network that reduces the resolution
with stacked 2D convolutions and a multi-scale fea-
ture fusion sub-network.
Therefore, we introduce the Feature Pyramid Net-
work (FPN) (Lin et al., 2017a) and Pyramid Sam-
pling Aggregation (PSA) (Liu et al., 2020) modules as
the basis for our feature alignment. FPN is designed
to solve the problem of scale variance of which ob-
jects emerge in images. Although the scale of akin
SparseDet: Towards End-to-End 3D Object Detection
objects is consistent in point cloud due to the differ-
ences in sensors, point sparsity and reflection strength
decrease for objects far from the sensor. Therefore,
sparse 3D object detection benefits from a pyramid
model structure to capture information from differ-
ent scales. Given the BEV features where the view
is fixed, we obtain features with different solutions.
Specifically, 2x, 4x, and 8x downsampled features in
the top-down order are produced by three 4-layers
convolution modules, whose number of filters is 64,
128, and 256, respectively. The outputs of these
blocks are denoted as B
, B
and B
Then, three feature pyramids of each Bfeature
are achieved through down-sampling and up-
sampling. Specifically, B
obtains its feature
pyramids with itself and 2x and 4x down-sampled
features. B
obtains its feature pyramids with its 2x
up-sampled feature, itself, and its 2x down-sampled
feature. Similarly, B
obtains its feature pyramids
with two up-sampling operations based on itself.
Now, each pyramid will have the same shape features.
Laterally concatenate the same size features of each
pyramid to get cross-layer features. Followed by
a fusion block convolution layer, the new feature
pyramid with multi-level information is fed into a
FPN-like structure inversely. Namely, the down-top
interpolated feature is added to the last hierarchy
lateral feature. Finally, we obtain an informative
feature list, which will be delivered to the sparse
detection head.
3.3 Sparse 3D Detection Head
Recently, the attention mechanism has achieved good
results in object detection in 2D images. DETR (Car-
ion et al., 2020) uses a sparse set of object queries,
to interact with the global image feature. Fea-
tures of each position in the image can obtain in-
formation of other positions, predictions without
any hand-crafted components are realized. Subse-
quently, DETR (Carion et al., 2020) is improved by
Deformable-DETR (Zhu et al., 2020) through reduc-
ing the range of feature search to facilitate the conver-
gence process. Sparse R-CNN (Sun et al., 2020) uses
a small number of boxes with features as the learning
region proposal. Via the self-attention of these pro-
posal features and their interaction with RoI features,
it achieves pleasing object feature learning.
The model design of our sparse detection head is
illustrated in Fig. 2. Inspired by Sparse R-CNN (Sun
et al., 2020), we use a small set of learnable bound-
ing boxes with learnable features as object candidates.
These sparse candidates are used to extract the fea-
ture of Region of Interest (RoI), which avoids hun-
Stage K
Dynamic Heads
Stage K+1
Rotated RoI Features

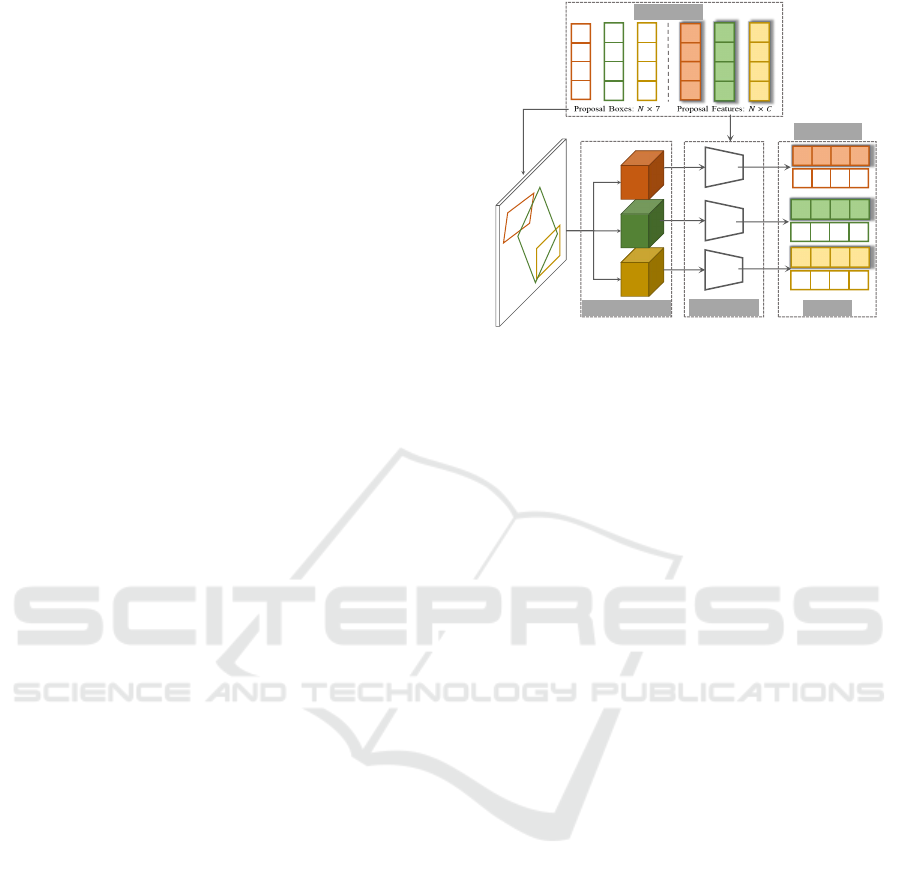

Figure 2: Model design of the sparse detection head, where
K represents the index number of stages. The learnable pro-
posals, identified by 3D boxes and feature vectors, interact
with the stacked dynamic heads to be refined. Note the pro-
posals produced by the last stage of detection head directly
perform as the final detection. Dynamic heads and predic-
tion layers are not shared by proposals.
dreds of thousands of candidates from prior anchors
or RPN. Specifically, we use N (e.g., 100) learnable
bounding boxes. Each box is represented as the 7-
D parameters (c
,h,w,l, θ), including its center
), size (w, l, h), and orientation θ that indi-
cates the heading angle around the up-axis. However,
the 3D bounding box is merely a rough representa-
tion of the object, lacking abundant semantic and ge-
ometric information. Thus the corresponding learn-
able proposal features of each box are proposed. Each
such feature is represented as a slightly higher dimen-
sion latent vector to capture more characteristics of
the object. The proposal boxes are initialized as the
whole point cloud size with no rotation for a larger
search space. The proposal features are randomly ini-
The subsequent learning process will gradually
narrow the scope of these boxes until they match the
corresponding target. This initialization is effective
and reasonable. The parameters of proposal boxes
and proposal features will be optimized together with
other parameters in the whole network. In fact, what
these features eventually learn is the statistical char-
acteristics of the objects that may appear throughout
the data.
Then, given the proposal boxes, we can obtain the
orientated BEV 2D bounding boxes by discarding the
location and scale in the vertical direction. Each BEV
box can extract its corresponding feature from the fea-
ture map by utilizing the Rotated RoIAlign (He et al.,
2017) operation. So far, we have two types of fea-
tures: the proposal features and the RoI features. For
VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications
N proposal boxes, there are N proposal features, and
N × S ×S RoI features, in which S is the pooling reso-
lution. First, a multi-head attention module followed
by a LayerNorm layer is applied to the proposal fea-
tures to reason about the relations between objects.
Then, following Sparse R-CNN, each RoI feature will
interact with the corresponding proposal feature to fil-
ter out ineffective bins through an exclusive Dynamic
Instance Interactive Module. The Dynamic Instance
Interactive Module is mainly used for making the RoI
features and the proposal features communicate with
each other to get more discriminate features. Specifi-
cally, it is achieved by consecutive 1 × 1 convolution
with LayerNorm and ReLU activation function.
The output of the Dynamic Instance Interactive
Module will serve as the final object features, which
are used to compute the classification predictions and
7-D 3D bounding box regression predictions through
two Multi Layer Perception (MLP) with ReLU acti-
vation branches. The regression branch outputs a vec-
tor = (
) R
that represents
the residue from 3D proposal boxes to the ground
truth boxes following predecessors (Zhou and Tuzel,
2018; Yan et al., 2018; Lang et al., 2018; Shi et al.,
2019; Liu et al., 2020) :
= log
= log
= log
= θ
, where d
+ (l
. Then the residue vector
will be decoded to the last prediction box to compose
the new prediction.
The proposed Sparse head is stacked several times
to perform an iterative structure. The object boxes
prediction and object features of the previous stage
are fed into the next stage to serve as the proposal
boxes and proposal features. Each stacked head is su-
pervised to optimize the proposal boxes and features
at different stages.
3.4 Loss Function
Current 3D object detectors usually produce thou-
sands of candidates, which can lead to a large number
of near duplications. So the NMS post-processing is
applied to screen out the fairly good results which ex-
ceed a certain score threshold or IoU threshold. There
is no method to predict the ultimate objects directly
in 3D object detection. While SparseDet is post-
processing-free for it aims to predict the final result
from the beginning.
When calculating loss, there are two stages. One
is the matching stage between the fixed-size set of N
predictions and M ground truth objects, where N is
set to be significantly larger than the typical num-
ber of objects in a point cloud. And the second
stage is the optimization of the matched M predictions
and ground truth pairs. Unlike the predecessors, our
sparse method does not have the concept of anchor,
so all losses are directly compared in the prediction
results and ground truth.
The N M matching aims to filter out M com-
petitive candidates from all the N predictions, we
follow the bipartite matching loss approach (Carion
et al., 2020; Zhu et al., 2020; Sun et al., 2020; Yang
et al., 2019a; Stewart et al., 2016) based on the Hun-
garian algorithm (Kuhn, 1955) to compute the pair-
wise matching cost. Let us denote by y =
ground truth set of objects, and ˆy =
the set of
N predictions. Where N>M. The matching cost is
defined as follows:
C = argmin
iM, jN
( ˆy
) (3)
, in which the pair-wise loss is computed as:
= λ
· L
+ λ
· L
+ λ
· L
, λ
and λ
are coefficients of each component.
is focal loss(Lin et al., 2017b) of predicted clas-
sifications and ground truth category labels.
As for regression loss, we find it is crucial in 3D
sparse detection. It almost determines the perfor-
mance of the detector. For details, please refer to our
ablation in Sec.4.3. While general 3D detectors only
use L1 loss to constrain the regression, we find it does
not work in 3D sparse detection. The reason may be
that sparse proposal is difficult to find the correspond-
ing target merely relying on L1 loss. Thus we adopt
the union of L 1 loss and IoU loss following(Carion
et al., 2020; Zhu et al., 2020; Sun et al., 2020). L
is L1 loss between the normalized predicted box and
ground truth box, which has two parts as following:
= L
reg θ
+ L
reg other
, L
reg other
is the regression loss for 3D center location
and box size. L
reg θ
is the regression loss of θ. We
find that the angle has a great influence on matching
during the research. A proper angle matching method
plays a big role. Here Sine-Error loss is adopted fol-
lowing (Yan et al., 2018) to solve the adversarial ex-
ample problem between orientations of 0 and π.
In terms of IoU loss, it is used to constrain the
overlapping degree between boxes. For 3D oriented
box matching, it is natural to think of 3D rotated
IoU between boxes. But it is difficult to optimize all
SparseDet: Towards End-to-End 3D Object Detection

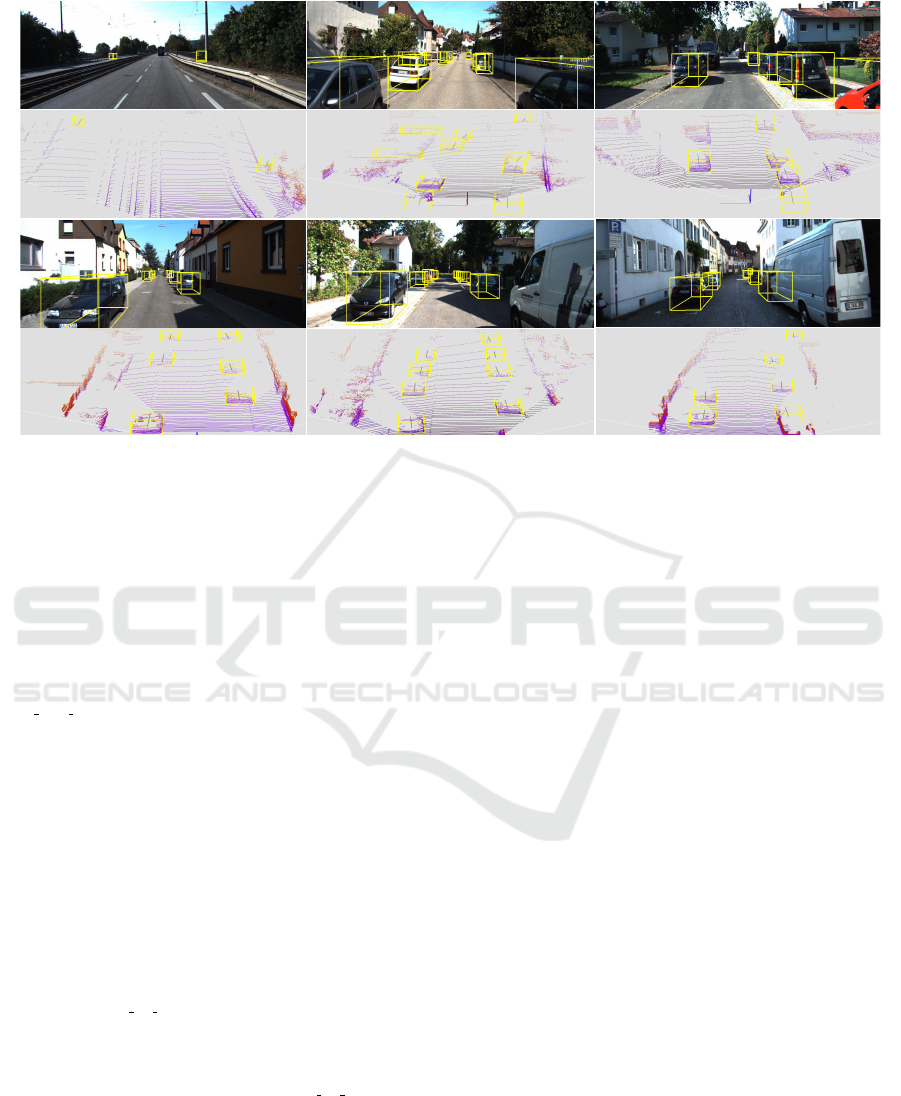

Figure 3: Qualitative results on the KITTI dataset. For each sample, the upper part is the image for just visualization and
the lower part is the point cloud corresponding to the image perspective. The detected objects are shown with yellow 3D
bounding boxes.
dimensions together, which makes the detector con-
fused. So we design a two-stage IoU matching style to
make it easier to learn the relationship between boxes.
At the matching stage, Axis-Aligned (AA) BEV
2D bounding box is used to compute the IoU loss
of prediction and ground truth box, denoted as
. Axis-Aligned means turning the box to
X-axis or Y-axis according to the origin orientation
angle θ. BEV means the position and scale of the
bounding box on the Z-axis (height axis) are not con-
sidered. The purpose of these operations is to reduce
the difficulty of matching orientation and height with
other parameters at the same time, making it easier to
catch the rough shape. More accurate box matching
will be executed at the optimization stage of matched
The training loss is only performed on matched
pairs. Which is almost the same as matching cost,
except the IoU loss adopts Rotated 3D DIoU loss
denoted as L
. The Rotated 3D DIoU
loss (Zheng et al., 2020) encode the orientation and
height information to make the results more precise:
L = λ
· L
+ λ
· L
+ λ
· L
The final loss is the sum of all matched pairs nor-
malized by the number of ground truth objects inside
the batch.
In this section, we conduct extensive experiments to
demonstrate the effectiveness of SparseDet and re-
veal its design concepts. All the experiments are con-
ducted upon the popular KITTI (Geiger et al., 2012)
dataset. KITTI is a 3D object detection dataset for
autonomous driving in the wild with 7481 training
samples. Following F-PointNet (Qi et al., 2018), we
divide the training samples into a training set consist-
ing of 3717 samples and a validation set that contains
3769 samples. We evaluate models on the Car cat-
egory with the official evaluation protocol where the
IoU threshold is set as 0.7. Mean average precision
(mAP) with 11 recall positions under three difficulty
levels (Easy, Moderate and Hard) is reported for a fair
comparison with previous methods.
4.1 Implementation Details
Network Architecture. The raw point cloud range
is clipped into [0,70.4] m, [-40,40] m, and [-3,1] m
for the XYZ axes according to the FOV annotation of
KITTI Dataset. Then we adopt a voxel size of (0.05m,
0.05m, 0.1m) to discrete the whole point cloud into
regular grids. Standard data-augmentation for point
clouds is performed following the mainstream strate-
gies in (Yan et al., 2018; Lang et al., 2018; Shi
et al., 2019; Shi et al., 2020), etc. Specifically, it in-
cludes randomly sampling ground truth objects from
VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications
Table 2: Evaluation comparison with state-of-the-art on KITTI validation set. As a detector in the family of voxel-based
modality, SparseDet achieves clear and consistent improvements over akin methods. Theoretically, point-based methods can
be augmented with the sparse detection paradigm of SparseDet, although we choose voxel-based methods as our baseline in
consideration of inference efficiency. Data of other methods comes from their corresponding paper.
Method Modality
(IoU = 0.7) AP
(IoU = 0.7)
FPS Param. FLOPs
Mod. Hard mAP Mod. Hard mAP
MV3D RGB & LiDAR 62.68 56.56 63.51 78.10 76.67 80.44 2.78 - -
ContFuse RGB & LiDAR 73.25 67.81 75.79 87.34 82.43 88.40 16.67 - -
AVOD-FPN RGB & LiDAR 74.44 68.65 75.83 - - - 10.00 - -
F-PointNet RGB & LiDAR 70.92 63.65 72.78 84.02 76.44 82.87 5.88 - -
VoxelNet Voxel-based 65.46 62.85 70.07 84.81 78.57 84.33 4.35 - -
SECOND Voxel-based 76.48 69.10 77.67 87.07 79.66 85.56 20.00 5.33M 76.70G
TANet Voxel-based 77.85 75.62 80.56 - - - 28.78 - -
PointRCNN Point-based 78.63 77.38 81.63 87.89 85.51 87.87 8.33 4.04M 27.38G
-f Point-based 78.96 78.36 81.93 88.05 85.85 88.04 12.50 59.23M -
-a Point-based 79.47 78.54 82.49 88.61 87.31 88.78 12.50 63.81M -
SparseDet Voxel-based 78.45 77.03 81.28 88.02 86.49 88.11 34.48 25.10M 37.98G
Table 3: Evaluation results on KITTI Car detection under different IoU thresholds. In combination with sparse prediction,
SparseDet demonstrates significant advantages in accurate localization. Data of other methods come from (Zhou et al., 2019).
Metric Method
IoU = 0.7 IoU = 0.75 IoU = 0.8
Easy Mod. Hard Easy Mod. Hard Easy Mod. Hard
PointPillars(Lang et al., 2019) 87.29 76.99 70.84 72.39 62.73 56.40 47.23 40.89 36.31
+3D IoU Loss(Zhou et al., 2019) 87.88 77.92 75.70 76.18 65.83 62.12 57.82 45.03 42.95
+3D GIoU Loss(Zhou et al., 2019) 88.43 78.15 76.34 76.93 66.36 63.68 56.36 44.43 42.72
Ours 88.36 78.45 77.03 77.58 68.02 65.61 63.38 52.56 47.22
PointRCNN(Shi et al., 2019) 88.14 77.58 75.36 73.27 63.54 61.08 44.21 38.88 34.62
+3D IoU Loss(Zhou et al., 2019) 88.83 78.80 78.18 77.42 67.83 66.85 58.22 49.09 45.38
+3D GIoU Loss(Zhou et al., 2019) 88.84 78.85 78.15 77.47 67.98 67.18 59.80 51.25 46.50
Ours 89.62 88.02 86.49 88.62 84.09 78.83 78.41 75.03 70.83
the database to join the current point cloud, randomly
flipping points in a 3D bounding box along the X-
axis, global rotation and scaling, etc. The maximum
number of points T in each voxel is set as 5.
The 3D sparse convolution backbone does one
convolution block of its own resolution and three con-
secutive 2x down-sampling convolutions to obtain an
8x down-sampled feature map with filter numbers of
(16, 32, 48, 64) respectively. After the feature align-
ment process, three convolution block with 4 layers
in each is utilized to obtain a feature list consisting
of its origin, half and quarter resolution of the input
feature. The dimensions of these blocks are (64, 128,
256). Then the feature list is fed into the PSA-FPN
feature extractor, transformed as a new same resolu-
tion feature list with the dimension of (128, 128, 128).
As for the detection head, the proposal boxes number
N is set as 100, and the dimension of the proposal fea-
tures is 128. A single head is stacked 6 times. Layers
of the heads are initialized with Xavier (Glorot and
Bengio, 2010). The pooling resolution S is 7. We set
, λ
, and λ
to 2.0, 5.0, 2.0 respectively follow-
ing (Carion et al., 2020; Sun et al., 2020).
Training Details. The whole framework of
SparseDet is optimized with the Adam optimizer in
an end-to-end manner. All models are trained with
8 GPUs for 320 epochs with batch size 48, which
takes around 6 hours. The learning rate is initialized
as 0.003 and updated by a cosine annealing strategy
for the learning rate decay.
Inference Details. At the inference process, the pro-
posed boxes processed by the stacked heads will be
directly used as the prediction result without any post-
processing. The score of classification results shows
the confidence of the prediction.
SparseDet: Towards End-to-End 3D Object Detection
Table 4: Robustness evaluation using metrics from (Liu
et al., 2020). SparseDet degrades slower with the number
of noise points growing.
Method +noise
(IoU = 0.7)
Mod. Hard mAP
PointRCNN 0 77.73 76.67 80.89
PointPillars 0 77.01 74.77 79.76
TANet 0 77.85 75.62 80.56
SECOND 0 78.43 77.13 81.43
0 78.45 77.03 81.28
PointRCNN 20 76.95 74.73 79.97
PointPillars 20 76.74 74.54 79.50
TANet 20 77.68 75.31 80.39
SECOND 20 78.19 76.81 81.17
SparseDet 20 78.52 76.93 81.33
PointRCNN 100 75.98 69.34 77.63
PointPillars 100 76.06 68.91 77.20
TANet 100 76.64 73.86 79.34
SECOND 100 77.27 73.35 79.7
SparseDet 100 77.69 74.44 80.12
4.2 Comparison with SOTA
Evaluation of 3D Object Detection on KITTI. We
compare our SparseDet with several state-of-the-art
methods on the 3D detection benchmark and the
bird’s eye view detection benchmark in Tab. 2. We
achieved 81.28% and 88.11% average precision in the
two tasks respectively with the real-time processing
frame rate (34.5 FPS).
In terms of accuracy, SparseDet outperforms pre-
vious multi-sensor methods with large margins by
only using LiDAR point clouds for the 3D detection
benchmark. For both two benchmarks, SparseDet
outperforms previous voxel-based methods, whose
backbone is more similar to ours. At the same time, it
is almost on par with the point-based methods. Which
directly take raw point clouds as their operation in-
puts instead of converting a point cloud into a regular
discrete representation. So the point-based methods
are generally more accurate than voxel-based meth-
ods due to their fine-grained processing unit.
In terms of efficiency, our method is almost the
fastest due to its sparse and end-to-end nature. It
has an acceptable number of parameters and signifi-
cantly fewer FLOPs. PointRCNN (Shi et al., 2019)
seems better in parameters and FLOPs, but the run-
ning time is relatively long due to their hard work of
point-wise operations. By comparison, our SparseDet
makes the best balance between effectiveness and ef-
ficiency among all the methods.
Table 5: Ablation studies on feature alignment. To coop-
erate with the sparse detection, the feature aligner is re-
Backbone Easy Mod. Hard mAP
Baseline 83.38 74.82 73.48 77.23
+PSA 84.29 75.80 73.93 78.01
+FPN 84.65 76.62 75.38 78.88
Ours 88.36 78.45 77.03 81.28
Table 6: Impact of terms on our loss function. The integra-
tion of both L1 and IoU loss into our formulation is crucial
for the effectiveness of SparseDet. The details are given in
Sec. 4.3
Class IoU `
Easy Mod. Hard mAP
X X × 0.00 0.00 0.00 0.00
X × X 11.63 13.50 14.25 13.13
X X X 88.36 78.45 77.03 81.28
Solidness. The performance of a detector will be
greatly affected by the hyper-parameters under a sin-
gle matching IoU threshold (Tychsen-Smith and Pe-
tersson, 2018). So we utilize three different match-
ing thresholds 0.70, 0.75, 0.80 for evaluation follow-
ing (Zhou et al., 2019). We compare the evaluation
results with PointPillars (Lang et al., 2018) family on
the 3D benchmark, and with PointRCNN (Shi et al.,
2019) family on the BEV benchmark in Tab. 3. The
results show that our method outperforms predeces-
sors when the IoU threshold is high, especially in the
BEV benchmark. It is proved that our method with-
out any hand-crafted prior is solid. At the same time,
BEV results are better than 3D results, which shows
that the Z-axis dimension in 3D detection is difficult
to match.
Robustness. This method is more robust to noisy
input data because its accuracy has less relevance
to the input data variation due to its sparse prop-
erty. Following TANet (Liu et al., 2020), we in-
troduce noise points to each object to verify robust-
ness. As shown in Tab. 4, we add three different
numbers of noise points to the objects. The data
of PointRCNN (Shi et al., 2019), PointPillars (Lang
et al., 2018), and TANet (Liu et al., 2020) comes from
TANet (Liu et al., 2020) paper. While the data of
SECOND (Yan et al., 2018) is reproduced by us using
OpenPCDet (OpenPCDet, 2020).
After the noise points are added, the accuracy of
every method will decrease inevitably. Leaving aside
the specific accuracy number, we only observe the de-
clining trend of accuracy. In terms of hard category
and overall mAP, SECOND (Yan et al., 2018) is better
than SparseDet at the beginning, but with the increase
VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications
Stage 1 Final Res ults
Stage 1
Final Res ults

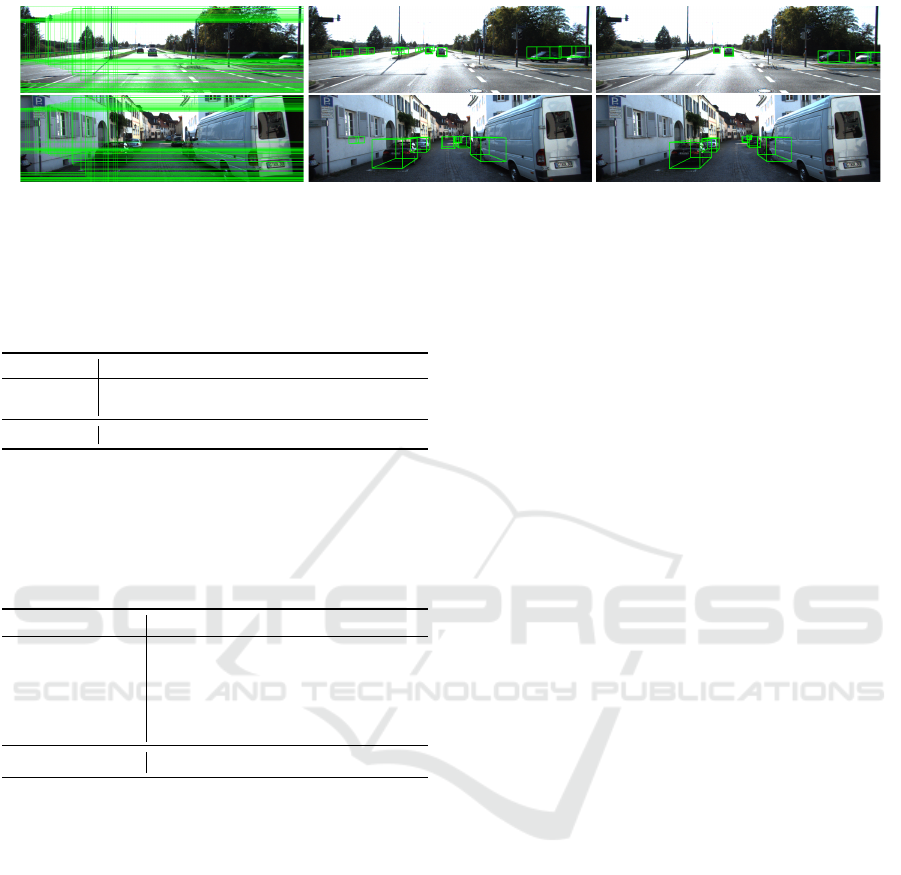

Figure 4: The proposal boxes behavior visualization. At first, the learned proposals are randomly distributed in the point cloud
space. Then they match to GTs gradually with the stacked heads structure. The effectiveness of sparse detection is proved.
Table 7: Ablations on angle regression loss. Since the
sparse detection is performed without guidance from an-
chors nor voxel correspondence, a proper loss is demanded
to effectively supervise the angle regression.
Easy Mod. Hard mAP
L1 81.69 72.86 72.92 75.82 5.46
L1(sin, cos) 83.41 74.49 71.57 76.49 4.79
Sin Error 88.36 78.46 77.03 81.28 -
Table 8: Ablations on 3D box matching constraints for the
training of sparse prediction. Cost stands for the matching
cost, and Loss stands for the training loss of matched pairs.
θ means discarding the angle constraint and h means
discarding the height constraint. See Sec. 3.4 and 4.3 for
Cost Loss Mod. Hard mAP
3D 3D 0 0 0 81.29
(-h) (-h) 59.15 58.03 60.55 20.74
(-θ) (-θ) 76.91 75.55 79.24 2.05
(-θ,-h) (-θ,-h) 77.24 75.55 79.64 1.65
(-θ,-h) (-θ) 75.12 74.77 76.77 4.51
(-θ,-h) 3D 78.48 77.03 81.29 -
of noise points, its accuracy is gradually surpassed
by SparseDet. The results show that the average de-
cline rates of mAP of the methods under discussion
are 1.36%, 1.08%, 0.51%, 0.71%, and 0.48% respec-
tively. The decline speed of our SparseDet is signif-
icantly lower than other methods. TANet (Liu et al.,
2020), which is specially designed to solve the prob-
lem of robustness, has a close descending speed as
ours because they add the point-wise, channel-wise,
and voxel-wise attention mechanism in the voxel fea-
ture extraction. So that the information of the input
point cloud can be more fully extracted. However, we
do not perform such complex interactions, and the re-
sult is still better than TANet (Liu et al., 2020), which
proves the pretty robustness of our method.
4.3 Ablation Studies
Feature alignment fashion and loss design for the
sparse detection head are the keys of SparseDet. In
this section, we explore how the key component in-
fluence the final performance with extensive ablation
experiments. All the ablation experiments are per-
formed on the car class of the KITTI 3D benchmark.
Importance of PSA-FPN Module. The widely used
feature aligner in predecessors is a simple module in a
conv-deconv way (Yan et al., 2018; Lang et al., 2018),
which is reproduced as a baseline. We remove the
two parts of our novel feature aligner one by one as a
comparative experiment to verify the effectiveness of
the overall design. The baseline achieves a 3D mAP
of 77.23%. With only PSA and only FPN structure,
the performance is boosted to 78.01% and 78.88%,
respectively. While the joint mechanism yields a 3D
mAP of 81.28%, outperforming the baseline model
by 5.24% and improving the accuracy of each cate-
gory steadily. It is obvious that our feature aligner is
more effective and robust. The detailed results of each
difficulty category are shown in Tab. 5.
Loss Ablations. There are three components of the
overall loss: classification loss, `
bounding box dis-
tance loss, and IoU loss. We have executed extensive
ablation experiments to study the importance of each
component. First, we turn each component on and off
to evaluate the overall effect of each part. Then we
look into the specific part to study the effectiveness
by conducting different alternatives. Specifically, the
choice of θ loss and IoU loss of the matching cost and
the loss are deliberated respectively.
On the overall effect study of each loss compo-
nent, a model without the IoU loss and a model with-
out the L1 distance loss are trained respectively to
compare with the complete form. The corresponding
results are presented in Tab. 6. The model without L1
loss can not converge at all, leading to a complete fail-
ure on this task. While the model without IoU loss is
a little better with 13.13% mAP, but is still a failure.
The surprisingly poor results of the two incomplete
models show that each component is indispensable
SparseDet: Towards End-to-End 3D Object Detection
for 3D detection. And the L1 loss is at a more dom-
inant position. These results are quite different from
the situation of 2D images. Whose L1 loss and IoU
loss are a complement of each other, which would not
lead to the failure of the task, but only a slight de-
cline (Carion et al., 2020). This phenomenon reveals
that the 3D detection task has more challenges than
2D. Moreover, previous 3D detectors almost have no
IoU loss also show satisfying detection results. This
phenomenon reveals that sparse 3D detection is more
difficult than dense fashion.
Then, we study the details of L1 loss and IoU loss
respectively. In terms of L1 loss, there are two parts
including (x, y, z,w, l,h) and θ of the regression results
as Equ.5. We calculate L1 distance directly with the
first part because it is trivial without particularity. But
as for the second part θ, it has a great influence on
the detection effect for its periodicity. As shown in
Tab. 7, the most direct way is to subtract the angle
directly, it shows degradation of 6.72% of our final
Sin-Error choice. Another alternative to solve the pe-
riodicity is to convert the angle into a vector encoded
by (sin, cos) pair (Ku et al., 2018). But in this way,
two angles corresponding to the same box may gener-
ate a large loss for that each radian has a unique code,
e.g. the 0 and π radians. A 5.89% degradation ap-
peared using this loss. While the Sin-Error only uses
the sin value of the angle difference, fixing the adver-
sarial problem, which is more reasonable to constrain
the angle regression.
In terms of IoU loss, there are two stages of the
matching cost and the matched loss. As stated in
Set.3.4, the direct use of rotated 3D IoU cost and loss
would not work at all. While our coarse-to-fine way
consists of 2D IoU loss without angle and 3D IoU
loss with angle exploiting a pretty good solution. To
illustrate the effectiveness of this design, we show the
comparison results by using different constraints in
Tab. 8. By alternatively discarding θ, height, or the
combination of them, we validate the success of our
design. The results inspire us that we should relax
the restrictions on some dimensions to achieve better
results sometimes.
4.4 Visualization
Qualitative Results. Some qualitative results of
our proposed SparseDet are shown in Fig.3. Our
SparseDet only takes the point cloud as input and
the image is just for better visualization. The score
threshold is set as 0.2 when drawing the prediction
boxes. We can find that the detector is fairly smart
to discriminate the similar classes of Truck and Van
from the predicted target Car class.
The Proposal Boxes Behavior. Fig.4 shows the be-
havior of learned proposal boxes. We project the 3D
boxes onto the image for convenient visualization.
In the beginning, the proposals are rather big boxes,
including almost the whole point cloud in different
orientations. After continuous optimization of the
stacked heads, precise results are obtained. It demon-
strates that acceptable results can be produced even
at the first head, which shows the effectiveness of the
sparse detection. Subsequent heads are used to refine
the predictions gradually to generate the final results.
In this paper, we present an end-to-end paradigm for
3D object detection in point cloud based on sparse
prediction, namely SparseDet. It maintains and itera-
tively refines a sparse set of proposals to directly pro-
duce final object detection without redundant removal
and non-maximum suppression. To collaborate with
the sparse prediction, we closely investigate key com-
ponents for effective 3D object detection and properly
design the network. The proposed method achieves
competitive results in the KITTI dataset, with signif-
icant and consistent improvement over the baseline.
Moreover, the presented SparseDet is more robust to
noisy data in point cloud.
SparseDet demonstrates the potential of end-to-
end 3D object detection with sparse prediction. We
hope it will inspire more exploration into the sparsity
of 3D object detection and open up a new opportunity
in this field. As one of the exploration directions, we
will next try to combine the sparse detection paradigm
with the point-based backbone to further improve the
accuracy of the prediction results.
This work was supported by National Key Research
and Development Program of China [grant num-
ber 2018YFB1403901] and National Natural Sci-
ence Foundation of China (NSFC) [grant number
Carion, N., Massa, F., Synnaeve, G., Usunier, N., Kirillov,
A., and Zagoruyko, S. (2020). End-to-end object de-
tection with transformers. In ECCV, pages 213–229.
VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications
Chen, X., Ma, H., Wan, J., Li, B., and Xia, T. (2017). Multi-
view 3d object detection network for autonomous
driving. In CVPR, pages 1907–1915.
Chen, Y., Liu, S., Shen, X., and Jia, J. (2019). Fast point
r-cnn. In ICCV, pages 9775–9784.
Deng, J., Shi, S., Li, P., Zhou, W., Zhang, Y., and
Li, H. (2020). Voxel r-cnn: Towards high perfor-
mance voxel-based 3d object detection. arXiv preprint
Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready
for autonomous driving? the kitti vision benchmark
suite. In CVPR, pages 3354–3361. IEEE.
Glorot, X. and Bengio, Y. (2010). Understanding the diffi-
culty of training deep feedforward neural networks. In
AISTATS, pages 249–256. JMLR Workshop and Con-
ference Proceedings.
Graham, B. (2014). Spatially-sparse convolutional neural
networks. arXiv preprint arXiv:1409.6070.
Graham, B. (2015). Sparse 3d convolutional neural net-
works. arXiv preprint arXiv:1505.02890.
Graham, B., Engelcke, M., and Van Der Maaten, L. (2018).
3d semantic segmentation with submanifold sparse
convolutional networks. In CVPR, pages 9224–9232.
Graham, B. and van der Maaten, L. (2017). Submani-
fold sparse convolutional networks. arXiv preprint
He, K., Gkioxari, G., Doll
ar, P., and Girshick, R. (2017).
Mask r-cnn. In ICCV, pages 2961–2969.
Huang, T., Liu, Z., Chen, X., and Bai, X. (2020). Epnet:
Enhancing point features with image semantics for 3d
object detection. In ECCV, pages 35–52. Springer.
Ku, J., Mozifian, M., Lee, J., Harakeh, A., and Waslander,
S. L. (2018). Joint 3d proposal generation and object
detection from view aggregation. In IROS, pages 1–8.
Kuhn, H. W. (1955). The hungarian method for the as-
signment problem. Naval research logistics quarterly,
Lang, A. H., Vora, S., Caesar, H., Zhou, L., Yang, J., and
Beijbom, O. (2018). Pointpillars: Fast encoders for
object detection from point clouds. arXiv preprint
Lang, A. H., Vora, S., Caesar, H., Zhou, L., Yang, J., and
Beijbom, O. (2019). Pointpillars: Fast encoders for
object detection from point clouds. In CVPR, pages
Lin, T.-Y., Doll
ar, P., Girshick, R., He, K., Hariharan, B.,
and Belongie, S. (2017a). Feature pyramid networks
for object detection. In CVPR, pages 2117–2125.
Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Doll
ar, P.
(2017b). Focal loss for dense object detection. In
ICCV, pages 2980–2988.
Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,
Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot
multibox detector. In ECCV, pages 21–37. Springer.
Liu, Z., Zhao, X., Huang, T., Hu, R., Zhou, Y., and Bai, X.
(2020). Tanet: Robust 3d object detection from point
clouds with triple attention. In AAAI, pages 11677–
OpenPCDet (2020). Openpcdet: An open-source tool-
box for 3d object detection from point clouds. https:
Qi, C. R., Liu, W., Wu, C., Su, H., and Guibas, L. J. (2018).
Frustum pointnets for 3d object detection from rgb-d
data. In CVPR, pages 918–927.
Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2017a). Point-
net: Deep learning on point sets for 3d classification
and segmentation. In CVPR, pages 652–660.
Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017b). Point-
net++: Deep hierarchical feature learning on point sets
in a metric space. In NeurIPS, pages 5099–5108.
Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental
improvement. arXiv preprint arXiv:1804.02767.
Shi, S., Wang, X., and Li, H. (2019). Pointrcnn: 3d object
proposal generation and detection from point cloud.
In CVRR, pages 770–779.
Shi, S., Wang, Z., Shi, J., Wang, X., and Li, H. (2020).
From points to parts: 3d object detection from point
cloud with part-aware and part-aggregation network.
Stewart, R., Andriluka, M., and Ng, A. Y. (2016). End-
to-end people detection in crowded scenes. In CVPR,
pages 2325–2333.
Sun, P., Zhang, R., Jiang, Y., Kong, T., Xu, C., Zhan,
W., Tomizuka, M., Li, L., Yuan, Z., Wang, C., and
Luo, P. (2020). SparseR-CNN: End-to-end object
detection with learnable proposals. arXiv preprint
Tychsen-Smith, L. and Petersson, L. (2018). Improving
object localization with fitness nms and bounded iou
loss. In CVPR.
Wang, Z. and Jia, K. (2019). Frustum convnet: Sliding frus-
tums to aggregate local point-wise features for amodal
3d object detection. arXiv preprint arXiv:1903.01864.
Yan, Y., Mao, Y., and Li, B. (2018). Second:
Sparsely embedded convolutional detection. Sensors,
Yang, B., Wang, J., Clark, R., Hu, Q., Wang, S., Markham,
A., and Trigoni, N. (2019a). Learning object bounding
boxes for 3d instance segmentation on point clouds.
arXiv preprint arXiv:1906.01140.
Yang, Z., Sun, Y., Liu, S., Shen, X., and Jia, J. (2019b). Std:
Sparse-to-dense 3d object detector for point cloud. In
ICCV, pages 1951–1960.
Yin, T., Zhou, X., and Kr
uhl, P. (2021). Center-based
3d object detection and tracking.
Zhao, X., Liu, Z., Hu, R., and Huang, K. (2019). 3d object
detection using scale invariant and feature reweighting
networks. In AAAI, volume 33, pages 9267–9274.
Zheng, Z., Wang, P., Liu, W., Li, J., Ye, R., and Ren, D.
(2020). Distance-iou loss: Faster and better learning
for bounding box regression. In AAAI, volume 34,
pages 12993–13000.
Zhou, D., Fang, J., Song, X., Guan, C., and Yang, R. (2019).
Iou loss for 2d/3d object detection. In 3DV.
Zhou, Y. and Tuzel, O. (2018). Voxelnet: End-to-end learn-
ing for point cloud based 3d object detection. In
CVPR, pages 4490–4499.
SparseDet: Towards End-to-End 3D Object Detection
Zhu, X., Su, W., Lu, L., Li, B., Wang, X., and Dai, J.
(2020). Deformable detr: Deformable transform-
ers for end-to-end object detection. arXiv preprint
VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications
