Adversarial Evasion Attacks to Deep Neural Networks in ECR Models

Shota Nemoto

, Subhash Rajapaksha

and Despoina Perouli

Case Western Reserve University, 10900 Euclid Avenue, Cleveland, Ohio, U.S.A.

Marquette University, 1250 West Wisconsin Avenue, Milwaukee, Wisconsin, U.S.A.

Keywords:

Neural Networks, Adversarial Examples, Evasion Attacks, Security, Electrocardiogram, ECR.

Abstract:

Evasion attacks produce adversarial examples by adding human imperceptible perturbations and causing a

machine learning model to label the input incorrectly. These black box attacks do not require knowledge of

the internal workings of the model or access to inputs. Although such adversarial attacks have been shown to

be successful in image classiﬁcation problems, they have not been adequately explored in health care models.

In this paper, we produce adversarial examples based on successful algorithms in the literature and attack a

deep neural network that classiﬁes heart rhythms in electrocardiograms (ECGs). Several batches of adversarial

examples were produced, with each batch having a different limit on the number of queries. The adversarial

ECGs with the median distance to their original counterparts were found to have slight but noticeable per-

turbations when compared side-by-side with the original. However, the adversarial ECGs with the minimum

distance in the batches were practically indistinguishable from the originals.

1 INTRODUCTION

Machine learning and neural networks in particu-

lar are capable of approximating complex functions,

which allows them to accomplish traditionally difﬁ-

cult tasks in ﬁelds such as natural language process-

ing and computer vision. Additional advances such

as the rectiﬁed linear activation function and residual

networks allow much deeper and more complex net-

works to be trained by helping to avoid the problem

of vanishing gradients and slow training processes.

In healthcare, neural networks could be used to di-

agnose diseases in patients bringing more automation

in checkups. Ideally, they can help save time while re-

ducing monetary costs related to the number of med-

ical personnel required to examine test results.

Before widespread use of machine learning tech-

niques in healthcare, security concerns must be ad-

dressed as a number of sophisticated attacks on neural

networks are being produced. For example, dataset

poisoning refers to attacks where an adversary tam-

pers with the training dataset in order to compromise

the ﬁnal model’s performance or even add a “back-

door” into a network (Yao et al., 2019). The back-

door is a trigger that forces the network to always

make a certain decision when it is present. How-

ever, these attacks require the adversary to have ac-

cess to the training data of the model. In terms of pri-

vacy, certain attacks can attempt to obtain data from

the training set using the model’s output predictions,

or infer a particular property about the entire train-

ing set. These attacks are known as model inversion

attacks (Yang et al., 2019). Finally, more practical

attacks can take a correctly classiﬁed input and add

human imperceptible perturbations that alter the la-

bel the model ends up applying to the input. These

attacks are known as evasion attacks and the inputs

with imperceptible perturbations added are known as

adversarial examples.

The practicality of evasion attacks comes from re-

cent studies on adversarial examples which demon-

strate that it is possible to perform a black-box attack

on neural networks. This means that no tampering

needs to be done to the training data, and no informa-

tion about the training data is necessary at all. The ad-

versary also does not need to know the internals of the

model’s architecture, such as how many layers there

are, if there are pooling convolutional layers, if there

are residual blocks, etc. Black-box attacks only re-

quire the ﬁnal output scores of the model or the ﬁnal

decision that was made.

In this paper, we examine whether a black-box

evasion attack could successfully create an adversar-

ial example to a neural network intended for use in

healthcare. The evasion attack algorithm is Hop-

SkipJumpAttack (Chen et al., 2020) and the chosen

Nemoto, S., Rajapaksha, S. and Perouli, D.

Adversarial Evasion Attacks to Deep Neural Networks in ECR Models.

DOI: 10.5220/0010848700003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 5: HEALTHINF, pages 135-141

ISBN: 978-989-758-552-4; ISSN: 2184-4305

135

network to be attacked is a deep neural network de-

signed to classify heart rhythms using electrocardio-

grams (Hannun et al., 2019).

2 RELATED WORK

Adversarial examples, initially introduced in the con-

text of computer vision, are images or other input vec-

tors containing perturbations that alter the label as-

signed to them by a target classiﬁer from their true

label. These perturbations do not alter a human’s

original classiﬁcation of the image and are often con-

sidered imperceptible. Introduced in 2014 (Szegedy

et al., 2014), a number of different methods for creat-

ing adversarial examples have arisen in recent years.

The original attack used the L-BFGS optimization

method to minimize a cost function. This cost func-

tion represents the distance of the adversarial example

to the original input vector and if its outputted label

differs from the true label. The L-BFGS optimization

method requires the ability to calculate the gradient

of the cost function, or how much the cost function

changes with respect to each element of the input vec-

tor. An advantage of the L-BFGS method is that it

does not require calculations of the second derivative,

or the Hessian matrix, of the cost function. Methods

like this are known as quasi-Newton methods and can

save a large number of calculations.

A second, faster attack known as the Fast Gra-

dient Sign Method was introduced the following

year (Goodfellow et al., 2015). It only used the sign

from the gradient and a chosen step size to update

the adversarial image. These ﬁrst adversarial exam-

ples are known as white-box attacks and require full

knowledge of the internal workings of the network.

The practicality of these attacks is limited since they

require knowledge of the derivative of the cost func-

tion with respect to each input and thus full knowl-

edge of the network architecture.

The core issue that research on black-box attacks

addresses is the estimation of a network’s gradient

from only the input and output vectors. One of the

ﬁrst black-box attacks (Papernot et al., 2017), where

the adversary has no knowledge of the internals of the

network, creates a substitute network using a training

set of images labelled by the target network. Then,

white-box adversarial attacks are used to generate ad-

versarial examples on the substitute network. These

examples have been found to be capable of fooling

the target network, thus proving the viability of trans-

fer attacks.

Another black-box adversarial attack relies on the

scores or probabilities the model assigns to the input

image. The attack (Narodytska and Kasiviswanathan,

2017) uses the scores to numerically approximate the

gradient of the network, then ﬁnds a subset of pixels

to perturb in order to place the adversarial example in

one of the network’s “blind spots”. However, this can

also be thought of as a partial knowledge attack, since

the adversary may not always get access to the full list

of probabilities and scores for inputs, but only to the

ﬁnal decision.

A more recent class of attacks are decision-based

adversarial attacks, which rely solely on the ﬁnal out-

put or the highest probability labels predicted by the

classiﬁer. These are the most practical attacks, as

most publicly available classiﬁers will only give users

a single, ﬁnal decision. One decision-based attack

known as Boundary Attack (Brendel et al., 2018)

starts with a large adversarial perturbation. This per-

turbation is then minimized while still remaining ad-

versarial, essentially estimating the location of the

boundary between an adversarial input and a correctly

labelled input, then ﬁnding the closest point on that

boundary to the original image.

Building off of Boundary Attack, Chen et al.

(Chen et al., 2020) introduced an improvement to

boundary attack that uses a new technique to esti-

mate the gradient and requires fewer queries to the

model. This attack was named Boundary Attack++

or HopSkipJumpAttack. A reduction in the number

of queries is important as publicly available models

may have some cost associated with each query, such

as a time or monetary cost. Thus, practical evasion

attacks in the future will likely need to reduce the re-

quired number of queries as much as possible or else

they reduce their probability of success.

Another aspect of these evasion attacks is that they

have all mostly been tested in the computer vision

ﬁeld. Very little research on evasion attacks has at-

tempted to attack models unrelated to image recogni-

tion. One study (Zhao et al., 2019) applied adversarial

examples to object recognition and found that, while

the attack was successful, object detectors posed an

extra challenge. Object detectors had to accomplish

two tasks: predicting the existence of an object as

well as the label of the object. Their inputs were

also typically video feeds instead of image vectors,

so constantly changing backgrounds, distances, view-

ing angles, and illumination added to the difﬁculty of

creating adversarial examples. This seems to imply

that it may not be a given that all neural networks

are vulnerable to evasion attacks. It is possible that

some applications of neural networks may be natu-

rally more robust to adversarial examples. This paper

seeks to investigate whether ECG models are vulner-

able to evasion attacks.

HEALTHINF 2022 - 15th International Conference on Health Informatics

136

3 HOP SKIP JUMP ATTACK

Our goal is to implement an evasion attack algorithm

called HopSkipJumpAttack (Chen et al., 2020) and

apply it to a deep neural network developed to classify

electrocardiograms. We then evaluate the success of

the resulting adversarial examples by measuring their

distances to the original electrocardiograms. In this

section we summarize the HopSkipJumpAttack algo-

rithm (Chen et al., 2020).

HopSkipJumpAttack focuses on being query ef-

ﬁcient, as accessing publicly available models might

have some cost associated with each query. The cost

could be monetary, time, risk of arousing suspicion,

etc. At its core, HopSkipJumpAttack follows the ma-

jor steps listed below and illustrated in Figure 1.

1. An adversarial example is initialized using a sam-

ple image from the target class. The class must be

different from the original, else the solution will

be trivial.

2. The boundary between adversarial images and

correctly classiﬁed images is then estimated using

binary search on a spectrum of blended images of

the original and current adversarial images.

3. The gradient at the boundary is estimated using a

weighted sum of random perturbations.

4. A step size for the current iteration is calculated,

and a perturbation is added to the current adver-

sarial example using the estimated gradient direc-

tion and the step size.

5. The process is repeated using the current adver-

sarial example in the binary search.

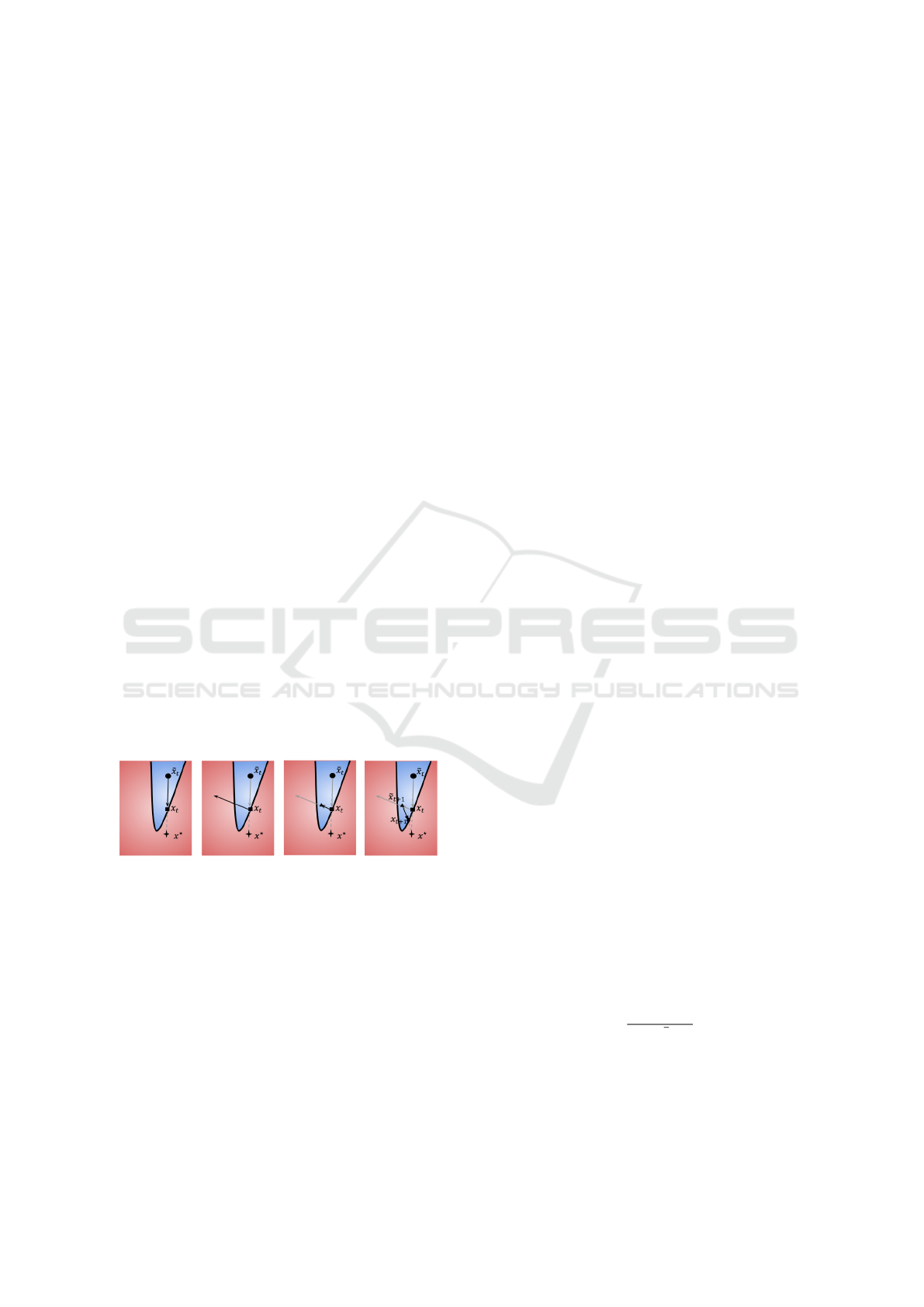

Figure 1: Visualization of Hop Skip Jump Attack in a 2D

space as shown in (Chen et al., 2020). The blue region is

the space where an image is given the adversarial label by

the classiﬁer. The red region is where an image is given

any non-adversarial label. The ﬁrst image shows a bound-

ary search between the current adversarial example and the

original image. The second image shows the gradient esti-

mate at the boundary. The third image shows an appropri-

ate step size being calculated. The fourth image shows the

boundary search for the next iteration.

Throughout HopSkipJumpAttack, an indicator

function is used. This indicator function will take an

input image, then output 1 if the adversary’s desired

outcome is achieved and 0 otherwise. If the attack is

untargeted, the desired outcome is for the image to be

classiﬁed as any class other than the correct one. If

the attack is targeted, the desired outcome is for the

image to be classiﬁed as the target class.

Estimating the boundary uses two images, one that

is classiﬁed as the target class and the original image.

Blending these, a spectrum between the two is cre-

ated, where images have varying proportions of the

adversarial and original image speciﬁed by a param-

eter α ∈ [0, 1]. When using L

distance, the images

on the spectrum can be created using the following

equation:

αx

∗

+ (1 −α)x (1)

The equation can be thought of as projecting a

point x onto a sphere of radius α centered at x

∗

. In

this case, x and x

∗

are input vectors to a neural net-

work.

A region on this spectrum is classiﬁed as the origi-

nal class, and a region on this spectrum is classiﬁed as

the target class. The boundary between these two re-

gions is estimated using binary search. The boundary

image is taken as the current adversarial image.

At the boundary, a batch of random unit vectors

is sampled. These unit vectors are individually added

to the adversarial image creating new adversarial im-

ages. Then, an indicator function is evaluated for each

of these perturbed images. The size of these ran-

dom perturbations is a function of the dimension of

the space and the distance of the current image to the

original. The average of these indicator values is then

saved as the baseline value. A normalizing constant

proportional to the batch size is also calculated. For

each vector, a coefﬁcient is calculated by subtracting

the baseline from their indicator value. This is done

in order to reduce the variance in the estimate. Then,

a weighted sum of the unit vectors is taken, with their

corresponding coefﬁcients as their weighting. Finally,

the normalizing constant is applied.

The step size is designed to become smaller as

more iterations are completed in order to prevent

overshooting the minimum. It is also a function of the

distance of the current adversarial image to the origi-

nal image. However, if the calculated step size yields

a non- adversarial image, the step size is divided by

factors of 2 until it does produce an adversarial im-

age. The function to calculate the step size is shown

below:

||x

−x

∗

√

(2)

where p is the norm order (2 or inﬁnite).

Adversarial Evasion Attacks to Deep Neural Networks in ECR Models

137

4 ELECTROCARDIODIAGRAM

MODEL

Electrocardiodiagrams (ECGs) are recordings of the

electrical signals in a person’s heart. They are used

to detect abnormal heart rhythms, known as arryth-

mias, in patients. Hannun et al (Hannun et al., 2019)

developed a deep neural network (DNN) for classify-

ing 10 different classes of arrythmias, normal sinus

rhythms, and noise from these ECGs. This model

achieved an area under the Receiver Operating Char-

acteristic (ROC) curve of 0.97 for all but one class,

and an area of 0.91 for the last class. The model

makes these classiﬁcations using only the raw ECG

data, and does not use any other patient information.

The model architecture consists of 16 residual blocks

with two convolutional layers per block. The resid-

ual blocks help speed up the training and optimization

process for such a deep network.

To demonstrate the generalizability of their net-

work, Hannun et al. applied their network to the

2017 PhysioNet Computing in Cardiology Challenge

dataset, which required classiﬁcation of ECGs into

four different classes:

• Normal Sinus Rhythm

• Atrial Fibrillation

• Other

• Noisy

When applied to the PhysioNet public dataset,

the network had a class average F

score of 0.83,

which was among the best performers in the chal-

lenge. The F

score measures the test’s ac-

curacy by calculating the harmonic mean of its

precision (

numberO fCorrectlyLabelledPositives

totalNumberO f PositiveLabels

) and recall

(

numberO fCorrectlyLabelledPositives

totalNumberO f TruePositiveElements

5 METHODS

We replicated the DNN model for identifying arryth-

mias in ECGs (Hannun et al., 2019) and applied the

HopSkipJumpAttack (Chen et al., 2020) to it. The

code for the DNN was pulled from the corresponding

repository (https://github.com/awni/ecg), and the

dataset of ECGs used for training and evaluation

of the DNN were pulled from the PhysioNet 2017

website (https://physionet.org/content/challenge-

2017/1.0.0/). The model being attacked had about

91% accuracy. To keep the environment consis-

tent with the environment used for the DNN, the

HopSkipJumpAttack was implemented in Python

2.7 on a Linux system (Ubuntu 18.04 on Windows

Subsystem for Linux 2). The distance metric used for

this paper was the Euclidean norm, or L

norm. The

initial batch size was chosen to be 100 random unit

vectors, generated by sampling a uniform random

distribution using the NumPy library. The attack

algorithm was also implemented to halt and return

the current adversarial ECG, if the model query limit

would be exceeded during an iteration.

ECGs for the original and target sample in

the HopSkipJumpAttack algorithm were chosen uni-

formly randomly from the PhysioNet dataset, and se-

lected so that they would have differing labels as-

signed to them by the DNN. Original and Target pairs

were chosen in batches of approximately 100, with

each batch having a different query limit. The cho-

sen query limits were 2500, 5000, 10000, and 15000

queries.

6 RESULTS

The distances of the produced adversarial examples to

their original counterpart ECGs are shown in Table 1.

The trend of distances as the number of queries used

increases is shown in Figure 2.

Table 1: L

Distances of Adversarial Examples.

Queries Sample Size Mean Median Min

2500 88 53.3 42.8 6.4

5000 97 53.3 40.0 5.5

10000 19 43.9 24.0 3.8

15000 92 27.0 19.7 1.7

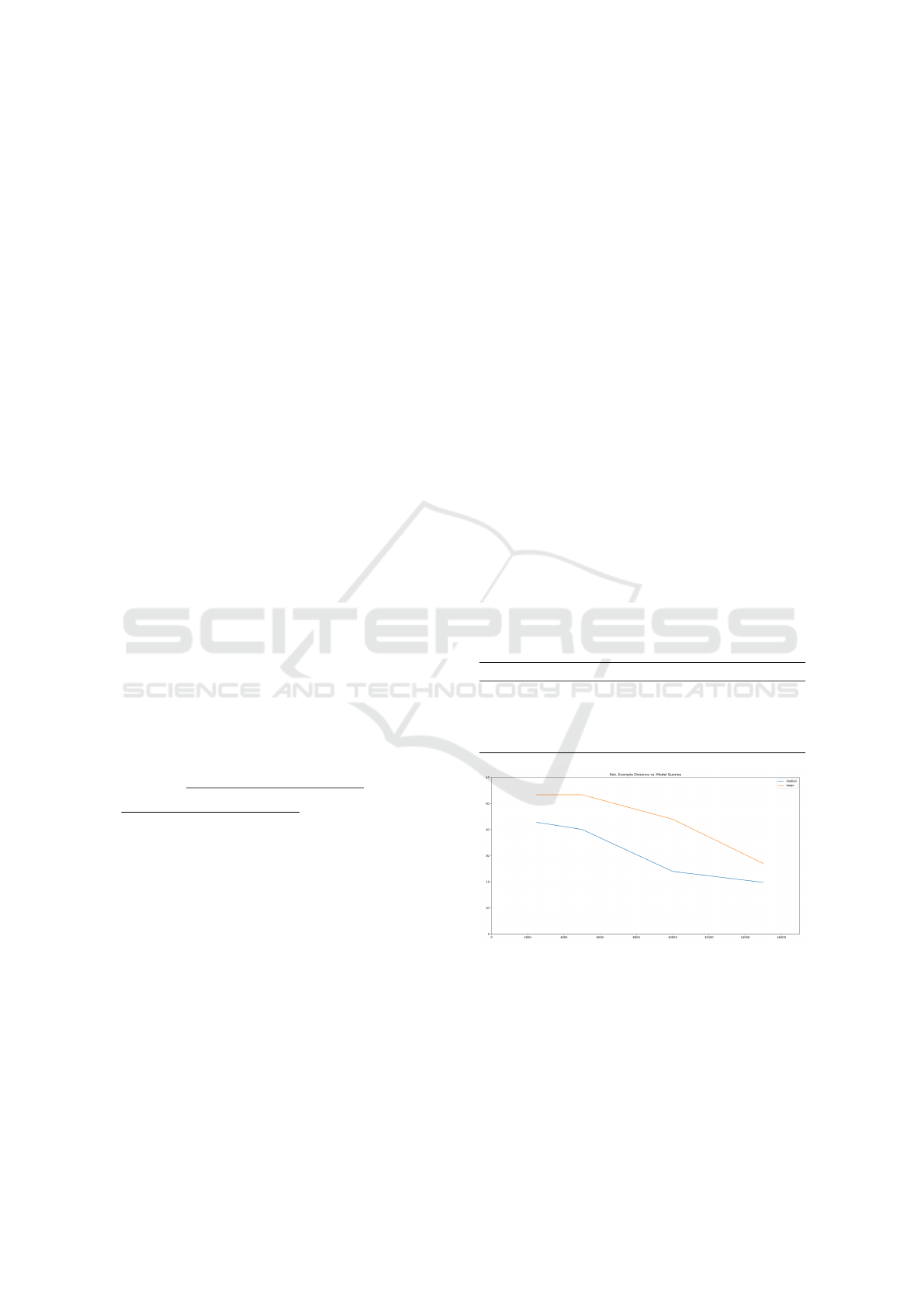

Figure 2: L

distances between adversarial examples and

original ECGs as a function of model queries. The bottom

blue line plots the median distances of each batch. The top

orange line plots the mean distances of each batch.

The minimum distance examples produced appear

to be practically indistinguishable with the human eye

as shown in Figures 3 and 4. The L

distance be-

tween the original and adversarial ECG is less than

10. The median examples in the batches that used

HEALTHINF 2022 - 15th International Conference on Health Informatics

138

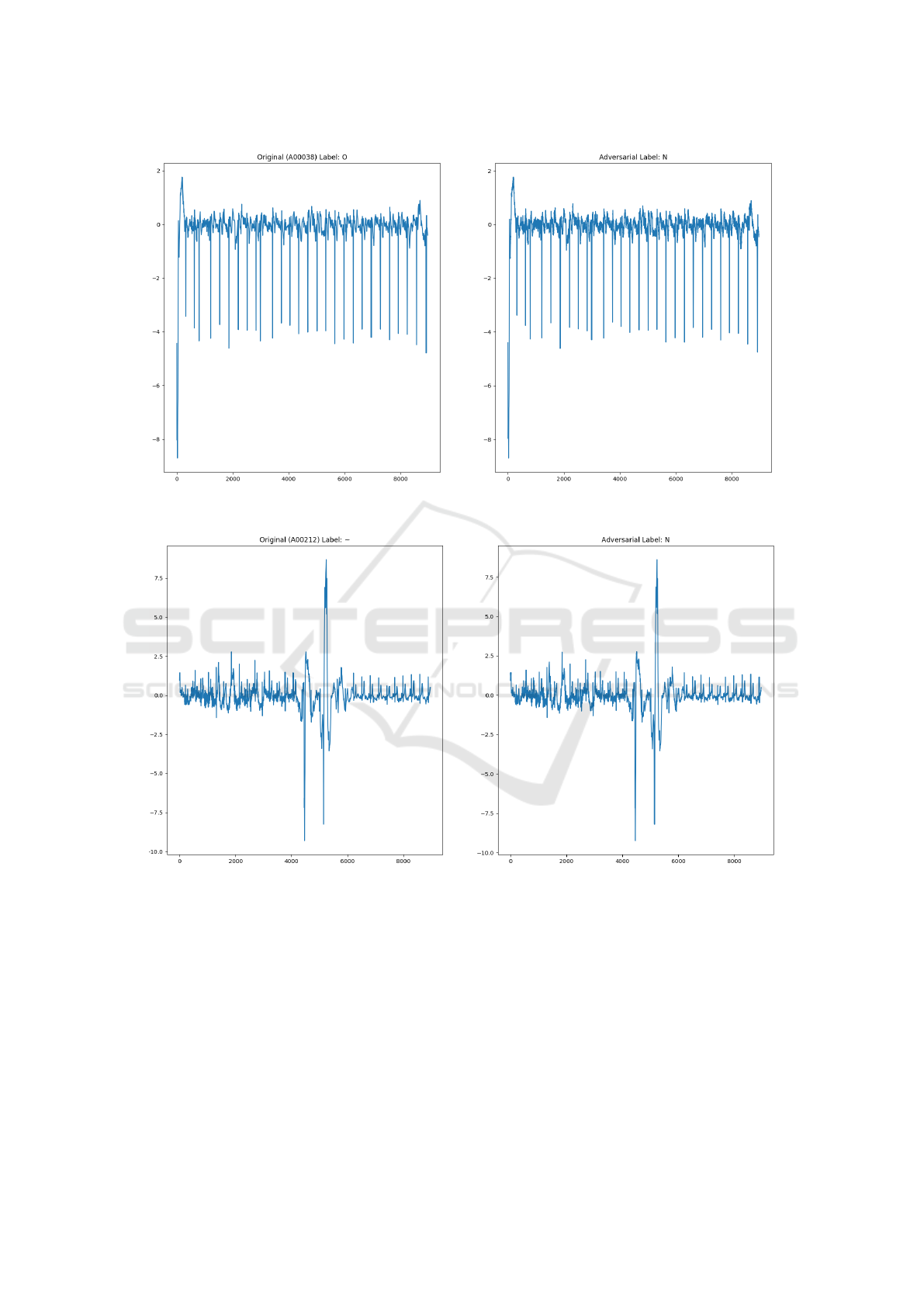

Figure 3: Minimum distance adversarial example for 10000 queries. The original ECG on the left was labeled as “Other

Arrhythmia”. The adversarial ECG on the right was labeled as “Normal Sinus Rhythm”.

Figure 4: Minimum distance adversarial example for 15000 queries. The original ECG on the left was labeled as “Too Noisy”.

The adversarial ECG on the right was labeled as “Normal Sinus Rhythm”.

2500 and 5000 queries have some noticeable pertur-

bations when compared side-by-side as shown in Fig-

ures 3 and 4. In the median cases for the 10000 and

15000 query batches, the noise could be written off as

simple noise, and would likely not be easily notice-

able unless compared while directly adjacent.

7 CONCLUSION

If no defenses against adversarial attacks are utilized

and a model is made publicly available so that making

thousands of queries is possible, an evasion attack will

be able create an adversarial ECG indistinguishable

from an original ECG by a human eye. As for the ad-

versarial examples with L

distances greater than 10,

it is uncertain if they would be able to go unnoticed if

not compared side-by-side with the original. The total

Adversarial Evasion Attacks to Deep Neural Networks in ECR Models

139

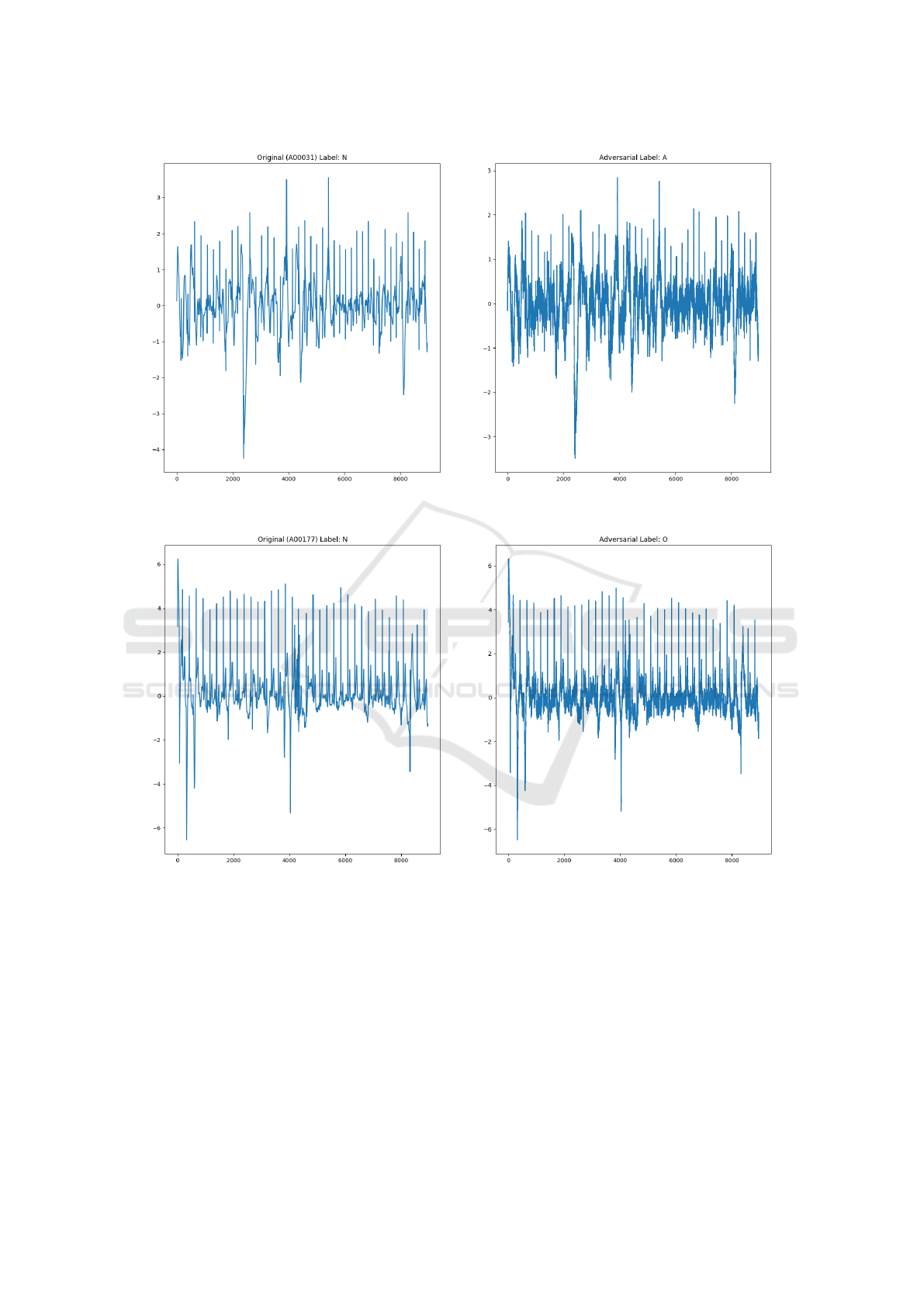

Figure 5: Median distance adversarial example for 10000 queries. The original ECG on the left was labeled as “Normal Sinus

Rhythm”. The adversarial ECG on the right was labeled as “Atrial Fibrillation”.

Figure 6: Median distance adversarial example for 15000 queries. The original ECG on the left was labeled as “Normal Sinus

Rhythm”. The adversarial ECG on the right was labeled as “Other Arrhythmia”.

results indicate that healthcare models can be vulner-

able to evasion attacks. Thus, even if neural networks

used in healthcare manage to obtain accuracy, preci-

sion, and recall greater than 0.99, they should not be

taken as a complete replacement for an opinion from

a medical professional until adequate defenses against

adversarial attacks, such as evasion attacks, are imple-

mented.

A possible method for defending against evasion

attacks would be monitoring or controlling access

to the model. HopSkipJumpAttack is very efﬁcient

in number of queries, but the experiments run by

Chen et al (Chen et al., 2020) show that their at-

tacks against most models required upwards of one

thousand queries to generate a single adversarial ex-

ample. Policies that control access to the model

could perhaps require some patient identiﬁcation and

limit the frequency of queries per patient or possibly

add a monetary requirement. However, such poli-

cies should not become so prohibitive such that pa-

tients in need are unable to access the model, as that

would defeat the original purpose of making access to

HEALTHINF 2022 - 15th International Conference on Health Informatics

140

an expert-level diagnosis widely available. This be-

comes a much larger concern if a monetary require-

ment is added.

8 FUTURE WORK

It will be helpful to consult a panel of expert cardi-

ologists to evaluate the success of these attacks and

determine if they would be noticed by professionals.

Additionally, it may be possible that certain classes of

arrhythmias are easier to target and create adversar-

ial examples of. In the same vein, certain samples of

a target class may serve as a better target sample to

initialize the HopSkipJumpAttack algorithm with.

It is also worth investigating possible defenses

against black-box evasion attacks. One option would

be to add the correctly labelled adversarial examples

to the training set in order to reduce the sensitivity

of the model to these perturbations. A second option

would be to limit the number of model queries per-

mitted per user; even though HopSkipJumpAttack is

a query-efﬁcient algorithm, generating human imper-

ceptible adversarial examples still requires thousands

of queries. Defense mechanisms should take into ac-

count that malicious actors could use multiple user

accounts to gain access to bypass protections.

Finally, adversarial attacks such as Hop-

SkipJumpAttack should be applied to more models

in healthcare.

ACKNOWLEDGEMENTS

Thanks to Dr. Debbie Perouli for guiding and serving

as the mentor for this project. Additional thanks to Dr.

Praveen Madiraju and Dr. Dennis Brylow for running

the Research Experience for Undergraduates program

at Marquette University.

This material is based upon work supported by the

National Science Foundation under Grant #1950826.

REFERENCES

Brendel, W., Rauber, J., and Bethge, M. (2018). Decision-

based adversarial attacks: Reliable attacks against

black-box machine learning models.

Chen, J., Jordan, M. I., and Wainwright, M. J. (2020). Hop-

skipjumpattack: A query-efﬁcient decision-based at-

tack.

Goodfellow, I. J., Shlens, J., and Szegedy, C. (2015). Ex-

plaining and harnessing adversarial examples.

Hannun, A. Y., Rajpurkar, P., Haghpanahi, M., Tison, G. H.,

Bourn, C., Turakhia, M. P., and Ng, A. Y. (2019).

Cardiologist-level arrhythmia detection and classiﬁ-

cation in ambulatory electrocardiograms using a deep

neural network. Nature medicine, 25(1):65–69.

Narodytska, N. and Kasiviswanathan, S. (2017). Sim-

ple black-box adversarial attacks on deep neural net-

works. In 2017 IEEE Conference on Computer Vision

and Pattern Recognition Workshops (CVPRW), pages

1310–1318.

Papernot, N., McDaniel, P., Goodfellow, I., Jha, S., Celik,

Z. B., and Swami, A. (2017). Practical black-box at-

tacks against machine learning.

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Erhan,

D., Goodfellow, I., and Fergus, R. (2014). Intriguing

properties of neural networks.

Yang, Z., Zhang, J., Chang, E.-C., and Liang, Z. (2019).

Neural network inversion in adversarial setting via

background knowledge alignment. In Proceedings of

the 2019 ACM SIGSAC Conference on Computer and

Communications Security, CCS ’19, page 225–240,

New York, NY, USA. Association for Computing Ma-

chinery.

Yao, Y., Li, H., Zheng, H., and Zhao, B. Y. (2019). La-

tent backdoor attacks on deep neural networks. In

Proceedings of the 2019 ACM SIGSAC Conference on

Computer and Communications Security, CCS ’19,

page 2041–2055, New York, NY, USA. Association

for Computing Machinery.

Zhao, Y., Zhu, H., Liang, R., Shen, Q., Zhang, S., and Chen,

K. (2019). Seeing isn’t believing: Towards more ro-

bust adversarial attack against real world object detec-

tors. In Proceedings of the 2019 ACM SIGSAC Con-

ference on Computer and Communications Security,

CCS ’19, page 1989–2004, New York, NY, USA. As-

sociation for Computing Machinery.

Adversarial Evasion Attacks to Deep Neural Networks in ECR Models

141
