Rendering Medical Images using WebAssembly

Sébastien Jodogne

Institute of Information and Communication Technologies, Electronics and Applied Mathematics,

Louvain School of Engineering, Louvain-la-Neuve, Belgium

Keywords:

Medical Imaging, DICOM, WebAssembly, Data Visualization, Teleradiology.

Abstract:

The rendering of medical images is a critical step in a variety of medical applications from diagnosis to

therapy. Specialties such as radiotherapy and nuclear medicine must display complex images that are the

fusion of several layers. Furthermore, the rise of artiﬁcial intelligence applied to medical imaging calls for

viewers that can be used in research environments and that can be adapted by scientists. However, desktop

viewers are often developed using technologies that are totally different from those used for Web viewers,

which results in a lack of code reuse and shared expertise between development teams. In this paper, we show

how the emerging WebAssembly standard can be used to tackle these issues by sharing the same code base

between heavyweight viewers and zero-footprint viewers. Moreover, we propose a full Web viewer developed

using WebAssembly that can be used in research projects or in teleradiology applications. The source code of

the developed Web viewer is available as free and open-source software.

1 INTRODUCTION

The volume of medical images that are generated

worldwide is in constant growth. This can be ex-

plained by the fact that the treatment of more and

more chronic diseases requires a longitudinal and

multimodal exploitation of medical images. For a

highly effective, personalized treatment, it is indeed

often important to consider images that have been ac-

quired throughout the entire life of the patient and to

combine multiple cues produced by different types of

imaging modalities.

The DICOM standard (National Electrical Man-

ufacturers Association, 2021) speciﬁes how medical

images are encoded and exchanged. Fortunately, DI-

COM is adopted by any hospital dealing with digital

medical images. Thanks to the fact that DICOM is

an open standard, a large ecosystem of free and open-

source software exists to handle medical images. For

instance, when it comes to the need of storing, com-

municating and archiving DICOM images in full in-

teroperability with the information systems of an hos-

pital, free and open-source DICOM servers such as

dcm4chee (Warnock et al., 2007), Dicoogle (Costa

et al., 2011) or Orthanc (Jodogne, 2018) can be used.

Obviously, once stored inside a DICOM server,

the medical images must still be displayed. Various

use cases exist for viewers of medical images: clinical

review integrated within the electronic health records,

specialized tools dedicated to one pathology or treat-

ment, external access for the patient, quality control

of modalities, second medical opinion, telemedicine,

clinical trials. . . Moreover, the huge interest in artiﬁ-

cial intelligence applied to medical imaging requires

the development of viewers that can be used to an-

notate regions of interest for the training of the algo-

rithms, and to display the outputs of such algorithms

(e.g. segmentation masks) (Cheng et al., 2021).

Depending on the clinical or pre-clinical scenario,

one might either need a desktop software, a mobile

application or a Web platform to display the medical

images. This led many community projects or com-

mercial products to focus only on one of those three

categories of platforms, or to have separate develop-

ment teams working on distinct viewers for the dif-

ferent types of platforms. In the latter case, develop-

ing similar features in different languages depending

on the target platform (JavaScript, C++, Java. . . ) ev-

idently comes at a large cost because of non-shared

source code. Furthermore, distinct code bases might

suffer from different issues, or conversely might fea-

ture optimizations that are not available for the other

platforms. Expertise is also less shared between de-

velopment teams who are focused on different plat-

forms and languages.

Two major open-source software libraries are cur-

rently used within software displaying medical im-

ages. The ﬁrst one is VTK (Schroeder et al., 2006),

Jodogne, S.

Rendering Medical Images using WebAssembly.

DOI: 10.5220/0010833300003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 2: BIOIMAGING, pages 43-51

ISBN: 978-989-758-552-4; ISSN: 2184-4305

that is mature and mainly written in the C++ lan-

guage. VTK is used by many heavyweight desktop

viewers, including the 3D Slicer platform (Kikinis

et al., 2014), the well-known OsiriX radiology appli-

cation (Rosset et al., 2004) and its fork Horos. The

second library is Cornerstone (Urban et al., 2017),

that is more recent and that is written in the JavaScript

language so as to be used as a building block for

higher-level Web applications. As it takes its roots in

modern Web technologies, Cornerstone is at the core

of many zero-footprint, lightweight Web viewers, no-

tably OHIF, and is often encountered within cloud-

based proprietary solutions. The scope of Corner-

stone is mostly focused on the hardware-accelerated

rendering of 2D images by Web browsers, whereas

VTK is feature-rich, makes active use of GPU for 3D

rendering, and can be used for scientiﬁc visualization

beyond medical imaging.

The emerging WebAssembly standard might be a

game changer in this divided landscape. WebAssem-

bly is an open standard that deﬁnes a bytecode for

Web applications (Haas et al., 2017). The core spec-

iﬁcation of WebAssembly was released as an ofﬁ-

cial W3C recommendation in December 2019. We-

bAssembly is actively backed by the industry, and is

now supported by the major Web browsers. Thanks

to the Emscripten toolchain, C++ source code can be

compiled to WebAssembly bytecode, which can then

be executed by Web browsers. This opens the path to

the creation of C++ libraries that can be used both

by native software (using a standard compiler) and

by Web platforms (using the Emscripten toolchain).

Such C++ libraries could also be used by mobile

applications using Android NDK or an Objective-C

wrapper. WebAssembly has thus a huge potential to

improve code reuse in multi-platform developments,

in particular in the ﬁeld of medical imaging.

In this paper, we ﬁrstly propose a novel, free and

open-source C++ library named “Stone of Orthanc”,

whose internal architecture was driven by the con-

straints of Web development while providing compat-

ibility with native compiler toolchains. The footprint

of Stone of Orthanc is as small as possible, and is de-

signed to be as portable and versatile as possible

Historically, the Stone of Orthanc project started in

2016 by leveraging the Google’s PNaCl and Mozilla’s

asm.js technologies that are now superseded by We-

bAssembly. Secondly, different applications for med-

ical imaging that were built using the Stone of Or-

This intimacy with the lightweight architecture of the

Orthanc project for medical imaging (Jodogne, 2018) ex-

plains the name of the Stone of Orthanc library, the latter

being a tribute to the palantír that resides inside the tower

of Orthanc in The Lord of the Rings by J. R. R. Tolkien.

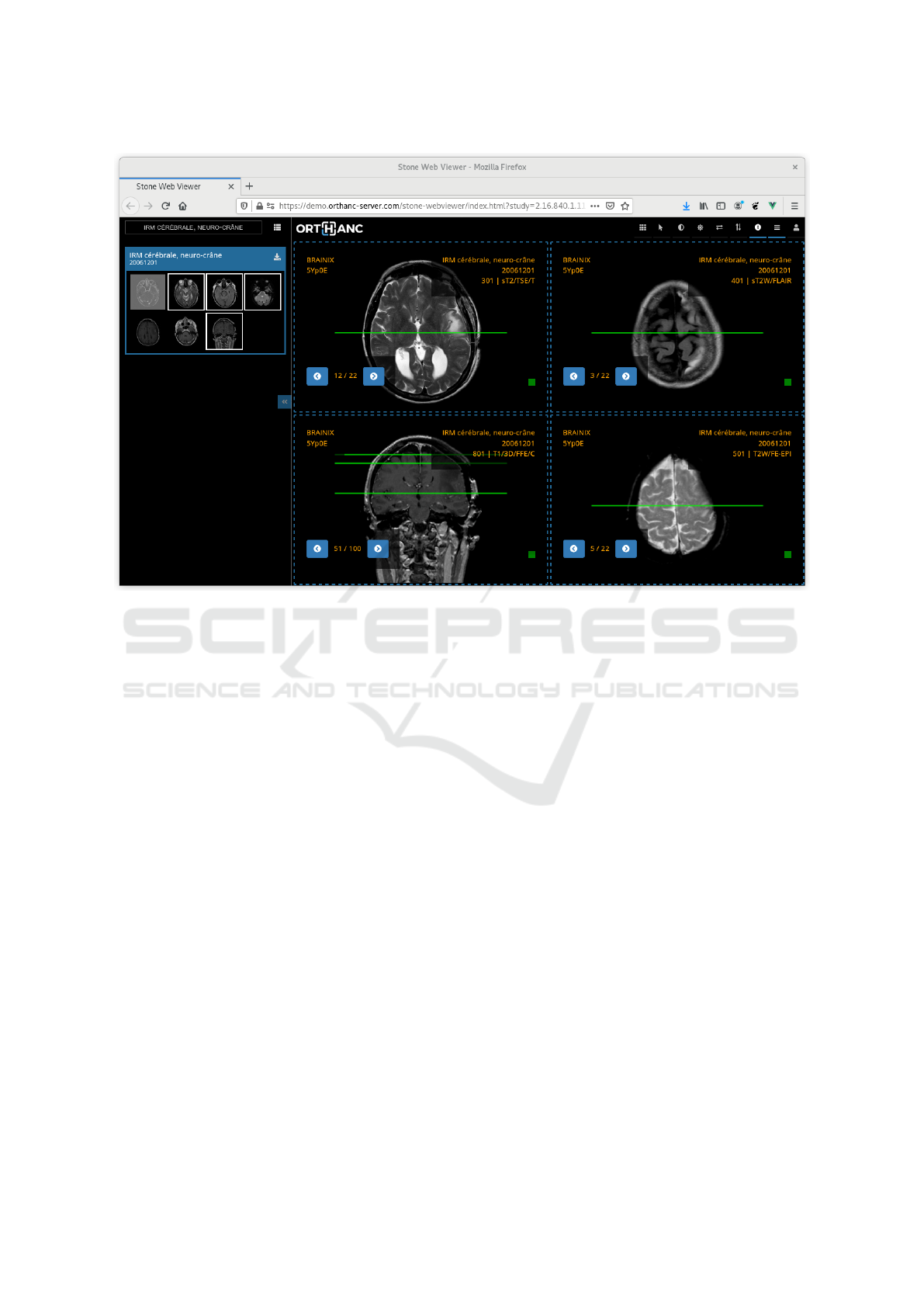

thanc library are presented. In particular, the “Stone

Web viewer” is introduced as a fully functional Web

viewer for medical images that is integrated as a plu-

gin within the Orthanc DICOM server and that can be

used by end users.

2 Stone of Orthanc

As explained in the Introduction, Stone of Orthanc

is a C++ library to render medical images, with the

goal of being compatible with WebAssembly. This

objective puts strong constraints on the architecture

of the library. Indeed, traditional C++ applications are

multi-threaded and sequential, whereas Web applica-

tions are single-threaded and driven by asynchronous

callbacks (closures).

Besides this constrained architecture, the accurate

rendering of medical images requires a careful map-

ping between pixel coordinates and 2D or 3D physi-

cal coordinates. The library must also be extensible

so as to display the various kinds of overlays (such as

segmentation masks or annotations) that might have

been produced by artiﬁcial intelligence algorithms or

manually added by physicians. Furthermore, medical

specialties such as nuclear medicine, radiotherapy or

protontherapy necessitate to display fusions of differ-

ent layers (for instance, a dose over a CT-scan, or a

contour over a PET signal). To fulﬁll such needs, the

architecture of Stone of Orthanc integrates a portable

2D rendering engine for vectorized graphics with sup-

port of overlays.

In the current section, we review how the high-

level architecture of Stone of Orthanc has been engi-

neered. Figure 1 provides a summary of this architec-

ture. Because the goal of this paper is not to document

the internal components of Stone of Orthanc, only the

main concepts that drove the design of Stone of Or-

thanc are presented. The interested reader is kindly

invited to dive into the source code of the project.

2.1 Loaders and Oracle

The Stone of Orthanc library provides developers

with many primitives that are necessary to create

medical imaging applications. In particular, the li-

brary offers facilities to download images from a DI-

COM server (notably using the DICOMweb standard,

but a custom REST API can be used as well). In this

way, Stone of Orthanc features C++ classes that con-

tain 2D or 3D medical images, and that are ﬁlled by

C++ classes that are referred to as “Loaders”. In the

case of 3D dense volumes, the associated Loaders au-

tomatically sort the individual 2D slices of the volume

BIOIMAGING 2022 - 9th International Conference on Bioimaging

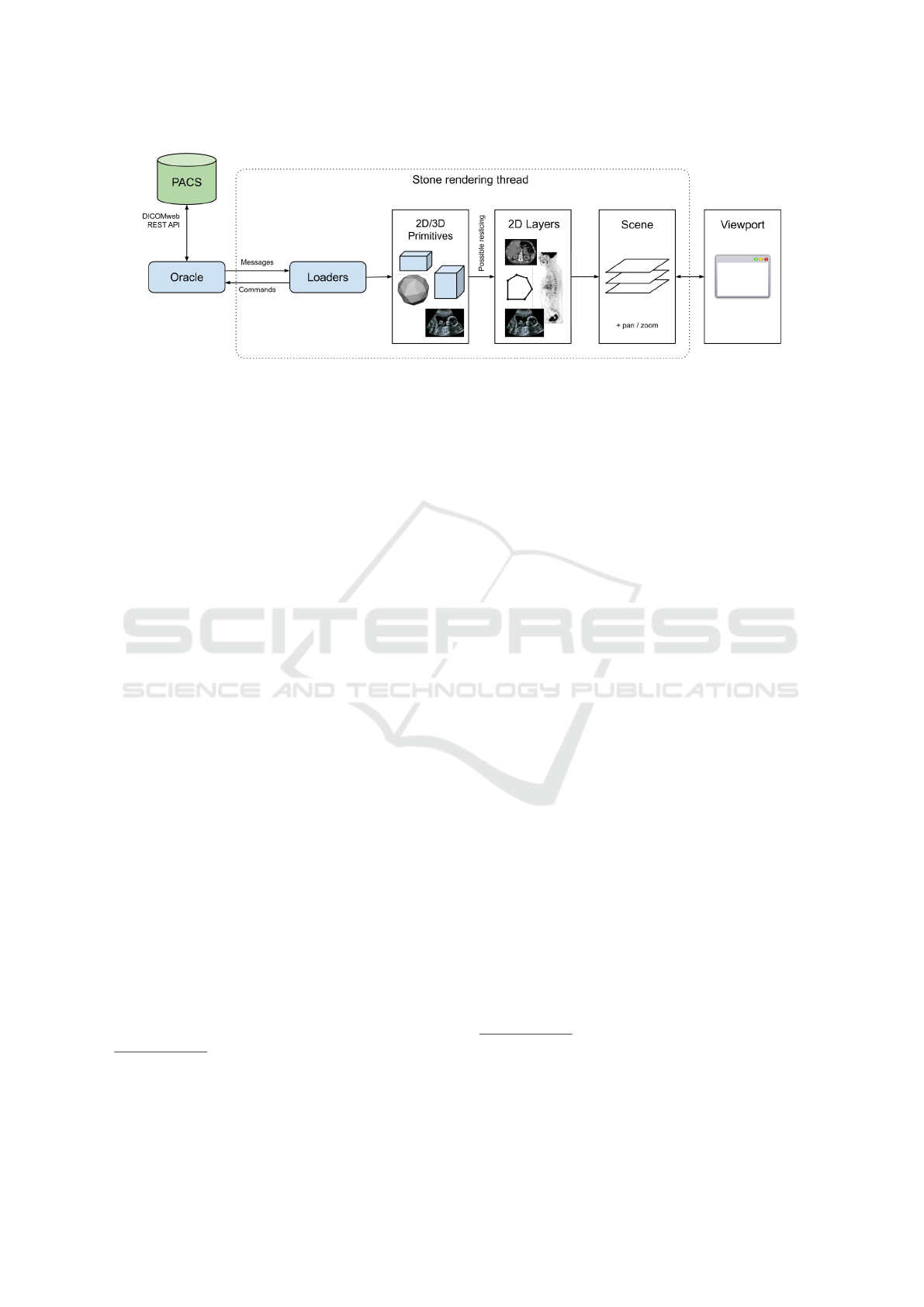

Figure 1: High-level view of the components of the Stone of Orthanc library. The Oracle abstracts the runtime environment.

The Loaders are responsible for loading the graphical primitives that have to be displayed. These primitives are converted into

a set of 2D Layers (in particular, primitives corresponding to 3D volumes can be sliced along a cutting plane). The Layers are

then assembled as a Scene that is ﬁnally composed onto the rendering surface of the Viewport. The user can interact with the

Viewport to update the afﬁne transform (pan/zoom) that is associated with the Scene.

according to their 3D location

However, as written above, the JavaScript and

WebAssembly engines are inherently single-threaded.

As a consequence, in order to be compatible with the

Web runtimes, the core of the Stone of Orthanc li-

brary is not allowed to launch threads or to maintain

a pool of threads for the Loaders to download the im-

ages, which contrasts with what would be done in a

traditional C++ application. The solution adopted by

Stone of Orthanc is to introduce a so-called “Oracle”

singleton object that abstracts the way asynchronous

operations such as downloads are actually processed.

In the case of WebAssembly, the Oracle essentially

corresponds to a wrapper that abstracts the primitives

offered the Web browser itself. In the case of native

applications, the Oracle abstracts the system SDK as-

sociated with the target platform: For instance, in or-

der to handle downloads, the Oracle internally man-

ages a set of worker threads connected to a shared

queue of pending HTTP requests. Besides down-

loading DICOM instances, other examples of asyn-

chronous operations include reading ﬁles from the

ﬁlesystem, or sleeping for a certain amount of time.

According to this discussion, the Oracle receives

a stream of “Command” objects that specify the asyn-

chronous operations that must be carried on. Follow-

ing the observer design pattern (Gamma et al., 1994),

each Command to be processed is associated with an

“Observer” object that will receive a “Message” ob-

ject that contains the result of the Command once it

has been processed. For instance, in the case of the

download of a DICOM instance from some REST

API, the Command would contain the URL to down-

The 3D location is determined by the “image posi-

tion patient” (0020,0032) and “image orientation patient”

(0020,0037) DICOM tags if available, or by the “instance

number” (0020,0013) DICOM tag.

load, the Observer would correspond to the Loader

object that populates the target medical image, and the

Message would contain the raw bytes of the DICOM

instance. Sending a Command to the Oracle is a non-

blocking operation, which reﬂects the asynchronous

nature of the Oracle. The Observer is speciﬁed as a

C++ “pointer to member function”, with a slight use

of C++ templates as syntactic sugar, and the Oracle

invokes this member function upon completion of the

Command. The Oracle is the key component that en-

ables the writing of source code that can be run indif-

ferently by WebAssembly and by native applications.

The Oracle is part of the global context of the

Stone of Orthanc library, and each class that must ex-

ecute asynchronous operations keeps a reference to

the Oracle. In order to map the single-threaded as-

pect of WebAssembly into native environments sup-

porting multi-threading, it is assumed that the global

context is only accessed from one distinguished user

thread that is responsible for the rendering. A mutex

is included in the global context to prevent the Mes-

sages emitted by the Oracle from interfering with the

rendering thread. Reference counting using shared

pointers ensures that the Observer objects are not de-

structed before all the scheduled Commands they are

receivers of have been processed

It is worth noticing that the Oracle mechanism can

be used as an accelerator for certain operations that

can be time-intensive. For instance, Stone of Orthanc

introduces a Command to download then parse DI-

COM instances as a single operation: In the case of a

multi-threaded environment, this allows to ofﬂoad the

The observer design pattern and reference counting are

used elsewhere in Stone of Orthanc for sending messages

from one object to another, and for broadcasting messages

from one object to a set of Observers using a subscription

mechanism.

Rendering Medical Images using WebAssembly

DICOM parsing to a thread without locking the mutex

of Stone of Orthanc, which brings more concurrency

in native environments

. This also allows to maintain

a cache of parsed DICOM ﬁles. As another example,

a new type of Command could be deﬁned to delegate

some expensive computation to the CPU (such as pro-

jecting a DICOM RT-STRUCT along the sagittal or

coronal planes) or to the GPU (such as generating a

maximum intensity projection – MIP – rendering of a

3D volume).

2.2 Viewports and Layers

When it comes to the client-side rendering of med-

ical images, the 2D operations of panning, zooming

and changing windowing must be as fast as possi-

ble. This calls for taking advantage of the 2D hard-

ware acceleration that is provided by any GPU. To

this end, both native applications and WebAssembly

applications have access to the OpenGL API, the for-

mer through development libraries such as Qt or SDL,

the latter through WebGL.

On the other hand, in order to reduce the network

bandwidth in the presence of large images (typically

3D volumes), the developers of viewers might want to

use streaming: In this scenario, a central server gen-

erates a stream of “screenshots” of projections of the

volumes it stores in its RAM, and those renderings are

then sent to a thin client in charge of their actual dis-

play to the user. In the case of streaming, GPU is not

necessarily available on the server, as multiple users

might be connected to the same server. GPU might

also be unavailable if printing an image, if generat-

ing a secondary capture image, or if the viewer runs

on a low-power or embedded computer (such as the

popular Raspberry Pi).

To accommodate with all such situations in a

cross-platform and lightweight way, the architecture

of Stone of Orthanc is designed to support both hard-

ware acceleration (using OpenGL) and software ren-

dering (using the widespread cairo drawing library).

Furthermore, in order to maximize portability, the

Stone of Orthanc library implements its own OpenGL

shaders for the GPU-accelerated drawing of lines,

texts and bitmaps.

Internally, each rendering surface (the application

widget, the HTML5 canvas or the memory buffer) is

associated with a so-called “Viewport” abstract class

that is responsible for the rendering of a 2D “Scene”.

The Scene is an object that encodes a superposition

of “Layer” objects, each Layer being a 2D vectorized

graphics with an alpha layer to allow for transparency.

In the future, similar optimizations could be offered in

the WebAssembly environment by leveraging Web workers.

Each Scene and Layer is agnostic of the actual render-

ing surface. In a nuclear medicine application for in-

stance, a Scene would consist of three superimposed

Layers, the foremost being the contours (as encoded

in a DICOM RT-STRUCT instance), the second be-

ing the PET-scan signal (with a heat colormap hav-

ing transparency), and the background being the CT-

scan slice. The Scene also contains a 2D-to-2D afﬁne

transform that maps the coordinates of Layers to the

Viewport coordinates. Altering this transform is used

to pan and zoom the Scene onto the Viewport.

Depending on the type of its rendering surface,

the Viewport will use a different algorithm to ren-

der a Scene, following the strategy design pattern.

This separation of concerns between Viewports and

Scenes, is similar to that between the Oracle and

Commands. If a Layer containing a bitmap must

be rendered, the Viewport is also responsible for the

proper conversion of the pixel values (that typically

correspond to ﬂoating-point numbers or 16 bit inte-

gers) to a bitmap that is suitable for rendering onto

the surface (in general, red/green/blue/alpha values in

8 bits per pixel). This conversion must take into ac-

count the windowing parameters of the Layers, if any.

Note that a single application is allowed to manage

multiple Viewports in order to show different Scenes.

According to this discussion, the rendering engine

of Stone of Orthanc is inherently oriented toward 2D

vectorized graphics. This choice is similar to that of

the Cornerstone library, but contrasts with the VTK

library, that is more 3D-oriented. The advantage of

focusing on 2D rendering is to make the rendering of

multi-layer scenes more natural to the developers than

if 3D must also be taken into account. Importantly,

just like the Oracle/Commands/Observers architec-

ture, this Viewport/Scene/Layers architecture is com-

patible with both native applications and WebAssem-

bly applications. It is worth noticing that Stone of

Orthanc could be used as a rendering engine for vec-

torized graphics in native, mobile or Web applications

out of the ﬁeld of medical imaging.

Evidently, viewers for medical imaging need to

display 3D volumes, not just 2D images. Section 2.1

explained how Loaders are used to download 3D im-

ages and store them into RAM. To render 3D vol-

umes, Stone of Orthanc introduces the concept of

“VolumeReslicer” that is an abstract class taking as

its inputs one 3D image and one cutting 3D plane,

and producing as its output a 2D slice. This slice

can then be injected as a Layer into the Scene to be

rendered. Volume reslicers are currently implemented

for multiplanar reconstruction (MPR, cf. Section 3.3)

and for reslicing along an arbitrary cutting plane (cf.

Section 3.4). As discussed above, more reslicers will

BIOIMAGING 2022 - 9th International Conference on Bioimaging

Figure 2: Screenshot of the Stone Web viewer.

be implemented in the future for MIP rendering, pos-

sibly using the Oracle as an accelerator for the com-

putations.

3 APPLICATIONS

The core features of the Stone of Orthanc library have

been explained in the previous sections. In this sec-

tion, several higher-level applications that were built

using Stone of Orthanc are reviewed.

3.1 Simple Desktop Viewer

The source code of Stone of Orthanc comes with a

basic viewer that can be used to display one 2D frame

of a DICOM instance downloaded from an Orthanc

server. This viewer is a standalone desktop applica-

tion that is started from the command line by provid-

ing the URL of the Orthanc REST API, and the iden-

tiﬁer of the DICOM instance to be displayed.

This viewer uses SDL to manage its window, mak-

ing it eminently cross-platform. A screenshot of this

application can be found in Figure 3. Zooming, pan-

ning and windowing are supported, as well as taking

measures. The mouse interactions are handled by a

dedicated abstract class called “ViewportInteractor”

that is responsible for tracking the mouse events, and

that is part of the Stone of Orthanc library. Interest-

ingly, because the DICOM image is downloaded from

the Orthanc server, it is decoded server-side, which

frees the viewer from handling the various transfer

syntaxes of the DICOM standard, hereby simplifying

the development.

3.2 Stone Web Viewer

The so-called “Stone Web viewer” is currently the

main application that leverages the Stone of Orthanc

library. The Stone Web viewer is a fully functional

teleradiology solution, as depicted in Figure 2. It can

display multiple DICOM series, and implements fea-

tures such as measurements, synchronized browsing,

3D cross-hair, and 3D reference lines. The Stone

Web viewer communicates with a DICOM server

using the DICOMweb protocol, so it is in theory

compatible with any PACS environment equipped

with DICOMweb. Contrarily to the simple desk-

top viewer described in Section 3.1, the Stone Web

viewer doesn’t rely on the remote server to decode

the DICOM ﬁles, and embeds the DCMTK library in

the WebAssembly bytecode to this end.

Very importantly, to the best of our knowledge,

the Stone Web viewer is the ﬁrst free and open-source

Rendering Medical Images using WebAssembly

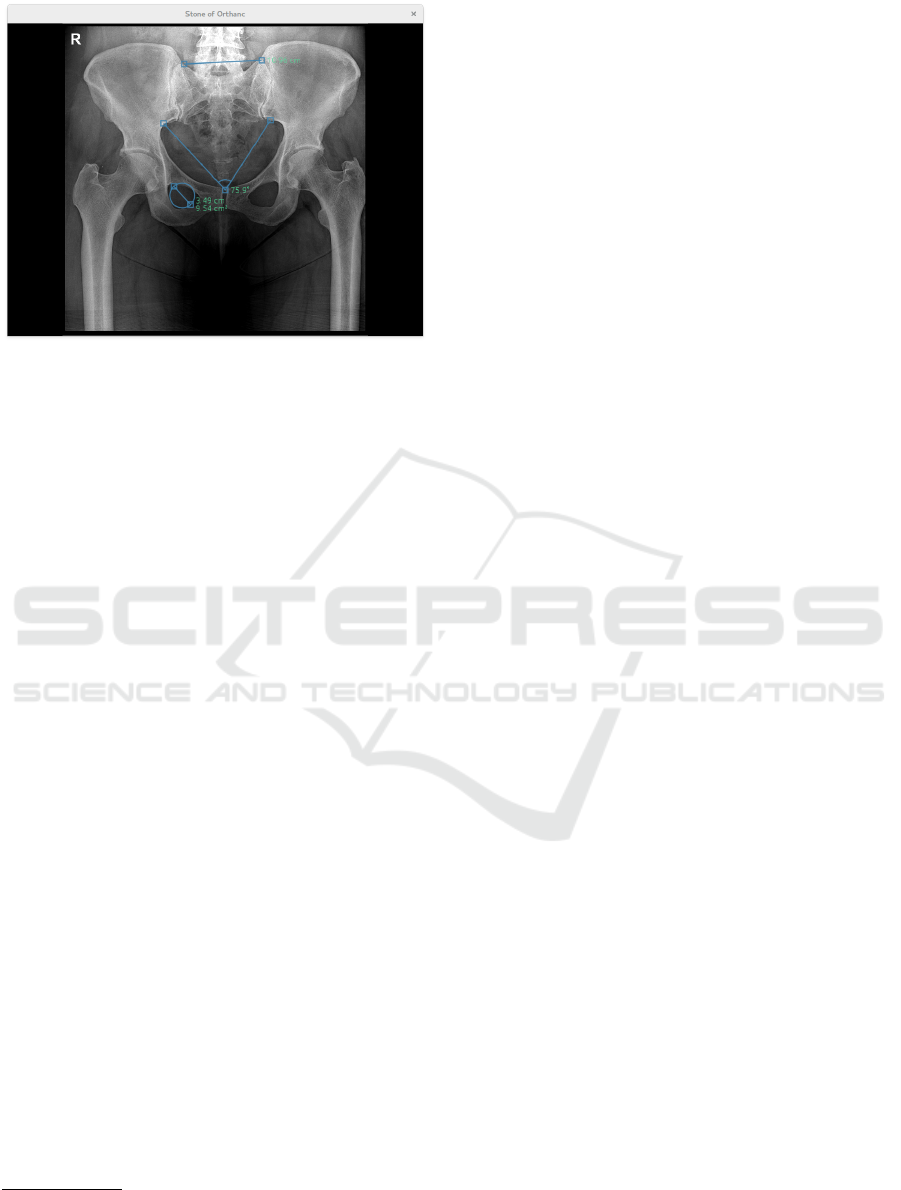

Figure 3: Simple 2D viewer displaying a radiography im-

age. In this case, the Viewport is a SDL window, with one

background Layer containing a 16bpp bitmap. The win-

dowing can be changed using the mouse. The viewer can be

used to take measures of lines, circles and angles in phys-

ical coordinates. These measures are geometric primitives

stored in the foreground Layers of the Scene.

viewer of medical images that uses WebAssembly.

Most of its source code is written in C++ and com-

piled using the Emscripten toolchain. The buttons and

the HTML5 canvas are managed by a simple Vue.js

application that calls the WebAssembly bytecode us-

ing an automatically generated JavaScript wrapper.

The Stone Web viewer is a client-side application

that is entirely run by the Web browser. Its assets

only consist of a set of static resources (HTML ﬁles,

JavaScript sources and WebAssembly bytecode) that

can be served by any HTTP server (such as nginx,

Apache or Microsoft IIS). To fulﬁll the same-origin

security policy, it is advised to map the DICOMweb

server as a reverse proxy by the HTTP server. The

conﬁguration ﬁle of the Stone Web viewer has an op-

tion to provide the root of the DICOMweb API.

However, this manual conﬁguration of a HTTP

server might sound complex to users without a back-

ground in network administration. To ease the de-

ployments, a plugin for Orthanc has been developed

to directly serve the assets of the Stone Web viewer

using the embedded HTTP server of Orthanc. Thanks

to this Stone Web viewer plugin and thanks to the DI-

COMweb plugin for Orthanc, it is extremely easy to

start the Stone Web viewer. Furthermore, this plu-

gin is directly available in the Docker images, the Mi-

crosoft Windows installers and the macOS packages

provided by the Orthanc project

Figure 4 provides the big picture of the differ-

An online demo of the Stone Web viewer plugin is also

available at: https://demo.orthanc-server.com/

ent components that are involved in the Stone Web

viewer. The Stone Web viewer is a high-level appli-

cation that is built on the top of the Stone of Orthanc

library. As can be seen, the Stone of Orthanc library

reuses some classes from the Orthanc project that are

referred to as the “Orthanc Framework”. The Stone

Web viewer can either be served from a HTTP server,

or be run as a plugin to the main Orthanc server.

3.3 Rendering Oncology Images

In the context of radiotherapy, patients rarely have the

opportunity to view the images of their own treatment

plan from home. This is because the Web portals

used in hospitals are mostly focused on the radiology

workﬂow, and thus are typically unable to display ad-

vanced information such as contours or dose delivery.

Yet, viewing one’s own treatment plan might have

positive impact on the empowerment of the patient

and on the reduction of stress during the treatment.

In collaboration with the radiotherapy department

of the University Hospital of Liège, we have con-

tributed to a controlled randomized clinical trial in or-

der to evaluate the impact of a viewer of radiotherapy

plans in the context of patient education. The radio-

therapy viewer that is used in this trial is a desktop

application built using the Qt toolkit and the Stone of

Orthanc library. In this clinical trial, the patients re-

ceive a USB key containing their own images and the

viewer application, after a personal meeting with their

oncologist and with a nurse who explains how to use

the viewer. This clinical trial is still work in progress.

The user interface of the viewer is depicted in Fig-

ure 5 and is designed to be as simple as possible.

It displays the fusion of the simulation CT-scan, the

planned dose (DICOM RT-DOSE), and the different

contours (DICOM RT-STRUCT) following a MPR

(multiplanar reconstruction) layout. The user can se-

lect which contours are displayed.

Following the terminology of Section 2.2, the user

interface of this application is made of three different

Scene objects: one for the axial projection, one for

the sagittal projection, and one for the coronal projec-

tion. In turn, each of these three Scene objects con-

tains three Layer objects: The foremost Layer renders

polygons that correspond to the contours, the central

Layer renders a colorized version of the slice of the

dose (with an alpha channel for transparency), and the

backward Layer renders the CT-scan slice. The mul-

timodal fusion is thus solved by blitting the three 2D

Layer objects of each Scene onto its drawing surface.

From an algorithmic point of view, the surface

rendering of the 3D contours is done by reading the

content of one RT-STRUCT instance. In such an in-

BIOIMAGING 2022 - 9th International Conference on Bioimaging

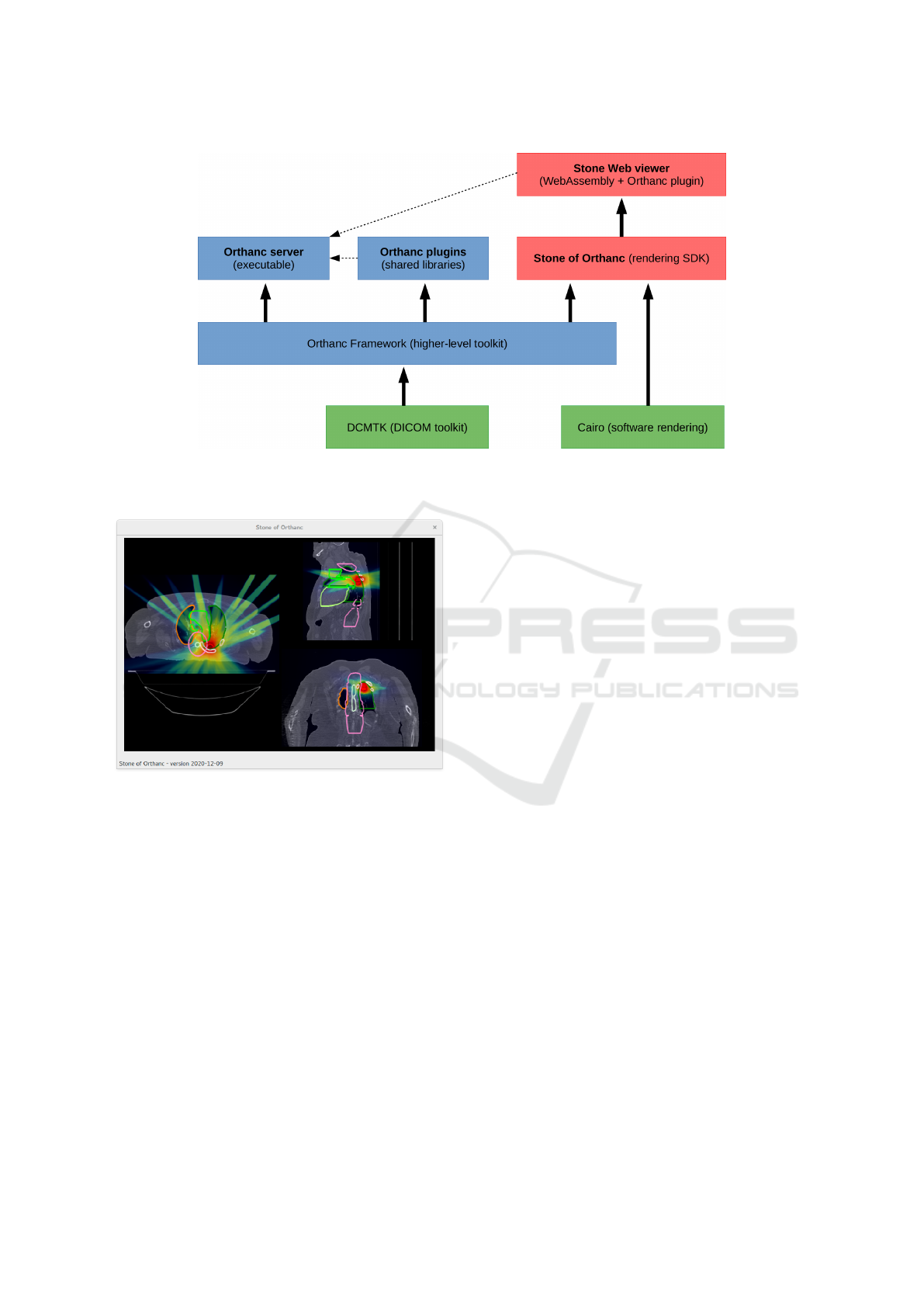

Figure 4: Overview of the high-level architecture of the Stone Web viewer. The green boxes indicate third-party libraries,

the blue boxes represent components provided by the Orthanc project, and the red boxes correspond to the Stone of Orthanc

project.

Figure 5: Desktop application for patient education in the

context of external radiotherapy.

stance, the contours of each volume are speciﬁed as

a list of polygons on the individual axial slices. As a

consequence, the rendering of one speciﬁc slice in the

axial projection simply consists in drawing the poly-

gons that intersect with this plane of interest. The

sagittal and coronal projections are more complex to

deal with. We ﬁrst select the polygons that intersect

with the given sagittal or coronal slice. Each of those

intersections deﬁne a 2D box in the plane of interest.

The ﬁnal rendering is done by drawing a set of poly-

gons that corresponds to the union of all those 2D

boxes, for which well-known computational geome-

try algorithms are available (Rivero and Feito, 2000).

On the other hand, the extraction of an axial, sagit-

tal or coronal slice out of the CT-scan volume stored

in RAM whose voxels are indexed by (i, j, k) integers

is straightforward: It consists in setting i, j or k to

the value of interest, then implementing nested loops

over the two other dimensions. The same algorithm

can be applied to the RT-STRUCT volume, as long as

its axes are aligned with those of the CT-scan volume.

Section 3.4 describes a solution if these two volumes

are not aligned.

Note that besides radiotherapy, the Stone of Or-

thanc library can be used to render similar images in

the ﬁeld of nuclear medicine. For instance, Figure 6

illustrates another desktop application that provides

an advanced rendering of a PET-CT-scan using a lay-

out that is commonly encountered in professional ap-

plications. Evidently, those two applications could be

ported to Web environments thanks to WebAssembly.

3.4 Real-time Volume Reslicing

As explained in Section 2.2, Stone of Orthanc doesn’t

use the GPU if extracting one slice out of a 3D volume

along an arbitrary cutting plane: Volume reslicing is

done entirely in RAM. This raises the question of the

impact of this technical choice on the performance.

To evaluate the performance, a simple WebAssembly

application was developed that is depicted in Figure 7.

The mouse was used in order to change the orientation

of the cutting plane.

From an algorithmic point of view, the cutting

plane is speciﬁed by one 3D point indicating the ori-

gin of the plane, and by two orthonormal 3D vectors

indicating the directions of the X and Y axes in the

plane. The intersection of the source volumetric im-

age (which is a rectangular cuboid) with the cutting

plane is ﬁrst computed. If non-empty, this intersection

Rendering Medical Images using WebAssembly

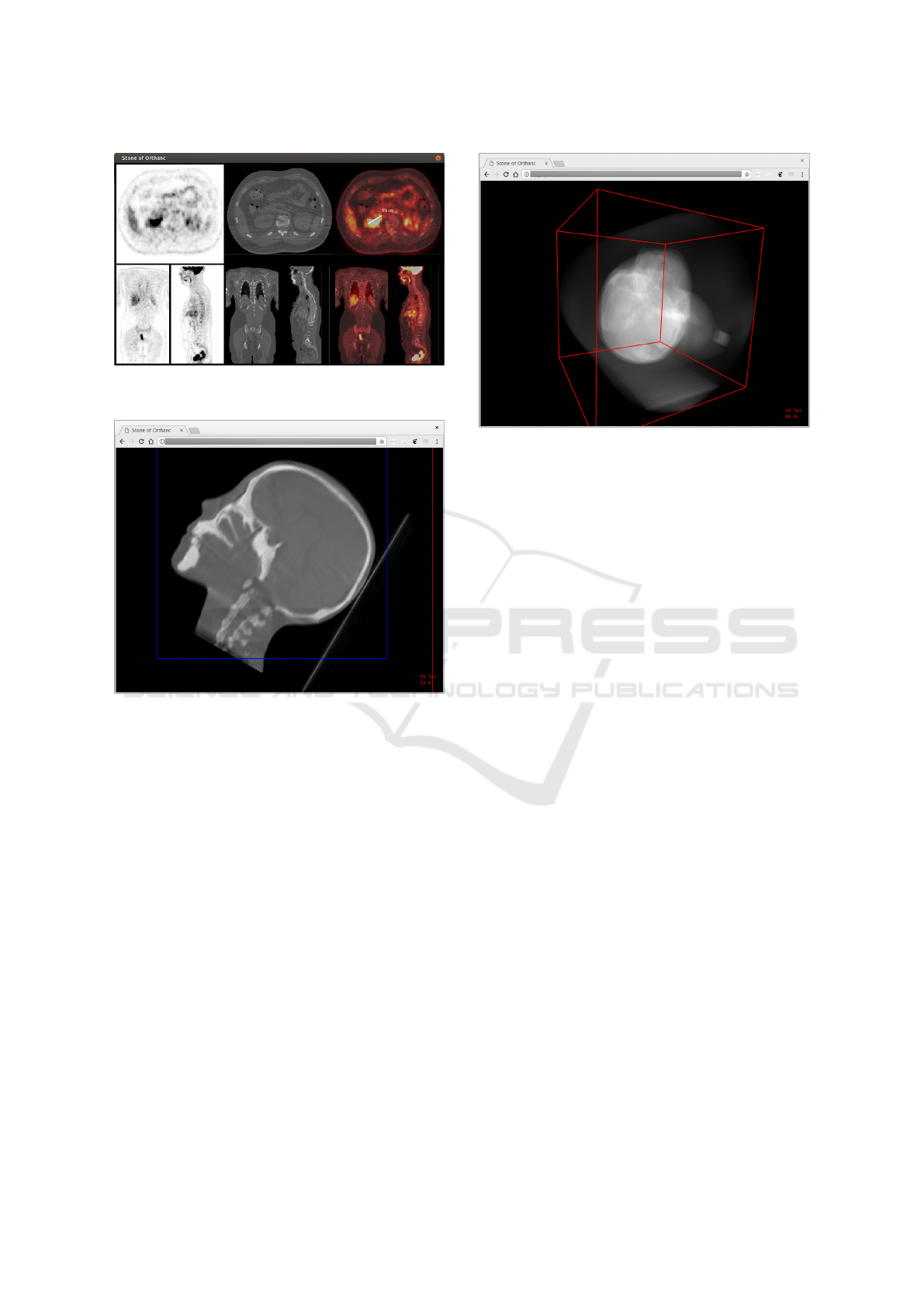

Figure 6: Desktop application for the rendering of PET-CT-

scans using a clinical-like layout.

Figure 7: Real-time reslicing of a 3D volume by a Web

browser.

deﬁnes a polygon with 3 to 6 vertices in the cutting

plane. Secondly, the bounding box of this polygon

in the reference system of the cutting plane deﬁnes

the physical extent of the 2D image to be generated.

The width and height of the extracted image is derived

from the desired pixel spacing. Finally, the extracted

image is ﬁlled by looping over its pixels, looking for

the value of the voxel in the source volume that is the

closest to the coordinates of each 2D pixel on the 3D

cutting plane. Bilinear or trilinear interpolation can

possibly be applied.

On a standard computer (Intel Core i7-3770 at

3.4GHz), the rendering of one slice of size 512 ×

512 × 502 voxels in 16bpp takes about 25 millisec-

onds (40 frames per second), which is fully compat-

ible with real-time requirements. On an old, entry-

level smartphone (Samsung Galaxy A3 2017), the

same rendering takes about 100 milliseconds (10

frames per second), which is still usable in practice.

Figure 8: Web rendering of a digitally reconstructed ra-

diograph (DRR) from a CT-scan. The projection is com-

puted client-side by the Web browser in near-real-time (a

few frames per second).

3.5 Digitally Reconstructed

Radiographs

The Stone of Orthanc library also features some com-

putational geometry primitives to deal with volume

rendering. It notably contains C++ classes in order to

generate a digitally reconstructed radiograph (DRR)

from a CT volume, which can be useful in the context

of radiotherapy. The DRR is the 2D radiograph that

would be imaged using a virtual X-ray camera cen-

tered at a given 3D point with a given focal length.

DRR can be computed by raytracing each voxel

of the CT volume according to the perspective trans-

form, which is a costly computation. Stone of Or-

thanc optimizes this computation by using the “shear-

warp transform” (Lacroute and Levoy, 1994). The in-

tuitive idea behind shear-warp is to postpone as much

as possible the application of the perspective transfor-

mation, and to apply it only once to a single so-called

“intermediate image” (this is the “warp” step). This

intermediate image is created from the summation of

the individual slices of the volume after the applica-

tion of an afﬁne transform in which the X and Y axes

are left uncoupled, which enables a fast computation

(this is the “shear” step that is separately applied to

each slice). The shear-warp transform provides an ef-

ﬁcient algorithm for volume rendering.

Figure 8 shows a WebAssembly application that

computes a DRR in near-real-time. On a standard

computer, the full rendering of a 512 × 512× 502 vol-

ume in 16bpp takes about 1 second. While moving

the virtual camera, the number of slices used for the

rendering can be reduced in order to improve speed,

BIOIMAGING 2022 - 9th International Conference on Bioimaging

thus enhancing the user experience. The GPU could

evidently be used to speed up this computation by im-

plementing an appropriate Oracle command. Besides

DRR, the shear-warp algorithm could also be applied

for MIP rendering by putting the virtual camera at in-

ﬁnity, and by replacing the summation by a “max”

operation.

4 CONCLUSIONS

This paper introduces Stone of Orthanc as a library

to render medical images, in a way that is compati-

ble with desktop, mobile and Web applications. Stone

of Orthanc is fully written in C++, and leverages the

emerging WebAssembly standard if targeting Web ap-

plications. Sample applications of Stone of Orthanc

are described as well. In particular, the Stone Web

viewer is introduced as the ﬁrst free and open-source

teleradiology solution that uses WebAssembly. The

source code of the Stone of Orthanc library is publicly

released under the LGPL license, whereas the Stone

Web viewer is licensed under the AGPL

As shown in this paper, WebAssembly can be used

to maximize code reuse in applications for medical

imaging. The same approach could be used in many

other scientiﬁc ﬁelds, where C++ code is traditionally

used for numerical computations.

Future work will focus on the exploitation of

Stone of Orthanc for artiﬁcial intelligence applica-

tions in radiology. In particular, we plan to work on

the rendering of DICOM SR (structured reports), DI-

COM SEG (image segmentation) and DICOM GSPS

(grayscale softcopy presentation state), as the outputs

of AI algorithms. The integration of MPR render-

ing and whole-slide imaging (Jodogne et al., 2017)

directly within the Stone Web viewer will also be in-

vestigated. Finally, performance of volume rendering

will be improved, for instance by taking advantage of

the GPU and Web workers in the Oracle.

ACKNOWLEDGMENTS

The author wishes to thank Benjamin Golinvaux,

Alain Mazy and Osimis for their contributions to the

development of the Stone of Orthanc project.

The source code of the Stone of Orthanc project is

available at: https://hg.orthanc-server.com/orthanc-stone/

REFERENCES

Cheng, P. M., Montagnon, E., Yamashita, R., Pan, I.,

Cadrin-Chênevert, A., Perdigón Romero, F., Char-

trand, G., Kadoury, S., and Tang, A. (2021). Deep

learning: An update for radiologists. RadioGraphics,

41(5):1427–1445. PMID: 34469211.

Costa, C., Ferreira, C., Bastião, L., Ribeiro, L., Silva,

A., and Oliveira, J. L. (2011). Dicoogle – an open

source peer-to-peer PACS. Journal of Digital Imag-

ing, 24(5):848–856.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. M.

(1994). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley Profes-

sional, 1st edition.

Haas, A., Rossberg, A., Schuff, D. L., Titzer, B. L., Holman,

M., Gohman, D., Wagner, L., Zakai, A., and Bastien,

J. F. (2017). Bringing the Web up to speed with We-

bAssembly. In Cohen, A. and Vechev, M. T., editors,

Proceedings of the 38th ACM SIGPLAN Conference

on Programming Language Design and Implementa-

tion, PLDI 2017, Barcelona, Spain, June 18-23, 2017,

pages 185–200. ACM.

Jodogne, S. (2018). The Orthanc ecosystem for medical

imaging. Journal of Digital Imaging, 31(3):341–352.

Jodogne, S., Lenaerts, E., Marquet, L., Erpicum, C., Grei-

mers, R., Gillet, P., Hustinx, R., and Delvenne, P.

(2017). Open implementation of DICOM for whole-

slide microscopic imaging. In VISIGRAPP (6: VIS-

APP), pages 81–87.

Kikinis, R., Pieper, S. D., and Vosburgh, K. G. (2014). 3D

Slicer: A Platform for Subject-Speciﬁc Image Anal-

ysis, Visualization, and Clinical Support, pages 277–

289. Springer New York, New York, NY.

Lacroute, P. and Levoy, M. (1994). Fast volume rendering

using a shear-warp factorization of the viewing trans-

formation. In Proceedings of the 21st Annual Con-

ference on Computer Graphics and Interactive Tech-

niques, SIGGRAPH ’94, pages 451–458, New York,

NY, USA. ACM.

National Electrical Manufacturers Association (2021). ISO

12052 / NEMA PS3, Digital Imaging and Communi-

cations in Medicine (DICOM) standard.

http://www.dicomstandard.org.

Rivero, M. and Feito, F. (2000). Boolean operations on

general planar polygons. Computers & Graphics,

24(6):881–896. Calligraphic Interfaces: Towards a

new generation of interactive systems.

Rosset, A., Spadola, L., and Ratib, O. (2004). OsiriX: An

open-source software for navigating in multidimen-

sional DICOM images. Journal of Digital Imaging,

17(3):205–216.

Schroeder, W., Martin, K., and Lorensen, B. (2006). The

Visualization Toolkit: An object-oriented approach to

3D graphics. Kitware, Inc., 4 edition.

Urban, T., Ziegler, E., Lewis, R., Hafey, C., Sadow, C.,

Van den Abbeele, A. D., and Harris, G. J. (2017).

LesionTracker: Extensible open-source zero-footprint

web viewer for cancer imaging research and clinical

trials. Cancer Research, 77(21):e119–e122.

Warnock, M. J., Toland, C., Evans, D., Wallace, B., and

Nagy, P. (2007). Beneﬁts of using the DCM4CHE DI-

COM archive. Journal of Digital Imaging, 20(Supp.

1):125–129.

Rendering Medical Images using WebAssembly
