Monte-Carlo Convolutions on Foveated Images

George Killick

, Gerardo Aragon-Camarasa

and J. Paul Siebert

School of Computing Science, University of Glasgow, Glasgow, U.K.

Keywords:

Foveated, Convolution, Retina, Implict, Neural, Representations.

Abstract:

Foveated vision captures a visual scene at space-variant resolution. This makes the application of parame-

terized convolutions to foveated images difﬁcult as they do not have a dense-grid representation in cartesian

space. Log-polar space is frequently used to create a dense grid representation of foveated images, however

this image representation may not be appropriate for all applications. In this paper we rephrase the convo-

lution operation as the Monte-Carlo estimation of the ﬁlter response of the foveated image and a continuous

ﬁlter kernel, an idea that has seen frequent use for deep learning on point clouds. We subsume our convolu-

tion operation into a simple CNN architecture that processes foveated images in cartesian space. We evaluate

our system in the context of image classiﬁcation and show that our approach signiﬁcantly outperforms an

equivalent CNN processing a foveated image in log-polar space.

1 INTRODUCTION

We are concerned with the application of parame-

terized convolution ﬁlters to non-uniformly sampled

images, particularly those produced by foveated sen-

sors. Foveated sensors reduce image size by decreas-

ing sampling resolution as a function of eccentricity

from some location within the visual scene (the ﬁxa-

tion location). In some computer vision applications,

it may be desirable to extract high-frequency informa-

tion and operate on a wide ﬁeld of view. This may be

computationally intractable if the required resolution

and ﬁeld of view is excessively high, as many com-

puter vision algorithms have a computational com-

plexity that scales with image size. Foveated sensors

aim to emulate operating on the full resolution image

by ﬁxating on important high-frequency information

while still sampling a large ﬁeld of view. The out-

put of a foveated sensor is signiﬁcantly smaller than

the full resolution image and is consequently compu-

tationally feasible to operate on with deep neural net-

works.

Due to the non-uniform sampling of a visual scene

through a foveated sensor, applying convolutional

neural networks to foveated images is difﬁcult as con-

volution layers expect input data to have a uniform

grid representation. To solve this, a log-polar trans-

https://orcid.org/0000-0002-6881-5535

https://orcid.org/0000-0003-3756-5569

https://orcid.org/0000-0002-9405-4872

form is usually applied to the image to create a com-

pressed representation that is in a grid format (Oz-

imek et al., 2019), (Schwartz, 1980). While this for-

mat is compatible with convolution layers, it fun-

damentally changes the representation of the data.

Log-polar image representations do not have transla-

tion equivariance like cartesian images, instead hav-

ing scale and rotation equivariance (about the ﬁxa-

tion location) (Weiman and Chaikin, 1979). While

not an inherently poor representation of visual data,

log-polar representations may not be desirable for all

applications. To this end, we aim to remove the need

to apply a log-polar transform to foveated images in

order to use them with CNNs.

In this paper, we propose a convolution operation

that can directly operate on foveated images in carte-

sian space without requiring a log-polar representa-

tion. Our operation is inspired by convolution opera-

tors designed for point clouds (Wu et al., 2019)(Her-

mosilla et al., 2018)(Wang et al., 2018), which frame

the convolution operation as the Monte-Carlo estima-

tion of the continuous convolution integral. Monte-

Carlo convolution operations require the convolution

kernel to be represented continuously in the spa-

tial domain. Typically, this is achieved through a

coordinate-based MLP, which maps spatial locations

to a ﬁlter weight. The current convention is to use the

ReLU activation function within the MLP. However,

adjacent work in implicit neural representations sug-

gests that the Sine activation function is more suitable

444

Killick, G., Aragon-Camarasa, G. and Siebert, J.

Monte-Carlo Convolutions on Foveated Images.

DOI: 10.5220/0010832400003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

444-451

ISBN: 978-989-758-555-5; ISSN: 2184-4321

for this task. To this end, we propose a novel formu-

lation of the Monte Carlo Convolution operation that

uses a Sine activated MLP to represent spatially con-

tinuous convolution kernels.

We use our proposed convolution operation to

build a simple CNN architecture and evaluate its per-

formance on the CUB-200-2011 Dataset (Wah et al.,

2011), a popular ﬁne-grained image classiﬁcation

dataset comprised of images of 200 species of birds.

We simulate a foveated sensor in software using the

method proposed in (Balasuriya, 2006). We compare

our convolution operation against a standard CNN

processing foveated images represented in a log-polar

space and show that classiﬁcation performance is im-

proved when applying convolutions in the cartesian

coordinate frame. Additionally, we compare differ-

ent MLP designs for representing spatially continu-

ous convolution ﬁlters. We show that classiﬁcation

performance is signiﬁcantly improved when using an

MLP with the Sine activation function compared to

the more traditional ReLU MLP. We do not intend to

show that foveated vision itself is beneﬁcial to this

particular classiﬁcation task. Rather, we intend to

show that if one wishes to use foveated vision in a

computer vision pipeline, our proposed convolution

operation can operate on this data in the cartesian co-

ordinate frame effectively. Finally, we show that in

the case of a single hidden layer MLP with Sine acti-

vations, it sufﬁces to freeze ﬁrst layer weights at ini-

tialization and only learn the bias terms with no sig-

niﬁcant performance decrease.

To summarise, our contributions in this work are

three-fold:

• We demonstrate that Monte-Carlo convolutions,

frequently used for point clouds, can be applied

effectively to foveated images in the cartesian co-

ordinate frame.

• We empirically show that the expressiveness of

the continuous ﬁlter kernel derived from a coordi-

nated based MLP is signiﬁcantly improved when

using the Sine activation instead of ReLUs.

• We propose a parameter efﬁcient coordinate based

MLP that can achieve comparable performance to

its inefﬁcient counterpart and provide intuition on

why it works through a comparison to Fourier se-

ries synthesis.

While the results from this work are promising, it

is in its infancy, with many issues still present. We

address these in the limitations section. Nonetheless,

we believe the work presented in this paper will be

helpful as a strong baseline for future work on pro-

cessing foveated images with deep neural networks in

the cartesian coordinate frame.

2 RELATED WORK

2.1 Deep Learning on Foveated Images

Foveated vision has been incorporated into deep

learning vision systems in a variety of forms. (Karpa-

thy et al., 2014) adopt a simple approach to foveated

vision using two images, a high-resolution crop and

a low-resolution full ﬁeld of view. Each image is

processed by its own CNN before being concate-

nated and fed to further fully connected layers. (Li

et al., 2017) approach differs slightly through sharing

weights between the Convolution Neural Networks

(CNNs) that process the high-resolution crop and the

low-resolution full ﬁeld of view. This approach does

not require a log-polar representation and is easily in-

tegrated into CNN architectures. (Balasuriya, 2006)

comments on the potential pitfalls of this approach,

particularly in the extraction of features that span dif-

ferent ﬁelds of view. To our knowledge, no one has

reported on whether this discontinuity has signiﬁcant

effects on a deep learning system in practice. While a

comparison could be made between this approach and

log-polar foveated images, it is not a like for like com-

parison as the log-polar space fundamentally changes

the way ﬁlters are applied to visual scene. In this

paper, we provide a framework for investigating this

claim in the future.

(Nakada et al., 2018) use a random distribution of

points in log-polar space to sample a simulated visual

scene. These points are passed to an MLP to pro-

cess the visual scene. While this approach is simple

in design and does not require a log-polar represen-

tation, it is likely impractical for real images which

have much richer visual information than simulated

visual scenes. (Balasuriya and Siebert, 2003) apply

difference-of-gaussian and Gabor ﬁlters to a Software

Retina (Balasuriya, 2006). Support regions are con-

structed using distance on the Delaunay triangulated

graph of the sampling locations. Spatial offsets of

points in the support relative to the centre of the sup-

port are used to compute ﬁlter weights with the an-

alytic expressions for difference-of-gaussian and Ga-

bor ﬁlters. This method is similar to the Monte-Carlo

convolutions used in point clouds (Section 2.2)

Log-polar representations are the prevalent ap-

proach to integrating foveated images into CNNs.

(Esteves et al., 2017) extend spatial transformer net-

works (Jaderberg et al., 2015) to use the log-polar

transform allowing them to ﬁxate the high-resolution

region on objects of interest. (Amorim et al., 2018)

evaluate the rotation invariance of log-polar image

representations in conjunction with CNNs. (Kim

et al., 2020) similarly evaluate scale and rotation in-

Monte-Carlo Convolutions on Foveated Images

445

Figure 1: Left to Right: An image from the CUB-200-2011 Dataset of a cardinal bird, represented as a standard uniform

image grid. The image sampled by a 8192 receptive ﬁeld Software Retina (Balasuriya, 2006), resampled to a uniform grid.

The Software Retina sampled image represented in cortical space ((Schwartz, 1980)), a biologically plausible variant of the

log-polar transform.

variance of log-polar and polar images with wrap

around padding. In both cases, network performance

suffered under the log-polar and polar image repre-

sentations, only beneﬁting in the speciﬁc case of train-

ing on non-rotated images and testing on rotated im-

ages. Interestingly, networks that had been trained

on rotated images and tested on rotated images out-

perform log-polar images as well. (Ozimek et al.,

2019) evaluate a more biologically plausible variant

of the log-polar transform, dubbed the cortical trans-

form (Schwartz, 1980), applied to Balasuriya’s Soft-

ware Retina (Balasuriya, 2006). Ozimek et al. again

reported decreased performance for cortical images

when processed by a CNN for image classiﬁcation.

Ozimek et al. also evaluated the foveated sensor

resampled to a uniform grid in cartesian space and

showed an increase in performance more comparable

to the full resolution image. This suggests that much

of the performance decrease is from the log-polar

space and not reduced information through foveated

sampling.

2.2 Deep Learning on Point Clouds

2D images can be considered a speciﬁc case of 2D

point clouds where diagnostic information is only car-

ried in the RGB values attached to each point and not

in the spatial relationships between points. While in

the conventional uniform sampling setting of 2D im-

ages, the application of convolutions is possible using

the standard discrete convolution. However, this is not

the case when the image is sampled non-uniformly.

For this reason, methods developed for performing

deep learning on point clouds are of particular rele-

vance to performing deep learning on foveated im-

ages. In this subsection, we give a general overview

of deep learning architectures designed for processing

point clouds.

PointNet (Qi et al., 2017a) stands as one of the

ﬁrst successful attempts in applying deep learning ar-

chitectures directly on point clouds. Shared MLPs are

applied in a point-wise fashion to each point in the

set, projecting them into a higher dimensional space.

These features are aggregated spatially with a global

max-pooling operation before being passed to further

layers for classiﬁcation. Due to the global spatial ag-

gregation, PointNet cannot capture local features in

the input signal, only global features. PointNet++ (Qi

et al., 2017b) addresses this by applying a PointNet

to local neighbourhoods on the point cloud to capture

local information hierarchically.

(Wang et al., 2018) use Monte-Carlo integration to

estimate the convolution integral where points from

the point cloud serve as random samples of the un-

derlying continuous signal. Support regions are con-

structed on a point cloud using nearest neighbours.

The spatial offset of each point in the support region,

relative to the centre of the support region, is passed to

a coordinate-based MLP to produce the ﬁlter weights

for the corresponding spatial location. A weighted

sum between point features and ﬁlter weights is then

computed to estimate the convolution response at that

location. (Hermosilla et al., 2018) adopt a similar

approach, but inversely weight samples with their

probability density function (PDF) given the support

region, obtained through kernel density estimation

(KDE). This method is a more accurate approxima-

tion of Monte-Carlo integration and allows the esti-

mation of the convolution response to be more robust

to non-uniform sampling. (Wu et al., 2019) similarly

employ inverse weighting through a point’s PDF but

ﬁrst pass the PDF to a parameterised MLP to allow

the network to decide how to use PDFs to inversely

weight samples. In our use case, robustness to non-

uniform sampling is not as pertinent as in point clouds

as a local support region on our foveated sensor is ap-

proximately uniform.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

446

(Wang et al., 2018) (Hermosilla et al., 2018) (Wu

et al., 2019) use ReLU MLPs to map spatial offsets

to ﬁlter values. (Xu et al., 2021) instead map spa-

tial offsets to a vector applied with the Softmax ac-

tivation function using an MLP. This vector is used

to softly combine a set of weights stored in a weight

bank into a single weight matrix for that speciﬁc spa-

tial location. (Thomas et al., 2019) adopt a similar

approach but use a predetermined interpolation func-

tion to combine the weights of a weight bank into a

position-speciﬁc weight matrix.

While the methods presented by (Xu et al., 2021),

(Thomas et al., 2019) outperform coordinate based

MLP approaches, we believe the performance dis-

crepancy can be partially explained by adjacent work

in implicit neural representations. That is, (Tan-

cik et al., 2020) show that coordinate based MLPs

with ReLU activations have a spectral bias to low-

frequency functions. In Monte-Carlo convolutions,

the coordinate-based MLP is an implicit neural rep-

resentation of a ﬁlter bank. (Mildenhall et al., 2020)

overcome this bias by ﬁrst applying a positional en-

coding to the coordinates, signiﬁcantly improving the

networks ability to model high-frequency functions.

SIRENs (Sitzmann et al., 2020) similarly show the

beneﬁts of periodic activations when modelling con-

tinuous signals by using an MLP with Sine activa-

tions.

3 METHOD

3.1 Foveated Sensor

To produce foveated images from uniform images,

we simulate a foveated sensor in software using the

method proposed by (Balasuriya, 2006). A self-

similar neural network (Clippingdale and Wilson,

1996) is used to produce a foveated sampling pat-

tern that serves as the centres for overlapping Gaus-

sian receptive ﬁelds. These receptive ﬁelds are used

to sample a uniform image and output a list of RGB

values along with their corresponding receptive ﬁelds

2D spatial location in cartesian space. We use this ap-

proach to foveated sensing as the Gaussian receptive

ﬁelds remove aliasing in the output image; however,

our method for performing convolutions is aimed to

be largely agnostic to the foveated sampling strategy.

Our foveated sensor has 8192 receptive ﬁelds with a

fovea radius of 0.1 to sample a 256x256 image.

To compare our method with previous methods,

we use the cortical transform proposed by (Schwartz,

1980) to produce a compact, dense representation of

Balasuriya’s Software Retina.

3.2 Non-uniform Convolution

Our approach to convolution is the same in concept to

that of (Hermosilla et al., 2018), (Wu et al., 2019),

(Wang et al., 2018). We frame convolution as the

Monte-Carlo estimation of convolution integral and

represent convolution kernels continuously through

a parameterized MLP. Our novel contribution comes

from how we design the MLP (section 3.4), not the

overall operation. The integral deﬁnition of the 2D

continuous convolution operation is given by equa-

tion. 1, and the Monte-Carlo estimation of the convo-

lution operation is given by equation. 2

f ∗ g(x, y) =

∞

n=−∞

∞

m=−∞

f (n, m)·g(x − n, y − m)∂n∂m

(1)

f ∗ G(x, y) ≈

∑

δ(x,y)∈S



δ(x, y)



· G(x + δx, y + δy)

(2)

Where f is the continuous convolution kernel rep-

resented by a coordinate-based MLP, G is the discrete

function of the foveated image, S is the set of spatial

offsets of points in a given support region relative to

the support centre, and r is the radius of the support

region.

(Hermosilla et al., 2018) and (Wu et al., 2019) in-

versely weight each sample by its probability density

function. While this is important in point clouds due

to the potential for the sampling to be highly non-

uniform, this is less important in our use case as we

can guarantee an approximately uniform sampling for

any small local neighbourhood of the foveated sen-

sor. Consequently, we avoid this inverse weighting as

it adds unnecessary computation to the process. For

foveated sensors, such as that used by (Nakada et al.,

2018), which have a less uniform sampling scheme,

the inclusion of inverse weighting by PDF may prove

beneﬁcial.

3.3 Support Regions

The support region of the standard discrete 2D convo-

lutional operation is deﬁned by the height and width

of the kernel used for convolution. To deﬁne a support

region on a non-uniformly sampled image, we use a

nearest-neighbours search to ﬁnd the k nearest neigh-

bours to the centre of our receptive ﬁeld where k is

a hyperparameter analogous to ﬁlter size in standard

convolutions. Unlike point clouds, the spatial loca-

tions of points are consistent across all input images

Monte-Carlo Convolutions on Foveated Images

447

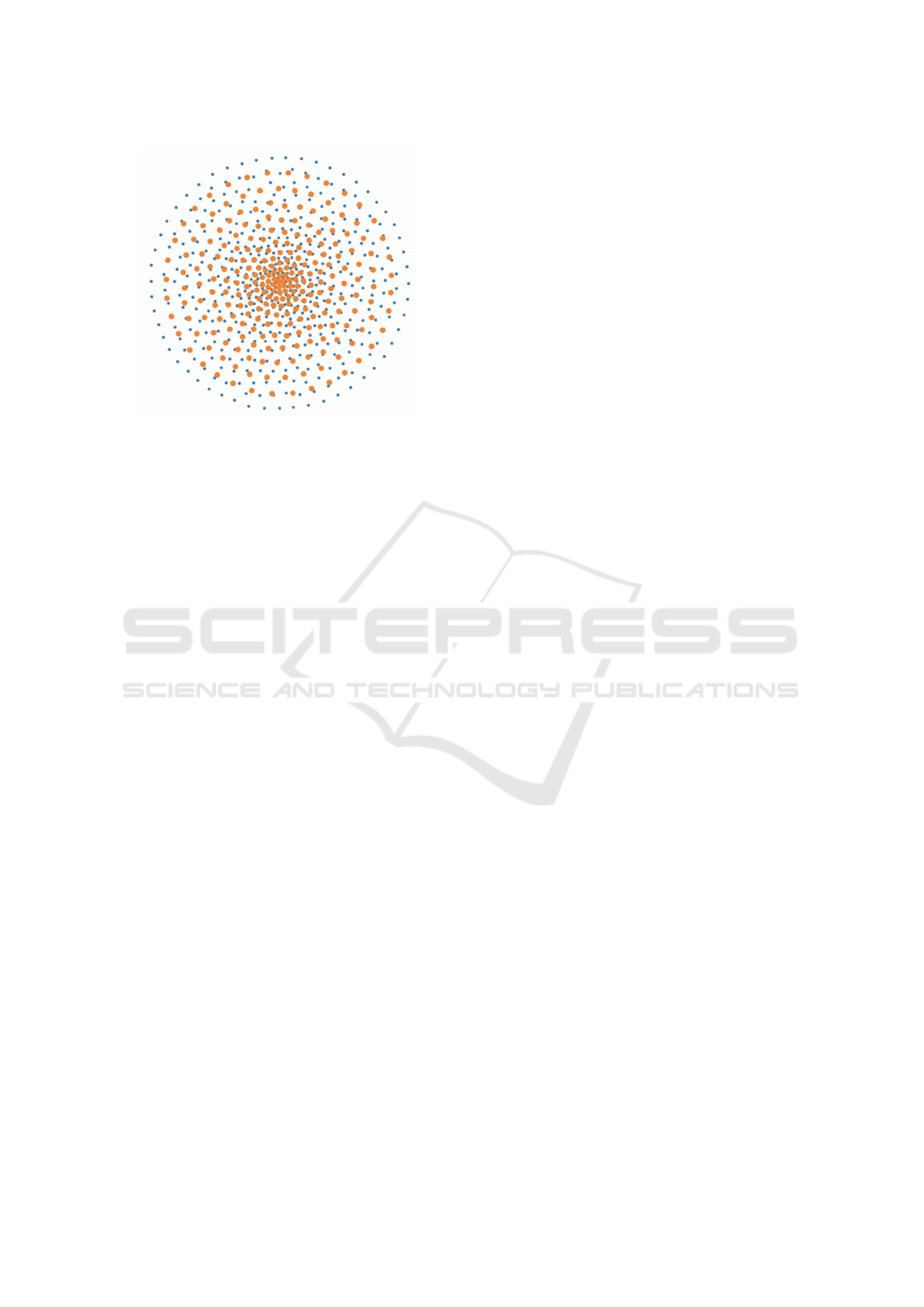

Figure 2: The pixel locations of the foveated image (blue)

and the support region centres established over the foveated

image (orange). Both are generated by a Self-Similar Neu-

ral Network ((Clippingdale and Wilson, 1996). The ratio

between the number of pixels and the number of support re-

gions determines the downsampling factor the convolution

operation provides.

meaning we can compute nearest neighbours once at

initialization of the network, removing the need for a

nearest neighbours search in the forward pass of the

network. To maintain foveated sampling in the in-

termediate feature maps, support centre locations use

the sampling locations of the input feature map or

the sampling locations of a lower resolution Software

Retina to perform downsampling (Figure 2).

For every support region, a shared MLP is applied

to the spatial offsets of the support points relative to

the support centre, normalized by the maximum spa-

tial offset (equivalent to the radius of the support re-

gion). Utilizing the normalized spatial offsets pro-

duces translation-invariant ﬁlter weights and scale the

ﬁlter appropriately for the sampling resolution. Eval-

uating the MLP for all sampling locations in the sup-

port produces a k × I × O weight tensor representing

the ﬁlter, where k is ﬁlter size, I is the depth of the in-

put feature map, and O is the number of ﬁlters in the

convolutional layer. The ﬁlter response is computed

as the weighted sum of the ﬁlter and the feature values

of the support region. In accordance with the integral

deﬁnition of the convolution operation, this method is

equivalent to the Monte-Carlo estimation of the con-

volution integral.

3.4 Continuous Filter Representations

We use a coordinate-based MLP to map the spatial

offsets of pixels relative to the receptive ﬁeld centre

to ﬁlter coefﬁcients. (Hermosilla et al., 2018), (Wu

et al., 2019), (Wang et al., 2018) use the ReLU ac-

tivation function for their MLPs, however (Sitzmann

et al., 2020), (Tancik et al., 2020) show that coordi-

nate based MLPs struggle to effectively learn high-

frequency functions when using the ReLU activation

function. This may impede the CNNs ability to learn

expressive ﬁlters for higher frequency signals. (Tan-

cik et al., 2020), (Mildenhall et al., 2020) demonstrate

that the mapping of coordinates ﬁrst through multi-

ple sinusoids of different frequencies allows the MLP

to learn higher frequency functions. (Tancik et al.,

2020), (Sitzmann et al., 2020) scale the input data by

some scaling factor to increase the range of frequen-

cies the MLP can easily learn.

Our MLP design uses one hidden layer of size 64

with the Sine activation function and outputs I x O

where I is the depth of the input featuremap and O is

the depth of the output featuremap. Like (Sitzmann

et al., 2020) (Tancik et al., 2020), we apply a scaling

factor to the ﬁrst layer weights. This scaling factor is

a hyperparameter with 6 giving the best network per-

formance (Figure 4). We draw our ﬁrst layer weights

from a uniform distribution of -1 to 1.

In the case of a Sine activated MLP with one hid-

den layer, the functionality of this network is similar

to the synthesis of a function through a Fourier series.

In this case, input layer weights, bias terms, and out-

put weights correspond to the frequency, phase and

amplitude of the Fourier basis functions. We ﬁnd it

sufﬁces to freeze ﬁrst layer weights at initialization

and only learn the bias terms. Provided that the ﬁrst

layer weights cover a sufﬁcient frequency range uni-

formly, this should provide the network with a se-

ries of sine basis functions suitable for approximating

continuous functions without the need to learn their

frequencies. Freezing the bias terms proved detrimen-

tal to network performance, suggesting that learning

appropriate phase offsets is crucial to the modelling

of continuous functions for the size of the MLP we

use.

3.5 CNN Architecture

The overall CNN architecture for all experiments uses

5 convolutional blocks where a block has the form

of Conv-BatchNorm-ReLU. Each convolution layer

uses a receptive ﬁeld size of 9 nearest neighbours. At

each block we double the number of ﬁlters, giving

an overall signature of (32, 64, 128, 256, 512). The

ﬁnal feature maps are global average pooled in the

spatial dimension before being ﬂattened and passed

to a fully connected layer that outputs class predic-

tions under the softmax activation. Each convolution

block reduces the spatial dimensionality by a factor

of 4. For experiments that use standard convolutions,

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

448

Figure 3: A demonstration of the Monte-Carlo convolution process. a) The local support region established on the foveated

image using 7 nearest neighbours from the support centre (yellow point). b) the spatial offsets of all points in the support

region from the support region centre, normalized by radius r. c) the features associated with each point in the support. d)

normalized spatial offsets are passed to a shared MLP to produce the ﬁlter weights. e) these weights are used to perform a

weighted sum of the point features and in turn produce the ﬁlter responses for that support region.

we use a kernel size of 3x3 and a stride of 2 to make a

fair comparison between the discrete convolution and

Monte-Carlo Convolution.

3.6 Training and Dataset

We evaluate our method on the CUB-200-2011

Dataset (Wah et al., 2011), a ﬁne-grained classiﬁ-

cation dataset comprised of 11,788 images of 200

species of birds. The dataset has a train-test split pro-

vided by the dataset creators (an approximately 50-50

split). We further split the test set into a test and vali-

dation set with a 4:1 ratio respectively. We choose the

CUB-200-2011 dataset as it is challenging due to its

ﬁne-grained nature and will require expressive convo-

lution ﬁlters to disambiguate the classes.

All images are normalized to the range of 0-1 and

resized to 256x256. At training time we apply ran-

dom rotations of ±20 degrees, randomly ﬂip horizon-

tally, and randomly crop 80% of the image and re-

size to 256x256. This data augmentation scheme pro-

duces translation, rotation and scale transformations

of input data. Depending on the image representation

used, the subsequent CNN will have a degree of in-

variance to these transformations. We assume that the

augmentation scheme is equally useful for all image

representations as they are either invariant to trans-

lation or rotation but never both. We train for 100

epochs using the Adam optimizer (Kingma and Ba,

2014). We take the best performing model across all

epochs as the ﬁnal model and report its performance

on the held-out test set as the ﬁnal performance.

Table 1: Classiﬁcation performance on the CUB-200-2011

Dataset using Monte-Carlo Convolutions. Bracketed num-

bers refer to the width of each layer of the network. SIREN

refers to the networks proposed by (Sitzmann et al., 2020),

while ReLU refers to a standard MLP with ReLU activation.

MLP Design Classiﬁcation Accuracy (%)

ReLU (32-32) 19.4

SIREN (64-64-64) 29.5

Ours (64) 28.7

4 EXPERIMENTS

4.1 Effect of MLP Design

We evaluate different MLP designs for use within our

proposed convolution operation and report how they

impact classiﬁcation accuracy for a CNN trained on

the CUB-200-2011 Dataset (Table 4). The role of the

MLP within the Monte-Carlo convolution operation is

to act as an implicit neural representation of convolu-

tion ﬁlters. The ReLU MLP, as used in (Wang et al.,

2018), (Wu et al., 2019), (Hermosilla et al., 2018),

performs signiﬁcantly worse than SIRENs (Sitzmann

et al., 2020) which can be considered state-of-the-

art for implicit neural representations. Our proposed

MLP design, which can be seen as a special case of a

SIREN, uses only one hidden layer and has ﬁrst layer

weights frozen at initialization (not including biases).

We show that despite operating under far fewer learn-

able parameters, there is a negligible performance de-

crease over the best performing SIREN. These results

Monte-Carlo Convolutions on Foveated Images

449

suggest that it sufﬁces to represent convolution ker-

nels continuously through a linear combination of dif-

ferent sinusoids and that a many hidden layer SIREN

is not strictly necessary to achieve good performance.

4.2 Scaling Factor Hyperparameter

An important hyperparameter in the MLP is the scal-

ing factor applied to the input coordinates (equivalent

to the omega hyperparameter in SIRENs (Sitzmann

et al., 2020)). Figure 4 shows how classiﬁcation ac-

curacy changes under different scaling factors. The

CNN’s classiﬁcation accuracy is highly dependent on

this hyperparameter with 6 providing the best perfor-

mance. The scaling factor is closely tied to the fre-

quency range the MLP can represent. The sampling

rate of the continuous convolution ﬁlter increases with

kernel size. Therefore, it is likely that the scaling pa-

rameter should be tuned in accordance to the convo-

lutional layer’s kernel size. We do not explore this

further in this paper, however he importance of this

hyperparameter makes this an important avenue to ex-

plore in future work.

Figure 4: The effect of changing the input scaling factor of

the MLP in our proposed convolution operation on classiﬁ-

cation accuracy on the CUB-200-2011 Dataset.

4.3 Image Representations

We compare classiﬁcation accuracy when operating

on the foveated image in cartesian space against a

foveated image represented in log-polar space (Ta-

ble 4.3). We provide additional context for perfor-

mance by also reporting classiﬁcation accuracy on

the uniform image before foveated sampling. For the

foveated image in cartesian space we use our pro-

posed Monte-Carlo Convolution operation. For all

other experiments standard 2D discrete convolutions

are applied. We show that classiﬁcation accuracy

on the cartesian foveated image when using Monte-

Carlo convolutions is signiﬁcantly higher than stan-

dard convolutions applied to the log-polar foveated

Table 2: Classiﬁcation performance on the CUB-200-2011

Dataset. Unless speciﬁed to use MC-Conv, all results are

obtained with a CNN using standard convolutions. Results

are averaged over 5 training runs.

Image type

Classiﬁcation

Accuracy (%)

Uniform (256x256) 33.1

Foveated - Cortical Transform 22.0

Foveated w/ MC-Conv (Ours) 28.7

image. Both foveated images carry the same amount

of information but differ in their representation, sug-

gesting that the performance discrepancy is simply

due to the log-polar space being a poor image rep-

resentation for this task. Operating on the cartesian

foveated image also produced results comparable to

that of standard convolutions operating on the uni-

form image suggesting that our proposed convolution

operation can achieve similar representational power

to standard convolutions.

5 CONCLUSION

In this paper, we propose a method for performing

convolutions on non-uniform foveated images in the

cartesian coordinate frame. Our approach uses the

Monte-Carlo estimation of the convolution operation

between the foveated image and a continuous ﬁlter

kernel represented by a coordinate MLP. Unlike pre-

vious approaches, which use an MLP with ReLU ac-

tivations, we adopt Sine activation functions which

have been shown to signiﬁcantly improve our model’s

ability to learn ﬁlters that can extract diagnostic fea-

tures from a foveated image. Our approach sig-

niﬁcantly outperforms standard convolutions applied

to foveated images represented in a log-polar space

and approaches performance comparable to applying

standard convolutions to the full resolution uniform

image.

6 LIMITATIONS

The computational overhead of the computer vision

system operating on the foveated image should be less

than operating on the full resolution image. A stan-

dard convolution layer requires a k x I x O weight

tensor to represent its convolution ﬁlters, where k is

the size of the ﬁlter, I is the number of input channels,

and O is the number of ﬁlters. Our convolution oper-

ation requires k x I x O x N, where N is the number of

support regions established on the featuremap. This

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

450

factor N increase signiﬁcantly increases the memory

overhead of our operation beyond the memory sav-

ings achieved through a reduced image size through

foveated sensing. In future work, we would like to

address this limitation through factorization methods

to achieve memory savings that make operating on

foveated images in cartesian space viable from a com-

putational overhead point of view.

REFERENCES

Amorim, M., Bortoloti, F., Ciarelli, P. M., de Oliveira,

E., and de Souza, A. F. (2018). Analysing rotation-

invariance of a log-polar transformation in convolu-

tional neural networks. In 2018 International Joint

Conference on Neural Networks (IJCNN), pages 1–6.

IEEE.

Balasuriya, L. and Siebert, J. (2003). A low level vision hi-

erarchy based on an irregularly sampled retina. In Pro-

ceedings of the International Conference on Compu-

tational Intelligence, Robotics and Autonomous Sys-

tems, Singapore.

Balasuriya, S. (2006). A computational model of space-

variant vision based on a self-organised artiﬁcial

retina tessellation. PhD thesis, University of Glasgow.

Clippingdale, S. and Wilson, R. (1996). Self-similar neural

networks based on a kohonen learning rule. Neural

Networks, 9(5):747–763.

Esteves, C., Allen-Blanchette, C., Zhou, X., and Daniilidis,

K. (2017). Polar transformer networks. arXiv preprint

arXiv:1709.01889.

Hermosilla, P., Ritschel, T., V

azquez, P.-P., Vinacua,

A.,

and Ropinski, T. (2018). Monte carlo convolution

for learning on non-uniformly sampled point clouds.

ACM Transactions on Graphics (TOG), 37(6):1–12.

Jaderberg, M., Simonyan, K., Zisserman, A., et al. (2015).

Spatial transformer networks. Advances in neural in-

formation processing systems, 28:2017–2025.

Karpathy, A., Toderici, G., Shetty, S., Leung, T., Suk-

thankar, R., and Fei-Fei, L. (2014). Large-scale video

classiﬁcation with convolutional neural networks. In

Proceedings of the IEEE conference on Computer Vi-

sion and Pattern Recognition, pages 1725–1732.

Kim, J., Jung, W., Kim, H., and Lee, J. (2020). Cy-

cnn: a rotation invariant cnn using polar mapping

and cylindrical convolution layers. arXiv preprint

arXiv:2007.10588.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Li, X., Jie, Z., Wang, W., Liu, C., Yang, J., Shen, X., Lin,

Z., Chen, Q., Yan, S., and Feng, J. (2017). Foveanet:

Perspective-aware urban scene parsing. In Proceed-

ings of the IEEE International Conference on Com-

puter Vision, pages 784–792.

Mildenhall, B., Srinivasan, P. P., Tancik, M., Barron, J. T.,

Ramamoorthi, R., and Ng, R. (2020). Nerf: Repre-

senting scenes as neural radiance ﬁelds for view syn-

thesis. In European conference on computer vision,

pages 405–421. Springer.

Nakada, M., Chen, H., and Terzopoulos, D. (2018). Deep

learning of biomimetic visual perception for virtual

humans. In Proceedings of the 15th ACM Symposium

on Applied Perception, pages 1–8.

Ozimek, P., Hristozova, N., Balog, L., and Siebert, J. P.

(2019). A space-variant visual pathway model for data

efﬁcient deep learning. Frontiers in cellular neuro-

science, 13:36.

Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2017a). Point-

net: Deep learning on point sets for 3d classiﬁcation

and segmentation. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 652–660.

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017b). Point-

net++: Deep hierarchical feature learning on point sets

in a metric space. arXiv preprint arXiv:1706.02413.

Schwartz, E. L. (1980). Computational anatomy and func-

tional architecture of striate cortex: a spatial map-

ping approach to perceptual coding. Vision research,

20(8):645–669.

Sitzmann, V., Martel, J., Bergman, A., Lindell, D., and Wet-

zstein, G. (2020). Implicit neural representations with

periodic activation functions. Advances in Neural In-

formation Processing Systems, 33.

Tancik, M., Srinivasan, P. P., Mildenhall, B., Fridovich-

Keil, S., Raghavan, N., Singhal, U., Ramamoor-

thi, R., Barron, J. T., and Ng, R. (2020). Fourier

features let networks learn high frequency func-

tions in low dimensional domains. arXiv preprint

arXiv:2006.10739.

Thomas, H., Qi, C. R., Deschaud, J.-E., Marcotegui, B.,

Goulette, F., and Guibas, L. J. (2019). Kpconv: Flex-

ible and deformable convolution for point clouds. In

Proceedings of the IEEE/CVF International Confer-

ence on Computer Vision, pages 6411–6420.

Wah, C., Branson, S., Welinder, P., Perona, P., and Be-

longie, S. (2011). The caltech-ucsd birds-200-2011

dataset.

Wang, S., Suo, S., Ma, W.-C., Pokrovsky, A., and Urtasun,

R. (2018). Deep parametric continuous convolutional

neural networks. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 2589–2597.

Weiman, C. F. and Chaikin, G. (1979). Logarithmic spi-

ral grids for image processing and display. Computer

Graphics and Image Processing, 11(3):197–226.

Wu, W., Qi, Z., and Fuxin, L. (2019). Pointconv: Deep

convolutional networks on 3d point clouds. In Pro-

ceedings of the IEEE/CVF Conference on Computer

Vision and Pattern Recognition, pages 9621–9630.

Xu, M., Ding, R., Zhao, H., and Qi, X. (2021). Paconv:

Position adaptive convolution with dynamic kernel

assembling on point clouds. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 3173–3182.

Monte-Carlo Convolutions on Foveated Images

451
