3GAN: A Three-GAN-based Approach for Image Inpainting Applied to

the Reconstruction of Occluded Parts of Building Walls

Benedikt Kottler

, Ludwig List

, Dimitri Bulatov

1 a

and Martin Weinmann

2 b

Fraunhofer Institute for Optronics, System Technologies and Image Exploitation (IOSB),

Gutleuthausstrasse 1, 76275 Ettlingen, Germany

Institute of Photogrammetry and Remote Sensing, Karlsruhe Institute of Technology (KIT),

Englerstr. 7, 76131 Karlsruhe, Germany

Keywords:

Edges, Fac¸ades, GAN, Inpainting, Semantic Segmentation, Texture Synthesis.

Abstract:

Realistic representation of building walls from images is an important aspect of scene understanding and

has many applications. Often, images of buildings are the only input for texturing 3D models, and these

images may be occluded by vegetation. One task of image inpainting is to remove these clutter objects. Since

the disturbing objects can also be of a larger scale, modern deep learning techniques should be applied to

replace them as realistically and context-aware as possible. To support an inpainting network, it is useful

to include a-priori information. An example of a network that considers edge images is the two-stage GAN

model denoted as EdgeConnect. This idea is taken up in this work and further developed to a three-stage

GAN (3GAN) model for fac¸ade images by additionally incorporating semantic label images. By inpainting

the label images, not only a clear geometric structure but also class information, like position and shape of

windows and their typical color distribution, are provided to the model. This model is compared qualitatively

and quantitatively with the conventional version of EdgeConnect and another well-known deep-learning-based

approach on inpainting which is based on partial convolutions. This latter approach was outperformed by both

GAN-based methods, both qualitatively and quantitatively. While the quantitative evaluation showed that

the conventional EdgeConnect method performs minimally best, the proposed method yields a slightly better

representation of speciﬁc fac¸ade elements.

1 INTRODUCTION

Images are probably the most widespread source of

information nowadays. However, images cannot al-

ways be captured in the way the desired scene ap-

pears without irrelevant objects. Image inpainting is

a discipline dedicated to removing these objects; the

applications of image inpainting extend from restor-

ing images (e.g. images contaminated with noise or

scratches) via ﬁlling missing image parts (e.g. gaps

resulting from text removal or object removal) to ﬁll-

ing of image regions (e.g. areas resulting from image

cropping or masking), see (Elharrouss et al., 2019). In

particular, realistic representations of 3D city scenes,

especially building walls from texture images, possi-

bly combined with reconstruction results of different

sensor data, are an essential aspect of scene under-

standing and have many applications (Shalunts et al.,

2011; Bulatov et al., 2014; Zhang et al., 2020). Often

it happens that the images of building fac¸ades are the

https://orcid.org/0000-0002-0560-2591

https://orcid.org/0000-0002-8654-7546

only input for texturing. As a consequence, proper

occlusion analysis cannot be accomplished. This has

the disadvantage that the fac¸ade images are often con-

taminated, especially by trees standing in front of the

buildings. Clearly, these objects can be arbitrarily

large, and the only feasible way to replace them in the

image is to learn the backgrounds from a high number

of training examples. In this paper, we wish to investi-

gate to what extent the modern generative techniques

of deep learning are capable of replacing such large

occluding objects as realistically and context-aware

as possible and, at the same time, of maintaining the

distinction between rectangular fac¸ade objects and the

background. The main innovation lies in combining

a-priori information, allowing to support an inpaint-

ing network operating on such a complex and texture-

rich entity as a fac¸ade with explicit semantic or geo-

metrical descriptions of its elements. Inspired by the

EdgeConnect approach (Nazeri et al., 2019) based on

two generative adversarial networks (GANs), we pro-

pose a method that successively reconstructs an edge

image, a label image, and a texture image using three

Kottler, B., List, L., Bulatov, D. and Weinmann, M.

3GAN: A Three-GAN-based Approach for Image Inpainting Applied to the Reconstruction of Occluded Parts of Building Walls.

DOI: 10.5220/0010830600003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

427-435

ISBN: 978-989-758-555-5; ISSN: 2184-4321

427

GANs (see Figure 1, top). This method will be de-

noted 3GAN approach throughout this paper.

We provide a literature review on image inpainting

in Section 2 and identify at the end of this section the

most promising method which relies on two GANs.

In Section 3, we extend this method by yet another

GAN that utilizes two-dimensional context informa-

tion stored in a semantic segmentation image, expect-

ing additional stability from this intermediate input.

In Section 4, we present the results of the proposed

method and compare them with those yielded by the

predecessor and another algorithm. Finally, Section

5 summarizes the main ﬁndings of our work and out-

lines a few directions for future research.

2 RELATED WORK

Image inpainting is an under-determined inverse

problem that does not have a single well-deﬁned so-

lution because anything can theoretically appear be-

hind the occluding object. Therefore, in order to

address this problem, it is necessary to introduce a-

priori information. Contrary to the early methods,

these assumptions were formulated explicitly. Van-

ishing gradients, for example, allowed to formulate

the (structural) inpainting problem as a partial dif-

ferential equation (Chan and Shen, 2001). Assum-

ing that the image patch to be inpainted has ap-

peared somewhere else in the images incubates the

so-called texture-based inpainting approaches (Crim-

inisi et al., 2004). The machine learning and, in par-

ticular, deep-learning-based methods offer a system-

atic framework of considering many training exam-

ples to compute the network parameters and include

the a-priori information in an implicit way. Accord-

ing to e.g. (Elharrouss et al., 2019), where more de-

tails and sources can be found, inpainting methods

based on deep learning can be roughly subdivided into

two groups: based on GANs (Isola et al., 2017; Yang

et al., 2017; Nazeri et al., 2019; Shao et al., 2020)

and on pixel-ﬁlling predictions (Pathak et al., 2016;

Liu et al., 2018; Yu et al., 2019; Li et al., 2020; Pyo

et al., 2020). Diving deeper into details, the Context-

encoder method of (Pathak et al., 2016) is probably

the earliest GAN-based method on inpainting and is

based on an encoder-decoder architecture. Because

of multiple pooling layers, ﬁne details can hardly be

reconstructed. To cope with high-resolution images,

(Iizuka et al., 2017) adds dilation convolutional lay-

ers. Still, there are some noise patterns that have to

be smoothed away by a post-processing routine, such

as Poison blending. The work of (Yu et al., 2019)

replaces partial convolutions (those affecting the in-

painting region only) with the so-called gated con-

volutions, where the gating parameters are learnable

for each image channel and, optionally, for a user-

provided sparse sketch of edges. Recently, the Edge-

Connect method was developed (Nazeri et al., 2019),

which aims to reconstruct such a good edges sketch

automatically. There are two GANs, whereby the ﬁrst

GAN learns to complete the edge image of an RGB

image. The edges serve as a-priori information for

the second GAN, supposed to reconstruct the color

image. Thus, the image structure in the edge im-

age is captured with the ﬁrst GAN, while the second

GAN focuses on details of color image inpainting,

such as the homogeneous color content of the regions

enclosed by edges.

Finally, several works relying on semantic seg-

mentation can be mentioned (Kottler et al., 2016; Kot-

tler et al., 2020; Song et al., 2018; Liao et al., 2020;

Huang et al., 2021). In the ﬁrst two contributions,

the semantic segmentation result is undamaged since

it stems from an external source. The work of (Song

et al., 2018) is a two-GANs-based network. The ﬁrst

GAN, called Segmentation Prediction, accomplishes

inpainting of the segmentation image as an intermedi-

ate step. The second, called Segmentation Guidance,

reconstructs the texture image. In this method, the

segmentation result is a product of data processing

and lacks the typical man-made features, such as rect-

angular structures, which can be observed in the re-

sults. In the work of (Liao et al., 2020), the corrupted

image is initially completed in the feature space. In-

painting of segmentation and the texture image takes

place alternately.

3 METHODOLOGY

3.1 Preliminaries: From EdgeConnect

to 3GAN Approach

Edge images of color pictures often do not show

a good balance between actual changes in structure

and noise. More importantly, the binary edge im-

ages serving as input and output of the ﬁrst GAN

of EdgeConnect bear only a one-dimensional mani-

fold on information. The reason is that the raster-

ized result of an edge detection algorithm is a bi-

nary image, where edge pixels have a thickness of

one, and thus, the overwhelming majority of pixels

in the images do not beneﬁt from this information. If

the binary image has formed a closed contour, for in-

stance, around a window, then the second GAN will

have learned that the pixels within this contour must

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

428

Edge image

Inpainting

GAN

Texture image

Inpainting

GAN

Semantic

segmentation

Inpainting GAN

(1) (2) (3) (4) (5)

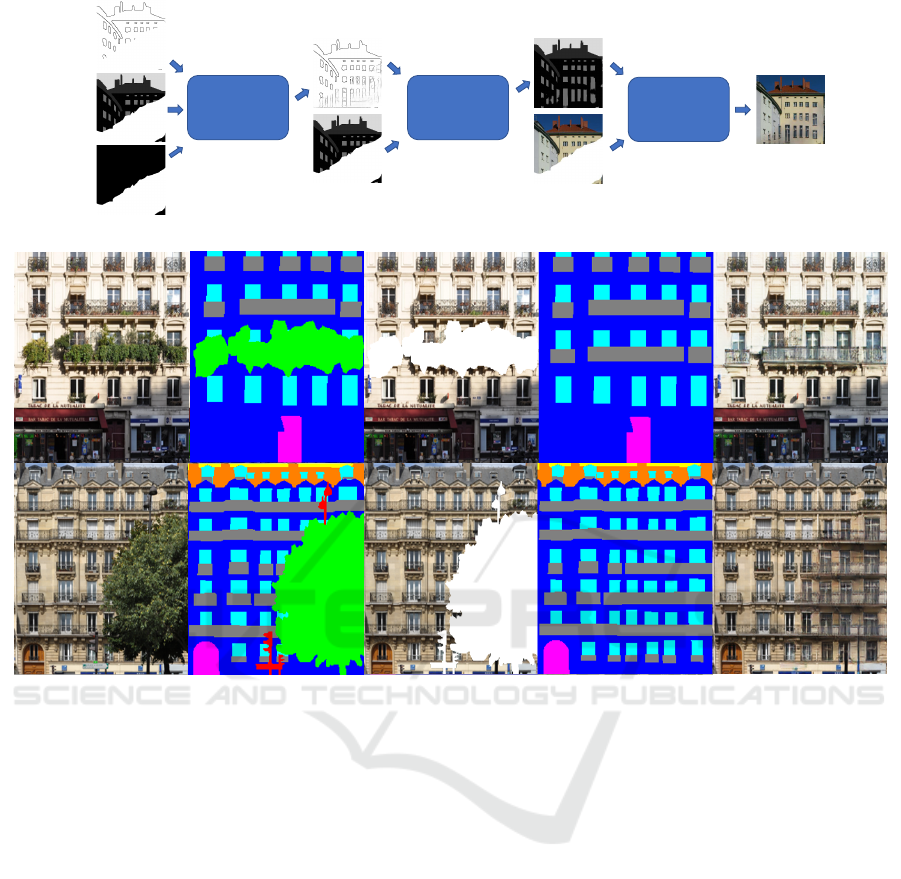

Figure 1: Top: Schematic overview of the proposed 3GAN approach. Bottom: Graphical overview. While the step from (1)

to (2) is the result of semantic segmentation and from (2) to (3), foreground class selection, is trivial, we concentrate in this

work on automatic inpainting of (2) resulting in (4), followed by inpainting of (1) resulting in (5) using GANs.

have an approximately homogeneous color represen-

tation at least locally, since otherwise there would

have been further edges detected. However, to know

these most representative colors, we should be able

to copy the color information from one window to

another. In other words, we must know which pix-

els of the image correspond to windows. There are

two implications of this line of thoughts. The ﬁrst

implication is the relevance of the semantic segmen-

tation result as additional input. It is a label image

on the more abstracted level than the textured fac¸ade

picture. It allows the GAN to learn typical representa-

tions of different classes, which would be trained sep-

arately within the same image or between the different

images. Fortunately, there are many freely available

datasets with labeled fac¸ade elements (Gadde et al.,

2016) and many pipelines on semantic segmentation

using both model-driven (Wenzel, 2016; Wenzel and

orstner, 2016) and example-driven (Fathalla and Vo-

giatzis, 2017; Schmitz and Mayer, 2016) methods.

Using grammar-driven methods, sometimes even oc-

cluded windows can be recovered within incomplete

grids of fac¸ade elements. We will assume the avail-

ability of accurate semantic segmentation for a fair

number of fac¸ades in our dataset since they can be

obtained either with one of these methods or interac-

tively. The second implication is that the label im-

age may be contaminated by the foreground objects

as well. Inpainting such an image is expected to be

easy because of a reduced value range to guess (for

instance, 1 for wall, 2 for roof, 3 for window, 4 for

door, and so on). Therefore, the proposed method

will strive at inpainting the labeled image using the

standard EdgeConnect method. Besides a small value

range, the advantage of inpainting label images is that

only sensible edges will be inpainted in the ﬁrst step

of the EdgeConnect algorithm and not those resulting

from the data noise. Finally, the label image is used

to reﬁll the missed values in the original image.

Summarizing, we suppose in this work that the

ground-based, high-resolution digital image of a

fac¸ade is provided together with the binary mask of

3GAN: A Three-GAN-based Approach for Image Inpainting Applied to the Reconstruction of Occluded Parts of Building Walls

429

the same size where pixels labeled as zeros and ones

correspond to the background and occluding objects,

respectively. The image itself is supposed to be a stan-

dard RGB pixel grid with integer values. Our last in-

put is the semantic segmentation map which has, of

course, the same size as the image, and a predeﬁned

labeling map for available semantic classes. The im-

ages, rasterized (Canny) edge maps, semantic labels,

and masks are denoted, respectively, by capital letters

J,C,S and M, if not speciﬁed differently. We refer to

Subsection 4.1 of the results section for more infor-

mation on available data, in particular, for training.

3.2 3GAN Approach

According to our ﬁndings from the previous section,

the workﬂow of our method is illustrated in Figure 1,

top. In the following three subsections, each of the

three involved GANs will be presented.

3.2.1 Inpainting of the Edge Image

The ﬁrst GAN resembles the one proposed by (Nazeri

et al., 2019). The edges of the label image S are gen-

erated with the Canny edge detector (Canny, 1986),

resulting in the edge image C. In order to complete

C to

C, the generator G

obtains as input C, S, and

M whereby S is parsed as the element-wise product

S ◦ (1 − M) in order to suppress those regions of la-

bel images where the mask is true. The discrimina-

tor D

estimates whether an input edge image C is an

original (training label 1) or an artiﬁcially generated

(training label 0) one. Thus, the loss function

min

max

= min



max

) + λ



(1)

is used to estimate the parameters of G

and D

Hereby, L

and L

are the adversarial and feature loss

(see below), while λ

= 10 is a regularization param-

eter whose value was chosen according to (Nazeri

et al., 2019). The adversarial loss L

is deﬁned ac-

cording to (Goodfellow et al., 2014):

= E

C,S

[logD

(C,S)] +E

log



1 − D

(

C, S)



. (2)

In this equation, E is the expectation value collected

over all training data pairs (C, S). A good discrimina-

tor D

outputs values for D

(C,S) close to 1 and val-

ues D

(

C, S) close to zero, because

C = G

(C,S, M)

is an artiﬁcial image. Thus D

maximizes L

in (1).

A good generator, contrarily, has to produce

C for

which D

is close to 1. The logarithm of 1− D

would

yield a large negative number and decrease L

in (1)

strongly. At the beginning of the training process,

when G

is not good enough to fool D

, the second

term in the sum of equation (2) penalizes L

while

with advancing training, the ﬁrst term is supposed to

avoid overﬁtting since it does not depend on G

. The

feature matching loss

(C,

C) = E

∑

i=1



(i)

(C)− D

(i)

(



(3)

compares the activation maps in the middle layers of

the discriminator. Doing so stabilizes the training pro-

cess by forcing the generator to produce results simi-

lar to real images, as we will explain in more detail in

Section 3.2.3. In (3), T denotes the number of all con-

volutional layers of the discriminator, N

denotes the

number of elements in the i-th activation layer from

the discriminator, and D

(i)

denotes the activation in

the i-th layer of the discriminator.

3.2.2 Inpainting of the Label Image

Based on the input edge image C, we substitute only

the occluded parts of it with the generated edges

C in

the masking:

C = C ◦ (1 − M) +

C ◦ M. (4)

Within our second GAN, we wish to inpaint the se-

mantic segmentation image S using

C. The second

generator

S = G

(S,

C, M) = G

(S ◦ (1 − M),

C, M)

operates on the set of ground truth images for seman-

tic segmentation and makes predictions to be assessed

by D

. The loss function is formed similarly to that

from (1),

min

max

= min



max

) + λ



, (5)

only that D

(S,C) now assesses S (differently from

(C,S) in (2)) and that the second term is the L

loss

(

S, S). This loss minimizes the sum of absolute

differences between

S and S. For proper scaling, we

normalize this loss by the mask size. Since the gener-

ated label image should be as close as possible to the

original values of the input label image, the L

loss is

a suitable tool for training the GAN. As proposed in

(Nazeri et al., 2019), the choice for the regularization

parameter is λ

= 10.

3.2.3 Inpainting of the Texture Image

Analogously to the previous section and equation (4),

we update S to become

S = S ◦ (1 − M) +

S ◦ M (6)

and use it to inpaint the texture image

J =

(J,

S, M) = G

(J ◦ (1 − M),

S, M). The loss func-

tion

= L

a,3

+ λ

perc

+ λ

style

(7)

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

430

has now four terms connected with regularization pa-

rameters λ

= 10, λ

perc

= 1 and λ

style

= 2500 from

(Nazeri et al., 2019). The ﬁrst two are deﬁned analo-

gously to those in (1), with J instead of C and

S istead

of S. The perceptual loss L

perc

, originally proposed in

(Gatys et al., 2015) and adopted from (Johnson et al.,

2016; Nazeri et al., 2019) penalizes results that are not

perceptually similar to labels by deﬁning a distance

measure between activated features of a pre-trained

network. It resembles feature loss in (3), where D

(i)

are replaced by the activation maps φ

from layers

relu1 1, relu2 1,relu3 1, relu4 1 and relu5 1 of

the VGG-19 network pre-trained on the ImageNet

dataset (Russakovsky et al., 2015). The reason not

to use a model pre-trained on such a database in (3) is

that the VGG-19 network has been trained for differ-

ent purposes, and thus, the activation maps are not

supposed to coincide. Finally, the style loss L

style

from (Sajjadi et al., 2017) measures the difference be-

tween covariance matrices. The authors of EdgeCon-

nect (Nazeri et al., 2019) have identiﬁed it as a help-

ful tool for eliminating checkerboard artifacts usually

produced during the deconvolution and upsampling

process in encoder-decoder networks. Given feature

maps of the size N

× H

× W

, the style loss is com-

puted as follows:

style

= E



(

J) − G

(J)



, (8)

is the Gram-matrix of size N

× N

computed from

activation maps φ

from above.

3.3 Implementation Details

The generator of each of the presented GANs con-

sists of an encoder, aiming to compute characteris-

tic features on a reduced resolution, and a decoder,

aiming to transform the features to the original size.

The encoder starts with a convolutional block, con-

cluded with a ReLU-based activation. Two convolu-

tional blocks follow, each one concluded by a pooling

layer. Finally, there are four residual blocks, each one

as in (Johnson et al., 2016). The decoder possesses

a mirror-symmetric structure to the encoder, contain-

ing four residual blocks, two blocks with transpose

convolution and unpooling layer, as well as one con-

volutional block. This last convolutional block has

one output channel for G

and G

and three for G

since the latter aims to restore a color image. The dis-

criminator is based on a 70 × 70 patch GAN (Isola

et al., 2017). It has four blocks of convolution lay-

ers with ReLU activation between them and the soft-

max layer at the end, such that the output of the dis-

criminator is between 0 and 1. The two last layers

are fully connected. All layers in the different net-

works are instance-normalized (Ulyanov et al., 2017).

For optimization, we used the Adam implementation

in PyTorch with parameters β

= 0, β

= 0.9, see

(Kingma and Ba, 2014). The network is trained using

256 × 256 images with a batch size of eleven, eight,

and ﬁve for the edge, label, and texture GAN, respec-

tively. Instance normalization is applied within each

layer. Further important parameters are: learning rate

0.0001 and iteration number 600,000.

4 RESULTS

4.1 Dataset

Several investigations have already dealt with the la-

beling of building fac¸ades and provide datasets for

this purpose (Gadde et al., 2016; Tyle

cek and

ara,

2013). Merging these different datasets is challeng-

ing because not all of them are rectiﬁed and also be-

cause they have different labeling requirements re-

garding quality and class selection. We used the data

of the eTRIMS Image Database (Kor

c and F

orstner,

2009), which contains labeled data from different Eu-

ropean cities. The authors have also provided an

annotation tool (Kor

c and Schneider, 2007), with

which the data could be subsequently edited or new

images annotated. After these steps, we have ﬁve

building-induced classes (wall, roof, door, window,

and railing) and three background classes (vegetation,

sky, and a particular non-building class that includes

roads, signs, cars, pedestrians, etc.). Due to mislabel-

ing, classes may still be incorrectly assigned in indi-

vidual images, since only the class labels of the orig-

inal dataset were combined, but not every image was

checked. Also, due to poor perspective and conse-

quent excessive distortion during rectiﬁcation, not all

images can be used. In addition, there are few pix-

els that do not belong to any of these classes. They

were therefore assigned to the corresponding neigh-

bor classes using a nearest-neighbor algorithm.

Finally, we have to remove the typical clutter ob-

jects which are located in front of fac¸ades. Vegetation

takes the largest part in this process and thus, it makes

sense that the AI learns inpainting with vegetation-

like masks. LabelMe (Russell et al., 2008) is a free

online annotation tool that makes it easy to label im-

ages and make them available to the public. Also,

many images from cities and streets are stored in their

database. We searched the dataset for images with

vegetation-like classes and parsed them for mask cre-

ation. Six uniformly sized 10% intervals are formed

between 0 and 60 percentage points. The total number

3GAN: A Three-GAN-based Approach for Image Inpainting Applied to the Reconstruction of Occluded Parts of Building Walls

431

of images was 903 while subdivision into 75, 15, and

10 percents was used for training, validation, and test-

ing, respectively. The usual data augmentation mod-

ule containing rescaling, ﬂipping along the vertical di-

rection, contrast, and brightness adjustment has been

performed as well, aiming at a better generalization

of the model.

4.2 Quantitative Evaluation

Using data presented in Section 4.1, we compared

the proposed approach with the EdgeConnect (Nazeri

et al., 2019), since we wish to assess to what extent

these maps may improve the results. Moreover, an

implementation of the method of (Liu et al., 2018),

developed by Nvidia and available online, has been

modiﬁed for our purposes and trained on our data.

Using the same evaluation metrics as the authors of

(Nazeri et al., 2019), namely SSIM (structural simi-

larity index), FID (Fr

echet inception distance (Heusel

et al., 2017)), PSNR (peak signal-to-noise ratio), and

the absolute differences of the pixel values from the

original and generated image (MAE), we guarantee

the fairness of the comparison.

The metrics are calculated and recorded in Ta-

ble 1 for the six mask size intervals individually and

over all mask sizes (0-60%). The numbers marked in

bold represent the best results of the respective row.

For the majority of conﬁgurations, the EdgeConnect

method performs best. Our 3GAN approach provides

minimally better results for SSIM with larger masks

and equal or slightly worse results in almost all other

cases. On the positive side, we note that both GAN-

based approaches outperform the one based on partial

convolutions by far. Searching for the main reasons

explaining a mostly better performance of the Edge-

Connect method, we must state that the insufﬁcien-

cies in the semantic segmentation may negatively af-

fect the inpainting results. Very occasionally, the test

images exhibit a small, inexplicable black spot, which

slightly worsens the values of all metrics.

4.3 Qualitative Evaluations

In Figures 2, 3, and also 1, bottom, we show examples

of fac¸ade image inpainting with the 3GAN approach

and competing methods. It becomes evident that our

method can close even big gaps plausibly. Without

using any kind of grammar, a semantic segmenta-

tion image can be ﬁlled. From there, texture portions

are generated class-wise without overﬁtting since the

forms and colors of e.g. windows are not the same as

in other entities of the same image. Since the entities

are not “plagiarized”, the observer usually does not

Table 1: Quantitative comparison of three different ap-

proaches. By P.C. and E.C., we denote the Partial Convo-

lution and EdgeConnect methods as proposed in (Liu et al.,

2018) and (Nazeri et al., 2019), respectively.

Metric Mask P.C. E.C. Ours

0-10% 0.03 0.02 0.02

10-20% 0.05 0.02 0.03

20-30% 0.06 0.03 0.04

30-40% 0.09 0.04 0.05

40-50% 0.11 0.06 0.06

50-60% 0.14 0.08 0.08

0-60% 0.08 0.04 0.05

SSIM

0-10% 0.95 0.99 0.98

10-20% 0.87 0.95 0.95

20-30% 0.81 0.90 0.91

30-40% 0.70 0.83 0.84

40-50% 0.56 0.74 0.76

50-60% 0.47 0.66 0.67

0-60% 0.73 0.85 0.85

PSNR

0-10% 25.50 31.08 30.20

10-20% 20.76 25.64 25.07

20-30% 18.99 23.09 22.87

30-40% 16.67 21.71 21.20

40-50% 14.95 18.58 18.39

50-60% 13.83 17.77 17.31

0-60% 18.45 22.98 22.51

FID

0-10% 24.09 5.75 8.09

10-20% 47.66 16.66 20.28

20-30% 68.29 28.95 30.31

30-40% 109.64 49.76 51.89

40-50% 144.67 66.86 68.20

50-60% 170.90 82.02 74.93

0-60% 50.86 20.42 22.70

immediately notice that the images are fake but prob-

ably needs a more profound second glance. We show

both the complete image

J processed by our method

and also the one in which only the inpainted part has

been replaced, to explore the effect of “vanilla” con-

volutions (Yu et al., 2019) on

J. It turned out that for

a negligibly small percentage of analyzed images, J

and

J indeed looked slightly different.

While comparing the results to those achieved by

EdgeConnect, we notice that the label image for the

proposed 3GAN approach describes a clearer struc-

ture of the image. Thus, objects appear clearer than

in EdgeConnect, where some texture artifacts are no-

ticeable, probably, resulting from a noisy edge image.

The CNN-based approach based on partial convolu-

tions gives simple results with a rather random setting

of windows. The network cannot distinguish between

different classes. A reasonably good color gradient

is generated; however, a strong blue cast negatively

affects the results. For all three methods, a morpho-

logical dilation around the foreground pixels allows

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

432

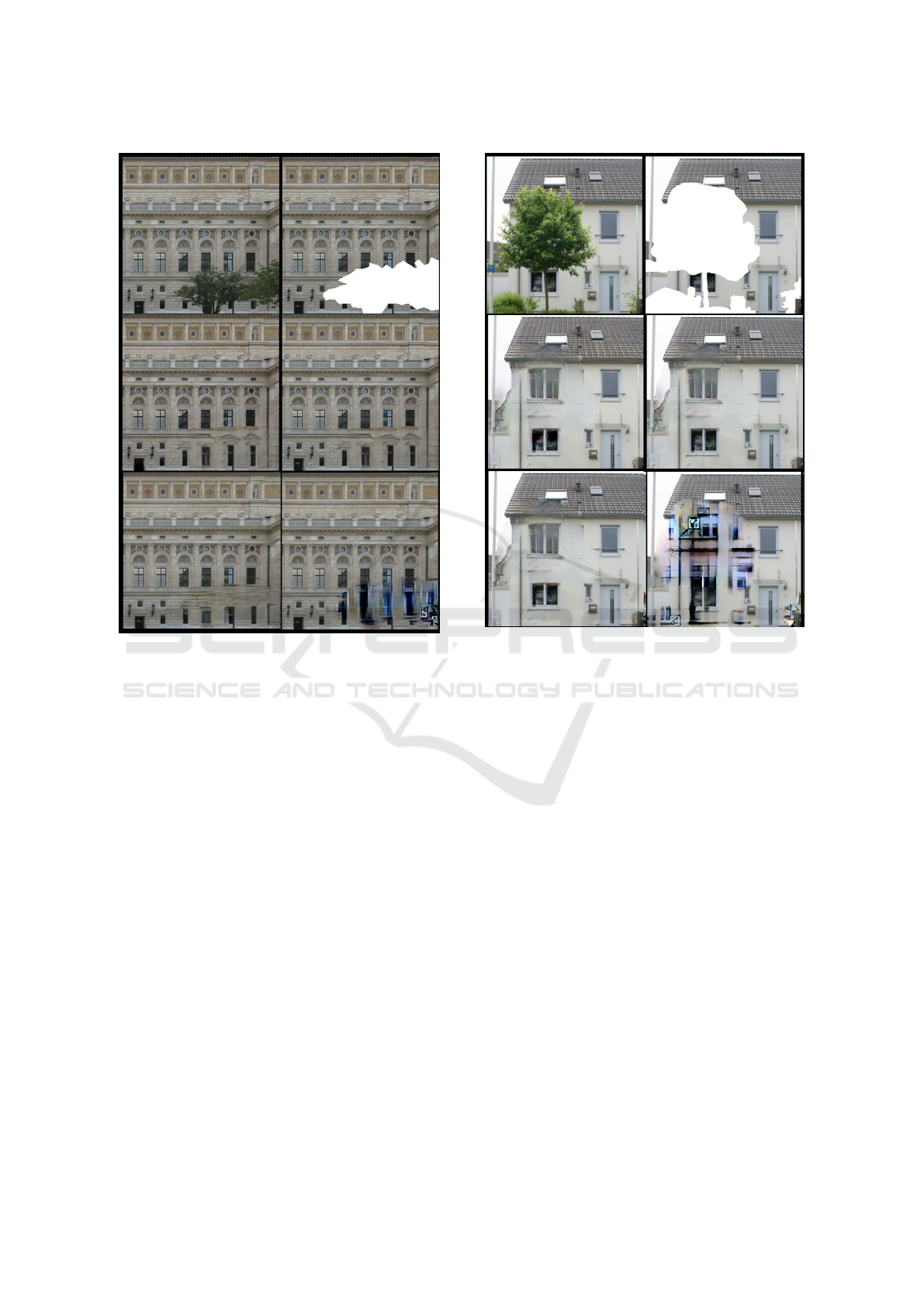

Figure 2: Inpainting example 1: Top row: RGB fac¸ade im-

age (left) and mask speciﬁed by white color (right). Second

row: result of the proposed 3GAN approach, direct output

on the left and inpainted mask parsed into the original im-

age on the right. Note the classical window design in the

ground ﬂoor. Bottom row: Inpainting with EdgeConnect

(left) and CNN-based approach (Liu et al., 2018) (right).

excluding the most disturbing shadows. The parts of

the fac¸ade that shine through the foliage are very nec-

essary for patch-based methods, like that of (Crimin-

isi et al., 2004), but can be omitted for all CNN-based

methods. To remove larger shadows, shadow class

computation would be required, analogously to trees,

but for example, the shadow course in the inpainted

image of Figure 1, middle row, does not disturb.

5 CONCLUSION AND OUTLOOK

We presented a new method for inpainting of fore-

ground objects, such as trees and road signs, in fac¸ade

images. The approach is oriented on the Edge-

Connect method but based on three GANs: the ﬁrst

for the inpainting of edge images, the second for the

inpainting of (semantic) segmentation images, coded

as label maps, and the third for the inpainting of tex-

Figure 3: Inpainting example 2; ordering of images accord-

ing to Figure 2.

ture images.

Comparison of the proposed method with Edge-

Connect yields a symbolic draw: qualitatively slightly

more advantageous and quantitatively slightly infe-

rior. Objects such as windows are set in a qualitatively

better, more accurate, and geometrically correct way.

The conceptual advantage of EdgeConnect over the

proposed method is that it does not need a label im-

age. The sequence of three GANs is responsible for

error propagation, and since a GAN is based on Deep

Learning and thus represents a blackbox, it is very

difﬁcult to correct those errors in the inpainted label

image that from the semantic segmentation or manual

annotation This is a problem because the third GAN is

based on this image. Still, the two GAN-based meth-

ods are far superior to the CNN-based method both

quantitatively and qualitatively, which shows the im-

portance of the information provided by edges and

classes in the reconstruction of fac¸ades. In addition

to edges, fac¸ade elements contain many other prop-

erties that are useful for automatic methods: rectan-

gular structures, symmetries, etc. If in the past these

properties were exploited using production networks

(Michaelsen et al., 2012), in the future, they can also

3GAN: A Three-GAN-based Approach for Image Inpainting Applied to the Reconstruction of Occluded Parts of Building Walls

433

be learned in upcoming modiﬁcations of the Edge-

Connect and 3GAN approach. Our further intentions

for future work include the implementation of seman-

tic segmentation of fac¸ades to provide a complete

pipeline from sensor data to cleaned fac¸ades, as well

as generalization of the 3GAN approach to a wider

class of problems.

ACKNOWLEDGEMENTS

We express our deep gratitude to Dr. Susanne Wen-

zel for providing us the eTRIMS dataset (Kor

c and

orstner, 2009) and the labeling tool. We thank the

authors of (Liu et al., 2018) and (Nazeri et al., 2019)

who put their code online.

REFERENCES

Bulatov, D., H

aufel, G., Meidow, J., Pohl, M., Solbrig, P.,

and Wernerus, P. (2014). Context-based automatic

reconstruction and texturing of 3D urban terrain for

quick-response tasks. ISPRS Journal of Photogram-

metry and Remote Sensing, 93:157–170.

Canny, J. (1986). A computational approach to edge de-

tection. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 8(6):679–698.

Chan, T. F. and Shen, J. (2001). Nontexture inpainting by

curvature-driven diffusions. Journal of Visual Com-

munication and Image Representation, 12(4):436–

449.

Criminisi, A., P

erez, P., and Toyama, K. (2004). Region

ﬁlling and object removal by exemplar-based image

inpainting. IEEE Transactions on Image Processing,

13(9):1200–1212.

Elharrouss, O., Almaadeed, N., Al-Maadeed, S., and Ak-

bari, Y. (2019). Image inpainting: A review. Neural

Processing Letters, 51:2007–2028.

Fathalla, R. and Vogiatzis, G. (2017). A deep learn-

ing pipeline for semantic facade segmentation. In

Proc. British Machine Vision Conference, page

120.1—120.13.

Gadde, R., Marlet, R., and Paragios, N. (2016). Learning

grammars for architecture-speciﬁc facade parsing. In-

ternational Journal of Computer Vision, 117(3):290–

316.

Gatys, L. A., Ecker, A. S., and Bethge, M. (2015). A

neural algorithm of artistic style. arXiv preprint

arXiv:1508.06576.

Goodfellow, I. J., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial networks. arXiv

preprint arXiv:1406.2661.

Heusel, M., Ramsauer, H., Unterthiner, T., Nessler, B., and

Hochreiter, S. (2017). GANs trained by a two time-

scale update rule converge to a local Nash equilibrium.

arXiv preprint arXiv:1706.08500.

Huang, Z., Qin, C., Liu, R., Weng, Z., and Zhu, Y.

(2021). Semantic-aware context aggregation for im-

age inpainting. In Proc. IEEE International Con-

ference on Acoustics, Speech and Signal Processing,

pages 2465–2469. IEEE.

Iizuka, S., Simo-Serra, E., and Ishikawa, H. (2017). Glob-

ally and locally consistent image completion. ACM

Transactions on Graphics (TOG), 36(4):1–14.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2017).

Image-to-image translation with conditional adversar-

ial networks. In Proc. IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 1125–

1134.

Johnson, J., Alahi, A., and Fei-Fei, L. (2016). Perceptual

losses for real-time style transfer and super-resolution.

In Proc. IEEE European Conference on Computer Vi-

sion (ECCV), pages 694–711. Springer.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Kor

c, F. and F

orstner, W. (2009). eTRIMS Image Database

for interpreting images of man-made scenes. Techni-

cal Report TR-IGG-P-2009-01, Dept. of Photogram-

metry, University of Bonn.

Kor

c, F. and Schneider, D. (2007). Annotation tool. Techni-

cal Report TR-IGG-P-2007-01, Dept. of Photogram-

metry, University of Bonn.

Kottler, B., Bulatov, D., and Schilling, H. (2016). Improv-

ing semantic orthophotos by a fast method based on

harmonic inpainting. In Proc. 9th IAPR Workshop on

Pattern Recognition in Remote Sensing (PRRS), pages

1–5. IEEE.

Kottler, B., Bulatov, D., and Zhang, X. (2020). Context-

aware patch-based method for fac¸ade inpainting. In

VISIGRAPP (1: GRAPP), pages 210–218.

Li, J., Wang, N., Zhang, L., Du, B., and Tao, D. (2020).

Recurrent feature reasoning for image inpainting. In

Proc. IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 7760–7768.

Liao, L., Xiao, J., Wang, Z., Lin, C.-W., and Satoh, S.

(2020). Guidance and evaluation: Semantic-aware im-

age inpainting for mixed scenes. In Proc. 16th Euro-

pean Conferenceon on Computer Vision, Part XXVII

16, pages 683–700. Springer.

Liu, G., Reda, F. A., Shih, K. J., Wang, T.-C., Tao, A., and

Catanzaro, B. (2018). Image inpainting for irregular

holes using partial convolutions. In Proc. IEEE Euro-

pean Conference on Computer Vision (ECCV), pages

85–100.

Michaelsen, E., Iwaszczuk, D., Sirmacek, B., Hoegner, L.,

and Stilla, U. (2012). Gestalt grouping on facade tex-

tures from IR image sequences: Comparing different

production systems. International Archives of Pho-

togrammetry, Remote Sensing and Spatial Informa-

tion Sciences, 39(B3):303–308.

Nazeri, K., Ng, E., Joseph, T., Qureshi, F. Z., and Ebrahimi,

M. (2019). EdgeConnect: Generative image inpaint-

ing with adversarial edge learning. arXiv preprint

arXiv:1901.00212.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

434

Pathak, D., Kr

ahenb

uhl, P., Donahue, J., Darrell, T., and

Efros, A. A. (2016). Context encoders: Feature learn-

ing by inpainting. In Proc. IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 2536–

2544.

Pyo, J., Rocha, Y. G., Ghosh, A., Lee, K., In, G., and Kuc,

T. (2020). Object removal and inpainting from image

using combined GANs. In Proc. 20th International

Conference on Control, Automation and Systems (IC-

CAS), pages 1116–1119.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bern-

stein, M., et al. (2015). Imagenet large scale visual

recognition challenge. International Journal of Com-

puter Vision, 115(3):211–252.

Russell, B. C., Torralba, A., Murphy, K. P., and Freeman,

W. T. (2008). Labelme: a database and web-based

tool for image annotation. International Journal of

Computer Vision, 77(1-3):157–173.

Sajjadi, M. S., Sch

olkopf, B., and Hirsch, M. (2017). En-

hancenet: Single image super-resolution through au-

tomated texture synthesis. In Proc. International

Conference on Computer Vision (ICCV), pages 4491–

4500.

Schmitz, M. and Mayer, H. (2016). A convolutional net-

work for semantic facade segmentation and interpre-

tation. The International Archives of Photogramme-

try, Remote Sensing and Spatial Information Sciences,

41:709–716.

Shalunts, G., Haxhimusa, Y., and Sablatnig, R. (2011). Ar-

chitectural style classiﬁcation of building facade win-

dows. In International Symposium on Visual Comput-

ing, pages 280–289. Springer.

Shao, H., Wang, Y., Fu, Y., and Yin, Z. (2020). Generative

image inpainting via edge structure and color aware

fusion. Signal Processing: Image Communication,

87-115929:1–9.

Song, Y., Yang, C., Shen, Y., Wang, P., Huang, Q., and

Kuo, C.-C. J. (2018). Spg-net: Segmentation predic-

tion and guidance network for image inpainting. In

Proc. British Machine Vision Conference, volume 97,

pages 1–14.

Tyle

cek, R. and

ara, R. (2013). Spatial pattern tem-

plates for recognition of objects with regular structure.

In Proc. German Conference on Pattern Recognition

(GCPR), pages 364–374, Saarbrucken, Germany.

Ulyanov, D., Vedaldi, A., and Lempitsky, V. (2017). Im-

proved texture networks: Maximizing quality and di-

versity in feed-forward stylization and texture synthe-

sis. In Proc. IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 6924–6932.

Wenzel, S. (2016). High-level facade image interpretation

using marked point processes. PhD thesis, University

of Bonn.

Wenzel, S. and F

orstner, W. (2016). Facade interpretation

using a marked point process. ISPRS Annals of the

Photogrammetry, Remote Sensing and Spatial Infor-

mation Sciences, 3:363–370.

Yang, C., Lu, X., Lin, Z., Shechtman, E., Wang, O., and

Li, H. (2017). High-resolution image inpainting us-

ing multi-scale neural patch synthesis. In Proc. IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 6721–6729.

Yu, J., Lin, Z., Yang, J., Shen, X., Lu, X., and Huang, T. S.

(2019). Free-form image inpainting with gated convo-

lution. In Proc. IEEE/CVF International Conference

on Computer Vision, pages 4471–4480.

Zhang, R., Li, W., Wang, P., Guan, C., Fang, J., Song, Y.,

Yu, J., Chen, B., Xu, W., and Yang, R. (2020). Au-

toremover: Automatic object removal for autonomous

driving videos. Proc. AAAI Conference on Artiﬁcial

Intelligence, 34(07):12853–12861.

3GAN: A Three-GAN-based Approach for Image Inpainting Applied to the Reconstruction of Occluded Parts of Building Walls

435
