A General Two-branch Decoder Architecture for Improving

Encoder-decoder Image Segmentation Models

Sijie Hu, Fabien Bonardi, Samia Bouchafa and D

esir

e Sidib

University Paris-Saclay, Univ. Evry, IBISC, 91020, Evry, France

Keywords:

Multi-branch, Encoder-decoder, Complementary Learning, Supervised Learning, Semantic Segmentation.

Abstract:

Recently, many methods with complex structures were proposed to address image parsing tasks such as image

segmentation. These well-designed structures are hardly to be used ﬂexibly and require a heavy footprint.

This paper focuses on a popular semantic segmentation framework known as encoder-decoder, and points out a

phenomenon that existing decoders do not fully integrate the information extracted by the encoder. To alleviate

this issue, we propose a more general two-branch paradigm, composed of a main branch and an auxiliary

branch, without increasing the number of parameters, and a boundary enhanced loss computation strategy to

make two-branch decoders learn complementary information adaptively instead of explicitly indicating the

speciﬁc learning element. In addition, one branch learn pixels that are difﬁcult to resolve in another branch

making a competition between them, which promotes the model to learn more efﬁciently. We evaluate our

approach on two challenging image segmentation datasets and show its superior performance in different

baseline models. We also perform an ablation study to tease apart the effects of different settings. Finally,

we show our two-branch paradigm can achieve satisfactory results when remove the auxiliary branch in the

inference stage, so that it can be applied to low-resource systems.

1 INTRODUCTION

Semantic segmentation can be formulated as the task

of labeling all pixels in an image with semantic

classes. Most state-of-the-art semantic segmentation

models are based on the encoder-decoder architecture

or its variants. Speciﬁcally, the encoder extract infor-

mation from the original input, and the decoder in-

tegrate previously extracted information and recover

semantic information from it. In recent years, re-

searchers commit to exploring different network ar-

chitecture (Simonyan and Zisserman, 2014; He et al.,

2016) to learn a more general representation, then de-

ployed to the image segmentation task (Chen et al.,

2018; Wang et al., 2020).However, a general repre-

sentation extracted by the encoder means that the de-

coder need to decrease the gap between task free rep-

resentation and task dependency information.

In order to improve the parsing ability of de-

coder, DeeplabV3+ (Chen et al., 2018) through pyra-

mid pooling integrate the contextual information at

multiple scales. FCN (Long et al., 2015) use skip-

connection to fuse feature maps of different lay-

ers. (Li et al., 2019; Li et al., 2018) try to explore

the interrelationships between features through atten-

ENCODER

DECODER1

DECODER2

ℒ



ℒ



ℒ



Average Pooling

1 × 1 Conv

1x1

3x3

DECODER2

Upsampling

Concat

Element-wise Add

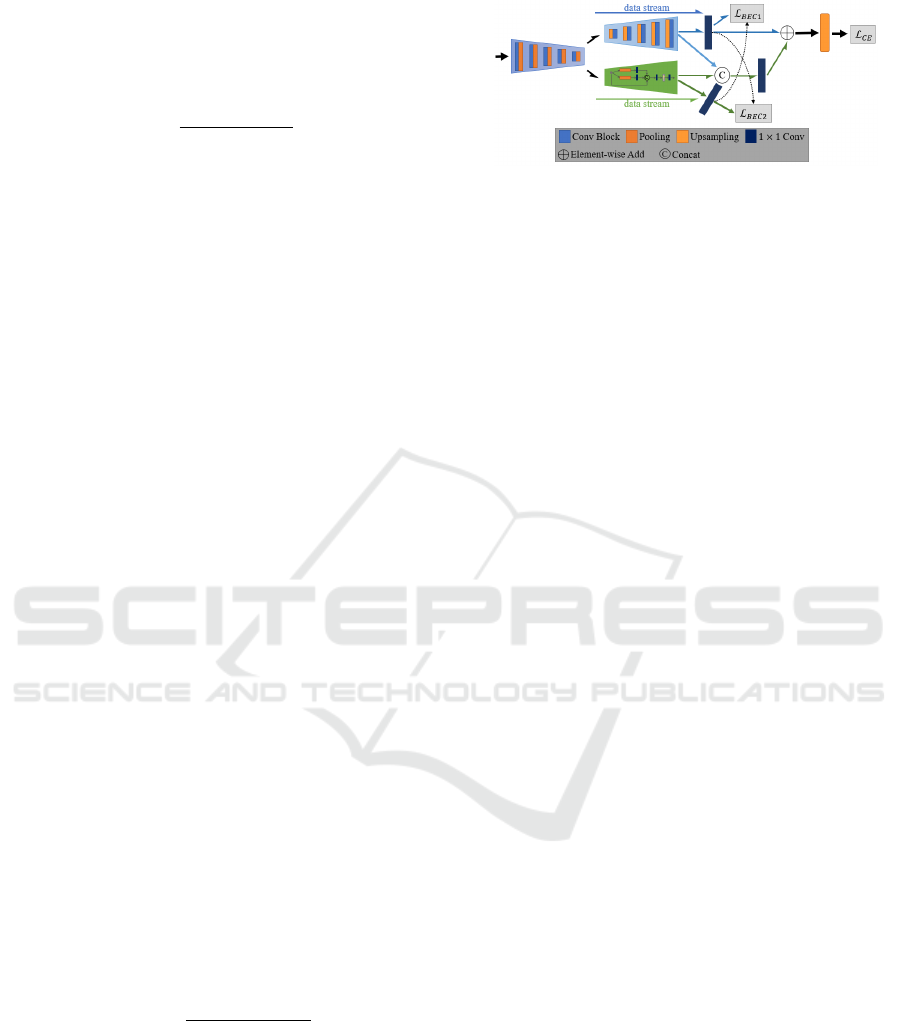

Figure 2. Overview of our proposed two-branch architecture.

(b) Second branch (Decoder2)

(a) Two-branch structure paradigm

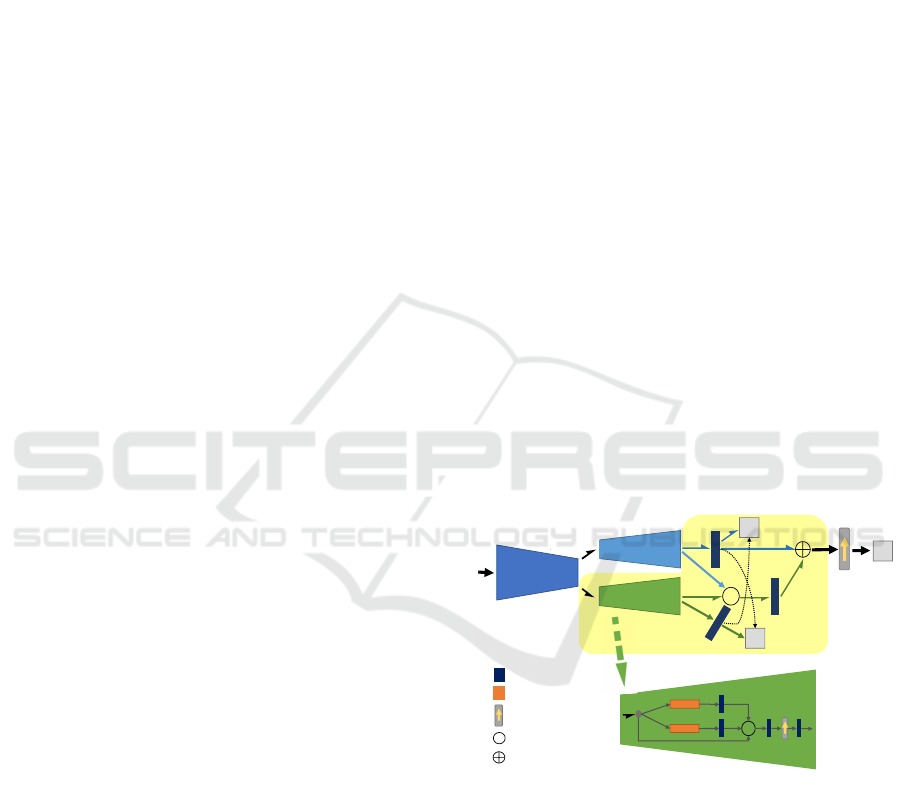

Figure 1: Overview of our proposed two-branch architec-

ture. The output of the encoder is divided into two groups,

which are represented by two ‘half arrows’. Then each

group is input to each branch separately and followed by

a residual-liked module to fuse the outputs of two branches.

tion mechanisms. It is worth noting that some re-

cent works start exploring the two-branch structure

in the decoder (Fu et al., 2019; Yuan et al., 2020).

They capture meaningful information by carefully

designing different branches. Unfortunately, exist-

ing two-branch structures were elaborately designed,

thus hard to port to other types of decoders, and the

374

Hu, S., Bonardi, F., Bouchafa, S. and Sidibé, D.

A General Two-branch Decoder Architecture for Improving Encoder-decoder Image Segmentation Models.

DOI: 10.5220/0010818800003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

374-381

ISBN: 978-989-758-555-5; ISSN: 2184-4321

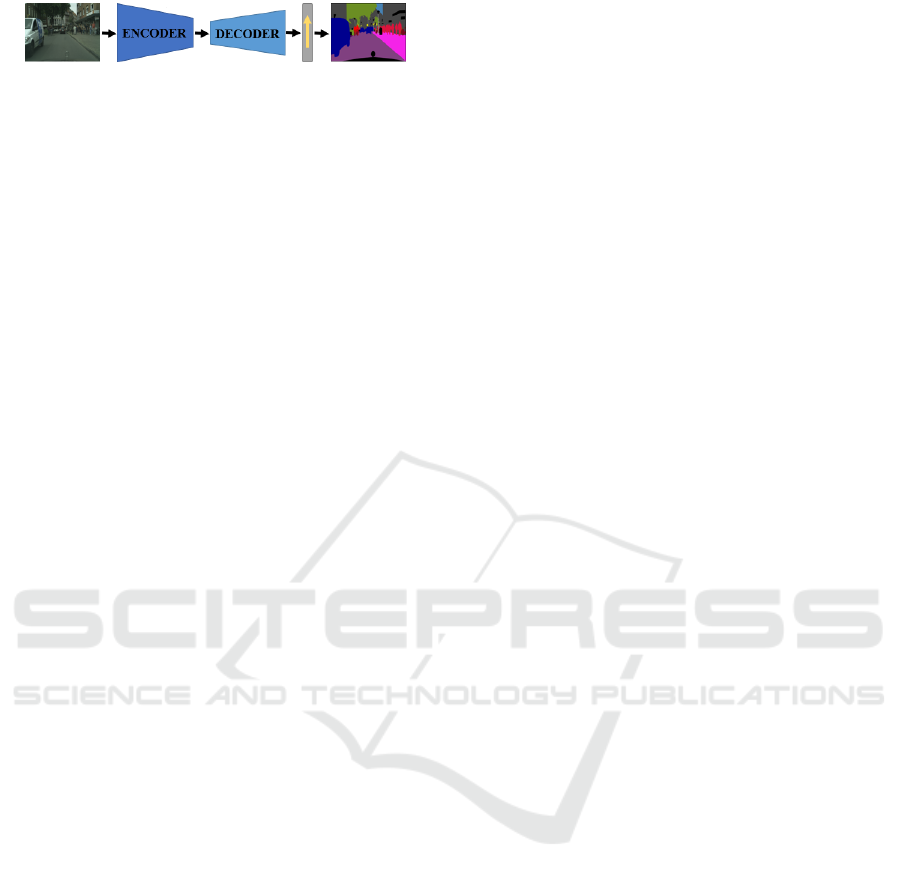

Figure 2: Encoder-Decoder paradigm.

degradation of model performance caused by remov-

ing a branch is also unacceptable. Or they were just

designed for post-processing and are challenging to

train end-to-end. On the other hand, with the con-

tinuous improvement of the encoder’s representation

ability, making full use of the information extracted

by the encoder is still an open question. Therefore,

we have reason to suspect that the existing encoder-

decoder-based models do not fully integrate the in-

formation extracted by the encoder. We veriﬁed this

view through experiments.

To alleviate these problems, we propose a more

general two-branch paradigm, composed of a main

branch and an auxiliary branch for improving the

structure of the decoder. At the same time, we de-

sign a simple yet efﬁcient branch that can be ﬂexi-

bly integrated into existing encoder-decoder seman-

tic segmentation systems to verify the effectiveness

of the proposed two-branch structure. In order to en-

able two branches to learn complementary informa-

tion, we customize a loss calculation method to super-

vise the learning process of each branch. With these

ideas, different branches can learn complementary in-

formation adaptively instead of explicitly indicating

the speciﬁc learning elements of different branches.

In addition, learning complementary information can

make the two branches compete with each other to a

certain extent during the learning process, which can

further improve performance. Moreover, compared

with the counterpart of the original model, the ame-

liorated two-branch version reduces or maintains the

number of parameters while improving performance.

Our main contributions can be summarized as fol-

lows:

• We propose a general two-branch paradigm to en-

hance the capability of the decoder to parse the

information extracted by the encoder without in-

creasing the number of parameters.

• We propose the BECLoss that can supervise two-

branch decoders to learn complementary informa-

tion adaptively instead of explicitly indicating the

speciﬁc learning elements to each branch.

• We design a simple yet efﬁcient branch that can

be ﬂexibly integrated into the existing encoder-

decoder framework to form a two-branch struc-

ture.

2 RELATED WORK

Encoder-decoder and Variants. As a general struc-

tural paradigm, encoder-decoder is widely used in the

ﬁeld of image segmentation. Such a structure usually

ﬁrst encode features from the input to a latent feature

space, then gradually recover the information in the

decoder. U-Net (Ronneberger et al., 2015) explored

the potential relationship between the features of the

encoding phase and their counterpart in the decoding

phase through multiple skip-connections. SEMEDA

(Chen et al., 2020) ﬁrst learned to convert the label to

an embedding space under the guidance of the bound-

ary information, and then supervised the encoder-

decoder structure under the learned subspace. PSP-

Net (Zhao et al., 2017) and Deeplab family (Chen

et al., 2018; Chen et al., 2017) introduced dilated con-

volution in encoder for increasing the receptive ﬁeld

while maintaining the resolution, then several parallel

pyramid pooling were followed to integrate informa-

tion at different scales. Inspired by (Hu et al., 2018;

Woo et al., 2018), attention mechanism and its vari-

ants are adopted in encoders or decoders (Li et al.,

2019; Zhong et al., 2020) to improve performance.

In (Li et al., 2018), attention was deployed in the de-

coding stage for re-calibrating the feature maps with

learnable weights. In addition, the application of self-

attention (Vaswani et al., 2017) in encoder has grad-

ually become popular due to its capability of encod-

ing distant dependencies for better feature extraction.

SETR (Zheng et al., 2020) adapted a pure transformer

encoder to extract features from an image seen as a se-

quence of patches then followed a decoder to restore

the semantic information.

Multi-branch. Learning different information

through multiple parallel data streams has been

proved to have more advantages for representation

and generalization. Speciﬁcally, HRNet (Wang et al.,

2020) repeatedly exchanged the information across

different resolutions by a series of parallel feature ex-

traction streams in the encoding process to maintain

high-resolution representations. Based on HRNet,

(Tao et al., 2020) proposed a hierarchical multi-scale

attention approach in which each data stream learned

a speciﬁc image scale so that the model can consider

the information of multiple input image scales when

predicting. GSCNN (Takikawa et al., 2019) designed

a two-stream structure, one for context information

extraction, another one for boundary-related infor-

mation extraction. Combined with attention, RAN

(Huang et al., 2017) proposed a three-branch struc-

ture that performs the forward and backward attention

learning processes simultaneously. Similarly, DANet

(Fu et al., 2019) used a two-branch encoder to learn

A General Two-branch Decoder Architecture for Improving Encoder-decoder Image Segmentation Models

375

(a) (b)

Figure. (a) Mis-labeled boundary pixels and (b) Extracted inner boundary.

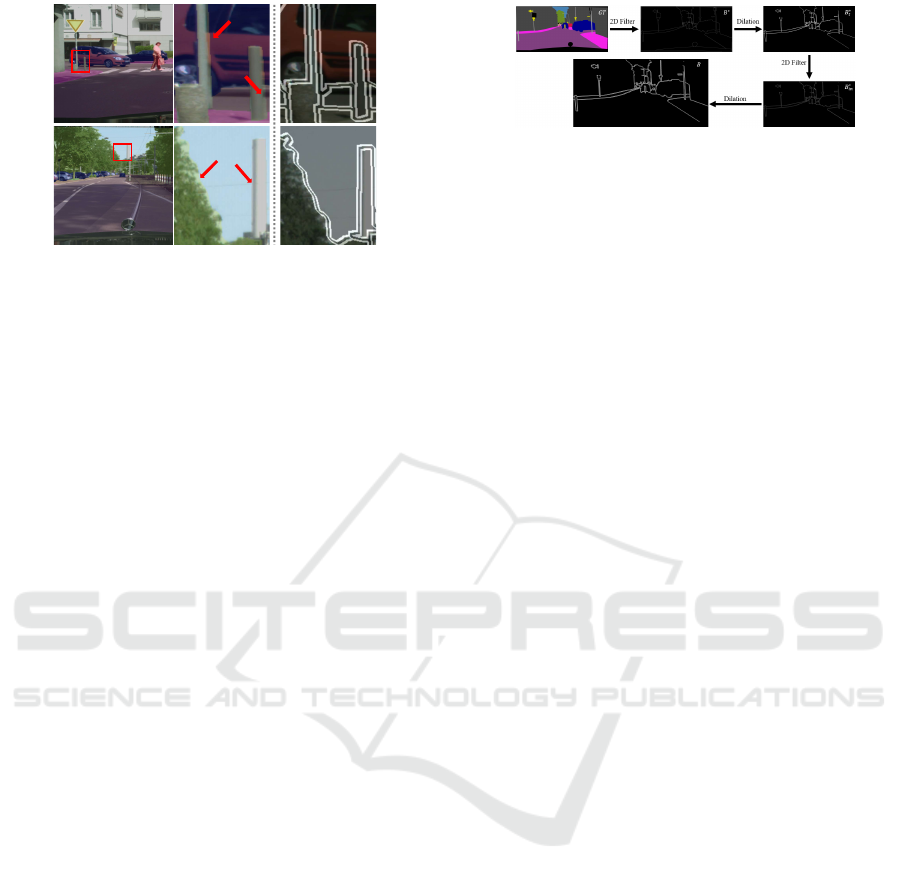

Figure 3: (a) Mis-labeled boundary pixels and (b) Extracted

inner boundary.

the semantic relevance in spatial and channel fea-

ture spaces respectively. Unlike above works, Seg-

Fix (Yuan et al., 2020) proposed a post-processing

scheme that predicted boundary and direction maps

employing a two-branch decoder supervised by two

boundary-related losses.

Encouraged by multi-branch learning, we pro-

pose a more general and easy-to-deploy two-branch

paradigm, in which a new branch can be easily in-

serted into the original decoder to form a two-branch

decoder and, as a result, improve the discriminating

ability. Unlike previous works, we design a general

paradigm and enable different branches to learn com-

plementary information adaptively instead of explic-

itly indicating the speciﬁc learning elements of differ-

ent branches.

3 METHODOLOGY

In this section, we ﬁrst systematically describe the

two-branch decoder paradigm, then design a simple

yet efﬁcient branch that can be applied as a plug-in

to existing encoder-decoder frameworks to turn them

into our proposed two-branch architecture. Finally,

we introduced a new loss calculation method that can

be used to supervise branch learning complementary

information.

3.1 Two-branch Structure Prototype

In an image segmentation model, existing encoder-

decoder architectures can be simply represented in

Figure 2. Our proposed encoder-decoder based two-

branch variant is depicted in Figure 1. As shown in

Figure 1 (a), raw data is ﬁrst input into the encoder

for feature extraction, then encoded features are input

to two branches separately, followed by a residual-

liked module to integrate information from different

Figure 4: Ground-truth inner boundary extraction process.

branches adaptively. For the fusion of two branch fea-

tures, we use the output of the penultimate layer of

each decoder instead of the last layer to retain more

information. Speciﬁcally, in the residual path, we

ﬁrst concatenate the output features of two branches,

next follow a 1 × 1 convolution to reduce the chan-

nels. Then features are combined with the output of

the ﬁrst branch by an element-wise addition opera-

tion. The ﬁnal output is up-sampled to recover reso-

lution if needed.

3.2 Additional Branch Setting

In this part, we design a simple branch that can be de-

ployed into an encoder-decoder framework to form a

two-branch decoder architecture. As shown in Figure

1 (b), the branch takes the encoded features as input.

Similarly to (Zhao et al., 2017), we utilize a parallel

average pooling module, each path consisting of an

average pooling operator and a 1 × 1 convolution op-

erator. We concatenate the output of each path to get

a multi-scale feature representation and followed by

another 1 × 1 convolution. Then, we get the output

of this branch through an up-sampling operation and

a 1 × 1 convolution operation. Finally, we divide the

encoded features into two groups along the channel

axis, and each grouped feature is entered into a spe-

ciﬁc branch.

3.3 BECLoss

In supervised learning, loss function plays a cru-

cial role in the optimization of the network. Thus,

we further propose a novel loss computation strategy

that can efﬁciently optimize this two-branch structure.

Moreover, (Chen et al., 2020; Takikawa et al., 2019)

have proved that introducing boundary information in

the loss helps to improve the inherent sensitivity of

the network to boundary pixels. Thus, we introduce

boundary information in the proposed loss to help

the model learn boundary features during the training

stage, which is veriﬁed in ablation experiments.

We name this well-designed loss BECLoss.

Speciﬁcally, BECLoss takes three inputs: outputs of

the ﬁrst branch X

and the second branch X

and

ground-truth map GT . We assume batch size as 1,

thus the shape of X

(k = 1, 2) is C × H × W and C, H

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

376

and W indicate the number of predicted classes, high

and width of input images, respectively. First, we get

the probability distribution S

∈ R

H·W×C

which can

be computed as:

exp(X

)

∑

exp(X

[ j])

(1)

where i = 0 .. .H × W − 1 denotes the index of pixels,

j = 0 . . .C − 1 denotes the index of channels. Then,

we compute the probability map of ground truth label

∈ R

H·W×1

as:

= S

[gt

] (2)

where gt

is the i

pixel in GT . Following, we deﬁne

a mask M

for indicating all the pixels whose proba-

bility in P

is less than a threshold τ. M

indicates the

pixels that are difﬁcult to predict in the ﬁrst branch.

With the computed M

and P

, we ﬁlter out all pixels

in X

whose probability is less than a threshold τ:

(

1 if P

< τ

0 otherwise

(3)

where i = 0 .. .H × W − 1 denotes the index of pixels.

In order to standardize the loss deﬁnition, we use

to indicate the boundary enhanced loss computed

from X

, and L

to indicate a partial loss that we get

from X

. In L

and L

we only consider the pixels

which are hard to predict in the ﬁrst branch in order to

utilize the additional branch to assist in the prediction

of these pixels. In addition, we use a hyperparameter

γ to control the inﬂuence of boundary information B ∈

W ×H

(detailed in 3.4) to the loss of the ﬁrst branch,

we get L

∈ R

H·W×1

= −log(P

) × (1 + γ · B

) × M

(4)

where i = 0 .. .H × W − 1 denotes the index of pixels.

Following, we compute the partial loss L

∈ R

H·W×1

= − log(P

) × M

(5)

Finally, the BECLoss can be written as a weighted

average sum of L

and L

BEC

∑

+ η · L

)

∑

(6)

where η is a hyperparameter used to control the ratio

of L

in L

BEC

The two branches can automatically learn comple-

mentary information which helps the proposed model

to further learn a more appropriate way to combine

the outputs of the two branches.

Figure 5: Architecture of modiﬁed SegNet with two de-

coders (SegNetT).

3.4 Ground-truth Boundary

In this part, we explain how we get a ground-truth

boundary map from a ground-truth label map. In-

troducing approximate boundary information in the

loss can improve the model’s sensitivity to physical

boundaries, which improves the prediction accuracy

in the boundary area. However, there are always la-

beled error pixels in the hand-labeled ground truth

map, which are especially obvious at the boundary

region, as shown in Figure 3(a). In order to allevi-

ate this problem, Figure 4 illustrates the inner bound-

ary extraction process. Concretely, we ﬁrst extract the

boundary map B

∗

from the original ground-truth label

map by a ﬁlter f that sets all pixels that do not have

8 identically-labeled neighbor pixels as 1, and other

pixels as 0. Then we thicken the boundary by a 7 × 7

dilation operator and get boundary map B

∗

. Finally,

we get the inner boundary B

∗

by applying the same

ﬁlter f on B

∗

again and followed by another 3 × 3 di-

lation operator, as shown in Figure 3(b).

3.5 Joint Loss

The proposed BECLoss is designed for optimizing the

network with two branches. The purpose is to guide

the two branches to learn complementary informa-

tion. It can naturally be combined with other losses

for training the whole network. Therefore, the net-

work is trained to minimize a joint loss function:

L = L

+ α · L

BEC1

+ β · L

BEC2

(7)

Speciﬁcally, L

is cross-entropy loss, L

BEC1

and

BEC2

are proposed BECLoss for ﬁrst and second

branch, respectively. α and β are weights parameters

of the two BECLoss.

4 EXPERIMENTAL RESULTS

In this section, we conduct experiments on Cityscapes

dataset (Cordts et al., 2016) and Freiburg Forest

dataset (Valada et al., 2016). In the following, we ﬁrst

A General Two-branch Decoder Architecture for Improving Encoder-decoder Image Segmentation Models

377

Table 1: Comparison in terms of IoU vs different baselines on the cityscapes val set with 11 semantic class labels.

Methods sky building road sidewalk fence vegetation pole vehicle traffic sign person bicycle

SegNet

91.83 88.47 95.52 72.76 40.02 91.22 52.95 89.45 65.57 77.2 68.98

SegNetT (ours)

93.35 (+1.52)

90.89 (+2.42)

96.65 (+1.13)

77.28 (+4.52)

49.72 (+9.7)

92.37 (+1.15)

61.54 (+8.59)

92.86 (+3.41)

75.64 (+10.07)

81.61 (+4.41)

75.06 (+6.08)

DeepLabv3+

93.99 90.9 97.29 80.47 54.73 91.92 56.56 93.05 71.78 78.9 73.79

DeepLabv3+T (ours)

93.95

91.99 (+1.09)

97.62 (+0.33)

82.31 (+1.84)

54.85 (+0.12)

92.55 (+0.63)

62.69 (+6.13)

94.17 (+1.12)

77.87 (+6.09) 82.4 (+3.5) 76.59 (+2.8)

HRNet

94.31 92.06 97.67 82.31 54.94 92.59 63.31 94.34 76.37 82.27 75.4

HRNet-T (ours)

94.83 (+0.52)

92.68 (+0.62)

97.98 (+0.31)

84.3 (+1.99)

56.28 (+1.34)

93.06 (+0.47)

67.17 (+3.86)

94.83 (+0.49)

79.98 (+3.61)

84.35 (+2.08)

77.09 (+1.69)

Table 2: Improvements with two-branch decoder on Freiburg Forest val set.

Methods BaseNet Trail Grass Veg. Sky Obst. Mean IoU (%) Parms. (M)

SegNet

84.15 85.55 88.97 91.28 0 69.99 29.4

SegNetT (ours)

88.55 (+4.4) 88.96 (+3.41) 0.91 (+1.94) 2.63 (+1.35)

47.93 (+47.93)

81.79 (+11.8)

18.6

DeepLabv3+

83.03 86.11 89.96 92.16 36.1 77.48 26.6

DeepLabv3+T (ours)

88.02 (+4.99) 88.93 (+2.82) 91.02 (1.06) 2.83 (+0.67)

52.87 (+16.77)

82.73 (+5.25)

27.5

HRNet

84.79 86.49 89.79 91.96 38.44 78.29 9.6

HRNet-T (ours)

88.74 (+3.95) 89.35 (+2.86) 91.14 (+1.35) 92.6 (+0.64)

53.17 (+14.73)

83 (+4.71)

9.6

Res50

Hrnet-W18

Vgg16

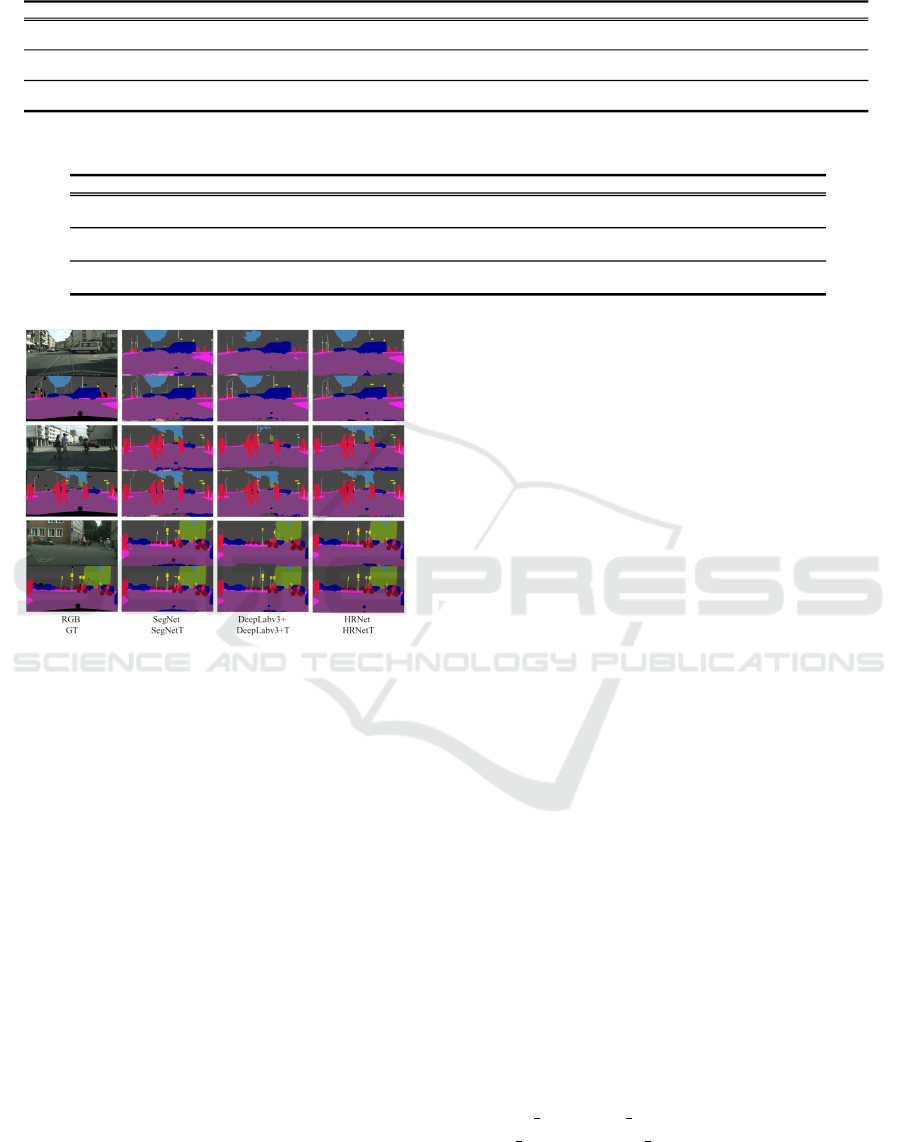

Figure 6: Qualitative results on the Cityscapes val set with

11 semantic class labels.

modify some classic image semantic segmentation al-

gorithms to build their two-branch decoder counter-

part, then compare the proposed two-branch architec-

ture with the original network. Finally, we carry out

a series of ablation experiments on Freiburg Forest

dataset. Our models are trained on one Nvidia Tesla

P100 GPU with mixed precision settings.

4.1 Datasets

Cityscapes. The Cityscapes dataset is a large-scale

database for urban street scene parsing. It contains

5000 ﬁnely annotated images captured from 50 cities

with 19 semantic object categories, in which 2875 im-

ages are used for training, 500 and 1525 images are

used for validation and testing separately. All images

are provided with a resolution of 2048 × 1024. We

followed (Valada et al., 2019) and report results on

the reduced 11 class label set.

Freiburg Forest. The Freiburg Forest dataset is an

unstructured forested environments dataset. It con-

tains 6 segmentation classes, i.e., sky, trail, grass, veg-

etation, obstacle, and void. The dataset contains 325

images with pixel level hand-annotated ground truth

map. We follow (Valada et al., 2019) and use the same

train and test splits provided by the dataset.

4.2 Implementation Details

In order to comprehensively test, we deploy proposed

two-branch decoder on three classic baseline net-

works, namely, SegNet (Badrinarayanan et al., 2017),

DeeplabV3+ (Chen et al., 2018), and HRNet (Wang

et al., 2020). Two-branch SegNet is shown in Fig-

ure 5. We divide the output of the encoder into two

groups, one of which is input to the original data

stream, and another is input to the additional data

stream. In our two-branch implementation, we de-

note the upper branch in the decoder as the original

data stream, the lower branch as the additional data

stream. Next, we follow the residual-liked module to

fuse the two outputs while deploying the BECLoss

and cross-entropy loss during the training. More con-

cretely, we supervise the learning process of the two

branches through L

BEC1

and L

BEC2

, and the combi-

nation of two outputs are guided by L

. We fol-

low the same way to implement the counterpart of

DeeplabV3+ and HRNet. Note that we only take the

backbone in the original model as an encoder, and

the rest as the decoder. In practice, we use Resnet50,

Vgg16 and HRNet-W18 as backbones.

We initialize encoder with the weights pre-trained

on ImageNet, this is totally the same as its original

implementations (Badrinarayanan et al., 2017; Chen

et al., 2018; Wang et al., 2020). We employ a cycli-

cal exponent learning rate policy (Smith, 2017) where

the min lr and max lr are set to 1e− 5 and 1e − 2, and

cycle length and step size are set to 40 and 5 epochs

respectively . Momentum and weight decay coefﬁ-

cients are set to 0.9 and 0.0005. If not speciﬁed, all

models are trained with a mini batch size of 8. Fur-

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

378

Table 3: Improvements with two-branch decoder on

Cityscapes val set with 11 semantic class labels.

Methods BaseNet Mean IoU (%)

Parms. (M)

SegNet 75.82

29.4

SegNetT (ours)

80.64 (+4.82)

18.6

DeepLabv3+ 80.31

26.6

DeepLabv3+T (ours)

82.45 (+2.14)

27.5

HRNet-W18 82.34 9.6

HRNet-W18T (ours)

83.9 (+1.56)

9.6

Res50

Hrnet-W18

Vgg16

thermore, we conﬁgure the hyperparameter γ and η

in BECLoss as 10.0 and 0.3. The scale α and β in

Equation 7 are set to 2.0. For Cityscapes dataset, we

set input image size to 384 × 768, thus random crop-

ping (cropsize 384 × 768) is applied during training,

and during testing, we use the original resolution of

1024 × 2048. For Freiburg Forest dataset, we resize

the image to 384 × 768 during training and testing.

All training images are augmented by random left-

right ﬂipping. We set 160 and 120 training epochs

to Cityscapes datasets and Freiburg Forest dataset. In

addition, as we compare the original models with their

two-branch encoder counterpart, so we perform the

same settings for each comparison pair to ensure fair-

ness.

4.3 Experimental Evaluation

In this section, we provide an extensive evaluation of

each component of our framework on two challeng-

ing outdoor datasets, namely Cityscapes dataset and

Freiburg Forest dataset. We use the widely used inter-

section over union (IoU) to evaluate the performance

of our approach.

4.3.1 Results on Cityscapes Dataset

Table 3 summarizes the results of our two-branch

decoder with different baselines. We can see that

our approach signiﬁcantly improves the mean IoU.

Speciﬁcally, our approach improves the mean IoU of

original encoder-decoder frameworks, namely Seg-

Net, Deeplabv3+, and HRNet, by 4.81, 2.14, and

1.56, respectively. In particular, our two-branch im-

plementation of SegNet (SegNetT) dramatically re-

duces the number of parameters while signiﬁcantly

improving the performance. DeepLabv3+T and HR-

Net only slightly increase the parameters (0.9M) or

keep the number of parameters while improving the

model’s performance. Our results also reﬂect that the

original decoder does not fully use the information

extracted by the encoder. In addition, table 1 illus-

trates the category-wise comparison between various

baselines and their two-branch variants. We surpris-

ingly ﬁnd that our method has a signiﬁcant improve-

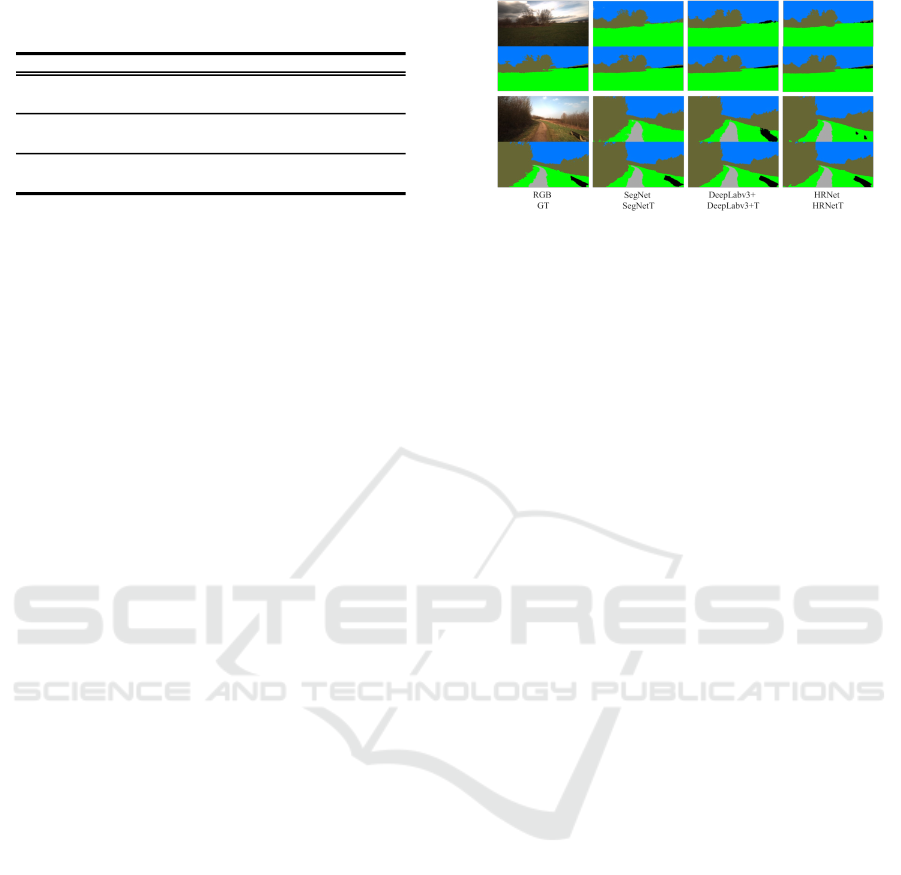

Figure 7: Qualitative results on the Freiburg Forest test set.

ment in the prediction accuracy of small-scale targets,

like ”pole”, ”trafﬁc sign” and ”person”. Several seg-

mentation results are shown in Figure 6, we can see

that our two-branch variants perform better on those

small-size-object classes in the images than the base-

line models. Note that we may ﬁnd the optimal hy-

perparameters to achieve better performances through

grid search, but this is not the focus of this work.

4.3.2 Results on Freiburg Forest Dataset

We carry out experiments on the Freiburg For-

est dataset to further evaluate the effectiveness of

our method. Quantitative results of Freiburg For-

est are shown in Table 2. The baselines (Seg-

Net, DeepLabv3+, HRNet) yield mean IoU 69.99%,

77.48%, and 78.29%. Our two-branch counterpart

boosts the performance to 81.79%, 82.73%, and 83%.

We can see that our methods outperform their base-

lines with notable advantage, especially for the class

of ”obstacle”, which is hardest to segment because

of its severe class imbalance. Several examples are

shown in Figure. 7.

4.4 Ablation Study

4.4.1 BECLoss and Boundary

All two-branch variants are implemented by replacing

the decoder of the original network with our proposed

two-branch decoder, and through our well-designed

BECLoss to explicitly supervise the learning process

of the model, the two branches can learn complemen-

tary information. In addition, we introduce bound-

ary information into BECLoss to improve the inher-

ent sensitivity of our models to boundary pixels. To

verify the validity of our method, we conduct a group

of ablations to analyze the inﬂuence of various fac-

tors within our method. We report the results over

the segmentation baseline SegNet on Cityscapes and

Freiburg Forest dataset in Table 4.

As shown in Table 4, two-branch decoder im-

proves the performance remarkably. Compared with

A General Two-branch Decoder Architecture for Improving Encoder-decoder Image Segmentation Models

379

Table 4: Ablation study on Cityscapes val set and Freiburg

Forest test set. Loss1-Loss3 represent deployed loss in Fig-

ure 1, B indicates BECLoss enhanced by boundary infor-

mation.

Cityscapes

Freiburg

SegNet

\ \ CE \ 75.82 69.99

SegNetT

CE CE CE \ 78.54 (+2.72) 78.9 (+8.91)

SegNetT

BEC CE CE N 79.54 (+3.72) 80.48 (+10.49)

SegNetT

CE BEC CE N 79.07 (+3.25) 79.9 (+9.91)

SegNetT

BEC BEC CE N 79.5 (+3.68) 81.43 (+11.44)

SegNetT

BEC BEC CE

80.64 (

+4.82

)

81.79 (+11.8)

Methods Loss1 Loss2 Loss3 B

Mean IoU (%)

the baseline SegNet, employing two-branch decoder

yields a result of 78.54% mean IoU on Cityscapes

dataset and 78.9% mean IoU on Freiburg Forest

dataset, which brings 2.72% and 8.91% improve-

ment. In addition, when we gradually replaced the

cross-entropy loss CELoss of loss1 and loss2 with

the BECLoss we designed, the performance further

improved to 79.5% and 81.43%. Furthermore, we

notice that when we use only one BECLoss, the re-

sult very slightly exceeds the result of using two BE-

CLoss, as shown in the third row and the ﬁfth row,

the result from 79.54% goes to 79.5% on Cityscapes

dataset. After introducing boundary information to

BECLoss, performance further increased to 80.64%.

Results show that our proposed two-branch decoder

and boundary enhanced BECLoss bring great beneﬁt

to scene parsing.

4.4.2 Single Branch

As mentioned in section1, the proposed two branches

can compete during the training process, which prior-

itizes each branch to learn complementary knowledge

that can boost the parsing ability and improve learn-

ing efﬁciency. Thanks to this property, the results

are still far better than the original encoder-decoder

structure even if we remove a branch during the in-

ference process. Moreover, the number of parame-

ters is less than the original one, which alleviates the

challenging to deploy complex models into practical

applications in many real scenarios due to computer

resources and run-time limitations. As shown in Ta-

ble 5, we use an extremely simple branch, illustrated

in Figure 1(b), retraining on the Cityscapes dataset,

and we named the trained model ‘ED’. Moreover, we

test the output results of each branch separately on

the trained two-branch decoder model. Speciﬁcally,

we take SegNet as an example. In the inference pro-

cess, we only keep the upper branch of the model

in Figure 5, and the output result obtained corre-

sponds to ’O

∗

’. ’D

∗

’ corresponds to the result of only

keep the lower branch. ’O&D’ goes to the result of

original two-branch model. The results of the upper

branch in our trained two-branch model are 80.49%,

82.35%, and 83.87%, which signiﬁcantly exceeds

Table 5: Single branch test on Cityscapes val set with 11

semantic class labels. ’Enc.’ represent encoder, ’Dec.’ rep-

resent decoder. ’O’ indicates the decoder deployed in the

original model. ’D’ the decoder in Figure 1(b), ’T ’ indi-

cates our two-branch decoder. ’O

∗

’, ’D

∗

’ and ’O&D’ mean

the result from upper branch, lower branch and ﬁnal branch

separately.

Methods

Enc.

Dec.

SegNet

80.49

67.34

80.64

18.4

14.9

18.6

DeepLabv3+

82.35

77.3

82.61

25.3

25.7

27.5

HRNet

83.87

76.83

83.9

9.6

HRNet-T (ours)

Res50

82.34 9.6

81.25 9.7

32.2

75.82

65.34

29.4

15.3

80.31 26.6

DeepLabv3+ (ours)

Res50

76.67

Mean IoU (%)

Parms. (M)

SegNetT (ours)

Vgg16

𝑂

∗

𝐷

∗

O&D

𝐷

∗

𝐷

∗

𝐷

∗

𝑂

∗

𝑂

∗

𝑂

∗

O&D

𝐷

∗

𝐷

∗

𝑂

∗

𝑂

∗

O&D

the counterparts of original encoder-decoder models

(75.82%, 80.31%, and 82.34%). The results of lower

branch trained in two-branch model are also better

than correspond one-branch trained model. At the

same time, the number of parameters used dropped

remarkably. In addition, we ﬁnd that the residual-

like module can effectively combine the outputs of

the two branches to further improve the ﬁnal result

to 80.64%, 82.61%, and 83.9%, as shown in ’O&D’

columns, which means that the ﬁnal results are not ad-

versely affected. The results once again show that our

method can make each branch learns complementary

information.

5 CONCLUSION

In this paper, we present a general two-branch de-

coder paradigm composed of a main branch and an

auxiliary branch for scene segmentation. This de-

coder paradigm can be directly applied in an encoder-

decoder framework to reﬁne and integrate the infor-

mation extracted by the encoder efﬁciently. With

this two-branch decoder, we further propose a bound-

ary enhanced complementary loss named BECLoss to

guide two branches to learn complementary informa-

tion. Moreover, we designed a simple yet efﬁcient

branch deployed as the auxiliary branch in our two-

branch decoder. The comparative experiment shows

that the proposed two-branch decoder paradigm and

BECLoss can signiﬁcantly improve the performance

of the original encoder-decoder model consistently on

challenging outdoor datasets. In addition, although

we added a branch to the decoder, it did not signif-

icantly increase the number of parameters, and the

added branch can be removed in the inference process

while still getting performance far beyond the original

counterpart.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

380

REFERENCES

Badrinarayanan, V., Kendall, A., and Cipolla, R. (2017).

Segnet: A deep convolutional encoder-decoder ar-

chitecture for image segmentation. IEEE transac-

tions on pattern analysis and machine intelligence,

39(12):2481–2495.

Chen, L.-C., Papandreou, G., Schroff, F., and Adam,

H. (2017). Rethinking atrous convolution for

semantic image segmentation. arXiv preprint

arXiv:1706.05587.

Chen, L.-C., Zhu, Y., Papandreou, G., Schroff, F., and

Adam, H. (2018). Encoder-decoder with atrous sepa-

rable convolution for semantic image segmentation. In

Proceedings of the European conference on computer

vision (ECCV), pages 801–818.

Chen, Y., Dapogny, A., and Cord, M. (2020). Semeda:

Enhancing segmentation precision with semantic edge

aware loss. Pattern Recognition, 108:107557.

Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler,

M., Benenson, R., Franke, U., Roth, S., and Schiele,

B. (2016). The cityscapes dataset for semantic urban

scene understanding. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 3213–3223.

Fu, J., Liu, J., Tian, H., Li, Y., Bao, Y., Fang, Z., and Lu,

H. (2019). Dual attention network for scene segmen-

tation. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

3146–3154.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hu, J., Shen, L., and Sun, G. (2018). Squeeze-and-

excitation networks. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 7132–7141.

Huang, Q., Xia, C., Wu, C., Li, S., Wang, Y., Song, Y.,

and Kuo, C.-C. J. (2017). Semantic segmentation with

reverse attention. arXiv preprint arXiv:1707.06426.

Li, H., Xiong, P., An, J., and Wang, L. (2018). Pyramid

attention network for semantic segmentation. arXiv

preprint arXiv:1805.10180.

Li, X., Zhong, Z., Wu, J., Yang, Y., Lin, Z., and Liu,

H. (2019). Expectation-maximization attention net-

works for semantic segmentation. In Proceedings of

the IEEE/CVF International Conference on Computer

Vision, pages 9167–9176.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Smith, L. N. (2017). Cyclical learning rates for training

neural networks. In 2017 IEEE winter conference on

applications of computer vision (WACV), pages 464–

472. IEEE.

Takikawa, T., Acuna, D., Jampani, V., and Fidler, S. (2019).

Gated-scnn: Gated shape cnns for semantic segmen-

tation. In Proceedings of the IEEE/CVF International

Conference on Computer Vision, pages 5229–5238.

Tao, A., Sapra, K., and Catanzaro, B. (2020). Hierarchical

multi-scale attention for semantic segmentation. arXiv

preprint arXiv:2005.10821.

Valada, A., Mohan, R., and Burgard, W. (2019). Self-

supervised model adaptation for multimodal seman-

tic segmentation. International Journal of Computer

Vision, pages 1–47.

Valada, A., Oliveira, G., Brox, T., and Burgard, W. (2016).

Deep multispectral semantic scene understanding of

forested environments using multimodal fusion. In

International Symposium on Experimental Robotics

(ISER).

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is all you need. arXiv preprint

arXiv:1706.03762.

Wang, J., Sun, K., Cheng, T., Jiang, B., Deng, C., Zhao,

Y., Liu, D., Mu, Y., Tan, M., Wang, X., et al. (2020).

Deep high-resolution representation learning for vi-

sual recognition. IEEE transactions on pattern analy-

sis and machine intelligence.

Woo, S., Park, J., Lee, J.-Y., and Kweon, I. S. (2018). Cbam:

Convolutional block attention module. In Proceed-

ings of the European conference on computer vision

(ECCV), pages 3–19.

Yuan, Y., Xie, J., Chen, X., and Wang, J. (2020). Seg-

ﬁx: Model-agnostic boundary reﬁnement for segmen-

tation. In European Conference on Computer Vision,

pages 489–506. Springer.

Zhao, H., Shi, J., Qi, X., Wang, X., and Jia, J. (2017).

Pyramid scene parsing network. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 2881–2890.

Zheng, S., Lu, J., Zhao, H., Zhu, X., Luo, Z., Wang,

Y., Fu, Y., Feng, J., Xiang, T., Torr, P. H., et al.

(2020). Rethinking semantic segmentation from a

sequence-to-sequence perspective with transformers.

arXiv preprint arXiv:2012.15840.

Zhong, Z., Lin, Z. Q., Bidart, R., Hu, X., Daya, I. B., Li, Z.,

Zheng, W.-S., Li, J., and Wong, A. (2020). Squeeze-

and-attention networks for semantic segmentation. In

Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition, pages 13065–

13074.

A General Two-branch Decoder Architecture for Improving Encoder-decoder Image Segmentation Models

381
