Research on Intelligent Analysis Model of Heart Sound based on

Deep Learning

Hui Yu

1,2,3 a

, Jing Zhao

, Jinglai Sun

2,3 c

and Zhaoyu Qiu

Academy of Medical Engineering and Translation Medicine, Tianjin University, Tianjin 300072, China

School of Precision Instrument and Opto-Electronics Engineering, Tianjin University, Tianjin 300072, China

Department of Biomedical Engineering, Tianjin Key Laboratory of Biomedical Detecting Techniques and Instruments,

Tianjin University, Tianjin 300072, China

Keywords: Heart Sound, Bispectrum Analysis, Convolutional Neural Networks.

Abstract: Heart sound auscultation is one of the most basic cardiac diagnosis techniques, but the traditional artificial

auscultation method requires experienced clinicians and is limited by environmental factors. In this study, an

intelligent analysis model of heart sound based on deep learning was designed to meet the daily public

screening. Firstly, two public data sets and clinical self-collected data sets were fused, and pretreatments were

carried out，such as normalization, denoising, overlapping cutting and subsampling. Then, the extraction and

quantitative analysis of heart sound features were completed using bispectrum analysis technology. Finally,

the features were input into the constructed improved convolutional neural network for classification. The

results show that the accuracy, sensitivity, specificity and F1 score of normal and abnormal heart sounds were

85.5%, 85.7%, 85.3% and 85.9%, respectively, and the performance of pathological heart sounds

classification was over 90%, reaching the highest level of this kind of research at present. This model provides

a standardized evaluation with high classification performance and can quickly complete the intelligent

analysis of heart sounds, which has important clinical significance.

1 INTRODUCTION

Heart sound is a mechanical wave phenomenon

caused by the movement of the heart. The digital

signals collected by sensors are called

phonocardiogram (PCG). Heart sounds are clinically

associated with many heart pathologies, common

among which are aortic stenosis (AS), mitral stenosis

(MS), mitral regurgitation (MR), and mitral valve

prolapse (MVP) (Reed 2004).

Heart sound auscultation is of great significance

in the diagnosis of cardiovascular diseases. It is one

of the most commonly used cardiac diagnostic

techniques because of its characteristics of non-

invasive, fast and low cost. However, the traditional

manual auscultation method requires experienced

clinicians and is limited by environmental factors,

making it highly subjective and easy to make

mistakes. According to statistics, cardiologists'

auscultation accuracy is about 80%, while that of

https://orcid.org/0000-0002-8511-7296

https://orcid.org/0000-0003-3231-5544

primary care physicians is only in the range of 20%

to 40%(Ma 2020). With the increasing demand for

heart sound auscultation, clinical patients are eager to

develop an accurate and rapid intelligent heart sound

detection algorithm suitable for public screening.

At present, the automatic diagnosis of heart sound

signal mainly has the following methods: Extracting

features efficiently and using traditional pattern

recognition methods such as support vector machine

(SVM), empirical parameters and k-nearest neighbor

(K-NN), the diagnosis is made, or the ability of the

neural network itself to extract features and classify,

such as convolutional neural network (CNN), deep

neural network (DNN), recurrent neural network

(RNN), deep confidence network (DBN)

(Dominguez-Morales 2018, Abduh 2019, Chen 2018,

Wu 2019).

Most of the current studies are based on foreign

open data sets, and it remains to be seen whether the

research results apply to Chinese clinical practice.

https://orcid.org/0000-0003-3683-1968

https://orcid.org/0000-0002-7728-7367

244

Yu, H., Zhao, J., Sun, J. and Qiu, Z.

Research on Intelligent Analysis Model of Heart Sound based on Deep Learning.

DOI: 10.5220/0011291400003444

In Proceedings of the 2nd Conference on Artiﬁcial Intelligence and Healthcare (CAIH 2021), pages 244-248

ISBN: 978-989-758-594-4

Therefore, an intelligent heart sound analysis model

based on deep learning was proposed to be suitable

for clinical practice and higher classification

accuracy. Firstly, two available data sets and clinical

self-collected data sets were fused, and pretreatments

such as normalization, denoising, overlapping cutting

and sub-sampling were performed. Then, we used the

bispectrum analysis technology to complete the heart

sound feature extraction and quantitative analysis.

Finally, the features were input into the constructed

improved convolutional neural network for the

dichotomies of healthy and abnormal heart sounds

and four classifications of pathological heart sounds,

and the performance of the model was evaluated by

accuracy, sensitivity, specificity, accuracy rate and F1

score.

2 MATERIALS AND METHODS

2.1 Dataset

The first dataset used in this paper is the 2016

PhysioNet/CinC Challenge (Liu 2016), which

includes 3,126 heart sound in two classes of abnormal

and normal. The second used dataset is derived from

GitHub, which contains four pathological and normal

heart sound types uploaded by researcher Yaseen at

Sejong University (Yaseen 2018). The third available

dataset, including 29 kinds of the typical heart sound,

is collected by our laboratory and Tianjin Chest

Hospital of China.

2.2 Bispectrum Analysis

The feature engineering in this paper is based on the

bispectrum analysis. Bispectrum analysis is one of

the most commonly used higher order spectrum

analysis methods. It can sufficiently suppress the

signal's phase relationship and detect and quantify the

phase coupling of non-Gaussian signals (Alqudah

2020). Its formula is as follows:

𝑆





(

𝜔



,𝜔



)

∑∑

𝐶





(𝜏



,𝜏



)𝑒

((















))















(1)

2.3 Improved Convolutional Neural

Networks

In this study, a 19-layer improved convolutional

neural network was constructed. A submodule

contains a convolutional layer, BN layer, ReLU layer

and max pooling layer. After being processed by three

identical sub-modules, the pooling layer in the fourth

sub-module is changed into a full connection layer,

and then a layer of softmax layer is used to complete

logistic regression to get our classification results.

Figure 1 shows the overall network structure, and

specific parameters of the model are shown in Table

Table 1: Model parameter selection.

# Layer Information #

1 Input layer Size 256*256

2 Conv_1

Number of filters 32

Kernel size 3*3

Activation ReLU

3 Batch_Norm_1 Number of channels 32

4 ReLU_1 Activation ReLU

5 Maxpol_1

Kernel size 2*2

Stride 2*2

6 Conv_2

Number of filters 16

Kernel size 3*3

Activation ReLU

7 Batch_Norm_2 Number of channels 16

8 ReLU_2 Activation ReLU

9 Maxpol_2

Kernel size 2*2

Stride 2*2

10 Conv_3

Number of

filters

Kernel size 3*3

Activation ReLU

11 Batch_Norm_3 Number of channels 8

12 ReLU_3 Activation ReLU

13 Maxpol_3

Kernel size 2*2

Stride 2*2

14 Conv_4

Number of filters 16

Kernel size 3*3

Activation ReLU

15 Batch_Norm_4 Number of channels 16

16 ReLU_4 Activation ReLU

17 Fully connected layer Number of channels 16

18 Softmax Activation Softmax

19 Output layer Size 2*1

3 EXPERIMENTAL RESULTS

AND DISCUSSIONS

3.1 Data Preprocessing

PhysioNet, Yaseen, and clinical self-collected data

sets were used in this study. First, the heart sound

signal was normalized to facilitate the subsequent

study of the heart sound signal, and then the soft

threshold denoising algorithm of the wavelet was

used to process the heart sound to eliminate the

influence

of environmental noise. The db6 wavelet

Research on Intelligent Analysis Model of Heart Sound based on Deep Learning

245

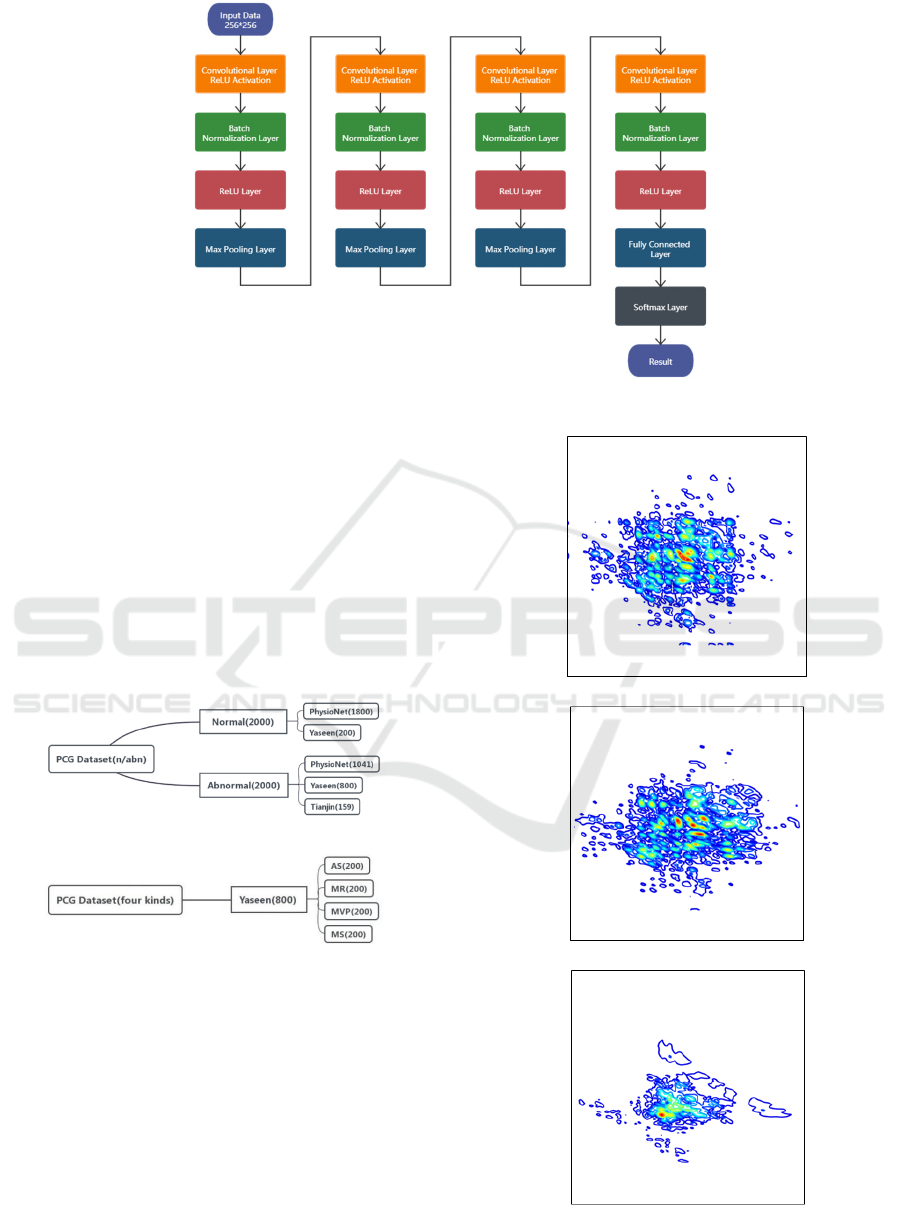

Figure 1: Diagram of the proposed network architecture.

was selected for four-layer wavelet decomposition,

and the threshold function was 'sqtwolog'. Finally, the

heart sound signal was sampled to 1000Hz, and the

heart sound sample was cut by 2.5s, with 50% overlap

each time, to realize samples were doubling while

reducing the calculation pressure. The preprocessed

heart sound samples were fused to build two fusion

data sets, as shown in Figure 2, a normal/abnormal

heart sound dataset was established, and an

AS/MR/MVP/MS heart sound dataset was also

established.

(a) Normal/Abnormal dataset

(b) AS/MR/MVP/MS dataset

Figure 2: Construction of dataset.

3.2 Experimental Results

According to the bispectrum analysis technology,

features were extracted from the heart sound signals

in the data set. Figure 3 is the contour map of

bispectrum plotted for two signals of aortic stenosis

and one signal of mitral stenosis, and each image is

the first quadrant image plotted. It can also be seen

that the images of the two cases of aortic stenosis are

similar but differ from the images of mitral stenosis.

(a) Aortic stenosis

(b) Aortic stenosis

Figure 3: Contour images of bispectrum.

CAIH 2021 - Conference on Artiﬁcial Intelligence and Healthcare

246

The extracted features were input into the 19-

layer convolutional neural network previously

established to distinguish between normal and

abnormal heart sounds. The learning rate was set to

0.001, the loss function was set to the cross-entropy

loss function, the optimizer was selected Adam, and

the batch size was set to 16. A total of 4000 samples

were divided into a training set and test set according

to 4:1. The classification performance is shown in

Table 2, and the confusion matrix is shown in Figure

4(a).

For the four categories of pathological heart

sounds, the setting was the same as that for the two

categories except batch-size 32. There were 800

samples for the four categories, and the number of the

four diseases was the same, but the training set and

test set were still allocated according to 4:1, and the

model training converged around 300 rounds. The

classification performance is shown in Table 3, and

the confusion matrix is shown in Figure 4(b).

Table 2: Performance of the binary model.

Indicators Score

Accuracy 0.980

Sensitivity 0.966

Specificity 0.986

F1 score 0.966

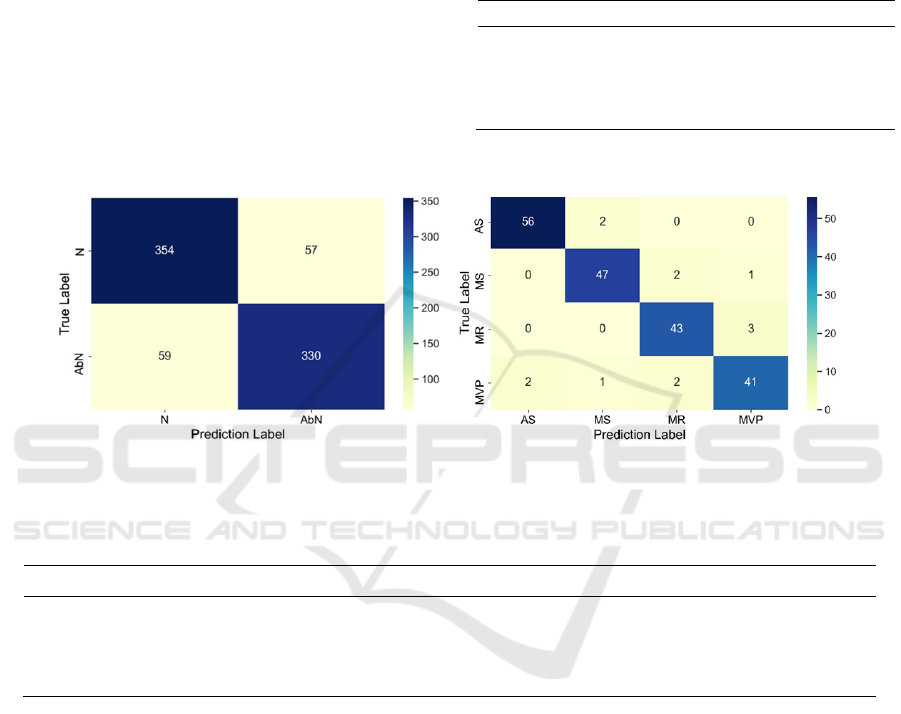

(a) Two categories (b) Four categories

Figure 4: Confusion Matrix

Table 3: Performance of the four classification models.

Category Accuracy Sensitivity Specificity F1 score

Aortic stenosis 0.980 0.966 0.986 0.966

Mitral stenosis 0.970 0.940 0.980 0.940

Mitral regurgitation 0.965 0.935 0.974 0.925

Mitral valve prolapse 0.955 0.891 0.974 0.901

3.3 Discussion

Although the model in this study has good

classification performance in the four categories,

there is still a particular gap compared with previous

studies in the two categories. We suspect this is

because the samples for the four categories come

from the same database, while the samples for the two

categories is a fusion of the three databases. Different

databases have different collection methods and noise

types, resulting in poor model performance in the

fusion data sets. We will also increase the research on

noise processing to narrow the differences between

different databases in future research. In addition,

sample collection will continue, especially the

collection of pathological samples of the four

categories, to expand the number of samples and

improve the robustness and generalization ability of

the model.

4 CONCLUSIONS

This article used three data sets: PhysioNet, Yaseen,

and the clinical self-collected data sets. Firstly,

normalization, wavelet denoising, subsampling and

overlapping cutting were used to complete the data

preprocessing, and then feature extraction was

completed based on bispectrum. Finally, the features

were put into the constructed neural network model

Research on Intelligent Analysis Model of Heart Sound based on Deep Learning

247

of dichotomies and quadrotors for the corresponding

classification, and the confusion matrix was

calculated, and several evaluation parameters were

obtained.

The results show that this model can provide a

standardized evaluation with high classification

performance and quickly complete the intelligent

analysis of heart sounds, which has important clinical

significance.

ACKNOWLEDGEMENTS

The authors express thanks to the doctors of Tianjin

Chest Hospital of China for providing full help in the

research process.

REFERENCES

Abduh, Z., Nehar, Y. E. A., Wahed, M. A., et al. (2019)

Classification of heart sounds using Fractional Fourier

Transform Based Mel-Frequency Spectral Coefficients

and Stacked Autoencoder Deep Neural Network. J.

Journal of Medical Imaging and Health Informatics,

9(1): 1-8.

Alqudah, A. M., Alquran, H. H., Abuqasmieh, I. (2020)

Classification of heart sound short records using

bispectrum analysis approach images and deep

learning. J. Network Modeling Analysis in Health

Informatics and Bioinformatics, 9(1):66.

Chen, L., Ren, J., Hao, Y., and Hu, X. (2018) The diagnosis

for the extrasystole heart sound signals based on the

deep learning. J. Journal of Medical Imaging and

Health Informatics, 8(5):959-986.

Dominguez-Morales Juan, P., Jimenez-Fernandez Angel,

F., Dominguez-Morales Manuel, J., Jimenez-Moreno

Gabriel. (2018) Deep neural networks for the

recognition and classification of heart murmurs using

neuromorphic auditory sensors. J. IEEE transactions on

biomedical circuits and systems, 12(1):1-11.

Liu, C., Springer, D., Li, Q., et al. (2016) An open access

database for the evaluation of heart sound algorithms.

J. Physiological Measurement, 37(12): 2181-2213.

Ma, L. Y., Chen, W. W., Gao, R. L., et al. (2020) China

cardiovascular diseases report 2018: an updated

summary. J. Journal of Geriatric Cardiology, 17(1): 1-

Reed, T. R., Reed, N. E., Fritzson, P. (2004) Heart sound

analysis for symptom detection and computer-aided

diagnosis. J. Simulation Modelling Practice and

Theory, 12(2): 129-146.

Wu, M. T., Tsai, M. H., Huang, Y. Z., et al. (2019) Applying

an ensemble convolutional neural network with

Savitzky–Golay filter to construct a phonocardiogram

prediction model. J. Applied Soft Computing Journal,

78(1):29-40.

Yaseen, Son, G. Y., Kwon, S. (2018) Classification of heart

sound signal using multiple features. J. Applied

Sciences, 8(12):2344.

CAIH 2021 - Conference on Artiﬁcial Intelligence and Healthcare

248
