Secure Electronic Document with QR Code and RSA Digital

Signature Algorithm

Kadek Amerta Yasa, Putu Gde Sukarata, Gusti Putu Mastawan Eka Putra, I Made Riyan Adi Nugroho

and I Nyoman Gede Arya Astawa

Department of Electrical Engineering, Politeknik Negeri Bali, Bali, Indonesia

Keywords

Security, Encryption, Digital Signature, QR Code, RSA, Secure Electronic Document.

Abstract

Falsification of electronic documents has become a challenge in these modern days. Lack of security is a

factor in the occurrence of falsification of electronic documents. There are several methods have been founded

which can be used to solve these problems, one of which is digital signature. However, most existing digital

signature use insecure data format and encryption is rarely used. In this paper, we propose a Secure Electronic

Document (SeED) model by adding QR Code and Digital Signature that are encrypted with RSA (Rivest,

Shamir and Adlemen) algorithm. We implemented the proposed SeED model in a website-based population

data processing system and showed that the system is effective for generating electronic documents and

validating them more securely.

INTRODUCTION

The development of technology is very fast

changing the way we do a process. This has led to the

emergence of the idea of utilizing technology such as

e-government (Hu and Ma, 2010). E-government

according to, is

an ICT revolution in public

government to increase

the effectiveness, efficiency

and transparency of

services. In contrast to

traditional governance

methods where paper-based

documents are more

dominant, e-government

services use more electronic

documents in their

implementation (Hu and Ma, 2010). Electronic

document is a document that contains information or

data stored electronically. These electronic

documents are usually issued by official institutions,

so the information or data on electronic documents

can be cited as proof (Savrai, 2017).

Researchers have proposed to perform encryption

to hide digital signature data. Sangita and Santosh

proposed a solution, A Modified RSA Algorithm to

Enhance Security for Digital Signature (Jaju and

Chowhan, 2018). Rochman

et.al proposed a solution,

Implementation of QR Code

and Digital Signature

to Determine the Validity of

KRS and KHS

Documents (Rochman, 2017). Okfalisa et.al

proposed a solution, Implementation of Advanced

Encryption Standard (AES) and QR Code Algorithm

on Digital Legalization System (Okfalisa, 2018).

Setiawan and

Kesuma proposed a solution, Design

of Secure

Electronic Disposition Applications by

Applying

Blowfish, SHA-512, and RSA Digital

Signature.

Algorithms to Government Institution

(Setiawan, 2018). Ahamed

and Mustafa proposed a

solution A Secure QR Code

System for Sharing

Personal Confidential

Information (Ahamed, 2019).

However, these solutions do not

consider cases

where data updates occur on the

system.

Therefore, in this paper we propose a SeED model

by adding QR Code and Digital Signature that are

encrypted with RSA algorithm. RSA is used because

it has better enc r y p t i o n and key generation speeds

(Aufa, 2018).

QR Code is used to store encrypted

document data

which can later be used for

verification of printed

documents. And for the

data update issue on the

system, the proposed

model is equipped with

metadata that containing

document change data. This

metadata is stored in a

document database.

The SeED model will be divided into three

components, namely components for generating

secure electronic documents, components for

validating secure electronic documents, and

components for validating printed documents. We

implemented the proposed SeED model in a website-

based population data processing system and showed

1370

Yasa, K., Sukarata, P., Putra, G., Nugroho, I. and Astawa, I.

Secure Electronic Document with QR Code and RSA Digital Signature Algorithm.

DOI: 10.5220/0010965600003260

In Proceedings of the 4th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2021), pages 1370-1375

ISBN: 978-989-758-615-6; ISSN: 2975-8246

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

that the system is effective for generating electronic

documents and validating them more securely.

This paper is written as follows: Each section (1,

2, 3, 4, and 5) is describing about introduction,

theoretical foundation, proposed model, and

implementation. The 6th part explaining about

analysis and test result. The last one is conclusion.

THEORETICAL

FOUNDATION

2.1 Electronic Document

Electronic document is a document that contains

information or data stored electronically. These

electronic documents are usually issued by official

institutions, so the information or data on electronic

documents can be cited as proof. Electronic

documents can be grouped into two groups, namely

safe and simple. A safe electronic document refers to

the document that is generated, saved or processed by

using a safe information system and bears a safe

electronic signature. A simple electronic document

refers to the document that is generated, saved or

processed by using an unsafe information system and

simple electronic signature. In this paper, we will

create a model to create a safe or secure electronic

document.

2.2 Digital Signature

A digital signature is a mathematical scheme for

showing the authenticity of a digital message or

document. For security, digital signatures are stored

in cipher-text form. Several studies use

cryptographic algorithms to form cipher-text, such

DES, AES, Blowfish, and RSA. In this paper, the

cryptographic algorithm used to create cipher-text is

the RSA algorithm. The RSA algorithm has 3

important processes: key generation, encryption, and

decryption.

2.3 QR Code

QR Code is a two-dimensional image that represents

data, especially text data. With the ability to store in

two dimensions of QR Code certainly can store more

data and varied rather than the barcode. QR Code has

the ability to encode and store information in the form

of a printable pattern. The type of data that can be

stored in QR Code is (Okfalisa et. al, 2018)

including Numerical mode,

Alphanumeric mode, 8-

bit mode byte, and Kanji

Mode.

PROPOSED MODEL

In this section, we discuss our proposed SeED model

which consist of three model: Secure electronic

document generator model; Validate of electronic

document model; and validate of secure printed

document model.

3.1 Secure Electronic Document

Generator Model

This model serves to create or generate secure

electronic documents. Each document has its own

private key and public key. Public and private key

have been generated when input the document data.

This model consists of four stages, namely encrypt

document data; generate QR Code; generate

digital

signature and generate secure electronic

document.

The encrypt document data stage aims

to encrypt

document data using a public key. The

encryption

process is carried out using the RSA

algorithm.

Cipher-text with document id will be

processed at

generate QR code and digital signature

stage. At the

stage of generating a QR code, the

cipher-text and

document id will be encoded into a

QR Code. At the

stage of generating digital

signature, the cipher-text

and document id will be

generated into a digital

signature. The last step in

this model is to generate a

secure electronic

document. This stage aims to create

or generate an

electronic document and add a digital

signature and

QR code in it. The resulting secure

electronic

document can be further processed

according to

needs, such as downloading or sending

via email.

The flow of this model can be seen in

Figure 1.

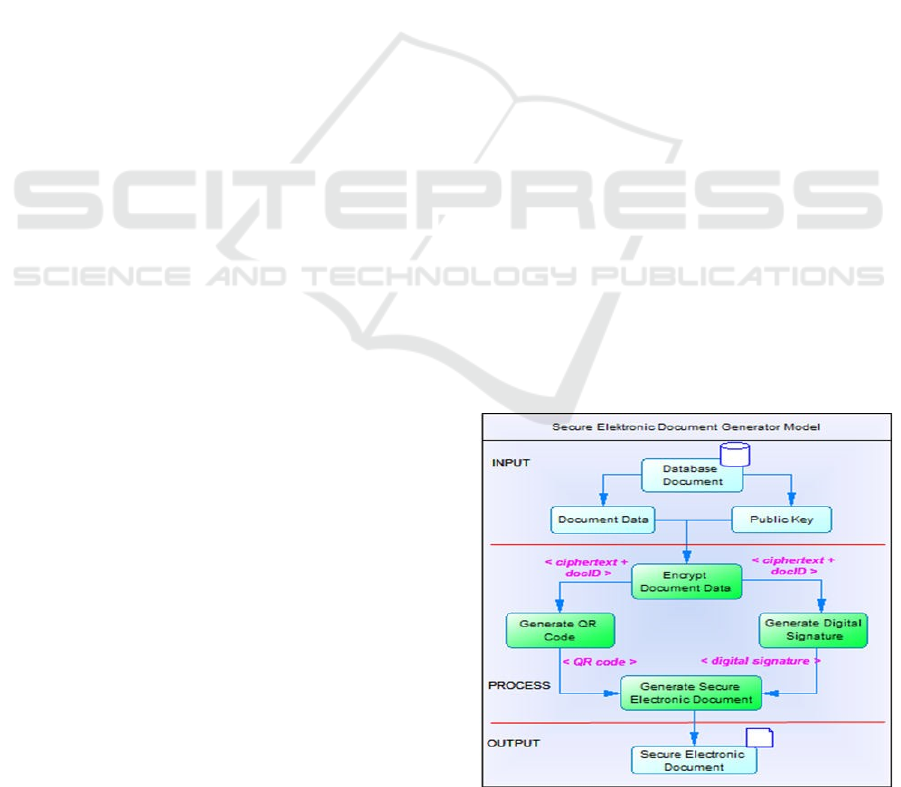

Figure 1: Secure Electronic Document Generator Model.

Secure Electronic Document with QR Code and RSA Digital Signature Algorithm

1371

3.2 Validate of Electronic Document

Model

This model serves to validate a secure electronic

document. This validation process aims to detect

whether the document is original or not, and whether

there has been a data change in the document or not.

This validation model consists of four stages, namely

get digital signature, get document data, encrypt

document data, and compare. The get digital

signature process aims to get the digital signature in

the file. In addition to getting a digital signature, this

stage is also used to get a document id which is used

as input for the get document data process. The next

stage is get document data, this stage aims to retrieve

document data and public keys from the database.

The next stage is Encrypt Document Data; this stage

aims to encrypt document data using the public key

obtained from the get document data stage. The last

stage is compare, this stage aims to make a

comparison between the digital signature and the

cipher-text obtained from the encrypt document data

stage. If the digital signature with cipher-text has the

same value, then the document is declared valid and

there is no change in data, otherwise the document is

declared invalid or data has been changed. The flow

of this model can be seen in Figure 2.

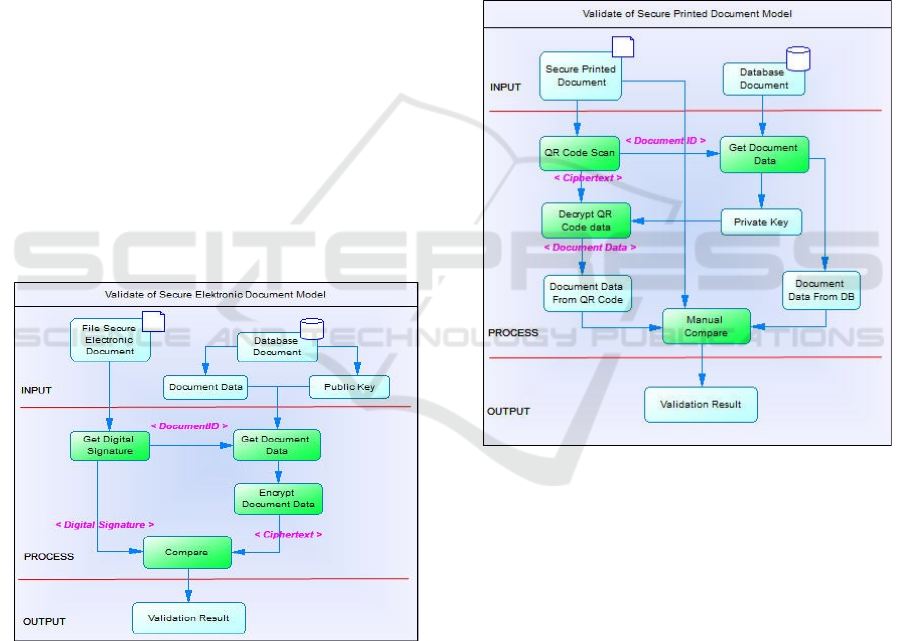

Figure 2: Validate of Secure Electronic Document Model.

3.3 Validate of Secure Printed Document

Model

This model aims to perform validation for printed

documents. This validation model consists of four

stages, namely: QR code scan; get document data;

decrypt QR code data; and manual compare. The QR

code scan stage aims to retrieve the QR code data that

printed on the document. Besides getting QR code

data, this stage is also used to get the document id

which is used as input for the get document data

process. The next stage is get document data, this

stage aims to retrieve document data and private keys

from the database. The next stage is Decrypt QR

Code data, in this stage aims to re-convert from

cipher-text into readable document data. The last

stage is manual compare, which is the process of

comparing decrypted document data, document data

from the database and document data from printed

documents. If the data has the same value, the

document is considered valid and the data is not

changed. The flow of this model can be seen in

Figure

Figure 3: Validate of Secure Printed Document Model

IMPLEMENTATION

We implemented the SeED model in a website-

based population data processing system. On the

frontend side, the system is developed with the

vue.js

framework. The backend side, we use the

SLIM

framework and MySQL as the system

database.

Waterfall model was followed during

implementation. The SeED model is implemented

the three main features of the application,

namely the

family card generation feature, the

digital family card

validation feature, and the

printed family card

validation feature.

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

1372

4.1 Family Card Generation Feature

There are several data that are entered as

family

card data, including name, nik, place of birth,

date

of birth, gender, and address. Using the

EasyRSA

library (Enterprises, 2019) private and public keys

are

generated 2048-bit long. Family card data along

with

private and public keys are stored in a database

with

a unique document id.

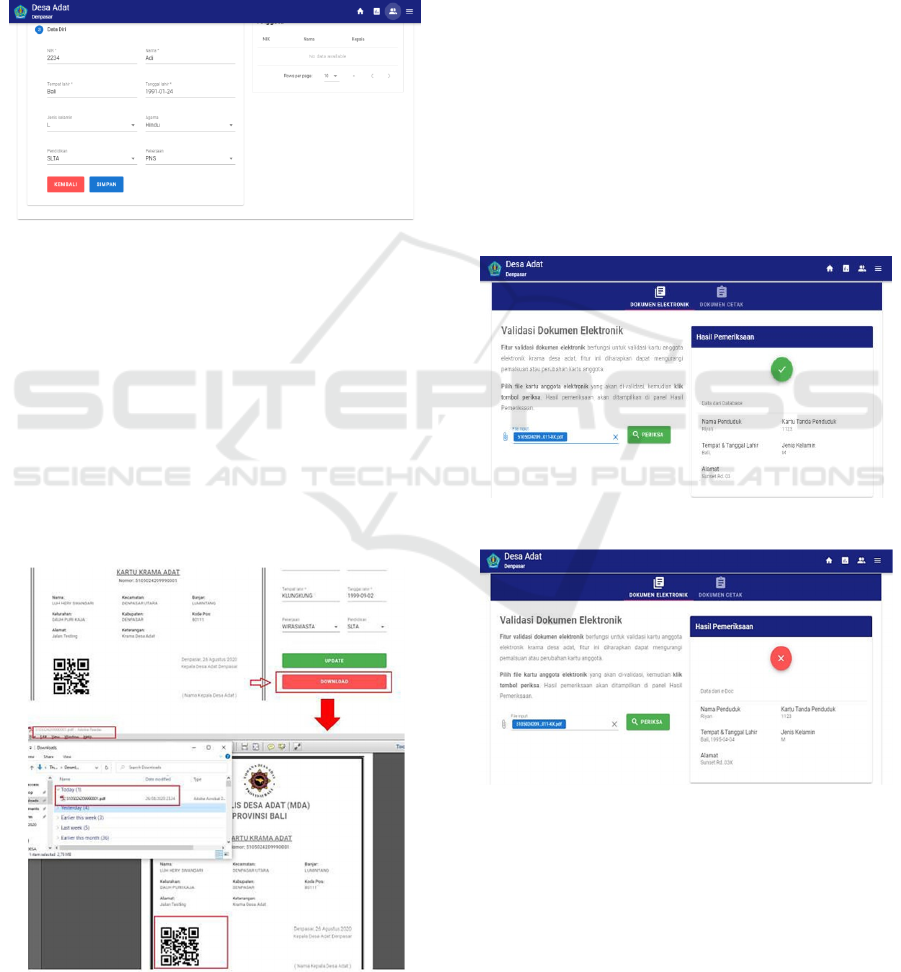

Figure 4: Insert Family Card Data and Generate Key.

Family card and public key data are retrieved

from

the database using the document id. Family card

data

is arranged into plain text with semicolon

delimiters, such as names; NIK; place of birth; Date

of birth; sex; address. The family card data is then

encrypted using a public key with the EasyRSA

library. The results of the encryption called cipher-

text are then combined with the document id with the

# sign separator (cipher-text#documentID). The

combination of the cipher-text with the document id

is used as a digital signature and encoded into a QR

code. The encoded process is assisted by endroid/qr- code

Figure 5: Generate Electronic Family Card.

(Van den Enden, 2020) library. The QR code and digital

signature are then added to

the

family card document to be

printed in pdf format.

4.2 Digital Family Card Validation

Feature

Validation of the digital family card is done by

uploading the family card file on the form provided.

From the uploaded file, the system will take the

digital signature on the file. The digital signature is

then extracted to obtain encrypted family card data

and document id. With the document id, the system

will retrieve the family card data and public key in the

database. The family card data obtained is then

encrypted using a public key. The encryption results

are then compared with the family card data

encryption from the digital signature. If the results are

the same, the system displays a valid document

message, otherwise invalid document message.

Figure 6: Valid Electronic Document Result.

Figure 7: Invalid Electronic Document Result.

4.3 Printed Family Card Validation

Feature

In addition to validating digital family cards, the

system can also validate printed family cards. To read

the QR code printed on the family card, the system is

equipped with a QR code reader. For QR code reader

we use vue-qrcode-reader (Gruhn, 2020) library.

Secure Electronic Document with QR Code and RSA Digital Signature Algorithm

1373

The system

will read the QR code printed on the

family card. The

data obtained is then extracted to

obtain encrypted

family card data and document id.

With the document id, the system will retrieve the

family card data and

private key in the database. The

private key is used to

decrypt family card data

from the QR Code. The

decryption result then

compares with the family card

data from the

database and printed family card data.

If it has the

same value, then the family card is valid,

otherwise

the family card is invalid.

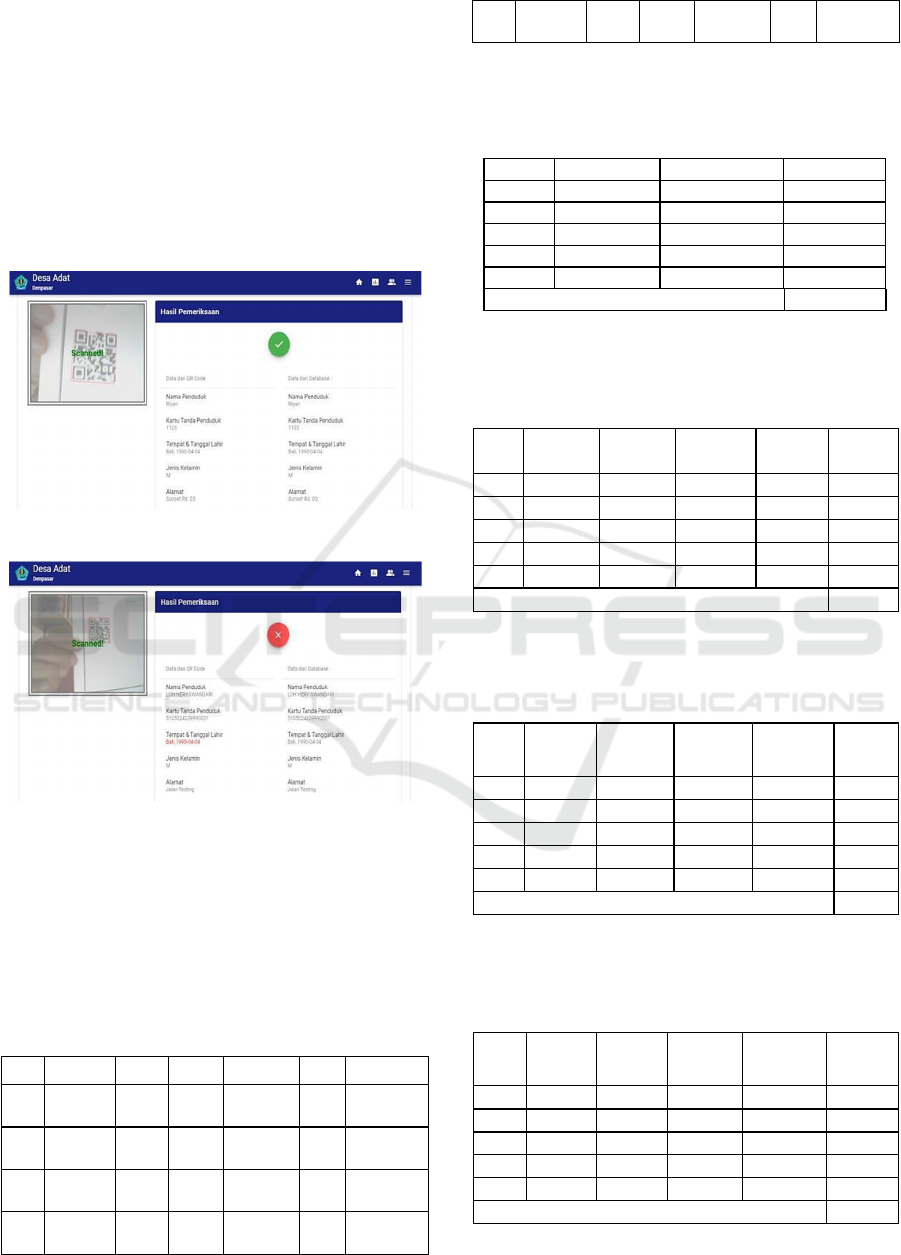

Figure 8: Valid Printed Document Result.

Figure 9: Invalid Printed Document Result.

ANALYSIS AND TEST RESULT

In the population data processing system, we

conducted an experiment by making electronic

documents from the following data:

Table 1: Data Testing.

Data Name NI K PO

B DOB Sex Address

Riyan 112

Bali

1990-04-

Sunset

3 04 Rd. 03

Adi 223

Bali

1991-01-

Sartika

4 24 Rd. 22A

Nugroho 334

Bali

1995-05-

Sudirman

5 04 St. 1B

Made 445

Bali

1996-08-

Kuta St.

6 17 120X

Nyoman 556

Bali

1980-01-

Dalung

7 04 Rd. 220Y

The results of the process of inserting data and

generating private and public keys are as follows:

Table 2: Insert & Generating Key Result.

Data Insert Data Generate Ke

Time

(

sec.

)

D1 Success Success 0.4042

D2 Success Success 0.3188

D3 Success Success 0.5163

D4 Success Success 0.1069

D5 Success Success 0.1712

Avera

e Time 0.30348

The results of generating a secure electronic

document are as follows:

Table 3: Generating Secure e-Document Result.

Data

Encrypt

Data

Code

Dig.

Signature

E-Doc

Time

(sec.)

D1 Success Success Success Success 0.3011

D2 Success Success Success Success 0.2908

D3 Success Success Success Success 0.2705

D4 Success Success Success Success 0.2793

D5 Success Success Success Success 0.2603

Average Time 0.2804

The results of the secure electronic document

validation are as follows:

Table 4: Secure Electronic Document Validation Result.

Data

Get Dig.

Sig.

Get Doc.

Data

Encrypt

Doc. Data

Compare

Time

(sec.)

D1 Success Success Success Success 0.1744

D2 Success Success Success Success 0.1414

D3 Success Success Success Success 0.0617

D4 Success Success Success Success 0.062

D5 Success Success Success Success 0.0645

Average Time 0.1008

The results of the printed electronic document

validation process are as follows:

Table 5: Printed Electronic Document Validation Result.

Data

Scan QR

Code

Get Doc.

Data

Decrypt

QR Code

Compare

Time

(sec.)

D1 Success Success Success Success 0.2544

D2 Success Success Success Success 0.1814

D3 Success Success Success Success 0.1217

D4 Success Success Success Success 0.1062

D5 Success Success Success Success 0.1545

Average Time 0.16364

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

1374

We conducted evaluation experiment with creating

and validating secure electronic documents. The

experimental results show that the proposed method

can make electronic documents safer and the

validation process faster and easier. The RSA keys

(private key and public key as a pair) are

successfully generated and stored with an average

time of 0.30348 seconds. QR code and digital

signature to protect documents successfully

generated and added with an average time of 0.2804

seconds. The digital signature has been read and

validated successfully with an average time of

0.1008 seconds. The printed QR Code has been read

and validated successfully with an average time of

0.16364 seconds.

CONCLUSIONS

This paper presents an innovative model to

prevent

falsification of electronic document. Here we

design

and apply the SeED model to a resident data

processing system to protect family card documents

from falsification. The RSA cryptographic algorithm

is used to create digital signatures and secure QR

codes. This digital signature and secure QR code are

used to protect electronic documents. The SeED

model can be applied to a variety of other real-world

applications involving sensitive information.

ACKNOWLEDGEMENTS

This research was supported by Politeknik Negeri

Bali. We thank our colleagues from this institution.

We thank everyone who contributed to the

completion of this paper in one way or another.

Hopefully, this research can be useful.

REFERENCES

X. Hu and L. Ma (2010). A study on inter-governmental

documents security transfer under e-government

environment. Proc. Int. Conf. E-bus. E-Government,

ICEE 2010, pp. 663–666, 2010, doi:

10.1109/ICEE.

2010.173.

P. Savrai, A. Nazem, P. Sciences, and P. Sciences (2017),

Evidentiary value of electronic document in

domestic and international regulations. Int. J. Law,

vol. 3, no. 3, pp. 15–20..

M. S. Ahamed and H. Asiful Mustafa (2019). A Secure QR

Code System for Sharing Personal Confidential

Information. 5th Int. Conf. Comput. Commun. Chem.

Mater. Electron. Eng. IC4ME2 2019, pp. 11–1, doi:

10.1109/IC4ME247184.2019.9036521.

F. F. Rochman, I. K. Raharjana, and T. Taufik (2017).

Implementation of QR Code and Digital Signature

Determine the Validity of KRS and KHS

Documents. Sci. J. Informatics, vol. 4, no. 1, pp. 8–

19, doi: 10.15294/sji.v4i1.7198.

H. Setiawan and K. Rey Citra (2018). Design of secure

electronic disposition applications by applying

blowfish, SHA-512, and RSA digital signature

algorithms to government institution. 2018 Int.

Semin. Res. Inf. Technol. Intell. Syst. ISRITI 2018, pp.

168–173, doi: 10.1109/ISRITI.2018.8864280.

S. A. Jaju and S. S. Chowhan (2018). A Modified RSA

algorithm to enhance security for digital signature. Int.

Conf. Work. Comput. Commun. IEMCON 2015,2015,

doi:

10.1109/IEMCON.2015.7344493.

Okfalisa, N. Yanti, W. A. D. Surya, A. Akhyar, and A. A.

Frica (2018). Implementation of Advanced

Encryption Standard (AES) and QR Code

Algorithm

on Digital Legalization System. E3S Web Conf.,

vol. 73, pp. 1–7, doi:

10.1051/e3sconf/20187313009.

F. J. Aufa, Endroyono, and A. Affandi (2018). Security

System Analysis in Combination Method: RSA

Encryption and Digital Signature Algorithm. Proc. -

2018 4th Int. Conf. Sci. Technol. ICST 2018, vol.

1, pp. 1–5, doi:

10.1109/ICSTC.2018.8528584.

P. I. Enterprises (2019). EasyRSA. [Online]. Available:

https://github.com/paragonie/EasyRSA.

J. van den Enden (2020). qr-code. [Online]. Available:

https://github.com/endroid/qr-code.

N. Gruhn (2020). vue-qrcode-reader. [Online]. Available:

https://github.com/gruhn/vue-qrcode-reader.

Secure Electronic Document with QR Code and RSA Digital Signature Algorithm

1375
