Big Data Allowing next Generation Fish Farming Systems

Mohamed El Mehdi El Aissi, Sarah Benjelloun, Yassine Loukili, Younes Lakhrissi

and Safae Elhaj Ben Ali

SIGER Laboratory, Sidi Mohamed Ben Abdellah University, Fez, Morocco

Keywords: Big Data, Data Lake, Data Management, Data Insights, Smart Fish Farming, Data Processing.

Abstract: To tackle the increasing needs of fish farming production, it becomes a necessity to adopt new techniques of

digitalization in order to handle the huge quantity of data generated by the fish farming ecosystem. This step

will allow fish farmers and researchers to extract valuable information and as a result they will improve their

productivity. Although Big Data techniques are affording many advantages, it has not been widely applied in

agriculture, especially in fish farming. This article sheds light on the potential that Big Data have in the fish

farming industry. It shows the functional and technical need of including Big Data in traditional fish farming

systems. Thereafter, it presents the architecture proposal of a smart fish farming system based on Big Data

technologies.

1 INTRODUCTION

Population growth, socioeconomic factors and food

industry are highly correlated. According to Sarker et

al., the world population has grown from three to six

billion, which created a high food demand (Sarker,

Md Nazirul Islam, et al. 2020). The Food and

Agriculture Organization of United Nations (FAO-

UN) has affirmed that population is growing by 30%

until 2050, consequently food production must be

increased by 70% (United Nations 2015).

Along with this massive increase there are many

challenges and constraints such as land degradation,

water contamination and the degradation of fishery

resources, which creates real uncertainties of food

security (Sarker et al. 2020) (United Nations 2015).

To Handle these increasing demands, many

researcher papers have been published since the

1990s. However, most of the studies and initiatives

were focused on developing the agricultural field

only. Nowadays, researchers are trying to merge

between agriculture and technology such as Remote

Sensing, Big Data, Cloud Computing and the Internet

of Things (IoT). Indeed, all these initiatives are

converging to the concept of “Smart Farming”.

Big Data Analysis has been used in various

industries such as banking, insurance, medicine,

industry and marketing. Despite all the success that

Big Data has achieved in the mentioned fields, it

started being applied to agriculture only recently, but

not in the fish farming domain. According to some

agriculture specialists and corporations, applying Big

Data to fish farming could increase the profit and

production quality (Lytos et al. 2020).

For this main cause, adopting new Big Data

technics has become a necessity in order to tackle the

challenges of productivity, environmental impact,

food security and sustainability (Sarker et al. 2020)

(Lytos et al. 2020).

The motivation for writing this article stems from

the fact that Big Data is a modern technique that is not

treated yet in fish farming despite its benefits as it

proved a significant potential in other domains.

Indeed, the main goal of this contribution is to

present a focused overview of the existing challenges

of fish farming and how Big Data can be used to

overcome those challenges by offering a dedicated

Big Data Architecture for the fish farming systems.

2 RELATED WORKS

The existing research works are mostly focused on

agriculture and how can we extract valuable

information from collected data. In their paper, Lytos

et al. considers agriculture as a complicated scientific

field by its nature that requires a dedicated framework

for managing the incoming data and processing it.

Moreover, they presented a comparison between

many frameworks used to handle the agricultural data

518

El Aissi, M., Benjelloun, S., Loukili, Y., Lakhrissi, Y. and Elhaj Ben Ali, S.

Big Data Allowing next Generation Fish Farming Systems.

DOI: 10.5220/0010739000003101

In Proceedings of the 2nd International Conference on Big Data, Modelling and Machine Learning (BML 2021), pages 518-522

ISBN: 978-989-758-559-3

but, among 14 frameworks only two are supporting

Big Data. Indeed, a dedicated Big Data architecture is

required as it allows the integration of IoT, and this

will allow an efficient data collection through sensors

and the automation of many operations (Lytos et al.

2020).

In parallel, N.N.Misra et al. has showed in their

article that since we integrated IoT solutions in

agriculture it starts generating massive amount of

data, that is categorized as “Big Data'', and this may

open new opportunities to monitor agriculture and

food process. They presented how we can merge

between Big Data, IoT and AI to shape the future of

agri-food systems. In general, this study has focused

on agriculture analysis, mainly, it exposes how

greenhouses can be monitored using AI and how

Supply Chain modernization can enhance the food

quality (Misra et al. 2020).

Even though they did not present how Big Data

techniques participates in developing the fish farming

field through IoT integration.

Furthermore, in his research paper Xinting Yang

et al. has presented how Deep Learning (DL) can be

applied for smart fish farming to handle the series of

challenges for data processing. In addition, he

affirmed that the most significant contribution of DL

is its ability to automatically extract features (Yang et

al. 2021). Although, before we start using DL on this

data, we should be able to manage it, especially when

we talk about fish farming massive data that is

generated by IoT devices. To overcome this situation,

creating a dedicated Data Lake architecture is the best

solution to manage data efficiently, in order to be

consumed in a better way.

3 BIG DATA TECHNIQUES FOR

FISH FARMING

In general, we can differentiate between two concepts

of database management systems.

The first concept is the data warehouse, which is

simply a relational database designed especially for

querying and analyzing data. Usually, it contains

structured historical data coming from transactional

databases; furthermore, all data stored is structured.

Additionally, the organization of data in a data

warehouse is subject oriented, which means each

table is built to respond exactly to a need that was

already specified. One more thing to remember is that

before storing the data in the staging zone of a DWH

it should respect an exact structure and may pass

through data cleansing steps to ensure high data

quality in reporting (M.M.El Aissi et al. 2020).

In smart fish farming, data and information are the

core elements. The aggregation and advanced

analytics of all or part of the data will lead to the

ability to make scientifically based decisions.

However, the massive amount of data in smart fish

farming imposes a variety of challenges, such as

multiple sources, multiple formats and complex data

(Fleming, Aysha, et al. 2018).

Multiple sources include information regarding

the equipment, the fish, the environment, the breeding

process and people. The multiple formats include

text, image and audio. The data complexities stem

from different cultured species, modes and stages.

Addressing the above high-dimensional, nonlinear

and massive data is an extremely challenging task.

Moreover, a data warehouse has a special data

collection approach known as ETL that has three

main steps: Extraction, Transformation and Loading.

Data extraction refers to extracting data from

homogeneous/heterogeneous sources; data

transformation involves processing data in order to

cleansing it and transforming it to an adequate

structure, so that querying, and analysis are simple

and efficient; finally, data loading means the

ingestion of data into the final target.

The second concept is the data lake; it is defined

as a powerful Big Data architecture for storing huge

amounts of structured, semi-structured and

unstructured data. Furthermore, it allows storing

every data type in its original format regardless of its

size and its source (data as-is storing) (Kour et al.

2020).

Data Lake allows a high flexibility as the data

structure or schema is not defined when data is

captured. This means we can store all the data without

a careful design or the need to know what the future

use case is and where our collected data should

provide answers (Panwar et al. 2020). It must be

noted that this architecture will allow a high

suppleness while interacting with data like SQL

queries, Big Data analytics, full text search, real-time

analytics, and machine learning.

In a data lake, we are talking about an ELT

(Extraction, Transformation and Loading) process

rather than an ETL (Extraction, Loading and

Transformation), as presented for the data

warehouses, which is completely evident since the

most important phase in a data lake architecture is to

gather data and store it as much as we can (M.M.El

Aissi et al. 2020), then when a use case appear and

depending on the use case we can move to the

Big Data Allowing next Generation Fish Farming Systems

519

transformation phase where we start building the

models by combining the different existing data.

The table below provides a quick view on the

main differences between the Data warehouse and the

Data Lake architecture:

Table 1: Data Warehouse versus Data Lake.

Characteristics

Data

Warehouse

Data Lake

Data Relational

Non-Relational

Relational

Schema On-Write On-Rea

Price Hi

cost Lowe

cost

Data Qualit

Clean data Raw data

Users Data Analyst

Data Scientist /

Data Analyst /

Data Develope

Analytics

Batch reporting,

BI and Data

visualization

Machine

Learning,

Predictive

Analysis, Data

Discover

In order to choose the adequate architecture, we

must highlight that the collected fish farming data has

some characteristics which differentiate it from the

data that was used to be stored in the traditional

database management systems, since it is massive

data.

Besides, there is a long debate on the data which

is generated from fish farms. Some researchers do not

consider it as Big Data because of its characteristics.

They pointed out that fish farm data does not fit

properly with the existing characteristics of Big Data.

But other researchers consider it as Big Data and

point out that it will be Big Data when all data from

the fish farming system are pooled together (Sarker et

al. 2020) (Panwar et al. 2020). Considering both

views, this part will explain the characteristics of fish

farm data as follows.

 Volume: Generally, fish data is generated

from various equipment from tanks, pumps

and manual measurement and sensors

(Hassan et al. 2020). It is usually stored in

office computers or even cloud services.

Statistics show that huge data are generated

by fish farming systems and stored

according to specific years. So, the volume

of data is so big and even sometimes

difficult to move to other devices.

 Velocity: Velocity means the rapidly

changing characteristics of data. Generally,

10 MB of data are generated from multiple

sensors per hour. The size of data keeps

increasing depending on fish production

activities (Sagar et al. 2018). So, the data

size is increasing at the pick of fish

production but continues even in low

production. Furthermore, the duration or

lifetime of fish is varying from one to

another. So, some fish have short lifetime,

but some others have long lifetime.

Consequently, fish data vary from each

other.

 Variety: Variety means a range of data

sources. Fish farms data should be

categorized according to its source and this

will help to understand and use the data

efficiently. Sometimes, data varies from

equipment to equipment, automated sensor

to manual method (Sagar et al. 2018)

(Hajjaji et al. 2021). So, data should be

managed properly according to its

collection, types, and procedures. Manual

data should be transferred properly to the

computer and integrated with machine-

based sensors (Lioutas et al. 2019). The

manually collected data should be analysed

and transformed into structured format for

future use.

 Veracity: In most cases, fish farming data

are unstructured in nature. Manual data is

more unstructured than other data which is

generated by sensors (Lioutas et al. 2019).

There is also a problem about the data

quality. Usually manually collected data are

messier than machine-based sensor data

(Lee, Junchan, et al. 2020). Furthermore,

fish farming data are greatly influenced by

sensor factors and human factors and it can

be minimized by taking proper records of

manually applied inputs and installing

automated sensors with monitoring

carefully.

 Value: Usually, fish farming data bears a

high volume of information which is

generated by every stage (Schuster, Jason.

2017). Moreover, it has great potential and

value for making future decisions

(Carbonell, Isabelle. 2016). The data sources

are usually from sensors, APIs, post-

production studies and environmental

factors (Pham et al. 2018). It possesses great

value in different stages in fish production

like water pH, water nutrient content, feeds

content, humidity, temperature requirement,

diseases and other related valuable

information (Majumdar et al. 2017).

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

520

The above statements clearly explain that fish

farming data is really Big Data in all aspects of Big

Data characteristics, so adopting the Data Lake

architecture is a necessity. The potential of fish

farming Big Data is actually dependent on its use by

agriculturists, fish farmers, researchers,

academicians, and decision makers.

4 PROPOSED FISH FARMING

DATA LAKE ARCHITECTURE

To illustrate the need of Big Data in a fish farming

system, we propose a technical architecture that can

handle the data flows generated in usual fish farming

operations. In this architecture we distinguish three

main phases (Figure 1):

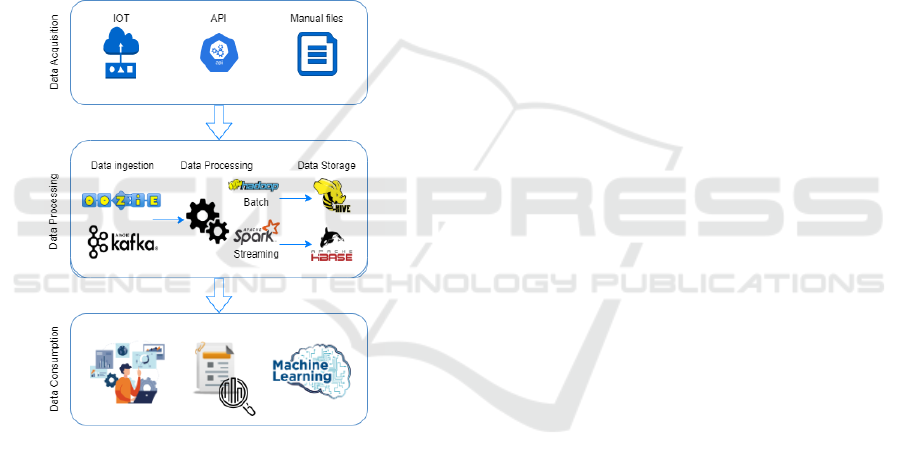

Figure 1: Data management process.

4.1 Data Acquisition

Technical architecture is a minimal set of rules and

interactions of the parts or elements in order to ensure

that the system satisfies a specified objective as well

as a set of requirements. For this purpose, we

proposed a technical architecture corresponding to

the Big Data system for smart fish farming.

Fish farming architecture generates three types of

data. The huge amount of data that sensors produce

must be processed before it can be used. Since there

are multiple devices, data need to be transformed or

standardized to a unified format. The sensors

communicate and send data through HTTP/HTTPS or

MQTT protocols to the cloud. The data regards

mainly: temperature, light, chemical composition and

average weight of fish (Majumdar et al. 2017).

Flat files contain complementary data manually

written in csv format and sent through email. The files

are received and sent to the data lake cluster via mail

bot also called data bot. Manual data can be food

quantities per tank or number of fish.

APIs data consist of all the external data regarding

the weather, fish prices, fish food prices and others. It

is collected from APIs using curl shell command and

stored into flat files in order to be ingested.

4.2 Data Ingestion / Processing

Before Storing, analyzing and accessing data, data

ingestion gathers data and brings it to the processing

system.

Two tools can be distinguished based on the type

of data:

- Apache Oozie is used to orchestrate a process.

It is used to build and schedule data jobs at a

precise date and time or frequency. Flat files

from emails and APIs are handled in long

running jobs in order to store them to the

Hadoop cluster (Pham et al. 2018). These jobs

are scheduled daily to ensure that new updated

data is used in dashboards and reports.

- Apache Kafka is responsible for consuming

and fetching the streaming data produced by

sensors and published to the OPC server

(Pham et al. 2018).

Batch data from APIs and manual data fetched

by Oozie is pushed to the data lake into Hive tables.

Apache Spark is then used to access, transform and

store data into Apache HBase tables.

4.3 Data Consumption

The Data can be consumed in many types as Data

Visualization through dashboards presenting KPIs for

each uses case (Zhou, Chao, et al. 2019) (Zhao, Jian,

et al. 2018), we can perform some predictive analysis

through Machine learning or even some statistical

analysis (Salman, Ahmad, et al. 2020).

5 CONCLUSION AND

PERSPECTIVES

The integration of technology in fish farming is

considered as a key element for maximization of fish

farming production in order to support the high food

Big Data Allowing next Generation Fish Farming Systems

521

demand of the world population that is keep growing

each year. Despite the huge benefits of Big Data

application in many fields including agriculture, it is

still not very accessible in fish farming activities. Big

Data techniques are the pilar for transforming

traditional fish farming to modern digital fish

farming. It overcomes all the limitations related to

fish farming systems by analysing farmer’s need,

market need, financial efficiency and other

stakeholder perspectives. The study is highlighting

the necessity of integrating Big Data in fish farming

then presenting a dedicated Data Lake architecture for

fish farming use case. Besides, strong initiatives are a

necessity to tackle the related challenges such as data

quality, data availability and data governance. Our

future works are focused on using the proposed data

lake architecture as a base for an advanced study

using different types of data analysis including

artificial intelligence and machine learning.

REFERENCES

Carbonell, I. (2016). The ethics of Big Data in big

agriculture. Internet Policy Review, 5(1).

Fleming, A., Jakku, E., Lim-Camacho, L., Taylor, B., &

Thorburn, P. (2018). Is Big Data for big farming or for

everyone? Perceptions in the Australian grains industry.

Agronomy for Sustainable Development, 38(3), 1-10.

Hajjaji, Y., Boulila, W., Farah, I. R., Romdhani, I., &

Hussain, A. (2021). Big Data and IoT-based

applications in smart environments: A systematic

review. Computer Science Review, 39, 100318.

Hasan, M. (2020). Real-time and low-cost IoT based

farming using raspberry Pi. Indonesian Journal of

Electrical Engineering and Computer Science, 17(1),

197-204.

Kour, V. P., & Arora, S. (2020). Recent Developments of

the Internet of Things in Agriculture: A Survey. IEEE

Access, 8, 129924-129957.

Lee, J., Angani, A., Thalluri, T., & jae Shin, K. (2020,

January). Realization of Water Process Control for

Smart Fish Farm. In 2020 International Conference on

Electronics, Information, and Communication (ICEIC)

(pp. 1-5). IEEE.

Lioutas, E. D., Charatsari, C., La Rocca, G., & De Rosa, M.

(2019). Key questions on the use of Big Data in

farming: An activity theory approach. NJAS-

Wageningen Journal of Life Sciences, 90, 100297.

Lytos, A., Lagkas, T., Sarigiannidis, P., Zervakis, M., &

Livanos, G. (2020). Towards smart farming: Systems,

frameworks and exploitation of multiple sources.

Computer Networks, 172, 107147.

Majumdar, J., Naraseeyappa, S., & Ankalaki, S. (2017).

Analysis of agriculture data using data mining

techniques: application of Big Data. Journal of Big

Data, 4(1), 1-15.

Misra, N. N., Dixit, Y., Al-Mallahi, A., Bhullar, M. S.,

Upadhyay, R., & Martynenko, A. (2020). IoT, Big Data

and artificial intelligence in agriculture and food

industry. IEEE Internet of Things Journal.

Mohamed El Mehdi El Aissi, et al. "Data Lake versus Data

Warehouse: A comparative study." Accepted on WITS

2020:https://www.springer.com/gp/book/9789813368

927

Panwar, A., & Bhatnagar, V. (2020). Data lake architecture:

a new repository for data engineer. International

Journal of Organizational and Collective Intelligence

(IJOCI), 10(1), 63-75.

Pham, X., & Stack, M. (2018). How data analytics is

transforming agriculture. Business horizons, 61(1),

125-133.

Sagar, B. M., & Cauvery, N. K. (2018). Agriculture data

analytics in crop yield estimation: a critical review.

Indonesian Journal of Electrical Engineering and

Computer Science, 12(3), 1087-1093.

Salman, A., Siddiqui, S. A., Shafait, F., Mian, A., Shortis,

M. R., Khurshid, K., ... & Schwanecke, U. (2020).

Automatic fish detection in underwater videos by a

deep neural network-based hybrid motion learning

system. ICES Journal of Marine Science, 77(4), 1295-

1307.

Sarker, M. N. I., Islam, M. S., Murmu, H., & Rozario, E.

(2020). Role of Big Data on digital farming. Int J Sci

Technol Res, 9(4), 1222-1225.

Schuster, J. (2017). Big Data ethics and the digital age of

agriculture. Resource Magazine, 24(1), 20-21.

United Nations, ―World Population Prospects -Population

Division -United Nations, World Population Prospects.

pp. 1–5, 2015.

Yang, X., Zhang, S., Liu, J., Gao, Q., Dong, S., & Zhou, C.

(2021). Deep learning for smart fish farming:

applications, opportunities and challenges. Reviews in

Aquaculture, 13(1), 66-90.

Zhao, J., Li, Y., Zhang, F., Zhu, S., Liu, Y., Lu, H., & Ye,

Z. (2018). Semi-supervised learning-based live fish

identification in aquaculture using modified deep

convolutional generative adversarial networks.

Transactions of the ASABE, 61(2), 699-710.

Zhou, C., Xu, D., Chen, L., Zhang, S., Sun, C., Yang, X., &

Wang, Y. (2019). Evaluation of fish feeding intensity in

aquaculture using a convolutional neural network and

machine vision. Aquaculture, 507, 457-465.

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

522
