A Review of Open-source Systems on Chip, Case of LiteX, RubyRTL,

and PyMTL

Hasna Elmaaradi

, Abdelhakim Alali

, Mohammed Khaldoun

and Mohamed Sadik

Research and Engineering Laboratory, National High School for Electricity and Mechanics,

Hassan II University of Casablanca, Casablanca, Morocco

Laboratory of Information Processing, Faculty of Sciences Ben M’Sick, Hassan II University of Casablanca,

Casablanca, Morocco

Keywords: SoC, DSL, Open-source, Python, HDL, FPGA.

Abstract: FPGA-based SoCs have become popular daily compared with traditional solutions and expanding application

areas to new areas. Intellectuals Properties sharing and reuse are a practical process for electronics designers

to reduce the design complexity of SoC. However, open-source hardware has become a compelling concept

for improving design productivity. In this article, we present platforms, aiming to make hardware design

easier and flexible. They ensure a very high level of abstraction. We expose the aspects of similarity and

difference between LiteX, RubyRTL, and PyMTL to highlight the progress that LiteX has made as an open-

source framework that has accelerated RD (research and development) in EDA (electronic design automation).

LiteX has helped emphasize the concept of codesign and provide engineers and researchers with highly

developed and reliable tools.

1 INTRODUCTION

Flow design of semiconductor devices has

experienced exponential development in recent years.

Therefore, we have many and different HDL

(Hardwar Description Language). However, VHDL

and Verilog, created in 1980, still being present in

their structure; eventually, EDA relies on those two

languages. They can describe all the electronic

devices with a high abstraction at different levels. It

facilitates relatively the work of designing engineers

and makes process design more flexible. There are

new challenges becomes with micro and

nanoelectronics, so new HDL spring. The first one is

System Verilog, standardized as IEEE 1800. It

provides tools to describe, verify, simulate, test, and

implement electronic systems. The second language

is SystemC. It contributes to improving abstraction

and modelling levels. (Black and Keist, Python

2009).

The DSLs (Domain Specific Languages) renewal

EDA and give birth to "high-level language"

(recognized programming language) that embedded

a DSL. That is why these languages are called

https://orcid.org/0000-0002-6557-0990

Embedded DSLs. In this context, we have

Chisel/SpinalHDL (high-level language is Scala),

HardCamel (high-level language is Scala), Haskell,

and Lava. What is familiar to these DSLs is the ease

of learning, access to libraries of language hosts, and

the aim of developing complex devices and

improving time to market.

In addition, MyHDL (J.Decaluwe, 2004), based

on Python, contributes to improving the RTL

(Register Transfer Language) circuits design.

Python is a very high-level language; consequently,

scientific research heads towards developing other

Frameworks based in Python, such as LiteX

platform (Migen), PyMTL, and RubyRTL.

In this paper, we present a comparative study

between three open-source LiteX, PyMTL, and

RubyRTL. It is organized as follows. The next

section makes a short review of Migen Python DSL.

The third section presents RubyRTL. Section 4 will

present PyMTL. In section 5, we expose the

principal difference between these DSLs, then a

discussion is giving in section 6. We complete the

article with the conclusion in section 7.

Elmaaradi, H., Alali, A., Khaldoun, M. and Sadik, M.

A Review of Open-source Systems on Chip, Case of LiteX, RubyRTL, and PyMTL.

DOI: 10.5220/0010729500003101

In Proceedings of the 2nd International Conference on Big Data, Modelling and Machine Learning (BML 2021), pages 119-124

ISBN: 978-989-758-559-3

119

2 MIGEN STRENGTHENS RTL

DESIGN: LITEX PLATFORM

Migen FHDL (Florent Kermarrec and Badier, 2020)

(Fragmented Hardware Description Language) is

founded on Python but includes Abstract Syntax Tree

(AST). It provides a Verilog language for circuit

design. Python language presents different

advantages such as being object-oriented

programming, support essential elements like

functions and generators, operators, and libraries, to

build well Hardwar designs embedded. In

cooperation with “ENJOY DIGITAL” (Digital,

2021), they established the LiteX platform:

-Provides ten open-source IPs (intellectual

property), for instance: LiteDRAM, LiteEth,

LiteUSB, etc.

- supports four softcore (LM32, PicoRV32,

VEXRiscV, Mor1Kx).

-Support 21 Boards (statistics of 2018).

-Extends Migen based on FHDL.

-Allows building different structures: Xilinx,

Altera, Lattice, Microsemi, and yosys.

-Building SoC: NeTV2

3 RUBYRTL NEW DSL RTL

RubyRTL (LE LANN and Florent, 2020) bases on an

object oriented and multi-free paradigm named Ruby.

The new DSL RTL ensures the efficiency of Hardwar

design. Even if RubyRTL is also relying on MyHDL

and Migen Python. It generates a VHDL code and can

give an AST viewing (Graphviz dot file), the tool that

drawing graphs.

The Sexpir compiler interprets an IP address

described in Migen to Ruby RTL. Then, it generates

VHDL code to ensure communication between them.

These three tools (Migen, Sexpir, and RubyRTL)

results in a platform that can be strong in handling

complex electronics systems.

However, Sexpir is not yet checked and verified

on the hardware level. It is under development, and

we are waiting for the full version in future works.

4 PYMTL: UNIFIED

FRAMEWORK FOR

HARDWARE DESIGNING

PyMTL (Shunning Jiang and Batten, 2018) is a

Hardware generation, simulation, and verification

framework. Based on Python and completed by HGFs

(Hardware generation frameworks), it is a DSL

significantly developing and describes different

levels of abstraction design.

The PyMTL workflow starts from the functional

level (FL) programmed in Python, using different

functions: Py.test, coverage.py, and hypothesis. After

getting the PyMTL RTL model with the help of cycle

level (CL), you can generate Verilog format. A test

bench (TB) gives the possibility to co-simulate/

simulate the achievements.

This framework uses the new methodology named

modelling towards layout (MTL) (Derek Lockhart

and Batten, 2014) for multi-level modelling (FL, CL,

RTL, PL: physical level), different types of testing

(Test Harness: Unit tester, Integration tester, PBRT

tester Property-based random test), and Evaluating

(simulation, generation, characterization) On-Chip

Networks.

Currently, we have a recent version: PyMTL3

(Cheng Tan and Batten, 2019), which comes with

updates to bring that framework as an open-source

Hard- war ecosystem.

5 LITEX, RUBYRTL, PYMTL:

REFLECTION RESULTING

5.1

High-Level Language

In general (although RubyRTL also includes the

Ruby language), the three frameworks are based on

the Python language. So, a question arises, why this

one exactly?

In previous years, in the field of electronic system

design, two leading players have been involved in

circuit designing: hardware and software engineers.

Each takes care of a part that the other cannot do

because it is not their speciality.

The field of computer science has developed

considerably; indeed, several programming

languages were paired. Researchers have thought of

exploiting these languages to facilitate the work of

hardware engineers and immigrated to what is called

Codesign. They will not need the intervention of

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

120

software engineers; a hardware designer alone can

perform the same tasks.

The choice was Python; first of all, it is the easiest

to learn, and it is the most crucial criterion for

designers. The understanding of the instructions is

easy since the syntax is quite clear.

Secondly, it is a high-level language used in

almost all scientific fields due to its flexibility and in-

interpretation.

Thirdly, it is less complicated in terms of

programming. In only a few lines, you can create

functions. Besides, Python has many modules and

scripts ready for use. Last but not least, it is an open-

source language and runs on various existing

operating systems (OS).

5.2

Generated Language HDL

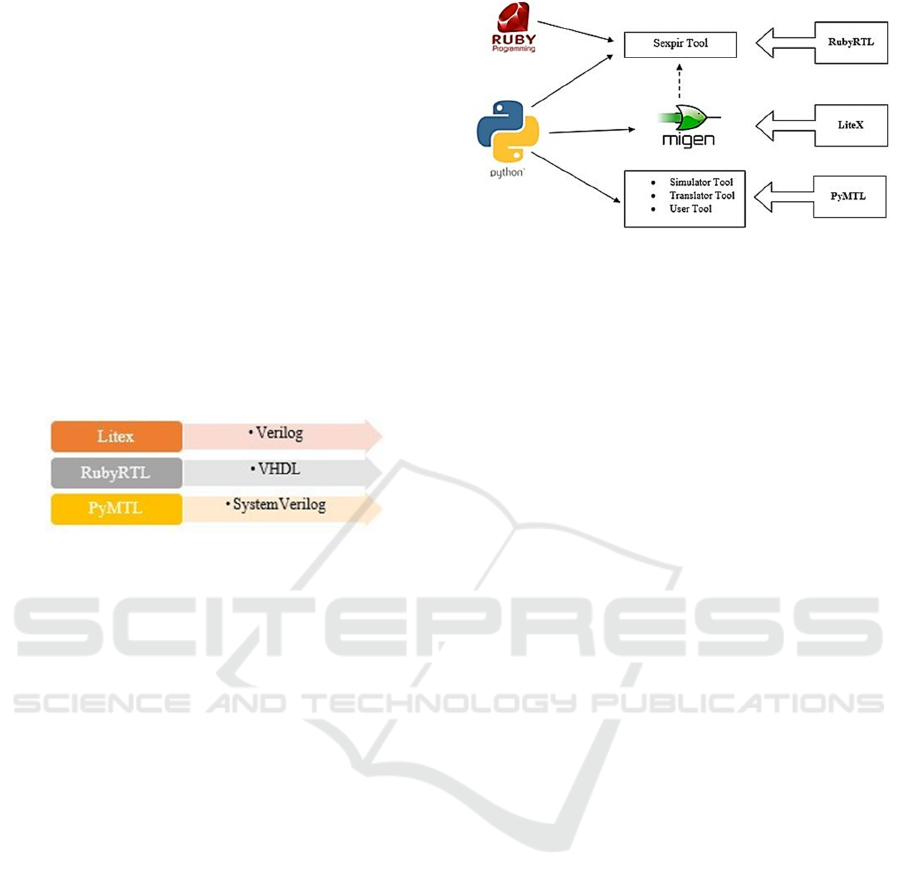

Figure 1: languages generating from different HDLs

studies.

As shown in Figure 1 (Florent Kermarrec and Badier,

2020) (LE LANN and Florent, 2020) (JIANG

Shunning and al, 2020), each platform generates

either HDL: VHDL, Verilog, or SystemVerilog.

These languages are similar in terms of functionality

but have very different syntaxes. Some frameworks

convert in both directions.

The two HDLs Verilog/VHDL were the first

languages to allow better abstraction at the RTL level.

System-Verilog is a fusion of Verilog and HVL

(Hardware verification languages) to verify the

circuits designed on HDL.

5.3

Toolbox

As shown in Figure 2, RubyRTL uses the

functionality of the RUBY language but also takes

advantage of the libraries indirectly offered by

Migen. The Sexpir compiler handles the exchange

between Migen and RubyRTL to generate the VHDL

code.

LiteX is also based on Migen. It also uses MiSoC

for exploitation purposes of this platform (SoC

design). PyMTL develops its toolbox based on the

Python language. In addition to (Shunning Jiang and

Batten, 2018) (Derek Lockhart and Batten, 2014).

Figure 2: Description of Tools uses in different Framework

studies (Florent Kermarrec and Badier, 2020) (LE LANN

and Florent, 2020) (Derek Lockhart and Batten, 2014)

Simulator Tool, Translator Tool, and User Tool, the

packages Py.Test (testing Framework), coverage.py

(code coverage), and hypothesis (PBRT property-

Based Random Testing) are part of the processing

chain to build the Python simulator and PyMTL RTL.

5.4

Simulation Performance

In this part, the comparison is between Migen,

Verilator, and Python simulators. Indeed, RubyRTL

uses Migen Simulator, LiteX uses LiteXSim based on

Verilator, and PyMTL uses Python simulator.

5.4.1 LiteXSim SoC simulator

LiteXSim Soc inspires from Verilator (Florent

Kermarrec and Badier, 2020). It (Veripool, 2021)

compiles code synthesized in Verilog / System

Verilog into C++ or SystemC. It makes it the fastest

tool compared to other interpreted simulators.

LiteX takes advantage of these multiple

functionalities to build (Piotr Binkowski, 2021) a

‘Litex.build.sim’ library, of which two main classes

‘SimPlatform’ and ‘SimConfig’. The first one creates

the platform for simulating. The second one defines

its modules via different functions such as ‘add.

Module’ and ‘add. Clocker’. The builder class

emulates the defined system on chip SoC.

5.4.2 Migen Simulator

Migen. Sim (Sebastien Bourdeauducq, 2021) the

library that provides you with several simulation and

testbench (TB) functions, such as ‘run simulation’. It

starts the simulation of either FHDL or TB. The

simultaneous stimulation of FHDL and TB ensures

via four processes: Read, Write, Clocking, and

Composition. They offer flexible handling of the

simulator according to the designer’s needs.

A Review of Open-source Systems on Chip, Case of LiteX, RubyRTL, and PyMTL

121

5.4.3 PyMTL Simulator

The simulation leverages the functionalities of

Python via the PyPy system and Mamba HGSF

(S.Jiang and al., 2018) (Hardware Generation and

Simulation Frameworks). It (Shunning Jiang and

Batten, 2018) is carried out according to modelling

level (FL, CL, TB) and generated Verilog.

The latest PyMTL3 (JIANG Shunning and al,

2020) version, launched in 2020, is similar to the

LLVM (formerly called Low-Level Virtual Machine)

in its overall structure. The PyMTL3 DSL (JIANG

Shunning and al, 2020) provides the PyMTL3 IMIR

(In Memory Intermediate Representation), the

hardware model to be processed by the analysis,

instrumentation, and transformation pass. These

passes aim to improve the hardware model. they

introduce modifications to the PyMTL3 IMIR on

several levels. In a simulation (JIANG Shunning and

al, 2020), for example, EventDrivenPass, list updates

for the blocks of the pure-RTL model created by it.

Besides, StaticSchedulingPass applies an execution

methodology for each cycle.

5.5

Experiments and Synthesis

The figure below illustrates the various experiments

and completed projects developed with the platforms

highlighted in this review.

According to this listing, RubyRTL is recently

launched (in 2020). However, it developed a

toolchain to verify the reliability of IP interchange by

using an IP URAT. The results are encouraging for

further research in the future. While LiteX and

PyMTL have made significant progress. PyMTL

contributed to the prototyping of devices (TORNG

Christopher and al., 2016) Computer Architecture

Test Chips, i.e., Celerity, BRGTC1, and BRTC2.

They are chips based on transistors in the CRAFT

program (Circuit Realization at Faster Timescales).

In addition, PyMTL has not handled SoCs. So far,

it is intended for the FPGA and ASIC. However,

LiteX is generalized (FPGA, and SoC). It is one of the

reasons why this platform has become an essential

part of the global environment for the hardware

design of complex systems.

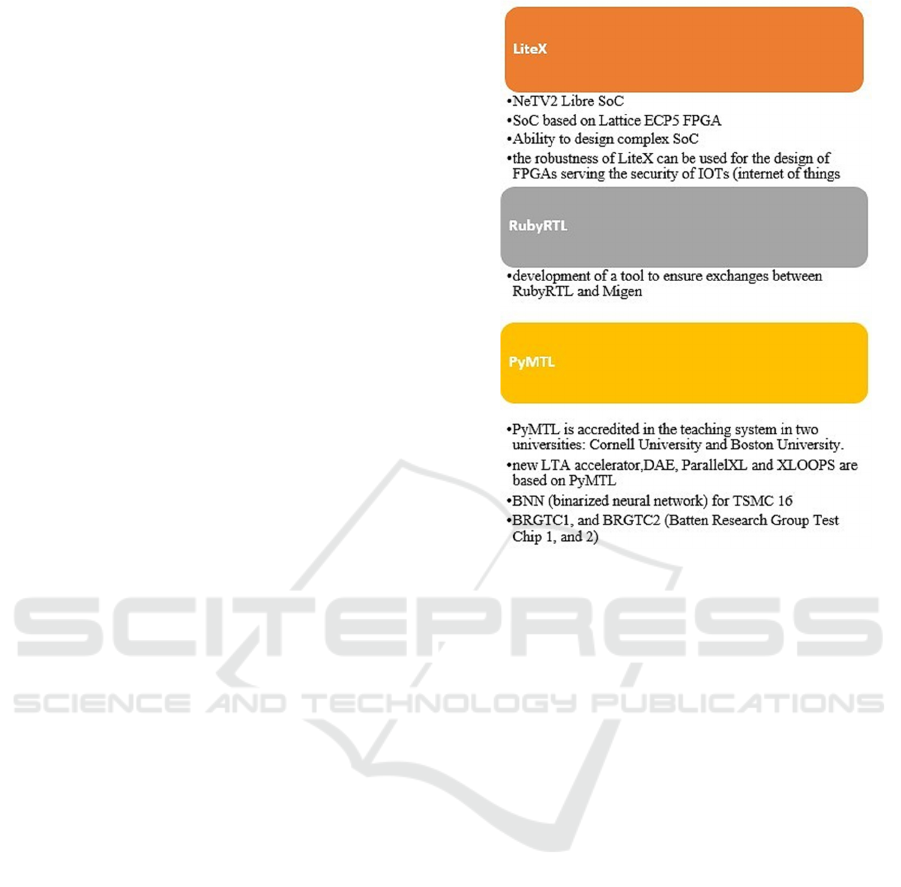

Figure 3: the achievements of each platform.

Several and different projects have been realized

with the LiteX platform, such as the one marketed by

the company ‘Enjoy-digital’, and also offers

cooperation with other open sources (Florent

Kermarrec and Badier, 2020):

-NeTV2 tests/validation: video processing

development platform.

-SoC based on Lattice ECP5 FPGA.

-HDMI2USB.

-Fupy: FPGA MicroPython.

-Axiom SDI model.

-PCIe Screamer: FPGA PCI.

6 DISCUSSION

These three open sources aim to provide designers

with a very high-performance DSL, even if they differ

from the methodology adopted to achieve it.

At the level of the design language, they agreed

on the reliability of Python. However, RubyRTL uses

the Ruby language, knowing for its flexibility and

ease in web development. The first feature is shared

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

122

with Python. Nevertheless, the second has not

brought much added value (in terms of performance)

to the hardware co-design.

Verilog, VHDL, and System Verilog being

synthesis languages, allow the implementing of the

source code in an electronic system. VHDL

guaranteed the behavioural description of the circuits

and the verification of the simulated model safely. If

we are looking for speed in design, we need to call

Verilog. System Verilog tries to combine both

performances and provide the best synthesis tool.

These HDLs develop and adapt to high technology,

making it very complicated to compare and choose

between them. Hence the existence of the conversion

from one to the other.

Since Sexpir is not yet implemented, we limit our

study to Migen and PyMTL tools. The platform’s

toolbox is based on Python, but each uses it

differently from the other. In Migen, we have libraries

that provide the software description resources.

In addition, they organize the design flow and

provide the infrastructure necessary for the synthesis

of SoCs. PyMTL consists of dividing the tools into

modules. It ensures independence between the stages

of the co-design and the mastery of each abstraction

level.

The performances of the simulators used in the

present ecosystems are demonstrated and tested.

Effectively, LiteXSim, MigenSim, and PyMTL

simulators are characterized by the speed in the

compilation. They are easy to handle by the designer

via the functionalities of Python (the simple functions

to launch the simulation).

No one cannot deny that the synthesis and

implementation of a model in an electronic circuit is

an indisputable criterion that assesses the cohesion

and pragmatics of the framework. As a result, we

favour LiteX, which has marked a significant

progression on this path. Also, the prospects for

future work promise improvements and updates that

will make this platform more global (including the

different structures) and suitable for the most

complex systems.

7 CONCLUSION

In this review, we have compared three Python-based

open sources. Several aspects have been discussed:

the high-level language, toolbox, simulation

performance, experiments, and synthesis. RubyRTL,

PyMTL, and other platforms which are not covered in

this paper (PyRTL (John Clow and Sherwood, 2017),

SysPy (Evangelos Logaras and Manolakos, 2014),

Open ESP (Paolo Mantovani and P.Carloni, 2020))

compete with LiteX, which is ahead of them, given its

use and handling in the co-design of SoCs.

We highlighted the generality, maturity, and

ability of the LiteX platform. It designs complex

components for applications that are the future of

intelligent systems. LiteX makes us confident in

future work for its ability to design synthesizable

SoCs based on custom FPGAs that can hold very

complex algorithms (Embedded computing, cloud

solutions, Computational Intelligence….).

REFERENCES

Black, D.C, D. J. B. B. and Keist, A. (2009). SystemC:

From the ground up. In (Vol.71). Springer Science

Business Media.

Cheng Tan, Yanghui Ou, S. J. P. P. C. T. S. A. and Batten,

C. (2019). Pyocn: A unified framework for modelling,

testing, and evaluating on-chip networks. 37th

International Conference on Computer Design (ICCD).

Derek Lockhart, G. Z. and Batten, C. (2014). PyMTL: A

unified framework for vertically integrated computer

architecture research. 47th Annual IEEE/ACM

International Symposium on Microarchitecture.

Digital, E. (18/02/2021). Various projects powered by

LiteX. http://www.enjoy-digital.fr.

Evangelos Logaras, O. G. H. and Manolakos, E. S.

(February 2014). Python to accelerate embedded soc

design: A case study for systems biology. ACM

Transactions on Embedded Computing Systems, Vol.

13, No. 4, Article 84.

Florent Kermarrec, Sebastian Bourdeauducq, J.-C. L. L.

and Badier, H. (05/05/2020). Litex: an open-source soc

builder and library based on Migen Python DSL. arXiv:

2005.02506v1 [cs.AR].

J.Decaluwe (2004). Myhdl: A Python-based hardware

description language. In P.5. Linux Journal.

JIANG Shunning, PAN Peitian, O. Y. and al (2020).

Pymtl3: A Python framework for open-source hardware

modelling, generation, simulation, and verification.

IEEE Micro, 2020, vol. 40, no 4, p. 58-66.

John Clow, Georgios Tzimpragos, D. D. S. G. J. M. and

Sherwood, T. (2017). A pythonic approach for rapid

hardware prototyping and instrumentation. 27th

International Conference on Field Programmable Logic

and Applications (FPL).

K.O.Setetemela, K.Keta, M., and S.Winberg (2019).

Python-based FPGA implementation of AES using

migen for the internet of things security. 2019 IEEE

10th International Conference on Mechanical and

Intelligent Manufacturing Technologies (ICMIMT

2019).

Le Lann, Jean-Christophe, B. H. K. and Florent (2020).

Towards a hardware DSL ecosystem: Rubyrtl and

friends. OSDA 2020 Open Source Hardware Design,

colocated with DATE 20.

A Review of Open-source Systems on Chip, Case of LiteX, RubyRTL, and PyMTL

123

Paolo Mantovani, Davide Giri, G. D. G. L. P. J. Z. E. G. C.

M. P. C. P. and P.Carloni, L. (2/09/2020). Agile soc

development with open esp. arXiv:2009.01178v1

[cs.AR].

Piotr binkowski, Jedrzej Boczar, E.-d. (20/02/2021).

Litexsim.https://github.com/enjoy-

digital/litex/blob/master/litex/tools/litexsim.py.

Shunning Jiang, C. T., and Batten, C. (08/11/2018).

Open-source Python-based hardware, generation,

simulation, and verification framework. WOSET 18.

S.Jiang and al. (Juin 2018). Mamba: Closing the

performance gap in productive hardware development

frameworks. Design Automation Conference (DAC).

Sebastien Bourdeauducq, W. (16/02/2021). Migen-Sim.

https://github.com/mlabs/migen/blob/master/doc/

simulation.rst.

TORNG Christopher, WANG Moyang, S. B. and al.

(2016). Experiences using a novel Python-based

hardware modelling framework for computer

architecture test chips. Hot Chips Symposium.p.1.

Veripool (20/02/2021). the fastest Verilog/SystemVerilog

simulator. https://github.com/verilator/verilator.

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

124
