An Extensible Approach to Multi-level Ontology Modelling

Hermann Bense

and Bernhard G. Humm

bense.com GmbH, Schwarze-Brüder-Str. 1, 44137 Dortmund, Germany

Hochschule Darmstadt - University of Applied Sciences, Haardtring 100, 64295 Darmstadt, Germany

Keywords: Ontology Engineering, Multi-level Ontology Modelling, Class, Instance, Inheritance, Multi-facet Behaviour,

RDF/RDFS, SPARQL.

Abstract: One major challenge in ontology engineering is deciding whether an entity should be modelled as a class or

as an instance. Different modelling traditions and guidelines lead to different modelling decisions. This causes

problems when integrating ontologies modelled according to different guidelines and trying to query over

integrated ontologies. This article proposes a modelling approach which rigorously utilizes multi-level

ontology modelling. In particular, multi-facet behaviour allows entities to be modelled as classes and instances

simultaneously, where needed. It is argued that this supports simplicity, expressiveness, modularity, flexibility

and extensibility of ontologies. The guidelines can be fully implemented using the W3C standards RDF/RDFS

and SPARQL, allowing to implement inheritance behaviour using standardized inferencing mechanisms.

1 INTRODUCTION

One of the greatest challenges in ontology

engineering is deciding whether something should be

modelled as a class or as an instance. This is stated in

the standard textbook 0 and we agree with the

authors. They write “Since a semantic model must

respond to competency questions coming from

different stakeholders, it is quite possible that one

work practice has a tradition of considering

something to be a class, whereas another is

accustomed to thinking of it as an instance”

(Allemang et al., 2020, p. 434). They give the

example of endangered species. For ﬁeld zoologists

who are tracking animals in wildlife, the species is a

class whose members are the individual animals they

are tracking. For the administrator in the federal

agency that lists endangered species, the species is an

instance to be put in such a list. The designer of a

single model who wants to answer competency

questions from both of these stakeholder

communities is faced with a challenge.

Different modelling traditions and guidelines lead

to different modelling decisions, modelling entities

either as classes or as instances. This causes problems

https://orcid.org/0000-0002-2562-224X

https://orcid.org/0000-0001-7805-1981

All code examples are typeset using a typewriter font.

when integrating ontologies modelled according to

different guidelines and trying to query over

integrated ontologies.

For example, in the Vertebrate Taxonomy

Ontology (VTO) (Phenoscape, 2021) and the NCBI

Taxonomy (NCBI, 2021), all biological species are

modelled as classes. For example, the species polar

bear (ursus maritimus) is modelled as

owl:class

VTO:

<owl:Class rdf:about="http://

purl.obolibrary.org/obo/VTO_0010492">

<rdfs:label>Ursus maritimus</rdfs:label>

</owl:Class>

In contrast, in the Wildlife Ontology (WO) (BBC,

2021) and in the Global Biodiversity Information

Facility (GBIF, 2021), biological species are

modelled as instances. Polar bear (ursus maritimus) is

modelled in GBIF under

gbifID

3032077871

as an

instance of class

species

The authors of the WO state on (BBC, 2021):

“One perennial problem associated with modelling

biological taxonomies using RDF is whether to

attempt to model individual species as classes, or

whether to simply model species as instances of a

184

Bense, H. and Humm, B.

An Extensible Approach to Multi-level Ontology Modelling.

DOI: 10.5220/0010684200003064

In Proceedings of the 13th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2021) - Volume 3: KMIS, pages 184-193

ISBN: 978-989-758-533-3; ISSN: 2184-3228

generic Species class. The latter approach is simpler

and avoids creating a huge ontology that attempts to

model all biological organisms. Existing ontologies

have taken different approaches to resolving this

issue, some choosing one style, others another. At

present there doesn’t seem to be a consensus. With

this in mind, the Wildlife Ontology adopts the simpler

of the two approaches, i.e. modelling species as

instances of a Species class, as this maximises

interoperability with many of the existing Linked

Data sources, particularly dbpedia, which adopt

similar approaches.”

We agree with the authors of the WO. For the

purpose of annotating BBC wildlife documentaries,

modelling biological species as instances is simple

and sufficient. However, for use cases where

individual animals have to be modelled, too, it is not

sufficient to model species as instances only.

While in the four ontologies mentioned above,

biological species are consistently modelled either as

classes only or as instances only, in Wikidata

(Wikimedia, 2021) as a crowd-sourced general-

purpose ontology, there is a mixture of modelling

biological species sometimes as classes and

sometimes as instances. The species

dog

is modelled

as a class (subclass of

domesticated_mammal

with the concrete dog

Laika

from the Soviet

spacecraft Sputnik 2 as an instance of this class. On

the other hand, the species

polar_bear

is modelled

as an instance of class

taxon

. taxon is marked as a

second-order class

which is an example of

multi-level modelling (Neumayr et al. 2009; Almeida,

et al., 2019; Brasileiro et al., 2016a; Brasileiro et al.,

2016b; Carvalho and Almeida, 2018). Thus, the

instance

polar bear can also be considered a class.

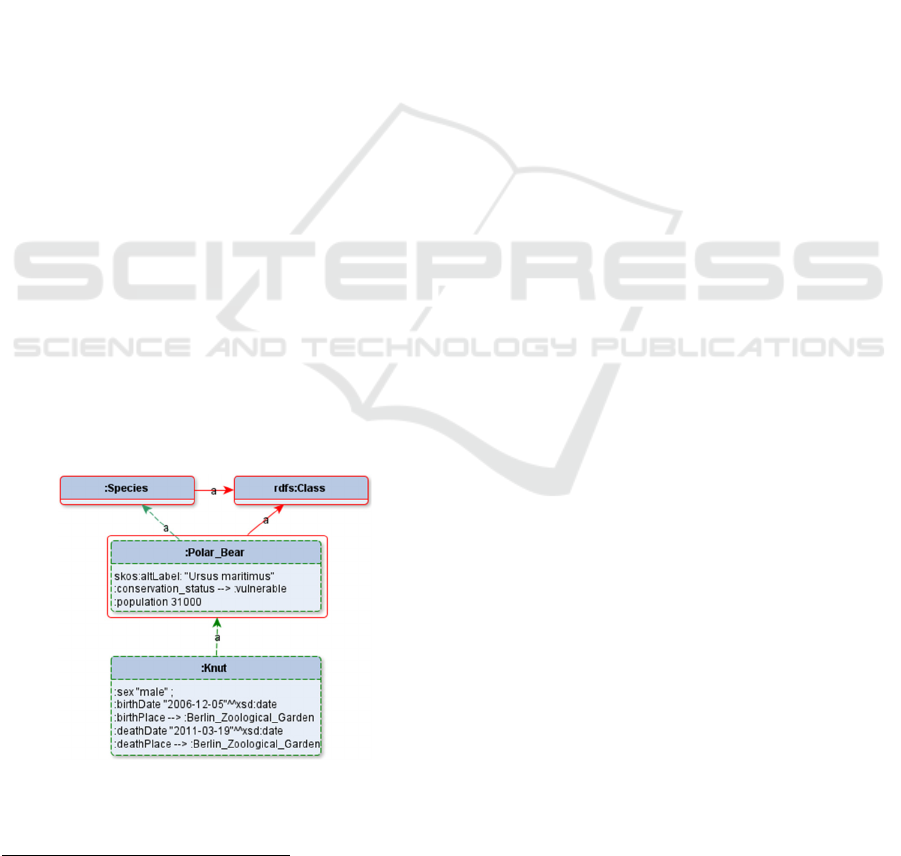

The concrete polar bear

Knut

which was born in the

Berlin Zoological Garden is modelled as an instance

of this class.

The contribution of this paper is a modelling

approach which rigorously utilizes multi-facet

(Atkinson and Kühne, 2001; Neumayr et al., 2009;

Frank, 2014) behaviour, an aspect of multi-level

modelling, allowing entities to be modelled as classes

(class facet) and instances (instance facet)

simultaneously, where needed. This approach

combines the advantages of both approaches, (a)

modelling concepts like biological species as classes

only and (b) modelling them as instances only,

https://www.wikidata.org/wiki/Q144

https://www.wikidata.org/wiki/Q57814795

https://www.wikidata.org/wiki/Q53662

https://www.wikidata.org/wiki/Q33609 (All Wikidata ex-

amples accessed 2021-03-01)

alleviating their disadvantages. It furthermore avoids

inconsistencies that may arise when no clear

modelling guidelines are specified. The multi-facet

behaviour lifts the need for an either-or decision

between class and instance and we regard it like

cutting a Gordian knot in ontology engineering. In

contrast to related work, our guidelines can be fully

implemented using the W3C standards RDF/RDFS

(W3C, 2014), and SPARQL (W3C, 2013a), allowing

to implement inheritance behaviour using

standardized inferencing mechanisms. It supports

simplicity, expressiveness, modularity, flexibility and

extensibility of ontologies. The importance of those

characteristics we know from our extensive

experience in ontology engineering and developing

ontology-based semantic applications for different

application domains, including life sciences, tourism,

industrial manufacturing, energy, robot journalism,

and culture.

The remainder of this article is structured as

follows. In Section 2 we discuss related work. Section

3 presents an example ontology which we use

throughout this paper. In Sections 4-7, we present the

multi-facet behaviour and its implications on property

types, inheritance, querying and inferencing. Section

8 discusses the approach. Section 9 concludes the

paper and indicates future work.

2 RELATED WORK

In the RDFS specification (W3C, 2014), classes are

described as groups of resources and instances as

their members. Alemang et al. complain that a

common reaction to the difficult distinction between

classes and instances is simply to define everything

as a class. They grade this as an antipattern, i.e., a bad

modelling practice, which they call “rampant

classism” (0, 2020. p.436). We agree with them.

(Noy and McGuinness, 2021) is one of the earlier

guidelines for ontology engineering. A criterium they

define for the decision to model something as a class

or an instance is the lowest level of granularity in the

representation. They see individual instances as the

most specific concepts represented in a knowledge

base. Then individual instances could be transferred

into a set of classes, if they form a natural hierarchy.

In the field of multi-level ontology modelling,

various authors recommend modelling pairs of

https://www.wikidata.org/wiki/Q16521

https://www.wikidata.org/wiki/Q24017414

https://www.wikidata.org/wiki/Q159697

An Extensible Approach to Multi-level Ontology Modelling

185

classes where a class is associated with a

corresponding type class e.g.

(Car, Car_Model)

(Atkinson and Kühne, 2001; Pirotte et al., 1994;

Odell, 1994; Guizzardi et al., 2015; Almeida et al.,

2019; Brasileiro et al., 2016a; Brasileiro et al., 2016b;

Carvalho and Almeida, 2018; Pan and Horrocks,

2001). The modelling pattern is called materialization

pattern in (Pirotte et al., 1994); The term powertype

is used in (Odell, 1994) and (Guizzardi, et al., 2015).

In the example,

Car_Model is the powertype of Car.

Instances of the powertype

Car_Model like

2CV_Model have properties like maxSpeed or

Year_of_Design. 2CV is a subclass of the class

Car, corresponding to 2CV_Model. Its instances like

My_2CV have properties like Number_Plate or

Milage. With conventional modelling approaches it

is not possible to mix the properties of base class and

its powertype into one class, since it makes no sense

to have a property

Number_Plate for a

Car_Model. Our approach is simpler insofar as it

does not require separate entities

Car and Car Model

while still explicitly distinguishing between the

different facets.

Another approach to avoid separate entities

Car

and

Car Model is described in (Neumayr et al.

2009), called Multi-Level Domain Modeling.

Properties are annotated with meta attributes which

define rules for inheritance and instantiation. E.g. for

the base class

Car the data property maxSpeed is

annotated with

:model to refer to a Car_Model

while the data property

Milage is annotated with

:physical_entity to refer to an individual car.

This allows merging the properties of

Car and

Car_Model into only one class Car while keeping

the semantics of the properties clear.

In a comparable approach (Frank, 2014), level

numbers are assigned to properties. For

Car the

property

Milage would be defined with level=0

which corresponds to the

:physical_entity

annotation in (Neumayr et al. 2009), while

maxSpeed

would be annotated with

level=1 which

corresponds to the

:model annotation. Annotating

properties with multiple levels or with different levels

for different contexts is not possible, as is enabled in

our approach.

In (Brasileiro et al., 2016a), a fixed separation of

entities into individuals, 1

order type, 2

order type

and 3

order type is proposed. Our approach is more

flexible as it allows context-dependent viewpoints.

We made only minor changes, e.g., the use of SKOS.

So, polar bear may be an individual in one use case

context (tagging wildlife series) but a 1

order type in

another context (tracking concrete animals). The

facets of entities could also evolve during the

development time of an ontology. From our

experience in ontology modelling and developing

ontology-based semantic applications this is

important.

Multi-facet behaviour as used in (Neumayr et al.,

2009) may regard entities as classes and instances

simultaneously, where needed. In contrast, OWL 1

DL requires a strict separation between the classes

and individuals (W3C, 2012). Insofar, multi-facet

behaviour is not compatible with OWL1 DL.

However, OWL 2 DL relaxes this separation

somewhat to allow different uses of the same term

which is called Punning. In (W3C, 2012, Section

2.4.1), the following example is given: “e.g., Eagle,

to be used for both a class, the class of all Eagles, and

an individual, the individual representing the species

Eagle belonging to the (meta)class of all plant and

animal species”. However, OWL 2 DL still imposes

certain restrictions, e.g., a name can only be used for

one kind of property (W3C, 2012).

In the next sections, we present an extensible

modelling approach rigorously using multi-facet

behaviour and demonstrate it by means of a sample

ontology.

3 EXAMPLE: ANIMAL

ONTOLOGY

In this article, we use a small ontology as an

illustrating example in which we modelled some

biological species. We call this sample ontology

Animal Ontology (AO). The AO is based on the WO

(BBC, 2021)

. The basis of AO is the taxonomy

established in biology classifying living entities using

the taxons kingdom, phylum, class

, order, family,

genus, and species.

Like the authors of WO, we favour a simple

modelling approach modelling concrete species like

polar bear as instances. See the following example in

RDF Turtle syntax.

@prefix : <http://h-da.de/animalontology/>.

@prefix rdf: <http://

www.w3.org/1999/02/22-rdf-syntax-ns#>.

@prefix rdfs: <http://

www.w3.org/2000/01/rdf-schema#>.

The biological taxon “class” is not to be confused with

the ontology concept of a class. We distinguish both by

using different namespaces.

KMIS 2021 - 13th International Conference on Knowledge Management and Information Systems

186

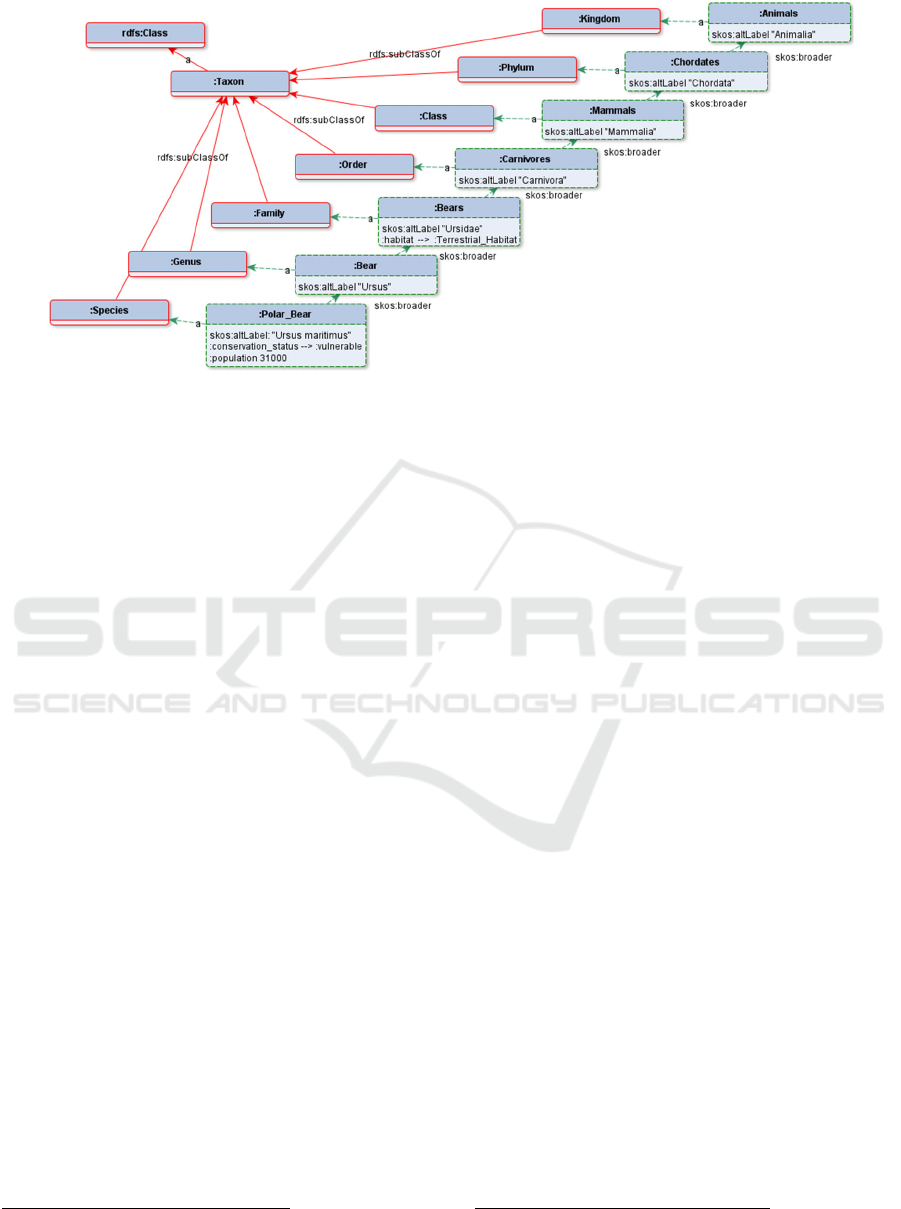

Figure 1: Subset of the Animal Ontology (AO).

@prefix skos: <http://

www.w3.org/2004/02/skos/core#>.

:Species a rdfs:Class ;

skos:prefLabel "Species" ;

rdfs:subClassOf :Taxon .

:Polar_Bear a :Species ;

skos:prefLabel "Polar Bear" ;

skos:altLabel "Ursus maritimus" ;

skos:broader :Bear .

See Fig. 1 for a visualization of a subset of AO with

one example for each taxon. Classes are depicted with

red solid lines and instances with green dashed

lines

In the AO,

:Taxon

is an

rdfs:Class

with

subclasses

:Kingdom

:Phylum

:Class

:Order

:Family

:Genus

, and

:Species

:Polar_Bear

an instance of

:Species

:Bear

an instance of

:Genus

:Animals

an instance of

:Kingdom

etc.

We use the object property

skos:broader

to specify

the biological taxonomy, e.g.,

:Polar_Bear skos:broader :Bear.

:Chordates skos:broader :Animals.

In addition, concrete taxons are attributed with

properties, e.g.,

:Polar_Bear skos:altLabel "Ursus maritimus"

The WO was modelled for the use case of

annotating BBC wildlife documentaries. The AO is

based on the WO and could well serve a similar use

case. But what if the use cases of AO shall be

extended, e.g., if ﬁeld zoologists want to model

concrete animals that they track or the administration

of a zoo wants to manage their animals?

To keep the figure clear we omitted additional green

boxes for the target of object properties like

The simple modelling approach of AO presented

above is not capable of supporting such use cases

since species like

:Polar_Bear

are not modelled as

a class which can be instantiated with concrete

animals like

:Knut

In the next section we demonstrate how the

simple modelling approach can be extended to

support new use cases using multi-facet behaviour.

4 MULTI-FACET BEHAVIOUR

RDF and RDFS provide means for specifying classes

and instances. A class is specified as an instance of

rdfs:Class

(or any of its subclasses like

owl:Class

), using the object property

rdf:type

(abbreviated in Turtle with

), e.g.,

:Species a rdfs:Class.

An instance is specified using a

rdf:type

relationship to a class, e.g.,

:Polar_Bear a :Species.

However, the standards provide no restrictions on

the usage of classes and instances 0. It is not required

to use classes and instances whatsoever, i.e., not using

rdf:type

at all is allowed. It is allowed to model

classes with several superclasses

(

rdfs:subClassOf

- multiple inheritance). It is

allowed to model something to be instance of more

than one class, which is not supported in object-

oriented languages like Smalltalk, Java, C# or C++.

conservation_staus :vulnerable but instead

indicated this with a dashed arrow -->

An Extensible Approach to Multi-level Ontology Modelling

187

In RDF/RDFS it is not forbidden to specify an

entity as an instance of something which has not been

specified as a class. Although this is syntactically

correct, we consider this a modelling flaw.

It is also allowed to model something as a class

and an instance simultaneously. Every class is an

example of this pattern since every class is an instance

rdfs:Class

. Also

rdfs:Class

is an example of

this since it is a class and additionally an instance of

itself.

In (Atkinson and Kühne, 2001) and (Neumayr et

al., 2009) this is called multi-facet. It is argued that

this may considerably reduce unnecessary

complexity in ontologies with multiple levels. We

agree with them and use the multi-facet behaviour to

add capabilities to ontologies like AO incrementally

when required by new use cases.

For example, when modelling concrete animals in

a zoo like the polar bear

:Knut

, then the concept

:Polar_Bear

, modelled as an instance of class

:Species

, can additionally be specified as a class:

:Polar_Bear a :Species , rdfs:Class.

The concrete polar bear

:Knut

can now be

modelled as follows.

:Knut a :Polar_Bear;

skos:prefLabel "Knut";

:sex "male";

:birthDate "2006-12-05"^^xsd:date;

:birthPlace :Berlin_Zoological_Garden;

:deathDate "2011-03-19"^^xsd:date;

:deathPlace :Berlin_Zoological_Garden;

rdfs:seeAlso <https://en.wikipedia.org/

wiki/Knut_(polar_bear)>.

See Fig. 2.

Figure 2: Modelling :Polar_Bear as an instance and as

a class simultaneously.

According to ICUN https://www.iucn.org/ vulnerable is

the status next to endangered.

The multi-facet behaviour of taxon

:PolarBear

can be seen by the green dashed line indicating that

:PolarBear

is an instance of class

:Species

(instance facet) and the red solid line indicating that

:Polar_Bear

is a

rdfs:Class

with

:Knut

as an

instance (class facet).

5 PROPERTY TYPES

Properties are used for specifying information about

entities like

:Polar_Bear

:Knut

. Datatype

properties like

:birthDate

:population

relate

to literal values like strings, numbers or dates, e.g.

:Polar_Bear :population 31000.

:Knut :birthDate "2006-12-05"^^xsd:date.

Object properties like conservation_status relate

to other entities, e.g.

:Polar_Bear :conservation_status

:vulnerable.

:vulnerable a :Conservation_status.

:Conservation_status a rdfs:Class.

Datatype properties as well as object properties

always relate to the instance facet of an entity,

indicated by green dashed lines in Fig. 1 and 2. In the

example above, the property

:birth_date

refers to

the instance

:Knut

In the other example,

:conservation

status

refers to the instance facet of

:Polar_Bear

, not to

the class facet: the species polar bear is vulnerable

Does the fact that the species polar bear is vulnerable

mean that the individual polar bear Knut is

vulnerable? No: Knut may happily live in the Berlin

Zoo, while his species as a whole is vulnerable. The

same applies for the population which refers to the

species polar bear, but not to the instance Knut.

Let us look at another example of an object

property: habitat.

:Bears :habitat :Terrestrial_habitat.

:Terrestrial_habitat a :Habitat.

:Habitat a rdfs:Class.

These RDF triples express that bears live on

terrestrial habitat, i.e., that they are land animals.

Again, this information relates to the instance facet of

the biological family of bears. Does this information

also apply to all genus and species of the family

bears? Yes, indeed it can be implied that polar bears,

American black bears, Panda bears etc. all are land

KMIS 2021 - 13th International Conference on Knowledge Management and Information Systems

188

animals. And how about individual animals like

Knut? Yes, indeed it can be implied that all individual

polar bears, American black bears, Panda bears etc.,

including Knut, are land animals.

It is obvious that, although both properties

:conservation_status and :habitat relate to

the instance facet, they are semantically different. The

difference is how information can be inferred

between the facets along hierarchies within the facets.

Whereas information about the habitat can be inferred

from broader concepts to narrower concepts in the

biological taxonomy and even to instances, this is not

the case for information about the population or the

conservation status.

Please note that this semantic difference is

independent of the distinction between object

properties and datatype properties. If, e.g.,

:conservation_status had been modelled as a

datatype property (:Polar_Bear

:conservation_status "vulnerable") then

the intended inference would still be the same.

6 INHERITANCE

In the field of object-orientation, inferring

information along subclass-hierarchies is called

inheritance (Nierstrasz, 1989). We borrow this term

for inferring information between facets as well as

along hierarchies within facets, e.g.,

rdfs:subClassOf hierarchies within the class facet

skos:broader hierarchies within the instance

facet.

In our example, the hierarchy between taxons is

specified by the object property

skos:broader .

:Polar_Bear a :Species; skos:broader :Bear.

:Bear a :Genus; skos:broader :Bears.

:Bears a :Family; skos:broader :Carnivores.

:Carnivores a :Order; skos:broader :Mammals.

:Mammals a :Class; skos:broader :Chordates.

:Chordates a :Phylum; skos:broader :Animals.

:Animals a :Kingdom.

Let us now reconsider the sample properties

:birth_date, :population,

:conservation_status and :habitat.

:birth_date "2006-12-05" refers to an

instance of a concrete species, e.g.,

:Knut,

only.

:population 31000 refers to a concrete

species, genus, family etc., e.g.,

:polar_bear, but cannot be inherited from

broader to narrower taxons, and not to their

instances.

:conservation_status : vulnerable

refers to a concrete taxon, e.g., the species

:polar_bear. If a conservation status would

be specified for an entire genus or family then

it could be inferred that all species belonging

to this genus or family have the same

conservation status, hence can be inherited

along the

skos:broader hierarchy.

However, it cannot be inherited to instances of

concrete species like

:Knut.

:habitat :Terrestrial_habitat refers

to a concrete species, genus, family etc., e.g.,

:Bears, it can be inherited along the

skos:broader hierarchy, e.g., from :Bears

:Bear and from :Bear to :Polar_bear.

Additionally, it can be inherited from concrete

species like

:Polar_Bear to instances of this

species like

:Knut.

In order to use inferencing for implementing

inheritance behaviour, it is necessary to explicate the

intended behaviour of properties like

:birth_date, :population,

:conservation_status, and :habitat. Consider

the following declarations.

:birth_date a rdfs:Property.

:population a rdfs:Property.

:conservation_status a rdfs:Property,

:BroaderInheritedProperty.

:habitat a rdfs:Property,

:BroaderInheritedProperty,

:TypeInheritedProperty

Those RDF triples express that all four properties

are of type rdfs:Property. :birth_date and

:population have no intended inheritance

behaviour.

:conservation_status and

:habitat are of type

:BroaderInheritedProperty in order to express

that those properties can be inherited along the

skos:broader hierarchy from broader to narrower

taxons. Additionally,

:habitat is of type

:TypeInheritedProperty in order to express that

this property can additionally be inherited along the

rdf:type relationship from classes to their

instances.

Please note that individual properties can be of

any of all four possible combinations:

1. Of both types

:BroaderInheritedProperty and

:TypeInheritedProperty, e.g.,

:habitat;

2. Only

:BroaderInheritedProperty, e.g.,

:conservation_status;

An Extensible Approach to Multi-level Ontology Modelling

189

3. Only TypeInheritedProperty;

4. None of both, e.g.

:birth_date.

Furthermore, inheritance behaviour may apply to

object properties and datatype properties alike.

In the next section we show that such property

declarations can be used for implementing

inheritance via inferencing.

7 QUERYING AND

INFERENCING

Ontology engineering is no end in itself but has the

purpose of using information modelled. Query

languages allow accessing information in ontologies.

SPARQL (W3C, 2013a) is the standardized query

language for RDF. We use SPARQL for

demonstrating examples.

The following SPARQL query selects all

information about

:Knut.

SELECT *

WHERE{:Knut ?p ?o.}

This query will return for RDF triples with subject

:Knut all predicates ?p and objects ?o explicitly

specified, e.g., :sex "male". However, it will not

contain any information about Knut’s habitat.

Likewise, a similar query for all information about

the species polar bear will return all predicates and

objects explicitly specified for the subject

:Polar_Bear like :population 31000, but no

information about the habitat of polar bears.

This is because habitat information is specified for

a broader taxon, here the family of bears.

Inferencing can be used to implement inheritance

behaviour as outlined in the previous section. We

demonstrate this using SPARQL update (W3C,

2013b) for sample rules. Consider the following

SPARQL

INSERT statement specifying the rule for

inheriting properties along

skos:broader

hierarchies.

INSERT {?s ?p ?o.}

WHERE {?p a :BroaderInheritedProperty.

?s skos:broader* ?b.

?b ?p ?o.}

This rule applies for RDF triples with predicates

?p that have been specified of type

:BroaderInheritedProperty like, e.g.,

:conservation_status or :habitat. If a subject

?s is in a transitive skos:broader relationship to

some other subject

?b then all triples with predicate

?p and object ?o can be inherited for subject ?s .

Executing this SPARQL

INSERT statement

materializes the inferencing results in the ontology.

Executing a SPARQL query about all information

about the species

:Polar_Bear will now, in addition

to explicitly modelled information, also return

inferred information

:habitat :Terrestrial_habitat.

However, a query for all information about

:Knut will still not render habitat information

because it is neither specified explicitly nor cannot it

be inferred with the rule above. Therefore, now

consider the following SPARQL

INSERT statement

specifying the rule for inheriting properties from

classes to instances.

INSERT {?s ?p ?o.}

WHERE {?p a :TypeInheritedProperty.

?s a ?c.

?c ?p ?o.}

This rule applies for RDF triples with predicates

?p that have been specified of type

:TypeInheritedProperty like, e.g., :habitat.

If a subject

?s is in a rdf:type relationship to some

class

?c then all triples with predicate ?p and object

?o can be inherited for subject ?s .

After executing this SPARQL

INSERT statement,

querying for all information about Knut will now

additionally render

:habitat :Terrestrial_habitat.

It shall be noted that in practice, all rules have to be

executed repeatedly until no rule fires any more, as is

common in forward-chaining rule-based systems.

We would also like to add a remark on our use of

skos:broader in the example ontology AO.

skos:broader is an informal property for

expressing hierarchical relations including whole-

part, spatial, temporal, etc. There may be good

reasons for ontology engineers for preferring such an

informal relation over a more formally specified

relation like

rdfs:subClassOf in a certain context.

Re-using existing ontologies for new use case

contexts is common practice in ontology engineering

and in developing ontology-based semantic

applications. We have deliberately chosen an

informal property like

skos:broader for the AO in

order to demonstrate how semantics for different use

case contexts may be added incrementally,

independently of the modelling style of the initial

ontology. If a more formally specified relationship

rdfs:subClassOf is deemed necessary in a

certain use case context then a SPARQL rule for

inferring

rdfs:subClassOf relationships from

skos:broader relationships may easily be added.

This is the basis for the flexibility and extendibility of

our approach which we discuss in the next section.

KMIS 2021 - 13th International Conference on Knowledge Management and Information Systems

190

8 DISCUSSION

“Everything should be made as simple as possible,

but no simpler” is a quote that has been attributed to

Albert Einstein (although he presumably never said it

literally) (Championing Science, 2021). In software

engineering, the acronym KISS (“keep it simple,

stupid”) has been used to express the same principle

of simplicity. Also, for ontology engineering it is a

good practice to model entities as simple as possible.

In this article we suggest to model entities as

classes only if this is actually needed, i.e., if in the

domain of interest there are instances of this entity

that need to be modelled. However, the addition “but

no simpler” indicates that the expressiveness of the

model must be adequate for the domain of interest,

i.e., everything that is relevant can actually be

modelled. The requirements for an ontology may vary

between different usage contexts and over time. In the

example of the AO, in one usage context it may be

sufficient to model species as instances, e.g., for

tagging wildlife documentaries. In another context it

may be necessary to model concrete species like polar

bear as classes, e.g., for documenting individual

animals watched in wildlife. It may be the case that

different subsets of an ontology shall be used for

different contexts - this requires modularity of the

ontology. It may also be the case that the usage

context of an ontology evolves over time - this

requires extensibility of the ontology.

We argue that rigorously utilizing the multi-facet

behaviour for modelling ontologies supports

simplicity, expressiveness, modularity, extensibility

and flexibility. It does not enforce an either-or

decision of modelling entities as classes or instances.

Instead, it allows starting simple (simplicity, e.g.,

modelling

:Polar_bear as an instance of class

Species) and extending as needed (adequate

expressiveness and extensibility, e.g., modelling

:Polar_bear additionally as a class). The instance

facet (e.g.,

:Polar_bear as an instance) can be

separated from the class facet (e.g.,

:Polar_bear as

a class including its instances), supporting

modularization via different ontology files.

Conciseness is related to simplicity, aiming at

modelling entities with as few statements (e.g., RDF

triples) as possible. Utilizing the multi-facet

behaviour is more concise than using the

materialization pattern. For example, modelling the

AO with the materialization pattern would require

modelling taxons and animals as separate entities.

This impedes readability of the ontology and

complicates the implementation of queries.

Lack of redundancy is related to conciseness. We

have shown that using inferencing for implementing

inheritance, redundancy in ontologies can largely be

reduced.

Interoperability is important for linking

ontologies. In our examples, we use standards like

RDF/RDFS and SPARQL that support

interoperability on a syntactic level. However, in our

opinion, interoperability on the modelling style is as

important. In the introduction we refer to four

different animal ontologies, two of them modelling

all species as classes (VTO and NCBI Taxonomy),

the other two modelling them as instances (WO and

GBIF). Utilizing multi-facet behaviour requires no

either-or decision on class or instance. Instead, it

allows combining the strengths of both modelling

styles while alleviating their disadvantages.

However, as stated in (W3C, 2012), multi-facet

behaviour could impede OWL DL reasoning.

In contrast to (Neumayr et al., 2009) and (Frank,

2014), we use standard modelling and query

languages (RDF/ RDFS, SPARQL). In (Neumayr et

al., 2009), SQL must be extended for querying M-

Objects; In (Frank, 2014), queries are not discussed at

all.

In (Neumayr et al., 2009), inheritance behaviour

is not discussed. In (Frank, 2014), inheritance is

restricted to the definition of properties, i.e., using a

property specified in a higher-level object in a lower

level. Inferring property values between facets and

along hierarchies within facets, e.g.,

rdfs:subClassOf or skos:broader, is not

discussed.

Our approach allows a large level of flexibility, no

“one size fits all”. Depending on the application

context entities can be assigned different modelling

levels, properties can be annotated with different

inheritance behaviour and different inheritance rules

can be implemented. This extends the flexibility of

existing multi-level modelling approaches.

9 CONCLUSIONS AND FUTURE

WORK

In this paper we discuss a major challenge in ontology

engineering, namely deciding whether an entity

should be modelled as a class or as an instance.

Different modelling traditions and guidelines lead to

different modelling decisions, enforcing an either-or

decision.

In contrast, we propose to rigorously utilize multi-

facet behaviour allowing entities to be modelled as

An Extensible Approach to Multi-level Ontology Modelling

191

classes and instances simultaneously, where needed.

We argue that it supports simplicity, expressiveness,

modularity, flexibility and extensibility of ontologies.

Furthermore, we present means for implementing

inheritance behaviour between facets and along

hierarchies within facets by using inferencing. We

argue that this reduces redundancy and increases

conciseness.

We have applied the modelling approach

presented in this paper to concrete domain-specific

ontologies in practice and we continue to do so.

Currently, we are working on an ontology for

machine learning (ML) (Humm and Zender, 2021;

(Humm et al., 2021), modelling ML approaches, ML

libraries, their characteristics and interrelationships,

and more. This ontology shall be used in various use

case contexts, including teaching ML, supporting ML

engineers when designing ML applications,

supporting automated orchestration of ML

applications (AutoML) or chat bots for answering

questions about ML. The flexibility of our approach

can be particularly useful in using the ontology in

those different use case contexts.

REFERENCES

Dean Allemang, Jim Hendler, Fabien Gandon (2020).

Semantic Web for the Working Ontologist - Effective

Modeling in RDFS and OWL, Third Edition. ACM

Books series, Nbr. 33, 2020, ISBN 978-1-4503-7614-3

Phenoscape (2021): Vertebrate Taxonomy Ontology

(VTO). Online https://github.com/phenoscape/vertebra

te-taxonomy-ontology accessed 2021-04-21.

National Center for Biotechnology Information (NCBI)

(2021): NCBI Taxonomy. Online https://www.ncbi.

nlm.nih.gov/taxonomy, accessed 2021-04-21.

British Broadcasting Corporation (BBC) (2021): Wildlife

Ontology (WO). Online https://www.bbc.co.uk/

ontologies/wo, accessed 2021-04-21.

Global Biodiversity Information Facility (GBIF) (2021).

Online https://www.gbif.org, accessed 2021-04-21.

Wikimedia (2021): Wikidata. Online https://www.

wikidata.org, accessed 2021-04-21.

Colin Atkinson, Thomas Kühne (2001). The Essence of

Multilevel Metamodeling. In: Gogolla M., Kobryn C.

(eds) ≪ UML ≫ 2001 — The Unified Modeling

Language. Modeling Languages, Concepts, and Tools.

UML 2001. Lecture Notes in Computer Science, vol.

2185. Springer, Berlin, Heidelberg.

https://doi.org/10.1007/3-540-45441-1_3.

Bernd Neumayr, Katharina Grün, Michael Schrefl (2009).

Multi-Level Domain Modeling with M-Objects and M-

Relationships. Sixth Asia-Pacific Conference on

Conceptual Modelling (APCCM 2009), Wellington,

New Zealand, January 20-23 2009. CRPIT 96,

Australian Computer Society 2009, ISBN 978-1-

920682-77-4.

Ulrich Frank (2014). Toward a New Paradigm of

Conceptual Modeling and Information Systems Design.

Business & Information Systems Engineering 6(6),

Dec. 2014, pp. 319-337. DOI: 10.1007/s12599-014-

0350-4

World Wide Web Consortium (W3C) (2014): RDF Schema

1.1, W3C Recommendation 25 February 2014. Online

https://www.w3.org/TR/rdf-schema, accessed 2021-

04-21.

World Wide Web Consortium (W3C) (2013a): SPARQL

1.1 Query Language W3C Recommendation 21 March

2013. Online https://www.w3.org/TR/sparql11-query,

accessed 2021-04-21.

World Wide Web Consortium (W3C) (2013b): SPARQL

1.1 Update, W3C Recommendation 21 March 2013.

Online https://www.w3.org/TR/sparql11-update,

accessed 2021-04-21.

Natalya F. Noy, Deborah L. McGuinness (2021). Ontology

Development 101: A Guide to Creating YourFirst

Ontology. Technical reports, Stanford University,

Stanford, CA, 94305, Online https://protege.

stanford.edu/publications/ontology_development/ontol

ogy101.pdf , accessed 2021-08-03.

Alain Pirotte, Esteban Zimanyi, David Assart, Tatiana

Yakusheva (1994). Materialization: a powerful and

ubiquitous abstraction pattern. VLDB, Morgan

Kaufmann, 1994, pp. 630-641.

James J. Odell (1994). Power Types. Journal of Object-

Oriented Programming, Volume 7(2), 1994 , pp. 8-12.

Giancarlo Guizzardi, Joao Paulo A. Almeida, Nicola

Guarino, Victorio A. Carvalho (2015). Towards an

Ontological Analysis of Powertypes. International

Workshop on Formal Ontologies for Artificial

Intelligence (FOFAI), 2015.

Joao Paulo A. Almeida, Victorio A. Carvalho, Freddy

Brasileiro, Claudenir M. Fonseca, Giancarlo Guizzardi

(2019). Multi-Level Conceptual Modeling: Theory and

Applications. 2019.

Freddy Brasileiro, Joao Paulo A. Almeida, Victorio A.

Carvalho, Giancarlo Guizzardi (2016a). Expressive

Multi-Level Modeling for the Semantic Web. 15th

International Semantic Web Conference (ISWC 2016).

Lecture Notes in Computer Science October 2016,

DOI: 10.1007/978-3-319-46523-4_4.

Freddy Brasileiro, Joao Paulo A. Almeida, Victorio A.

Carvalho, Giancarlo Guizzardi (2016b). Applying a

Multi-Level Modeling Theory to Assess Taxonomic

Hierarchies in Wikidata. Wiki Workshop at 25th Int.

Conference Companion World Wide Web, 2016, pp.

975-980.

Victorio A. Carvalho, Joao Paulo A. Almeida (2018).

Toward a Well-Founded Theory for Multi-Level

Conceptual Modeling. Software and Systems Modeling

17(1), Springer Verlag, February 2018. DOI:

10.1007/s10270-016-0538-9.

Jeff Z. Pan, Ian Horrocks (2001). Metamodeling

Architecture of Web Ontology Languages. Proc. of the

KMIS 2021 - 13th International Conference on Knowledge Management and Information Systems

192

2001 International Semantic Web Working

Symposium, 2001, pp. 131-149.

World Wide Web Consortium (W3C) (2012): OWL 2 Web

Ontology Language, New Features and Rationale

(Second Edition), W3C Recommendation 11 December

2012. Online https://www.w3.org/TR/owl2-new-

features, accessed 2021-04-27.

Bernhard G. Humm, Alexander Zender (2021): An

Ontology-Based Concept for Meta AutoML.

Proceedings of the 17th International Conference on

Artificial Intelligence Applications and Innovations

(AIAI 2021), Crete, Greece, 25 – 27 June, 2021.

Bernhard G. Humm, Hermann Bense, Michael Fuchs,

Benjamin Gernhardt, Matthias Hemmje, Thomas

Hoppe, Lukas Kaupp, Sebastian Lothary, Kai-Uwe

Schäfer, Bernhard Thull, Tobias Vogel and Rigo

Wenning (2021): Machine intelligence today:

applications, methodology, and technology.

Hauptbeitrag Informatik Spektrum 44, 104–114,

Springer Verlag Heidelberg, Germany, 2021.

https://doi.org/10.1007/s00287-021-01343-1.

Oscar Nierstrasz (1989): A Survey of Object-Oriented

Concepts. In Object-Oriented Concepts, Databases and

Applications, ed. W. Kim and F. Lochovsky, pp. 3-21,

ACM Press and AddisonWesley, 1989.

Championing Science (2021): In honor of Albert Einstein’s

birthday – Everything should be made as simple as

possible, but no simpler. Online

https://www.championingscience.com/2019/03/15/eve

rything-should-be-made-as-simple-as-possible-but-no-

simpler. accessed 2021-04-21.

An Extensible Approach to Multi-level Ontology Modelling

193
