Ontology-based Framework for Integration of Time Series Data:

Application in Predictive Analytics on Data Center Monitoring Metrics

Lauri Tuovinen and Jaakko Suutala

Biomimetics and Intelligent Systems Group, University of Oulu, Finland

Keywords:

Data Integration, Data Analytics, Time Series Data, Data Center, Domain Ontology, Software Framework.

Abstract:

Monitoring a large and complex system such as a data center generates many time series of metric data, which

are often stored using a database system speciﬁcally designed for managing time series data. Different, pos-

sibly distributed, databases may be used to collect data representing different aspects of the system, which

complicates matters when, for example, developing data analytics applications that require integrating data

from two or more of these. From the developer’s point of view, it would be highly convenient if all of the

required data were available in a single database, but it may well be that the different databases do not even

implement the same query language. To address this problem, we propose using an ontology to capture the

semantic similarities among different time series database systems and to hide their syntactic differences.

Alongside the ontology, we have developed a Python software framework that enables the developer to build

and execute queries using classes and properties deﬁned by the ontology. The ontology thus effectively spec-

iﬁes a semantic query language that can be used to retrieve data from any of the supported database systems,

and the Python framework can be set up to treat the different databases as a single data store that can be

queried using this semantic language. This is demonstrated by presenting an application involving predictive

analytics on resource usage and electricity consumption metrics gathered from a Kubernetes cluster, stored

in Prometheus and KairosDB databases, but the framework can be extended in various ways and adapted to

different use cases, enabling machine learning research using distributed heterogeneous data sources.

1 INTRODUCTION

Data mining and machine learning applications often

require integrating data from multiple sources. Even

data of the same type and representing measurements

of the same entity may be distributed across differ-

ent databases, each with its own query interface and

syntax. For example, in the domain of data center

monitoring, metrics representing usage of computing

resources may be stored in one time series database

while those representing consumption of electricity

are stored in another one. Integrating data from these

two sources is necessary, for example, in order to de-

velop models for load prediction, resource allocation

and optimization of electricity consumption for the

data center.

In a situation like this, data integration can be

made more seamless by using semantic technology

to build an application programming interface (API)

that hides database-speciﬁc details from the data user

and enables them to express queries on a higher level

of abstraction, using domain concepts rather than a

particular query language. We have developed such

an API to support integration and analysis of time se-

ries data in Python. The API was built for an appli-

cation involving metrics collected from a virtualized

data center, based on the Kubernetes platform (Kuber-

netes, 2021), and stored in Prometheus (Prometheus,

2021) and KairosDB (KairosDB, 2021) databases, en-

abling the development of artiﬁcial intelligence-based

sustainable and energy-efﬁcient data centers. How-

ever, the API can be extended to work with other

database systems and can also be adapted to different

use cases.

The API is based on an ontology that deﬁnes a

set of classes and properties representing databases,

queries, metrics and data center components. The

ontology thus bridges the domains of time series

databases and data center monitoring. Using the

ontology classes, the user of the API can compose

queries without knowledge of the correct query syn-

tax for a given database or even of which database

is supplying a given metric. The ontology thus ef-

fectively speciﬁes a semantic query language that

Tuovinen, L. and Suutala, J.

Ontology-based Framework for Integration of Time Series Data: Application in Predictive Analytics on Data Center Monitoring Metrics.

DOI: 10.5220/0010650300003064

In Proceedings of the 13th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2021) - Volume 2: KEOD, pages 151-161

ISBN: 978-989-758-533-3; ISSN: 2184-3228

151

abstracts away the differences between different

database systems, which in this case are typically sub-

stantial since time series databases, unlike relational

databases, do not have a unifying standard query lan-

guage.

When the API is initialized, it retrieves informa-

tion about the metrics supplied by each database and

populates the ontology with individuals representing

the available metrics. Once the initialization is com-

plete, the user can start building queries by creating

individuals of the query class and setting their ontol-

ogy properties. When the user executes a query, the

query individual is handed over to a query processor,

which handles the process of translating the seman-

tic query into the appropriate system-speciﬁc query

language and parsing the query result into a represen-

tation format that is again independent of the format

used by the database system. The user – who is a data

miner or a machine learning engineer, not a data en-

gineer – thus only needs to specify the data they wish

to process, and the API will take care of the details

of how to retrieve it. In the future, the API will also

provide pre-processing operators that the user can use

to prepare data for analysis.

The principal contributions of the paper are as fol-

lows:

• An ontology for semantic composition of

database queries and other data processing

operations using domain concepts;

• An extensible Python software framework en-

abling the execution of such operations;

• A demonstration of the applicability of the query

API in the domain of data center monitoring, pro-

viding data for machine learning research in co-

herent manner.

In the remainder of the paper, we ﬁrst discuss

some essential background information and review

related work in Section 2. We then present the prob-

lem addressed in the form of requirements in Sec-

tion 3. The solution is described in Sections 4 and 5,

which present the ontology and the software frame-

work, respectively. Section 6 demonstrates the valid-

ity of the solution by describing an application where

the API is used to solve a real-world data integration

problem, and Section 7 shows how the capabilities of

the API can be extended beyond the requirements of

this original problem. Section 8 discusses the signif-

icance of the results, and Section 9 presents our con-

clusions.

2 BACKGROUND

The development of the data integration API was mo-

tivated by the observation that while querying differ-

ent time series databases providing data on the same

entity of interest – in our case, a Kubernetes cluster –

is semantically similar, syntactically the queries may

differ on a number of levels:

• Interface: Different database systems have dif-

ferent APIs via which they accept queries over

HTTP.

• Language: Different database systems generally

implement their own custom query languages.

• Representation: Different database systems may

use different representation formats for e.g. times-

tamps.

• Nomenclature: The naming of domain concepts

is not necessarily consistent across databases; for

example, a virtual machine in a Kubernetes cluster

might be referred to as a node in one database and

as a host in another.

Our ontology was designed to hide all of these dif-

ferences by establishing a level of abstraction where

queries can be speciﬁed according to the same syn-

tax regardless of which database they are targeting.

The Python framework, in turn, was created in order

to provide a practical implementation of the semantic

query language deﬁned by the ontology. The idea of

translating queries to different platform-speciﬁc lan-

guages is similar to TSL (H

ebert, 2019), but this lan-

guage operates on a lower, wholly non-semantic level

of abstraction. Our API could be said to represent a

middle ground between this and ontology-based data

access in the traditional sense, in that our ontology

models both the domain of time series databases and

the application domain proper (albeit on a relatively

high level of abstraction).

Ontology-based data access is a relatively es-

tablished idea where a semantic query expressed in

SPARQL is mapped to an equivalent query in SQL,

allowing the desired data to be speciﬁed in terms of

domain concepts rather than database structures (Xiao

et al., 2018). More recently, similar ideas have begun

to be applied to time series data. SE-RRD (Zhang

et al., 2016) is a semantically enhanced time series

database for monitoring data, with an ontology that

bears some similarity to ours but is more focused on

representing the semantics of the data. SE-TSDB

(Zhang et al., 2019) builds on this and the paper ex-

plicitly mentions mapped queries, but no details are

provided on how the queries are prepared and exe-

cuted.

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

152

Two instances of semantic time series query en-

gines where the authors do specify the query language

implemented are FOrT

E (El Kaed and Boujonnier,

2017) and ESENTS (Hossayni et al., 2018). The for-

mer of these uses SPARQL, while the latter imple-

ments its own domain-speciﬁc query language. As

far as we know, there are no examples in the litera-

ture, at least in the domain of time series data man-

agement, of a framework like ours where the ontol-

ogy itself serves as the query language and queries are

prepared by creating ontology individuals and setting

their properties, which the framework translates into

REST API requests to the databases used.

In the domain of data center management specif-

ically, ontology-based solutions have been proposed

to various problems. These include situation analy-

sis (Deng et al., 2013), resource allocation (Metwally

et al., 2015), simulation (Memari et al., 2016), con-

tainer description (Boukadi et al., 2020) and power

proﬁling (Koorapati et al., 2020). There appears to be

no previous work in this particular domain where an

ontology is used to facilitate data access or integra-

tion.

3 REQUIREMENTS

In the original use case for the API, monitoring data

for a Kubernetes-based data center is accessible via

two time series databases: Kubernetes metrics rep-

resenting usage of computing resources (e.g. CPU

time, memory allocation, disk I/O) are exported to

a Prometheus database, while information about the

electricity consumption of the data center hardware

is stored in a KairosDB database. Data users can re-

trieve data from these databases over an HTTP con-

nection using their REST APIs. New data entered

into the databases is retained for a limited time, so

long-term historical data is not available.

The data user in this use case is a machine learn-

ing engineer aiming to build predictive models for es-

timating, anticipating and optimizing electricity con-

sumption in the data center. To obtain training data for

the models, the user needs to be able to integrate and

synchronize data from the two monitoring databases.

From this use case, the following core requirements

were derived:

• The user must be able to retrieve data for any met-

ric supplied by either of the two databases;

• When querying for metric data, the user must be

able to specify a time range;

• When querying for metric data, the user must

be able to specify a Kubernetes node (or set of

nodes);

• The user must be able to store and reuse queries

for periodic retrieval of data;

• The user must be able to store retrieved data in a

local database;

• The user should be able to specify multiple met-

rics in a single query;

• The user should be able to specify aggregator

functions to be applied to the data;

• The user should be able to specify data trans-

formation operations for further processing of re-

trieved datasets;

• The user must not be required to be familiar

with database APIs, query languages or any other

system-speciﬁc details;

• The user must be able to extend the capabilities of

the API without modifying its internal logic.

These requirements are summarized in Table 1.

In the table, each requirement is given a short ref-

erence number; these range from R1 to R10. Addi-

tionally, each requirement is classiﬁed as either re-

quired, meaning that it represents an essential feature,

or desired, meaning that the feature is not essential

but would be useful to have.

Implementing requirement R1 ensures that the

user of the framework is able to retrieve all the data

required for the training of the machine learning mod-

els. Implementing requirements R2 and R3 ensures

that the user can exclude data that is of no interest.

Implementing requirement R8 makes it more conve-

nient to retrieve data for multiple metrics, but this can

also be achieved by executing multiple queries, so

the feature is considered non-essential. Implement-

ing requirement R9 enables the user to e.g. retrieve

the growth rate of a counter-type metric, which is

often more useful than the raw data, but since such

functions can also applied to the data locally after re-

trieval, this feature is also considered non-essential.

Implementing requirements R4 and R5 ensures

that the user has access to a sufﬁcient quantity of the

data needed for model training and testing. Since the

remote databases do not provide long-term historical

data, the user needs to build such a dataset locally by

retrieving periodic snapshots of the metrics used. For

this purpose, the user needs to be able to reuse queries

and to store their results in a local database. Require-

ment R10 is considered non-essential, but it would be

useful if the framework would provide operators for

pre-processing the retrieved data for analysis. For ex-

ample, one such operator could provide the ability to

stitch together the periodic snapshots to form a single

contiguous time series spanning a longer time range.

Ontology-based Framework for Integration of Time Series Data: Application in Predictive Analytics on Data Center Monitoring Metrics

153

Requirement R6 applies to the features repre-

sented by all of the other requirements. Implementing

the requirement involves building an abstraction layer

that hides the system-speciﬁc details discussed in Sec-

tion 2 from the user. This ensures that the user can

concentrate on developing the models, since they can

access the data they need without having to specify

how it is to be retrieved. Finally, requirement R7 en-

ables the user to adapt the API to different use cases;

this can always be achieved by modifying the exist-

ing code, but this must not be necessary in order to

e.g. add support for a new database system. Instead,

the API must provide abstract classes that the user can

implement to add new capabilities in a modular fash-

ion.

4 THE ONTOLOGY

The ontology was designed using the Prot

e tool

(Musen and the Prot

e Team, 2015). A partial class

hierarchy is shown in Figure 1. The hierarchy is orga-

nized under four principal top-level classes:

• KubernetesObject, representing objects related

to the composition of a Kubernetes cluster;

• MonitoringObject, representing objects related

to the collection and storage of monitoring met-

rics;

• RestApiObject, representing objects related to

communicating with the REST APIs of monitor-

ing databases;

• AnalyticsObject, representing objects related to

local storage and analysis of retrieved metric data.

Additionally, certain subclasses of MonitoringOb-

ject and AnalyticsObject share a common superclass.

Database is the common superclass of all classes

representing databases, both those from which met-

ric data is retrieved and those in which it is stored

locally. DataContainer is the common superclass

of all classes representing in-memory containers of

metric data, both query results received from remote

databases and datasets generated locally by process-

ing query results.

Under the KubernetesObject class, the subclasses

of KubernetesExecutionUnit are particularly impor-

tant. These represent objects that are directly involved

in the execution of code on the Kubernetes platform:

workloads, containers, pods and nodes. These are

used in queries to select data generated by a speciﬁc

node, for example. Other subclasses of Kubernete-

sObject represent Kubernetes namespaces, services

and storage volumes.

Under the MonitoringObject class, Monitoring-

Database represents remote databases supplying met-

rics, which in turn are represented by Monitor-

ingMetric. MonitoringDatabase has the subclasses

PrometheusDatabase and KairosDatabase, repre-

senting different time series database systems, as well

as PrimaryDatabase. The latter is used to designate

a database as the one from which information about

the composition of the Kubernetes cluster will be re-

trieved when the ontology is populated during initial-

ization of the framework. The DatabaseCredentials

class is used to represent the username and password

to be used to access a given database.

Queries to the databases are represented as in-

stances of DatabaseQuery, which has several sub-

classes representing different types of queries: Clus-

terCompositionQuery represents queries for infor-

mation about the Kubernetes cluster, Metadata-

Query represents queries for information about the

metrics provided by a database, and MetricValues-

Query represents queries for metric data. More spe-

ciﬁc subclasses of these classes are not visible in the

ﬁgure, but notably, a MetricValuesQuery can be either

an InstantQuery, which returns data for a given point

in time, or a RangeQuery, which returns data for a

time range. A query may also be a compound query,

i.e. consist of multiple subqueries, in which case each

subquery is represented by its own DatabaseQuery in-

stance.

A query is built by setting the properties of the

DatabaseQuery instance. Some of these are data prop-

erties, such as the time instant of an instant query or

the range start and end times of a range query. Oth-

ers, such as the metric to be retrieved and the Kuber-

netes nodes targeted, are speciﬁed as object proper-

ties. Aggregator functions (e.g. rate, sum, avg) can

be invoked by attaching instances of the correspond-

ing QueryAggregator subclasses (not shown) to the

query.

When a query is ready for execution, it is handed

over to an instance of the RestApiObject subclass

QueryProcessor. The query processor analyzes the

properties of the DatabaseQuery instance and gener-

ates a query in the appropriate query language such as

PromQL. The generated query is then sent over HTTP

to the appropriate API endpoint using the appropriate

request method, represented by the classes RestEnd-

point and HttpRequestMethod. Each query type

may have a different API endpoint associated with

it, represented by speciﬁc subclasses of RestEndPoint

(not shown).

Details about the query execution are recorded in

an instance of the QueryExecution class, facilitat-

ing reuse of previously created queries. When the

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

154

Table 1: Required and desired features of the data integration API.

ID Requirement Type

R1 The user can retrieve data for any metric Required

R2 The user can specify a time range for queries Required

R3 The user can specify a set of nodes as the query target Required

R4 The user can store and reuse queries Required

R5 The user can store retrieved data locally Required

R6 The user does not need to be familiar with database APIs Required

R7 The user can extend the capabilities of the API Required

R8 The user can specify multiple metrics in a single query Desired

R9 The user can invoke aggregator functions in queries Desired

R10 The user can specify data transformation operations Desired

Figure 1: Class hierarchy of the ontology. The top-level classes in the ﬁgure have owl:Thing as their immediate superclass.

Ontology-based Framework for Integration of Time Series Data: Application in Predictive Analytics on Data Center Monitoring Metrics

155

query processor receives a response from the database

REST API, it extracts the data and creates an instance

of QueryResult representing the response. This is

then associated with the QueryExecution instance.

The returned data can be stored in the QueryResult in-

stance itself or in a local database, represented by the

AnalyticsDatabase class. The framework currently

supports the use of MongoDB as the local database

backend, represented by the MongoDatabase sub-

class.

Locally generated datasets are represented by the

AnalyticsDataset class, which, like QueryResult, is a

subclass of DataContainer. Analytics datasets are de-

rived from other data containers using data transfor-

mation operations, represented by the AnalyticsOp-

eration class. These are divided into atomic opera-

tions and compound operations, as shown in the ﬁg-

ure; more speciﬁc subclasses of these (of which there

are only a few in the current version of the ontology)

are not shown.

5 THE FRAMEWORK

The overall architecture of the data integration and

analysis system is shown in Figure 2. The Python

framework consists of two modules, labeled in the ﬁg-

ure as Interface Module and Ontology Module. The

ontology is loaded from an OWL ﬁle using the Owl-

ready2 Python package (Lamy, 2017). Other key

packages on which the framework depends include

Requests, which is used to communicate with the

REST APIs of the remote databases, and PyMongo,

which is used to access the local MongoDB database.

The Owlready2 package treats ontology classes

as Python classes, ontology individuals as instances

of these classes, and ontology properties as attributes

of these instances. Python code can be added to the

classes by deﬁning class methods. The package also

enables a Python module to be executed automatically

when an ontology is loaded by specifying the name

of the module as the value of an annotation property.

This feature of Owlready2 is used by our API to load

the Ontology Module, which deﬁnes the following:

• Constants for different query types, HTTP request

types, database types and data representation for-

mats;

• In the class DataContainer, methods for manipu-

lating the contents of the container;

• In the class QueryProcessor, abstract methods for

formatting queries and parsing query results;

• Two subclasses implementing the QueryProces-

sor interface, PrometheusProcessor and Kairos-

DBProcessor;

• Single instances of PrometheusProcessor and

KairosDBProcessor, which are added to the on-

tology as individuals;

• In the class AnalyticsDatabase, abstract methods

for opening and closing a database connection and

for reading and writing data;

• One subclass implementing the Analytics-

Database interface, MongoDatabase.

The Interface Module deﬁnes a single class, Ku-

bernetesOntology, which provides the methods by

which the user of the API can build and execute

queries on the remote databases. The class construc-

tor takes as argument an IRI string pointing to the lo-

cation of the OWL ﬁle containing the ontology. This

is then loaded into memory using Owlready2, which

triggers the execution of the Ontology Module as de-

scribed above.

The KubernetesOntology class provides meth-

ods for looking up and creating instances of ontol-

ogy classes needed in queries. The most important

method is create query(), which is used to create a

new instance of the DatabaseQuery class. The query

is built by setting the data and object properties of this

instance; ontology individuals to be used as object

property values can be looked up with the general-

purpose method get individual() or with more spe-

ciﬁc convenience methods such as get metric() and

get node(). Invocations of aggregator functions can

be instantiated using the create invocation() method.

When the properties of the query have been set,

the execute query() method is used to run it. The

method starts by checking if the query is a compound

query; if it is, the method is run recursively for each

subquery. If the query is not a compound query, the

method ﬁrst ﬁnds the target database of the query,

which may be either asserted explicitly or, in the case

of metric value queries, inferred from the target met-

ric. From this information, the method then infers the

query processor that will handle the query, as well as

the endpoint URL, HTTP request method and authen-

tication credentials that will be used to send the query

to the remote database.

To obtain the query data in a format that can be

sent to the database REST API, the method calls the

format query() method of the query processor object.

After this, the private method send query() is called,

which in turn calls the appropriate Requests method

(get() or post()) and returns the response received

from the REST API. The parse result() method of the

query processor is then used to extract the relevant

data from the response and to create a QueryResult

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

156

Figure 2: An architectural diagram of the data integration framework and its dependencies. Within the Python environment,

3D boxes denote modules that are part of the framework, while 2D boxes denote other key Python packages used in the imple-

mentation of the framework. Solid arrows denote internal dependencies, and dashed arrows represent external dependencies.

instance as a container for this data. The above se-

quence is illustrated in Figure 3.

The data contained by the query result can be

accessed using the get content() and get metadata()

methods deﬁned for the DataContainer class (which is

a superclass of QueryResult) in the Ontology Module.

In the case of metric value queries, the convenience

methods get values() and get times() can be used to

get the metric values and the corresponding times-

tamps, respectively. The convenience methods pro-

vide an optional parameter that can be used to spec-

ify the representation format of the returned data; the

timestamps, for example, can be returned as UNIX

timestamps (the default), Python datetime objects or

ISO-formatted datetime strings.

The data inside data containers can be stored in

the container objects themselves, in which case it is

represented as JSON-formatted strings and there is no

need for an external local database. However, this is

a rather cumbersome and inelegant way to store the

data, so the Python framework provides the option to

specify an instance of AnalyticsDatabase as the local

storage backend, in which case data containers will

use it to store their data persistently. Once the back-

end has been set up, everything else works exactly the

same way from the user’s perspective, because the im-

plementation details of data storage and retrieval are

hidden by the DataContainer interface.

6 USING THE API

In our data center monitoring use case, the API is ini-

tialized using the following script:

1 kube_onto = KubernetesOntology(ONTO_FILE)

2 db_mongo = kube_onto.create_backend(...)

3 db_mongo.open_connection()

4 kube_onto.set_default_backend(db_mongo)

5 db_prometh = kube_onto.create_database(...)

6 db_kairos = kube_onto.create_database(...)

7 kube_onto.get_available_metrics()

8 kube_onto.get_cluster_nodes()

On line 1, the main API class is instantiated. On

line 2, a new AnalyticsDatabase instance represent-

ing a locally installed MongoDB server is created;

the arguments passed to the creation method are not

shown, but they consist of a unique name by which the

database can be referred to, the type of the database

and all the information necessary to establish a con-

nection to the database (e.g. host address and port).

A connection to the MongoDB server is then opened

(line 3) and the database is registered as the default

backend for storing data container contents (line 4).

On lines 5–6, two MonitoringDatabase instances

representing the remote Prometheus and KairosDB

databases are created. The arguments passed to

this creation method again include a name for the

database, database type and the information required

to connect to it. Additionally, there is an optional

boolean argument that, if passed and if true, desig-

nates the database as the primary database that will

provide information about the composition of the Ku-

bernetes cluster. In this case, the ﬁrst database created

(db

prometh) is the primary one.

Finally, on lines 7–8, information about the met-

rics supplied by the databases and about the nodes in

the Kubernetes cluster is retrieved and added to the

ontology as MonitoringMetric and KubernetesNode

instances. Information about metrics is retrieved from

both databases, information about nodes from the pri-

mary database. To avoid repeating this process later,

Ontology-based Framework for Integration of Time Series Data: Application in Predictive Analytics on Data Center Monitoring Metrics

157

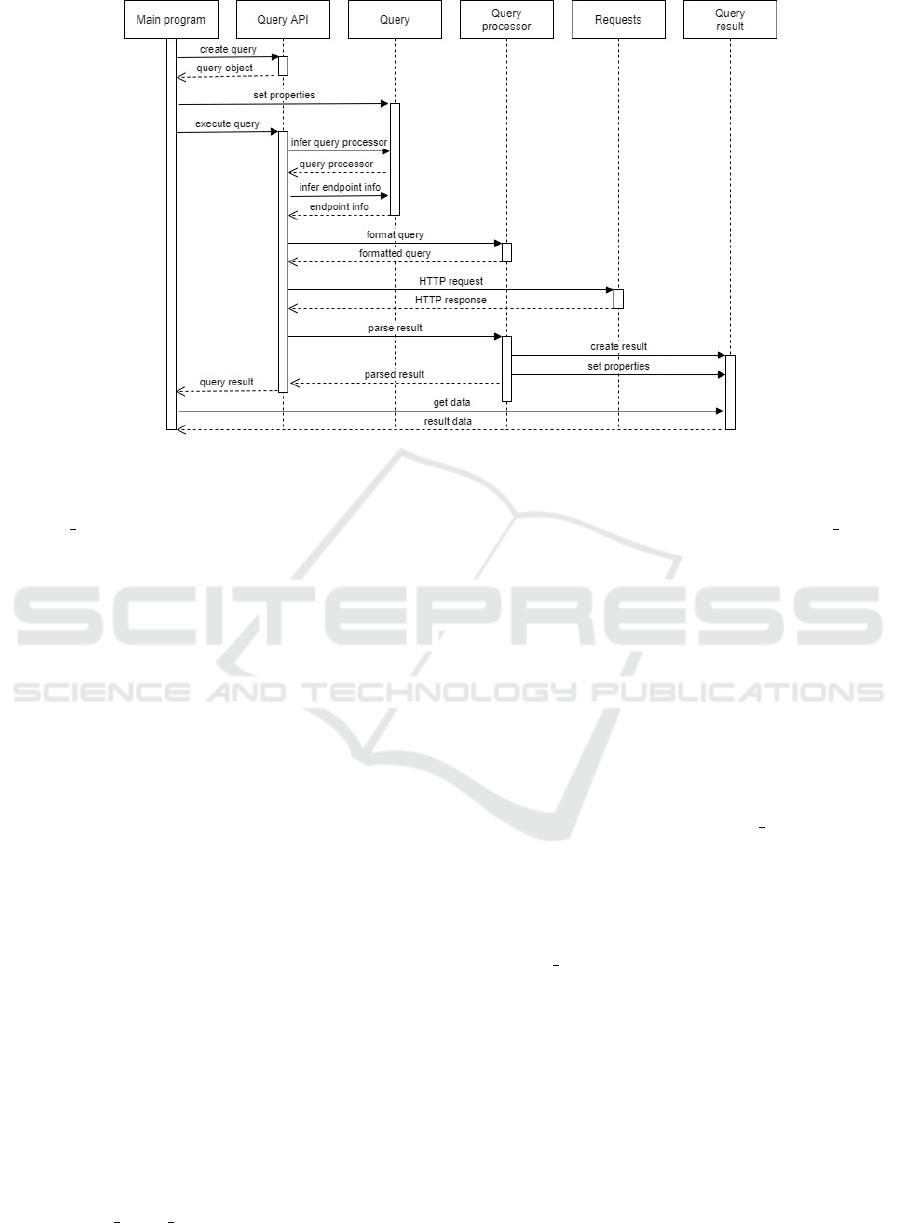

Figure 3: A sequence diagram using adapted UML notation, showing how a query is created and processed using the API.

the modiﬁed ontology can be stored persistently using

the save ontology() method of the KubernetesOntol-

ogy class.

With the API thus initialized, the KubernetesOn-

tology class instance can be used to run queries on

the remote databases. In the example below, a com-

pound query consisting of two subqueries is used to

retrieve CPU usage (supplied by Prometheus) and

electric power (supplied by KairosDB) for a single

node in the Kubernetes cluster:

1 q = kube_onto.create_query(QUERY_TYPE_RANGE)

2 q.hasTargetUnit = kube_onto.get_nodes(

["a04r01srv07"])

3 q.hasRangeStartTime = "2021-02-01T12:00:00"

4 q.hasRangeEndTime = "2021-02-01T18:00:00"

5 q.hasResolutionStep = "1m"

6 sq1 = kube_onto.create_query()

7 sq1.isForMetric = kube_onto.get_metric(

"Prometheus",

"node_cpu_usage_seconds_total")

8 sq1.invokesAggregator = [

kube_onto.create_invocation(

"RateFunction",

{"sampling": "5m"})]

9 sq2 = kube_onto.create_query()

10 sq2.isForMetric = kube_onto.get_metric(

"KairosDB", "power")

11 q.hasComponentQuery = [sq1, sq2]

12 q.isCompoundQuery = True

13 result = kube_onto.execute_query(q)

On lines 1–5, the main query q is created and its

properties are set. The type of the query is passed

as argument to the query creation method; the con-

stant QUERY TYPE RANGE is deﬁned in the On-

tology Module. The target node is an object prop-

erty, so its value must be an ontology individual; this

is retrieved from the ontology using the get nodes()

method, which returns a list of KubernetesNode in-

stances based on their names. The range start and

end times and the resolution step of the query are

data properties. These master properties are applied

to each subquery, so for the subqueries it is only nec-

essary to set the properties that are not the same for

all subqueries.

Subquery sq1 (lines 6–8) retrieves the CPU us-

age. The target metric is again an object property,

and its value is retrieved from the ontology based

on the name of the supplying database (given when

the database was registered during initialization) and

the name of the metric using the get metric() method.

This is done similarly for subquery sq2 (lines 9–10),

which retrieves the power. Subquery sq1 additionally

applies a rate aggregator to transform the values of

the CPU usage seconds counter into a more useful

representation of CPU usage; this is done by calling

the create invocation() method, which takes as argu-

ments the name of the aggregator function to be in-

voked and a dictionary containing the invocation pa-

rameters. The return value of this method is then asso-

ciated with the subquery via another object property.

On lines 11–13, the two subqueries are added

as components of the main query and the query is

executed. The variable result will now contain the

query result, which is an instance of the QueryResult

class. Associated with this object will be two more

QueryResult instances, one for each subquery, which

can be accessed via an object property. These, in turn,

provide access to the data returned by the subqueries,

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

158

which the user can retrieve using the methods of the

DataContainer class. These use the methods of the

MongoDatabase class to retrieve the data from the lo-

cal MongoDB server, but the user does not need to be

aware of this.

Figure 4 depicts a machine learning application

that uses the API to retrieve metric data on resource

usage and electricity consumption, exported into two

separate databases from a Kubernetes cluster (1). The

load forecasting component uses the resource usage

data to generate predictions of future load (2), and

these are then combined with the electricity consump-

tion data by the resource allocation control compo-

nent (3). This outputs resource management strate-

gies that are handed over to the Kubernetes cluster

and used to determine optimal times for starting up

and shutting down virtual machines (4).

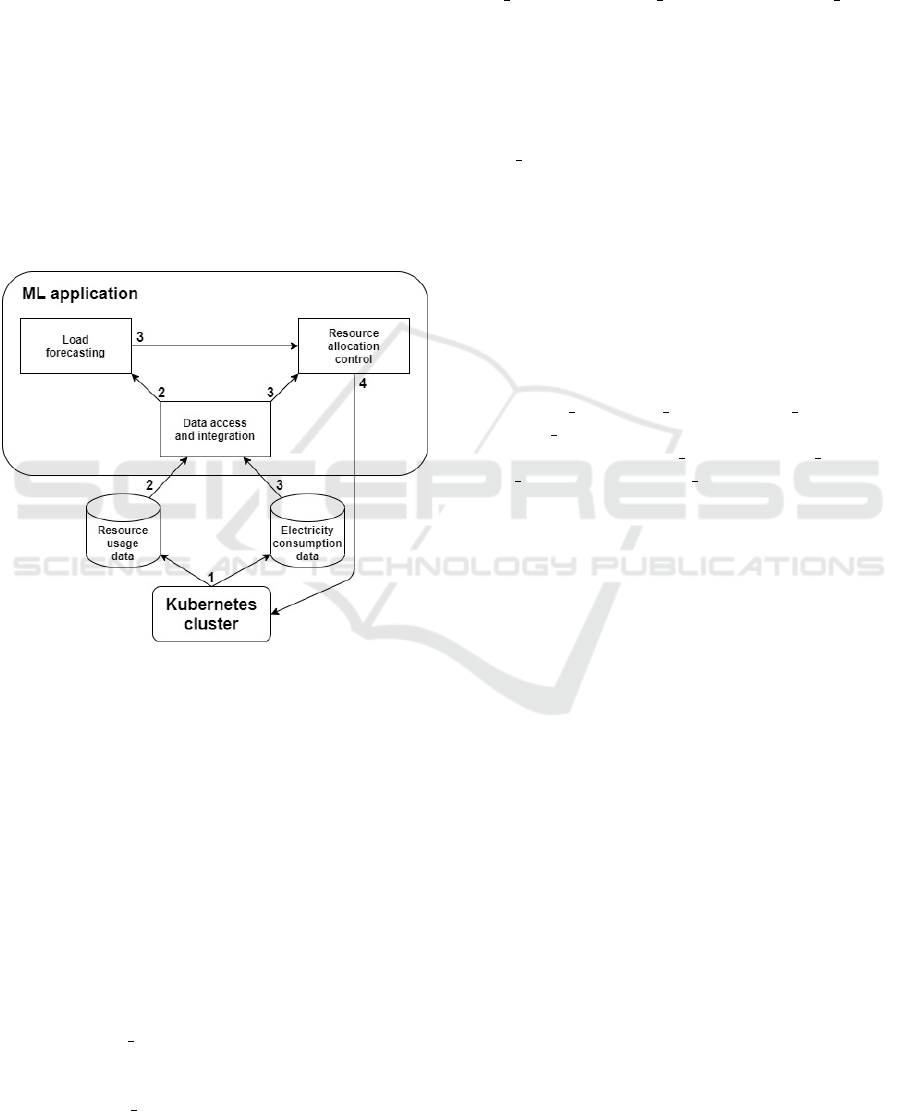

Figure 4: An overview of a machine learning application

designed to optimize resource management in a Kubernetes

cluster. The application uses the ontology-based API (la-

beled ‘Data access and integration’) to retrieve input data

from multiple databases.

7 EXTENDING THE API

The API includes several abstract classes designed to

be subclassed by the user to extend the capabilities

of the API. The most important one of these is the

QueryProcessor class. As discussed in Section 5, the

API depends on implementations of the QueryProces-

sor interface to translate between semantic (system-

independent) and system-speciﬁc representations of

queries and query results; each database registered

using the create database() method of KubernetesOn-

tology must have a query processor associated with

it before queries can be sent to the database. By de-

fault, the create database() method makes this asso-

ciation automatically by searching the ontology for

a QueryProcessor individual whose hasDatabaseType

property value matches the type of the database.

Implementations of the QueryProcessor inter-

face are required to implement two methods, for-

mat query() and parse result(). The format query()

method takes as argument the query to be formatted (a

DatabaseQuery instance), and additionally the HTTP

request method to be used to send the query, since this

may affect the formatting. The return value is a dictio-

nary or string that can be passed as an argument to an

invocation of Requests.get() or Requests.post(). The

parse result() method takes as argument the HTTP

response received, and additionally the type of the

query, which affects the parsing. The return value is a

QueryResult instance representing the result.

Another abstract class that the user of the API

can derive subclasses from is the AnalyticsDatabase

class. By creating a new implementation of the An-

alyticsDatabase interface, the user can use a database

system other than MongoDB as the local storage

backend for data containers. Implementations of

the AnalyticsDatabase inteface must implement the

methods set

connection params(), open connection()

and close connection() for connection management,

and the methods write content(), read content(),

write metadata() and read metadata() for data ma-

nipulation.

Users of the API are also intended to be able to

create their own subclasses of the AnalyticsOpera-

tor class. This aspect of the API is currently under

construction, but the general idea of the operators is

that they accept one or more data containers as inputs,

process their contents and generate one or more data

containers as outputs. Implementing these operators

as ontology classes enables them to be stored in the

ontology and reused in a similar way that database

queries can be stored and reused.

To adapt the API to a different application domain,

it is ﬁrst necessary to model the domain semantics

as ontology classes and properties. Query processors

capable of interpreting these semantics can then be

implemented. The existing query processor classes

cannot be subclassed for this purpose, but if the same

database systems are being used, much of the code of

the existing query processors can still be reused.

8 DISCUSSION

The query mechanism of the API satisﬁes the essen-

tial requirements R1–R3, as well as the non-essential

requirements R8 and R9. The time range of the query

(R2) is speciﬁed via data properties of the Database-

Ontology-based Framework for Integration of Time Series Data: Application in Predictive Analytics on Data Center Monitoring Metrics

159

Query object representing the query, and the target

metric (R1), target nodes (R3) and possible aggre-

gator invocations (R9) via object properties. Multi-

ple target metrics (R8) can be speciﬁed by creating a

compound query where each of the desired metrics is

retrieved by a distinct subquery.

Something worth noting about the query API here

is that it is an abstraction of concepts and features that

are found in both Prometheus and KairosDB. This

means that if a given feature is found in one of the

supported database systems but not the other, it is not

supported by the API, because if it were, this would

involve exposing system-speciﬁc implementation de-

tails to the user, which we have speciﬁcally aimed to

avoid. On the other hand, this functionality trade-off

means that the API can do something that none of the

APIs of the supported database systems can, namely

run queries that retrieve data from several different

databases as if they formed a single data store with a

uniﬁed interface.

Reuse of queries (R4) is enabled by the storage

of queries as individuals in the ontology. An iden-

tifying name can be assigned to each query in the

form of a data property value, enabling the user to

retrieve the query later. Local storage of retrieved

data (R5) is possible directly in the ontology or, us-

ing the MongoDatabase implementation of the Ana-

lyticsDatabase interface, on a MongoDB server. By

default, the MongoDB server is assumed to be run-

ning on localhost, but the MongoDatabase class can

also be conﬁgured to connect to a remote host.

Requirement R6 is also satisﬁed, since the queries

are expressed using classes and properties deﬁned in

the ontology rather than any system-speciﬁc query

language. To set up the MonitoringDatabase ob-

jects, the user needs to know the base URLs of the

REST APIs of the databases used and the username

and password to be used to access each database.

Additionally, the user needs to designate one of the

databases as the primary database. The Python frame-

work sets up the API endpoints for different query

types and associates the appropriate query processor

with each database. Some trade-offs are made here

between supporting a speciﬁc application domain and

making the API as generic as possible, and this is

something we intend to address in future work in or-

der to improve the adaptability of the API, with the

aim to release it to the community as open-source

software.

Requirement R10 is taken into account in the

design of the ontology with the AnalyticsOperation

class and its subclasses, but the Python framework

does not currently implement any logic for these

classes. This is another aspect of the API that we

are planning to address in future work. The API

should provide data transformation operators with

wide applicability, such as atomic operators for com-

mon pre-processing tasks and a compound operator

for chaining multiple atomic operators to be applied

as a pipeline.

An example of a useful real-world application that

can be implemented using the API is given in Section

6. Although this is just an example, it is worth not-

ing that the API has been designed speciﬁcally with

the development of machine learning and data mining

applications in mind. With tight integration between

the ontology and the Python language enabled by the

Owlready2 package, the API provides an intuitive

syntax for data access where the application developer

can specify queries using Python object representa-

tions of query targets as described above. The query

results are represented in a format that preserves their

semantics while making it convenient for the devel-

oper to process the retrieved data using the wide array

of data analytics libraries available for Python.

This approach distinguishes our API from the sys-

tems reviewed in Section 2, which place more em-

phasis on modeling the semantics of the data in the

databases on a detailed level. We have opted to model

the domain on a higher level of abstraction, resulting

in a lightweight ontology that can be populated auto-

matically with information such as metric and node

names and adapted with relatively little effort to sup-

port different applications. Building additional levels

of detail into the ontology might cost us some of these

beneﬁts but bring others, such as more potential for

making use of automated reasoning. Therefore an-

other question we intend to explore in future work is

what is the most appropriate level of semantic model-

ing for the purposes of our API.

9 CONCLUSIONS

In this paper we presented a domain ontology and

Python software framework designed for accessing

and integrating time series data stored in remote

databases. The ontology deﬁnes a language for spec-

ifying queries in terms of system-independent con-

cepts instead of system-speciﬁc query language con-

structs, and the Python framework provides an engine

for translating queries and query results between se-

mantic representations and system-speciﬁc formats.

The ontology and framework together form a time se-

ries database API in which queries are built in a mod-

ular fashion from Python object representations of on-

tology elements.

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

160

The original motivation for the API is an ap-

plication where monitoring metrics collected from a

Kubernetes-based data center are integrated from two

different time series database systems for the purpose

of developing predictive models and optimization al-

gorithms. However, the API is designed to be adapt-

able to different use cases, and users can extend its ca-

pabilities by writing new implementations of abstract

classes provided for this purpose. In future work we

aim to further improve the adaptability of the API and

to extend it with data transformation operators that

make it more convenient for users to pre-process re-

trieved data for analysis.

ACKNOWLEDGEMENTS

The work presented in this paper was carried out as

part of the ArctiqDC project, with ﬁnancial support

from the European Regional Development Fund via

the Interreg Nord program. We would also like to

thank Daniel Olsson of RISE Research Institutes of

Sweden for providing access to the databases used.

REFERENCES

Boukadi, K., Rekik, M., Bernabe, J. B., and Lloret, J.

(2020). Container description ontology for CaaS.

International Journal of Web and Grid Services,

16(4):341–363.

Deng, Y., Sarkar, R., Ramasamy, H., Hosn, R., and Mahin-

dru, R. (2013). An ontology-based framework for

model-driven analysis of situations in data centers.

In 2013 IEEE International Conference on Services

Computing, pages 288–295.

El Kaed, C. and Boujonnier, M. (2017). FOrT

E: A feder-

ated ontology and timeseries query engine. In 2017

IEEE International Conference on Internet of Things

(iThings) and IEEE Green Computing and Commu-

nications (GreenCom) and IEEE Cyber, Physical and

Social Computing (CPSCom) and IEEE Smart Data

(SmartData), pages 983–990.

ebert, A. (2019). TSL: a developer-friendly time

series query language for all our metrics. URL:

https://www.ovh.com/blog/tsl-a-developer-friendly-

time-series-query-language-for-all-our-metrics/,

accessed 9 May, 2021.

Hossayni, H., Khan, I., and El Kaed, C. (2018). Embed-

ded semantic engine for numerical time series data.

In 2018 Global Internet of Things Summit (GIoTS),

pages 1–6.

KairosDB (2021). KairosDB documentation v1.2.0

— KairosDB 1.0.1 documentation. URL:

http://kairosdb.github.io/docs/build/html/index.html,

accessed 9 May, 2021.

Koorapati, K., Rubini, P., Ramesh, P. K., and Veeraswamy,

S. (2020). Ontology based power proﬁling for in-

ternet of things deployed with software deﬁned data

center. Journal of Computational and Theoretical

Nanoscience, 17(1):479–487.

Kubernetes (2021). What is Kubernetes? URL:

https://kubernetes.io/docs/concepts/overview/what-

is-kubernetes/, accessed 9 May, 2021.

Lamy, J.-B. (2017). Owlready: Ontology-oriented pro-

gramming in Python with automatic classiﬁcation and

high level constructs for biomedical ontologies. Arti-

ﬁcial Intelligence in Medicine, 80:11–28.

Memari, A., Vornberger, J., G

omez, J. M., and Nebel, W.

(2016). A data center simulation framework based on

an ontological foundation. In Marx Gomez, J., Son-

nenschein, M., Vogel, U., Winter, A., Rapp, B., and

Giesen, N., editors, Advances and New Trends in Envi-

ronmental and Energy Informatics: Selected and Ex-

tended Contributions from the 28th International Con-

ference on Informatics for Environmental Protection,

Progress in IS, pages 39–57. Springer International

Publishing.

Metwally, K. M., Jarray, A., and Karmouch, A. (2015).

Two-phase ontology-based resource allocation ap-

proach for IaaS cloud service. In 2015 12th An-

nual IEEE Consumer Communications and Network-

ing Conference (CCNC), pages 790–795.

Musen, M. A. and the Prot

e Team (2015). The Prot

project: A look back and a look forward. AI Matters,

1(4):4–12.

Prometheus (2021). Overview | Prometheus. URL:

https://prometheus.io/docs/introduction/overview/,

accessed 9 May, 2021.

Xiao, G., Calvanese, D., Kontchakov, R., Lembo, D.,

Poggi, A., Rosati, R., and Zakharyaschev, M. (2018).

Ontology-based data access: A survey. In Proceed-

ings of the Twenty-Seventh International Joint Con-

ference on Artiﬁcial Intelligence (IJCAI-18), pages

5511–5519.

Zhang, S., Yen, I., and Bastani, F. B. (2016). Toward se-

mantic enhancement of monitoring data repository. In

2016 IEEE Tenth International Conference on Seman-

tic Computing (ICSC), pages 140–147.

Zhang, S., Zeng, W., Yen, I., and Bastani, F. B. (2019).

Semantically enhanced time series databases in IoT-

edge-cloud infrastructure. In 2019 IEEE 19th Inter-

national Symposium on High Assurance Systems En-

gineering (HASE), pages 25–32.

Ontology-based Framework for Integration of Time Series Data: Application in Predictive Analytics on Data Center Monitoring Metrics

161
