Towards Automation of Regulatory Compliance Checking in the Product

Design Phase

Malte Ramonat

, Andreas W. M

uller

and Alexander Fay

Institute of Automation, Helmut Schmidt University Hamburg, Holstenhofweg 85, Hamburg, Germany

Data & Analytics Governance, Schaefﬂer AG, Herzogenaurach, Germany

Keywords:

Regulatory Compliance Checking, Table Extraction, Formula Extraction, Ontology Design.

Abstract:

The process of checking if a designed product is compliant with standards is time-consuming and error-prone.

This paper presents an approach for the automation of compliance checking using tables and formulae of

standards as information sources. An ontology is created to enable comparisons between parameter values

speciﬁed in standards in the form of a PDF document and parameter values of a designed product saved in a

3D PDF document. The extraction of regulatory information from PDF documents is discussed and software

tools for information extraction are compared.

1 INTRODUCTION

Technical standards provide knowledge for maintain-

ing a certain quality level for products or services.

Especially during the product development process,

standards specify a leeway for the product design.

The Portable Document Format (PDF) has become

the most common digital format in which standards

are provided by standards committees. PDF docu-

ments are widely used throughout the product life

cycle due to their portability and platform indepen-

dence. Information within PDF documents is either

unstructured or semi-structured, i.e. it is human-

readable but not interpretable for machines (Khusro

et al., 2015).

This lack of machine-interpretability makes the

process of verifying the compliance with require-

ments from regularities such as technical standards

labor-intensive. In the process of regulatory com-

pliance checking (RCC) during the product design

phase, the engineer ﬁrst needs to ﬁnd the standards

relevant for the designed product. Then, the engineer

compares a required value from a speciﬁc section of

a standard to a value of the designed product and pos-

sibly makes adjustments to the product design. This

process of RCC has to be repeated multiple times dur-

ing the product design phase. Thus, manual RCC is

time-intensive and error-prone (Manoharan, 2019). If

technical dependencies between different engineering

departments occur for the designed product, errors in

RCC of one department can have a big impact on

the whole development process (Jager, 2011). More-

over, RCC is not necessarily only conducted by the

company designing the product but also by certiﬁca-

tion organisations. In the certiﬁcation process multi-

ple feedback loops between certiﬁcation organisation

and the manufacturer are necessary if the designed

product is not ﬁt for certiﬁcation. Each such feed-

back loop increases the manual effort for RCC for

both involved parties. Due to the amount of manual

labor put into RCC, both manufacturers and certiﬁ-

cation organisations depend signiﬁcantly on the reg-

ularity knowledge of their involved employees. An

automation of the RCC process is highly desirable, as

it would not only accelerate the design and certiﬁca-

tion of new products but also reduce the risk of er-

rors during the process and decrease the dependency

of a company on the knowledge of single employees.

In order to automate the RCC, standard documents

need to be made machine-interpretable. Ontologies

can be used to enable machine-interpretability of re-

quirements stated in the standards. An approach is

presented in this paper demonstrating how ontologies

can be connected to requirements stated in standard

PDF documents.

The remainder of this paper is organized as fol-

lows: In Section 2 a scenario for the application is

presented. Section 3 shows an analysis of publica-

tions related to automation of RCC. In Section 4 the

proposed approach is outlined with its main parts be-

ing described in Subsections 4.1 and 4.2. Section 5

completes the paper with a conclusion and outlook.

136

Ramonat, M., Müller, A. and Fay, A.

Towards Automation of Regulatory Compliance Checking in the Product Design Phase.

DOI: 10.5220/0010644500003064

In Proceedings of the 13th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2021) - Volume 2: KEOD, pages 136-143

ISBN: 978-989-758-533-3; ISSN: 2184-3228

2 APPLICATION SCENARIO

It is common practice for engineers in product design

to reuse existing concepts, e.g. in form of 3D CAD

models, to create complex designs. Depending on

the respective product and its designated ﬁelds of use,

such supplied models must meet various standards-

based quality criteria. In a typical workﬂow an engi-

neer needs to know all the relevant criteria before he

or she can choose to apply a reusable concept in a par-

ticular context. Alternatively, he or she must look up,

ﬁnd and correctly interpret the necessary information

in the potentially very large knowledge corpus of the

relevant standards documents.

In the example shown in Figure 1 the engineer

needs to check whether the dimensioning and surface

properties of the part described in the 3D PDF ﬁle are

compliant with underlying standards.

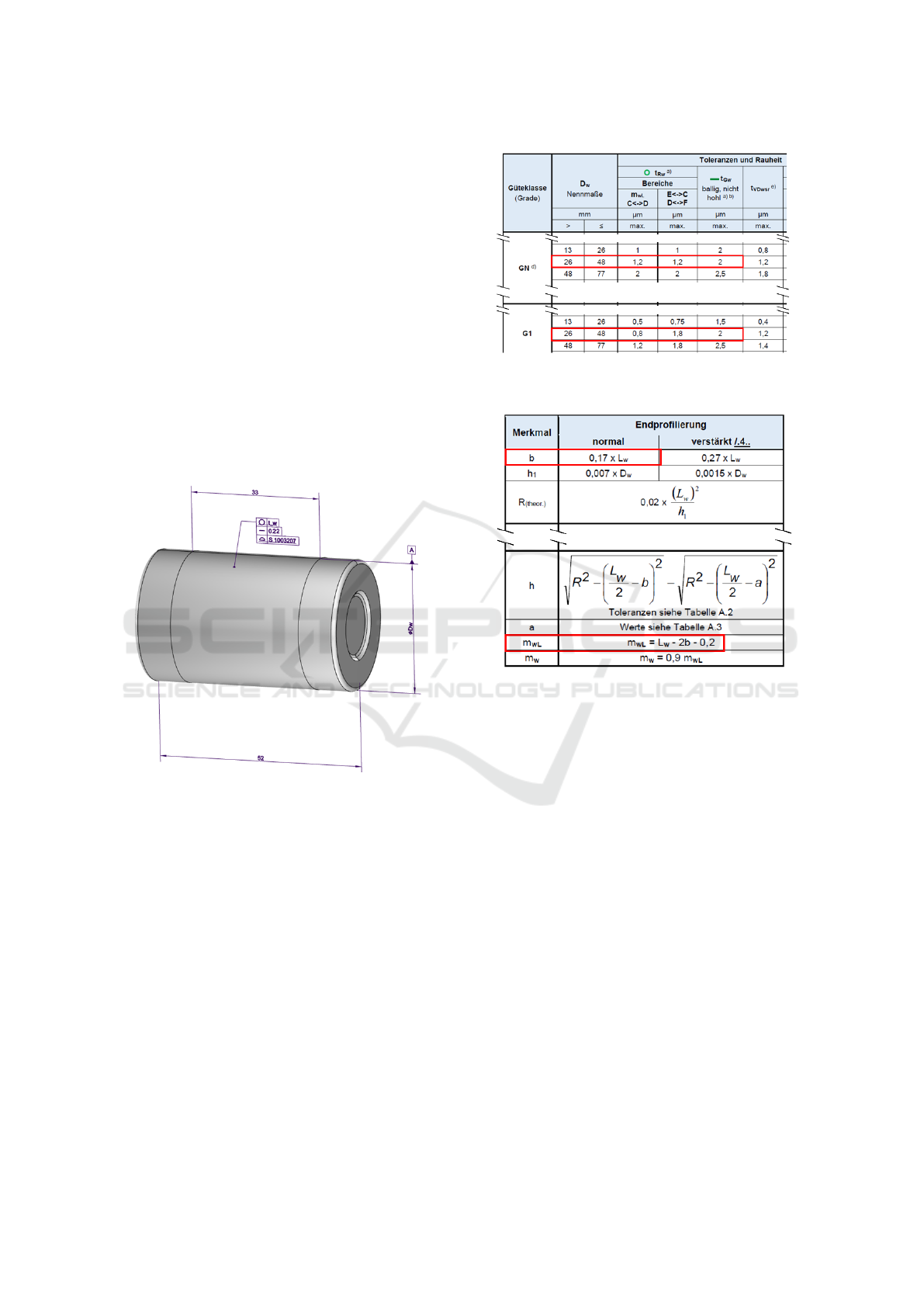

Figure 1: Example for a 3D PDF with sample properties.

The engineer can currently only gather the infor-

mation necessary for checking the compliance with

these standards from PDF documents. In the refer-

enced standards the necessary dimensioning and sur-

face information are also given in human-readable

form of tables and formulae. Hence, the engineer has

to read and understand the table shown in Figure 2,

and may even have to further perform calculations ac-

cording to the applicable formulae (see Figure 3). In

all cases the relevant attributes and their values must

be properly identiﬁed in and taken from the 3D PDF

product design and matched with the correct attributes

in the correct tables and formulae.

In order to provide the engineer with a time-saving

automatic checking of these criteria by means of an

RCC pipeline, the involved values, tables, and formu-

lae must all be semantically well-described.

Figure 2: Example section of a dimensioning table with

complex header structures and sample values.

Figure 3: Example section of a proﬁles table with complex

cell contents and sample values.

3 RELATED WORK

Various efforts have been made towards the automa-

tion of the RCC process. (Zhang and El-Gohary,

2015) propose a method for automatic RCC in the

construction sector by using ontology-based logic

clauses. Requirements are automatically extracted

from a PDF document using natural language pro-

cessing. The extracted information is formalised into

logic clauses that can be used for reasoning. The pub-

lication is followed by (Zhang and El-Gohary, 2017)

in which a reasoning schema for RCC is presented.

Both publications focus on textual requirements.

In (Beach, 2013) a framework for RCC in the con-

struction sector is described, in which domain experts

create and maintain requirements from standards. Re-

quirements are extracted from regulation documents

and are enriched with metadata by domain experts.

The requirements are then transferred into a rule en-

gine, which can be used for RCC. In this publication

textual requirements are focused. Due to the manual

Towards Automation of Regulatory Compliance Checking in the Product Design Phase

137

extraction and maintenance of requirements the pro-

posed framework is labor-intensive.

In (Manoharan, 2019) the digitisation of require-

ments from standards and their integration into the

product design process is examined. Information

from standards is manually extracted and uploaded

to a graph database, which can be accessed by CAD

tools. For the presented method the requirements in

the standard had to be manually extracted and con-

verted into the JSON format from the standard. The

authors criticise the manual effort for the information

extraction and upload into the database and advise

against using this method in general.

In a following publication (Loibl et al., 2020) pro-

pose a procedure for the transformation of standards’

contents into a machine-executable form. Standards

are classiﬁed according to their eligibility for a con-

version into a machine-executable format. It is stated

that standards primarily containing tables, formulae

and text in form of property speciﬁcations are espe-

cially suited for machine-executability because they

possess a high level of unambiguousness. To vali-

date their approach, a data-graph from the standard

is transformed into a table which is formalized into a

machine-executable format. The information is then

transferred to a graph database and provided by web-

services.The steps described above are carried out

manually making this approach labor-intensive. For-

mulae and tables in the original PDF document are

not addressed.

The majority of previous efforts discuss the au-

tomation of the RCC process for the construction sec-

tor. Automated RCC for the product design phase

should be studied more profoundly due to possible

time savings and error prevention. In previous publi-

cations mostly requirements in textual form were fo-

cused. Tables and formulae are less ambiguous than

textual requirements and should therefore be utilised

in the automation of RCC. To the best of our knowl-

edge no authors have discussed an automation of RCC

for the product design phase using tables and formula

as the source of requirements from standards.

4 APPROACH TO AUTOMATIC

COMPLIANCE CHECKING

The automation of the RCC process can be achieved

in two different ways. The ﬁrst way is to create

standards in a machine-interpretable format, e.g. in

the machine-readable Extensible Markup Language

(XML) format. This is state-of-the-art in the stan-

dardisation process. In such standard documents, tags

are used to add semantics to different sections of the

document. However, the tags used are not detailed

enough to make the standard machine-interpretable

(Loibl et al., 2020). Currently, efforts are taken to

change the creation process of standards to allow that,

in future, machine-interpretable standards are created.

However, the timescale until these efforts will be im-

plemented is unclear. This is due to the complex de-

velopment process of a semantic tag set and also be-

cause of the amount of manual effort required for the

semantic tagging of standards’ contents. It is also un-

clear if the envisioned tag set will grant a suitable

level of accuracy for companies as the responsibility

of tag set creation lies with standards committees.

The second way for the automation of RCC is a

post-processing of the existing standards, which have

been provided as PDF documents. Following this

way, results can be obtained faster because less co-

ordination between organisations is necessary. Ad-

ditionally this post-processing can be applied to all

existing standards, whereas the ﬁrst way can only be

applied to newly created standards. A post-processing

method could also be applied more easily to internal

standards of companies.

In the following sections, the second way is be-

ing followed, i.e. a post-processing approach to en-

able automatic RCC using PDF ﬁles of standards is

proposed. Thus, information is extracted especially

from tables and formulae of standards in form of PDF

ﬁles by means of appropriate software tools. The ex-

tracted information is mapped into an ontology. The

information from the product description in form of a

3D PDF ﬁle is also extracted and mapped into the on-

tology. Thus, within the ontology, compliance checks

can be executed.

4.1 Information Model for Regulatory

Compliance Checking

In order to check if the properties of the product

description match the required values in a standard,

both values have to be made comparable. This can

be achieved by loading the information from both

sources into the same information model (IM). In sub-

section 4.1.1 a suitable type of IM is chosen based on

established requirements. A modeling language for

the chosen type of IM is selected. In subsection 4.1.2

a prototypical implementation for the IM is described.

4.1.1 Information Model Type and Modeling

Language Selection

The type of IM used for implementation has to meet

certain requirements. These IM requirements (IMR)

are derived from the application scenario and from a

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

138

literature review. They are described hereinafter in

order of their importance to the application scenario.

IMR1 (Machine-interpretability): In order to

automate RCC, the IM needs to be machine-

interpretable. To achieve this, the IM should store

information and also provide means to enrich it with

contextual meaning, i.e. semantics (Bettini, 2010)

IMR2 (Value comparison): The IM must provide

means for the automatic comparison of values stated

in tables or formulae within a standard to parameter

values presented in the product description. Semantic

structures of tables and formulae as well as means to

make both values comparable must be supported to

achieve this.

IMR3 (Compatibility): The IM must be accessible

by programs so that compliance checks can be applied

automatically. For this purpose, the IM must provide

non-proprietary interfaces so that other programs can

query the database from outside.

IMR4 (General applicability): In order for the IM

to be be applicable to other application scenarios, it

needs to be reusable and extendable (Glawe, M., et

al., 2015).

For the implementation of the IM, relational

databases and ontologies are compared. Both rela-

tional databases and ontologies enable value com-

parision and can be accessed by other programs.

Machine-interpretability is only supported by ontolo-

gies because their semantic triple structure allows the

modelling of complex semantics. Additionally, on-

tologies provide more ﬂexibility compared to rela-

tional databases as they can easily be extended and

reused (Loibl et al., 2020). Therefore, ontologies have

been chosen for the implementation.

The Web Ontology Language (OWL) is suitable to

model an ontology for the application scenario due to

its high level of formalisation and because of its com-

patibility to various software tools. Also, an ontology

built with OWL can easily be connected to other on-

tologies due to the open world assumption of OWL.

4.1.2 Information Model Formalisation

An ontology has been created using OWL to for-

malise information from both tables and formulae.

Their structures have been represented such that the

information extracted from standards can be mapped

to the ontology. An excerpt of the ontology is de-

picted in Figure 4 reﬂecting the structure of the table

in Figure 2.

Firstly, terminological components, i.e. T-Box el-

ements, are built to formalise the general structure of

tables. Classes are depicted in white. Object proper-

ties and datatype properties are shown in blue and red,

respectively. The table structure is reﬂected by classes

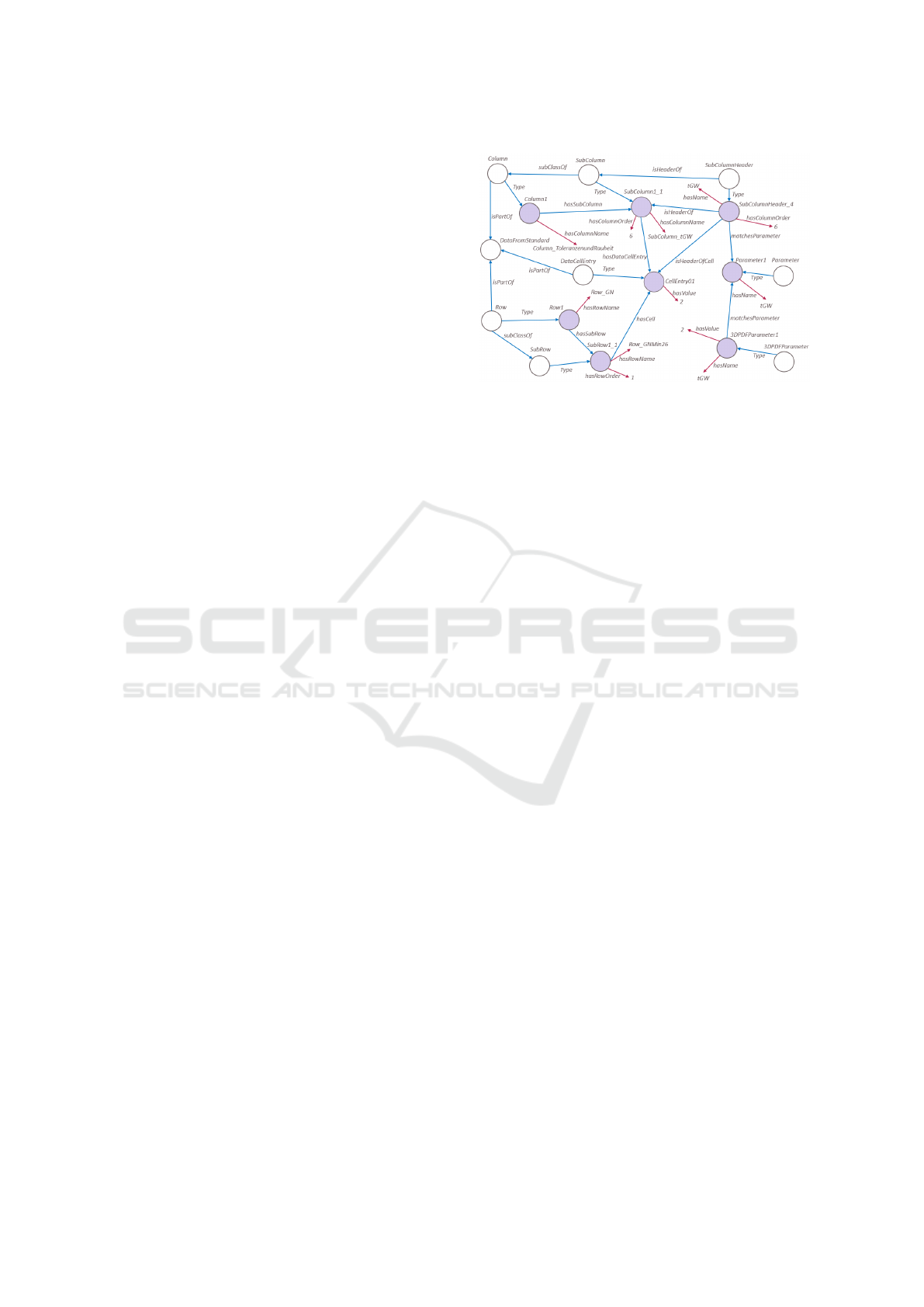

Figure 4: Ontology for allocation of parameter values from

tables.

for columns, subcolumns, rows and subrows as well

as for data-cells and header-cells. Secondly, asser-

tional components, i.e. A-Box elements, are added.

Individuals are created for columns and subcolumns

as well as for rows and subrows, they are depicted in

purple. They are connected to cell-entry-individuals,

which hold parameter values as datatype properties.

Individuals for header-cells holding parameter names

as datatype properties are also connected to the cell-

entry-individuals. This way, names and values of pa-

rameters are connected. Names and values of param-

eters of the product description in the 3D PDF ﬁle

are included in the ontology as datatype properties of

3D-PDF-parameter-individuals. Means of compari-

son are provided by linking the individuals of header-

cells and 3D-PDF-parameters to individuals of the

class ”Parameter”. The individuals of the three dif-

ferent classes share the same value for the datatype

property ”hasName”. A comparison between table

values and 3D PDF values can thus be conducted by

SPARQL queries. In order for the value comparison

to work, it is important that the same naming conven-

tion is followed for parameter names of both the stan-

dard and the product description (Hildebrandt, 2020).

If this is not the case, a workaround using matching

tables has to be used.

4.2 Extraction of Information from

Standards

In order to transfer the required values stated in ta-

bles and formulae of standards into the created ontol-

ogy, they have to be extracted by means of a software

tool. In Subsection 4.2.1 different software tools for

content extraction are compared based on established

requirements. After a suitable software has been cho-

sen, its output is analysed in Subsection 4.2.2.

Towards Automation of Regulatory Compliance Checking in the Product Design Phase

139

4.2.1 Selection of Extraction Software

The extraction software has to meet certain require-

ments to be suitable for the application scenario.

These software requirements (SR) described here-

inafter result from a literature review and an analysis

of the application scenario.

SR1 (Recognition and extraction of content): Pre-

ceding the extraction, the relevant information in the

standard has to be identiﬁed. Tables and formulae

have to be recognised. Contents of tables and for-

mulae such as numerical values and formula symbols

have to be recognised. For table recognition the con-

tent of individual table cells should be distinguished

(Khusro et al., 2015). The distinction between header-

and data-cells is also desirable because header-cells

can add semantics to data-cells of the same column

(Yildiz et al., 2005). Formulae should be recognised,

even if their shape is changed due to mathematical op-

erators like fractions or sums. Indexes and exponents

of formula elements as well as mathematical opera-

tors should be recognised (Chan and Yeung, 2000).

In addition to the recognition of table and formula

elements they should also be extracted.

SR2 (High quality results): The recognition of

tables and formula should yield high quality results.

Precision and recall can be used for result evaluation

(Wei et al., 2006). Precision is deﬁned as the num-

ber of correctly recognised objects in relation to the

total number of recognised objects in the document,

whereas recall is deﬁned as the number of correctly

recognised objects in relation to the total number of

objects in the document. Simple and complex tables

with connected cells should be recognised and ex-

tracted with comparable levels of precision and recall

(Yildiz et al., 2005). The same applies for the differ-

ent kinds of formulae.

SR3 (Broad range of applicability): To provide

a broad range of applicability, the software needs to

be usable for different types of document layouts and

should run on various operating systems (Pitale and

Sharma, 2011).

SR4 (Mature and standalone software): For a

smooth extraction of standard content, a standalone

software, which is not dependent on results of other

software, should be used. Using a mature, off-the-

shelf software would be desirable because this re-

duces the setup time. A mature software is also likely

to be less error-prone.

SR5 (Extraction of metadata): Metadata such as

the name of the document and the author or the issu-

ing date are important for the contextualisation of the

standard’s content and should thus be extracted (Pitale

and Sharma, 2011).

SR6 (Compatibility to the information model): In

Section 4.1 OWL has been chosen for the formalisa-

tion of the ontology. The software should therefore

extract the structure and content of tables and formu-

lae and present them in a format which can be mapped

into OWL.

SR7 (Availability): The software tool needs to be

available so that it can be used to implement an ex-

traction.

The requirements SR1, SR4, SR6 and SR7 are

classiﬁed as critical for the application scenario. In

the following comparison, a software tool is chosen

that meets all critical requirements and also meets the

most non-critical requirements.

Previous efforts and commercial software tools

have been searched for in a literature review and on-

line research. The software tools best ﬁtting to the

application scenario are listed in Table 1. Each soft-

ware tool is evaluated regarding the fulﬁllment of the

above-mentioned requirements. A distinction is made

between fulﬁlled [X], partly fulﬁlled [(X)] and un-

fulﬁlled [X] requirements as well as insufﬁcient in-

formation [?] for evaluation. The availability of the

software is rated with [X] if the software is avail-

able free of charge, [(X)] if it is a commercial soft-

ware and [X] if it cannot be acquired. The software

tools are categorised by tools for both table and for-

mula extraction, only table extraction and only for-

mula extraction and are arranged by their availability.

The requirements have been evaluated on the basis

of the software capabilities described by the software

creators and in related publications such as (Khusro

et al., 2015), (Perez-Arriaga et al., 2016) or (Con-

stantin et al., 2013).

It becomes apparent that no extraction software

meets all requirements. Of the 21 software tools

shown in Table 1, six are not available. Twelve soft-

ware tools do not meet other critical requirements and

thus cannot be used. The software tools SectLabel,

ABBYY FineReader and Nitro Pro do not recognise

information in tables or formulae with satisfactory ac-

curacy. Pdf2xml detects the information but does not

extract it. PDF-Extract, pdf2table, PDFFigures2, pdf-

table-extract, TableSeer and iText are dependent on

results of other software and therefore are no stan-

dalone software. The software tools Sumatra PDF and

i2OCR generate output in a format which is not com-

patible with the created OWL ontology described in

Section 4.1.

The critical requirements are met by PDFX,

Adobe Acrobat Pro and InftyReader. PDFX is an

online tool which converts PDF documents into the

XML format. The XML format is suitable for the ap-

proach due to its compatibility to OWL and because

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

140

Table 1: Comparison of previous efforts and commercial software for table and formula extraction.

Requirements

Software Tools SR1 SR2 SR3 SR4 SR5 SR6 SR7

Tables & formulae

PDFX (Constantin et al., 2013) (X) X X (X) X X X

PDF-Extract (Berg et al., 2012) (X) X X X X X X

SectLabel (Luong et al., 2012) X ? X X X X X

Adobe Acrobat Pro (Adobe, 2021) (X) X X X X X (X)

ABBYY FineReader (ABBYY, 2021) X X X X X (X) (X)

Nitro Pro (Nitro Software, Inc., 2021) X X X X ? (X) (X)

(Wei et al., 2006) (X) X (X) X X X X

Tables

Pdf2table (Yildiz et al., 2005) X X (X) X X X X

PDFFigures2 (Clark and Divvala, 2016) (X) X X X X X X

pdf-table-extract (Lee et al., 2014) X ? X X ? X X

Pdf2xml (D

ejean and Meunier, 2006) X ? X X X X X

TableSeer (Liu, Y., 2009) X ? ? X X X X

Sumatra PDF (Sumatra, 2021) (X) X X X X X X

iText (iText Group nv, 2021) (X) X ? X X X (X)

XONTO (Oro and Ruffolo, 2008) X ? X X X X X

PDF-TREX (Oro and Ruffolo, 2009) X ? X X X X X

TAO (Perez-Arriaga et al., 2016) X ? X X X (X) X

Formulae

i2OCR (Sciweavers LLC, 2021) (X) ? X X X X X

InftyReader (Suzuki, 2004) X (X) X X ? X (X)

(Garain and Chaudhuri, 2005) X ? X X X X X

MaxTract (Baker et al., 2012) X ? X X ? (X) X

it is both human-readable and machine-interpretable

(Schmidberger and Fay, 2007). Because standards are

conﬁdential documents of high value, an online con-

version tool like PDFX cannot be used due to pos-

sible security leakages. The InftyReader meets the

critical requirements and is also applicable to differ-

ent document types. It converts formula content into

MathML output. The MathML format is compati-

ble to OWL and enables structuring of mathematical

equations in a detailed and hierarchical way (Schmid-

berger and Fay, 2007). Thus, it is suited for the pro-

posed approach. The InftyReader is limited to the ex-

traction of formulae and does not detect tables. There-

fore, formulae within tables cannot be extracted. For

many standards such as the one presented in Figure

3, formulae are, however, depicted within tables mak-

ing the InftyReader not usable. Adobe Acrobat Pro

is chosen for both formula and table extraction as it

meets all critical requirements. It can be used to con-

vert PDF documents into the XML format which can

be mapped into OWL. Adobe Acrobat Pro works for

digitally created PDF documents but does not recog-

nise a table or formula if it is added as a ﬁgure in the

original ﬁle. Because of this, Adobe Acrobat Pro does

not work for scanned documents. This means that the

extraction cannot be generalised to all kinds of PDF

documents. It has to be noted that Adobe Acrobat Pro

is chosen due to the absence of a satisfactory alter-

native. Additionally, none of the software tools can

distinguish between header- and data-cells of tables.

This proves that the technical infrastructure for a fully

functional method for post-processing of PDF docu-

ments has yet to be implemented.

4.2.2 Analysis of Software Output

Adobe Acrobat Pro has been used to convert the table

shown in Figure 2 into the XML format. An excerpt

of the output is shown in Figure 5.

Figure 5: XML Output of Adobe Acrobat Pro.

Towards Automation of Regulatory Compliance Checking in the Product Design Phase

141

Tags are assigned to table rows, columns and to

the table itself. header-cells and data-cells are not

tagged as such. Multi-row-cells of tables are con-

verted into multiple cells. The content of multi-row-

cells is saved in the uppermost cell, all other cells are

blank. Multi-column-cells are considered as single

cells. Thus, the number of columns per row can vary.

This is problematic for the mapping of information

from tables with complex header structures such as

the table shown in Figure 2 because headers of differ-

ent rows can in some cases not be assigned to the same

column. Formulae are converted into plain text with-

out tags for formula components. Formulae inserted

into the original document as a ﬁgure are not con-

verted. Because of the lack of tags and the poor qual-

ity of the formula output, the mapping of the XML

output into the ontology still presents a challenge.

5 CONCLUSION AND OUTLOOK

In this paper it is shown that the automation of RCC is

highly desirable because it leads to time savings and

less errors. An analysis of the related work shows

that the automation of the RCC on the basis of ta-

ble and formula information has not yet been exam-

ined. This research gap has been addressed by this

approach, speciﬁcally for the comparison of param-

eter values from a product description to values of a

standard. In the approach for automatic RCC an on-

tology for table and formula information has been for-

malised. Next, information from a standard and from

the product description has been extracted. For this

step Adobe Acrobat Pro has been chosen. The XML

output of Adobe Acrobat Pro has been analysed with

regards for suitability for information mapping into

the created ontology.

The use of Adobe Acrobat Pro restricts the ap-

proach to the extraction of standards’ requirements

from digitally created PDF documents. This limits

the applicability of the approach. The mapping of

the Adobe Acrobat Pro XML output into the ontology

presents a challenge because tags for detailed formula

and table content are missing. Table header- and data-

cells cannot yet be securely transferred into the ontol-

ogy. Formula calculations still need to be introduced.

Previous efforts have shown that there is no easy-to-

use-way to implement the calculation of complex for-

mulae into ontologies (Hildebrandt, 2017). Formula

calculation needs to be implemented in a different

manner.

Future work will focus on the mapping of the

XML output into the created ontology. A mapping

algorithm needs to be implemented to enable an au-

tomation of the RCC process. The created ontology

needs to be reﬁned so that it is more generally ap-

plicable. Furthermore, an extension of the ontology

adding more detailed descriptions to the parameter

names is planned. Additional research will be devoted

to ﬁnding a more suitable extraction software as well

as to the integration of formula calculations into the

approach.

ACKNOWLEDGEMENTS

This publication resulted from a project between the

Schaefﬂer AG and the Helmut Schmidt University

Hamburg. The authors wish to thank the colleagues

from Schaefﬂer Engineering Standards (in alphabet-

ical order: S

oren Clodius, Markus Franke, Stefan

Gatersleben, Dietmar Lochner, Hans Reichelsdorfer)

for providing and discussing application scenarios.

REFERENCES

ABBYY (2021). Finereader pdf. Retrieved March 6, 2021

from https://pdf.abbyy.com/?redirect-from=old-fr-ce.

Adobe (2021). Acrobat pro. Retrieved March 6, 2021 from

https://acrobat.adobe.com/us/en/acrobat.html.

Baker, J. B., Sexton, A. P., and Sorge, V. (2012). Max-

tract: Converting pdf to latex, mathml and text. In

Intelligent Computer Mathematics, pages 422–426.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Beach, T. H., e. a. (2013). Towards automated compliance

checking in the construction industry. In Database

and Expert Systems Applications, pages 366–380.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Berg, Ø. R., Oepen, S., and Read, J. (2012). To-

wards high-quality text stream extraction from pdf:

Technical background to the acl 2012 contributed

task. In 50th Annual Meeting of the Asso-

ciation for Computational Linguistics, pages 98–

103, Stroudsburg, PA. Association for Compu-

tational Linguistics (ACL). Software available at

https://github.com/oyvindberg/PDFExtract.

Bettini, C., e. a. (2010). A survey of context modelling and

reasoning techniques. Pervasive and Mobile Comput-

ing, 6(2):161–180.

Chan, K. and Yeung, D. (2000). Mathematical expression

recognition: a survey. International Journal on Doc-

ument Analysis and Recognition, 3(1):3–15.

Clark, C. and Divvala, S. (2016). Pdfﬁgures

2.0. In JCDL’16, pages 143–152, Pis-

cataway, NJ. IEEE. Software available at

https://github.com/allenai/pdfﬁgures2.

Constantin, A., Pettifer, S., and Voronkov, A. (2013). Pdfx

fully-automated pdf-to-xml conversion of scientiﬁc li-

etrature. In Proceedings of the 2013 ACM symposium

on Document engineering - DocEng ’13, page 177,

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

142

New York, New York, USA. ACM Press. Software

available at http://pdfx.cs.man.ac.uk/.

ejean, H. and Meunier, J. (2006). A system for converting

pdf documents into structured xml format. In Docu-

ment analysis systems VII, Lecture notes in computer

science, pages 129–140. Springer, Berlin. Software

available at https://sourceforge.net/projects/pdf2xml/.

Garain, U. and Chaudhuri, B. B. (2005). A corpus for ocr

research on mathematical expressions. International

Journal of Document Analysis and Recognition (IJ-

DAR), 7(4):241–259.

Glawe, M., et al. (2015). Knowledge-based engineering of

automation systems using ontologies and engineering

data. In Proceedings of the 7th International Joint

Conference on Knowledge Discovery, Knowledge En-

gineering and Knowledge Management (IC3K 2015),

pages 291–300.

Hildebrandt, C., e. a. (2017). Reasoning on engineering

knowledge: Applications and desired features. In

European Semantic Web Conference, volume 10250

of Lecture notes in computer science, pages 65–78,

Cham. Springer International Publishing.

Hildebrandt, C., e. a. (2020). Ontology building for cyber–

physical systems: Application in the manufacturing

domain. IEEE Transactions on Automation Science

and Engineering, 17(3):1266–1282.

iText Group nv (2021). itext. Retrieved March 6, 2021 from

https://itextpdf.com/.

Jager, T., e. a. (2011). Mining technical dependen-

cies throughout engineering process knowledge. In

ETFA2011, pages 1–7. IEEE.

Khusro, S., Latif, A., and Ullah, I. (2015). On methods

and tools of table detection, extraction and annotation

in pdf documents. Journal of Information Science,

41(1):41–57.

Lee, C., Bzdak, J., and Lannon, B. (2014). pdf-

table-extract. Retrieved March 6, 2021 from

https://github.com/ashima/pdf-table-extract.

Liu, Y. (2009). Tableseer: Automatic Table Extrac-

tion, Search an Understanding. Dissertation, The

Pennsylvania State University. Software available at

https://sourceforge.net/projects/tableseer/.

Loibl, A., Manoharan, T., and Nagarajah, A. (2020).

Procedure for the transfer of standards into

machine-actionability. Journal of Advanced Me-

chanical Design, Systems, and Manufacturing,

14(2):JAMDSM0022–JAMDSM0022.

Luong, M., Nguyen, T. D., and Kan, M. (2012).

Logical structure recovery in scholarly articles

with rich document features. In Multimedia

Storage and Retrieval Innovations for Digi-

tal Library Systems, pages 270–292. Software

available at https://github.com/knmnyn/ParsCit/

tree/master/bin/sectLabel.

Manoharan, T., e. a. (2019). Approach for a machine-

interpretable provision of standard contents using

welded constructions as an example. Proceedings of

the Design Society: International Conference on En-

gineering Design, 1(1):2477–2486.

Nitro Software, Inc. (2021). Nitro pro. Retrieved March 6,

2021 from https://www.gonitro.com/.

Oro, E. and Ruffolo, M. (2008). Xonto: An ontology-based

system for semantic information extraction from pdf

documents. In 2008 20th IEEE International Confer-

ence on Tools with Artiﬁcial Intelligence, pages 118–

125. IEEE.

Oro, E. and Ruffolo, M. (2009). Pdf-trex: An approach for

recognizing and extracting tables from pdf documents.

In 2009 10th International Conference on Document

Analysis and Recognition, pages 906–910. IEEE.

Perez-Arriaga, M. O., Estrada, T., and Abad-Mota, S.

(2016). Tao: System for table detection and extraction

from pdf documents. Proceedings of the Twenty-Ninth

International Florida Artiﬁcial Intelligence Research

Society Conference, pages 591–596.

Pitale, S. and Sharma, T. (2011). Information extrac-

tion tools for portable document format. Interna-

tional Journal of Computer Technology 2011, Vol

2(6):2047–2051.

Schmidberger, T. and Fay, A. (2007). A rule format for in-

dustrial plant information reasoning. In 2007 IEEE

Conference on Emerging Technologies & Factory Au-

tomation (EFTA 2007), pages 360–367. IEEE.

Sciweavers LLC (2021). i2ocr. Retrieved March 6, 2021

from https://www.i2ocr.com/.

Sumatra (2021). Sumatra pdf reader. Retrieved March

6, 2021 from https://www.sumatrapdfreader.org/free-

pdf-reader.

Suzuki, M., e. a. (2004). An integrated ocr soft-

ware for mathematical documents and its output

with accessibility. In Computers Helping Peo-

ple with Special Needs, volume 3118 of Lec-

ture notes in computer science, pages 648–655.

Springer, Berlin and Heidelberg. Software available at

http://www.inftyreader.org/.

Wei, X., Croft, B., and McCallum, A. (2006). Table ex-

traction for answer retrieval. Information Retrieval,

9(5):589–611.

Yildiz, B., Kaiser, K., and Miksch, S. (2005). pdf2table:

A method to extract table information from pdf

ﬁles. IICAI, pages 1773–1785. Software available at

http://ieg.ifs.tuwien.ac.at/projects/pdf2table.

Zhang, J. and El-Gohary, N. M. (2015). Automated infor-

mation transformation for automated regulatory com-

pliance checking in construction. Journal of Comput-

ing in Civil Engineering, 29(4).

Zhang, J. and El-Gohary, N. M. (2017). Semantic-based

logic representation and reasoning for automated reg-

ulatory compliance checking. Journal of Computing

in Civil Engineering, 31(1):04016037.

Towards Automation of Regulatory Compliance Checking in the Product Design Phase

143
