Managing the Process of Ensuring Information Security based on the
Law of «Preserving the Integrity of the Object»
Daria A. Ukraintseva
a
, Vyacheslav G. Burlov
b
and Vitaly V. Gryzunov
c
Russian State Hydrometeorological University (RSHU), 3 Metallists Av, St. Petersburg, Russia
Keywords: Information Security, Solution Model, Inverse Problem, Law of Integrity Preservation, Synthesis, Firewall.
Abstract: Information security management requires forming processes with predefined properties. However, analysis-
based models are usually used for management. This requires solving a direct management problem. And its
solution does not allow us to fully meet the formulated requirements. The article presents a management
concept based on synthesis, which already allows us to meet these requirements more fully. The new approach
is based on solving the inverse control problem. The solution of the inverse control problem allows you to
create conditions for the application of methods and models of program-target control. The result is the
creation of a mathematical model of managerial decisions. The concept of synthesis-based management is
presented.
1 INTRODUCTION
Not having the methodological foundations of
solving problems of Information security in the form
of the conditions of the existence of a process, we
cannot guarantee the achievement of the goal of the
activity. This situation gave rise to a fundamental
problem: "The results of the activity for solving
problems of Information security do not meet the
expectations of the decision-maker." The decision-
maker acts on the basis of three categories. This is
System. Model (Andreev et al., 2019). Purpose.
Therefore, it is necessary to solve two problems.
Problem 1. For the development of the system two
approaches are known. The development of the
system based on analysis. The development of the
system based on synthesis. To solve problem 1 offers
to use for the synthesis - the law of conservation of
the object’s integrity (hereinafter - LCIO), which
provides the achievement of the goal of Information
security. (LCIO is a stable, objective, repetitive
connection of an object's properties and the properties
of its actions for a fixed purpose.) Problem 2. The
decision-maker carries out Information security on
the basis of the model. To do this one must be able to
synthesize adequate models. Therefore the author
a
https://orcid.org/0000-0001-6769-5669
b
https://orcid.org/0000-0001-7603-9786
c
https://orcid.org/0000-0003-4866-217X
offers to use LCIO for evaluating the adequacy of the
model. The decision-maker carries out Information
security on the basis of the model. To do this one must
be able to synthesize adequate models. Therefore the
author offers to use LCIO for evaluating the adequacy
of the model. Achieving the goal of information
security is possible only on the basis of a properly
constructed system (PCS) and adequate model. The
criterion of PCS is the use of LCIO for its synthesis.
In the prior art publications, this approach to
information security is absent. Therefore all the
construction of PCS is realized on the basis of LCIO
which confirms the appropriateness of considering
LCIO as a condition for the existence of Information
security. To demonstrate the potential possibilities of
the suggested methodology of information security
there has been developed the analytic, dynamic
model. Model of information security is based on the
system integration of three processes. The formation
of the threat. The process of recognition of the threat.
The process of eliminating the threat. The level of
information security is estimated probability that each
threat is detected and eliminated. The simulation
results confirmed the main trends in the process of
information security.
116
Ukraintseva, D., Burlov, V. and Gr yzunov, V.
Managing the Process of Ensuring Information Security based on the Law of «Preserving the Integrity of the Object».
DOI: 10.5220/0010619500003170
In Proceedings of the International Scientific and Practical Conference on Computer and Information Security (INFSEC 2021), pages 116-121
ISBN: 978-989-758-531-9; ISSN: 2184-9862
Copyright
c
 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

Also, to ensure the achievement of the goal of
ensuring information security, a natural scientific
approach (hereinafter referred to as the NSA) should
be used (Burlov, 2018). The NSA is implemented
through three main principles:
 the principle of three-component cognition;
 the principle of the integrity of the world
(implemented through the LCIO);
 the principle of the cognizability of the world
(Burlov, 2018).
The principle of three-component cognition
consists in the fact that a person, consciously or not,
develops a solution in three levels of representation
of the situation.
2 BASIC INFORMATION
Based on this, in the case of normal operation of the
information security system, a person operates with
the categories «object», «action» and «purpose». It is
also important to note that these components are
interpreted in three levels of cognition – abstract,
abstract-concrete, and concrete. These statements
form the structure of the concept of «management
decision».

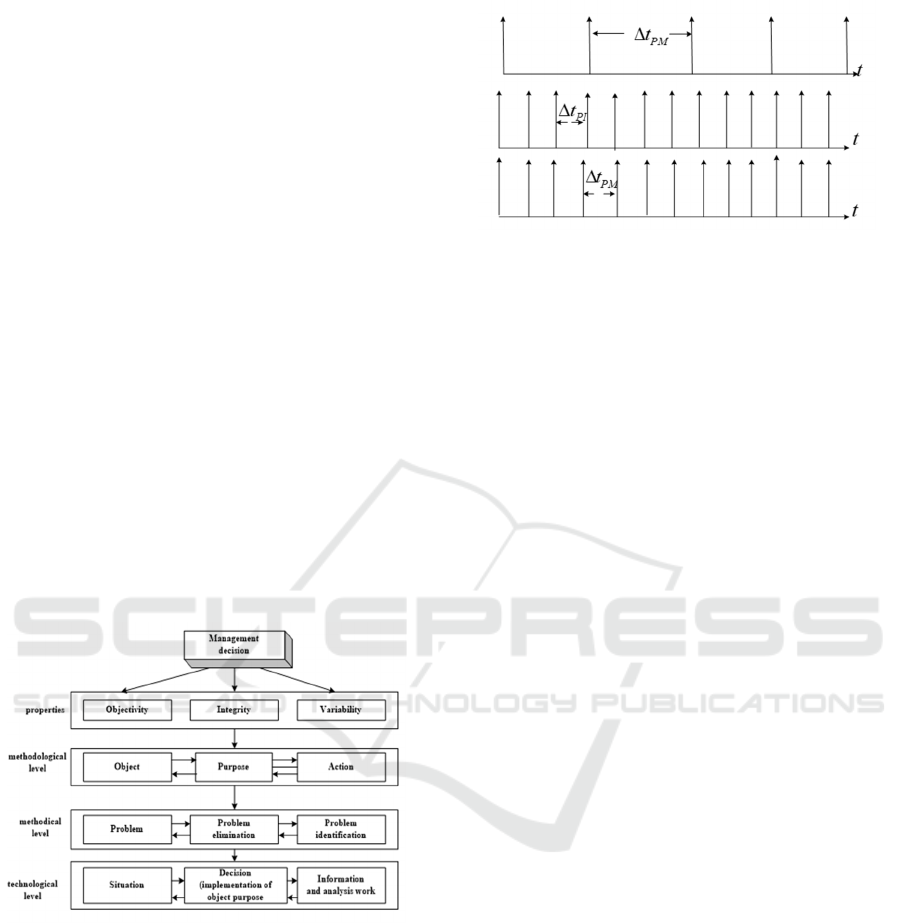

Figure 1: Block diagram of the deployment of the content
of the concept of " management decision».
There is a condition for the existence of an
information security management process. This
characteristic is the time required to predict the
characteristics of the system. A graphic illustration of
the process is shown in Figure 2.
Figure 2: Diagram of manifestation of the basic elements of
the decision model.
The diagram shows that a person learns the world
through three basic properties. This is objectivity,
integrity, and variability. The LPR works with the
"process" category. Therefore, the decision is
presented at the methodological level as a process in
the form of interrelated components "object",
"action", "purpose". At the methodological level,"
object "corresponds to "problem". "Action"
corresponds to "identification of the problem",
because "identification" is based on the identification
of the fact of the manifestation of energy. "Purpose"
corresponds to "neutralizing the problem". Since
neutralization is possible only if the results of the
"identification" match the essence of the "problem".
This confirms the fact of identifying cause-and-effect
relationships. At the technological level, the
"solution" as a" process " is represented as a
connection of three components. This is the
"situation", "information and analytical work",
"solution" (a condition for the implementation of the
control object) (Burlov and Popov, 2017).
Having presented the " solution "in the form of a
connection of the three components considered, we
proceed to the development of a structural scheme for
the deployment of the content of the synthesis process
of the mathematical model of the «solution».
Figure 3 shows a block diagram of the deployment
of the content of the synthesis process of an adequate
mathematical model of the "Solution". To synthesize
the model, we apply the methods of decomposition,
abstraction, and aggregation. Using the
decomposition method, we present the solution in the
form of three interrelated components. This is the
setting. Information and analytical work. Decision.
The basis of such a relationship is the LCIO (Burlov
et al., 2018). Using the abstraction method, we form
three elements corresponding to the elements
obtained from the decomposition.
In this paper, in order to use the method of
decomposition, abstraction and aggregation, it is
necessary to transform the concept of "management
Managing the Process of Ensuring Information Security based on the Law of «Preserving the Integrity of the Object»
117

decision" into an aggregate-a mathematical model of
a management decision of the following type:
Figure 3: Block diagram of content of synthesis of the
mathematical decision model.
𝑃=𝐹(∆𝑡

,∆𝑡

,∆𝑡

) (1)
The above mathematical model is a condition for
the existence of the information security management
process.
3 RESULTS AND DISCUSSION
When implementing this approach, a system of
Kolmogorov – Champen differential equations
should be developed (Burlov, Grobitski,
and Grobitskaya, 2016). In this regard, we will make
a characteristic of the system transitions in Figure 4.
Figure 4: Graph of states, the process of forming a
management decision.
In the process of performing the activity, it
performs a certain order of actions, which can be
carried out with sufficient information support, as
well as with certain capabilities. Based on this, the
security system is in four basic states:
 state «A
00
»;
 state «A
01
»;
 state «A
10
»;
 state «A
11
».
The «A
00
» state is an initial situation that does not
require any further actions. During the activity, it
switches to the «A
01
» state during the ∆𝑡

. State
«A
01
» - the situation in which the system is located
after identifying and neutralizing the problem, ∆𝑡

the average time of implementation of the destination.
As a result of the destructive impact of the
environment, there are two types of threats:
 regular ones, in which already worked-out
scenarios are executed;
 non-standard ones that cause problems.
It is in an emergency situation that the system will
be in the «A
10
» state.
State «A
10
» - a situation in which threats appear in
the control system. State «A
11
» - a situation in which
a threat is identified that needs to be resolved by the
security management. After that, the system goes to
the «A
01
» state, if it successfully solves the problems
with an acceptable amount of time, or a failure occurs,
and it returns to the «A
00
» state.
In the «A
01
» state, two situations can occur:
 the system has spent too much time, which is
equivalent to the failure of the target task of the
management process;
 the system has spent the allowed amount of
time.

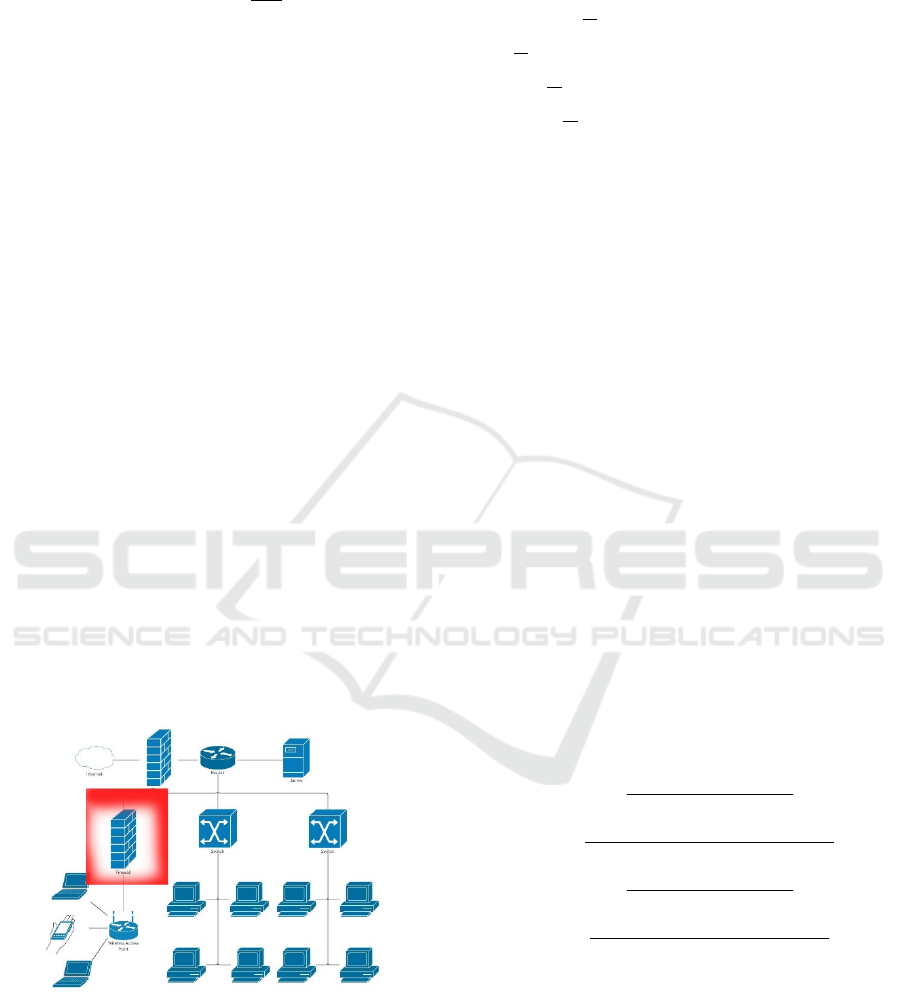

I will consider the process of changing states
using the example of an information security tool – a
firewall. Firewalls is a type of network device in
hardware and software implementation, used to
control access between trusted networks and
untrusted networks based on pre - configured rules.
Most firewalls are located on the edge of the network
perimeter, and they are primarily designed to protect
internal hosts from external attacks. Thus, to describe
the process of changing states on the graph, it is
necessary to make the following assumptions and
assumptions.
During the transition from one state to another, the
average time and frequency are determined:
∆t
PM
the average time of the problem, and λ is the
frequency of the problem:
λ=

∆

(2)
∆t
PI
– average time to identify the problem, ν1 is
the frequency of identification of the problem:
ν

=

∆

(3)
∆t
PE
– average time of neutralizing the problem,
ν2 frequency of neutralizing the problem:
ν

=

∆

(4)
PE
tΔ
PI
tΔ
PM
tΔ
PM
tΔ
PE
tΔ
PI
tΔ
INFSEC 2021 - International Scientific and Practical Conference on Computer and Information Security
118

ζ
+
– frequency realization of the destination
system:
ζ

=

∆

(5)
ζ
-
- frequency breakdown of the system
«firewall».
1. The scheme of forming a human decision in the
form of an information and control system is
considered. In this regard, a security process is being
created.
2. The time intervals between the detection of
attacks that cause problems are random variables.
3. The detected attacks in time form a flow that is
close to the Poisson flow.
4. The processing time of the required data stream
is random.
5. Data on signs of unauthorized access will be
further distributed among the allocated resources that
correspond to the goals of ensuring information
security.
6. The case is considered when the time of stay of
the required facts in the area of operation of the
information system is very limited and is proportional
to the time required for their identification, as well as
for data processing and corresponding actions based
on these facts.
7. The information system is ready to solve
problems of recognition and neutralization of
problems.
8. The system under development (human
solution - firewall) is designed to assess the potential
capabilities of the information security system,
depending on the situation.
Figure 5: Firewall operation diagram.
A model establishing a correlation between these
four processes and the facility performance indicator
can be developed now. In this case, the facility
performance indicator is equivalent to the probability
of identification and neutralization of each security
threat.
The Kolmogorov equations can be used:
⎩
⎪
⎪
⎨
⎪
⎪
⎧


𝑃

(𝑡)=−𝑃

(𝑡)𝜆 + 𝑃

(𝑡)𝜈



𝑃

(𝑡)=−𝑃

(𝑡)(𝜆 +𝜈

)+𝑃

(𝑡)𝜈

+𝑃

(𝑡)𝜈



𝑃

(𝑡)=𝑃

(𝑡)𝜆 − 𝑃

(𝑡)𝜈

+𝑃

(𝑡)𝜈



𝑃

(𝑡)=𝑃

(𝑡)𝜆 − 𝑃

(𝑡)(𝜈

+𝜈

)
Nonzero probabilities of occurrence can be
calculated by solving a system of linear algebraic
equations derived from the Kolmogorov equations, if
the derivatives are equal to zero, and the probability
functions of states 𝑃

(
𝑡
)
, ..., 𝑃

(
𝑡
)
in the right part of
the equations pass into the unknown finite
probabilities P
1
, ..., P
n.
. To find the value of P
1
, ..., P
n
,
a normalizing condition is added to the
equations 𝑃

+𝑃

+⋯+𝑃

=1 .This system will be
solved for the given initial conditions.
Let us assume that the process is stationary, in
which case the initial system of differential equation
is transformed into a system of linear homogeneous
algebraic equations of the following form:
⎩
⎪
⎨
⎪
⎧
−𝑃

(𝑡)𝜆+ 𝑃

(𝑡)𝜈

=0
−𝑃

(𝑡)(𝜆+ 𝜈

)+𝑃

(𝑡)𝜈

+𝑃

(𝑡)𝜈

=0
𝑃

(𝑡)𝜆− 𝑃

(𝑡)𝜈

+𝑃

(𝑡)𝜈

=0
𝑃

(𝑡)𝜆 − 𝑃

(𝑡)(𝜈

+𝜈

)=0
𝑃

(
𝑡
)
+𝑃

(
𝑡
)
+𝑃

(
𝑡
)
+𝑃

(𝑡)=1
The above system is a system of linear algebraic
equations with respect to the four unknowns P
00
, P
10
,
P
01
, P
11
, which are related by the following relation.
The probabilities we are looking for do not depend in
time (Anokhin, 1979). The solution of this linear
algebraic system of equations is the following
relations:
𝑃

=
𝜈

𝜈

𝜆(𝜆 +𝜈

+𝜈

)+𝜈

𝜈

𝑃

=
𝜆𝜈

(𝜆 + 𝜈

+𝜈

)
(𝜈

+𝜈

)

𝜆(𝜆+ 𝜈

+𝜈

)+𝜈

𝜈


𝑃

=
𝜆𝜈

𝜆(𝜆 +𝜈

+𝜈

)+𝜈

𝜈

𝑃

=
𝜆𝜈

(𝜈

+𝜈

)

(𝜆 +𝜈

+𝜈

)+𝜈

𝜈


The most significant for the process of ensuring
information security is. It relates three parameters (λ,
υ1, υ2) and determines the probability of neutralizing
and identifying the problem. It is also a system-
forming factor in the creation of an information
security management system.
The synthesis-based approach allows us to solve
inverse problems. To achieve the required indicator
of the effectiveness of the security system, measures
Managing the Process of Ensuring Information Security based on the Law of «Preserving the Integrity of the Object»
119

should be developed to establish the necessary values
for the indicators of the appearance, identification,
neutralization of the problem and the qualification of
the manager.
4 CONCLUSIONS
The resulting management decision model allows us
to quantify the performance of the firewall and
information security in general. As a result, it is
necessary to control the control by setting the level of
the safety indicator and the frequency of failures, in
order to obtain the necessary values for the time of
identification and neutralization of the problem.
Based on the data obtained, the information security
plan can be adjusted in the future.
Without a doubt, a firewall is one of the main
security tools, but its presence alone cannot guarantee
complete security. Firewall settings should be tailored
to your needs, taking into account your threats, risks,
and IT infrastructure. You should also constantly
check the operation of the firewall and document all
actions so that the firewall protects you as effectively
as possible.
The developed model is based on the NSA and
LCIO, therefore, meet the requirement of adequacy
(Burlov, 2017.). On its basis, it is possible to develop
a technology for ensuring information security.
The information security model is based on the
system integration of three processes. Threat
formation. The process of recognizing the threat. The
process of eliminating the threat. The level of
information security is assessed by the probability
that each threat will be detected and eliminated. The
results of the simulation confirmed the main trends in
the process of ensuring information security. The new
concept of ensuring information security, in contrast
to the known ones, allows you to create conditions for
ensuring information security according to the
developed model. The use of LCIO allows the
decision-maker to form processes with predefined
properties. This reduces the level of risk when
achieving the goal of ensuring information security.
The proposed mathematical apparatus allows you
to build a mathematical model of a management
decision and on the basis of this link the three most
important processes in the organization of security.
Due to this mathematical model, security is ensured.
The use of a synthesis-based modelling approach
makes it possible to build such a system as a system
for managing the process of ensuring the safety of
work in the face of threats of emergency situations
based on the required level of the efficiency indicator.
Accordingly, a system built on such principles will be
devoid of the main drawback – the discrepancy
between the management results and expectations.
This approach allows you to evaluate any decision
made from the perspective of time and resource costs,
as well as to establish a clear, scientifically based
relationship between the decision made and the
results of the action.
ACKNOWLEDGEMENTS
The reported study was funded by Russian Ministry
of Science (information security), project № 08/2020.
REFERENCES
Abramov, V.M., Burlov, V.G. and Tatarnikova, T.M.
(2021). Digital Technologies Development for Geo-
Information Support of Techno-Sphere Security in
Arctic and Subarctic. IOP Conference Series: Earth
and Environmental Science, 666(5): 052076
Andreev, A.V., Burlov, V.G. and Grachev, M.I. (2019).
Information technologies and synthesis of the
management process model in the enterprise. 2019
International Science and Technology Conference
"EastConf", 8725428
Anokhin, P. K. (1979). System mechanisms of higher
nervous activity, M.: Science, p. 453.
Burlov V.G. and Popov N.N. (2017). Management of the
application of the space geoinformation system in the
interests of ensuring the environmental safety of the
region. Advances in the Astronautical Sciences, pages
751-760.
Burlov V.G., Abramov V.M., Istomin E.P., Fokicheva A.A.
and Sokolov A.G. (2018). The methodological basis for
the strategic management of territory development.
18th International Multidisciplinary Scientific
GeoConferences SGEM 2018. Conference
proceedings, pages 483-490.
Burlov, V. G. (2017). The law of preserving the integrity of
the object - the method of the basis for solving the
problems of information warfare and ensuring security.
Neurocomputers and their applications, pages 261-
263.
Burlov, V. G., Andreev, A. V. and Gomazov, F. A. (2018).
Safety management of a technosphere object based on
the law of preserving the integrity of the object. Federal
State Budgetary Educational Institution of Higher
Education "St. Petersburg State University of
Economics (SPbSEU)", pages 56-60.
Burlov, V. G., Andreev, A. V. and Gomazov, F. A. (2018).
Safety management of a technosphere object based on
the law of preserving the integrity of the object. Federal
State Budgetary Educational Institution of Higher
INFSEC 2021 - International Scientific and Practical Conference on Computer and Information Security
120

Education "St. Petersburg State University of
Economics (SPbSEU)", pages 56-60.
Burlov, V., Andreev, A. and Gomazov, F. (2018).
Development of a model for the management of
environmental safety of the region, taking into account
of the GIS capacity. MATEC Web of Conferences, 193,
02038
Burlov, V., Andreev, A., Gomazov, F., Somga-Bichoga, N.
(2018). System integration of security maintenance
processes in knowledge management. Proceedings of
the European Conference on Knowledge Management,
1, pages 112–122.
Burlov, V., Lepeshkin, O. and Lepeshkin, M. (2020). IOP
Conference Series: Materials Science and Engineering,
918(1): 012224.
Burlov, V.G. and Gryzunov, V.V. (2020). Evaluation of the
effectiveness of geographic information systems
adaptation to destabilizing factors. Journal of Physics:
Conference Series, 1703(1): 012016.
Burlov, V.G., Andreev, A.V. and Gomazov, F.A. (2018).
Mathematical model of human decision - a
methodological basis for the realization of the human
factor in safety management. Procedia Computer
Science, 145: 112-117.
Burlov, V.G., Grobitski, A.M. and Grobitskaya, A.M.
(2016). Construction management in terms of indicator
of the successfully fulfilled production task. Magazine
of Civil Engineering, 63(3): 77–91.
Goode, H.H. and Machol, R.E. (1957). System
Engineering: An Introduction to the Design of Large-
Scale Systems New York: McGraw-Hill Book Co p.
551.
Mitrofanova, E.A., Simonova, M.V. and Tarasenko, V.V.
(2020). Potential of the education system in russia in
training staff for the digital economy. Advances in
Intelligent Systems and Computing, 908: 463-472.
Perova, M.V. (1999). Quality of rural electricity supply: an
integrated approach, Vologda: Vologodskij GTU p. 72.
Polyukhovich, M., Burlov, V., Mankov, V. and Bekbayev,
A. (2019). Electric power supply management of the
construction site in the interests of facilitating electrical
safety. In: 2019 International Scientific Conference on
Energy, Environmental and Construction Engineering,
Congress Center of Peter the Great St. Petersburg
Polytechnic University, Saint-Petersburg, Russia.
Sokolov, S. S., Alimov, O. M., Golubeva, M. G., Burlov,
V. G. and Vikhrov, N. M. (2018). The automating
process of information security management. 2018
IEEE Conference of Russian Young Researchers in
Electrical and Electronic Engineering (EIConRus),
pages 124-127.
Yakovlev, V.B. and Rastorguev, M.V. (2007). Analysis of
efficiency of functioning of rural distributive electric
networks. Vestnik RGAZU, 3: 122-124.
Managing the Process of Ensuring Information Security based on the Law of «Preserving the Integrity of the Object»
121
